Optional Accessories
LCD-1211VB
LED backlight provides longer life, uses less power and provides better color saturation
Ultra-bright technology provides sunlight readability
Mercury and lead free green design
High shock and vibration resistance
On-screen display for: brightness, contrast, back light, hue
Composite, S-Video, PC capability
Low power consumption
Case made of durable steel
Active matrix technology allows wide viewing angle
Front controls for power, menu, up/down
Built-in interface for wall or arm mounting VESA 75mm FPMPI compliant
Response Time: 23ms

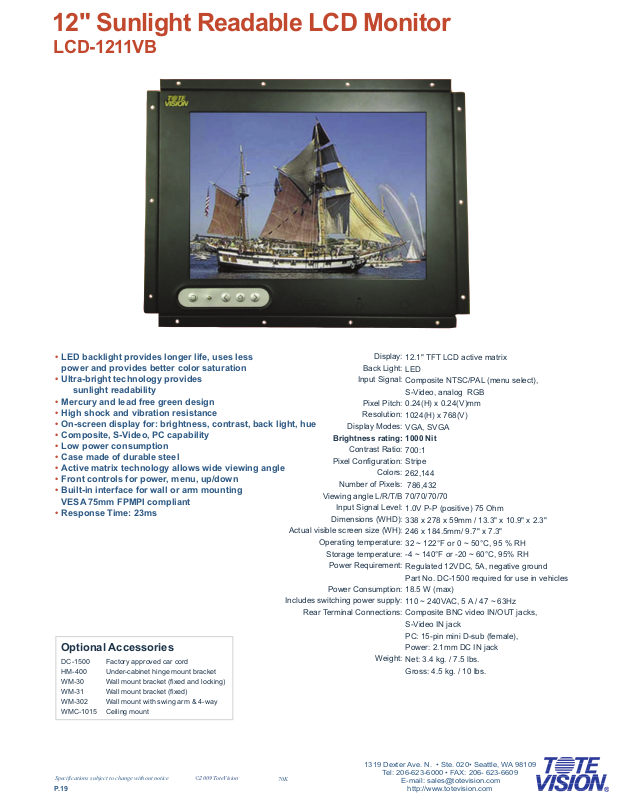

12" Sunlight Readable LCD Monitor

DC-1500

Factory approved car cord

HM-400

Under-cabinet hinge mount bracket

WM-30

Wall mount bracket (fixed and locking)

WM-31

Wall mount bracket (fixed)

WM-302

Wall mount with swing arm & 4-way

WMC-1015

Ceiling mount





Specifications subject to change without notice

©2009 ToteVision

P.19

Display: 12.1" TFT LCD active matrix Back Light: LED

Input Signal: Composite NTSC/PAL (menu select), S-Video, analog RGB

Pixel Pitch: 0.24(H) x 0.24(V)mm Resolution: 1024(H) x 768(V)

Display Modes: VGA, SVGA

Brightness rating: 1000 Nit

Contrast Ratio: 700:1 Pixel Configuration: Stripe

Colors: 262,144 Number of Pixels: 786,432

Viewing angle L/R/T/B 70/70/70/70

Input Signal Level: 1.0V P-P (positive) 75 Ohm Dimensions (WHD): 338 x 278 x 59mm / 13.3" x 10.9" x 2.3"

Actual visible screen size (WH): 246 x 184.5mm/ 9.7" x 7.3" Operating temperature: 32 ~ 122°F or 0 ~ 50°C, 95 % RH

Storage temperature: -4 ~ 140°F or -20 ~ 60°C, 95% RH Power Requirement: Regulated 12VDC, 5A, negative ground

Part No. DC-1500 required for use in vehicles Power Consumption: 18.5 W (max)

Includes switching power supply: 110 ~ 240VAC, 5 A / 47 ~ 63Hz Rear Terminal Connections: Composite BNC video IN/OUT jacks,

S-Video IN jack

PC: 15-pin mini D-sub (female),

Power: 2.1mm DC IN jack

Weight: Net: 3.4 kg. / 7.5 lbs.

Gross: 4.5 kg. / 10 lbs.

1319 Dexter Ave. N. • Ste. 020• Seattle, WA 98109

Tel: 206-623-6000 • FAX: 206- 623-6609 70K E-mail: sales@totevision.com

http://www.totevision.com
