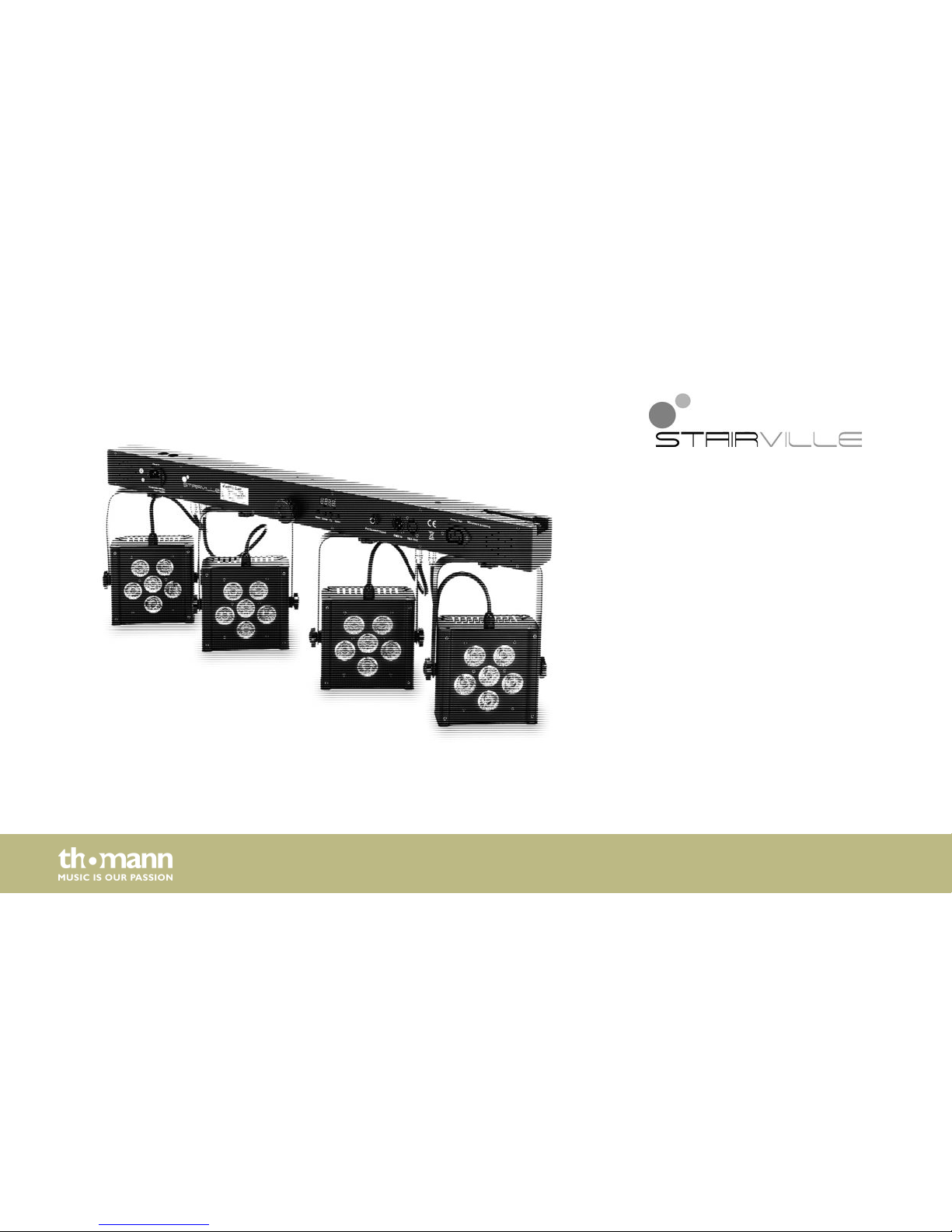

thomann CLB8 User Manual

Compact LED-Bar

CLB8

LED lighting set

user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [e-mail]
Internet: www.thomann.de

12.08.2016, ID: 333919

Table of contents

1 General notes............................................................................................................................................... 5

1.1 Further information........................................................................................................................... 6

1.2 Notational conventions.................................................................................................................... 7

1.3 Symbols and signal words............................................................................................................... 7

2 Safety instructions..................................................................................................................................... 9

3 Features....................................................................................................................................................... 15

4 Installation.................................................................................................................................................. 16

5 Setup.............................................................................................................................................................. 22

6 Connections and controls................................................................................................................... 25

7 Operating.................................................................................................................................................... 32

7.1 Starting the device........................................................................................................................... 32

7.2 Device functions............................................................................................................................... 32

7.3 Foot switch......................................................................................................................................... 33

7.4 IR remote control............................................................................................................................. 34

7.5 Operating on the unit..................................................................................................................... 36

Table of contents

Compact LED-Bar CLB8

3

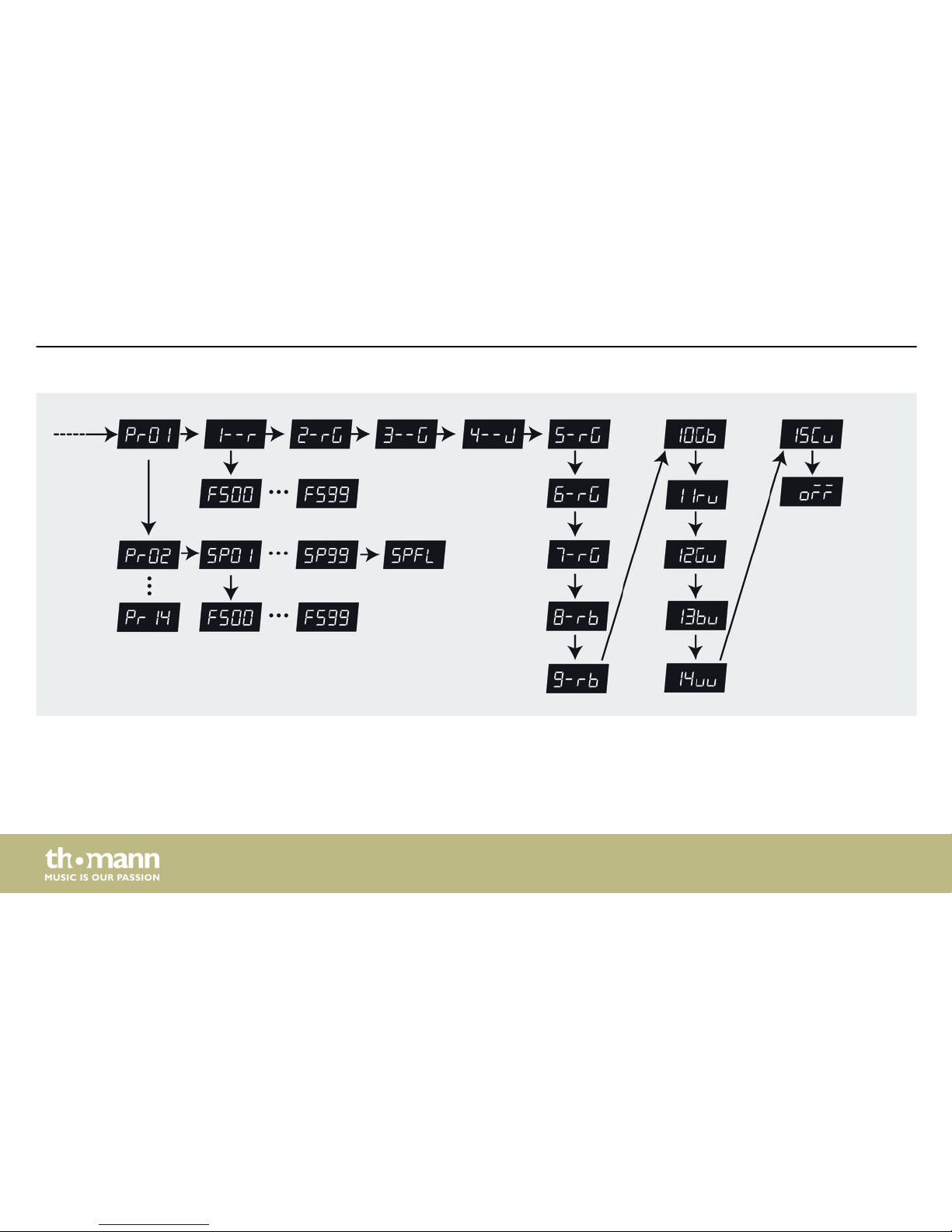

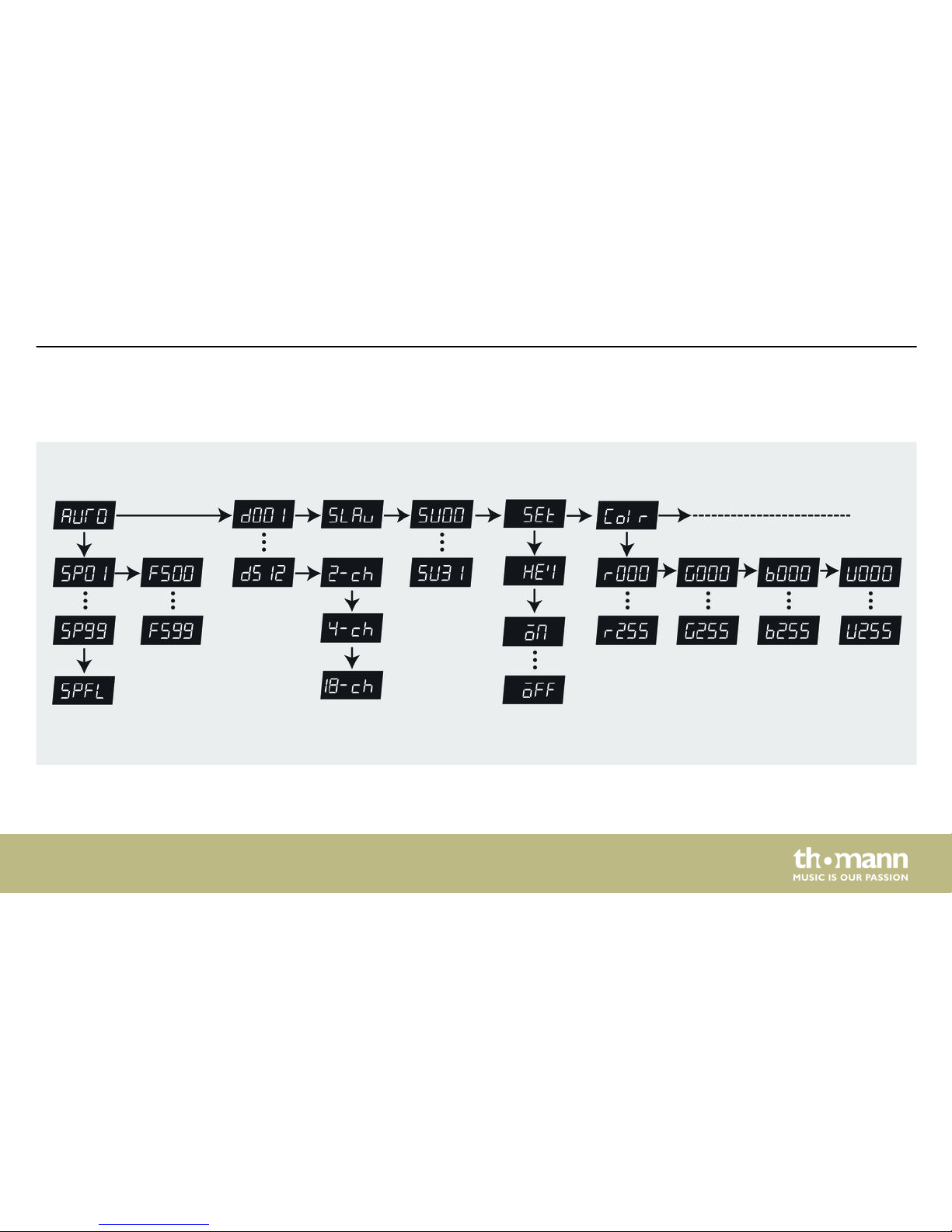

7.6 Menu overview................................................................................................................................. 43

7.7 Functions in 2-channel DMX mode........................................................................................... 45

7.8 Functions in 4-channel DMX mode........................................................................................... 47

7.9 Functions in 18-channel DMX mode........................................................................................ 47

8 Technical specifications....................................................................................................................... 50

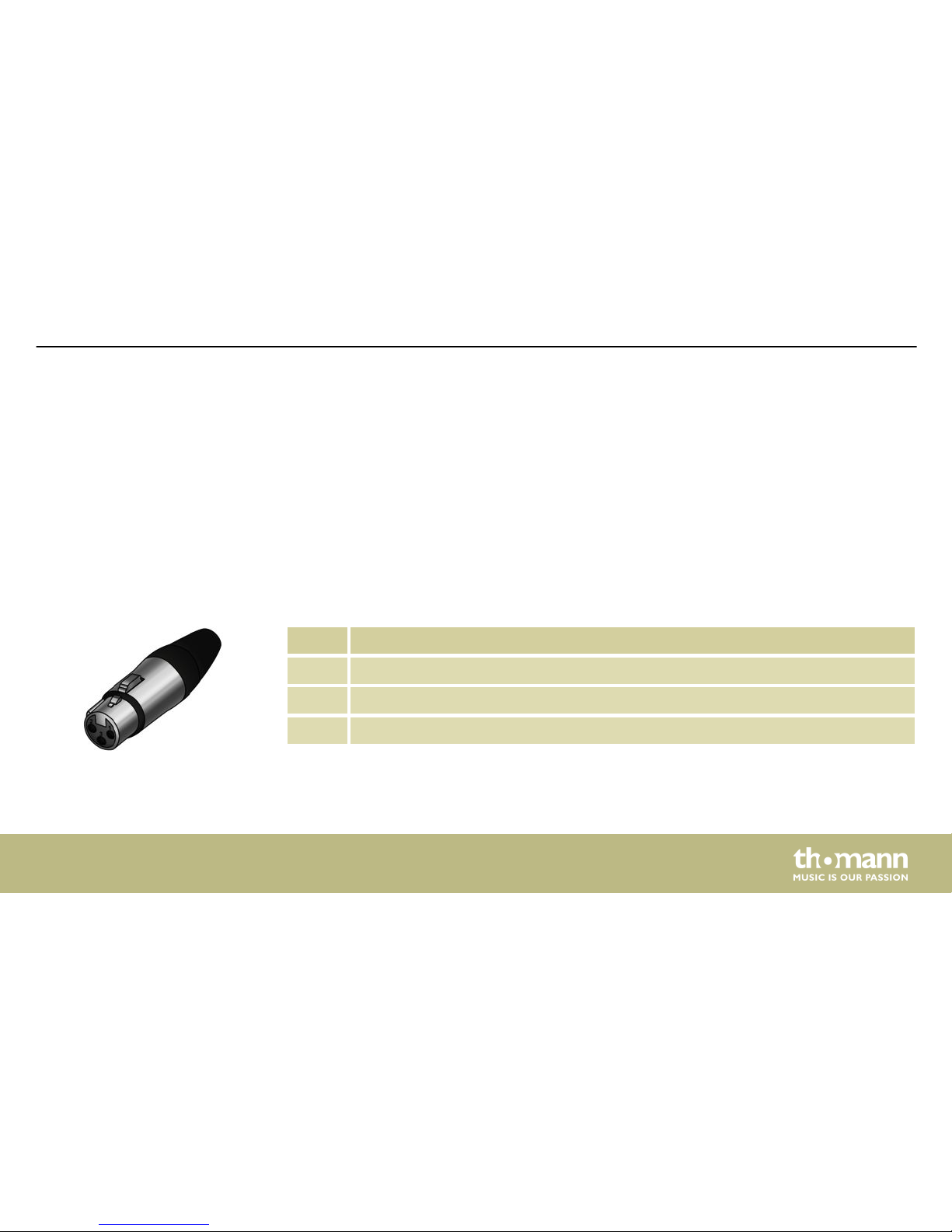

9 Plug and connection assignments.................................................................................................. 51

10 Troubleshooting...................................................................................................................................... 52

11 Cleaning....................................................................................................................................................... 54

12 Protecting the environment.............................................................................................................. 55

Table of contents

LED lighting set

4

1 General notes

This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.

Our products are subject to a process of continuous development. Thus, they are subject to
change.

General notes

Compact LED-Bar CLB8

5

1.1 Further information

On our website (www.thomann.de) you will find lots of further information and details on the
following points:

Download This manual is also available as PDF file for you to download.

Keyword search

Use the search function in the electronic version to find the topics of
interest for you quickly.

Online guides

Our online guides provide detailed information on technical basics
and terms.

Personal consultation For personal consultation please contact our technical hotline.

Service

If you have any problems with the device the customer service will
gladly assist you.

General notes

LED lighting set

6

1.2 Notational conventions

This manual uses the following notational conventions:

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.

Texts and values displayed on the device are marked by quotation marks and italics.

Examples: ‘24ch’ , ‘OFF’.

1.3 Symbols and signal words

In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.

Letterings

Displays

General notes

Compact LED-Bar CLB8

7

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an

immediate dangerous situation that will result in death or
serious injury if it is not avoided.

WARNING! This combination of symbol and signal word indicates a pos‐

sible dangerous situation that can result in death or serious
injury if it is not avoided.

NOTICE! This combination of symbol and signal word indicates a pos‐

sible dangerous situation that can result in material and
environmental damage if it is not avoided.

Warning signs Type of danger

Warning – high-voltage.

Warning – danger zone.

General notes

LED lighting set

8

2 Safety instructions

This device is intended to be used as an electronic illumination effect using LED technics. The
device is designed for professional use and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.

This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.

Intended use

Safety instructions

Compact LED-Bar CLB8

9

DANGER!
Danger for children

Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!

Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!

Never let children unattended use electrical devices.

DANGER!
Electric shock caused by high voltages inside

Within the device there are areas where high voltages may be present. Never
remove any covers.

There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or

damaged.

Safety

Safety instructions

LED lighting set

10

DANGER!
Electric shock caused by short-circuit

Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis‐
tered electrician.

WARNING!
Eye damage caused by high light intensity

Never look directly into the light source.

WARNING!
Risk of epileptic shock

Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons
should avoid looking at strobe lights.

Safety instructions

Compact LED-Bar CLB8

11

NOTICE!
Risk of fire

Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.

NOTICE!
Operating conditions

This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.

Safety instructions

LED lighting set

12

NOTICE!
Power supply

Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.

Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.

NOTICE!
Risk of fire due to incorrect polarity

Incorrectly inserted batteries may destroy the device or the batteries.
Ensure that proper polarity is observed when inserting batteries.

Safety instructions

Compact LED-Bar CLB8

13

NOTICE!
Possible damage by leaking batteries

Leaking batteries can cause permanent damage to the device.
Take batteries out of the device if it is not going to be used for a longer period.

Safety instructions

LED lighting set

14

3 Features

The LED lighting set is particularly suitable for lighting applications in clubs and discotheques,
on rock stages, in theatres and musicals.

Special features of the device:

n four flat PARs with each six 4-in-1 LEDs (RGBW, 8 Watt)
n Control options:

– DMX-512
– Buttons and display on the unit
– IR remote (optionally available)
– wireless foot switch (optionally available)
– tethered foot switch (optionally available)

n 13 preprogrammed automatic shows
n Sound control
n Master / Slave mode
n easy transport, easy mounting
n Gig bag included

Features

Compact LED-Bar CLB8

15

4 Installation

Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.

NOTICE!
Risk of overheating

Always ensure sufficient ventilation.
The ambient temperature must always be below 40 °C (104 °F).

Installation

LED lighting set

16

NOTICE!
Use of stands

When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.

NOTICE!
Possible data transmission errors

For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.

Never connect the DMX input or output to audio devices such as mixers or ampli‐
fiers.

Installation

Compact LED-Bar CLB8

17

Please note that this device must not be connected to a dimmer.

Installation

LED lighting set

18

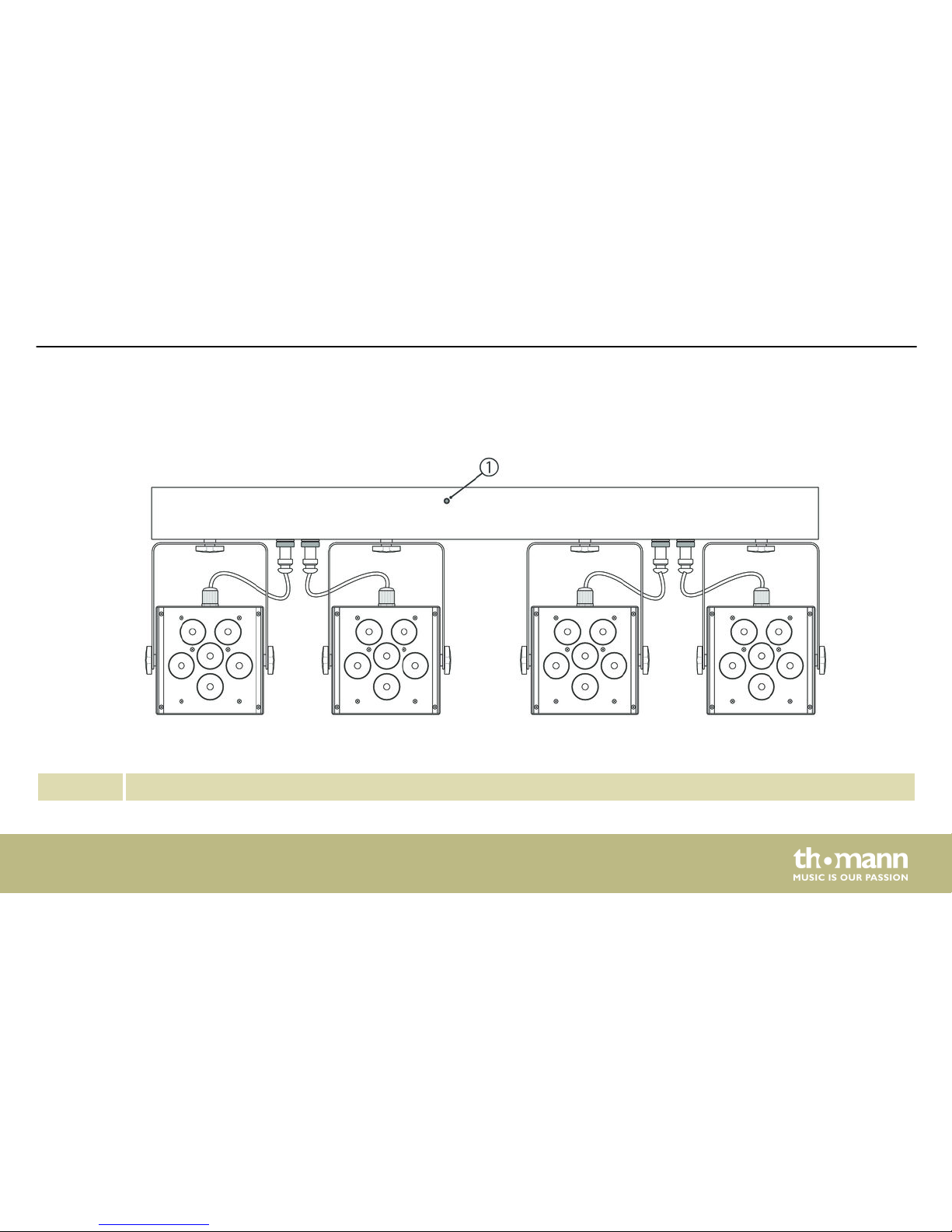

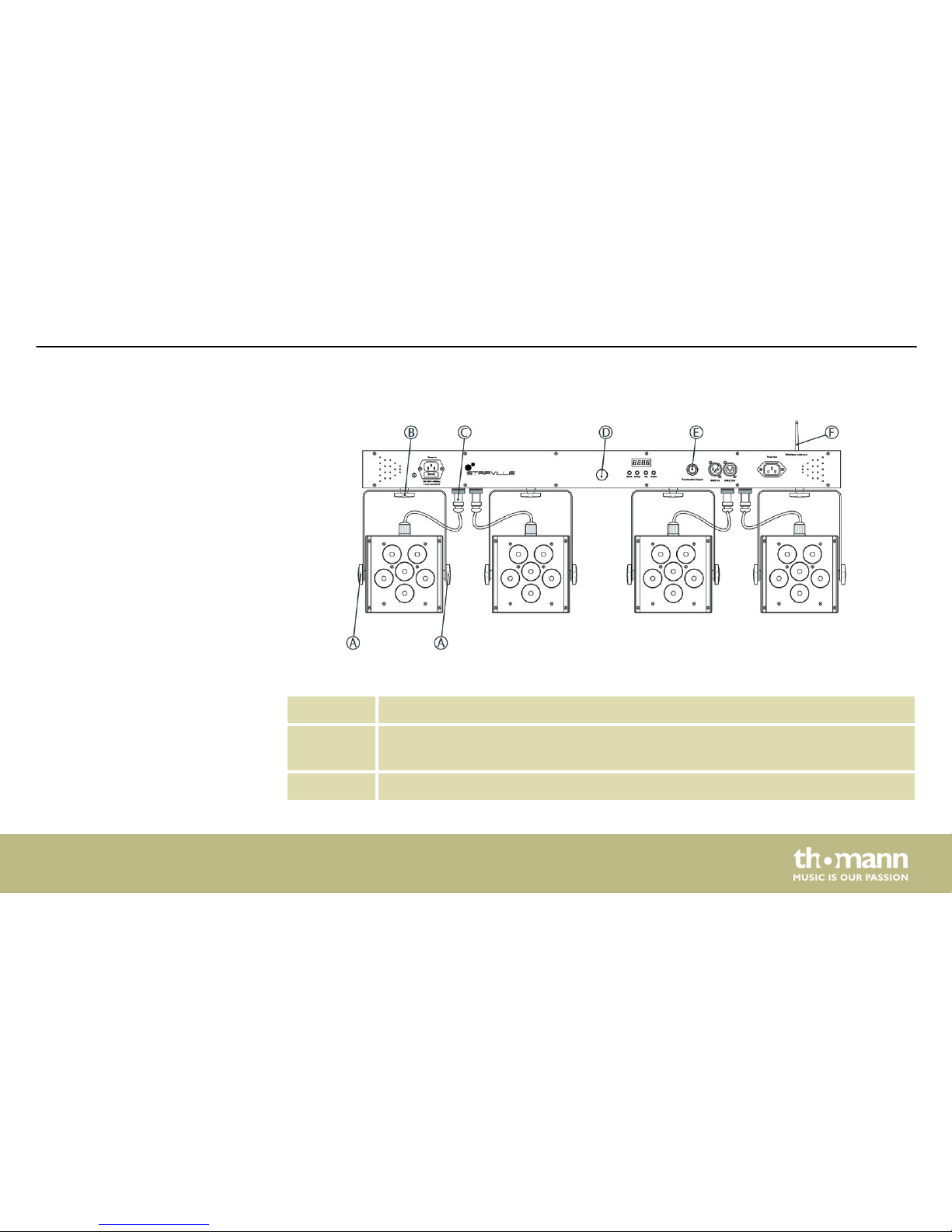

The four spots are pre-assembled on the T-bar.

A Locking screw for fixing the inclination angle.
B Locking screw for fixing the spots on the T-bar and the horizontal orientation

(dispersion direction).

C Electrical connection of the spot at the T-bar (pre-mounted).

Pre-mounted spots

Installation

Compact LED-Bar CLB8

19

D Flange 36 mm to attach the T-bar on a tripod.
E 1/4" phone socket to connect a foot controller.
F Receiving antenna for the signals of a wireless foot switch

Installation

LED lighting set

20

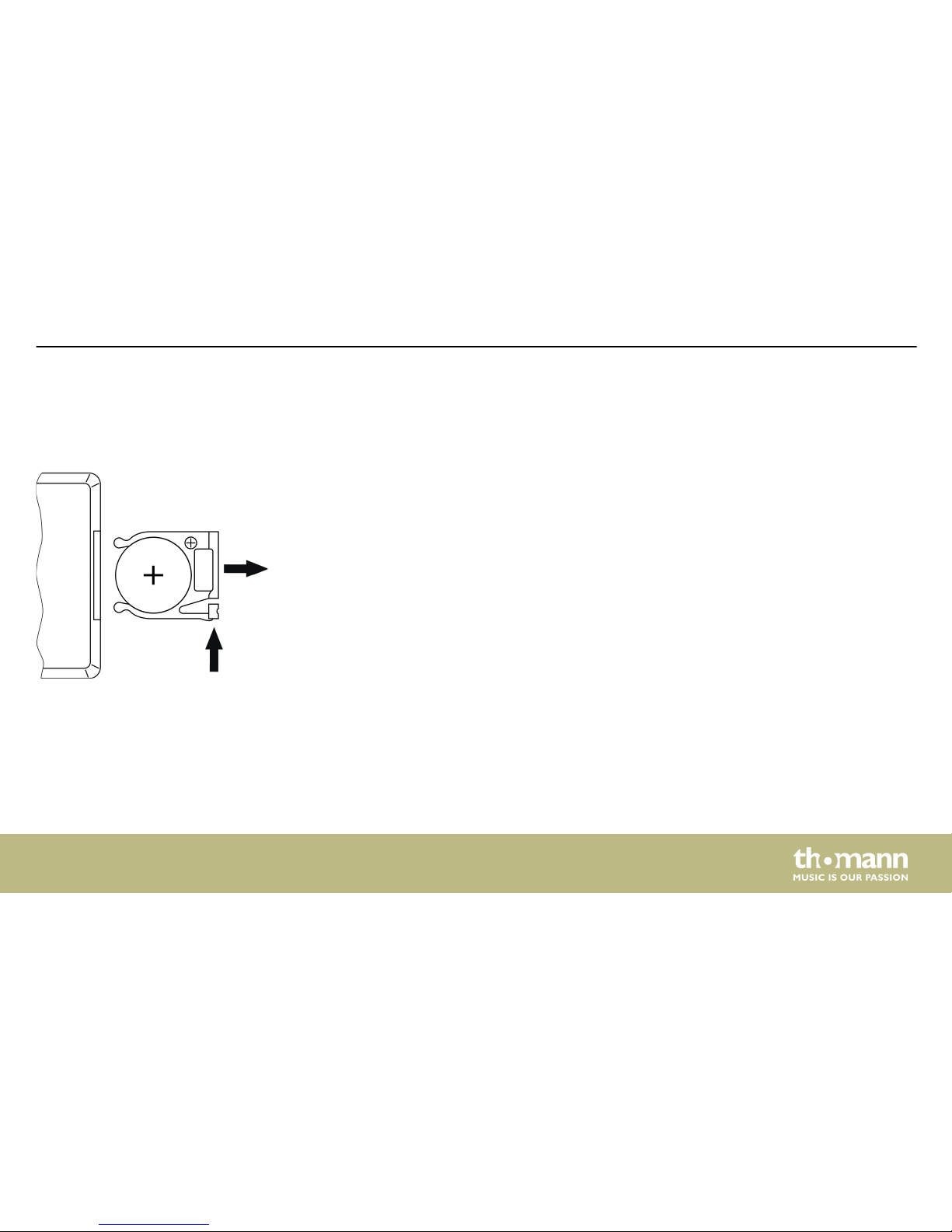

Press the lock of the battery holder to the centre of the housing and pull out the battery holder
like a drawer. Insert the battery. The battery is correct if the positive pole points to the housing
base of the remote control. Slide the battery holder back into the remote until it clicks into
place.

When shipping, the battery is already installed in the remote and protected against discharge
by a transparent plastic foil. Remove the plastic foil prior to first use.

Inserting the battery into the
remote control

Installation

Compact LED-Bar CLB8

21

5 Setup

Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.

Setup

LED lighting set

22

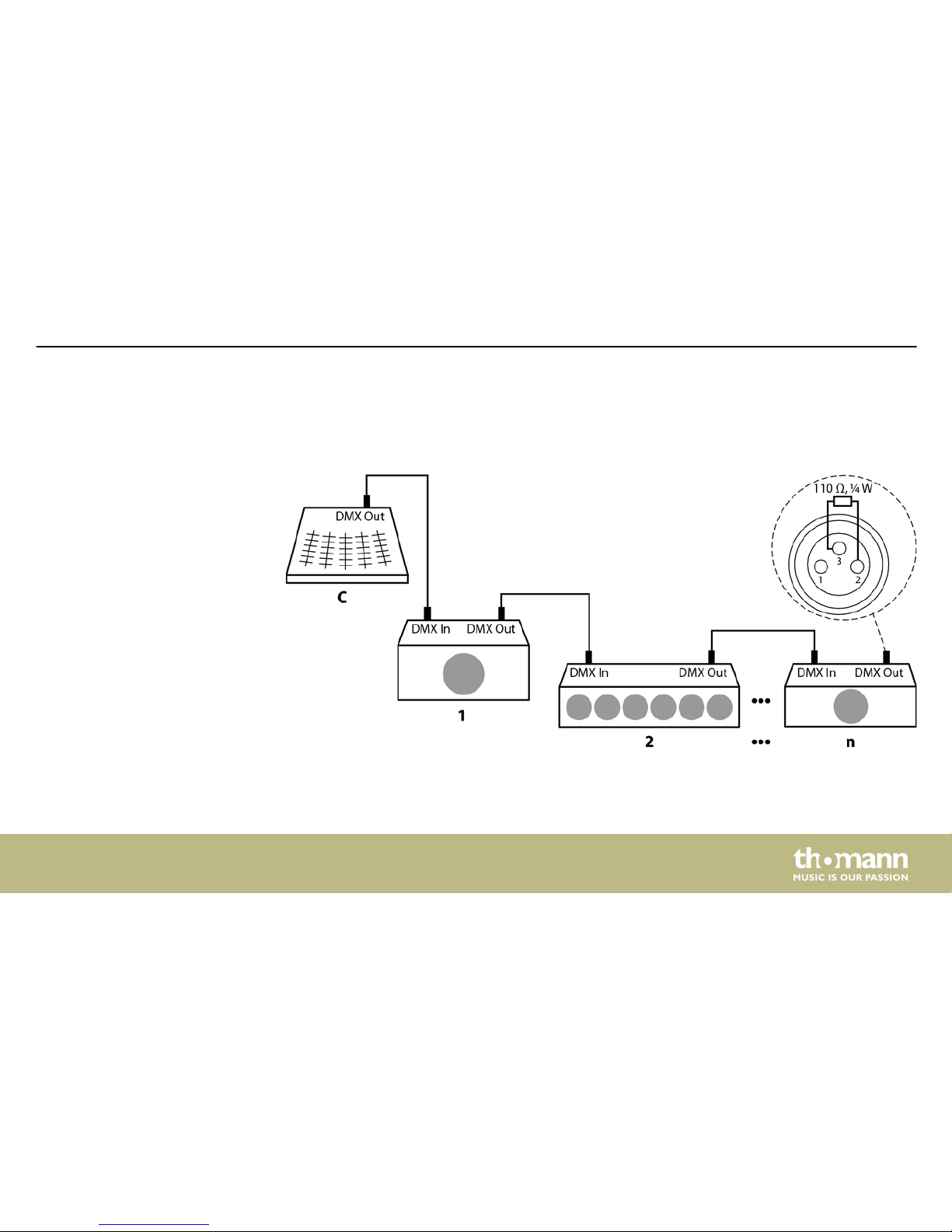

Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the first DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼ W).

Connections in DMX mode

Setup

Compact LED-Bar CLB8

23

If the dot behind the first character of the display is flashing in the DMX mode, no DMX signal
is received. Maybe the DMX controller is not switched on or there is a cabling error. If the indi‐
cator lights permanently, the device receives a valid DMX signal.

When you configure a group of devices in master/slave mode, the first unit will control the
other units for an automatic, sound-activated, synchronized show. This function is ideal when
you want to start a show immediately. Connect the DMX output of the master device to the
DMX input of the first slave device. Then connect the DMX output of the first slave device to
the DMX input of the second slave device and so on.

DMX indicator

Connections in master/slave
mode

Setup

LED lighting set

24

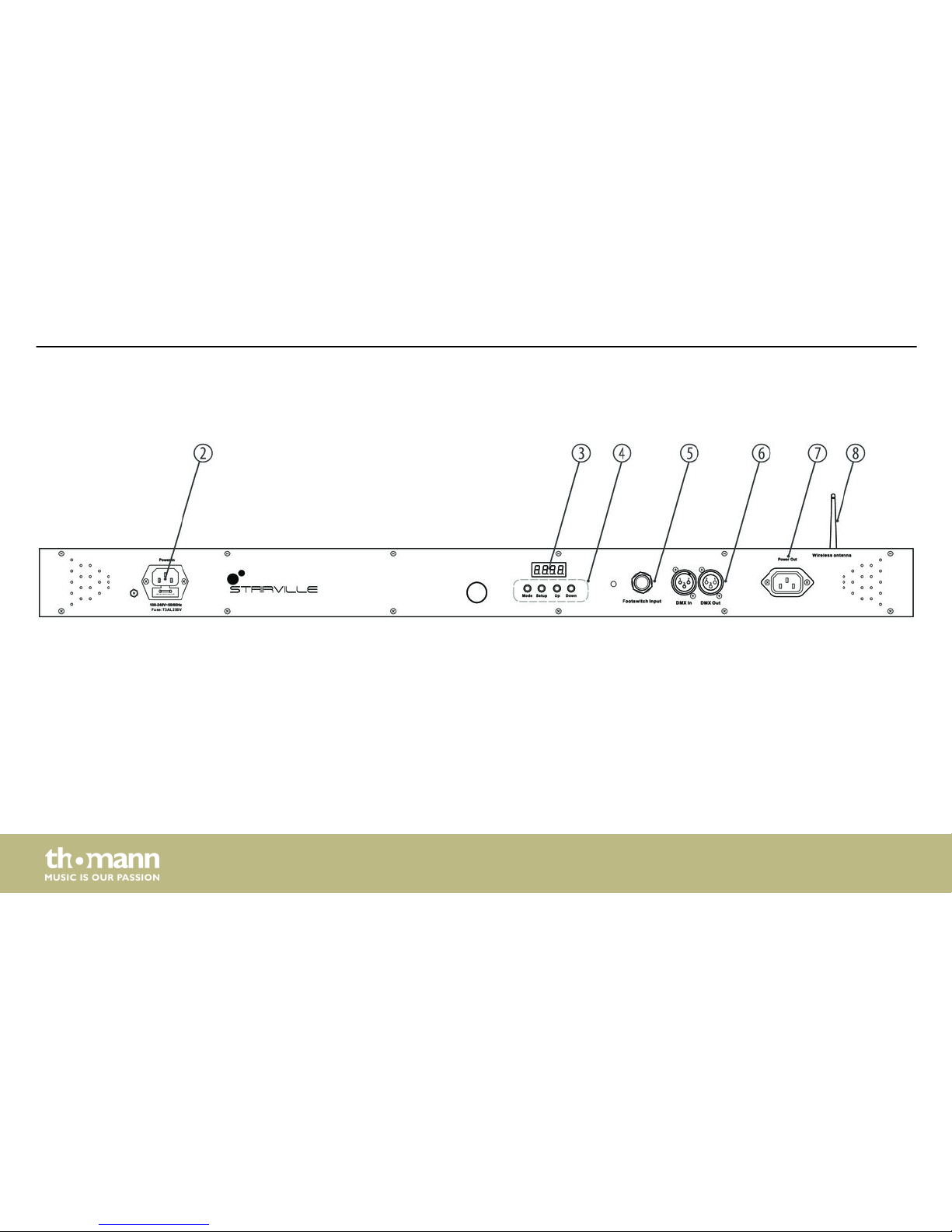

6 Connections and controls

1 Infrared sensor for the signals of an IR remote control.

Connections and controls

Compact LED-Bar CLB8

25

Connections and controls

LED lighting set

26

2 [Power In]

IEC chassis plug for operating voltage supply with fuse holder.

3 Display.
4 [Mode]

Activates the main menu and toggles between menu items. Closes an opened submenu.

[Setup]

Selects an option of the respective operating mode, confirms the set value.

[Up]

Increases the displayed value by one.

[Down]

Decreases the displayed value by one.

5 [Foot switch Input]

1/4" phone socket to connect a foot controller.

Connections and controls

Compact LED-Bar CLB8

27

6 [DMX In]

DMX input.

[DMX Out]

DMX output.

7 [Power Out]

IEC chassis socket for the power supply cable to the next unit.

8 Receiving antenna for the signals of the remote control or a wireless foot switch.

Connections and controls

LED lighting set

28

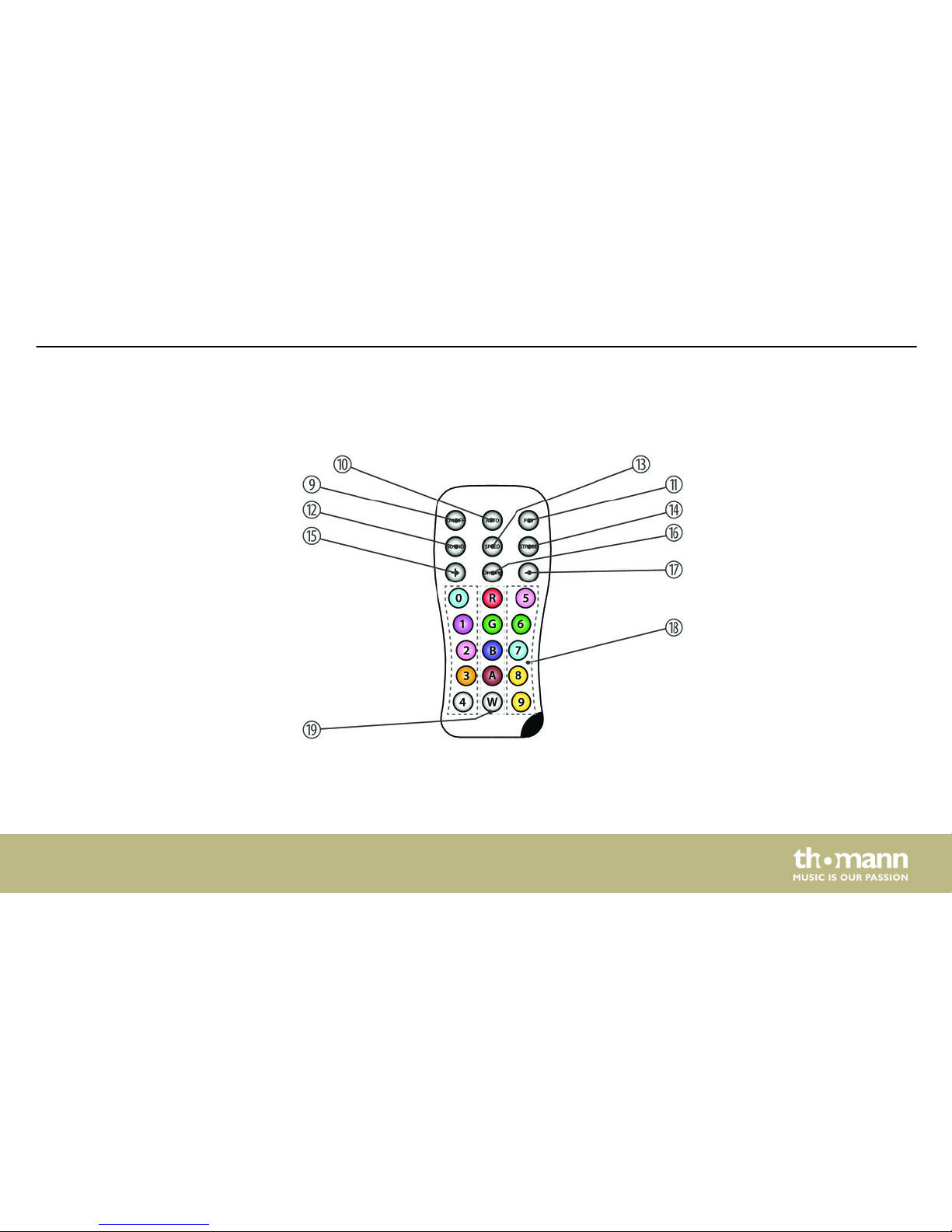

IR remote control is optional accessory and not included.IR remote control

Connections and controls

Compact LED-Bar CLB8

29

9 [ON/OFF]

Button to turn the device on and off.

10 [AUTO]

Activates the ‘Automatic‘ mode.

11 [PRG]

Activates the operating mode ‘Preprogrammed automatic show’.

12 [SOUND]

Activates the ‘Sound Control’ mode.

13 [SPEED]

Adjusts the process speed in ‘Preprogrammed automatic show’ mode.

14 [STROBE]

Activates the strobe effect in ‘Preprogrammed automatic show’ mode.

15 [+]

Increases the displayed value by one.

Connections and controls

LED lighting set

30

16 [Dimming]

Brightness control.

17 [–]

Decreases the displayed value by one.

18 [0] … [9]

Numeric keys.

19 Buttons for colour selection.

Use

n [W] for white light,
n [A] for amber light,
n [R], [G] or [B] for primary colours red, green and blue,
n the coloured buttons for directly selecting a mixed colour.

Connections and controls

Compact LED-Bar CLB8

31

7 Operating

7.1 Starting the device

Connect the device to the power supply to start operation.

7.2 Device functions

All functions are controlled via buttons and display on the unit or an optionally available
remote control.

Operating

LED lighting set

32

7.3 Foot switch

Some devices functions can also be controlled using an optional wireless (item no. 370552) or
tethered (item no.279058) foot switch. Please note the following table for the function assign‐
ment.

Auto run / programme Press the button repeatedly until the display shows ‘AUTO’ to activate the ‘Automatic’ mode (13 pro‐

grammes run automatically in sequence).
Press the switch in a running programme to jump into the next programme. If you press the switch in

programme 13, the sequence restarts with programme 1.

Sound Active Press the button once to activate the ‘Sound-control’ mode.

Press the button again to toggle between the 16 available sound modes.

Freeze Press the button once to pause a running programme.

Press the button again to let the programme continue.

Blackout Press the button once to turn off a running programme.

Press the button again to return to the previous mode.

Operating

Compact LED-Bar CLB8

33

7.4 IR remote control

The device can only be control with an optional remote control when it is neither working in
‘Master / Slave’ mode nor in DMX mode.

Use [ON/OFF] to turn the device on or off.

Press [AUTO]. The playback of ‘Pr02’ to ‘Pr14’ starts automatically.

Press [PRG]. Use [+] and [–] to select a value between ‘Pr.01’ and ‘Pr.14’.
In the ‘Preprogrammed automatic show’ mode, you can activate the strobe effect. To do so,

press [STROBE] and then use [+] and [–] to select a value between ‘FS00’ (slow) and ‘FS99’
(fast). Press [STROBE] again to disable the Strobe effect.

For the programmes ‘Pr.01’ and ‘Pr.09’, it is possible to adjust the process speed. To do so,
press [SPEED] and then use [+] and [–] to select a value between ‘SP01’ (slow) and ‘SPFL’ (fast).

Switching on / off

Operating mode ‘Automatic’

Operating mode ‘Preprog‐
rammed automatic show’

Operating

LED lighting set

34

Press [SOUND]. This activates a sound controlled automatic show.
Use [+] and [–] to adjust the sensitivity for the sound control in a range from ‘SV.00’ to ‘SV.31’.

Press [Dimming] to adjust the brightness of the primary colours. Press [R] (red), [G] (green) or
[B] (blue) and then use [+] and [–] to select a value between 0 and 255.

Use the coloured buttons to select a colour tone in any mode. The following assignment
applies:

Button Colour Button Colour Button Colour

0 Cyan 5 Bright red R Red
1 Purple 6 Bright green G Green
2 Magenta 7 Bright blue B Blue
3 Orange 8 Yellow A Amber
4 Cold white 9 Warm white W White

Sound control

Dimming

Colour selection

Operating

Compact LED-Bar CLB8

35

To reset the device to factory default settings, press [ OFF] and the successively [9], [8] and [7].

7.5 Operating on the unit

Press [Mode] to activate the main menu and select an operating mode. Use [Setup] to select
further options. Use [Up] and [Down] to change the respectively indicated value. When the dis‐
play shows the desired value press [Mode].

If you do not press any key for about 10 seconds, the display will be blanked. It will be reacti‐
vated to display the previously shown menu by pressing any button.

The set values are retained even when the device is disconnected from the mains power
supply.

Resetting to factory defaults

Operating

LED lighting set

36

A preprogrammed automatic show can only be activated when the unit is operating in stand­alone mode or as master in a master / slave combination. This setting is only relevant if the
device is not controlled via DMX.

Press [Mode] repeatedly until the display shows ‘Pr.xx’ . Now you can select one of the preprog‐
rammed automatic shows. Use [Up] and [Down] to select a value between ‘Pr.01’ and ‘Pr.13’.

Settings for programme 01:

For ‘Pr.01’ , you can choose from 14 colours, white or blackout. Press [Setup]. With [Up] and
[Down] you can now select one of the colours.

To adjust the strobe frequency, press again [ Setup]. The display shows ‘FS00’ . With [Up] and
[Down] you can now select a value between ‘FS01’ (slow) and ‘FS99’ (fast).

Settings for programmes 02 to 14:

To adjust the programme process speed, press again [Setup]. The display shows ‘SPxx’ . With
[Up] and [Down] you can now select a value between ‘SP01’ (slow) and ‘SPFL’ (fast).

To adjust the strobe frequency, press again [Setup]. The display shows ‘FS00’ . With [Up] and
[Down] you can now select a value between ‘FS01’ (slow) and ‘FS99’ (fast).

Operating mode ‘Preprog‐
rammed automatic show’

Operating

Compact LED-Bar CLB8

37

Automatic operation can only be activated when the unit is operating in stand alone mode or
as master in a master / slave combination. This setting is only relevant if the device is not con‐
trolled via DMX.

Press [Mode] repeatedly until the display shows ‘AUTO’ . The playback of ‘Pr02’ to ‘Pr14’ starts
automatically.

To adjust the programme speed, press [ Setup]. The display shows ‘SPxx’ . With [Up] and [Down]
you can now select a value between ‘SP01’ (slow) and ‘SPFL’ (fast).

To adjust the strobe frequency, press again [Setup]. The display shows ‘FS00’ . With [Up] and
[Down] you can now select a value between ‘SPFS00’ (slow) and ‘FS99’ (fast).

Operating mode ‘Automatic’

Operating

LED lighting set

38

This setting is only relevant when the device is controlled via DMX.
Press [Mode] repeatedly until the display shows ‘d.001’ .
Now you can set the number of the first DMX channel to be used by the device (DMX address).

Use [Up] and [Down] to select a value between 1 and 512 (the display shows ‘d.001’ …‘d.510’).
Make sure that this number matches the configuration of your DMX controller. The following

table shows the highest possible DMX address for the various DMX modes

Mode Highest possible DMX address

2-channel 511
4-channel 509
18-channel 495

Press [Setup]. With [Up] and [Down] you can now select one of the following DMX operating
modes:

n ‘2-ch’ (two channels)
n ‘4-ch’ (four channels)
n ‘18ch’ (eighteen channels)

DMX mode

Operating

Compact LED-Bar CLB8

39

This setting is only relevant if the device is serving as Slave in a Master / Slave configuration
and is not controlled via DMX.

Press [Mode] repeatedly until the display shows ‘SLAv’ .

A sound controlled automatic show can only be activated when the unit is operating in stand
alone mode or as master in a master / slave combination. This setting is only relevant if the
device is not controlled via DMX.

Press [Mode] repeatedly until the display shows ‘SU.xx’ .
Press again [Setup] and activate with [Up] and [Down] one of the programmed shows ‘SU.00’ to

‘SU.31’ .

Operating mode ‘Slave’

Sound control

Operating

LED lighting set

40

To operate the device via the wireless foot switch, you have to change the "SEt“ setting ‘HEy’
to ‘on’ in the menu.

Press [Mode] as many times, until the display shows‘SEt’
Press again[Setup] an mark with[Up] and [Down] the menu option‘HEy’ .
Press again[Setup] and to activate the function[Up] and [Down] the option‘on’ . Then your

device can be operated via the remote foot switch.
Procede in the same manner to disable the radio reception and mark the‘off’ option.

During network operation switch the main switch on the rear side of the wireless foot
switch to[Off].Otherwise the wireless foot switch operates in battery mode although
being connected to the power supply and discharges correspondingly.

Activate wireless foot switch

Operating

Compact LED-Bar CLB8

41

A constant unicoloured pattern can only be activated when the unit is operating in stand
alone mode or as master in a master / slave combination. This setting is only relevant if the
device is not controlled via DMX.

Press [Mode] repeatedly until the display shows ‘Colr’ . Press [Setup]. The display shows the set‐
ting for one of the primary colours (display shows ‘r.xxx’ , ‘G.xxx’, ‘b.xxx’ or ‘U.xxx’). Press
[Setup] to switch between the colours.

With [Up] and [Down] to set the colour intensity:

Display Meaning

‘r.000’ … ‘r.255’ Red
‘G.000’ … ‘G.255’ Green
‘b.000’ … ‘b.255’ Blue
‘U.000’ … ‘U.255’ White

Constant unicoloured pattern

Operating

LED lighting set

42

7.6 Menu overview

Operating

Compact LED-Bar CLB8

43

Operating

LED lighting set

44

7.7 Functions in 2-channel DMX mode

Channel Value Function

1 0 … 9 LEDs off

10 … 19 Constant unicoloured pattern in red for all LEDs
20 … 29 Constant unicoloured pattern in amber for all LEDs
30 … 39 Constant unicoloured pattern in green for all LEDs
40 … 49 Constant unicoloured pattern in ice-blue for all LEDs
50 … 59 Constant unicoloured pattern in blue for all LEDs
60… 69 Constant unicoloured pattern in magenta for all LEDs
70 … 79 Constant unicoloured pattern in cold white for all LEDs
80 … 89 Constant unicoloured pattern in warm white for all LEDs
90 … 99 Constant unicoloured pattern in pink for all LEDs
100 … 109 Constant unicoloured pattern in mint for all LEDs

Operating

Compact LED-Bar CLB8

45

Channel Value Function

110 … 119 Constant unicoloured pattern in light blue for all LEDs
120 … 129 Preprogrammed automatic show no. 01

230 … 239 Preprogrammed automatic show no. 12
240 … 255 Sound mode

2 Channel 1 = 0 … 239

0 … 255 Programme speed increasing
Channel 1 = 240 … 225
0 … 255 Sound mode sensitivity increasing

Operating

LED lighting set

46

7.8 Functions in 4-channel DMX mode

Channel Value Function

1 0 … 255 Intensity red (0 % to 100 %), for all LEDs together
2 0 … 255 Intensity green (0 % to 100 %), for all LEDs together
3 0 … 255 Intensity blue (0 % to 100 %), for all LEDs together
4 0 … 255 Intensity white (0 % to 100 %), for all LEDs

7.9 Functions in 18-channel DMX mode

Channel Value Function

1 0 … 255 Intensity red (0 % to 100 %) all LEDs spot 1
2 0 … 255 Intensity green (0 % to 100 %) all LEDs spot 1
3 0 … 255 Intensity blue (0 % to 100 %) all LEDs spot 1

Operating

Compact LED-Bar CLB8

47

Channel Value Function

4 0 … 255 Intensity white (0 % to 100 %) all LEDs spot 1
5 0 … 255 Intensity red (0 % to 100 %) all LEDs spot 2
6 0 … 255 Intensity green (0 % to 100 %) all LEDs spot 2
7 0 … 255 Intensity blue (0 % to 100 %) all LEDs spot 2
8 0 … 255 Intensity white (0 % to 100 %) all LEDs spot 2
9 0 … 255 Intensity red (0 % to 100 %) all LEDs spot 3
10 0 … 255 Intensity green (0 % to 100 %) all LEDs spot 3
11 0 … 255 Intensity blue (0 % to 100 %) all LEDs spot 3
12 0 … 255 Intensity white (0 % to 100 %) all LEDs spot 3
13 0 … 255 Intensity red (0 % to 100 %) all LEDs spot 4
14 0 … 255 Intensity green (0 % to 100 %) all LEDs spot 4
15 0 … 255 Intensity blue (0 % to 100 %) all LEDs spot 4
16 0 … 255 Intensity white (0 % to 100 %) all LEDs spot 4

Operating

LED lighting set

48

Channel Value Function

17 0 … 9 No function

10 … 255 Strobe effect, increasing speed

18 0 … 255 Dimmer (0 % to 100 %)

Operating

Compact LED-Bar CLB8

49

8 Technical specifications

Number of DMX channels 2, 4 or 18 channels, depending on operating mode
Illuminant 24 × RGBW LED type Quad 4-in-1 (8 W each) on four moveable Flat PARs
Beam angle

approx. 40°
Transmitting frequency radio antenna 2.4 GHz
Voltage supply

100 – 240 V 50/60 Hz
Power consumption approx. 192 W
Fuse 5 mm × 20 mm, 3A, 250 V, slow-blow
Dimensions (W × H × D) 845 mm × 70 mm × 310 mm
Weight 8.9 kg

Technical specifications

LED lighting set

50

9 Plug and connection assignments

This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment so that a perfect light experience is guaranteed.

Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug
fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a
short circuit or ‘just’ a not working light show!

The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please
refer to the drawing and table below for the pin assignment of a suitable XLR plug.

Pin Configuration

1 Ground, shielding
2 Signal inverted (DMX–, ‘cold signal’)
3 Signal (DMX+, ‘hot signal’)

Introduction

DMX connections

Plug and connection assignments

Compact LED-Bar CLB8

51

10 Troubleshooting

NOTICE!
Possible data transmission errors

For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.

Never connect the DMX input or output to audio devices such as mixers or ampli‐
fiers.

In the following we list a few common problems that may occur during operation. We give you
some suggestions for easy troubleshooting:

Troubleshooting

LED lighting set

52

Symptom Remedy

The unit does not work, no light Check the mains connection and the fuse.
No response to the DMX con‐

troller

1. If the dot behind the first character of the display is
flashing in the DMX mode, no DMX signal is received.
Make sure that the DMX controller is turned on. Check
the DMX ports and cables for proper connection.

2. If the display does not flash and still no response,
check the address settings and the DMX polarity.

3. Try using another DMX controller.

4. Check to see if the DMX cables run near or alongside
to high voltage cables that may cause damage or inter‐
ference to DMX interface circuits.

If the procedures recommended above do not succeed, please contact our Service Center. You
can find the contact information at www.thomann.de.

Troubleshooting

Compact LED-Bar CLB8

53

11 Cleaning

Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the
light output. The frequency of cleaning depends on the operating environment: wet, smoky or
particularly dirty surroundings can cause more accumulation of dirt on the optics of the
device.

n Clean with a soft cloth using our lamp and lens cleaner (item no. 280122).
n Always dry the parts carefully.

Optical lenses

Cleaning

LED lighting set

54

12 Protecting the environment

For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.

Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose these materials with your normal household waste, but make sure that

they are fed to a recovery. Please follow the notes and markings on the packaging.

Batteries must not be disposed of as domestic waste or thrown into fire. Dispose of the bat‐
teries according to national or local regulations regarding hazardous waste. To protect the
environment, dispose of empty batteries at your retail store or at appropriate collection sites.

Disposal of the packaging mate‐
rial

Disposal of batteries

Protecting the environment

Compact LED-Bar CLB8

55

This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE). Do not dispose with your normal household waste.

Dispose this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.

Disposal of your old device

Protecting the environment

LED lighting set

56

Notes

Compact LED-Bar CLB8

57

Notes

LED lighting set

58

Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
