thomann CDR1 User Manual

CDR1

DMX recorder

user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [e-mail]
Internet: www.thomann.de

29.08.2017, ID: 416410

Table of contents

1 General notes............................................................................................................................................... 4

1.1 Further information........................................................................................................................... 5

1.2 Notational conventions.................................................................................................................... 6

1.3 Symbols and signal words............................................................................................................... 6

2 Safety instructions..................................................................................................................................... 8

3 Features....................................................................................................................................................... 11

4 Installation and starting up................................................................................................................ 12

5 Connections and controls................................................................................................................... 15

6 Operating.................................................................................................................................................... 20

6.1 Operating controls on the device.............................................................................................. 20

6.2 Remote control operation............................................................................................................ 26

7 Technical specifications....................................................................................................................... 27

8 Plug and connection assignments.................................................................................................. 28

9 Protecting the environment.............................................................................................................. 29

Table of contents

CDR1

3

1 General notes

This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.

Our products are subject to a process of continuous development. Thus, they are subject to
change.

General notes

DMX recorder

4

1.1 Further information

On our website (www.thomann.de) you will find lots of further information and details on the
following points:

Download This manual is also available as PDF file for you to download.

Keyword search

Use the search function in the electronic version to find the topics of
interest for you quickly.

Online guides

Our online guides provide detailed information on technical basics
and terms.

Personal consultation For personal consultation please contact our technical hotline.

Service

If you have any problems with the device the customer service will
gladly assist you.

General notes

CDR1

5

1.2 Notational conventions

This manual uses the following notational conventions:

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.

Texts and values displayed on the device are marked by quotation marks and italics.

Examples: ‘24ch’ , ‘OFF’.

1.3 Symbols and signal words

In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.

Letterings

Displays

General notes

DMX recorder

6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an

immediate dangerous situation that will result in death or
serious injury if it is not avoided.

NOTICE! This combination of symbol and signal word indicates a pos‐

sible dangerous situation that can result in material and
environmental damage if it is not avoided.

Warning signs Type of danger

Warning – danger zone.

General notes

CDR1

7

2 Safety instructions

This unit is used to record and playback DMX signals. Use the device only as described in this
user manual. Any other use or use under other operating conditions is considered to be
improper and may result in personal injury or property damage. No liability will be assumed for
damages resulting from improper use.

This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.

DANGER!
Danger for children

Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!

Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!

Never let children unattended use electrical devices.

Intended use

Safety

Safety instructions

DMX recorder

8

NOTICE!
External power supply

The device is powered by an external power supply. Before connecting the
external power supply, ensure that the input voltage (AC outlet) matches the
voltage rating of the device and that the AC outlet is protected by a residual cur‐
rent circuit breaker. Failure to do so could result in damage to the device and pos‐
sibly the user.

Unplug the external power supply before electrical storms occur and when the
device is unused for long periods of time to reduce the risk of electric shock or
fire.

NOTICE!
Risk of fire

Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.

Safety instructions

CDR1

9

NOTICE!
Operating conditions

This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.

Safety instructions

DMX recorder

10

3 Features

n DMX input for recording DMX sequences in real-time
n DMX output
n Data storage for 12 chases, each with up to 100 steps
n Playback of DMX sequences on the DMX output either manually or timer controlled
n Playback in endless loop possible
n Speed and fading between recorded scenes adjustable
n Sound-controlled operation via built-in microphone possible
n Suitable for truss or wall mounting
n Operation via buttons and display on the unit or the supplied infrared remote control

Features

CDR1

11

4 Installation and starting up

Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.

Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.

Installation and starting up

DMX recorder

12

Connect the DMX input of the DMX recorder (R) to the DMX output of a DMX controller (C).
Connect the output of the DMX recorder (R) to the first DMX device (1), such as a spotlight.
Connect the output of the first DMX device (1) to the input of the second one and so on, to
form a series connection. Make sure that the output of the last DMX device (n) in the chain is
terminated by a resistor (110 Ω, ¼ W).

DMX connections

Installation and starting up

CDR1

13

While both the device and the DMX controller are in operation, the [DMX] LED is flashing and
thereby indicates that a DMX signal is being received on the input.

Press the lock of the battery holder to the centre of the housing and pull out the battery holder
like a drawer. Insert the battery. The battery is correct if the positive pole points to the housing
base of the remote control. Slide the battery holder back into the remote until it clicks into
place.

When shipping, the battery is already installed in the remote and protected against discharge
by a transparent plastic foil. Remove the plastic foil prior to first use.

DMX indicator

Inserting the battery into the
remote control

Installation and starting up

DMX recorder

14

5 Connections and controls

Connections and controls

CDR1

15

1 Control LEDs:

[Power]: Indicates that the unit is connected to the power supply.
[REC]: Flashes during recording.
[Play]: Flashes during playback.
[DMX]: Flashes when a DMX signal is received.

2, 3, 4.5 Function and control buttons

[MENU]: opens the main menu.

: decreases the displayed value by one.
: increases the displayed value by one.

[ENTER]: selects an option of the respective operating mode, confirms the set value.

6 [IR]

Infrared sensor for the signals from the included remote control.

7 Variable fastening element for wall or ceiling mounting.

Connections and controls

DMX recorder

16

8 Omega bracket for truss mounting.
9 Microphone for sound control.

10 [DC IN]

Micro USB port for connecting the plug-in power supply.

11 [DMX OUT]

Output for the DMX signal to other DMX-controlled devices.

12 [DMX IN]

Input for the DMX signal, for example from a DMX controller.

Connections and controls

CDR1

17

21 [STANDBY]

Switches the unit to standby mode or back on again.

22

,

Increases or decreases the currently displayed value.

23 [1/7] … [6/12]

Selecting a chase sequence within the selected group.

24 [Fade +/–]

Setting the fading speed.

25 [Master +/–]

Increases or decreases the value transmitted on all DMX channels by one.

26 [Speed +/–]

Setting the programme speed.

Remote control

Connections and controls

DMX recorder

18

27 [1–6], [7–12]

Selects a group.

28 [REC]

Starts recording.

29

Starts / stops the playback of a chase sequence.

Connections and controls

CDR1

19

6 Operating

Connect the device to the power supply to start operation.

6.1 Operating controls on the device

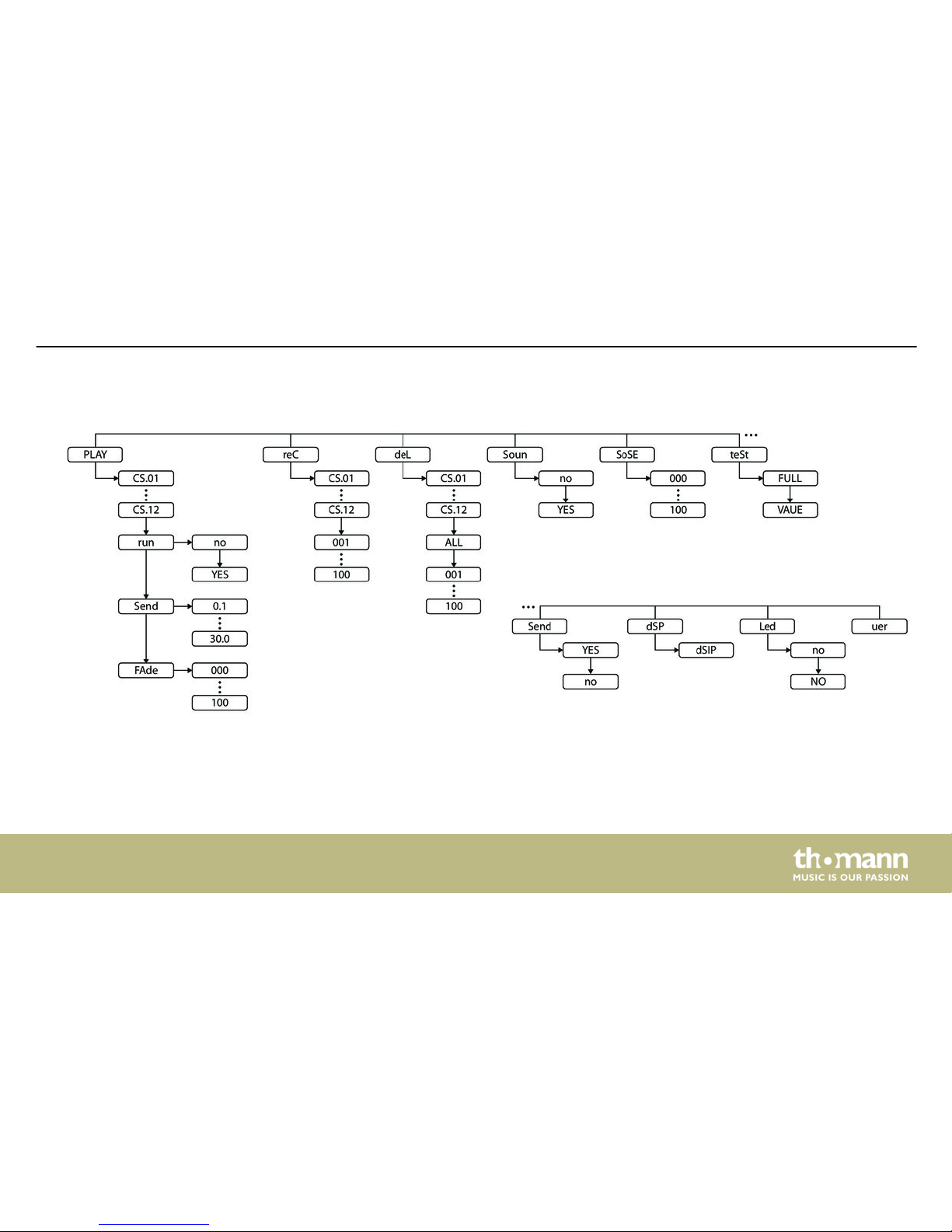

Press [MENU] repeatedly until the display shows ‘reC’ . Confirm with [ENTER]. Use the arrow
buttons to select a chase sequence to be recorded in the ‘CS.01’ …‘CS.12’. Start the recording
with [ENTER]. The [REC] LED flashes, the display shows the number of the currently recorded
step. In your DMX controller, configure the scene you want to record and press [ENTER]. Repeat
this process until the chase sequence is completely recorded.

Press [MENU] to stop recording.

Record

Operating

DMX recorder

20

Press [MENU] repeatedly until the display shows ‘PLAY’ . Confirm with [ENTER]. Use the arrow
buttons to select the chase sequence to be played back in the range ‘CS.01’ …‘CS.12’. Confirm
with [ENTER].

To start playback, use the arrow buttons to select the menu item ‘run’ and confirm with
[ENTER]. If the selected chase sequence contains a recording, you can use the arrow button to
select ‘YES’ (start playback) and ‘no’.

To set the transition time between the individual steps, use the arrow buttons to select the
menu item ‘Send’ . Use the arrow buttons to select a period between 0.1 s and 30 s. Confirm
with [ENTER].

To set the fading time between the individual steps, use the arrow buttons to select the menu
item ‘FAde’ . Use the arrow buttons to set a speed in the range ‘0’…‘100’. Confirm with
[ENTER].

Playback runs in an endless loop. To stop playback, press [ENTER], use the arrow buttons to
select the option ‘no’ , and confirm with [ENTER].

Play

Operating

CDR1

21

Press [MENU] repeatedly until the display shows ‘deL’ . Confirm with [ENTER]. Use the arrow
buttons to select the chase sequence to be deleted in the range ‘CS.01’ …‘CS.12’. Confirm with
[ENTER].

Use the arrow keys to select whether the complete chase sequence is to be deleted (select

‘all’ ) or only one scene (select ‘001’…‘100’) and confirm with [ENTER]. The selected chase

sequence or scene is being deleted.
Press [MENU] to return to the main menu.

Press [MENU] repeatedly until the display shows ‘Soun’ . Confirm with [ENTER].
Use the arrow buttons to select whether playback is to be controlled via the built-in micro‐

phone (select ‘YES’ ) or not (select ‘no’) and confirm with [ENTER].
Press [MENU] to return to the main menu.

Press [MENU] repeatedly until the display shows ‘SoSe’ . Confirm with [ENTER].
To adjust the sensitivity of the built-in microphone for the sound control, use the arrow but‐

tons to set a value in the range ‘000’ …‘100’. Confirm with [ENTER].
Press [MENU] to return to the main menu.

Deleting recordings

Enabling sound-control

Setting microphone sensitivity

Operating

DMX recorder

22

Press [MENU] repeatedly until the display shows ‘teSt’ . Confirm with [ENTER].
Use the arrow buttons to select whether the value 255 is to be output during the test on all

DMX channels (select ‘FuLL’ ) or successively all values from 0 to 255 and then from 255 to 0
(select ‘UAue’ ) and confirm with [ENTER].

The self test is started, the [Play] LED flashes.
Press [MENU] to end the self test and return to the main menu.

This function allows you to copy the current chase sequence with all steps to a second unit,
which is connected to the device via a DMX cable.

Press [MENU] repeatedly until the display shows ‘Send’ . Confirm with [ENTER].

Press [MENU] repeatedly until the display shows ‘dISP’ . Confirm with [ENTER].
Use the arrow buttons to select whether the display is to be shown reversed (select ‘dSIP’ ) or

not (select ‘dISP’ ) and confirm with [ENTER].
Press [MENU] to return to the main menu.

Self test

Send

Display reversal

Operating

CDR1

23

Press [MENU] repeatedly until the display shows ‘Led’ . Confirm with [ENTER].
Use the arrow buttons to select whether the display has to be turned off after 30 minutes

without any keypress (select ‘YES’ ) or not (select ‘no’) and confirm with [ENTER].
Press [MENU] to return to the main menu.

Press [MENU] repeatedly until the display shows ‘uer’ . Confirm with [ENTER].
Confirm with [ENTER]. The software version of the device will appear on the display.
Press [MENU] to return to the main menu.

Display mode

Software version

Operating

DMX recorder

24

Menu overview

Operating

CDR1

25

6.2 Remote control operation

Press [REC]. The [REC] LED flashes. Use [1–6], [7–12] to select a group, then use [1/7] … [6/12] to
select the chase sequence number to be recorded. The display shows ‘CS.01’ .

In your DMX controller, configure the scene you want to record and press one of the [1/7] …
[6/12] buttons. The display shows the number of the recorded step.

Press [MENU] to stop recording.

Press . Use [1–6], [7–12] to select a group, then use [1/7] … [6/12] to select the chase
sequence number to be played.

Use [Speed +/–] to set the playback speed and [Fade +/–] to set the fading time.
Use the arrow buttons to skip steps forward and backward during playback. You can pause or

restart the current playback with .

Record

play

Operating

DMX recorder

26

7 Technical specifications

Voltage supply

5 V / 300 mA
Dimensions (W × H × D) 100 mm × 41.5 mm × 148.5 mm
Weight 0.5 kg

Technical specifications

CDR1

27

8 Plug and connection assignments

This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment so that a perfect light experience is guaranteed.

Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug
fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a
short circuit or ‘just’ a not working light show!

The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please
refer to the drawing and table below for the pin assignment of a suitable XLR plug.

Pin Configuration

1 Ground, shielding
2 Signal inverted (DMX–, ‘cold signal’)
3 Signal (DMX+, ‘hot signal’)

Introduction

DMX connections

Plug and connection assignments

DMX recorder

28

9 Protecting the environment

For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.

Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose these materials with your normal household waste, but make sure that

they are fed to a recovery. Please follow the notes and markings on the packaging.

Batteries must not be disposed of as domestic waste or thrown into fire. Dispose of the bat‐
teries according to national or local regulations regarding hazardous waste. To protect the
environment, dispose of empty batteries at your retail store or at appropriate collection sites.

Disposal of the packaging mate‐
rial

Disposal of batteries

Protecting the environment

CDR1

29

This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE). Do not dispose with your normal household waste.

Dispose this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.

Disposal of your old device

Protecting the environment

DMX recorder

30

Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
