TVS75-33001A Page 1 of 7
Engine Parts List #1
www.mymowerparts.com
Page 2
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS75-33001A Page 2 of 7
Engine Parts List #1
Ref # Part Number Qty Description
1 35022 Cylinder Assy. (2-5/16" Bore)0
2 26727 Pin, Dowel0
4 32600 Seal, Oil0
5 29314B Valve, Intake (Standard) (Conventional0
5 29315C Valve, Exhaust (1/32" oversize)0
6 29313C Valve, Exhaust (Standard) (Conventional0
6 29315C Valve, Exhaust (1/32" oversize)0
8 31671 Cap, Upper valve spring0
9 31672 Spring, Valve0
10 31673 Cap, Lower valve spring0
11 34473 Crankshaft Assy.0
14 34499 Piston, Pin & Ring Assy. (Std.) (2-5/16")0
14 34526 Piston, Pin & Ring Assy. (.010 oversize)0
14 34527 Piston, Pin & Ring Assy. (.020 oversize)0
14A 31761B Piston & Pin Assy. (Std.) (2-5/16")0
14A 32662B Piston & Pin Assy. (.010 oversize)0
14A 32663B Piston & Pin Assy. (.020 oversize)0
15 27565 Ring Set, Piston (Standard) (2-5/16")0
15 27566 Ring Set, Piston (.010 oversize)0
15 27567 Ring Set, Piston (.020 oversize)0
16 20381 Ring, Piston pin retaining0
17 30963B Rod Assy., Connecting0
18 32610A Bolt, Connecting rod0
21 27241 Lifter, Valve0
22 33148A Camshaft (Compression Release)0
23 29914 Pump Assy., Oil0
24 35261 Gasket, Mounting flange0
25 30571A Flange Assy., Mounting0
26 26208 Seal, Oil0
27 28833 Gasket, Oil drain0
28 30572 Plug, Drain (Hex hd. 3/8-18)0
29 650488 Screw0
31 30590A Washer, Flat0
32 30574 Shaft, Mechanical governor0
33 30591 Gear Assy., Governor0
34 29193 Ring, Retaining0
35 30588A Spool, Governor0
36 31335 Clamp, Governor lever0
37 28277 Washer, Flat0
38 30589 Rod, Governor0
39 31383A Lever, Governor0
40 650548 Screw, Hex washer hd., 8-32 x 5/160
42 610995 Key, Flywheel (External Pt. Ign. Gray)0
46 29953C Gasket, Head0
47 34335 Head, Cylinder0
48 33636 Plug, Spark (Champion J-8 or equivalent)0
49 6021A Screw, Hex flange hd., 5/16-18 x 1-1/20
49 650697A Screw, Hex flange hd., 5/16-18 x 2-1/20
52 31619A Gasket, Breather0
53 31337A Breather Assy.0
54 31410 Element, Breather0
55 650128 Screw0
61 31384A Pipe, Intake0
62 650451 Screw0
63 32649A Gasket, Intake0
70A 34336 Link, Governor-to-throttle0
70 32653 Link, Governor spring0
71 31361 Spring, Governor0
www.mymowerparts.com
Page 3
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS75-33001A Page 3 of 7
Engine Parts List #1
Ref # Part Number Qty Description
72 650774 Screw, Hex hd., 1/4-20 x 2-3/80
72 650795 Screw, Hex hd. cap, Sems, 1/4-20 x 2-5/160
72 650869 Screw, Hex hd., 1/4-20 x 2-3/40
72 792005 Screw, Hex hd., 1/4-20 x 2-1/20
73 27181B Muffler0
80 30831 Wire, Ground (Female fitting both ends)0
81 26756 Gasket, Carburetor0
82 29752 Nut0
83 6201 Screw0
97 610973 Terminal Assy.0
99 650831 Screw, Hex washer hd. Powerlok thread,0
100 30200 Screw0
101 32170A Tank Assy., Fuel (White Poly) (1 qt.)0
102 33032 Cap, Fuel filler (Red Plastic) (Spurt0
104 26460 Clamp, Fuel line0
105 29774 Line, Fuel (Braided 8.25")0
105 30705 Line, Fuel (Braided 16")0
105 30962 Line, Fuel (Braided 32")0
105 34357 Line, Fuel (Epichlorohydrin 6-3/4")0
106 650815 Washer, Belleville0
107 650816 Nut, Flywheel0
115 29443 Clip, Fuel line0
121 34431 Lamination & Coil Assy.0
121 730207 Magneto-to-Solid State Conversion Kit0
136 650814 Screw, Hex hd. Sems, 10-24 x 10
137 611046A Flywheel0
147 27625 Plug, Oil filler0
148 29673 Gasket, Filler plug0
154 34340 Element, Air cleaner (Poly)0
155 34341A Cover, Air cleaner (Black)0
156 34339 Body, Air cleaner0
157 650806 Screw, Hex washer hd. shoulder, 10-32 x 5/80
162 34338 Gasket, Air cleaner0
220 34346 Decal, Instruction0
220 550223 Decal, Name0
220B 34363 Decal, Instruction0
223 631021 Inlet Needle, Seat & Clip Assy.0
224 632046A Carburetor0
230 33238D Gasket Set0
www.mymowerparts.com
Page 4
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS75-33001A Page 4 of 7
Engine Parts List #2
www.mymowerparts.com
Page 5
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS75-33001A Page 5 of 7
Engine Parts List #2
Ref # Part Number Qty Description
41A 0 Rivet, Pop (3/16" Dia.)0
41A 650735 Screw0
89 34657 Footproof Spark Plug Stop Lever0
90 34438 Spring, Stop switch0
91 34439 Clip, Stop switch0
98A 34793 Housing, Blower (5.56 dia. starter mtg. bolt0
102 33032 Cap, Fuel filler (Red Plastic) (Spurt0
110 34449 Hub, Starter0
111 590417 Screen, Starter cup0
157 650806 Screw, Hex washer hd. shoulder, 10-32 x 5/80
202 730194 Rope Guide Kit0
220D 34407 Decal, Stop control (Bilingual)0
226A 590420 Starter, Rewind0
www.mymowerparts.com
Page 6
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS75-33001A Page 6 of 7

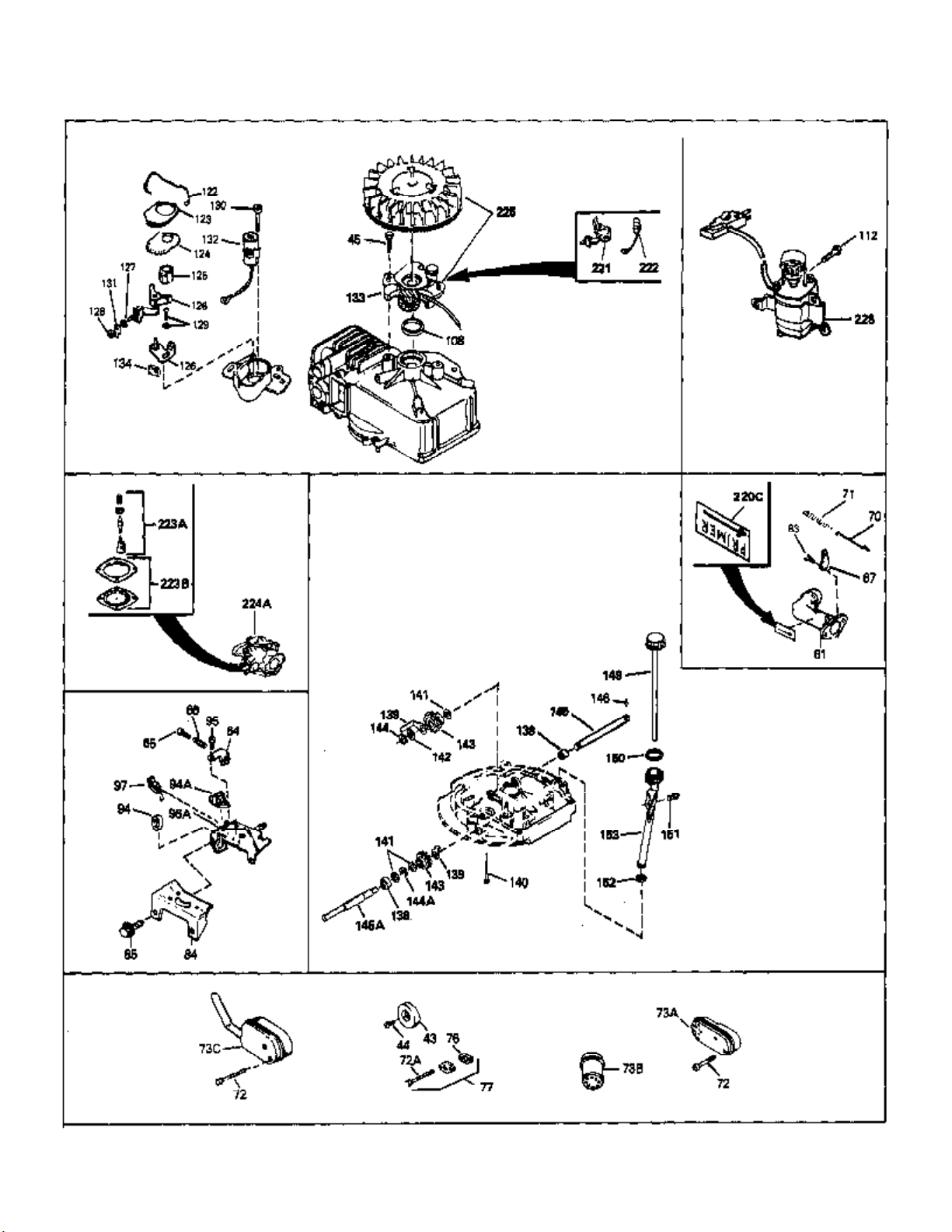

Engine Parts List #3
www.mymowerparts.com
Page 7
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
TVS75-33001A Page 7 of 7
Engine Parts List #3
Ref # Part Number Qty Description
45 650489 Screw0
61 31384A Pipe, Intake0
67 33086 Lever, Speed adj.0
70 32653 Link, Governor spring0
71 31361 Spring, Governor0
72A 30063 Screw0
72 650774 Screw, Hex hd., 1/4-20 x 2-3/80
72 650795 Screw, Hex hd. cap, Sems, 1/4-20 x 2-5/160
72 650869 Screw, Hex hd., 1/4-20 x 2-3/40
72 792005 Screw, Hex hd., 1/4-20 x 2-1/20
76 26754A Gasket, Exhaust0
77 730162 Kit, Muffler Adapter0
83 6201 Screw0
97 610973 Terminal Assy.0
108 33876 Gasket, Stator0
122 30551 Spring, Breaker box dust cover0
123 610947 Cover, Breaker box dust0
124 610955 Gasket, Dust cover0
125 30992 Cam, Breaker0
126 30547A Contact Assy., Breaker0
127 610385 Washer, Terminal0
128 610408 Nut, Terminal0
129 29181 Screw & Washer Assy., Breaker0
130 610593 Screw, Condenser fastening0
131 33356 Terminal, Ground0
132 30548B Condenser0
133 611006 Stator Plate Assy.0
134 30549 Felt, Cam wiper0
152 34282 "O" Ring (.612 I.D. x .812 O.D. x .1030
