Page 1
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

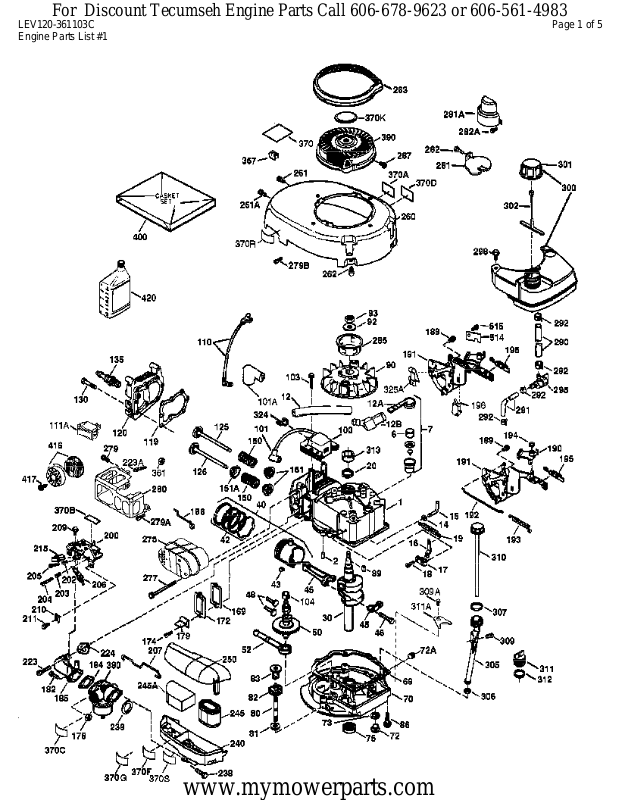

LEV120-361103C Page 1 of 5
Engine Parts List #1
www.mymowerparts.com
Page 2
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-361103C Page 2 of 5
Engine Parts List #1
Ref # Part Number Qty Description
1 37266 Cylinder (Incl. 2,20 & 150)1
2 26727 Dowel Pin2
6 33734 Breather Element1
7 36557 Breather Ass'y. (Incl. 6 & 12A)1
12A 36558 Breather Cover & Tube (Incl. 12B)1
12 36775 Breather Tube1
12B 36694 Breather Tube Elbow1
14 28277 Washer1
15 30589 Governor Rod (Incl. 14)1
16 34839A Governor Lever1
17 31335 Governor Lever Clamp1
18 651018 Screw, Torx T-15, 8-32 x 19/64"1
19 37329 Extension Spring1
20 32600 Oil Seal1
30 37519 Crankshaft1
40 40027 Piston, Pin & Ring Set (Std.)1
40 40028 Piston, Pin & Ring Set (.010" OS)1
41 40025 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 40026 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
42 40006 Ring Set (Std.)1
42 40007 Ring Set (.010" OS)1
43 20381 Piston Pin Retaining Ring2
45 36777 Connecting Rod Ass'y. (Incl. 46)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
50 37460 Camshaft (Exhaust MCR)(Inc. Ref 104)1
52 29914 Oil Pump Ass'y.1
69 37609 * Mounting Flange Gasket1
70 37608 Mounting Flange (Incl. 72 thru 83,306 , 311A)1
72 37614 Oil Drain Plug1
75 27897 Oil Seal1
80 30574A Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
86 650488 Screw, 1/4-20 x 1-1/4"6
89 610961 Flywheel Key1
90 611213 Flywheel1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443C Solid State Ignition1
101 610118 Spark Plug Cover1
103 651007 Screw, Torx T-15, 10-24 x 15/16"2
104 37480 Cam Bushing1
110 37574 Ground Wire1
119 36787 * Cylinder Head Gasket1
120 36825 Cylinder Head1
125 37288 Exhaust Valve (Std.) (Incl. 151)1
126 37289 Intake Valve (Std.) (Incl. 151)1
130 6021A Screw, 5/16-18 x 1-1/2"8
135 35395 Resistor Spark Plug (RJ19LM4)1
150 31672 Valve Spring2
151 31673 Valve Spring Cap2
151A 40017 Intake Valve Seal1
169 36783 * Valve Cover Gasket1
172 36784 Valve Cover1
174 30200 Screw, 10-24 x 9/16"2
178 29752 Nut & Lock Washer, 1/4-282
www.mymowerparts.com
Page 3
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-361103C Page 3 of 5
Engine Parts List #1
Ref # Part Number Qty Description
179 30593 Retainer Clip1
182 6201 Screw, 1/4-28 x 7/8"2
184 26756 * Carburetor To Intake Pipe Gasket1
185 36785 Intake Pipe1
186 36255 Governor Link1
200 37134 Control Bracket (Incl. 206)1
206 610973 Terminal1
207 36200B Throttle Link1
209 30200 Screw, 10-24 x 9/16"2
223 650451 Screw, 1/4-20 x 1"2
224 36786 * Intake Pipe Gasket1
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
245 36905 Air Cleaner Filter1
245 36905 Air Cleaner Filter1
250 37122 Air Cleaner Cover
250 37122 Air Cleaner Cover1
251A 650886 Wing Nut1
260 36798 Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
275 37502 Muffler1
277 650988 Screw, 1/4-20 x 2-9/32"2
285 35000A Starter Cup1
287 650926 Screw, 8-32 x 21/64"2
290 34357 Fuel Line1
292 26460 Fuel Line Clamp2
292 26460 Fuel Line Clamp2
298 28763 Screw, 10-32 x 35/64"2
300 35586 Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap1
305 35577 Oil Fill Tube1
306 37610 * "O"-Ring1
307 35499 "O"-Ring1
309A 650783 Screw, 10-24 x 3/4"1
309 650562 Screw, 10-32 x 3/8"1
310 35578 Dipstick1
311A 37611 Hold Down Bracket1
313 34080 Spacer1
370C 37318 Primer Decal (3X)1
370A 36261 Lubrication Decal1
380 640262A Carburetor (Incl. 184)1
390 590739 Rewind Starter (NOTE: This engine could hav e been built
1
with 590702 starter).
400 37613 * Gasket Set (Incl. items marked PK i n notes).1
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
417 650821 Screw, 10-32 x 1/2" (Optional)1
www.mymowerparts.com
Page 4
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-361103C Page 4 of 5
Engine Parts List #2
www.mymowerparts.com
Page 5
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-361103C Page 5 of 5
Engine Parts List #2
Ref # Part Number Qty Description
19 37329 Extension Spring1
41 40025 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 40026 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
69 37609 * Mounting Flange Gasket1
72 37614 Oil Drain Plug1
75 27897 Oil Seal1
86 650488 Screw, 1/4-20 x 1-1/4"6
90 611213 Flywheel1
182 6201 Screw, 1/4-28 x 7/8"2
185 36785 Intake Pipe1
186 36255 Governor Link1
223 650451 Screw, 1/4-20 x 1"2
238 650932 Screw, 10-32 x 49/64"2
239 34338 * Air Cleaner Gasket1
241 36919 Air Cleaner Collar1
245 36905 Air Cleaner Filter1
245 36905 Air Cleaner Filter1
250 37122 Air Cleaner Cover
250 37122 Air Cleaner Cover1
251A 650886 Wing Nut1
260 36798 Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
275A 37503 Spark Arrestor Muffler (Optional) (Inc. 284,284A,416, & 417)1
284A 650821 Screw, 10-32 x 1/2" (Optional)1
284 36663 Muffler Deflector (Inc. 284A)(Option al)1
298 28763 Screw, 10-32 x 35/64"2
300 35586 Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap1
370E 34387 Air Cleaner Decal1
370A 36261 Lubrication Decal1
411 37322 Debris Screen (Black)1
412 37323 Recoil Bracket1
413 650910 Screw, 8-32 x 1/4"3
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
417 650821 Screw, 10-32 x 1/2" (Optional)1
www.mymowerparts.com
