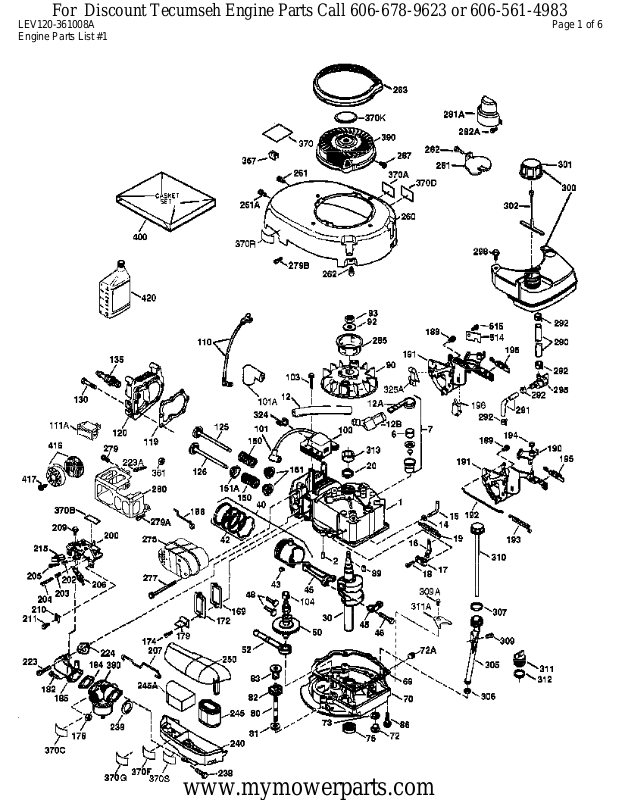

Page 1
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-361008A Page 1 of 6
Engine Parts List #1
www.mymowerparts.com
Page 2
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-361008A Page 2 of 6
Engine Parts List #1
Ref # Part Number Qty Description
1 36774 Cylinder (Incl. 2 & 20)1
2 26727 Dowel Pin2
6 33734 Breather Element1
7 36557 Breather Ass'y. (Incl. 6 & 12A)1
12A 36558 Breather Cover & Tube1
14 28277 Washer1
15 30589 Governor Rod (Incl. 14)1
16 34839A Governor Lever1
17 31335 Governor Lever Clamp1
18 651018 Screw, Torx T-15, 8-32 x 19/64"1
19 36796 Extension Spring1
20 32600 Oil Seal1
30 34570A Crankshaft1
40 40027 Piston, Pin & Ring Set (Std.)1
40 40028 Piston, Pin & Ring Set (.010" OS)1
41 40025 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 40026 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
42 40006 Ring Set (Std.)1
42 40007 Ring Set (.010" OS)1
43 20381 Piston Pin Retaining Ring2
45 36777 Connecting Rod Ass'y. (Incl. 46)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
50 36778 Camshaft (MCR)1
52 29914 Oil Pump Ass'y.1
69 35261 Mounting Flange Gasket1
70 36995 Mounting Flange (Incl. 72 thru 83)1
72 36083 Oil Drain Plug1
75 27897 Oil Seal1
80 30574A Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
86 650488 Screw, 1/4-20 x 1-1/4"6
89 611004 Flywheel Key1
90 611112 Flywheel1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443B Solid State Ignition1
101 610118 Spark Plug Cover1
103 651007 Screw, Torx T-15, 10-24 x 15/16"2
110 37047 Ground Wire1
119 36787 * Cylinder Head Gasket1
120 36825 Cylinder Head1
125 36779 Exhaust Valve (Std.) (Incl. 151)1
125 36780 Exhaust Valve (1/32" OS) (Incl. 151)1
126 36781 Intake Valve (Std.) (Incl. 151)1
126 36782 Intake Valve (1/32" OS) (Incl. 151)1
130 6021A Screw, 5/16-18 x 1-1/2"8
135 35395 Resistor Spark Plug (RJ19LM)1
150 35991 Valve Spring2
151 31673 Valve Spring Cap2
151A 40017 Intake Valve Seal1
169 36783 * Valve Cover Gasket1
172 36784 Valve Cover1
174 30200 Screw, 10-24 x 9/16"2
178 29752 Nut & Lock Washer, 1/4-282
179 30593 Retainer Clip1
www.mymowerparts.com
Page 3
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-361008A Page 3 of 6
Engine Parts List #1
Ref # Part Number Qty Description
182 6201 Screw, 1/4-28 x 7/8"2
184 26756 * Carburetor To Intake Pipe Gasket1
185 36785 Intake Pipe1
186 36255 Governor Link1
189 650839 Screw, 1/4-20 x 3/8"1
191 36559 S.E. Brake Bracket (Incl. 195)1
195 610973 Terminal1
200 35999A Control Bracket (Incl. 206)1
206 610973 Terminal1
207 36200 Throttle Link1
209 30200 Screw, 10-24 x 9/16"2
223 650451 Screw, 1/4-20 x 1"2
224 36786 * Intake Pipe Gasket1
238 650806 Screw, 10-32 x 5/8"2
239 34338 * Air Cleaner Gasket1
240 36743 Air Cleaner Body1
245 36745 Air Cleaner Filter1
245A 36746 Air Cleaner Filter1
250 36744 Air Cleaner Cover1
260 36800 Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
275 36790 Muffler1
277 650988 Screw, 1/4-20 x 2-5/16"2
285 35000A Starter Cup1
287 650926 Screw, 8-32 x 21/64"2
290 34357 Fuel Line1
292 26460 Fuel Line Clamp2
298 28763 Screw, 10-32 x 35/64"3
300 36757 Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap1
305 35577 Oil Fill Tube1
306 36996 * "O"-Ring1
307 35499 "O"-Ring1
309 650562 Screw, 10-32 x 1/2"1
310 35578 Dipstick1
313 34080 Spacer1
324 33177 Terminal1
370C 37199 Primer Decal1
370D 35977 Caution Decal1
370K 36695 Starter Decal1
370A 36261 Lubrication Decal1
380 640142 Carburetor (Incl. 184)1
390 590737 Rewind Starter (NOTE: This engine could hav e been built
1
with 590694 starter).
400 36792B * Gasket Set (Incl. items marked PK i n notes). Incl. Part
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
417 650760 Screw, 8-32 x 3/8" (Optional)1
420 730225 SAE 30 4-Cycle Engine Oil (Quart)1
514 36458A Brake Lock Out Device (Incl. 515) WARNING! Do not use the
1
#'s 26756 (1), 28833 (1), 34338 (1), 36783 (1), 36786 (1),
36787 (1), 36832 (1), 36996 (1), 37130 (1).
1
brake lock out device on engines required to meet CPSC
safety standard for walkbehind power lawnmowers, Title 16,
Part 1205 of the code of Federal Regulations or you will be in
violation of the law.
www.mymowerparts.com
Page 4
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-361008A Page 4 of 6
Engine Parts List #1
Ref # Part Number Qty Description
515 650926 Screw, 8-32 x 21/64"1
www.mymowerparts.com
Page 5
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-361008A Page 5 of 6
Engine Parts List #2
www.mymowerparts.com
Page 6
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
LEV120-361008A Page 6 of 6
Engine Parts List #2
Ref # Part Number Qty Description
19 36796 Extension Spring1
41 40025 Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 40026 Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
69 35261 Mounting Flange Gasket1
72 36083 Oil Drain Plug1
75 27897 Oil Seal1
86 650488 Screw, 1/4-20 x 1-1/4"6
90 611112 Flywheel1
110A 36230 Ground Wire1
182 6201 Screw, 1/4-28 x 7/8"2
185 36785 Intake Pipe1
186 36255 Governor Link1
223 650451 Screw, 1/4-20 x 1"2
238 650806 Screw, 10-32 x 5/8"2
239 34338 * Air Cleaner Gasket1
240 36743 Air Cleaner Body1
245 36745 Air Cleaner Filter1
250 36744 Air Cleaner Cover1
260 36800 Blower Housing1
261 30200 Screw, 10-24 x 9/16"2
262 650831 Screw, 1/4-20 x 1/2"2
263A 36758 Starter Grill1
298 28763 Screw, 10-32 x 35/64"3
300 36757 Fuel Tank (Incl. 292 & 301)1
301 36246 Fuel Cap1
370A 36261 Lubrication Decal1
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
417 650760 Screw, 8-32 x 3/8" (Optional)1
www.mymowerparts.com
