2510-2510-020A Page 1 of 4

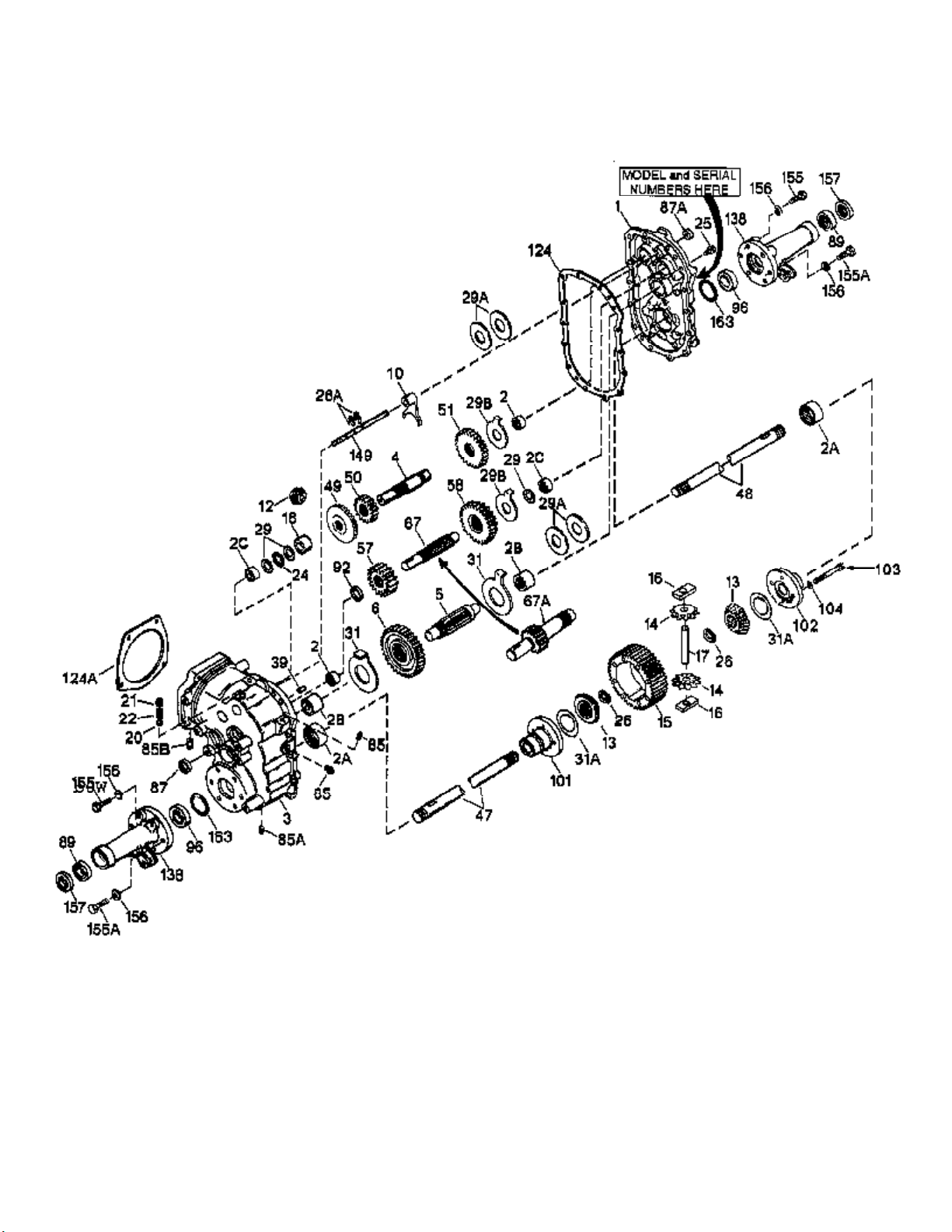

Peerless #1
www.mymowerparts.com
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983
Ref # Part Number Qty Description
1 772065 Transaxle Cover (Incl. 2A, 2B & 2C)
2A 780098 Needle Bearing
2C 780100 Needle Bearing
2B 780099 Needle Bearing
2 780097 Needle Bearing
3 770060B Transaxle Case (Incl. 2, 2A, 2B & 2C)
4 776209A Countershaft & Spacer (Incl. 18)
5 776120A Output Pinion (13 teeth)
6 778134 Output Gear (31 teeth)
10 784195 Shift Fork
12 778093A Bevel Pinion (13 tooth)
13 778158 Bevel Gear
14 778157 Bevel Pinion
15 778156 Ring Gear
16 786098 Drive Block
17 786096 Drive Pin
18 786094 Spacer
20 792004 Steel Ball, 3/16" dia.
21 792068 Set Screw, 1/4-20 x 1/2"
22 792003 Shifter Fork Spring
24 780012 Thrust Bearing
25 792067 Screw, 5/16-18 x 1"
26A 792064 Snap Ring
26 792062 Snap Ring
29A 780007 Thrust Washer (4 required)
29 780045 Thrust Washer
31A 780130 Thrust Washer
31 780156 Thrust Washer (tabbed) (2 required)
39 786026 Dowel Pin
49 778087 Bevel Gear (30 teeth)
50 778088 Spur Gear (16 teeth)
51 778096 Spur Gear (23 teeth)
57 778135 Spur Gear (19 teeth)
58 778097 Cluster Gear (20 & 27 teeth)
67 776119 Brake Shaft
85 792010 Pipe Plug, 3/8" sq. hd.
85A 792019 Magnetic Drain Plug
87A 788034 Oil Seal
87 788008 Oil Seal
89 780103 Ball Bearing
92 780005 Spacer
101 774515 Differential Carrier
102 774514 Differential Carrier
103 792101 Screw, 3/8-16 x 2-3/4"
104 792011 Lockwasher, 3/8"
124A 788050 Gasket
124 788047 Case-to-Cover Gasket
149 784196A Shift Rod
155 792065 Screw, 1/2-13 x 1-1/2"
156 792066 Lockwasher, 1/2"
157 788049 Oil Seal
163 788048 Square Cut Seal
2510-2510-020A Page 2 of 4
Peerless #1
www.mymowerparts.com
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983
2510-2510-020A Page 3 of 4
Peerless #2
www.mymowerparts.com
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983
Ref # Part Number Qty Description
18 786094 Spacer
24 780012 Thrust Bearing

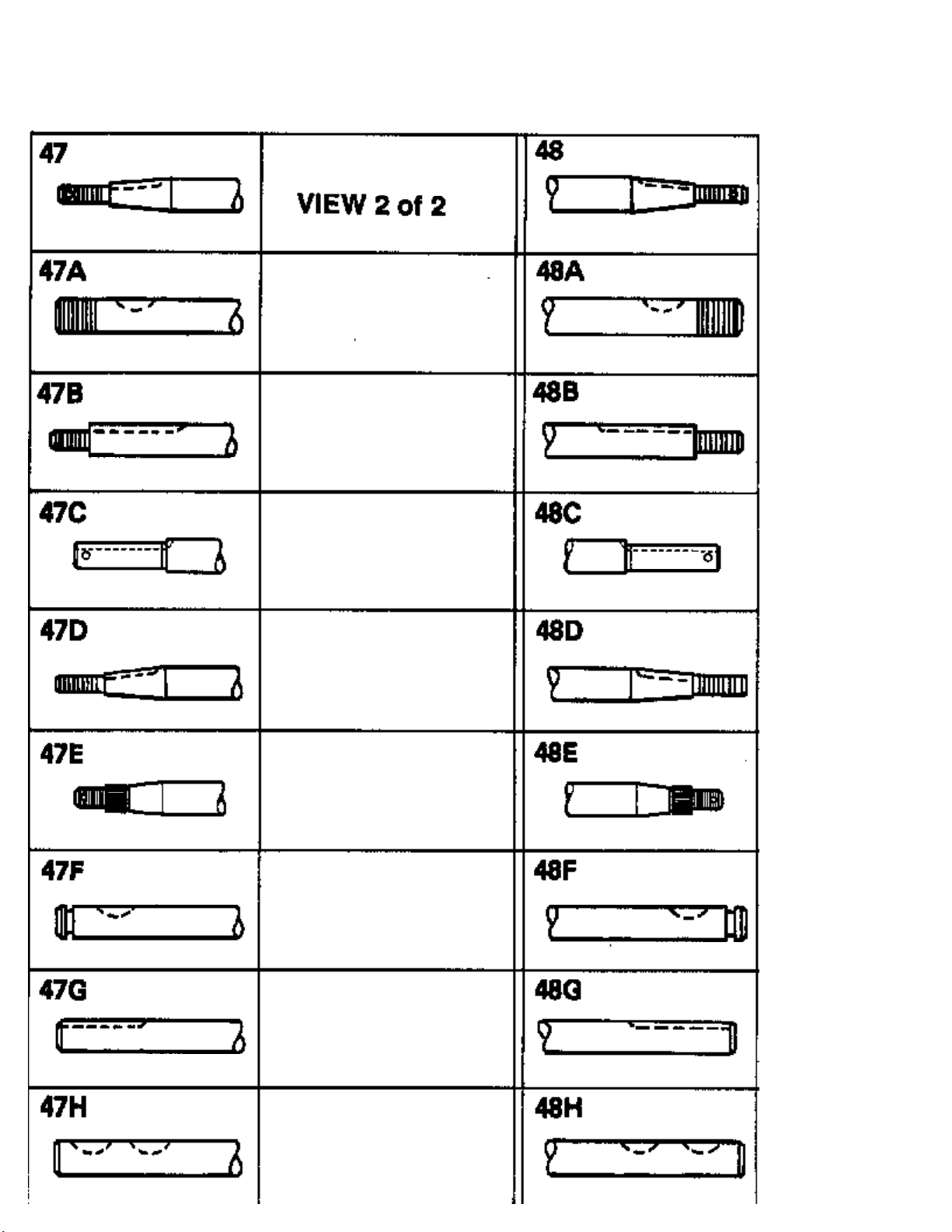

47D 774547 Axle (23-5/16" long)
48D 774546 Axle (22-7/16" long)
2510-2510-020A Page 4 of 4
Peerless #2
www.mymowerparts.com
