TapFlo CTM Series, CTM 20-7, CTM 25-8, CTM 25-10 Instructions For Installation, Operation And Maintenance
Instructions for installation,
operation and maintenance.
Mag drive centrifugal pumps
Pump models:
CTM 20-7
CTM 25-8
CTM 25-10
IOM MANUAL
STOP
Read this instruction manual carefully,
before you install and operate the pump
CONTENTS
Chapter Content Page
CONTENTS 2
CE CERTIFICATE 3
0. GENERAL 4
0.1 Introduction 4
0.2 The warning symbols 4
0.3 Qualification and training of personnel 4
0.4 Description of the pump 5
0.5 Health & safety 6
1. INSTALLATION 7
1.1 Receiving inspection 7
1.2 Storage 7
1.3 Foundation 7
1.4 Piping connections 7
1.4.1 Discharge pipe 7
1.4.2 Suction pipe 7
1.5 Example of installation 8
1.6 Instruments 9
1.7 Motor Connection 9
2. OPERATION 10
2.1.1 Starting the pump 10
2.1.2 Re-starting after power shutoff 10
2.2 Stopping the Pump 10
CE CERTIFICATE
Declaration of conformity
Machinery directive 89/392/EEC, Annex 2A
Tapflo AB declares that:
Product name: Mag drive centrifugal pumps
Models: CTM…
3. MAINTENANCE 11
3.1 Maintenance schedule 11
3.2 Trouble shooting 11
3.2.1 Trouble shooting tables 12
3.3 Assembly and disassembly 13
3.3.1 Disassembly of the pump 13
3.3.2 Wear Parts Replacement 14
3.4 Assembly 14
3.4.1 Screws recommended locking torque 14
4. SPARE PARTS 15
4.1 Spare part drawing CTM pumps 15
4.2 Spare part list CTM pumps 15
4.3 Stocking recommendation 16
4.4 Pump code 16
5. DATA 17
5.1 Performance curves 17
5.2 Technical data and limits 18
6. WARRANTY & REPAIR 19
6.1 Returning parts 19
6.2 Warranty 19
6.3 Warranty form 21
Is in conformity with the essential health and safety requirements and technical construction
file requirements of the EC Machinery directive 89/393/EEC with amendments 91/368/EEC,
93/94 EEC and 93/68 EEC.
Manufacturer: Tapo AB
Address: Filaregatan 4
S-442 34 Kungälv
Sweden
Tapo AB, january 1st 2008
Håkan Ekstrand
Managing director
2 Instruction manual CTM mag drive pumps
IOM manual Tapflo PE & PTFE series pumps 3
0. GENERAL
0. GENERAL
0.1 Introduction
CTM is a compact and reliable magnetic drive centrifugal pump made in PP or PVDF. With proper attention
to maintenance, CTM pumps will give efficient and trouble free operation. This instruction manual will
familiarise operators with detailed information about installing, operating and maintaining the pump.
0.2 The warning symbols
The following warning symbols are present in this instruction manual. This is what they say.
This symbol stands next to all safety instructions in this instruction manual where danger
to life and limb may occur. Observe these instructions and proceed with utmost caution in
STOP
these situations. Inform also other users of all safety instructions. In addition to the instructions in this instruction manual, the general safety and accident prevention regulations
must be observed.
This symbol signals possible danger caused by the presence of electric fields or live wires.
Danger magnetic field, indicates the presence of high intensity magnetic fields.
This signal stands at points in this instruction manual of particular importance for compliance with regulations and directives, for correct work flow and for the prevention of damage
to and destruction of the complete pump or its subassemblies.

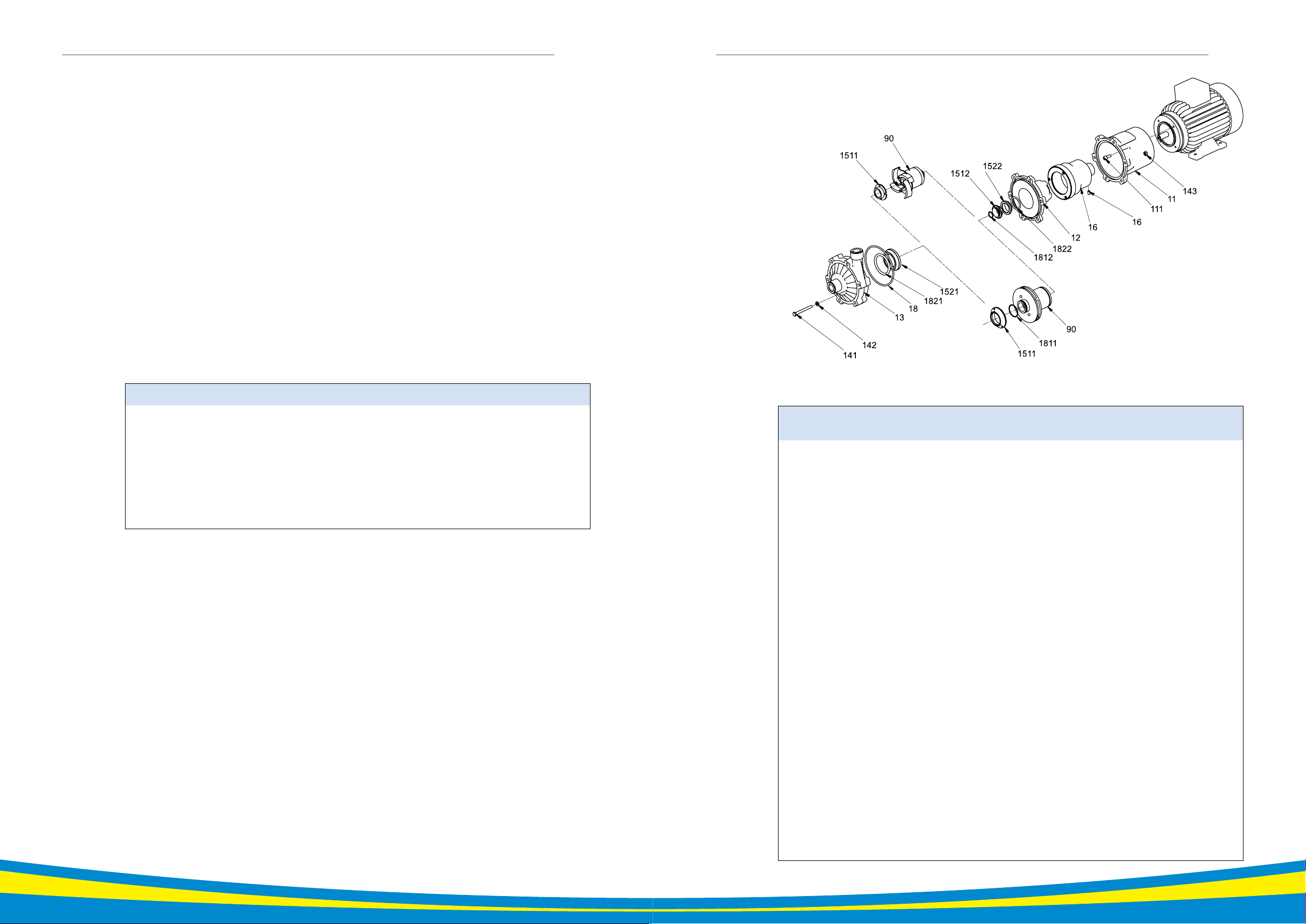

0.4 Description of the pump
The CTM pumps are centrifugal, single-stage type with magnetic coupling, in close-coupled version,
made from moulded thermoplastic material.
The main feature of these pumps is the transmission of movement by means of a magnetic coupling.
The outer magnetic unit (16), connected to the motor shaft transmits torque to the inner magnetic coreimpeller group (90), the magnetic field generates impeller rotation without physical contact. The isolation
shell (12) is fitted between the two cores sealing hermetically the liquid pumped by the atmosphere,

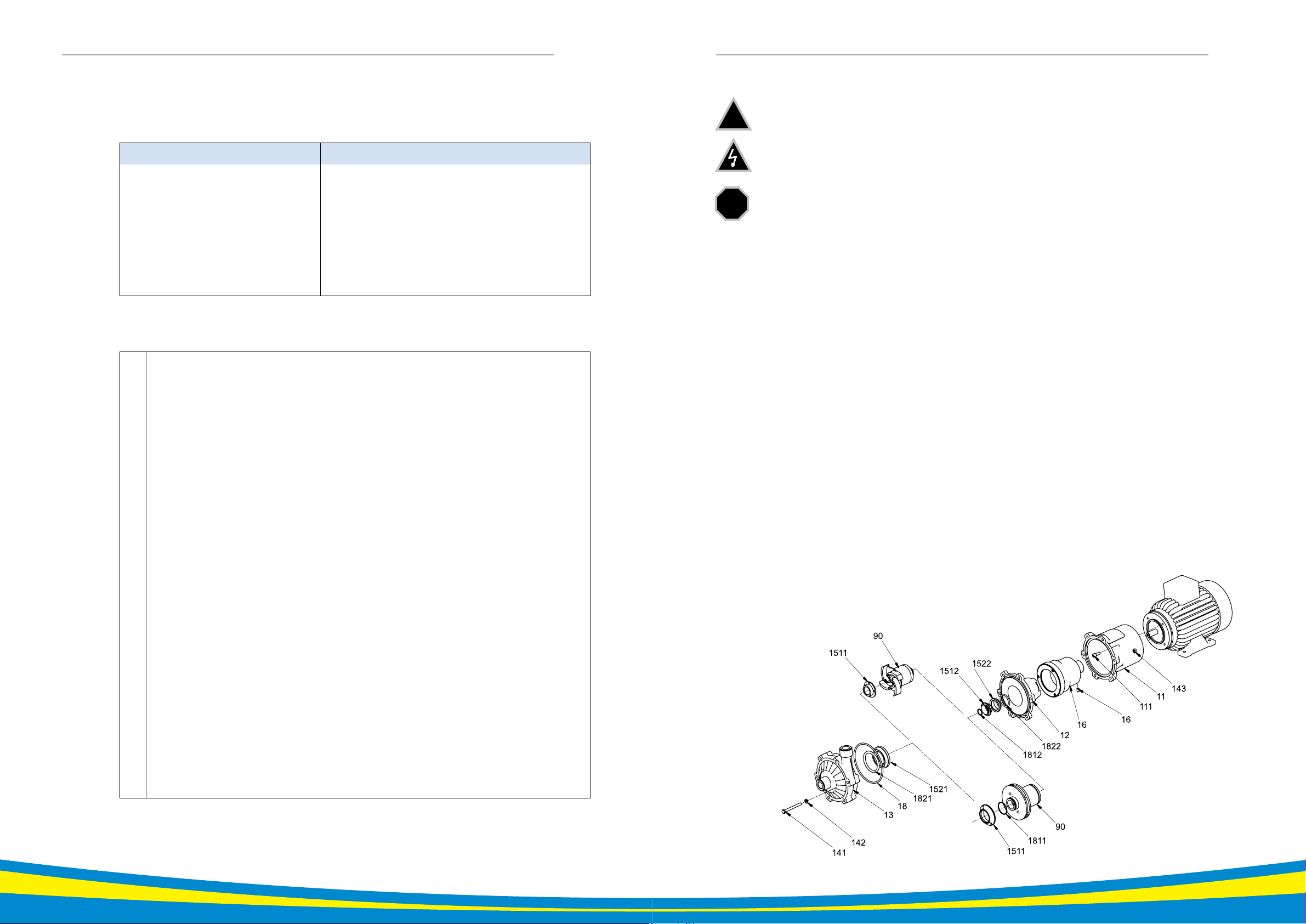

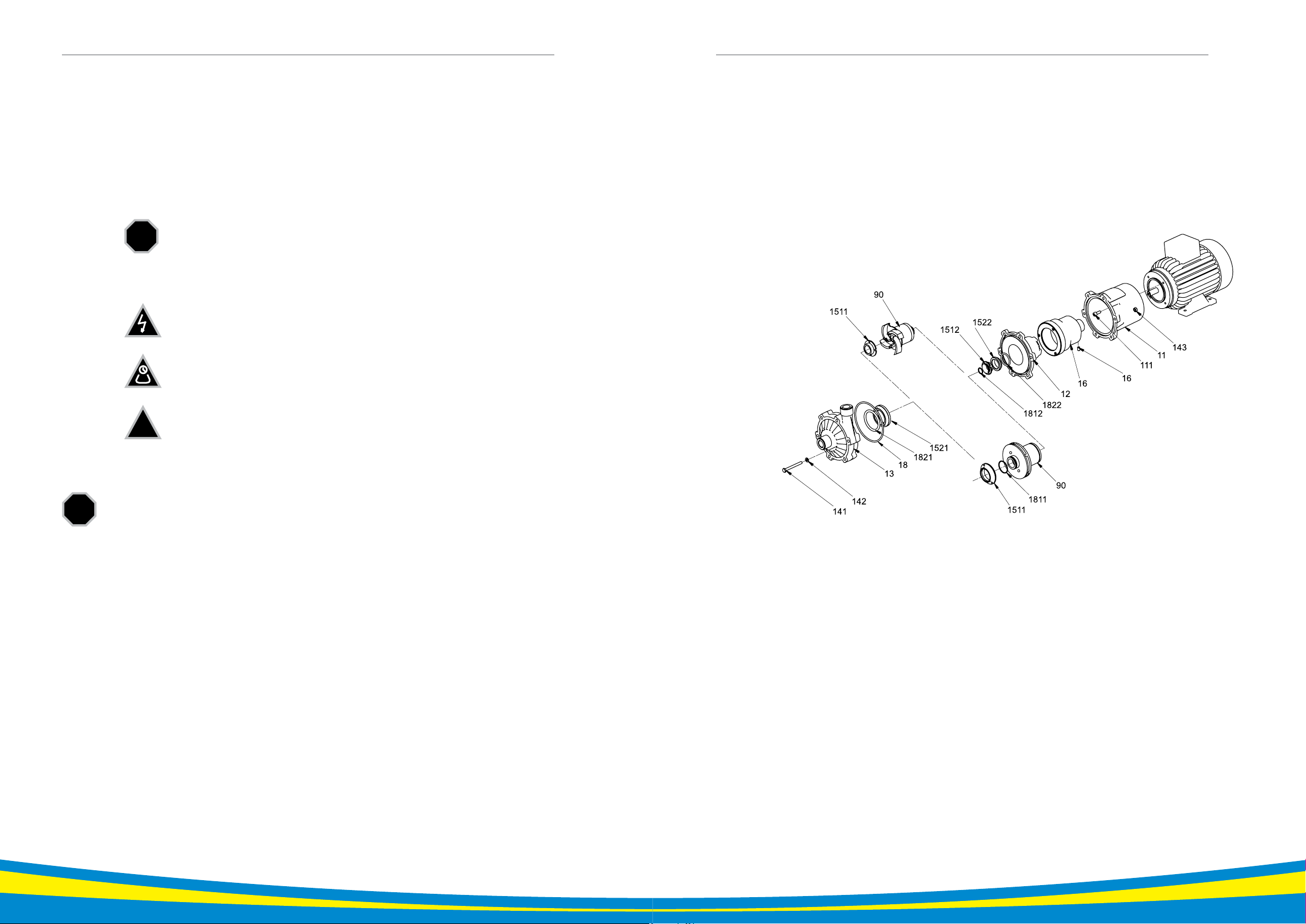

see figure below.
!
0.3 Qualification and training of personnel
The personnel in charge of installation, the operation cycle and maintenance of the pumps we produce
must be qualified to carry out the operations described in this manual. Tapflo shall not be held responsible for the training level of personnel and for the fact that they are not fully aware of the contents of
STOP
this manual.
4 Instruction manual CTM mag drive pumps
IOM manual Tapflo PE & PTFE series pumps 5
0. GENERAL
1. INSTALLATION
0.5 Health & safety
Electric safety
Do not carry out any maintenance operation on the pump while it is running or before it has been disconnected from the power supply. Avoid any danger caused by electric power (for details see current
regulations in force). Check that electrical specifications on the data plate are equivalent to the power
supply to which it will be connected.
Chemical hazards
STOP
Dry running
!
Temperature hazards
STOP
Rotating parts
STOP
Noise level
STOP
Avoid pumping liquids, even in different moments that may cause chemical reactions without having
cleaned the pump.
Do not start nor carry out running tests before filling the pump with liquid. Always avoid the dry operation of the pump. Start the pump when it is completely filled with the delivery valve almost fully closed,
limiting this condition to the time that is strictly necessary to start the pump.
The cold or hot parts of the machine must be protected to avoid accidental contacts.
Do not tamper with the protection of the rotating parts, do not touch or approach rotating parts in
movement.
CTM pumps, including the motor, in normal operating conditions produce a sound level below 80 dB(A).
The major sources of noise are: liquid turbulence in the plant, cavitation or any other abnormal operation
that do not depend from the pump construction nor the pump manufacturer. The user must provide
suitable protective means if the sources of noise could produce a harmful noise level for operators and
for the environment (in compliance with current regulations).
1.1 Receiving inspection
Although precaution is taken by us when packing and shipping, we urge you to carefully check the
shipment on receipt. Make sure that all parts and accessories listed on the packing list are accounted for.
Immediately report any damage or shortage to the transport company and to us.
1.2 Storage
If the equipment is to be stored prior to installation, place it in a clean location. Do not remove the pro-
!
tective covers from the suction, discharge and air connections, which have been fastened to keep pump
internals free of debris. Make sure to clean the pump thoroughly before installation.
1.3 Foundation
The pump-motor unit must stand on and be fixed to a sufficiently rigid structure that can support the
!
entire perimeter on which the unit stands. The foundation on a firm bottom are the most satisfactory.
Once the pump is in position, adjust level with metal shims between the feet and the surface on which
it stands. Check that the feet of the pump-motor unit stand well on each of them. The surface on which
the foundation stands must be flat and horizontal. If the unit is fitted on a steel structure, make sure that
it is supported so that the feet do not warp. In any case, it is advisable to fit some antivibration rubber
pieces between the pump and the brickwork.
As the pump is close-coupled type, pump-motor alignment is not required.
1.4 Piping connections
A pump is generally part of a piping system that can include a number of components such as valves,
!
fittings, filters, expansion joints, instruments, etc. The way the piping is arranged and the positioning of
the components has a great influence on operation and the operating life of the pump. The pump cannot
be used as a support for the components connected to it.
The flow of liquid from the pump must be as even as possible. It is advisable to avoid any tight bends or
drastic reductions of diameters that may cause flow resistance in the plant. In case of diameter reduction,
it is advisable to use appropriate conical reductions (possibly eccentric on suction side and concentric
on delivery side) at changes of diameter and at a minimum distance from pump inlets of five diameters.
Powerful magnetic field
Mag-Drive pumps use wide range, high intensity magnets. All pacemaker carriers must not approach
magnetic components; intense magnetic fields can disturb heart pace.
Solids
!
Modifications and Spare parts
STOP
6 Instruction manual CTM mag drive pumps
It is not recommended to use liquid with suspended solids, especially if sensitive to magnetism.
In case dirty liquids are to be pumped and this was not mentioned at the time of ordering, it is necessary
to contact Tapflo’s technical service before activating the pump.
Any changes concerning the service of the pump as originally purchased, can be executed only after
written approval from Tapflo.
It is recommended to use only genuine Tapflo spare parts and approved accessories. The use of nonoriginal spare parts or non approved accessories will void warranty and removes any responsibility on
our behalf for any damage caused to people or things.
1.4.1 Discharge pipe
A nonreturn valve and a shutoff/regulation valve are normally fitted on the discharge side.
The nonreturn valve protects the pump from any backflow. The shutoff/regulation valve excludes the
!
1.4.2 Suction pipe
!
!
IOM manual Tapflo PE & PTFE series pumps 7
pump from the line and adjusts output. Never adjust flow-rate using the valve on the suction pipe.
The suction piping is very important for the correct operation of the pump group. It must be as short
and as direct as possible. If a longer suction line is unavoidable, the diameter should be large enough,
i.e. at least as the inlet connection on the pump, to ensure less flow resistance. In any case, suction must
be carried out properly avoiding any air locks.
The CTM pumps are single-stage centrifugal type, thus not self-priming. It will therefore always be necessary to install a bottom valve in all cases when the static height of the liquid is lower than the suction
height of the pump. The suction piping must be without air inlets that are more probable with long
suction lines or if suction occurs with negative head. Critical points in these terms are also the seals between flanges and the seals of the valve stems. Even some small air let into the suction line cause serious
operating problems that can make the pump stop.
1. INSTALLATION
1. INSTALLATION
1.5 Example of installation
1.6 Instruments
In order to ensure a reasonable control of the performance and the conditions of the pump installed, we
!
Electric power
Optional instruments
!
Thermometer
recommend using the following instruments:
- a pressure-vacuum gauge on the suction piping;
- a pressure-vacuum gauge on the delivery piping.
The pressure intakes must be made on straight pieces of piping at minimum five diameters from the
pump inlets. The pressure gauge on delivery must always be fitted between the pump and the shutoff/
regulation valve. The output can be read on the pressure, transformed into meters and then compared
with the typical curves.
The electric power absorbed by the motor can be measured with wattmeters.
The optional instruments can advise of abnormal operating conditions of pumps, such as: valves closed
accidentally, missing liquid, overloads, etc.
If the temperature of the pumped liquid can be a critical element, provide a thermometer (preferably
on suction).

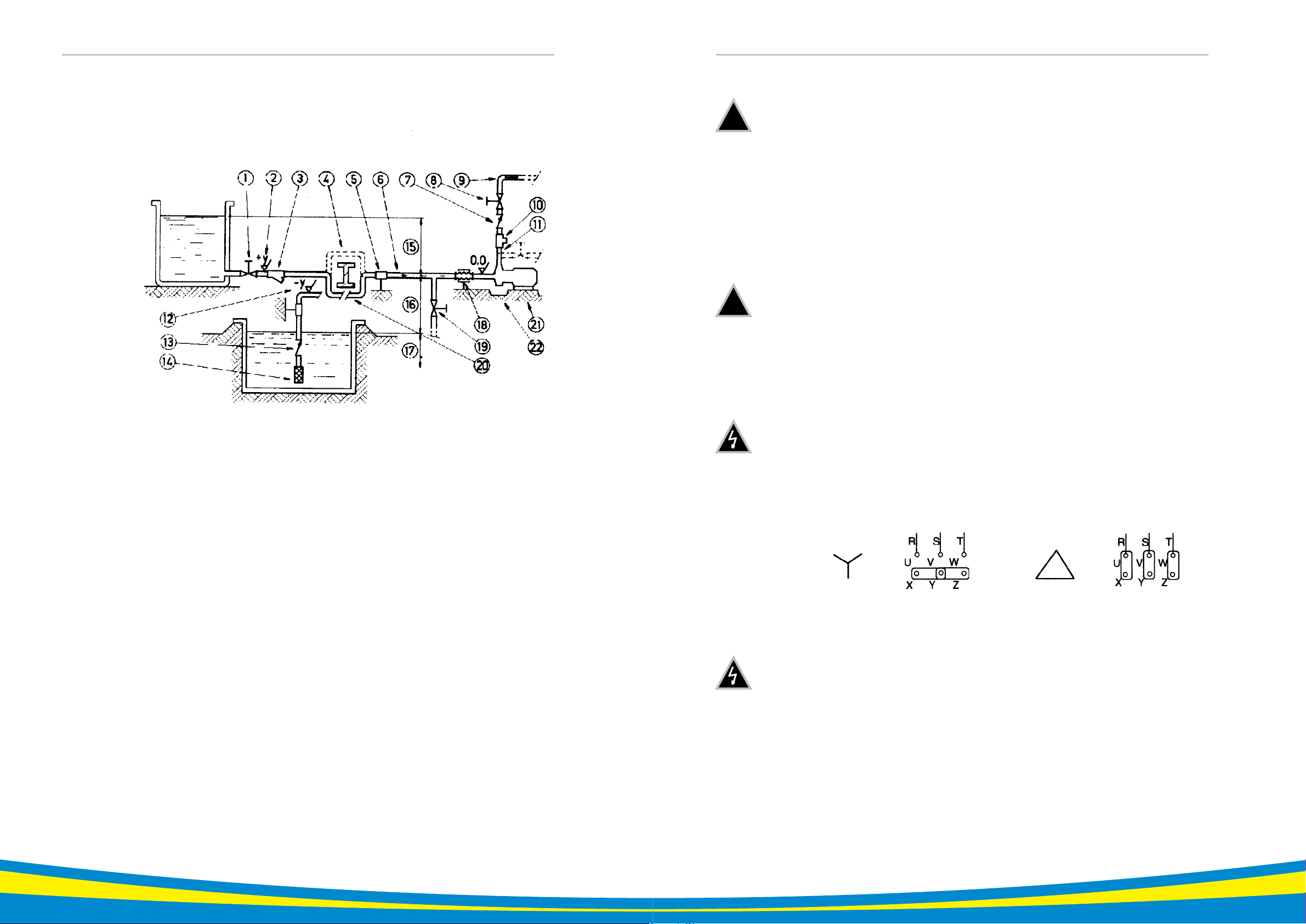

1) YES: gate valve (may also be near pump in the case of long piping)
2) With positive head: tilt of piping towards pump
3) YES: line strainer if particles are present
4) NO: air pockets: the circuit must be short and straight
5) YES: pipe fixing parts
6) Suction line as short and direct as possible
7) YES: check valve (especially for long vertical or horizontal pipes; compulsory with parallel
pumps)
8) YES: adjusting gate valve on outlet
9) Bends placed after valves and instruments
10) YES: attachment for gauge or safety pressure switch
11) NO: elbow joints (and other parts) on the pump (discharge and suction lines)
12) With negative suction lift: tilt of piping towards suction tank
13) YES: check valve (with negative suction lift)
14) YES: strainer if particles are present
15) Suction head varies according to flow in order to prevent windage
16) Suction head
17) Immersion depth
18) YES: expansion joint (indispensable with long pipes or hot liquids) and/or anti-vibration facility
during discharge and suction; anchored near to pump
19) YES: pipe discharge (completely sealed), discharge valve shut during normal operations
20) YES: overcoming obstacles at lower depths
21) Fix the pump by the fixing holes provided: the supports must be level
22) YES: drainage channel around base
1.7 Motor Connection
An expert electrician must always carry out the electrical connection. Compare the power supply with the
data plate specifications and then choose a suitable connection. The type of connection is stated on the
motor data plate that can be Y (star) or D (Delta), according to the power supply of the motor (see figure).
Star connection Y Delta connection D
Follow the prescriptions of the local electricity board for the connection. In no case connect the electrical
motors directly to mains but also fit in between a suitable electric switchboard equipped with a knife
switch and suitable safety devices. Safety devices against overloads must protect the motors. Make sure
that the motor has suitable grounding and that it has been connected properly.
8 Instruction manual CTM mag drive pumps
IOM manual Tapflo PE & PTFE series pumps 9
2. OPERATION
2.1 Start-up
- Check manually that the motor is free to turn, moving the motor cooling fan.
3. MAINTENANCE
Maintenance work on electrical installations must be performed by qualified personnel
and only when the power supply has been shutoff. Follow the local and national safety
regulations.
- Make sure that the piping is not clogged and is free from residues or foreign objects. Make sure that
the liquid flows regularly into the pump.
- The pump and piping connected to it, at least the suction pipe, must be full of liquid. Any air or gas
!
!
STOP
2.1.1 Starting the pump
!
must be carefully released. In case of suction with negative head, fill the suction piping and check how
the bottom valve works. It must guarantee that the liquid must not flow back, emptying therefore
the suction pipe with consequent disconnection of the pump.
- The suction shutoff valve (if any) must be completely open.
- The shutoff/regulation valve on the discharge side must be almost completely closed.
- The motor must turn in the same direction as the arrow shown on the pump. The direction of rotation
is always clockwise looking at the pump from the motor side; check by starting briefly, then looking at
the direction of rotation of the motor fan through the fan lid. If it is wrong, the motor must be stopped
immediately. Change the connection to the terminals of the electric motor (chapter 1.7) and repeat
the procedure described above.
- Any auxiliary connections must all be connected.
Start the electric motor and open the discharge adjustment/shutoff valve gradually until the desired
output has been reached. The pump must not turn more than two or three minutes with discharge closed.
A longer operation in these conditions can damage the pump seriously.
3.1 Maintenance schedule
The CTM range pumps have been designed and tested to run for 5000 hours in ideal working conditions.
Please note that is a conservative figure since the actual duty point of your pump can substantially modify
such value. Additional factors such as intermittent operation, type of pumped liquid and installation in
the plant may affect the life of components subject to wear.
In any case, Tapflo advises to service pumps every year of service, even when used in ideal operating
conditions.
3.2 Trouble shooting
The following tables help to identify the causes of any problems during operation or failures of the pump.
By consulting table ”A” identify on the left column (symptoms) the problem encountered on the right
column (causes) the number relevant to the possible causes of malfunctioning. Table ”B”, by excluding
the causes not applicable to the case being examined, allows to identify the causes of the problem.
If the pressure shown on the pressure gauge on the discharge piping does not increase, turn off the pump
immediately and release pressure carefully. Repeat the connection procedure.
If there are changes of flow-rate, head, density, temperature or viscosity of the liquid, stop the pump and
!
2.1.2 Re-starting after power shutoff
get in touch with our technical service.
In case of accidental stopping, make sure that the non-return valve has prevented backflow and check
that the motor cooling fan has stopped. Start the pump again following the instructions of chapter 2.1.1
”Starting the pump”.
If the pump intakes from a lower level, it can unprime during the standstill and therefore you must check
again before starting that the pump and the suction piping are full of liquid.
2.2 Stopping the Pump
It is advisable to close the discharge adjustment/shutoff valve gradually and stop the motor immediately
!
after. The reverse sequence is not recommendable, especially with larger pumps or longer delivery piping.
That is to avoid any problems due to water hammering. If a suction shutoff valve has been installed, it
is advisable to close it completely.
10 Instruction manual CTM mag drive pumps
IOM manual Tapflo PE & PTFE series pumps 11
3. MAINTENANCE
3.2.1 Trouble shooting tables
3. MAINTENANCE
3.3 Assembly and disassembly
Table A, identification of the problem
Problem Possible cause
Pump does not perform head required 1,2,3,4,9,10,11,12,14,15,17,18,19,24,29,32
Insufficient flow rate 2,3,4,5,6,7,8,9,10,11,12,14,15,17,18,29,32
Low delivery pressure 9,12,14,15,17,18,21,29
Pump unmprimes after startup 2,3,4,9,10
Leaks from pump 14,19,21,23,24,25,27,33
Abnormal power absorption 13,16,17,18,21,23,24,25,26,28,30
Vibrations and unnatural noises 2,3,6,7,9,10,11,16,19,21,24,26,27,28,29,30,31,32
Bushing life too short 27,28,29,33
The pump overheats 1,6,9,13,19,20,24,26,28
Table B, possible causes of the problem
1 The Pump is not primed
2 Suction height too high
3 Suction piping or pump not completely full of liquid
4 Suction piping with air pockets
5 Insufficient suction pressure
6 Vapour pressure is too high
7 Suction piping has too high friction losses
8 Insufficient suction head
9 Too much air or gas in the pumped liquid
10 Suction piping not sealed
11 Bottom valve not sealed or clogged
12 Low rotation speed
13 High rotation speed
14 Wrong direction of rotation
15 The plant head is higher than the pump
16 The plant head is lower than the pump
17 Liquid with density differing from the expected one
18 Liquid with viscosity differing from the expected one
19 Operation without liquid -dry running20 Operating flow rate too low
21 Operating flowrate too high -pump cavitates22 Material not suitable for pumped liquid
23 Pumped liquid with suspended solid substances
24 Liquid temperature too high
25 Liquid temperature too low
26 Insufficient pressure or bushes flushing -lubrication27 Shaft is not straight
28 Static and rotating parts rubbing
29 Damaged impeller
30 Inner bushes worn or damaged
31 Rotating unit out of balance
32 Magnetic coupling damaged or insufficient
33 Wrong assembly or with dirt
!
STOP
3.3.1 Disassembly of the pump
The assembly and disassembly should only be performed by qualified personnel.
Each operation carried out on the machine must always be carried out once all the electrical contacts
have been disconnected. The pump-motor unit must be placed in a position where it cannot be started
unintentionally.
Before servicing in any way the parts in contact with the pumped liquid, make sure that the pump has
been fully emptied and washed. When draining the liquid, make sure that there is no danger for people
or the environment.
For dismantling the pump proceed as follows (see drawing below):
Dismantle the pump casing (13) from the lantern (11), by loosening screws (141) washers (142) and nuts
(143).
Pull out the static bushing (1521) from the casing.
For CTM 20-7: remove the impeller magnet assembly (90) extract rotating bushing (1511) and rear bushing
(1512) and the O-ring (1812).
For CTM 25-8 and 25-10: remove the impeller magnet assembly, extract rotating bushings (1511) and
(1512) and the O-rings (1811) and (1812).
The static and rotating bushes are usually made from very fragile sintered material and therefore has to
be handled with extreme care.
Remove the casing O-ring (18) from the isolation shell (12).
Extract the isolation shell (12) from the lantern (11).
Loosen the lock screws (161).
Remove the external magnet assembly (16) from the lantern (11) loosening the screws (111).
CTM 20-7
CTM 25-8
CTM 25-10
12 Instruction manual CTM mag drive pumps
IOM manual Tapflo PE & PTFE series pumps 13
3. MAINTENANCE
3.3.2 Wear Parts Replacement
The components that can affect the correct operation of the pump if not regularly replaced, are:
CTM 20-7
- Casing O-ring (18)
- Rotating bushes (1511) + (1512)
- Static bushes (1521) + (1522)
- O-rings (1821) + (1812) + (1822)
CTM 25-8 and 25-10
- Casing O-ring (18)
- Rotating bushes (1511) + (1512)
- Static bushes (1521) + (1522)
- O-rings (1811) + (1821) + (1812) + (1822)
4. SPARE PARTS
4.1 Spare part drawing CTM pumps
CTM 20-7
3.4 Assembly
To re - a s semble all th e wet-end parts and the external mag n e t proceed in the reve r se
sequence.
3.4.1 Screws recommended locking torque
Part No Pump / Description Thread Locking torque (Nm)
141/143 CTM 20-7 / Screws and nuts M5 6
111 CTM 20-7 / Screws M5 6
141/143 CTM 25-8 / Screws and nuts M6 9
111 CTM 25-8 / Screws M5 6
141/143 CTM 25-10 / Screws and nuts M6 9
111 CTM 25-10 / Screws M6 9
14 Instruction manual CTM mag drive pumps
CTM 25-8
CTM 25-10
4.2 Spare part list CTM pumps
Pos Description Pump model / qty Material
20-7 25-8 25-10
11 Lantern 1 1 1 PP-GF (30%)
111 Motor mounting screw 4 4 4 AISI 304
12 Isolation shell (rear casing) 1 1 1 PP-GF (30%)
PVDF
13 Pump casing 1 1 1 PP-GF (30%)
PVDF
141 Casing mounting screw 6 6 6 AISI 304
142 Casing mounting washer 6 6 6 AISI 304
143 Casing mounting nut 6 6 6 AISI 304
1511 Rotating bushing front 1 1 1 PTFE-graphite
SiC
1512 Rotating bushing rear 1 1 1 PTFE-graphite
SiC
1521 Static bushing front 1 1 1 Al2O3 (ceramic)
SiC
1522 Static bushing rear 1 1 1 Al2O3 (ceramic)
SiC
16 External magnet assembly 1 1 1 Cast iron/NdFeB
161 Lock screw 2 2 2 AISI 304
18 Casing O-ring 1 1 1 EPDM
FKM
1811 O-ring - 1 1 EPDM
FKM
1812 O-ring 1 1 1 EPDM
FKM
1821 O-ring 1 1 1 EPDM
FKM
1822 O-ring 1 1 1 EPDM
FKM
90 Impeller magnet assembly 1 1 1 PP/NdFeB
PVDF/NdFeB
IOM manual Tapflo PE & PTFE series pumps 15
4. SPARE PARTS
5. DATA
4.3 Stocking recommendation
Depending on the nature of the liquid and temperature etc, some parts of the pump are subject to wear
and have to replaced. We recommend having the following parts in stock:
Set 1 (2 years)
Pos Description Qty
1511 Rotating bushing front 1
1512 Rotating bushing rear 1
1521 Static bushing front 1
1522 Static bushing rear 1
* Kit of O-rings 1
* = O-rings 18, 1811, 1812, 1821, 1822
4.4 Pump code
The model number on the pump tells the pump size and material of the pump
CTM magdrive
centrifugal pump
Pump size
(Outlet mm - impeller mm)
20-7
25-8
25-10

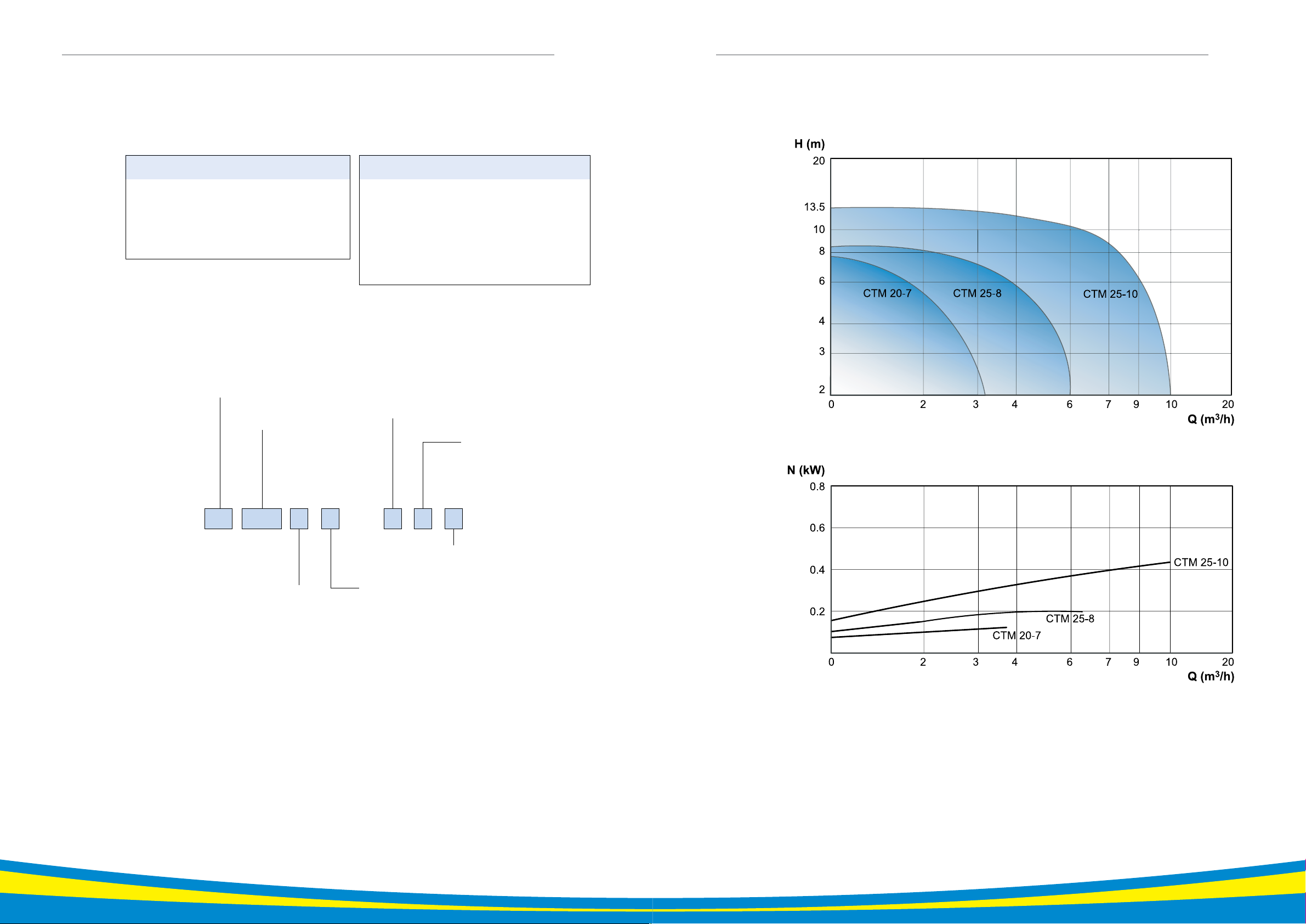

5.1 Performance curves
The performance curves are based on water at 20°C. Speed 2900 rpm.
Contact us for detailed curves.
Set 2 (5 years)
Pos Description Qty
12 Isolation shell 1
13 Pump casing 1
1511 Rotating bushing front 1
1512 Rotating bushing rear 1
1521 Static bushing front 1
1522 Static bushing rear 1
* Kit of O-rings 1
Motor power
01 = 0,12 kW (CTM 20-7)
02 = 0,25 kW (CTM 25-8)
05 = 0,55 kW (CTM 25-10)
Motor options
blank* = 3-phase, 3x380V
IP 55
P = 1-phase motor
Material pump housing
P = PP (polypropylene)
K = PVDF (polyvinylidenefluoride)
* = Standard execution
CTM 25-10 P 1V - 05 P 4
Poles on motor
blank* = 2 poles (~2900 rpm)
4 = 4 poles (~1450 rpm)
Special options
1 = Casing O-ring
blank* = EPDM for PP pump, FKM for PVDF pump
E = EPDM (if used in PVDF pump)
V = FKM
K = FFKM
2 = Static bushings
blank* = Al2O3 (ceramic)
S = SiC (silicone carbide)
3 = Rotating bushings
blank* = PTFE-graphite
S = SiC (silicone carbide)
4 = Connection options
blank* = BSP external threads
F = Flanged DIN PN10 or ANSI 150
Changes reserved without notice
16 Instruction manual CTM mag drive pumps
Changes reserved without notice
IOM manual Tapflo PE & PTFE series pumps 17
5. DATA
6. WARRANTY & REPAIR
5.2 Technical data and limits

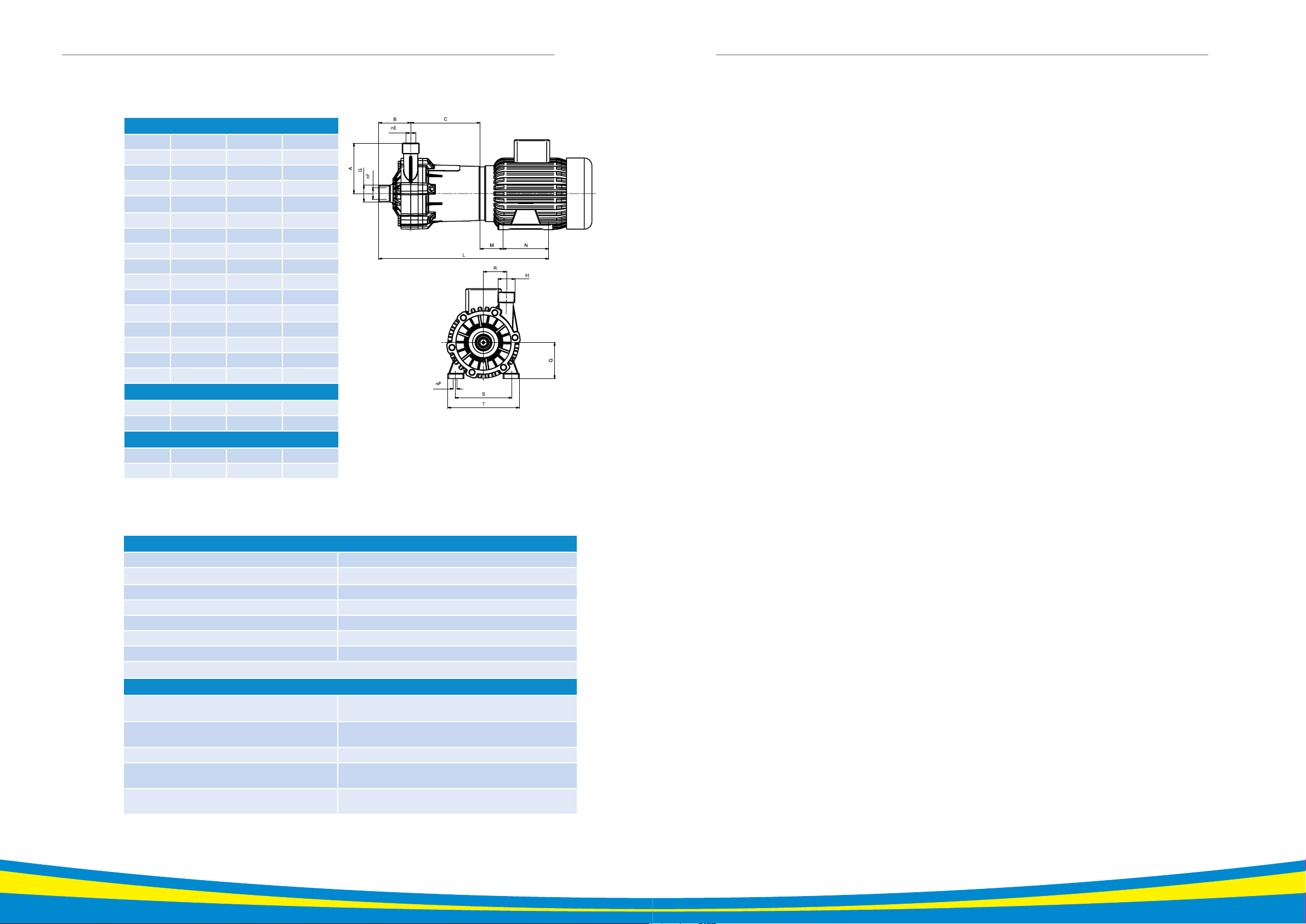

Dimensions
CTM 20-7 CTM 25-8 CTM 25-10
A 70 90 100
B 48 58.5 63
C 93.5 100.5 136.5
ØE
ØF 15 18 18
G 3/4” 1” 1”
H 3/4” 1” 1”
L 248.5 279 334.5
M 36 40 45
N 71 80 90
ØP
Q 56 63 71
R 35 39.5 43.5
S 90 100 112
T 112 126 141
Motor
Power 0.12 kW 0.25 kW 0.55 kW
Size 56 63 71
Flange connections (optional)
Inlet - DN25 DN25
Outlet - DN25 DN25
15 18 18
5.5 7 7
6.1 Returning parts
When returning parts to Tapflo AB please follow this procedure:
- Consult Tapflo AB for shipping instructions.
- Cleanse or neutralize and rinse the part/pump. Make sure the part/pump is completely empty from
liquid.
- Pack the return articles carefully to prevent any damage under transport.
Goods will not be accepted unless the above procedure has been complied with.
6.2 Warranty
Tapflo warrants products under conditions as below for a period of not more than 12 months from installation and not more than 24 months from date of manufacture.
1. The following terms and condition apply to the sale of machinery, components and related services
and products, of Tapflo (hereinafter “the products”)
2. Tapflo (the manufacturer) warrants that:
a.) its products as being free of defects in material, design and workmanship at the time of original
purchase;
b.) its products will function in accordance with Tapflo operative manuals; Tapflo does not guarantee
that the product will meet the precise needs of the Customer, except for those purposes set out in
any invitation to render documents or other documents specifically made available to Tapflo before
entering into this agreement;
c.) high quality materials are used in the construction of the pumps and that machining and assembly
are carried out to the highest standards.
Dimensions in mm where other is not indicated
Materials
Pump casing and isolation shell (rear casing) PP (GF 30%) or PVDF
Impeller PP or PVDF
Lantern (not wetted) PP (GF 30%)
Static bushings Ceramic (standard) or SiC
Rotating bushings Carbographite (standard) or SiC
O-rings FKM (standard), EPDM or FFKM Kaflon
Magnets NdFeB
General characteristics
Temperature range PP pumps: 0°C .... +70°C
PVDF pumps: 0°C .... +80°C
System pressure rating PP pumps: PN4 at 20°C, PN2 at 70°C
PVDF pumps: PN4 at 20°C, PN2 at 80°C
Viscosity 200 cSt max
Solids 2% max concentration in weight
Hardness 800 Vk / size 150 µm
Motor IEC standard, 3x380 VAC (other voltage upon request),
2900 rpm, IP55, frame B3/B14
Changes reserved without notice
18 Instruction manual CTM mag drive pumps
Except as expressly stated above, Tapflo makes no warranties, express or implied, concerning the products,
including all warranties of fitness for a particular purpose.
3. This warranty shall not be applicable in circumstances other than defects in material, design, and
workmanship. In particular warranty shall not cover the following:
a.) Periodic checks, maintenance, repair and replacement of parts due to normal wear and tear (seals,
O-rings, rubber items, bushings, etc..);
b.) Damage to the product resulting from:
b.1.) Tampering with, abuse or misuse, including but not limited to failure to use the product for its
normal purposes as stated at the time of purchase or in accordance withTapflo instructions for use
and maintenance of the product, or the installation or improper ventilation or use of the product
in a manner inconsistent with the technical or safety standard in force;
b.2.) Repairs performed by non skilled personell or use of non original Tapflo parts
b.3.) Accidents or any cause beyond the control of Tapflo, including but not limited to lightning, water,
fire, earthquake, and public disturbances, etc.;
4 The warrantee shall cover the replacement or repairing of any parts, which is documentedly faulty
due to construction or assembling, with new or repaired parts free of charges delivered by Tapflo.
Parts subjected to normal tear and wear shall not be covered by the warranty. Tapflo shall decide
as to whether the defective or faulty part shall be replaced or repaired.
5 The warrantee of the products shall be valid for a period in accordance to the current law from
the date of delivery, under the condition that notice of the alleged defect to the products or parts
thereof be given to Tapflo in written within the mandatory term of 8 days from the discovery.
IOM manual Tapflo PE & PTFE series pumps 19
6 Repair or replacement under the terms of this warranty shall not give a right to an extension to, or
6. WARRANTY & REPAIR 6. WARRANTY & REPAIR
a new commencement of, the period of warranty. Repair or replacement under the terms of this
warranty may be fulfilled with functionally equivalent reconditioned units. Tapflo qualified personnel
shall be solely entitled to carry out repair or replacement of faulty parts after careful examination
of the pump. Replaced faulty parts or components will become the property of Tapflo
6.3 Warranty form
Company:
7 The products are built in accordance with standard CE normative and are tested (where applicable)
by Tapflo. Approval and tests by other control authority are for the customers account. The products
shall not be considered defective in materials, design or workmanship if they need to be adapted,
changed or adjusted to conform to national or local technical or safety standards in force in any
country other than that for which the unit was originally designed and manufactured. This warranty
shall not reimburse such adaptations, changes or adjustments, or attempt to do so, whether properly
performed or not, nor any damage resulting from them, nor any adaptation, change or adjustments
to upgrade the products from their normal purpose as described in the products operative manual
without the prior written consent of Tapflo
8 Installation, including electric and other connections to utility mains according to Tapflo drawings,
is for the cost and responsibility of the customer, unless otherwise agreed in writing.
9 Tapflo will not be liable on any claim, whether in contact, tort, or otherwise, for any indirect, special,
incidental, or consequential damages, caused to the customer or to third parties, including loss of
profits, arising by any possible infringement of par. 3 above or by the customer or third parties being
in the impossibility of using the products.
Steady the above,Tapflo liability to the customer or third parties from any claim, whether in contract,
tort, or otherwise, shall be limited to the total amount paid by the customer for the product that caused
the damages.
Telephone: Fax:
Address:
Country: Contact name:
E-mail:
Delivery date: Pump was installed (date):
Pump type: Serial No (see name plate):
Description of the fault:
The installation
Liquid:
3
Temperature (°C): Viscosity (cPs): Spec. grav. (kg/m
Contents of particles: %, of max size (mm):
Flow (l/min): Duty (h/day): No of starts per day:
Discharge head (mwc): Suction head/lift (m):
Other:
): pH-value:
20 Instruction manual CTM mag drive pumps
Place for sketch of the installation
IOM manual Tapflo PE & PTFE series pumps 21
NOTES NOTES
22 Instruction manual CTM mag drive pumps
IOM manual Tapflo PE & PTFE series pumps 23
Kungälv
Tapflo Fluid
Handling India
Private Limited
Office No 207, Amar Neptune,
Baner, Pune 411045, INDIA
Phone : +91 20 65000215
E-mail: ad@tapflo.in
Web: www.tapflo.in
The perfect choice for your pumping needs
Loading...
