AXM-507 User’s Guide

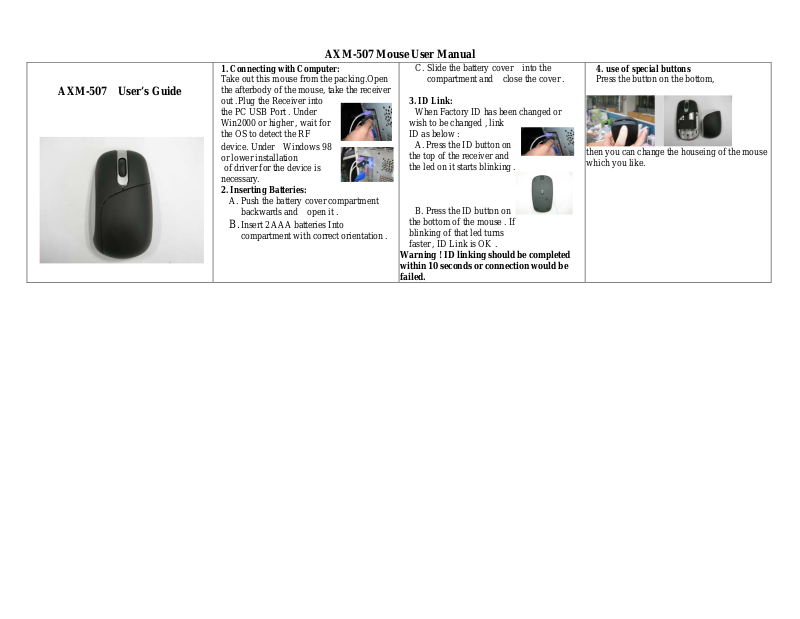

AXM-507 Mouse User Manual
1. Connecting with Computer:
T ake out this mouse from the packing.O pen
the afterbody of the mouse, take the receiver
out .Plug the Receiver into
the PC USB Port . Under
Win2000 or higher , wait for
the OS to detect the RF
device. Under Windows 98
or lower installation
of driver for the device is
necessary.
2. Inserting Batteries:
A. Push the battery cover compartment
backwards and open it .
B.
Insert 2 AAA batteries Into
compartment with correct orientation .
C. Slide the battery cover into the
compartment and close the cover .
3. ID Link:
When Factory ID has been changed or
wish to be changed , link
ID as below :
A. Press the ID button on
the top of the receiver and
the led on it starts blinking .
B. Press the ID button on
the bottom of the mouse . If
blinking of that led turns
faster , ID Link is OK .
Warning ! ID linking should be completed
within 10 seconds or connection would be
failed.
4. use of special buttons
Press the button on the bottom,
then you can change the houseing of the mouse
which you like.
5. Trouble Shootin g:
A. When mouse doesn’t respond, check
the battery power status, and link ID again.
B. Be sure the two DC Jacks be connec ted
to the right respective mouse or receiver DC
sockets
C. Check the battery pole if the optical
Led is still off after inserting batteries.
D .Ask for maintenance solution from your
retailer and engineer . Personally taking
apart prohibited after trouble happened.
6.Spec.
：
1.CYPRESS6936+CYPRESS60323+Avago50
30
2.General painting with several colors
3.Bulk packaging
4.Receiver out
5.2.4HZ
6.With 2 AAA batteries
7.RoHS
7. FCC Note :
This equipment has been tested and comply
with the limits for a class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection. This equipment generates, uses
and can radiated radio frequency energy and,
if not installed and used in accordance with
the instructions, may cause harmful
intererence to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation if this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the
equipment and receiver.
-Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced
radio/TV technician for help.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
The antenna(s) used for this transmitter must
not be co-located or operating in conjunction
with any other antenna or transmitter
This equipment complies with FCC RF
radiation exposure limits set forth for an
uncontrolled environment.
This equipment complies with Part 15 of the
FCC Rules.Operation is subject to the
following two conditions.
(1) This device may not cause harmful
interference, and
(2)
This device must accept any interference
received, including interference that may
cause undesired operation.
