Syris SY210NT V5 Installation Manual

1

SY210NT V5

Networking Muti-Doors Controller

Installation Manual

V0110

WARNING: This manual contains information on limitations

regarding product use and function and information on the

limitations as to liability of the manufacturer. The entire manual

should be carefully read.

SYRIS Technology Corp. 21F-2, NO.12, Sec1, Taijunggang Rd, Taichung , Taiwan (403)

Tel：+886-4-2207-8888 Fax：+886-4-2207-9999 Email：info@syris.net

2

SECTION 1: INTRODUCTION TO SY210NT V54

1.1 PRODUCT OVERVIEW ..............................4

1.2 ABOUT THIS MANUAL ..............................4

1.2.1 New in this Version ..............................4

1.2.2 Fast Setting Index Sheet and Card Record Sheet

4

1.3 FEATURES..............................................4

1.4 SPECIFICATIONS ..................................... 4

SECTION 2: SY210NT WIRE & QUICK INSTALLING

...........................................................................5

2.1 REQUIRED EQUIPMENT ............................5

2.2 SELECTING A MOUNTING LOCATION ..........5

2.3 TYPICAL MOUNTING DIAGRAM..................5

2.4 INSTALLING SY210NT ............................5

2.5 INSTALLING THE READER WIRING DIAGRAM5

2.6 CONNECTING DOOR LOCK WIRING DIAGRAM 5

2.7 CONNECTING BUTTON TO DOOR OPEN ......5

2.8 CONNECTING THE DOOR DETECTION .........5

2.9 CONNECTING POWER SUPPLY...................5

SECTION 3: SY210NT V5 SETTING INTRODUCTION

...........................................................................6

3.1 SETTING MENU LOGIN.............................6

3.2 SETTING MENU LOGOUT.......................... 6

3.3 SHOW VERSION ......................................6

3.4 SY210NT FACTORY DEFAULTS ............... 6

SECTION 4: SY210NT V5 SETTINGS .............6

4.1 SYSTEM FUNCTIONS................................6

4.1.1 Controller Functions ............................6

4.1.2 Module...................................................6

4.1.3 Door .......................................................6

4.1.4 Master....................................................6

4.1.5 System Utility........................................6

4.2 CARD MANAGEMENT ...............................7

4.2.1 Add Card ...............................................7

4.2.2 Edit Card ...............................................7

4.2.3 Delete Card ...........................................7

4.2.4 Show Card.............................................7

4.2.5 All Card APB Setting............................7

4.3 FINGERPRINT MANAGEM ENT ....................7

4.3.1 Add Fingerprint .................................... 7

4.3.2 Delete Fingerprint ................................ 7

4.3.3 Delete All Fingerprint........................... 7

SECTION 5: SET UP SY210NT V5 STEP BY STEP

.......................................................................... 7

5.1 CONTROLLER FUNCTION .................................7

5.1.1 Set Controller ID................................... 7

5.1.2 Same Card Time................................... 7

5.1.3 Invalid Password Lock ........................ 7

5.1.4 Baud Rate Setting ................................ 7

5.1.5 DI Setting .............................................. 7

5.1.6 Elevator Mode ...................................... 7

5.1.7 Set Controller Max Card ...................... 7

5.2 READER MODULE SETTING...................... 7

5.2.1 Module Auto Detect ............................. 8

5.2.2 Reader Module ID Setting ................... 8

5.2.3 MDWIE-2 ID Setting.............................. 8

5.3 DOOR FUNCTION SETTING .......................8

5.3.1 Door Relay ............................................ 8

5.3.2 Door Push Button ................................ 8

5.3.3 Door APB Setting................................. 8

5.4 MASTER CARD FUNCTION SETTING .......... 8

5.4.1 Master PIN Setting ............................... 8

5.4.2 Add Master Card .................................. 8

5.4.3 Delete Master Card .............................. 8

5.5 SYSTEM UTILITY .....................................8

5.5.1 Date Setting .......................................... 8

5.5.2 Time Setting ......................................... 8

5.5.3 System Reboot..................................... 8

5.5.4 Data Backup / Restore......................... 9

5.5.5 System Initial........................................ 9

5.6 CARD MANAGEMENT............................... 9

5.6.1 Add Card............................................... 9

5.6.1.1 Add Card By Serial ................................ 9

5.6.1.2 Add Card By No. .................................... 9

5.6.2 Edit Card ............................................... 9

5.6.2.1 Card Condition Setting (Valid / Invalid)9

5.6.2.2 Card PIN Setting .................................. 9

5.6.2.3 Card APB Setting................................. 9

3

5.6.2.4 Single Card Delete ...............................9

5.6.2.5 Delete All Card......................................9

5.6.2.6 Cards Browse.......................................9

5.6.2.7 All Card APB Setting............................9

5.7 FINGERPRINT MANAGEM ENT ..................10

5.7.1 Add Fingerprint .....................................10

5.7.2 Delete Fingerprint .................................10

5.7.3 Delete All Fingerprint............................10

5.8 RESETTING THE SY210NT UNIT TO FACTORY

DEFAULTS..........................................................10

APPENDIX 1：QUICK REFERENCE PROGRAMMING TABLE

11

APPENDIX 2：PROGRAMMING WORKSHEET..........12

APPENDIX 3：CARD INFORMATION RECORD SHEET13

APPENDIX 4： SY210NT V5 CARD CAPACITY AND I/O DATA

LIST 14

APPENDIX 5：USING THE SY210NT SYSTEM....... 15

Q1： How to setting reader ID? What Reader ID and are

Door relate? ........................................................15

Q2： How to add the card?...............................16

Q3： How to setting the push button from controller?

16

Q4： How to Connect HID Readers of Wiegand interface

with Controller? ..................................................17

Q5： How to use MDDIDO Module Connecting the Exit

Detector or Exit Button？...................................18

APPENDIX 6： GENERAL WIRING DIAGRAM .........20

4

Section 1: Introduction to SY210NT V5

1.1 Product Overview

Networking Multi-Doors Controller can control 4 doors, link 8 card readers (4 IN, 4 OUT), use 63,000 cards and 210,000 I/O data record at most.

(Reference

appendix 4)

SY210NT V5 Network Multi-Doors Controller provides perfect functions and stable & reliable quality. * The controller can supply 63,000 people to use at most. * Single controller can manage 4 doors In/Out at the same time. * Regional Anti-Pass Back (APB) function will be activated without PC on-line. * The local APB will be activated in LAN. * The motherboard produced by the SMD technology. The quality is stable and reliable.

Easy Setting

All setting can be set by using controller keypad and LCD monitor(16x2 Char). You can make choice of purchase of expansion module that divides into two types: internal and external.

Internal module of controller include:

1. MDNET-2 Ethernet Converter

Ethernet Communication Converter used to convert RS485 series signal into TCP/IP package. According to different network application types, the module provides two types：Server mode & Client mode.

The module will wait for the signal from network and it will send decode signal to HOST CPU through series communication port under Server mode. The module will re-package the signal and resend on network while received reply from the CPU HOST. And then the command cycle will be done. User can add MDNET-2 network module to expand network function interface.

2. MDPOE-1 Ethernet Power supplier module (Power over

Ethernet)

Power over Ethernet is called PoE that is the technology about power supply. PoE can trans mit electric al pow er over stan dard tw isted-p air cable i n an Ethernet network. We can supply power from HUB by using this technology without connect other power source.

3. MDWIE-2 (Wiegand Signal Input Module)

After installing 4 CH Wigand signal input module (MDW IE-2）, user can connect four readers that include reader、fingerprint …etc. All devices as mention have Wiegand interface.

4. SD Card

User can choose the SD CARD module to increase IO records or backup the controller data. The slot of SD CARD(MDSD-2) can compatible with the capacity of SD CARD include 256MB、512MB and 1GB.

External Device of Controller:

1. Reader

The Reader includes SYRDS1 Proximity Card Reader、SYRDS5 Proximity Card Reader、SYRDL5 Mini Proximity Reader、 SYRDT5 LCD Proximity Card Reader and SYRDF5/F6 Fingerprint Reader.

System extendibility：Link 8 readers at most. The types o f Reader div ide into 125K (EM)、13.56M (Mifare).

2. MDDIDO

Module

MDDIDO Module divides MDDIDO-16 channel (16 voltage free input, 16

relay output) and MDDIDO-1S 2 channel (4 voltage free input, 2 relay

output). System extendibility：User can use MIDDO module expansion of system

when first program insufficient for user need; MDDIDO Module is easy to expansion; e.g. Add controller, Readers or DIDO Modules…etc.

3. MDWIE-1 (Wigand

Module install inside of the

Controller)

MDWIE-1 Wigand Module has 2 S/N. Each number repr esent s a ch annel, i s similar to RS485 Reader; First W26Reader use first Serial NO. Reader ID setting( ID=1, Firs door; ID=2；Second door…..).

When expand the

MDWIE-1 Module to transform the RS485 interface into the Wiegand interface, user can connect with each kind of devices of Wiegand interface.

MDNET-1 Module

The functions are same as MDNET-2.

4. Printer Module

Controller can connect to the following printer s directl y or repor ts pr int ing v ia printer module.

1. Impact Printers 2. Ink Jet Printer 3. Laser Printers

1.2 About this Manual

This Installation Manual provides installation and setting instructions for SY210NT V5. Please read this manual carefully before installing or setting the SY210NT.

1.2.1 New in this Version

The subject matters of the manual are focus on update of SY210NT V5:

1.Increase the number of user：The number of user can up to 63,000. I/O records can up to 21,000. (Reference appendix 4)

2.The time of door open by hand is long er：Th e time can be set as 99 99 seconds or above.

3.Backup SD Card：The types of backup are Manual /Automatic. The backup / restore set can up to 10 sets.

4. Invalid password entering event handle：User can set times or lock time while error password input (1~999 sec).

1.2.2 Fast Setting Index Sheet and Card Record Sheet

User can find out a setting location by referr ing the “ Quick R efere nce Pr ogram ming Table”, appendix 1. User can print and record Card Information by using appendix 3..

1.3 Features

1. Internal extension Module optional：

(a) 10/10 0M Ethernet Converter（MDNET-2）. (b) 4CH W igand Signal Input Module（MDWIE-2）.

(c) SD Card module (MDSD-2 applies SD Card whose memory size of

256MB、512MB、1GB).

(d) POE Po wer over Ethernet Module (MDPOE-1,Client).

2. The controller can be run wi th the softw are: SYW95A-V832.11、V2、V3、SYW95A

-V2-NET and SY-SOFT-95A.

3. User can adjust the number of cards and record capacity of I/O data according to need.

4. Promote number of User/Card and I/O data record：If using the new version of SY-SOFT-95A, the card/user capacity can increase to 21,000; High-capacity

Device can promote number of User/Card to 63,000 and promote I/O data records to 210,000 at most. The whole speed of CPU promotes to 100 MIPS. (Reference

appendix 4

).

5. After installing SD Card Module an d SD Card, user can backup all data from the

controller.

6. Fast update firmware：Support to update the firmware on-line through RS485 or Ethernet.

7. While Ethernet network module is added, the communication styles to HOST-PC are polling and auto-transmission. Both of the polling a nd auto-transmission can run at the same time. The system provides not only efficient transmission but also response event immediately. While more and more doors in system, the excellent functions will be presented.

8. T he system will send commands to related controller and modules to active f ire control and fire alarm automatically through Ethernet converter. The functions also can be handled through client PC.

1.4 Specifications

Number of Cards—3,500 ~ 63,000; Number of Readers— 8 (4 IN, 4 OUT); I/O Records—21,000~3500 (Reference appendix 4); Control Doors— 4 Door; Output— 4 relay; Input— 8 points; LCD Display— 16 × 2 LCD;

Indicator— 8 LED; Reader Technology— SYRIS RS485 format; User PIN— 4 digital codes; Communication ports— RS485 × 2，Optional 10M/100M Ethernet; / 802.11b

WiFi Baud Rate— Default 19,200bps, 4,800、9,600、19,200、38,400、57,600、115,200、

5

230,400、460,800、921,600、1,843,200 (Over 115,200 , must use MDNET-2);

Controller ID — 0001- 9999 & 01- 99; Holidays — 366 days; Expand Reader & Module — SYRIS series module; Anti Pass-Back — Level 3 or Group Anti Pass-Back; Speaker Output — Built-in (max 0.2W); Time Zone — 60 time zones; Timer — 0-32 Timer; Group (Application set) — 64 Application Set; Software — SY-SOFT-95A / SYW95A-NET-V2 / SYW95A-V3 & V2 & V832.11; Keypad —16key keypad; Humidity —10% to 95% (Non-condensing); Operating Temperature —--20℃ to 70℃;

Power Supply — 8V to 24V DC / 0.3W to 3W; Dimensions(mm) — 135W × 175H × 45D (Controller) / 122W × 11 7H × 25D

(Control Board);

Ethernet TCP/IP Module — Optional MDNET-2; SD Card Module — Optional MDNSD-2 & SD Card 256M、512M、1G;

Wiegand Module — Optional MDWIE-2; Power Supply Module Over Ethernet — Optional MDPOE-1;

Section 2: SY210NT Wire & Quick Installing

2.1 Required Equipment

Power supply —12V / DC(required);

Controller and Reader connection — RS485 twisted pairs;

Controller and Computer connection — SYLINK-F via USB or RS232; Relay connection — Relay connects with electromagnetic lock.

2.2 Selecting a Mounting Location

Select a mounting location for the unit using the following guidelines：

z Next to the door that is being supervised； z To avoid setting controller in huge noise areas； z It is recommended that setting up location should be visible for flashing car d to access

easily. The height of setting location should between 45 to 50 inches to the floor.

2.3 Typical Mounting Diagram

2.4 Installing SY210NT

1. Separate the controller and its back panel by pulling the upper side;

2. Use the back panel to mark the screw holes position on the wall;

3. Screw back panel on the wall by using four (4) screws (provided);

4. Put back controller to the back panel;

2.5 Installing the Reader Wiring Diagram

2.6 Connecting Door Lock Wiring Diagram

Door Open by power supply failure wiring diagram

Common (COM)

Normal Close (NC)

Normal Open

(NO)

+

-

+12V

Electric Deadbolt

Electric Strikes

Door Open by start power supply wiring diagram

Electronic Lock wiring diagram

2.7 Connecting button to Door Open

2.8 Connecting the Door detection

2.9 Connecting power supply

GNDGND+V+VM5

2.1

6

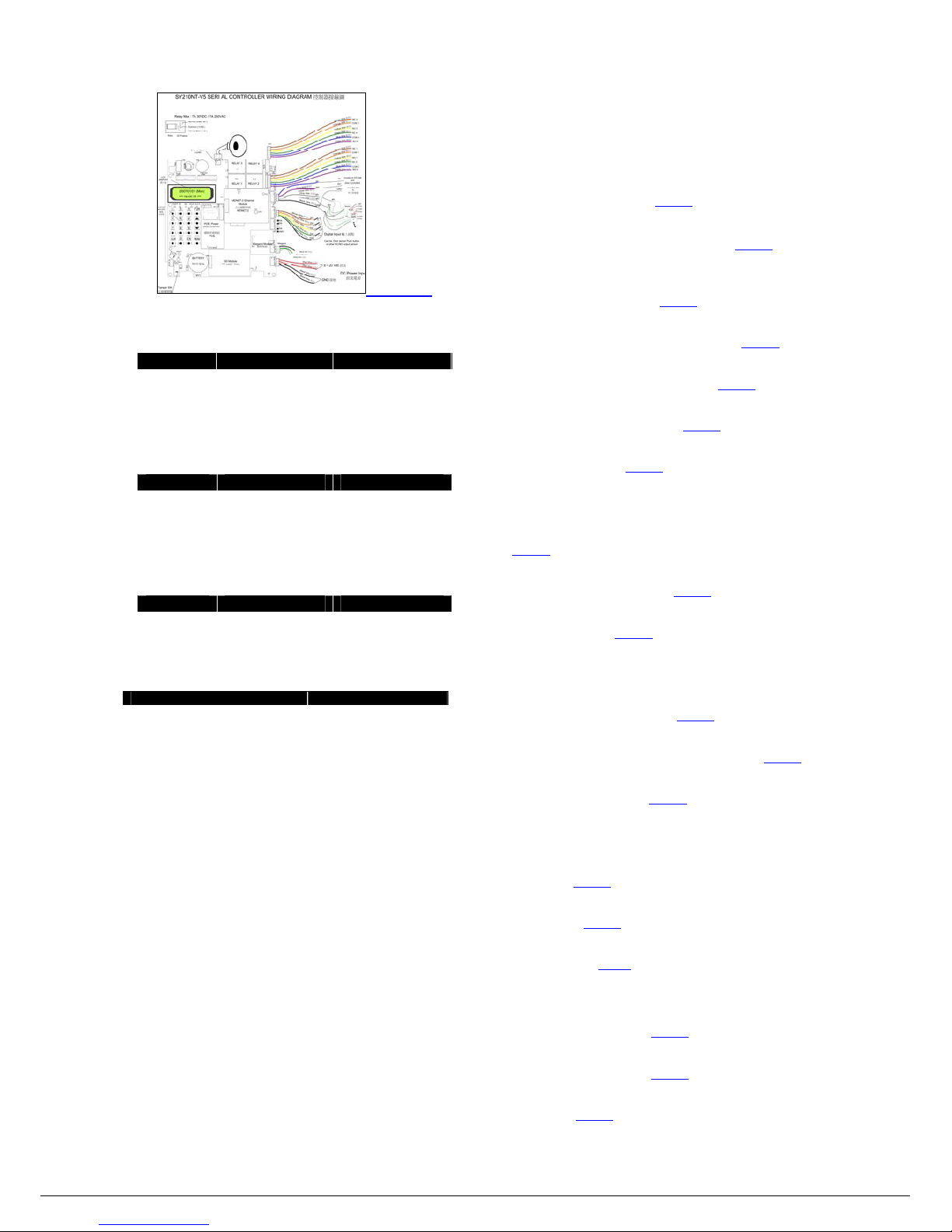

2.10 General Wiring Diagram

〈Enlarge〉

Section 3: SY210NT V5 Setting Introduction

3.1 Setting Menu Login

Keypad LCD display Annotation

MENU

Login

EN

Password

﹝_ _ _ _ _ _﹞

Using numeric keypad input password.

EN

Master

Ok

Login success.

3.2 Setting Menu Logout

Keypad LCD display Annotation

MENU

Login

▲▼ or MENU

Logout

Using ▲▼ choice to logout.

EN

yyyy/mm/dd (Thu)

hh：mm：ss

Show time expresses successfully.

3.3 Show Version

Keypad LCD display Annotation

MENU

Login

▲▼or MENU

SY210NT4V5.07-01

S/N：XXXXXXXX

Using ▲▼ choice to version information.

3.4 SY210NT Factory Defaults

Description Factory Default

Login Password 1234

Controller ID ID:[0001]

Controller Same card [0000] sec

Controller PIN lock

[3] 次

Lock time [060]sec

Controller Comm. Baud rate

19200.e.8.1 [4A]

19200.e.8.1 [4R]

Controller Elevator mode [NO]

Controller Max card 10500

Door Relay

ID:[1~4] CH:[1~4] Times 05 sec

Door Push button

No

Door APB setting [0]

System Utility Backup

60 Day(Optional MDNSD-2 & SD Card)

Section 4: SY210NT V5 Settings

4.1 System Functions

4.1.1 Controller Functions

Controller ID

Set Controller ID when Controllers are serious connection (EX：First controller ID： 0001 ; Second controller ID：0002). <Setting>

Same Card Time

The period means flashing one card twice or continuous. <Setting>

Invalid Password Lock

While user input invalid password over setting times, the system will lock down. User can't input when system lucked. <Setting>

Comm. Baud rate

Communication Baud rate (4A/4R). Default is 19200.e.8.1. <Setting>

DI Setting

The NO/NC settings of DI are in control and module. <Setting>

Elevator Mode

Enable elevator function to control elevator. <Setting>

Card Volume

Set the max number of card. <Setting>

4.1.2 Module

Auto Detect Module

The system will search new added module by setting the function enabled.

Module ID Setting

Set up module ID by input serial number. <Setting>

MDWIE-2 ID Setting

Set up reader channel ID .<Setting>

4.1.3 Door

Door Relay

Set up the parameters of door open relay. <Setting>

Push Button (Door Open)

Set up the parameters of push button that is used for door open. <Setting>

Door APB Setting

Set up the level of Door APB (0~3).<Setting>

4.1.4 Master

Master Password Setting

Master Password Setting. Change password in unpredictable period is recommended. <Setting>

Add Master Card

Add Master Card. <Setting>

Delete Master Card

Delete Master Card. <Setting>

4.1.5 System Utility

Date Setting

Set date according to user request. <Setting>

Time Setting

Set time according to user request. <Setting>

System Reboot

Reboot system. <Setting>

Data Backup / Restore

7

Backup/Restore data to system (SD Card required). <Setting>

System Initial

Set system to default factory setting. <Setting>

4.2 Card Management

4.2.1 Add Card

Auto Add Card By Serial

Add the card automatically by serial (flash card continuously). <Setting>

Add Card By Card No.

Add the card by card number.(Set card ID first then flash card) <Setting>

4.2.2 Edit Card

Edit Card Status

Set the card as enabled or disabled. <Setting>

Edit Card PIN

Edit the card PIN (4 digital codes). <Setting>

Edit Card APB

Set APB of card as enabled or disabled. <Setting>

4.2.3 Delete Card

Delete Card by Card Number

Delete car by card number. <Setting>

Delete All Cards <Setting>

Delete all cards in controller.

4.2.4 Show Card

After flashing the card, system will show card information. <Setting>

4.2.5 All Card APB Setting

All card APB condition setting. <Setting>

4.3 Fingerprint Management

4.3.1 Add Fingerprint

Add fingerprint. <Setting>

4.3.2 Delete Fingerprint

Delete single fingerprint. <Setting>

4.3.3 Delete All Fingerprint

Delete all fingerprints. <Setting>

Section 5: Set up SY210NT V5 Step by Step

5.1 Controller Function

Keypad LCD display Annotation

MENU

Login

EN

Password

[ _ _ _ _ _ _ _ ]

Using numeric keypad input password

EN

Master

Ok

Login success

▲▼or MENU

System

EN

Controller

5.1.1 Set Controller ID

System → Controller

Keypad LCD display Annotation

EN

Controller

ID

EN

Controller ID

﹝0001﹞

Using numeric keypad input ID.

5.1.2 Same Card Time

System → Controller

Keypad LCD display Annotation

▲▼or MENU

Controller

Same card time

EN

Same card time

﹝000﹞sec

Using numeric keypad input setting value.

5.1.3 Invalid Password Lock

System → Controller

Keypad LCD display Annotation

▲▼or MENU

Controller

PIN lock

EN

Error number

[3]

Using numeric keypad input setting value.

EN

Lock time

[060] sec

Using numeric keypad input setting value.

5.1.4 Baud Rate Setting

System → Controller

Keypad LCD display Annotation

▲▼or MENU

Controller

Comm. Baud rate

EN

Baud rate(4A)

[19200,e,8,1]

Using ▲▼ choice rate,

EN

Baud rate(4R)

[19200,e,8,1]

Using ▲▼ choice rate,

5.1.5 DI Setting

System → Controller

Keypad LCD display Annotation

▲▼or MENU

Controller DI Setting

EN

ID

[ 0 ]

ID:0 is controller ID:1-8 is MDDIDO

EN

DI setting

NO/NC：[0-0-0-0]

Using numeric keypad input setting value. 0=NO , 1=NC

5.1.6 Elevator Mode

System → Controller

Keypad LCD display Annotation

▲▼or MENU

Controller

Elevator mode

EN

Elevator mode

[ No ]

Using ▲▼ choice YES / NO.

5.1.7 Set Controller Max Card

System → Controller

Keypad LCD display Annotation

▲▼or MENU

Controller Max card

EN

Max card

[ 10500 ]

Using numeric keypad input setting value.

EN

Record clear!

[ No ]

Using ▲▼ choice YES / NO (Chooses YES only then to be able to change the setting value).

EN

Card：[ 10500 ]

Record：[ 14000 ]

Card：Max card number Record：Max I/O data.

NOTE：If the user determines the change

controller max card, then must first the data

backup. After Record clear! [YES], IO data completely will delete

5.2 Reader Module Setting

Keypad LCD display Annotation

MENU

Login

EN

Password

[ _ _ _ _ _ _ _ ]

Using numeric keypad input password.

EN

Master

Ok

Login success.

▲▼or MENU

System

EN

Module

8

5.2.1 Module Auto Detect

System → Module

Keypad LCD display Annotation

▲▼or MENU

Module

Auto detect

EN

Auto detect

Waiting…….

Controller auto detect

display.

Find module：[ 02 ]

Ok!

Found two modules.

5.2.2 Reader Module ID Setting

System → Module

Keypad LCD display Annotation

▲▼or MENU

Module

ID setting

EN

ID setting

[ SYRDS1/S5/L5 ]

Using ▲▼ choice

module.

EN

S/N

[ _ _ _ _ _ _ _ _ _ ]

Using numeric keypad

input serial number.

EN

Module ID

[ 0 ]

Using numeric keypad input module ID.

5.2.3 MDWIE-2 ID Setting

System → Module

Keypad LCD display Annotation

▲▼or MENU

MDWIE-2 ID setting

EN

MDWIE-2

CH-ID [ 1-2-3-4 ]

Using ▲▼ choice

Reader Channel ID and Using numeric keypad input Channel ID .

EN

MDWIE-2 ID setting

.

5.3 Door Function Setting

Keypad LCD display Annotation

MENU

Login

EN

Password

[ _ _ _ _ _ _ _ ]

Using numeric keypad input password.

EN

Master

Ok

Login success.

▲▼or MENU

System

EN

Door

EN

Door

No ：[ 1 ]

Using numeric keypad setting door.

5.3.1 Door Relay

System → Door → Door [ 1~4 ]

Keypad LCD display Annotation

▲▼or MENU

Door

Relay

EN

Relay

ID：[ 0 ] CH：[ 01 ]

Using numeric keypad input ID and CH.

EN

Time

[ 005 ] sec

Using numeric keypad input time.

5.3.2 Door Push Button

System → Door → Door [ 1~4 ]

Keypad LCD display Annotation

▲▼or MENU

Door

Push button

EN

Push button

ID：[ 0 ] CH：[ 01 ]

Using numeric keypad input ID and CH.

5.3.3 Door APB Setting

System → Door → Door [ 1~4 ]

Keypad LCD display Annotation

▲▼or MENU

Door

APB setting

EN

APB setting

Level： [ 0 ]

Using numeric keypad setting level 0~3.

5.4 Master Card Function Setting

Keypad LCD display Annotation

MENU

Login

EN

Password

[ _ _ _ _ _ _ _ ]

Using numeric keypad input password.

EN

Master

Ok

Login success.

▲▼or MENU

Master

5.4.1 Master PIN Setting

System → Master

按鍵顯示畫面備註

▲▼or MENU

Master

PIN setting

EN

Master

No：[ 1 ]

Using numeric keypad input number (1-3).

EN

PIN setting

[ _ _ _ _ _ _ _ ]

Using numeric keypad input password.

5.4.2 Add Master Card

System → Master

Keypad LCD display Annotation

▲▼or MENU

Master

Add card

EN

Master

No：[ 1 ]

Using numeric keypad input number (1-3).

EN

Master

Punch card

Please punch the card.

5.4.3 Delete Master Card

System → Master

Keypad LCD display Annotation

▲▼or MENU

Master

Delete card

EN

Master

No：[ 1 ]

Using numeric keypad input number (1-3).

5.5 System Utility

Keypad LCD display Annotation

MENU

Login

EN

Password

[ _ _ _ _ _ _ _ ]

Using numeric keypad input password.

EN

Master

Ok

Login success.

▲▼or MENU

System

EN

System utility

5.5.1 Date Setting

System → System utility

Keypad LCD display Annotation

▲▼or MENU

System utility

Date setting

EN

Date setting

[ 07 / 08 / 15 ]

Using numeric keypad setting date. (YY/MM/DD).

5.5.2 Time Setting

System → System utility

按鍵顯示畫面備註

▲▼or MENU

System utility

Time setting

EN

Time setting

[15：00：37 ]

Using numeric keypad setting time .(hh:mm:ss)

5.5.3 System Reboot

System → System utility

Keypad LCD display Annotation

▲▼or MENU

System utility

Reboot

9

EN

System Reboot

[ No ]

Using ▲▼ choice YES / NO.

5.5.4 Data Backup / Restore

System → System utility (The use in optional SD Card Module)

Uses the SD card backup data

Keypad LCD display Annotation

▲▼or MENU

System utility

Backup / Restore

EN

Backup / Restore

[ Manual Backup ]

Using ▲▼ choice Backup or Restore .

EN

2007/06/22 16：19

[ YES ]

Using ▲▼ choice YES / NO.

EN

Manual backup

[ Waiting… xxxx ]

Start a backup display.

Manual backup

Ok

Backup success.

Uses the SD card restore data

Keypad LCD display Annotation

▲▼or MENU

System utility

Backup / Restore

EN

Backup / Restore

[ Manual Restore ]

Using ▲▼choice Manual Backup or Restore.

EN

Restore from

[ Manual Backup ]

Using ▲▼ choice Manual Backup / Auto Backup.

EN

2007/06/22 16：19

[ YES ]

Using ▲▼ choice YES / NO.

EN

Restore

[ Waiting… xxxx ]

Start a restore display.

System Reboot

After restore success system automatic reboot.

5.5.5 System Initial

System → System utility

Keypad LCD display Annotation

▲▼or MENU

System utility

Initial

EN

Initial

[ YES ]

Using ▲▼ choice YES / NO

EN

System Reboot

After system reboot resetting system unit to factory defaults.

5.6 Card Management

Keypad LCD display Annotation

MENU

Login

EN

Password

[ _ _ _ _ _ _ _ ]

Using numeric keypad input password.

EN

Master

Ok

Login success.

▲▼or MENU

Card

5.6.1 Add Card

5.6.1.1 Add Card By Serial

Login → Card

Keypad LCD display Annotation

▲▼or MENU

Add Card

▲▼or MENU

Add Card

By serial

Using ▲▼ choice By serial or By No.

EN

Punch card

Please punch the card. (can punch card continuously)

5.6.1.2 Add Card By No.

Keypad LCD display Annotation

▲▼or MENU

Add Card

▲▼or MENU

Add Card

By No.

Using ▲▼ choice By serial or By No.

EN

Add Card

No.：[01000]

Using numeric keypad input number.

EN

Punch card

Please punch the card. (can punch card continuously)

NOTE：The manual serial number increases the card commonly used in to increase some

specific serial number the card. If punch card continuously, the number will from input

number starts to increase. EX ：Input number 1000 ,w hen punch s econd car d can jump 10 01.

5.6.2 Edit Card

5.6.2.1 Card Condition Setting (Valid / Invalid)

Login → Card

Keypad LCD display Annotation

▲▼or MENU

Edit card

EN

Card

No.：[00001]

Using numeric keypad input number.

EN

Edit card

Status

Using ▲▼ choice Status、APB or PIN

EN

Status

[ Enable ]

Using ▲▼ choice Enable or Disable

5.6.2.2 Card PIN Setting

Login → Card → Card No.：[00001]

Keypad LCD display Annotation

EN

Edit card

Using ▲▼ choice Status、APB or PIN

EN

[ YES ]

Using ▲▼ choice YES / NO

EN

PIN：[ 0000 ]

Using numeric keypad input password.

5.6.2.3 Card APB Setting

Login → Card → Card No.：[00001]

Keypad LCD display Annotation

EN

Edit card

APB

Using ▲▼ choice Status、APB or PIN

EN

APB

[ Disable ]

Using ▲▼ choice Enable or Disable

5.6.2.4 Single Card Delete

Login → Card

Keypad LCD display Annotation

▲▼or MENU

Delete card

EN

Delete card

By no.

Using ▲▼ choice By no. or All.

EN

Delete card

No.：[00001]

Using numeric keypad input number.

5.6.2.5 Delete All Card

Login → Card → Delete cards

Keypad LCD display Annotation

EN

Delete card

All

Using ▲▼ choice By no. or All.

EN

Delete All

[ Yes ]

Using ▲▼ choice YES / NO.

Delete All

Ok

Delete all card success.

5.6.2.6 Cards Browse

Login → Card

Keypad LCD display Annotation

▲▼or MENU

Show card

ID

EN

Punch card

Please punch the card.

1002 051B806

5355734

Show data of the card.

5.6.2.7 All Card APB Setting

Login → Card

10

Keypad LCD display Annotation

MENU

All card

APB setting

▲▼or MENU

APB setting

[ Enable ]

Using ▲▼ choice Enable、Disable or Reset

5.7 Fingerprint Management

Connection Fingerprint Reader uses.

Keypad LCD display Annotation

MENU

Login

EN

Password

[ _ _ _ _ _ _ _ ]

Using numeric keypad input password.

EN

Master

Ok

Login success.

▲▼or MENU

Fingerprint

EN

Fingerprint

ID：[ 1 ]

Using numeric keypad input fingerprint ID.

5.7.1 Add Fingerprint

Login → Fingerprint → Fingerprint ID：[ X ]

Keypad LCD display Annotation

▲▼or MENU

Fingerprint

Add

EN

Fingerprint

No：[ 0001 ]

Using numeric keypad input fingerprint number .

EN

Fingerprint

Add

After the “bi bi” voice press the fingerprint to press on the fingerprint sensor. The bright “OK” green light expresses successfully.

EN

Fingerprint

No：[ 0002 ]

Add fingerprint or use

CLR exit

5.7.2 Delete Fingerprint

Login → Fingerprint→ Fingerprint ID：[ X ]

Keypad LCD display Annotation

▲▼or MENU

Fingerprint

Delete

EN

Fingerprint

No：[ 0001 ]

Using numeric keypad input fingerprint number .

EN

Fingerprint

Delete

After serge the long sound, deletes successfully.

5.7.3 Delete All Fingerprint

Login → Fingerprint→ Fingerprint ID：[ X ]

Keypad LCD display Annotation

▲▼or MENU

Fingerprint

Delete all

EN

Delete all

[ Yes ]

Using ▲▼ choice YES / NO.

EN

Delete all

Waiting……

Fingerprint deleting.

Delete all

Ok

Delete all fingerprint success.

5.8 Resetting the SY210NT Unit to Factory Defaults

Please refer to 5.5.5 .

11

Appendix 1：Quick Reference Programming Table

Quick Reference Programming Table

1. System

1. Controller

1. ID

2. Same card Time

3. PIN Lock

4. Comm. Baud rate

5. DI setting

6. Elevator mode

7. Max card

2. Module

1. Auto detect

2. ID setting

3. Door

1. Relay

2. Push button

3. APB setting

4. Master

1. PIN setting

2. Add card

3. Delete card

5. System Utility

1. Date setting

2. Time setting

3. Reboot

4. Backup / Restore

5. System Initial

2. Card

1. Add card

1. By serial

2. By no.

2. Edit card

1. Status

2. PIN

3. APB

3. Delete card

1. By no.

2. All

4. Show card ID

5. All card APB setting

3. Fingerprint

1. Fingerprint Add

2. Fingerprint Delete

3. Fingerprint Delete all

12

Appendix 2：Programming Worksheet

Programming Worksheet

Installation Information

1. Set Name：

2. Device Title：

3. Device ID：

4. Installs Company：

5. Reader Number：

6. Tel.：

Device Setting Information

Item Default Setting Value

Login Password 1234

________

Same Card Time 0

____

PIN Lock Error Number 3

____

PIN Lock Time 60 sec

____sec

Baud Rate (4A) 19200,e,8,1

________, __, __, __

Reader Baud Rate(4R) 19200,e,8,1

________, __, __, __

Elevator Mode No

____

Max Card 10500

________

Door Relay

ID：0-0-0-0 CH：01-02-03-04

ID：

_-_-_-_ CH：__-__-__-__

Relay Time 005 sec

__/__/__/__ sec

Push Button

ID：0-0-0-0 CH：00-00-00-00

ID：

_-_-_-_ CH：__-__-__-__

APB Setting

Level：0 / 0/ 0/ 0

Level：

__/__/__/__

SD Card Backup Data Time yyyy / mm / dd

________ / ____ / ____

13

Appendix 3：Card Information Record Sheet

Cardholder Name Card Number

Auxiliary

Card

I I I______I______I______I______I______I______I______I______I － I______I______I______I______I______I______I______I______I □ I______I _____I______I______I

I

I I______I______I______I______I______I______I______I______I － I______I______I______I______I______I______I______I______I □ I______I _____I______I______I

I I I______I______I______I______I______I______I______I______I － I______I______I______I______I______I______I______I______I □ I______I _____I______I______I

I

I I______I______I______I______I______I______I______I______I － I______I______I______I______I______I______I______I______I □ I______I _____I______I______I

I I I______I______I______I______I______I______I______I______I － I______I______I______I______I______I______I______I______I □ I______I _____I______I______I

14

Appendix 4： SY210NT V5 Card Capacity and I/O Data List

SY210NT V5 Card Capacity and I/O Data List

1. Normal(SSB,TSB) 1. High-capacity (SSA,TSA) 2.High-capacity (SSA-L,TSA-L)

Card Capacity I/O DATA Card Capacity I/O DATA Card Capacity I/O DATA

3500 21000 3500 105000 3500 217000 7000 17500 7000 101500 7000 213500

10500 14000 10500 98000 10500 210000

14000 10500 14000 94500 14000 206500 17500 7000 17500 91000 17500 203000 21000 3500 21000 87500 21000 199500

24500 84000 24500 196000

28000 80500 28000 192500

31500 77000 31500 189000

35000 73500 35000 185500

38500 70000 38500 182000

42000 66500 42000 178500

45500 63000 45500 175000

49000 59500 49000 171500

52500 56000 52500 168000

56000 52500 56000 164500

59500 49000 59500 161000

63000 45500 63000 157500

15

Appendix 5：Using the SY210NT System

Q1： How to setting reader ID? What Reader ID and are Door

relate?

A1：

SY210NT-V5 series oneself have no inside set up to read card system,

After expansion installs Reader can use reader card function. Controller ID and

Reader ID are setting [1] by factory default, so after setting Reader ID

expansion installs Reader, Otherwise can deliver failure because ID duplicates.

Reader module ID setting

Keypad LCD display Annotation

MENU

Login

EN

Password

[1234_ _ _ _]

Using numeric keypad input password.

EN

Master OK

The Setup lamp signal is bright Setup, Login success.

▼＊2

System

EN

Controller

▼＊1

Module

EN

Module

Auto detect

▼＊1

Module

ID Setting

Reader module ID setting

EN

ID Setting

[ SYRDS1 / S5 / L5 ]

Using ▲▼ choice module. (Note

1) module ID setting (Note 3)

EN

S / N [_ _ _ _ _ _ _ _]

Input serial number. (Note 2)

EN

Module ID

[1]

Input Module ID.

EN

Module

ID Setting

Presses the EN key confirmation ID setting.

CLR*3

2007/12/30 (Sun)

17:52:53

Setting success.

Reader ID setting step by step:

Note 1：The module can differentiate as follows.

READER

Proximity Card Reader. Have SYRDS1, SYRDS5, SYRDL5 and MDWIE.

DIDO Extend Module. Have MDDIDO-1S and MDDIDO-16.

PRINT Printer Module.

SYRDK5 Keypad Proximity Reader.

SYRDF5/F6 Fingerprint Reader.

SYRDT5 LCD Proximity Card Reader.

Note 2：User can find the serial number on the packing box or serial number label at the

back of device.

Note 3：Readers ID alignment rule as follows,

Door 1 Door 2 Door 3 Door 4

External Reader： ID: 1 ID: 2 ID: 3 ID: 4

Internal Reader： ID: 5 ID: 6 ID: 7 ID: 8

Controller automatic detects Readers and Modules.

After setting Readers ID has to can take effect with Controller connected. The setting step

by step as follows：

Keypad LCD display Annotation

MENU

Login

EN

Password

[1234_ _ _ _]

Using numeric keypad input password.

EN

Master OK

The Setup lamp signal is bright Setup, Login success.

▼＊2

System

EN

Controller

▼＊1

Module

EN

Module

Auto detect

EN

Auto detect

Waiting ----- ID: xx

Controller automatic detects display.

Find Module ：[01]

OK

Found one module.

CLR*4

2007/12/30 (Sun)

17:52:53

Setting success.

Note 4：Controller can automatic detects Modules and Controller connected. In normal condition, if installed two devices ,then system demonstrate Find Module：[02] OK.

16

Q2： How to add the card?

A2：

Add Cards

Keypad LCD display Annotation

MENU Login

EN

Password

[1234_ _ _ _]

Using numeric keypad input password.

EN Master OK

The Setup lamp signal is bright Setup, Login success.

▼*3 Card

EN Add Card

EN

Add Card By Serial

Automatic add cards by serial.

EN Punch Card

Please punch the card. (Has not used)

Please punch the

card.

(Has not used)

Punch Card

[0001]

The first input card 0001 starts to sort. Punch card continuously then number automatic increasing.

Please punch the

card.

(Has used)

Punch Card

Card Use

If the card has already used system would appear a message “Card Use”.

CLR

Add Card By Serial

Q3： How to setting the push button from controller?

A3：

Controller DI1 is push button of Door 1

Keypad LCD display Annotation

MENU

Login

EN

Password

[1234_ _ _ _]

Using numeric keypad input password.

EN

Master OK

The Setup lamp signal is bright Setup, Login success.

▼＊2

System

EN

Controller

▼＊2

Door

EN

Door No : [1] [1] Expresses the Door1.

▼＊1

Door

Push button

Door Push button setting.

EN

Push button

ID : [0] CH : [01]

DI setting ID:[0] Indicate to be

in use controller inner part,

CH:[01] Indicate to be in use channel 01.

EN

Door

Push button

Presses the EN key to confirmation.

CLR＊3

2007/12/30 (Sun)

17:52:53

Setting success.

17

Q4： How to Connect HID Readers of Wiegand interface with Controller?

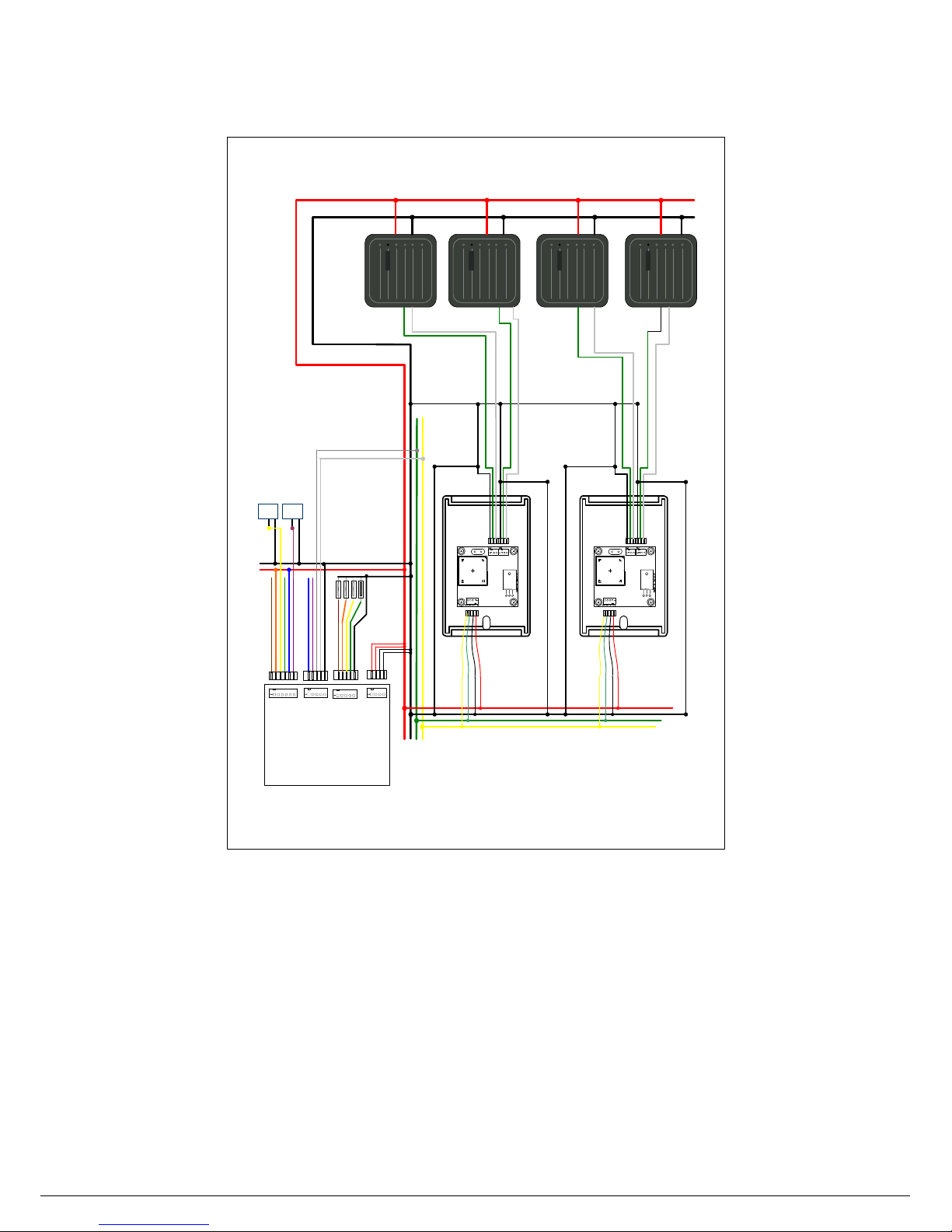

A4：Connect Wiegand Module wiring diagram.

SY210 Controller

(VioletWire)

(GreenWire)

(YellowWire)

(OrangeWire)

(BrownWire)

(BlueWire)

COM1

NO1

COM2

NO2

NC1

NC2

EM

LockEMLock

GND+12VDC

12V

GND

4R+

4R-

(Yellow Wire)

(

G

r

e

n

W

i

r

e

)

(

B

l

a

c

k

W

i

r

e

)

(

R

e

d

W

i

r

e

)

GNDBLACK

D1GREEN

D0WHITE

GNDBLACK

D1GREEN

D0WHITE

12V

GND

4R+

4R-

(YellowWire)

(G

r

e

n

W

i

r

e

)

(

B

l

a

c

k

W

i

r

e

)

(

R

e

d

W

i

r

e

)

GNDBLACK

D1GREEN

D0WHITE

GNDBLACK

D1GREEN

D0WHITE

HID

ID#1

ID#5

ID#2

ID#3

M4

M2

M3

M5

(BlueWire)

(VioletWire)

(GrayWire)

(WhiteWire)

(Black Wire)

4A-

4A+

4R-

4R+

GND

Magnetic

sensors

(Door sensors)

********Note*******

(4A-) and (4A+) are

used to connect to

other controller or

converter

*******************

DI1

(BrownWire)

DI2

DI3

DI4

GND

(GreenWire)

(YellowWire)

(OrangeWire)

(BlackWire)

18

Q5： How to use MDDIDO Module Connecting the Exit Detector or Exit Button？

A5: Connecting the Exit Detector or Exit Button wiring diagram

Common ( COM )

DO Feature

Normal Close ( NC )

Normal Open ( NO )

Relay

10A 28VDC / 5A 250VAC

(Blue Wire)

(Violet Wire)

(Gray Wire) (White Wire) (Black Wire)

4A4A+ 4R4R+ GND

(Violet Wire)

(Green Wire)

(Yellow Wire)

(Orange Wire)

(Brown Wire)

(Blue Wire)

COM1

NO1

COM2

NO2

NC1

NC2

EM

Lock

EM

Lock

GND+ 12VDC

********Note********

(4A-) and (4A+) are used to connect to other controller or converter

********************

DI3 DI4 GND

(Yellow Wire)

(Green Wire) (Black Wire)

Break glass switches

GND

4R+

4R-

(Yellow Wire)

(Green Wire) (Black Wire)

12V

(Red Wire)

DI1

(Brown Wire)

DI2

(Orange Wire)

DI1 DI2 DI3 DI4

GND

(Brown Wire)

(Orange Wire) (Yellow Wire)

(Green Wire) (Black Wire)

Exit Buttons

COM1

NO1

COM2

NO2

(Brown Wire) (Orange Wire) (Yellow Wire)

(Green Wire)

(Blue Wire)

(Violet Wire)

12V

(Red Wire)

GND

4R+

4R-

(Yellow Wire)

(Green Wire) (Black Wire)

M5

M3

M2

M4

NO1

COM2

NO2

(Brown Wire) (Orange Wire) (Yellow Wire)

(Green Wire)

(Blue Wire)

(Violet Wire)

COM1

DI1 DI2 DI3 DI4

GND

(Green Wire)

(Yellow Wire)

(Orange Wire)

(Brown Wire)

(Black Wire)

Magnetic sensors (Door sensors)

SY210NT-V5 Controller

The Appliance of MDDIDO-1S with SY210NT controller

19

Keypad LCD display Annotation

MENU

Login

EN

Password

[1234_ _ _ _]

Using numeric keypad input password.

EN

Master OK

The Setup lamp signal is bright Setup, Login success.

▼＊2

System

EN

Controller

▼＊2

Door

EN

Door No : [1] [1] Expresses the Door1.

▼＊1

Door

Push button

Door Push button setting.

EN

Push button

ID : [1] CH : [01]

DI setting ID:[0] Indicate to be in use expansion module1, CH:[01] Indicate to be in use channel 01.

EN

Door

Push button

Presses the EN key to confirmation.

CLR＊3

2007/12/30 (Sun)

17:52:53

Setting success.

20

Appendix 6： General Wiring Diagram

Common ( COM )

Normal Close ( NC )

Normal Open ( NO )

DO Feature

Relay Max : 7A 30VDC / 7A 250VAC

SY210NT-V5 SERI AL CONTROLLER WIRING DIAGRAM 控制器接線圖

備用電池

BATTERY

Keyboard

and LED

鍵盤

及燈號

SD Module

SD 記憶卡模組

RELAY 3

RELAY 2

RELAY 4

網路供電模組

POE

POE Power

Over Ethernet

MDNET-2 Ethernet

Module

乙太網路模組

MDNET-2

Wiegand Module

維根模組

NC 1 COM 1 NO 1 NC 2

COM 2

NO 2

(

V

i

o

l

e

t

W

i

r

e

紫

色

)

(

B

l

u

e

W

i

r

e

藍

色

)

(

G

r

e

n

W

i

r

e

綠

色

)

(

Y

e

l

o

w

W

i

r

e

黃色

)

(

O

r

a

n

g

e

W

i

r

e

橙

色

)

(

B

r

o

w

n

W

i

r

e

棕

色

)

NC 3 COM 3 NO 3 NC 4

COM 4

NO 4

(

V

i

o

l

e

t

W

i

r

e

紫

色

)

(

B

l

u

e

W

i

r

e

藍

色

)

(

G

r

e

n

W

i

r

e

綠

色

)

(

Y

e

l

o

w

W

i

r

e

黃色

)

(

O

r

a

n

g

e

W

i

r

e

橙

色

)

(

B

r

o

w

n

W

i

r

e

棕

色

)

Can be: Door sensor Push button

or other NC/NO output sensor

Digital Input 輸入接點

Connect to SYLINK

and

other Controllers

Reader

Reade

r

DIDO Printer Modul

e

連結 SYLINK

與

其它控制器

(

G

r

e

n

W

i

r

e

綠

色

)

(

Y

e

l

o

w

W

i

r

e

黃

色

)

(

O

r

a

n

g

e

W

i

r

e

橙

色

)

(

B

r

o

w

n

W

i

r

e

棕

色

)

(

B

l

a

c

k

W

i

r

e

黑

色

)

(

B

l

u

e

W

i

r

e

藍

色

)

4A-

(

V

i

o

l

e

t

W

i

r

e

紫

色

)

4A+

(

G

r

a

y

W

i

r

e

灰

色

)

4R-

(

W

h

i

t

e

W

i

r

e

白

色

)

4R+

(

B

l

ac

k

W

i

r

e

黑

色

)

GND

DI1 DI2

DI3

DI4

GND

+12Vdc

GND

+12Vdc

4A+

4A-

GND

Wiegand

(Black Wire 黑色)

(Green Wire 綠色)

(White Wire 白色)

GND 接地

8 ~ 20 Vdc 直流

DC Power Input

直流電源

(

R

e

d

W

i

r

e

紅

色

)

(

R

e

d

W

i

r

e

紅

色

)

(

B

l

ac

k

W

i

r

e

黑

色

)

(

B

l

a

c

k

W

i

r

e

黑

色

)

GND

4R-

4R+

Relay

External Speak

外接喇叭

2007/01/01 (Mon) *** 09:05:37 ***

LCD

DISPLAY

顯示器

M15

DI5 DI6

DI7 DI8 GND

Tamper SW.

反破壞開關

RELAY 1

Syris SY210NT V5 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
