SUNVISION warrants your tanning unit to be free of structural defects in its material
and workmanship, under normal use, for its lifetime. SUNVISION will repair or
replace, at their discretion, any defect to the structure which affects the
performance of the unit.
For 6 months from the date of purchase, SUNVISION will provide replacements for
parts that prove to be defective in material or workmanship. Acrylic shields,
fluorescent lamps, and lamp starters are excluded from this warranty. Labor will be
covered for 30 days from purchase date. Normal wear, damage from misuse or
abuse, damage incurred in transit, or damage done by unauthorized repairs or
modifications are not covered by this warranty.
How to Obtain Service
All warranty service must be performed by an authorized service person. If your
tanning unit must be returned for service, all freight charges must be at your
expense. Contact your place of purchase for the address of the SUNVISION Service
Center nearest you. Proof of purchase is required to obtain warranty service.
Other Provisions
This warranty covers the original purchaser only. This warranty is void if the unit is
modified in any manner from its original design.
This warranty gives you specific legal rights, and you may also have other rights
which may vary from state to state.
i
W
elcome
Congratulations on your purchase of this technologically advanced sun
tanning unit. It has been designed to provide years of dependable service
for you.
Please read all the instructions in this booklet before installing and using
the unit. Always be sure to observe all safety precautions.
LABELING NOTICE: Labels are affixed on all systems to inform the user of possible dangers. Regulations are stated in
21 CFR, Section 1040.20, and require that all products manufactured after September 8, 1986 which use sunlamps
must display the following:
afety Information
DANGER
mature aging of the skin and skin cancer. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS
OR LONGTERM INJURY TO THE EYES.
Medications or cosmetics may increase your sensitivity to the ultra-violet radiation. Consult physician before using
sunlamp if you are using medications or have a history of skin problems or believe yourself especially sensitive to
sunlight. If you do not tan in the sun, you are unlikely to tan from the use of this product.
Minimum use distance from face tanner is 1 inch or 2.54 centimeters. Minimum use distance elsewhere is touching
the clear plastic panels. Do not use without clear plastic panels (or wire grid for models using wire grid) in place.
Tanning normally appears after the first few sessions and maximizes after approximately four weeks. Tan once or
twice per week thereafter to maintain appearance. Frequency of sessions should be limited to every other day.
Persons already having a base tan may begin at advanced levels corresponding to the extent of their base tan.
Ultraviolet radiation. Follow instructions. Avoid overexposure.As with natural sunlight, over-exposure can cause eye and skin injury and allergic reactions. Repeated exposure may cause pre-
RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 20 MINUTES
I Sensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING
II Light (Burns easily and severely and tans minimally.)
III Normal (Burns moderately and tans average.)
IV Dark (Burns minimally, tans easily and above average.)
New lamps emit approximately 20% more UV during the first 50 hours of operation. Recommended tanning times
should therefore be reduced by approximately 20% during that period.
W
ARNING: •Read the instructions booklet before using this sunlamp product.•To use, lie down under canopy
and pull down as far as adjustment will allow. All persons in the room should wear protective eyewear when lamps
•
are on.
equivalent eyewear as defined under 21 CFR 1040.20. Other types of eyewear may not provide adequate protection.
Recommended eyewear: provided eyeshields (Lucas Products Super Sunnies or Intrexco No. 5635/1) or
•
Disconnect power cord before attempting to clean, relamp, or engage in the maintenance of this product.
Session # 1st-3rd 4th-6th 7th-10th 11th-13th Maximum
4
6
8
8
10
12
12
15
16
16
20
20
20
20
20
ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE MODELS PRO 24S, 28LX:
Diamond Sun S Wolff Model 71T12100W
ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE MODEL PRO 24SF:
Diamond Sun S Wolff Model 71T12100W & Model 59T12080W
Phillips Model HPA 400/30s or CosmoTech Model 23045 or CosmoTech 20046 (Facial Unit)
ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE MODELS PRO 24ST, 28LXT:
Diamond Sun S Wolff Model 71T12100W
Turbo Sun S Wolff Model F8-T5-10W
ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE MODELS PRO 28LXF, 28LX2F:
Diamond Sun S Wolff Model 71T12100W
Phillips Model HPA 400/30s or Cosmotech Model 23045 or Cosmotech 20046 (Facial Unit)
THIS EQUIPMENT MUST BE CONNECTED TO A GROUNDED OUTLET. THIS PRODUCT IS IN CONFORMITY WITH
PERFORMANCE STANDARDS FOR SUN LAMP PRODUCTS UNDER 21 CFR PART 1040.20
iii
nstallation
I
Unpacking and Inspection
Your sunbed comes in two cardboard cartons, one for the bench and one for the
canopy or top deck. Open the cartons and remove the bench and canopy as follows.
The bench and canopy are each wrapped in plastic. With a helper, grasp the bench
and pull it from the carton bottom, leaving the plastic wrap and the carton
packaging. Do the same for the canopy.
Note! The cartons are reusable, in the unlikely event that you may find it necessary
to return your sunbed.
The canopy box contains the canopy unit and a pair of gas springs. The bench box
contains the following items:
Inspect these items, including the canopy and bench, and make sure they are free
from any visible damage. Report the extent of any damage to the transportation
company.
Record the serial numbers of the canopy and bench in the area provided on the
back page of this manual. This information will be required whenever you call customer service.
1

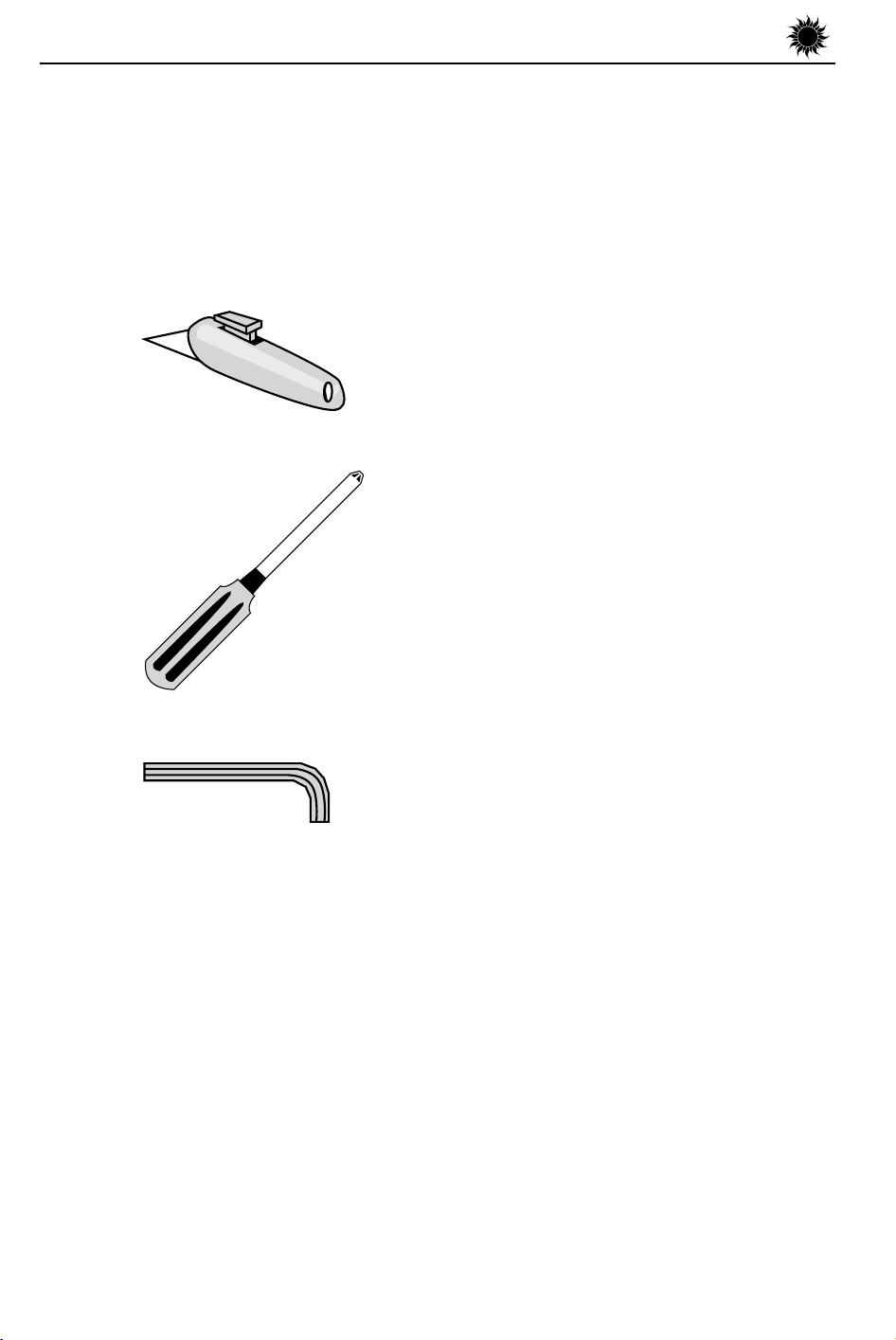

Installation-Tools Required
Tools Required
’
ll need the following tools to assemble your sunbed:
You
Utility Knife
#2 Phillips Screwdriver
Allen Wrench
(Supplied in Hardware Box)
2
Installation-Pre-Installation Planning
Pre-Installation Planning
Before you begin to assemble your sunbed, you should observe the following preinstallation considerations.
• Your sunbed operates from a 220V ac source. You should have an
electrical outlet (like the type shown below) installed in the room in
which you will use the unit. The outlet should be on a dedicated circuit.
(We recommend installation by a professional electrician.) The outlet
must be earth grounded.
IMPORTANT!
Use of a voltage
source above 230
VAC may prevent
proper operation
of the sunbed
and could cause
damage and void
the warranty.

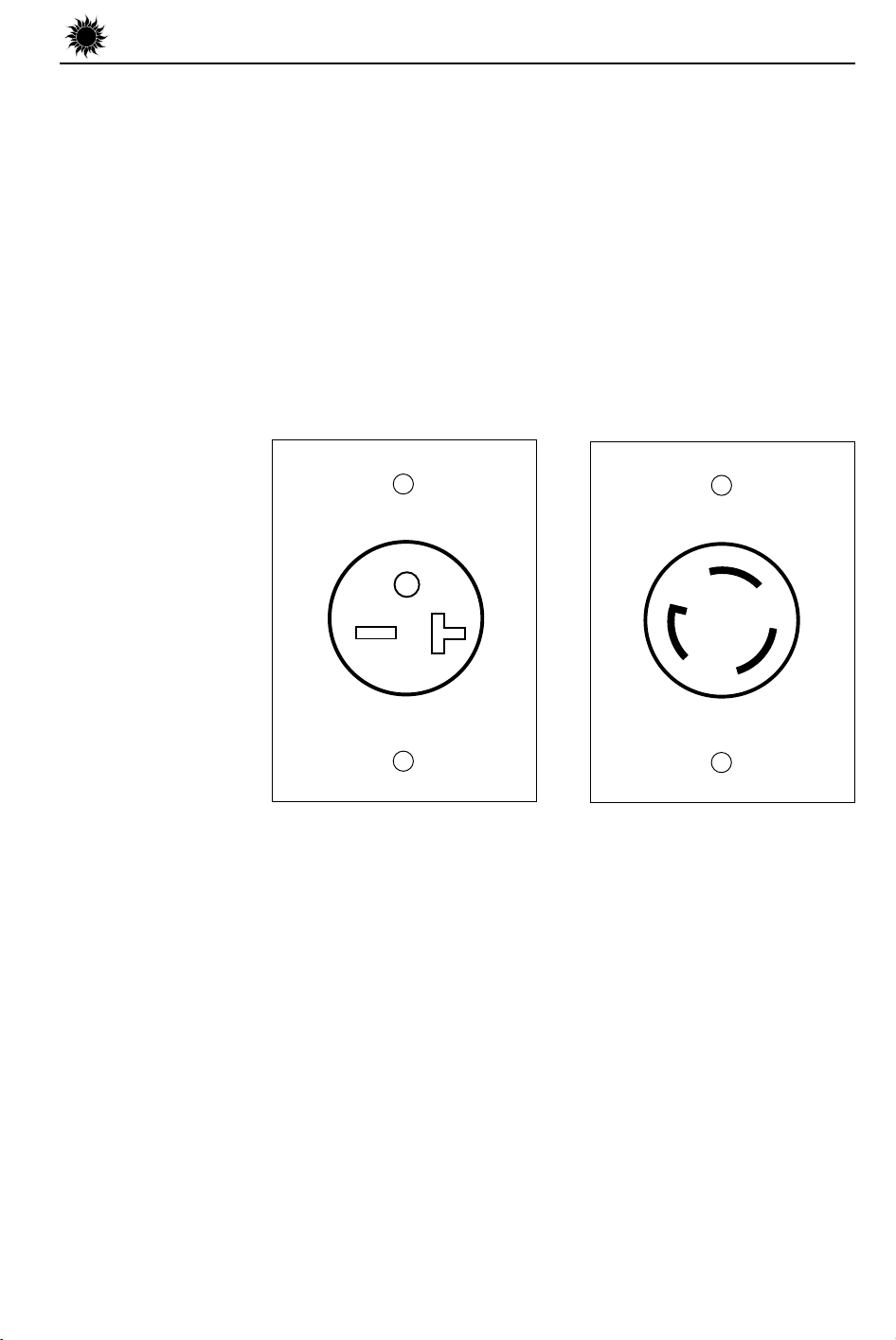

20 AMP NEMA #6-20R RECEPTACLE30 AMP NEMA #L6-30R RECEPTACLE
REQUIRED FOR 24S SERIESREQUIRED FOR 28LX SERIES
• Make sure the room in which you intend to use your sunbed is well
ventilated. Air from the room is used to cool the sunbed, and a poorly
ventilated room may cause the unit to become hot and cause discomfort
to the user.
• Your sunbed is designed to operate in an ambient room temperature of
80°F maximum and 70% relative humidity.
• Place your sunbed no closer than 6" from any wall. Make sure that curtains, drapes, and other room furniture do not obstruct the airflow into
the end caps or out of the fan opening areas.
• Proper assembly of your sunbed requires three people. Plan to have a
couple of helpers assist you.
3
Installation-Assembly Procedures
Assembly Procedures

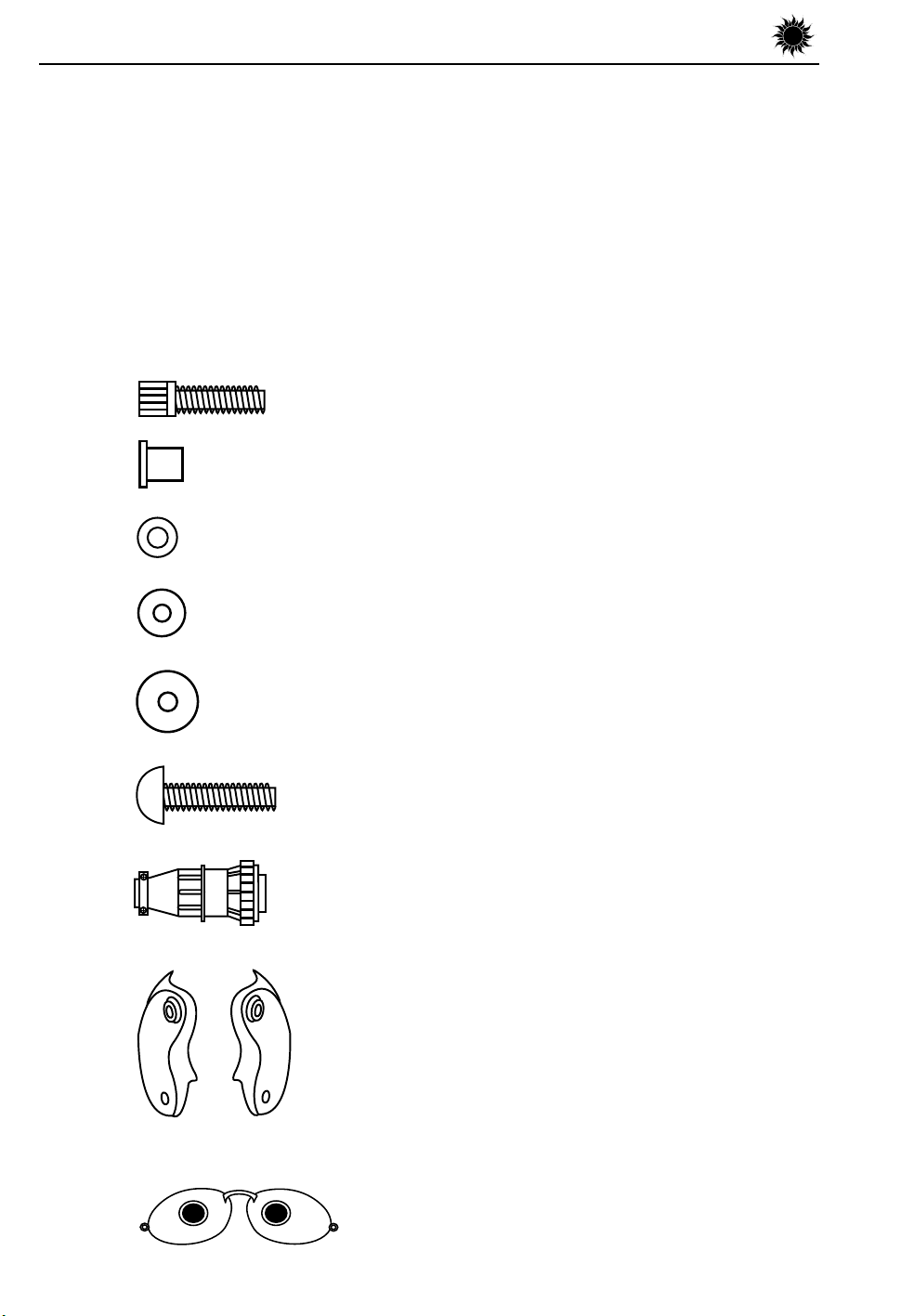

Hardware Inventory
Before you begin, use the utility knife to cut open the Hardware Box and remove
the small bag of hardware. In addition to a small allen wrench and pillow, make sure
you have the following hardware items.
Allen-Head Bolt 5/16" x 1" - Quantity 8
(6 bolts may be pre-installed in bench bottom)
Bushing - Quantity 2
5/16" Metal Washer - Quantity 2
Left Right
5/16" Metal Washer - Quantity 6
(May be pre-installed in bench bottom.)
Nylon Washer - Quantity 2
Phillips or Allen Head Bolt 5/16" x 1 1/2" - Quantity 2
Remote Bypass - Quantity 1
Hinge Brackets - Quantity 2
Safety Goggles - Quantity 1
4
Installation-Assembly Procedures

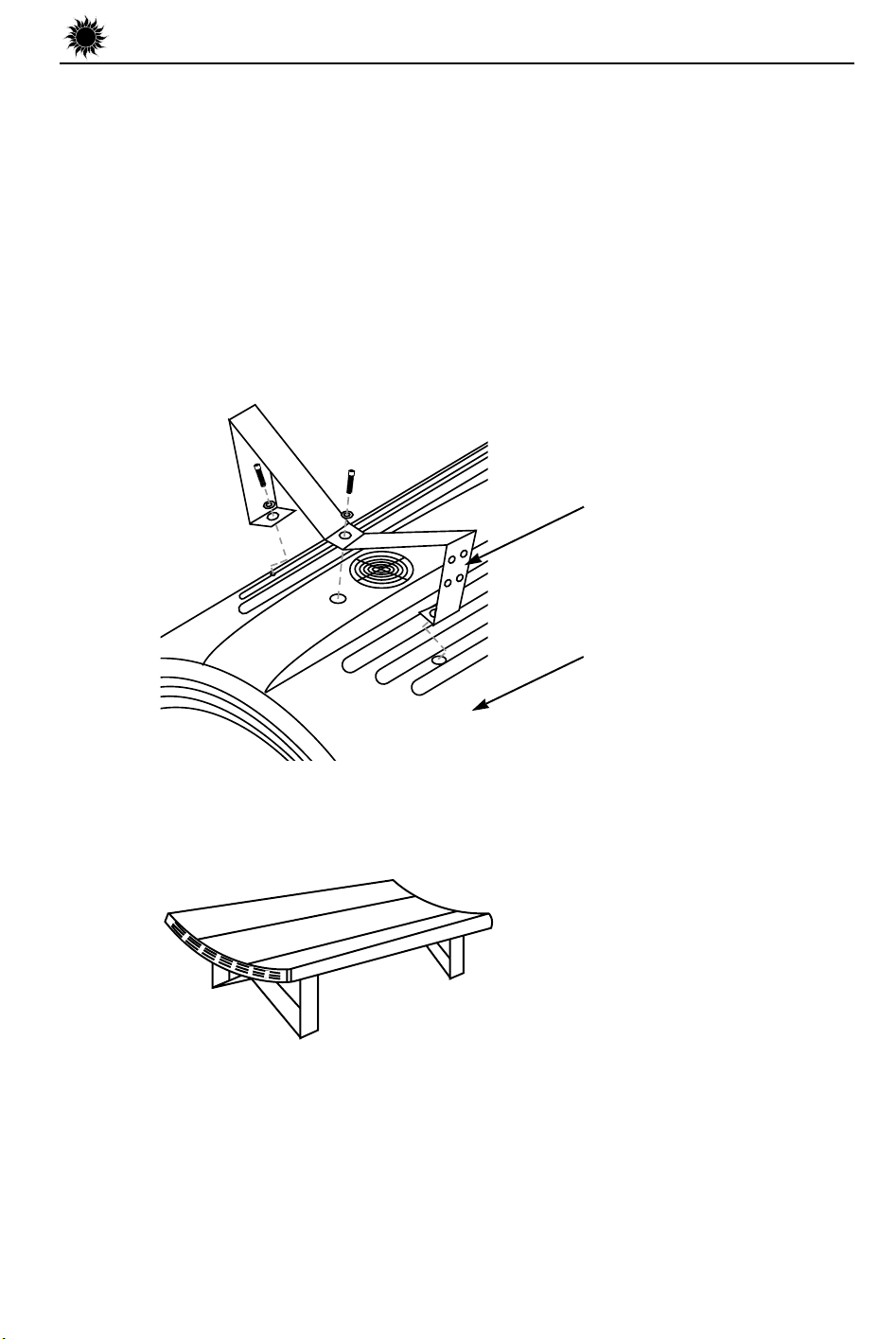

Attaching Legs to Bench
Lay the bench upside down on the floor. Locate the two legs and attach to the
bench as shown below.
1. Using the 5/16" x 1 1/2" bolts and the six larger sized 5/16" washers, attach the
legs with the skirt mounting holes toward the back of the bed as shown. Install center bolt first. You may have to gently push sides of legs in to align holes. Tighten with
allen wrench.
SKIRT MOUNTING HOLES
BACK (POWER CORD SIDE) OF BED
2. Turn bench right side up on floor. Place so that power cord connector is facing
toward wall outlet.
5
Installation-Assembly Procedures

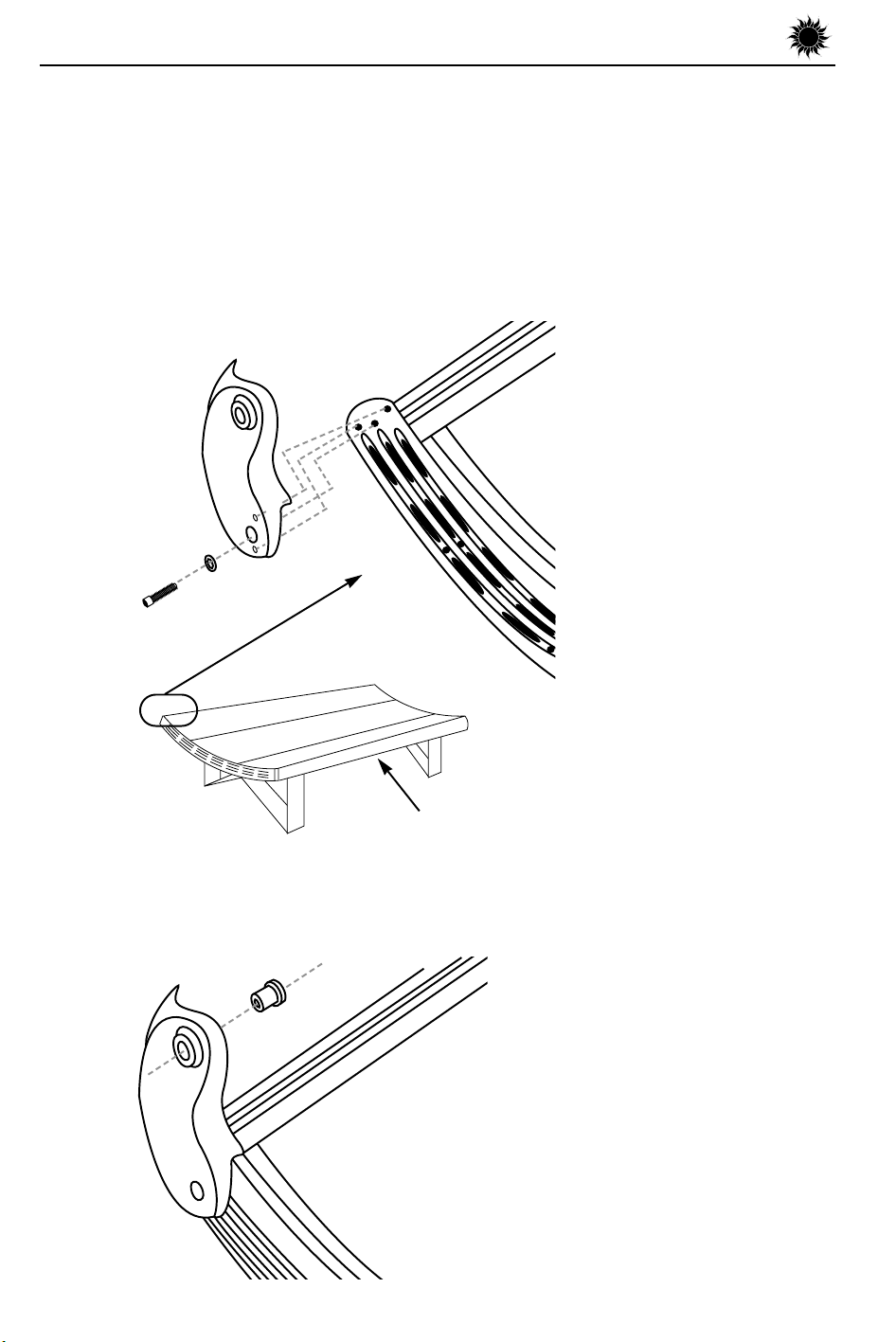

Attaching Hinge Brackets to Bench
Locate the two hinge brackets and attach to the bench as shown below.
1. Install the hinge bracket to the end of the bed such that the two bosses engage,
then secure using the 5/16" x 1" allen-head bolt and 5/16" metal washer. Tighten
bolt snug, then an additional half turn. Repeat for the other hinge bracket
BENCH (BACK CORNER MAGNIFIED)
FRONT OF BENCH
2. Place the bushings into the hinge brackets as shown below.
6
Installation-Assembly Procedures

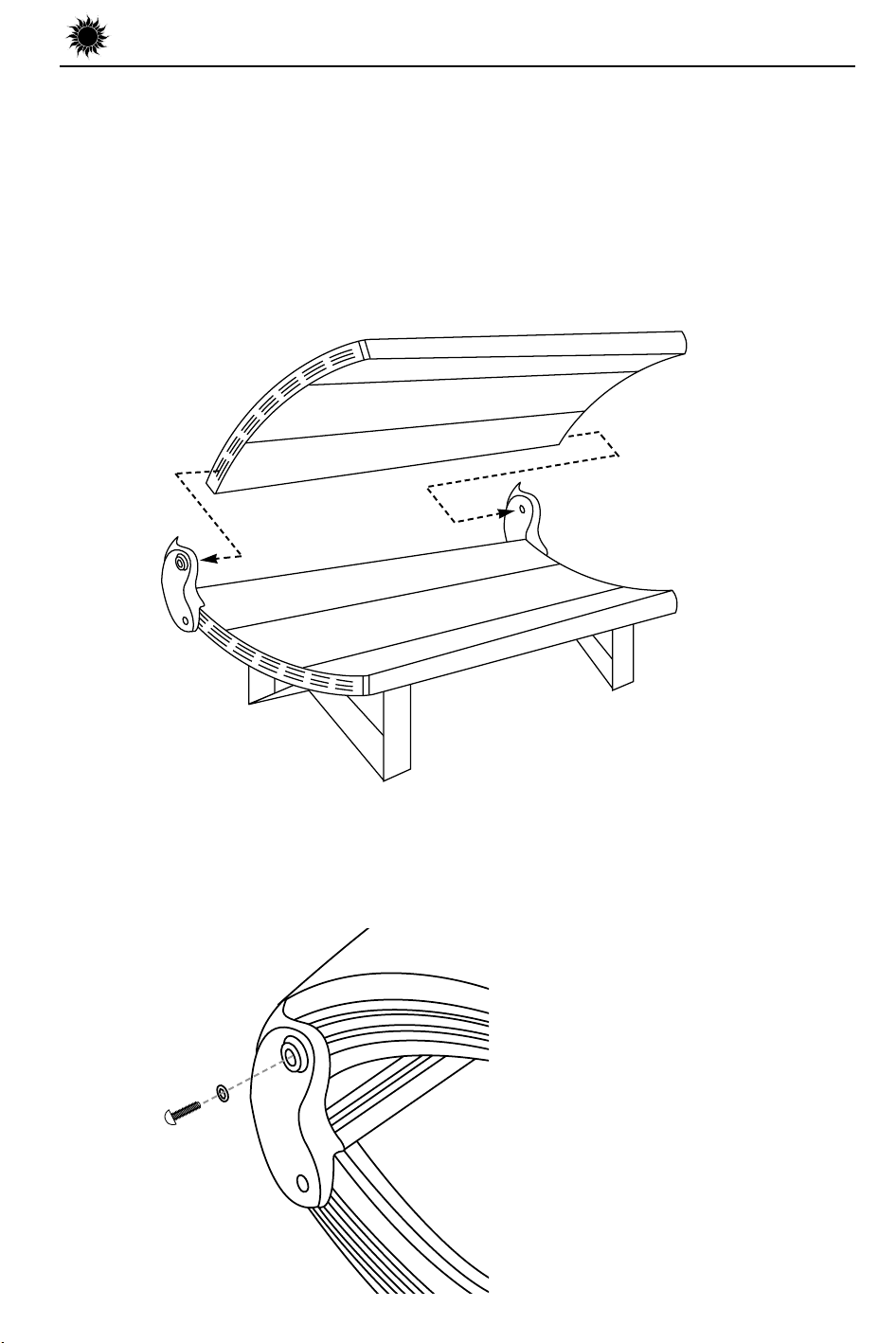

Attaching Canopy to Bench
Attach the canopy to the bench as shown below. This will require at least two
people.
1. Lift the canopy and hold it between the hinge brackets.
2. Insert the 5/16" x 1 1/2" bolts with the nylon washers into both hinge brackets.
Tighten bolts into the endcap threaded inserts until snug, then an additional half
turn. Do not overtighten to avoid damaging threaded inserts.
7
Installation-Assembly Procedures

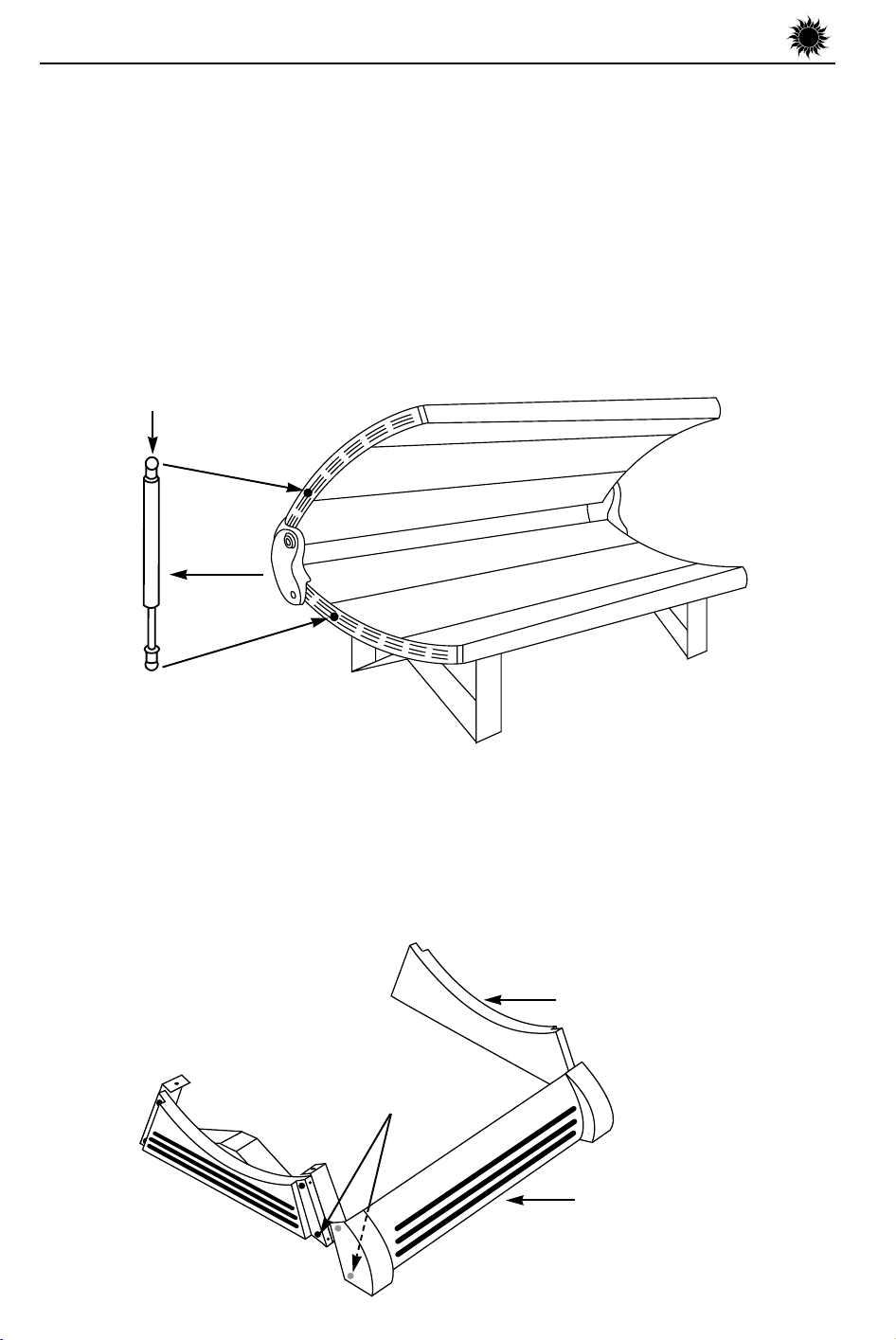

Attaching Gas Springs
Attach the gas springs (located in canopy box) between the canopy and the bench
as shown below. You will need another person to help you lift the canopy.
1. With a helper holding the canopy open, align open ends of gas spring ball joints
with pivot studs and push into place. Be sure spring cylinder is in up position as
shown. Repeat on other side. DO NOT lower canopy until both gas springs are
installed!
BALL JOINT
GAS SPRING
Assembling Pedestal
Attach the base skirt to the sunbed as shown below.
1. Position the side skirts at either end of the base, with the velcro pads toward the
front of the sunbed. Snap the front skirt over the end skirts, attaching the velcro
pads.
SIDE SKIRT
VELCRO PADS
FRONT SKIRT
8
Installation-Assembly Procedures

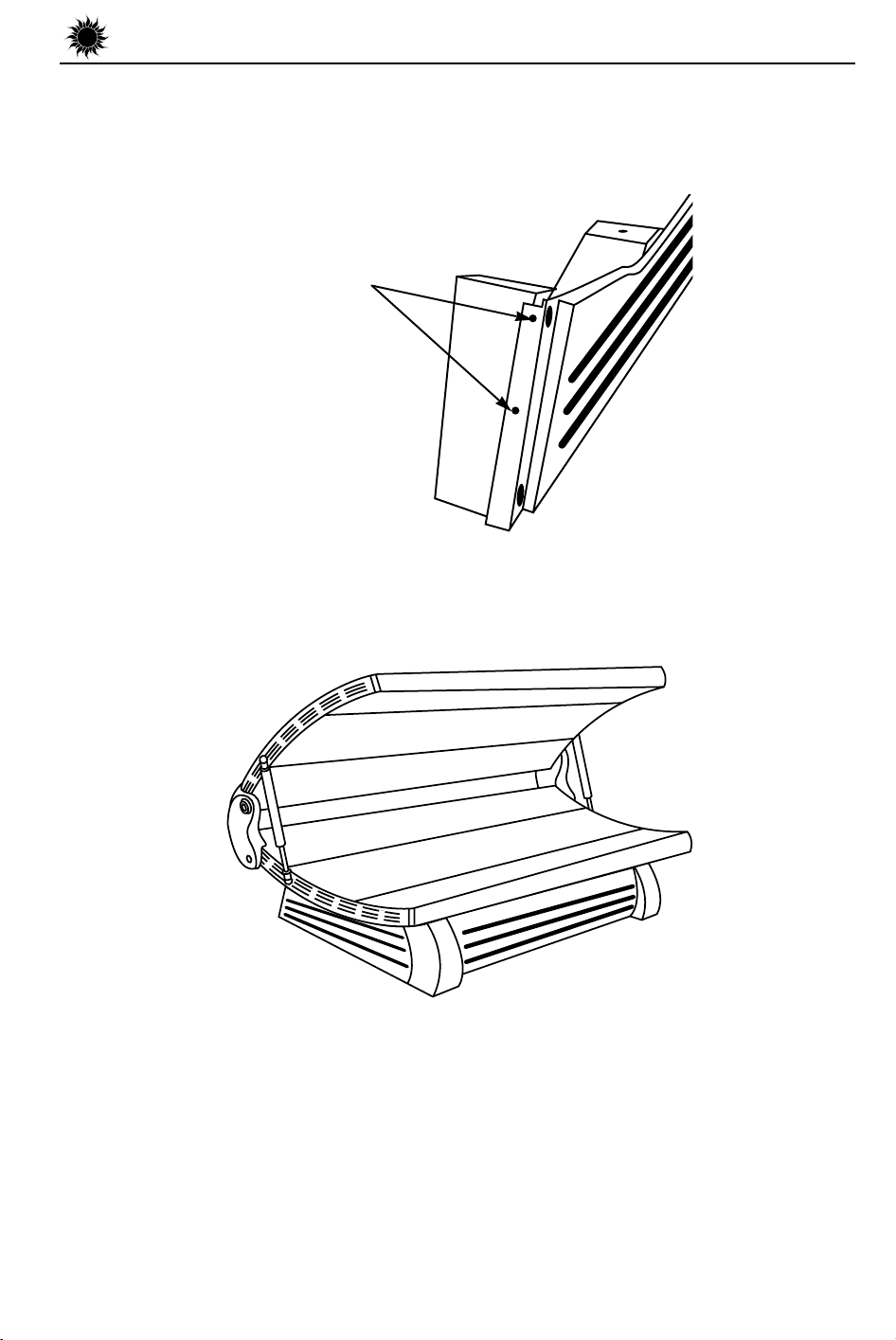

2. Install two #8 x 1/2” screws through the pre-drilled holes of the side skirt into the
back of the leg support. Repeat for the other skirt.
PRE-DRILLED HOLES
3. After installing, your sunbed should look like this.
9

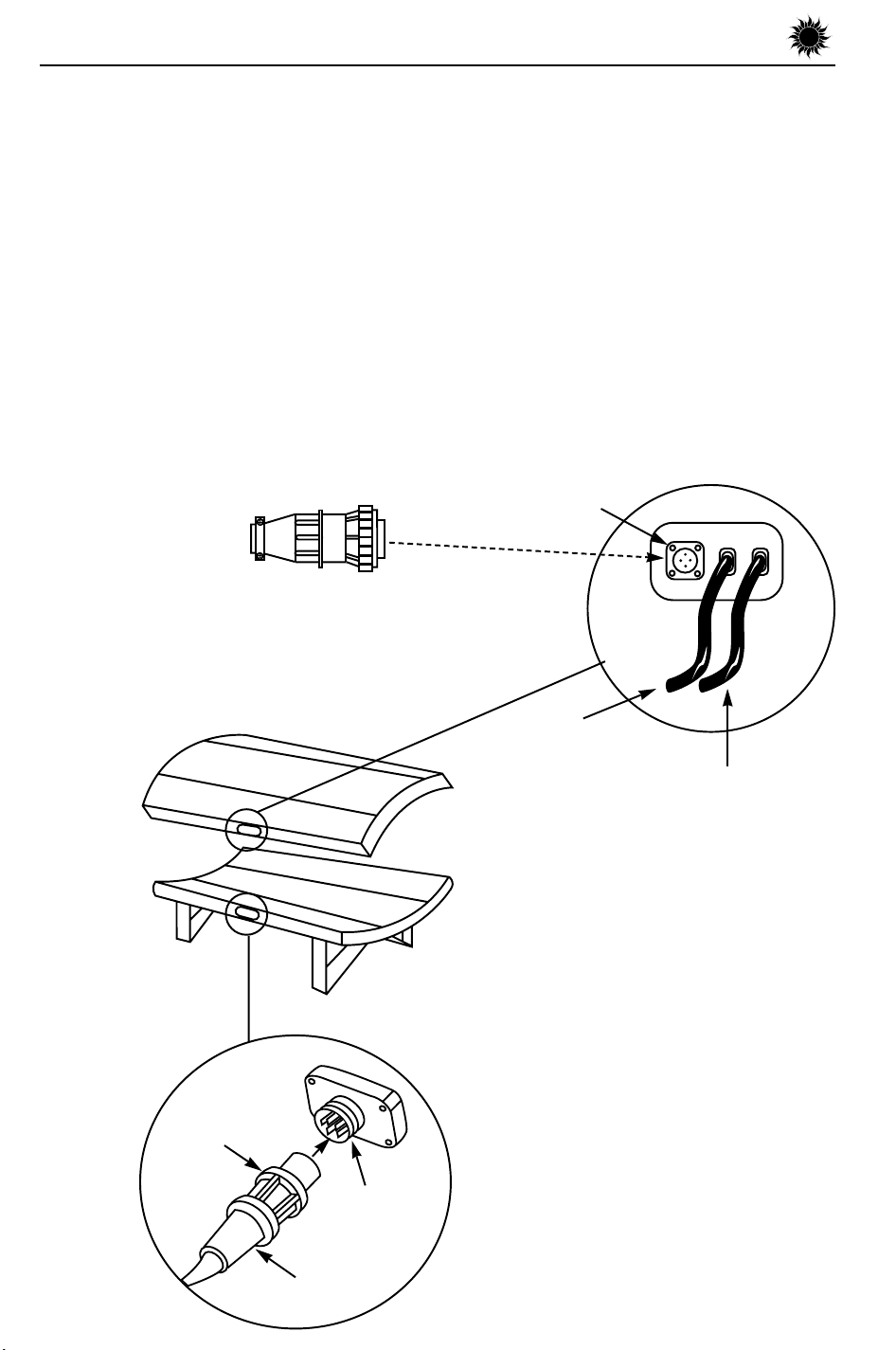

Installation-Making Electrical Connections
Making Electrical Connections
Make electrical connections as shown below.
Warning! Be sure ac power is disconnected before connecting cables.
1. Your sunbed is designed to accept an input from a remote control device. The
remote control is optional and is not included with your sunbed. If you choose not
to use a remote control then, connect the remote control bypass to the remote control connector as shown. Your sunbed will not operate without the bypass connected. If remote operation is desired, a remote cable assembly is required. Contact ETS
Inc. as described in Obtaining Service in this guide.
REMOTE CONTROL
CONNECTOR
REMOTE BYPASS
2. Connect the canopy to bench power cord to
the bench receptacle. The plug is polarized. Align the
terminals and firmly push on until seated then
tighten the threaded locking ring, as shown.
CANOPY TO BENCH
3. Plug the three-prong 220 VAC
power cord into a dedicated outlet
(see page 3).
THREADED
LOCKING RING
POWER CORD
MAIN AC POWER CORD
10
RECEPTACLE
ON BENCH
ELECTRICAL PANEL
CANOPY
POWER CORD
O
peration
Before You Tan
Before using your sunbed, please note the following important precautions:
• Your skin should be free of cosmetics, tanning oils, or other body lotions
prior to tanning except for those specifically made for use with tanning
devices. However, do not remove natural body oils by bathing or
showering immediately before tanning.
• Your hair should be free of gels, mousses, sprays, or other hair products
prior to tanning. These products can cause damage to the sunbed acrylic.
As an alternative, a shower cap or towel can be worn to keep treated hair
away from the sunbed surfaces.
• Some medication may increase your sensitivity to ultraviolet light. It is
recommended that you consult a physician before using this sunbed if
taking any medication or if you suspect that your skin might be especially
sensitive to sunlight. Included with this manual is an FDA booklet on
medications that increase sensitivity to light.
• As with all electrical appliances, do not operate this device near water
or while you are wet.
Exposure Times
We recommend that you tan every other day, following the tanning times in the
exposure schedule. Tanning normally appears after the first few sessions and maximizes after approximately four weeks. Tan once or twice per week thereafter to
maintain appearance. Persons already having a base tan may begin at advanced
levels corresponding to the extent of their base tan.
Follow the guidelines for skin type and exposure times as shown in the table below.
RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 20 MINUTES
I Sensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING
II Light (Burns easily and severely and tans minimally.)
III Normal (Burns moderately and tans average.)
IV Dark (Burns minimally, tans easily and above average.)
Session # 1st-3rd 4th-6th 7th-10th 11th-13th Maximum
4
6
8
8
10
12
12
15
16
16
20
20
20
20
20
11
Operation-Using Your Sunbed
20
15
10
5
0
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
Using Your Sunbed
Once you have read Before You Tan and Exposure Times, you are ready to use your
sunbed. Proceed as follows.
WARNING! Your sunbed is designed for individual use. Only one pair of protective
goggles is provided. Always wear these or another approved pair of goggles. Regular
sunglasses do not provide adequate protection from ultra-violet light. You should
never look at the lamps when turned on without wearing the appropriate protective
goggles.
Step 1.
Step 2.
Step 3.
Step 4.

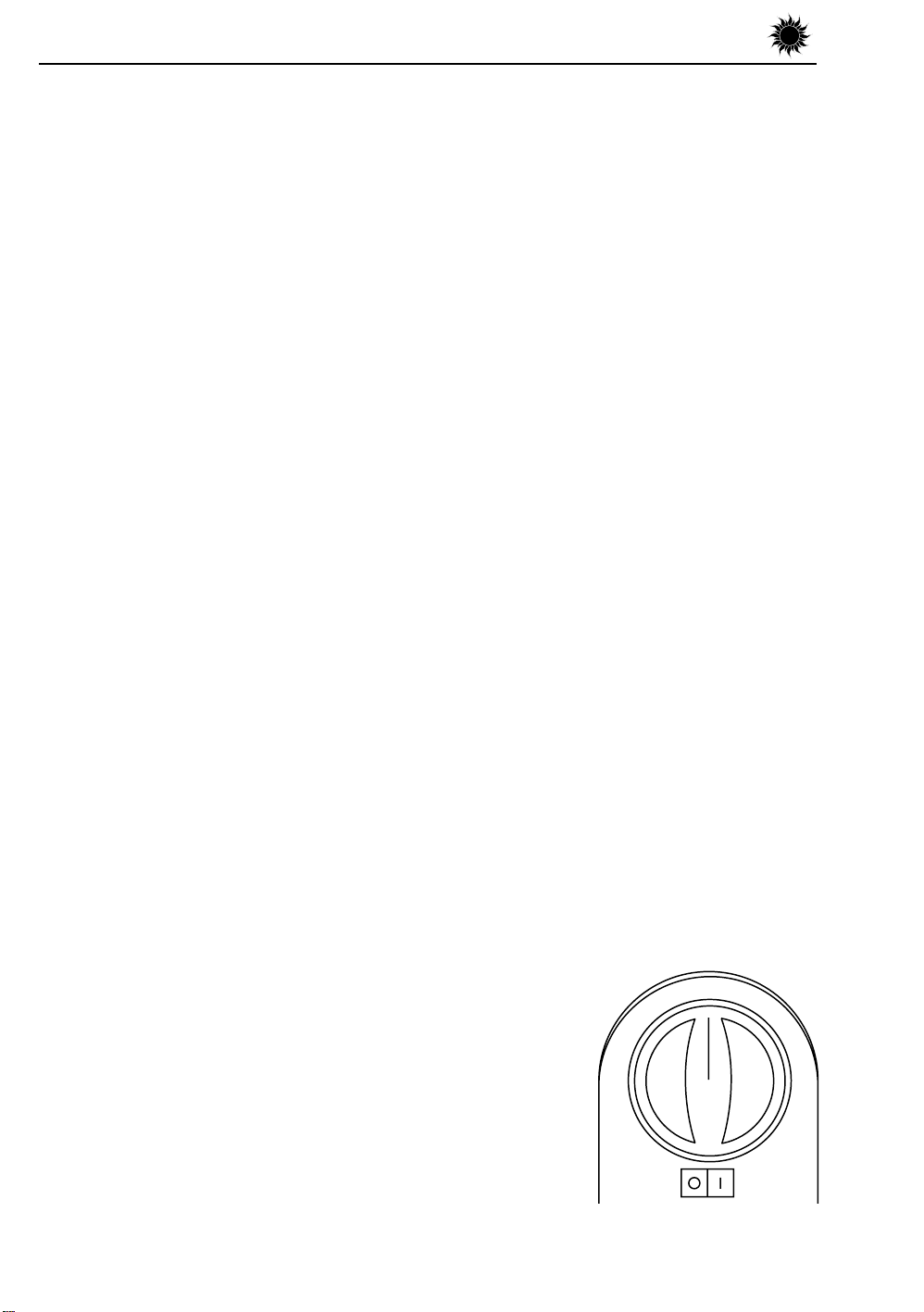

For units equipped with a face tanner, activate the face tanner by placing the rocker switch located next to the timer knob into the
“
I” (ON)
position. If you do not wish to use the face tanner, leave the switch in
the “O” (OFF) position.
Note! The F model face tanner lamps need a longer after-use cooling
period before they will light up again.
Set the timer to the desired number of minutes (after first determining
the proper time period from the table on page 11). The lamps will turn
on as soon as you move the rotary dial from the “0” position.
Lift the canopy, lie down on the bench (face up), and lower the canopy
toward your body. For best results, position the canopy as close as possible to your body, but do not bring the canopy any closer than 1
inch from your body.
When the timer reaches 0, the lamps will automatically turn off. The
cooling fans run for 3-5 minutes after the lamps shut off to aid in cooling the sunbed.
Note! Customers using a remote system with this product
will find that if the remote timer is set for less time than the
bed timer the cool down time will be the tanning time
remaining on the bed timer plus the normal cool down.
Example: The remote timer is set at 15 minutes and the
bed timer is set at 18 minutes. The lamps will shut off at
15 minutes. The fans will run for the remaining 3 minutes
and then continue to run during the cool down cycle.
12
C
are & Maintenance
Cleaning After Use
Clean and disinfect your tanning bed’s bench and canopy after each use. Use a non-abrasive disinfectant cleaner that does not contain ammonia or ammonia derivatives.
Ammonia may damage the acrylic shield. Spray the acrylic lightly with disinfectant and
wipe dry with a clean soft cloth. We recommend SunQuest disinfectant and SunQuest
acrylic cleaner.
Thorough Periodic Cleaning
Introduction
The cooling fans draw air through the bed and over time will cause a dust buildup on the
lamps and reflectors. This will reduce the tanning effectiveness of the bed. When a dust
buildup is observed, it is necessary to thoroughly clean the inside of the bench and
canopy. Warning! Disconnect sunbed from electrical power before cleaning.
Cleaning the Canopy and Bench
Step 1.Remove the acrylic shields and lamps as described on page 14.
Step 2.With a soft cloth, wipe the entire length of each lamp to
remove any film build-up.
Step 3.Clean both sides of the acrylic shields with a non-ammonia
disinfectant cleaner.
Step 4.Wipe the reflectors with a clean damp cloth.
Step 5.Re-install the lamps and acrylic shields as described on pages 14-16.
Mechanical Inspection
Your tanning bed has been built for years of service. To ensure trouble free operation
throughout its life, inspect the unit’s mechanical integrity every 400-500 hours of use.
• Inspect the unit’s fasteners verifying that all are firmly in place. Pay particular attention
to the hinge bolts.
• Inspect gas springs for signs of wear. Gas springs that will not hold up the canopy in the
full open position should be immediately replaced.
• Inspect the timer as indicated in this manual under Timer Maintenance.
• Inspect the AC power cord and its connections.
• Inspect the acrylic. Broken, cracked or badly scratched acrylics should be immediately
replaced.
13
Care & Maintenance-Replacing Lamps
Replacing Lamps
Introduction
Your tanning bench has an hour meter which keeps track of how many hours the
sunbed has been in operation. Use this meter to determine when your tanning lamps
should be replaced. To be assured of maximum tanning effectiveness, change lamps
after approximately 800-1000 hours of use. Tanning will continue after this time but
at a slower rate. To ensure trouble-free operation of your sunbed, replace the lamp
starters whenever the lamps are replaced.
Warning! Disconnect sunbed from electrical power before servicing.

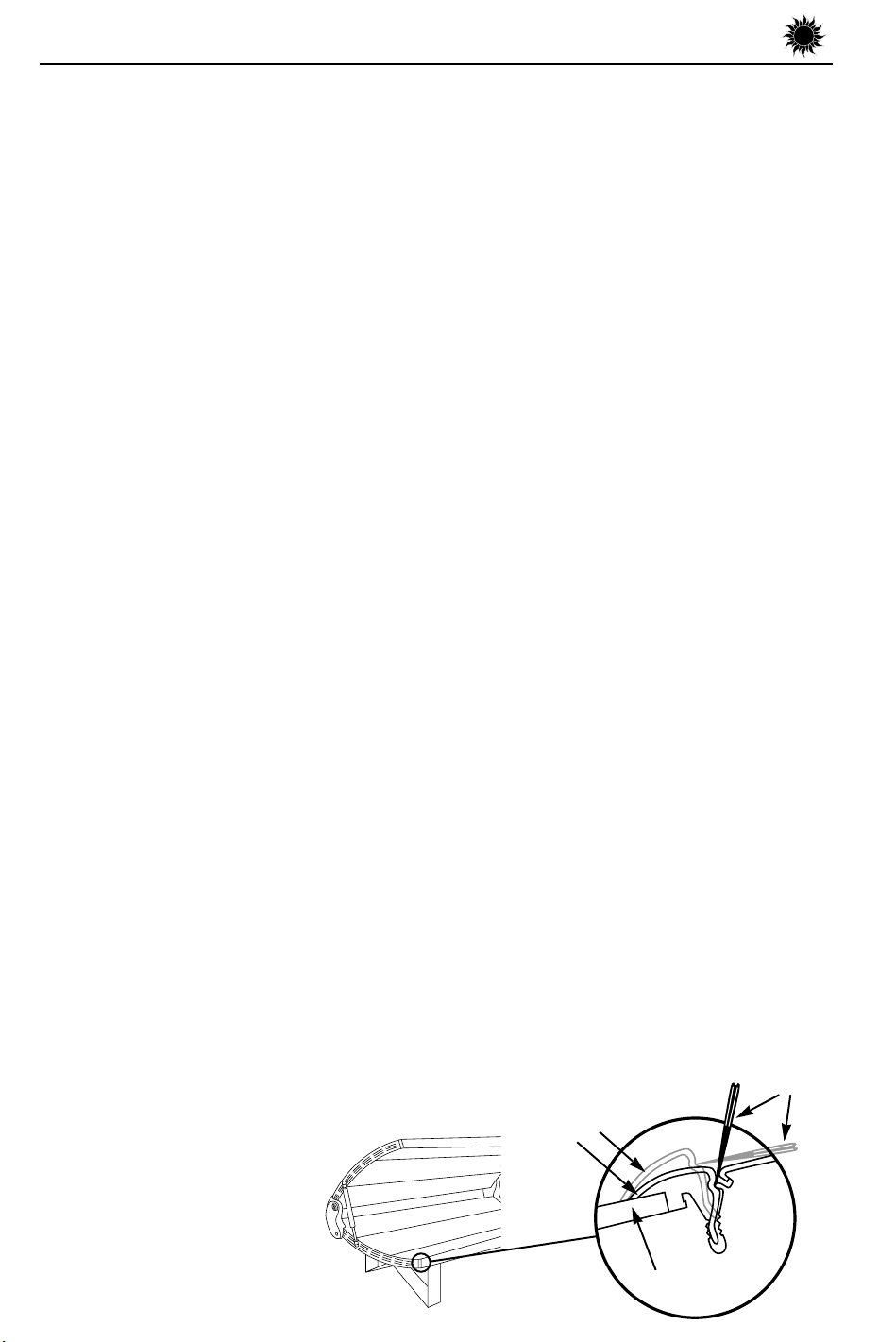

Removing/Replacing Acrylic Shields
The acrylic shields in the canopy and bench are both secured in place by vinyl
retainer strips which run the length of the canopy and bench, both front and back.
To remove the retainers, gently pry up on the outside edge of the retainer near the
middle of the bed with a screwdriver until the retainer releases its latching action
(See figure below). Continue prying up the retainer throughout its full length until
removed. Repeat for the other retainer. The long edges of the acrylic shield are
now exposed.
Canopy Shield
Standing in front of the sunbed, grasp the long exposed edge of the
acrylic and carefully begin sliding it toward you, until it is removed
from the sunbed.
Bench Shield
Slide the acrylic shield toward the head or foot end of the bed.
The short edge of the acrylic shield at the opposite end should
now be visible. Remove the shield by lifting from this end.
After changing lamps, replace the acrylic shield by reversing the above steps.
On bench shields, take special care to ensure that the acrylic is centered
from head to foot before installing the retaining strips. Replace each retainer
by first installing its ends into place under the endcaps, then working
Screwdriver
toward the center, push it into place.
Vinyl Retainer
Acrylic Shield
14
Care & Maintenance-Replacing Lamps
Removing/Replacing Lamps
After removing the acrylic shield, replace lamps as follows:
Step 1.Grasp the lamp at one end and at the middle, then turn the
lamp a quarter turn. The lamp may then be gently removed
from its holder.
Step 2.To re-install a lamp, insert the pins located on the ends of the
lamp into the slots on top of the lamp holder and turn the
lamp a quarter turn.
Recommended Replacement Lamps
Do not use lamps other than those specified below. Using uncertified lamps is a
violation of Federal regulations and will void your warranty. These lamps have an
average life of 800-1000 hours of effective tanning use. Lamps used longer than that
begin to lose their effectiveness even though they will continue to light.
Pro 28LXF
Pro 28LX2F
Pro 24SF
Pro 24ST
Pro 28LXT
Only the following lamp types have been certified for use in SUNVISION Solariums
Application
Canopy and Bench
Facial Unit
Application
Canopy and Bench
Facial Unit
Application
Canopy and Bench
Turbo Face Tanner
Diamondsun S Wolff Model 71T12100W
Philips Model HPA 400/30s
Cosmo Tech Model 23045
Cosmo Tech Model 20046
Diamondsun S Wolff Model 59T12080W
Diamondsun S Wolff Model 71T12100W
Philips Model HPA 400/30s
Cosmo Tech Model 23045
Cosmo Tech Model 20046
Diamondsun S Wolff Model 71T12100W
Turbo Sun S Wolff Model F8-T5-10W
Lamp Model Number
Lamp Model Number
Lamp Model Number
Pro 24S
Pro 28LX
Application
Canopy and Bench
Lamp Model Number
Diamondsun S Wolff Model 71T12100W
15
Care & Maintenance-Replacing Lamps

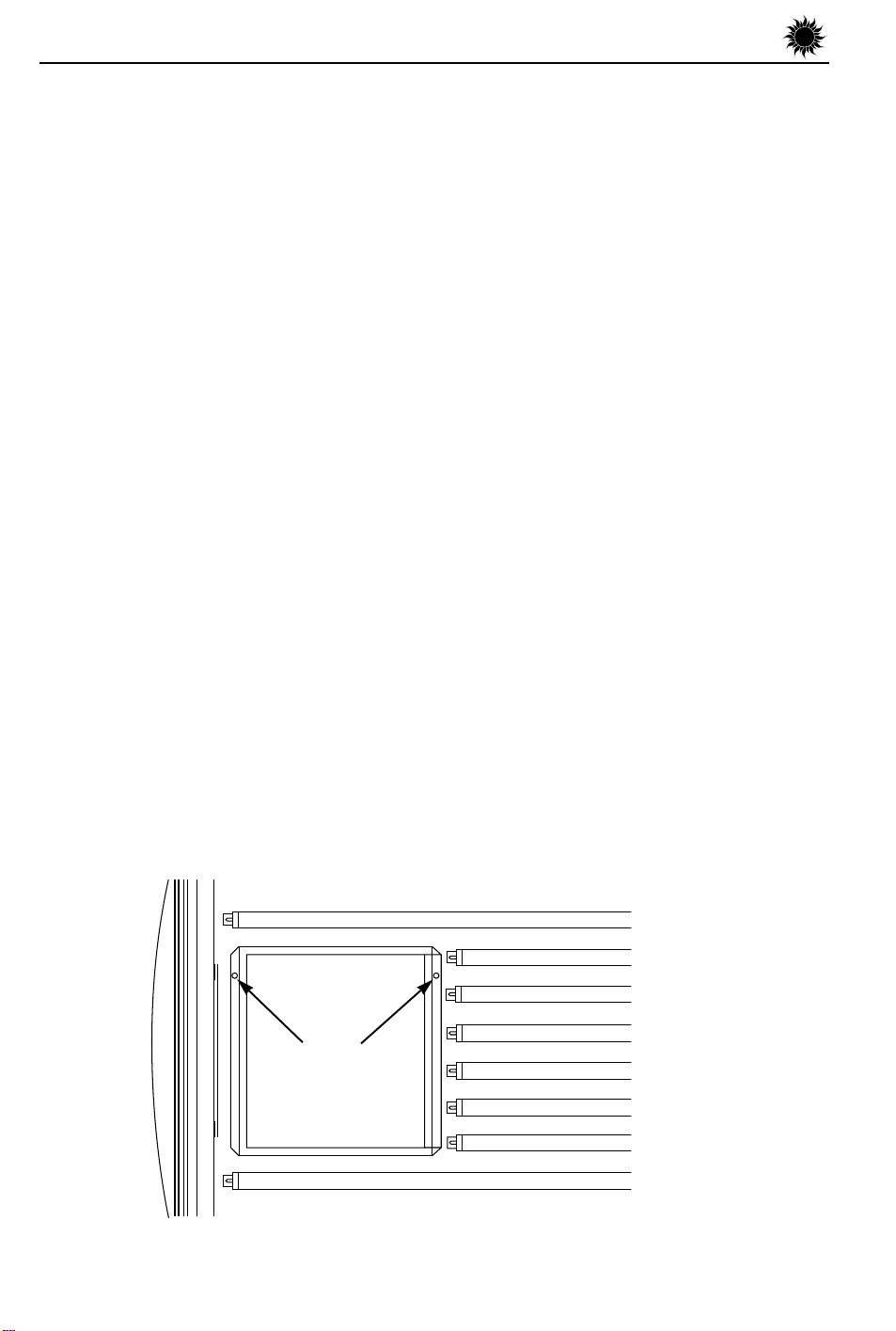

Removing/Replacing Face Tanner Lamp on F Models
After removing the canopy acrylic shield, replace the face tanner lamp as follows:
Step 1.Support the face tanner assembly with your hand while
unscrewing the two retaining screws. The face tanner glass
casing will now swing downward.
Step 2.The lamp can now be exchanged. The lamp holders are
equipped with spring contacts which enables the lamp to be
removed easily. Remove the old lamp and discard. Install the
new lamp, using a clean cloth or paper towel. Ensure that the
lamp is firmly seated in the lamp holders.
Note! Never take hold of the lamp such that your fingers are in
contact with the lamp glass. Finger oils will greatly reduce the
lamp’s operational life.
Step 3.Gently close the face tanner glass casing and lock it closed with
the screws. Ensure that the screws firmly secures the glass casing.
Warning! Never turn the equipment on while the face tanner is disassembled or
when the glass filters have been removed. The direct light can cause severe injury to
the eyes and to other areas of the body. Immediately discontinue use of this
equipment if the face tanner glass is broken or if any unfiltered light can be seen
escaping the face tanner assembly.
RETAINING
SCREWS
16
Care & Maintenance-Timer Maintenance
Timer Maintenance
Your SUNVISION sunbed is equipped with a backup shut-off timer which will
automatically turn off the sunbed in the unlikely event of a malfunction of the primary timer. This important safety feature also prevents the user from re-setting the
timer before the end of the pre-set maximum time interval. The electronic timer
limiting circuit is automatically reset each time the primary timer is turned to the
OFF position.
Annually, or whenever your sunbed is re-lamped, check the operation and accuracy
of the timer system as follows. DO NOT perform these tests with a person in the
sunbed.
Step 1.Obtain an accurate watch capable of measuring in seconds.
Set the timer to its maximum interval. Using the watch, time
how long the lamps remain on. The lamps should shut off
within plus or minus 10% of the maximum timer interval.
Step 2.Set the timer to the maximum time interval. Wait ten minutes,
then turn the knob back to the maximum time position. The
electronic time limiting circuit should turn the lamps off at an
elapsed time equal to approximately 10% beyond the maximum timer interval, even though the primary timer continues
to show time left.
Call ETS Customer Service if your timer does not operate properly, or if you
experience difficulty with these tests.
17
T
roubleshooting
Problem/Solution Chart
SolutionProblem
Lamps fail to light
One or more lamps fail
to light
Canopy fails to stay in the
up or down position
Sunbed does not stay lit
1. Check source of ac power. Reset circuit breaker
or replace fuse if necessary.
2. Make sure the unit is plugged into outlet.
3. Make sure cord between canopy and bench is
properly connected.
4. Make sure timer dial is turned to a number past 0.
1. Check that lamp is installed correctly.
2. Switch unlit lamp with a lamp that lights. If the
new lamp lights and the old lamp still does not,
replace old lamp.
3. If replacing lamp does not remedy problem, contact your service representative.
1. Replace gas springs when they no longer have sufficient power to aid in lifting the canopy.
1. Check source of ac power. Reset circuit breaker
or replace fuse if necessary.
2. Check timer system per maintenance instructions
in this guide. Contact your local service
representative.
18
O
btaining Service
To arrange for service, or for more information about your sunbed,
contact ETS as follows:
CALL FOR SERVICE OR QUESTIONS:
1•800•228•6292
6270 Corporate Drive
Indianapolis, IN 46278-2900
Have the following information ready when calling ETS
to order parts or service for your bed:
Date Purchased
Canopy Serial Number
Bench Serial Number
Manufactured for SUNVISION by:
Spectrum Products, Inc.
6220 Churchman Bypass
Indianapolis, Indiana 46203
19
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
