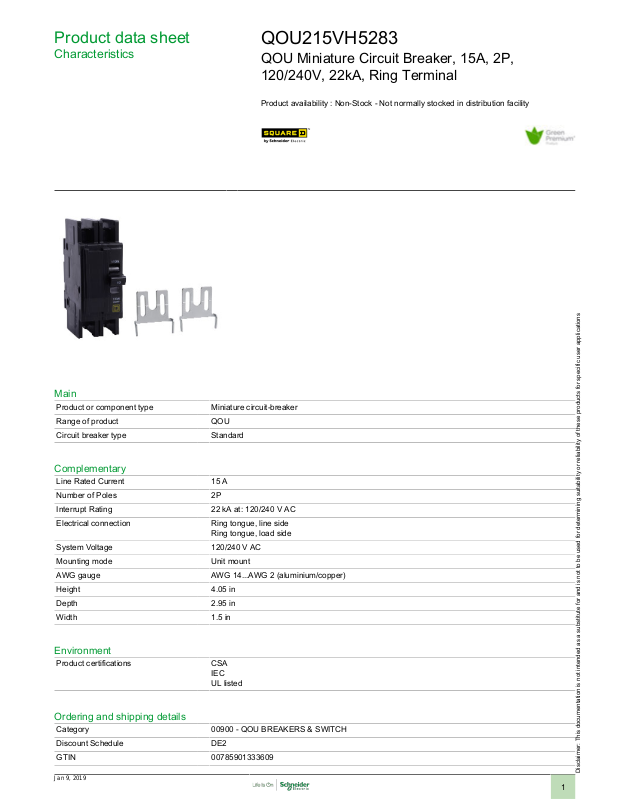

Product data sheet
Characteristics
QOU215VH5283
QOU Miniature Circuit Breaker, 15A, 2P,
120/240V, 22kA, Ring Terminal
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Product or component type Miniature circuit-breaker
Range of product QOU
Circuit breaker type Standard
Complementary
Line Rated Current 15 A
Number of Poles 2P
Interrupt Rating 22 kA at: 120/240 V AC
Electrical connection Ring tongue, line side
System Voltage 120/240 V AC
Mounting mode Unit mount
AWG gauge AWG 14...AWG 2 (aluminium/copper)
Height 4.05 in
Depth 2.95 in
Width 1.5 in
Ring tongue, load side
Environment
Product certifications CSA
IEC
UL listed
Ordering and shipping details
Category 00900 - QOU BREAKERS & SWITCH
Discount Schedule DE2
GTIN 00785901333609
Jan 9, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Nbr. of units in pkg. 1
Package weight(Lbs) 0.75
Returnability N
Country of origin MX
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1323 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference contains SVHC above the threshold - Go to CaP for more details
Go to CaP for more details
Product environmental profile Available
Product end of life instructions Need no specific recycling operations
Contractual warranty
Warranty period 18 months
