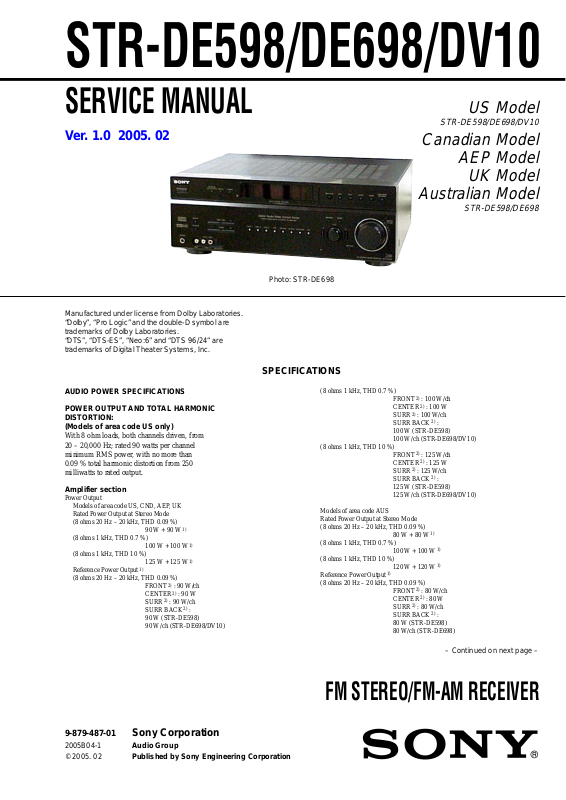

STR-DE598/DE698/DV10
SERVICE MANUAL
Ver. 1.0 2005. 02
Photo: STR-DE698
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are
trademarks of Dolby Laboratories.
“DTS”, “DTS-ES”, “Neo:6” and “DTS 96/24” are
trademarks of Digital Theater Systems, Inc.
SPECIFICATIONS
US Model
STR-DE598/DE698/DV10
Canadian Model
AEP Model
UK Model
Australian Model
STR-DE598/DE698
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
(Models of area code US only)
With 8 ohm loads, both channels driven, from
20 – 20,000 Hz; rated 90 watts per channel
minimum RMS power, with no more than
0.09 % total harmonic distortion from 250
milliwatts to rated output.
Amplifier section
Power Output
Models of area code US, CND, AEP, UK
Rated Power Output at Stereo Mode
(8 ohms 20 Hz – 20 kHz, THD 0.09 %)
(8 ohms 1 kHz, THD 0.7 %)
(8 ohms 1 kHz, THD 10 %)
Reference Power Output
(8 ohms 20 Hz – 20 kHz, THD 0.09 %)
90 W + 90 W
100 W + 100 W
125 W + 125 W
1)
FRONT
CENTER
SURR
SURR BACK
90 W (STR-DE598)
90 W/ch (STR-DE698/DV10)
2)
: 90 W/ch
2)
: 90 W
2)
: 90 W/ch
1)
1)
1)
2)
:
(8 ohms 1 kHz, THD 0.7 %)
(8 ohms 1 kHz, THD 10 %)
Models of area code AUS
Rated Power Output at Stereo Mode
(8 ohms 20 Hz – 20 kHz, THD 0.09 %)
(8 ohms 1 kHz, THD 0.7 %)
(8 ohms 1 kHz, THD 10 %)
Reference Power Output
(8 ohms 20 Hz – 20 kHz, THD 0.09 %)
1)
2)
FRONT
CENTER
2)
SURR
: 100 W/ch
SURR BACK
100 W (STR-DE598)
100 W/ch (STR-DE698/DV10)
2)
FRONT
CENTER
2)
SURR
: 125 W/ch
SURR BACK
125 W (STR-DE598)
125 W/ch (STR-DE698/DV10)
80 W + 80 W
100 W + 100 W
120 W + 120 W
2)
FRONT
CENTER
2)
SURR
: 80 W/ch
SURR BACK
80 W (STR-DE598)
80 W/ch (STR-DE698)
: 100 W/ch
2)
: 100 W
2)
:
: 125 W/ch
2)
: 125 W
2)
:
1)
1)
1)
: 80 W/ch
2)
: 80 W
2)
:
– Continued on next page –
9-879-487-01
2005B04-1
© 2005. 02
FM STEREO/FM-AM RECEIVER
Sony Corporation
Audio Group
Published by Sony Engineering Corporation
1
Page 2
STR-DE598/DE698/DV10
(8 ohms 1 kHz, THD 0.7 %)
2)
FRONT
: 100 W/ch
2)
CENTER
2)
SURR
: 100 W/ch
SURR BACK
: 100 W
2)
:
100 W (STR-DE598)
100 W/ch (STR-DE698)
(8 ohms 1 kHz, THD 10 %)
2)
FRONT
: 120 W/ch
2)
CENTER
2)
SURR
: 120 W/ch
SURR BACK
: 120 W
2)
:
120 W (STR-DE598)
120 W/ch (STR-DE698)
1) Measured under the following conditions:
Area code Power requirements
US, CND 120 V AC, 60 Hz
AEP, UK 230 V AC, 50 Hz
AUS 240 V AC, 50 Hz
2) Depending on the sound field settings and the
source, there may be no sound output.
Frequency response
MULTI CH IN, SA-CD/ 10 Hz – 70 kHz
CD, MD/TAPE, DVD, +0.5/–2 dB (with sound
AUX (STR-DE698/DV10), field and tone (STR-DE598) or
VIDEO 1, 2, 3 equalizer (STR-DE698/DV10)
bypassed)
Inputs (Analog)
MULTI CH IN, SA-CD/ Sensitivity: 500 mV
CD, MD/TAPE, DVD, Impedance: 50 k ohms
AUX (STR-DE698/DV10), S/N
VIDEO 1, 2, 3 (A, 500 mV
3)
: 96 dB
4)
)
3) INPUT SHORT (with sound field and tone (STR-DE598) or
equalizer (STR-DE698/DV10) bypassed).
4) Weighted network, input level.
Inputs (Digital)
DVD, Sensitivity: –
SA-CD/CD (STR-DE698/ Impedance: 75 ohms
DV10) (Coaxial) S/N: 100 dB
(A, 20 kHz LPF)
VIDEO 2, Sensitivity: –
3, MD/TAPE (STR-DE698/ Impedance: –
DV10), S/N: 100 dB
SA-CD/CD (Optical) (A, 20 kHz LPF)
Outputs (Analog)
MD/TAPE (OUT), Voltage: 500 mV
VIDEO 1 (AUDIO OUT) Impedance: 10 k ohms
SUB WOOFER V oltage: 2 V
Impedance: 1 k ohms
Outputs (Digital) (STR-DE698/DV10)
MD/TAPE (Optical) Sensitivity: –
Tone (STR-DE598),
Equalizer (STR-DE698/DV10)
Gain levels ±6 dB, 1 dB step
FM tuner section
Tuning range 87.5 – 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
Sensitivity
Mono: 18.3 dBf, 2.2 µV/75 ohms
Stereo: 38.3 dBf, 22.5 µV/75 ohms
Useable sensitivity 11.2 dBf, 1 µV/75 ohms
S/N
Mono: 76 dB
Stereo: 70 dB
Harmonic distortion at 1 kHz
Mono: 0.3%
Stereo: 0.5%
Separation 45 dB at 1 kHz
Frequency response 30 Hz – 15 kHz,
+0.5/–2 dB
Selectivity 60 dB at 400 kHz
AM tuner section
Tuning range
Models of area code US, CND
With 10-kHz tuning scale: 530 – 1,710 kHz
With 9-kHz tuning scale: 531 – 1,710 kHz
5)
5)
Models of area code AEP, UK, AUS
With 9-kHz tuning scale: 531 – 1,602 kHz
Antenna Loop antenna
Intermediate frequency 450 kHz
Usable sensitivity 50 dB/m (at 1,000 kHz or
999 kHz)
S/N 54 dB (at 50 mV/m)
Harmonic distortion 0.5 % (50 mV/m, 400 Hz)
Selectivity
At 9 kHz: 35 dB
At 10 kHz: 40 dB
5) You can change the AM tuning scale to 9 kHz or 10 kHz.
After tuning in any AM station, turn of f the receiv er . While
holding down PRESET TUNING + or TUNING +, press
?/1. All preset stations will be erased when you change
the tuning scale. To reset the scale to 10 kHz (or 9 kHz),
repeat the procedure.
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
S-video: Y: 1 Vp-p, 75 ohms
(STR-DE698/DV10) C: 0.286 Vp-p, 75 ohms
COMPONENT VIDEO:
(Except for models of area code STR-DE598: AEP, UK)
Y: 1 Vp-p, 75 ohms
PB/CB/B-Y: 0.7 Vp-p,
75 ohms
PR/CR/R-Y: 0.7 Vp-p,
75 ohms
80 MHz HD Pass Through
2
Page 3
STR-DE598/DE698/DV10
1.5 k
Ω
0.15 µF
AC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
General
Power requirements
Area code Power requirements
US, CND 120 V AC, 60 Hz
AEP, UK 230 V AC, 50/60 Hz
AUS 240 V AC, 50 Hz
Power consumption
Area code Power consumption
STR-DE598: US, AEP, 220 W
UK, AUS
STR-DE598: CND 300 VA
STR-DE698/DV10: US, 230 W
AEP, UK, AUS
STR-DE698: CND 310 VA
Power consumption (during standby mode)
0.2 W
AC outlets (STR-DE698/DV10)
Area code AC outlets
US, CND 1 switched, 120 W/1A MAX
AEP, UK, AUS 1 switched, 100 W MAX
Dimensions (w/h/d) (Approx.)
STR-DE598: 430 × 157.5 × 310 mm
(16 7/8 × 6 2/8 × 12 2/8
inches) including
projecting parts and
controls
STR-DE698/DV10: 430 × 157.5 × 370 mm
(16 7/8 × 6 2/8 × 14 4/8
inches) including
projecting parts and
controls
Mass (Approx.)
STR-DE598: 8.0 kg (17 lb 11 oz)
STR-DE698/DV10: 9.0 kg (19 lb 14 oz)
Supplied accessories
FM wire antenna (1)
AM loop antenna (1)
Remote commander RM-AAU001 (1) (STR-DE598/DV10)
Remote commander RM-AAP001 (1) (STR-DE698)
R6 (size-AA) batteries (2)
Design and specifications are subject to change
without notice.
•Abbreviation
CND : Canadian model
AUS: Australian model
SAFETY CHECK-OUT (US MODEL)
After correcting the original service problem, perform the following safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs, screws,
and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microampers.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate lowvoltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery
operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A)
Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY P ARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
3
Page 4
STR-DE598/DE698/DV10
MODEL IDENTIFICATION
— BACK P ANEL —
Part No.
MODEL PART No.
STR-DE598: US 2-515-627-0s
STR-DE598: CND 2-515-627-1s
STR-DE598: AEP , UK 2-515-627-3s
STR-DE598: AUS 2-515-627-4s
STR-DE698: US 2-541-614-0s
STR-DE698: CND 2-541-614-1s
STR-DE698: AEP , UK 2-541-614-3s
STR-DE698: AUS 2-541-614-4s
STR-DV10: US 2-541-614-7s
•Abbreviation
CND: Canadian model
AUS: Australian model
TABLE OF CONTENTS
1. GENERAL
STR-DE598: Main unit ........................................................... 5
STR-DE598/DV10: Remote button description...................... 6
STR-DE698/DV10: Main unit ................................................ 7
STR-DE698: Remote button description................................. 8
2. DISASSEMBLY
2-1. Case .....................................................................................9
2-2. Front Panel Section ........................................................... 10
2-3. Back Panel Section............................................................ 10
2-4. Digital Board ..................................................................... 11
2-5. Standby Board ................................................................... 11
2-6. Main Board ....................................................................... 12
2-7. SB AMP Board.................................................................. 12
3. TEST MODE ..................................................................... 13
4. DIAGRAMS
4-1. Circuit Boards Location .................................................... 14
4-2. Block Diagram – Tuner/Audio Section –.......................... 15
4-3. Block Diagram – Digital Section – ................................... 16
4-4. Block Diagram – Video Section – ..................................... 17
4-5. Block Diagram – Key/Display Section – .......................... 18
4-6. Block Diagram – Power Section – .................................... 19
4-7. Printed Wiring Boards – Main Section – .......................... 21
4-8. Schematic Diagram – Main Section (1/2) – ...................... 22
4-9. Schematic Diagram – Main Section (2/2) – ...................... 23
4-10. Printed Wiring Board – Digital Section (1/2) – ................ 24
4-11. Printed Wiring Board – Digital Section (2/2) – ................ 25
4-12. Schematic Diagram – Digital Section (1/4) – ................... 26
4-13. Schematic Diagram – Digital Section (2/4) – ................... 27
4-14. Schematic Diagram – Digital Section (3/4) – ................... 28
4-15. Schematic Diagram – Digital Section (4/4) – ................... 29
4-16. Printed Wiring Boards – Speaker Section – ...................... 30
4-17. Schematic Diagram – Speaker Section – .......................... 31
4-18. Printed Wiring Boards – Video Section – ......................... 32
4-19. Schematic Diagram – Video Section –.............................. 33
4-20. Printed Wiring Board
– S-video Up Convert Section (STR-DE698) – ................ 34
4-21. Schematic Diagram
– S-video Up Convert Section (STR-DE698) – ................ 34
4-22. Printed Wiring Board
– S-video Section (STR-DE698/DV10) – ......................... 35
4-23. Schematic Diagram
– S-video Section (STR-DE698/DV10) – ......................... 35
4-24. Printed Wiring Boards – Panel Section – .......................... 36
4-25. Schematic Diagram – Panel Section – .............................. 37
4-26. Printed Wiring Board – Power Section – .......................... 38
4-27. Schematic Diagram – Power Section – ............................. 39
5. EXPLODED VIEWS
5-1. Case Section ...................................................................... 46
5-2. Front Panel Section ........................................................... 47
5-3. Back Panel Section............................................................ 48
5-4. Chassis Section ................................................................. 49
6. ELECTRICAL PARTS LIST ........................................ 50
4
Page 5
SECTION 1
Illustrati
w
GENERAL
STR-DE598:
List of button locations and reference pages
STR-DE598/DE698/DV10
This section is extracted
from instruction manual.
How to use this page
Use this page to find the location of buttons that are
mentioned in the text.
Main unit
ALPHABETICAL ORDER
A - H
A.F.D. (button/indicator) qa (31,
33)
AM wa (22, 23, 24, 25, 41)
DIMMER 4 (27)
DISPLAY 3 (26, 27, 50)
Display 7 (26, 27)
DVD wg (22)
ENTER qg (17, 18 , 41)
FM ws (22, 23, 24, 25, 41)
FM MODE es (23)
I - O
Input buttons w; (22, 36, 40, 41,
50)
INPUT MODE qj (36)
IR (receptor) 5 (44, 50)
MAIN MENU 8 (18, 37, 38, 41)
MASTER VOLUME –/+ qh (17,
21, 22, 49)
MD/TAPE wf (22)
MEMORY ef (24, 25)
MOVIE (button/indicator) qs
(32, 33, 50)
MULTI CHANNEL DECODING
(indicator) 6 (23)
MULTI CH IN 9 (23)
MUSIC (button/indicator) qd ( 33,
50)
P - Z
PHONES (jack) ed (22, 49)
PRESET TUNING –/+ wl (25,
53)
on number
r
DISPLAY
Name of button/part Reference page
3 (26, 27, 50)
RR
SA-CD/CD wd (22)
SPEAKERS (OFF/A/B/A+B) 2
(16, 42, 49)
SURR BACK DECODING qf
(34)
TUNING –/+ e; (23, 53)
VIDEO 1 wk (22)
VIDEO 2 wj (22)
VIDEO 3 wh (22)
VIDEO 3 IN/PORTABLE AV IN
(jacks) ea (13)
NUMBERS AND SYMBOLS
2CH (button/indicator) q; (30,
33, 38)
?/1 (power) 1 (17, 18, 24, 38,
53)
</> ql (18, 37, 38, 41)
+/– qk (18, 37, 39, 41)
54
1
2
6534
7
8
9q;qaqs qfqd qg
wawswdwfwgwhwjwk
wle;edesef ea
GB
qk
;
qjqlqh
5
Page 6
STR-DE598/DE698/DV10
STR-DE598/DV10:
Operations Using the Remote RM-AAU001
You can use the remote RM-AAU001 to operate
the components in your system.
Before you use your
remote
Inserting batteries into the
remote
Insert R6 (size-AA) batteries with the + and –
properly oriented in the battery compartme nt.
When using the remote, point it at the remote
sensor on the receiver.
Tip
Under normal conditions, the batter ie s shou ld la st for
about 6 months. When the remote no longe r opera tes
the receiver, replace all batteries wit h new ones.
Notes
•Do not leave the remote in an extrem ely hot or humid
place.
•Do not use a new battery with an old one.
•Do not expose the remote sensor to direct sunlight or
lighting apparatuses. Doing so may cause a
malfunction.
•If you don’t use the remote for an extended period of
time, remove the batteries to avoid possible damage
from battery leakage and corrosio n.
Remote button
description
eg
ef
ed
es
ea
e;
wl
wk
wj
wh
wg
wf
wd
ws
wa
TV/VIDEO
TEST
SLEEP
TONE
VIDEO 1 VIDEO 2 VIDEO 3 DVD
MD/TAPE
SA-CD/CD
2CH A.F.D.
123
46
5
78
>10
0/10
-
TOP MENU/
GUIDE MUTING
F
ENTER
Gg
f
RETURN/EXIT
TV CH –
c STEP C
REPLAY ADVANCE
PRESET –
<
.
TUNING –
TV
HmM
TV
?/1
AV
?/1
?/1
SYSTEM STANDBY
TUNER
MAIN MENU
MOVIE MUSIC
DUAL MONO
FM MODE
MPX
AUDIO
D.TUNING
ANT
9
SUBTITLE
MEMORY SHIFT
JUMP
ENTER
D.SKIPCLEAR ANGLE
AV
MENU
TV VOL
MASTER VOL
DISPLAY
TV CH +
PRESET +
<
>
TUNING +
Xx
1
2
3
4
5
6
7
8
9
q;
qa
qs
qd
qf
qg
qh
qj
qk
ql
w;
GB
44
6
Page 7
STR-DE698/DV10:
Illustrati
8
q
q
q
w
e
ede
e
e
q
w
List of button locations and reference pages
STR-DE598/DE698/DV10
How to use this page
Use this page to find the location of buttons that are
mentioned in the text.
Main unit
ALPHABETICAL ORDER
A - H
A.F.D. (button/indicator) qa (32,
34)
AUX wa (23)
DIMMER 4 (28)
DISPLAY 3 (27, 28, 56)
Display 7 (27, 28)
DVD wg (23)
ENTER qg (18, 42, 57)
FM MODE es (24)
I - O
Input buttons w; (23, 37, 41, 42,
56)
INPUT MODE qj (37)
IR (receptor) 5 (45, 57)
MAIN MENU 8 (18, 38, 39, 42)
MASTER VOLUME –/+ qh (18,
22, 23, 55)
MD/TAPE wf (23)
MEMORY ef (26)
MOVIE (button/indicator) qs
(33, 34, 56)
MULTI CHANNEL DECODING
(indicator) 6 (24)
MULTI CH IN 9 (24)
MUSIC (button/indicator) qd (34,
56)
P - Z
PHONES (jack) ed (23, 55)
PRESET TUNING –/+ wl (26,
59)
SA-CD/CD wd (23)
on number
r
DISPLAY 3 (27, 28, 56)
Name of button/part Reference page
RR
SPEAKERS (OFF/A/B/A+B) 2
(16, 43, 55)
SURR BACK DECODING qf
(35)
TUNER FM/AM ws (23, 24, 25,
26, 42)
TUNING –/+ e; (24, 59)
VIDEO 1 wk (23)
VIDEO 2 wj (23)
VIDEO 3 wh (23)
VIDEO 3 IN/PORTABLE AV IN
(jacks) ea (13)
NUMBERS AND SYMBOLS
2CH (button/indicator) q; (31,
34, 39)
?/1 (power) 1 (18, 25, 39, 57,
59)
</> ql (18, 38, 39, 42)
–/+ jog dial qk (18, 38, 39, 42)
Additional Information
1
2
6534
7
9q;qa qs qfqd qg
wawswdwfwgwhwjwk
l
s
f
a
;
l
;
j
k
h
GB
61
7
Page 8
STR-DE598/DE698/DV10
STR-DE698:
Operations Using the Remote RM-AAP001
You can use the remote RM-AAP001 to operate
the components in your system.
Before you use your
remote
Inserting batteries into the
remote
Insert R6 (size-AA) batteries with the + and –
properly oriented in the battery compartment.
When using the re m ote, point it at the remote
sensor on the receiver.
Tip
Under normal conditions, the batteries should last for
about 6 months. When the remote no long er ope r ates
the receiver, replace all batteries with new ones.
Notes
•Do not leave the remote in an extremely hot or humid
place.
•Do not use a new batt ery with an old one.
•Do not expose the remote sensor to direct sunlight or
lighting apparatuses. Doing so may cause a
malfunction.
•If you don’t use the remote for an extended period of
time, remove the batteries to avoid possible damage
from battery leakage and corrosion.
Remote button
description
1
2
3
4
5
6
7
8
9
*
q;
qa
ENTER
*
qs
*
qd
TV ?/1 AV ?/1
RM SET UP
SYSTEM STANDBY
VIDEO1 VIDEO2 VIDEO3 DVD
AV1 AV2
MD/TAPE
SA-CD/CD AUX
2CH
A.F.D.
123
456
AUDIO
ANGLE
789
SUBTITLE ENTER
>
.
0/10 >10/11 12
SHIFT
D.TUNING DISC ALT
Mm
ANT
CLEAR
H
TOP MENU/
GUIDE
V
v
DISPLAY
RETURN/EXIT
TV VOL TV CH
P
TUNER
MOVIE
DUAL
MONO
JUMP/
TIME
-
SEARCH MODE
X
AV MENU
bB
O
TV/
VIDEO
?/1
SLEEP
MULTI CH
MUSIC
SB
DECODING
PRESET/
CH/D.SKIP
x
MUTING
MASTER
VOL
MAIN
MENU
TEST
TONEWIDE
ef
ed
es
ea
e;
wl
wk
wj
wh
wg
wf
wd
ws
wa
w;
ql
qk
qj
qh
qg
qf
Operations Using the Remote RM-AAP001
*
*The H, TV VOL +, TV CH + and MASTER
VOL + buttons have a tactile dot. Use the tactile dot
as a reference when operating the receiver and o t h er
audio/video components.
continued
GB
45
8
Page 9
SECTION 2
)
DISASSEMBLY
Note : This set can be disassemble according to the following sequence.
SET
2-1. CASE
(Page 9)
STR-DE598/DE698/DV10
2-2. FRONT PANEL SECTION
(Page 10)
2-5. STANDBY BOARD
(Page 11)
2-3. BACK PANEL SECTION
(Page 10)
2-4. DIGITAL BOARD
(Page 11)
2-6. MAIN BOARD
(Page 12)
Note : Follow the disassembly procedure in the numerical order given.

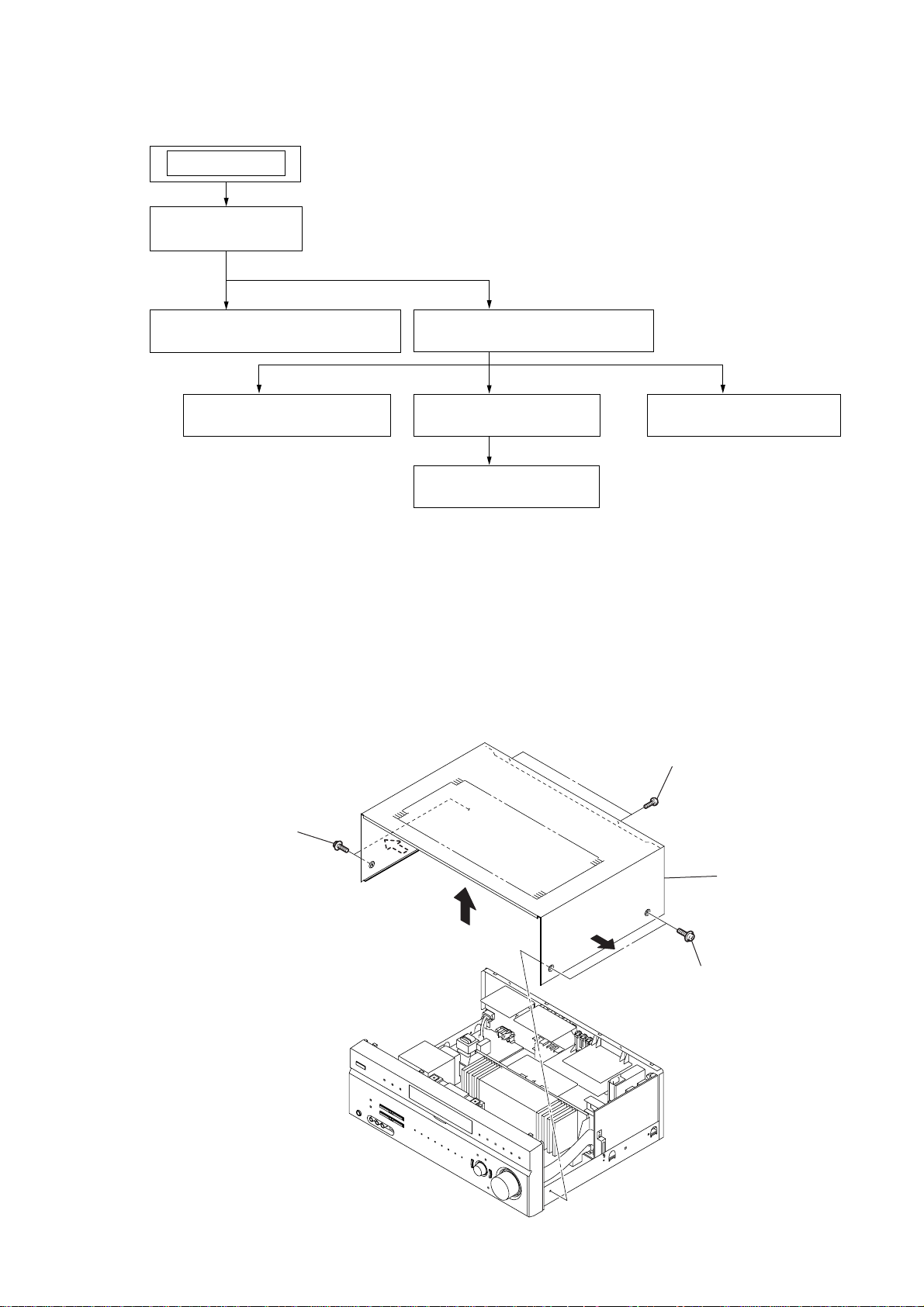

2-1. CASE
2-7. SB AMP BOARD
(Page 12)
2
two screws
(+BVTP 3
×
8)
1
two screws
(case 3 TP2)
4
case
3
two screws
(case 3 TP2
9
Page 10
STR-DE598/DE698/DV10
)
2-2. FRONT P ANEL SECTION
2
CNP791 (4P)
6
two screws
(+BVTP 3
×
8)
1
clip
4
CNP202 (5P)
5
CNP503 (3P
7
two screws
(+BVTP 3
×
8)
2-3. BACK PANEL SECTION
6
CNP600 (4P)
7
CN806 (4P)
5
CNP503 (4P)
8
CNP901
9
front panel section
8
three screws
(+BVTP 3
qg
back panel section
3
CNS505 (21 core)
×
8)
9
three screws
(+BVTP 3
qf
two screws
(+BVTP 3
qd
×
8)
×
8)
two screws
(+BVTP 3
qs
×
8)
five screws
(+BVTP 3
qa
five screws
(+BVTP 3
×
8)
×
8)
10
4
CNP504 (2P)
1
connector (11P)
3
CNP203 (3P)
0
screw
(+BVTP 3
2
CNS509 (13P)
×
8)
Page 11
2-4. DIGIT AL BOARD
d
3
CNP503 (6P)
8
screw
(+BVTP 3 × 8)
2
CNP504 (5P)
1
STR-DE598/DE698/DV10
CNP505 (9P)
5
0
DIGITAL boar
7
CNP501
6
CNP500
9
bracket (digital)
2-5. ST ANDBY BOARD
5
(+BV3 (3-CR))
2
three screws
CNP804 (3P)
4
CNP902 (2P)
6
STANDBY board
3
1
CNP801 (5P)
CNP903 (2P)
4
screw
(+BVTP 3 × 8)
11
Page 12
STR-DE598/DE698/DV10
d
s
2-6. MAIN BOARD
6
screw (+BV3 (3-CR))
3
two screws
(+BV3 (3-CR))
2
CNP802 (5P)
1
CNP908 (5P)
4
two screws
(+BV3 (3-CR))
5
two screws
(+BV3 (3-CR))
7
MAIN boar
2-7. SB AMP BOARD
1
CN2570 (5P)
5
SB AMP board
4
two screws
(+BVTP 3
×
8)
3
three screw
2
CN2571 (9P)
(transistor)
12
Page 13
SECTION 3
TEST MODE
STR-DE598/DE698/DV10
FACTORY PRESET MODE
* All preset contents are reset to the default setting.
* Procedure:
While depressing the [TUNING --] and the [DISPLAY] buttons
simultaneously, press the
?/1 button to turn on the main power .
The message “FA CT OR Y” appears for a moment and the present
contents are reset to the default values.
AM CHANNEL STEP 9 kHz/10 kHz SELECTION
MODE (US, Canadian model only)
* Either the 9 kHz step or 10 kHz step can be selected for the AM
channel step.
* Procedure:
Press the [AM] (STR-DE598) or [TUNER FM/AM] (STR-DE698/
DV10) button to set AM and press the ?/1 button to turn off the
main power.
While depressing the [PRESET TUNING +] button or the
[TUNING +] button, press the ?/1 button to turn on the main
power.
Either the message “9k STEP” or “10k STEP” appears for a
moment and select the desired step.
SPEAKER SIZE SELECTION MODE
* Either the normal speaker or micro satellite speaker can be se-
lected.
* Procedure:
While depressing the [DIMMER] button, press the ?/1 button to
turn on the main power.
Either the message “NORM. SP .” or “MICRO SP .” appears for a
moment and select the desired speaker size.
FLUORESCENT INDICATOR TUBE TEST MODE
* All fluorescent segments are tested.
When this test is activated, all segments light on at the same
time, then each segment lights on one after another.
* Procedure:
While depressing the [VIDEO 1] and the [SPEAKERS $OFF/A/B/
A+B%] buttons simultaneously, press the ?/1 button to turn on
the main power.
1. ALL segments light on.
kHz
mft.
MHz
MEMORY
DIRECT
dB
SP A
D
D
LFE
SW
CR
L
SL S SR
SBL SB SBR
D
SP B SLEEP OPT COAX MULTI CH IN 96/24
D
DIGITALEX PRO LOGIC II x DTS-ES NEO:6 MPEG-2 AAC RDS
D.RANGE EQ STEREO MONO
[2CH], [A.F.D.], [MOVIE], [MUSIC] and [MULTI CHANNEL DECODING] LED light on.
4. Press the [VIDEO 1] button, all se gments and all LEDs light off.
5. Every pressing the [VIDEO 1] button turns on each segment and
LED one after another in the same order.
(Not only the [VIDEO 1] button, b ut also the other b uttons such
as [VIDEO 2], [VIDEO 3], [DVD], [MD/TAPE], [SA-CD/CD], [FM]
(STR-DE598) or [TUNER FM/AM] (STR-DE698/DV10) and
[AM] (STR-DE598) or [AUX] (STR-DE698/D V10) can be used.)
SOUND FIELD CLEAR MODE
* The preset sound field is cleared when this mode is activated.
Use this mode before returning the product to clients upon
completion of repair.
* Procedure:
While depressing the [2CH] button, press the ?/1 button to turn
on the main power.
The message “SF. CLR.” appears for a moment and initialization is performed.
SOFTWARE VERSION DISPLAY MODE
* The software version is displayed.
* Procedure:
While depressing the [VIDEO 1] and the [DISPLAY] buttons
simultaneously, press the ?/1 button to turn on the main po wer .
The model name, destination and the software version are displayed for a moment.
KEY CHECK MODE
* Button check
* Procedure:
While depressing the [VIDEO 1] and the [MAIN MENU] buttons
simultaneously, press the ?/1 button to turn on the main po wer .
Either the message “REST 30” (STR-DE598) or “REST 28”
(STR-DE698/DV10) appears.
Every pressing of any button other than the
?/1 counts down
the buttons. The buttons which are already counted once are not
counted again. When all buttons are pr essed “REST 00” appears.
AUTOBETICAL MODE (AEP, UK model only)
* When this mode is used, the receiver scans the broadcasts that
can be received by the tuner, and sets up the broadcasts.
Be sure to start scanning after connecting the antenna.
* Procedure:
Check that the antenna is connected.
While depressing the [MEMORY] button, press the ?/1 button
to turn on the main power.
The message “AUTO-BETICAL SELECT” appears for a moment and the receiver starts scanning.
2. Press the [VIDEO 1] button, confirm display.
SP A
D
D
LFE
LSWR
S
SB
D
SP B SLEEP OPT COAX MULTI CH IN 96/24
D
DIGITALEX PRO LOGIC II x DTS-ES NEO:6 MPEG-2 AAC RDS
D.RANGE EQ STEREO MONO
dB
kHz
mft.
MHz
[A.F.D.] and [MUSIC] LED light on.
3. Press the [VIDEO 1] button, confirm display.
SP A
D
D
D
DIGITALEX PRO LOGIC II x DTS-ES NEO:6 MPEG-2 AAC RDS
D.RANGE EQ STEREO MONO
kHz
mft.
MHz
C
SL SR
SBL SBR
D
SP B SLEEP OPT COAX MULTI CH IN 96/24
[2CH], [MOVIE] and [MULTI CHANNEL DECODING] LED light
on.
MEMORY
DIRECT
MEMORY
DIRECT
COMMAND MODE SELECTION MODE
* The command mode (AV1 or AV2) of the remote commander
can be selected.
* Procedure:
While depressing the [ENTER] button, press the ?/1 button to
turn on the main power.
Either the message “C.MODE.AV 1” or “C.MODE.AV 2” appears for a moment and select the desired mode.
13
Page 14
STR-DE598/DE698/DV10
d
d

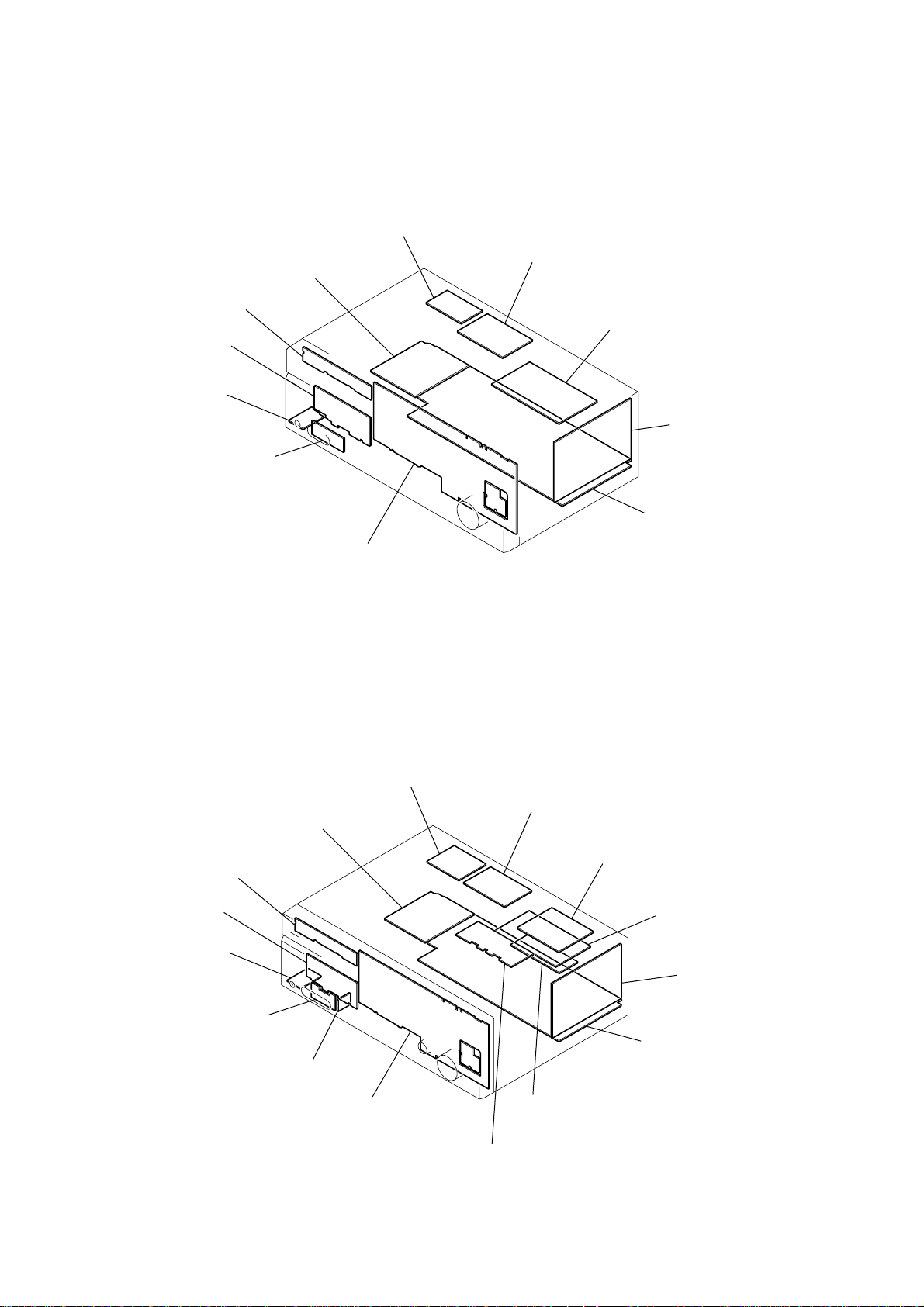

4-1. CIRCUIT BOARDS LOCATION
— STR-DE598 —
STANDBY board
POWER board
TUNING board
HEADPHONE board
VIDEO3 board
SECTION 4
DIAGRAMS
SPEAKER B (P) board
SPEAKER C/SB board
VIDEO board
DIGITAL boar
— STR-DE698/DV10 —
POWER board
TUNING board
HEADPHONE board

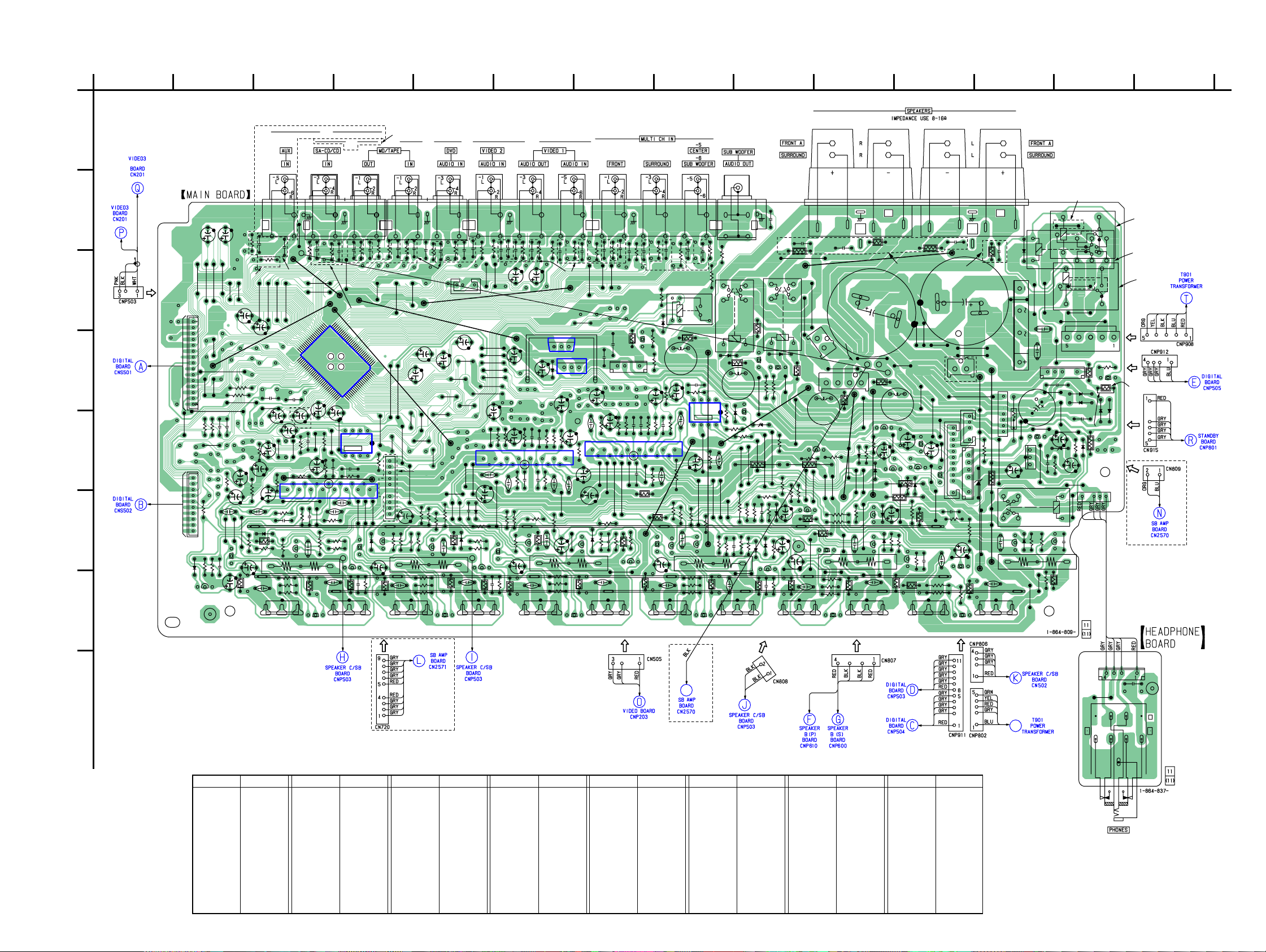

MAIN board
DISPLAY board
SPEAKER B (S) board
SPEAKER C/SB board
STANDBY board
S-VIDEO UP CONVERT board
(STR-DE698)
VIDEO board

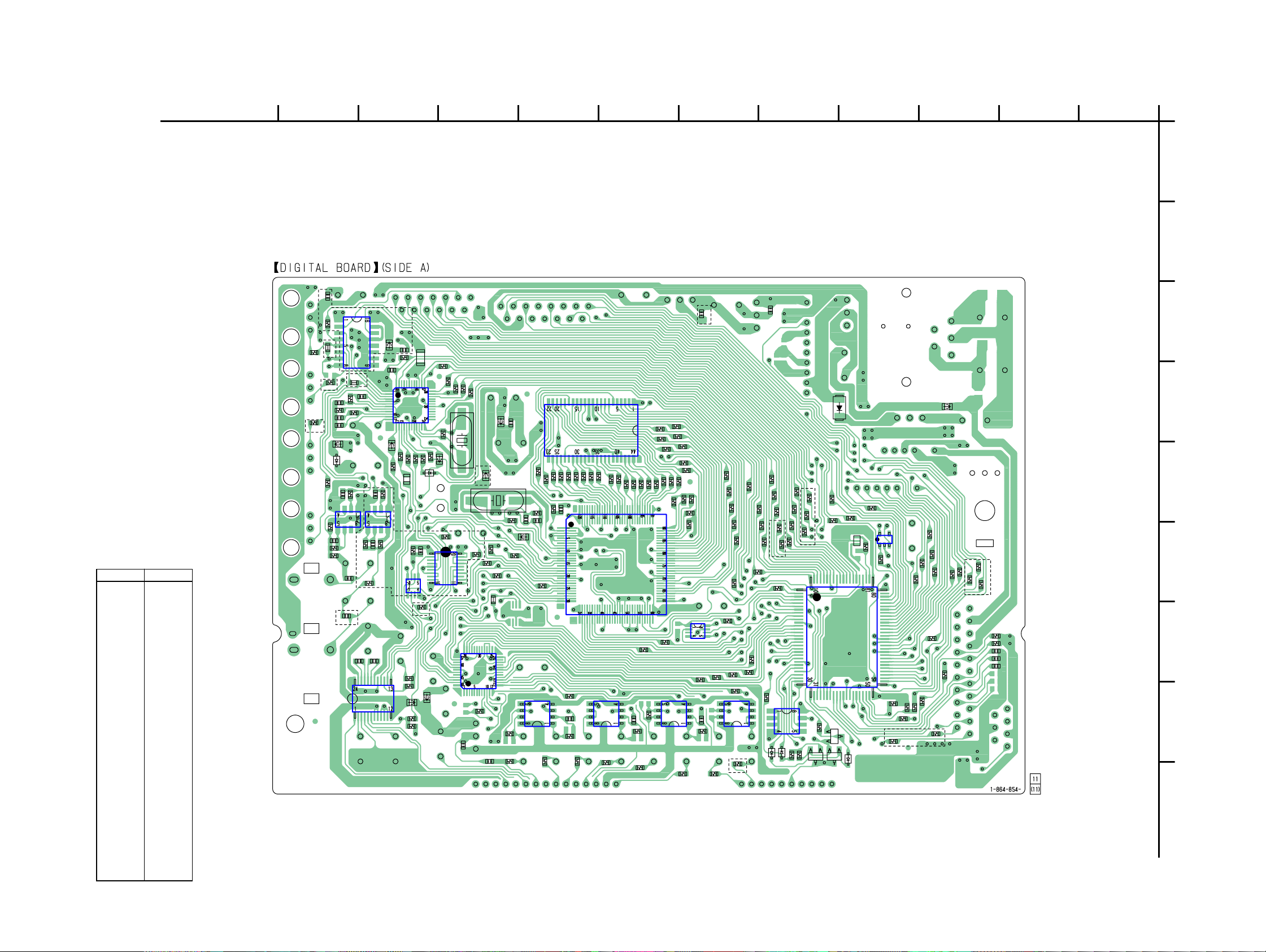

DIGITAL boar
14
VIDEO3 (DE61) board
OPT3 board
DISPLAY board
MAIN board
S-VIDEO board
SB AMP board
Page 15

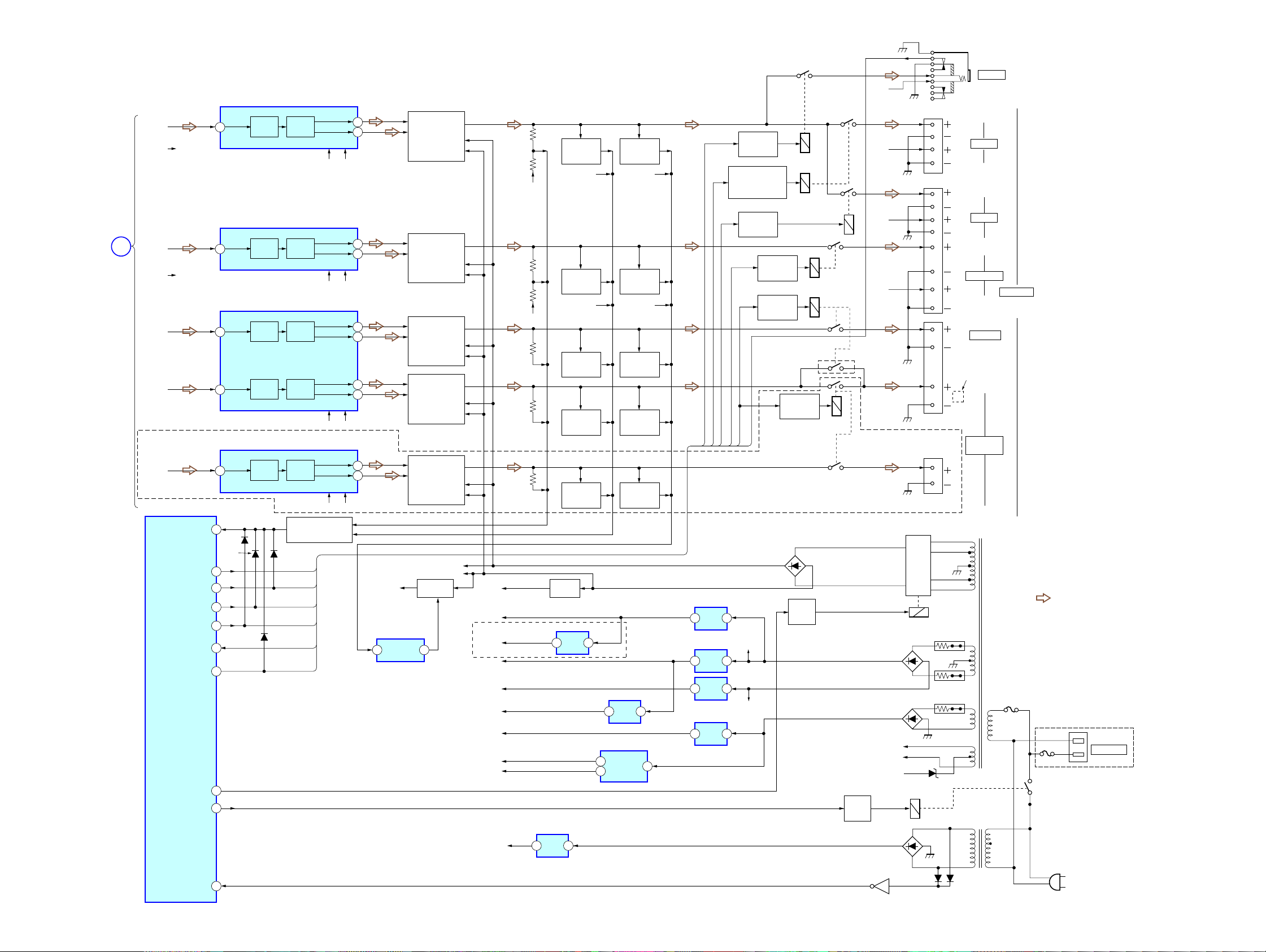

4-2. BLOCK DIAGRAM — TUNER/AUDIO SECTION —
STR-DE598/DE698/DV10
AEP,UK MODEL
AEP,UK MODEL
EXCEPT
AEP,UK MODEL
ANTENNA
FM 75Ω
COAXIAL
TU+10V
TU+3.3V
3.3V
(STBY)
AM
TN1
FM/AM TUNER UNIT
L-CH
RDS DATA
RDS INT
FM SIG OUT
R-CH
STEREO
TUNED
MUTING
CE
DO
DATA
CLOCK
J400
(DE698/DV10)
J402
(DE598)
R-CH
DE698/DV10
SA-CD/CDINMD/TAPE
AUX
IN
L
R-CH
RDS DATA
RDS CLK
RDS SIG
STEREO
TUNED
MUTE
S LATCH
DO
TUNER DATA
T SERIAL CLK
SW RY
R-CH
LR
SURROUND
MULTI CH IN
R
R-CH
LR
-5 -6 -1 -2
53
52
43
76
75
78
74
73
17
16
70
J401
-1 -2 -3 -4 -5 -6
LR
FRONT
OUT
LR
R-CH
CENTER
R-CH
VOL DATA
VOL CLK
SYSTEM
CONTROL
IC1101 (1/4)
SUB
WOOFER
MD/TAPEINDVD AUDIO
LRLR
-1 -2 -3 -4
J403
28
27
R-CH
DIGITAL
SECTION
(Page 16)
IN
R-CH
AUDIO
LR
-2 -3-3 -4
J298(2/2) J404
R-CH
46
28
32
30
SEL
SW
34
36
38
MCU
60
I/F
59
DIR
FUNCTION SELECT
IC401
SL
SEL
SEL
L
+7V-7V
68 66
AVCCAVEE
R-CH
R-CH
R-CH
R-CH
R-CH
R-CH
44
45
24
25
26
27
41
42
88
87
85
84
VIDEO 1
AUDIO OUT AUDIO INAUDIO IN
L
RL
-3 -4 -5 -6
VIDEO 2
RLR
-1 -2
L-CH
R-CH
FL-CH
FR-CH
SL-CH
SR-CH
DIGITAL
A
SECTION
(Page 16)
C
SECTION
POWER
(Page 19)
R-CH
86
81
83
82
5 7
SUB WOOFER
10
13
12
17
R-CH
11
R-CH
14
R-CH
SBR OUT
SBL OUT
SW OUT
B
C OUT
SL OUT
L OUT
R-CH
SBL
SEL
55
R-CH
54 56 51 52 49
SW
SEL
SEL
C
AMP
IC402
C-CH
SBL-CH
SBR-CH
RELAY
DRIVER
Q560
RY560
J309
AUDIO
OUT
SUB
WOOFER
STR-DE598/DE698/DV10
• Signal path
: TUNER (FM/AM)
: VIDEO (AUDIO)
• R-ch is omitted due to
same as L-ch.
15 15
Page 16
STR-DE598/DE698/DV10
4-3. BLOCK DIAGRAM — DIGITAL SECTION —
TUNER/
AUDIO
SECTION
(Page 15)
DIGITAL
A
DE698/DV10
MD/TAPE
(OPTICAL)
(COAXIAL)
DE698/DV10
SA-CD/CD
(OPTICAL)
SA-CD/CD
(OPTICAL)
VIDEO 2
(OPTICAL)
MD/TAPE
(OPTICAL)
VIDEO3
DIGITAL
(OPTICAL)
DE698/DV10
L-IN
R-IN R-CH
+5V-2
OUT
DVD
-1
IN
-2
IN
DE598
IN
IN
IN
INPUT
A.5V
IC1353
J1301
J1301
IC1354
IC1351
IC1352
IC200
DIN
OUT
OUT
OUT
OUT
A/D
CONVERTER
IC1401
SWITCH
DOUT
15 2
LRCK
13
SCLK
14
RST
6
IC1301
DOUT
2
DIN2
5
INPUT
DIN1
4
DIN0
3
21
XOUT
22
XIN
VDD
+3.3V
Q1105
INV.
Pa,Pb DETECTION LOCK
MICROPROCESSOR
CLKCEDIDOBPSYNC
38 37 36 35 33 47 17
SYS CLK
16
23
23
8
AUDIO
D1105
I/F
DIGITAL AUDIO I/F RECEIVER
X1301
12.288MHz
LIN
1
3
1
1
1
1
ADC
IC1303
WAVE
SHAPER
IC1103
WAVE
SHAPER
SELECTOR
IC1302
3 7
5
6
4
AB
14 2
LPF
B
A
1
DATA
DEMODULATOR
C bit DETECTION
I/F
DE598
XMCK
DETECTION
XMODE
XSTATE
48
D/A CONVERTER
IC1507
SDI
RST
CKOUT
DATAO
ERROR
IC1506
Y
5 2
S
6 1 3 6 16
20
CKSEL1
NC
DE698/DV10
SDO
DAC
LRI
AUDIO
LRCK
18
BCKI
BYP
24
13 22
BCK
14 29
15 28
16 30
D1301
34 59
DE598
+2.6V
+3.3V
VDDI
VDDE
18
69
15
17
37
SDI1
GP8
KFSI0
BCKI2
LRCKI2
SDI2
LRCKI1
BCKI1
EXLOCK
GP12
GP9
68
HCS
HACN
2 11336 35 33 3432
DSP
IC1501
XRST
PM
SD01
SD02
SD03
SD04
SCKOUT
LRCKO
BCKO
MCLK1
MCLK2
CSO
WEO
BST
HDIN
HDOUT
D0-15A0-15
HCLK
23
24
25
26
SCKOUT
14
LRCKO
19
BCKO
20
9
X1502
13.9MHz
12
44
45
98,80 - 77,75 - 72
108,107,105 -102,99,
85-82,66 - 64
112,110,109,97 - 92,
SWITCH
IC1503
56
5
6
SDRAM
IC1502
CS
6
17
WE
D0-15A0-15
16-13,10 - 7
29 - 32,35 - 38,
1 - 5,18 - 21
24 - 27,42 - 44,
LRCKO
2
1
SCKOUT
LRCKO
BCKO
8CH DAC
IC1452
VOUT5
DATA3
47
DATA1
45
DATA2
46
SCKI
38
LRCK
41
BCK
40
DATA4
31
RST
37
ML
36
MC
35
MDI
34
MDO
33
DAC
DAC
DAC
DAC
VOUT6
VOUT1
VOUT2
VOUT3
VOUT4
VOUT7
VOUT8
9
14
12
12
11
16
20
• Signal path
: TUNER (FM/AM)
: VIDEO (AUDIO)
AMP
IC1403
R-CH
R-CH
L OUT
SL OUT
C OUT
TUNER/
B
AUDIO
310
5
AMP
IC1405
5
3
AMP
IC1404
3
1
7
7
1
1
SECTION
5
AMP
IC1406
5
3
7
7
1
SW OUT
SBL OUT
SBR OUT
(Page 15)
: CD (ANALOG)
: CD (DIGITAL)
Q1103
INV.
Q1104
GATE
D1106
D1103
SYSTEM_MUTE
24
99
ERROR
25
ANA/DIG
95 96 97 98
DIR DI
DIR CE
DIR_CLK
DIR DO
94
DIR CKSEL1
93100
DIR_XMODE
DIR_XSTATE
91
SELECT1
90
SELECT2
22
21
9
DIR/AD
DIR_DATAO
PCM1800 RST
8
GP12
DLY BYPASS
21
GP9
HCS
6 74 18 19 205
HACN
XRST
PM
HDIN
HDOUT
HCLK
92
BST SEL
SYSTEM
CONTROL
IC1101 (2/4)
3
BST
PCM1608ML
PCM1608MC
PCM1608RST
PCM1608MDI
1514131210
PCM1608MDO
• R-ch is omitted due to
same as L-ch.
STR-DE598/DE698/DV10
1616
Page 17
4-4. BLOCK DIAGRAM — VIDEO SECTION —
VIDEO 2
COMPONENT
VIDEO
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 1
DVD
IN
DVD
IN
DVD
INPUT
P
B/CB/
P
R/CR/
P
B/CB/
R/CR/
P
-2
S-VIDEO
IN
-1
S-VIDEO
IN
-1
VIDEO
IN
-2
VIDEO
IN
-1
VIDEO
IN
-1
VIDEO
J301 (1/2)
Y
B-Y
R-Y
Y
B-Y
R-Y
J201 (1/2)
J200 (1/2)
J298 (1/2)
J253 (1/2)
Y
C
J252 (1/2)
Y
C
-4
-5
-6
-1
-2
-3
DE698/DV10
G
G
G
G
COMPONENT VIDEO SELECTOR
CH1 IN2
3
CH1 IN3
5
CH2 IN2
9
CH2 IN3
11
CH3 IN2
14
CH3 IN3
12
VIDEO
SELECTOR
IC203
V1
13
V2
5
DVD
3
V3
9
NC
7
V1.IN
13
DVD
3
V2
5
NC
1
V3
9
IC304
SW1 SW2
COMP SW1 COMP SW2
SW2
10 6 14 2
SW2
6dB AMP
75Ω
SW1
D203,204
SW1
Y SWITCH
IC251
SW1
SW1
DRIVER
75Ω
DRIVER
75Ω
DRIVER
OR
6dB AMP
6dB AMP
2 4
SW2
SW3
SW4
10 6 14 2
4
SW2
SW4
SW3
SW3
SW4
4
SW4
SW3
CHI OUT
CH2 OUT
CH3 OUT
SW5
SW5
SW5
V+1,+2
22
20
18
V-1,-2
6dB AMP
6dB AMP
6dB AMP
6dB AMP
+5V-3
-5V-3
DRIVER
DRIVER
J301 (2/2)
75Ω
DRIVER
75Ω
DRIVER
75Ω
75Ω
-7
-8
-9
Y
P
P
V1.OUT
M.OUT
V1.OUT
M.OUT
B/CB/
R/CR/
EXCEPT DE598: AEP,UK MODEL
MONITOR
B-Y
OUT
R-Y
VCC
+5V-3
15
1
VEE
-5V-3
VCC
+5V-3
15
1
VEE
-5V-3
COMPONENT
VIDEO
IC807
+5V-3
1 3
IC804
-5V-3
3 2
J200 (2/2)
VIDEO
J201 (2/2)
VIDEO
SW1
SW2
SW3
SW4
Y
C
IC253
SYNC
1 2
SEPARATION
+5V
REG
-5V
REG
-3
OUT
-2
OUT
J253 (2/2)
G
G
VIDEO 1
MONITOR
V SW1
V SW2
V SW3
V SW4
COMP SW1
COMP SW2
-1
S-VIDEO
OUT
Q250,251
+15V
-15V
RELAY
DRIVER
KEY/DISPLAY
D
SECTION
VIDEO 1
RY250
(Page 18)
Q327
STR-DE598/DE698/DV10
DE698
Y/C SEPARATION
IC370
YC
IN
ADC
7 25
I2C
BUS
15 16
I LINE
MEMORY
SYSTEM
CLOCK
DYNAMIC
COMB
FILTER
PLL
COLOR
KILLER
US,CND MODEL
DAC
DAC
YOUT
COUT
FSC
Y/C AMP
IC372
Y PROCESS
Q371
C PROCESS
27
19
Q373
1
8
4
5
J252 (2/2)
Y
-2
VIDEO 2
S-VIDEO
IN
C
• Signal path
: VIDEO
• Abbreviation
CND : Canadian model
AUS : Australian model
STR-DE598/DE698/DV10
C SWITCH
IC252
E
KEY/DISPLAY
SECTION
(Page 18)
V1.OUT
M.OUT
VCC
+5V-3
15
1
VEE
-5V-3
DV10
J251
Y
G
S-VIDEO
MONITOR
OUT
G
C
SW5
SW5
6dB AMP
6dB AMP
75Ω
DRIVER
75Ω
DRIVER
G
G
V1
13
DVD
5
V2
3
NC
7
V3
9
SW3
SW4
SW4
SW1
SW1
D251,252
OR
SW2
10 6 14 2
4
SW3
SW2
SCL
SDA
NTSC/PAL
AEP,UK,AUS
MODEL
US,CND
MODEL
X371
3.58MHz
X370
4.43MHz
CLOCK GENERATOR
IC371
13
3
1
NTSC/PAL
12
NTSC
PAL
13
10
AEP,UK,AUS MODEL
4
2
SWITCHING
12
IC373
3
17 17
Page 18
STR-DE598/DE698/DV10
4-5. BLOCK DIAGRAM — KEY/DISPLAY SECTION —
VIDEO
SECTION
(Page 17)
VIDEO
SECTION
(Page 17)
D
COMP SW2
COMP SW1
E
NTSC/PAL
FLASH
PROGRAMMING
V SW1
V SW2
V SW3
V SW4
SDA
SCL
CNS504
1
2
7
6
5
EEPROM
IC1131
SDA
SCL
S131
I
/
I
FLASH1
FLASH2
MD2
MD0
RESET
SIRCS
FL DISPLAY DRIVER
IC100
STB
9
DIN
7
CLK
8
OUT
1
1
3
1
3
SEG1
I
SEG16
GRID12
I
GRID1
SW1
SW2
SW3
SW4
REMOTE
CONTROL
RECEIVER
IC102
RV101
-/+
RV102
MASTER
VOLUME
14
I
29
31
I
42
1
2
3
4
DE698/DV10
FL101
VACUUM
FLUORESCENT
DISPLAY
D101-104
SW1
86
SW2
87
SW3
88
SW4
89
COMP SW2
65
COMP SW1
71
UPCON
33
UPCON CLK
34
NTSC/PAL SW
64
29
X1101
24MHz
5
6
X1
X0
30
SDA
29
SCL
30
56
POWER KEY
28
FLASH1
27
FLASH2
MD2
51
MD0
49
SYSTEM
CONTROL
IC1101 (3/4)
FL DATA
VOL ENC A
VOL ENC B
BLUE LED
FL LAT
FL CLK
SIRCS
ENC A
ENC B
57
59
60
54
31
32
45
46
47
9
4
2
LED DRIVE
Q110
BUFFER
IC101
8
6
3
D105
+3.3V
(STBY)
IC1111
RESET
A/D0
A/D1
A/D2
38
39
40
12
77
RSTX
SW NETWORK
S140-143,148-153
SW NETWORK
S120-125,128-130
SW NETWORK
S100-110
STR-DE598/DE698/DV10
1818
Page 19
4-6. BLOCK DIAGRAM — POWER SECTION —
PRE DRIVER
IC701
IN 2
PRE
PRE DRIVER
PRE
PRE DRIVER
PRE
PRE
PRE DRIVER
PRE
D1110
DRIVE
IC601
DRIVE
IC501
DRIVE
DRIVE
IC2501
DRIVE
PROTECTOR
D721,722,732
Q722,723,725,793,795
HP-RY
FRONT-RY
REAR-RY
C/SB RY
HP DETECT
SB-RY
TUNER/
AUDIO
SECTION
(Page 15)
C
FL-CH
FR-CH
SL-CH
SR-CH R-CH
C-CH
SBL-CH
DE698/DV10
SBR-CH
PROTECTOR
SYSTEM
CONTROL
IC1101 (4/4)
BRIDGEABLE RY
R-CH
HP_RY
FRONT RY
REAR_RY
C/SB RY
HP DETECT
SP_B_RY
P0WER RY
61
62
66
69
68
55
67
72
58
8
8
1
6
1
D1107
D1108
IN 2
IN2
IN1
IN+
DRIVE
DRIVE
DRIVE
DRIVE
DRIVE
D1111
+VOUT2
-VOUT2
-B-1 +B
+VOUT2
-VOUT2
-B-1 +B
+VOUT2
-VOUT2
+VOUT1
-VOUT1
-B-1 +B
+VOUT
-VOUT
-B-1 +B
STR-DE598/DE698/DV10
J791
PHONES
R-CH
TM600(DE698/DV10)
-20V
F1
F2
RELAY
SWITCH
RY901
TM610(DE598)
TM601
TM501
DE698/DV10
TM502
R810
R811
R910
D804
L
FRONT B
R
L
FRONT A
R
L
SURROUND
R
CENTER
L
SURROUND
BACK
R
T901
POWER
TRANSFORMER
T902
POWER
TRANSFORMER
SPEAKERS
IMPEDANCE
USE 8-16Ω
• Signal path
: TUNER (FM/AM)
• R-ch is omitted due to
same as L-ch.
• Abbreviation
CND: Canadian model
F901
F902
DE698/DV10
J911
AC OUTLET
12
11
12
11
12
11
2
3
6
5
DETECT AMP
-B-1
IC691
OVERLOAD
POWER AMP
Q701-704
POWER AMP
Q651-654
POWER AMP
Q501-504
POWER AMP
Q533,534,571,572
POWER AMP
Q572,2573,2574
-B SWITCH
Q691,692
72
CURRENT
DETECT
Q705,706
R-CH
R-CH
CURRENT
DETECT
Q655,656
R-CH R-CH
R-CH
CURRENT
DETECT
Q505,506
CURRENT
DETECT
Q535,536
CURRENT
DETECT
Q2575,2576
+B
-B
-20V
TU+10V
TU+3.3V
+7V
-7V
+5V-2
+5V-1
+2.6V
+3.3V
+3.3V
(STBY)
-32V REG
IC1904
+3.3V
REG
Q801
IC1071
+3.3V
REG
13
13
5
2
OVERLOAD
DETECT
D740,Q740
OVERLOAD
DETECT
D640,Q640
OVERLOAD
DETECT
D540,Q540
OVERLOAD
DETECT
D580,Q580
OVERLOAD
DETECT
D2575,Q2577
AEP,UK MODEL
IC1001
+5V
REG
IC1901
BACK-UP
SWITCH
R-CH
13
HP-RY
SB-RY
IC1902
+10V
REG
IC801
+7V
REG
-7V
REG
IC802
IC1031
+5V
REG
4
RELAY
DRIVER
Q790
RELAY
DRIVER
Q800(DE698/DV10)
Q810(DE98)
RELAY
DRIVER
Q710
FRONT RY
REAR-RY
C/SB RY
HP DETECT
13
+15V
31
23
-15V
13
RELAY
DRIVER
Q610
RELAY
DRIVER
Q550
RECT
D802
RY791
RY600
(DE698/DV10)
RY610
(DE598)
RY601
RY501
DE598
RELAY
DRIVER
Q760
RELAY
DRIVER
Q809
RY500
RY701
RELAY
DRIVER
R-CH
R-CH
R-CH
Q901
RY801(EXCEPT CND)
RY802,803(CND)
RECT
D920-923
RECT
D805-808
RECT
D910-913
STR-DE598/DE698/DV10
STOP
Q921
48
D914
D915
~
AC IN
19 19
Page 20
STR-DE598/DE698/DV10
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
for schematic diagram:
• All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/
specified.
f
•
• 2 : nonflammable resistor.
• 5 : fusible resistor.
• C : panel designation.
• A : B+ Line.
• B : B– Line.
•Voltage and waveforms are dc with respect to ground
•Voltages are taken with a VOM (Input impedance 10 MΩ).
•Waveforms are taken with a oscilloscope.
• Circled numbers refer to waveforms.
• Signal path.
• Abbreviation
: internal component.
Note:
The components identified by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
under no-signal (detuned) conditions.
no mark : FM
Voltage variations may be noted due to normal production tolerances.
Voltage variations may be noted due to normal production tolerances.
F : TUNER (FM/AM)
L : VIDEO (AUDIO)
I : VIDEO
J : CD (ANALOG)
c : CD (DIGITAL)
CND : Canadian model.
AUS : Australian model.
4
W or less unless otherwise
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
for printed wiring boards:
• X : parts extracted from the component side.
f
•
• : Pattern from the side which enables seeing.
Caution:
Pattern face side: Parts on the pattern face side seen from the
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
• Abbreviation
: internal component.
CND : Canadian model.
AUS : Australian model.
C
Q
B
E
Q
BCE
Q
B
C
These are omitted.
These are omitted.
E
• Waveforms
— DIGITAL Board —
1
IC1301 qd (CKOUT)
12.288MHz
1V/DIV, 50nsec/DIV
2
IC1301 qf (BCK)
3.07MHz
1V/DIV, 0.2µs/DIV
3
IC1301 wa (XOUT)
12.288MHz
1V/DIV, 50nsec/DIV
4
IC1501 9 (MCLK1)
3.5Vp-p
4.8Vp-p
3.2Vp-p
5
IC1501 qs (MCLK2)
13.9MHz
1V/DIV, 50nsec/DIV
6
IC1501 qf (SCKOUT)
12.288MHz
1V/DIV, 50nsec/DIV
7
IC1101 id (X1)
24MHz
1V/DIV, 50nsec/DIV
3.6Vp-p
3.5Vp-p
2Vp-p
— S-VIDEO UP CONVERT Board —
(STR-DE698 only)
1
IC371 1
2.6Vp-p
2.6Vp-p
1V/DIV, 20nsec/DIV
2
IC371 3
1V/DIV, 20nsec/DIV
4.43MHz
3.58MHz
1V/DIV, 50nsec/DIV
13.9MHz
1.8Vp-p
STR-DE598/DE698/DV10
2020
Page 21
4-7. PRINTED WIRING BOARDS — MAIN SECTION — • Refer to page 14 for Circuit Boards Location.
STR-DE598/DE698/DV10
A
B
C
D
E
F
G
(Page 32)
(DE698/DV10)
(Page 32)
(DE598)
(Page 25)
(Page 25)
1
(DE61)
234567891011121314
TM601
JW460
JW450
D580
1
10
Q580
C762
JW459
CNP501
JW456
R429
R350
R585
CNP500
R587
R588
TP801
JW458
JW454
JW453
JW425
JW455
R428
C503
C581
C702
JW457
C468
C554
JW506
C580
DE698/DV10
JW414
JW415
R475
R476
JW451
C469
C501
R501
JW508
Q571
C459
C409
JW432
C570
R574
R553
C565
R586
DE698/DV10
R451
CC51
R401
DE698:AEP,UK,AUS
MODEL
JW439
JW440
C488
JW401
C495
C471
C472
R499
C553
R741
C741
R554
C566
D585
R537
R523
R580
R576
R570
C577
BC E
Q533
CC01
JW410
DE698/DV10
R340
1
R571
C464
WP100
JW409
JW
51
R561
2
JW429
Q536
R526
JW428
VIO
H120
50
C497
JW442
C561
JWH121
R503
C531
J400
6P
4P
R452
JW411
JW412
R474
C506
R575
CC52
JWH119
C490
C499
IC501
JW420
R535
Q572
CC59
R459
CC02
R402
JW436
AEP,UK,AUS
MODEL
31
30
IC401
80
81
C485
JW320
58
R473
JW441
JW321
IC402
4
C507
C567
R562
R502
C504
C505
R505
R572
R534
Q501
WP02 WP03
Q535
C576
R531
BCE BCE BCE BCE BCE BCE BCEBCEBCEBCEBCE
Q534
1
1
14
JW431
C539
CC09
15
JW424
D540
C510
R530
R409
JW435
100
R480
JW318
JW418
Q540
R514
R454
CN720
DE598
JW430
JW315
C498
9
5
4
1
R557
CC54
JW314
JW317
C540
R546
C517
R404
JWH117
C496
JW322
C541
Q503
CC04
JW423
C481
DE698/
DV10
R540
R513
J403J402
C403
AEP,UK,AUS
MODEL
C493
JW316
C489
R555
R556
Q506
R516
R510
R511
R455
R370
R573
C494
C492
C511
Q502
CC55
C486
R525
JW708
R517
R515
R405
CNP503
3
C483
JW636
CC05
JWH118
C484
C482
C491
JW637
C516
C742
1
JW701
D505
CC57
R522
R524
D740
R740
Q505
Q504
R457
15
C732
JW702
R521
JW434
JW311
JW312
JW313
R310
R300
14
C705
R407
R330
R320
C701
JW739
JW419
R703
JW703
Q701
C519
R701
CC07
C704
R747
R520
C458
C807
C703
C444
R745
R748
C710
IC701
R714
CC58
R704
R746
Q740
J404
C717
R458
C408
R702
C706
C808
R717
CC08
JW
C707
Q703
R456
R408
H101
123
C757
R752
C756
R754
R725
R713
R710
R711
R406
CC56
AEP,UK,AUS
MODEL
IC801
IC802
32 1
D896
C751
C753
R753
R751
1
2
C754
JW626
JWB03
C740
C711
R716
Q702
R360
C755
JW503
R715
R744
C733
CC06
C655
Q706
15
R431
JW416
C651
R653
14
C744
D705
C716
C653
JW706
R723
R719
Q704
CC31
JW417
C810
JW707
JW507
JW433
C720
R432
C811
JW628
JWB02
CC32
CN505
R651
IC601
R724
JWB01
C445
R802
R652
JW736
JW630
R721
Q705
13
R722
Q560
C657
R733
R664
R433
C656
C607
C660
CC33
R533
R532
C601
JW735
J401
R602
R667
Q651
R434
AEP,UK,AUS
MODEL
R468
D560
R601
R654
2
1
1
H
W
J
C666
Q653
C606
2
C654
Q640
CC34
R668
L651
C603
R695
R603
1
R675
CC35
CC36
R435
RY560
C691
R690
58
IC691
C605
JW614
C743
R743
JW615
JWH114
R676
R638
R673
C661
Q655
R666
R663
R665
R660
R661
Q652
R470
R436
14
R604
D610
R618
R693
JW582
R648
JW504
R469
RY601
C604
JW581
JW578
R640
C669
J309
J309
L601
R696
C642
Q654
R694
JW612
R775
R677
D691
JW613
R773
R674
Q692
R691
R750
R671
D690
JW611
R758
D640
R634
C752
Q610
JW820
JWH116
JW755
JW610
R757
D665
Q656
C670
Q710
R631
R672
RY701
D710
C750
D750
C400
R731
C760
R669
RR11
R623
C640
JW774
R698
R692
R756
JW569
R764
JW818
JW752
Q750
R767
TP800
Q753
R755
Q691
R699
CC11
C766
JW771
CN808
R734
JW836
JW445
JW770
JW757
R732
CC15
1
JW767
41
CN807
L701
R736
JW722
JW720
R655
R656
Q751
R763
R760
R761
Q752
DE698/DV10
WP04
R718
JWH113
JW754
R657
JW817
R766
JW816
R765
JWH122
JW801
D722
JW717
JW584
C761
JW620
Q754
RR13
C804
JW751
R737
JW716
Q680
Q755
C767
VIO
R768
JWH108
Q725
R780
C722
D680
WP102
Q722
D721
R794
R792
C680
D765
RR12
AEP,UK,AUS
MODEL
JW780
JW800
WP101
L751
JW813
C721
Q723
JW704
C791
Q795
R735
D732
R625
JW559
R617
R772
R778
Q756
R769
R614
R771
Q603 Q604
JW781
JW782
JW815
JW822
C770
R610
R611
JW753
Q793
JW438
C621
CC13
221
CN809
DE698/V10
11
JW819
CNP911
1
C681
R681
JW568
Q601
AEP,UK,AUS
MODEL
C803
JW784
JW821
4
1
5
CNP802
1
R680
C610
R613
R615
Q602
JW783
CNP806
JWH110
RR14
JW712
D804
JW558
JWH111
C620
R791
JW715
1
CN915
5
R803
C611
CC17
JW711
C822
Q606
JW772
R910
D818
D802
Q801
D605
JW759
Q790
R624
JW788
RY801
JW750
JW789
C805
C806
JW749
CNP912
41
C831
JW760
C832
JW761
JW763
JW762
C802
B
D801
C
E
C809
R804
JW710
RY791
C619
R622
Q605
R616
R621
R620
JW602
JW601
EXCEPT
CND MODEL
RY802
JW786
EXCEPT
CND MODEL
JW787
JW785
CNP908
D808
D805
C830
R806
C801
JW713
1
JW714
RY803
R831
EXCEPT
CND MODEL
R793
D791
CN792
R824
R830
Q809
D807
4
D806
CND MODEL
EXCEPT
CND MODEL
CND MODEL
CND
MODEL
DE698/DV10
(Page 30)
(Page 38)
(Page 25)
(Page 38)
(DE698/DV10)
H
STR-DE598/DE698/DV10
RED
(Page 30)
(DE698/DV10)
(Page 30)
DE698/DV10
BRN
(Page 30)
• Semiconductor Location
Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location
D505 F-5
D540 F-4
D560 C-8
D580 F-2
D585 F-3
D605 F-12
D610 D-8
D640 F-9
D665 F-9
D680 F-10
D690 E-9
D691 E-9
D705 F-7
D710 D-9
D721 E-10
D722 E-10
D732 E-11
D740 F-5
D750 F-9
D765 F-10
D791 E-13
D801 E-13
D802 C-12
D804 E-12
D805 D-13
D806 D-13
D807 D-13
D808 D-13
D818 B-12
D896 D-6
IC401 D-4
IC402 E-4
IC501 F-3
IC601 E-7
IC691 E-8
IC701 E-6
IC801 D-6
IC802 D-6
Q501 F-4
Q502 G-5
Q503 G-4
Q504 G-5
Q505 F-5
Q506 F-5
Q533 G-3
Q534 G-4
(Page 32)
Ref. No. Location
Q535 F-4
Q536 F-3
Q540 F-4
Q560 D-7
Q571 F-2
Q572 G-3
Q580 G-2
Q601 F-11
Q602 G-11
Q603 G-11
Q604 G-12
Q605 F-12
21 21
M
(DE698/DV10)
DE698/DV10
(Page 30)
(Page 30)
(Page 30)
Ref. No. Location Ref. No. Location
Q606 F-12
Q610 D-9
Q640 F-8
Q651 F-8
Q652 G-8
Q653 G-8
Q654 G-9
Q655 F-8
Q656 F-9
Q680 F-10
Q691 E-10
Q692 E-9
Q701 F-6
Q702 G-6
Q703 G-6
Q704 G-7
Q705 F-7
Q706 F-7
Q710 D-9
Q722 E-11
Q723 E-11
Q725 E-10
Q740 F-6
Q750 F-9
(DE698/DV10)(DE598)
(Page 30)
(Page 25)
(Page 25)
Ref. No. Location
Q751 F-10
Q752 G-10
Q753 G-9
Q754 G-10
Q755 F-10
Q756 F-11
Q790 E-12
Q793 E-11
Q795 E-11
Q801 E-12
Q809 D-13
(Page 30)
S
(Page 38)
JW791
CNP791
J791
C790
TP701
Page 22
STR-DE598/DE698/DV10

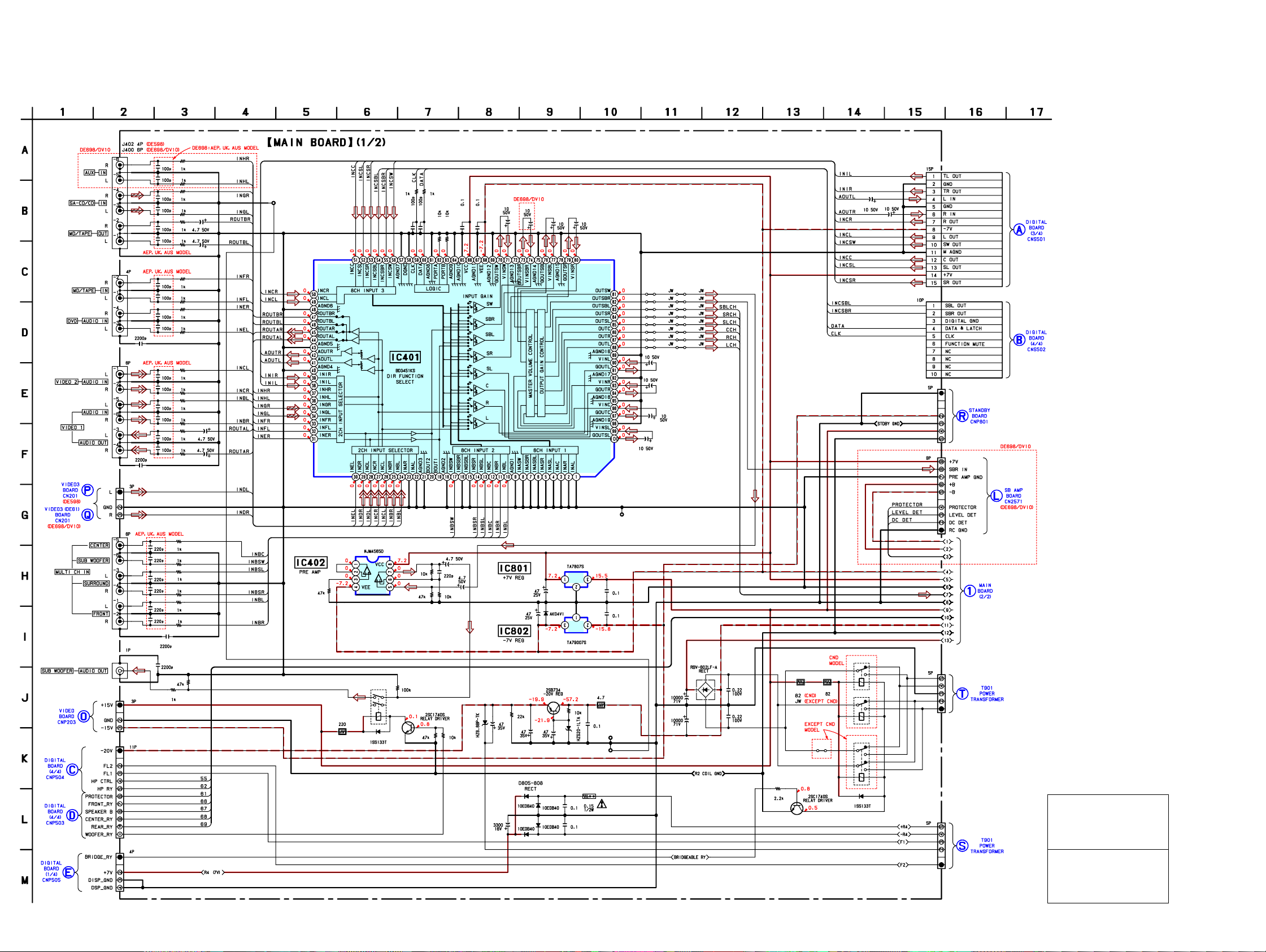

4-8. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) —
(Page 33)
J403
J404
CNP503
C403
C444
CC51
CC01
CC52
CC02
CC59
CC09
CC54
CC04
CC55
CC05
CC07
CC57
CC06
CC56
CC08
CC58
R451
R401
R452
R402
R459
R409
R454
R404
R455
R405
R407
R457
R406
R456
R408
R458
C459
C409
C408
C458
WP100
R428 R429
C469
IC401
C468
R475
R476
C488
C464
C495
C497
CNP501
C762
C702
C485C490
(Page 28)
R340
C484
C481
C496
C498
C489
C486
C494
C491
C482
C483
C492
R370
R360
R330
R320
R350
R310
R300
CNP500
(Page 29)
CN915
(Page 39)
C493
CN720
(Page 33)
(Page 33)
(Page 29)
(Page 29)
(Page 26)
J401
J309
CN505
CNP911
CNP912
CC36
CC35
CC34
CC33
CC32
CC31
C445
C400
R469
R436
R435
R434
R433
R432
R431
R470
R480
R802
IC402
RY560
D560
R468
R499
R474
R533
Q560
C471
C499
R473
R532
C472
D804
C832
C822
C807
C808
R806
C801 C802
D808
D807
IC801
D896
IC802
Q801
D805 C831
D806
C830
R804
D801
R910
R803
C809
WP101
WP102
C811
C810
WP103
C803
C804
D802
C805
C806
R824
R830
JW786
Q809
R831
RY802
RY803
RY801
D818
CNP908
CNP802
(Page 31)
(Page 23)
(Page 39)
(Page 39)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
STR-DE598/DE698/DV10
2222
Page 23

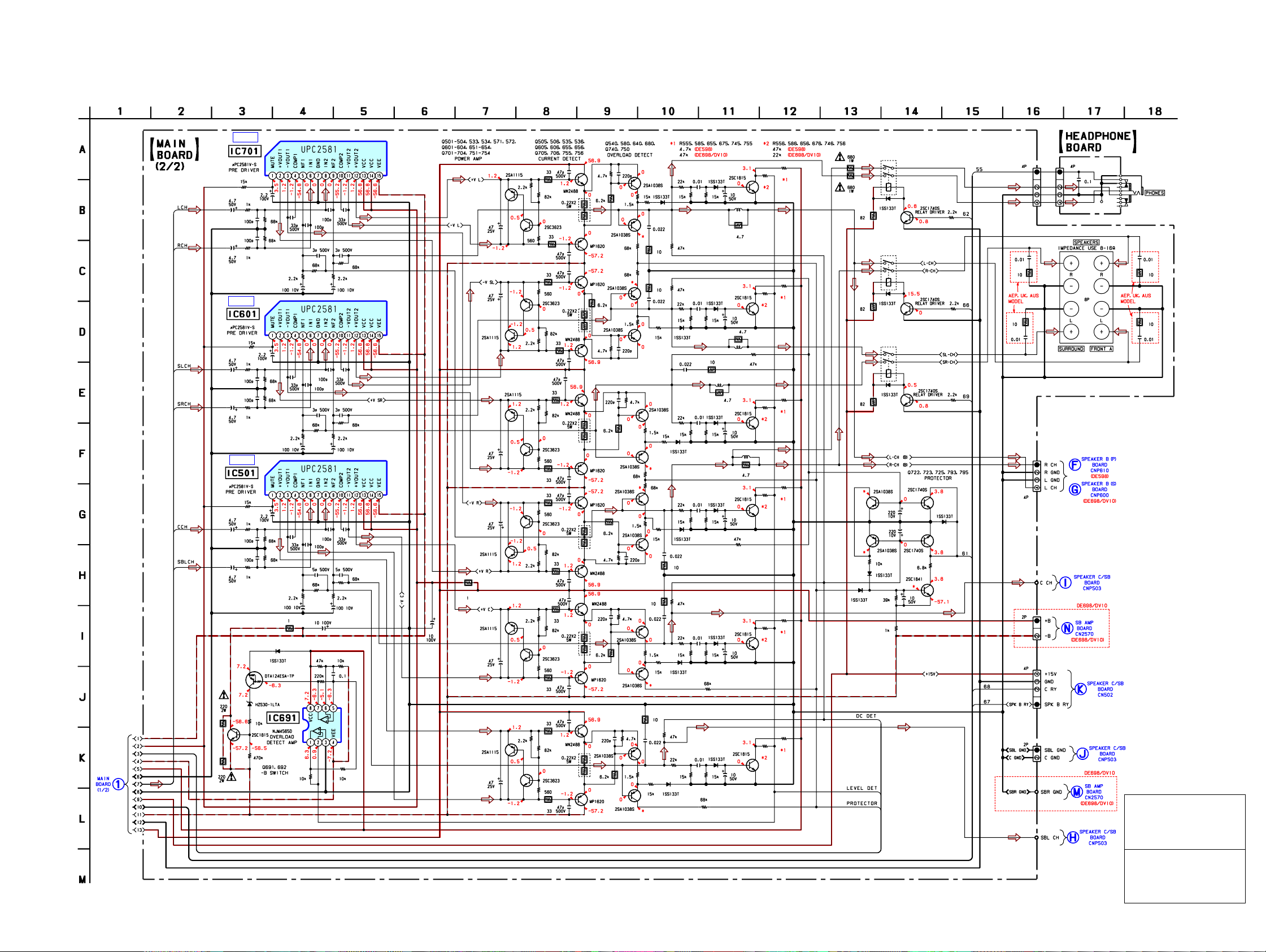

4-9. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) — • Refer to page 40 for IC Block Diagrams.
IC B/D
(Page
22)
R691
R692
IC701
R744
C701
R701
C751 R751
IC B/D
IC601
C651
R651
R601
C601
IC B/D
IC501
R741
C501
R501
C561 R561
C707
C757
C657
C607
C567
R743
R699
R698
Q691
C743
C744
C741
D690
R752
R602
R502C507
R702
R652
R562
D691
Q692
IC691
C753
C603
R733
R753
R553
C553
C755
C605
R603
C565
R694
C706
C756
R754
C656
C606
C604 C654
R604
C506
C566
C554 C504
R554
C733
R696
R690
C655
C705
C505
R503
R695
C704C754
R703
R653
C503
C691
R693
C703
C653
R704
R654
R505
C732
Q701
R710
C660
Q651
Q601
C610
Q751
R732
Q501
C510
R570
Q571
C570
R713
R660
R610
R760
R510
R714
R711
R665
R663
R613
R615
R765
R763
R513
R515
R574
R571
R576
R575
Q652
Q602
Q752C760
Q502
Q702C710
R715
Q572
R661
R614
R611
R761
R764
R514
R511
R664
C621
C717
Q703
R716
C716
C669
R666
Q653
C666
Q603
R616
C620
C767
R766
C766
C517
R516
C516
C577
Q533
R526
C576
C720R719
Q705
C670
R520
Q505
R722
R725
R638
R672
Q606
R530
R572
Q756
Q506
R620
R625
R772
C770R769
D705R724
C711
R717
R667
C661
R674
Q605
R622
R775
R778
R517 R573
C511
R522
R524
R537
C531
R534 D585
R721
Q706
Q704
Q654
Q655
R671
Q656
R669
C619
R621
Q604
Q755 Q795
Q754
R771
Q753
Q503
C519
R521
Q504
C539
Q535
R531
Q534
Q536
R740
R748
R723
R673
R640
R648
D665
R680
R681
R624
D605
R750
R758
D765
C761
R767
R540
R546
D505
R523
R580 C581
R588
C742
C642
C611
C681
C752
C541
R535
R525
R617
R747
D640
R677
D680
R657
R757
R557
R587
D740
R618
D750
D540
D580
Q740
C740
L701
R718
Q640
C640
R668
L651
L601
Q680
C680
L751
R768
Q750
C750
R773
Q540
C540
Q580
C580
R623
R756
R556
R586
R746
R676
R656
R745
R675
R655
R755
R555
R585
R792
R794
D721
R793
R734
R634
R780
D722
D710
Q725
R737
R736
RY791
D791
RY701
RY601
D610
C791
C721
C722
Q723
Q722
Q793
R735
Q610
Q790
Q710
D732
R791
R631
R731
RR14
CC17
CN792
CC15
RR13
CN809
CN807
WP03
CNP806
CN808
WP04
WP02
STR-DE598/DE698/DV10
CNP791
C790
TP701
TM601
(Page 31)
(Page 31)
(Page 31)
(Page 31)
(Page 31)
(Page 31)
(Page 31)
(Page 31)
J791
CC11
RR11
RR12
CC13
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
STR-DE598/DE698/DV10
23 23
Page 24
STR-DE598/DE698/DV10
4-10. PRINTED WIRING BOARD — DIGITAL SECTION (1/2) — • Refer to page 14 for Circuit Boards Location.
• Semiconductor
Location (Side A)
Ref. No. Location
D1001 D-5
D1103 I-5
D1105 I-4
D1106 I-5
D1301 E-10
D1302 E-11
IC1101 G-4
(IC1103) E-10
IC1111 F-4
IC1131 H-5
IC1301 D-10
(IC1302) C-11
IC1303 E-11
IC1401 H-10
IC1403 H-8
IC1404 H-7
IC1405 H-7
IC1406 H-6
IC1452 G-9
IC1501 F-7
IC1502 D-8
IC1503 G-6
(IC1506) F-10
(IC1507) F-9
R1351
DE598
DE698/DV10
R1353
DE698/DV10
R1357
C1316
R1352
R1303
C1303
R1354
JR1303
C1302
C1304
FB1306
D1302
R1358
C1357
R1356
DE698/DV10
DE698/DV10
IC1302
R1361
JR1302
R1304
R1359
C1360
IC1303
C1361
C1046
C1301
R1301
R1057
R1060
DE698/DV10
C1405
IC1401
DE598
C1125
IC1103
C1408
C1045
FB1309
C1315
JR1511
R1305
R1055
R1056
C1141
R1318
IC1301
R1360
IC1506
R1402
R1401
FB1405
R1407
R1403
R1306
DE598
R1307
JR1020
R1588
R1018
R1308
D1301
C1533
R1316
JR1203
R1309
FB1452
R1310
R1070
R1315
FB1305
IC1507
R1313
C1002
R1312
R1587
R1311
X1301
DE698/DV10
FB1504
R1504
IC1452
R1460
C1487
X1502
R1523
R1506
JR1501
FB1502
R1503
R1484
R1486
R1502
C1516
FB1503
C1522
R1515
C1521
IC1403
R1555
R1505
R1446
R1541
R1501
R1520
R1521
C1511
R1472
C1441
R1445
R1522
R1519
R1476
IC1502
R1518
R1517
R1554
IC1404
R1436
R1553
IC1501
R1552
R1525
C1432
R1526
R1508
R1426
R1551
R1464
R1435
R1550
R1538
R1540
R1549
R1543
R1509
R1548
IC1405
R1547
R1574
R1466
R1537
R1539
R1527
R1573
R1570
R1542
R1546
R1528
R1571
IC1503
R1154
AEP,UK
MODEL
R1572
C1422
C1063
R1152
R1425
R1416
R1535
R1533
R1150
R1143
R1153
R1421
IC1406
DE698/DV10
R1456
R1536
R1532
R1534
R1044
R1151
R1137
R1136
R1135
R1134
R1155
C1913
R1140
R1042
R1041
R1085
R1086
DE698/DV10
R1142
R1178
IC1131
D1106
D1103
R1065
R1066
R1068
R1176
R1067
DE698
R1177
R1197
Q1104
R1199
R1198
R1098
D1001
R1119
R1115
Q1103
IC1101
R1113
Q1105
X1101
D1105
R1114
R1524
R1127
54
13
R1635
R1192
DE698/DV10
IC1111
R1082
R1190
R1110
R1111
R1128
R1083
R1105
R1191
FB1308
R1109
R1108
R1107
R1186
R1112
R1106
R1059
R1058
R1175
AEP,UK MODEL
R1179
R1180
C1122
C1123
C1124
23456789101112
1
A
B
C
D
E
F
G
H
I
Q1103 I-5
Q1104 I-5
Q1105 H-5
( ): STR-DE698/DV10 only
STR-DE598/DE698/DV10
2424
Page 25

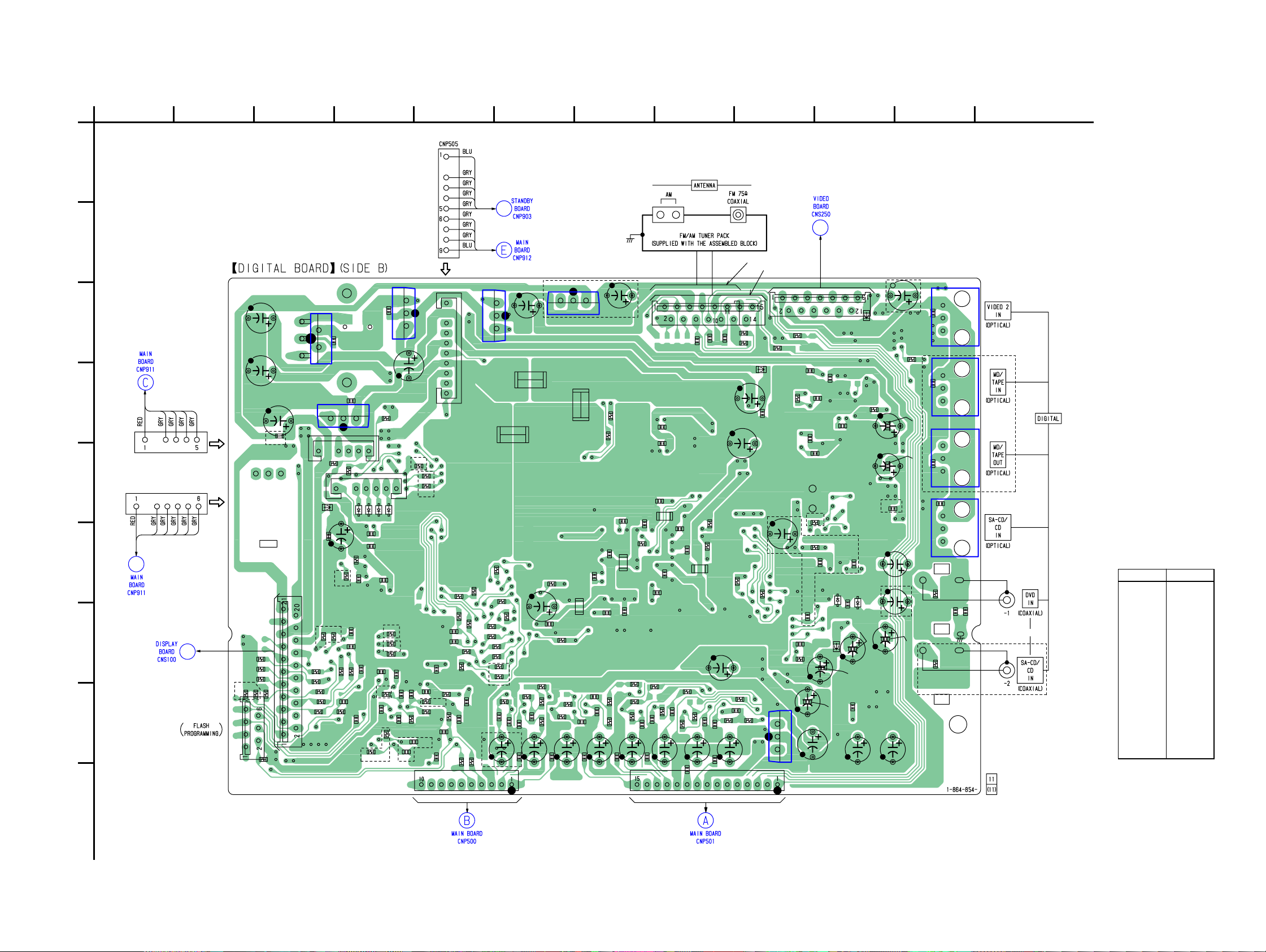

4-11. PRINTED WIRING BOARD — DIGITAL SECTION (2/2) — • Refer to page 14 for Circuit Boards Location.
STR-DE598/DE698/DV10
A
B
C
D
E
F
G
H
1
(Page 21)
CNP504
CNP503
D
(Page 21)
(Page 36)
23456789101112
(Page 32)
W
(Page 38)
(Page 21)
JR1206
C1507
JR1211
C1462
C1568
C1463
C1418
C1506
R1544
R1493
C1064
R1545
C1513
C1508
R1463
C1567
R1475
R1495
R1434
C1428
R1514
JR1214
C1505
C1504
C1433
R1471
C1569
C1509
JR1212
C1514
C1503
R1473
C1473
C1468
1
IC1902
R1099
R1121
R1161
R1160
R1531
R1530
R1414
C1411
C1488
1
2
3
JR1204
DE698/
DV10
C1413
R1144
C1453
C1914
JR1201
R1454
C1558
C1451
C1478
1
C1908
C1906
C1022
JR1202
US,CND,AUS
MODEL
V
DE698/DV10
R1182
R1088
R1073
R1072
R1181
CNS504
R1097
R1071
CNS505
5
4
3
C1905
IC1901
2
1
C1021
IC1904
1
23
CNP504
R1129
R1124
R1078
R1077
1
R1187
FB1101
C1102
DE598:
AEP,UK MODEL
US,CND,AUS
MODEL
R1094
R1076
5
R1035
CNP503
16
D1111
D1110
C1137
C1103
C1138
R1189
R1075
C1107
C1100
R1095
C1140
C1604
C1108
R1123
DE598/DV10
R1122
C1605
R1636
C1620
R1052
DE598
C1031
R1201
D1107
D1108
C1299
DE598:
AEP,UK MODEL
R1079
R1147
R1039
R1163
C1119
C1130
C1129
R1053
DE698/DV10
2
IC1031
3
C1032
DE698
R1063
EXCEPT
DE598:AEP,UK MODEL
DE598/
DV10
C1120
C1118
R1164
C1132
R1062
R1061
C1142
R1193
AEP,UK,AUS MODEL
R1194
C1495
C1131
C1121
R1159
C1126
R1120
C1254
C1255
1
CNP505
9
R1117
R1096
R1138
R1132
R1168
CNS502
R1118
C1139
R1049
R1149
R1162
C1149
DE698/DV10
R1167
AEP,UK MODEL
R1511
C1525
C1502
R1420
R1490
R1455
R1510
R1494
R1424
C1458
C1557
23
IC1071
C1423
C1520
C1519
C1472
C1510
R1470
R1444
CNS501
C1566
TN1
US,CND,AUS MODEL (11P)
CNS508
R1251
C1251
C1253
C1252
R1252
C1515
R1512
R1513
C1501
JR1215
R1491
C1438
C1442
C1547
C1491
C1481
R1507
R1461
C1483
R1483
C1448
AEP,UK MODEL (15P)
R1260
R1261
FB1501
C1517
R1314
C1518
C1535
DE698/DV10
R1556
C1494
R1474
3
R1492
2
IC1001
1
C1313
C1460
C1310
C1309
R1019
R1500
C1001
U
CNS509
C1312
DE598
C1534
C1457
C1532
C1450
C1314
C1308
FB1453
D1004
C1004
C1404
C1403
C1454
C1531
C1406
D1003
C1409
FB1302
R1302
DE698/DV10
DE698/DV10
C1402
DE698/DV10
C1306
C1359
C1128
C1355
C1047
C1407
C1317
R1362
C1401
C1305
C1358
C1351
C1352
C1353
R1355
3
2
1
3
2
1
3
2
1
C1354
3
2
1
R1366
IC1351
IC1352
IC1353
IC1354
C1362
IC1351
DE698/DV10
IC1352
IC1353
IC1354
C1356
J1301
DE698/DV10
• Semiconductor
Location (Side B)
Ref. No. Location
D1003 F-10
D1004 F-10
D1107 E-4
D1108 E-4
D1110 E-4
D1111 E-4
IC1001 H-9
IC1031 C-4
(IC1071) C-7
IC1351 C-12
<IC1352> D-12
<IC1353> E-12
IC1354 F-12
IC1901 C-3
IC1902 C-6
IC1904 D-4
( ): AEP, UK model only
< >: STR-DE698/DV10 only
I
STR-DE598/DE698/DV10
(Page 21) (Page 21)
25 25
Page 26
STR-DE598/DE698/DV10
4-12. SCHEMATIC DIAGRAM — DIGITAL SECTION (1/4) — • Refer to page 20 for Waveforms and page 40 for IC Block Diagrams.
J1301
IC1351
IC1352
IC1353
IC1354
R1366
R1355
C1356
C1362
IC1303
C1361
C1355
R1351
C1351
R1352
C1352
C1353
R1354
C1354
C1357
R1353
R1356
C1360
R1357
R1359
R1358
C1358
FB1306
D1302
C1359
JR1302
JR1303
R1362
R1301
C1302
R1303
C1304
C1303
R1304
IC B/D
R1302
C1305
C1306
C1301
C1315
JR1511
R1360
R1305
C1141
R1318
R1361
JR1020
R1306
FB1309
R1307
R1309
IC1301
TP1004
C1317
C1308
C1314
FB1305
C1309
TP1003
R1019
C1316
R1310
X1301
C1310
IC1302
IC B/D
R1308
C1313
R1314
C1312
R1311
D1301
R1316
R1315
R1313
R1312
FB1302
D1001
C1021
C1031
IC1901
C1908
IC1904
IC1031
C1906
C1905
C1022
CNP505
C1032
(Page 39)
(Page 22)
JR1201
FB1308
STR-DE598/DE698/DV10
C1047
C1046
IC1103
C1045
R1060
R1057
R1056
R1055
C1125
C1128
C1004
D1003
D1004
IC1506
(Page 28)
C1531
R1018
R1070
R1587
R1500
C1535
C1532
FB1504
IC1507
R1588
C1533C1534
(Page 27)
(Page 29)
2626
Page 27
4-13. SCHEMATIC DIAGRAM — DIGITAL SECTION (2/4) — • Refer to page 20 for Waveforms. • Refer to page 42 for IC Pin Descriptions.
STR-DE598/DE698/DV10
JR1501
R1512
R1501
C1521 C1522
X1502
R1515
R1556
FB1503
R1502
R1503
R1504
R1505
R1506
R1507
C1511
R1523
R1513
C1501
C1503
TP1018
TP1005
FB1502
FB1501
C1516
C1518
C1517
C1509
R1514
C1515
R1520
1521
R
1522
R
R1519
1518
R
C1514
IC1501
1517
R
1554
R
1553
R
1552
R
1510
C
C1513
1525
R
1526
R
1551
R
1550
R
C1519
1549
R
1548
R
1520
C
R1547
R1546
C1507
R1573
R1574
R1572
R1571
R1570
C1508
R1528
R1527
R1544
R1545
R1543
R1542
R1540
R1539
R1538
R1537
R1536
R1535
R1511
R1534
R1533
R1532
IC1502
(Page 26)
STR-DE598/DE698/DV10
(Page 28)
C1502
(Page 29)
R1510
IC1503
TP1008
R1508 R1509
27 27
TP1009
TP1010
TP1011
R1541
R1555
5
1012
C1504 C1506
TP
P101
T
C1505
C1525
Page 28
STR-DE598/DE698/DV10

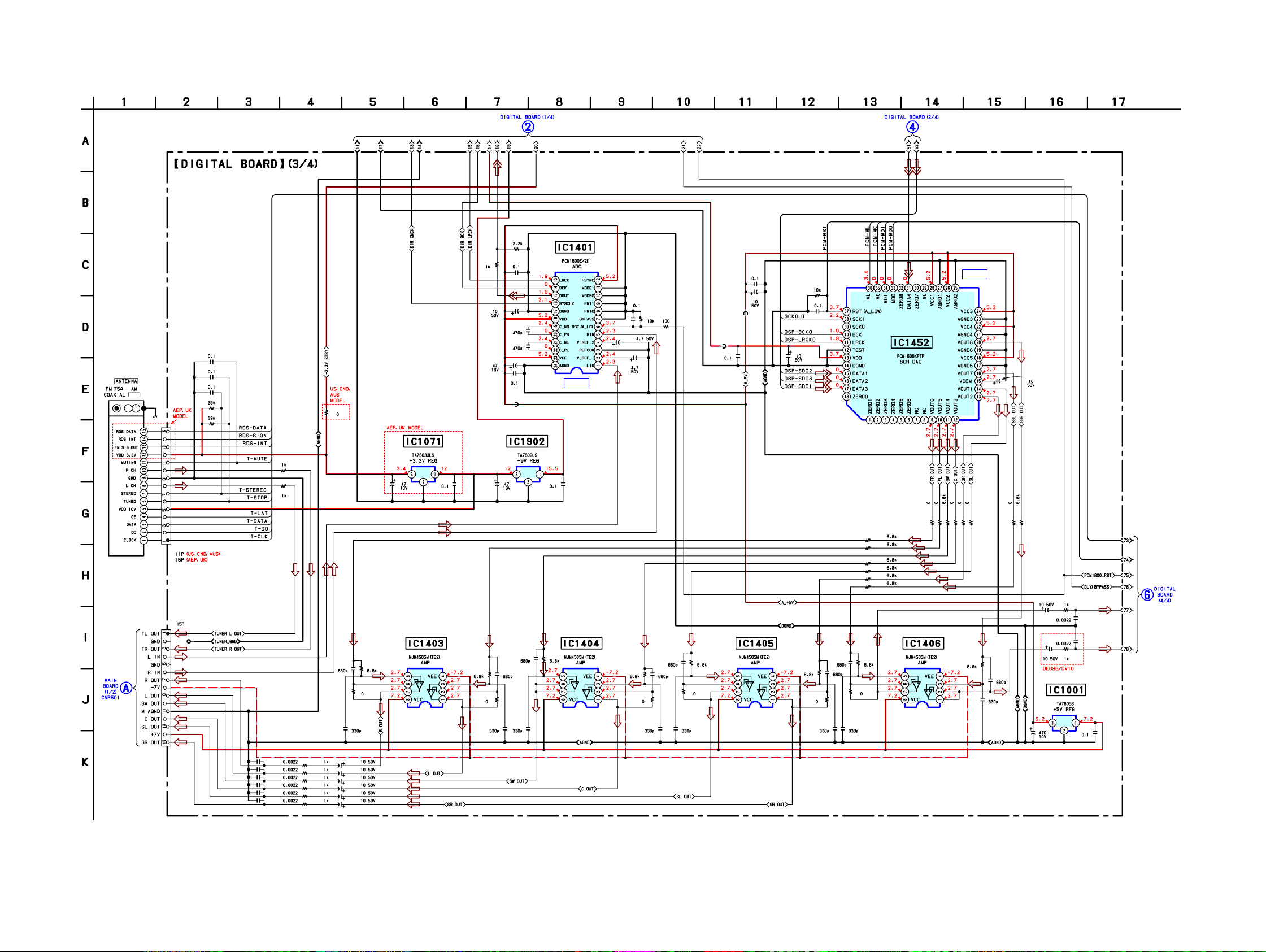

4-14. SCHEMATIC DIAGRAM — DIGITAL SECTION (3/4) — • Refer to page 40 for IC Block Diagrams.
TN1
C1251
C1252
C1253
R1252
R1251
JR1202
R1401
C1403
C1402
R1402
C1404
C1408
C1405
C1401
FB1405
(Page 26) (Page 27)
IC1401
C1406
C1409
C1407
R1403
R1407
FB1453
C1454
FB1452
C1450
C1460
R1474
C1494
C1457 IC1452
IC B/D
IC B/D
C1491
(Page 22)
CNS508
CNS501
C1487
C1547
C1566
C1569
C1567
C1568
R1261
R1260
R1446
R1486
R1476
R1436
R1466
C1483
C1448
C1438
C1468
C1428
C1418R1426
C1458
C1481
R1484
R1483
IC1071 IC1902
C1064
C1063
R1444
R1445 R1435
C1442
C1914
C1441
C1473
C1472
C1913
R1473
R1434
C1433
C1432
C1462
C1463
R1464
R1463
R1424
R1425
C1423
C1451
C1422
C1453
R1455
R1454
R1492
R1491
R1495
R1493
R1494
R1490
R1460
R1461
R1471
R1475
R1470
R1472
IC1406IC1405IC1404IC1403
R1414
C1413
C1411
R1420
R1421
C1478
C1001
C1488
R1416
C1557
C1558
R1456
IC1001
(Page 29)
C1002
STR-DE598/DE698/DV10
2828
Page 29

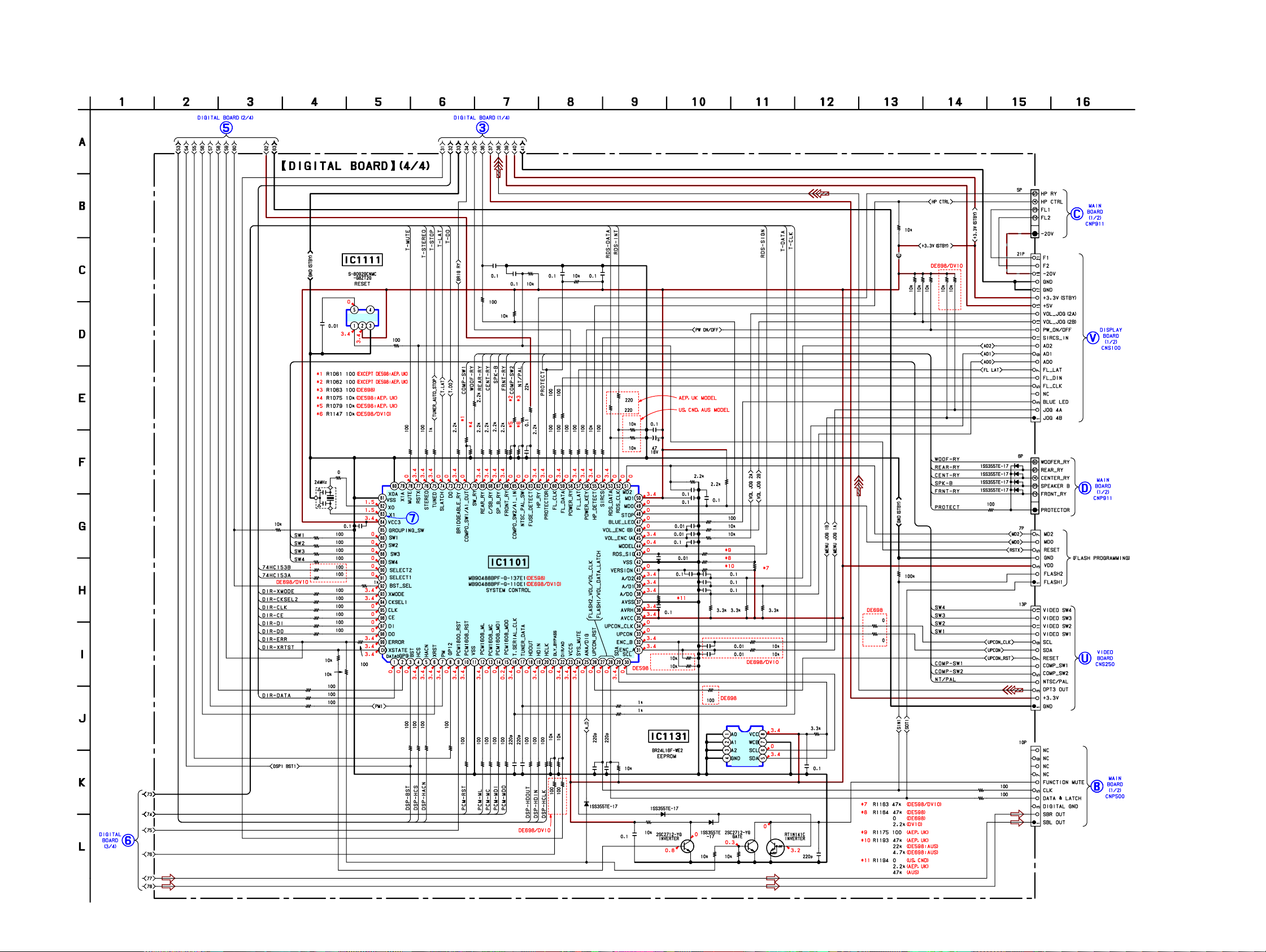

4-15. SCHEMATIC DIAGRAM — DIGITAL SECTION (4/4) — • Refer to page 20 for Waveforms. • Refer to page 44 for IC Pin Descriptions.
(Page 26)(Page 27)
STR-DE598/DE698/DV10
CNP504
R1049
X1101
R1142
R1044
R1150
R1065
R1066
R1067
R1068
R1086
R1085
R1041
R1042
R1140
R1134
R1135
R1136
R1099
R1178
C1137
C1299
R1524
IC1111
R1120
R1137
R1127
R1115
R1143
R1144
R1113
R1149
R1119
R1121
R1114
R1061
R1155
R1075
R1111
R1110
R1151
C1108
R1128
R1109
R1153
R1190
R1108
R1152
R1107
IC1101
R1154
C1107
C1254
R1062
R1079
R1189
R1063
R1147
C1255
R1201
C1100
R1162
R1035
R1161
C1140
R1160
R1077
R1122
R1138
R1078
R1123
R1132
R1039
R1106
R1076
C1138
R1129
R1083
R1124
C1149
C1495
R1058
R1059
R1094
R1095
R1118
R1117
R1096
C1102
C1103
C1130
C1129
C1119
R1053
R1052
C1605
C1604
C1120
C1118
R1194
C1142
IC1131
R1636
R1635
R1175
R1164
R1193
R1197
C1620
R1082
R1105
R1186
C1122
C1123
C1124
R1071
C1131
C1132
R1073
R1163
R1192
R1191
R1072
R1159
C1139
R1198
R1199
R1187
FB1101
R1097
R1179
R1180
R1088
R1182
R1181
D1108
D1107
D1111
D1110
(Page 22)
CNS505
(Page 37)
CNP503
R1112
(Page 22)
CNS504
CNS509
(Page 33)
CNS502
(Page 28)
STR-DE598/DE698/DV10
R1531
R1530
D1103
R1098
C1121
29 29
D1106
Q1105
D1105
R1168
R1167
(Page 22)
Q1104
R1177R1176
Q1103
C1126
Page 30
STR-DE598/DE698/DV10
4-16. PRINTED WIRING BOARDS — SPEAKER SECTION — • Refer to page 14 for Circuit Boards Location.
A
B
C
D
1
23456789101112
SPEAKERS
PEDANCE USE 8-16
IM
FRONT B
Ω
600
TM
SPEAKERS
PEDANCE USE 8-16
IM
Ω
DE698/DV10
• Semiconductor
D810
Q810
R811
RY610
GRY
R810
CNP611
3
GRY
SPEAKERS
PEDANCE USE 8-16
IM
FRONT B
L
CC30
RR30
612
JW
4
614
1
JW
RED
BLK
RED
610
TM
CNP610
BLK
RR31
AEP,UK,AUS
M
R
RED
Ω
CC31
ODEL
1
R800
R812
CNP601
13
RED
GRY
BT600
RR21
JW603
Q800
RY600
D800
GRY
R
L
CC21
RR20
AEP,UK,AUS
ODEL
M
1
RED
CC20
CNP600
BLK
BLK
4
RED
CENTER
SURROUND BACK
R578
L571
RR17
L
DE698/
DV10
TM501
RY501
D510
R534
AEP,UK
AUS MODEL
CC17
Q550
R531
CN502
7
GRY
GRY
CC16
R16
R
R751
DE698/DV10
R753
JW703
RED
GRY
GRY
GRY
L751
DE598
BT501
JW701
1
RED
JW700
DE598
R
TM502
JW704
JW705
RED
DE698:AEP,UK,
AUS MODEL
RR15
CC15
CNP503
BLK
BRN
JW702
RY500
BLK
R752
CNP504
RED
BLK
BT500
Q760
L752
D760
R774
Location
Ref. No. Location
D510 D-9
(D760) D-12
(D800) D-6
<D810> D-2
D2575 H-10
D2576 G-10
IC2501 G-9
Q550 D-9
(Q572) H-9
(Q760) D-12
(Q800) D-5
<Q810> D-2
(Q2573) H-8
(Q2574) H-11
Q2575 G-9
Q2576 G-9
Q2577 G-10
( ): STR-DE698/DV10 only
< >: STR-DE598 only
E
F
G
H
F
MAIN
BOARD
CN807
(DE598)
(Page 21)
MAIN
BOARD
WP04
(DE698/DV10)
(Page 21)
M
MAIN
BOARD
CN809
(DE698/DV10)
(Page 21)
MAIN
BOARD
CN807
(DE698/DV10)
N
G
(Page 21)
RED
BLK
BLK
ORG
BLU
1
5
CN2570
BT2500
R2565
C2566
2505
JW
R2582
C2565
R2572
R2566
C2573
R2562
C2562
R2571
R2561
R2560
C2563
JW2507
JW2506
R2574
C2571
Q2573
C2561
C2564
JW2508
Q2575
R2577
C2578
2504
JW
2503
JW
R2583
R2579
Q2576
R2576
K
MAIN
BOARD
CNP806
(Page 21) (Page 21)
IC2501
91
JW2502
D2576
R2588
R2578
JW2501
Q572
BCE
R2575
R2589
R2584
D2575
C2576
H
MAIN
BOARD
WP02
(Page 21)
Q2577
C2577
C2575
Q2574
BC
R2585
EBCE
I
MAIN
BOARD
WP03
R2586
R2580
J
MAIN
BOARD
CN808
(Page
C2581
21)
R2581
BT2501
2509
JW
R2587
1
CN2571
9
RED
GRY
GRY
GRY
GRY
RED
GRY
GRY
GRY
L
MAIN
BOARD
CN720
(DE698/DV10)
(Page 21)
STR-DE598/DE698/DV10
3030
Page 31
4-17. SCHEMATIC DIAGRAM — SPEAKER SECTION — • Refer to page 40 for IC Block Diagrams.
STR-DE598/DE698/DV10
(Page 23)
CC31
CC30
TM610
RR31
RR30
Q810
RY610
D810
R810
R811
CNP610
CNP611
CNP600
(Page 23)
(Page 22)
(Page 23)
CN2571
C2561
R2562
C2562
R2561
R2560
C2563
R2566
C2566
IC2501
C2564
R2565
C2565
C2571
IC B/D
R2572
C2573
R2582
R2571
Q572
R2575R2574
C2575
R2578
Q2574
Q2573
R2587
C2578
CN2570
R2576
R2579
Q2576
R2577
R2580
CNP504
Q2575
R2583
D2576
R2588
R2581
C2581
C2576
R2584R2589
D2575
C2577
(Page 23)
Q2577
R2586
R2585
CC21
CC20
TM600
RR21
RR20
Q800
RY600
D800
R800
R812
CNP601
(Page 23)
(Page
23)
(Page 23)
(Page 23)
CNP503
RY500
R774
JW700 D760
CN502 RY501
R534
D510
Q760
Q550
R753
R531
JW701
L752
R752
L751
R751
L571
R578
RR15
RR16
RR17
CC15
CC16
TM502
TM501
CC17
STR-DE598/DE698/DV10
31 31
Page 32
STR-DE598/DE698/DV10
4-18. PRINTED WIRING BOARDS — VIDEO SECTION — • Refer to page 14 for Circuit Boards Location.
A
B
C
(Page 35)
(DE698/DV10)
D
(Page 25)
E
F
1
234567891011
J200
EXCEPT DE598:AEP,UK MODEL
(ASSIGNABLE)
J201
J301
• Semiconductor
Location
Ref. No. Location
D203 C-3
D204 C-3
(IC200) I-10
IC203 D-5
<IC304> D-7
IC804 E-3
IC807 E-3
( ): STR-DE698/DV10 only
R221
C207
DE698/
DV10
CNS201
Y
JW232
DE698
JW227
C220
JW231
JW223
IC807
JW219
23
C314
CNS250
JW212
1
C223
R218
D203
C206
D204
JW222
JW209
C213
JW217
3
2
1
C200
JW208
JW218
IC804
R200
C215
JW215
JW202
C224
R220
C316
C201
JW207
C208
JW205
916
JW269
CNP202
CNP203
IC203
16
JW216
DE698/
DV10
81
JW210
JW211
DE598
C221
(Page 21)
R201
C209
C214
R219
C210
JW229
JW237
C338
JW220
JW235
TP20
631
R309
C317
C312
R307
JW233
JW238
DE598
C310
JW228
JW239
C330
JW225
C315
C311
JW221
R308
JW236
C331
IC304
JW214
R304
C313
JW234
JW230
R306
R313
C309
R305
C308
R303
R310
JW224
JW240
R311
R302
CNS202
JW241
R301
R312
(Page 34)
UP CONVERT
X
(DE698)
DE698
< >: Except STR-DE598: AEP,
UK model
G
H
I
STR-DE598/DE698/DV10
W290
C293
C294
J298
C299
R299
C298
R298
1
5
CN201
(DE598)
(Page 21)
W290
C293
1
CN201
C294
5
(DE698/DV10)
(Page 21)
3232
R299
J298
C299
R298
C298
CN202
C290
R290
123
IC200
L290
Page 33

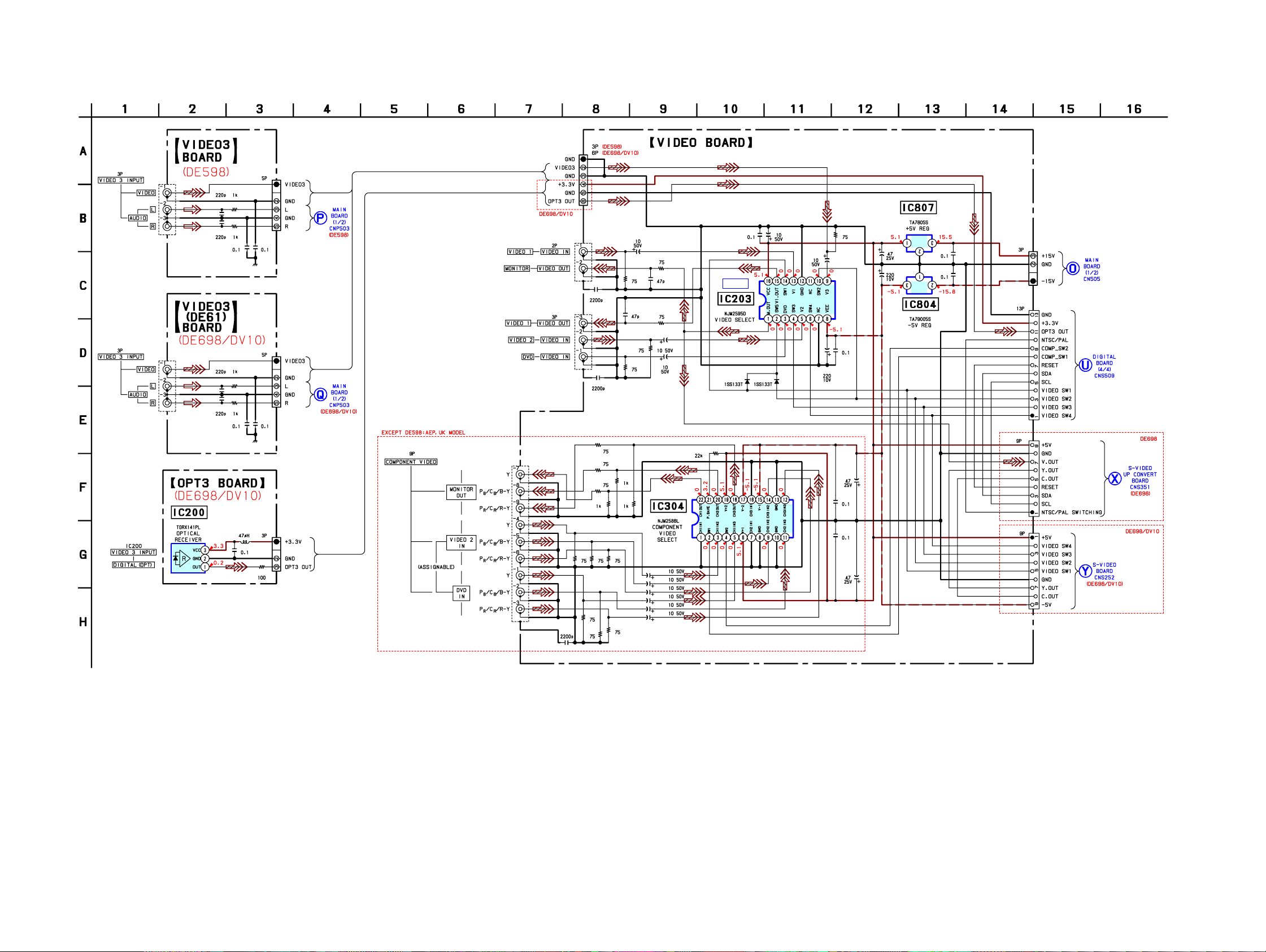

4-19. SCHEMATIC DIAGRAM — VIDEO SECTION — • Refer to page 41 for IC Block Diagrams.
STR-DE598/DE698/DV10
CNP202
J298
J298
IC200
C298
C298
R299C299
R298
R299C299
R298
L290 CN202
C290
W290
W290
CN201
CN201
R290
IC807
C210
C214
R220
C208
R201
C201
C293C294
(Page 22)
J201
IC B/D
C316
R200
R309
R311
R310
C200
R221
R218
C313
C308
C309
C310
C311
C312
C206
C207
R313
IC304
J200
C314
C293C294
(Page 22)
J301
C315
R303
R302
R301
R312
R305 R306R304
R307
R308
IC203
D203 D204
C209
C213
R219
C215
C330
C331
C338
C317
C220
C221
IC804
C223
C224
CNP203
(Page 22)
CNS250
(Page 29)
CNS202
(Page 34)
CNS201
(Page 35)
STR-DE598/DE698/DV10
33 33
Page 34
STR-DE598/DE698/DV10
4-20. PRINTED WIRING BOARD — S-VIDEO UP CONVERT SECTION (STR-DE698) — • Refer to page 14 for Circuit Boards Location.
A
B
C
D
E
1
US,CND
MODEL
JW3501
R390
X371
US,CND MODEL
23456
BT301
R394
R393
AEP,UK,AUS MODEL
1
IC373
14
C395
R391
R388
C341
C394
JW358
IC371
R392
R387
X370
C392
CT381
AEP,UK,AUS MODEL
JW359
JW400
AEP,UK,AUS MODEL
814
71
R389
C351
CT380
C355
Q372
R379
7
C357
8
C385
114
C397
28 15
C384
FB353
C393
C389
C381
C380
C365
L372
C383
R378
FB355
R386
C366
C379
C367
C387
IC370
C353
JW353
R382
C390
C356
C364
R368
R365
L373
C382
R366
C363
L374
C354
R369
L377
C386
C388
L378
JW352
R383
C362
L376
FB354
R367
C377
C378
C376
JW355
Q371
Q373
JW357
BT300
JW356
58
IC372
41
C374
L371
R373
C372
R376
R385
R359
R375
R377
C371
C375
C368
TP803
L370
JW354
C373
JW351
CNS351
R358
C352
R374
C369
C358
R363
R384
X
E698)
(D
(Page 32)
• Semiconductor
Location (STR-DE698)
Ref. No. Location
IC370 C-3
IC371 C-2
IC372 B-5
(IC373) B-2
Q371 D-5
Q372 B-2
Q373 D-4
( ): STR-DE698: AEP,
UK, AUS model only
4-21. SCHEMATIC DIAGRAM — S-VIDEO UP CONVERT SECTION (STR-DE698) — • Refer to page 20 for Waveforms and page 41 for IC Block Diagrams.
L373
C388
R379
C366
C354
C390
L377
L372
C386
R367
C356
C355
C387
C385
C357
C389
C383
L378
IC370
IC B/D
C353
R378
C384
C379
C380
C381
C367
C382
L376
C378
Q373
C373
R376
Q371
R359
C371
R385 L370
C372
L371
C375
C352
R373
R377 R374
R358
(Page 33)
CNS351
R386
JL332
R391
R392
C393
IC371
R387
JL333 JL334
X370
R368 R369
R390
JL335
C394
JL319
C362
FB353
JL317
R383
C377
JL320
JL318
L374
JL316
JL315
C365
IC373
JW3501
R393R382C364C363
FB355
Q372
R394
R365
R366
JL330
R388
R389
C351
C395 C397
FB354
X371
CT380CT381 C392 C341
C358
R375
R384
C368
C374
IC B/D
C376
R363
C369
IC372
STR-DE598/DE698/DV10
3434
Page 35
4-22. PRINTED WIRING BOARD — S-VIDEO SECTION (STR-DE698/DV10) — • Refer to page 14 for Circuit Boards Location.
STR-DE598/DE698/DV10
A
B
C
D
1
(DE698/DV10)
(Page 32)
23456789
J252
R254
JW251
CNS252
Y
C260
C251
JW250
R253
C275
JW263
R206
C261
C263
C253
JW254
R255
JW268
JW262
C262
JW261
C256
C266
JW267
9
8
R257
JW252
C265
C267
J253
R258
IC252
C269
R260
16
1
R259
JW259
D251
C254
D252
C258
R252
J251
JW256
JW257
C255
C259
R251
JW258
C257
C268
9
8
DV10
JW200
JW201
RY250
C248
JW266
JW260
IC251
1
5
C247
• Semiconductor
Location (STR-DE698/DV10)
DE698
D253
R263
R264
IC253
JW265
16
1
C252
D254
Q251
C249
R261
C250
R262
Q250
Ref. No. Location
D251 C-5
D252 C-5
(D253) B-7
(D254) D-8
IC251 D-7
IC252 C-4
(IC253) C-7
(Q250) D-8
(Q251) B-8
( ): STR-DE698 only
4-23. SCHEMATIC DIAGRAM — S-VIDEO SECTION (STR-DE698/DV10) — • Refer to page 41 for IC Block Diagrams.
C255
D252
D251
Q251
R262
R261
Q250
D254
C250
CNS252
(Page 33)
J251
J252
J253
C257
C275
C267
C259
C258
R253
R254
R255
R206
C265
C266
R259
R260
R251
R252
C260
C261
C262
C263
C268
R257
R258
JW201
IC252
C253
IC B/D
C248
JW200
IC253
C247
R264
C249
R263
C254
C256
IC251
IC B/D IC B/D
C252
RY250
D253
C251
STR-DE598/DE698/DV10
C269
35 35
Page 36
STR-DE598/DE698/DV10

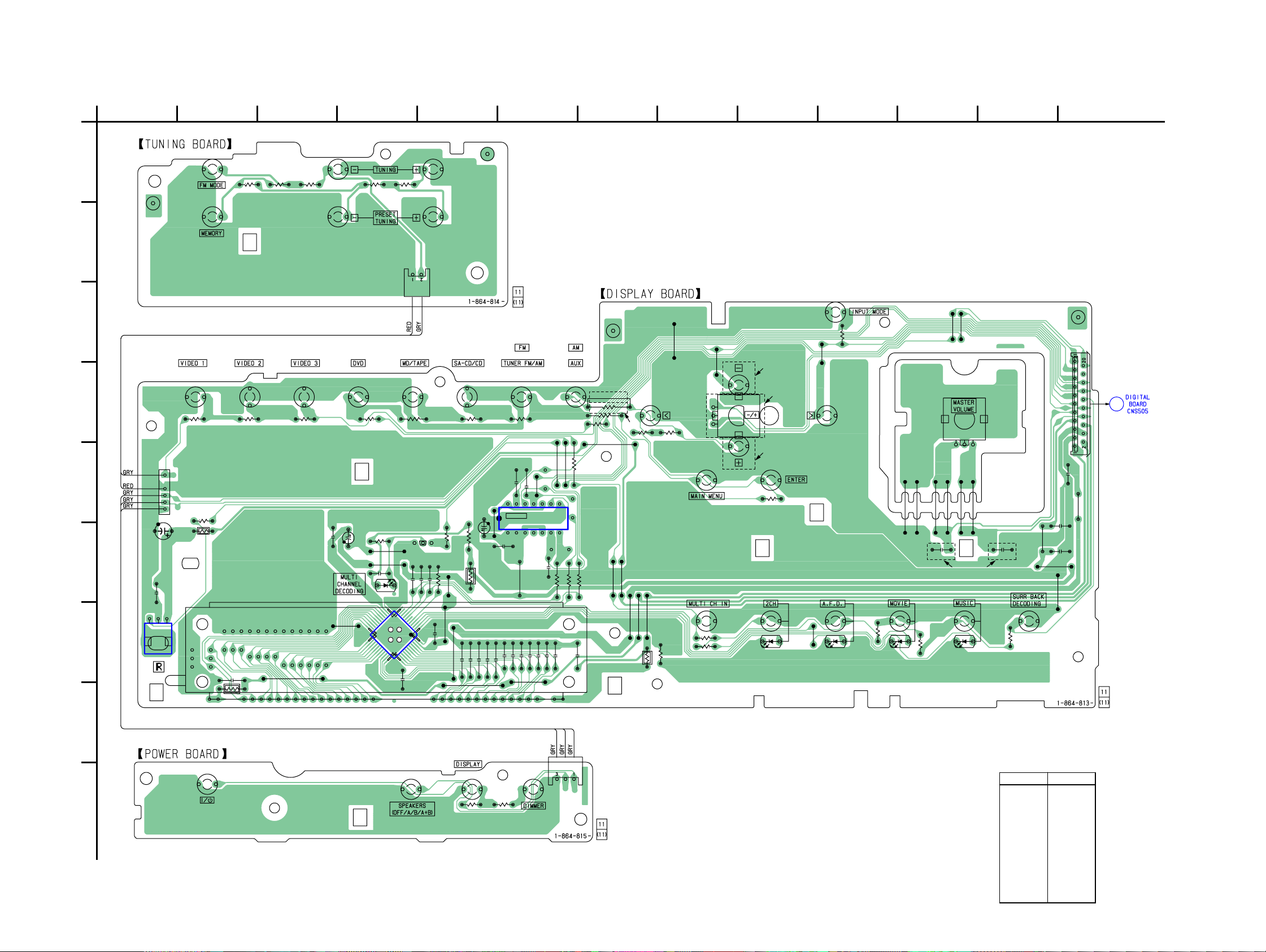

4-24. PRINTED WIRING BOARDS — PANEL SECTION — • Refer to page 14 for Circuit Boards Location.
A
B
C
D
E
F
G
H
1
3
4
5
TP101
C105
C114
123
IC102
1
CN101
5
2345678910111213
137
JW
132
JW
149
JW
R104
C132
R161
R175
C133
JW
S104
C151
C134
123
TP100
C135
(DE698/DV10)
114
1
JW
14
C150
C137
C136
(DE598)
S105
R105
C154
IC101
C138
L102
C139
JW
C153
C140
124
111
JW
C141
4
C152
C142
141
JW
C143
2
543
(DE598)
(DE698/DV10)
S110
R128
142
JW
7
8
R174
R172
C109
1
TP103
DE698/DV10
R110
R106
R142
JW
R173
112
R110
136
JW
DE598
119
JW
JW107
R108
146
JW
S108
R199
147
JW
R109
R160
143
JW
S106
S125
R125
R124
140
JW
S101
138
139
JW
127
JW
R122
C106
RV102
3
103
JW
DE698/DV10
JW
129
JW
S121
D102
2
1
JW105
C107
S120
R121
R101
156
155
JW
JW
S100
S123
D104
R123
S122
D103
JW125
104
JW
DE598
S140
3
2
1
S109
DE698/DV10
RV101
DE598
S107
R107
S124
D101
L101
JW
TP102
CNS100
V
(Page 25)
C156
L103
C155
C157
118
JW133
S143
R148
R155
R154
S149
S150
42
R153
CNP104
S103
R103
Q110
C110
C144
C111
S153
S152
C112
R111
R171
C101
16
S148
S102
R102
C115
106
JW
FL101
VACUUM
FLUORESCENT
DISPLAY
R152
C104
23
R162
JW
JW
D105
144
IC100
148
R151
R150
R149
S151
S142
R144
C108
R198
41
38
S141
R143
C100
122
JW
• Semiconductor
Location
S131
S128
I
S129
R129
R130
S130
CNP102
Ref. No. Location
D101 G-9
D102 G-11
D103 G-11
D104 G-10
D105 F-4
STR-DE598/DE698/DV10
IC100 G-4
IC101 E-6
IC102 G-1
Q110 F-5
3636
Page 37

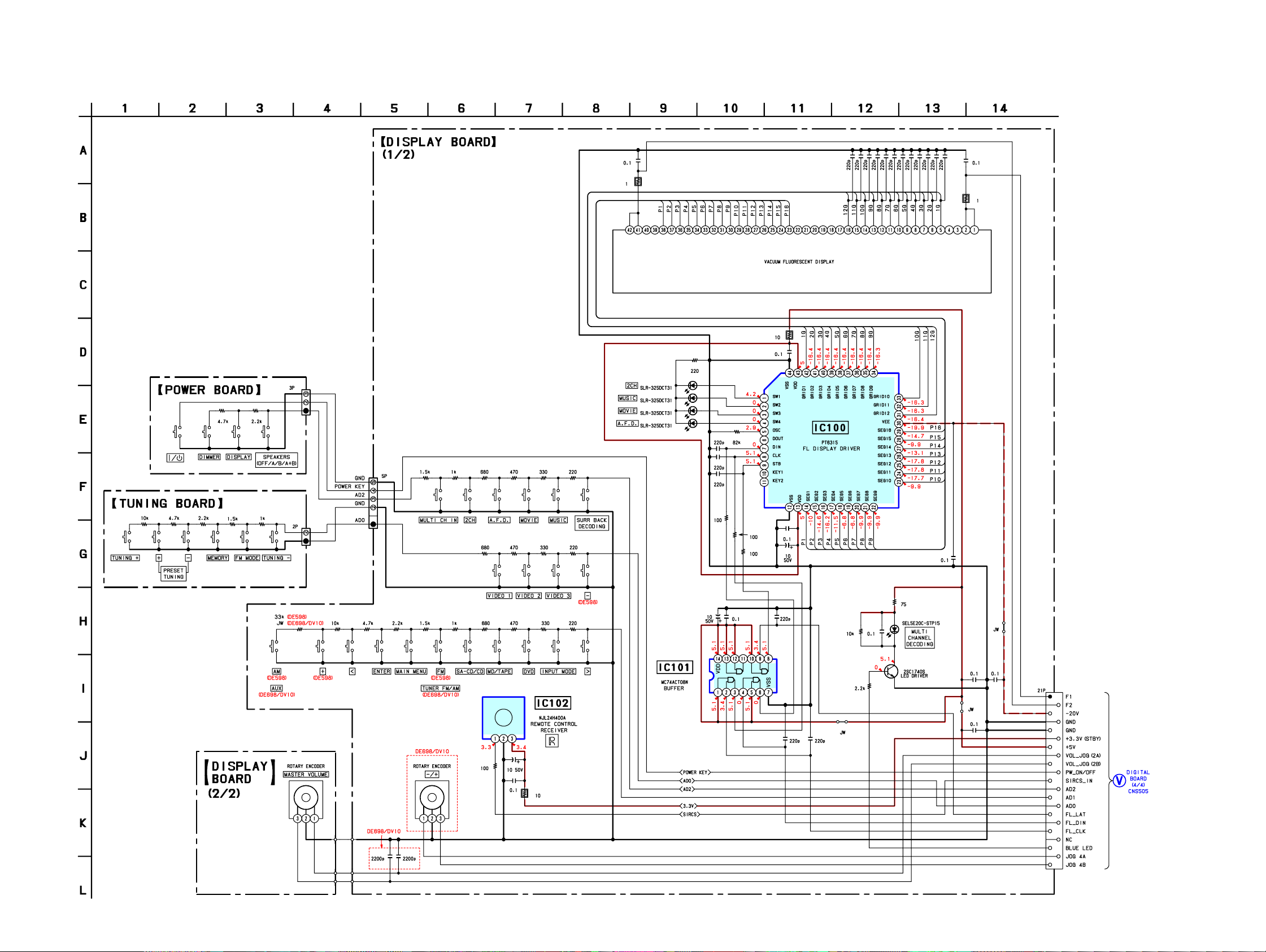

4-25. SCHEMATIC DIAGRAM — PANEL SECTION —
STR-DE598/DE698/DV10
C109C108
R130 R129
S128S129S130S131
R153
S153 S152 S151 S150 S149 S148
R151R152
R150
R149
CNP102
CNP104
CN101
R125 R124 R123 R122 R121
R128
R198
FL101
R175
C101
R160
D101
D102
D103
D104
C112
R171
C111
C110
S120S121S122S123S124S125
R172
R173
R142
R143R144R148
S140S141S142S143
R174
C100
C115
IC100
C132
C133
C134
C135
C136
C137
C138
C139
C140
C141
C142
C143
R199
C144
STR-DE598/DE698/DV10
R110
S109S110 S108 S107 S106 S105 S104 S103 S102 S101 S100
RV101RV102
C107C106
R104R105R106R107R108R109
R155
C105
C114
IC102
R154
R161
C151
R101R102R103
IC101
C150
C152
C153 C154
L102
R111
C104R162
D105
Q110
L101
C157
C155
L103
C156
CNS100
(Page 29)
37 37
Page 38
STR-DE598/DE698/DV10

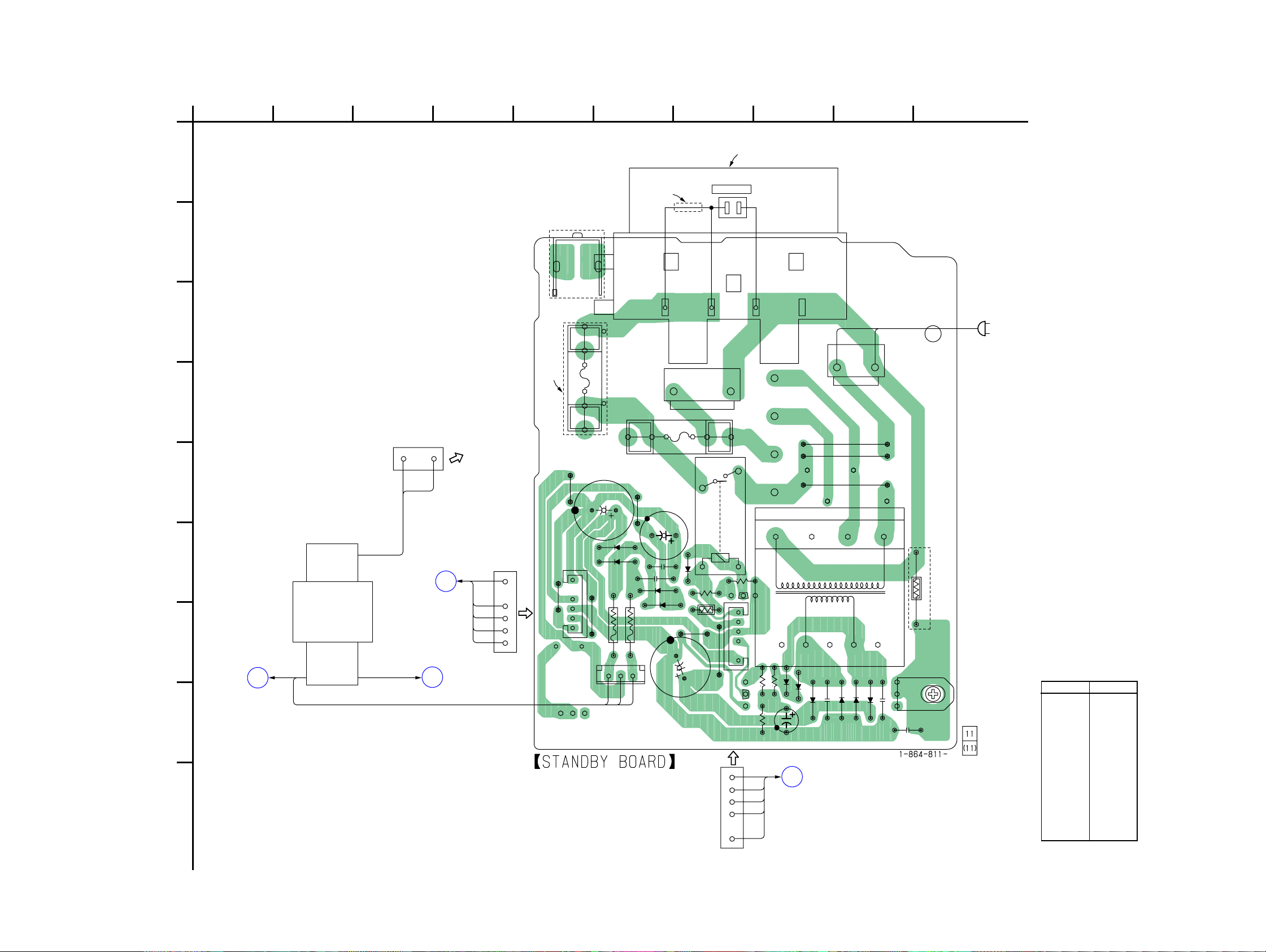

4-26. PRINTED WIRING BOARD — POWER SECTION — • Refer to page 14 for Circuit Boards Location.
A
B
C
D
1
2345678910
DE698/DV10
CNP902
12
DE598
DE698/
DV10
B901
F902
DE698:
AEP,UK,AUS
ODEL
M
12
F901
CNP902
J911
AC OUTLET
ITCHED 120W
SW
(DE698:US,CND/DV10)
ITCHED 100W
SW
(DE698:AEP,UK,AUS)
LN
CNP901
1
907
JW
904
JW
/1A MAX
AC 120V 60Hz
2
AX
M
AC IN)
~
(
E
F
G
H
905
JW
T902
ER TRANSFORM
D914
D911
C921
C924
ER
D913
D912
D910
C920
US,CND
M
C922
ODEL
G901
R901
• Semiconductor
Location
Ref. No. Location
D901 F-7
D910 H-9
D911 H-8
D912 H-9
D913 H-9
MAIN
BOARD
CNP802
ORG
WHT
MAIN
BOARD
R
CN915
T901
ER
POW
TRANSFORM
ER
S
(Page 21)
T
MAIN
BOARD
CNP908
RED
GRY
GRY
GRY
GRY
CNP801
1
5
(Page 21)(Page 21)
830
JW
831
JW
C915
D921
D920
1
832
CNP801
JW
5
CNP804
13
ORG
BLK
R811
BRN
901
JW
R810
C913
D923
C916
C914
D922
D901
JW
C950
834
R903
R904
R902
JW835
Q901
5
1
RY901
CNP903
Q921
R922
R923
R921
POW
D915
D914 H-8
D915 H-8
D920 F-6
D921 F-6
D922 G-6
D923 F-6
GRY
5
GRY
I
GRY
GRY
W
(Page 25)
DIGITAL
BOARD
CNP505
Q901 F-7
1
CNP903
BLU
Q921 H-7
STR-DE598/DE698/DV10
3838
Page 39
4-27. SCHEMATIC DIAGRAM — POWER SECTION —
STR-DE598/DE698/DV10
(Page 22)
CNP801
C915
C916
D920
D921 D922
D923
C913
C914
R811
R810
R903
CNP804
R902
(Page 22)
(Page 22)
Q901
R904
D901
F901
F902
RY901
T901
CNP902
J911
(Page 26)
STR-DE598/DE698/DV10
CNP903
Q921
R923
R922
C924
C950
R921
D910
D911
D912
D913
D914
D915
C920
C921
39 39
T902
CNP901
R901
C922
G901
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
Page 40
STR-DE598/DE698/DV10
1
IN+
2
IN-
3 4 5
-VOUT
6
+VOUT
7-B8
GND
9
+B
PRE
GND
DRIVER
K
• IC Block Diagrams
IC501 µPC2581V-S (MAIN BOARD (2/2))
IC601 µPC2581V-S (MAIN BOARD (2/2))
IC701 µPC2581V-S (MAIN BOARD (2/2))
BIAS CIRCUIT
PROTECTOR
REG
1
MUTE
DRIVE
2
3 456 7 8 9 10 11 12 13 14 15
NF1
COMP1
+VOUT1
–VOUT1
PRE
DRIVE
IN1
GND
PRE
DRIVE
IN2
NF2
DRIVE
COMP2
–VOUT2
VCC
+VOUT2
VCC
VEE
IC1301 LC89056W-E (DIGITAL BOARD (1/4))
CKOUT
BCK
LRCK
DATAO
XSTATE
DGND
DVDD
XMCK
XOUT
XIN
EMPHA
AUDIO
A.GND11AVDD
12
LPF9VIN8R7DVDD6D.GND5DIN2
10
13
14
15
PLL
16
17
18
19
20
21
X'TAL1
TIMING
22
23
24
DIN1
DOUT1DISEL
DIN0
4
2
3
INPUT
DATA
DEMODULATOR
LOCK
DETECTIONfsCALCULATION
25
IC1302 TC74ACT153F(EL) (DIGITAL BOARD (1/4)) (STR-DE698/DV10)
OUTPUT
2Y
9
DATA INPUTS
STROBE
VCC 2C3 2C2 2C1 2C0
16 15 14
A
2G
SELECT
13 12
11
2C3 2C2 2C1 2C0 2Y
2G
BBAA
10
26 27 28 29
CSFLAG
F1/P1/C1
F0/P0/C0
C BIT DETECTIONPa,Pb DETECTION
F3/P3/C3
F2/P2/C2
MICROPROCESSOR INTERFACE
33
32
31
30
DVDD
DGND
AUTO
35DO36
34
ERROR
BPSYNC
DI
48
47
46
45
44
43
42
41
40
39
38
37
XMODE
CKSEL1
CKSEL0
DOSEL1
DOSEL0
DVDD
DGND
MODE1
MODE0
XSEL
CLK
CE
IC1401 PCM1800E/2K (DIGITAL BOARD (3/4))
AGND
VCC
24 23 22 21 20
SINGLE-END
DEFERENTIAL
CONVERTER
1 2
LIN
C PL
C NL
REFERENCE
3
V REF 1
REFCOM
C PR
C NR
19 17 16 15 14 1318
DIGITAL
MODULATOR
DIGITAL
MODULATOR
SINGLE-END
DEFERENTIAL
CONVERTER
4
5 6 87 9
RIN
V REF 2
VDD
1/64
DECIMATION
FILTER
LOW-CUT
FILTER
CLOCK/
TIMING CONTROL RESET/
POWER CONTROL
IC1452 PCM1609KPTR (DIGITAL BOARD (3/4))
ZERO8
DATA4
32 31 30
ZERO6/GPO6
ZERO7
ENHANCED
MULTI-
LEVEL
DELTA-
SIGMA
MOJULE
NC
NC
NC
29 28 27 26 25
DAC LPF
DAC LPF
DAC LPF
DAC LPF
DAC LPF
DAC LPF
DAC LPF
DAC LPF
SCKI
SCKO
LRCK
TEST
VDD
DGND
DATA1
DATA2
DATA3
ZEROA
RST
BCK
MLMCMDI
MDO
36 35 34 33
ZERO DETECT
ZERO2/GPO2
ZERO3/GPO3
FUNCTION
CONTROL
INTERFACE
4X/8X
OVER SAMPLING
DIGITAL
FILTER
WITH
FUNCTION
CONTROLLER
ZERO4/GPO4
ZERO5/GPO5
37
SYSTEM
38
CLOCK
39
MANAGER
40
41
42
SERIAL
43
44
45
46
47
48
INPUT
INTERFACE
1 2 3 4 5 6 7 8 9 10 11 12
ZERO1/GPO1
IC2501 STK350-230 (SB AMP BOARD) (STR-DE698/DV10)
&
DGND
RSTB
VCC1
AGND1
SYSCL
VCC2
VOUT6
MODE/FORMAT
AGND2
VOUT5
VOUT4
SERIAL I/O
INTERFACE
&
CONTROL
FMT0
BYPASS
VOUT3
FMT1
24
23
22
21
20
19
18
17
16
15
14
13
DOUT
1110 12
MODE1
MODE0
VCC3
AGND3
VCC4
AGND4
VOUT8
AGND6
VCC5
AGND5
VOUT7
VCOM
VOUT1
VOUT2
BCK
LRCK
FSYNC
STR-DE598/DE698/DV10
STROBE1GB
1
BBAA
1G
1C3 1C2 1C1 1C0 1Y
2
SELECT
4 5
3
1C3 1C2 1C1 1C0 OUTPUT1YGND
DATA INPUTS
7
6
8
4040
Page 41
IC203 NJM2595D (VIDEO BOARD)
IC251 NJM2595D (S-VIDEO BOARD)
IC252 NJM2595D (S-VIDEO BOARD)
1
M.OUT
2
SW5
3
DVD
4
SW3
5
SW4
VEE
V2
6
7
NC
8
-V
S3
S2 S4
STR-DE598/DE698/DV10
16
+V
75Ω
6dB
DRIVER
AMP
S5
S6
S1
S7
VCC
15
V1.OUT
14
SW1
13
V1
12
GND
11
NC
10
SW2
9
V3
IC370 TC90A69N (S-VIDEO UP CONVERT BOARD) (STR-DE698)
MODE1
TESEOUT
FSC
FIL
PD
VB2
YOUT
VSS1
COUT
VB1
28
27 26 25 24 23 22 21 20 19 18 17 16 15
LPF
VSS2
PLL DET VCO
PED.
CLIP
ADC
VRB
DAC
(8fsc)
INTERPOLATION
1 2 3 4 5 6 7 8 9 10 11 12 13 14
VRT
BIAS
VDD1
DAC
CORING
PEAKING
TESTI1
1/8
KILLER
YCIN
1/2
8fsc 4fsc
DELAY
SYNC CLAMP
IC372 NJM2268D (S-VIDEO UP CONVERT BOARD)
(STR-DE698)
VOUT2
NC
VCC
VIN2
8 7 6 5
6.2dB
AMP
75Ω
DRIVER
VDD4
VSS4
CORING V-ENHANCER
CNR
C-N.C
TEST
KILLER
IC253 LA7213 (S-VIDEO BOARD)
(STR-DE698)
LINE
MEMORY
DYNAMIC COMB FILTER
VDD3
TESTI2
2 3
HD
V-SYNC
SEP
VSS
SYNC
SEP
1
V IN
MEMORY
4 5
VD
LINE
VSS3
VDD
SDA
IIC BUS
VDD2
SCL
TESTI3
CLAMP
CLAMP
75Ω
6.2dB
DRIVER
AMP
1 2 3 4
GND
VIN1
VSAG1
VOUT1
41
Page 42
STR-DE598/DE698/DV10
• IC Pin Descriptions
IC1501 CXD9718BQ (DSP) (DIGITAL Board (2/4))
Pin No. Pin Name I/O Pin Description
1 VSS — Ground
2 XRST I Reset signal input from SYSTEM CONTROL IC
3 EXTIN I Not used (Connect to ground)
4 LRCKI3 I Not used (Connect to ground)
5 VDDI I Power supply pin (+2.7 V)
6 BCKI3 I Not used (Connect to ground)
7 PLOCK O Not used (Open)
8 VSS — Ground
9 MCLK1 I Clock signal input (13.9 MHz)
10 VDDI I Power supply pin (+2.7 V)
11 VSS — Ground
12 MCLK2 O Clock signal output (13.9 MHz)
13 MS I Not used (Fixed at L)
14 SCKOUT O Internal system clock signal output for 8CH DAC IC
15 LRCKI1 I Sampling clock signal input from ADC IC
16 VDDE I Power supply pin (+3.4 V)
17 BCKI1 I Bit clock signal input from ADC IC
18 SDI1 I Audio IF data input from ADC IC
19 LRCKO O Sampling clock signal output for 8CH DAC IC
20 BCKO O Bit clock signal output for 8CH DAC IC
21 VSS — Ground
22 KFSIO I/O Audio clock signal (384fs/256fs) input/output for DIR IC
23 to 26 SDO1 to SDO4 O Digital audio serial data output for 8CH DAC IC
27 SPDIF O Not used (Open)
28 LRCKI2 I Sampling clock signal input from ADC IC
29 BCKI2 I Bit clock signal input from ADC IC
30 SDI2 I Digital audio serial data input from DIR IC
31 VSS — Ground
32 HACN O Acknowledge signal output for SYSTEM CONTROL IC
33 HDIN I Serial data input from SYSTEM CONTROL IC
34 HCLK I Clock signal input from SYSTEM CONTROL IC
35 HDOUT O Serial data output for SYSTEM CONTROL IC
36 HCS I Chip select signal input from SYSTEM CONTROL IC
37 GP12 I GP12 signal input from SYSTEM CONTROL IC
38, 39 GP13, GP14 O Not used (Open)
40 VDDI I Power supply pin (+2.7 V)
41 VSS — Ground
42 GP15 O Not used (Open)
43 OE0 O Not used (Open)
44 CS0 O External memory chip select signal output for D/A converter IC (SDRAM)
45 WE0 O SDRAM write enable signal output for D/A converter IC (SDRAM)
46 VDDE I Power supply pin (+3.4 V)
47 WMD1 I Not used (Fixed at H)
48 VSS — Ground
49 WMD0 I Not used (Fixed at H)
50 PAGE2 O Not used (Open)
51 VSS — Ground
52, 53 PAGE1, PAGE0 O Not used (Open)
54 BOOT I Not used (Connect to ground)
55 TST1 O Not used (Open)
56 BST I Boot stop signal input from SYSTEM CONTROL IC
42
Page 43
STR-DE598/DE698/DV10
Pin No. Pin Name I/O Pin Description
57 MOD1 I Operation mode signal input (L: 386fs, H: 256fs) (Fixed at H)
58 MOD0 I Operation mode signal input (L: single chip mode, H: use prohibited) (Fixed at L)
59 EXLOCK I Error detection signal input from DIR IC
60 VDDI I Power supply pin (+2.7 V)
61 VSS — Ground
62, 63 A17, A16 O Not used (Open)
64 to 66 A15 to A13 O External memory address signal output for D/A converter IC (SDRAM)
67 GP10 O Not used (Open)
68 GP9 O GP9 signal output for SYSTEM CONTROL IC
69 GP8 I Audio signal input from DIR IC
70 VDDI I Power supply pin (+2.7 V)
71 VSS — Ground
72 to 75 D15/GP7 to D12/GP4 I/O External memory data input/output for D/A converter IC (general port)
76 VDDE I Power supply pin (+3.4 V)
77 to 80 D11/GP3 to D8/GP0 I/O External memory data input/output for D/A converter IC (general port)
81 VSS — Ground
82 A9 O External memory address signal output for D/A converter IC (SDRAM)
83 to 85 A12 to A10 O External memory address signal output for D/A converter IC (SDRAM)
86 TDO O Not used (Fixed at H)
87 TMS I Not used (Fixed at H)
88 XTRST I Not used (Fixed at H)
89 TCK I Not used (Fixed at H)
90 TDI I Not used (Fixed at H)
91 VSS — Ground
92 to 97 A8 to A3 O External memory address signal output for D/A converter IC (SDRAM)
98, 99 D7, D6 I/O External memory data input/output for D/A converter IC (SDRAM)
100 VDDI I Power supply pin (+2.7 V)
101 VSS — Ground
102 to 105 D5 to D2 I/O External memory data input/output for D/A converter IC (SDRAM)
106 VDDE I Power supply pin (+3.4 V)
107, 108 D1, D0 I/O External memory data input/output for D/A converter IC (SDRAM)
109, 110 A2, A1 O External memory address signal output for D/A converter IC (SDRAM)
111 VSS — Ground
112 A0 O External memory address signal output for D/A converter IC (SDRAM)
113 PM I PLL initialization signal input from SYSTEM CONTROL IC
114, 115 SDI3, SDI4 I Not used (Open)
116 SYNC I Sync/async select signal input (L: sync, H: async) (Fixed at H)
117 TST2 I Not used (Connect to ground)
118 GP11 I Not used (Connect to ground)
119 TST3 I Not used (Connect to ground)
120 VDDI I Power supply pin (+2.7 V)
43
Page 44
STR-DE598/DE698/DV10
IC1101 MB90488BPF-G-137E1 (SYSTEM CONTROL) (DIGITAL Board (4/4)) (STR-DE598)
IC1101 MB90488BPF-G-110E1 (SYSTEM CONTROL) (DIGITAL Board (4/4)) (STR-DE698/DV10)
Pin No. Pin Name I/O Pin Description
1DATAO I Serial data line signal input from DIR IC
2GP9 I GP9 signal input from DSP IC
3 BST O Boot stop control signal output for DSP IC
4 HCS O Chip select signal output for DSP IC
5HACNIAcknowledge signal input from DSP IC
6 XRST O Reset signal output for DSP IC
7PMOPLL control signal output for DSP IC
8 GP12 O GP12 signal output for DSP IC
9 PCM1800_RST O Reset signal output for ADC IC
10 PCM1608_RST O Reset signal output for 8CH DAC IC
11 VSS — Ground
12 PCM1608_ML O Serial latch signal output for 8CH DAC IC
13 PCM1608_MC O Serial clock signal output for 8CH DAC IC
14 PCM1608_MDI O Serial data output for 8CH DAC IC
15 PCM1608_MDO I Serial data input from 8CH DAC IC
16 T.SERIAL_CLK O Serial clock signal output for tuner pack
17 TUNER_DATA O Serial data output for tuner pack
18 HDOUT I Serial data input from DSP IC
19 HDIN O Serial data output for DSP IC
20 HCLK O Serial data clock signal output for DSP IC
21 DLY_BYPASS O Bypass signal output for DAC IC (STR-DE698/DV10 only)
22 DIR/AD O A/D port signal output for DIR IC (STR-DE698/DV10 only)
23 VCC5 — Power supply pin (+3.4 V)
24 SYS_MUTE O System mute control signal output
25 ANA/DIG O Analog/Digital port signal output
26 UPCON_RST O Not used (Open)
27 FLASH2_VOL/VOL_CLK O Flash programming signal output 2/Volume clock signal output
28 FLASH1/VOL_DATA_LATCH O Flash programming signal output 1/Volume data latch signal output
29 SDA I/O Serial data input/output for EEPROM IC
30 SCL O Clock signal output for EEPROM IC
31 ENC_A O Menu encoder (A) signal output (STR-DE698/DV10 only)
32 ENC_B O Menu encoder (B) signal output (STR-DE698/DV10 only)
33 UPCON O Serial data output for Y/C separation IC (STR-DE698 only)
34 UPCON_CLK O Clock signal output for Y/C separation IC (STR-DE698 only)
35 AVCC — Power supply pin (+3.4 V)
36 AVRH — Power supply pin (+3.4 V)
37 AVSS — Ground
38 to 40 A/D0 to A/D2 I Key signal input (A/D port)
41 VERSION I
42 VSS — Ground
43 RDS_SIG I RDS signal level input (AEP, UK model only)
44 MODEL I Model detection signal input (Fixed at L: STR-DE698, H: STR-DE598/DV10)
45 VOL_ENC (A) I Volume encoder (A) signal input
46 VOL_ENC (B) I Volume encoder (B) signal input
47 BLUE_LED O LED (MULTI CHANNEL DECODING) driver signal output
48 STOP I AC off detection signal input
49 MOD0 — Selection of micon operation mode
50 MOD1 — Not used (Connect to AVCC)
51 MOD2 — Selection of micon operation mode
52 RDS_CLK I RDS data clock signal input (AEP, UK model only)
Destination detection signal input (Fixed at L: US, Canadian model, H: AEP, UK,
Australian model)
44
Page 45
STR-DE598/DE698/DV10
Pin No. Pin Name I/O Pin Description
53 RDS_DATA I RDS data input (AEP, UK model only)
54 SIRCS I SIRCS signal input
55 HP_DETECT I Headphones detection signal input
56 POWER_KEY I Power key detection signal input
57 FL_LAT O Latch signal output for FL driver IC
58 POWER_RY O Power relay driver control signal output
59 FL_DATA O Serial data output for FL driver IC
60 FL_CLK O Clock signal output for FL driver IC
61 PROTECTOR I Protector detection signal input
62 HP_RY O Headphones relay driver control signal output
63 FUSE_DETECT I Fuse open detection signal input
64 NTSC_PAL_SW O NTSC/PAL switch signal output (STR-DE698 only)
65 COMPO_SW2/A1_IN O
66 FRONT_RY O Front speaker A relay driver control signal output
67 SP_B_RY O Front speaker B relay driver control signal output
68 C/SB_RY O Center speaker relay driver control signal output
69 REAR_RY O Surround speaker relay driver control signal output
70 SW_RY O Sub woofer relay driver control signal output
71 COMPO_SW1/A1_OUT O
72 BRIDGEABLE_RY O Bridgeable relay driver control signal output
73 DO I Tuner serial data input
74 SLATCH O Tuner latch signal output
75 TUNED I Tuned signal detection input
76 STEREO I Stereo signal detection input
77 RSTX I Reset signal input
78 MUTE O Tuner mute signal output
79 X1A — Not used (Open)
80 X0A — Not used (Connect to VSS)
81 VSS — Ground
82 X0 — Clock signal input (24 MHz)
83 X1 — Clock signal output (24 MHz)
84 VCC3 — Power supply pin (+3.4 V)
85 GROUPING_SW O Not used (Open)
86 to 89 SW1 to SW4 O Video select signal output
90 SELECT2 O Digital input select 2 signal output (STR-DE698/DV10 only)
91 SELECT1 O Digital input select 1 signal output (STR-DE698/DV10 only)
92 BST_SEL O 96/24 signal output for DSP IC
93 XMODE O Xmode signal output for DIR IC
94 CKSEL1 O Clock select signal output for DIR IC
95 CLK O Data clock signal output for DIR IC
96 CE O Latch signal output for DIR IC
97 DI O Data output for DIR IC
98 DO I Data input from DIR IC
99 ERROR I Error detection signal input from DIR IC
100 XSTATE I Xstate signal input from DIR IC
COMPONENT VIDEO switch 2 signal output (Except STR-DE598: AEP, UK
model only)
COMPONENT VIDEO switch 1 signal output (Except STR-DE598: AEP, UK
model only)
45
Page 46
STR-DE598/DE698/DV10
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•Abbreviation
CND: Canadian model
AUS: Australian model
5-1. CASE SECTION
SECTION 5
EXPLODED VIEWS
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
R
Parts Color Cabinet’s Color
• Accessories are given in the last of this parts list.
R
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
#1
#1
2
1
2
#1
Ref. No. Part No. Description Remark
1 4-232-418-02 CASE (BLACK)...(BLACK) (DE598)
1 4-232-418-61 CASE (SILVER)...(SILVER) (DE598)
1 4-246-009-02 CASE (DE9) (BLACK)...(BLACK) (DE698)
1 4-246-009-61 CASE (DE9) (SILVER)...(SILVER) (DE698/DV10)
46
#1
Ref. No. Part No. Description Remark
2 3-363-099-02 SCREW (CASE 3 TP2) (BLACK)...(BLACK)
2 3-363-099-11 SCREW (CASE 3 TP2) (SILVER)...(SILVER)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Page 47
5-2. FRONT P ANEL SECTION
not supplied
(VIDEO3 board) (DE598)
(VIDEO3 (DE61) board) (DE698/DV10)
not supplied
(HEADPHONE board)
55
not supplied
(TUNING board)
55
55
not supplied
(POWER board)
STR-DE598/DE698/DV10
55
56
55
55
55
supplied with
RV101
55
not supplied
(OPT3 board)
51
FL101
not supplied
54
53
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-2024-656-1 FRONT PANEL ASSY (BLACK)...(BLACK)
51 X-2024-658-1 FRONT PANEL ASSY (SILVER)...(SILVER)
51 X-2024-659-1 FRONT PANEL ASSY (BLACK)...(BLACK)
51 X-2024-661-1 FRONT PANEL ASSY (BLACK)...(BLACK)
51 X-2024-662-1 FRONT PANEL ASSY (SILVER)...(SILVER)
51 X-2024-700-1 FRONT PANEL ASSY (SILVER)...(SILVER)
51 X-2024-728-1 FRONT PANEL ASSY (BLACK)...(BLACK)
51 X-2024-729-1 FRONT PANEL ASSY (BLACK)...(BLACK)
51 X-2024-730-1 FRONT PANEL ASSY (BLACK)...(BLACK)
51 X-2024-743-1 FRONT PANEL ASSY (SILVER)...(SILVER)
supplied with
RV102
(DE598:US)
(DE598:US)
(DE598:CND,AUS)
(DE598:AEP,UK)
(DE598:AEP,UK)
(DE598:AUS)
(DE698:US)
(DE698:CND,AUS)
(DE698:AEP,UK)
(DE698:AEP,UK)
52
52 4-977-358-01 CUSHION
53 4-232-113-01 KNOB (VOL) (BLACK)...(BLACK)
53 4-232-113-31 KNOB (VOL) (SILVER)...(SILVER)
54 4-252-389-01 KNOB (MENU) (BLACK)...(BLACK) (DE698)
54 4-252-389-31 KNOB (MENU) (SILVER)...(SILVER)
(DE698/DV10)
55 3-087-053-01 +BVTP2.6 (3CR)
56 A-1084-338-A DISPLAY BOARD, COMPLETE (DE598)
56 A-1084-994-A DISPLAY BOARD, COMPLETE (DE698/DV10)
FL101 1-518-966-11 VACUUM FLUORESCENT DISPLAY
51 X-2024-755-1 FRONT PANEL ASSY (SILVER)...(SILVER)
(DE698:AUS)
51 X-2025-424-1 FRONT PANEL ASSY (SILVER)...(SILVER)
(DV10)
47
Page 48
STR-DE598/DE698/DV10
d
5-3. BACK PANEL SECTION
not supplied
(SPEAKER B (P) board) (DE598)
(SPEAKER B (S) board) (DE698/DV10)
109
not supplied
(SPEAKER C/SB board)
108
107
110
105
106
A
#1
104
#1
#1
TN1
#1
102
#1
#1
#1
#1
#1
#1
#1
not supplied
#1
103
#1
#1
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-1084-347-A DIGITAL BOARD, COMPLETE (DE598:US,CND)
101 A-1084-409-A DIGITAL BOARD, COMPLETE (DE598:AEP,UK)
101 A-1084-603-A DIGITAL BOARD, COMPLETE (DE598:AUS)
101 A-1084-997-A DIGITAL BOARD, COMPLETE (DE698:US,CND)
101 A-1085-103-A DIGITAL BOARD, COMPLETE (DE698:AEP,UK)
101 A-1085-213-A DIGITAL BOARD, COMPLETE (DE698:AUS)
101 A-1089-520-A DIGITAL BOARD, COMPLETE (DV10)
102 1-828-963-11 WIRE (FLAT TYPE) (11 CORE) (US,CND,AUS)
102 1-828-980-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK)
103 1-828-972-11 WIRE (FLAT TYPE) (13 CORE)
104 A-1084-974-A S-VIDEO UP CONVERT BOARD, COMPLETE
(DE698:US,CND)
104 A-1085-099-A S-VIDEO UP CONVERT BOARD, COMPLETE
(DE698:AEP,UK,AUS)
105 1-828-954-11 WIRE (FLAT TYPE) (9 CORE) (DE698)
106 A-1084-978-A S-VIDEO BOARD, COMPLETE (DE698)
106 A-1098-467-A S-VIDEO BOARD, COMPLETE (DV10)
107 A-1084-344-A VIDEO BOARD, COMPLETE
107 A-1084-408-A VIDEO BOARD, COMPLETE (DE598:AEP,UK)
107 A-1084-442-A VIDEO BOARD, COMPLETE (DE698)
107 A-1097-367-A VIDEO BOARD, COMPLETE (DV10)
108 1-828-954-11 WIRE (FLAT TYPE) (9 CORE) (DE698/DV10)
* 109 3-703-244-00 BUSHING (2104), CORD
0 110 1-777-071-83 CORD, POWER (AEP,UK)
0 110 1-783-820-11 CORD, POWER (US,CND)
0 110 1-827-295-22 CORD, POWER (AUS)
TN1 1-693-675-11 TUNER PACK (ANTENNA) (DE598:US,CND)
TN1 1-693-675-21 TUNER PACK (ANTENNA)
TN1 1-693-676-11 TUNER PACK (ANTENNA) (DE698:AEP,UK)
TN1 1-693-676-21 TUNER PACK (ANTENNA) (DE598:AEP,UK)
TN1 1-693-678-11 TUNER PACK (ANTENNA) (AUS)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
101
not supplie
A
(DE598:US,CND,AUS)
(DE698:US,CND/DV10)
48
Page 49
STR-DE598/DE698/DV10

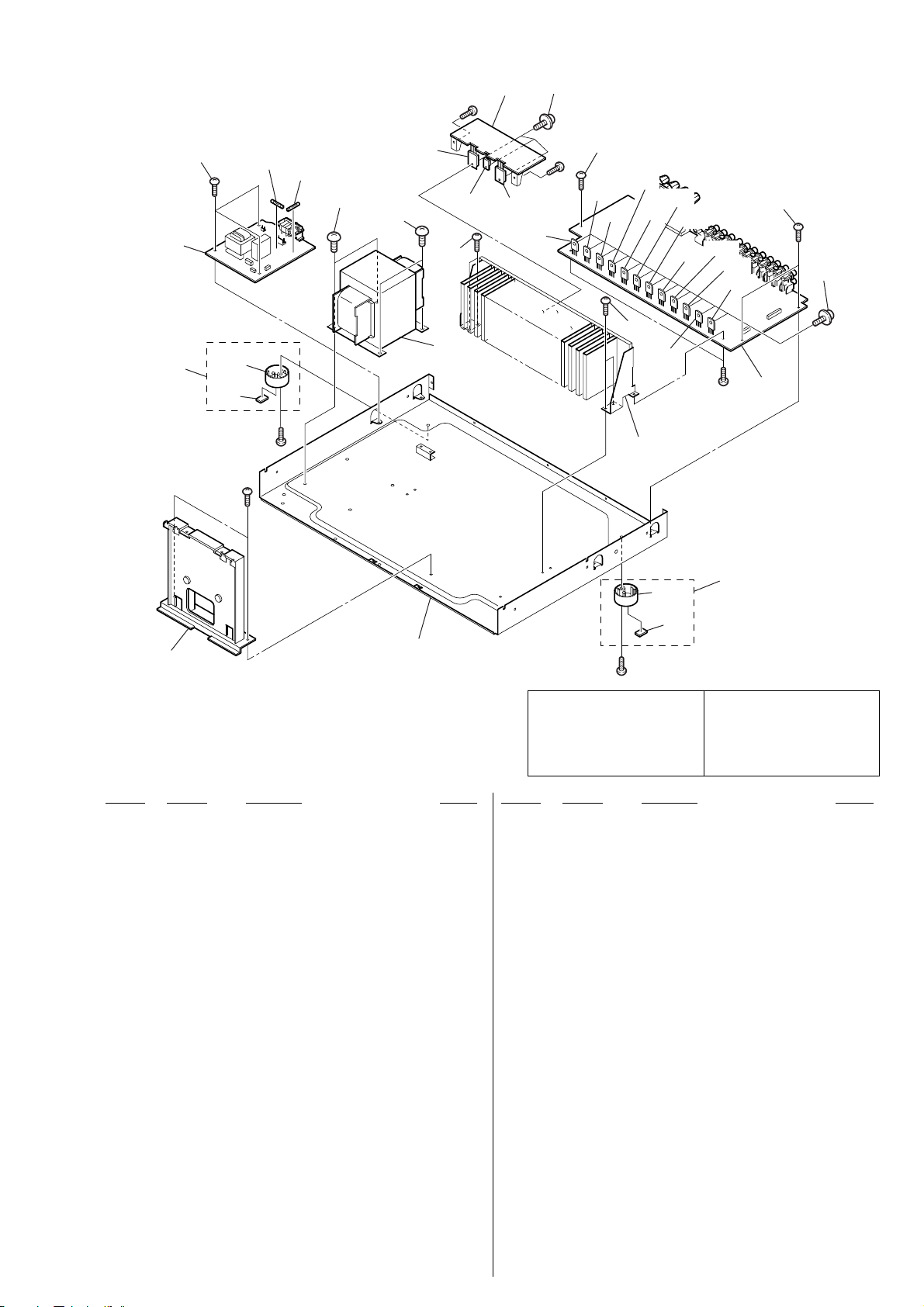

5-4. CHASSIS SECTION
160
F901
155
151
152
153
#1
#1
F902
156
156
Q2573
Q572
160
T901
#1
157
Q2574
Q604
158
#1
160
Q603
Q754
Q753
Q653
Q654
Q704
Q703
160
Q534
not supplied
Q504
Q503
Q533
#1
160
158
159
152
151
153
154
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 X-4953-448-1 FOOT ASSY
152 4-232-237-01 FOOT (DIA. 30)
153 4-977-358-01 CUSHION
154 4-233-263-01 SUB MOLD (DE9)
155 A-1084-334-A STANDBY BOARD, COMPLETE (DE598:US,CND)
155 A-1084-405-A STANDBY BOARD, COMPLETE
155 A-1084-969-A STANDBY BOARD, COMPLETE
155 A-1085-098-A STANDBY BOARD, COMPLETE (DE698:AEP,UK)
155 A-1085-210-A STANDBY BOARD, COMPLETE (DE698:AUS)
156 4-249-675-01 +BV SUMITITE S 4X6 ROUND
157 A-1084-980-A SB AMP BOARD, COMPLETE (DE698/DV10)
158 3-905-609-01 SCREW (TRANSISTOR)
159 A-1084-332-A MAIN BOARD, COMPLETE (DE598:US)
159 A-1084-399-A MAIN BOARD, COMPLETE (DE598:CND)
159 A-1084-404-A MAIN BOARD, COMPLETE (DE598:AEP,UK)
159 A-1084-563-A MAIN BOARD, COMPLETE (DE698:US/DV10)
159 A-1084-705-A MAIN BOARD, COMPLETE (DE698:CND)
159 A-1085-097-A MAIN BOARD, COMPLETE (DE698:AEP,UK)
159 A-1097-809-A MAIN BOARD, COMPLETE (DE598:AUS)
159 A-1097-810-A MAIN BOARD, COMPLETE (DE698:AUS)
not supplied
(DE598:AEP,UK,AUS)
(DE698:US,CND/DV10)
#1
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
0 F902 1-532-464-33 FUSE (T2.5AL/250V) (DE698:AEP,UK,AUS)
0 F902 1-533-453-12 FUSE, GLASS TUBE (DIA. 5) (5A/125V)
Q503 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q504 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q533 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q534 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q572 8-729-026-08 TRANSISTOR 2SC4495 (DE698/DV10)
Q603 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q604 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q653 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q654 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q703 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q704 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q753 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q754 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q2573 6-702-390-01 TRANSISTOR MN2488-OPY-MK (DE698/DV10)
Q2754 6-702-391-01 TRANSISTOR MP1620-OPY-MK (DE698/DV10)
0 T901 1-439-550-21 TRANSFORMER, POWER (AEP,UK,AUS)
0 T901 1-439-611-11 TRANSFORMER, POWER (US,CND)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
(DE698:US,CND/DV10)
160 3-077-331-21 +BV3 (3-CR)
0 F901 1-532-464-33 FUSE (T2.5AL/250V) (AEP,UK,AUS)
0 F901 1-533-454-12 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V)
(US,CND)
49
Page 50
STR-DE598/DE698/DV10
SECTION 6
DIGITAL
NOTE:
• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-1084-347-A DIGITAL BOARD, COMPLETE (DE598:US,CND)
A-1084-409-A DIGITAL BOARD, COMPLETE (DE598:AEP,UK)
A-1084-603-A DIGITAL BOARD, COMPLETE (DE598:AUS)
A-1084-997-A DIGITAL BOARD, COMPLETE (DE698:US,CND)
A-1085-103-A DIGITAL BOARD, COMPLETE (DE698:AEP,UK)
A-1085-213-A DIGITAL BOARD, COMPLETE (DE698:AUS)
A-1089-520-A DIGITAL BOARD, COMPLETE (DV10)
***********************
7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
< CAPACITOR >
C1001 1-126-925-11 ELECT 470uF 20% 10V
C1002 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1004 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C1021 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1022 1-126-925-11 ELECT 470uF 20% 10V
C1031 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1032 1-126-925-11 ELECT 470uF 20% 10V
C1045 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V
C1046 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1047 1-104-662-11 ELECT 22uF 20% 25V
C1063 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1064 1-126-947-11 ELECT 47uF 20% 35V
C1100 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1102 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1103 1-126-947-11 ELECT 47uF 20% 35V
C1107 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1108 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1118 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1119 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1120 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1121 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1122 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1123 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1124 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1125 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C1126 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C1128 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
ELECTRICAL PARTS LIST
• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
• CAPACITORS
uF : µF
• COILS
uH : µH
•Abbreviation
CND : Canadian model
AUS: Australian model
C1129 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1130 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1131 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1132 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1137 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1138 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1139 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1140 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1141 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1142 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1149 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C1251 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1252 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1253 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1254 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C1255 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
(DE698/DV10)
(DE698/DV10)
(DE698/DV10)
(AEP,UK)
(AEP,UK)
(DE698/DV10)
(DE698/DV10)
C1299 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1301 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1302 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1303 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1304 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1305 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1306 1-126-947-11 ELECT 47uF 20% 35V
C1308 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1309 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C1310 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C1312 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1313 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C1314 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1315 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1316 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1317 1-126-925-11 ELECT 470uF 20% 10V
C1351 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1352 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1353 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1354 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1355 1-104-662-11 ELECT 22uF 20% 25V
C1356 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C1357 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
(DE698/DV10)
(DE698/DV10)
(DE698/DV10)
(DE698/DV10)
(DE698/DV10)
(DE698/DV10)
(DE698/DV10)
50
Page 51
STR-DE598/DE698/DV10
DIGIT AL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C1358 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1359 1-126-916-11 ELECT 1000uF 20% 6.3V
C1360 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C1361 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1362 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1513 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1514 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1515 1-126-925-11 ELECT 470uF 20% 10V
C1516 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1517 1-126-925-11 ELECT 470uF 20% 10V
C1401 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1402 1-126-947-11 ELECT 47uF 20% 35V
C1403 1-126-964-11 ELECT 10uF 20% 50V
C1404 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1405 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C1406 1-126-963-11 ELECT 4.7uF 20% 50V
C1407 1-126-963-11 ELECT 4.7uF 20% 50V
C1408 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C1409 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1411 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
C1413 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C1418 1-126-964-11 ELECT 10uF 20% 50V
C1422 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
C1423 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C1428 1-126-964-11 ELECT 10uF 20% 50V
C1432 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
C1433 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C1438 1-126-964-11 ELECT 10uF 20% 50V
C1441 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
C1442 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C1448 1-126-964-11 ELECT 10uF 20% 50V
C1450 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1451 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
C1453 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C1454 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1518 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1519 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1520 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1521 1-162-920-11 CERAMIC CHIP 27PF 5% 50V
C1522 1-162-920-11 CERAMIC CHIP 27PF 5% 50V
C1525 1-126-925-11 ELECT 470uF 20% 10V
C1531 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
(DE698/DV10)
C1532 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
(DE698/DV10)
C1533 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
(DE698/DV10)
C1534 1-162-974-11 CERAMIC CHIP 0.01uF 50V
(DE698/DV10)
C1535 1-126-964-11 ELECT 10uF 20% 50V
(DE698/DV10)
C1547 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C1557 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C1558 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
(DE698/DV10)
C1566 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C1567 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C1568 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C1569 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C1604 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1605 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1457 1-126-964-11 ELECT 10uF 20% 50V
C1458 1-126-964-11 ELECT 10uF 20% 50V
C1460 1-126-964-11 ELECT 10uF 20% 50V
C1462 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
C1463 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C1468 1-126-964-11 ELECT 10uF 20% 50V
C1472 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
C1473 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C1478 1-126-964-11 ELECT 10uF 20% 50V
C1481 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C1483 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
C1487 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C1488 1-126-964-11 ELECT 10uF 20% 50V
(DE698/DV10)
C1491 1-126-964-11 ELECT 10uF 20% 50V
C1494 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1495 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C1501 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1502 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1503 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1504 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1505 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1506 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1507 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1508 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1509 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1510 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1511 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1620 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1905 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1906 1-126-925-11 ELECT 470uF 20% 10V
C1908 1-126-925-11 ELECT 470uF 20% 10V
C1913 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1914 1-126-947-11 ELECT 47uF 20% 35V
< CONNECTOR >
CNP503 1-779-977-11 PIN, CONNECTOR 6P
CNP504 1-784-922-11 PIN, CONNECTOR 5P
CNP505 1-779-799-11 PIN, CONNECTOR 9P
CNS501 1-573-829-11 CONNECTOR, BOARD TO BOARD 15P
CNS502 1-766-719-41 CONNECTOR, BOARD TO BOARD 10P
CNS504 1-568-826-11 CONNECTOR, FFC 7P
CNS505 1-568-838-11 CONNECTOR, FFC 21P
CNS508 1-568-830-11 CONNECTOR, FFC 11P (US,CND,AUS)
CNS508 1-784-776-11 CONNECTOR, FFC 15P (AEP,UK)
CNS509 1-784-774-11 CONNECTOR, FFC 13P
< DIODE >
D1001 8-719-053-18 DIODE 1SR154-400TE-25
D1003 8-719-049-09 DIODE 1SS367-T3SONY
D1004 8-719-049-09 DIODE 1SS367-T3SONY
D1103 8-719-988-61 DIODE 1SS355TE-17
D1105 8-719-988-61 DIODE 1SS355TE-17
D1106 8-719-988-61 DIODE 1SS355TE-17
D1107 8-719-988-61 DIODE 1SS355TE-17
D1108 8-719-988-61 DIODE 1SS355TE-17
51
Page 52
STR-DE598/DE698/DV10
DIGITAL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
D1110 8-719-988-61 DIODE 1SS355TE-17
D1111 8-719-988-61 DIODE 1SS355TE-17
D1301 8-719-988-61 DIODE 1SS355TE-17
D1302 8-719-988-61 DIODE 1SS355TE-17
J1301 1-818-314-11 JACK, PIN 2P (DIGITAL DVD IN (COAXIAL),
SA-CD/CD IN (COAXIAL)) (DE698/DV10)
< JUMPER RESISTOR >
< FERRITE BEAD >
FB1101 1-400-862-11 BEAD, FERRITE
FB1302 1-400-862-11 BEAD, FERRITE
FB1305 1-400-862-11 BEAD, FERRITE
FB1306 1-400-862-11 BEAD, FERRITE
FB1308 1-400-862-11 BEAD, FERRITE
FB1309 1-400-862-11 BEAD, FERRITE (DE698/DV10)
FB1405 1-400-862-11 BEAD, FERRITE
FB1452 1-400-862-11 BEAD, FERRITE
FB1453 1-400-862-11 BEAD, FERRITE
FB1501 1-400-862-11 BEAD, FERRITE
FB1502 1-400-862-11 BEAD, FERRITE
FB1503 1-400-862-11 BEAD, FERRITE
FB1504 1-400-862-11 BEAD, FERRITE (DE698/DV10)
< IC >
IC1001 8-759-231-53 IC TA7805S
IC1031 6-705-464-01 IC BA50BC0T
IC1071 6-702-771-01 IC TA78033LS (AEP,UK)
IC1101 6-804-835-01 IC MB90488BPF-G-110E1 (DE698/DV10)
IC1101 6-805-148-01 IC MB90488BPF-G-137E1 (DE598)
IC1103 8-759-242-70 IC TC7WU04F (DE698/DV10)
IC1111 6-702-913-01 IC S-80929CNMC-G8ZT2G
IC1131 6-704-004-01 IC BR24L16F-WE2
IC1301 8-759-825-15 IC LC89056W-E
IC1302 8-759-595-15 IC TC74ACT153F(EL) (DE698/DV10)
IC1303 8-759-242-70 IC TC7WU04F
IC1351 6-600-014-01 IC TORX141L (DIGITAL
VIDEO 2 IN (OPTICAL))
IC1352 6-600-014-01 IC TORX141L (DIGITAL
MD/TAPE IN (OPTICAL)) (DE698/DV10)
IC1353 6-600-012-11 IC TOTX141L(RED) (DIGITAL
MD/TAPE OUT (OPTICAL)) (DE698/DV10)
IC1354 6-600-014-01 IC TORX141L (DIGITAL
SA-CD/CD IN (OPTICAL))
IC1401 8-759-560-56 IC PCM1800E/2K
IC1403 8-759-710-97 IC NJM4565M-D
IC1404 8-759-710-97 IC NJM4565M-D
IC1405 8-759-710-97 IC NJM4565M-D
IC1406 8-759-710-97 IC NJM4565M-D
IC1452 6-703-787-01 IC PCM1609KPTR
IC1501 6-705-900-01 IC CXD9718BQ
IC1502 6-704-037-01 IC IC61LV6416-15TG
IC1503 8-759-546-74 IC TC7WH157FU(TE12R)
IC1506 8-759-546-74 IC TC7WH157FU(TE12R) (DE698/DV10)
IC1507 6-707-666-01 IC NJU26902VM1-TE2 (DE698/DV10)
IC1901 6-701-887-02 IC SI-3004KWF
IC1902 6-703-550-01 IC TA7809LS
IC1904 6-705-463-01 IC BA33BC0T
< JACK >
J1301 1-794-972-11 JACK, PIN 1P (DIGITAL DVD IN (COAXIAL))
(DE598)
JR1020 1-216-864-11 SHORT CHIP 0
JR1201 1-211-950-11 SHORT CHIP 0
JR1202 1-216-864-11 SHORT CHIP 0 (US,CND,AUS)
JR1203 1-216-296-11 SHORT CHIP 0
JR1204 1-211-950-11 SHORT CHIP 0
JR1206 1-211-950-11 SHORT CHIP 0
JR1211 1-216-296-11 SHORT CHIP 0
JR1212 1-216-296-11 SHORT CHIP 0
JR1214 1-216-296-11 SHORT CHIP 0
JR1215 1-216-296-11 SHORT CHIP 0
JR1302 1-216-864-11 SHORT CHIP 0 (DE598)
JR1303 1-216-864-11 SHORT CHIP 0 (DE598)
JR1501 1-216-864-11 SHORT CHIP 0
JR1511 1-400-862-11 BEAD, FERRITE
< TRANSISTOR >
Q1103 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q1104 8-729-230-49 TRANSISTOR 2SC2712-YG
Q1105 8-729-230-49 TRANSISTOR 2SC2712-YG
< RESISTOR >
R1018 1-216-864-11 SHORT CHIP 0 (DE598)
R1019 1-216-864-11 SHORT CHIP 0 (DE598)
R1035 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1039 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1041 1-216-809-11 METAL CHIP 100 5% 1/10W
R1042 1-216-809-11 METAL CHIP 100 5% 1/10W
R1044 1-216-809-11 METAL CHIP 100 5% 1/10W
R1049 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1052 1-216-833-11 METAL CHIP 10K 5% 1/10W
(DE598)
R1053 1-216-833-11 METAL CHIP 10K 5% 1/10W
(DE598)
R1055 1-216-809-11 METAL CHIP 100 5% 1/10W
(DE698/DV10)
R1056 1-216-854-11 METAL CHIP 560K 5% 1/10W
(DE698/DV10)
R1057 1-216-837-11 METAL CHIP 22K 5% 1/10W
(DE698/DV10)
R1058 1-216-813-11 METAL CHIP 220 5% 1/10W
(AEP,UK)
R1059 1-216-813-11 METAL CHIP 220 5% 1/10W
(AEP,UK)
R1060 1-216-821-11 METAL CHIP 1K 5% 1/10W
(DE698/DV10)
R1061 1-216-809-11 METAL CHIP 100 5% 1/10W
(EXCEPT DE598:AEP,UK)
R1062 1-216-809-11 METAL CHIP 100 5% 1/10W
(EXCEPT DE598:AEP,UK)
R1063 1-216-809-11 METAL CHIP 100 5% 1/10W
(DE698)
R1065 1-216-809-11 METAL CHIP 100 5% 1/10W
R1066 1-216-809-11 METAL CHIP 100 5% 1/10W
R1067 1-216-809-11 METAL CHIP 100 5% 1/10W
R1068 1-216-809-11 METAL CHIP 100 5% 1/10W
R1070 1-216-864-11 SHORT CHIP 0 (DE698/DV10)
52
Page 53
STR-DE598/DE698/DV10
DIGIT AL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R1071 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1072 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1073 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1075 1-216-833-11 METAL CHIP 10K 5% 1/10W
(DE598:AEP,UK)
R1076 1-216-809-11 METAL CHIP 100 5% 1/10W
R1077 1-216-809-11 METAL CHIP 100 5% 1/10W
R1078 1-216-809-11 METAL CHIP 100 5% 1/10W
R1079 1-216-833-11 METAL CHIP 10K 5% 1/10W
(DE598:AEP,UK)
R1082 1-216-809-11 METAL CHIP 100 5% 1/10W
R1083 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1085 1-216-809-11 METAL CHIP 100 5% 1/10W
(DE698/DV10)
R1086 1-216-809-11 METAL CHIP 100 5% 1/10W
(DE698/DV10)
R1088 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1094 1-216-833-11 METAL CHIP 10K 5% 1/10W
(US,CND,AUS)
R1095 1-216-833-11 METAL CHIP 10K 5% 1/10W
(US,CND,AUS)
R1096 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1097 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1098 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1099 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1105 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1106 1-216-809-11 METAL CHIP 100 5% 1/10W
R1107 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1108 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1109 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1110 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1149 1-216-809-11 METAL CHIP 100 5% 1/10W
R1150 1-216-809-11 METAL CHIP 100 5% 1/10W
R1151 1-216-809-11 METAL CHIP 100 5% 1/10W
R1152 1-216-809-11 METAL CHIP 100 5% 1/10W
R1153 1-216-809-11 METAL CHIP 100 5% 1/10W
R1154 1-216-809-11 METAL CHIP 100 5% 1/10W
R1155 1-216-809-11 METAL CHIP 100 5% 1/10W
R1159 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1160 1-216-809-11 METAL CHIP 100 5% 1/10W
R1161 1-216-809-11 METAL CHIP 100 5% 1/10W
R1162 1-216-809-11 METAL CHIP 100 5% 1/10W
R1163 1-216-841-11 METAL CHIP 47K 5% 1/10W
(DE598/DV10)
R1164 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
(DV10)
R1164 1-216-841-11 METAL CHIP 47K 5% 1/10W
(DE598)
R1164 1-216-864-11 SHORT CHIP 0 (DE698)
R1167 1-216-809-11 METAL CHIP 100 5% 1/10W
R1168 1-216-809-11 METAL CHIP 100 5% 1/10W
R1175 1-216-809-11 METAL CHIP 100 5% 1/10W
(AEP,UK)
R1176 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1177 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1178 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1179 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1180 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1181 1-216-833-11 METAL CHIP 10K 5% 1/10W
(DE698/DV10)
R1182 1-216-833-11 METAL CHIP 10K 5% 1/10W
(DE698/DV10)
R1111 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1112 1-216-809-11 METAL CHIP 100 5% 1/10W
R1113 1-216-809-11 METAL CHIP 100 5% 1/10W
R1114 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1115 1-216-809-11 METAL CHIP 100 5% 1/10W
R1117 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1118 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1119 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1120 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1121 1-216-809-11 METAL CHIP 100 5% 1/10W
R1122 1-216-809-11 METAL CHIP 100 5% 1/10W
R1123 1-216-809-11 METAL CHIP 100 5% 1/10W
R1124 1-216-809-11 METAL CHIP 100 5% 1/10W
R1127 1-216-809-11 METAL CHIP 100 5% 1/10W
R1128 1-216-809-11 METAL CHIP 100 5% 1/10W
R1129 1-216-809-11 METAL CHIP 100 5% 1/10W
R1132 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1134 1-216-809-11 METAL CHIP 100 5% 1/10W
R1135 1-216-809-11 METAL CHIP 100 5% 1/10W
R1136 1-216-809-11 METAL CHIP 100 5% 1/10W
R1137 1-216-809-11 METAL CHIP 100 5% 1/10W
R1138 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1140 1-216-809-11 METAL CHIP 100 5% 1/10W
R1142 1-216-809-11 METAL CHIP 100 5% 1/10W
R1143 1-216-809-11 METAL CHIP 100 5% 1/10W
R1144 1-216-809-11 METAL CHIP 100 5% 1/10W
R1147 1-216-833-11 METAL CHIP 10K 5% 1/10W
(DE598/DV10)
R1186 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1187 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1189 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1190 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1191 1-216-833-11 METAL CHIP 10K 5% 1/10W
(DE698/DV10)
R1192 1-216-833-11 METAL CHIP 10K 5% 1/10W
(DE698/DV10)
R1193 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
(DE698:AUS)
R1193 1-216-837-11 METAL CHIP 22K 5% 1/10W
(DE598:AUS)
R1193 1-216-841-11 METAL CHIP 47K 5% 1/10W
(AEP,UK)
R1194 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
(AEP,UK)
R1194 1-216-841-11 METAL CHIP 47K 5% 1/10W
(AUS)
R1194 1-216-864-11 SHORT CHIP 0 (US,CND)
R1197 1-216-809-11 METAL CHIP 100 5% 1/10W
(DE698)
R1198 1-216-864-11 SHORT CHIP 0 (DE698)
R1199 1-216-864-11 SHORT CHIP 0 (DE698)
R1201 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1251 1-216-840-11 METAL CHIP 39K 5% 1/10W
R1252 1-216-840-11 METAL CHIP 39K 5% 1/10W
R1260 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1261 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1301 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
53
Page 54
STR-DE598/DE698/DV10
DIGITAL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R1302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1303 1-216-839-11 METAL CHIP 33K 5% 1/10W
R1304 1-216-809-11 METAL CHIP 100 5% 1/10W
R1305 1-216-819-11 METAL CHIP 680 5% 1/10W
R1306 1-216-801-11 METAL CHIP 22 5% 1/10W
R1470 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1471 1-216-864-11 SHORT CHIP 0
R1472 1-216-864-11 SHORT CHIP 0
R1473 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1474 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1307 1-216-809-11 METAL CHIP 100 5% 1/10W
R1308 1-216-809-11 METAL CHIP 100 5% 1/10W
R1309 1-216-809-11 METAL CHIP 100 5% 1/10W
R1310 1-216-857-11 METAL CHIP 1M 5% 1/10W
R1311 1-216-809-11 METAL CHIP 100 5% 1/10W
R1312 1-216-809-11 METAL CHIP 100 5% 1/10W
R1313 1-216-809-11 METAL CHIP 100 5% 1/10W
R1314 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1315 1-216-809-11 METAL CHIP 100 5% 1/10W
R1316 1-216-809-11 METAL CHIP 100 5% 1/10W
R1318 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1351 1-216-809-11 METAL CHIP 100 5% 1/10W
R1352 1-216-809-11 METAL CHIP 100 5% 1/10W
(DE698/DV10)
R1353 1-216-809-11 METAL CHIP 100 5% 1/10W
(DE698/DV10)
R1354 1-216-809-11 METAL CHIP 100 5% 1/10W
R1355 1-218-285-11 METAL CHIP 75 5% 1/10W
R1356 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1357 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1358 1-216-854-11 METAL CHIP 560K 5% 1/10W
R1359 1-216-809-11 METAL CHIP 100 5% 1/10W
R1360 1-216-809-11 METAL CHIP 100 5% 1/10W
R1361 1-216-809-11 METAL CHIP 100 5% 1/10W
(DE698/DV10)
R1362 1-216-809-11 METAL CHIP 100 5% 1/10W
R1366 1-218-285-11 METAL CHIP 75 5% 1/10W
(DE698/DV10)
R1401 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1402 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1403 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1407 1-216-809-11 METAL CHIP 100 5% 1/10W
R1414 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1416 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1420 1-216-864-11 SHORT CHIP 0
R1421 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1424 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1425 1-216-864-11 SHORT CHIP 0
R1426 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1434 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1435 1-216-864-11 SHORT CHIP 0
R1436 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1444 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1445 1-216-864-11 SHORT CHIP 0
R1446 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1454 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1455 1-216-864-11 SHORT CHIP 0
R1456 1-216-821-11 METAL CHIP 1K 5% 1/10W
(DE698/DV10)
R1460 1-216-864-11 SHORT CHIP 0
R1461 1-216-864-11 SHORT CHIP 0
R1463 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1464 1-216-864-11 SHORT CHIP 0
R1466 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1475 1-216-864-11 SHORT CHIP 0
R1476 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1483 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1484 1-216-864-11 SHORT CHIP 0
R1486 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1490 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1491 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1492 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1493 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1494 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1495 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1500 1-216-809-11 METAL CHIP 100 5% 1/10W
(DE698/DV10)
R1501 1-216-809-11 METAL CHIP 100 5% 1/10W
R1502 1-216-809-11 METAL CHIP 100 5% 1/10W
R1503 1-216-813-11 METAL CHIP 220 5% 1/10W
R1504 1-216-809-11 METAL CHIP 100 5% 1/10W
R1505 1-216-809-11 METAL CHIP 100 5% 1/10W
R1506 1-216-809-11 METAL CHIP 100 5% 1/10W
R1507 1-216-809-11 METAL CHIP 100 5% 1/10W
R1508 1-216-809-11 METAL CHIP 100 5% 1/10W
R1509 1-216-809-11 METAL CHIP 100 5% 1/10W
R1510 1-216-809-11 METAL CHIP 100 5% 1/10W
R1511 1-216-809-11 METAL CHIP 100 5% 1/10W
R1512 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1513 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1514 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1515 1-216-857-11 METAL CHIP 1M 5% 1/10W
R1517 1-216-813-11 METAL CHIP 220 5% 1/10W
R1518 1-216-813-11 METAL CHIP 220 5% 1/10W
R1519 1-216-813-11 METAL CHIP 220 5% 1/10W
R1520 1-216-813-11 METAL CHIP 220 5% 1/10W
R1521 1-216-813-11 METAL CHIP 220 5% 1/10W
R1522 1-216-813-11 METAL CHIP 220 5% 1/10W
R1523 1-216-813-11 METAL CHIP 220 5% 1/10W
R1524 1-216-864-11 SHORT CHIP 0
R1525 1-216-813-11 METAL CHIP 220 5% 1/10W
R1526 1-216-813-11 METAL CHIP 220 5% 1/10W
R1527 1-216-813-11 METAL CHIP 220 5% 1/10W
R1528 1-216-813-11 METAL CHIP 220 5% 1/10W
R1530 1-216-809-11 METAL CHIP 100 5% 1/10W
(DE698/DV10)
R1531 1-216-809-11 METAL CHIP 100 5% 1/10W
(DE698/DV10)
R1532 1-216-813-11 METAL CHIP 220 5% 1/10W
R1533 1-216-813-11 METAL CHIP 220 5% 1/10W
R1534 1-216-813-11 METAL CHIP 220 5% 1/10W
R1535 1-216-813-11 METAL CHIP 220 5% 1/10W
R1536 1-216-813-11 METAL CHIP 220 5% 1/10W
R1537 1-216-813-11 METAL CHIP 220 5% 1/10W
R1538 1-216-813-11 METAL CHIP 220 5% 1/10W
R1539 1-216-813-11 METAL CHIP 220 5% 1/10W
R1540 1-216-813-11 METAL CHIP 220 5% 1/10W
54
Page 55
STR-DE598/DE698/DV10
DIGIT AL DISPLAY
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R1541 1-216-813-11 METAL CHIP 220 5% 1/10W
R1542 1-216-813-11 METAL CHIP 220 5% 1/10W
R1543 1-216-813-11 METAL CHIP 220 5% 1/10W
R1544 1-216-813-11 METAL CHIP 220 5% 1/10W
R1545 1-216-813-11 METAL CHIP 220 5% 1/10W
C135 1-162-286-31 CERAMIC 220PF 10% 50V
C136 1-162-286-31 CERAMIC 220PF 10% 50V
C137 1-162-286-31 CERAMIC 220PF 10% 50V
C138 1-162-286-31 CERAMIC 220PF 10% 50V
C139 1-162-286-31 CERAMIC 220PF 10% 50V
R1546 1-216-813-11 METAL CHIP 220 5% 1/10W
R1547 1-216-813-11 METAL CHIP 220 5% 1/10W
R1548 1-216-813-11 METAL CHIP 220 5% 1/10W
R1549 1-216-813-11 METAL CHIP 220 5% 1/10W
R1550 1-216-813-11 METAL CHIP 220 5% 1/10W
R1551 1-216-813-11 METAL CHIP 220 5% 1/10W
R1552 1-216-813-11 METAL CHIP 220 5% 1/10W
R1553 1-216-813-11 METAL CHIP 220 5% 1/10W
R1554 1-216-813-11 METAL CHIP 220 5% 1/10W
R1555 1-216-813-11 METAL CHIP 220 5% 1/10W
R1556 1-216-809-11 METAL CHIP 100 5% 1/10W
R1570 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1571 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1572 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1573 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1574 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1587 1-216-813-11 METAL CHIP 220 5% 1/10W
(DE698/DV10)
R1588 1-216-833-11 METAL CHIP 10K 5% 1/10W
(DE698/DV10)
R1635 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1636 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
< VIBRATOR >
X1101 1-813-448-21 OSCILLATOR, PIEZOELECTRIC (24MHz)
X1301 1-795-126-21 VIBRATOR, CRYSTAL (12.288MHz)
X1502 1-813-276-21 QUARTZ, CRYSTAL (13.9MHz)
*************************************************************
C140 1-162-286-31 CERAMIC 220PF 10% 50V
C141 1-162-286-31 CERAMIC 220PF 10% 50V
C142 1-162-286-31 CERAMIC 220PF 10% 50V
C143 1-162-286-31 CERAMIC 220PF 10% 50V
C144 1-127-888-11 CERAMIC 0.1uF 10% 50V
C150 1-127-888-11 CERAMIC 0.1uF 10% 50V
C151 1-126-795-11 ELECT 10uF 20% 50V
C152 1-162-286-31 CERAMIC 220PF 10% 50V
C153 1-162-286-31 CERAMIC 220PF 10% 50V
C154 1-162-286-31 CERAMIC 220PF 10% 50V
C155 1-127-888-11 CERAMIC 0.1uF 10% 50V
C156 1-127-888-11 CERAMIC 0.1uF 10% 50V
C157 1-127-888-11 CERAMIC 0.1uF 10% 50V
< CONNECTOR >
CNS100 1-568-838-11 CONNECTOR, FFC 21P
< DIODE >
D101 8-719-061-96 LED SLR-325DCT31 (2CH)
D102 8-719-061-96 LED SLR-325DCT31 (MUSIC)
D103 8-719-061-96 LED SLR-325DCT31 (MOVIE)
D104 8-719-061-96 LED SLR-325DCT31 (A.F.D.)
D105 6-500-647-01 LED SEL5E20C-STP15
(MULTI CHANNEL DECODING)
< VACUUM FLUORESCENT DISPLAY >
FL101 1-518-966-11 VACUUM FLUORESCENT DISPLAY
A-1084-338-A DISPLAY BOARD, COMPLETE (DE598)
A-1084-994-A DISPLAY BOARD, COMPLETE (DE698/DV10)
************************
< CAPACITOR >
C100 1-127-888-11 CERAMIC 0.1uF 10% 50V
C101 1-127-888-11 CERAMIC 0.1uF 10% 50V
C104 1-113-342-11 CERAMIC 0.1uF 50V
(DE598)
C104 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698/DV10)
C105 1-126-795-11 ELECT 10uF 20% 50V
C106 1-127-868-11 CERAMIC 0.0022uF 10% 50V
(DE698/DV10)
C107 1-127-868-11 CERAMIC 0.0022uF 10% 50V
(DE698/DV10)
C108 1-127-888-11 CERAMIC 0.1uF 10% 50V
C109 1-127-888-11 CERAMIC 0.1uF 10% 50V
C110 1-162-286-31 CERAMIC 220PF 10% 50V
C111 1-162-286-31 CERAMIC 220PF 10% 50V
C112 1-162-286-31 CERAMIC 220PF 10% 50V
C114 1-127-888-11 CERAMIC 0.1uF 10% 50V
C115 1-126-795-11 ELECT 10uF 20% 50V
C132 1-162-286-31 CERAMIC 220PF 10% 50V
C133 1-162-286-31 CERAMIC 220PF 10% 50V
C134 1-162-286-31 CERAMIC 220PF 10% 50V
< IC >
IC100 8-759-643-83 IC uPD16315GB-3BS
IC101 8-759-036-90 IC MC74ACT08N
IC102 6-600-349-31 IC NJL24H400A (IR)
< TRANSISTOR >
Q110 8-729-119-78 TRANSISTOR 2SC2785-HFE
< RESISTOR >
R101 1-249-409-11 CARBON 220 5% 1/4W
R102 1-249-411-11 CARBON 330 5% 1/4W
R103 1-249-413-11 CARBON 470 5% 1/4W
R104 1-249-415-11 CARBON 680 5% 1/4W
R105 1-247-831-00 CARBON 1K 5% 1/4W
R106 1-249-419-11 CARBON 1.5K 5% 1/4W
R107 1-249-421-11 CARBON 2.2K 5% 1/4W
R108 1-247-847-00 CARBON 4.7K 5% 1/4W
R109 1-249-429-11 CARBON 10K 5% 1/4W
R110 1-249-435-11 CARBON 33K 5% 1/4W
(DE598)
R111 1-249-421-11 CARBON 2.2K 5% 1/4W
R121 1-249-409-11 CARBON 220 5% 1/4W
R122 1-249-411-11 CARBON 330 5% 1/4W
R123 1-249-413-11 CARBON 470 5% 1/4W
R124 1-249-415-11 CARBON 680 5% 1/4W
55
Page 56
STR-DE598/DE698/DV10
DISPLAY HEADPHONE MAIN
Ref. No. Part No. Description Remark
R125 1-247-831-00 CARBON 1K 5% 1/4W
R128 1-249-419-11 CARBON 1.5K 5% 1/4W
R142 1-249-409-11 CARBON 220 5% 1/4W
R143 1-249-411-11 CARBON 330 5% 1/4W
R144 1-249-413-11 CARBON 470 5% 1/4W
R148 1-249-415-11 CARBON 680 5% 1/4W
R154 1-249-393-11 CARBON 10 5% 1/4W F
R155 1-247-807-31 CARBON 100 5% 1/4W
R160 1-249-409-11 CARBON 220 5% 1/4W
R161 1-247-804-11 CARBON 75 5% 1/4W
R162 1-249-429-11 CARBON 10K 5% 1/4W
R171 1-249-440-11 CARBON 82K 5% 1/4W
R172 1-247-807-31 CARBON 100 5% 1/4W
R173 1-247-807-31 CARBON 100 5% 1/4W
R174 1-247-807-31 CARBON 100 5% 1/4W
R175 1-249-393-11 CARBON 10 5% 1/4W F
R198 1-249-381-11 CARBON 1 5% 1/4W F
R199 1-249-381-11 CARBON 1 5% 1/4W F
< ROTARY ENCODER >
RV101 1-418-817-11 ENCODER, ROTARY (–/+) (DE698/DV10)
RV102 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
< SWITCH >
S100 1-771-410-21 SWITCH, TACTILE (>)
S101 1-771-410-21 SWITCH, TACTILE (INPUT MODE)
S102 1-771-410-21 SWITCH, TACTILE (DVD)
S103 1-771-410-21 SWITCH, TACTILE (MD/TAPE)
S104 1-771-410-21 SWITCH, TACTILE (SA-CD/CD)
S105 1-771-410-21 SWITCH, TACTILE (FM) (DE598)
S105 1-771-410-21 SWITCH, TACTILE (TUNER FM/AM)
(DE698/DV10)
S106 1-771-410-21 SWITCH, TACTILE (MAIN MENU)
S107 1-771-410-21 SWITCH, TACTILE (ENTER)
S108 1-771-410-21 SWITCH, TACTILE (<)
Ref. No. Part No. Description Remark
HEADPHONE BOARD
*****************
< CAPACITOR >
C790 1-127-888-11 CERAMIC 0.1uF 10% 50V
< CONNECTOR >
CNP791 1-691-766-11 PLUG (MICRO CONNECTOR) 4P
< JACK >
J791 1-815-314-21 JACK (PHONES)
*************************************************************
A-1084-332-A MAIN BOARD, COMPLETE (DE598:US)
A-1084-399-A MAIN BOARD, COMPLETE (DE598:CND)
A-1084-404-A MAIN BOARD, COMPLETE (DE598:AEP,UK)
A-1084-563-A MAIN BOARD, COMPLETE (DE698:US/DV10)
A-1084-705-A MAIN BOARD, COMPLETE (DE698:CND)
A-1085-097-A MAIN BOARD, COMPLETE (DE698:AEP,UK)
A-1097-809-A MAIN BOARD, COMPLETE (DE598:AUS)
A-1097-810-A MAIN BOARD, COMPLETE (DE698:AUS)
*********************
7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
< CAPACITOR >
C400 1-127-868-11 CERAMIC 0.0022uF 10% 50V
C403 1-127-868-11 CERAMIC 0.0022uF 10% 50V
C408 1-126-963-11 ELECT 4.7uF 20% 50V
C409 1-126-963-11 ELECT 4.7uF 20% 50V
C444 1-127-868-11 CERAMIC 0.0022uF 10% 50V
C445 1-127-868-11 CERAMIC 0.0022uF 10% 50V
C458 1-126-963-11 ELECT 4.7uF 20% 50V
C459 1-126-963-11 ELECT 4.7uF 20% 50V
C464 1-127-888-11 CERAMIC 0.1uF 10% 50V
C468 1-162-282-31 CERAMIC 100PF 10% 50V
S109 1-771-410-21 SWITCH, TACTILE (+) (DE598)
S110 1-771-410-21 SWITCH, TACTILE (AM) (DE598)
S110 1-771-410-21 SWITCH, TACTILE (AUX) (DE698/DV10)
S120 1-771-410-21 SWITCH, TACTILE (SURR BACK DECODING)
S121 1-771-410-21 SWITCH, TACTILE (MUSIC)
S122 1-771-410-21 SWITCH, TACTILE (MOVIE)
S123 1-771-410-21 SWITCH, TACTILE (A.F.D.)
S124 1-771-410-21 SWITCH, TACTILE (2CH)
S125 1-771-410-21 SWITCH, TACTILE (MULTI CH IN)
S140 1-771-410-21 SWITCH, TACTILE (–) (DE598)
S141 1-771-410-21 SWITCH, TACTILE (VIDEO 3)
S142 1-771-410-21 SWITCH, TACTILE (VIDEO 2)
S143 1-771-410-21 SWITCH, TACTILE (VIDEO 1)
*************************************************************
C469 1-162-282-31 CERAMIC 100PF 10% 50V
C471 1-126-963-11 ELECT 4.7uF 20% 50V
C472 1-126-963-11 ELECT 4.7uF 20% 50V
C481 1-126-964-11 ELECT 10uF 20% 50V
C484 1-126-964-11 ELECT 10uF 20% 50V
C485 1-126-964-11 ELECT 10uF 20% 50V
C488 1-127-888-11 CERAMIC 0.1uF 10% 50V
C490 1-126-964-11 ELECT 10uF 20% 50V
C492 1-126-964-11 ELECT 10uF 20% 50V
C493 1-126-964-11 ELECT 10uF 20% 50V
C495 1-126-964-11 ELECT 10uF 20% 50V
C497 1-126-964-11 ELECT 10uF 20% 50V
(DE698/DV10)
C499 1-162-286-31 CERAMIC 220PF 10% 50V
C501 1-126-963-11 ELECT 4.7uF 20% 50V
C503 1-104-658-11 ELECT 100uF 20% 10V
C504 1-107-585-11 CERAMIC 5PF 0.25PF 500V
C505 1-102-233-00 CERAMIC 33PF 10% 500V
C506 1-162-282-31 CERAMIC 100PF 10% 50V
C507 1-162-282-31 CERAMIC 100PF 10% 50V
C510 1-126-947-11 ELECT 47uF 20% 35V
C511 1-136-157-00 FILM 0.022uF 5% 50V
56
Page 57
STR-DE598/DE698/DV10
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C516 1-162-815-11 CERAMIC 47PF 5% 500V
C517 1-162-815-11 CERAMIC 47PF 5% 500V
C519 1-162-286-31 CERAMIC 220PF 10% 50V
C531 1-136-157-00 FILM 0.022uF 5% 50V
C539 1-162-286-31 CERAMIC 220PF 10% 50V
C722 1-126-964-11 ELECT 10uF 20% 50V
C732 1-128-582-11 ELECT 10uF 20% 100V
C733 1-128-582-11 ELECT 10uF 20% 100V
C740 1-126-964-11 ELECT 10uF 20% 50V
C741 1-128-579-11 ELECT 2.2uF 20% 100V
C540 1-126-964-11 ELECT 10uF 20% 50V
C541 1-127-876-11 CERAMIC 0.01uF 10% 50V
C553 1-104-658-11 ELECT 100uF 20% 10V
C554 1-107-585-11 CERAMIC 5PF 0.25PF 500V
C561 1-126-963-11 ELECT 4.7uF 20% 50V
C565 1-102-233-00 CERAMIC 33PF 10% 500V
C566 1-162-282-31 CERAMIC 100PF 10% 50V
C567 1-162-282-31 CERAMIC 100PF 10% 50V
C570 1-126-947-11 ELECT 47uF 20% 35V
C576 1-162-815-11 CERAMIC 47PF 5% 500V
C577 1-162-815-11 CERAMIC 47PF 5% 500V
C580 1-126-964-11 ELECT 10uF 20% 50V
C581 1-127-876-11 CERAMIC 0.01uF 10% 50V
C601 1-126-963-11 ELECT 4.7uF 20% 50V
C603 1-104-658-11 ELECT 100uF 20% 10V
C604 1-107-583-11 CERAMIC 3PF 0.25PF 500V
C605 1-102-233-00 CERAMIC 33PF 10% 500V
C606 1-162-282-31 CERAMIC 100PF 10% 50V
C607 1-162-282-31 CERAMIC 100PF 10% 50V
C610 1-126-947-11 ELECT 47uF 20% 35V
C611 1-136-157-00 FILM 0.022uF 5% 50V
C619 1-162-286-31 CERAMIC 220PF 10% 50V
C620 1-162-815-11 CERAMIC 47PF 5% 500V
C621 1-162-815-11 CERAMIC 47PF 5% 500V
C640 1-126-964-11 ELECT 10uF 20% 50V
C742 1-127-876-11 CERAMIC 0.01uF 10% 50V
C743 1-128-579-11 ELECT 2.2uF 20% 100V
C744 1-128-579-11 ELECT 2.2uF 20% 100V
C750 1-126-964-11 ELECT 10uF 20% 50V
C751 1-126-963-11 ELECT 4.7uF 20% 50V
C752 1-127-876-11 CERAMIC 0.01uF 10% 50V
C753 1-104-658-11 ELECT 100uF 20% 10V
C754 1-107-583-11 CERAMIC 3PF 0.25PF 500V
C755 1-102-233-00 CERAMIC 33PF 10% 500V
C756 1-162-282-31 CERAMIC 100PF 10% 50V
C757 1-162-282-31 CERAMIC 100PF 10% 50V
C760 1-126-947-11 ELECT 47uF 20% 35V
C761 1-136-157-00 FILM 0.022uF 5% 50V
C762 1-126-964-11 ELECT 10uF 20% 50V
C766 1-162-815-11 CERAMIC 47PF 5% 500V
C767 1-162-815-11 CERAMIC 47PF 5% 500V
C770 1-162-286-31 CERAMIC 220PF 10% 50V
C791 1-126-923-11 ELECT 220uF 20% 10V
C801 1-126-947-11 ELECT 47uF 20% 35V
C802 1-126-947-11 ELECT 47uF 20% 35V
C803 1-109-932-14 ELECT(BLOCK) 10000uF 20% 71V
C804 1-109-932-14 ELECT(BLOCK) 10000uF 20% 71V
C805 1-135-851-21 MYLAR 0.22uF 100V
C806 1-135-851-21 MYLAR 0.22uF 100V
C807 1-126-947-11 ELECT 47uF 20% 35V
C642 1-127-876-11 CERAMIC 0.01uF 10% 50V
C651 1-126-963-11 ELECT 4.7uF 20% 50V
C653 1-104-658-11 ELECT 100uF 20% 10V
C654 1-107-583-11 CERAMIC 3PF 0.25PF 500V
C655 1-102-233-00 CERAMIC 33PF 10% 500V
C656 1-162-282-31 CERAMIC 100PF 10% 50V
C657 1-162-282-31 CERAMIC 100PF 10% 50V
C660 1-126-947-11 ELECT 47uF 20% 35V
C661 1-136-157-00 FILM 0.022uF 5% 50V
C666 1-162-815-11 CERAMIC 47PF 5% 500V
C669 1-162-815-11 CERAMIC 47PF 5% 500V
C670 1-162-286-31 CERAMIC 220PF 10% 50V
C680 1-126-964-11 ELECT 10uF 20% 50V
C681 1-127-876-11 CERAMIC 0.01uF 10% 50V
C691 1-127-888-11 CERAMIC 0.1uF 10% 50V
C701 1-126-963-11 ELECT 4.7uF 20% 50V
C702 1-126-964-11 ELECT 10uF 20% 50V
C703 1-104-658-11 ELECT 100uF 20% 10V
C704 1-107-583-11 CERAMIC 3PF 0.25PF 500V
C705 1-102-233-00 CERAMIC 33PF 10% 500V
C706 1-162-282-31 CERAMIC 100PF 10% 50V
C707 1-162-282-31 CERAMIC 100PF 10% 50V
C710 1-126-947-11 ELECT 47uF 20% 35V
C711 1-136-157-00 FILM 0.022uF 5% 50V
C716 1-162-815-11 CERAMIC 47PF 5% 500V
C717 1-162-815-11 CERAMIC 47PF 5% 500V
C720 1-162-286-31 CERAMIC 220PF 10% 50V
C721 1-126-923-11 ELECT 220uF 20% 10V
C808 1-126-947-11 ELECT 47uF 20% 35V
C809 1-127-888-11 CERAMIC 0.1uF 10% 50V
C810 1-127-888-11 CERAMIC 0.1uF 10% 50V
C811 1-127-888-11 CERAMIC 0.1uF 10% 50V
C822 1-126-947-11 ELECT 47uF 20% 35V
C830 1-127-888-11 CERAMIC 0.1uF 10% 50V
C831 1-127-888-11 CERAMIC 0.1uF 10% 50V
C832 1-126-936-11 ELECT 3300uF 20% 16V
CC01 1-162-282-31 CERAMIC 100PF 10% 50V
(DE698:AEP,UK,AUS)
CC02 1-162-282-31 CERAMIC 100PF 10% 50V
(AEP,UK,AUS)
CC04 1-162-282-31 CERAMIC 100PF 10% 50V
(AEP,UK,AUS)
CC05 1-162-282-31 CERAMIC 100PF 10% 50V
(AEP,UK,AUS)
CC06 1-162-282-31 CERAMIC 100PF 10% 50V
(AEP,UK,AUS)
CC07 1-162-282-31 CERAMIC 100PF 10% 50V
(AEP,UK,AUS)
CC08 1-162-282-31 CERAMIC 100PF 10% 50V
(AEP,UK,AUS)
CC09 1-162-282-31 CERAMIC 100PF 10% 50V
(AEP,UK,AUS)
CC11 1-127-876-11 CERAMIC 0.01uF 10% 50V
(AEP,UK,AUS)
CC13 1-127-876-11 CERAMIC 0.01uF 10% 50V
(AEP,UK,AUS)
CC15 1-127-876-11 CERAMIC 0.01uF 10% 50V
(AEP,UK,AUS)
57
Page 58
STR-DE598/DE698/DV10
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
CC17 1-127-876-11 CERAMIC 0.01uF 10% 50V
(AEP,UK,AUS)
CC31 1-162-286-31 CERAMIC 220PF 10% 50V
(AEP,UK,AUS)
CC32 1-162-286-31 CERAMIC 220PF 10% 50V
(AEP,UK,AUS)
CC33 1-162-286-31 CERAMIC 220PF 10% 50V
(AEP,UK,AUS)
CC34 1-162-286-31 CERAMIC 220PF 10% 50V
(AEP,UK,AUS)
CC35 1-162-286-31 CERAMIC 220PF 10% 50V
(AEP,UK,AUS)
CC36 1-162-286-31 CERAMIC 220PF 10% 50V
(AEP,UK,AUS)
CC51 1-162-282-31 CERAMIC 100PF 10% 50V
(DE698:AEP,UK,AUS)
CC52 1-162-282-31 CERAMIC 100PF 10% 50V
(AEP,UK,AUS)
CC54 1-162-282-31 CERAMIC 100PF 10% 50V
(AEP,UK,AUS)
D765 8-719-991-33 DIODE 1SS133T-77
D791 8-719-991-33 DIODE 1SS133T-77
D801 8-719-933-95 DIODE HZS20-1L
D802 8-719-072-05 DIODE RBV-602LF-A
D804 8-719-068-28 DIODE HZ6.8BP-TK
D805 6-500-522-11 DIODE 10EDB40-TA2B5
D806 6-500-522-11 DIODE 10EDB40-TA2B5
D807 6-500-522-11 DIODE 10EDB40-TA2B5
D808 6-500-522-11 DIODE 10EDB40-TA2B5
D818 8-719-991-33 DIODE 1SS133T-77
D896 8-719-043-76 DIODE AK04V0
< IC >
IC401 6-707-362-01 IC BD3451KS
IC402 8-759-167-88 IC NJM4565D
IC501 6-700-943-01 IC uPC2581V-S
IC601 6-700-943-01 IC uPC2581V-S
IC691 8-759-167-88 IC NJM4565D
CC55 1-162-282-31 CERAMIC 100PF 10% 50V
(AEP,UK,AUS)
CC56 1-162-282-31 CERAMIC 100PF 10% 50V
(AEP,UK,AUS)
CC57 1-162-282-31 CERAMIC 100PF 10% 50V
(AEP,UK,AUS)
CC58 1-162-282-31 CERAMIC 100PF 10% 50V
(AEP,UK,AUS)
CC59 1-162-282-31 CERAMIC 100PF 10% 50V
(AEP,UK,AUS)
< CONNECTOR >
CNP500 1-766-715-21 CONNECTOR, BOARD TO BOARD 10P
CNP501 1-573-847-11 CONNECTOR, BOARD TO BOARD 15P
CNP503 1-779-978-11 PIN, CONNECTOR 3P
CNP802 1-691-767-11 PLUG (MICRO CONNECTOR) 5P
CNP806 1-784-921-11 PIN, CONNECTOR 4P
* CNP908 1-564-242-00 PIN, CONNECTOR (3.96mm PITCH) 5P
CNP911 1-784-926-11 PIN, CONNECTOR 11P
CNP912 1-691-766-11 PLUG (MICRO CONNECTOR) 4P
< DIODE >
D505 8-719-991-33 DIODE 1SS133T-77
D540 8-719-991-33 DIODE 1SS133T-77
D560 8-719-991-33 DIODE 1SS133T-77
D580 8-719-991-33 DIODE 1SS133T-77
D585 8-719-991-33 DIODE 1SS133T-77
D605 8-719-991-33 DIODE 1SS133T-77
D610 8-719-991-33 DIODE 1SS133T-77
D640 8-719-991-33 DIODE 1SS133T-77
D665 8-719-991-33 DIODE 1SS133T-77
D680 8-719-991-33 DIODE 1SS133T-77
D690 8-719-934-21 DIODE HZS30-1L
D691 8-719-991-33 DIODE 1SS133T-77
D705 8-719-991-33 DIODE 1SS133T-77
D710 8-719-991-33 DIODE 1SS133T-77
D721 8-719-991-33 DIODE 1SS133T-77
D722 8-719-991-33 DIODE 1SS133T-77
D732 8-719-991-33 DIODE 1SS133T-77
D740 8-719-991-33 DIODE 1SS133T-77
D750 8-719-991-33 DIODE 1SS133T-77
IC701 6-700-943-01 IC uPC2581V-S
IC801 8-759-071-48 IC TA7807S
IC802 8-759-071-47 IC TA79007S
< JACK >
J309 1-770-377-21 JACK, PIN 1P (SUB WOOFER AUDIO OUT)
J400 1-774-411-11 JACK, PIN 6P (MD/TAPE OUT,SA-CD/CD IN,
AUX IN) (DE698/DV10)
J401 1-793-775-12 JACK, PIN 6P (MULTI CH IN
FRONT,SURROUND,CENTER,SUB WOOFER)
J402 1-770-614-11 JACK, PIN 4P (MD/TAPE OUT,SA-CD/CD IN)
(DE598)
J403 1-770-614-11 JACK, PIN 4P (MD/TAPE IN,DVD AUDIO IN)
J404 1-774-411-11 JACK, PIN 6P (VIDEO 2 AUDIO IN,
VIDEO 1 AUDIO OUT/IN)
< COIL >
L601 1-420-872-52 COIL, AIR-CORE
L651 1-420-872-52 COIL, AIR-CORE
L701 1-420-872-52 COIL, AIR-CORE
L751 1-420-872-52 COIL, AIR-CORE
< TRANSISTOR >
Q501 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q502 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q505 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q506 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q535 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q536 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q540 8-729-281-53 TRANSISTOR 2SC1815-GR
Q560 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q571 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q572 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q580 8-729-281-53 TRANSISTOR 2SC1815-GR
Q601 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q602 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q605 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q606 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q610 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q640 8-729-281-53 TRANSISTOR 2SC1815-GR
58
Page 59
STR-DE598/DE698/DV10
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Q651 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q652 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q655 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q656 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q680 8-729-281-53 TRANSISTOR 2SC1815-GR
R474 1-249-429-11 CARBON 10K 5% 1/4W
R475 1-249-429-11 CARBON 10K 5% 1/4W
R476 1-249-429-11 CARBON 10K 5% 1/4W
R480 1-247-871-00 CARBON 47K 5% 1/4W
R499 1-247-871-00 CARBON 47K 5% 1/4W
Q691 8-729-281-53 TRANSISTOR 2SC1815-GR
Q692 8-729-029-40 TRANSISTOR DTA124ESA
Q701 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q702 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q705 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q706 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q710 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q722 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
Q723 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q725 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q740 8-729-281-53 TRANSISTOR 2SC1815-GR
Q750 8-729-281-53 TRANSISTOR 2SC1815-GR
Q751 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q752 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q755 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q756 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q790 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q793 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q795 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q801 8-729-140-97 TRANSISTOR 2SB734-34
Q809 8-729-119-78 TRANSISTOR 2SC2785-HFE
< RESISTOR >
R401 1-247-831-00 CARBON 1K 5% 1/4W
(DE698/DV10)
R402 1-247-831-00 CARBON 1K 5% 1/4W
R404 1-247-831-00 CARBON 1K 5% 1/4W
R405 1-247-831-00 CARBON 1K 5% 1/4W
R406 1-247-831-00 CARBON 1K 5% 1/4W
R407 1-247-831-00 CARBON 1K 5% 1/4W
R408 1-247-831-00 CARBON 1K 5% 1/4W
R409 1-247-831-00 CARBON 1K 5% 1/4W
R428 1-247-831-00 CARBON 1K 5% 1/4W
R429 1-247-831-00 CARBON 1K 5% 1/4W
R431 1-247-831-00 CARBON 1K 5% 1/4W
R432 1-247-831-00 CARBON 1K 5% 1/4W
R433 1-247-831-00 CARBON 1K 5% 1/4W
R434 1-247-831-00 CARBON 1K 5% 1/4W
R435 1-247-831-00 CARBON 1K 5% 1/4W
R436 1-247-831-00 CARBON 1K 5% 1/4W
R451 1-247-831-00 CARBON 1K 5% 1/4W
(DE698/DV10)
R452 1-247-831-00 CARBON 1K 5% 1/4W
R454 1-247-831-00 CARBON 1K 5% 1/4W
R455 1-247-831-00 CARBON 1K 5% 1/4W
R456 1-247-831-00 CARBON 1K 5% 1/4W
R457 1-247-831-00 CARBON 1K 5% 1/4W
R458 1-247-831-00 CARBON 1K 5% 1/4W
R459 1-247-831-00 CARBON 1K 5% 1/4W
R468 1-247-879-00 CARBON 100K 5% 1/4W
R469 1-247-831-00 CARBON 1K 5% 1/4W
R470 1-247-871-00 CARBON 47K 5% 1/4W
R473 1-249-429-11 CARBON 10K 5% 1/4W
R501 1-247-831-00 CARBON 1K 5% 1/4W
R502 1-249-439-11 CARBON 68K 5% 1/4W
R503 1-249-421-11 CARBON 2.2K 5% 1/4W
R505 1-249-439-11 CARBON 68K 5% 1/4W
R510 1-249-421-11 CARBON 2.2K 5% 1/4W
R511 1-249-440-11 CARBON 82K 5% 1/4W
R513 1-249-414-11 CARBON 560 5% 1/4W
R514 1-249-399-11 CARBON 33 5% 1/4W F
R515 1-249-399-11 CARBON 33 5% 1/4W F
R516 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2 5W
R517 1-249-393-11 CARBON 10 5% 1/4W F
R520 1-247-847-00 CARBON 4.7K 5% 1/4W
R521 1-240-855-81 CARBON 6.2K 5% 1/4W F
R522 1-249-419-11 CARBON 1.5K 5% 1/4W
R523 1-247-871-00 CARBON 47K 5% 1/4W
R524 1-249-431-11 CARBON 15K 5% 1/4W
R525 1-249-439-11 CARBON 68K 5% 1/4W
R526 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2 5W
R530 1-247-847-00 CARBON 4.7K 5% 1/4W
R531 1-240-855-81 CARBON 6.2K 5% 1/4W F
R532 1-249-429-11 CARBON 10K 5% 1/4W
R533 1-247-871-00 CARBON 47K 5% 1/4W
R534 1-249-431-11 CARBON 15K 5% 1/4W
R535 1-249-439-11 CARBON 68K 5% 1/4W
R537 1-249-393-11 CARBON 10 5% 1/4W F
R540 1-247-863-00 CARBON 22K 5% 1/4W
R546 1-249-431-11 CARBON 15K 5% 1/4W
R553 1-249-421-11 CARBON 2.2K 5% 1/4W
R554 1-249-439-11 CARBON 68K 5% 1/4W
R555 1-247-847-00 CARBON 4.7K 5% 1/4W
(DE598)
R555 1-247-871-00 CARBON 47K 5% 1/4W
(DE698/DV10)
R556 1-247-863-00 CARBON 22K 5% 1/4W
(DE698/DV10)
R556 1-247-871-00 CARBON 47K 5% 1/4W
(DE598)
R557 1-249-431-11 CARBON 15K 5% 1/4W
R561 1-247-831-00 CARBON 1K 5% 1/4W
R562 1-249-439-11 CARBON 68K 5% 1/4W
R570 1-249-421-11 CARBON 2.2K 5% 1/4W
R571 1-249-440-11 CARBON 82K 5% 1/4W
R572 1-249-419-11 CARBON 1.5K 5% 1/4W
R573 1-247-871-00 CARBON 47K 5% 1/4W
R574 1-249-399-11 CARBON 33 5% 1/4W F
R575 1-249-399-11 CARBON 33 5% 1/4W F
R576 1-249-414-11 CARBON 560 5% 1/4W
R580 1-247-863-00 CARBON 22K 5% 1/4W
R585 1-247-847-00 CARBON 4.7K 5% 1/4W
(DE598)
R585 1-247-871-00 CARBON 47K 5% 1/4W
(DE698/DV10)
R586 1-247-863-00 CARBON 22K 5% 1/4W
(DE698/DV10)
59
Page 60
STR-DE598/DE698/DV10
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R586 1-247-871-00 CARBON 47K 5% 1/4W
(DE598)
R587 1-249-431-11 CARBON 15K 5% 1/4W
R588 1-249-431-11 CARBON 15K 5% 1/4W
R601 1-247-831-00 CARBON 1K 5% 1/4W
R602 1-249-439-11 CARBON 68K 5% 1/4W
R676 1-247-871-00 CARBON 47K 5% 1/4W
(DE598)
R677 1-249-431-11 CARBON 15K 5% 1/4W
R680 1-247-863-00 CARBON 22K 5% 1/4W
R681 1-249-431-11 CARBON 15K 5% 1/4W
R690 1-247-887-00 CARBON 220K 5% 1/4W
R603 1-249-421-11 CARBON 2.2K 5% 1/4W
R604 1-249-439-11 CARBON 68K 5% 1/4W
R610 1-249-421-11 CARBON 2.2K 5% 1/4W
R611 1-249-440-11 CARBON 82K 5% 1/4W
R613 1-249-414-11 CARBON 560 5% 1/4W
R614 1-249-399-11 CARBON 33 5% 1/4W F
R615 1-249-399-11 CARBON 33 5% 1/4W F
R616 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2 5W
R617 1-249-393-11 CARBON 10 5% 1/4W F
R618 1-249-389-11 CARBON 4.7 5% 1/4W F
R620 1-247-847-00 CARBON 4.7K 5% 1/4W
R621 1-240-855-81 CARBON 6.2K 5% 1/4W F
R622 1-249-419-11 CARBON 1.5K 5% 1/4W
R623 1-247-871-00 CARBON 47K 5% 1/4W
R624 1-249-431-11 CARBON 15K 5% 1/4W
R625 1-249-439-11 CARBON 68K 5% 1/4W
R631 1-249-421-11 CARBON 2.2K 5% 1/4W
R634 1-249-404-00 CARBON 82 5% 1/4W F
R638 1-249-439-11 CARBON 68K 5% 1/4W
R640 1-247-863-00 CARBON 22K 5% 1/4W
R648 1-249-431-11 CARBON 15K 5% 1/4W
R651 1-247-831-00 CARBON 1K 5% 1/4W
R652 1-249-439-11 CARBON 68K 5% 1/4W
R653 1-249-421-11 CARBON 2.2K 5% 1/4W
R654 1-249-439-11 CARBON 68K 5% 1/4W
0 R691 1-215-888-00 METAL OXIDE 220 5% 2W F
0 R692 1-215-888-00 METAL OXIDE 220 5% 2W F
R693 1-249-429-11 CARBON 10K 5% 1/4W
R694 1-249-429-11 CARBON 10K 5% 1/4W
R695 1-249-429-11 CARBON 10K 5% 1/4W
R696 1-247-871-00 CARBON 47K 5% 1/4W
R698 1-249-429-11 CARBON 10K 5% 1/4W
R699 1-247-895-00 CARBON 470K 5% 1/4W
R701 1-247-831-00 CARBON 1K 5% 1/4W
R702 1-249-439-11 CARBON 68K 5% 1/4W
R703 1-249-421-11 CARBON 2.2K 5% 1/4W
R704 1-249-439-11 CARBON 68K 5% 1/4W
R710 1-249-421-11 CARBON 2.2K 5% 1/4W
R711 1-249-440-11 CARBON 82K 5% 1/4W
R713 1-249-414-11 CARBON 560 5% 1/4W
R714 1-249-399-11 CARBON 33 5% 1/4W F
R715 1-249-399-11 CARBON 33 5% 1/4W F
R716 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2 5W
R717 1-249-393-11 CARBON 10 5% 1/4W F
R718 1-249-389-11 CARBON 4.7 5% 1/4W F
R719 1-247-847-00 CARBON 4.7K 5% 1/4W
R721 1-240-855-81 CARBON 6.2K 5% 1/4W F
R722 1-249-419-11 CARBON 1.5K 5% 1/4W
R723 1-247-871-00 CARBON 47K 5% 1/4W
R724 1-249-431-11 CARBON 15K 5% 1/4W
R655 1-247-847-00 CARBON 4.7K 5% 1/4W
(DE598)
R655 1-247-871-00 CARBON 47K 5% 1/4W
(DE698/DV10)
R656 1-247-863-00 CARBON 22K 5% 1/4W
(DE698/DV10)
R656 1-247-871-00 CARBON 47K 5% 1/4W
(DE598)
R657 1-249-431-11 CARBON 15K 5% 1/4W
R660 1-249-421-11 CARBON 2.2K 5% 1/4W
R661 1-249-440-11 CARBON 82K 5% 1/4W
R663 1-249-414-11 CARBON 560 5% 1/4W
R664 1-249-399-11 CARBON 33 5% 1/4W F
R665 1-249-399-11 CARBON 33 5% 1/4W F
R666 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2 5W
R667 1-249-393-11 CARBON 10 5% 1/4W F
R668 1-249-389-11 CARBON 4.7 5% 1/4W F
R669 1-247-847-00 CARBON 4.7K 5% 1/4W
R671 1-240-855-81 CARBON 6.2K 5% 1/4W F
R672 1-249-419-11 CARBON 1.5K 5% 1/4W
R673 1-247-871-00 CARBON 47K 5% 1/4W
R674 1-249-431-11 CARBON 15K 5% 1/4W
R675 1-247-847-00 CARBON 4.7K 5% 1/4W
(DE598)
R675 1-247-871-00 CARBON 47K 5% 1/4W
(DE698/DV10)
R676 1-247-863-00 CARBON 22K 5% 1/4W
(DE698/DV10)
R725 1-249-439-11 CARBON 68K 5% 1/4W
R731 1-249-421-11 CARBON 2.2K 5% 1/4W
R732 1-249-381-11 CARBON 1 5% 1/4W F
R733 1-249-381-11 CARBON 1 5% 1/4W F
R734 1-249-404-00 CARBON 82 5% 1/4W F
R735 1-249-427-11 CARBON 6.8K 5% 1/4W
R736 1-247-831-00 CARBON 1K 5% 1/4W
R737 1-249-436-11 CARBON 39K 5% 1/4W
R740 1-247-863-00 CARBON 22K 5% 1/4W
R741 1-249-431-11 CARBON 15K 5% 1/4W
R743 1-249-431-11 CARBON 15K 5% 1/4W
R744 1-249-431-11 CARBON 15K 5% 1/4W
R745 1-247-847-00 CARBON 4.7K 5% 1/4W
(DE598)
R745 1-247-871-00 CARBON 47K 5% 1/4W
(DE698/DV10)
R746 1-247-863-00 CARBON 22K 5% 1/4W
(DE698/DV10)
R746 1-247-871-00 CARBON 47K 5% 1/4W
(DE598)
R747 1-249-431-11 CARBON 15K 5% 1/4W
R748 1-249-431-11 CARBON 15K 5% 1/4W
R750 1-247-863-00 CARBON 22K 5% 1/4W
R751 1-247-831-00 CARBON 1K 5% 1/4W
R752 1-249-439-11 CARBON 68K 5% 1/4W
R753 1-249-421-11 CARBON 2.2K 5% 1/4W
R754 1-249-439-11 CARBON 68K 5% 1/4W
60
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Page 61
STR-DE598/DE698/DV10
MAIN OPT3 POWER SB AMP
Ref. No. Part No. Description Remark
R755 1-247-847-00 CARBON 4.7K 5% 1/4W
(DE598)
R755 1-247-871-00 CARBON 47K 5% 1/4W
(DE698/DV10)
R756 1-247-863-00 CARBON 22K 5% 1/4W
(DE698/DV10)
R756 1-247-871-00 CARBON 47K 5% 1/4W
(DE598)
R757 1-249-431-11 CARBON 15K 5% 1/4W
R758 1-249-431-11 CARBON 15K 5% 1/4W
R760 1-249-421-11 CARBON 2.2K 5% 1/4W
R761 1-249-440-11 CARBON 82K 5% 1/4W
R763 1-249-414-11 CARBON 560 5% 1/4W
R764 1-249-399-11 CARBON 33 5% 1/4W F
R765 1-249-399-11 CARBON 33 5% 1/4W F
R766 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2 5W
R767 1-249-393-11 CARBON 10 5% 1/4W F
R768 1-249-389-11 CARBON 4.7 5% 1/4W F
R769 1-247-847-00 CARBON 4.7K 5% 1/4W
R771 1-240-855-81 CARBON 6.2K 5% 1/4W F
R772 1-249-419-11 CARBON 1.5K 5% 1/4W
R773 1-247-871-00 CARBON 47K 5% 1/4W
R775 1-249-439-11 CARBON 68K 5% 1/4W
R778 1-249-431-11 CARBON 15K 5% 1/4W
Ref. No. Part No. Description Remark
< TERMINAL BOARD >
TM601 1-780-216-11 TERMINAL BOARD (8P) (SPEAKERS
FRONT A,SURROUND)
*************************************************************
OPT3 BOARD (DE698/DV10)
***********
< CAPACITOR >
C290 1-127-888-11 CERAMIC 0.1uF 10% 50V
< CONNECTOR >
CN202 1-779-978-21 PIN, CONNECTOR 3P
< IC >
IC200 6-600-057-01 IC TORX141PL (VIDEO 3 INPUT
DIGITAL(OPT))
< COIL >
L290 1-410-517-11 INDUCTOR 47uH
< RESISTOR >
R780 1-249-429-11 CARBON 10K 5% 1/4W
R791 1-249-421-11 CARBON 2.2K 5% 1/4W
0 R792 1-215-868-00 METAL OXIDE 680 5% 1W F
R793 1-249-404-00 CARBON 82 5% 1/4W F
0 R794 1-215-868-00 METAL OXIDE 680 5% 1W F
R802 1-249-409-11 CARBON 220 5% 1/4W F
R803 1-249-389-11 CARBON 4.7 5% 1/4W F
R804 1-249-429-11 CARBON 10K 5% 1/4W
R806 1-247-863-00 CARBON 22K 5% 1/4W
R824 1-249-421-11 CARBON 2.2K 5% 1/4W
R830 1-249-404-00 CARBON 82 5% 1/4W F
(CND)
R831 1-249-404-00 CARBON 82 5% 1/4W F
0 R910 1-240-877-11 FUSIBLE 0.15 5% 1/2W F
RR11 1-249-393-11 CARBON 10 5% 1/4W F
(AEP,UK,AUS)
RR12 1-249-393-11 CARBON 10 5% 1/4W F
(AEP,UK,AUS)
RR13 1-249-393-11 CARBON 10 5% 1/4W F
(AEP,UK,AUS)
RR14 1-249-393-11 CARBON 10 5% 1/4W F
(AEP,UK,AUS)
< RELAY >
RY560 1-755-267-11 RELAY
RY601 1-755-170-11 RELAY (12V)
RY701 1-755-170-11 RELAY (12V)
RY791 1-755-170-11 RELAY (12V)
RY801 1-755-013-11 RELAY (EXCEPT CND)
R290 1-247-807-31 CARBON 100 5% 1/4W
*************************************************************
POWER BOARD
*************
< CONNECTOR >
* CNP102 1-564-518-11 PLUG, CONNECTOR 3P
< RESISTOR >
R129 1-249-421-11 CARBON 2.2K 5% 1/4W
R130 1-247-847-00 CARBON 4.7K 5% 1/4W
< SWITCH >
S128 1-771-410-21 SWITCH, TACTILE (SPEAKERS (OFF/A/B/A+B))
S129 1-771-410-21 SWITCH, TACTILE (DISPLAY)
S130 1-771-410-21 SWITCH, TACTILE (DIMMER)
S131 1-771-410-21 SWITCH, TACTILE (?/1)
*************************************************************
A-1084-980-A SB AMP BOARD, COMPLETE (DE698/DV10)
***********************
< CAPACITOR >
C2561 1-126-963-11 ELECT 4.7uF 20% 50V
C2562 1-162-282-31 CERAMIC 100PF 10% 50V
C2563 1-102-978-00 CERAMIC 220PF 5% 50V
C2564 1-107-616-11 CERAMIC 150PF 5% 500V
C2565 1-107-583-11 CERAMIC 3PF 0.25PF 500V
RY802 1-755-494-11 RELAY (CND)
RY803 1-755-494-11 RELAY (CND)
C2566 1-104-658-11 ELECT 100uF 20% 10V
C2571 1-126-947-11 ELECT 47uF 20% 35V
C2573 1-162-815-11 CERAMIC 47PF 5% 500V
C2575 1-162-815-11 CERAMIC 47PF 5% 500V
C2576 1-127-876-11 CERAMIC 0.01uF 10% 50V
C2577 1-126-964-11 ELECT 10uF 20% 50V
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
61
Page 62
STR-DE598/DE698/DV10
SB AMP SPEAKER B (P)SPEAKER C/SB
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C2578 1-162-286-31 CERAMIC 220PF 10% 50V
C2581 1-136-157-00 FILM 0.022uF 5% 50V
CNP504 1-564-320-00 PIN, CONNECTOR (3.96mm PITCH) 2P
(DE698/DV10)
< CONNECTOR >
CN2570 1-785-103-11 PIN, CONNECTOR (3.96mm PITCH) 5P
CN2571 1-779-799-11 PIN, CONNECTOR 9P
< DIODE >
D2575 8-719-991-33 DIODE 1SS133T-77
D2576 8-719-991-33 DIODE 1SS133T-77
< IC >
IC2501 8-749-011-16 IC STK350-230
< TRANSISTOR >
Q2575 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q2576 8-729-042-09 TRANSISTOR 2SA1038S-RSE-TP
Q2577 8-729-281-53 TRANSISTOR 2SC1815-GR
< RESISTOR >
R2560 1-249-411-11 CARBON 330 5% 1/4W
R2561 1-247-831-00 CARBON 1K 5% 1/4W
R2562 1-249-439-11 CARBON 68K 5% 1/4W
R2565 1-249-439-11 CARBON 68K 5% 1/4W
R2566 1-249-421-11 CARBON 2.2K 5% 1/4W
R2571 1-249-428-11 CARBON 8.2K 5% 1/4W
R2572 1-247-847-00 CARBON 4.7K 5% 1/4W
R2574 1-247-831-00 CARBON 1K 5% 1/4W
R2575 1-249-399-11 CARBON 33 5% 1/4W F
R2576 1-240-855-81 CARBON 6.2K 5% 1/4W F
R2577 1-247-847-00 CARBON 4.7K 5% 1/4W
R2578 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2 5W
R2579 1-249-419-11 CARBON 1.5K 5% 1/4W
R2580 1-249-439-11 CARBON 68K 5% 1/4W
R2581 1-249-393-11 CARBON 10 5% 1/4W F
R2582 1-249-399-11 CARBON 33 5% 1/4W F
R2583 1-249-431-11 CARBON 15K 5% 1/4W
R2584 1-249-431-11 CARBON 15K 5% 1/4W
R2585 1-247-871-00 CARBON 47K 5% 1/4W
R2586 1-247-863-00 CARBON 22K 5% 1/4W
R2587 1-247-871-00 CARBON 47K 5% 1/4W
R2588 1-247-863-00 CARBON 22K 5% 1/4W
R2589 1-249-431-11 CARBON 15K 5% 1/4W
*************************************************************
< DIODE >
D510 8-719-991-33 DIODE 1SS133T-77
D760 8-719-991-33 DIODE 1SS133T-77 (DE698/DV10)
< COIL >
L571 1-420-872-52 COIL, AIR-CORE
L751 1-420-872-52 COIL, AIR-CORE
L752 1-420-872-52 COIL, AIR-CORE (DE698/DV10)
< TRANSISTOR >
Q550 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q760 8-729-119-78 TRANSISTOR 2SC2785-HFE (DE698/DV10)
< RESISTOR >
R531 1-249-421-11 CARBON 2.2K 5% 1/4W
R534 1-249-404-00 CARBON 82 5% 1/4W F
R578 1-249-389-11 CARBON 4.7 5% 1/4W F
R751 1-249-389-11 CARBON 4.7 5% 1/4W F
R752 1-249-389-11 CARBON 4.7 5% 1/4W F
(DE698/DV10)
R753 1-249-421-11 CARBON 2.2K 5% 1/4W
(DE698/DV10)
R774 1-249-404-00 CARBON 82 5% 1/4W F
(DE698/DV10)
RR15 1-249-393-11 CARBON 10 5% 1/4W F
(DE698:AEP,UK,AUS)
RR16 1-249-393-11 CARBON 10 5% 1/4W F
(AEP,UK,AUS)
RR17 1-249-393-11 CARBON 10 5% 1/4W F
(AEP,UK,AUS)
< RELAY >
RY500 1-755-170-11 RELAY (12V) (DE698/DV10)
RY501 1-755-170-11 RELAY (12V)
< TERMINAL BOARD >
TM501 1-780-215-11 TERMINAL BOARD (4P) (SPEAKERS
SURROUND BACK,CENTER) (DE598)
TM501 1-780-215-11 TERMINAL BOARD (4P) (SPEAKERS
SURROUND BACK L,CENTER) (DE698/DV10)
TM502 1-780-217-11 TERMINAL BOARD (2P) (SPEAKERS
SURROUND BACK R) (DE698/DV10)
*************************************************************
SPEAKER C/SB BOARD
*******************
< CAPACITOR >
CC15 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE698:AEP,UK,AUS)
CC16 1-127-876-11 CERAMIC 0.01uF 10% 50V
(AEP,UK,AUS)
CC17 1-127-876-11 CERAMIC 0.01uF 10% 50V
(AEP,UK,AUS)
< CONNECTOR >
* CNP503 1-564-241-11 PIN, CONNECTOR (3.96mm PITCH) 4P
62
SPEAKER B (P) BOARD (DE598)
*******************
< CAPACITOR >
CC30 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE598:AEP,UK,AUS)
CC31 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE598:AEP,UK,AUS)
< CONNECTOR >
CNP610 1-785-102-11 PIN, CONNECTOR (3.96mm PITCH) 4P (DE598)
CNP611 1-779-978-11 PIN, CONNECTOR 3P (DE598)
Page 63
STR-DE598/DE698/DV10
SPEAKER B (P)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< DIODE >
D810 8-719-991-33 DIODE 1SS133T-77 (DE598)
< TRANSISTOR >
Q810 8-729-119-78 TRANSISTOR 2SC2785-HFE (DE598)
< RESISTOR >
R810 1-249-404-00 CARBON 82 5% 1/4W F
(DE598)
R811 1-249-421-11 CARBON 2.2K 5% 1/4W
(DE598)
RR30 1-249-393-11 CARBON 10 5% 1/4W F
(DE598:AEP,UK,AUS)
RR31 1-249-393-11 CARBON 10 5% 1/4W F
(DE598:AEP,UK,AUS)
< RELAY >
RY610 1-755-170-11 RELAY (12V) (DE598)
< TERMINAL BOARD >
TM600 1-780-215-11 TERMINAL BOARD (4P) (SPEAKERS FRONT B)
*************************************************************
A-1084-334-A STANDBY BOARD, COMPLETE (DE598:US,CND)
A-1084-405-A STANDBY BOARD, COMPLETE
A-1084-969-A STANDBY BOARD, COMPLETE
A-1085-098-A STANDBY BOARD, COMPLETE (DE698:AEP,UK)
A-1085-210-A STANDBY BOARD, COMPLETE (DE698:AUS)
1-533-217-41 HOLDER, FUSE
C913 1-127-888-11 CERAMIC 0.1uF 10% 50V
C914 1-127-888-11 CERAMIC 0.1uF 10% 50V
C915 1-126-943-11 ELECT 2200uF 20% 25V
C916 1-126-942-61 ELECT 1000uF 20% 25V
C920 1-127-888-11 CERAMIC 0.1uF 10% 50V
SPEAKER B (S) STANDBY
< TERMINAL BOARD >
(DE698/DV10)
(DE598:AEP,UK,AUS)
(DE698:US,CND/DV10)
*************************
< CAPACITOR >
* TM610 1-537-240-21 TERMINAL BOARD (CHECKER PIN) (4P)
(SPEAKERS FRONT B) (DE598)
*************************************************************
SPEAKER B (S) BOARD (DE698/DV10)
*******************
< CAPACITOR >
CC20 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE698:AEP,UK,AUS)
CC21 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE698:AEP,UK,AUS)
< CONNECTOR >
CNP600 1-785-102-11 PIN, CONNECTOR (3.96mm PITCH) 4P
(DE698/DV10)
CNP601 1-779-978-11 PIN, CONNECTOR 3P (DE698/DV10)
< DIODE >
D800 8-719-991-33 DIODE 1SS133T-77 (DE698/DV10)
< TRANSISTOR >
Q800 8-729-119-78 TRANSISTOR 2SC2785-HFE (DE698/DV10)
< RESISTOR >
R800 1-249-404-00 CARBON 82 5% 1/4W F
(DE698/DV10)
R812 1-249-421-11 CARBON 2.2K 5% 1/4W
(DE698/DV10)
RR20 1-249-393-11 CARBON 10 5% 1/4W F
(DE698:AEP,UK,AUS)
RR21 1-249-393-11 CARBON 10 5% 1/4W F
(DE698:AEP,UK,AUS)
< RELAY >
RY600 1-755-170-11 RELAY (12V) (DE698/DV10)
C921 1-127-888-11 CERAMIC 0.1uF 10% 50V
C922 1-127-888-11 CERAMIC 0.1uF 10% 50V
C924 1-126-960-11 ELECT 1uF 20% 50V
C950 1-126-936-11 ELECT 3300uF 20% 16V
< CONNECTOR >
CNP801 1-784-922-11 PIN, CONNECTOR 5P
CNP804 1-564-506-11 PLUG, CONNECTOR 3P
CNP901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
CNP902 1-794-577-21 PIN, CONNECTOR (POWER) 2P
CNP903 1-784-922-11 PIN, CONNECTOR 5P
< DIODE >
D901 8-719-991-33 DIODE 1SS133T-77
D910 6-500-522-11 DIODE 10EDB40-TA2B5
D911 6-500-522-11 DIODE 10EDB40-TA2B5
D912 6-500-522-11 DIODE 10EDB40-TA2B5
D913 6-500-522-11 DIODE 10EDB40-TA2B5
D914 8-719-991-33 DIODE 1SS133T-77
D915 8-719-991-33 DIODE 1SS133T-77
D920 6-500-522-11 DIODE 10EDB40-TA2B5
D921 6-500-522-11 DIODE 10EDB40-TA2B5
D922 6-500-522-11 DIODE 10EDB40-TA2B5
D923 6-500-522-11 DIODE 10EDB40-TA2B5
< GROUND TERMINAL >
G901 1-537-738-21 TERMINAL, GROUND
< AC OUTLET >
0 J911 1-251-417-11 OUTLET, AC (1P) (AC OUTLET) (DE698:AUS)
0 J911 1-785-285-11 OUTLET, AC (1P) (AC OUTLET) (DE698:AEP,UK)
0 J911 1-785-834-11 OUTLET, AC (1P) (AC OUTLET)
(DE698:US,CND/DV10)
< TRANSISTOR >
Q901 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q921 8-729-119-78 TRANSISTOR 2SC2785-HFE
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
63
Page 64
STR-DE598/DE698/DV10
STANDBY S-VIDEO
Ref. No. Part No. Description Remark
< RESISTOR >
0R810 1-243-634-11 FUSIBLE 0.22 5% 1/2W F
0R811 1-243-634-11 FUSIBLE 0.22 5% 1/2W F
0R901 1-219-237-11 SOLID 3.3M 20% 1/2W F
(US,CND)
R902 1-247-871-00 CARBON 47K 5% 1/4W
R903 1-249-421-11 CARBON 2.2K 5% 1/4W
R904 1-249-381-11 CARBON 1 5% 1/4W F
R921 1-247-871-00 CARBON 47K 5% 1/4W
R922 1-247-863-00 CARBON 22K 5% 1/4W
R923 1-249-429-11 CARBON 10K 5% 1/4W
< RELAY >
0RY901 1-755-541-11 RELAY
< TRANSFORMER >
0T902 1-443-516-11 TRANSFORMER, POWER (US,CND)
0T902 1-443-517-11 TRANSFORMER, POWER (AEP,UK,AUS)
*************************************************************
A-1084-978-A S-VIDEO BOARD, COMPLETE (DE698)
A-1098-467-A S-VIDEO BOARD, COMPLETE (DV10)
************************
Ref. No. Part No. Description Remark
C266 1-128-805-11 CERAMIC 47PF 5% 50V
(DE698/DV10)
C267 1-128-817-11 CERAMIC 470PF 5% 50V
(DE698/DV10)
C268 1-126-964-11 ELECT 10uF 20% 50V
(DE698/DV10)
C269 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698/DV10)
C275 1-128-817-11 CERAMIC 470PF 5% 50V
(DE698/DV10)
< CONNECTOR >
CNS252 1-568-442-11 SOCKET, CONNECTOR 9P (DE698/DV10)
< DIODE >
D251 8-719-991-33 DIODE 1SS133T-77 (DE698/DV10)
D252 8-719-991-33 DIODE 1SS133T-77 (DE698/DV10)
D253 8-719-991-33 DIODE 1SS133T-77 (DE698)
D254 8-719-991-33 DIODE 1SS133T-77 (DE698)
< IC >
IC251 6-701-890-01 IC NJM2595D (DE698/DV10)
IC252 6-701-890-01 IC NJM2595D (DE698/DV10)
IC253 8-759-822-05 IC LA7213 (DE698)
< CAPACITOR >
C247 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698)
C248 1-126-916-11 ELECT 1000uF 20% 6.3V
(DE698)
C249 1-126-960-11 ELECT 1uF 20% 50V
(DE698)
C250 1-104-658-11 ELECT 100uF 20% 10V
(DE698)
C251 1-126-947-11 ELECT 47uF 20% 35V
(DE698/DV10)
C252 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698/DV10)
C253 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698/DV10)
C254 1-126-947-11 ELECT 47uF 20% 35V
(DE698/DV10)
C255 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698/DV10)
C256 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698/DV10)
C257 1-128-817-11 CERAMIC 470PF 5% 50V
(DE698/DV10)
C258 1-128-805-11 CERAMIC 47PF 5% 50V
(DE698/DV10)
C259 1-128-805-11 CERAMIC 47PF 5% 50V
(DE698/DV10)
C260 1-126-964-11 ELECT 10uF 20% 50V
(DE698/DV10)
C261 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698/DV10)
C262 1-126-964-11 ELECT 10uF 20% 50V
(DE698/DV10)
C263 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698/DV10)
C265 1-128-805-11 CERAMIC 47PF 5% 50V
(DE698/DV10)
< CONNECTOR >
J251 1-537-943-11 CONNECTOR (DIN) 1P (MONITOR
S-VIDEO OUT) (DE698/DV10)
J252 1-794-937-11 CONNECTOR (DIN) 2P (DVD S-VIDEO IN,
VIDEO 2 S-VIDEO IN) (DE698/DV10)
J253 1-794-937-11 CONNECTOR (DIN) 2P (VIDEO 1
S-VIDEO OUT/IN) (DE698/DV10)
< TRANSISTOR >
Q250 8-729-029-66 TRANSISTOR DTC114ESA (DE698)
Q251 8-729-201-53 TRANSISTOR 2SA1015-GR (DE698)
< RESISTOR >
R206 1-247-804-11 CARBON 75 5% 1/4W
(DE698/DV10)
R251 1-247-804-11 CARBON 75 5% 1/4W
(DE698/DV10)
R252 1-247-804-11 CARBON 75 5% 1/4W
(DE698/DV10)
R253 1-247-804-11 CARBON 75 5% 1/4W
(DE698/DV10)
R254 1-247-804-11 CARBON 75 5% 1/4W
(DE698/DV10)
R255 1-247-804-11 CARBON 75 5% 1/4W
(DE698/DV10)
R257 1-247-804-11 CARBON 75 5% 1/4W
(DE698/DV10)
R258 1-247-804-11 CARBON 75 5% 1/4W
(DE698/DV10)
R259 1-247-804-11 CARBON 75 5% 1/4W
(DE698/DV10)
R260 1-247-804-11 CARBON 75 5% 1/4W
(DE698/DV10)
R261 1-249-429-11 CARBON 10K 5% 1/4W
(DE698)
64
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Page 65
STR-DE598/DE698/DV10
S-VIDEO S-VIDEO UP CONVERT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R262 1-249-421-11 CARBON 2.2K 5% 1/4W
(DE698)
R263 1-249-411-11 CARBON 330 5% 1/4W
(DE698)
R264 1-247-883-00 CARBON 150K 5% 1/4W
(DE698)
< RELAY >
RY250 1-755-184-11 RELAY (DE698)
*************************************************************
A-1084-974-A S-VIDEO UP CONVERT BOARD, COMPLETE
(DE698:US,CND)
A-1085-099-A S-VIDEO UP CONVERT BOARD, COMPLETE
(DE698:AEP,UK,AUS)
***********************************
< CAPACITOR >
C341 1-162-199-31 CERAMIC 10PF 5% 50V
(DE698:US,CND)
C351 1-162-211-31 CERAMIC 33PF 5% 50V
(DE698:US,CND)
C352 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698)
C353 1-104-658-11 ELECT 100uF 20% 10V
(DE698)
C354 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE698)
C355 1-126-959-11 ELECT 0.47uF 20% 50V
(DE698)
C356 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE698)
C357 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE698)
C358 1-162-201-31 CERAMIC 12PF 5% 50V
(DE698)
C362 1-126-925-11 ELECT 470uF 20% 10V
(DE698)
C363 1-128-801-11 CERAMIC 22PF 5% 50V
(DE698)
C364 1-162-201-31 CERAMIC 12PF 5% 50V
(DE698)
C365 1-126-947-11 ELECT 47uF 20% 35V
(DE698)
C366 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698)
C367 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE698)
C368 1-126-963-11 ELECT 4.7uF 20% 50V
(DE698)
C369 1-130-495-00 MYLAR 0.1uF 5% 50V
(DE698)
C371 1-128-801-11 CERAMIC 22PF 5% 50V
(DE698)
C372 1-162-201-31 CERAMIC 12PF 5% 50V
(DE698)
C373 1-128-801-11 CERAMIC 22PF 5% 50V
(DE698)
C374 1-126-925-11 ELECT 470uF 20% 10V
(DE698)
C375 1-126-965-11 ELECT 22uF 20% 50V
(DE698)
C376 1-126-947-11 ELECT 47uF 20% 35V
(DE698)
C377 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698)
C378 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698)
C379 1-128-812-11 CERAMIC 180PF 5% 50V
(DE698)
C380 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE698)
C381 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE698)
C382 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698)
C383 1-104-658-11 ELECT 100uF 20% 10V
(DE698)
C384 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698)
C385 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE698)
C386 1-104-658-11 ELECT 100uF 20% 10V
(DE698)
C387 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE698)
C388 1-127-876-11 CERAMIC 0.01uF 10% 50V
(DE698)
C389 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698)
C390 1-104-658-11 ELECT 100uF 20% 10V
(DE698)
C392 1-162-199-31 CERAMIC 10PF 5% 50V
(DE698:AEP,UK,AUS)
C393 1-128-802-11 CERAMIC 27PF 5% 50V
(DE698:AEP,UK,AUS)
C394 1-126-947-11 ELECT 47uF 20% 35V
(DE698)
C395 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698)
C397 1-127-888-11 CERAMIC 0.1uF 10% 50V
(DE698)
< CONNECTOR >
CNS351 1-568-442-11 SOCKET, CONNECTOR 9P (DE698)
< TRIMMER CAPACITOR >
CT380 1-141-442-91 CAP, CERAMIC TRIMMER 20PF
(DE698:US,CND)
CT381 1-141-442-91 CAP, CERAMIC TRIMMER 20PF
(DE698:AEP,UK,AUS)
< FERRITE BEAD >
FB353 1-412-911-11 INDUCTOR, FERRITE BEAD (DE698)
FB354 1-412-911-11 INDUCTOR, FERRITE BEAD (DE698)
FB355 1-412-911-11 INDUCTOR, FERRITE BEAD (DE698)
< IC >
IC370 6-701-597-01 IC TC90A69N (DE698)
IC371 8-759-917-18 IC SN74HCU04AN (DE698)
IC372 6-803-031-01 IC NJM2268D (DE698)
IC373 8-759-232-01 IC TC74HC00AP (DE698:AEP,UK,AUS)
65
Page 66
STR-DE598/DE698/DV10
S-VIDEO UP CONVERT
Ref. No. Part No. Description Remark
< COIL >
L370 1-410-514-11 INDUCTOR 27uH (DE698)
L371 1-410-514-11 INDUCTOR 27uH (DE698)
L372 1-414-189-31 INDUCTOR 100uH (DE698)
L373 1-414-189-31 INDUCTOR 100uH (DE698)
L374 1-410-514-11 INDUCTOR 27uH (DE698)
L376 1-414-189-31 INDUCTOR 100uH (DE698)
L377 1-414-189-31 INDUCTOR 100uH (DE698)
< TRANSISTOR >
Q371 8-729-119-78 TRANSISTOR 2SC2785-HFE (DE698)
Q372 8-729-119-78 TRANSISTOR 2SC2785-HFE (DE698)
Q373 8-729-119-78 TRANSISTOR 2SC2785-HFE (DE698)
< RESISTOR >
R358 1-247-831-00 CARBON 1K 5% 1/4W
R359 1-247-831-00 CARBON 1K 5% 1/4W
R363 1-247-903-00 CARBON 1M 5% 1/4W
R365 1-247-807-31 CARBON 100 5% 1/4W
R366 1-247-807-31 CARBON 100 5% 1/4W
R367 1-249-429-11 CARBON 10K 5% 1/4W
R368 1-247-843-11 CARBON 3.3K 5% 1/4W
R369 1-247-843-11 CARBON 3.3K 5% 1/4W
R373 1-249-416-11 CARBON 820 5% 1/4W
R374 1-247-903-00 CARBON 1M 5% 1/4W
R375 1-249-424-11 CARBON 3.9K 5% 1/4W
R376 1-247-831-00 CARBON 1K 5% 1/4W
R377 1-249-416-11 CARBON 820 5% 1/4W
R378 1-249-416-11 CARBON 820 5% 1/4W
R379 1-249-416-11 CARBON 820 5% 1/4W
TUNING VIDEO
(DE698)
(DE698)
(DE698)
(DE698)
(DE698)
(DE698)
(DE698)
(DE698)
(DE698)
(DE698)
(DE698)
(DE698)
(DE698)
(DE698)
(DE698)
Ref. No. Part No. Description Remark
R390 1-247-807-31 CARBON 100 5% 1/4W
(DE698:US,CND)
R391 1-247-807-31 CARBON 100 5% 1/4W
(DE698:AEP,UK,AUS)
R392 1-249-411-11 CARBON 330 5% 1/4W
(DE698:AEP,UK,AUS)
R393 1-249-430-11 CARBON 12K 5% 1/4W
(DE698)
R394 1-249-430-11 CARBON 12K 5% 1/4W
(DE698)
< VIBRATOR >
X370 1-781-134-21 VIBRATOR, CRYSTAL (4.43MHz)
(DE698:AEP,UK,AUS)
X371 1-781-342-21 OSCILLATOR, CRYSTAL (3.58MHz)
(DE698:US,CND)
*************************************************************
TUNING BOARD
*************
< CONNECTOR >
* CNP104 1-564-517-11 PLUG, CONNECTOR 2P
< RESISTOR >
R149 1-247-831-00 CARBON 1K 5% 1/4W
R150 1-249-419-11 CARBON 1.5K 5% 1/4W
R151 1-249-421-11 CARBON 2.2K 5% 1/4W
R152 1-247-847-00 CARBON 4.7K 5% 1/4W
R153 1-249-429-11 CARBON 10K 5% 1/4W
< SWITCH >
S148 1-771-410-21 SWITCH, TACTILE (TUNING –)
S149 1-771-410-21 SWITCH, TACTILE (FM MODE)
S150 1-771-410-21 SWITCH, TACTILE (MEMORY)
S151 1-771-410-21 SWITCH, TACTILE (PRESET TUNING –)
S152 1-771-410-21 SWITCH, TACTILE (PRESET TUNING +)
S153 1-771-410-21 SWITCH, TACTILE (TUNING +)
*************************************************************
A-1084-344-A VIDEO BOARD, COMPLETE
(DE598:US,CND,AUS)
A-1084-408-A VIDEO BOARD, COMPLETE (DE598:AEP,UK)
A-1084-442-A VIDEO BOARD, COMPLETE (DE698)
A-1097-367-A VIDEO BOARD, COMPLETE (DV10)
**********************
R382 1-249-418-11 CARBON 1.2K 5% 1/4W
R383 1-249-420-11 CARBON 1.8K 5% 1/4W
R384 1-249-424-11 CARBON 3.9K 5% 1/4W
R385 1-249-416-11 CARBON 820 5% 1/4W
R386 1-247-807-31 CARBON 100 5% 1/4W
R387 1-247-903-00 CARBON 1M 5% 1/4W
(DE698:AEP,UK,AUS)
R388 1-247-903-00 CARBON 1M 5% 1/4W
(DE698:US,CND)
R389 1-249-411-11 CARBON 330 5% 1/4W
(DE698:US,CND)
66
(DE698)
(DE698)
(DE698)
(DE698)
(DE698)
< CAPACITOR >
C200 1-128-805-11 CERAMIC 47PF 5% 50V
C201 1-128-805-11 CERAMIC 47PF 5% 50V
C206 1-126-964-11 ELECT 10uF 20% 50V
C207 1-126-964-11 ELECT 10uF 20% 50V
C208 1-126-964-11 ELECT 10uF 20% 50V
C209 1-126-964-11 ELECT 10uF 20% 50V
C210 1-126-964-11 ELECT 10uF 20% 50V
C213 1-126-923-11 ELECT 220uF 20% 10V
C214 1-127-888-11 CERAMIC 0.1uF 10% 50V
C215 1-127-888-11 CERAMIC 0.1uF 10% 50V
C220 1-126-947-11 ELECT 47uF 20% 35V
C221 1-126-923-11 ELECT 220uF 20% 10V
C223 1-127-888-11 CERAMIC 0.1uF 10% 50V
Page 67
STR-DE598/DE698/DV10
VIDEO VIDEO3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C224 1-127-888-11 CERAMIC 0.1uF 10% 50V
C308 1-126-964-11 ELECT 10uF 20% 50V
(EXCEPT DE598:AEP,UK)
C309 1-126-964-11 ELECT 10uF 20% 50V
(EXCEPT DE598:AEP,UK)
C310 1-126-964-11 ELECT 10uF 20% 50V
(EXCEPT DE598:AEP,UK)
C311 1-126-964-11 ELECT 10uF 20% 50V
(EXCEPT DE598:AEP,UK)
R221 1-247-804-11 CARBON 75 5% 1/4W
R301 1-247-804-11 CARBON 75 5% 1/4W
(EXCEPT DE598:AEP,UK)
R302 1-247-804-11 CARBON 75 5% 1/4W
(EXCEPT DE598:AEP,UK)
R303 1-247-804-11 CARBON 75 5% 1/4W
(EXCEPT DE598:AEP,UK)
R304 1-247-804-11 CARBON 75 5% 1/4W
(EXCEPT DE598:AEP,UK)
C312 1-126-964-11 ELECT 10uF 20% 50V
(EXCEPT DE598:AEP,UK)
C313 1-126-964-11 ELECT 10uF 20% 50V
(EXCEPT DE598:AEP,UK)
C314 1-127-868-11 CERAMIC 0.0022uF 10% 50V
C315 1-127-868-11 CERAMIC 0.0022uF 10% 50V
(EXCEPT DE598:AEP,UK)
C316 1-127-868-11 CERAMIC 0.0022uF 10% 50V
C317 1-126-947-11 ELECT 47uF 20% 35V
(EXCEPT DE598:AEP,UK)
C330 1-127-888-11 CERAMIC 0.1uF 10% 50V
(EXCEPT DE598:AEP,UK)
C331 1-127-888-11 CERAMIC 0.1uF 10% 50V
(EXCEPT DE598:AEP,UK)
C338 1-126-947-11 ELECT 47uF 20% 35V
(EXCEPT DE598:AEP,UK)
< CONNECTOR >
* CNP202 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P (DE598)
* CNP202 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P
(DE698/DV10)
CNP203 1-691-765-11 PLUG (MICRO CONNECTOR) 3P
CNS201 1-568-442-11 SOCKET, CONNECTOR 9P (DE698/DV10)
CNS202 1-568-442-11 SOCKET, CONNECTOR 9P (DE698)
CNS250 1-568-443-11 SOCKET, CONNECTOR 13P
< DIODE >
R305 1-247-804-11 CARBON 75 5% 1/4W
(EXCEPT DE598:AEP,UK)
R306 1-247-804-11 CARBON 75 5% 1/4W
(EXCEPT DE598:AEP,UK)
R307 1-247-804-11 CARBON 75 5% 1/4W
(EXCEPT DE598:AEP,UK)
R308 1-247-804-11 CARBON 75 5% 1/4W
(EXCEPT DE598:AEP,UK)
R309 1-247-804-11 CARBON 75 5% 1/4W
(EXCEPT DE598:AEP,UK)
R310 1-247-831-00 CARBON 1K 5% 1/4W
(EXCEPT DE598:AEP,UK)
R311 1-247-831-00 CARBON 1K 5% 1/4W
(EXCEPT DE598:AEP,UK)
R312 1-247-831-00 CARBON 1K 5% 1/4W
(EXCEPT DE598:AEP,UK)
R313 1-247-863-00 CARBON 22K 5% 1/4W
(EXCEPT DE598:AEP,UK)
*************************************************************
VIDEO3 BOARD (DE598)
*************
< CAPACITOR >
C293 1-127-888-11 CERAMIC 0.1uF 10% 50V
C294 1-127-888-11 CERAMIC 0.1uF 10% 50V
C298 1-162-286-31 CERAMIC 220PF 10% 50V
C299 1-162-286-31 CERAMIC 220PF 10% 50V
D203 8-719-991-33 DIODE 1SS133T-77
D204 8-719-991-33 DIODE 1SS133T-77
< IC >
IC203 6-701-890-01 IC NJM2595D
IC304 6-707-363-01 IC NJM2586L (EXCEPT DE598:AEP,UK)
IC804 8-759-245-79 IC TA79005S
IC807 8-759-231-53 IC TA7805S
< JACK >
J200 1-794-978-11 JACK, PIN 3P (DVD VIDEO IN,
VIDEO 2 VIDEO IN,VIDEO 1 VIDEO OUT)
J201 1-815-043-11 JACK, PIN 2P (VIDEO 1 VIDEO IN,
MONITOR VIDEO OUT)
J301 1-816-592-11 JACK, PIN 9P (COMPONENT VIDEO
DVD IN (ASSIGNABLE),
VIDEO 2 IN (ASSIGNABLE),MONITOR OUT)
(EXCEPT DE598:AEP,UK)
< RESISTOR >
R200 1-247-804-11 CARBON 75 5% 1/4W
R201 1-247-804-11 CARBON 75 5% 1/4W
R218 1-247-804-11 CARBON 75 5% 1/4W
R219 1-247-804-11 CARBON 75 5% 1/4W
R220 1-247-804-11 CARBON 75 5% 1/4W
< CONNECTOR >
CN201 1-784-922-11 PIN, CONNECTOR 5P
< JACK >
J298 1-819-187-11 JACK, PIN 3P (VIDEO 3 INPUT
VIDEO,AUDIO L/R)
< RESISTOR >
R298 1-247-831-00 CARBON 1K 5% 1/4W
R299 1-247-831-00 CARBON 1K 5% 1/4W
< LEAD WIRE >
* W290 1-690-880-31 LEAD (WITH CONNECTOR)
*************************************************************
67
Page 68
STR-DE598/DE698/DV10
VIDEO3 (DE61)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
VIDEO3 (DE61) BOARD (DE698/DV10)
*******************
MISCELLANEOUS
***************
< CAPACITOR >
C293 1-127-888-11 CERAMIC 0.1uF 10% 50V
C294 1-127-888-11 CERAMIC 0.1uF 10% 50V
C298 1-162-286-31 CERAMIC 220PF 10% 50V
C299 1-162-286-31 CERAMIC 220PF 10% 50V
< CONNECTOR >
CN201 1-784-922-21 PIN, CONNECTOR 5P
< JACK >
J298 1-819-187-11 JACK, PIN 3P (VIDEO 3 INPUT
VIDEO,AUDIO L/R)
< RESISTOR >
R298 1-247-831-00 CARBON 1K 5% 1/4W
R299 1-247-831-00 CARBON 1K 5% 1/4W
< LEAD WIRE >
* W290 1-690-880-31 LEAD (WITH CONNECTOR)
*************************************************************
102 1-828-963-11 WIRE (FLAT TYPE) (11 CORE) (US,CND,AUS)
102 1-828-980-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK)
103 1-828-972-11 WIRE (FLAT TYPE) (13 CORE)
105 1-828-954-11 WIRE (FLAT TYPE) (9 CORE) (DE698)
108 1-828-954-11 WIRE (FLAT TYPE) (9 CORE) (DE698/DV10)
0 110 1-777-071-83 CORD, POWER (AEP,UK)
0 110 1-783-820-11 CORD, POWER (US,CND)
0 110 1-827-295-22 CORD, POWER (AUS)
0 F901 1-532-464-33 FUSE (T2.5AL/250V) (AEP,UK,AUS)
0 F901 1-533-454-12 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V)
(US,CND)
0 F902 1-532-464-33 FUSE (T2.5AL/250V) (DE698:AEP,UK,AUS)
0 F902 1-533-453-12 FUSE, GLASS TUBE (DIA. 5) (5A/125V)
(DE698:US,CND/DV10)
Q503 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q504 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q533 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q534 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q572 8-729-026-08 TRANSISTOR 2SC4495 (DE698/DV10)
Q603 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q604 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q653 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q654 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q703 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q704 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q753 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q754 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q2573 6-702-390-01 TRANSISTOR MN2488-OPY-MK (DE698/DV10)
Q2754 6-702-391-01 TRANSISTOR MP1620-OPY-MK (DE698/DV10)
0 T901 1-439-550-21 TRANSFORMER, POWER (AEP,UK,AUS)
0 T901 1-439-611-11 TRANSFORMER, POWER (US,CND)
TN1 1-693-675-11 TUNER PACK (ANTENNA) (DE598:US,CND)
TN1 1-693-675-21 TUNER PACK (ANTENNA)
TN1 1-693-676-11 TUNER PACK (ANTENNA) (DE698:AEP,UK)
TN1 1-693-676-21 TUNER PACK (ANTENNA) (DE598:AEP,UK)
TN1 1-693-678-11 TUNER PACK (ANTENNA) (AUS)
*************************************************************
(DE698:US,CND/DV10)
68
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Page 69
Ref. No. Part No. Description Remark
ACCESSORIES
************
1-479-147-11 COMMANDER, STANDARD (RM-AAU001)
(DE598/DV10)
1-479-150-11 COMMANDER, STANDARD (RM-AAP001)
(DE698)
1-501-374-12 ANTENNA, LOOP (AM)
1-501-807-12 ANTENNA (FM) (AEP,UK,AUS)
0 1-770-019-51 ADAPTOR, CONVERSION PLUG (UK)
1-793-184-23 CONNECTOR (F TYPE ADAPTOR) (FM) (US,CND)
2-549-732-11 MANUAL, INSTRUCTION (ENGLISH) (DE598)
2-549-732-21 MANUAL, INSTRUCTION (FRENCH)
(DE598:CND,AEP)
2-549-732-31 MANUAL, INSTRUCTION (SPANISH)
(DE598:AEP)
2-549-732-41 MANUAL, INSTRUCTION (GERMAN,DUTCH,
SWEDISH) (DE598:AEP)
STR-DE598/DE698/DV10
2-549-732-51 MANUAL, INSTRUCTION (ITALIAN,POLISH)
2-549-733-11 MANUAL, INSTRUCTION (DANISH,FINNISH)
2-549-733-21 MANUAL, INSTRUCTION (PORTUGUESE)
2-549-733-31 MANUAL, INSTRUCTION (RUSSIAN)
2-560-571-11 MANUAL, INSTRUCTION (ENGLISH) (DE698)
2-560-571-21 MANUAL, INSTRUCTION (FRENCH)
2-560-571-31 MANUAL, INSTRUCTION (SPANISH)
2-560-571-41 MANUAL, INSTRUCTION (GERMAN,DUTCH,
SWEDISH) (DE698:AEP)
2-560-571-51 MANUAL, INSTRUCTION (ITALIAN,POLISH)
2-560-572-11 MANUAL, INSTRUCTION (DANISH,FINNISH)
2-560-572-21 MANUAL, INSTRUCTION (PORTUGUESE)
2-560-572-31 MANUAL, INSTRUCTION (RUSSIAN)
2-560-573-11 MANUAL, INSTRUCTION (ENGLISH) (DV10)
(DE598:AEP)
(DE598:AEP)
(DE598:AEP)
(DE598:AEP)
(DE698:CND,AEP)
(DE698:AEP)
(DE698:AEP)
(DE698:AEP)
(DE698:AEP)
(DE698:AEP)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
69
Page 70
STR-DE598/DE698/DV10
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper on the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 2005. 02 New
70
Loading...
