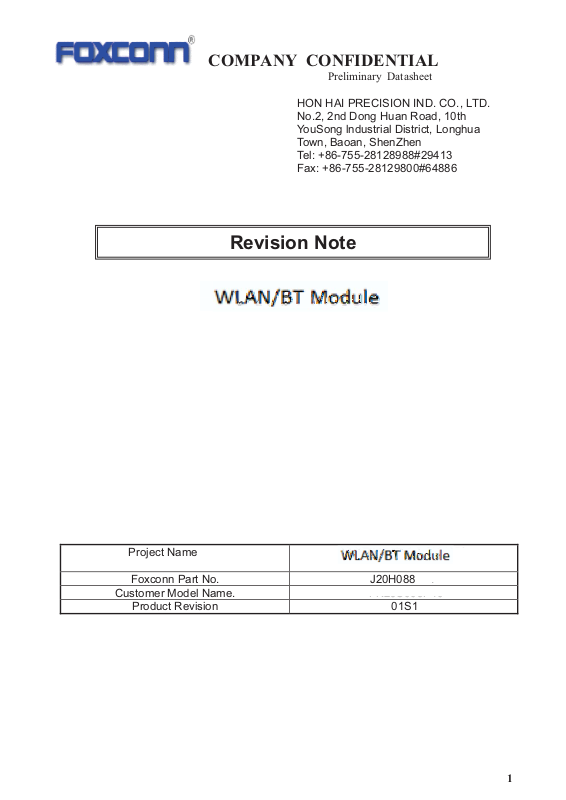

COMPANY CONFIDENTIAL
Preliminary Datasheet
HON HAI PRECISION IND. CO., LTD.
No.2, 2nd Dong Huan Road, 10th
YouSong lndustrial District, Longhua
Town, Baoan, ShenZhen
Tel: +86-755-28128988#29413
Fax: +86-755-28129800#64886
Revision Note
BCM4356 Dual WLAN Mod e v4.1
u
Project Name |
WLAN Module |
|
WLAN + BT Combo Module |
Foxconn Part No. |
J20H088T77H566.01 |
Customer Model Name. |
PK29S005P10 |
Product Revision |
01S1 |
1
!
3 Product Overview
J20H088.00 support 2x2 802.11a/b/g/n/ac and BT4.1+LE module provides wireless modem functionality utilizing direct sequence spread spectrum and OFDM/CCK technology. This module is based on MTK MT7662TU solution .It fully complies with IEEE 802.11n,IEEE 802.11 a/b/g and ,IEEE 802.11 ac standards, Bluetooth v2.1+EDR,
V4.1 standard, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. Intelligent MAC design deploys a high efficient DMA engine and hardware data processing accelerators which offloads the host processor.
3.1Application scope
The wireless LAN is compliant to IEEE 802.11n,IEEE 802.11 a/b/g and IEEE 802.11 ac standards.
Channel Spacing
2.4GHz -> 5MHz, 5GHz-> 20MHz (BW on 20MHz), 40MHz (BW on 40MHz) , 80MHz (BW on 80MHz)
Data rate:
1, 2, 5.5, 11Mbps for 802.11b;
6, 9, 12, 18, 24, 36, 48 and 54Mbps for 802.11a/g; MCS0(6.5Mbps)~MCS7(65Mbps) for 802.11n HT20 mode (single chain) MCS8(13Mbps)~MCS15(130Mbps) for 802.11n HT20 mode (dual chains) MCS0(13.5Mbps)~MCS7(135Mbps) for 802.11n HT40 (5G only) mode (single chain) MCS8(27Mbps)~MCS15(270Mbps) for 802.11n HT40 (5G only) mode (dual chains); MCS0(6.5Mbps)~MCS8(78Mbps) for 802.11ac VHT20 mode (single chain)* MCS0(13Mbps)~MCS8(156Mbps) for 802.11ac VHT20 mode (dual chains)* MCS0(13.5Mbps)~MCS9(180Mbps) for 802.11ac VHT40 mode (single chain)* MCS0(27Mbps)~MCS9(360Mbps) for 802.11ac VHT40 mode (dual chains)* MCS0(29.3Mbps)~MCS9(390Mbps) for 802.11ac VHT80 mode (single chain)* MCS0(58.5Mbps)~MCS9(780Mbps) for 802.11ac VHT80 mode (dual chains)*
BT:
The BT Module is compliant to Bluetooth 4.1 and EDR standard: Carrier Frequency: 2402MHz ~ 2480 MHz
Carrier Spacing: 1.0MHz (classic), 2MHz (LE) Duplexing: TDD
Modulation: FHSS
1Mbps (GFSK), 2Mbps ( /4-DQPSK), 3Mbps (8DPSK),LE (GFSK)
6Electrical Specification
6.1Absolute maximum rating
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Element |
|
|
Min |
|
Typ |
|
Max |
|
Unit |
|||
DC supply voltage |
|
|
|
|
3.3 |
|
3.63 |
|
(V) |
||||
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Element |
|
Condition |
Min |
|
Typ |
|
Max |
Unit |
||||
Supplied Ripple Voltage |
|
3.3V |
|
|
|
|
|
|
330 |
mVpp |
|||
|
|
|
|
|
|
|
|
||||||
6.2 Recommended operating rating
Element |
Symbol |
Min |
Typ |
Max |
Unit |
DC supply voltage |
UV+ |
2.97 |
3.3 |
3.63 |
(V) |
6.3 |
DC Characteristics |
|
|
|
|
|
|
|
Parameter |
Min |
Typ. |
Max |
Unit |
|
|
Supply voltage |
2.97 |
3.3 |
3.63 |
(V) |
|
|
2.412GHz Tx Current(1M/16dBm) |
|
470 |
|
(mA) |
|
|
2.412GHz Tx Current(MCS0/15dBm) |
|
440 |
|
(mA) |
|
|
5.18GHz Tx Current(6M/13Bm/HT20) |
|
580 |
|
(mA) |
|
|
5.19GHz Tx Current(MCS0/13dBm/HT40) |
|
560 |
|
(mA) |
|
|
Rx(2G/5GHz) Current |
|
200 |
|
(mA) |
|
|
5.21GHz Tx Current(MCS9/11dBm/VHT80)* |
|
450 |
|
(mA) |
|
|
Standby |
|
20 |
|
(mA) |
6.4ESD Information
Mode |
Level |
Unit |
HBM |
+/-1500 |
V |
6.5Environment Storage Condition
|
|
|
|
Environment condition |
|
||
|
|
||
|
|
||
|
Temperature |
|
Operating Temperature: -10 deg.C ~60 deg.C |
|
|
Storage Temperature: -40 deg.C ~85 deg.C |
|
|
|
||
|
Operating Humidity: 20% ~90% |
||
|
Humidity |
|
|
|
|
Storage Humidity: 20% ~90% |
|
|
|
||
