UX-600MU/MC FO-1660U/C

SERVICE MANUAL

No. 00ZUX600MUSME

FACSIMILE

MOD ELMOD ELUX

UX-600M

MODEL FO-1660

CONTENTS

CHAPTER 1. GENERAL DESCRIPTION

[1] Specifications . . . . . . . . . . . . . . . . . . . . . 1-1

[2] Operation panel . . . . . . . . . . . . . . . . . . . . 1-2

[3] Transmittable documents . . . . . . . . . . . . 1-3

[4] Installation . . . . . . . . . . . . . . . . . . . . . . . . 1-4

[5] Quick reference guide . . . . . . . . . . . . . . . 1-9

[6] Option imaging film specifications

(UX-15CR/FO-15CR) . . . . . . . . . . . 1-11

CHAPTER 2. ADJUSTMENTS

[1] Adjustments . . . . . . . . . . . . . . . . . . . . . . 2-1

[2] Diagnostics and service soft switch . . . . 2-2

[3] Troubleshooting . . . . . . . . . . . . . . . . . . 2-17

[4] Error code table . . . . . . . . . . . . . . . . . . . 2-18

CHAPTER 3. MECHANISM BLOCKS

[1] General description . . . . . . . . . . . . . . . . . 3-1

[2] Disassembly and assembly

procedures . . . . . . . . . . . . . . . . . . . . 3-4

CHAPTER 4. DIAGRAMS

[1] Block diagram . . . . . . . . . . . . . . . . . . . . . 4-1

[2] Wiring diagram . . . . . . . . . . . . . . . . . . . . 4-2

[3] Point-to-point diagram . . . . . . . . . . . . . . . 4-3

CHAPTER 5. CIRCUIT DESCRIPTION

[1] Circuit description . . . . . . . . . . . . . . . . . .5-1

[2] Circuit description of control PWB . . . . . .5-2

[3] Circuit description of TEL/LIU PWB . . . . .5-9

[4] Circuit description of

power supply PWB . . . . . . . . . . . . .5-12

[5] Circuit description of CCD PWB . . . . . .5-12

CHAPTER 6. CIRCUIT SCHEMATICS AND PART S LAYOUT

[1] Control PWB circuit . . . . . . . . . . . . . . . . .6-1

[2] TEL/LIU PWB circuit . . . . . . . . . . . . . . .6-10

[3] Power supply PWB circuit . . . . . . . . . . .6-12

[4] CCD PWB circuit . . . . . . . . . . . . . . . . . .6-14

[5] Operation panel PWB circuit . . . . . . . . .6-15

[6] Multifunction interface PWB circuit . . . .6-17

CHAPTER 7. OPERAT ION FLO WCHART

[1] Protocol . . . . . . . . . . . . . . . . . . . . . . . . . .7-1

[2] Power on sequence . . . . . . . . . . . . . . . . .7-2

CHAPTER 8. OTHERS

[1] Service tools . . . . . . . . . . . . . . . . . . . . . .8-1

[2] IC signal name . . . . . . . . . . . . . . . . . . . . .8-4

PARTS GUIDE

Parts marked with " " is important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

This document has been published to be used

SHARP CORPORATION

for after sales service only. The contents are subject to change without notice.

Page 2

UX-600MU/MC FO-1660U/C

CAUTION FOR BATTERY REPLACEMENT

(Danish) ADVARSEL !

Lithiumbatteri-Eksplosionsfare ved fejlagtig håndtering.

Udskiftning må kun ske med batteri af samme fabrikat og type.

Levér det brugte batteri tilbage til leverandoren.

(English) Caution !

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type

recommended by the equipment manufacturer.

Discard used batteries according to manufacturer’s

instructions.

(Finnish) VAROITUS

Paristo voi räjähtää, jos se on virheellisesti asennettu.

Vaihda paristo ainoastaan laitevalmistajan suosittelemaan

tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden

mukaisesti.

(French) ATTENTION

Il y a danger d’explosion s’ il y a remplacement incorrect

de la batterie. Remplacer uniquement avec une batterie du

même type ou d’un type recommandé par le constructeur.

Mettre au rébut les batteries usagées conformément aux

instructions du fabricant.

(Swedish) VARNING

Explosionsfare vid felaktigt batteribyte.

Använd samma batterityp eller en ekvivalent

typ som rekommenderas av apparattillverkaren.

Kassera använt batteri enligt fabrikantens

instruktion.

(German) Achtung

Explosionsgefahr bei Verwendung inkorrekter Batterien.

Als Ersatzbatterien dürfen nur Batterien vom gleichen Typ oder

vom Hersteller empfohlene Batterien verwendet werden. Entsorgung der gebrauchten Batterien nur nach den vom

Hersteller angegebenen Anweisungen.

Page 3

CHAPTER 1. GENERAL DESCRIPTION

[1] Specifications

UX-600MU/MC FO-1660U/C

Applicable telephone line: Public switched telephone network Compatibility: ITU-T (CCITT) G3 mode Configuration: Half-duplex, desktop transceiver Memory size*: 512 KB (approx. 30 average pages

with ECM function off)

Compression scheme: MH, MR, MMR Scanning method: Flat-bed, solid-state CCD Resolution: Horizontal:

203 lines/inch (8 dots/mm) Vertical: Standard−98 lines/inch (3.85 lines/mm) Fine/Halftone−196 lines/inch (7.7 lines/mm) Super fine−391 lines/inch (15.4 lines/mm)

Recording system: Thermal transfer recording Display: 7 x 5 dots, 1 line by 16-digit display Reception modes: Auto/Manual Modem speed: 14400 bps with automatic fallback to

12000, 9600, 7200, 4800, or 2400 bps

Transmission time* : Approx. 6 seconds (Memory TX) Effective recording width: 8.0" (203 mm)(average) Input document size: Automatic feeding:

Width  5.83 to 8.5"

(148 to 216 mm)

Length  5.04 to 11"

(128 to 279 mm) Manual feeding: Width  5.83 to 8.5"

(148 to 216 mm) Length  5.04 to 39.4"

(128 to 1000 mm)

Effective scanning width: 8.3" (210 mm) max. Automatic document feeder: 20 sheets max. Halftone (gray scale): 64 levels Contrast control: Automatic/Dark selectable Copy function: Single/Multi-copy/Sort-copy (99 cop-

ies/page)

Telephone function: Standard

(cannot be used if power fails)

Power requirements: 120 V AC, 60 Hz Operating environment: 41 to 95°F (5 to 35°C),

20 to 80 % RH

Power consumption: Stand-by: 5 W

Maximum: 100 W

Dimensions: Width: 14.4" (365 mm)

Depth: 13.9" (353 mm) Height: 7.6" (193 mm)(Without

attachments) Weight: Approx. 10.4 lbs. (4.7kg) * Based on ITU-T (CCITT) Test Chart #1 at standard resolution in

MMR (Memory Transmition), excluding time for protocol signals (i.e., ITU-T phase C time only).

As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for procduct improvement without prior notice. The performance specifications figures indicated are nominal values of production units. There may be some deviation from these values in individual units.

1 – 1

Page 4

UX-600MU/MC FO-1660U/C

[2] Operation panel

SPEED DIAL key

Press this key to dial a 2-digit Speed Dial number.

REDIAL key

Press this key to automatically redial the last number dialed.

Number keys

Use these keys to dial numbers, and enter numbers and letters during number/name storing procedures.

Display

This displays various messages during operation and programming.

ABC DEF

123

GHI JKL MNO

456

TUV WXYZPQRS

789

VOLUME keys

Press these keys to adjust the volume of the handset when the handset is lifted, the volume of the speaker when the SPEAKER key has been pressed, or the volume of the ringer at all other times.

FUNCTION key

Press this key to select various special functions.

SPEED

DIAL

REDIAL

SPEAKER

HOLD/

DOWN

RECEPTION

MODE

COPY/

HELP

RESOLUTION key

Press this key to adjust the resolution and contrast before sending or copying a document.

UP VOLUME

FUNCTION MEMORY

RESOLUTION

START STOP

MEMORY key

Press this key to scan a document into memory before transmitting it.

01 02 03 20 21 22

SHIFT

0504 06 07 2423 25 26

0908 10 11 2827 29 30

1312 14 15/POLL 3231 33 34

17/P216/P1 18/G1 19/G2 3635 37 38

Rapid Dial Keys

Press one of these keys to dial a fax or voice number automatically. To dial the bottom number on a Rapid Key, press the SHIFT key before pressing the Rapid Key. ( Note that you must attach the Rapid Key labels.)

HOLD/SEARCH key

Press this key to search for an automatic dialing number, or, during a phone conversation, press this key to put the other party on hold.

SPEAKER key

Press this key to dial a number without picking up the handset.

COPY/HELP key

When a document is in the feeder, press this key to make a copy. At any other time, press this key to print out the Help List, a quick reference guide to the operaion of your fax.

START key

Press this key to send or receive a document.

RECEPTION MODE key

Press this key to select the mode of reception.

1 – 2

STOP key

Press this key to stop the operation before it is completed.

Page 5

UX-600MU/MC FO-1660U/C

[3] Transmittable documents

1. Document Sizes

Normal size

(Min.)

128mm

148mm 216mm

Use document carrier sheet for smaller documents.

* With special sizes, only one sheet can be fed into the machine at

a time. Insert next page into feeder as current page is being scanned.

2. Paper Thickness & Weight

ADF 10 sheets

Normal size

ADF 20 sheets

Special size

width 5.83"–8.5"(148 – 216 mm)

length 5.04" – 11"(128 – 279 mm)

(Max.)

(Max.) Letter size

[Normal size]

Thickness

Weight

Thickness

Weight

Thickness

Weight

279mm

216mm

[Special size]

2.4 x 10–3–4.7 x 10–3inch (0.06–0.12 mm)

0.15 x 10–3lbs/inch (52–104g/m2) (14–28lbs)

2.4 x 10–3–3.5 x 10–3inch (0.06–0.09 mm)

0.77 x 10–3–0.11 x 10–3lbs/inch (52–74.3g/m2) (14–20lbs)

4.7 x 10–3–7.9 x 10–3inch (0.12–0.20 mm)

0.15 x 10–3–0.20 x 10–3lbs/inch (52–157 g/m

1000mm

5. Automatic Document Feeder Capacity

Number of pages that can be placed into the feeder at anytime is as follows:

Normal size: max. ADF 20 sheets (14 lbs – 20 lbs) Special size: single sheet only (manual feed) NOTES: • When you need to send or copy more pages than the

feeder limit, place additional pages in feeder when last page in feeder is being scanned.

• Place additional pages carefully and gently in feeder.

If force is used, double-feeding or a document jam may result.

6. Readable Width & Length

The readable width and length of a document are slightly smaller than the actual document size.

Note that characters or graphics outside the effective document scanning range will not be read.

• Readable width

210 mm, max.

Readable width

• Readable length

This is the length of the document sent minus 0.16" (4 mm) from the top and bottom edges.

3. Document Types

• Normal paper

Documents handwritten in pencil (No. 2 lead or softer), fountain pen, ball-point pen, or felt-tipped pen can be transmitted. Documents of normal contrast duplicated by a copying machine can also be transmitted.

• Diazo copy (blue print)

Diazo copy documents of a normal contrast may be transmitted.

• Carbon copy

A carbon copy may be transmitted if its contrast is normal.

4. Cautions on Transmitting Documents

• Documents written in yellow, greenish yellow, or light blue ink

cannot be transmitted.

• Ink, glue, and correcting fluid on documents must be dry before the

documents can be transmitted.

• All clips, staples and pins must be removed from documents be-

fore transmission.

• Patched (taped) documents should be copied first on a copier and

then the copies used for transmission.

• All documents should be fanned before insertion into the feeder to

prevent possible double feeds.

4mm

Readable length

4mm

1 – 3

Page 6

UX-600MU/MC FO-1660U/C

7. Use of Document Carrier Sheet

A document carrier sheet must be used for the following documents.

• Those with tears.

• Those smaller than size 5.83"(W) x 5.04"(L) (148 mm (W) x 128

mm (L)).

• Carbon-backed documents

Make print straight across paper E.G. Place the document carrier in the document feeder with the clear film side down

Direction of insertion

NOTE: To transmit a carbon-backed document, insert a white sheet

of paper between the carbon back of the document and the document carrier.

• Those containing an easily separable writing substance (e.g., trac-

ing paper written on with a soft, heavy lead pencil).

NOTES: • When using the document carrier, carefully read the in-

structions written on the back.

• If the document carrier is dirty, clean it with a soft, moist

cloth, and then dry it before using for transmission.

• Do not place more than one document in the carrier at a

time.

TELEPHONE JACK

A stand ar d R J 11 C t ele phone jack m us t be located n ea r t h e m a ch ine. This is the telephone jack commonly used in most homes and offices.

• Plugging the fax machine into a jack which is not an RJ11C jack

may result in damage to the machine or your telephone system. If you do not know what kind of jack you have, or needed to have one installed, contact the telephone company.

2. Loading the imaging film (Refer to pape) (UX-15CR: UX-600MU/MC) (FO-15CR: FO-1660U/C)

Press the release marked OPEN and open the print compartment cover.

• Caution! The printing head (the strip of metal on the underside of

the cover) applies heat to the printing film. It may be hot if a document has just been printed.

[4] Installation

1. Site selection

Take the following points into consideration when selecting a site for this model.

ENVIRONMENT

• The machine must be installed on a level surface.

• Keep the machine away from air conditioners, heaters, direct sun-

light, and du st.

• Provide easy access to the front, back, and sides of the machine.

In particular, keep the area in front of the machine clear, or the original document may jam as it comes out after scanning.

• The temperature should be between 5° and 35°C.

• The humidity should be between 30% and 85% (without conden-

sation).

ELECTRICITY

120V, 60Hz, grounded (3-prong) AC outlet is required.

Caution!

• Connection to a power source other than that specified will cause

damage to the equipment and is not covered under the warranty.

• If your area experiences a high incidence of lightning or power

surges, we recommend that you install a surge protector for the power and telephone lines. Surge protectors can be purchased at most telephone specialty stores.

If the machine is moved from a cold to a warm place...

If the machine is moved from a cold to a warm place, it is possible that the reading glass may fog up, preventing proper scanning of documents for transmission. To remove the fog, turn on the power and wait approximately 2 hours before using the machine.

If you are replacing the imaging film, take the old film out of the printing compartment and remove the three (3) green gears and the green flange from the ends of the spools.

DO NOT DISCARD THE GREEN GEARS AND THE GREEN FLANGE!

1 – 4

Page 7

Take the new film out of its package, and insert two of the gears provided with the fax into the ends of the spool with film. Make sure that the two tabs on the gears fit properly into the slots in the ends of the spool.

• Do not yet remove the band which holds the spools together.

UX-600MU/MC FO-1660U/C

Insert the empty spool into the back of the compartment so that the gear and the flange fit into the slots on the sides of the compartment.

• Make sure that the gear engages with the gear below it.

2 tabs

Hold the empty spool so that the end with only one slot is on the left, and lower the spools into the front of the printing compartment. The gears in the ends of the spool with film should fit into the slots on each side of the printing compartment.

Cut the band which holds the spools together with scissors, and remove it. Insert the remaining gear into the right end of the empty spool and the flange into the left end of the empty spool. Make sure the tabs on the gear and the flange fit into the slots in the ends of the spool (the gear has two tabs and the flange has one tab).

1 tab

Wind the film slightly (rotate the gear on the right side of the empty spool) so that there is no slack in the film. Make sure that both edges of the film wind onto the spool evenly.

Close the print compartment cover, making sure it clicks into place.

• Caution! Close the cover slowly to make sure it doesn’t pinch

your fingers.

Flange

2 tabs

Gear

Pull the empty spool toward the back of the compartment, unwinding the film as you pull.

1 – 5

If you replaced the film, initialize the new film by pressing the FUNCTION key, the "6" key, and the "#" key on the operation panel. Make sure that INITIALIZE FILM appears in the display, and then press the START key. (Do not perform this step if you installed the initial sample roll of film.)

FUNCTION

START

Page 8

UX-600MU/MC FO-1660U/C

3. Assembly and connections

Plug the power cord into a 120 V, 60 Hz, grounded (3-prong) outlet.

Caution: Do not plug the power cord into any other kind of outlet.

This will damage the machine and is not covered under the warranty.

AC outlet

Connect the handset as shown and place it on the handset rest. Insert one end of the telephone line cord into the "TEL. LINE"

jack. Insert the other end into a standard (RJ11C) single-line telephone wall jack.

Be sure to insert the telephone line cord into the "TEL. LINE" jack. Do not insert into the "TEL. SET" jack.

Handset

4. Loading printing paper

The paper tray holds the paper on which received documents and copies are printed. Up to 200 sheets of letter or legal size paper from 16 to 20 lbs. (60 to 75 g/m2) can be loaded in the tray. Less sheets can be loaded when using heavier paper. The maximum allowed paper weight is 24 lbs. (90 g/m2).

Note: When receiving or copying documents, do not allow more

than 100 pages to collect in the received document outlet. Otherwise, the outlet may become obstructed, causing paper jams.

Remove the paper cover if it is on the paper tray.

• If you are going to load legal size paper, flip up the paper tray

extender.

TEL. SET

TEL. LINE

Wall jack

Insert the paper tray into the back of the fax as shown.

If desired, attach the original document support by inserting the ends into the holes in the bottom of the fax as shown.

Fan the paper, and then tap the edge against a flat surface to even the stack.

Pull the paper release plate toward you and insert the stack of paper into the tray, print side down.

• If paper remains in the tray, take it out and combine it into a single

stack with the new paper before adding the new paper.

1 – 6

Page 9

Replace the paper cover on the paper tray and then push the paper release plate back down.

• Important: Be sure to replace the paper cover before you

push the paper release plate down.

LETTER

LEGAL

UX-600MU/MC FO-1660U/C

5. Clearing paper jams

If a document doesn’t feed properly during transmission or copying, or DOCUMENT JAMMED appears in the display, first try pressing the START key. If the document doesn’t feed out, open the operation panel (grasp the front edge at the "PANEL RELEASE" mark and pull up) and pull it out gently.

Press the release marked OPEN and open the print compartment cover.

• Caution! The printing head (the strip of metal on the underside of

the frame) applies heat to the printing film. It may be hot if a document has just been printed.

Your fax has been set at the factory to scale the size of the printed image to letter size paper. If you have loaded legal size paper, you must change this setting to legal. Press the "FUNCTION" key, the "6" key, the " " key twice, and then press "1" to select letter, or "2" to select legal. When finished, press the STOP key. Be sure to change this setting every time you change the paper size.

FUNCTION

STOP

Legal

Letter

Your fax has been set at the factory to print on regular paper. If you have loaded high quality thermal transfer paper, you must change this setting to "HIGH QUALITY". Press the "FUNCTION" key, the "6" key, the " " key three times, and then press "1" to select regular, or "2" to select high quality paper. When finished, press the STOP key. Be sure to change this setting again if you change back to regular paper.

FUNCTION

Remove the imaging film from the printing compartment and set it on a sheet of paper.

Gently pull the jammed paper out of the printing compartment.

Regular

High quality

STOP

1 – 7

Page 10

UX-600MU/MC FO-1660U/C

Replace the imaging film, making sure that the flange goes into the rear slot on the left side of the printing compartment. Also, make sure that the right, rear gear engages with the gear below it.

Wind the film slightly (rotate the gear on the right side of the empty spool) so that there is no slack in the film. Make sure that both edges of the film wind onto the spool evenly.

Close the print compartment cover, making sure it clicks into place.

• Caution! Close the cover slowly to make sure it doesn’t pinch

your fingers.

Space

Press this key twice to enter a space.

ABC DEF

123

GHI JKL MNO

TUV WXYZPQRS

Symbols

Press either key repeatedly until the desired symbol appears (see the symbol list on the following page).

Letters and numbers

To enter a letter or number, press the appropriate key repeatedly until the desired number/letter appears in the display (the number appears first, then the letters in the order marked above the key).

Delete

Press this key to delete the letter highlighted by the cursor (if the cursor is to the right of the last letter entered, it will backspace and delete the last letter).

Shift

Press this key once to change case (press it again to change back).

Cursor left

Press this key to move the cursor to the left.

Cursor right

Press this key to move the cursor to the right.

5 8 0

SPEED

DIAL

REDIAL

HOLD/

SPEAKER

1 – 8

Page 11

5. Connecting the Multifunction interface box

The Multifunction Interface kit which comes with your fax machine allows you to use your fax as a printer and scanner, and lets you perform fax operations from your computer via the fax modem in your fax machine. Follow the steps below to connect the Multifunction Interface box and cables.

Important:

Use only the provided interface cable and modular plug cable.

1. Make sure that your fax is unplugged and the power switch is turned off on your computer.

2. Insert the female end of the interface cable into the serial (RS232C) port on your computer. Tighten the screws with a screwdriver.

3. Insert the male end of the interface cable into the port on the Multifunction Interface box. Tighten the screws with a screwdriver.

4. Insert one end of the modular plug cable into the socket on the Multifunction Interface box, and the other end into the socket on your fax as shown (the ends of the cable are identical).

UX-600MU/MC FO-1660U/C

[5] Quick reference guide

FUNCTION key menu

The following chart shows the layout of the functions and settings accessed by pressing the FUNCTION key. First press the FUNCTION key, the appropriate numeric key as shown, and then "#" or " " until the desired item appears. Instructions for making each setting appear in the display. If you have any difficulty, refer to the detailed instructions on the page shown below the setting.

FUNCTION

Timer Mode

Send Mode Poll Mode

Listing Mode

Activity Report Timer List Telephone Number

List Passcode List Option Setting List Anti Junk Fax

Number List Program and Group

List Print Setup List

Entry Mode

Fax/Tel Numbers for Auto Dialing

Own Number and Name Set

Polling Security Select

Passcode Numbers for Polling

Date and Time Set Daylight Saving Store Junk Number

Optional Settings

Fine Resolution Priority

Number of Rings in Auto Mode

Recall Wait Interval Recall Times Tel/Fax Remoter

Number Remote Reception

Select Transaction Report

Print Select Dial Mode TAD Connected

Quiet Detect Time Fax Reception

When TAD Fails Distinctive Ringing Fax Signal Receive Junk Number Check Polling Auto Cover Sheet Activity Report

Auto Print ECM

Cover Sheet

Cover Sheet Header

Print Set-up

Initialize Film Reception Ratio 2 in 1 Print Paper Type Set Paper Size Set Copy Cut-off

Program/Group

Program Entry Mode

Group Entry Mode

1 – 9

Page 12

UX-600MU/MC FO-1660U/C

INSTALLATION

TEL. SET

TEL. LINE

EXT. PHONE

TEL. LINE

1. Connect the handset as shown.

2. Plug one end of the telephone line into the "TEL. LINE" jack on the rear of the fax, and the other end into your telephone wall jack.

3. Plug the power cord into a grounded, 120 V outlet.

INSTALLATION WITH AN ANSWERING MACHINE AND/OR EXTENSION TELEPHONE

4. Remove the seal covering the "TEL. SET" jack on the rear of the fax. Connect an extension telephone or answering machine to the "TEL. SET" jack.

5. If desired, connect an extension phone to the answering machine.

ENTERING YOUR NAME AND NUMBER

FCC regulations require your name and fax number to appear on all documents you send. To program your fax to do this automatically, follow the steps below:

1. Press the FUNCTION key and then press "3": "ENTRY MODE" will appear in the display.

2. Press the "#" key twice: "OWN NUMBER SET" will appear in the display.

START

3. Press the START key:

4. Enter your fax number (max. of 20 digits) by pressing the number keys.

♦ If you make a mistake, press the HOLD/SEARCH key to move the cursor

back to the mistake, then enter the correct number or letter. (To move the cursor forward, press the SPEAKER key.)

5. Press the START key:

START

6. Enter your name by pressing the appropriate number keys as shown below. Press each key one or more times until the desired letter appears in the display.

ABC DEF

123

GHI JKL MNO

456

TUV WXYZPQRS

SPEED

DIAL

REDIAL

HOLD/

SPEAKER

Press either key one or more times to select and enter a symbol.

♦ Enter a space with the "1" key. ♦ To enter two letters in succession which require using the same key, press

the SPEAKER key after entering the first letter.

Example: To enter "ABZ Co.", press:

"2" twice for the letter A, Press SPEAKER to move the cursor to the right, "2" three times for the letter B, "9" five times for the letter Z, "1" twice for a space, "2" four times for the letter C, Press REDIAL for a lower case letter, "6" four times for the letter O, "#" once for a period.

7. When finished, press the START key and then the STOP key.

FUNCTION

Deletes highlighted letter

Upper/lower case shift key

Moves cursor to the left.

Moves cursor to the right.

START

STOP

SETTING THE DATE AND TIME

To set date and time, press the following keys: "DATE & TIME SET" will appear in the display. Press the START key:

START

FUNCTION

Enter two digits for the Month (01 through 12). Enter two digits for the Date (01 through 31). Enter two digits for the Year (00 through 99). Enter two digits for the Hour (01 through 12). Enter two digits for the Minute (00 through 59). Press the " " key for A.M. or the "#" key for P.M. When finished, press the START key and then the STOP key:

START

STOP

STORING AND CLEARING NUMBERS FOR AUTOMATIC DIALING

To store a new number or change an existing number, press the following sequence of keys:

FUNCTION

"FAX/TEL # MODE" will appear in the display.

1. Press the "1" key:

2. Enter a 2-digit number (from "01" to "99") by pressing the number keys. This will be the Speed Dial number.

3. Enter the full telephone/fax number.

4. Press the START key:

START

5. Enter the name of the location by pressing number keys (max. of 20 characters).

6. Press the START key:

START

7. Return to Step 3 to store another number, or press STOP to exit.

FUNCTION

To clear a Speed Dial number, press the following sequence of keys: Press "2" and then enter the 2-digit Speed Dial number. Press:

START

STOP

SENDING DOCUMENTS

Place your document (up to 20 pages) face down in the document feeder.

Normal Dialing

1. Lift the handset or press

2. Dial the fax number by pressing the number keys.

3. Wait for the reception tone (if a person answers, ask them to press their Start key).

4. Press your START key and then replace the handset.

Rapid Key Dialing

Press the appropriate Rapid Key (if the Rapid key is from 20 to 38, press the

SHIFT key first). Transmission will begin. Speed Dialing

1. Press the SPEED DIAL key:

2. Enter the Speed Dial number by pressing the number keys.

3. Press:

START

Direct Keypad Dialing

1. Enter the fax number by pressing the number keys.

2. Press:

START

SPEAKER

SPEED

DIAL

RECEPTION

MODE

RECEIVING DOCUMENTS

Press the RECEPTION MODE key until "AUTO" or "MANU" appears in the display.

AUTO reception: The fax will automatically answer after four rings and receive the incoming documents.

MANUAL reception: Lift the handset when the fax rings. If you hear a fax tone, wait until "RECEIVING" appears in the display, then hang up (if "RECEIVING" doesn’t appear, press the START key). If the calling party talks to you, press your START key to begin reception.

1 – 10

Page 13

UX-600MU/MC FO-1660U/C

Loading paper

1. Insert the paper tray into the fax if not yet installed.

2. Remove the paper cover if it is on the tray. (For legal paper, flip up the tray externder.)

3. Pull the paper release plate toward you.

♦ If any paper remains in the tray,

take it out and combine it into a single stack with the new paper.

Installing the imaging film

1. Press the release marked OPEN and open the print compartment cover.

2. Insert two of the gears into the ends of the spool with film.

3. Hold the empty spool so that the end with only one slot is on the left, and lower the spools into the printing compartment so that the gears fit into the slots on each side of the compartment.

4. Cut the band holding the spools together with scissors, and remove it. Insert the remaining gear into the right end of the empty spool and the flange into the left end of the empty spool.

4. Insert the stack of paper into the tray. Replace the tray cover and then push the paper release plate back down.

5. Press the following sequence of keys: Press "1" if you loaded letter size paper, or "2" if you loaded legal

FUNCTION

size paper. When finished, press:

STOP

LEGAL LETTER

5. Pull the empty spool toward the back of the compartment, unwinding the leader from the spool with film. Insert the empty spool into the compartment so that gear and spool fit into the slots on each side of the compartment.

6. Wind the film slightly to remove slack and then close the printer compartment cover.

7. If you replaced the film. press the following sequence of keys (this is not necessary for the sample film included with the fax):

FUNCTION

START

1 – 11

Page 14

UX-600MU/MC FO-1660U/C

[6] Option imaging film specifications (UX-15CR/FO-15CR)

1. Structure

This article is composed of polyester film coated with heat-resistant layer, matt layer and hot melt ink layer, leader film and paper core. Ink film specification is "DNP standard ink film HC".

Heat Resistant Layer

Base Film

Matt Layer

Hot melt Ink Layer

1 2 3 4

2. Details of compositions

2-1. Base film

Heading Requirements Measuring method Material

2-2. Heat resistant layer

Heading Requirements Measuring method Grade HR Mixer P-5 –

2-3. Matt layer

Heading Requirements Measuring method Grade ML Sumi –

2-4. Hot melt ink layer

Heading Requirements Measuring method Grade #507W –

Polyethylene terephthalate

–

1 – 12

Page 15

M E M O

UX-600MU/MC FO-1660U/C

1 – 13

Page 16

UX-600MU/MC FO-1660U/C

CHAPTER 2. ADJUSTMENTS

[1] Adjus tmen ts

General

Since the following adjustments and settings are provided for this model, make adjustments and/or setup as necessary.

1. Adjustments

Adjustments of output voltage (FACTORY ONLY)

1. Install the power supply unit in the machine.

2. Set the recording paper and document.

3. When the document is loaded, power is supplied to the output lines. Confirm that outputs are within the limits below.

Output voltage settings

POWER SUPPLY PWB

TEL/LIU PWB

CNLIUACNLIU

CONTROL PWB

CNLED CNMT

CNCS

CNPN

CNPW

CNTHCNCCDCNSP

(1) FU100 (ICP-S07) is installed in order to protect IC’s from an over-

current generated in the motor drive circuit. If FU100 is open, replace it with a new one.

3. Settings

(1) Dial mode selector

DIAL mode (Soft Switch No. SWB4 DATA No. 3)

(step 1) Select "OPTION SETTING".

KEY: DISPLAY:

(step 2) Select "DIAL MODE".

KEY: DISPLAY:

(step 3) Select, using "1" or "2".

KEY:

DISPLAY: TONE SELECTED KEY:

DISPLAY:

(step 4) End, using the "STOP" key.

KEY:

FUNCTION 4

OPTION SETTING PRESS OR

Cursor When initially registering, the mode shows 1=TONE. When registering again, the mode which was registered

# #

# DIAL MODE

# #

formerly is shown.

1=TONE, 2=PULSE

PULSE SELECTED

STOP

Output Voltage limits

+5V 4.75V ∼ 5.25V

V-REG 7.0V ∼ 8.2V

+24V 23.3V ∼ 24.7V

Connector

No.

CNPW

Pin No.

1MG 2MG 3MG 4 +24V 5 +24V 6DG 7 +5V 8DG 9 V-REG

2. IC protectors replacement

ICPs (IC Protectors) are installed to protect the motor driver circuit. ICPs protect various ICs and electronic circuits from an overcurrent condition.

The location of ICPs are shown below:

CONTROL PWB (TOP SIDE)

CNLIUA

FU100

2 – 1

Page 17

UX-600MU/MC FO-1660U/C

[2] Diagnostics and service soft switch

1. Operating procedure

(1) Entering the diagnostic mode

Press FUNC → 9 → → 8 → # → 7 , and the following display will appear. ROM Ver. FHH0 After 2 sec: DIAG MODE FHH0 Then press the START key and country name selected by country select will appear. Select the desired item with the key or the # key

or select with the rapid key. Enter the mode with the START key. (Diag•specifications)

FUNC

Ver. FHH0

Soft switch mode ROM & RAM check Aging mode Panel key test Check pattern Signal send mode

If the dial mode cannot be set, repeat the dial mode operation, performing the following operation. After the power is turned on and "WAIT A MOMENT" is indicated, press the STOP key.

"Power ON"

STOP

KEY

DIAG MODE

START 1 START START START

2 3

4 START 5 START

START

KEY

START

START13 START12

Entry data receive

START11

9 8 7

"Power ON" and keep the STOP key pressed

while "WAIT A ...." is indicated.

Press the START key when "MEMORY CLEAR?" appears.

START START START START

Auto feeder mode

CCD adjust mode

RS232C check

Entry data send

All black print

Memory clear

Memory clear (Work + Backup)

2. Diagnostic items

ITEM

DIRECT

No.

1 1 SOFT SWITCH MODE Soft switches are displayed and changed. List can be output. 2 2 ROM & RAM CHECK ROM is sum-checked, and RAM is matched. Result list is output. 3 3 AGING MODE 10 sheets of check patterns are output every 5 minutes per sheet. 4 4 PANEL KEY TEST Panel keys are tested. 5 5 CHECK PATTERN Check pattern is output. 6 6 SIGNAL SEND MODE Various signals of FAX communication are output. 7 7 MEMORY CLEAR Back-up memory is cleared, and is set at delivery. 8 8 CCD ADJUST MODE Optical system is adjusted.

9 9 ALL BLACK PRINT To check the print head, whole dots are printed over the interval of 2 m. 10 10 AUTO FEEDER MODE Insertion and discharge of document are tested. 11 11 ENTRY DATA SEND Registered content is sent. 12 12 ENTRY DATA RECEIVE Registered content is received, and its list is output. 13 13 RS232C CHECK Checks RS232C interface box.

key

Contents Function

2 – 2

Page 18

UX-600MU/MC FO-1660U/C

3. Diagnostic items description

3. 1. Soft switch mode

Used to change the soft switch settings. The soft switch which is stored internally is set by using the keys. The available soft switches are SW-A1 to SW-M2. The content of soft switches is shown in page 2-5 to 2-16. The contents are set to factory default settings.

3. 2. ROM & RAM check

ROM executes the sum check, and RAM executes the matching test. The result will be notified with the number of short sounds of the buzzer as well as by printing the ROM & RAM check list.

Number of short sounds of buzzer 0 → No error

1 → ROM error 2 → RAM error (32Kbyte)

3. 3. Aging mode

If any document is first present, copying will be executed sheet by sheet. If no document is present, the check pattern will be printed sheet by sheet. This operation will be executed at a rate of one sheet per 5 minutes, and will be ended at a total of 10 sheets.

3. 4. Panel key test

The mode is used to check whether each key properly operates or not. Since the key is displayed on LCD when the key on the operation panel is pressed, press all the keys. Here, finally press STOP key. When STOP key is pressed, the keys not judged as "pressed" are output in the result list. (The result list is not output in the process-diagnosis mode.) Here, the LED port can be turned on for CCD adjustment during the time from the start of the panel check mode to the end with the stop key.

3. 5. Check pattern

The mode is used to check the state of the printing head. It is ended with the following pattern printed on one printing sheet.

Longitudinal stripe 2 Approx. 30 mm 2 black dots and 2 white dots are repeatedly progressed on

one line.

Full black Approx. 30 mm

3. 6. Signal send mode

The mode is used to send various signals to the circuit during FAX communication. Every push of START key sends a signal in the following sequence. Moreover, the signal sound is also output to the speaker when the line monitor of the soft switch is on.

[1] No signal (CML signal turned on) [2] 9600bps [3] 7200bps [4] 4800bps [5] 2400bps [6] 300bps (FLAG) [7] 2100Hz (CED) [8] 1100Hz (CNG) [9] END

The signal can be checked by plugging the handset into the TEL line connector on the rear of the machine.

3. 7. Memory clear

This mode is used to clear the backup memory and reset to the default settings.

3. 8. CCD adjust mode

This mode is used to adjust the optical system. Since the copy is function performed, set the original. To abort the copy operation, press the STOP key. To restart press the START key. When the copy is completed or when the STOP key is pressed in the interruption state, exit from this mode occurs.

3. 9. All black print

The mode is used to check the state of the printing head and intentionally overheat it. Whole dots are printed over the interval of 2 m. If it is overheated or the printing sheet is jammed, press STOP key for the end.

3. 10. Auto feeder mode

The mode is used to check the auto feed function by inserting and discharging the document. In this mode, the feed of the document will be automatically tested if the document is set. Moreover, the number of fed documents will be counted and be displayed on LCD.

3. 11. Entry data send

This mode is used to send the registered data to the remote machine and make the remote machine copy the registered information. When this mode is used for sending, the remote machine must be set to the entry data receive mode.

The information to be sent is as follows.

1. Telephone number registration list

2. Sender registration list

3. Setting of optional setting

4. Soft switch setting

5. Junk FAX number

6. Timer reservation data (timer-communicatable type)

7. Bus code No. (only for the type with hold function)

8. Program/group information

9. Security switch for hold time

10. Registration data of caller ID and concerned

11. Setting of printer and concerned

2 – 3

Page 19

UX-600MU/MC FO-1660U/C

3. 12. Entry data receive

This mode is used to receive the registered data which is sent from the remote machine and to register the received data in the machine. When this mode is used to receive the information, the remote machine must be set to the entry data send mode.

The information to be sent is as follows.

1. Telephone number registration list

2. Sender registration list

3. Setting of optional setting

4. Soft switch setting

5. Junk FAX number

6. Timer reservation data (timer-communicatable type)

7. Bus code No. (only for the type with hold function)

8. Program/group information

9. Security switch for hold time

10. Registration data of caller ID and concerned

11. Setting of printer and concerned

4. How to make soft switch setting

To enter the soft switch mode, make the following key entries in sequence.

3. 13. RS232C check

This is provided to check the interface path between FAX and personal computer, also checking the TX/RX paths together. Then, the result list is output.

Press

FUNCTION

9 8 7 START START

DATA No. 1 2 3 4 5 6 7 8

S F T SW-A1 = 0 0 0 0 0 0 0 0 S F T SW-A1 = 1 0 0 0 0 0 0 0 S F T SW-A1 = 1 0 0 0 0 0 0 0 S F T SW-A1 = 1 0 0 0 0 0 0 0 S F T SW-A1 = 1 0 0 0 0 0 0 0

S F T SW-A2 = 0 0 0 0 0 0 0 0 S F T SW-M2 = 0 0 0 0 0 0 0 0

Press FUNCTION key.

Press key.

Bit1 - 8 are set.

Press key during setting.

START

Soft SW-A2 - SW-M2 are set. To finish the settings halfway between

SW-A1 and SW-M2, press the STOP key. In this case, the setting being done to the SW No. on display will be nullified while settings done to the preceding SW Nos. remain in effect.

When the COPY key is pressed, the contents of soft switches are printed.

The soft switch mode is terminated.

2 – 4

Page 20

UX-600MU/MC FO-1660U/C

5. Soft switch description

• Soft switch

DATA

NO.

1 Protect from echo No Yes 0 2 Forced 4800 BPS reception Yes No 0 3 Footer print Yes No 0

4 Length limitation of copy/send/receive No limit Copy/send: 1m

5 CSI transmission No transmitted Transmitted 0

6 DIS receive acknowledgement during G3

transmission

7 Non-modulated carrier for V29 transmission

modem

8 EOL detect timer 25 s 13 s 0

Modem speed V. 33 V. 17 V. 29 V. 27 ter

1 0011110000 1 2 1100000000 0 3 0101010110 0

4 0000111100 0

5 Sender’s information transmit No Yes 0 6 Reserved 0 7 Communication error treatment in RTN

sending mode (reception)

8 CNG transmission No Yes 0

CED tone signal interval 1000ms 750ms 500ms 75ms 1 No. 1 11000 2 No. 2 10100 3 MR coding No Yes 0

4 ECM mode No Yes 0 OPTION

5 ECM MMR mode No Yes 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Signal transmission level Binary input 0 2 No. = 16 8 4 2 1 1 3 123450 4 010101

5 0 6 Protocol monitor (error print) Printed at com. err Not printed 0 7 Protocol monitor Yes No 0 8 Line monitor Yes No 0

Digital line equalization setting (Reception) 7.2km 3.6km 1.8km 0km 1 No. 1 11000 2 No. 2 10101

Digital line equalization setting

(Transmission)

3 No. 3 11000 4 No. 4 10101 5 Reserved 0 6 Reserved 0 7 Error criterion 10 ~ 20 % 5 ~ 10 % 0 8 Anti junk fax check Yes No 0 OPTION

ITEM

Switch setting and function

Receive: 1.5m

Twice NSF: Once

DIS: Twice

Yes No 0

14400 12000 14400 12000 9600 7200 9600 7200 4800 2400

No communication error Communication error 0

7.2km 3.6km 1.8km 0km

setting

Initial

Remarks

2 – 5

Page 21

UX-600MU/MC FO-1660U/C

NO.

DATA

NO.

1 Auto gain control (MODEM) Enable Disable 1 2 End Buzzer Yes No 1 3 Disconnect the line when DIS is received in

RX mode 4 Equalizer freeze control (MODEM) On Off 0 5 Equalizer freeze control 7200 BPS only No Yes 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Recall interval Binary input 0 OPTION 2 No. = 8 4 2 1 1 3 1234 0 4 0101 1 5 Recall times Binary input 0 OPTION 6 No. = 8 4 2 1 0 7 5678 1 8 0010 0 1 Dial pausing (sec/pause) 4 sec 2 sec 0 2 Reserved 0 3 Reserved 0 4 Busy tone detection (after auto dial) No Yes U: 1

5 Waiting time after dialing 90 sec 45 sec 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0 4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Auto Dial Mode Delay timer of before line

connect 2 Auto Dial Mode Delay timer of after line

connect 3 Dial mode Tone Pulse 1 OPTION 4 Pulse → Tone change function by key Enable Disable 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 DTMF signal transmission level (Low) Binary input 0 2 No. = 16 8 4 2 1 1 3 123450 4 010101 5 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

ITEM

No Yes 1

3 sec 0 sec 0

3 sec 1.7 sec 0

Switch setting and function

Initial

setting

C: 0

Remarks

2 – 6

Page 22

UX-600MU/MC FO-1660U/C

NO.

DATA

NO.

1 DTMF signal transmission level (High) Binary input 0 2 No. = 16 8 4 2 1 0 3 123451 4 001111

5 1 6 Reserved 0 7 Reserved 0 8 Reserved 0

Reading slice (Binary)

1 No. 1 0 1 0 1 0 2 No. 2 0 0 1 1 0

Reading slice (Half tone)

3 No. 3 0 1 0 1 0 4 No. 4 0 0 1 1 0 5 Line density selection Fine Standard 0 OPTION 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Number of rings for auto receive Binary input 0 OPTION 2 No. = 8 4 2 1 1 3 1234 0 4 0100 0

5 Automatic switching manual to auto receive

mode 6 Reserved 0 7 Reserved 0 8 Reserved 0

Distinctive ringing setting No. 1 No. 2 No. 3 OPTION

1 PATTERN 1 0 1 0 0 2 PATTERN 2 0 1 1 0

3 PATTERN 3 1 0 0 0 4 Reserved 0 5 Reserved 0

CI off detection timer (Distinctive ring

setting off only)

6 No. 6 0 1 0 1 0 7 No. 7 0 0 1 1 1 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0 4 Reserved 0

5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

ITEM

Reception after 5 rings No reception 0

OFF 0 0 0 STANDARD 0 0 1

Switch setting and function

Factory

setting

Factory

setting

1200ms 1000ms 700ms 350ms

Light Dark

Darker in

dark mode

Darker in

dark mode

Initial

setting

Remarks

2 – 7

Page 23

UX-600MU/MC FO-1660U/C

NO.

DATA

NO.

1 Reserved 0 2 Reserved 0 3 Reserved 0 4 Reserved 0

5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

DTMF detection time 50ms 80ms 100ms 120ms

1 No. 1 0 0 1 1 0 2 No. 2 0 1 0 1 0

3 Protection of remote reception (5 ) detect Yes No 0 OPTION 4 Remote reception with GE telephone Compatible Not compatible 1 5 Remote operation code figure by external

TEL (0~9)

6 No. = 8 4 2 1 1 7 5678 0 8 0101 1 1 CNG detection in STAND-BY mode Yes No 1 OPTION

Number of CNG detect (AM mode) 1pulse 2pulses 3pulses 4pulses

2 No. 2 0 0 1 1 0 3 No. 3 0 1 0 1 1

Number of CNG (STAND-BY mode) 1pulse 2pulses 3pulses 4pulses

ITEM

Switch setting and function

Binary input 0 OPTION

Initial

setting

Remarks

4 No. 4 0 0 1 1 0 5 No. 5 0 1 0 1 1 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Quiet detect time Binary input 0 OPTION 2 No. = 8 4 2 1 1 3 1234 0

4 0100 0

5 Quiet detect start timing Binary input 0 6 No. = 8 4 2 1 1 7 5678 0 8 0101 1 1 Reserved 0 2 Reserved 0 3 Reserved 0

4 Reserved 0

5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

4 TAD (A.M.) connect Yes No 0 OPTION

Section time of quiet detection 30s 40s 50s 60s 5 No. 5 0 0 1 1 0 6 No. 6 0 1 0 1 1 7 Reserved 0 8 Reserved 0

2 – 8

Page 24

UX-600MU/MC FO-1660U/C

NO.

DATA

NO.

1 Busy tone detection ON/OFF time (Lower

duration)

2 Busy tone detection ON/OFF time (Upper

duration)

3 Reserved 0

4 Busy tone continuous sound detect time 5s 10s 1 5 Reserved 0 6 Busy tone detect continuation sound detect No Yes 0 7 Reserved 0 8 Busy tone detect intermittent sound detect No Yes 0

Busy tone detection pulse number 2pulses 4pulses 6pulses 10pulses

1 No. 1 0 0 1 1 0 2 No. 2 0 1 0 1 1

3 Fax switching when A.M. full Yes No 0 OPTION 4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0 4 Reserved 0

5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0 4 Reserved 0

5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

ITEM

350ms 200ms 0

650ms 900ms 0

Switch setting and function

Initial

setting

Remarks

2 – 9

Page 25

UX-600MU/MC FO-1660U/C

NO.

DATA

NO.

1 Reserved 0 2 Reserved 0 3 Reserved 0 4 Reserved 0

5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0 4 Reserved 0

5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Activity report print Automatic printout No printout when memory full 0 OPTION 2 Total communication hours and pages print No Yes 0 3 Sender’s phone number setting Cannot change Change allowed 0 4 Reserved 0

5 Reserved 0 6 Summer time setting No Yes 1 OPTION

Ringer volume Off Low Middle High OPTION

ITEM

Switch setting and function

Initial

setting

Remarks

7 No. 7 00111 8 No. 8 01010

Speaker volume (3 stages) Low Low Middle High OPTION

1 No. 1 00111 2 No. 2 01010 3 Polling key Yes No 0 OPTION

Handset receiver volume Middle Middle Middle High OPTION

4 No. 4 00111 5 No. 5 01010 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Automatic cover sheet Yes No 0 OPTION

Communication results printout

(Transaction report)

2 No. 4 0 0 0 0 1 1 3 No. 5 0 0 1 1 0 0 4 No. 6 0 1 0 1 0 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

E/T/M Send only Always No print Err only OPTION

2 – 10

Page 26

UX-600MU/MC FO-1660U/C

NO.

DATA

NO.

1 Entering DIAG mode by pressing SPEED

key 2 Reserved 0 3 Reserved 0

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0 4 Reserved 0

5 Cut off mode (COPY mode) Yes No 1 OPTION 6 A4 paper enable Enable Disable 0 7 LEGAL & LETTER paper enable Enable Disable 1 8 2 IN 1 Mode Yes No 0 OPTION

Paper set size LETTER LEGAL A4 OPTION

1 No. 1 0 0 1 0 2 No. 2 0 1 0 0

3 Automatic reduce of receive Auto 100 % 1 OPTION 4 Paper type High quality Regular 0 OPTION 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

Serial port speed during communication in

PC I/F mode

1 No. 1 0 1 1 2 No. 2 0 0 0 3 No. 3 0 0 0

4 No. 4 1 0 0

Serial port speed during no-communication

in PC I/F mode

5 No. 5 0 1 1 6 No. 6 0 0 0 7 No. 7 0 0 0 8 No. 8 1 0 0 1 Receive unit FAX PC 1 OPTION 2 PC I/F mode Yes No 1 3 PC I/F command free Yes No 0 4 Reserved 0

5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

ITEM

Yes No 0

Switch setting and function

2400bps 19200bps

Initial

setting

Remarks

2 – 11

Page 27

UX-600MU/MC FO-1660U/C

• Soft switch function description

SW-A1 No. 1 Protect from echo

Used to protect from echo in reception.

SW-A1 No. 2 Forced 4800BPS reception

When line conditions warrant that receptions take place at 4800 BPS repeatedly.

It may improve the success of receptions by setting at 4800BPS. This improve the receiving document quality and reduces handshake

time due to fallback during training.

SW-A1 No. 3 Footer print

When set to "1", the date of reception, the sender machine No., and the page No. are automatically recorded at the end of reception.

SW-A1 No. 4 Length limitation of copy/send/receive

Used to set the maximum page length. To avoid possible paper jam, the page length is normally limited to 1

meter for copy or transmit, and 1.5 meters for receive. It is possible to set it to "No limit" to transmit a long document, such

as a computer print form, etc. (In this case, the receiver must also be set to no limit.)

SW-A1 No. 5 CSI transmission

(CSI TRANSMISSION) is a switch to set whether the machine sends or does not send the signal (CSI signal) informing its own telephone No. to the remote fax. machine when information is received. When "nonsending" is set, the telephone No. is not output on the remote transmitting machine if the remote transmitting machine has the function to display or print the telephone No. of receiving machine, using this CSI signal.

SW-A1 No. 6 DIS receive acknowledgment during G3 transmission

Used to make a choice of whether reception of DIS (NSF) is acknowledged after receiving two DISs (NSFs) or receiving one DIS (two NSFs).

It may be useful for overseas communication to avoid an echo suppression problem, if set to 1.

SW-A1 No. 7 Non-modulated carrier for V29 transmission modem

Though transmission of a non-modulated carrier is not required for transmission by the V29 modem according to the CCITT recommendation, it may be permitted to a send non-modulated carrier before the image signal to avoid and echo suppression problem. It may be useful for overseas communication to avoid an echo suppression problem, if set to 1.

SW-A1 No. 8 EOL (End Of Line) detect timer

Used to make a choice of whether to use the 25-second or 13-second timer for detection of EOL.

This is effective to override communication failures with some facsimile models that have longer EOL detection.

SW-A2 No. 1 ~ No. 4 Modem speed

Used to set determine the initial modem speed. The default is 14400BPS.

It may be necessary to program it to a slower speed when frequent line fallback is encountered, in order to save the time required for fallback procedure.

SW-A2 No. 5 Sender’s information transmit

(SENDER’S INFORMATION TRANSMISSION) is a switch to set the function to print the content of HEADER PRINT described in the passcode list at the front end of receiver’s original when original is sent to the remote machine.

If this switch is set to "NO", the HEADER PRINT is not output at the receiving machine.

SW-A2 No. 6 Reserved

Set to "0".

SW-A2 No. 7 Communication error treatment in RTN sending mode (Reception)

Used to determine communication error treatment when RTN is sent by occurrence of a received image error in G3 reception. When it is set to "1", communication error is judged as no error.

SW-A2 No. 8 CNG transmission

When set to "0" , this model allows CNG transmission by pressing the Start key in the key pad dialing mode. When set to "1", CNG transmission in the key pad dialing mode cannot be performed. In either case. CNG transmission can be performed in the auto dial mode.

SW-A3 No. 1, No. 2 CED tone signal interval

For international communication, the 2100Hz CED tone may act as an echo suppression switch, causing a communication problem.

Though SW-A3 No. 1 and No. 2 are normally set to 0, it should be changed this time between the CED tone signal to eliminate the communication problem caused by echo.

TX RX

CED

DIS

SW-A3 No. 3 MR Coding

MR Coding is enable.

SW-A3 No. 4 ECM mode

Used to determine ECM mode function. Refer to following table.

SW-A3 No. 4 ECM MODE 0 0 1 1 SW-A3 No. 5 ECM MMR MODE 0 1 0 1 Compression method ECM MMR mode Yes No No No

ECM MH mode Yes Yes No No MR Mode Yes Yes Yes Yes

(Depending on remote machine)

SW-A3 No. 5 ECM MMR mode

See SW-A3 No. 4.

SW-A3 No. 6 ~ No. 8 Reserved

Set to "0".

SW-A4 No. 1 ~ No. 5 Signal transmission level

Used to control the signal transmission level in the range of-0dB to-31dB.

SW-A4 No. 6 Protocol monitor (Error print)

If set to "1", protocol is printed at communication error.

SW-A4 No. 7 Protocol monitor

Normally set to "0". If set to "1", communication can be checked, in case of troubles, without using a G3 tester or other tools. When communication FSK data transmission or reception is made, the data is taken into the buffer. When communication is finished, the data is analyzed and printed out. When data is received with the line monitor (SW-A4 No. 8) set to "1" the reception level is also printed out.

SW-A4 No. 8 Line monitor

Normally set to "0". If set to "1", the transmission speed and the reception level are displayed on the LCD. Used for line tests.

SW-A5 No. 1, No. 2 Digital line equalization setting (Reception)

Line equalization when reception is to be set according to the line characteristics.

Setting should be made according to distance between the telephone and the telephone company central switching station.

2 – 12

Page 28

UX-600MU/MC FO-1660U/C

SW-A5 No. 3, No. 4 Digital line equalization setting (Transmission)

Line equalization when transmission is to be set according to the line characteristics.

Setting should be made according to distance between the telephone and the telephone company central switching station.

SW-A5 No. 5, No. 6 Reserved

Set to "0".

SW-A5 No. 7 Error criterion

Used to select error criterion for sending back RTN when receiving image data.

SW-A5 No. 8 Anti junk fax check

When use the Anti junk fax function, set to "1".

SW-A6 No. 1 Auto gain control (MODEM)

When this mode is enabled, if the reception signal level is under 31dBm. The modem itself controls the signal gain automatically.

SW-A6 No. 2 End buzzer

Setting this bit to 0 will disable the end buzzer (including the error buzzer/on-hook buzzer).

SW-A6 No. 3 Disconnect the line when DIS is received in RX mode

Bit1= 0: When DIS signal is received during RX mode, the line is disconnected immediately.

Bit1= 1: When DIS signal is received during RX mode, the line is disconnected on the next tone.

SW-A6 No. 4 Equalizer freeze control (MODEM)

This switch is used to perform reception operation by fixing the equalizer control of modem for the line which is always in an unfavorable state and picture cannot be received. * Usually, the control is executed according to the state of line where the equalizer setting is changed always.

SW-A6 No. 5 Equalizer freeze control 7200BPS only

Setting which specifies SW-A3 No. 6 control only in the condition of 7200BPS modem speed.

SW-A6 No. 6 ~ No. 8 Reserved

Set to "0".

SW-B1 No. 1 ~ No. 4 Recall interval

Choice is made for a redial interval for speed and rapid dial calls. Used a binary number to program this. If set to 0 accidentally, 1 will be assumed.

SW-B1 No. 5 ~ No. 8 Recall times

Choice is made as to how many redials should be.

SW-B2 No. 1 Dialing pause (sec/pause)

Pauses can be inserted between telephone numbers of direct dial connection. Selection of 4 sec or 2 sec pause is available.

SW-B2 No. 2, No. 3 Reserved

Set to "0".

SW-B2 No. 4 Busy tone detection (after auto dial)

Used to set busy tone detection in auto dialing.

SW-B2 No. 5 Waiting time after dialing

This is time waiting for the opponent’s signals after dialing. For the Switzerland version, the time is fixed to 90 seconds regard-

less of this switch setting.

SW-B2 No. 6 ~ No. 8 Reserved

Set to "0".

SW-B3 No. 1 ~ No. 8 Reserved

Set to "0".

SW-B4 No. 1 Auto dial mode Delay timer of before line connect

Delay time between the dial key input and line connection under the auto dial mode.

RAPID01 CML RELAY ON

DIALLING

0 : 0sec 1 : 3sec

SW-B4 No. 2 Auto dial mode Delay timer of after line connect

Delay time between the line connection and dial data output under the auto dial mode.

RAPID01 CML RELAY ON

0 : 1.7sec 1 : 3sec

DIAL DATA

SW-B4 No. 3 Dial mode

When using the pulse dial, set to 1. When using the tone dial, set to

SW-B4 No. 4 Pulse → Tone change function by key

When setting to 1, the mode is changed by pressing the key from the pulse dial mode to the tone dial mode.

SW-B4 No. 5 ~ No. 8 Reserved

Set to "0".

SW-B5 No. 1 ~ No. 5 DTMF signal transmission level (Low)

The transmission level of DTMF signal is adjusted. (lower frequency)

00000: 0dBm

↓

11111: -15.5dBm (-0.5dBm x 31)

SW-B5 No. 6 ~ No. 8 Reserved

Set to "0".

SW-B6 No. 1 ~ No. 5 DTMF signal transmission level (High)

The transmission level of DTMF signal is adjusted. (higher frequency)

00000: 0dBm

↓

11111: -15.5 dBm (-0.5dBm x 31)

SW-B6 No. 6 ~ No. 8 Reserved

Set to "0".

SW-C1 No. 1, No. 2 Reading slice (Binary)

Used to determine the set value of reading density in standard/fine mode. The standard setting is "00" (Factory setting is "00")

SW-C1 No. 3, No. 4 Reading slice (Half tone)

Used to determine the set value of reading density in half tone mode. The standard setting is "00" (Factory setting is "00")

SW-C1 No. 5 Line density selection

Used to set the transmission mode which is automatically selected when the Resolution key is not pressed. In the copy mode, however, the fine mode is automatically selected unless the Resolution key is manually set to another mode.

SW-C1 No. 6 ~ No. 8 Reserved

Set to "0".

2 – 13

Page 29

UX-600MU/MC FO-1660U/C

SW-D1 No. 1 ~ No. 4 Number of rings for auto receive

When the machine is set in the auto receive mode, the number of rings before answering can be selected. It may be set from one to four rings using a binary number. Since the facsimile telephone could be used as an ordinary telephone if the handset is taken off the hook, it should be programmed to the user’s choice. If the soft switch was set to 1, direct connection is made to the facsimile. If a facsimile calling beep was heard when the handset is taken off the hook, press the START key and put the handset on the hook to have the facsimile start receiving. If it was set to 0 accidentally, receive ring is set to 1.

NOTE:If the machine is set to answer after a large number of rings, it

may not be able to receive faxes successfully. If you have difficulty receiving faxes, reduce the number of rings to a maximum of 6.

SW-D1 No. 5 Automatic switching manual to auto receive mode

This soft switch is used to select whether the machine should switch to the auto receive mode after 5 rings in the manual receive mode or remain in the same way as SW-D1 No. 1, No. 2, No. 3 and No. 4 "0"1"0"1"(5 rings).

SW-D1 No. 6 ~ No. 8 Reserved

Set to "0".

SW-D2 No. 1 ~ No. 3 Distinctive ringing setting

When the ringing setting is turned off, all of the CI signal are received. When any of the standard, and ring patterns 1 through 3 is selected for the ringing setting, only the selected CI signal is received.

CI signal patterns The CI signal patterns consists of the standard pattern, and ring patterns 1 through 7. The standard pattern is the conventional one.

STANDARD

RING

PATTERN 1

for USA

RING

PATTERN 2

for USA

RING

PATTERN 3

for USA

RING

PATTERN 1

for CANADA

RING

PATTERN 2

for CANADA

RING

PATTERN 3

for CANADA

0.8S

0.3S

0.2S

0.4S

0.2S 0.2S 1S

0.5S

1.5S

0.5S

0.8S

0.4S

0.3S

0.2S

0.4S 0.8S

0.5S 1S 0.5S

0.5S

0.5S0.5S 1S

0.5S0.5S

3.5S

SW-D2 No. 4, No. 5 Reserved

Set to "0".

SW-D2 No. 6, No. 7 CI off detection timer (Distinctive ring setting off only)

Set the minimum time period of CI signal interruption which affords to be judged as a CI OFF section.

400msec

2000msec

SW-D2 No. 8 Reserved

Set to "0".

SW-E1 No. 1 ~ No. 8 Reserved

Set to "0".

SW-E2 No. 1 ~ No. 8 Reserved

Set to "0".

SW-F1 No. 1, No. 2 DTMF detect time

Used to set detect time of DTMF (Dual Tone Multi Frequency) used in remote reception (5 ).

The longer the detect time is, the less the error detection is caused by noises.

SW-F1 No. 3 Protection of remote

Used to set the function of remote reception (5 ). When set to "1", the remote reception function is disabled.

SW-F1 No. 4 Remote reception with GE telephone

(Corresponding to TEL made by GE) P. B. X. "1": Compatible with TEL mode by GE "0": Not compatible

• When sending (5 ) for remote reception with a GE manufac-

tured telephone remote reception may not take place because of special specifications in their DTMF. To overcome this, a soft SW is provided to change the modem setting to allow for remote reception.

• If this soft SW is set to "1", other telephone sets may be adversely

affected.

SW-F1 No. 5 ~ No. 8 Remote operation code figure by external TEL (0 ~ 9)

Remote operation codes can be changes from 0 through 9. If set to greater than 9, it defaults to 9. The "5 " is not changed. Ex-7 (Default: 5 )

SW-F2 No. 1 CNG detection in STAND-BY mode

When setting to "1", the CNG signal detection function during standby stops.

SW-F2 No. 2, No. 3 Number of CNG detect (AM mode)

Used for detection of CNG in 1 to 4 pulses.

SW-F2 No. 4, No. 5 Number of CNG (STAND-BY mode)

Used for detection of CNG in 1 to 4 pulses.

SW-F2 No. 6 ~ No. 8 Reserved

Set to "0".

SW-G1 No. 1 ~ No. 4 Quiet detect time

When an answering machine is connected, if a no sound state is detected for a certain period of time, the machine judges it as a transmission from a facsimile machine and automatically switches to the FAX mode.

SW-G1 No. 5 ~ No. 8 Quiet detect start timing

Inserts a pause before commencing quiet detection.

SW-G2 No. 1 ~ No. 8 Reserved

Set to "0".

2 – 14

Page 30

UX-600MU/MC FO-1660U/C

SW-G3 No. 1 ~ No. 3 Reserved

Set to "0".

SW-G3 No. 4 TAD (A.M.) connect

When connecting the answering machine to the extension telephone jack.

SW-G3 No. 5, No. 6 Section time of quiet detection

The switch which sets the time from the start of detection function to the end of the function.

SW-G3 No. 7, No. 8 Reserved

Set to "0".

SW-H1 No. 1 Busy tone detection ON/OFF time (Lower duration)

The initial value of detection is set according to electric condition. The set value is changed according to the local switch board. (Erro-

neous detection of sound is reduced.) Normally the upper limit is set to 900msec, and the lower limit to

200msec. If erroneous detection is caused by sound, etc., adjust the detection

range. The lower limit can be set in the range of 350msec to 200msec.

SW-H1 No. 2 Busy tone detection ON/OFF time (Upper duration)

Similarly to SW-H1 No. 1, the set value can be varied. The upper limit can be set in the range of 650msec to 900msec.

SW-H1 No. 1 SW-H1 No. 2 Detection range

0 0 200msec ~ 900msec 0 1 200msec ~ 650msec 1 0 350msec ~ 900msec 1 1 350msec ~ 650msec

SW-H1 No. 3 Reserved

Set to "0".

SW-H1 No. 4 Busy tone continuous sound detect time

Set detecting time busy tone for 5 seconds or as is PTT.

SW-H1 No. 5 Reserved

Set to "0".

SW-H1 No. 6 Busy tone detect continuation sound detect

Used to select detection of the continuous sound of certain frequency.

SW-H1 No. 7 Reserved

Set to "0".

SW-H1 No. 8 Busy tone detect intermittent sound detect

Used to select detection of the intermittent sound of certain frequency.

SW-H2 No. 1, No. 2 Busy tone detection pulse number

Used to set detection of Busy tone intermittent sounds.

SW-H2 No. 3 Fax switching when A.M. full

If the answering machine’s memory (tape) is full and there is no response, the machine automatically switches to Fax reception.

SW-H2 No. 4 ~ No. 8 Reserved

Set to "0".

SW-I1 No. 1 ~ No. 8 Reserved

Set to "0".

SW-I2 No. 1 ~ No. 8 Reserved

Set to "0".

SW-I3 No. 1 ~ No. 8 Reserved

Set to "0".

SW-I4 No. 1 ~ No. 8 Reserved

Set to "0".

SW-I5 No. 1 ~ No. 8 Reserved

Set to "0".

SW-I6 No. 1 ~ No. 8 Reserved

Set to "0".

SW-I7 No. 1 ~ No. 8 Reserved

Set to "0".

SW-J1 No. 1 Activity report print

This soft switch is used to select: whether or not to print out the activity report when the memory is full. An activity report can be printed when the following key entry command is made.

"FUNCTION", "2", "#", "START" After producing the activity report, all the data in the memory will be

cleared. When the switch function is set to "0" (no), the data in the memory will

be deleted from the oldest as it reaches the maximum memory capacity.

SW-J1 No. 2 Total communication hours and pages print

Used to make a choice of whether the total communication time and pages are recorded in the activity report.

SW-J1 No. 3 Sender’s phone number setting

Used to make a choice of whether the registered sender’s phone number can be changed or not. If the switch is set to "1", new registration of the sender’s phone number is disabled to prevent accidental wrong input.

SW-J1 No. 4, No. 5 Reserved

Set to "0".

SW-J1 No. 6 Summer time setting

This is used to set YES/NO of automatic clock adjustment for European Summer time.

SW-J1 No. 7, No. 8 Ringer volume

Used to adjust ringing volume.

SW-J2 No. 1, No. 2 Speaker volume (3 stages)

Used to adjust sound volume from a speaker.

SW-J2 No. 3 Polling key

If this switch is set to 1, the last of Rapid key works as polling key.

SW-J2 No. 4, No. 5 Handset receiver volume

Used to adjust sound volume from a handset receiver volume.

SW-J2 No. 6 ~ No. 8 Reserved

Set to "0".

SW-J3 No. 1 Automatic cover sheet

The machine automatically generates a cover sheet and sends it as the last page of each transmission.

SW-J3 No. 2 ~ No. 4 Communication result printout (Transaction report)

Every communication, the result can be output. As usual, it is set to print the timer sending communication error alone. If No. 2: 0 No. 3: 1 No. 4: 0 are set, printing is always on (printed even if it is normally ended).

000: Error, timer and memory sending/receiving 001: Sending 010: Continuous printing 011: Not printed 100: Communication error

2 – 15

Page 31

SW-J3 No. 5 ~ No. 8 Reserved

Set to "0".

SW-K1 No. 1 Entering DIAG mode by pressing SPEED key

A bit which is used in the production process only. When the SPEED key is pressed, the switch is changed from the stand-by state to the DIAG mode.

SW-K1 No. 2 ~ No. 8 Reserved

Set to "0".

SW-L1 No. 1 ~ No. 4 Reserved

Set to "0".

SW-L1 No. 5 Cut off mode (COPY mode)

Whether the excessive part is printed on the next recording paper or discarded is selected to copy a document which is longer than the recording paper.

SW-L1 No. 6 A4 Paper enable

The use of recording paper of A4 is enabled.

SW-L1 No. 7 LEGAL and LETTER paper enable

The use of recording paper of LEGAL and LETTER is enabled.

SW-L1 No. 8 2 IN 1 mode

A function to print transmitted data of two pages on one sheet.

SW-L2 No. 1, No. 2 Paper set size

At present size of the recording paper.

SW-L2 No. 3 Automatic reduce of receive

If set to 1, it is reduced automatically when receiving.

SW-L2 No. 4 Paper type

The type of the recording paper is set.

SW-L2 No. 5 ~ No. 8 Reserved

Set to "0".

SW-M1 No. 1 ~ No. 4 Serial port speed during communication in PC I/F mode

Used to set RS232C baud rate between PC and FAX after outputting the result code for communication start command (AT+FCLASS=1 or AT+FCLASS=2) in PC I/F mode.

SW-M1 No. 5 ~ No. 8 Serial port speed during no-communication in PC I/F mode

Used to set RS232C baud rate between PC and FAX after outputting the result code for communication start command or communication end command (AT+FCLASS=0 or ATH0) in PC I/F mode.

SW-M2 No. 1 Receive unit

This switch is used to select FAX or PC for Auto reception when PC I/F mode is ON.

SW-M2 No. 2 PC I/F mode

When this switch set to "1", PC I/F function is ON.

SW-M2 No. 3 PC I/F command free

If this switch set to "1", "OK" is responsed for the invalid AT command. But these command don’t work.

SW-M2 No. 4 ~ No. 8 Reserved

Set to "0".

UX-600MU/MC FO-1660U/C

2 – 16

Page 32

UX-600MU/MC FO-1660U/C

[3] Troubleshooting

Refer to the following actions to troubleshoot any of problems mentioned in 1-4.

[1] A communication error occurs. [2] Image distortion produced. [3] Unable to do overseas communication. [4] Communication speed slow due to FALLBACK.

• Increase the transmission level SOFT SWITCH A4-1, 2, 3, 4,

5. May be used in case [1] [2] [3].

• Decrease the transmission level SOFT SWITCH A4-1, 2, 3, 4,

5. May be used in case [3].

TO: ATT: Ref.No. : CC: ATT: Date : FM: Dept :

***** Facsimile communication problem ***** Ref.No.: From: Mr. Fax Tel No.: Date: Our customer Name Tel No.

Address Fax No. Contact person Model name

Other party Name Tel No.

Address Fax No. Contact person Model name

Problem mode Line: Domestic / international Model: G3 Phase: A, B, C, D.

Reception / Transmission Automatic reception / Manual reception

Automatic dialing / Manual dialing / Others Frequency: % ROM version: Confirmation

item

Our customer

B1 B2

• Apply line equalization SOFT SWITCH A5-1, 2.

May be used in case [1] [2] [3] [4].

• Slow down the transmission speed SOFT SWITCH A2-1, 2,

3, 4. May be used in case [2] [3].

• Replace the TEL/LIU PWB.

May be used in all cases.

• Replace the control PWB.

May be used in all cases.

* If transmission problems still exist on the machine, use the follow-

ing format and check the related matters.

Sign :

Other party

Please mark problem with an X. No problem is: 0.

A1 A2 B1 B2 C1 C2 D1 D2 E1 E2

A1 A2

Our service

Comment

Countermeasure

**** Please attach the G3 data and activity report on problem. ****

* Please complete this report before calling the "TAC" hotline if problem still occurs.

C1 D2

C2 D1

E1 E2

Other party's service

Transmission level setting is ( ) dB at our customer

Transmission level ( ) dB m Reception level ( ) dBm By level meter at B1 and B2

2 – 17

Page 33

[4] Error code table

1. Communication error code table

G3 Transmission

Code Final received signal Error Condition (Receiver side)

0 Incomplete signal frame Cannot recognize bit stream after flag

1 NSF, DIS Cannot recognize DCS signal by echo etc.

Cannot recognize NSS signal (FIF code etc) 2 CFR Disconnects line during reception (carrier missing etc) 3 FTT Disconnects line by fall back 4 MCF Disconnects line during reception of multi page

Cannot recognize NSS, DCS signal in the case of mode change 5 PIP or PIN The line is hung up without replying to telephone request from the receiving party.

6 RTN or RTP Cannot recognize NSS, DCS signal after transmit RTN or RTP signal. 7 No signal or DCN No response in receiver side or DCN signal received* (transmitter side) 8 − Owing to error in some page the error could not be corrected although the specified number of

error retransmission was at tempted.

11 − Error occurred after or while reception by the remote (receiving) machine was revealed to be

impossible.

UX-600MU/MC FO-1660U/C

12 − Error occurred just after fallback. 13 − Error occurred after a response to retransmission end command was received.

G3 Reception

Code Final received signal Error Condition (Receiver side)

0 Incomplete signal frame Cannot recognize bit stream after flag

1 NSS, DCS Cannot recognize CFR or FTT signal

Disconnects line during transmission (line error) 2 NSC, DTC Cannot recognize NSS signal (FIF code etc) 3 EOP Cannot recognize MCF, PIP, PIN, RTN, RTP signal 4 EOM Cannot recognize MCF, PIP, PIN, RTN, RTP signal in the case of mode change 5 MPS The line is hung up without replying to communication request. 6 PR1-Q Cannot recognize PIP, PIN signal in the case of TALK request 7 No signal or DCN No response in transmitter (cannot recognize DIS signal) or DCN signal received* (receiver side) 8 − Error occurred upon completion of reception of all pages. 9 − Error occurred when mode was changed or Transmission/Reception switching was performed.

10 − Error occurred during partial page or physical page reception. 11 − Error occurred after or during inquiry from the remote (transmitting) machine as to whether

reception is possible or not.

12 − Error occurred during or just after fallback. 13 − Error occurred after the retransmission end command was received.

2 – 18

Page 34

UX-600MU/MC FO-1660U/C

CHAPTER 3. MECHANISM BLOCKS

[1] General description

1. Document feed block and diagram

Document

sensor

Pinch roller spring

Separate spring

Feed roller 2

Pinch roller2

Separate

plate

Pinch roller

Pinch roller spring 2

2. Document feed operation

1) The original, which is set in the document hopper, feeds automatically when the front sensor is activated. This in turn activates the pulse motor which drives the document supply roller. The document stops when the lead edge is detected by the document sensor.

2) The lead edge of the original is fed a specified number of pulses after the lead edge of the document is detected for the reading process to begin.

3) The trailing edge of the original is fed a specific number of pulses after the trailing edge of the document deactivates the document sensor. The read process then stops and the original is discharged.

4) When the front sensor is in the OFF state (any document is not set up in the hopper guide), the drive will be stopped when the document is discharged.

3. Hopper mechanism

3-1. General view

guide upper

Front

sensor

Separation

rabber

Paper feed roller

Feed roller

Fig. 1

Paper feed

spring

Hopper guide

Document guide

lower

3-2. Automatic document feed

1) Use of the paper feed roller and separation rubber plate ensures error-free transport and separation of documents. The plate spring presses the document to the paper feed roller to assure smooth feeding of the document.

2) Document separation method: Separation rubber plate

Separation rubber

Paper feed spring

Paper feed roller

Fig. 3

3-3. Documents applicable for automatic feed

4x6 series (788mm x 1091mm x 1000mm sheets)

Minimum Maximum Minimum Maximum Feeder capacity 20 sheets, max. Paper weight 45kg 64.3kg 52g/m274.3g/m Paper thickness (ref.) 0.06mm 0.09mm 0.06mm 0.09mm Paper size B6 (128mm x 182mm) ∼

A4 (210mm x 297mm), Letter (216mm x 279mm)

NOTE: Double-side coated documents and documents on facsimile

recording paper should be inserted manually. The document feed quantity may be changed according to the document thickness.

Documents corresponding to a paper weight heavier than 64.3kg (74.3g/m2) and lighter than 135kg (157g/m2) are acceptable for manual feed.

Documents heavier than 135kg in terms of the paper weight must be duplicated on a copier to make it operative in the facsimile.

Square meter series

3-4. Loading the documents

1) Make sure that the documents are of suitable size and thickness, and free from creases, folds, curls, wet glue, wet ink, clips, staples and pins.

2) Place documents face down in the hopper. i) Adjust the document guides to the document size. ii) Align the top edge of documents and gently place them into

the hopper. The first page under the stack will be taken up by the feed roller to get ready for transmission.

NOTES: 1) Curled edge of documents, if any, must be straighten

out.

2) Do not load the documents of different sizes and/or thicknesses together.

Fig. 2

The hopper section contains document guides that are used to adjust the hopper to the width of the original document. This ensures that the original feeds straight into the fax machine for scanning. Document width: 148 mm to 216 mm (A5 longitudinal size to Letter longitudinal size)

NOTE: Adjust the document guide after setting up the document.

3 – 1

Page 35

UX-600MU/MC FO-1660U/C

Separation rubber

Last page of document

First page of document

Paper feed spring

Paper feed roller

Fig. 4

3-5. Documents requiring use of document carrier

1) Documents smaller than B6 (128mm x 182mm).

2) Documents thinner than the thickness of 0.06mm.

3) Documents containing creases, folds, or curls, especially those whose surface is curled (maximum allowable curl is 5mm).

4) Documents containing tears.

5) Carbon-backed documents. (Insert a white sheet of paper between the carbon back and the document carrier to avoid transfer of carbon to the carrier.)

6) Documents containing an easily separable writing material (e.g., those written with a lead pencil).

7) Transparent documents.

8) Folded or glued documents. Document in document carrier should be inserted manually into

the feeder.

4. Document release

4-1. General

To correct a jammed document or to clean the document running surface, pull the operation panel lock lever under the front center of the operation panel. To open the upper document guide, the operation panel must be opened first.

5. Optical system (1) General view

Reader glass

Rear sheet

Mirror 3

Document

LED lamp

Mirror 1

Fig. 5

Red mark

Mirror 2

CCD PWB

CCD

Lens

(2) Composition

The optical system is composed of the document feed mechanism, the LED lamp, the reflecting mirrors, the focusing lens, the CCD sensor, and the read process circuit.

5-1. LED Lamp/Lens

The LED lamp is used to project light to the document. NOTE: Take care for the position of the red mark on the lens. (Top

of the light-projected side)

5-2. CCD

The CCD (charge coupled device) image sensor consists of a photodiode array which converts the intensity of light reflected from the document surface into series of analog voltages which are then stored in an analog shift register. The series of analog voltages are then converted into a digital equivalent by a black/white binary logic circuit.

(Example) Scan signal output waveform

Peak

100%

50% minimum

Scan line

Maximum document width, 216mm

length

Fig. 6

1) The minimum output from the CCD at the maximum scan width of document (216mm) must be more than 50% of the peak value.

2) The peak output must be about 0.2 ~ 0.6 under room temperature to avoid CCD saturation.

3 – 2

Page 36

UX-600MU/MC FO-1660U/C

6. Recording block (1) General view

Supply

side

Main frame

Imaging film

Thermal

head

Film sensor

lever

Guide shaft

P-IN sensor lever

Platen

roller

PO guide

PU roller

Take-up

side

Pinch

roller

Paper guide

PO roller

RP hopper

Rotation plate

PE sensor lever

Separate plate

Fig. 7

6-1. Driving

In the drive mechanism, the rotating force of the pulse motor for both transmission and reception is transmitted to the paper supply roller, the recording paper feed roller and imaging film drive gear through the pulse motor axle gear, reduction gear and planetary gear.

6-2. Recording

This equipment employs the thermal transcription system which used the thermal head imaging film.

1) Thermal head

The thermal head is composed of 2,016 heating elements in traverse line, and the resolution power is 8 dots/mm. The maximum speed is 10 ms/line.

2) Structure of recording mechanism

Recording is achieved by applying a suitable pressure to the thermal head through the imaging film of the recording paper feed roller and the recording paper. The main scanning is electronically done, and the sub-scanning is mechanically done (by sending the recording paper with the recording paper feed roller).

3) Recording paper transfer sequence

a) The recording paper stored in the RP hopper is fed with the PU

roller, and the recording paper is stopped when the P-IN sensor is turned on by sensing its lead edge.

b) Hereafter, the imaging film and recording paper are transferred

with the recording paper feed roller, and thermal transcription is done on the recording paper.

c) After thermal transcription, the imaging film is taken up by the

roller on the take-up side, and the recording paper is discharged by the PO roller.

As basic, the density unevenness mainly results from the longitudinal misalignment of the thermal head to the heater line. Otherwise, the head is in uneven contact with the recording paper feed roller, or the imaging film is wrinkled.

The following items are described as the simplified checking method.

Are the power and signal cables of the thermal head suitably treated?

Does the same symptom appear even if the thermal head pressure spring is replaced?

Is the feed roller of the recording paper concentric? (Density is uneven at intervals.)

Does the same symptom appear even if the thermal head is replaced?

Is the imaging film stained or wrinkled?

3 – 3

Page 37

UX-600MU/MC FO-1660U/C

[2] Disassembly and assembly procedures

• This chapter mainly describes the disassembly procedures. For the assembly procedures, reverse the disassembly procedures.

• Easy and simple disassembly/assembly procedures of some parts and units are omitted. For disassembly and assembly of such parts and units,

refer to the Parts List.

• The numbers in the illustration, the parts list and the flowchart in a same section are common to each other.

• To assure reliability of the product, the disassembly and the assembly procedures should be performed carefully and deliberately.

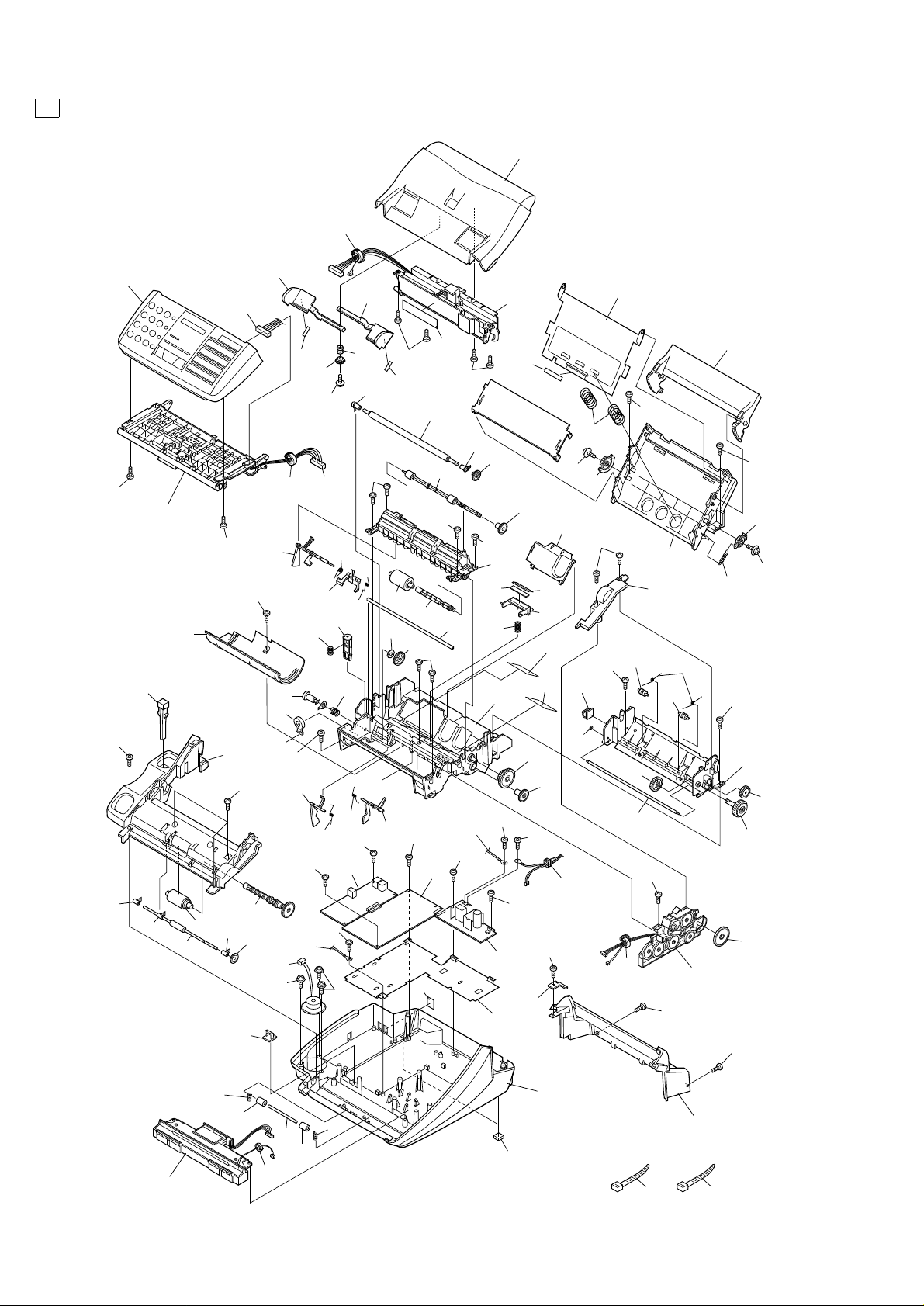

Operation panel unit, document guide

lower and rear cover

15 16

Parts list (Fig. 1)

No. Part name Q’ty No. Part name Q’ty

1 Mechanism unit 1 9 Hook switch lever 1 2 Operation panel unit 1 10 Document guide lower unit 1 3 Screw (3×12) 2 11 Transfer gear 1 4 Side cover 1 12 Transfer bearing 3 5 Screw (3×12) 1 13 Transfer roller 1 6 Screw (3×10) 2 14 Feed gear ass’y 1 7 Rear cabinet 1 15 Feed roller 1 8 Screw (3×10) 4 16 Document guide lower 1

Hook the three lock nail to LOWER CABINET.

An attachment rib is attached in accordance with hole.

Fig. 1

Rib

3 – 4

Page 38

UX-600MU/MC FO-1660U/C

2 Document guide upper

Parts list (Fig. 2)

No. Part name Q’ty No. Part name Q’ty

1 Operation panel unit 1 10 Transfer bearing 2 2 Screw (3×10) 2 11 Transfer roller 1

Document guide upper

unit

4 Panel lock lever spring 1 14 Paper feed spring 1 5 Panel lock lever 1 15 Separation rubber 1 6 Idler gear (28Z) 1 16 Pinch roller spring 2 7 Idler gear (20Z) 1 17 Pinch roller shaft 1 8 Transfer gear 1 18 Pinch roller 2 9 Rear sheet 1 19 Document guide upper 1

After mounting to the fulcrum and push down to the direction of arrow mark.

12 Separate spring 1

13 Separate plate 1

Hook

Positioning rib

A hook of a document guide upper is fit to positioning rib of panel unit .

Fig. 2

3 – 5

Page 39

UX-600MU/MC FO-1660U/C

3 Operation panel

Panel PWB

Note) Keep the panel PWB to under the rib like a picture.

rib

Parts list (Fig. 3)

No. Part name Q’ty

1 Operation panel unit 1 2 Screw (2.6×6) 5 3 Insulation sheet 1 4 Operation panel PWB unit 1 5 12 key 1 6 Start key 1 7 Stop key 1 8 Mode key 1

9 Direct key 1 10 Panel cable 1 11 Operation panel 1

Ass'y process

a b

Rib

LCD PWB

Note) The LCD PWB should be securely locked by the click of the panel case.

Fig. 3

3 – 6

Page 40

UX-600MU/MC FO-1660U/C

4 Top cover and head frame unit

Parts list (Fig. 4)

No. Part name Q’ty

1 Mechanism unit 1 2 Top cover unit 1 3 Screw (3×10) 5 4 Head frame unit 1 5 Hopper guide, right 1 6 Hopper guide, left 1 7 Screw 1 8 Pinion gear 1 9 Hopper spring 1

10 Top cover 1

Confirm of HOPPER GUIDE position.

GAP 0

Rib

HOPPER GUIDE,

LEFT

HOPPER GUIDE, RIGHT

Rib

GAP 0

HEAD EARTH CABLE

HEAD CABLE

Location figure

Fig. 4

3 – 7

Page 41

UX-600MU/MC FO-1660U/C

5 Head frame and thermal head

134

10 11

18 19

20 12 13 14

Parts list (Fig. 5)

No. Part name Q’ty No. Part name Q’ty

1 Release knob 1 11 Head spring B 2 2 Lock spring 1 12 Head spring A 1 3 Lock lever 1 13 Head frame 1 4 Screw (3×10) 1 14 Head cable 1 5 Pop up spring 1 15 Screw (3×6) 1 6 Cut washer 2 16 Head earth cable 1 7 Film guide shaft 2 17 Head guide, right 1 8 Head guide sheet 1 18 Screw (3×6) 1 9 Thermal head unit 1 19 Head guide, left 1

10 Head spring C 2 20 Thermal head 1

Fix position of EARTH CABLE.

Fig. 5

3 – 8

Page 42

UX-600MU/MC FO-1660U/C

6 Paper out guide

11 3 4

Parts list (Fig. 6)

No. Part name Q’ty

1 Mechanism unit 1 2 Screw (3×10) 2 3 Paper out guide unit 1 4 Idler gear A 1 5 Take-up gear 1 6 Slip gear ass’y 1 7 Cut washer 1 8 Film shaft C 1

9 PO pinch roller spring 2 10 PO pinch roller 2 11 Clamp 1 12 Paper out guide 1

5 6 7 8 9

Fig. 6

3 – 9

Page 43

UX-600MU/MC FO-1660U/C

Recording paper hopper, speaker and

pinch roller

141516 3 4 5

17 18

6 7 8 9

7 ,

Parts list (Fig. 7)

No. Part name Q’ty No. Part name Q’ty

1 Mechanism unit 1 10 Paper up plate 1 2 Screw (3×12) 2 11 RP pad 1 3 RP hopper unit 1 12 Cassette spring 2 4 Paper guide 1 13 RP hopper 1 5 Screw 2 14 Screw 3 6 RP release spring 1 15 Seaker 1 7 RP release gear, right 1 16 Pinch roller spring 2 8 RP release gear, left 1 17 Pinch roller 2 9 RP release plate 1 18 Pinch roller shaft 1

OKOK

Position of pinch shaft,roller,spring

Fig. 7

3 – 10

Page 44

UX-600MU/MC FO-1660U/C

Main frame, ROM cover, memory cover, drive unit and optical unit

2 3 8

5 6 7

Parts list (Fig. 8)

No. Part name Q’ty

1 Mechanism unit 1 2 Screw (3×10) 1 3 ROM cover 1 4 Memory cover 1 5 Screw (3×10) 1 6 Reduction gear B 1 7 Drive unit 1 8 Screw (3×10) 3

9 Main frame unit 1 10 Optical unit 1 11 Clamp 1

10 11

Must on the MAIN FRAME to BOTTOM CABINET when combine this GEAR.

Fig. 8

3 – 11

Page 45

9 Main frame, U turn guide and transfer roller etc.

Parts list (Fig. 9)

No. Part name Q’ty No. Part name Q’ty No. Part name Q’ty

1 Reduction gear A 1 13 PE sensor lever B 1 25 Back tension felt 1 2 PU gear 1 14 PU roller shaft 1 26 Slip spring 1 3 Platen bearing 1 15 PU roller ass’y 1 27 Hold down plate B 1 4 Platen gear 1 16 PO roller ass’y 1 28 Back tension stopper 1 5 Platen bearing 1 17 U turn guide 1 29 Separate plate spring 1 6 Platen roller 1 18 Sensor lever spring 1 30 Separate sheet 1 7 PO gear 1 19 P-IN sensor lever 1 31 Separate plate sheet 1 8 Screw (3×10) 4 20 Sensor lever spring 1 32 Separate plate 1

9 Film guide shaft B 1 21 Film sensor lever 1 33 Guide sheet, left 1 10 PE sensor lever spring 1 22 Pop up spring 1 34 Guide sheet, right 1 11 PE sensor lever A 1 23 Cover switch lever 1 35 Main frame 1 12 PE sensor spring 1 24 Back tension gear 1

UX-600MU/MC FO-1660U/C

Fix position of LEVER and SPRING.

141516

17 29 30

19 19 20 21

222324

25 26 27

33 34

OK NG

5 6 7 8

31 32

Position of SENSOR LEVER and SPRING.

Fig. 9

3 – 12

Page 46

UX-600MU/MC FO-1660U/C

10 Drive unit frame

2 3 4 5

Parts list (Fig. 10)

No. Part name Q’ty No. Part name Q’ty

1 Drive unit 1 8 Cam A 1 2 Planet lever B ass’y 1 9 Planet lever A ass’y 1 3 Idler gear A 1 10 Reduction gear C 1 4 Idler gear C 1 11 Cam switch ass’y 1 5 Reduction gear A 1 12 Screw (3×10) 2 6 Planet lever C ass’y 1 13 Motor 1 7 Cam hold spring 1 14 Motor heat sink 1

15 Drive unit frame 1

6 7 8

13 14 15

Fig. 10

3 – 13

Page 47

UX-600MU/MC FO-1660U/C

11 Optical frame

2 3

4 5 6

7 8 9

10 11 12 13

Parts list (Fig. 11)

No. Part name Q’ty No. Part name Q’ty

1 Optical unit 1 8 LED 1 2 Screw 2 9 Shading sheet 3 2 3 CCD PWB unit 1 10 Mirror 3 1 4 Shading sheet 1 11 Mirror 1 1 5 Lens holding spring 1 12 Mirror 2 1 6 Lens 1 13 Mirror sheet 2 2 7 Reader glass 1 14 Optical frame 1

Red( )

Blue

( )

Face of reflect

Fig. 11

3 – 14

Page 48

UX-600MU/MC FO-1660U/C

12 PWB section

2 3

7 8

Parts list (Fig. 12)

No. Part name Q’ty

1 Mechanism unit 1 2 Screw (3×6) 1 3 Earth cable 1 4 Screw (4×6) 1 5 AC cord 1 6 Screw (3×10) 5 7 Connector 2 8 Control PWB unit 1

9 TEL/LIU PWB unit 1 10 Power supply PWB unit 1 11 Shield plate 1 12 Jack sheet 1

4 5 6

9 10 11 12

Fig. 12

3 – 15

Page 49

UX-600MU/MC FO-1660U/C

13 Wire treatment

Speaker cable

Cam switch cable

Panel cable

Head cable

CCD cable

Moter cable

The cam switch cable wiring to under of CCD and head cable.

CCD cable

LED cable

Motor cable

ROM

Head earth cable

The core hook to the clamp.

LED cable

Rib

LED cable

Cam switch

Rib

Cam switch cable

Control PWB

Clamp

The Panel and CCD cable pass to the core 3 times.

Head earth cable

Parts list (Fig. 13)

No. Part name Q’ty

1 Filament tape 1 2 Band (Black) 1 3 Band 5 4 Core (2063) 2 5 Core (2064) 2 6 Screw (3×6) 1 7 Screw (4×6) 1 8 Screw (3×10) 1 9 UL tape 1

Panel cable

Document guide lower

Document guide upper rib

LED cable

Panel cable

AC cord earth cable

AC cord

Panel PWB

Panel cable

Panel rib

The motor cable pass to the core 2 times. The cam switch cable pass to the core 3 times.

Rib

Lower cabinet

ARG cable

TEL/Liu PWB

Control PWB

Key

Motor cable Cam switch cable

The LED cable pass to the core 3 times.

Power supply PWB

Top cover

PO guide

Clamp

Head eartg cable

Head cable

Head unit

Head earth

Head cable

cable

Head earth cable

Wiring position of Head and Head Earth cable.

The head and head e arth cables pass to the core 3 times.

within 5mm

Position of BINDING BAND head.

Fig. 13

3 – 16

Head earth cable

Head cable

Head unit

Page 50

UX-600MU/MC FO-1660U/C

CHAPTER 4. DIAGRAMS

SPEAKER

HANDSET

SIGNAL

ANALOG

SELECTOR

SPOUT

BLOCK

CLOCK

MODEM

PC JACK

DRAM

MEMORY

SRAM

(256KBIT)

ROM

(2MBIT)

(4MBIT)

VBT

PANEL

OPERATION

LCD

INPUT

FILTER

SURGE

ABSORBER

DIODE

RECTIFIRE

MUTE

CIRCUIT

SPEECH

CML

BLOCK

SELECT/AMP

MAIN

CONTROL

I/F

GPIO

I/F

SENSOR

SERIAL

CONTROL

I/F

CCD I/F

UNIT

RTC

CLOCK

GPIO I/F

PANEL I/F

OPERATION

I/F

HEAD

THERMAL

I/F

MOTOR

DRIVER

+5V

VREG

+24V

RCC

SYSTEM

REGULATOR

SW

CIRCUIT

RECTIFIRE

STABILIZER

CIRCUIT

FEEDBACK

[1] Block diagram

DIAL

PULSE

FILTER

SURGE

PROTECT

FILTER

LED

CCD

MOTOR

THERMAL HEAD

4 – 1

Page 51

AC CORD

UX-600MU/MC FO-1660U/C

CAM SW.

PWB

INTERFACE

CNDS

MULTIFUNCTION

FO-1ME

OPTION

CNRS

MEMORY

(FO-1660U/C ONLY)

PWB

POWER

SUPPLY

CNDRM

(FO-1660U/C ONLY)

CNPC

TX/RX

MOTER 6

CN101

CNCS

CNPW

CONTROL PWB UNIT

CNMT

CNPN

CNTH

CNCCD

LCD UNIT

PANEL PWB

OPERATION

CNPN CNLCD

THERMAL HEAD

CCD PWB

[2] Wiring diag ram

PERSONAL

COMPUTER

TEL LINE

EXTERNAL LINE

HANDSET

MJ1/2

MJTEL

CNLIUA

CNLIU

TEL/LIU PWB UNIT

CNSP

CNLED

LED ARRAY

SPEAKER

4 – 2

Page 52

UX-600MU/MC FO-1660U/C

PANEL PWB

TX/RX

MOTOR

CCD

PWB

LED

CAM

SWITCH

THERMAL

HEAD

123456789

CNDS

N.C.

RXD

SPEAKER

TXD

N.C.

PERSONAL

COMPUTER

GND

N.C.

RTS

CTS

N.C.

KEN4A

KEN3A

KEN2A

KEN1ADGDG

+5V

ORGSNS

FRSNSESEN4

SEN3

123456789101112131415

CNPN

123456789101112131415

CNPN

KEN4A

KEN3A

KEN2A

KEN1ADGDG

+5V

ORGSNS

FRSNSESEN4

SEN3

+24VADGPE

+5V

CMLCIHS

RHS

TXOUT

RXIN

TELMUTE

DRSNS

12345678910111213

CNLIUA

12345678910111213

CNLIU

+24VADGPE

+5V

CMLCIHS

RHS

TXOUT

RXIN

TELMUTE

DRSNS

TEL/LIU PWB

SEN2

SEN1

SEN2

SEN1

TELOUT

TELIN

TELOUT

TELIN

SEN0

CONTROL PWB

TPBD

TPAD

12345

CNMT

TPBD

TPAD

TPBD

TPAD

VMT

TPAD

VMT

MGMGMG

123456789

CNPW

123456789

CN101

MGMGMG

VCCDVGPHIT

VMT

1234567

CNCCD

VCCDVGPHIT

VMT

+24V

+24VDG+5VDGVREG

+24V

+24VDG+5VDGVREG

POWER SUPPLY

PWB

PHI2

PHI1

PHIR

CSW

VHVHSTRB1

STRB2

THI

VLED

LEDON

123456789101112131415

CNCS

CSW

CNTH

VHVHSTRB1

CNLED

VLED

LEDON

A9A8A7A6A5A4A3A2A1A0D7D6D5D4D3D2D1D0RAS

1234567891011121314151617181920212223242526272829

CNDRM

(FO-1660U/C ONLY)

N.C.MGMGMG+5V

STRB2

THI

N.C.MGMGMG+5V

STRB3

STRB4

STRB3

STRB4

LATCH

PCLK

LATCH

PCLK

N.C.

DATA

CAS2

SP+

SP-

CNSP

SP+

SP-

DWR

+5VDG+5VDGN.C.

GND

RTS

CTS

TXD

1234567

CNRS

1234567

CNPC

GND

RTS

CTS

TXD

N.C.

OPT

GND

RXDFG+5V

GND

RXDFG+5V

PWB

INTERFACE

MULTIFUNCTION

[3] Point-to-point diagram

4 – 3

Page 53

UX-600MU/MC FO-1660U/C

CHAPTER 5. CIRCUIT DESCRIPTION

[1] Circuit description

1. General description

The compact design of the control PWB is obtained by using ROCKWELL fax engine in the main control section and high density printing of surface mounting parts. Each PWB is independent according to its function as shown in Fig. 1.

2. PWB configuration

TX/RX

LINE CABLE

TEL/LIU PWB

MOTOR

PANEL PWB

1) Control PWB

The control PWB controls peripheral PWBs, mechanical parts, transmission, and performs overall control of the unit.

This machine employs a 1-chip modem (R144EFXL) which is installed on the control PWB.

2) TEL/LIU PWB

This PWB controls connection of the telephone line to the unit.

CCD PWB

CONTROL

PWB

Fig. 1

POWER

SUPPLY

LCD PWB

AC CORD

PWB

3. Operational description

Operational descriptions are given below:

• Transmission operation

When a document is loaded in standby mode, the state of the document sensor is sensed via the 1 chip fax engine (XFCRMVP). If the sensor signal was on, the motor is started to bring the document into the standby position. With depression of the START key in the off-hook state, transmission takes place.

Then, the procedure is sent out from the modem and the motor is rotated to move the document down to the scan line. In the scan processor, the signal scanned by the CCD is sent to the internal image processor and the AD converter to convert the analog signal into binary data. This binary data is transferred from the scan processor to the image buffer within the RAM and encoded and stored in the transmit buffer of the RAM. The data is then converted from parallel to serial form by the modem where the serial data is modulated and sent onto the line.

• Receive operation

There are two ways of starting reception, manual and automatic. Depression of the START key in the off-hook mode in the case of manual receive mode, or CI signal detection by the LIU in the automatic receive mode.

First, the XFCR-MVP controls the procedure signals from the modem to be ready to receive data. When the program goes into phase C, the serial data from the modem is converted to parallel form in the modem interface of the 1 chip fax engine (XFCR-MVP) which is stored in the receive buffer of the RAM. The data in the receive buffer is decoded software-wise to reproduce it as binary image data in the image buffer. The data is DMA transferred to the recording processor within the main control gate array which is then converted from parallel to serial form to be sent to the thermal head. The data is printed line by line by the XFCR-MVP which is assigned to control the motor rotation and strobe signal.

• Copy operation

To make a copy on this facsimile, the COPY key is pressed when the machine is in stand-by with a document on the document table and the telephone set is in the on-hook state.

First, depression of the COPY key advances the document to the scan line. Similar to the transmitting operation, the image signal from the CCD is converted to a binary signal in the DMA mode via the 1 chip fax engine (XFCR-MVP) which is then sent to the image buffer of the RAM. Next, the data is transferred to the recording processor in the DMA mode to send the image data to the thermal head which is printed line by line. The copying takes place as the operation is repeated.

3) Power supply PWB

This PWB provides voltages of +5V, VREG and +24V to the another PWB.

4) Panel PWB

The panel PWB allows input of the operation keys.

5) CCD PWB

This PWB controls the pickup optical device.

6) LCD PWB

This PWB controls the LCD display.

5 – 1

Page 54

UX-600MU/MC FO-1660U/C

[2] Circuit description of control PWB

1. General description

Fig. 2 shows the functional blocks of the control PWB, which is composed of 6 blocks.

MAIN

CONTROL

BLOCK

PANEL

CONTROL

BLOCK

MODEM/

CONTROL

BLOCK

IMAGE

SIGNAL

PROCESS

BLOCK

Fig. 2 Control PWB functional block diagram

2. Description of each block (1) Main control block

The main control block is composed of ROCKWELL 1 chip fax engine (XFCR-MVP), ROM (256KByte), RAM (32KByte), DRAM (512KByte). Devices are connected to the bus to control the whole unit.

1) XFCR-MVP (IC4) : pin-144 QFP (XFCR-MVP)

The FAXENGINE Integrated Facsimile Controllers. XFCR-MVP, contains an internal 8 bit microprocessor with an exter-

nal 16 Mbyte address space and dedicated circuitry optimized for facsimile image processing and facsimile machine control and monitoring.

MECHANISM/

RECORDING

CONTROL

BLOCK

MULTIFUNCTION

INTERFACE

BLOCK

2) 27C020 (IC3): pin-32 DIP (ROM)

EPROM of 2Mbit equipped with software for the main CPU.

3) SRM2B256SLMX70 (IC6): pin-28 SOP (RAM)

Line memory for the main CPU system RAM area and coding/decoding process. Used as the transmission buffer.

Memory of recorded data such as daily report and auto dials. When the power is turned off, this memory is backed up by the lithium battery.

4) IX2129 (IC7): pin-28 SOJ (RAM)

Image memory for recording process.

• Memory for recording pixel data at without paper.

MIRQN A [23:0]

D [7:0]

RDN

WRN

ROMCSN

CSN [1:0]

MCSN

SYNC

REGDMA

WAITN

RASN

CASN[2:0]

DWRN

GPIO [7:0]/V ID [7:0]

GPIO [10:8]/VDC [2:0]

GPO11/BE/SERIN

GPIO12/CS2N/SCLK

GPIO13/CS3N/TXD

GPIO14/CS4N/RXD

PM [3:0]/GPO [3:0] SM [3:0]/GPO [3:0]

TONE

GPIO15/CS5N

GPIO16/IRQ8

GPIO17/IRQ5N

GPIO18/IRQ10N

GP19/RDY/SERO

–VREF

+VREF

VIN

START

CLK1

CLK1N

CLK2

VIDCTL[1:0]

1K Intermal RAM



MC24 CPU

Shading correction

Line butter

External CPU Bus

General I/O



Motor Control

GPIO

Tone

Video Port

SART

Autobaud

Scanner Control & Video

Processing



6-Bit FADC

CCD/CIS Scanner

5ms,A4/B4 Lines

Shading Correction (1:1,1:8)

Edge Enhancement & Dithering

Multilevel B4-A4 Reduction

Dynamic ABC & Contrast Control

BUS Interface



DRAM Control

Internal & External Bus Control

Internal & External Decode

DMA controller

BI-level Resolution

Convention



Programmable

Reduction &

Expansion

MC24 CPU Control IF

MC24 Megacell (8bit Data,24bit Address)

WatchdogTimer Real Time Clock Crystal Oscillator

Battery Back-up Circuit

Interrupt Controller

CPU Bus

Operator Panel IF

32 keys 8 LEDs

LCD Module

Internal CPU Bus

T.4/T.6 CODEC



MH, MR, MMR

Haroware

Altemate Compression & Decompression

DMA Bus



Thermal Printer IF



5 ms Line Time

A4/B4 Lines

TPH ADC

4 Strobe TPH

Latchless TPH

External DMA I/F

SYSCLK TSTCLK DEBUGN RESETN XIN XOUT VBAT VDRAM PWRDWNN BATRSTNBATRSTN

OPO [7:0] OPI [3:0] LEDCTL LCDCS

THADIN PCLK/DMAACK PDAT PLAT STRB [3:0] STRBPOL/DMAREQ

PWR/GND

TEST

Fig. 3

5 – 2

Page 55

XFCR-MVP (IC4) Terminal descriptions

Pin Name Pin No. I/O

MIRQn 135 I HU − Modem interrupt, active low. (Hysteresis In, Internal Pullup.) SYSCLK 133 I H − System clock. (Hysteresis In.) TSTCLK 130 O − 3XC Test clock.

A[23:0] [1:6][8:13]

[15:20][22:27]

D[7:0] [136:139]

[141:144] RDn 128 O − 3XTT Read strobe. WRn 127 O − 3XTT Write strobe. ROMCSn 120 O − 2XT ROM chip select. CS1n 122 O − 2XT I/O chip select. CS0n 57 O − 2XTT SRAM chip select. (Battery powered.) MCSn 121 O − 2XC Modem chip select. SYNC 126 O − 2XC Indicates CPU op code fetch cycle (active high). REGDMA 124 O − 3XC Indicates REGSEL cycle and DMA cycle. WAITn 125 O − 3XC Indicates current TSTCLK cycle is a wait state or a halt state. RASn 113 O − 3XTT DRAM row address select. CAS[2:0]n [110:112] O − 2XTT DRAM column address select. DWRn 109 O − 3XTT DRAM write.

DEBUGn 129 I HU − External non-maskable input (NMI). RESETn 131 I/O HU 2XO XFC Reset. TEST 58 I C − Sets Test mode (battery powered).

XIN 59 I OSC − Crystal oscillator input pin. XOUT 60 O − OSC Crystal oscillator output pin. PWRDWNn 62 I H − Indicates loss of prime power (results in NMI). BATRSTn 61 I H − Battery power reset input.

START 101 O − 2XS Scanner shift gate control. CLK1 100 O − 2XS Scanner clock. CLK1n 99 O − 2XS Scanner clock-inverted. CLK2 98 O − 2XS Scanner reset gate control (or clock for CIS scanner). VIDCTL[1:0] [97:96] O − 2XC Control for video preprocessing circuits.

PCLK/ DMAACK

PDAT 30 O − 2XP Serial printing data (to TPH). PLAT 31 O − 3XP TPH data latch. STRB[3:0] [33:36] O − 1XP Strobe signals for the TPH. STRBPOL/

DMARQ

29 O − 3XC Thermal Print Head (TPH) clock, or external DMAACK.

37 I C − Sets strobe polarity, active high/low or external DMAREQ.

I/O T 3XT Data bus (8-bit).

Input Type

O T 3XT Address bus (24-bit).

Output

Type

CPU Control Interface

Bus Control Interface

Prime Power Reset Logic and Test

Battery Power Control and Reset Logic

Scanner Interface

Printer Interface

(Active low signals have an "n" pin name ending.)

Pin Description

UX-600MU/MC FO-1660U/C

5 – 3

Page 56

UX-600MU/MC FO-1660U/C

XFCR-MVP (IC4) Terminal descriptions

Pin Name Pin No. I/O

OPO[7:0] [38:40][42:44]

OPI[3:0] [49:52] I HU − Keyboard return [3:0]. (Pullup. Hysteresis In.) LEDCTL 55 O − 4XC Indicates outputs OPO [7:0] are for LEDs. LCDCS 54 O − 1XC LCD chip select.

GPIO[7:0]/ VID[7:0]

GPIO[10:8]/ VDC[2:0]

GPIO11/BE/ SERINP

GPIO12/ CS2n/SCLK

GPIO13/ CS3n/TXD

GPIO14/ CS4n/RXD

GPIO15/ CS5n

GPIO16/ IRQ8

GPIO17/ IRQ5n

GPIO18/ IRQ10n

GPIO[19]/RDY /SEROUT

SM[3:0]/ GPO[7:4]

PM[3:0]/ GPO[3:0]

TONE 119 O − 1XC Tone output signal.

−Vref 66 I −VR − Negative Reference Voltage for Video A/D. +Vref 68 I +VR − Positive Reference Voltage for Video A/D. ADGA 69 VADG A/D Analog Ground. ADVA 70 VADV A/D Analog Power. ADGD 72 VADG A/D Digital Ground. ADVD 71 VADV A/D Digital Power. VIN 67 I VA − Analog Video A/D input. THADI 65 I TA − Analog Thermal A/D input. VSS (12) 134, 132, 108,

VDD (8) 140, 123, 102,

VDRAM 114 Battery power for DRAM refresh. VBAT 63 Battery Power, for RTC and SRAM.

NC 107 No connection.

[46:47]

[86:87][89:94] I/O H 2XC Programmable: GPIO (8 lines) or video data bus.

[83:85] I/O H 2XC Programmable: GPIO (3 lines) or video data control signals.

82 I/O H 1XC Programmable: GPIO line, Bus Enable, serial data input (Autobaud).

80 I/O H 2XC Programmable: GPIO line, I/O chip select or SCLK (SART).

79 I/O H 2XC Programmable: GPIO line, I/O chip select or TXD (SART).

78 I/O H 2XC Programmable: GPIO line, I/O chip select or RXD (SART).

77 I/O H 2XC Programmable: GPIO line or I/O chip select.

76 I/O H 1XC Programmable: GPIO line or active high interrupt.

75 I/O H 1XC Programmable: GPIO line or active low interrupt.

74 I/O H 1XC Programmable: GPIO line or active low interrupt.

73 I/O H 1XC Programmable: GPIO line, Ready or Serial out (Autobaud).

[103:106] O − 1XC Programmable: scan motor control pins or GPO pins.

[115:118] O − 1XC Programmable: print motor control pins or GPO pins.

95, 88, 64, 56, 53, 45, 28, 21,7

81, 48, 41, 32, 14

Input Type

O − 2XL Keyboard/LED strobe [7:0].

Output

Type

Operator Panel Interface

General Purpose I/O

Miscellaneous

Power, Reference Voltages, Ground

Digital Ground.

Digital Power.

No Connection

Pin Description

5 – 4

Page 57

(2) Panel control block

The following controls are performed by the XFCR-MVP.

• Operation panel key scanning

• Operation panel LCD display

(3) Mechanism/recording control block

The following controls are performed by XFCR-MVP.

• Motor control

• Thermal head control

• Cutter motor control

• Sensor detection

STRB [3:0] STRBPOL

UX-600MU/MC FO-1660U/C

THERMAL

HEAD

MOTOR

SENSOR

PRINTER

DATA

CONTROL

PRINTER

&

SCANNER

MOTOR

DRIVER

GENERAL PURPOSE

I/O

THADI PDAT PCLK PLAT

XFCR-MVP

SM [3:0]

GPIO

Fig. 4

5 – 5

Page 58

UX-600MU/MC FO-1660U/C

(4) Modem (R144EFXL) block

INTRODUCTION

The Rockwell R144EFXL MONOFAX modem is a synchronous 14400 bits per second (bps) half-duplex modem with error detection and DTMF reception. It has low power consumption and requires only a single +5V DC power supply. The modem is housed in a single VLSI device package. The modem can operate over the public switched telephone network (PSTN) through line terminations provided by a data access arrangement (DAA). The modem satisfies the requirements specified in CCITT recommendations V.33, V.17, V.29, V.27 ter, V.21 Channel 2 (FSK), T.4, and T.3, and meets the binary signaling requirements of T.30. The modem can operate at 9600, 7200, 4800, 2400, or 300 bps. The modem supports the V.17 signalling rates of 14400, 12000, 9600, and 7200 bps using trellis-coded modulation (TCM). In addition, the modem supports V.27 ter and V.17 short trains. The modem can also perform HDLC framing according to T.30 at 14400, 12000, 9600, 7200, 4800, 2400, or 300 bps. An FSK flag pattern (7E) detector facilitates FSK detection in the high speed receiver. The voice mode allows the host computer (DTE) to transmit and receive audio signals and messages. The modem includes a programmable DTMF receiver and three programmable tone detectors which operate concurrently with the V.21 channel 2 (FSK) receiver. The three programmable tone detectors also operate concurrently with the voice mode receiver. General purpose input/output (GPIO) and general purpose input (GPI) pins are available for host assignment in the 100-pin PQFP. The modem’s small size, single voltage supply, and low power consumption allow the design of compact system enclosures for use in both office and home environments. The modem is available in either a 100-pin plastic quad flat pack (PQFP) or a 64-pin quad in-line package (QUIP). The package are shown in Figure 1. The general modem interface is illustrated in Figure 2. Additional modem information is described in the R144EFXL MONOFAX Modem Designer’s Guide (Order No. 895).

FEATURES

• Group 3 facsimile transmission/reception – CCITT V.33, V.17, V.29, V.27 ter, V.21 Channel 2 (FSK), T.4,

and T.30

– HDLC Framing at all speeds

• Group 2 facsimile transmission/reception – CCITT T.3 – External clock tracking

• V.27 ter short train

• V.29 short train

• Concurrent DTMF, FSK, and tone reception – Concurrent DTMF reception, FSK flag pattern (7E) detection,

and tone detection

• FSK flag pattern detect during high speed reception

• Voice mode transmission/reception

• 2-wire half-duplex

• Programmable transmit level: 0 to -15 dBm

• Programmable transmit analog attenuation:

0 dBm to 14 dB in 2 dB steps

• Receive dynamic range: 0 to –43 dBm

• Programmable dual tone generation

• Programmable tone detection

• Programmable turn-on and turn-off thresholds

• Programmable interface memory interrupt

• Diagnostic capability – Allows telephone line quality monitoring

• Compromise equalization – Automatic adaptive and fixed digital

• DTE interface: two alternate ports – Selectable microprocessor bus (6500 or 8085) – CCITT V.24 (EIA-232-D compatible) interface

• TTL and CMOS compatible

• Low power consumption: – Operating mode: 270 mW (typical) – Sleep mode: 17 mW (typical)

• Single +5VDC power supply

• Single Package – 100-pin PQFP or 64-pin QUIP

• Hardware compatible with the R96DFXL MONOFAX modem

• Software compatible with all MONOFAX modems

5 – 6

Page 59

UX-600MU/MC FO-1660U/C

R144EFXL (IC11) Hardware Interface Signals

Pin Signals – 100-Pin PQFP

Pin No. Signal Name I/O Type

1 GP03 IA/OB 2 GP04 IA/OB 3 GP05 IA/OB 4 GP06 IA/OB 5 GP07 IA/OB 6 0VD2 GND 7 0VD2 GND 8 D7 IA/OB

9 D6 IA/OB 10 D5 IA/OB 11 D4 IA/OB 12 D3 IA/OB 13 D2 IA/OB 14 D1 IA/OB 15 D0 IA/OB 16 0VD2 GND 17 0VA GND 18 RAMPIN R 19 NC 20 NC 21 0VA GND 22 +5VD2 PWR 23 0VD1 GND 24 SWGAINI R 25 ECLKIN1 R 26 SYNCIN1 R 27 NC 28 NC 29 NC 30 0VA GND 31 NC 32 NC 33 NC 34 DAIN R 35 ADOUT R 36 BYPASS IC 37 RCVI R 38 TXLOSS3 IC 39 TXLOSS2 IC 40 TXLOSS1 IC 41 NC 42 NC 43 0VA GND 44 TXOUT AA 45 RXIN AB 46 +5VA PWR 47 0VA GND 48 AGD R 49 AOUT R 50 0VD1 GND 51 NC 52 IRQ OC 53 WRITE-R/WIA 54 CS IA 55 READ-φ2IA 56 RS4 IA 57 RS3 IA 58 RS2 IA 59 RS1 IA

Pin No. Signal Name I/O Type

60 RS0 IA 61 GP13 IA/OB 62 +5VD1 PWR 63 GP11 IA/OB 64 RTS IA 65 EN85 R 66 0VD2 GND 67 PORI ID 68 XTLI R 69 XTLO R 70 XCLK OD 71 YCLK OD 72 +5VD1 PWR 73 DCLK1 R 74 SYNCIN2 R 75 GP16 IA/OB 76 GP17 IA/OB 77 0VD2 GND 78 CTS OA 79 TXD IA 80 0VD2 GND 81 0VD2 GND 82 DCLK OA 83 EYESYNC OA 84 EYECLKX OA 85 EYECLK OA 86 EYEX OA 87 ADIN R 88 DAOUT R 89 0VD2 GND 90 EYEY OA 91 GP21 IA/OB 92 0VD2 GND 93 GP20 IA/OB 94 GP19 IA/OB 95 RXD OA 96 RLSD OA 97 0VD2 GND 98 RCVO R 99 SWGAINO R

100 GP02 IA/OB

Notes:

1. NC = No connection; leave pin disconnected (open).

2. I/O Type: = Digital signals: see Table 9; Analog signals: see Table 10.

3. R = Required modem inter-connection; no connection

to host equipment.

5 – 7

Page 60

UX-600MU/MC FO-1660U/C

(5) Image signal process block

Fig. 5

CLAMP

CIRCUIT

CLOCK

VREF+ VREF–

XFCR-MVP

CCD

The CCD is driven by the 1-chip engine (XFCR-MVP), and the output video signal from the CCD is input into the XFCR-MVP through the amplifying circuit and clamp circuit. The ADC and buffer are provided in the XFCR-MVP, and the digital image processing is performed.

VIDEO

SIGNAL

AMPLIFIER

CIRCUIT

(6) Speaker amplifier

The speaker amplifier monitors the line under the on-hook mode, outputs the buzzer sound generated from the XFCR-MVP, ringer sound, DTMF generated from the modem, and line sound.

(7) Adjustment of voice/ringer volume

The voice/ringer volume can be adjusted by using the panel bottons "UP" and "DOWN".

• The ringer volume can be adjusted in the Stand-by mode by press-

ing the UP/DOWN button.

• The reception level can be adjusted by pressing the UP/DOWN

button when the handset is located in the off-hook state.

• The speaker volume can be adjusted by using the speaker key.

(8) Multifunction interface block

IC5 (M66230FP) for the asynchronous serial communication controlled with IC4 (XFCR-MVP) executes the serial communication with the personal computer.

1) M66230FP (IC5): pin-28 SOP(UART)

The data is received in parallel from IC4 (FXCR-MVP), is converted in series and transferred to the personal computer. Moreover, the serial data from the personal computer is received, is converted into parallel, and is output to IC4 (FXCR-MVP).

5 – 8

Page 61

[3] Circuit description of TEL/LIU PWB

(1) TEL/LIU block operational description

1) Block diagram

CONTROL PWBTEL/LIU PWB

HS CML

TEL

LINE

EXT.

HANDSET

HS DETECTOR

SPEAKER

CML

CI DETECTOR

TEL IN

TELOUT

TXOUT

RXIN

TEL MUTE

+5V +24VA DG

VOL A

RCVOL

GAIN-C

VOL B

VOL C

BZCONT

0 1

TXCONT

1 0

SIGTX

SIGRX

TXCONT

BZCONT

SP MUTEI

TEL MUTE

RCVOL

MODEM

(R96DFXL-CID)

XFCR-MVP

UX-600MU/MC FO-1660U/C

GAIN-C

CML

2) Circuit description

The TEL/LIU PWB is composed of the following 10 blocks.

1. Surge protection circuit

2. On-hook status detection circuit

3. Dial pulse generation circuit

4. CML relay

5. Matching transformer

6. Hybrid circuit

7. Signal selection

8. Sensor circuit

9. Cl detection circuit

10. Power supply and bias circuit

Fig. 6

3) Block description

1. Surge Protection circuit

This circuit protects the circuit from the surge voltage occurring on the telephone line.

• The AR1 protects the circuit from the 390V or higher line surge

voltages.

• The VA1 and VA2 protect the circuit from the 470V or higher

vertical surge voltages.

5 – 9

Page 62

UX-600MU/MC FO-1660U/C

2. On-hook status detection circuit

The on-hook status detection circuit detects the Status of the hook switch (RHS) of Built-in telephone, and the status of the hook of a telephone externally connected.

• The status of on-hook switch (RHS) is determined from the

logical level of RHS signal. RHS LOW: ON-HOOK RHS HIGH: OFF-HOOK

• External telephone hook status detection circuit (HS1)

This circuit comprises the photo-coupler PC1, resistors R3 and R4, Zener diodes ZD1 and ZD2.

When an external telephone is connected and enters the on-hook mode, the LED of photo-coupler PC1 emits light and the light receiving element turns on. The status signal HS1 is input to the pin 84 of (XFCR-MVP) (IC4: control PWB).

HS1 LOW: EXT. TEL OFF-HOOK HS1 HIGH: EXT. TEL ON-HOOK

3. Dial pulse generation circuit

The pulse dial generation circuit comprises the CML relay.

4. CML relay

The CML relay switches over connection to the matching transformer T1 while the FAX or built-in telephone is being used.

5. Matching transformer

The matching transformer performs electrical insulation from the telephone line and impedance matching for transmitting the TEL/FAX signal.

6. Hybrid circuit

The hybrid circuit performs 2-wire-to-4-wire conversion using the IC2 of operational amplifier, transmits the voice transmission signal to the line, and feeds back the voice signal to the voice reception circuit as the side tone.

7. Signal selection

The following signals are used to control the transmission line of TEL/FAX signal. For details, refer to the signal selector matrix table.

[Control signals from output port]

Signal Name Description

Line connecting relay and DP generating

CML

relay H: Line make L: Line break Speaker tone mute control signal

SP MUTE

H: Muting (Power down mode) L: Muting cancel (Normal operation) Handset reception mute control signal

TEL MUTE

H: Muting L: Muting cancel Handset receiver volume control signal

RCVOL

Volume High Middle DTMF sending RCVOL H L L

(The circuit is located

in the control PWB.)

SIDE KICK is two-stage switching.

Note: The DTMF sending listed above is DTMF signal sending in the handset OFF-HOOK mode.

Speaker volume control signal, VOL A VOL B VOL C

VRSEL1 VRSEL2 matrix

VOL A VOL B VOL C

RING./

Receiving

Buzzer DTMF

L L L High — High

(The circuit is located

in the control PWB.)

TXCONT

(The circuit is located

in the control PWB.)

GAIN-C

(The circuit is located

in the control PWB.)

MPX A

(The circuit is located

in the control PWB.)

BZCONT

(The circuit is located

in the control PWB.)

H L L Middle Fixed Middle

L L H Low — Low

TXOUT mute signal

H: Signal sending, when transmitting

L: During reception, transmission mute,

(during standby)

Reception gain switching signal

L: When connected to line, 1: 1 gain

H: When not connected to line, HIGH gain

Transmission/transfer switching signal

H: When transmitting modem signal

(during standby)

L: When transferring

Speaker output signal switching

H: Buzzer signal output

L: When monitoring line signal

5 – 10

Page 63

UX-600MU/MC FO-1660U/C

[Signals for status recognition according to input signals]

Signal Name Function

RHS

H: The handset is in the on-hook state. L: The handset is in the off-hook state.

CI Incoming call (CI) detection signal

H: The handset or external telephone is in

the on-hook state. L: The handset or external telephone is in the off-hook state.

P.E

DRSNS

L: No recording paper. H: Recording paper exists.

H: Door open. L: Door close.

[Other signals]

Signal Name Function

TEL IN Receiving signal from line or modem

TEL OUT Transfer signal to line

TXOUT

RXIN

Transmission (DTMF) analog signal output from modem

Reception (DTMF, others) analog signal input into modem

NO Signal Name (CNLIU) NO Signal Name (CNLIU)

1 +24VA 8 RHS 2 DG 9 TXOUT 3 PE 10 RXIN 4 +5V 11 TELMUTE 5 CML 12 DRSNS 6 CI 13 TELOUT 7 HS 14 TELIN

8. Sensor circuit

For the recording paper sensor (P.E), when there is recording paper, the photo transistor in the light receiving side is ON and the detection level is LOW. When there is no recording paper, the photo transistor in the light receiving side is OFF and the detection level is HIGH.

9. Cl detection circuit

The CI detection circuit detects the CI signals of 15.3 Hz to 68 Hz. A CI signal, which is provided to the photo-coupler PC1 through the C1 (0.82 uF), R3 (22 K), and ZD3 when the ring signal is inputted from the telephone line.

10. Power supply and bias circuits

The voltages of +5V and +24VA are supplied from the control PWB unit.

(Example: Fax signal send)

TEL

LINE

EXT.

HANDSET

HS DETECTOR

CML

SPEAKER

CI DETECTOR

TEL IN

TELOUT

HS CML

TXOUT

RXIN

TEL MUTE

CONTROL PWBTEL/LIU PWB

+5V +24VA DG

VOL A

RCVOL

GAIN-C

VOL B

VOL C

BZCONT

0 1

TXCONT

1 0

SIGTX

SIGRX

TXCONT

RCVOL

BZCONT

SP MUTEI

TEL MUTE

(R96DFXL-CID)

MODEM

XFCR-MVP

GAIN-C

CML

Fig. 7

5 – 11

Page 64

UX-600MU/MC FO-1660U/C

[4] Circuit description of power supply PWB

1. Block diagram

TRANSFORMER

+7.4V

CIRCUIT

+7.4V

F1

AC IN

120V

50/60Hz

4.0A 125V FILTER/

RECTITYING SMOOTHING

CIRCUIT

The power unit intakes input of AC 120V, 50/60 Hz and supplies output of +24V, +7.4V and +5V as shown in the block diagram. (See Fig. 8.)

2-1. Filter, rectifying and smoothening circuit

In the filter section, the noise generated from the power unit is eliminated from being discharged to the external, and external noise is prevented from entering. Thunder or other excessive surge is prevented by the varistor Z1. In the rectifying and smoothening section, AC input is rectified by the diodes D10, 11, 12 and 13, and is smoothened by the capacitor C5. Thus, DC voltage is supplied to the switching section. Moreover, the thermistor NTC1 prevents surge current when the power is turned on.

2-2. Switching section

The circuit uses the ringing choke converter of a self-excited type. Since MOS. FETQ1 is repeatedly turned on and off in this system, the DC voltage supplied from the rectifying and smoothening section is converted into the high frequency pulses. While Q1 is on, energy is accumulated in the primary winding of the transformer T1, and while Q1 is off, energy is discharged to the secondary side. Thus, the power is supplied.

SWITCHING

CIRCUIT

CONTROL

CIRCUIT

PHOTO

COUPLER

+5V

CIRCUIT

+24V

CIRCUIT

+5V

GND

+24V

Fig. 8

Moreover, the frequency is varied depending on the load of the output. As the load becomes the heavier, the frequency becomes the smaller to extend the ON period. The constant voltage is controlled by applying the feedback to the control circuit through the photo coupler PC1 from +24V output. The overcurrent-protective circuit detects that the ON period becomes the wider as the output load becomes the heavier. For the control, the OFF period is extended by the control circuit to squeeze the energy which is accumulated in the primary winding of the transformer T1. For protection against overvoltage, the rise of the output voltage of +24V on the secondary side is brought into the overcurrent state through the continuity of the power zener diode D104 between +24V output and GND. Thus, the overcurrent-protective circuit of the control circuit is activated for the protection.

2-3. +24V circuit

Output is supplied by rectifying and smoothening the output of the transformer T1 with the diode D101 and capacitor C101.

2-4. +5V circuit

+5 V output is generated by rectifying and smoothening the output of the transformer T1 with the diode D102 and capacitor C102 and stabilizing it with the 3-terminal regulator IC103.

[5] Circuit description of CCD PWB

The CCD board picks up optical information from the document, converts it into an electrical (analog) signal and transfers it to the control board.

(1) Block diagram

+5V

GND

OUTPUT CIRCUIT

(emitter follower)

Fig. 9

CCD

TCD1208AP

(2) Description of blocks

1. CCD

The TCD1208GL is a highly sensitive charged coupled image sensor that consists of 2160 picture elements.

Receiving four drive signal (φT, φ2, φ1, φR) from the control board, the tranferred photoelectric analog signal OS is impedance converted, and the signal VO, is supplied to the control board.

2. Waveforms

1. φ1, φ2 (=φ1) signals withi n the control board.

øT

ø1 (=ø2)

2. OS φ

1.74µ SEC

øR

5 – 12

Fig. 10

Approx. 100mV

Approx. 5V 0V

Page 65

CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS LAYOUT

1/7

(2-6A)(3-3A)(7-5B)

7] ~ D[0]

[

HCA

220 x 8

R127

D[0]

R128

D[1]

R129

D[2]

R131

D[3]

R132

D[4]

R135

D[5]

R138

D[6]

R139

D[7]

R137

L105

270

SYSCLK MIRQ

C120

1000P

0.1

C123

C126

C113

0.1

C137

0.1

C139

R121

10K

R122

10K

0.1

R181

10K

C141

0.1

TP118

C140

TP111

0.1

C136

(1-1I)

(3-2A)

(7-3B)

R174

10K

+5V

TSTCLK

0.1

C125

L101

+5V

BDEFG

[1] Control PWB circu it

Main control block

TP5

7, 134

95, 108

64, 88

53, 56

0.1

C131

18] ~ A[0]

[

TP6

144

143

142

141

139

138

137

136

130

TSTCLK

133

SYSCLK

135

MIRQ

131

RESET

129

DEBUG

TEST

VSS

132

VSS

0.1

VDD

102

VDD

123

VDD

140

VDD

ADGD

ADGA

ADVD

ADVA

GPIO19

R154

R179

MDMRST

(3-2A)

(2-6A)(3-4A)(7-5B)

A[18]

A[17]

A[16]

A[15]

A[14]

A[13]

A[12]

A[11]

220

R147

A16

220

R149

A15

R150

A14

R151

220

A13

220

R152

A12

R155

220

A11

TP11

R146

TP10

TP13

TP12

220

R144

456891011121315161718

A212A221A23

A20

A19

A18

A17

A[9]

A[8]

A[7]

A[6]

A[5]

220

R159

220

R160

220

R164

220

R161

A6A5A4

A[4]

220

A[10]

220

R156

A10

R158

220

A9A8A7

IC4

GPIO16

GPIO15

GPIO14

GPIO17

GPIO18

470

LEDON

(5-1C)

757473

R167

R307

RDY

10K

R259

(7-4G)

GPIO13

GPIO12

7677788082

10K

R269

N.M.

470

C135

470

R224

GAINC

TXCONT

(6-4A)

(6-6A)

GPIO11

470

R126

R202

VTHON

GCONT

(5-5F)

GPIO10

10K

R244

470

(5-6E)

GPIO9

GPIO8

858689

10K

R250

470

R230

470

R308

CML

FRSNSI

CNLIUA-7HSCNLIUA-5

GPIO7

GPIO6

10K

R237

ORGSNSI

(4-3D)

GPIO5

470

R246

SPMUTE

(6-2H)

GPIO4

909293

470

R184

BYPASS

(3-1D)

(2-3A)

(3-3A)

(7-4B)

(2-4D)

A[3]

A[2]

A[1]

A[0]

R148

220

R166

R171

R170

L107

220

R172 27

128WR127

R165 23

220

242526

A3A2A1

XFCR-MVP

VIDCTL0

GPIO1

GPIO0

3.3K

R192

R231

470

R201

TELMUTE

CNLIUA-6

CNLIUA-11

10K

R223

470

VIDCTL1

(5-4E)

GPIO3

10K

R191

R169

DRSNS

SIRES

(4-4D)

GPIO2

470

(7-3B)

(7-4B)

(2-4D)

(3-3A)

(3-2A)

(7-4B)

220

150

R123

120

CLK1

100

150

R225

PHI2

CNCCD-5

(2-4A)

SICS

ROMCS

270

R130

R173

122

CS1

ROMCS

CLK1

CLK2

150

R232

R245

PHI1

PHIR

CNCCD-6

CNCCD-7

CE1

MCS

200

R162

121

CS0

MCS

START

101

470

R213

470

<PHIT>

PHIT

CNCCD-4

270

R176

TP4

TP2

126

124

SYNC

REGDMA

STRB3

STRB2

333435

R124

270

R133

STRB3

STRB4

CNTH-11

CNTH-12

270

RAS

150

R140

TP3

125

113

WAIT

STRB1

R104

270

R113

STRB2

STRB1

CNTH-4

(2-4F)

(2-3G)

CAS2

110

RAS

CAS2

STRB0

PCLK30PDAT

270

R153

PCLK

CNTH-3

CNTH-14

(2-4F)

CAS0

(*1)

R141 150

R136

111

112

CAS1

BATRST

PWRDWN

LEDCTL

R145

270

R157

270

DATA

LATCH

CNTH-15

(2-4F)

DWR

R134 150

109

DWR

CAS0

VBAT

XOUT

XIN

+VREF –VREF

VIN

THADI

TONE

SM0 SM1 SM2

SM3 GPO0 GPO1 GPO2 GPO3

VDRAM

OPI0 OPI1 OPI2 OPI3

LCDCS

OPO0 OPO1 OPO2 OPO3 OPO4 OPO5 OPO6 OPO7

PLAT

STRBPOL 37

270

R175

C127 C134 C132 C106 C110 C117 C122

CNTH-13

10K

15P x7

UX-600MU/MC FO-1660U/C

(1-6F)

SYSCLK

470

R125

L102

Z2104

IC1

150

R219 R199 R187 R182

4.7/50

C112

2200P

R178

+5V

C124

470x 5

R108

C9

10M

R112

R193 R203

0.1

R292 R284 R278 R273 R267

L100

270 x 4

R120 R118 R116

R243

R204

270 x 2

470 x 4

R229 R209 R190 R185

+5V

R180

N.M.

L117 0

R115

IC1

HCU04

C109

C114

100K

R177

RESET

C143

X2

32.768 kHz

+VREF

–VREF

VIN

THADI

BZOUT

TPA TPB TPA

TPB MPXB MPXA

BZCONT

RCVOL

C144

1000P

C145

1000P

C152

1000P

C159

1000P

KEN1A

KEN2A

KEN3A

KEN4A

SEN0 SEN1 SEN2 SEN3 SEN4

C194 C189 C186 C185 C182 C179

0.1

2,8,10,12

IC1

HCU04

1,9,11,13

(*1) R136 IS MOUNTED NO PARTS FOR UX-600MU/MC AND

MOUNTED A RESISTOR OF 150 OHMS FOR FO-1660U/C.

68 66 67 65 119

106 105 104 103 118 117 116 115

107 114

10K x 4

52 51 50 49 55 54 47 46 44 43 42 40 39 38

N.M.

C116

HCA

HCU04

15P

C119

R111

X1

15P

C108

19.66MHz

C8

10/50

VBT

(4-1D)

18P

C142

(5-4E) (5-3E) (5-5E) (5-2I) (6-1H)

(5-5E) (5-5E) (5-5E)

(5-5E) CNLIUB-4 CNLIUB-3

(6-3H)

(6-2A)

CNPN-4 CNPN-3 CNPN-2 CNPN-1

CNPN-10 CNPN-15 CNPN-14 CNPN-13 CNPN-12 CNPN-11

N.M.

BDEFG

L103

6 – 1

Page 66

UX-600MU/MC FO-1660U/C

2/7

CNDRM-1

CNDRM-2

CN DRM-3

CNDRM-4

CN DRM-5

CNDRM-6

CNDRM-7

A[9]

A[8]

A[7]

A[6]

A[5]

A[4]

A[3]

HCA

D[7]9

D[6]

D[5]

D[4]

D[3]

D[2]

D[1]

272625

543

IO8

IO7

IO6

IO5

IO4

IO3

IC7

IX2129

A9A8A7A6A5A4A3A2A1

20191817161312

A[9]

A[8]

A[7]

A[6]

A[5]

A[4]

A[3]

A[2]

+5V

D[0]

IO2

IO1

VDD14VDD

A[2]

A[0]

A[1]

CNDRM-9

CNDRM-10

CNDRM-8

A[0]

A[1]

D[7]

C128

N.C

VSS28VSS

N.C8RAS23CAS7WE22OE

N.C

RAS

DWR

CASO

(1-3I)

(1-2I)

CNDRM-11

CNDRM-12

CNDRM-13

D[6]

D[5]

CNDRM-14

CNDRM-15

D[4]

D[3]

D[2]

CN DRM-16

CNDRM-17

CNDRM-18

D[1]

D[0]

CNDRM-19

RAS

CNDRM-20

CNDRM-21

CNDRM-22

CNDRM-23

CNDRM-25DGCNDRM-24DGCNDRM-26NCCNDRM-27,28

CAS2

(1-2I)

DWR

+5V



CNDRM-30

CNDRM-29

FO-1660U/C ONLY

OPT

HCA

OPT

(3-6D)

D[7]

D[6]

191817

IO8

IO7

D[5]

D[4]

D[3]

D[2]

D[1]

151312

IO6

IO5

IO4

IO3

VBT

D[0]

IO2

IO1

VDD

IC6

A14

A13

A12A9A8

SRM2B256SLMX70

262232124

A[14]

A[13]

A[12]

D[7]

D[6]

D[5]

2019181315

DQ8

DQ6

DQ7

IC3

BDEFG

27C020

A17

A[17] 30

A16

A[16]

A15

A[15]

A11

A10

A[11]

A[10]

A[9]

D[4]

D[3]

D[2]

DQ3

DQ4

DQ5

A14

A13

A12

284252326

A[14]

A[13]

A[12]

A7A4A6A5A3A1A0

34567

A[8]

A[7]

A[6]

A[5]

A[4]

VBT

N.M.

R105

D[1]

D[0]

R102

31 A[18]

DQ1

DQ2

(A18)

A11

A10A9A8A7A6A5A4 VPP

567

A[11]

A[10]

A[9]

A[8]

A[7]

A[3]

A[6]

C130

A[2]

VCC

A[5]

0.1

VSS

A[1]

+5V

A[4]

WE27CS2/OE

CS1

A[0]

TP14

22K

R163

CE1

(1-3I)

C192

GND

A310A211A112A022E24G

A[3]

A[2]

A[1]

A[0]

R143

CE2

(4-1D)

TP135

N.M.

TP136

R142

BDEFG

A[18] ~ A[0]

(1-5I)

D[7] ~ D[0]

(1-6I)

Memory block

ROMCS

(1-3I)

6 – 2

Page 67

UX-600MU/MC FO-1660U/C

3/7

HCA

N.M.

C195

+5V

(2-2G)

(4-4D)

CNCS-1

(4-5D)

CNLIUA-8

C174

+5V

0.1

OPT PEI CSW

RBN RHS

L116

0

R188

C148

R233

R262

270

L120

C165

1000P

0.1

(*1)

BDEFG

R206

R248 10K R256 33K R263 10K R210 33K R200 10K

C181

1000P

C190

97 92 89 81 80 77 66 16

6 50 23

91 93 94 76 75 61

R258

+5VD2

0VD2 0VD2 0VD2 0VD2 0VD2 0VD2 0VD2 0VD2 0VD2 0VD2 0VD1 0VD1

NC +5VD1

GP21 GP20 GP19 GP17 GP16 GP13

+5V

C10

47/25

0.1

C171

1721304347

0VA

+5VA

TXD

RTS

DCLK

CTS

10K

R220

(6-3A)

AGD

SIGRX

R222

R239

47.5K

MAG

0.1

C161

35879837454918

0VA

ADOUT

ADIN

RCVO

RCVI

RXIN

AOUT

AGD

RAMPIN

(6-5A)(6-5E)

SIGTX

MAG

C170

390P

C175

414251

NCNCNC

TXOUT

883499

DAIN

DAOUT

SWGAIN1

SWGAIN0

IC11

R144EFXL

RLSD

RXD

RS4

RS3

RS2

RS1

DCLKI

5657585960

A[4]

RS08D79D610D511D412D313D214D115D054CS55READ53WRITE52IRQ70XCLK(12M)71YCLK(6M)

A[1]

A[2]

A[3]

A[0]

D[6]

D[5]

D[4]

D[3]

D[2]

D[1]

D[7]

D[0]

192027

NCNCNC

N.M.10 KOHMUX-600MU/600MC

N.M.

MODEL R233 R291 R296

(*1)R233,R291 AND R296 ARE MOUNTED RESISTOR

EVERY EACH MODEL AS FOLLOWS.

293132

NCNCNC

R207

270

XTLO

XTLI

EYEY EYEX

EYECLKX

SYNCIN2 SYNCIN1

EYESYNC

ECLKIN1

EYECLK

BYBASS TXLOSS1 TXLOSS2 TXLOSS3

GP11

GP02 GP03 GP04 GP05 GP06 GP07

PORI65EN85

R189

90 86 84 74 26 83 25 85 36

40 39 38

63 100 1 2 3 4 5

C149

680

R221

R183

10K

270 x 4

R296 R291

(*1)

R290

33K

0.01 DG

R264

R186 R299

R298 R297

10 KOHM

N.M.

10 OHM

FO1660U/1660C

12P

C146

R211

X3

38.00053MHz

10P

C147

BYPASS

VREFCONT

R300

R306

MAG

VOLC VOLB VOLA

N.M

R305

R293

MPXO

CNLIUB-5

(1-4A)

N.M.

(5-4A) (6-1H) (6-1H) (6-1H)

(4-5D)

TELMUTE2

CNLIUB-2

HCA

BDEFG

Modem block

33K

R194

MCSRDWR

(1-3I)

(1-2I)

MIRQ

(1-6F)

A[4]~A[0]

(1-5I)

D[7]~D[0]

(1-6I)

MDMRST

(1-5A)

6 – 3

Page 68

UX-600MU/MC FO-1660U/C

<VBT>

5.6K

R100

D101

1SS355

VBT

BAT1

CR2032

VREG

C104

0.1

R110

200

D100

1SS355

D102

DAP202

200

R107

+5V

C2

22/50

0.1

C100

4/7Other bloc k

HCA

CNLIUA-4

CNPN-7

+5V

C4

C107

<GND>

22/50

0.1

CNPN-5

CNPN-6

CNCS-2

CNLIUA-2

DGDGDG

C3

22/50

+24V

N.M.

C103

N.M.

C102

CNLIUA-1

+24VA

C6

100/50

R1

HCA

0.1

C203

R301

FG2

N.M.

DG MG

VREG

+5V

CNPW-8

CNPW-9

(3-1C)

JP1

PINSNS

220

+5V

4 2

PI1

SG-206S

BDEFG

R106

RBN

RBNSNS

220

R212

(3-6C)

JP2

+5V

PI2

SG-206S

4 2

CNPW-7

CNPW-6

R286

270

(3-6C)

PEI

C187

CNLIUA-3

+24V

CNPW-4

R287

2200P

+24V

CNPW-5

(1-4A)

DRSNSI

270

DRSNS

CNLIUA-12

C188

CNPW-1

R251

2200P

CNPW-2MGCNPW-3

(1-4A)

FRSNSI

270

C173

FRSNS

CNPN-9

2200P

(1-4A)

ORGSNSI

270

R238

ORGSNS

CNPN-8

C167

2200P

+5V

R109

VCC

231

Q100

R103

OUT

MRST

0.1

C111

SUB

(2-4D)

CE2

GND

R114

(1-1F)

RESET

N.M.

BDEFG

IC100

PST596CNR

6 – 4

Page 69

UX-600MU/MC FO-1660U/C

5/7

CNMT-5

CNMT-6

VMT

FU100

ICP-S07

+24V

VMT

C118

ZD2

RD22FB3

HCA

IC2

ULN2003A

N.M.

CNMT-2

CNMT-1

TPBD

TPAD

91614

COM

1B2B4B

124

CNMT-3

TPBD

TPAD

CNMT-4

CNTH-1

CNTH-2VHCNTH-16MGCNTH-8MGCNTH-9

C115

C105

C196

+24V

R101

RY1

ZD1

22K

OJE-SH

N.M.

+24V

D103

1SS355

MGMG

CNTH-10

+5V

DG DG

L104

+5V

C121

0.1

C7

R119

22/50

20K

(1-1F)

THADI

MG MG

CNTH-5

THI

C5

R117

22/50

470K

CNTH-7

CNTH-6

HCA

TPB

TPA

TPB

TPA

(1-1F)

(1-1E)

(1-4A)

GCONT

+5V

+24VA

20K

R276

1110

C180

15P

R260

8.2K

BDEFG

IC8

4066

(1-1F)

VIN

<VIN>

D105

1SS355

D106

1SS355

150

R242

C12

22/50

0.1

L118

<VO>

C184

N.M.

C193

785

BC2V+BC3

BC1 1

R254

C11

22/50

IC13

–

NJM318

V–

2VO

30K

R241

Video processing/Motor drive block

CNCCD-1

VTHON

(1-4A)

IC8

+5V

4066

C169

R271

33K

(1-3A)

VIDCTL1

0.1

VREF+

–

27K

R214

+5V

R205

Q102

RNC1402

(1-1F)

VREF–

L112

IC10

2902

33K

R226

30K

VREFCONT

(3-1D)

VCCD

+5V

CNCCD-2

C153

+5V

C160

IC8

CNCCD-3

<VG>

0.1

7,6,8,9

4066

CNLED-1

CNLED-2

VLED

LEDON

L106

+24V

Q101

L108

DTD114

LEDON

(1-5A)

C133

BDEFG

6 – 5

Page 70

UX-600MU/MC FO-1660U/C

6/7Analog signal block

HCA

0.1

C163

+5V

1678

VEE

VCC

ENABLE

(3-3H)

SIGTX

GND

IC9

MC14053BF

(1-1E)

BZCONT

10K

R235

CNSP-1

CNSP-2

SP–

SP+

150k

R289

R272

C178

R255

C197

–

0.1

Q103

470

R277

10K

0.1

IC9

VREG

C191

R283

330P

100k

C14

47/25

(3-1D)

(3-1C)

(1-4A)

(1-1F)

HCA

SPMUTE

10K

R247

IC12

NJM2113

C16

1/50

C15

4.7/50

Q104

RNC1402

R2821KR2881KR295

VOLC

33K

Q105

RNC1402

BZOUT

R196

C155

R216

20K

C151

R197

0.01

20K

4700P

VOLB

VOLA

MC14053BF

CNLIUA-13

N.M.

R303

TELOUT

VREF

C176

R234

0.1

C172

IC9

MC14053BF

C177

680P

R268

R265

13K

86.6K

R253

C168

R266

BDEFG

10K

R249

TXCONT

(1-5A)

CNLIUA-9

TXOUT

3.3K

R274

IC10

2902

–

0.1

C164

R227

C183

10K

GAINC

(1-5A)

17.4K

SIGTX

(3-3H)

+5V

R240

10K

IC9

MC140538F

R280

1000P

+5V

CNLIUA-10

CNLIUB-1

RXIN

EXTSIG

0.1

C166

R310

R309

3.3K

R285

R294

–

86.6K

IC10

R2613KR270

D104

1SS355

SIGRX

(3-3H)

C13

62K

N.M.

10/50

2902

AGD

(3-3H)

R217

MAG

20K

C156

CNLIUB-6

RCVOL

R252

C157

IC8

33K

RCVOL

(1-1E)

1000P

4066

R198

R236

5.6K

0.1

CNLIUA-14

TELIN

1.5K

R218

+24VA

47K

IC10

+5V

0.1

C162

–

0.1

R158

2902

18K

10K

R228

R215

VREF

R154

33K

R195

R208

BDEFG

6 – 6

Page 71

UX-600MU/MC FO-1660U/C

7/7

HCA

CNPC-6

TXD

CNPC-4

RXD

CNPC-3

RTS

CTS

CN PC-2

C202

C201

C200

C199

(1-5A)

RDY

N.M.

CNPC-8

CNPC-1

CNPC-5

VDD

PDG

0.1

C150

L115

L111

Z2104

R304

CNPC-7

FG1

R279

FG1

N.M.

HCA

L114

TXD

IC5

M66230FP

D7D6D5D4D3D2D1

D[7]

BDEFG

A[0]

D[7] -D[0]

(1-5I)

(1-6I)

L113

100

RXD

765

D[6]

470

D[5]

L109

RTS

D[4]

L110

CTS

432

D[3]

191721

INT

CSRDWR

D[2]

D[1]

D[0]

16910

+5V

C129

VCC

C/D15RESET14X113X2

R168

33K

C198

C138

A[0]

GND

N.M.

BDEFG

SIRES

(1-4A)

TSTCLK

(1-6F)

SICS

(1-3I)

Multifunction interface block

6 – 7

Page 72

UX-600MU/MC FO-1660U/C

Control PWB parts layout (Top side)

6 – 8

Page 73

Control PWB parts layout (Bottom side)

UX-600MU/MC FO-1660U/C

6 – 9

Page 74

UX-600MU/MC FO-1660U/C

CNLIU-9

TXOUT

HCA

C10

C5

4.7/50 C6

R7

10K

620

R10

C9

4.7/50

ZD4

HZ2C1

T1

2128

C2

R4

CML

CNLIU-10

RX IN

R14

3.3K

10K

R13

2200P

N.M.

ZD5

HZ2C1

0.01

OUAZ-SH-124D

IC1

2904

–

R9

10K

R12

10K

R11

R8

15K

VREF

C8

0.033

R5

R3

22K

22K (1/2W)

C1

0.82

C7

D1

1SS133

2200P

MJTEL-1

TX+

C20

2200P

+5V

N.M.

R16

1.5K

C11

R21

4.7/50

15K

VREF

C12

2.2/50

R20

C13

220P

–

IC1

2904

R22

CNLIU-7

TEL OUT

PC1

PC817X

ZD3

HZ27-A

CNLIU-13

R19

C17

1.5K

3300P

MJTEL-4

TX–

+5V

R17

C14

1000P

C15

1000P

3.3K

C4

1000P

RX–

Q1

MJTEL-3

N.M.

Q2

Q3

CNLIU-5

CML

DTC114

D3

1SS133

D4

1SS133

2SC1815

DTC114

CNLIU-11

L6

C19

4.7/50

R24

R23

N.M.

150

N.M.

CNLIU-14

TELIN

CNLIU-1

+24VA

TEL MUTE

CNLIU-4

+5V

MJTEL-2

RX+

C16

22/50

R181KR15

+5V VREF

+5V

CNLIU-2

IC1

2904

–

C18

0.022

HCA

PC2

PC814X

ZD2

HZ2C1

ZD1

HZ2C1

ERZVA5D471

BDEFG

VA2

R1

R2

N.M.

TIP

MJ1-3

ERZVA5D471

RING

AR1

RA-391P-V6-2

N.M.

VA1

ARG

MJ1-4

[2] TEL/LIU PWB circuit

EXT. T

MJ2-3

N.M.

EXT. R

MJ2-4

N.M.

SW1

HOOK SW

SPPY11029A

TP2

CNLIU-8

RHS HS

PC2

PC814X

CNLIU-6

C3

PC1

1000P

PC817X

CML

+24V

D2

JP3

SW2

DRSW

SW-168-1AU

1SS133

DRSNS

(TP3)

CNLIU-12

+24V

JP1

(TP1)

+5V

CNLIU-3

P.E

R6

+5V

220

PE

SG206S

BDEFG

6 – 10

Page 75

TEL/LIU PWB parts layout

UX-600MU/MC FO-1660U/C

6 – 11

Page 76

UX-600MU/MC FO-1660U/C

+24V

HCA

CN101

R114

R110

D104

24K

330

HZ-30CP

C101

330/35

+7.4V [V-REG]

+5V

3.9K

R121

3.9K

R103

3.9K

R102

R101

0.1

C110

R111

330K

R112

IC103

TA78M05S

PC1

PC817B

C103

N.M.

R120

4.7K

GND

Q101

2SC1740S

R113

D110

11K

HZS7A

HCA

BEA101

D101

YG911S2R

C111

1000P

T1

2C23

C6

N.M.

R2

C5

220/200

D11

ERA15-06

D10

ERA15-06

D13

ERA15-06

NTC1

L1

LINE FILTER

C1

0.1

R1

Z1

(ENC241D)

BDEFG

F1

4.0A 125V

390K

D12

ERA15-06

F101

OPTION

D102

4.0A 125V

ERA83-006

D7

1SS133

R7

180

C8

C10

220P

0.01

R6

C102

470

Q1

2SK2972

BEA1

330/35

D6

1SS133

D4

1SS133

C11

R10

6.2K

Q2

220P

R8

33K

C9

4700P

2SC1741AS

N.M.

C71

C72

4700

BDEFG

680

R17

R9

100

PC1

R11

6.8K

PC817B

D5

HZS9B

18K

R12

R5

18K

CN1

[3] Pow er supply PWB circuit

6 – 12

Page 77

Power supply PWB parts layout

UX-600MU/MC FO-1660U/C

6 – 13

Page 78

UX-600MU/MC FO-1660U/C

HCA

12 13 14 15 16 17 18 19 20 21 22

NC NC NC NC NC NC NC

Φ2

NS SH

Φ1

IC1

TCD1208AP

DOS

OSSS

C2

0.022

CN1

VO1

+5V

23456

T21

ΦΦΦ

HCA

BDEFG

CN1-5

CN1-4

CN1-7

Φ1Φ2ΦTΦ

CN1-6

[4] CCD PWB circuit

Q1

C1815

R1

2.2K

C1

22/50

R2

F2802XH-Z8

BDEFG

+5V

CN1-2

CN1-1

CN1-3

CCD PWB parts layout

6 – 14

Page 79

UX-600MU/MC FO-1660U/C

HCA

SPEED

08 09

REDIAL

START

STOP RESO

FUNCTION

MODE

MEMORY

HOLD

SHIFT

SPEAKER

GND1

+5VVORS

R/WEN.C

N.C

2345678

CNLCD

KEN 4A1

KEN 3A

KEN 2A

34567

CNPN

KEN 1A

GND

+5V

ORGSNS

FRSNSESEN4

ORGSNS

1011121314

101112

CNPN-8

ORGSNS

LD4

LD5

LD6

LD7

SEN3

SEN2

14 SEN1

15 SEN0

CNPN-9

FRSNS

SW-169-62AU

SW-169-65AU

HCA

D4

1SS133

D1

1SS133

DOWN

COPY

D2

1SS133

D3

1SS133

BDEFG

SEN0

SEN1

SEN2

LD4

CNLCD-11

LD5

CNPN-15

CNPN-14

CNLCD-12

LD6

CNLCD-13

LD7

CNPN-13

SEN3

CNPN-12

CNLCD-14

[5] Operation panel PWB circu it

D5

1SS133

CNLCD-4

SEN4

CNPN-11

R9

100K

R8

+5V

100K

R7

100K

R6

100K

R5

100K

R4

100K

R3

100K

R2

100K

R1

100K

1112131234510

D1D2D3D4D5D6D7D8D9

VCC

A0A1A2

976

N.C

GND

IC1

CNLCD-6

CNLCD-5

CNLCD-3

CNLCD-2

CNLCD-1

R10

6.2K

C1

R11

22000P

C2

22/50

BDEFG

74HC147

KEN 1A

KEN 2A

KEN 3A

CNPN-4

CNPN-3

KEN 4A

CNPN-2

CNPN-1

CNPN-10

GND

+5V

CNPN-7

GND

CNPN-6

CNPN-5

6 – 15

Page 80

UX-600MU/MC FO-1660U/C

Operation panel PWB parts layout

6 – 16

Page 81

UX-600MU/MC FO-1660U/C

HCA

RTS2

GND1

CNRS

TXD

RXD

468

CTS

GND

357

+5V

N.C.

RXD2

468 CTS

TXD

GND

RTS

N.C.

135

CNDS

HCA

C2

+5V

IC1

ADM202JN

BDEFG

0.1/50

VCC

C1+

C4

C6

0.1/50

V+

C1–

CNDS-2

CNDS-8

CNDS-3

CNDS-7

CNDS-5

TXD

FL5

(Z2021)

R50R2

RTS

FL7

(Z2021)

R1

CTS

RXD

FL60FL8

C3

0.1/50

V–

C2+

C2–

C5

0.1/50

R4

R3

BDEFG

[6] Multifunction interface PWB circuit

C1

CNRS-8

10/16

CNRS-1

CNRS-5

+5V

FL1

(Z2021)

RXD

CNRS-6

FL4

CTS

(Z2021)

CNRS-3

FL2

TXD

CNRS-4

FL3

RTS

CNRS-2

CNRS-7

6 – 17

Page 82

UX-600MU/MC FO-1660U/C

Multifunction interface PWB parts layout (Top side)

Multifunction interface PWB parts layout (Bottom side)

6 – 18

Page 83

CHAPTER 7. OPERATION FLOWCHART

[1] Protocol

UX-600MU/MC FO-1660U/C

To recording position

Receive side G3 communication

CED

NSF

CSI

DIS

(DCS)

CFR

TSI

NSS

TCF


SIGNAL

Transmitter side (Document inserted into document sensor during standby)

TSI

NSS

TCF


(DCS)

1st page

SIGNAL

CED

NSF

CSI

DIS

CFR

Document inserted to the reading position

Cut line printed

MCF

RTC

MPS


RTC

EOP

DCN

SIGNAL

RTC

MPS


RTC

EOP

DCN

SIGNAL

MCF

Next page insert command

7 – 1

Document ejectedRecording papor ejected

Page 84

UX-600MU/MC FO-1660U/C

[2] Power on sequence

START

CPU initialized

MODEM initialized

“WAIT A MOMENT” display

STOP key ?

“MEMORY CLEAR ?” display

YES

START key ?

COPY key ?

STOP key ?

3 sec ?

YES

STAND-BY

3 sec ?

YES

STAND-BY

“MEMORY CLEARED” display

Memory clear

STAND-BY

“MEMORY CLEARED” display

Memory clear

PROCESS CHECK MODE

7 – 2

Page 85

UX-600MU/MC FO-1660U/C

CHAPTER 8. OTHERS

[1] Service tools

1. List

NO. PARTS CODE DESCRIPTION Q’TY

1 CPWBS2893SC01 Extension board unit 1BZ 2 UKOGM2057SCZZ Optical adjustment jig 1BR

Extension board unit

PRICE

RANK

CNSNS

CNPH1

HOOK SW

CNBZ1

36 25 14

CNBZ2

CNPH2

A K

DOOR SW

CNPN2

111

CNSP2

CNCS2

E C

RBN

CNCS1

CNSP1

CNPN1

CNCCD1

CNCCD2

CNTH2(*1)

1126

CNLED1

CNLED2

CNMT2

CNMT1

CNTH1(*1)

NOTE(*1): Mount connectors to CNTH1 and CNTH2 in the reverse direction against silk print of PWB.

NO. PARTS CODE DESCRIPTION Q’TY

PRICE

RANK 1 Q C N W – 4 7 2 3 S C Z Z CABLE [CNPN2] 1AL 2 Q C N W – 4 7 2 4 S C Z Z CABLE [CNTH2] 1AL 3 Q C N W – 4 7 2 5 S C Z Z CABLE [CNCCD2] 1AH 4 Q C N W – 4 7 2 6 S C Z Z CABLE [CNMT2] 1AH 5 Q C N W – 4 7 2 7 S C Z Z CABLE [CNLED2] 1AF 6 Q C N W – 4 7 2 8 S C Z Z CABLE [CNSP2] 1AF 7 Q C N W – 4 7 2 9 S C Z Z CABLE [CNCS2] 1AF 8 Q C N W – 4 7 3 0 S C Z Z CABLE [CNSNS] 1AH 9 Q C N C M 2 4 0 1 S C 0 B CONNECTOR [CNSP1, CNSP2] 2AA

10 Q C N C M 2 4 4 2 S C 0 B CONNECTOR [CNCS1, CNCS2] 2AB 11 Q C N C M 7 0 1 4 S C 0 B CONNECTOR [CNLED1, CNLED2] 2AD 12 Q C N C M 7 0 1 4 S C 0 E CONNECTOR [CNSES] 1AB 13 Q C N C M 7 0 1 4 S C 0 F CONNECTOR [CNMT1, CNMT2] 2AB 14 Q C N C M 7 0 1 4 S C 0 G CONNECTOR [CNCCD1, CNCCD2] 2AB 15 Q C N C M 7 0 1 4 S C 1 E CONNECTOR [CNPN1, CNPN2] 2AC 16 Q C N C M 7 0 1 4 S C 1 F CONNECTOR [CNTH1, CNTH2] 2AD 17 V H P S G 2 0 6 S / / - 1 PHOTO TRANSISTOR [P.E, RBN, PIN] 3 AG 18 V R D - R C 2 E Y 0 0 0 J RESISTOR (1/4W 0 Ω ±5%)[R4] 1AA 19 V R D – R C 2 E Y 2 2 1 J RESISTOR (1/4W 220Ω ±5%) [R1, R2, R3] 3 AA 20 Q S W - Z 2 2 0 6 S C Z Z HOOK SWITCH 1AH 21 Q S W - Z 2 2 2 6 S C Z Z DOOR SWITCH 1AG

8 – 1

Page 86

UX-600MU/MC FO-1660U/C

2. Description 2-1. Extension board unit

1. Remove the TEL/LIU PWB, control PWB and Power Supply PWB from this unit, and mount the extension board unit instead.

• Before connecting the wiring to the extension board unit, set the

test PWB switches to the fixed position.

2. The setting is as follows.

A set with a mounted extension board unit

CNLIU

TP2

CHECK TEL/LIU PWB

TP1

TP3

Cable

CNPW

CNLIUA

JP2

CHECK CONTROL PWB

Connector Cable CNPN2 QCNW-4723SCZZ

CNTH2 QCNW-4724SCZZ CNCCD2 QCNW-4725SCZZ CNMT2 QCNW-4726SCZZ CNLED2 QCNW-4727SCZZ CNSP2 QCNW-4728SCZZ CNCS3 CNSNS

QCNW-4729SCZZ QCNW-4730SCZZ

POWER SUPPLY PWB

JP1

Cable color CNSNS Connected to (PWB)

1. Brown RHS TP2 (TEL/LIU)

2. Red DRSNS TP3 (TEL/LIU)

3. Orange P.E TP1 (TEL/LIU)

4. Yellow RBN

JP2 (CONTROL) JP1 (CONTROL)5. Green PIN

The recording paper sensor (P. E) and the hook switch are operated by OR of the mechanical unit switch and the test PWB switch. When performing installation in the machine unit, set the test PWB switches to the fixed position.

Mechanical unit PWB to be tested

Actual operation with mechanical unit

Recording paper sensor

ON/OFF operation OFF (Photo interrupter

is interrupted.)

Hook SW ON/OFF operation ON-HOOK

PWB sensor check

Recording paper

OFF ON/OFF operation

sensor Hook SW ON-HOOK ON/OFF operation

* Recording paper: ON

No recording paper: OFF

8 – 2

Page 87

2-2. Scan optical system adjustment

(1) Outline

The adjustment procedures of the scan optical system are described below:

(2) Adjustment procedures

Switch off the machine and disconnect the AC power cable from

the wall socket.

Fully open the upper cabinet, remove the fixing screws of the recording paper tray and remove the recording paper tray. In order to perform a focus adjustment, remove the optical system unit from the frame.

Disconnect the main PWB from the TEL/LIU PWB.

Connect your oscilloscope channel 1 to the VIN signal and channel 2 of your oscilloscope to φT signal (Refer Pin 4 of connector CNCCD on the main pwb). Connect the earth clips of either probe to AG ground as shown. Set the trigger to channel 2.

UX-600MU/MC FO-1660U/C

Lightly loosen the red screws of the CCD PWB and obtain the VID signal waveform in synchronization with φT signal waveform. Adjust the CCD PWB positioning to obtain the waveform as shown below.

Scan adjustment jig

Optical system

Reference surface

unit

VIN (CH1)

CNCCD

VIN

VO CNCCD-3 (CCD source output) øT CNCCD-6 (Line sync signal) VG CNCCD-5 (Ground)

Re-connect the main PWB to the TEL/LIU PWB and connect these circuit boards to the connectors on the chassis.

Re-assemble up to and including the recording paper tray to the main chassis and close upper cabinet.

Plug the AC power cable into the wall outlet and turn the fax machine on.

Insert a test chart in the document hopper and execute the CCD Adjust Mode diagnostic. Press the START key to enable local copy until approximately one fifth of the page has been copied, then press the STOP key to enable the CPU wait state.

Fully open the upper cabinet and remove the recording paper tray.

Install the scan adjustment jig to the optical system unit, so that the pattern surface is on the lower side.

Fit the pins of the scan adjustment jig to the holes of the optical system frame.

1V/DIV

RøT

*1: Difference

1.89msec

0.5msec/DIV

*2: Black level

[CCD waveform model]

*2:White level

*1: Increase the difference by focus adjustment.

*2: Adjust as shown by CCD PWB adjustment.

CCD waveform

After completing the CCD adjustment, tighten the two red screws on the CCD pwb and apply screw locking material to prevent the CCD pwb from moving.

Assemble the recording paper tray and fixing screws.

(CH2)

8 – 3

Page 88

UX-600MU/MC FO-1660U/C

[2] IC signal name

CONTROL PWB UNIT

IC100: VHiPST596CMT1 (PST596CNR)

VCC

DELAY

OSC

T Q

– +

M/R

IC13: VHiNJM318M/-F (NJM318M)

TOP VIEW

BAL/COMP

R

COMP –2

IC6: VHiS2B256SL70 (SRM2B256SLMX70)

(TOP VIEW)

A14

A12

VOUT

GND

SUB

A7 A6 A5 A4 A3 A2 A1

A0 DQ1 DQ2 DQ3

GND

4 5 6 7 8

9 10 11 12 13 14

28P2W-C (CFP)

VCC

A13

A11

A10

DQ8

DQ7

DQ6 DQ5

16 15 DQ4

Pin name

A0~A12

CE1/CE2

WE OE

I/O1~I/O8

VCC GND

N.C.

Signal

Address input Chip enable Write enable

Write enable

Data I/O Power source Ground

No connection

V ¯

–

INPUT

IC5: VHiM66230FP-1 (M66230FP)

D0 D1 D2 D3 D4 D5 D6 D7 RD

1 2 3 4

M66230FP

5 6 7 8 9

24 23 22 21 20 19 18 17 16

OUTPUT

BAL/COMP3

Vcc TxD RxD CTS RTS P0 P1 INT CS

IC9: VHiMC14053DR2 (MC14053DR2)

Inhibit A

Controls

Switches

In/Out

9 12 13

B C X0 X1 Y0 Y1 Z0 Z1

Common

Out/In

VDD: Pin 16 VSS: Pin 8 VEE: Pin7

WR C/D GND

10 11 12

15 14 13

RESET X1 X2

8 – 4

Page 89

UX-600MU/MC FO-1660U/C

IC10: VHiNJM2902M-1 (NJM2902M)

A OUTPUT

A-INPUT

A+INPUT

B+INPUT

B-INPUT

B OUTPUT

–

V+

–

IC8: VHiHEF4066BT1 (HEF4066)

IN/OUT

OUT/IN IN/OUT

OUT/IN

SWA

IC3: VHi27C02012TI (27C020) EP-ROM

D OUTPUT

D-INPUT

–

D+INPUT

GND

C+INPUT

–

C-INPUT

C OUTPUT

VDD

CONT. A

VPP

DQ1 DQ2 DQ3

GND

A16 A15 A12

A7 A6 A5 A4 A3 A2 A1 A0

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

(TOP VIEW)

VCC

PGM

A14

A13

A11

A10

DQ8

DQ7

DQ6

DQ5

DQ4

Pin name

A0~A17

Address input

Chip enable

Output enable

GND

Ground

PGM

Program

DQ1~DQ8

(*) Only in the program mode

VCC

VPP

Data output (Program input) +5V power +12.5V power(*)

Signal

OUT/IN

IN/OUT

CONT. B

CONT. C

VCC

SWD

OUT/IN IN/OUT

IN/OUT OUT/IN

SWB

SWC

IN/OUT OUT/IN

IC1: VHiMC74HCU04F (MC74HCU04F)

VCC 6A 6Y 5A 5Y 4A84Y

14 13 12 11 10 9

CONT. D

IN/OUT

OUT/IN

IN/OUT

IC2: VHiULN2003AN/ (ULN2003ANS)

1C 2C 3C 4C 5C 6C 7C COM

16 15 14 13 12 11 10 9

12345678

1B 2B 3B 4B 5B 6B 7B E

IC12: VHiNJM2113M-1 (NJM2113M)

FC2

8 7

VO2 GND

123456

1A 1Y 2A 2Y 3A 3Y

GND

8 – 5

FC1

VIN

3 4

(TOP VIEW)

VCC

5 VO1

Page 90

UX-600MU/MC FO-1660U/C

IC11: VHiR144FCRMVP (R144EFXL)

GP03 GP04 GP05 GP06 GP07

0VD2

D7 D6 D5 D4 D3 D2 D1

0VD2

0VA

RAMPIN

NC NC

0VA

+5VD2

0VD1

SWGAINI

ECLKIN1

SYNCIN1

NC NC

0VA

IC4: VHiR144FCRMVP (XFCR-MVP)

SWGAINO

RCVO

GP02

0VD2

RLSDn

RXD

GP19

GP20

999897969594939291908988878685

100

0VD2

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

313233343536373839

NCNCNC

DAIN

RCVI

ADOUT

BYPASS

TXLOSS3

TXLOSS2

GP21

EYEY

0VD2

DAOUT

ADIN

EYEX

40414243444546

0VA

RXIN

TXLOSS1

TXOUT

EYECLK

+5VA

0VA

EYECLKX84EYESYNC

DCLK820VD2

AGD

AOUT

0VD1

0VD2

TXD

CTSn

0VD2

77 76

GP17

GP1675 SYNCIN2(G2XCLK)

DCLKI(IRQ2n)

73 72

+5VD1 YCLK

XCLK

XTLO

XTLI

68 67

PORin 0VD2

66 65

EN85n

RTSn

GP11

+5VD1

62 61

GP13

RS0 RS1

59 58

RS2 RS3

RS4

READn55

CSn

WRITEn

IRQn

PCLK/DMAACK

PDAT

PLAT 31

STRB3 STRB2 STRB1 35 STRB0

A23 A22 A21 A20 A19 A18

VSS

A17 A16 A15 A14 A13 A12

VDD

A11 A10

A9 A8

A7 A6

VSS

A5 A4 A3 A2 A1 A0

VSS

VDD 32

D0D1D2D3VDDD4D5D6D7

142

144

143

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

33 34

373839

OPO7

STRBPOL/DMARQ

141

140

139

138

40414243444546

VDD

OPO6

OPO5

OPO4

OPO3

137

OPO2

RDN

WRN

WAITN

CS1N

VSS

REGDMA

124

CS0N

VDD 123

TEST

MCSN

TONE

ROMCSN

122

PM0/GPO0

121

120

119

118

XIN

VBAT

XOUT

BATRSTN

PWRDWNN

PM1/GPO1

PM2/GPO2 116

117

VSS

THADI

VDRAM

PM3/GPO3

115

114

VIN

–VREF

RASN

113

+VREF

CAS0N 112

ADGA

CAS1N

111

ADVA

CAS2N 110

ADVD

DWRN

109

ADGD

108

VSS

107

106

SM0/GPO4

105

SM1/GPO5

104

SM2/GPO6

103

SM3/GPO7

102

VDD START

101

CLK1

100

CLK1N

CLK2

VIDCTL1

VIDCTL0

VSS

GPIO0/VID0

GPIO1/VID1

GPIO2/VID2

GPIO3/VID3

GPIO4/VID4

GPIO5/VID5

VSS

GPIO6/VID6

GPIO7/VID7

GPIO8/VDC0

GPIO9/VDC1

GPIO10/VDC2

GPIO [11]/BE/SERINP

VDD

GPIO12/CS2N/SCLK80 GPIO13/CS3N/TXD79 GPIO14/CS4N/RXD78 GPIO15/CS5N77 GPIO16/IRQ876 GPIO17/IRQ5N75 GPIO18/IRQ10N74 GPIO19/RDY/SEROUT73

MIRQN

VSS

SYSCLK

RESETN

OPO0

TSTCLK

133

132

131

130

VDD

OPI349OPI2

OPI151OPI0

136

135

134

VSS

OPO1

DEBUGN 129

128

SYNC

127

126

125

VSS

VCDCS

LEDCTL

8 – 6

Page 91

IC7: RH-IX2129SCZZ (IX2129)

VHIHM514800J8

VCC

I/O0

I/O1

I/O2

I/O3

RAS

VCC

UX-600MU/MC FO-1660U/C

VSS

I/O7

I/O6

I/O5

I/O4

CAS

VSS

A0~A9

I/O0~I/O7 RAS

ADDRESS INPUT (LOW/REFRESH A0~A3 COLUMN A0~A3)

DATA I/O LOW ADDRESS STROBE

BLOCK DIAGRAM

PIN NAME

PIN DESCRIPTION

PIN CAS WE READ/WRITE INPUT OE OUTPUT ENABLE VCC POWER (+5V) VSS CONNECTION

PIN NAME

COLUMN ADDRESS STROBE

CONTROL CIRCUIT

IO3

I/O3 BUFFER

RAS

RAS

IO2

I/O2 BUFFER

P-CH SENSE AMP

N-CH SENSE AMP

256K MEMORY CELL ARRAY

I/O BUS & COLUMN DETECTOR

P-CH SENSE AMP

COLUMN DETECTOR

ROW ADDRESS BUFFER COLUMN ADDRESS BUFFER

CAS

CAS

CONTROL CIRCUIT

IO1

I/O1 BUFFER

P-CH SENSE AMP

256K MEMORY CELL ARRAY

IO0

I/O0 BUFFER

P-CH SENSE AMP

N-CH SENSE AMP

256K MEMORY CELL ARRAY

I/O BUS & COLUMN DETECTOR

ROW DETECTOR & PERIPHERAL CIRCUIT

P-CH SENSE AMP

A0~A9 A0~A8

ADDRESS A0~A9

WE

CONTROL CIRCUIT

IO7

I/O7 BUFFER

PERIPHERAL CIRCUIT

P-CH SENSE AMP

IO6

I/O6 BUFFER

N-CH SENSE AMP

256K MEMORY CELL ARRAY

I/O BUS & COLUMN DETECTOR

OE

CONTROL CIRCUIT

IO5

I/O5 BUFFER

P-CH SENSE AMP

I/O4 BUFFER

P-CH SENSE AMP

N-CH SENSE AMP

256K MEMORY CELL ARRAY

I/O BUS & COLUMN DETECTOR

P-CH SENSE AMP

IO4

TEL/LIU PWB UNIT IC1: VHiNJM2904D-1 (NJM2904D)

A OUTPUT

A-INPUT

A+INPUT

B+INPUT

B-INPUT

B OUTPUT

–

V+

–

D OUTPUT

D-INPUT

–

D+INPUT

GND

C+INPUT

–

C-INPUT

C OUTPUT

8 – 7

Page 92

UX-600MU/MC FO-1660U/C

M E M O

8 – 8

Page 93

PARTS GUIDE

MODEL FO-1660

UX-600MU/MC FO-1660U/C

UX-600M

1 Cabinet, etc.

2 Upper cabinet

3 Document guide upper

4 Optical unit

5 Drive unit

6 Head unit

CONTENTS

8 Control PWB unit

9 TEL-Liu PWB unit

10 Power supply PWB unit

11 CCD PWB unit

12 Multifunction interface PWB unit

50 Hardware parts

7 Packing material & Accessories

Because parts marked with " " is indispensable for the machine safety maintenance and operation, it must be replaced with the parts specific to the product specification.

Index

Page 94

UX-600MU/MC FO-1660U/C

1 Cabinet, etc.

DOCUMENT GUIDE UPPER

HEAD UNIT

B11

30 86

B11

CCD UNIT

B14

DRIVE UNIT

B10

TEL/LIU ARG  CABLE

HEAD EARTH CABLE

13 84

(BLACK)

– 1 –

Page 95

1 Cabinet, etc.

NO. PARTS CODE

CPNLH2380AX03 BG N E Operation panel unit [600MU/600MC]

CPNLH2380AX07 BG N E Operation panel unit [1660U/1660C] QCNW-4690AXZZ AN N C Panel cable

CCNW-4695AX01 AL N C Speaker ass’y

DCEKC389JAXZZ CC N E Control PWB unit(Within ROM) [600MU] DCEKC588JAXZZ CC N E Control PWB unit(Within ROM) [600MC]

DCEKC584JAXZZ CC N E Control PWB unit(Within ROM) [1660U] DCEKC589JAXZZ CC N E Control PWB unit(Within ROM) [1660C] DCEKL349BAX01 BD N E TEL-Liu PWB unit

CGERH2363AX01 AK N C Feed gear ass’y

LBSHP2088AXZZ AC N C Transfer bearing

MLEVP2253AXSA AD N C Hook switch lever

NGERH2275XHZZ AC C Transfer gear 2

NROLR2333XHZZ AP C Feed roller

NROLR2377AXZZ AD N C Transfer roller

PGIDM2481AXSA AT N C Document guide lower [600MU/600MC]

PGIDM2481AXSC AT N C Document guide lower [1660U/1660C] LBNDJ2006SCZZ AA C Band(GT-100M)

RCORF2064XHZZ AF B Core(TRA31)

GCABB2290AXSD AZ N D Lower cabinet [600MU] GCABB2290AXSH AZ N D Lower cabinet [600MC]

GCABB2290AXSE AZ N D Lower cabinet [1660U] GCABB2290AXSK AZ N D Lower cabinet [1660C] LPLTM2885AXFW AQ N C Shield plate

MSPRC2931AXFJ AC N C Pinch roller spring 2

CROLP2334AX01 AN N C Pinch roller 2

NSFTZ2258AXZZ AE N C Pinch roller shaft

QACCZ2012XHZZ AT B AC cord ass’y

RDENT2112AXZZ BK N E Power supply PWB unit

GCOVA2376AXSA AQ N D Top cover [600MU/600MC]

GCOVA2376AXSC AQ N D Top cover [1660U/1660C] MSPRC2832AXZZ AC N C Hopper spring

NGERP2318XHZZ AD C Pinion gear

PGIDM2483AXSA AE N C Hopper guide, left [600MU/600MC]

PGIDM2483AXSC AE N C Hopper guide, left [1660U/1660C] PGIDM2484AXSA AE N C Hopper guide, right [600MU/600MC]

PGIDM2484AXSC AE N C Hopper guide, right [1660U/1660C] TLABH4161AXZZ AD N D Imaging film set label

LFRM-2180AXZZ AU N C Main frame

LPLTM2791AXFW AD C Hold down plate B

LPLTP2884AXZZ AP N C Separate plate

LSTPP2044XHZZ AF C Back tention stopper

MLEVP2249AXZZ AC N C P-IN sensor lever

MLEVP2252AXZZ AC N C Film sensor lever

MLEVP2258AXZZ AC N C Cover switch lever

MSPRC2996AXFJ AC N C Slip spring

MSPRC2995AXFJ AC N C Separate plate spring

MSPRC2927AXFJ AC N C Pop up spring

MSPRD2929AXFJ AC N C Sensor lever spring

NGERH2310XHZZ AE C Back tension gear

NSFTM2280AXZZ AK N C Film guide shaft B

PFLT-2009AXZZ AD N C Back tension felt

PSHEZ3344AXZZ AD N C Separate sheet

PSHEZ3293AXZZ AH N C Separate plate sheet

RCORF2063XHZZ AF B Core(TRA20)

CROLR2362AX01 AN N C PU roller ass’y

CROLR2363AX01 AN N C PO roller ass’y

MLEVP2250AXZZ AD N C PE sensor lever A

MLEVP2251AXZZ AD N C PE sensor lever B

MSPRD2930AXFJ AC N C PE sensor spring

NGERH2359AXZZ AD N C PO gear

NSFTM2268AXZZ AE N C PU roller shaft

PGIDM2479AXZZ AN N C U turn guide

LBSHP2086AXZZ AC N C Platen bearing

NGERH2309XHZZ AC C Platen gear

NGERH2358AXZZ AC N C PU gear

NGERH2360AXZZ AE N C Reduction gear B

NGERH2361AXZZ AE N C Reduction gear A

NROLR2364AXZZ AW N C Platen roller

CGERH2314AX51 AP N C Slip gear ass’y

MSPRD2823AXFJ AC N C PO pinch roller spring

NGERH2279XHZZ AC C Idler gear A

NGERH2367AXZZ AD N C Take-up gear

NROLP2332XHZZ AD C PO pinch roller

NSFTM2279AXZZ AK N C Film shaft C

PGIDM2485AXZZ AL N C PO guide

LPLTM2887AXFW AQ N C Paper up plate

LPLTP2888AXSA AP N C RP release plate [600MU/600MC]

LPLTP2888AXSC AP N C RP release plate [1660U/1660C] MSPRC2926AXFJ AD N C Cassette spring

PRICE

RANK

NEW

MARK

PART RANK

DESCRIPTION

UX-600MU/MC FO-1660U/C

– 2 –

Page 96

UX-600MU/MC FO-1660U/C

1 Cabinet, etc.

NO. PARTS CODE

MSPRT2932AXFJ AC N C RP release spring

NGERH2365AXZZ AD N C RP release gear, left

NGERH2366AXZZ AD N C RP release gear, right

PGIDM2480AXSA AG N C Paper guide

PHOP-2095AXSA AN N C RP hopper [600MU/600MC]

PHOP-2095AXSC AN N C RP hopper [1660U/1660C] PSEL-2015SCZZ AB N C RP pad

GCABC2291AXSA AL N D Rear cabinet [600MU/600MC]

GCABC2291AXSC AL N D Rear cabinet [1660U/1660C] GCOVA2375AXZZ AN N C ROM cover

GCOVA2378AXZZ AE N C Memory cover

PCOVA2114AXZZ AE N C Side cover

GLEGG2063AXZZ AC N C Rubber leg

PSHEZ3334AXZZ AC N C Jack sheet

PSHEZ3332AXZZ AE N C Hopper sheet

LHLDW2341RCZZ AB N C Clamp

LBNDJ2008SCZZ AA C Band(Black)

LHLDW1165AFZZ AE N C Clamp

PSHEZ3341AXZZ AC N C Guide sheet, left

PSHEZ3342AXZZ AC N C Guide sheet, right

CSHEZ3348AX01 AD N C Reel sheet

PRICE

RANK

NEW

MARK

PART RANK

DESCRIPTION

– 3 –

Page 97

2 Upper cabinet

UX-600MU/MC FO-1660U/C

2 Upper cabinet

NO. PARTS CODE

DCEKP351BAX01 BG N E Operation panel PWB unit

GCABA2289AXSD AP N D Upper cabinet [600MU/600MC]

GCABA2289AXSE AP N D Upper cabinet [1660U/1660C] JBTN-2202AXSA AG N C 12 key [600MU/600MC]

JBTN-2202AXSC AG N C 12 key [1660U/1660C] JBTN-2203AXSA AF N C Direct key [600MU/600MC]

JBTN-2203AXSC AF N C Direct key [1660U/1600C] JBTN-2204AXSA AD N C Start key [600MU/600MC]

JBTN-2204AXSB AD N C Start key [1660U/1660C] JBTN-2205AXSA AD N C Stop key [600MU/600MC]

JBTN-2205AXSB AD N C Stop key [1660U/1660C] JBTN-2206AXSA AD N C Mode key

PSHEZ3291AXZZ AD N C Insulation sheet

QCNW-4690AXZZ AN N C Panel cable

HPNLH2380AXSD AL N C Decoration panel [600MU/600MC]

HPNLH2380AXSE AL N C Decoration panel [1660U/1660C] CPNLH2380AX03 BG N E Operation panel unit [600MU/600MC]

901

CPNLH2380AX07 BG N E Operation panel unit [1660U/1600C]

(Unit)

PRICE

RANK

NEW

MARK

PART RANK

DESCRIPTION

– 4 –

Page 98

UX-600MU/MC FO-1660U/C

3 Document guide upper

NO. PARTS CODE

LPLTG2707XHZZ AE C Separation rubber

LPLTP2790XHZZ AD C Separate plate

MLEVP2257AXZZ AG N C Panel lock lever

MSPRC2924AXFJ AC N C Pinch roller spring

MSPRP2812SCZZ AE N C Paper feed spring

MSPRT2923AXFJ AC N C Panel lock lever spring

MSPRT2957AXZZ AC N C Separate spring

NBRGP2141AXZZ AC N C Transfer bearing

NGERH2275XHZZ AC C Transfer gear 2

NGERH2317XHZZ AC C Idler gear, 28Z

NGERH2356XHZZ AC N C Idler gear, 20Z

NROLP2334AXZZ AE N C Pinch roller

NROLR2365AXZZ AV N C Transfer roller

NSFTZ2257AXZZ AE N C Pinch roller shaft

PGIDM2482AXZZ AP N C Document guide upper

PSHEZ3290AXZZ AD N C Rear sheet

PRICE

RANK

NEW

MARK

PART RANK

DESCRIPTION

– 5 –

Page 99

4 Optical unit

UX-600MU/MC FO-1660U/C

4 Optical unit

NO. PARTS CODE

DCEKD475AAX05 BE N E CCD PWB unit

LFRM-2164AXZA AV N C Optical frame

MSPRP2817SCZZ AC N C Lens holding spring

PFLT-2006XHZZ AA C Felt

PGLSP2058XHZZ AE C Reader glass

PLNS-2049XHZZ AZ C Lens

PMIR-2070XHZZ AG C Mirror 1

PMIR-2071XHZZ AH C Mirror 2

PMIR-2072XHZZ AH C Mirror 3

PSHEZ3196AXZZ AC N C Shading sheet

PSHEZ3250AXZZ AB N C Mirror sheet 2

PSHEZ3258AXZZ AD N C Shading sheet 3

QCNW-4693AXZZ AD N C LED cable

VHPSNK15A24-1 AZ B LED

DCYOD475AAX02 BN N E Optical unit

901

(Unit)

PRICE

RANK

NEW

MARK

PART RANK

DESCRIPTION

– 6 –

Page 100

UX-600MU/MC FO-1660U/C

5 Drive unit

NO. PARTS CODE

CLEVP2254AX01 AE N C Planet lever A ass’y

CLEVP2255AX01 AE N C Planet lever B ass’y

CLEVP2256AX01 AE N C Planet lever C ass’y

LFRM-2181AXZZ AV N C Drive unit frame

LPLTM2886AXFW AQ N C Motor heat sink

MCAMP2023AXZZ AD N C Cam A

MSPRD2962AXFJ AC N C Cam hold spring

NGERH2279XHZZ AC C Idler gear A

NGERH2281XHZZ AD C Idler gear C

NGERH2361AXZZ AE N C Reduction gear A

NGERH2362AXZZ AE N C Reduction gear C

QCNW-4694AXZZ AD N C Cam switch cable

QSW-F2224SCZZ AE B Cam switch

RMOTZ2131AXZZ BB N B Motor

PRICE

RANK

NEW

MARK

PART RANK

DESCRIPTION

– 7 –

sharp UX600MU, UX-600M, FO-1660 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
