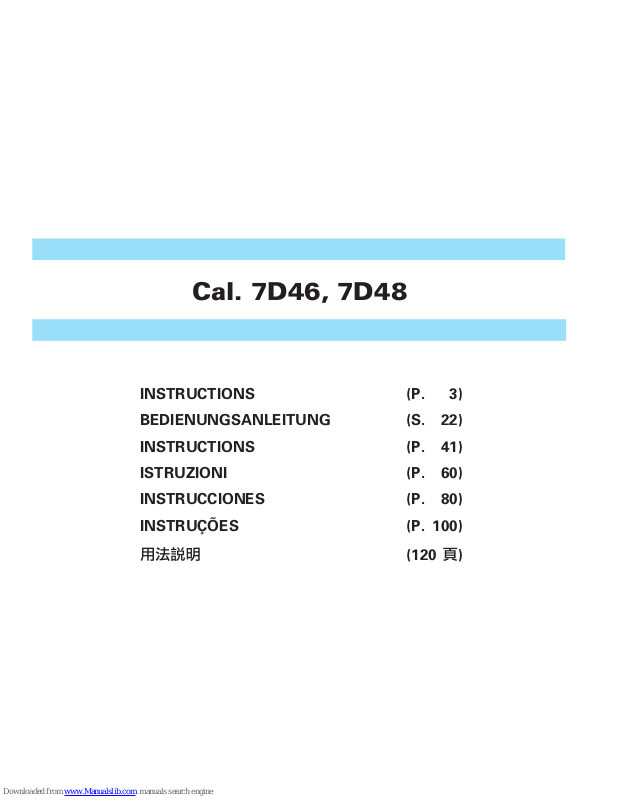

Seiko KINETIC 7D46, KINETIC 7D48 Instructions Manual
Cal. 7D46, 7D48
INSTRUCTIONS (P. 3)
BEDIENUNGSANLEITUNG (S. 22)
INSTRUCTIONS (P. 41)
ISTRUZIONI (P. 60)
INSTRUCCIONES (P. 80)
INSTRUÇÕES (P. 100)
(120 )
English
2
You are now the proud owner of a SEIKO KINETIC® Cal. 7D46/7D48. For best results, please read
the instructions in this booklet carefully before using your SEIKO KINETIC®. Please keep this
manual handy for ready reference.
Sie sind jetzt stolzer Besitzer einer SEIKO KINETIC
®
Kal. 7D46/7D48. Lesen Sie diese
Bedienungsanleitung vor der Verwendung Ihrer SEIKO KINETIC® aufmerksam durch, um die optimale
Nutzung dieser Uhr zu gewährleisten. Heben Sie diese Bedienungsanleitung gut auf, um jederzeit
wieder nachlesen zu können.
Vous voici l’heureux propriétaire d’une montre SEIKO KINETIC
®
Cal. 7D46/7D48. Pour en obtenir
de bonnes performances, veuillez lire attentivement les explications de ce mode d’emploi avant
d’utiliser votre montre SEIKO KINETIC
®
. Conservez ce mode d’emploi pour toute référence ultérieure.
Grazie per aver acquistato questo orologio SEIKO KINETIC
®
Cal. 7D46/7D48. Per ottenerne i
migliori risultati leggere attentamente le istruzioni di questo libretto prima di passare all’uso
dell‘orologio stesso. Tenere poi il manuale a portata di mano, per ogni eventuale futura, ulteriore
consultazione.
Usted es ahora un orgulloso propietario de un Reloj SEIKO KINETIC
®
Cal. 7D46/7D48. Para los
mejores resultados, por favor lea las instruciones de este librito cuidadosamente antes de utilizar
su Reloj SEIKO KINETIC®. Le rogamos que guarde este conveniente manual para pronta referencia.
Você pode sentir-se orgulhoso de ter adquirido um SEIKO KINETIC
®
Cal. 7D46/7D48. Para obter
dele os resultados máximos, solicitamos-lhe que, antes de usar o seu SEIKO KINETIC®, leia
atentamente as instruções contidas neste opúsculo. E guarde este manual para referências futuras.
ENGLISH
3
CONTENTS
Page
FEATURES .................................................................................................................. 4
DISPLAY & BUTTON OPERATION ............................................................................. 6
BEFORE INITIAL USE ................................................................................................. 7
SCREW LOCK TYPE CROWN .................................................................................... 9
HOW TO WAKE UP THE WATCH FROM POWER SAVE MODE .............................. 10
HOW TO SET THE TIME AND CALENDAR ................................................................ 12
IF THE SECOND HAND STARTS MOVING AT TWO-SECOND INTERVALS .............. 18
POWER RESERVE GUIDELINES FOR THE KINETIC E.S.U. ....................................... 20
POWER SOURCE (KINETIC E.S.U.) ............................................................................ 20
SPECIFICATIONS ........................................................................................................ 21
✩
For the care of your watch, see “TO PRESERVE THE QUALITY OF YOUR
WATCH” in the attached Worldwide Guarantee and Instruction Booklet.
English
4
FEATURES
Unlike the conventional quartz watch powered by the button-type battery, the
KINETIC is an analog quartz watch equipped with an Automatic Generating System,
the unique technology developed by SEIKO, which generates electrical energy to
power the watch by utilizing the movement of the arm or wrist, and stores it in the
KINETIC ELECTRICITY STORAGE UNIT (KINETIC E.S.U.) The watch is provided with
the following additional functions.
POWER SAVE FUNCTION AND TIME RELAY FUNCTION
In order to conserve the stored electrical energy, the watch automatically enters
power save mode to stop the hands from moving approximately 24 hours after the
watch is taken off the wrist. When you
decide to wear the watch again, simply
swinging the watch several times will
awaken it and the hands will indicate the
correct time to resume normal operation.
❖
The time retrieved by the time relay function
may include a certain amount of time loss or
gain within the range of accuracy of the watch
(
15 seconds per month).
❖
In a case that the fully charged watch enters
the power save mode, the time relay function
of the watch remains operable for
approximately four years.
English
5
PERPETUAL CALENDAR FUNCTION
● Once set, the calendar automatically adjusts for odd and even months including
February of leap years. (Exceptionally, the manual adjustment at the end of
February is required for the years that are divisible by four but are not leap years,
which comes only once every hundred years, for example, the year 2100.)
✽
It takes approximately two seconds for the calendar to change its display. However, it may
take two minutes if the temperature is low or the stored electrical energy is being depleted.
● While the watch is in power save mode, the perpetual calendar continues to
function.
● Even if the watch is completely stopped due to a shortage of stored electrical
energy, the calendar can be manually adjusted by simple procedures.
❖
THE KINETIC E.S.U. is an abbreviation for KINETIC ELECTRICITY STORAGE UNIT, which is the
name of the power source employed in the KINETIC movements.
CAUTION
● The movement of your arm while the watch is worn generates electrical energy
to power the watch. Even if the watch is worn on your arm, it will not be charged
while your arm is not in motion.
● It is recommended that the watch be worn on your wrist daily for at least 10
hours.
English
6
DISPLAY AND BUTTON OPERATION
24-hour indicator
Big calendar
Hour hand
Second hand
Month indicator
Minute hand

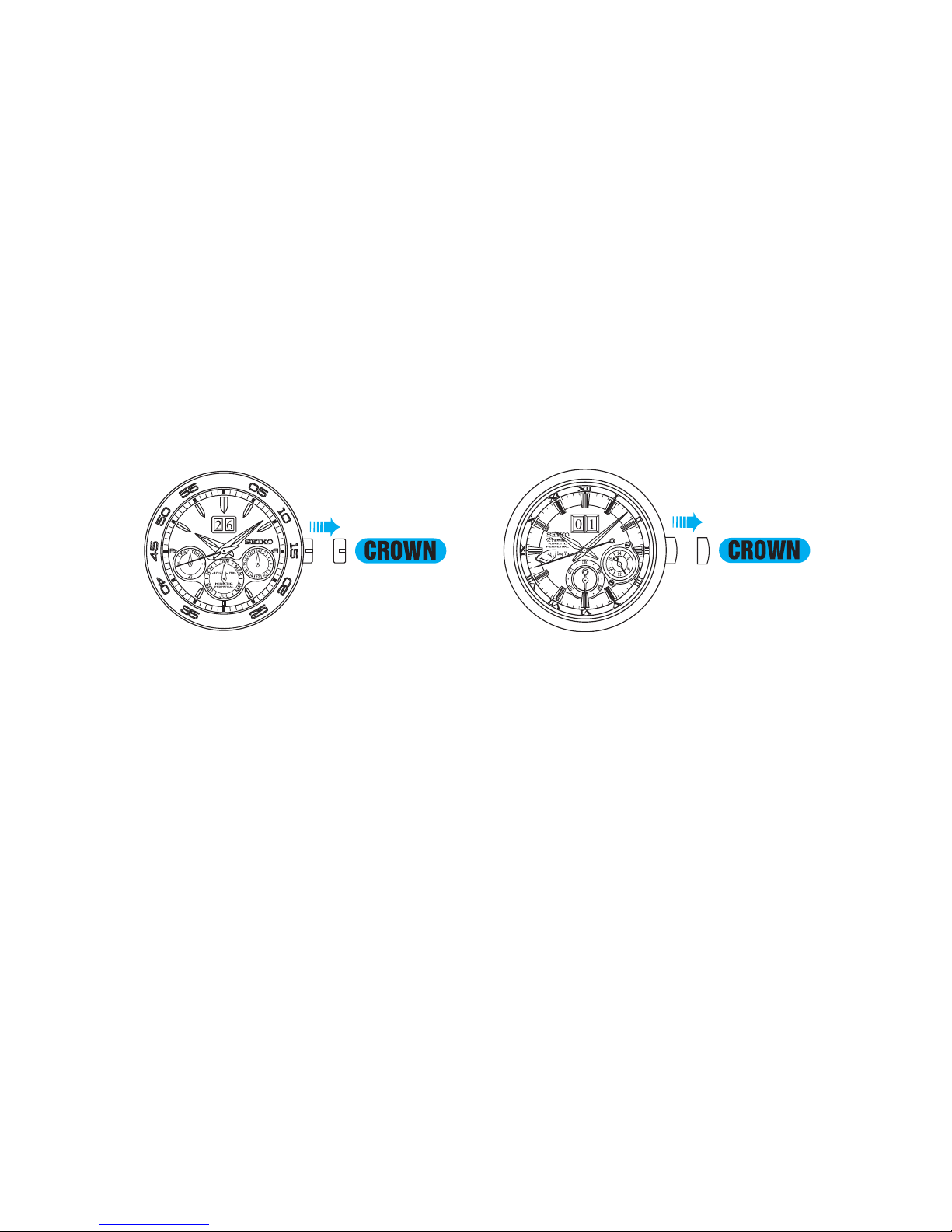

First click position: calendar adjustment
First click position: calendar adjustmen
t
Second click position: time settings
Second click position: time settings
[CAL. 7D46]
[CAL. 7D48]
Clockwise (Upward)
Counterclockwise (Downward)
Clockwise (Upward)
Counterclockwise (Downward)
Big calendar
Hour hand
Year indicator
Second hand
Month indicator
24-hour indicator
Minute hand
Year indicator
❖
Orientation of the displays of year, month and 24-hour indicator may vary depending on the
model.
English
7
BEFORE INITIAL USE
■ POWER SAVE FUNCTION
● This watch is powered by electrical energy generated and stored by the built-in
Automatic Generating System. The watch also features the “power save function,” which automatically stops the hands from moving when the watch is not
in use for a certain period of time to minimize the electrical energy consumption.
When the watch is in power save mode, the hands stop moving but
the built-in IC
continues to calculate the time and calendar.
● When the watch is in power save mode, swinging the watch several times will
activate the “time relay function,” which automatically resets the watch hands
to the correct time that has been retained inside the watch.
✽
Do not pull the crown out to the second click position while the watch is in power save mode.
This will cancel the power save function causing the time data retained in the watch to be
erased.
✽
Do not leave the watch with its crown being at the second click position, as the watch
consumes greater energy than it uses while it is in power save mode.
<Remarks on Power Save Function>
● When the watch is left untouched for approximately 24 hours (approximately
one day), the power save function is automatically activated.
✽
While the second hand is moving at two-second intervals, the power save function
cannot be activated.
