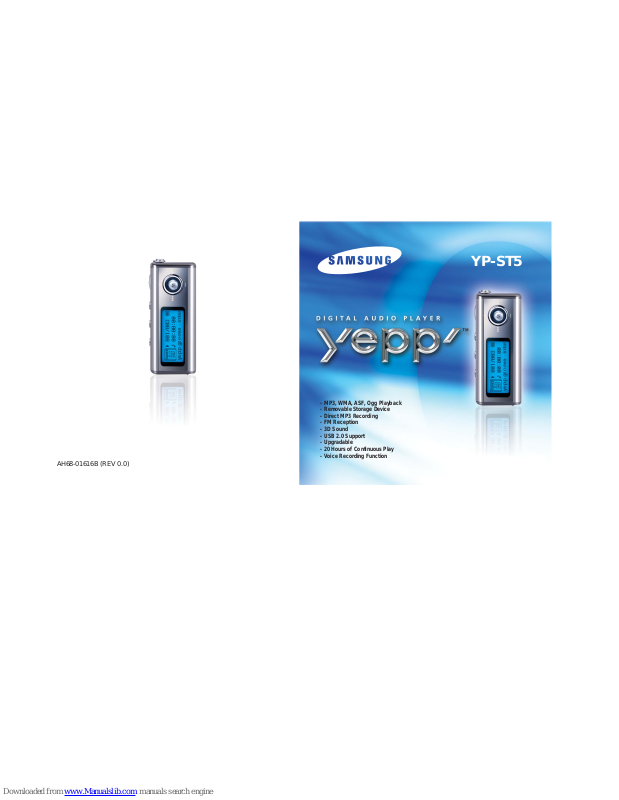

Samsung YP-ST5X, YP-ST5Z, yepp' YP-ST5 Quick Manual
- MP3, WMA, ASF, Ogg Playback
- Removable Storage Device
- Direct MP3 Recording
- FM Reception
- 3D Sound
- USB 2.0 Support
- Upgradable
- 20 Hours of Continuous Play
- Voice Recording Function
YP-ST5
AH68-01616B (REV 0.0)
ENG
3
ContentsContents
2
Safety Instructions................................................................................................................................................4
Features ..............................................................................................................................................................6
Components ........................................................................................................................................................8
Location of Controls ............................................................................................................................................9
I Preparations
Playing Music and Turning Off the Device ........................................................................................................22
Adjusting the Volume/Hold Function..................................................................................................................23
Recording Voice ................................................................................................................................................24
MP3 Encoding....................................................................................................................................................25
Searching for Music/Voice Files ........................................................................................................................26
Listening to FM Radio ........................................................................................................................................27
FM Encoding ......................................................................................................................................................29
I Basic Usage
Connecting the player to PC ..............................................................................................................................11
Manual Installation of USB Driver ......................................................................................................................15
Using the removable storage(PC)......................................................................................................................18
● Downloading/Uploading files ........................................................................................................................18
● Disconnecting the USB cable........................................................................................................................18
● Formatting ....................................................................................................................................................19
Installing yepp Studio ........................................................................................................................................20
● To View Help on yepp Studio ........................................................................................................................21
I Connection to Computer
Loop Repeating..................................................................................................................................................30
Setting up MENU................................................................................................................................................31
Using Navigation ................................................................................................................................................32
Setting Playlist....................................................................................................................................................35
Setting the Advanced Functions ........................................................................................................................36
Selecting the Playmode......................................................................................................................................37
Setting the EQ mode..........................................................................................................................................38
Managing Files ..................................................................................................................................................39
● Deleting ........................................................................................................................................................39
● Formatting ....................................................................................................................................................39
Display................................................................................................................................................................40
● Scroll Speed..................................................................................................................................................40
● Information ....................................................................................................................................................40
● Backlight........................................................................................................................................................40
● Contrast ........................................................................................................................................................41
Time....................................................................................................................................................................42
● Auto Off / Sleep ............................................................................................................................................42
REC Settings......................................................................................................................................................43
● Bitrate / AutoSync Time ................................................................................................................................43
WOW Level ........................................................................................................................................................44
● Adjusting SRS and TruBass LEVEL..............................................................................................................44
● WOW Optimum ............................................................................................................................................44
Default Volume ..................................................................................................................................................44
I Additional Usage
Troubleshooting..................................................................................................................................................46
Specifications ....................................................................................................................................................48
I Customer Support
MENU Table ......................................................................................................................................................45
I Appendix
5
Safety Instructions
ENG
Safety Instructions
4
Read and understand all the instructions to avoid injury to yourself and damage to the equipment.
Do not expose to extreme temperatures (above 95°F or below 23°F).
Do not expose to moisture.
Do not subject the unit to severe
impact, or place heavy objects
on it.
Do not let any foreign matter spill
into the device.
Be careful not to subject the
player to excessive pressure
when wearing it round your neck.
Do not expose to chemicals such
as benzene and thinners.
Remove batteries when the
device is left unused for a long
period of time.
Do not expose to direct sunlight
or heat sources.
Do not store in dusty areas. Do not try to disassemble and
repair the device yourself.
I Cautions for Use
Follow Traffic Safety Instructions
● Do not use the earphones while driving an automobile or riding a bicycle.
It’s not only dangerous, but also against the law.
● It may cause an accident if you turn up the volume of the earphones while walking down the street,
especially crossing at intersections.
Protect your ears
● Do not turn up the volume too high. Doctors warn against prolonged exposure to high volume.
● Stop using the device or turn the volume down if you have ringing in your ears.
I Ambient operating conditions
● Ambient temperature : 5°C ~ 35°C (41°F ~ 95°F)
Humidity : 10 ~ 75%
I Environmental Information
● Follow local guidelines for waste disposal when discarding packages, batteries,
and old electronic appliances.
● Your player is packaged with cardboard, polyethylene etc., and do not use any unnecessary materials.
✽
Please be aware that we claim no responsibility for damage from data loss
due to breakdown, repair or other causes.
ST5 ELS ENG0.0 10/7/04 10:0412:0 Page 4
7
Features
ENG
Features
6
MP3, WMA, ASF, Ogg Playback
● Your player supports playback of MP3, WMA, ASF and Ogg.
Removable Storage Device
● You can easily copy and paste files to the player using Windows Explorer.
Direct MP3 Recording
● You can convert music from CDs, cassettes, and radio into
MP3 files without a PC.
FM Reception
● Listening to an FM program is made easy with Auto Search and
Frequency Memory functions.
3D Sound
● The 3D surround feature adds spaciousness to the sound.
USB 2.0 Support
● Maximum data speed transfer of 18 Mbps.
Upgradable
● You can upgrade the built-in programs when available.
Add functions, CODEC, etc. Please check the home page
(www.samsung.com) for upgrades.
20 Hours of Continuous Play
● This player uses one AAA/LR03 alkaline battery. Operation can last up to 20hours.
Actual playing time may vary according to the type and capacity of the battery.
Voice Recording Function
● You can make high quality voice recordings.
9
Location of Controls (yepp)
ENG
Components
8
Player
Stylish necklace
type earphones
User manual
One Battery
(1.5V AAA/LR03 type)
USB Cable
Line In Cable
Installation CD
● The capacity of the useable built-in memory is less than indicated as the internal firmware
uses a part of the memory as well.
● Design of accessories is subject to change, for the purposes of improvement, without notice.
Model
Built-in memory
YP-ST5 H
128MB
YP-ST5 V
256MB
YP-ST5 X
512MB
YP-ST5 Z
1GB
Carrying case
Continued...
Recording Button
Play/Pause Button
Hold Switch
Loop Repeating Button
USB Cable
Connection Port
ENC Jack
Microphone
Earphones Hook
MENU, Navigation button/
Move to Track/Speed Search/
Volume Button
Display
Earphone Jack
Battery Cover
11
Connecting yepp to PC
ENG
Location of Controls (yepp)
10
The PC system must meet the
following specifications:
● Pentium 133MHz or greater
● Windows 98 SE/ME/2000/XP
● 40MB of available hard disk space
● CD-ROM drive
(double speed or greater)
● USB port (2.0) supported
● VGA graphic
System Requirements.
I Installing software
I Display
I Inserting a Battery
1 Slide the cover in the direction of
the arrow to open.
2 Insert a battery to the right poles
+ , – and push-close the cover in
the direction the arrow as indicated.
1Insert the Installation CD into the
CD-ROM drive.
Select [Install yepp USB Driver].
NNNNoooottttee
ee
- Do not place heavy objects on the cover.
✍
Before connecting yepp to PC, make sure to install USB driver. If “Add New Hardware Wizard”
appears, press the [Cancel] button and install the USB driver.
NNNNoooottttee
ee
- Install the operating system in Administrator Account
mode for Windows 2000 or XP. Otherwise,
installation will not be completed.
- Windows ME, 2000 and XP can recognize the driver
without installing the provided program. However,
you must install the program in order to format yepp and
upgrade firmware.
- If the YP-ST5 program has not been installed in Windows
98, then it will not communicate with your removable disk.
You must install the USB driver file first.
✍
Continued...
Playtime indicator
Mode indicator
Bit rate indicator
Play mode indicator
Equalizer, SRS indicator
Play/Stop/Pause indicator
Remaining Battery Power indicator
Track Number indicator
Title (track & artist) indicator
N
13
Connecting yepp to PC
ENG
Connecting yepp to PC
12
2 Complete the installation by following the instructions in the order as they
appear in the windows.
1 Connect the USB cable to the USB port on the computer.
2 Connect the other end of the USB cable to
the USB cable connection port on the bottom
of the player.
● If you disconnect the USB cable from your
PC while implementing a command or
initializing during USB driver installation,
your PC may not function correctly.
3 The USB driver is installed with a message saying
that it is searching for a new device. You may not
see the display screen during installation.
Go to the device manager to check that installation
has been successfully completed.
4 Upon installation of the USB driver
"Samsung yepp YP-ST5 USB Device" will appear
in the [System Properties] ➝ [Device Manager].
NN
NN
I Connecting yepp to PC with USB cable
Continued...
USB connect cable
15
Manual Installation of USB Driver
ENG
Connecting yepp to PC
14
How to check USB driver
How to check USB driver
Windows 98:
Control Panel ➝ System ➝ Device Manager ➝ Disk Drives ➝ Samsung yepp YP-ST5
Windows 2000:
Control Panel ➝ System ➝ Hardware ➝ Device Manager ➝ Disk Drives ➝
Samsung yepp YP-ST5 USB Device
Windows XP:
Control Panel ➝ System ➝ Hardware ➝ Device Manager ➝ Universal Serial Bus controllers ➝
Disk Drives ➝ Samsung yepp YP-ST5 USB Device
5 When the USB driver is not installed automatically, refer to the next page.
NNNNoooottttee
ee
- If you are using Windows 2000 and your version of Windows does not recognize the USB driver
please download and install the latest service pack from windowsupdate.microsoft.com
- The installation method may vary depending on the type of PC or operating system.
Contact your PC dealer or service center for installation information.
- If errors occur continuously when you install the USB driver, reconnect the USB cable after
rebooting your system.
✍
I
When an error occurs during installation of the USB driver
1Check the device manager.
Windows 98,ME:
Control Panel ➝ System ➝ Device Manager
Windows 2000:
Control Panel ➝ System ➝ Hardware ➝
Device Manager
Windows XP:
Control Panel ➝ System ➝ Hardware ➝
Device Manager
2Check if there is a device listed with an exclamation point or a question mark
(displayed as unknown device or USB device).
3Double click on the device listed with an exclamation point or a question mark.
Go to “Downloading/Uploading files” if the USB driver is in place.
Follow these steps if the USB driver is not in place :
