Samsung SCV-5083, SCV-5083N, SCV-5083P Specifications

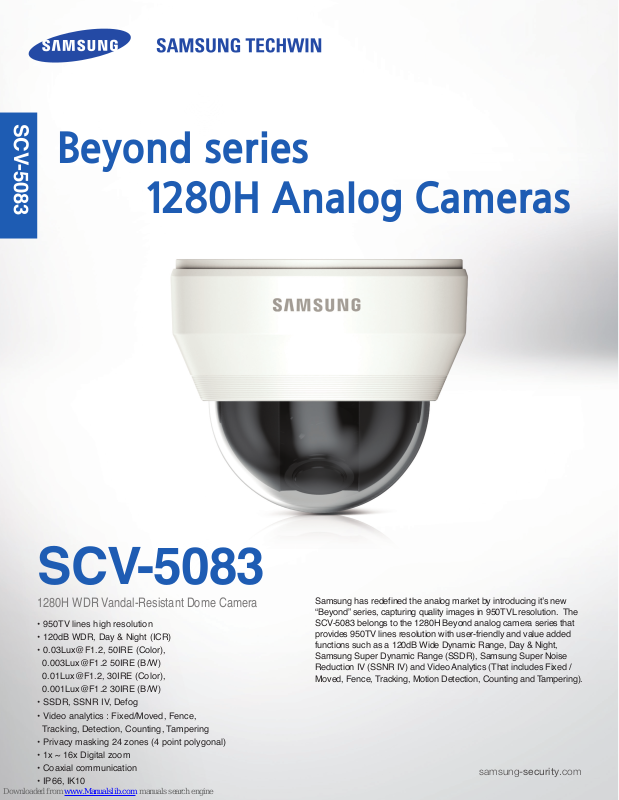

SCV-5083

Beyond series

1280H Analog Cameras

SCV-5083

1280H WDR Vandal-Resistant Dome Camera

• 950TV lines high resolution

• 120dB WDR, Day & Night (ICR)

• 0.03Lux@F1.2, 50IRE (Color),

0.003Lux@F1.2 50IRE (B/W)

0.01Lux@F1.2, 30IRE (Color),

0.001Lux@F1.2 30IRE (B/W)

• SSDR, SSNR IV, Defog

• Video analytics : Fixed/Moved, Fence,
Tracking, Detection, Counting, Tampering

• Privacy masking 24 zones (4 point polygonal)

• 1x ~ 16x Digital zoom

• Coaxial communication

• IP66, IK10

Samsung has redefined the analog market by introducing it’s new

“Beyond” series, capturing quality images in 950TVL resolution. The
SCV-5083 belongs to the 1280H Beyond analog camera series that

provides 950TV lines resolution with user-friendly and value added

functions such as a 120dB Wide Dynamic Range, Day & Night,
Samsung Super Dynamic Range (SSDR), Samsung Super Noise
Reduction IV (SSNR IV) and Video Analytics (That includes Fixed /
Moved, Fence, Tracking, Motion Detection, Counting and Tampering).

samsung-security.com

1280H WDR Vandal-Resistant Dome Camera

Ø137.0 (5.39")

SCV-5083

Key Features

• 950TV lines high resolution

• 120dB WDR, Day & Night (ICR)

• 0.03Lux@F1.2, 50IRE (Color),

0.003Lux@F1.2 50IRE (B/W)

0.01Lux@F1.2, 30IRE (Color),

0.001Lux@F1.2 30IRE (B/W)

• SSDR, SSNR IV, Defog

• Video analytics : Fixed/Moved, Fence,
Tracking, Detection, Counting, Tampering

• Privacy masking 24 zones (4 point polygonal)

• 1x ~ 16x Digital zoom

• Coaxial communication

• IP66, IK10

Dimensions

57.7 (2.27")

57.7 (2.27")

106.1 (4.18")

106.1 (4.18")

Accessory (Optional)

SBP-300LMSBP-301HM2

SBP-300CM SBP-300WM1 SBP-300WM

SBP-300B SBP-300PM SBP-300KM

Unit : mm (inch)

Ø137.0 (5.39")

VIDEO

Imaging Device

Total Pixels

Effective Pixels

Scanning System

Synchronization

Frequency

Horizontal Resolution

Min. Illumination

S / N Ratio

Video Output

LENS

Focal Length (Zoom Ratio)

Max. Aperture Ratio

Angular Field of View

Min. Object Distance

Focus Control

Lens Type

Mount Type

OPERATIONAL

On Screen Display

Camera Title

Day & Night

Backlight Compensation

Wide Dynamic Range

Contrast Enhancement

Digital Noise Reduction

Defog

Purple Fringe Reduction

Digital Image Stabilization

Motion Detection

Privacy Masking

Sens-up (Frame Integration)

Gain Control

White Balance

Electronic Shutter Speed

Digital Zoom

Reverse

Profile

Intelligent Video Analytics

Alarm

Communication

Protocol

ENVIRONMENTAL

Operating Temperature / Humidity

Ingress Protection

Vandal Resistance

ELECTRICAL

Input Voltage / Current

Power Consumption

MECHANICAL

Color / Material

Dimensions (WxH)

Weight

SCV-5083N SCV-5083P

1/3" 1.3M CMOS

1,312(H) x 1,069(V)

1,280(H) x 1,024(V)

Progressive scan

Internal / Line lock (TBD)

H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz

Color : 950TV lines (TBD)
B/W : 850TV lines (TBD)

Color : 0.03Lux (F1.2, 50IRE), 0.01Lux (F1.2, 30IRE) (TBD)
B/W : 0.003Lux (F1.2, 50IRE), 0.001Lux (F1.2, 30IRE) (TBD)

52dB (AGC off, Weight on) (TBD)

CVBS : 1.0 Vp-p / 75Ω composite

2.8 ~ 10mm

F1.2

H : 94.6°(Wide) ~ 28.8°(Tele) / V : 68.4°(Wide) ~ 21.6°(Tele) (TBD)

0.5m (1.64ft)

Manual

DC auto iris

Board type

English, Japanese, Spanish,
French, Portuguese, Korean

Off / On (Displayed 15 characters)

Auto (ICR) / External / Color / B/W

Off / User BLC / HLC / WDR

120dB (TBD)

SSDR (Off / On)

SSNR IV (Off / On)

Off / Auto / Manual

Off / On

Off / On

Off / On

Off / On (24 programmable zones with 4 points polygonal masking)

2x ~ 60x

Off / Low / Middle / High

ATW / Outdoor / Indoor / Manual / AWC (1,800°K ~ 10,500°K)

1/60 ~ 1/120,000sec (TBD) 1/50 ~ 1/120,000sec (TBD)

Off / On (1x ~ 16x)

Off / H-Rev / V-Rev / HV-Rev

Basic, Day & Night, Backlight, Indoor, User

Fixed / Moved, Fence, Tracking, Detection, Counting, Tampering

1 Out

Coaxial control (SPC-300 compatible)

Coax : Pelco-C (Coaxitron)

-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH

IP66 grade

IK10

Dual (24V AC & 12V DC ±10%)

Max. 4W (TBD)

Ivory / Aluminum, Plastic (TBD)

Ø137.0 x 106.1mm (Ø5.39" x 4.18")

713g (1.57 lb) (TBD)

English, French, German, Spanish, Italian, Chinese,
Russian, Polish, Czech, Romanian, Serbian, Swedish,
Danish, Turkish, Portuguese
