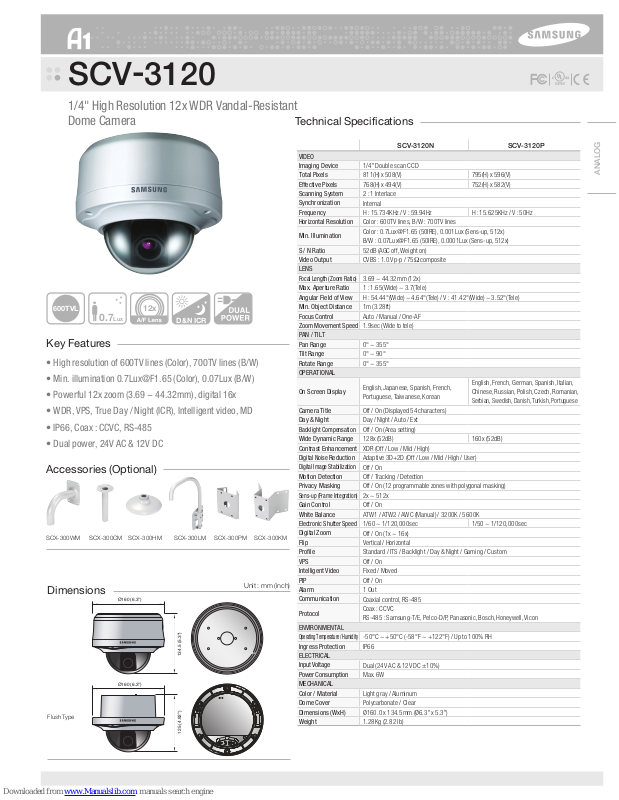

Samsung SCV-3120, SCV-3120N, SCV-3120P Technical Specifications

Technical Specifications

SCV-3120

1/4" High Resolution 12x WDR Vandal-Resistant
Dome Camera

Key Features

Dimensions

• High resolution of 600TV lines (Color), 700TV lines (B/W)

• Min. illumination 0.7Lux@F1.65 (Color), 0.07Lux (B/W)

• Powerful 12x zoom (3.69 ~ 44.32mm), digital 16x

• WDR, VPS, True Day / Night (ICR), Intelligent video, MD

• IP66, Coax : CCVC, RS-485

• Dual power, 24V AC & 12V DC

Unit : mm (inch)

Ø160 (6.3")

134.5 (5.3")

Ø160 (6.3")

134.5 (5.3")

Ø160 (6.3")

125 (4.92")

0.7Lux

12x

600TVL

D&N ICR

Flush Type

SCV-3120N SCV-3120P

VIDEO
Imaging Device

1/4" Double scan CCD

Total Pixels

811(H) x 508(V) 795(H) x 596(V)

Effective Pixels

768(H) x 494(V) 752(H) x 582(V)

Scanning System

2 : 1 Interlace

Synchronization

Internal

Frequency

H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz

Horizontal Resolution

Color : 600TV lines, B/W : 700TV lines

Min. Illumination

Color : 0.7Lux@F1.65 (50IRE), 0.001Lux (Sens-up, 512x)
B/W : 0.07Lux@F1.65 (50IRE), 0.0001Lux (Sens-up, 512x)

S / N Ratio

52dB (AGC off, Weight on)

Video Output

CVBS : 1.0 Vp-p / 75Ω composite

LENS
Focal Length (Zoom Ratio)

3.69 ~ 44.32mm (12x)

Max. Aperture Ratio

1 : 1.65(Wide) ~ 3.7(Tele)

Angular Field of View

H : 54.44°(Wide) ~ 4.64°(Tele) / V : 41.42°(Wide) ~ 3.52°(Tele)

Min. Object Distance

1m (3.28ft)

Focus Control

Auto / Manual / One-AF

Zoom Movement Speed

1.9sec (Wide to tele)

PAN / TILT
Pan Range

0° ~ 355°

Tilt Range

0° ~ 90°

Rotate Range

0° ~ 355°

OPERATIONAL

On Screen Display

English, Japanese, Spanish, French,
Portuguese, Taiwanese, Korean

English, French, German, Spanish, Italian,
Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese

Camera Title

Off / On (Displayed 54 characters)

Day & Night

Day / Night / Auto / Ext

Backlight Compensation

Off / On (Area setting)

Wide Dynamic Range

128x (52dB) 160x (52dB)

Contrast Enhancement

XDR (Off / Low / Mid / High)

Digital Noise

Reduction

Adaptive 3D+2D (Off / Low / Mid / High / User)

Digital Image

Stabilization

Off / On

Motion Detection

Off / Tracking / Detection

Privacy Masking

Off / On (12 programmable zones with polygonal masking)

Sens-up (Frame Integration)

2x ~ 512x

Gain Control

Off / On

White Balance

ATW1 / ATW2 / AWC (Manual) / 3200K / 5600K

Electronic Shutter Speed

1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec

Digital Zoom

Off / On (1x ~ 16x)

Flip

Vertical / Horizontal

Profile

Standard / ITS / Backlight / Day & Night / Gaming / Custom

VPS

Off / On

Intelligent Video

Fixed / Moved

PIP

Off / On

Alarm

1 Out

Communication

Coaxial control, RS-485

Protocol

Coax : CCVC
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon

ENVIRONMENTAL
Operating Temperature / Humidity

-50°C ~ +50°C (-58°F ~ +122°F) / Up to 100% RH

Ingress Protection

IP66

ELECTRICAL
Input Voltage

Dual (24V AC & 12V DC ±10%)

Power Consumption

Max. 6W

MECHANICAL
Color / Material

Light gray / Aluminum

Dome Cover

Polycarbonate / Clear

Dimensions (WxH)

Ø160.0 x 134.5mm (Ø6.3" x 5.3")

Weight

1.28Kg (2.82 lb)

Accessories (Optional)

SCX-300WM SCX-300CM SCX-300HM SCX-300LM SCX-300PM SCX-300KM

ANALOG
