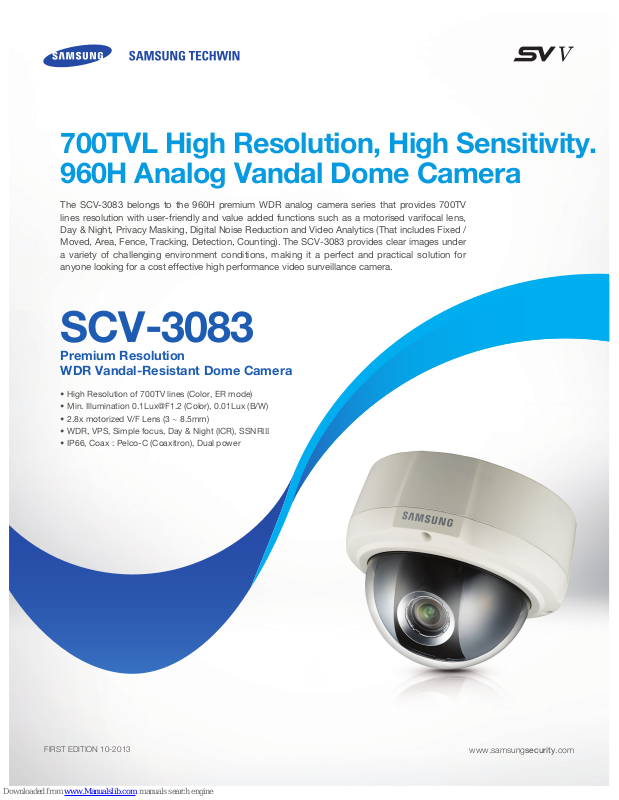

Samsung SCV-3083, SCV-3083N, SCV-3083P Specifications
www.samsungsecurity.com
FIRST EDITION 10-2013
The SCV-3083 belongs to the 960H premium WDR analog camera series that provides 700TV
lines resolution with user-friendly and value added functions such as a motorised varifocal lens,
Day & Night, Privacy Masking, Digital Noise Reduction and Video Analytics (That includes Fixed /
Moved, Area, Fence, Tracking, Detection, Counting). The SCV-3083 provides clear images under
a variety of challenging environment conditions, making it a perfect and practical solution for
anyone looking for a cost effective high performance video surveillance camera.
• High Resolution of 700TV lines (Color, ER mode)
• Min. Illumination 0.1Lux@F1.2 (Color), 0.01Lux (B/W)
• 2.8x motorized V/F Lens (3 ~ 8.5mm)
• WDR, VPS, Simple focus, Day & Night (ICR), SSNR
III
• IP66, Coax : Pelco-C (Coaxitron), Dual power
700TVL High Resolution, High Sensitivity.
960H Analog Vandal Dome Camera
SCV-3083
Premium Resolution
WDR Vandal-Resistant Dome Camera
I.E-1310
DISTRIBUTED BY
SAMSUNG TECHWIN CO., LTD.
6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, SEOUL 463-400 Rep. of KOREA
Tel : +82-70-7147-8741~8749, 8752~8760 Fax : +82-31-8018-3745 www.samsungsecurity.com www.samsungcctv.com
SAMSUNG TECHWIN EUROPE LTD.
2nd floor No5. The Height, Brookland, Weybridge, Surrey, U.K.
KT13 0NY
Tel : +44-1932-82-6700 Fax: +44 1932 82 6701
SHANGHAI SAMSUNG TECHWIN CO., LTD.
32F, Blk B, International Business Center,
No. 391 Guiping Rd., Shanghai, China, 200233
Tel : +86-21-5427-1155 Fax : +86-21-5423-5122
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : +1-877-213-1222 Direct : +1-201-325-6920
Fax : +1-201-373-0124
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
Design and specifications are subject to change without notice.
SCV-3083N SCV-3083P
VIDEO
Imaging Device
1/3" Super HAD CCD
II
(Double scan)
Total Pixels
1,028(H) x 508(V) 1,028(H) x 596(V)
Effective Pixels
976(H) x 494(V) 976(H) x 582(V)
Scanning System
2 : 1 Interlace
Synchronization
Internal / Line lock
Frequency
H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution
Color : 700TV lines (ER mode), B/W : 700TV lines
Min. Illumination
Color : 0.1Lux@ F1.2 (50IRE), 0.0006Lux (Sens-up, 512x)
B/W : 0.01Lux@ F1.2 (50IRE), 0.00002Lux (Sens-up, 512x)
S / N Ratio
52dB (AGC off, Weight on)
Video Output
CVBS : 1.0 Vp-p / 75Ω composite
LENS
Focal Length (Zoom Ratio)
3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio
F1.2
Angular Field of View
H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21°(Tele)
Min. Object Distance
0.5m (1.64ft)
Focus Control
Simple focus / Manual, Botton control (Manual, Simple focus, Day & Night)
Lens Type
DC auto iris
Mount Type
Board type
PAN / TILT
Pan Range
0° ~ 352°
Tilt Range
0° ~ 73°
Rotate Range
0° ~ 348°
OPERATIONAL
On Screen Display
English, Japanese, Spanish, French,
Portuguese, Korean
English, French, German, Spanish, Italian,
Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title
Off / On (Displayed 15 characters)
Day & Night
Auto (ICR) / External / Color / B/W
Backlight Compensation
Off / User BLC / HLC / WDR
Wide Dynamic Range
128x (52dB) 160x (54dB)
Contrast Enhancement
SSDR (Off / On)
Digital Noise
Reduction
SSNR
III
(Off / On)
Digital Image
Stabilization
Off / On
Motion Detection
Built-in (in INTELLIGENCE menu)
Privacy Masking
Off / On (12 programmable zones)
Sens-up (Frame Integration)
2x ~ 512x
Gain Control
Off / Low / High
White Balance
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed
1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom
Off / On (1x ~ 16x)
Reverse
Off / H-Rev / V-Rev / HV-Rev
Profile
Basic / Day & Night / Backlight / ITS / Indoor / User
VPS
Off / On
Intelligent Video Analytics
Fixed / Moved, Area, Fence, Tracking, Detection, Counting
PIP
Off / On
Alarm
1 Out
Communication
Coaxial control (SPC-300 compatible)
Protocol
Coax : Pelco-C (Coaxitron)
ENVIRONMENTAL
Operating Temperature / Humidity
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Ingress Protection
IP66 grade
ELECTRICAL
Input Voltage / Current
Dual (24V AC & 12V DC ±10%)
Power Consumption
0.35A
MECHANICAL
Color / Material
Ivory / Aluminum, Plastic (Dome cover : Clear)
Dimensions (WxH)
Ø137.0 x 106.0mm (Ø5.39" x 4.17")
Weight
749g (1.65 lb)
Premium Resolution WDR Vandal-Resistant Dome
Camera
SCV-3083
Specifications
700TVL
D&N ICR
Dimensions
Unit : mm (inch)
0.1Lux
2.8x
Motorized V/F Lens
WDR
Ø100.0 (3.93”)
Ø137.0 (5.39")
Ø137.0 (5.39")
106 (4.17")
Ø137.0 (5.39")
Ø137.0 (5.39")
Ø100.0 (3.93")
Ø137.0 (5.39")
106.0 (4.17")
Accessories (Optional)
SBP-300WMSBP-300WM1 SBP-300CM
SBP-300LM SBP-300B SBP-300PM SBP-300KM
SBP-301HM2
