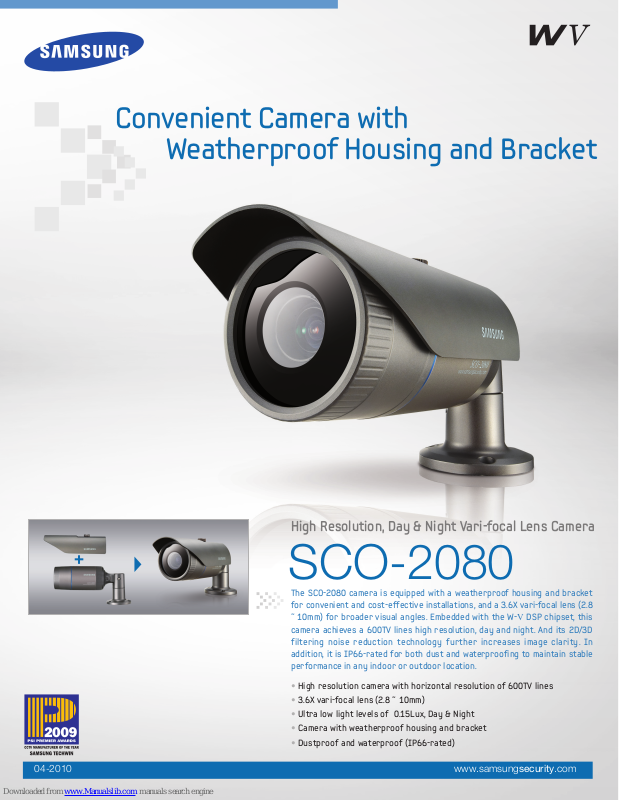

Samsung SCO-2080, SCO-2080N, SCO-2080P Specifications
Convenient Camera with
Weatherproof Housing and Bracket
04-2010
High Resolution, Day & Night Vari-focal Lens Camera
SCO-2080
The SCO-2080 camera is equipped with a weatherproof housing and bracket
for convenient and cost-effective installations, and a 3.6X vari-focal lens (2.8
˜ 10mm) for broader visual angles. Embedded with the W-V DSP chipset, this
camera achieves a 600TV lines high resolution, day and night. And its 2D/3D
filtering noise reduction technology further increases image clarity. In
addition, it is IP66-rated for both dust and waterproofing to maintain stable
performance in any indoor or outdoor location.
• High resolution camera with horizontal resolution of 600TV lines
• 3.6X vari-focal lens (2.8 ˜ 10mm)
• Ultra low light levels of 0.15Lux, Day & Night
• Camera with weatherproof housing and bracket
• Dustproof and waterproof (IP66-rated)
www.samsungsecurity.com
High Resolution, Day & Night Vari-focal Lens Camera
SCO-2080
0.15
Specifications
ELECTRICAL
Input Voltage
Power Consumption
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Synchronization
Frequency
Horizontal Resolution
Min. iIlumination
S / N (Y signal)
Video Output
LENS
Zoom Ratio
Focal Length
Max. Aperture Ratio
Min. Object Distance
Angular Field of View
Focus
Iris Control
OPERATIONAL
On Screen Display
Camera Title
Day & Night
SSDR
Backlight Compensation
Motion Detection
Digital Zoom
Digital Image Stabilization
Privacy Masking
2D+3D Noise Filter (SSNRIII)
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Sharpness
Flip / Mirror
Communication
ENVIRONMENTAL
Operating Temperature / Humidity
Storage Temperature / Humidity
MECHANICAL
Dimension (WxHxD)
Weight
Ingress Protection
Certifications
Dimensions
Digital Image Stabilization
3.6X
SCO-2080N SCO-2080P
Dual (12V DC/ 24V AC)
Max. 3.8W
1/3" Super HAD CCD
811(H) x 508(V) 795(H) x 596(V)
768(H) x 494(V) 752(H) x 582(V)
2 : 1 Interlace
Internal / Line lock
H :15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Color : 600TV lines / B/W : 700TV lines
Color : 0.15Lux (50 IRE@F1.2), 0.0003Lux (Sens-up, 512X), B/W : 0.001Lux (50IRE, @F1.2), 0.000002Lux (Sens-up, 512X)
52dB
CVBS : 1.0Vp-p / 75Ω
3.6X (Manual)
2.8 ~ 10mm (F1.2)
1 : 1.2(Wide) ~ 2.8(Tele)
0.2m (0.66ft)
H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele)
Manual
Auto
Korean, English, Japanese, English, French, German, Spanish, Italian,
Spanish, French, Portuguese Chinese, Russian, Polish, Czech
Off / On (Displayed 15 characters)
Color / BW / Auto (ICR)
On / Off (Level adjustable)
BLC / HLC / Off
On / Off (8 Programmable zones)
On / Off (1X ~ 16X)
On / Off
On / Off (12 Programmable zones)
On / Off
On / Off (Selectable 2X ~ 512X)
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
Fixed (1/60 / Flickerless) Fixed (1/50 / Flickerless)
On / Off (Level adjustable)
On / Off
Coaxial (Protocol : Pelco Coaxitron), RS-485
-10°C ~ +50°C / 20% ~ 80% RH
-20°C ~ +60°C / 20% ~ 95% RH
85.9 x 85.4 x 314.1mm (3.38" x 3.36" x 12.37")
1Kg (2.2 lb)
IP66
FCC (Class A) CE (Class A)
52dB
Unit : mm (inch)
COAX
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
SAMSUNG TECHWIN CO., LTD.
701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do Korea 463-400
Tel : +82-70-7147-8741~8749, 8752~8760 Fax : +82-31-8018-3745
www.samsungsecurity.com www.samsungcctv.com
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : +1-877-213-1222 Direct : +1-201-325-6920
Fax : +1-201-373-0124
www.samsungcctvusa.com
85.4 (3.36")
80 (3.15")
85.9 (3.38")
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business Park
Chertsey, Surrey, UNITED KINGDOM KT16 OPS
Tel : +44-1932-45-5300 Fax : +44-1932-45-5325
284.8 (11.21")
314.1 (12.37")
TIANJIN SAMSUNG TECHWIN OPTO-ELECTRONICS CO., LTD.
No.11 Wei 6 Street. Micro-Electronic Industrial Park
Jingang Road, Tianjin, P.R. CHINA 300385
Tel : +86-22-23887788 Fax : +86-22-23887788
79.9 (3.15")
Design and specifications are subject to change without notice.
