Samsung MX-H835 User Manual

MINI-Compact System

MP3-CD/WMA-CD/CD-R/RW Playback

user manual

MX-H835

imagine the possibilities

Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at

www.samsung.com/register

This Nanum Gothic Eco font is provided by NAVER.

2 English

English 3

Safety Warnings

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER­SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

This symbol indicates “dangerous
voltage” inside the product that presents
a risk of electric shock or personal
injury.

This symbol indicates important
instructions accompanying the product.

WARNING

•

To reduce the risk of fire or electric shock, do
not expose this appliance to rain or moisture.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS
1 LASER product. Use of controls, adjustments
or performance of procedures other than
those specified herein may result in hazardous
radiation exposure.

Complies with 21CFR 1040.10 except for
deviations pursuant to Laser Notice No. 50,
dated June 24, 2007.

DANGER :

•

VISIBLE AND INVISIBLE LASER RADIATION
WHEN OPEN. AVOID DIRECT EXPOSURE TO
BEAM. (FDA 21 CFR)

CAUTION :

•

CLASS 3B VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN. AVOID EXPOSURE
TO THE BEAM. (IEC 60825-1)

•

THIS product UTILIZES A LASER. USE
OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE. DO
NOT OPEN THE COVER AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LÁSER CLASE 1

WARNING

•

TO PREVENT THE SPREAD OF
FIRE, KEEP CANDLES AND
OTHER ITEMS WITH OPEN
FLAMES AWAY FROM THIS
PRODUCT AT ALL TIMES.

•This product contains chemicals known to
the State of California to cause cancer and
reproductive toxicity.

FCC NOTES (for U.S.A)

This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on.
If interference is present, the user is encouraged
to try to correct the interference by one or more
of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the
equipment and receiver.

•

Connect this equipment to an outlet that is
on a circuit that is different than the circuit
the receiver is connected to.

•

Consult the dealer or an experienced radio/TV
technician for help.

This class B digital product meets all
requirements of the Canadian Interference ­Causing Equipment Regulations.

English 3

Important Safety Instructions

Read these operating instructions carefully before
using the unit. Follow all the safety instructions
listed below. Keep these operating instructions
handy for future reference.

1.

Read these instructions.

2.

Keep these Instructions.

3.

Heed all warnings.

4.

Follow all instructions.

5.

Do not use this apparatus near water.

6.

Clean only with dry cloth.

7.

Do not block any ventilation openings.

Install in accordance with the manufacturer's
instructions.

8.

Do not install near any heat sources such

as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.

9.

Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement of
the obsolete outlet.

10.

Protect the power cord from being walked

on or pinched particularly at plugs, near wall
outlets, and the point where they exit from the
apparatus.

11.

Only use attachments and accessories specified

by the manufacturer.

12.

Use only with the cart,

stand, tripod, bracket,
or table specified by the
manufacturer, or sold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.

13.

Unplug this apparatus during lightning storms

or when unused for long periods of time.

14.

Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has
been damaged in any way, such as when the
power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or
has been dropped.

Precautions

•

Ensure that the AC power in your house
matches the requirements listed on the
identification sticker located on the back of
your product.

•

Install your product horizontally, on a suitable
base (furniture), with enough space around it
for ventilation (3 - 4 inches/7.5 - 10 cm).

•

Do not place the product on amplifiers or other
equipment which may become hot. Make sure
the ventilation slots are not covered.

•

Do not stack anything on top of the product.

•

Before moving the product, ensure the Disc
Insert Slot is empty.

•

To turn off the productcompletely, disconnect
the AC plug from the wall outlet. Disconnect
the AC plug from the wall outlet if you will
leave the device unused for a long period of
time.

•

During thunderstorms, disconnect the AC plug
from the wall outlet. Voltage peaks due to
lightning could damage the product.

•

Do not expose the product to direct sunlight
or other heat sources. This could cause the
product to overheat and malfunction.

•

Protect the product from moisture and excess
heat and equipment creating strong magnetic
or electric fields (i.e. speakers.).

•

Disconnect the power cable from the AC wall
outlet if the product malfunctions.

•

This product is for personal use only. It is not
intended for industrial use.

•

Condensation may occur if your product or a
disc has been stored in cold temperatures. If
transporting the product during the winter,
wait approximately 2 hours until the product
has reached room temperature before using.

•

The batteries used with this product contain
chemicals that are harmful to the environment.
Do not dispose of batteries in the general
household trash.

•

Place the loudspeakers at a reasonable distance
on either side of the system to ensure good
stereo sound.

•

Direct the loudspeakers towards the listening
area.

•

Do not expose this apparatus to dripping or
splashing. Do not place objects filled with
liquids, such as vases, on the apparatus.

•

To turn this apparatus off completely, you
must disconnect it from the wall outlet.
Consequently, the wall outlet and power plug
must be readily accessible at all times.

•

Use only a properly grounded plug and
receptacle

.

- An improper ground may cause electric shock
or equipment damage. (Class l Equipment
only.)

4 English

English 5

Disc Storage & Management

•

Holding Discs

- Fingerprints or scratches on
a disc may reduce sound
and picture quality or cause
skipping.

- Avoid touching the surface of a disc where
data has been recorded.

- Hold the disc by the edges so that
fingerprints will not get on the surface.

- Do not stick paper or tape on the disc.

•

Cleaning Discs

- If you get fingerprints or dirt
on a disc, clean it with a mild
detergent diluted in water and
wipe with a soft cloth.

- When cleaning, wipe gently from the inside
to the outside of the disc.

•

Disc Storage

- Do not keep in direct sunlight.

- Keep in a cool ventilated area.

- Keep in a clean, protective jacket and store
vertically.

•

Condensation may form if warm air comes
into contact with cold parts inside the
product. When condensation forms inside the
product, it may not operate correctly. If this
occurs, remove the disc and let the product
stand for 1 or 2 hours with the power on.

Disc and Format Compatibility

This product does not support Secure (DRM)
Media files.

CD-R Discs

•

Some CD-R discs may not be playable
depending on the disc recording device (CD­Recorder or PC) and the condition of the disc.

•

Use 650MB/74 minute CD-R discs.
Do not use CD-R discs over 700MB/80
minutes as they may not be played back.

•

Some CD-RW (Rewritable) media may not be
playable.

•

Only CD-Rs that are properly "closed" can be
fully played. If the session is closed, but the
disc is left open, you may not be able to fully
play the disc.

MP3-CD Discs

•

Only CD-R discs with MP3 files in ISO 9660 or
Joliet format can be played.

•

MP3 file names should contain no blank
spaces or special characters (for example, . / =
+).

•

Use discs recorded with a compression/
decompression data rate greater than
128Kbps.

•

Only a consecutively written multisession disc
can be played. If there is a blank segment in
the Multisession disc, the disc can be played
only up to the blank segment.

•

If the disc is not closed, it will take longer to
begin playback and not all of the recorded
files may play.

•

For files encoded in the Variable Bit Rate (VBR)
format,( i.e. files encoded in both low bit rate
and high bit rate - 32Kbps ~ 320Kbps), the
sound may skip during playback.

•

A maximum of 999 files can be played per
CD.

Supported Audio Formats

File

Extension

Audio
Codec

Sampling

Rate

Bit Rate

*.mp3

MPEG 1

Layer3

16KHz ~

48KHz

80Kbps ~

320Kbps

MPEG 2

Layer3

16KHz ~

48KHz

80Kbps ~

320Kbps

MPEG 2.5

Layer3

16KHz ~

48KHz

80Kbps ~

320Kbps

*.wma

Wave_Format_

MSAudio1

16KHz ~

48KHz

56Kbps ~

128Kbps

Wave_Format_

MSAudio1

16KHz ~

48KHz

56Kbps ~

128Kbps

➣

Does not support WMA Professional codec.

➣

The above table shows supported sampling

rates and bit rates. Files of not supported for­mats may not be played properly.

English 5

Thank you for buying this SAMSUNG mini-compact system.
Please take time to read these instructions.
They will allow you how to operate your system and take full advantage of its features.

Safety Warnings .................................... 2

Important Safety Instructions ................ 3

Precautions ........................................... 3

Disc Storage & Management ................ 4

Disc and Format Compatibility............... 4

Supported Audio Formats ..................... 4

Contents............................................... 5

Accessories ........................................... 5

Description ........................................... 6

Front Panel ...................................... 6

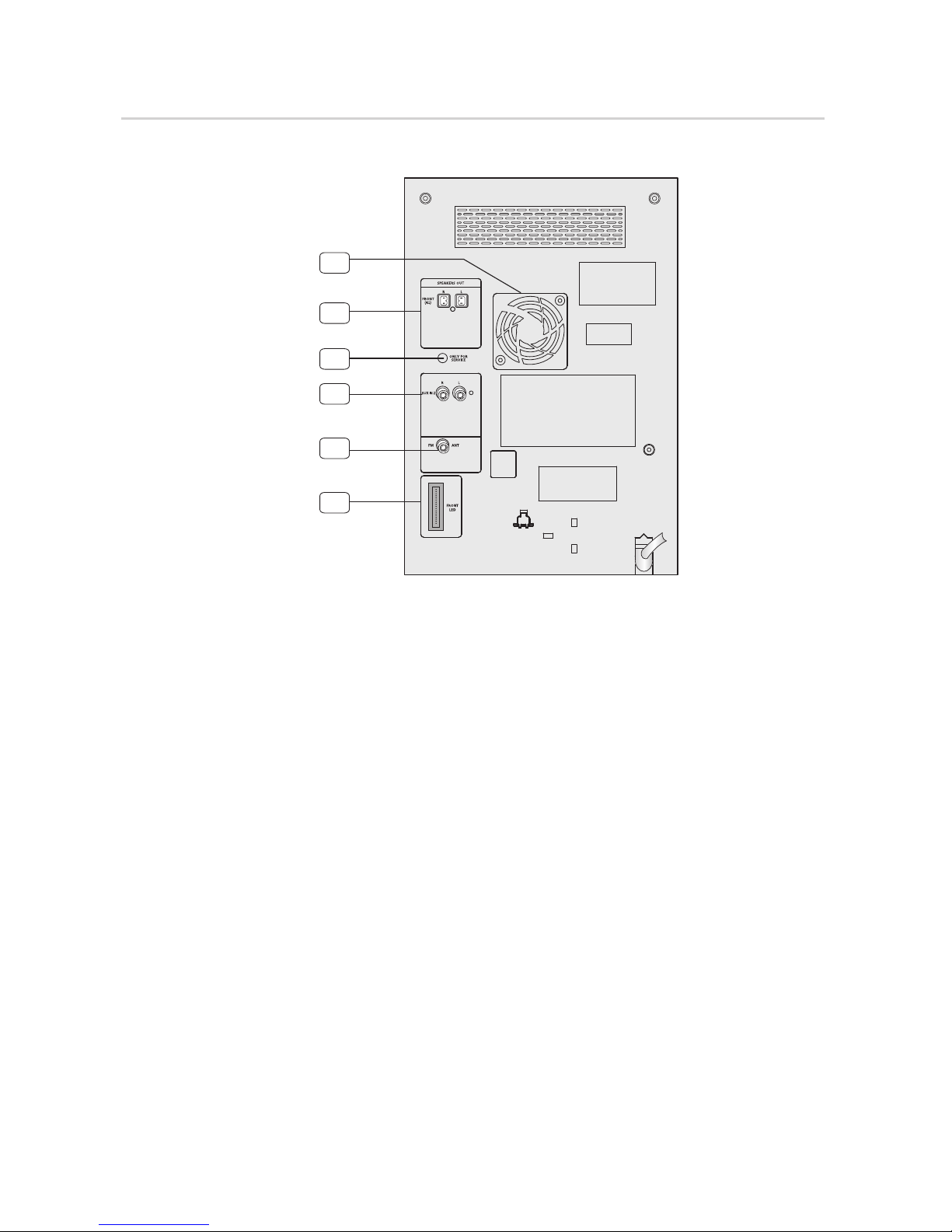

Rear Panel ....................................... 7

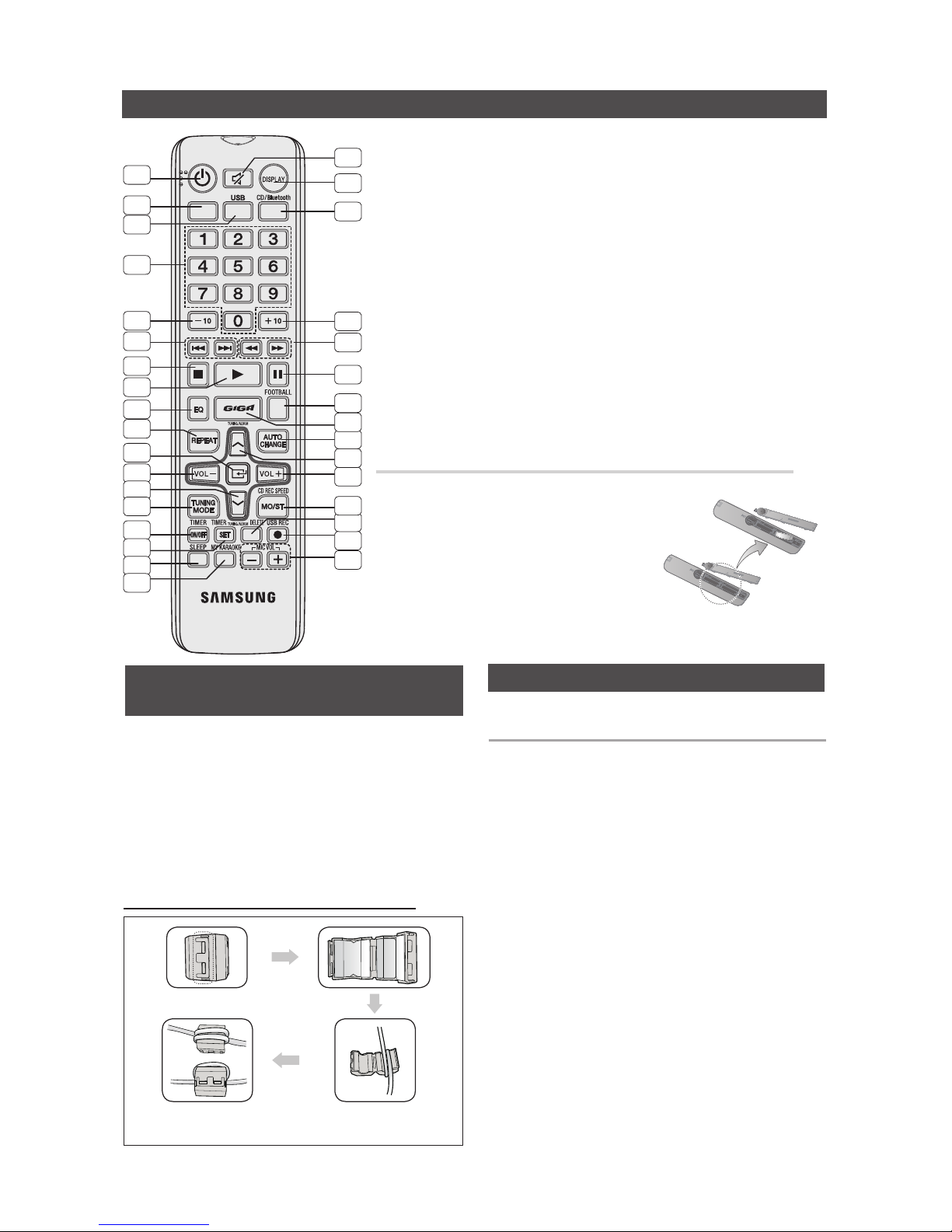

Remote Control ............................... 8

Attaching the toroidal ferrite core to

the Power cable .................................... 8

Display Function ................................... 8

CD/MP3/WMA-CD Playback ................. 9

Selecting a Track ................................... 9

Searching for a Specific Music

Passage on a CD ................................... 9

Repeat One or All Tracks on a

Compact Disc ....................................... 9

10 Skip Function ................................. 10

CD Programming ................................10

Checking or Editing the

Programmed Tracks ............................ 10

Auto Change Function........................ 10

Playing a USB Device ........................... 11

To Select a Track from

a USB Device .................................11

To Search a Folder Quickly .............. 11

To Repeat ...................................... 11

To Use High Speed Search .............. 11

To Delete a File .............................. 11

To Skip 10 Tracks ........................... 11

Using Bluetooth .................................. 12

Setting the Clock ................................ 13

Timer Function .................................... 13

Cancelling the Timer ........................... 14

Listening to Radio ............................... 14

Selecting a Stored Station ................... 14

Recording Function............................. 15

Recording Speed ................................ 15

GIGA SOUND Function ....................... 16

Selecting EQ Mode ............................. 16

Selecting USER EQ Mode ....................16

Selecting LOCAL EQ Mode ................. 16

Using the FOOTBALL MODE ............... 16

Party Function .................................... 16

Connecting a Microphone .................. 17

Troubleshooting ................................. 17

Specifications...................................... 18

Contents

Symbols

Important

Note

TUNER/AUX

FM Antenna

(AH42-00021A)

User's Manual

(AH68-02688D)

Remote Control/Batteries

(AH59-02613B/4301-000116)

Toroidal Ferrite core ( 1 EA)

(3301-000144)(For Power cable)

Accessories

Check for the supplied accessories below.

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual
product appearance.

6 English

English 7

Description

Front Panel

1.

POWER button

• Press this button to switch your mini-compact
system.

2.

PARTY button

3.

AUTO CHANGE button

4.

MASTER VOLUME button

5.

EQ button

6.

Search/Skip button

7.

STOP/Tuning Mode button

8.

RETURN button

9.

DELETE button

10.

USB 1/USB 2 button

11.

MP3/CD button

12.

TUNER/AUX button

13.

USB 1 jack

14.

MIC jack

15.

Disc Tray

16.

REC SPEED

17.

AUX IN 1 jack

Connecting an External Component such as an
MP3 player.

• Connect AUX IN 1 on the front panel of the
MINI COMPACT to the Audio Out of the external
component/MP3 player.

• Press the TUNER/AUX button to select the AUX 1
input.

18.

USB 2 REC jack

19.

USB 2 REC button

20.

OPEN/CLOSE button

21.

BLUETOOTH button

22.

ENTER button

23.

PLAY/PAUSE button

24.

Search/Skip button

25.

USER EQ button

26.

Window display

27.

LOCAL EQ button

28.

FOOTBALL MODE button

29.

GIGA SOUND BLAST button

1

2

3

4

5
6

7

8

9

10

11
12

13
14
15

16

17

18

19

20

21

22

23

24

25

26

27

28

29
