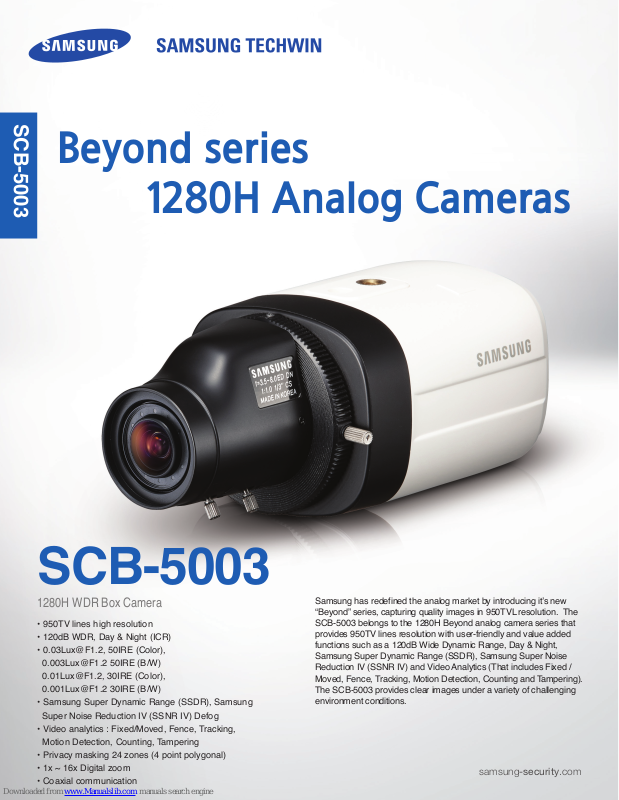

Samsung Beyond SCB-5003 Specifications

SCB-5003

Beyond series

1280H Analog Cameras

SCB-5003

1280H WDR Box Camera

• 950TV lines high resolution

• 120dB WDR, Day & Night (ICR)

• 0.03Lux@F1.2, 50IRE (Color),

0.003Lux@F1.2 50IRE (B/W)

0.01Lux@F1.2, 30IRE (Color),

0.001Lux@F1.2 30IRE (B/W)

• Samsung Super Dynamic Range (SSDR), Samsung
Super Noise Reduction IV (SSNR IV) Defog

• Video analytics : Fixed/Moved, Fence, Tracking,
Motion Detection, Counting, Tampering

• Privacy masking 24 zones (4 point polygonal)

• 1x ~ 16x Digital zoom

• Coaxial communication

Samsung has redefined the analog market by introducing it’s new

“Beyond” series, capturing quality images in 950TVL resolution. The
SCB-5003 belongs to the 1280H Beyond analog camera series that

provides 950TV lines resolution with user-friendly and value added

functions such as a 120dB Wide Dynamic Range, Day & Night,
Samsung Super Dynamic Range (SSDR), Samsung Super Noise
Reduction IV (SSNR IV) and Video Analytics (That includes Fixed /
Moved, Fence, Tracking, Motion Detection, Counting and Tampering).
The SCB-5003 provides clear images under a variety of challenging
environment conditions.

samsung-security.com

1280H WDR Box Camera

68.4 (2.69")

92.7 (3.65")

SCB-5003

Key Features

• 950TV lines high resolution

• 120dB WDR, Day & Night (ICR)

• 0.03Lux@F1.2, 50IRE (Color),

0.003Lux@F1.2 50IRE (B/W)

0.01Lux@F1.2, 30IRE (Color),

0.001Lux@F1.2 30IRE (B/W)

• SSDR, SSNR IV, Defog

• Video analytics : Fixed/Moved, Fence,
Tracking, Motion Detection,
Counting, Tampering

• Privacy masking 24 zones (4 point polygonal)

• 1x ~ 16x Digital zoom

• Coaxial communication

Dimensions

59.6 (2.35")

59.6 (2.35")

68.4 (2.69") 92.7 (3.65")

Accessories (Optional)

SLA-2812DNSLA-3580DN SLA-550DV SLA-612DN

SLA-12240 SLA-880

Unit : mm (inch)

STB-4150V

VIDEO

Imaging Device

Total Pixels

Effective Pixels

Scanning System

Synchronization

Frequency

Horizontal Resolution

Min. Illumination

S / N Ratio

Video Output

LENS

Focus Control

Lens Type

Mount Type

OPERATIONAL

On Screen Display

Camera Title

Day & Night

Backlight Compensation

Wide Dynamic Range

Contrast Enhancement

Digital Noise Reduction

Defog

Purple Fringe Reduction

Digital Image Stabilization

Motion Detection

Privacy Masking

Sens-up (Frame Integration)

Gain Control

White Balance

Electronic Shutter Speed

Digital Zoom

Reverse

Profile

Intelligent Video Analytics

Communication

Protocol

ENVIRONMENTAL

Operating Temperature / Humidity

ELECTRICAL

Input Voltage / Current

Power Consumption

MECHANICAL

Color / Material

Dimensions (WxHxD)

Weight

SCB-5003N SCB-5003P

1/3" 1.3M CMOS

1,312(H) x 1,069(V)

1,280(H) x 1,024(V)

Progressive scan

Internal / Line lock / External (TBD)

H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz

Color : 950TV lines (TBD)
B/W : 850TV lines (TBD)

Color : 0.03Lux (F1.2, 50IRE), 0.01Lux (F1.2, 30IRE) (TBD)
B/W : 0.003Lux (F1.2, 50IRE), 0.001Lux (F1.2, 30IRE) (TBD)

52dB (AGC off, Weight on) (TBD)

CVBS : 1.0 Vp-p / 75Ω composite

Manual

Manual / Auto iris (DC) / Video IRIS

C / CS

English, Japanese, Spanish,
French, Portuguese, Korean

Off / On (Displayed 15 characters)

Auto (ICR) / Color / B/W

Off / User BLC / HLC / WDR

120dB (TBD)

SSDR (Off / On)

SSNR IV (Off / On)

Off / Auto / Manual

Off / On

Off / On

Off / On

Off / On (24 programmable zones with 4 points polygonal masking)

2x ~ 60x

Off / Low / Middle / High

ATW / Outdoor / Indoor / Manual / AWC (1,800°K ~ 10,500°K)

1/60 ~ 1/120,000sec (TBD) 1/50 ~ 1/120,000sec (TBD)

Off / On (1x ~ 16x)

Off / H-Rev / V-Rev / HV-Rev

Basic, Day & Night, Backlight, Indoor, User

Fixed / Moved, Fence, Tracking, Detection, Counting, Tampering

Coaxial control (SPC-300 compatible), RS-485

Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon

-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH

Dual (24V AC & 12V DC ±10%)

TBD

Black, Ivory / Plastic

68.4 x 59.6 x 92.7mm (2.69" x 2.35" x 3.65")

150g (0.33 lb) (TBD)

English, French, German, Spanish, Italian, Chinese,
Russian, Polish, Czech, Romanian, Serbian, Swedish,
Danish, Turkish, Portuguese

SHB-4300H1

/4300H2/4300H3

use with or

STB-400

SHB-4200/4200H

STH-500 STH-200
