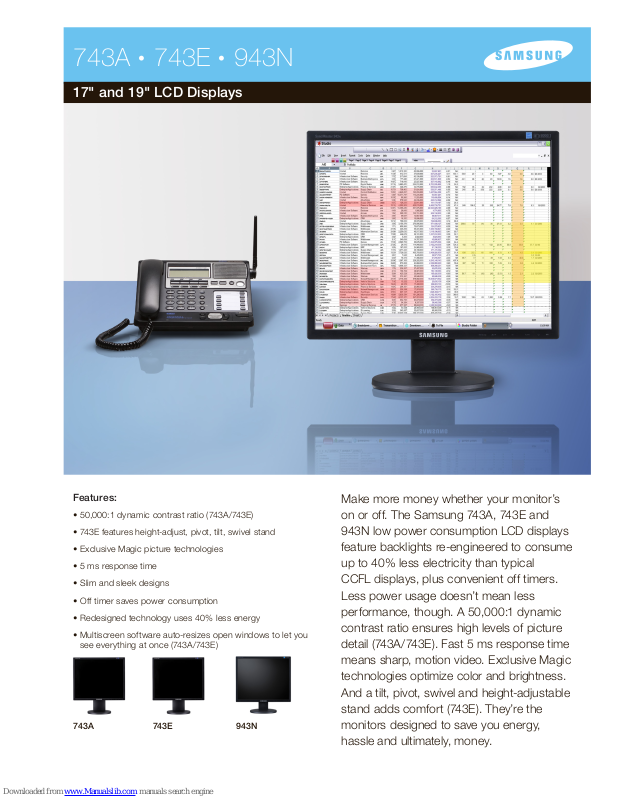

Samsung SyncMaster 743A, SyncMaster 743E, 943N-1, SyncMaster 943N Specifications

743A

•

743E

•

943N

17" and 19" LCD Displays

Features:

• 50,000:1 dynamic contrast ratio (743A/743E)

• 743E features height-adjust, pivot, tilt, swivel stand

• Exclusive Magic picture technologies

• 5 ms response time

• Slim and sleek designs

• Off timer saves power consumption

• Redesigned technology uses 40% less energy

• Multiscreen software auto-resizes open windows to let you
see ever ything at once (743A/743E)

743A 743E 943N

Make more money whether your monitor’s
on or off. The Samsung 743A, 743E and
943N low power consumption LCD displays
feature backlights re-engineered to consume
up to 40% less electricity than typical
CCFL displays, plus convenient off timers.
Less power usage doesn’t mean less
performance, though. A 50,000:1 dynamic
contrast ratio ensures high levels of picture
detail (743A/743E). Fast 5 ms response time
means sharp, motion video. Exclusive Magic
technologies optimize color and brightness.
And a tilt, pivot, swivel and height-adjustable
stand adds comfort (743E). They’re the
monitors designed to save you energy,
hassle and ultimately, money.

743A
743E
943N

17" and 19" LCD Displays

Features

Up to 50,000 :1 Dynamic Contrast
Ratio (743A/743E)

Dynamic contrast ratio works by
continually analyzing the incoming
signal, then adjusting contrast for
optimum images. You’ll see greater
detail without the whites blowing out
and the blacks plugging up.

Height-Adjustable Stand (743E)

Work in comfort. The 743E features
an 80mm height-adjustable, pivot, tilt,
swivel stand.

Up to 5 ms Response Time

Fast pixel response gives you fast action
with virtually no blurring or ghosting.

Off-Timer Control

The auto-of f timer saves energy, extends
the life of your monitor and ensures your
Samsung monitor operates at peak
efficiency for a long time to come.

MagicTune™ with Asset Management

Control all the Magic

technologies from your desktop,
with just a click or t wo of the mouse.
Now with MagicWizard, you can set
resolution, color image and display font,
either manually or automatically.

MagicBright 3™

Work is made easier with

rich, natural color and easily
selectable brightness modes that
include Custom, Text, Internet, Game,
Sports, Movie and Dynamic Contrast.

943N Dimensions

16.0"

16.3"

Specifications 743A 743E 943N

Display Type a-si TFT/TN a-si TFT/TN a-si TFT/TN

Viewable Size 17" 17" 19"

Native Resolution 1280 x 1024 1280 x 1024 1280 x 1024

Pixel Pitch 0.264 0.264 0.294

Aspect Ratio 5:4 5:4 5:4

Contrast Ratio (Typical/Dynamic) 1000:1/50,000 1000:1/50,000 1000:1/8000:1

Viewing Angle (Horizontal/Vertical) 170°/160° (CR>10) 170°/160° (CR>10) 170°/160° (CR>10)

Response Time 5 ms 5 ms 5 ms

Light Source CCFL CCFL CCFL

Brightness (Typical) 250 cd/m

Panel Surface Matte Matte Matte

Maximum Color Supported 16.7M 16.7M 16.7M

Video Input Signal Analog Analog RGB Analog RGB, DVI Analog RGB

Frequency 30~81kHz(H)/56~75Hz(V) 30~81kHz(H)/56~75Hz(V) 30~81kHz(H)/56~75Hz(V)

Sync Separate H/V, Composite, SOG Separate H/V, Composite, SOG Separate H/V, Composite, SOG

Compatibilty PC Windows Vista Premium

Mac

Input Connectors 15-pin D-Sub 15-pin D-Sub, DVI-D 15-pin D-Sub

Power Voltage AC 100-240 ~ VAC ( ± 10%),

Consumption (Max/Standby) 20 Watts/<1 watts 20 Watts/<1 watts 34 Watts/<1 watts

Controls Basic Power, Auto Adjustment,

Advanced MagicBright 3, Off timer,

Features Plug & Play DDC 2B DDC 2B DDC 2B/DDC-CI

Stand Simple HAS (80mm) Swivel/Tilt/Pivot Simple

VESA Mount 75mm 75mm 75mm

Cabinet Color Matte Black Matte Black High-Gloss Black

Magic Technologies MagicColor (Full and Intelligent Mode)

MagicTune (With On-screen Asset Management,
With MagicWizard)

MagicBright 3 (Custom, Text, Internet, Game,
Sports, Movie and Dynamic Contrast Ratio)

Operating Conditions Temperature 10°C ~ 40°C 10°C ~ 40°C 10°C ~ 40°C

Humidity 10% ~ 80%, non-condensing 10% ~ 80%, non-condensing 10% ~ 80%, non-condensing

Dimensions and
Weight

Green Management Emission Standard TCO ‘03 TCO ‘03 TCO ‘03

Package Contents Monitor, Power Cable, 15-pin

Warranty 3 years parts and labor 3 years parts and labor 3 years parts and labor

Product Dimension (With Stand, W x H x D) 14.5" x 15.2" x 7.3" 14.5" x 14.5" x 7.5" 16" x 16.3" x 7.9"

Product Dimension (Without Stand, W x H x D) 14.5" x 12.1" x 2.7" 14.5" x 12.1" x 2.6" 16" x 13.2" x 2.6"

Shipping Carton Dimension (W x H x D) 17.0" x 14.8" x 5.1" 17.6" x 15.9" x 7.8" 18.9" x 16.2" x 5.2"

Product Weight (With Stand) 7.9 lbs. 10.5 lbs. 8.4 lbs.

Shipping Weight 10.4 lbs. 13.7 lbs. 10.9 lbs.

RoHS Compliant

Energy Star Compliant

Product Recyclability CCFL panel contains mercury,

Packaging Recyclability All packing materials are

2

Certification, XP, 2000, 98

n n n

60 / 50 Hz ± 3 Hz

Source, Brightness up/down,
MagicBright 3 presets, OSD
Menu

MagicColor, Color Effect,
Customized key, MagicWizard
& MagicTune with Asset
Management, Windows Vista
Basic, Multiscreen Software,
Safe Mode (Down Scaling
in UXGA)

n n n

n n n

n n n

n n n

n n n

please dispose of properly

recyclable

D-sub Cable, DVI-D Cable,
Analog Manuals, Driver CD

2

250 cd/m

Windows Vista Premium
Certification, XP, 2000, 98

AC 100-240 ~ VAC ( ± 10%),
60 / 50 Hz ± 3 Hz

Power, Auto Adjustment,
Source, Brightness up/down,
MagicBright 3 presets, OSD
Menu

MagicBright 3, Off timer,
MagicColor, Color Effect,
Customized key, MagicWizard
& MagicTune with Asset
Management, Windows Vista
Premium, Multiscreen software,
MagicRotation S/W(Pivot), Safe
Mode (Down Scaling in UXGA)

CCFL panel contains mercury,
please dispose of properly

All packing materials are
recyclable

Monitor, Power Cable, 15-pin
D-sub Cable, DVI-D Cable,
Analog Manuals, Driver CD

2

300 cd/m

Windows Vista Premium
Certification, XP, 2000, 98

AC 100-240 ~ VAC ( ± 10%),
60 / 50 Hz ± 3 Hz

Power, Auto Adjustment,
Source, Brightness up/down,
MagicBright 3 presets, OSD
Menu

Picture (Brightness, Contrast,
Magic Bright), Color (MagicColor,
Color Tone, Color Control, Color
Effect, Gamma), Image (Coarse,
Fine, Sharpness, H position, V
position), OSD (Language, H
position, V position, Transparency,
Display Time), Setup (Auto
Source, Reset, Off Timer,
Customized Key, Image Size)

CCFL panel contains mercury,
please dispose of properly

All packing materials are
recyclable

Monitor, Power Cable, 15-pin
D-sub Cable, DVI-D Cable,
Analog Manuals, Driver CD

Product Information: 1-866-542-7214 samsung.com/monitors

Product Support: 1-800-SAMSUNG

©2009 Samsung Electronics America, Inc. Samsung is a registered mark of Samsung Electronics Corp., Ltd.
Specifications and design are subject to change without notice. See www.samsung.com for detailed information.
Printed in USA. MON-743A943NDSHT-Oct09T
