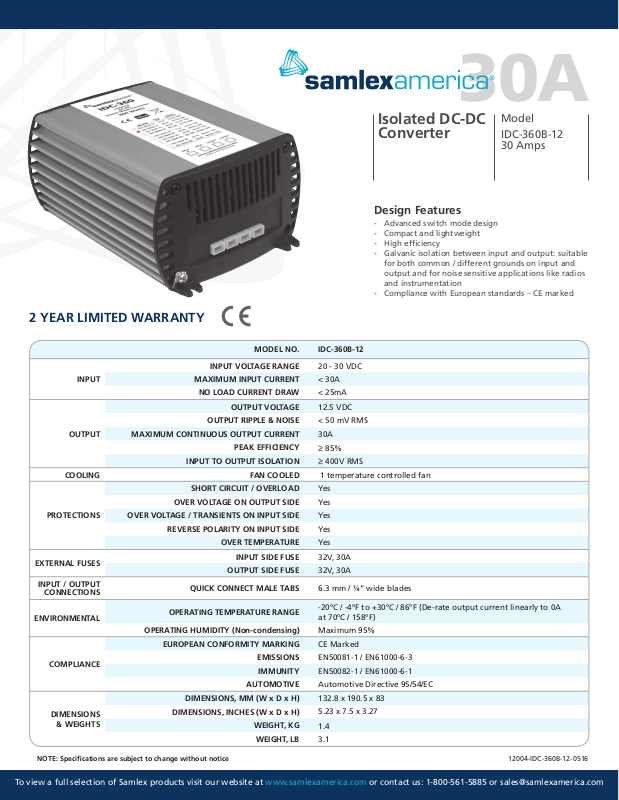

Samlex IDC-360B-12 Spec Sheet

30A

MODEL NO. IDC-360B-12

INPUT

INPUT VOLTAGE RANGE 20 - 30 VDC

MAXIMUM INPUT CURRENT < 30A

NO LOAD CURRENT DRAW < 25mA

OUTPUT VOLTAGE 12.5 VDC

OUTPUT RIPPLE & NOISE < 50 mV RMS

OUTPUT MAXIMUM CONTINUOUS OUTPUT CURRENT 30A

PEAK EFFICIENCY

≥ 85%

INPUT TO OUTPUT ISOLATION

≥ 400V RMS

COOLING FAN COOLED 1 temperature controlled fan

PROTECTIONS

SHORT CIRCUIT / OVERLOAD Yes

OVER VOLTAGE ON OUTPUT SIDE Yes

OVER VOLTAGE / TRANSIENTS ON INPUT SIDE Yes

REVERSE POLARITY ON INPUT SIDE Yes

OVER TEMPERATURE Yes

EXTERNAL FUSES

INPUT SIDE FUSE 32V, 30A

OUTPUT SIDE FUSE 32V, 30A

INPUT / OUTPUT

CONNECTIONS

QUICK CONNECT MALE TABS 6.3 mm / ¼” wide blades

ENVIRONMENTAL

OPERATING TEMPERATURE RANGE

-20C / -4F to +30C / 86F (De-rate output current linearly to 0A
at 70C / 158F)

OPERATING HUMIDITY (Non-condensing) Maximum 95%

COMPLIANCE

EUROPEAN CONFORMITY MARKING CE Marked

EMISSIONS EN50081-1 / EN61000-6-3

IMMUNITY EN50082-1 / EN61000-6-1

AUTOMOTIVE Automotive Directive 95/54/EC

DIMENSIONS

& WEIGHTS

DIMENSIONS, MM (W x D x H) 132.8 x 190.5 x 83

DIMENSIONS, INCHES (W x D x H)

5.23 x 7.5 x 3.27

WEIGHT, KG

1.4

WEIGHT, LB 3.1

Isolated DC-DC
Converter

Model
IDC-360B-12

30 Amps

Design Features

- Advanced switch mode design

- Compact and lightweight

- High efciency

- Galvanic isolation between input and output: suitable
for both common / different grounds on input and
output and for noise sensitive applications like radios
and instrumentation

- Compliance with European standards – CE marked

2 YEAR LIMITED WARRANTY

To view a full selection of Samlex products visit our website at www.samlexamerica.com or contact us: 1-800-561-5885 or [e-mail]

12004-IDC-360B-12-0516NOTE: Specications are subject to change without notice
