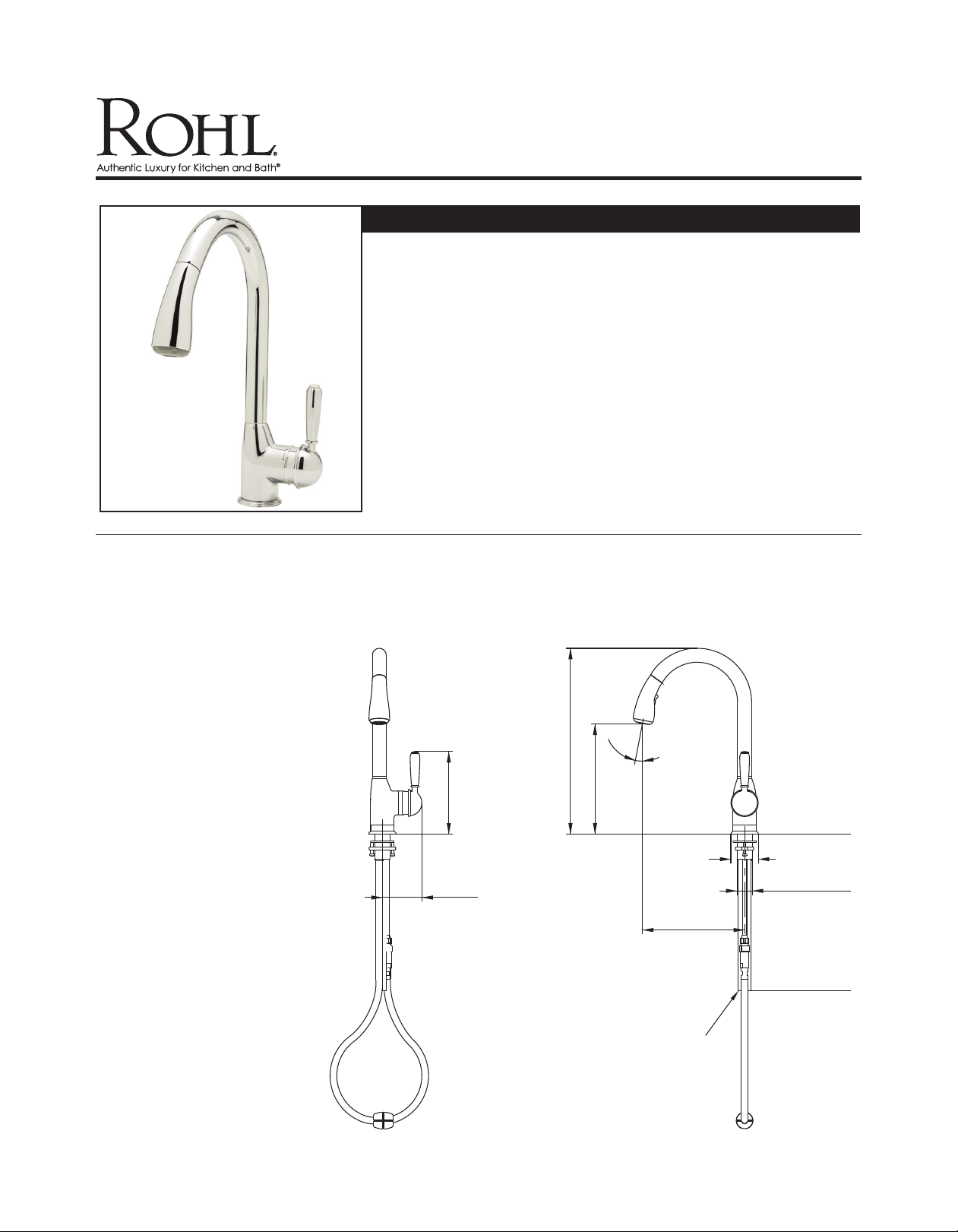

HOLE SIZE
Ø
1 3/8"
7 1/16"
3 3/8"
1
1
°
9 1/2"
8 3/4"
Ø
1 5/16"
Ø
2 3/8"
15 3/16"
INLET PIPES
Ø3/8"
SOFT COPPER
www.rohlhome.com
C
LASSIC PULL-DOWN KITCHEN FAUCET
ROHL Pullout Faucets
R7504LM
FEATURES COLORS/FINISHES WARRANTY
• Metal lever
• Dissimilar ceramic discs for smooth
operation and long life
• Ceramic disc cartridge
• Anti-scald device
• 1 3⁄ 8" hole cutout
• 2 1⁄ 4" max. installation depth on
deck
• IAPMO compliant double check
valve and 1.8 GPM
• Requires 2 1/2" clearance from
backsplash
• Polished Chrome
• Polished Nickel
• Satin Nickel
• Limited Lifetime*
All current Pull-Out faucets are code compliant in California and Vermont. Consult your local ROHL showroom for additional information and specifications. For
complete warranty details and a list of showrooms, go to www.rohlhome.com.
