Part # 11220701
64-72 GM “A” Body Master Series SA Rear Shock Kit
Components:
2 24179999 7” stroke Master Series SA shock
2 90001684 1.7” tall Master Series eyelet
4 90001994 .625” bearing
8 90001995 Snap ring for bearing
2 90002010 Extended T-bar – Installed in shock body
4 90001980 Snap ring for T-bar
4 90002067 Aluminum bearing spacer - .625” I.D.
2 90002329 Round head cantilever pin
2 90000471 Aluminum spacer
Hardware:
4 99371004 3/8” x 1 ¼” USS bolt Shock to frame
8 99373003 3/8” SAE flat washer Shock to frame
4 99372002 3/8” USS Nylok nut Shock to frame
Installation Instructions
1. Attach the upper T-bar to the frame
in the oem location using the supplied
3/8” x 1 ¼” USS bolts, washers and
Nylok nuts.
2. The bottom of the shock attaches
with the new cantilever pin supplied.

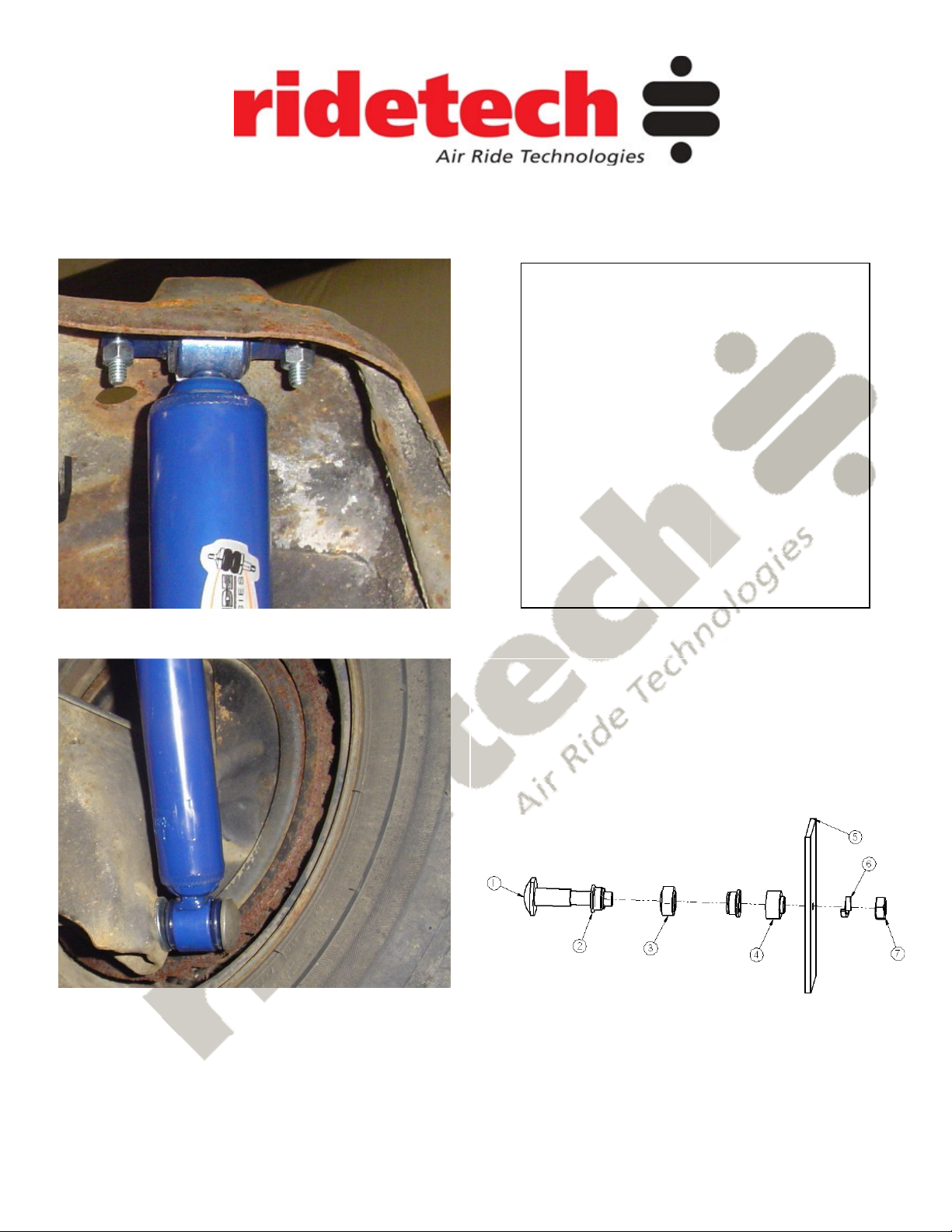

See diagram below.
Note: The hole in the axle bracket may
need to be drilled out to 5/8”
1. Cantilever pin
2. Aluminum bearing spacer
3. .625” bearing
4. Aluminum shock spacer
5. Factory axle bracket
6. ½” lock washer
7. ½” SAE nut
