Page 1
Assembly Instructions
Caution: You must read this before you proceed
Power Reclining Chair
Parts List
Label Picture Description QTY
Chair Base with
A
Footrest
B Chair Backrest 1
1
Page 1 OF 11
Page 2
C
Left Wing
1
(Labelled C)
D
Right Wing
(Labelled D)
Hardware
Label Picture Description QTY
Power Line with
①
Transformer
Assembly Preparation
Befor
Begining
1
1
Assembly:
Page 2 OF 11
Page 3
Assembly Steps
Overview
Left Wing (C)
Power Line with
Transformer (
)
Chair Backrest (B)
Right Wing (D)
Chair Base with
Footrest (A)
①
FRONT FACING
This Power Recliner Chair has multiple parts and may require about 30 minutes to
assemble. To give you an overview of the Chair parts, the above picture is to help
you put the various parts into perspective. Please read through the instructions
below to familiarise yourself with the parts and steps before assembly.
Step 1
B
A
B
Remove the Chair Backrest(B) from the Chair Base with Footrest(A).
Page 3 OF 11
Page 4
Step 2
Take out the small carton box from the back of Chair Base with Footrest(A)
containing the Power Line with Transformer(①).
Step 3
A
C
Take out the 2 non-woven bags with the Left Wing(C) and Right Wing(D) from the
bottom of Chair Base with Footrest(A).
D
Page 4 OF 11
Page 5
Step 4
B
A
With assistance from your adult partner, hold up the Chair Backrest(B) while
standing behind the Chair Base with Footrest(A).
Insert the small metal arms on the sides of the Chair Backrest(B) into the
prefabricated slide lock gadget on the Chair Base with Footrest(A) as shown above.
Firmly but gently, push the Chair Backrest(B) downwards until the Backrest is fully
slotted and locked into position.
Step 5
Align the mounting brackets of the Left Wing(C) with those on the left side of Chair
Backrest(B).
Then slide Left Wing(C) downward by hand to make sure it locks into the position as
shown in the picture.
Repeat the same process to attach Right Wing(D) to the right side of Chair
Backrest(B).
Page 5 OF 11
Page 6
Step 6
Velcro
Smooth down the fabric flap on the Chair Backrest(B).
Run your hands down both sides of the flap, from top to bottom, allowing the velcro
tape to adhere to the flap under the seat of the Chair.
Step 7
B
A
①
Locate the power interface line at the bottom of Chair Base with Footrest(A).
Connect the power interface and Power Line with Transformer(①), then fasten the
buckle as pictured above.
D
①
Page 6 OF 11
Page 7
Step 8
Make sure all parts are connected and securely locked into position.
Your Power Recliner Chair is ready for use.
This Power Recliner Chair can only be used on a flat, level surface.
Page 7 OF 11
Page 8
Step 9
To Disassemble Recliner
Push up on the Right Wing(D) and Left Wing(C) one by one until removed from the
Chair Backrest(B).
Step 10
To Disassemble Recliner:
Open the flap on the Backrest(B), use a screwdriver (Don't use your fingers)
pressing outward on the metal ear on the preattached Metal Bracket on one side of
the Chair Base(A).
With assistance of your adult partner to keep the Chair Base(A) in place, pull the
Backrest(B) upward at the same time, repeat the same step for another side.
Page 8 OF 11
Page 9
Step 11
B
A
①
Open buckle, then pull apart power interface from Power Line with Transformer(①).
①
Warning
Do not allow children to play on the Recliner.
Always leave the Recliner in an upright and closed position after use.
Keep hands and feet clear of the footrest mechanism and any gaps.
Don't sit any armrest of Recliner.
Page 9 OF 11
Page 10
User Instructions
Power Recliner Chair
To get into the Recline position:
Sit into the seat.
Press the Front button on the switch on the outside of right armrest.
The Power Recliner Chair will smoothly decend into a fully reclined position.
Press the Front button to Open
USB Charger
Switch
To move the Chair back into the Upright Position:
Press the Hind button on the switch on the outside of right armrest.
The Power Recliner Chair will smoothly ascend until fully into an upright position.
Press the Hind button to Close
USB Charger
Switch
Page 10 OF 11

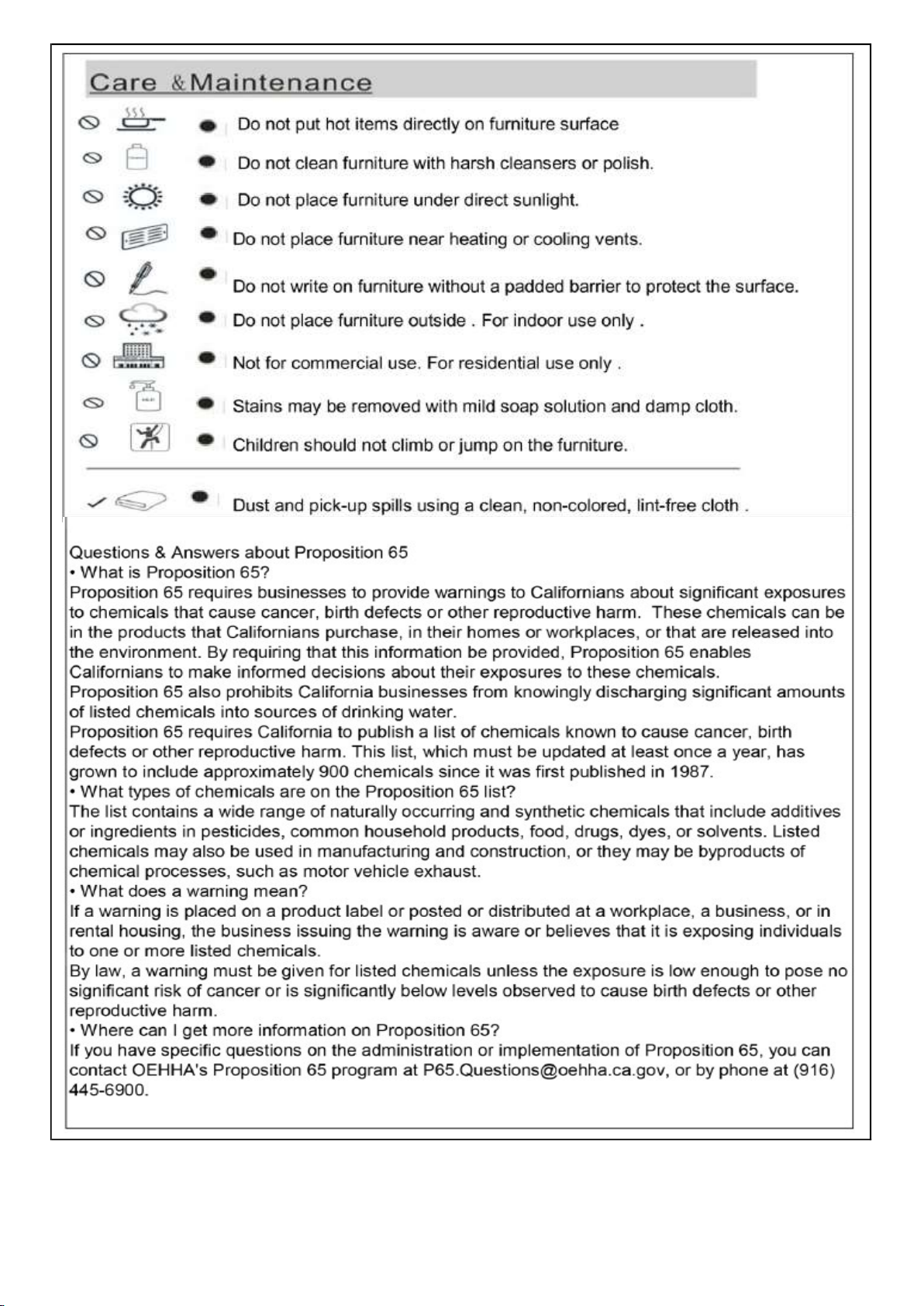

Page 11
Page 11 OF 11
