Modular workstation
Assembly instruction
AIW001

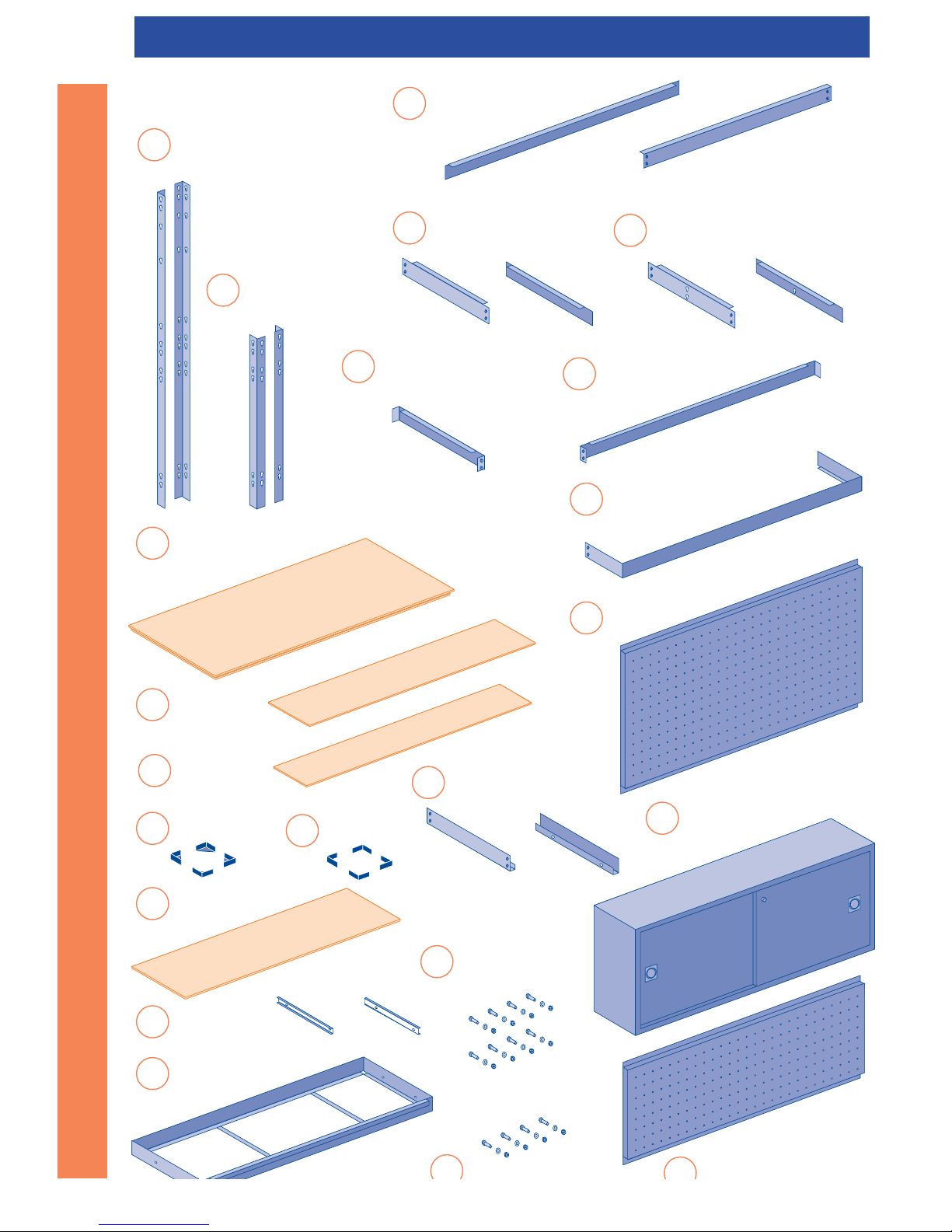

COMPONENTS
A
B
1524mm Uprights
2 of
C
Front & rear beams
total 4 of
D
Upper side beams
2 of
E
Lower side beams
2 of
P
Drawer side beams
2 of
T
2 door cupboard
V
W
Solid drawer
F
Upper shelf support
(front to back) 1 of
J
Rebated MDF
work surface
K
MDF bottom
half shelf
L
MDF upper
shelf
M
Plastic feet
N
Plastic caps
G
Lower shelf support
(left to right)
1 of
H
Upper cantilever
shelf support
I
Back panel
915mm Uprights
2 of
Q
MDF drawer
base
R
Drawer runners
S
M4 Nuts and
bolts
U
M5 Screws
MODULAR WORKSTATIONS
IMPORTANT - ASSEMBLY INSTRUCTIONS
1 Assemble side steel first - A, B, D, E, and P,
if a drawer is fitted (Fit feet).
2Add front and rear beam C (4 off).
3Add shelf support F and G.
4Insert back panel I and capture behind the
upper raised beam.
5Add work surface J, under bottom lip of back
panel I.
6Add upper cantilever shelf H and remaining
MDF shelves L and K.
7 If drawers are fitted, attach runner R, to
drawer W with 4 screws S (see illustration).
8Fit drawer to unit using 4 screws S (see
illustration).
9Fit drawer base Q.
10 For the ‘Compact Station’ version with
cupboard - there is no upper rear beam C or
cantilever shelf assembly H and L.
After instruction 3 attach the cupboard T to
the rear uprights A using screws U. Continue
A
B
C
C
C
C
D
E
F
G
H
I
J
K
L
M
N
P
Q
R
W
Tools required: Rubber mallet,
small blade screw driver, small
pair of pliers or 7mm spanner.
We advise the use of protective
gloves and goggles, or eyeglasses
when assembling this product.
Fitting Drawer
1First fit runners to
support beams P,
using screws S
2Fit runners to drawer
sides using screws S
Front
MODULAR WORKSTATIONS
IMPORTANT - ASSEMBLY INSTRUCTIONS
