Quanmax KEEX-2010 User Manual

KEEX-2010

Industrial 3.5” Embedded SBC

User’s Guide

Rev. 2.00

May 1, 2008

Customer Service

Contact Info: Quanmax Inc.

4F, No. 415, Ti-Ding Blvd. Sec. 2
NeiHu District, Taipei 114
Taiwan
Tel: [phone]
Fax: [phone]

Visit our site at: www.quanmax.com

© 2008 Quanmax Inc. All rights reserved.

The information in this user’s guide is provided for reference only. Quanmax does not assume any
liability arising out of the application or use of the information or products described herein. This user’s
guide may contain or reference information and products protected by copyrights or patents and does
not convey any license under the patent rights of Quanmax, nor the rights of others.

Quanmax is a registered trademark of Quanmax. All trademarks, registered trademarks, and trade
names used in this user’s guide are the property of their respective owners. All rights reserved. This
user’s guide contains information proprietary to Quanmax. Customers may reprint and use this user’s
guide in other publications. Customers may alter this user’s guide and publish it only after they remove
the Quanmax name, cover, and logo.

Quanmax reserves the right to make changes without notice in product or component design as
warranted by evolution in user needs or progress in engineering or manufacturing technology.
Changes which affect the operation of the unit will be documented in the next revision of this user’s
guide.

Revision Date Edited by Changes

1.00 04/02/2007 JC Initial Release

2.00 05/01/20 08 JC Convert to Quanmax

X Contents

Safety Instructions

Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

When Working Inside a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Preventing Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi

Preface

How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

Advisory Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

Regulatory Compliance Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii

Warranty Policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Return Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Limitation of Liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Maintaining Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx

Cleaning Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx

Environmental Factors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xx

Power Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi

Chapter 1

Introduction

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Mechanical Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Chapter 2

Hardware Settings

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Jumpers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Jumper Settings and Pin Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Connector Pin Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Pin Definitions - Rear Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Chapter 3

System Installation

Memory Module Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Installing a SO-DIMM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Removing a SO-DIMM: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

iKEEX-2010 Series User Guide

Chapter 4

Award BIOS Setup

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Standard CMOS Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

IDE Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Advanced BIOS Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

CPU Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Advanced Chipset Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

DRAM Clock/Drive Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

AGP & P2P Bridge Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Integrated Peripherals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

VIA OnChip IDE Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

VIA OnChip PCI Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

SuperIO Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

USB Device Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Power Management Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Wakeup Event Detect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

PnP/PCI Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

PC Health Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

Frequency/Voltage Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Load Fail-Safe Defaults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Load Optimized Defaults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Supervisor/User Password Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26

Exit Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26

Chapter 5

Driver Installation

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Chipset Driver Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Graphics Driver Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

LAN Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Audio Driver Installation (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Appendix A

System Resources

Interrupt Request (IRQ) Lines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

DMA Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Memory Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

I/O Address Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

PCI Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

PCI Express Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

Inter-IC Bus (I2C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

ISA I/O Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

ii KEEX-2010 Series User Guide

X Tables

Table 1-1. KEEX-2010 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Table 1-2. KEEX-2010 Derivative Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Table 2-1. Jumper Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Table 2-2. Clear CMOS Jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Table 2-3. AT/ATX Mode Selector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Table 2-4. LCD Voltage Selector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Table 2-5. Connector and Header Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Table 2-6. Digital I/O Pin Header pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Table 2-7. CN7: HD Audio Header pin definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Table 2-8. LVDS Connector pin definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Table 2-9. CN7: VGA Connector pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Table 2-10. COM2 RS232/422/485 Serial Port Connector pin definition . . . . . . . . . . . . . . . . 2-8

Table 2-11. CPU Fan Connector pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Table 2-12. Front Panel 1 Pin Header pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Table 2-13. Front Panel 2 Pin Header pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Table 2-14. IDE1 Connector pin definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Table 2-15. Parallel Port Connector pin definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Table 2-16. ATX Power Connector pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Table 2-17. Serial ATA Connector pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Table 2-18. USB Header pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Table 2-19. KEEX-2010 Rear Panel Connector Descriptions. . . . . . . . . . . . . . . . . . . . . . . . 2-11

Table 2-20. Keyboard/Mouse Connector pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Table 2-21. COM1 RS-232 Serial Port Connector pin definition . . . . . . . . . . . . . . . . . . . . . . 2-11

Table 2-22. LAN1 Gigabit Ethernet Connector pin definition. . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Table 2-23. USB4 Connector pin definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Table 2-24. DVI-D Display Connector pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Table 4-1. Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Table 4-2. Standard CMOS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Table 4-3. IDE Primary Master . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Table 4-4. Advanced BIOS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Table 4-5. Advanced CPU Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Table 4-6. Advanced Chipset Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Table 4-7. DRAM Clock/Drive Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Table 4-8. AGP & P2P Bridge Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Table 4-9. Integrated Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Table 4-10. VIA OnChip IDE Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Table 4-11. VIA OnChip PCI Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Table 4-12. SuperIO Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

Table 4-13. USB Device Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Table 4-14. Power Management Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Table 4-15. Wakeup Event Detect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

Table 4-16. PnP/PCI Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Table 4-17. PC Health Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

Table 4-18. Frequency/Voltage Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Table A-1. IRQ Assignments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Table A-2. DMA Assignments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Table A-3. Memory Mapping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Table A-4. I/O Address Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Table A-5. PCI Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

Table A-6. PCI Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

Table A-7. Inter-IC Bus (I2C). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

Table A-8. ISA I/O Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

iiiKEEX-2010 Series User Guide

iv KEEX-2010 Series User Guide

X Figures

Figure 1-1. KEEX-2010 System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

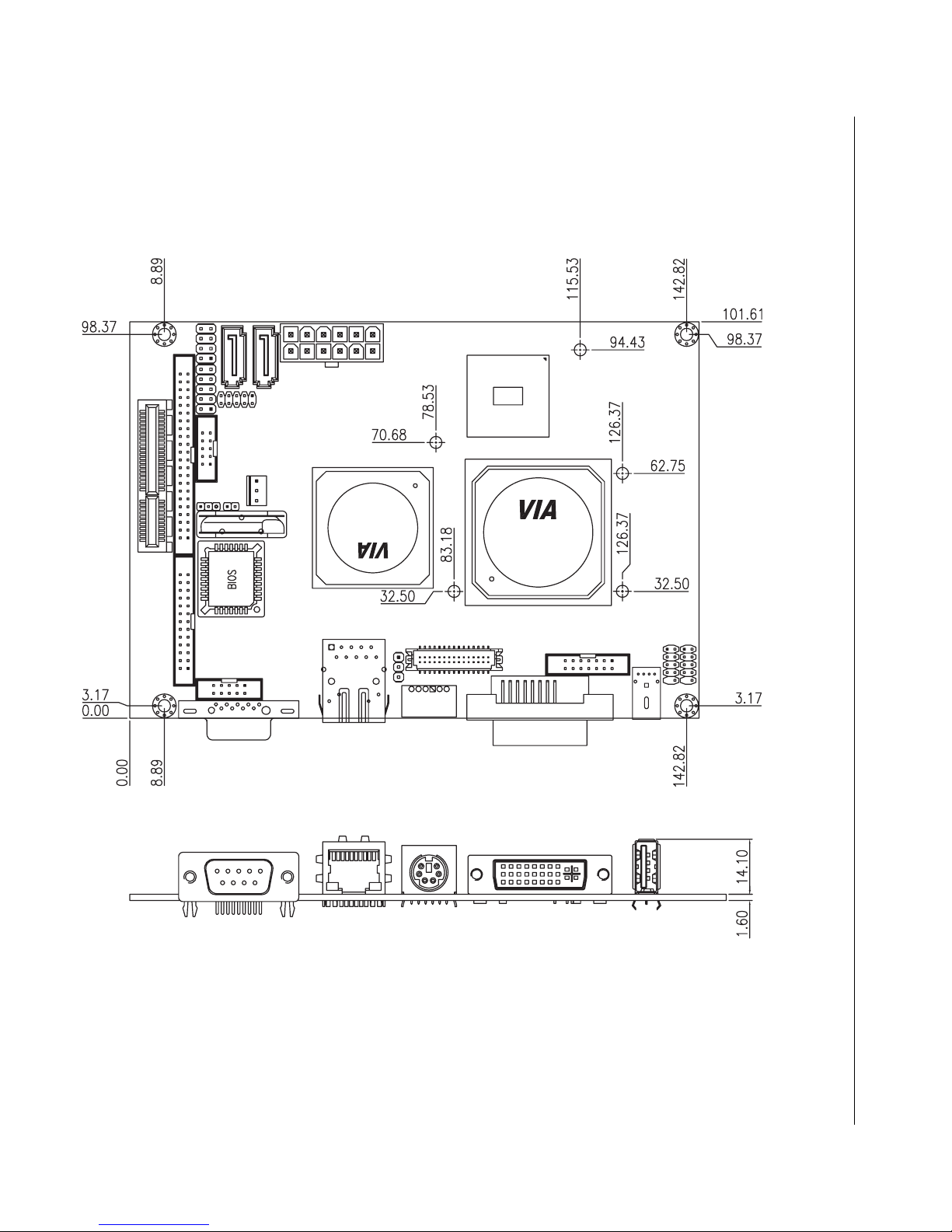

Figure 1-2. KEEX-2010 Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

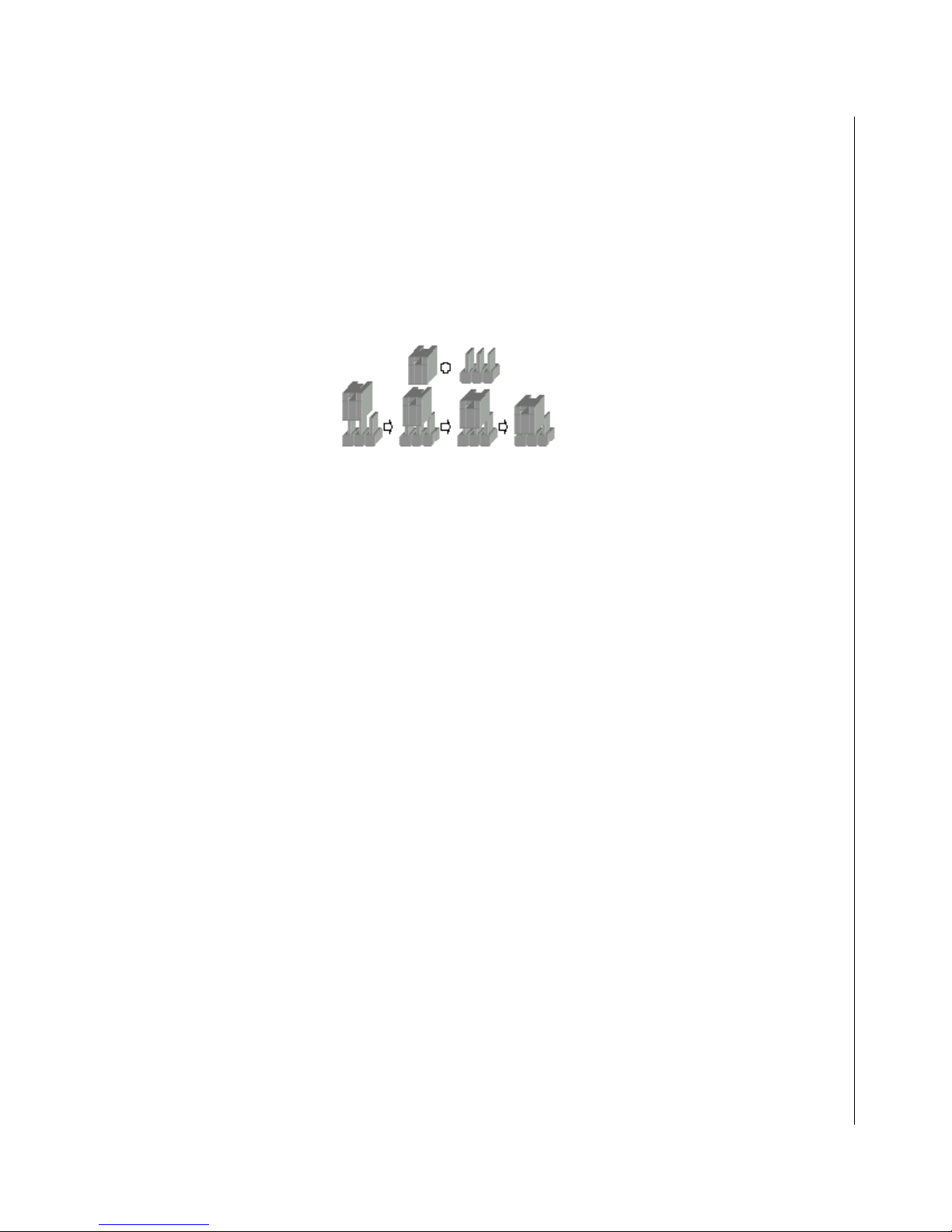

Figure 2-1. Jumper Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Figure 2-2. KEEX-2010 Jumper and Connector Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Figure 3-1. Align the SO-DIMM Memory Module with the onboard socket . . . . . . . . . . . . . . . 3-3

Figure 3-2. Fully insert the SO-DIMM Memory Module into the onboard socket. . . . . . . . . . . 3-4

Figure 3-3. Press down on the SO-DIMM Memory Module to lock it in place. . . . . . . . . . . . . 3-4

vKEEX-2010 Series User Guide

vi KEEX-2010 Series User Guide

X Safety Instructions

Contents

Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

When Working Inside a Computer. . . . . . . . . . . . . . . . . . . . . . . . . x

Preventing Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . . . . . xi

This page intentionally left blank.

viii KEEX-2010 Series User Guide

X Before You Begin

Before handling the KEEX-2010, read the instructions and safety guidelines on the following pages to prevent
damage to the product and to ensure your own personal safety. Refer to the “Advisories” section in the
Preface for advisory conventions used in this user’s guide, including the distinction between Warnings,
Cautions, Important Notes, and Notes.

 Always use caution when handling/operating a computer. Only qualified, experienced,

authorized electronics service personnel should access the interior of a comp uter. The power
supplies produce high voltages and energy hazards, which can cause bodily harm.

 Use extreme caution when installing or removing components. Refer to the installation

instructions in this user’s guide for precautions and procedures. If you have any questions,
please contact Quanmax Post-Sales Technical Support.

WARNING

High voltages are present inside the chassis when the unit’s
power cord is plugged into an electrical outlet. Turn off
system power, turn of f the power supply, and then disconnect
the power cord from its source before removing the chassis
cover. Turning off the system power switch does not remove
power to components.

Before You Begin -ixKEEX-2010 Series User Guide

X When Working Inside a Computer

Before taking covers off a computer, perform the following steps:

1) Turn off the computer and any peripherals.

2) Disconnect the computer and peripherals from their power sources or subsystems to prevent

electric shock or system board damage. This does not apply when hot swapping parts.

3) Follow the guidelines provided in “Preventing Electrostatic Discharge” on the following page.

4) Disconnect any telephone or telecommunications lines from the computer.

In addition, take note of these safety guidelines when appropriate:

 To help avoid possible damage to system boards, wait five seconds after turning off the

computer before removing a component, removing a system board, or disconnecting a
peripheral device from the computer.

 When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable

itself. Some cables have a connector with locking tabs. If you are disconnecting this type of
cable, press in on the locking tabs before disconnecting the cable. As you pull connectors
apart, keep them evenly aligned to avoid bending any connector pins. Also, before connecting
a cable, make sure both connectors are correctly oriented and aligned.

CAUTION

Do not attempt to service the system yourself except as
explained in this user’s guide. Follow installation and
troubleshooting instructions closely.

x KEEX-2010 Series User Guide

X Preventing Electrostatic Discharge

Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD
procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper
ESD procedure, which can include wrist straps and smocks, when servicing equipment.

You can also take the following steps to prevent damage from electrostatic discharge (ESD):

 When unpacking a static-sensitive component from its shipping carton, do not remove the

component’s antistatic packing material until you are ready to install the component in a
computer. Just before unwrapping the antistatic packaging, be sure you are at an ESD
workstation or grounded. This willl discharge any static electricity that may have built up in your
body.

 When transporting a sensitive component, first plac e it in an antistatic container or packaging.

 Handle all sensitive components at an ESD workstation. If possible, use antistatic floor pads and

workbench pads.

 Handle components and boards with care. Don’t touch the components or contacts on a board.

Hold a board by its edges or by its metal mounting bracket.

 Do not handle or store system boards near strong electrostatic, electromagnetic, magnetic, or

radioactive fields.

Preventing Electrostatic Discharge -xiKEEX-2010 Series User Guide

This page intentionally left blank.

xii KEEX-2010 Series User Guide

X Preface

Contents

How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi

Regulatory Compliance Statements. . . . . . . . . . . . . . . . . . . . . . . xvii

Warranty Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii

Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xviii

Return Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xviii

Limitation of Liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii

Maintaining Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Cleaning Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xix

Environmental Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xix

Power Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx

This page intentionally left blank.

xiv KEEX-2010 Series User Guide

X How to Use This Guide

This guide is designed to be used as step-by-step instructions for installation, and as a reference for
operation, troubleshooting, and upgrades.

Note: Driver downloads and additional information are available under
Downloads on our web site: www.quanmax.com.

The following is a summary of the chapter contents:

 Chapter 1, Introduction, presents the product specifications and system architecture for the

KEEX-2010.

 Chapter 2, Jumpers and Connectors, shows the definitions and locati ons of jumpers and

connectors that you can easily configure for your system.

 Chapter 3,System Installation, describes how to properly mount the CPU, heatsink and main

memory.

 Chapter 4, BIOS Setup Information, specifies the meaning of each setup parameter and

describes how to get advanced BIOS performance.

 Chapter 5, Driver Installation, provides information on installing installing the drivers for the

KEEX-2010.

 Appendix A, System Resources, provides information on IRQ lines, DMA channels, memory

and I/O address maps, PCI devices, and I2C bus.

How to Use This Guide -xvKEEX-2010 Series User Guide

X Unpacking

When unpacking, follow these steps:

1) After opening the box, save it and the packing material for possible future shipment.

2) Remove all items from the box. If any items listed on the purchase order are missing, notify

Quanmax customer service immediately.

3) Inspect the product for damage. If there is damage, notify Quanmax customer service immediately .

Refer to

“Warranty Policy” for the return procedure.

xvi KEEX-2010 Series User Guide

X Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices.

X FCC Compliance Statement for Class A Devices

The product(s) described in this user’s guide has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the user’s guide, may cause harmful interference to radio communications. Operation of this
equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case
the user will be required to correct the interference (take adequate measures) at their own expense.

Changes or modifications not expressly approved by Quanmax could void the user's authority to operate the
equipment.

Note: The assembler of a personal computer system may be required to
test the system and/or make necessary modifications if a system is found
to cause harmful interference or to be noncompliant with the appropriate
standards for its intended use.

Regulatory Compliance Statements -xviiKEEX-2010 Series User Guide

X Warranty Policy

X Limited Warranty

Quanmax Inc.’s detailed Limited Warranty policy can be found under Support at www.quanmax.com.
Please consult your distributor for warranty verification.

The limited warranty is void if the product has been subjected to alteration, neglect, misuse, or abuse; if any
repairs have been attempted by anyone other than Quanmax or its authorized agent; or if the failure is
caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacture r.
Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other
than in accordance with the user’s guide.

No agent, dealer, distributor , service company, or other party is authorized to change, modify, or extend the
terms of this Limited Warranty in any manner whatsoever. Quanmax reserves the right to make changes or
improvements in any product without incurring any obligation to similarly alter products previously
purchased.

X Return Procedure

For any Limited Warranty return, please contact Support at www.quanmax.com and login to obtain a
Return Material Authorization (RMA) Number. If you do not have an account, send an email to
[e-mail] to apply for one.

All product(s) returned to Quanmax for service or credit must be accompanied by a Return Material
Authorization (RMA) Number. Freight on all returned items must be prepaid by the customer who is
responsible for any loss or damage caused by common carrier in transit. Returns for Warranty must
include a Failure Report for each unit, by serial number(s), as well as a copy of the original invoice showing
the date of purchase.

To reduce risk of damage, returns of product must be in a Quanmax shipping container. If the original
container has been lost or damaged, new shipping containers may be obtained from Quanmax Customer
Service at a nominal cost.

Quanmax owns all parts removed from repaired products. Quanmax uses new and reconditioned parts
made by various manufacturers in performing warranty repairs and building replacement products. If
Quanmax repairs or replaces a product, its warranty term is not extended.

Shipments not in compliance with this Limited Warranty Return Policy will not be accepted by Quanmax.

X Limitation of Liability

In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any
kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the
performance or use of any product furnished hereunder. Quanmax’s liability shall in no event exceed the
purchase price of the product purchased hereunder. The foregoing limitation of liability shall be equally
applicable to any service provided by Quanmax or its authorized agent.

xviii KEEX-2010 Series User Guide

X Maintaining Your Computer

X Cleaning Components

Internal fans cool the computer by drawing in air through air vents in the front of the computer and blowing it
out the rear-side panels. Dust and other debris is drawn in with the air and, if allowed to build up, will interfere
with the operation of various system components and insulate components, preventing heat from dissipating.
To prevent this, an air filter has been installed in front of the air vents in the front panel to block dust and other
debris from entering the computer.

Dust and debris builds up on the air filter over time. When the air filter becomes very dirty, it is difficult for
cooling air to pass through the air filter and enter the computer. So, the air filter must be cleaned to prevent
the computer from overheating. Remove and clean the air filter on a regular basis following the steps
described in the “Air Filter” section of Chapter 2. Also, regularly vacuum the exterior of the chassis to remove
dust that has accumulated around the air vents.

X Environmental Factors

X Temperature

The ambient temperature within an enclosure may be greater than room ambient temperature. Installation in
an enclosure should be such that the amount of air flow required for safe operation is not compromised.
Consideration should be given to the maximum rated ambient temperature. Overheating can cause a variety
of problems, including premature aging and failure of chips or mechanical failure of devices.

If the system has been exposed to abnormally cold temperatures, allow a two-hour warm-up period to bring it
up to normal operating temperature before turning it on. Failure to do so may cause damage to internal
components, particularly the hard disk drive.

X Humidity

High-humidity can cause moisture to enter and accumulate in the system. This moisture can cause corrosion
of internal components and degrade such properties as electrical resistance and thermal conductivity .
Extreme moisture buildup inside the system can result in electrical shorts, which can cause serious damage
to the system.

Buildings in which climate is controlled usually maintain an acceptable level of humidity for system
equipment. However, if a system is located in an unusually humid location, a dehumidifier can be used to
maintain the humidity within an acceptable range. Refer to the “Specifications” section of this user’s guide for
the operating and storage humidity specifications.

X Altitude

Operating a system at a high altitude (low pressure) reduces the efficiency of the cooling fans to cool the
system. This can cause electrical problems related to arcing and corona effects. This condition can also

Maintaining Your Computer -xixKEEX-2010 Series User Guide

cause sealed components with internal pressure, such as electrolytic capacitors, to fail or perform at
reduced efficiency.

X Power Protection

The greatest threats to a system’s supply of power are power loss, power spikes, and power surges caused
by electrical storms, which interrupt system operation and/or damage system components. To protect your
system, always properly ground power cables and one of the following devices.

X Surge Protector

Surge protectors are available in a variety of types and usually provide a level of protection proportional
with the cost of the device. Surge protectors prevent voltage spikes from entering a system through the AC
power cord. Surge protectors, however, do not offer protection against brownouts, which occur when the
voltage drops more than 20 percent below the normal AC line voltage level.

X Line Conditioner

Line conditioners go beyond the overvoltage protection of surge protectors. Line conditioners keep a
system’s AC power source voltage at a fairly const ant level and, therefore, can handle brownouts. Because
of this added protection, line conditioners cost more than surge protectors. However, line conditioners
cannot protect against a complete loss of power.

X Uninterruptible Power Supply

Uninterruptible power supply (UPS) systems offer the most complete protection against variations on
power because they use battery power to keep the server running when AC power is lost. The battery is
charged by the AC power while it is available, so when AC power is lost, the battery can provide power to
the system for a limited amount of time, depending on the UPS system.

UPS systems range in price from a few hundred dollars to several thousand dollars, with the more
expensive unit s allowing you to run larger systems for a longer period of time when AC power is lost. UPS
systems that provide only 5 minutes of battery power let you conduct an orderly shutdown of the system,
but are not intended to provide continued operation. Surge protectors should be used with all UPS
systems, and the UPS system should be Underwriters Laboratories (UL) safety approved.

xx KEEX-2010 Series User Guide

Chapter 1

X Introduction

Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Mechanical Drawings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

This page intentionally left blank.

1-2 KEEX-2010 Series User Guide

X Overview

The KEEX-2010 is an 3.5” Form Factor embedded single board computer (SBC) that combines the high
performance and low power consumption of the VIA C7 processor with CN896/VT8251 chipset and supports
DDR2 400/533/667 SODIMM up to 2GB. This SBC offers the latest performance, features and I/O interfaces
at an extremely attractive price/performance ratio.

The KEEX-2010 measures 105mm x 146mm, a 75 percent space reduction over micro-ATX boards. This
SBC features integrated VGA and 24-bit dual channel LVDS panel and DVI-D support, IDE ATA-133, SATA 3
Gb/s, RS-232/422/485 serial port, 8-bit DIO, parallel port, Gigabit Ethernet, USB 2.0, keyboard/mouse, and
HD audio via optional daughter board. A PCI Express x4 slot provides expansion capability.

Overview 1-3KEEX-2010 Series User Guide

X Checklist

1. Take out the KEEX-2010 series unit from the carton box, check if the unit is properly secure in the plastic
bag.

2. Check the contents of the carton box:

 Motherboard

 44-pin IDE ribbon cable

 SATA cable

 ATX Power cable adapter

 Keyboard/Mouse Y-cable

If any of these items is damaged or missing, please contact Quanmax. Save all packing materials for future
replacement and maintenance.

1-4 KEEX-2010 Series User Guide

X Features

X Processor

The VIA C7 processor in NanoBGA2 package has the following features:

 Extremely low power consumption

 World’s fastest AES encryption

 Thermal monitor; catastrophic thermal protection

 MMS, SSE, SSE2, SSE3 compatible instructions

 2x 64kB, 4-way Level 1 caches

 128kB Level 2 victim cache (32-way)

 L2 Hardware Prefetch

 Bus speeds up to 800MHz (limited to 533MHz by CN800)

 NanoBGA2 package (21mm x 21mm)

X Chipset

The KEEX-2010 is based on the VIA CN896 Northbridge and VT8251 Southbridge chipset.

The VIA CN896 Northbridge features:

 FSB speed options of 400, 533 and 800 MHz

 Advanced 64-bit SDRAM controller supporting DDR2 667/533/400

 533 MB/sec V-Link Southbridge interface

 Advanced System Power Management (ACPI 2.0)

 Chrome9 HC Graphics core

 CRT: up to 1920x1440 x24bpp
 24-bit dual channel LVDS up to 1600x1200 via VT1636
 Dual monitor support

Overview 1-5KEEX-2010 Series User Guide

The VIA VT8251 Southbridge features:

 32-bit/33MHz external PCI bus, supports 4 external REQ / GNT devices

 5x USB 2.0 ports

 2x SA TA II ports

 IDE up to UltraDMA-133

 HD/AC’97 audio

 LPC bus

 Watchdog Timer

X Onboard Ethernet Controller

The KEEX-2010 provides Gigabit Ethernet connectivity using a Marvell 88E8053 Gigabit Ethernet
Controller.

X Super I/O

The LPC-based Winbond W83627EHG Super I/O controller provides the following functionality:

 One RS-232/422/485 and one RS-232 serial port

 PS/2 Keyboard/Mouse

 Watchdog Timer: 1 to 255 step, (sec/min), software programmable.

 Hardware Monitor: temperature and voltage monitoring

X BIOS

AwardBIOS Plug & Play FWH BIOS - 4Mb ROM.

1-6 KEEX-2010 Series User Guide

X Product Specifications

Form Factor
CPU
Chipset
Memory
Ethernet
VGA Controller

• 3.5” Embedded SBC 105mm x 146mm

• VIA C 7, 1GHz & 1.5G H z (NanoBGA2 pac kage)

• VIA CN896 + VT8251

• DDR2 400/533/667

• Gig abit Ethernet - Ma rvel l 88 E 8053 Cont rol ler

• Integr ated Chr ome9 H C Graphics cor e o n CN896

• Up t o 1920x1440 CR T res olution (pin heade r)

LCD Support

• 24-bit dual channel LVDS up to UXGA (via VT1636)

• DVI-D (via VT1632A) – rear I/O

Peripheral
Support

• One I D E channel, ATA-13 3 (pr imary)

• 2x SATA 3Gb/s

• 5x USB 2. 0 ports (4x by p in he ader, 1x on I/ O bracke t)

• 1x RS-232, 1x RS232/422/485 serial ports

• 4x DI/DO

• 1x pa ral lel port with SP P/ECP/E PP m ode supp ort

• HD Audio via optional Daughter Board

Expansion

• PCI Express x2 on PCIe x4 connector (via 2x PCIe x1,
VT8251)

BIOS
Watchdog Timer
Hardware Monitor

• Award-based FWB

• 1-2 55 st eps (sec /min), software c onfigurable on Super I/O

• Har dw are monitor for su pply voltages, CPU, fans

Operation Temp. • 0ºC – 60ºC
Storage Temp.

• -10ºC – 85ºC

Humidity • 0% – 90%
Certifications

• CE, FCC Class A

20 0-pi n S O-DIMM Socket , up to 2G B

Table 1-1. KEEX-2010 Specifications

Article Part No. VI A C7 24-b it LVDS DVI PCIe x2

 

KEEX-2010 B3EX2010-001000T 1.0GHz
KEEX-2011 B3EX2010-011000T 1.5GHz

Table 1-2. KEEX-2010 Derivative Models



 



Product Specifications 1-7KEEX-2010 Series User Guide

X System Block Diagram

VIA C7

NanoBGA2

DVI-D

LVDS

VGA

IDE 1x

SATA 3Gb/s 2x

USB 2.0 5x

VT1632A

VT1636

DVP2

DVP1

CRT

Northbridge

VIA CN896

533 MB/s
V-Link Interface

Southbridge

VIA VT8251

PCIe x1

SMB

HD CODEC

2x PCIe x1

DDR2 400/533/667

2GB SO-DIMM socket

GbE

W83601

DI/DO

HD Audio

PCIe x2

COM1

COM2

1-8 KEEX-2010 Series User Guide

LPC

W83627EHF

LPC Super I/O

Award BIOS

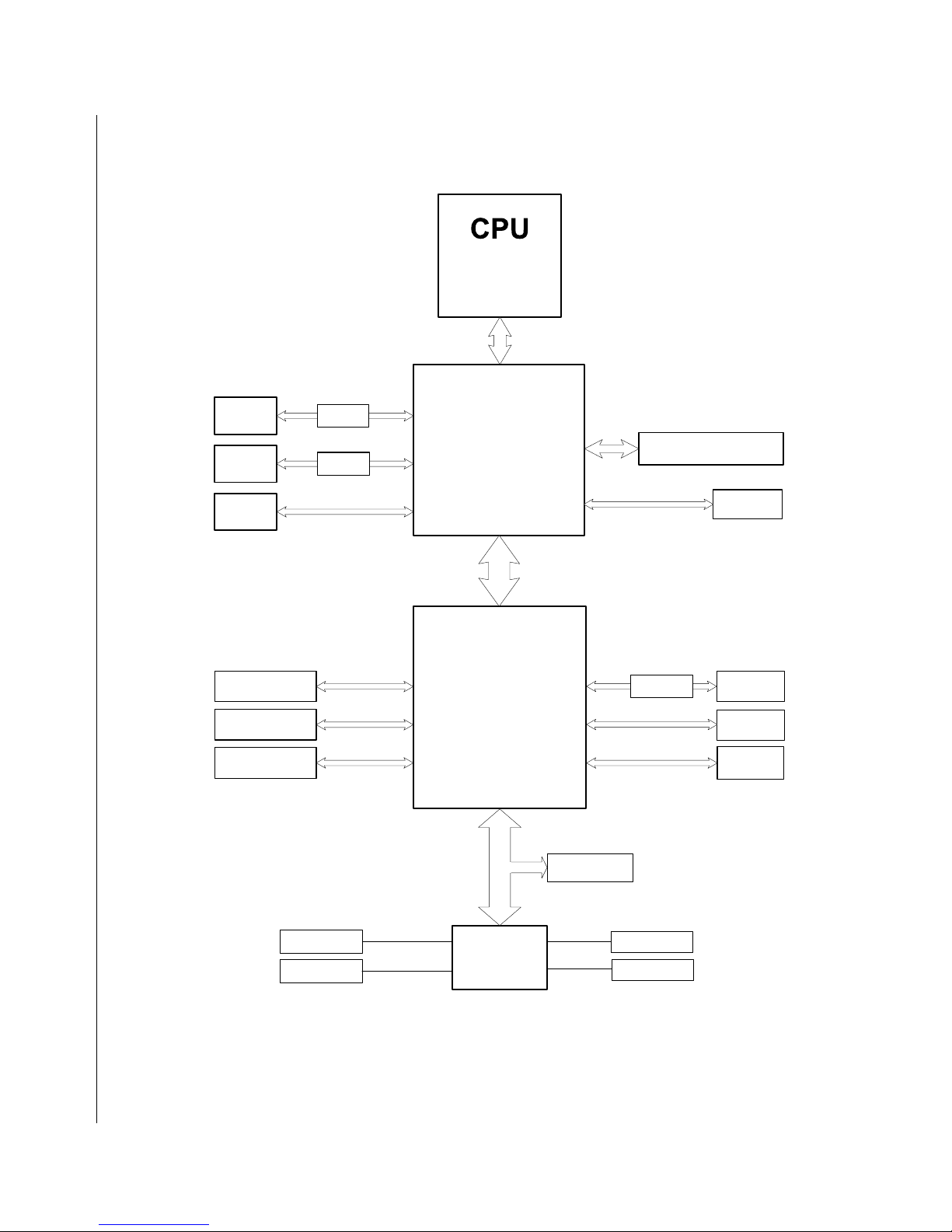

Figure 1-1. KEEX-2010 System Block Diagram

KB

Mouse

X Mechanical Drawing

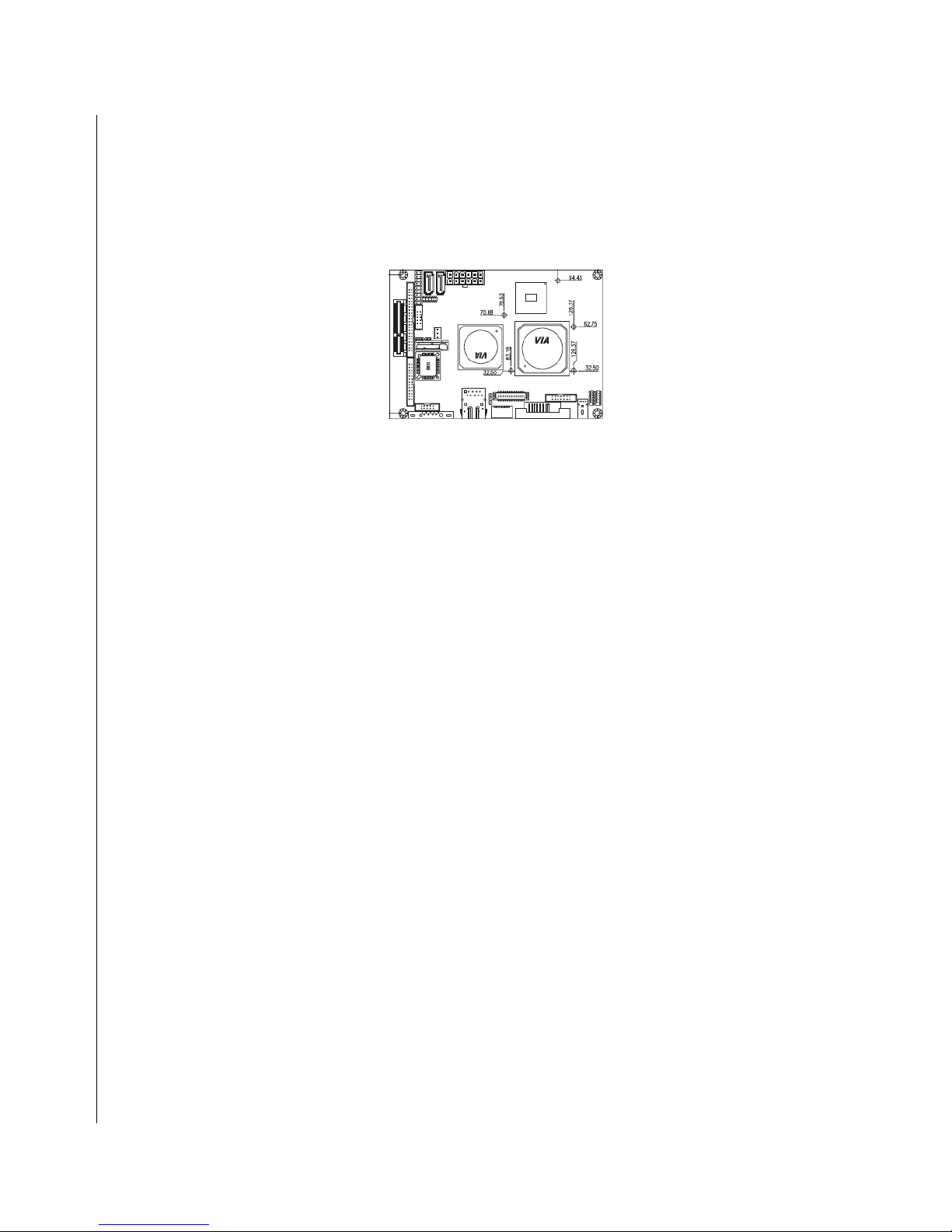

Figure 1-2. KEEX-2010 Mechanical Dimensions

Mechanical Drawing 1-9KEEX-2010 Series User Guide

This page intentionally left blank.

1-10 KEEX-2010 Series User Guide

Chapter 2

X Hardware Settings

Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Jumpers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Jumper Settings and Pin Definitions . . . . . . . . . . . . . . . . . . . . . . 2-4

Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Connector Pin Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Pin Definitions - Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . 2-15

This page intentionally left blank.

2-2 KEEX-2010 Series User Guide

X Overview

This chapter provides the definitions and locations of jump ers, connectors, and headers.

X Jumpers

The KEEX-2010 Series Embedded Boards have several jumpers which must be properly configured to
ensure correct operation.

Figure 2-1. Jumper Connector

For three-pin jumpers (see figure), the jumper setting is designated “1-2” when the jumper connects pins 1
and 2. The jumper setting is designated “2-3” when pins 2 and 3 are connected and so on. You will see that
one of the lines surrounding a jumper pin is thick, or that the pin is square, which indicates pin 1.

To move a jumper from one position to another, use needle-nose pliers or tweezers to pull the pin cap off the
pins and move it to the desired position.

Overview 2-3KEEX-2010 Series User Guide

X Jumper Settings and Pin Definitions

For jumper and connector locations, please refer to the diagrams below.

2-4 KEEX-2010 Series User Guide

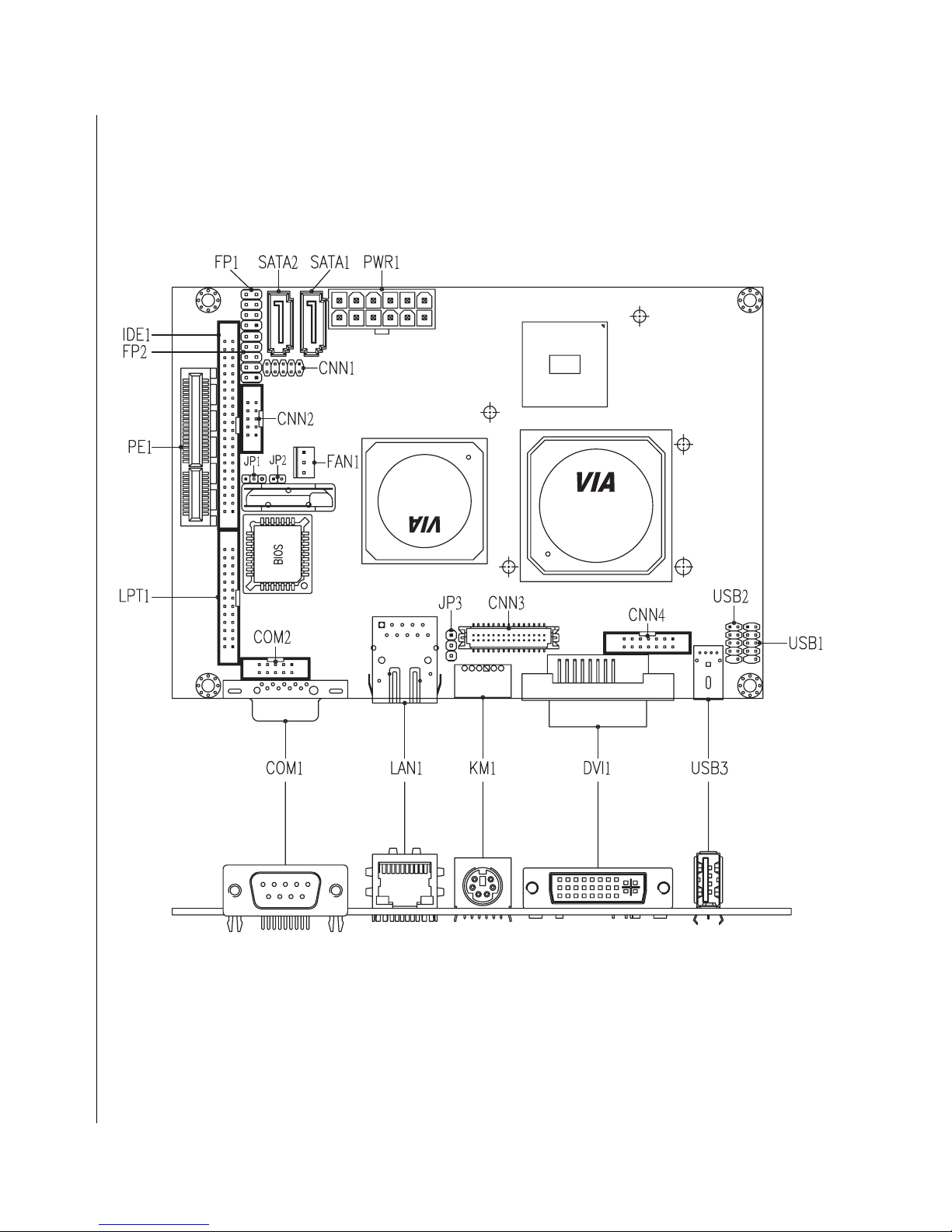

Figure 2-2. KEEX-2010 Jumper and Connector Locations

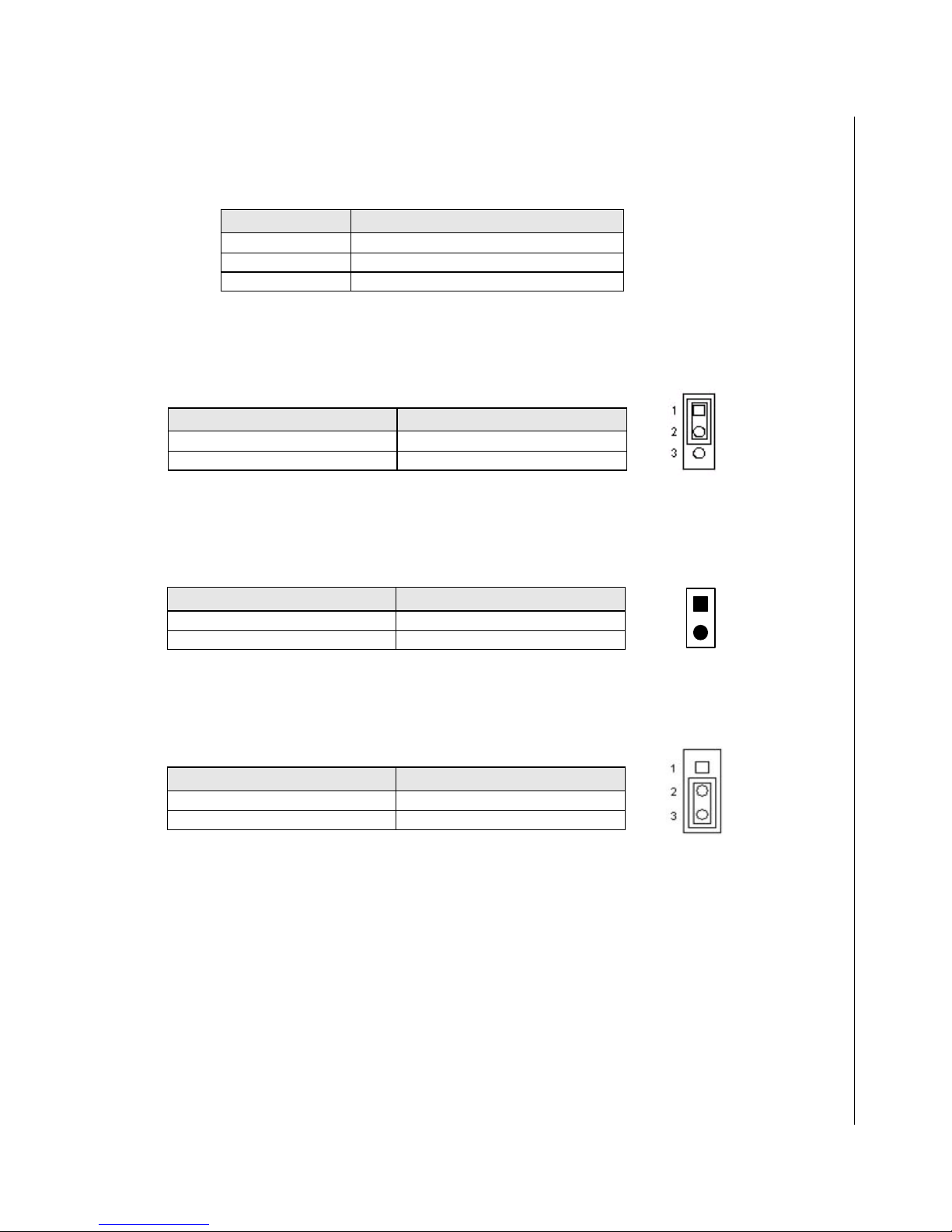

X Jumper Settings

J

J

To ensure correct system configuration, the following section describes how to set the jumpers to enable/
disable or change functions. For jumper descriptions, please refer to the table below.

umper Function

JP1 Clear CMOS
JP2 AT /ATX Power mode Selecti on
JP3 LCD Voltage Selection

Table 2-1. Jumper Descriptions

X Clear CMOS Jumper (JP1: 3-pin 2.0mm pitch header):

Function

Normal (Default) 1-2 Short

Clear CMOS 2-3 Short

Table 2-2. Clear CMOS Jumper

P3

X AT/ATX Mode Selector (JP2: 2-pin 2.0mm pitch header):

Function JP2

ATX Mode (Default) 1-2 Open

AT Mode 1-2 Short

Table 2-3. AT/ATX Mode Selector

X LCD Voltage Selector (JP3: 3-pin 2.0mm pitch header):

Function JP1

+5V 1-2 Short

+3.3V (Default) 2-3 Short

Table 2-4. LCD Voltage Selector

1
2

Jumper Settings and Pin Definitions 2-5KEEX-2010 Series User Guide

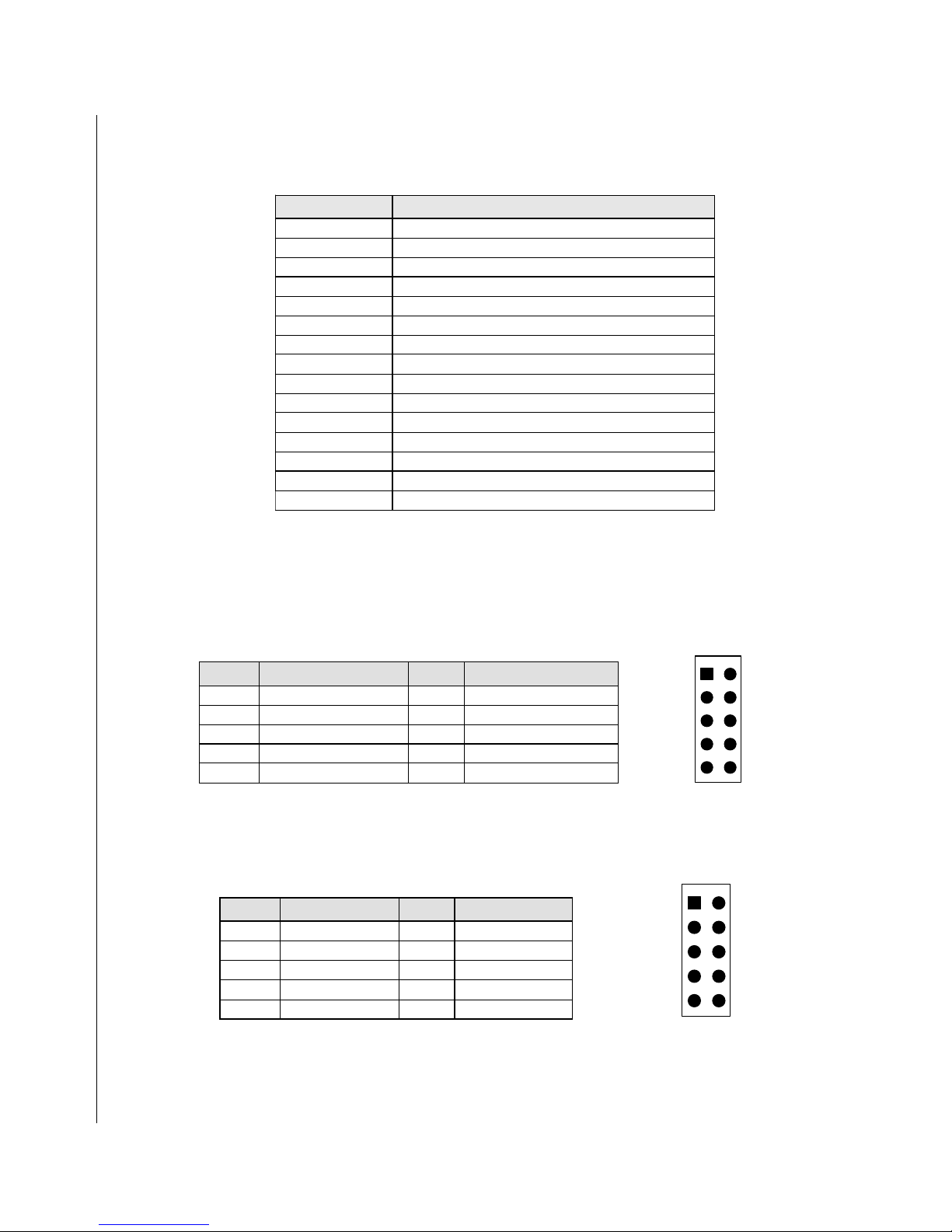

X Connector Pin Definitions

For connector and header descriptions, please refer to the table below.

Connector Function

CNN1 Digital I/O Pin Header
CNN2 HD Audio Pin Header
CNN3 LVDS Channel Pin Header
CNN4 VGA-out Pin Header
COM1-2 RS-232/422/485 Serial Port Connectors
DIMM1 200-pin DDR2 SO-DIMM Socket (on underside)
FAN1 CPU Fa n Connector
FP1 Front Panel 1 Pin Header (Reset/ HD Led/ Speaker/)
FP2 Fr ont Panel 2 Pin Header (P_LED/ P_BT / KB_Lock/SMB)
IDE1 IDE Conn ector
LPT1 LPT Port Connector
PE1 PCI Express x4 Socket
PWR1 ATX Power Control Connector
SATA1-2 Serial ATA Connectors
USB1-2 USB Pin Headers

Table 2-5. Connector and Header Descriptions

X Digital I/O Pin Header (CNN1: 5x2-pin header 2.0mm pitch):

PIN SIGNAL PIN SIGNAL

1 DO0 2 DI0
3 DO1 4 DI1
5 DO2 6 DI2
7 DO3 8 DI3
9 +5V 10 GND

Table 2-6. Digital I/O Pin Header pin definition

1
3
5
7
9

X HD Audio Header (CNN2: 5x2-box header 2.0mm pitch):

PIN SIGNAL PIN SIGNAL

1 HD_RST- 2 HD_SYNC
3 GND 4 HD_DAOUT
5 HD_DAIN2 6 GND
7 GND 8 HD_BCLK
9 +5V 10 +3.3V

Table 2-7. CN7: HD Audio Header pin definition

1
3

5
7
9

2
4
6
8

10

2
4
6
8

10

2-6 KEEX-2010 Series User Guide

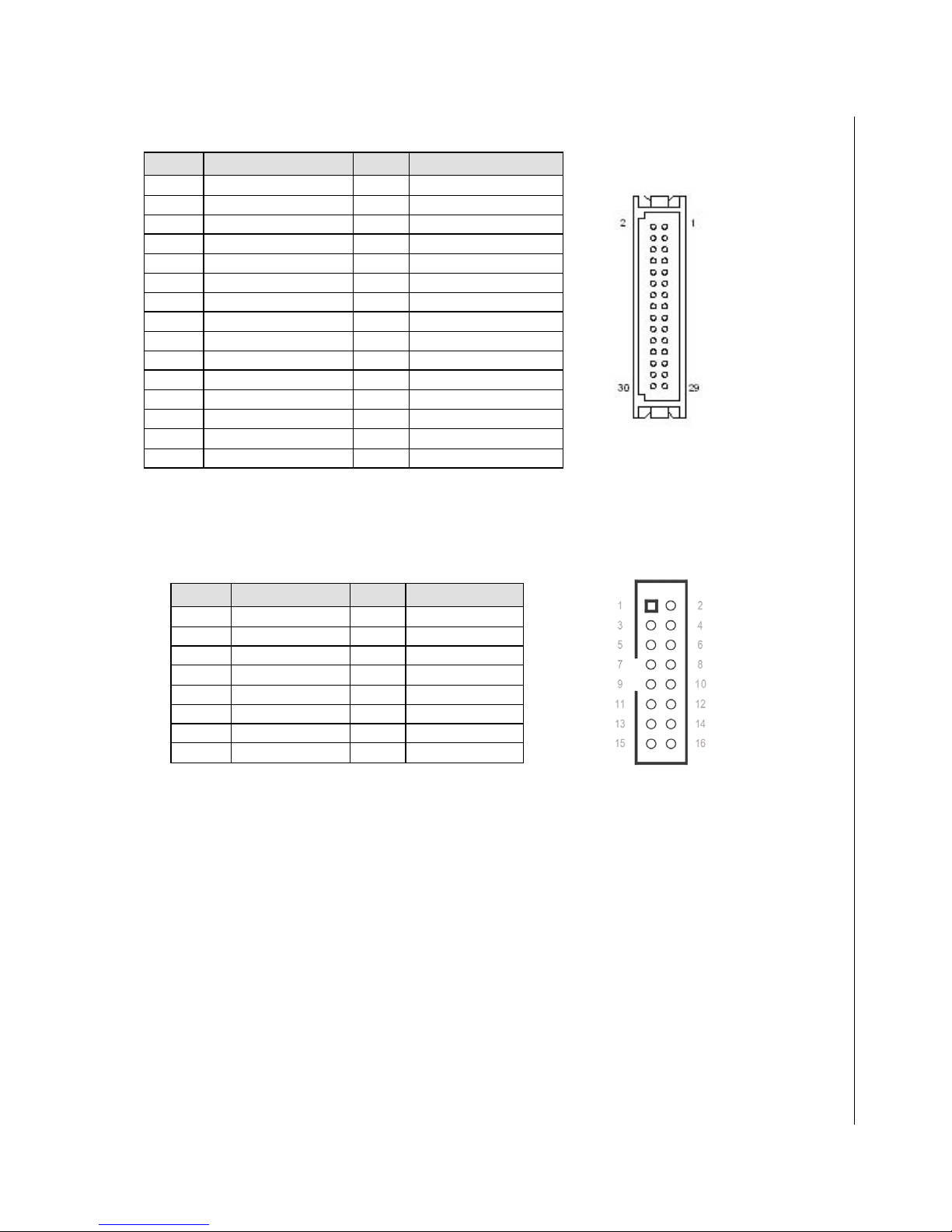

X LVDS Connector (CNN3: Hirose DF13 30-pin 1.25mm)

PIN SIGNAL PIN SIGNAL

2 BKLEN 2 BKLCTL
4 PPVCC 4 PPVCC
6 CH1_CLK# 6 CH2_CLK#

8 CH1_ CLK 8 CH 2_CLK
10 GND 10 GND
12 CH1_TX0# 12 CH2_TX0#
14 CH1_TX0 14 CH2_TX0
16 CH1_TX1# 16 CH2_TX1#
18 CH1_TX1 18 CH2_TX1
20 CH1_TX2# 20 CH2_TX2#
22 CH1_TX2 22 CH2_TX2
24 CH1_TX3# 24 CH2_TX3#
26 CH1_TX3 26 CH2_TX3
28 GND 28 GND
30 I2C_DATA 30 I2C_CLK

Table 2-8. LVDS Connector pin definition

X VGA Connector (CNN4: 5x2-box header 2.0mm pitch):

PIN SIGNAL PIN SIGNAL

1 VGA_R 2 VGA_G
3 VGA_B 4 N.C.
5 GND 6 GND
7 GND 8 GND

9 +5V 10 GND
11 N.C. 12 VGA_SDATA
13 VGA_HS 14 VGA_VS
15 VGA_SCLK 16 GND

Table 2-9. CN7: VGA Connector pin definition

Jumper Settings and Pin Definitions 2-7KEEX-2010 Series User Guide

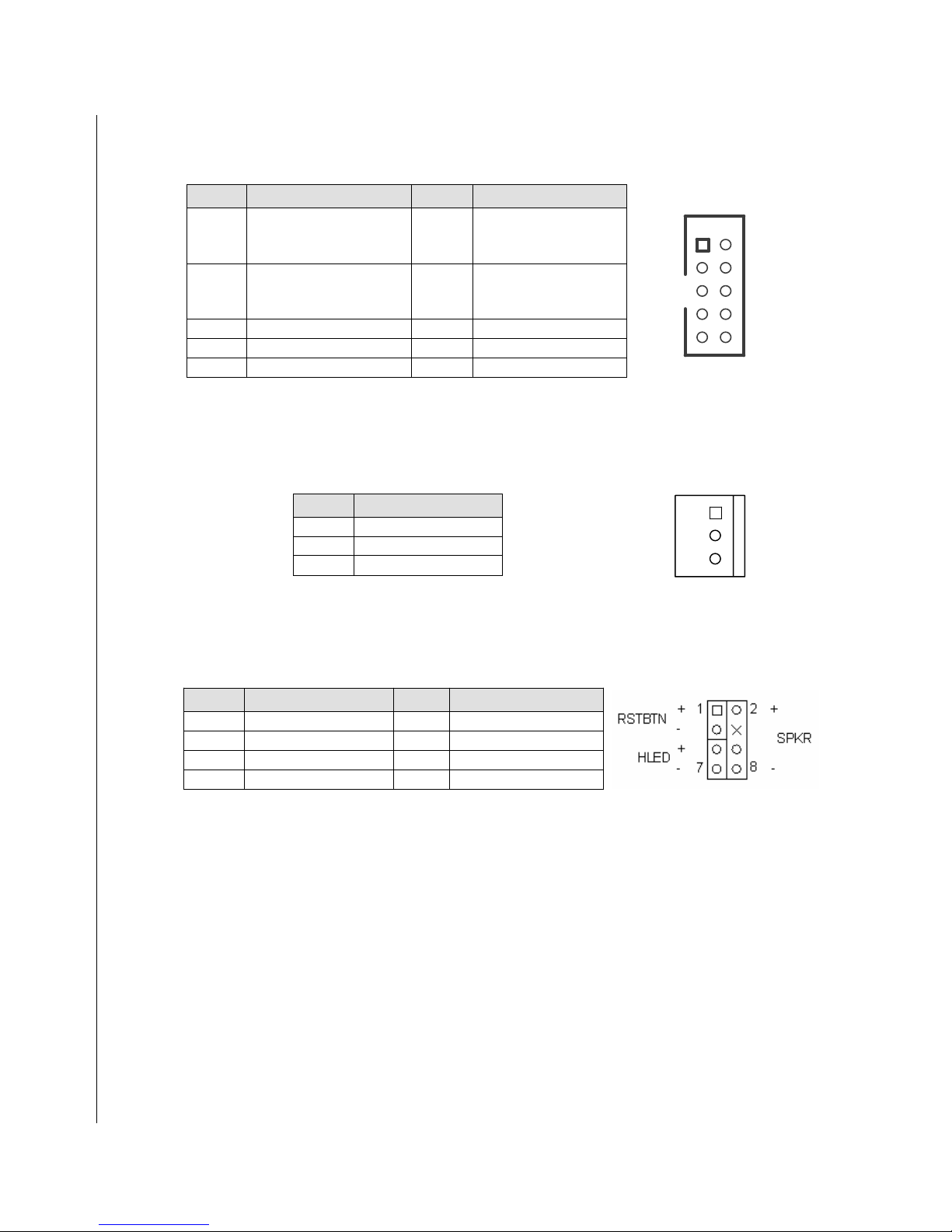

X RS232/422/485 Serial Port Connector (COM2: 5x2 box header

p

)

2.54mm pitch):

PIN SIGNAL PIN SIGNAL

1

3

5
7
9

RS-232：DCD

RS-422：TX+

RS-485：RTX+

RS-232：TXD

RS-422：TX-

RS-485：RTX-

GND

RTS

RI

Table 2-10. COM2 RS232/422/485 Serial Port Connector pin definition

2

4

6
8

10

X CPU Fan Connector (FAN1: Wafer 2.54mm. pitch):

RS-232：RXD
RS-422：RX+
RS-485：N/A
RS-232：DTR

RS-422：RX-

RS-485：N/A

DSR

CTS

NC

1
3
5
7
9

2
4
6
8
10

PIN SIGNAL

1 Ground
2 +5V
3 Speed Sense

Table 2-11. CPU Fan Connector pin definition

X Front Panel 1 Pin Header (FP1: 4x2-pin 2.54mm pitch):

PIN SIGNAL PIN SIGNAL

1 Reset Button + 2 Speaker +
3 Reset Button - 4 NC
5 HDD LED + 6 NC
7 HDD LED - 8 Speaker -

Pins 2, 8: External Speaker wire
Pins 6-8 shorted: Internal S

eaker Enable (default

Table 2-12. Front Panel 1 Pin Header pin definition

1
2
3

2-8 KEEX-2010 Series User Guide

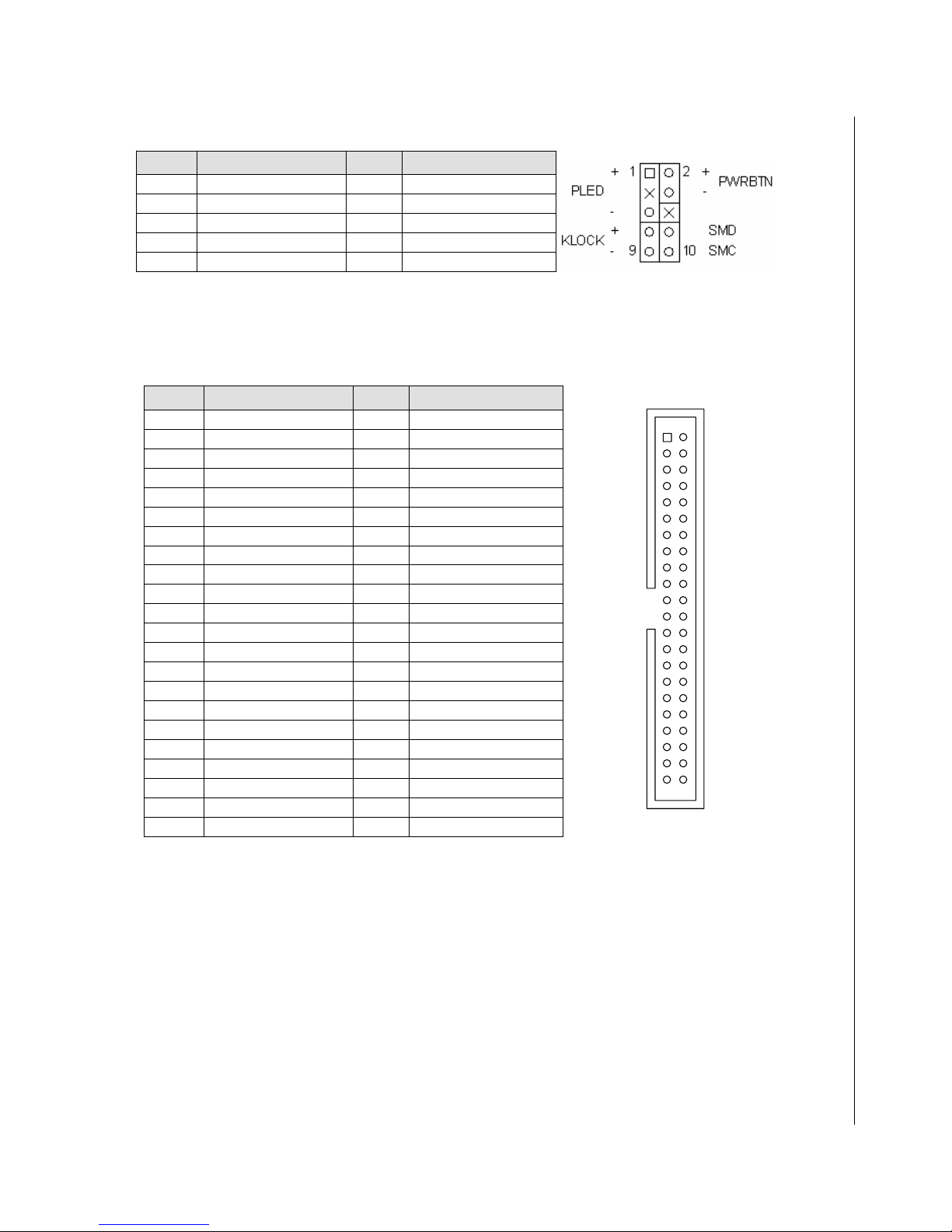

X Front Panel 2 Pin Header(FP2: 5x2-pin 2.54mm pitch):

PIN SIGNAL PIN SIGNAL

1 Power LED (+) 2 Power On Button (+)
3 NC 4 Power On Button (-)
5 Power LED (-) 6 NC
7 KeyBoard Lock (+) 8 I2C Bus SMB Data
9 GND 10 I2C Bus SMB Clock

Table 2-13. Front Panel 2 Pin Header pin definition

X IDE Connector (IDE1: 22x2 box header 2.0mm pitch):

PIN SIGNAL PIN SIGNAL

1 Reset IDE 2 GND
3 IDE Data 7 4 IDE Data 8
5 IDE Data 6 6 IDE Data 9
7 IDE Data 5 8 IDE Data 10

9 IDE Data 4 10 IDE Data 11
11 IDE Data 3 12 IDE Data 12
13 IDE Data 2 14 IDE Data 13
15 IDE Data 1 16 IDE Data 14
17 IDE Data 0 18 IDE Data 15
19 Ground 20 NC
21 DREQ0 22 GND
23 IDEIOW# 24 GND
25 IDEIOR# 26 GND
27 IDEIORDY 28 CBSEL
29 DACK0# 30 GND
31 IDEIRQ14 32 NC
33 IDE Address 1 34 PDIAG#
35 IDE Address 0 36 IDE Address 2
37 IDE Chip select 1# 38 IDE Chip select 3#
39 IDE activity 40 GND
41 +5V 42 +5V
43 GND 44 NC

1

43

2

44

Table 2-14. IDE1 Connector pin definition

Jumper Settings and Pin Definitions 2-9KEEX-2010 Series User Guide

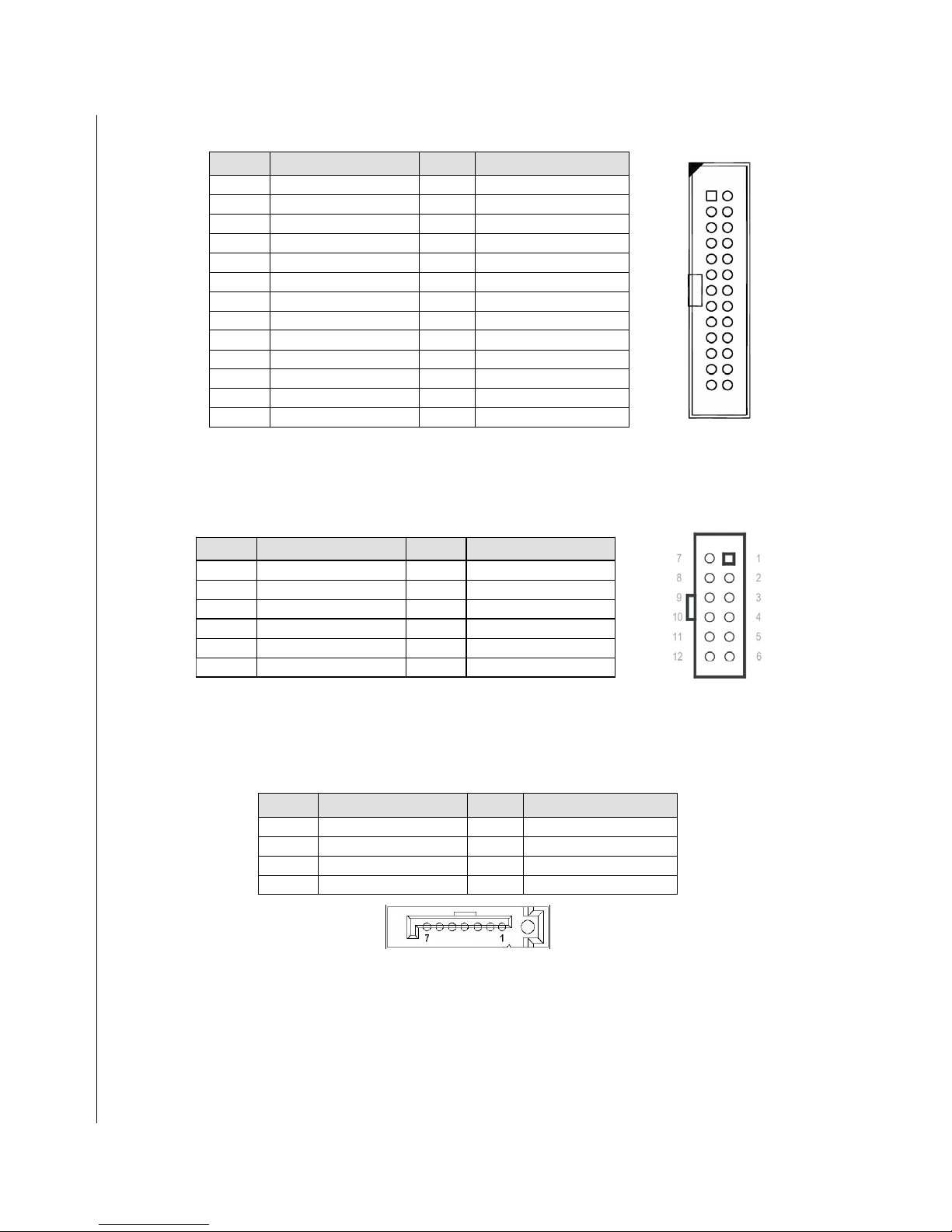

X Parallel Port Connector (LPT1: 13x2 box header 2.0mm pitch):

L

PIN SIGNAL PIN SIGNAL

1 #STROBE 2 #AFD
2 DATA0 4 #ERROR
3 DATA1 6 #INIT
4 DATA2 8 #SLIN
5 DATA3 10 GND
6 DATA4 12 GND
7 DATA5 14 GND
8 DATA6 16 GND

9 DATA7 18 GND
10 #ACK 20 GND
11 BUSY 22 GND
12 PE 24 GND
13 SELECT 26 N.C.

Table 2-15. Parallel Port Connector pin definition

X ATX Power Connector (PWR1: 6x2 pin female):

PIN SIGNAL PIN SIGNA

1 GND 7 GND
2 VCC 8 GND
3 VCC 9 VCCSB
4 GND 10 PSON
5 VCC 11 GND
6 VCC 12 +12V

X Serial ATA Connector (SATA1-2: 7-pin "L" type - KEEX-2000 only):

PIN SIGNAL PIN SIGNAL

1 GND 2 SATA_TXP
3 SATA_TXN 4 GND
5 SATA_RXN 6 SATA_RXP
7 GND

2-10 KEEX-2010 Series User Guide

Table 2-16. ATX Power Connector pin definition

Table 2-17. Serial ATA Connector pin definition

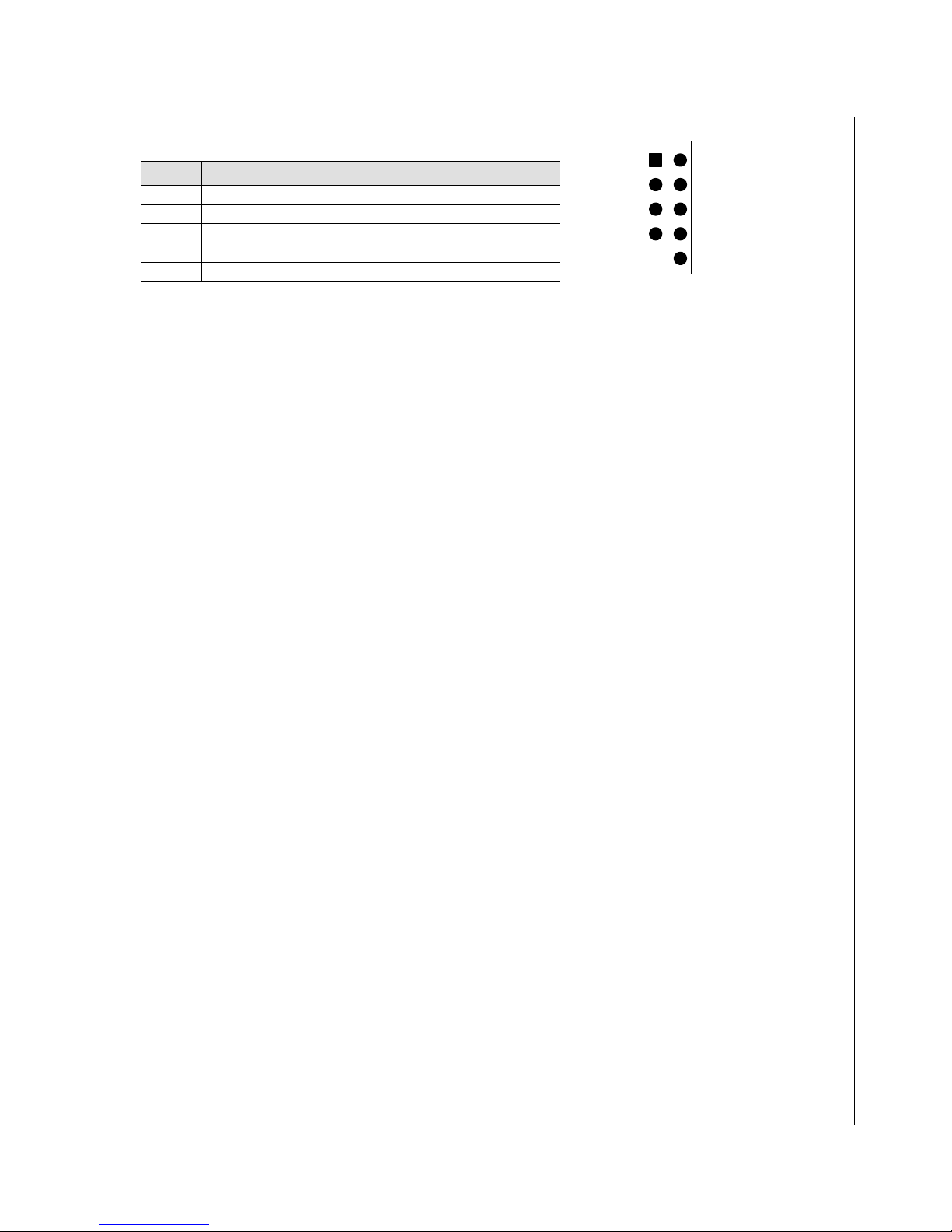

X USB Pin Headers (USB1-2: 5x2-pin header 2.54mm pitch):

1

PIN SIGNAL PIN SIGNAL

1 +5V 2 +5V
3 USBD0/2- 4 USBD1/3­5 USBD0/2+ 6 USBD1/3+
7 GND 8 GND
9 “key” 10 GND

Table 2-18. USB Header pin definition

3
5
7

2
4
6
8

10

Jumper Settings and Pin Definitions 2-11KEEX-2010 Series User Guide

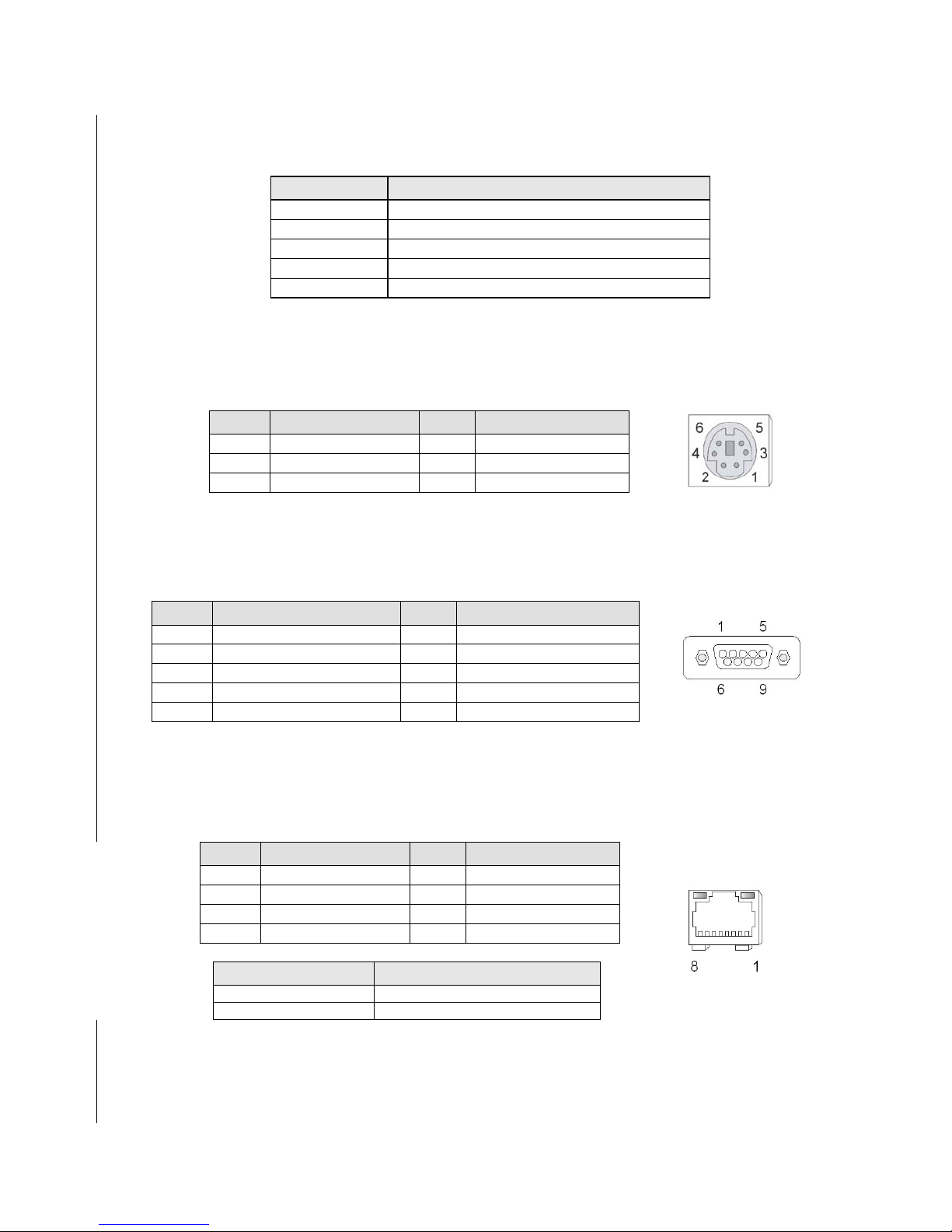

X Pin Definitions - Rear Panel

Connector Function

KM1 PS2 Mouse / Keyboard Connector
COM1 RS-232 Serial Port Conn ector
LAN1 LAN Connector
USB3 USB Connector
DVI1 DVI-D Display Connector

Table 2-19. KEEX-2010 Rear Panel Connector Descriptions

X Keyboard/Mouse Connector (KM1: 6-pin Mini DIN):

PIN SIGNAL PIN SIGNAL

1 Keyboard data 2 Mouse data

3 Ground 4 +5V

5 Keyboard clock 6 Mouse clock

Table 2-20. Keyboard/Mouse Connector pin definition

X COM1 RS-232 Serial Port Connector (COM1: D-Sub 9-pin male):

PIN SIGNAL PIN SIGNAL

1 DCD (Data Carrier Detect) 6 DSR (Data Set Ready)
2 RXD (Receive Data) 7 RTS (Request to Send)
3 TXD (Transmit Data) 8 CTS (Clear to Send)
4 DTR (Data Terminal Ready) 9 RI (Ring Indicator)
5 Ground

Table 2-21. COM1 RS-232 Serial Port Connector pin definition

X Gigabit Ethernet Connector (LAN1: RJ-45):

PIN SIGNAL PIN SIGNAL

1 MDI 0+ 2 MDI 0­3 MDI 1+ 4 MDI 1­5 MDI 2+ 6 MDI 2­7 MDI 3+ 8 MDI 3-

LAN LED Function

Yellow LINK / ACTIVE
OFF / Green / Orange Speed 10 / Speed 100 / Speed 1000

Table 2-22. LAN1 Gigabit Ethernet Connector pin definition

2-12 KEEX-2010 Series User Guide

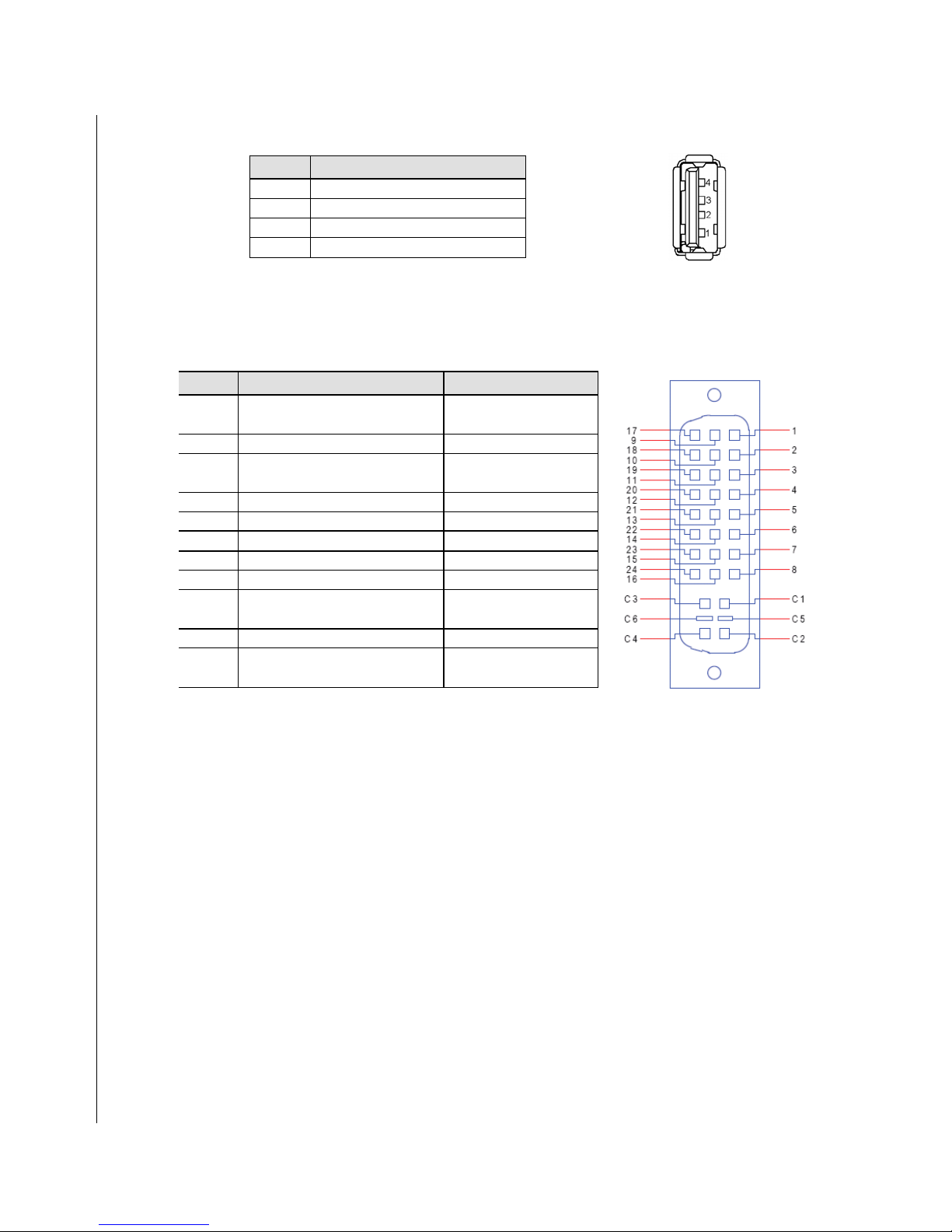

X USB3 Connector (USB3: 4-pin Type-A female):

L

PIN SIGNA

1 VCC
2 USB5 -
3 USB5 +
4 GND

Table 2-23. USB4 Connector pin definition

X DVI-D Display Connector (DVI1: D-Sub 15-pin female):

PIN SIGNAL PIN SIGNAL

1 TX2- 16 EDGE
2 TX2+ 17 TX0­3 GND 18 TX0+
4 NC 19 GND
5 NC 20 NC
6 SCL 21 NC
7 SDA 22 GND
8 NC 23 TXC+

9 TX1- 24 TXC­10 TX1+ C1 NC
11 GND C2 NC
12 NC C3 NC
13 NC C4 NC
14 +5V C5 GND
15 GND C6 GND

2-13 KEEX-2010 Series User Guide

Table 2-24. DVI-D Display Connector pin definition

Chapter 3

X System Installation

Contents

Memory Module Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Installing a SO-DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Removing a SO-DIMM: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

This page intentionally left blank.

3-2 KEEX-2010 Series User Guide

X Memory Module Installation

DDR2 SO-DIMMs have 200-pins and one notch that will match with the onboard SO-DIMM socket. Make
sure that your module is the correct specification for your board.

X Installing a SO-DIMM

X Carefully follow the steps below in order to install the SO-DIMMs:

1) To avoid genera ti ng static electricity and damaging the SO-DIMM, ground yourself by touching a
grounded metal surface or use a ground strap before you touch the SO-DIMM.

2) Do not touch the connectors of the SO-DIMM. Dirt or other residue may cause a malfunction.

3) Hold the SO-DIMM with its notch aligned with the memory socket of the KEEX-2010 and insert it at a
30-degree angle into the socket.
.

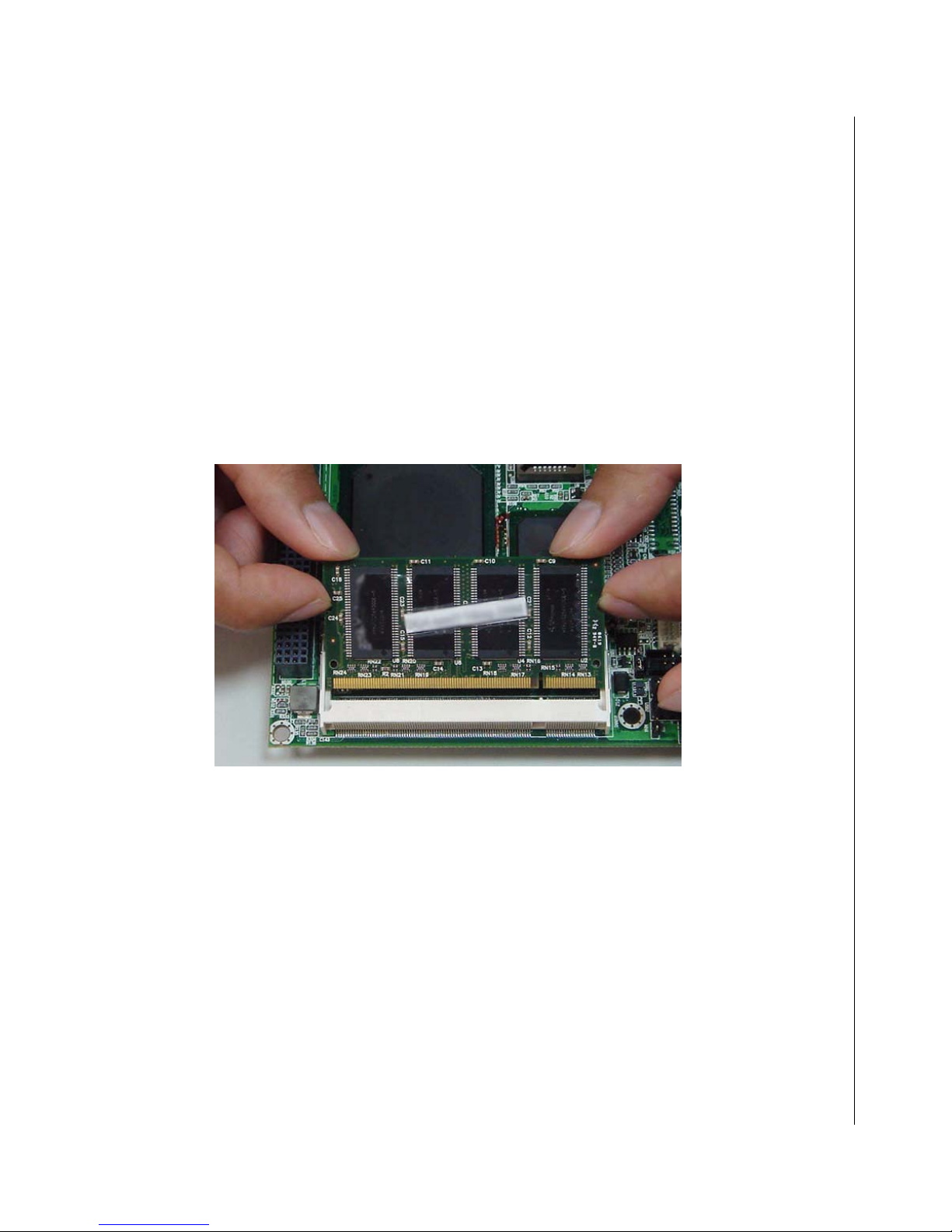

Figure 3-1. Align the SO-DIMM Memory Module with the onboard socket

Memory Module Installation 3-3KEEX-2010 Series User Guide

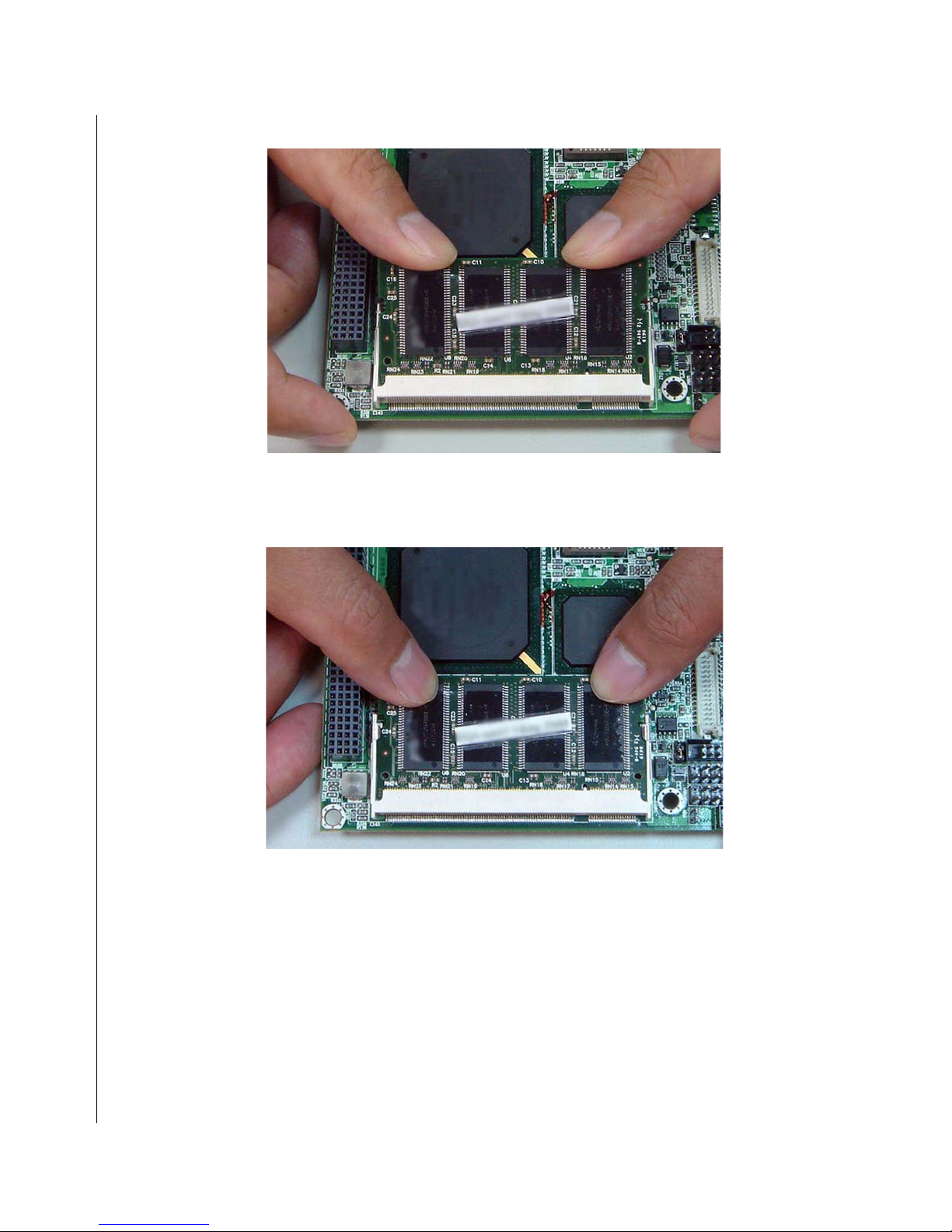

4) Fully insert the module into the socket until a “click” is heard.
.

Figure 3-2. Fully insert the SO-DIMM Memory Module into the onboard socket

5) Press down on the SO-DIMM so that the tabs of the socket lock on both sides of the module.
.

Figure 3-3. Press down on the SO-DIMM Memory Module to lock it in place

X Removing a SO-DIMM:

To remove the SO-DIMM, use your fingers or a small screwdriver to carefully push away the tabs that
secure either side of the SO-DIMM. Lift it out of the socket.

Make sure you store the SO-DIMM in an anti-static bag. The socket must be populated with memory
modules of the same size and manufacturer.

3-4 KEEX-2010 Series User Guide

Chapter 4

X Award BIOS Setup

Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Main Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Standard CMOS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

IDE Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Advanced BIOS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

CPU Feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Advanced Chipset Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

DRAM Clock/Drive Control. . . . . . . . . . . . . . . . . . . . . . . . . 4-13

AGP & P2P Bridge Control. . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Integrated Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

VIA OnChip IDE Device . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

VIA OnChip PCI Device . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

SuperIO Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

USB Device Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Power Management Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Wakeup Event Detect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

PnP/PCI Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

PC Health Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

Frequency/Voltage Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Load Fail-Safe Defaults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Load Optimized Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Supervisor/User Password Setting . . . . . . . . . . . . . . . . . . . . . . 4-26

Exit Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26

This page intentionally left blank.

4-2 KEEX-2010 Series User Guide

X Overview

This chapter provides a description of the Award BIOS. The BIOS setup menus and available selections may
vary from those of your product. For specific information on the BIOS for your product, please contact
Quanmax.

Note: The BIOS menus and selections for your product may vary from
those in this chapter. For the BIOS manual specific to your product, please
contact Quanmax.

Award's ROM BIOS provides a built-in Setup program, which allows the user to modify the basic system
configuration and hardware parameters. The modified data will be stored in a battery-backed CMOS, so that
data will be retained even when the power is turned off. In general, the information saved in the CMOS RAM
will not need to be changed unless there is a configuration change in the system, such as a hard drive
replacement or when a device is added.

It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you
will need to reconfigure your BIOS settings.

Overview 4-3KEEX-2010 Series User Guide

X Main Menu

Once you enter the AwardBIOS™ CMOS Setup Utility, the Main Menu will appear on the screen. The Main
Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select
among the items and press <Enter> to accept your choice and enter the sub-menu.

Phoenix - AwardBIOS CMOS Setup Utility

¾Standard CM OS Features
¾Advanced BIOS Featu res
¾Advanced Chipse t Features
¾Integrated Peripherals
¾Powe r Managem ent Setups
¾PnP/PCI Conf igurat ions
¾PC Health Status

Esc: Quit ↑ ↓ →←: Sel ect Item
F10: Sa v e & E xit Se tu p

Ti me, Dat e, H a rd Disk T ype….

Table 4-1. Main Menu

Note: A brief description of each highlighted selection appears at the bottom of the screen.

¾Frequency/Voltage Cont rol

Load Fail-Saf e Defaults
Load Optimized Default s
Set Superv i sor Pass wor d
Set User Password
Save & Exit Setup
Exit Without Saving

X Setup Items

The main menu includes the following main setup categories. Recall that some systems may not include
all entries. Each category is described in detail in the sections which follow.

X Standard CMOS Features

Use this menu for basic system configuration.

X Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

X Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize your system's performance.

X Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

X Power Management Setup

Use this menu to specify your settings for power management.

4-4 KEEX-2010 Series User Guide

X PnP / PCI Configuration

This entry appears if your system supports PnP / PCI.

X PC Health Status

This menu displays the current CPU temperature, the fan speeds, voltages etc.

X Frequency/Voltage Control

This menu displays the Frequency and Voltage Control settings.

X Load Failsafe Defaults

Use this menu to load the BIOS default values for the minimal/stable performance required for your system to
operate.

X Load Optimized Defaults

Use this menu to load the BIOS default values that are factory settings for optimal performance and system
operations. While Award has designed the custom BIOS to maximize performance, the factory has the right
to change these defaults to meet their needs.

X Set Supervisor/User Password

Use this menu to set User and Supervisor Passwords.

X Save & Exit Setup

Save CMOS value changes to CMOS and exit setup.

X Exit Without Save

Abandon all CMOS value changes and exit setup.

Main Menu 4-5KEEX-2010 Series User Guide

X Standard CMOS Features

The items in the Standard CMOS Setup Menu are divided into 10 categories. Each category includes no,
one or more setup items. Use the arrow keys to highlight the item and <PgUp> or <PgDn> keys to select
the value you want for each item. Note the “Halt On” option which allows you to select the situation in which
you want the BIOS to stop the POST process and notify you.

Phoenix - AwardBIOS CMOS Setup Utility

St andar d CM OS Feat ur es

Date (mm:dd:yy):
Time (hh:mm:ss):

¾ IDE Channel 0 Master
¾ IDE Channel 0 Slave
¾ IDE Channel 2 Master
¾ IDE Channel 2 Slave

Video
Halt On

Bas ed Memory
Exten ded Memo ry
Tot a l Memory

↑↓ →←Move Enter: Sel e ct +/-/PU/PD: Valu e F10: Save ESC: Exit F1: General Help
F5: Previo us Value s F6: Fail-safe defaults F7: Opt im iz e d D efa u l ts

Mon, Mar 6 2006
16:19:20

[13579 MB]
[None]
[None]
[None]

[EGA/VGA]
[All, But K eyboard]

640K
515072K
516096K

Item Help

____________________________
Menu Level ¾
Change the day, month, year and

century

Table 4-2. Standard CMOS Features

X Date

Options - Month/DD/YYYY

Set the system date. Note that the 'Day' automatically changes when you set the date.

X Time

Options - HH : MM : SS

Set the system time.

X IDE Channel 0/2 Master/Slave

Options are available in the sub-menu (described in the IDE Adapters section below)

Press <Enter> to enter the sub-menu and select detailed options.

Note: Channel 0 corresponds to the Primary IDE port. Channel 2 corresponds to the SATA ports.
Channel 1 is allocated to the Secondary IDE port, which is not supported on this board.

4-6 KEEX-2010 Series User Guide

X Video

Options - EGA/VGA/CGA 40/CGA 80/MONO

Select the default video device.

X Halt On

Options - All Errors/No Errors/All, but Keyboard/All, but Diskette/All, but Disk/Key

Select the situation in which you want the BIOS to stop the POST process and notify you.

X Base Memory

Options - N/A

Displays the amount of conventional memory detected during boot.

X Extended Memory

Options - N/A

Displays the amount of extended memory detected during boot.

X Total Memory

Options - N/A

Displays the total memory available on the system.

X IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub-menu to configure each hard disk drive.

Phoeni x - AwardBIOS CMOS Setup Utility

IDE Channel 0 Master

IDE HDD Auto-Detec tion
IDE Channel 0 Master

Access Mode

Capacity
Cylinder

Head
Precomp
Land in g Z o ne
Sector

↑↓→←Move Enter: Se le ct +/-/PU/PD: Value F10: Sav e ESC: Exi t F1: General Help
F5: Previous Val ues F6: Fail-s afe def au lts F7: Optimized Def aults

Press Enter
Auto

Auto

13579 MB
26310

16
0
26309
63

Item Help

____________________________
Menu Level ¾¾
To auto-detec t the HDD’s size,

head... on this cha nnel

Table 4-3. IDE Primary Master

Standard CMOS Features 4-7KEEX-2010 Series User Guide

X IDE HDD Auto-Detection

Options - Press Enter
Press Enter to auto-detect the HDD on this channel. If detection is successful, the utility will fill the

remaining fields on this menu.

X IDE Channel 0/2 Master/Slave

Options - None, Auto and Manual
Selecting "Manual" lets you set the remaining fields on this screen. Selects the type of fixed disk. "User

Type" will let you select the number of cylinders, heads, etc. Note: PRECOMP=65535 means NONE!

X Access Mode

Options - CHS, LBA, Large and Auto
Choose the access mode for this hard disk

X Capacity

Options - Auto Display your disk drive size
Disk drive capacity (approximate). Note that this size is usually slightly greater than the size of a formatted

disk given by a disk-checking program.

*The following options are selectable only if the 'IDE Primary/Secondary Master' item is set to
'Manual'

X Cylinder

Options - Min = 0, Max = 65535
Set the number of cylinders for this hard disk.

X Head

Options - Min = 0, Max = 255
Set the number of read/write heads.

X Precomp

Options - Min = 0, Max = 65535
**** Warning: Setting a value of 65535 means no hard disk!

X Landing zone

Options - Min = 0, Max = 65535

X Sector

Options - Min = 0, Max = 255
Number of sectors per track

4-8 KEEX-2010 Series User Guide

X Advanced BIOS Features

This section allows you to configure your system for basic operation. You have the opportunity to select the
system's default speed, boot-up sequence, keyboard operation, shadowing and security.

Phoenix - AwardBIOS CMOS Setup Utility

Advanc ed B IO S Features

¾ CPU Feature
¾ Hard Disk Boot Priority

Virus Warning
CPU L1 & L2 Cache
CPU L2 Cache ECC Checking
Quick Power On Self Test
First Boot Device
Second Boot Device
Third Boot Device
Boot Other Device
Boot Up Floppy Seek
Boot Up NumLock Status

Typematic Rate Setting

x Type ma ti c Ra t e (Ch a rs /Sec)
x Typematic Delay (Msec)

Securi ty Opt ion

MPS Version control For OS

OS Select For DRAM > 64MB

HDD S.M.A.R.T . Capability

Video BIOS Shad ow

Small Logo(EPA) Show

↑↓→←Move Enter: S e le ct +/-/PU/PD: Value F10: Sa v e ESC: Ex it F1: Ge ner al Help
F5: Previous Values F6: Fail-safe defaults F7: Opt imiz e d De fa u l ts

[Press Enter]
[Press Enter]
[Dis abled]
[Enabled]
[Enabled]
[Enabled]
[Hard Disk ]
[CDROM]
[LS-120]
[Enabled]
[Disabled]
[On]
[Disabled]

6
250

[Setup]
[1.4]
[Non-OS2]
[Disabled]
[Enabled]
[Disabled]

Item Help

____________________________
Menu Level ¾

Table 4-4. Advanced BIOS Features

X CPU Feature

Press Enter to select CPU Feature.

Delay Prior to Thermal

Thermal Management

x Thermal Mo nitor Bus Ratio
x Thermal Mo nitor Bus VID

↑↓→←Move Enter: Select +/-/PU/PD: Valu e F10: Sav e ESC: Exit F1: General Help
F5: Previous Values F6: Fail-saf e defaul ts F7: Optimiz ed Defaults

Table 4-5. Advanced CPU Feature

X Delay Prior to Thermal

Selecting this item allows a delay prior to thermal time.

Options - 4Min, 8Min, 16Min and 32Min.

CPU Feature

[16 Min]
[Therm al M onitor 1]

8 X

1. 0 04V

Item Help

____________________________
Menu Level ¾¾

Advanced BIOS Features 4-9KEEX-2010 Series User Guide

X Thermal Management

Allows you to select the Thermal Monitor.

Options - Thermal Monitor1 (on-die throttling), Thermal Monitor2 (Ratio and VID transition).

X Hard Disk Boot Priority

Press Enter to select Hard Disk Boot Device Priority.

X Virus Warning

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function
is enabled and someone attempts to write data into this area, the BIOS will show a warning message on
the screen and sound an alarm beep.:

 Enabled - Activates automatically when the system boots up and causes a warning

message to appear when anything attempts to access the boot sector or hard disk partition
table.

 Disabled - No warning message will appear when anything attempts to access the boot

sector or hard disk partition table.

X CPU Internal Cache

Options –Disabled, Enabled

X Quick Power On Self Test:

This option speeds up the Power On Self T est (POST) which runs when you power up the computer. If it is
set to Enabled, BIOS will shorten or skip some check items during POST.

 Enabled - Enable quick POST
 Disabled - Normal POST

X First/Second/Third Boot Device:

The BIOS will attempt to load the operating system from the devices specified here as the first, second and
third boot devices.

Options - Floppy, LS/ZIP, Hard Disk, CDROM, LAN and Disabled.

X Boot Other Device:

When enabled, the system will search all other possible locations for an operating system if it fails to find
one in the devices specified under the first, second, and third boot devices.

Options - Enabled, Disabled

4-10 KEEX-2010 Series User Guide

X Boot Up Floppy Seek

If enabled, the system will seek for disk drives during boot up. Disabling will speed boot up.

Options - Enabled, Disabled

X Boot Up NumLock Status

Select the powe- on state for NumLock.

Options - On, Off

X T ypematic Rate Setting

Manually set the Typematic Rate or the Typematic Delay.

X T ypematic Rate (Chars/Sec)

The highest number of characters that can be typed in a second on the keyboard.

X T ypematic Delay (Msec)

The time (in milliseconds) needed before pressing again a key on the keyboard.

X Security Option

Select whether a password is required every time the system boots or only when you enter setup.

 System - The system will not boot and access to Setup will be denied if the correct password

is not entered at the prompt.

 Setup - The system will boot, but access to Setup will be denied if the correct password is not

entered at the prompt.

Note: To disable security, select PASSWORD SETTING at the Main Menu. You will be asked to enter
password. Do not type anything and just press <Enter> to disable security. Once security is disabled, the
system will boot and you can enter Setup freely.

X MPS Version Control For OS

This option is specifies the MPS (Multiprocessor Specification) version for your operating system. MPS
version 1.4 added extended configuration tables to improve support for multiple PCI bus configurations and
improve future expandability.

Options - 1.4, 1.1

X OS Select For DRAM > 64MB

This option allows the system to access greater than 64MB of DRAM memory when used with OS/2 that
depends on certain BIOS calls to access memory.

Options - OS2, Non-OS2

Advanced BIOS Features 4-11KEEX-2010 Series User Guide

X HDD S.M.A.R.T. Capability

Options - Enabled, Disabled

X Video BIOS Shadow

Options - Enabled, Disabled

X Small Logo(EPA) Show

This field enables the display of the EPA logo located at the upper right of the screen during boot up.

Options - Enabled, Disabled

4-12 KEEX-2010 Series User Guide

X Advanced Chipset Features

This section allows you to configure the system based on the specific features of the installed chipset. Please
note that these items should never need to be altered. The default settings have been chosen because they
provide the best operating conditions for your system. The only time you might consider making any changes
would be if you discovered that data was being lost while using your system.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced Chipset Feat ures

¾ DRAM Clock/Drive Control
¾ AGP & P2P Bridge Contro l

Memory Hole
System BIOS Cacheable
Video RAM Cacheable
Top Performance

↑↓→←Move Enter: Se l e ct +/-/PU/PD: Value F10: Sa v e ESC: Ex it F1: Ge ner al Help
F5: Previous Values F6: Fail-safe defaults F7: Op tim ize d De fa u l ts

[Pre ss Enter]
[Pre ss Enter]
[Disabled]
[Enabled]
[Disabled]
[Disabled]

Table 4-6. Advanced Chipset Features

Item Help

_________________________
Menu Level ¾

X DRAM Clock/Drive Control

Press Enter to select DRAM Clock/Drive Control.

DR AM Clock /Dr iv e Control

Current FSB Frequency
Current DRAM Frequenc y

DRAM Clock

DRAM Timing

x SDRAM CAS Latency [D DR/DDR
x Bank Interleave
x Precharge to Active (Tr p)
x Active to Prechar ge(Tras)
x Active to CMD (Trcd)
x RE F to A C T/ R E F (Tr f c)
x ACT(0) to AC T(1) (TRRD )

↑↓ →←Move Enter: Se le ct +/-/PU/PD: V a lue F10: Save ESC: Exi t F1: General He lp
F5: Previous Val ues F6: Fail- s afe def aults F7: Optimized Def aul t s

Table 4-7. DRAM Clock/Drive Control

100MHz
266MHz

[By SPD]
[Auto by SPD]

[2.5/ 4]
Disabled
4T
07T
4T
20T/21/T
3T

Item Help

__________________________
Menu Level ¾

Advanced Chipset Features 4-13KEEX-2010 Series User Guide

X DRAM Clock

Selects the DRAM Clock frequency.

Options - By SPD, 200 MHz, 266 MHz, 333 MHz

X DRAM Timing

Selects the DRAM Timing.

Options - Auto by SPD, Manual

X AGP & P2P Bridge Control

Press Enter to select AGP & P2P Bridge Control.

AGP Aperture Size
GVA Share Memory Size
Direct Frame buffer
Select Dis play Dev ice
Panel Type

↑↓ →←Move Enter: Se le ct +/-/PU/PD: V a lue F10: Save ESC: Exit F1: Gene ra l Help
F5: Previous Val ues F6: Fail- s afe def aults F7: Optimized Def aul t s

AGP & P2P Bri dge Control

[128M]
[128M]
[Enabled]
[CRT]
[640x480]

Item Help

_________________________
Menu Level ¾

Table 4-8. AGP & P2P Bridge Control

X Select Display Device

Selects the video display device.

Options - CRT, LCD, DVI, CRT+LCD, CRT+DVI

X Panel Type

Selects the LCD Panel resolution.

Options - 640x480, 800x600, 1024x768, 1280x768, 1280x1024, 1600x1200, 1440x900, 1280x800,
800x480

X Memory Hole

Options - Disabled, Enabled

4-14 KEEX-2010 Series User Guide

X Integrated Peripherals

Phoenix - A wardBIOS CM OS Setup Utility

Integrated Peripherals

¾ VIA OnChi p IDE Device
¾ VIA OnChi p PCI Device
¾ SuperIO Device

PWRON After PWR-Fail

¾ USB Dev ic e Setting

↑↓→←Move Enter: S e le ct +/-/PU/PD: Value F10: Sa v e ESC: Ex it F1: Ge ner al Help
F5: Previous Values F6: Fail-safe defaults F7: Opt imiz e d De fa u l ts

Table 4-9. Integrated Peripherals

X VIA OnChip IDE Device

Press Enter to select VIA OnChip IDE Device.

SATA Controller

SATA Controller Mode

IDE DMA transf e r access

OnChip IDE Channel0

IDE Prefetch Mode

Primary Ma st er PIO

Primary Slave PIO

Primary Mast er UDMA

Primary Slave UDMA

IDE HDD Block Mode

↑↓ →←Move Enter: Se le ct +/-/PU/PD: V a lue F10: Save ESC: Exi t F1: General Help
F5: Previous Val ues F6: Fail- s afe def aults F7: Optimized Def a ults

[Press Enter]
[Press Enter]
[Press Enter]
[Off]
[Press Enter]

VIA OnChip IDE Device

[Enabled]
[IDE]
[Enabled]
[Enabled]
[Enabled]
[Auto]
[Auto]
[Auto]
[Auto]
[Enabled]

Item Help

____________________________
Menu Level

Item Help

__________________________
Menu Level ¾

X SATA Controller

Options - Enabled, Disabled.

X SATA Controller Mode

Options - IDE, RAID, AHCI.

X IDE DMA transfer access

Options - Enabled, Disabled.

Table 4-10. VIA OnChip IDE Device

Integrated Peripherals 4-15KEEX-2010 Series User Guide

X OnChip IDE Channel0

Options - Enabled, Disabled.

X IDE Prefetch Mode

Options - Enabled, Disabled.

X Primary Master/Slave Drive PIO Mode

The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the two IDE
devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased
performance. In Auto mode, the system automatically determines the best mode for each device.

Options - Auto, Mode 0, Mode 1, Mode 2, Mode 3 and Mode 4

X Primary Master/Slave UDMA

Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating
environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If your
hard drive and your system software both support Ultra DMA/33, select "Auto" to enable BIOS support.

Options - Auto, Disabled

X IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard
drive supports block mode (most new drives do), select Enabled for automatic detection of the optimal
number of block read/writes per sector the drive can support.

Options - Enabled, Disabled

X VIA OnChip PCI Device

Press Enter to select VIA OnChip PCI Device.

Azalia HDA Controller
Giga LA N Controller

↑↓ →←Move Enter: Se le ct +/-/PU/PD: V a lue F10: Save ESC: Exi t F1: General He lp
F5: Previous Val ues F6: Fail- s afe def aults F7: Optimized Def aul t s

VIA OnChip PCI Device

[Auto]
[Enabled]

__________________________
Menu Level ¾

Table 4-11. VIA OnChip PCI Device

Item Help

X Azalia HD Audio Controller

Options - Auto, Disabled.

4-16 KEEX-2010 Series User Guide

X Giga LAN Controller

Options - Enabled, Disabled.

X SuperIO Device

Press Enter to select SuperIO Device.

Onboar d S er ial Po r t 1
Onboar d S er ial Po r t 2
UART2 Transmission Type
Onboar d P ar allel Port

Parallel Port Mode

x EPP Mode Select
x ECP Mode Use DMA

↑↓ →←Move Enter: Se le ct +/-/PU/PD: V a lue F10: Save ESC: Exit F1: Gene ra l Help
F5: Previous Val ues F6: Fail-s afe def aults F7: Optimized Def aults

X Onboard Serial Port 1/2

　 SuperIO Device

[3F8/IRQ4]
[2F8/IRQ3]
[RS-232]
[378/IRQ7]
[SPP]

EPP1.7
3

__________________________
Menu Level ¾

Table 4-12. SuperIO Device

Item Help

Select an address and corresponding interrupt for the first and second serial ports.

Options - 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled and Auto.

X UART2 Transmission Type

This item allows you to select the UART2 Transmission type.

Options - RS-232, RS-422, RS-485.

X Onboard Parallel Port

This item allows you to determine which access onboard parallel port controller goes with which I/O address.

Options - 3BC/IRQ7, 378/IRQ7, 278/IRQ5 and Disabled.

X Parallel Port Mode

Select an operating mode for the onboard parallel (printer) port. Select Normal, Compatible, or SPP unless
you are certain your hardware and software both support one of the other available modes.

Options - SPP, EPP, ECP and ECP+EPP.

X EPP Mode Select

Select either EPP1.7 or EPP1.9.

Integrated Peripherals 4-17KEEX-2010 Series User Guide

X ECP Mode Use DMA

Select a DMA channel for the parallel port for use during ECP mode.

Options - 3, 1.

X PWRON After PWR-Fail

Allows you to set the the “Power On After Power Fail” function.

Options - Former-Status, On, Off

X USB Device Setting

Press Enter to select USB Device Setting.

　 USB Device Setting

Onboar d US B 1.0 Controller
Onboar d US B 2.0 Controller
USB Operation Mode
USB Keyboard Function
USB Mouse Func tion
USB Storage Functi on

*** USB Mass Storage Device Boot Setting ***
USB Mass Storag e Device

↑↓ →←Move Enter: Se le ct +/-/PU/PD: V a lue F10: Save ESC: Exit F1: Gene ra l Help
F5: Previous Val ues F6: Fail-s afe def aults F7: Optimized Def aults

[Enabled]
[Enabled]
[High Sp eed]
[Enabled]
[Enabled]
[Enabled]

[Au to mode]

Item Help
__________________
Menu Level ¾

X Onboard USB 1.0 Controller

Turns on/off the onboard Universal Host Controller.

Options - Enabled, Disabled

X Onboard USB 2.0 Controller

Turns on/off the onboard Enhanced Host Controller.

Options - Enabled, Disabled

X USB Operation Mode

High Speed mode will automatically operate at either high speed or full/low speed, depending on the
device. Full/Low Speed mode will operate at full/low speed.

Options - High Speed, Full/Low Speed

4-18 KEEX-2010 Series User Guide

Table 4-13. USB Device Setting

X Onboard Keyboard Function

Enables/disables USB keyboard function for legacy operating systems (e.g. DOS).

Options - Enabled, Disabled

X Onboard Mouse Function

Enables/disables USB mouse function for legacy operating systems (e.g. DOS).

Options - Enabled, Disabled

X Onboard Storage Function

Enables/disables USB storage function for legacy operating systems (e.g. DOS).

Options - Enabled, Disabled

X USB Mass Storage Device Boot Setting

Auto mode will boot according to the contents of the USB Mass Storage Device. FDD mode will boot as a
floppy disk. HDD mode will boot as a hard disk.

Options - Auto mode, FDD mode, HDD mode

Integrated Peripherals 4-19KEEX-2010 Series User Guide

X Power Management Setup

The Power Management Setup allows you to configure your system to most effectively save energy while
operating in a manner consistent with your own style of computer use.

Phoenix - AwardBIOS CMOS Setup Utility

Pow er Managem ent Setup

ACPI Function

x ACPI Suspend Type

Power Management Option
HDD Power Down
Suspend Mode
Vid e o Off Optio n
Video Off Method
MO DEM Use IR Q
Soft-Off by PWR-BTTN

¾ Wakeup Event De tect

↑↓ →←Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: Gen eral Help
F5: Previous Val ues F6: Fail-safe defaults F7: Optimize d De faults

[Enabled]
S1(POS)
[Use r D ef i n e]
[Disabled]
[Disabled]
[Suspend -> Off]
[V/H SYNC+Blank]
[3]
[Instant-Off]
[Press Enter]

Table 4-14. Power Management Setup

Item Help

___________________________
Menu Level ¾

X ACPI Function

This item allows you to enable or disable the Advanced Configuration and Power Management(ACPI).

Options - Enabled, Disabled

X ACPI Suspend Type

Power saving modes for the ACPI function.

 S1 (POS): Power on Suspend

X Power Management Option

This field allows you to select the type (or degree) of power saving by changing the length of idle time that
elapses before the Suspend mode and HDD Power Down fields are activated.

 Min Saving: Minimum power saving time for the Suspend Mode (1 hour) and HDD Power

Down (15 min.)

 Max Saving: Maximum power saving time for the. Suspend Mode and HDD Power Down =

1 min.

 User Define: Allows you to set the power saving time in the“Suspend Mode” and “HDD

Power Down”fields.

4-20 KEEX-2010 Series User Guide

X HDD Power Down

This is selectable only when the Power Management Option field is set to User Define. When the system
enters the HDD Power Down mode according to the power saving time selected, the hard disk drive will be
powered down.

Options - Disable, 1 … 15 Min

X Suspend Mode

Sets the period of time after which the suspend mode activates.

Options - 1 Sec, 5 Sec, 10 Sec, 15 Sec, 30 Sec, 45 Sec, 1 Min, 5 Min, 10 Min, 15 Min, 30 Min, 45 Min, 60 Min,
90 Min. 120 Min

X Video Off Option

This field is used to activate the video off feature when the system enters the Suspend mode.

Options - Always On, Suspend -> Off

X Video Off Method

This determines the manner in which the monitor is blanked.

 Blank Screen: This option only writes blanks to the video buffer.
 V/H SYNC+Blank: This selection will cause the system to turn off the vertical and horizontal

synchronization ports and write blanks to the video buffer.

 DPMS: Initial display power management signaling.

X MODEM Use IRQ

This determines the IRQ, which can be applied in MODEM use.

Options: 3, 4, 5, 7, 9, 10, 11, NA

X Soft-Off by PWR-BTTN

This field allows you to select the method of powering off your system.

 Delay 4 Sec: Regardless of whether the Power Management function is enabled or disabled,

if the power button is pushed and released in less than 4 sec, the system enters the Suspend
mode. The purpose of this function is to prevent the system from powering off in case you
accidentally “hit” or pushed the power button. Push and release again in less than 4 sec to
restore. Pushing the power button for more than 4 seconds will power off the system.

 Instant-Off: Pressing and then releasing the power button at once will immediately power off

your system.

Power Management Setup 4-21KEEX-2010 Series User Guide

X Wakeup Event Detect

Press Enter to select Wakeup Event Detect.

Wakeup Event Detect

PowerOn by PCI Card
Modem Ring Res um e

RTC Alarm Resume

x Date (o f Mo n th )
x Resume Time (h h:mm: ss)

↑↓→←Move Enter: S el e ct +/-/PU/PD: Value F10: Sa v e ESC: Ex it F1: Ge ner al Help
F5: Previous Values F6: Fail-safe defaults F7: Optim iz e d D e fau l ts

Table 4-15. Wakeup Event Detect

X PowerOn by PCI Card

If enabled any PCI interrupt will wake up the system.

Options – By OS, Enabled

[By OS]
[By OS]
[Disabled]
0

0 : 0 : 0

Item Help

____________________________
Menu Level ¾

X Modem Ring Resume

If enabled a modem ring will wake up the system.

Options – By OS, Enabled

X RTC Alarm Resume

When “Enabled”, you can set the date and time at which the RTC (real-time clock) alarm awakens the
system from Suspend mode.

Options - Enabled, Disabled.

X Date / Resume Time

Set the date and time you want the alarm to go off.

4-22 KEEX-2010 Series User Guide

X PnP/PCI Configurations

This section describes the configuration of the PCI bus system. PCI, or Personal Computer Interconnect, is a
system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when
communicating with its own special components. This section covers some very technical items and it is
strongly recommended that only experienced users make any changes to the default settings.

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Conf igurations

PNP OS Installed
Init Display First
Reset Configuration Data

Resou rces Cont ro lled B y

X IRQ Resources

PCI/VG A Palette Sn oop
As sign IRQ For VGA
Assi gn IRQ For USB

** PCI Expre ss rleat i ve item s **

Maximum Payload Size

↑↓ →←Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Val ues F6: Fail-safe def aul t s F7: Op ti mized De fault s

[No]
[Onboard]
[Disabled]

[Auto ( ESCD)]

Press Enter

[Disabled]
[E n ab l e d ]
[E n ab l e d ]

[4096]

Item Help

_________________________
Menu Level ¾

Table 4-16. PnP/PCI Configurations

X PNP OS Installed

Select Yes if you are using a Plug and Play capable operating system.

Select No if you need the BIOS to configure non-Boot devices.

X Init Display First

Allows you to choose to first activate the VGA on PCI slot, or the onboard VGA.

Options – PCI Slot, Onboard

X Reset Configuration Data:

Normally, you leave this field Disabled. Select "Enabled" to reset the Extended System Configuration Data
(ESCD) when you exit Setup and you have installed a new add-on and the system reconfiguration has
caused such a serious conflict that the operating system cannot boot.

Options - Enabled, Disabled.

PnP/PCI Configurations 4-23KEEX-2010 Series User Guide

X Resources Controlled By:

This item allows you to automatically configure all the boot- and Plug and Play-compatible devices. If you
select Auto, all the interrupt request (IRQ) and DMA assignment fields are cleared, as the BIOS
automatically assigns them.

Options – Auto(ESCD), Manual

X IRQ Resources

When you are controlling resources manually, assign each system interrupt a type, depending on the type
of device using the interrupt.

X PCI/VGA Palette Snoop

Leave this field at "Disabled".

Options- Enabled, Disabled.

X PC Health Status

Phoenix - AwardBIOS CMOS Setup Utility

PC Health Status

Shutdown Temperature
CPU Warning Temperature

SYS Temp
CPU Temp
CPU Fan
CPU Vcore
+1.05V
+1.8V
+5V
+12V
VCC (V)
VBAT (V)
+3.3VSB

↑↓→←Move Enter: S el ect +/-/PU/PD: V a l ue F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-safe defaults F7: Optimiz ed Defaults

[Dis abled]

[Dis abled]

33ºC/ 91ºF
20ºC/ 68ºF

8231 RPM

1.00V

1.04V

1.82V

5.01V

11.67V

3.24V

3.16V

3.24V

Table 4-17. PC Health Status

X Shutdown Temperature

This item allows you to set up the CPU shutdown Temperature.

Options - Disabled, 60°C, 140°F, 65°C, 149°F, 70°C, 158°F

Item Help
__________________________

Menu Level ¾

X CPU Warning Temperature

Sets the CPU warning temperature.

4-24 KEEX-2010 Series User Guide

X Frequency/Voltage Control

Phoenix - AwardBIOS CMOS Setup Utility

Fr equenc y /Voltage Control

CPU Clock Ratio

↑↓→←Move Enter: Se l e ct +/-/PU/PD: Value F10: Sa v e ESC: Exi t F1: General Help
F5: Previous Values F6: Fail-safe defaults F7: Optimized Defaults

Table 4-18. Frequency/Voltage Control

X CPU Clock Ratio:

By default, the CPU Clock Ratio, is set to 10X.

[10 X]

Item Help

____________________________
Menu Level ¾

X Load Fail-Safe Defaults

When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N)? N

Pressing 'Y' loads the BIOS default values for the most stable, minimal-performance system operation.

X Load Optimized Defaults

When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Load Optimized Defaults (Y/N)? N

Pressing 'Y' loads the default values which are the factory settings for optimal-performance system operation.

Frequency/Voltage Control 4-25KEEX-2010 Series User Guide

X Supervisor/User Password Setting

You can set either the supervisor or the user password, or both. The differences between them are:

Supervisor: is allowed to enter Setup and change the options.
User: is allowed to enter Setup but not to change the options.

When you select either function, the following message will appear at the center of the screen to assist you
in creating a password.

ENTER PASSWORD:

Type the new password, up to eight characters in length, and press <Enter>. The new password will clear
any previously entered password from CMOS memory. You will be asked to confirm the password. Type
the password again and press <Enter>. You may also press <Esc> to abort the change.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will
confirm that password protection will be disabled. Once the password is disabled, the system will boot and
you can enter Setup freely.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup.
This prevents an unauthorized person from changing any part of your system configuration. Additionally,
when you have enabled a password, you can also require the BIOS to request the password every time
your system is rebooted. This would prevent unauthorized use of your computer.

You can determine when the password is requested in the BIOS Features Setup Menu and its Security
option (see above). If the Security option is set to "System", a password will be required both at boot and
on entry into Setup. If set to "Setup", a password is required only when trying to enter Setup.

X Exit Selection

X Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Save to CMOS and EXIT (Y/N)? Y

Pressing "Y" stores the selections you made in CMOS - a special section of memory that stays on after you
turn your system off. The next time you boot your computer, the BIOS configures your system according to
the Setup selections stored in CMOS. After saving the values, the system is restarted.

X Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing any changes in CMOS. The previous selections remain in
effect. This exits the Setup utility and restarts your computer.

4-26 KEEX-2010 Series User Guide

Chapter 5

X Driver Installation

Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Chipset Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Graphics Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

LAN Driver Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Audio Driver Installation (optional). . . . . . . . . . . . . . . . . . . . . . . . 5-3

This page intentionally left blank.

5-2 KEEX-2010 Series User Guide

X Overview

This chapter provides information on installing the necessary drivers for the KEEX-2010. The following
sections describe driver installation procedures for Windows operating systems. Download the drivers from
the Quanmax website and install them in the order they are listed below . For other operating systems, please

contact Quanmax.

Note: Driver downloads and additional information are available under
Downloads on our web site: www.quanmax.com.

X Chipset Driver Installation

Install the graphics driver by running the file “setup.exe” in VIA_HyperionPro_KEEX-2010.zip. After
installation is complete, reboot the system.

X Graphics Driver Installation

Install the graphics driver by running the file “setup.exe” in Graphics_KEEX-2010.zip. After installation is
complete, reboot the system.

X LAN Driver Installation

Download and extract the contents of LAN_KEEX-2010.zip. Install the Marvell LAN Driver (version

7.24.1.3) by using the Windows"Device Manager". Select the Ethernet controller marked with an exclamation
mark (“!”) under "Other Devices" and install the appropriate driver for your operating system.

X Audio Driver Installation (optional)

If you are using the optional KEDB-1000 Audio Daughter Board, download and extract the contents of
Audio_KEDB-1000.zip. Install the driver by running "WDM_R189.exe”. After installation is complete, reboot

the system.

Overview 5-3KEEX-2010 Series User Guide

This page intentionally left blank.

5-4 KEEX-2010 Series User Guide

Appendix A

X System Resources

Contents

Interrupt Request (IRQ) Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

DMA Channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Memory Mapping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

I/O Address Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

PCI Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

PCI Express Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

Inter-IC Bus (I2C). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

ISA I/O Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

This page intentionally left blank.

A-2 KEEX-2010 Series User Guide

X Interrupt Request (IRQ) Lines

IRQ # Used For Comment

0 Timer0
1 keyboard controller
2 Cascade
3 COM2 Note (1)
4 COM1 Note (1)
5 COM3 , COM4 Note (1)
6 Floppy disk controller Note (1)
7 free
8 Real Time Clock

9 ACPI-Compliant System
10 free
11 free
12 PS/2 Mouse Note (1)
13 Floating point unit (FPU / NPU

/ Math coprocessor)
14 Primary IDE channel Note (1)
15 Secondary IDE channel Note (1)

Table A-1. IRQ Assignments

Note: If the "Used For" device is disabled in setup, the corresponding interrupt is available for other
devices.

X DMA Channels

DMA # Used for Available Comment

0 Yes
1 No Note (1)
2 FDC No
3 No
4 Cascade No
5 No
6 Yes
7 Yes

Table A-2. DMA Assignments

Note: If the "Used For" device is disabled in setup, the corresponding interrupt is available for other
devices.

Interrupt Request (IRQ) Lines A-3KEEX-2010 Series User Guide

X Memory Mapping

r

t

Upper Memory Used fo

C0000h - CFFFFh VGA BIOS

D0000h – D1FFFh LAN PXE

E0000h - FFFFFh System BIOS

Table A-3. Memory Mapping

X I/O Address Map

I/O Address Used for Comment

00h – 0Fh
C0h – DFh

20h , 21h 8259A PIC

2Eh, 2Fh SuperIO Access Port

A0h, A1h 8259A PIC

40h – 43h (XT/AT)

44h – 47h (PS/2)

60h – 64h KeyBoard Controller
90h – 96h PS/2 P OS

F0h – FFh Math Co-Processor,X87 Unit
170h – 177h Secondary IDE
1F0h – 1F7h Primary IDE

295h, 296h HW Monitor Access Port
279h , A79h Plug and Play Configuration Register
2E8h – 2EFh COM4
2F8h – 2FFh COM2
3B0h – 3BFh MDA / MGA
3C0h – 3CFh EGA / VGA

3D4h – 3D9h

3E8h – 3EFh COM3
3F0h – 3F7h Floppy Diskette

3F6h, 3F7h Enhanced IDE

3F8h – 3FFh COM1

0C F8h P CI Configuration Register/Address
0CFCh PCI Configuration Register/data

8237DMA Controller

CGA/ CRT Register , Controller and

Pa let te R eg ist er

8254PIT

Commen

A-4 KEEX-2010 Series User Guide

Table A-4. I/O Address Map

X PCI Devices

PCI Device PCI Interrupt Comment

South Bridge - Uses an internal REQ/GNT pair

Table A-5. PCI Devices

X PCI Express Devices

PCIe Device PCIe Interrupt Comment

Slot1 INTA

LAN1 INTH

Table A-6. PCI Devices

X Inter-IC Bus (I

I2C Address Used For Comment

A0h DD R SO-DIMM

X ISA I/O Port

I2C Address Used For Comment

2Eh Super I/O
2Eh WatchDog Timer use F5h register in Super I/O

2

C)

Table A-7. Inter-IC Bus (I2C)

Table A-8. ISA I/O Port

PCI Devices A-5KEEX-2010 Series User Guide
