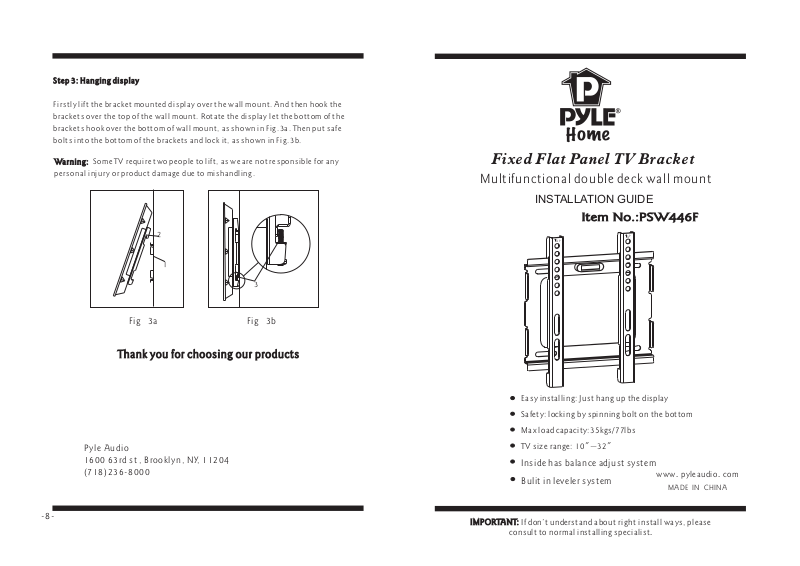

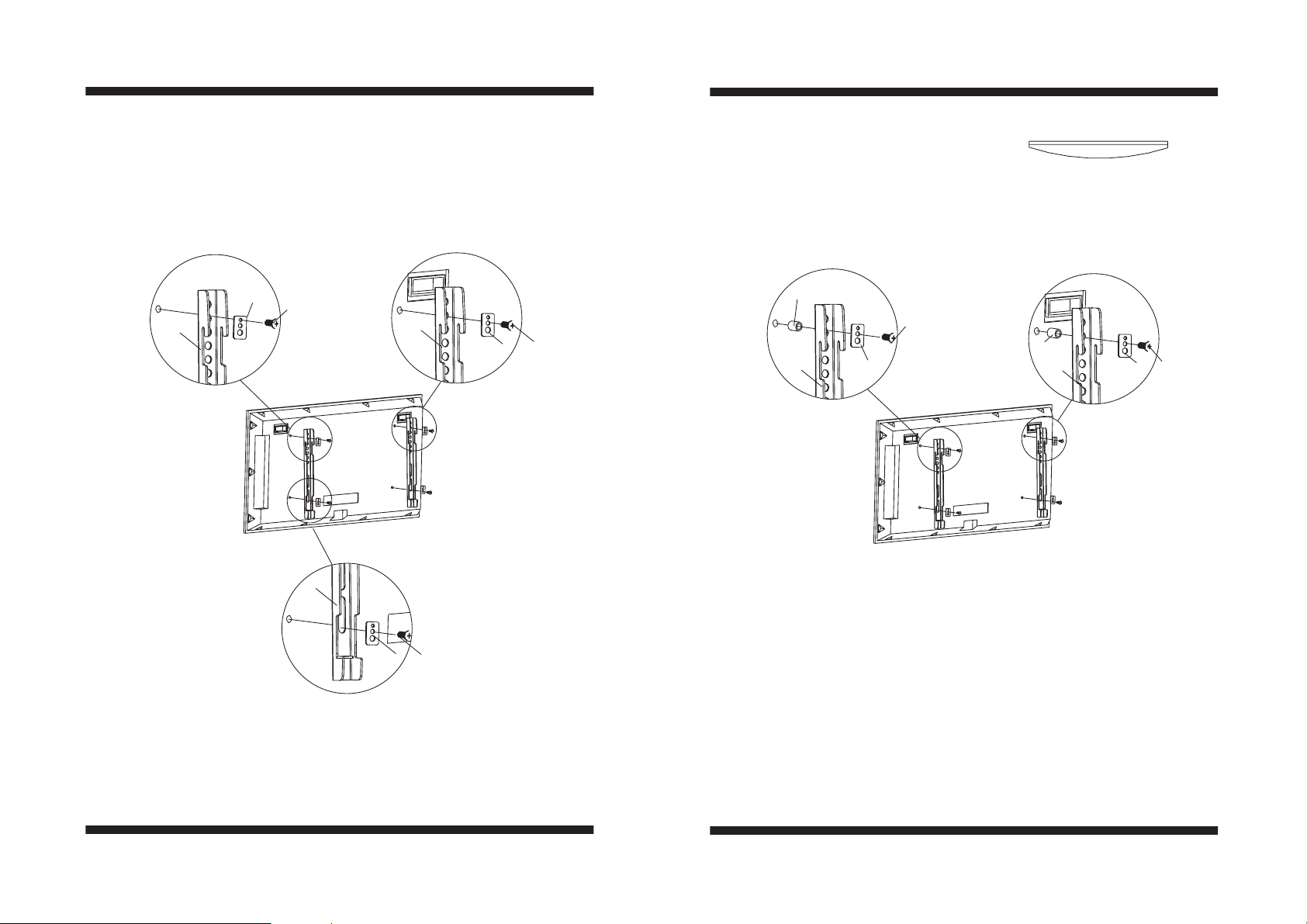

Step 3: Hanging display
Step 3: Hanging display
Firstly lift the bracket mounted display over the wall mount. And then hook the
brackets over the top of the wall mount. Rotate the display let the bottom of the
brackets hook over the bottom of wall mount, as shown in Fig.3a. Then put safe
bolts into the bottom of the brackets and lock it, as shown in Fig.3b.
Warning: Some TV require two people to lift, as we are not responsibleforany
Warning:
personal injury or product damage due to mishandling.
2
1
3
Fig 3a Fig 3b
Thank you for choosing our productsThank you for choosing our products
Pyle Audio
1600 63rd st , Brooklyn, NY, 11204
(718)236-8000
Fixed Flat Panel TV Bracket
Multifunctional double deck wall mount
INSTALLATION GUIDE
Item No.:PSW446FItem No.:PSW446F
UP
Easy installing: Just hang up the display
Safety: locking by spinning bolt on the bottom
Max load capacity:35kgs/77lbs
TV size range: 10 ~32""
Inside has balance adjust system
Bulit in leveler system
UP
www pyleaudio com..
MADE IN CHINA
-8-
IMPORTANT: If don’t understand about right install ways, please
IMPORTANT:
consult to normal installing specialist.
Hardware List: Actual parts appearance and the quantity may different
Hardware List:
with illustrated.
UP
2
UP
1
3
A-F
ID Description
Qty
1
2
3
A
B
C
D
Wall mount
1
2
Bracket
Safe bolt
2
4
M4 mm×12 bolt
4
M4 mm×16 bolt
4
M5× mm16 bolt
4
M6×16mm bolt
G
H
ID
I
Qty
4
E
4
F
4
G
4
H
4
I
4
J
K
4
J
Description
M5×36mm bolt
M6×36mm bolt
Square washer
Long bolt
Wall anchor
Long bolt washer
Spacer
K

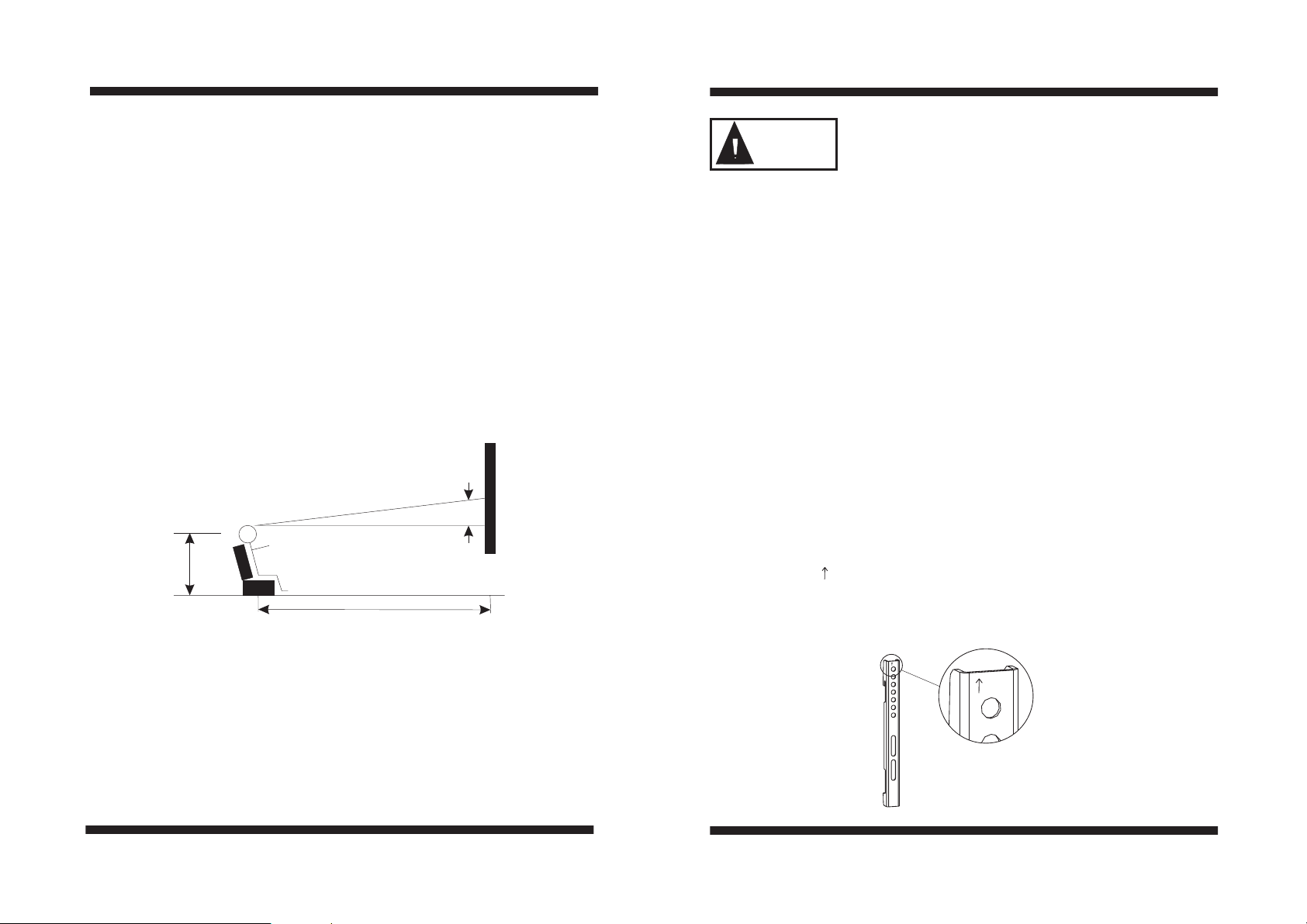

After determining the height of stand, follow the installation instructions in below
to install wall mount to different kinds of wall -wooden, concrete.
Woodenwall:
Woodenwall:
Using a awl or nail to make where the nails are located,as shownasfig.2b.Distance
between two nails for fixing wall mount must not less than 16”. Pre-drill these holes
with a 5mm drill bit to at least 40mm in deep hole. Please make sure these holes are
level and located at center. Use wall mount as a template to mark the location of other
three holes and drill the same holes. Fix the wall mount to the wall with 4 long bolts(H)
and washers(J).
Concrete wall:
Concrete wall:
Using the wall mount as template to mark 4 holes location on the wall. Please make
sure these holes are level and at least 6” between any two lines. Pre-drill these holes
with a 10mm drill bit to at least 50mm deep hole. Insert wall anchors(I) into each of
these holes. Attach the wall mount to the wall using 4 long bolts(H) and washers(J).
1
Balance-adjusting
J
H
Fig 2b Fig 2c
Using balance-adjusting system on the plate, make sure whether wall plate is installed
balance. If not, then slide the wall plate let pointer level in the center position.
