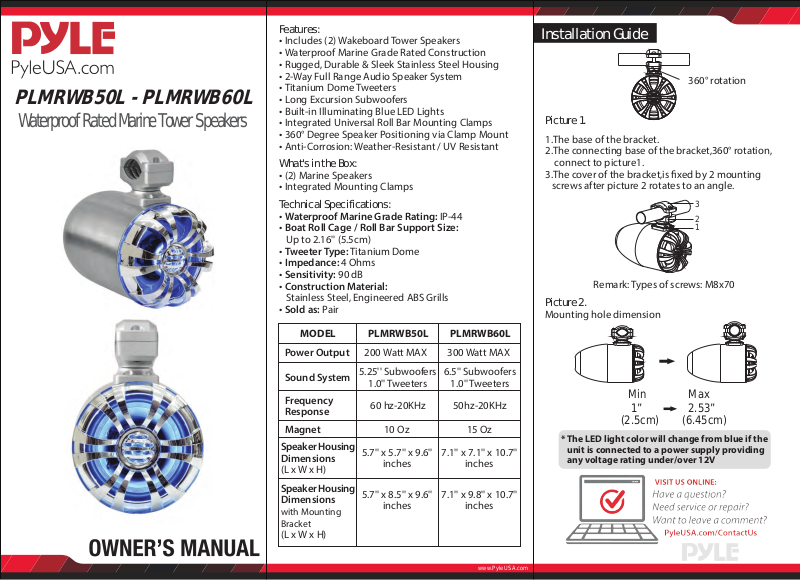

Page 1
Features:
• Includes (2) Wakeboard Tower Speakers
• Waterproof Marine Grade Rated Construction
• Rugged, Durable & Sleek Stainless Steel Housing
• 2-Way Full Range Audio Speaker System
• Titanium Dome Tweeters
PLMRWB50L - PLMRWB60L
• Long Excursion Subwoofers
• Built-in Illuminating Blue LED Lights
Waterproof Rated Marine Tower Speakers
• Integrated Universal Roll Bar Mounting Clamps
• 360° Degree Speaker Positioning via Clamp Mount
• Anti-Corrosion: Weather-Resistant / UV Resistant
What's in the Box:
• (2) Marine Speakers
• Integrated Mounting Clamps
Installation Guide
360° rotation
Picture 1.
1.The base of the bracket.
2.The connecting base of the bracket,360° rotation,
connect to picture1.
3.The cover of the bracket,is xed by 2 mounting
screws after picture 2 rotates to an angle.
Technical Specifications:
• Waterproof Marine Grade Rating: IP-44
• Boat Roll Cage / Roll Bar Support Size:
Up to 2.16'' (5.5cm)
• Tweeter Type: Titanium Dome
• Impedance: 4 Ohms
• Sensitivity: 90 dB
• Construction Material:
Stainless Steel, Engineered ABS Grills
• Sold as: Pair
MODEL PLMRWB50L PLMRWB60L
Power Output
Sound System
Frequency
Response
Magnet 10 Oz 15 Oz
Speaker Housing
Dimensions
(L x W x H)
200 Watt MAX 300 Watt MAX
5.25'' Subwoofers
1.0'' Tweeters
60 hz-20KHz 50hz-20KHz
5.7'' x 5.7'' x 9.6''
inches
6.5'' Subwoofers
1.0'' Tweeters
7.1'' x 7.1'' x 10.7''
inches
3
2
1
Remark: Types of screws: M8x70
Picture 2.
Mounting hole dimension
MaxMin
1”
2.53”
(2.5cm) (6.45cm)
* The LED light color will change from blue if the
unit is connected to a power supply providing
any voltage rating under/over 12V
Speaker Housing
Dimensions
with Mounting
Bracket
(L x W x H)
5.7'' x 8.5'' x 9.6''
inches
7.1'' x 9.8'' x 10.7''
inches
