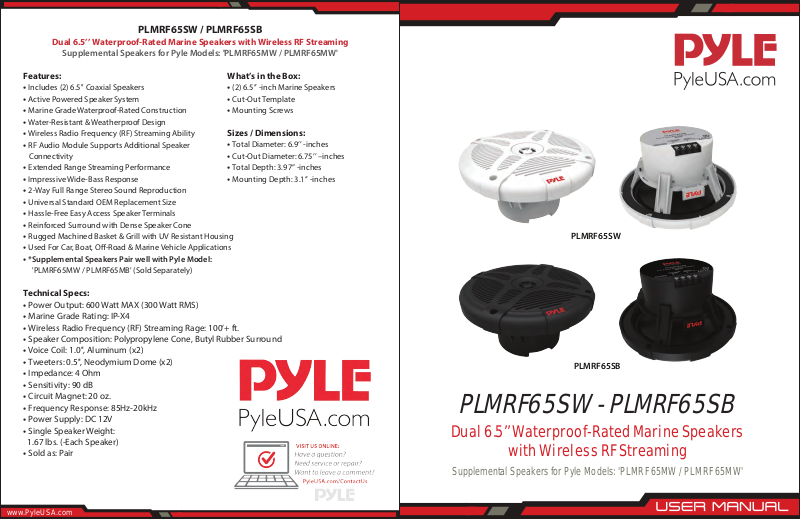

PLMRF65SW - PLMRF65SB
PLMRF65SW / PLMRF65SB
Dual 6.5’’ Waterproof-Rated Marine Speakers with Wireless RF Streaming
Supplemental Speakers for Pyle Models: 'PLMRF65MW / PLMRF65MW'
Features:
• Includes (2) 6.5'' Coaxial Speakers
• Active Powered Speaker System
• Marine Grade Waterproof-Rated Construction
• Water-Resistant & Weatherproof Design
• Wireless Radio Frequency (RF) Streaming Ability
• RF Audio Module Supports Additional Speaker
Connectivity
• Extended Range Streaming Performance
• Impressive Wide-Bass Response
• 2-Way Full Range Stereo Sound Reproduction
• Universal Standard OEM Replacement Size
• Hassle-Free Easy Access Speaker Terminals
• Reinforced Surround with Dense Speaker Cone
• Rugged Machined Basket & Grill with UV Resistant Housing
• Used For Car, Boat, O-Road & Marine Vehicle Applications
• *Supplemental Speakers Pair well with Pyle Model:
'PLMRF65MW / PLMRF65MB' (Sold Separately)
Technical Specs:
• Power Output: 600 Watt MAX (300 Watt RMS)
• Marine Grade Rating: IP-X4
• Wireless Radio Frequency (RF) Streaming Rage: 100’+ ft.
• Speaker Composition: Polypropylene Cone, Butyl Rubber Surround
• Voice Coil: 1.0'', Aluminum (x2)
• Tweeters: 0.5'', Neodymium Dome (x2)
• Impedance: 4 Ohm
• Sensitivity: 90 dB
• Circuit Magnet: 20 oz.
• Frequency Response: 85Hz-20kHz
• Power Supply: DC 12V
• Single Speaker Weight:
1.67 lbs. (-Each Speaker)
• Sold as: Pair
What’s in the Box:
•
(2) 6.5’’ -inch Marine Speakers
• Cut-Out Template
• Mounting Screws
Sizes / Dimensions:
• Total Diameter: 6.9’’ -inches
• Cut-Out Diameter: 6.75’’ –inches
• Total Depth: 3.97” -inches
• Mounting Depth: 3.1’’ -inches
PLMRF65SW
PLMRF65SB
Dual 6.5’’ Waterproof-Rated Marine Speakers
with Wireless RF Streaming
www.PyleUSA.com
Supplemental Speakers for Pyle Models: 'PLMRF65MW / PLMRF65MW'
Page 2
PLMRF65SW / PLMRF65SB
Installation Guide
Important Note:
The Pyle Model: PLMRF65SW / PLMRF65SB speakers are designed as supplemental / additional
external speakers -- to expand your audio and work with the primary marine speaker system
(Pyle Model: PLMRF65MW / PLMRF65MB -- sold separately).
LED INDICATOR
Status
POWER ON
RF Wireless Connection with
PLMRF65MB/or PLMRF65MW
Main Speaker ( R Channel) 2nd Speaker (L Channel)
RED
BLUE
RED
BLUE
Signal connection
as passive speaker
(Follow on
III
Ways to Connect
Finding main speaker (R channel) on PLMRF65MB/or
PLMRF65MW,and using pins to push respective “CH Set”
simultaneously to get RF Wireless connection
I
)
1.“Turn on Bluetooth”
Signal connection
as passive speaker
(Follow on
III
Ways to Connect
Bluetooth Connection
RCA AUX-IN Connection
BLUE
BLUE
BLUE
BLUE
PLMRF65SW/PLMRF65SB Installation
Ways to Connect
(Primary Speaker System -- Sold Separately)
• RF Wireless Audio Connection:
Install both speakers, as active powered
II
)
speakers to expand your sound system.
Connect L and R Channel speakers, each to a
12V power source. Then use pins to press the
"CH Set" buttons, simultaneously to pair the
speakers. Upon successful power connection,
the R Channel speaker LED indicator light will
shine red -- and when a successful / complete
wireless RF audio connection is made, both
speakers will shine blue.
*Note: Recommended power installation
should include a 10 amp fuse between the
power source and speakers, ensure a proper
and adequate power connection is established.
I
Bluetooth Audio Connection:
Once the speakers are installed and powered
to the primary speaker system - these
supplemental speaker allow you to stream and
expand the connected Bluetooth streaming audio.
II
Aux-in (External Audio Source) Connection:
Once the speakers are installed and powered to the primary speaker system -- these supplemental
speaker allow you to stream and expand the connected aux/external input streaming audio.
PLMRF65MB / PLMRF65MW
CH Set
L CHANNEL R CHANNEL
CH Set CH Set
PLMRF65SB / PLMRF65SW
(Supplemental Speaker System)
Main speaker (R Channel)
2.“Choose PyleUSA”
of PLMR65MB/PLMR65MW
“ Bluetooth
Pairing Tone”
www.PyleUSA.com www.PyleUSA.com
*Note: The speaker system must not be paired via Bluetooth wireless connection to allow Aux-in
audio mode.
III
Passive Speaker Connection:
Each speaker also has the ability to be used as a Passive-Type (un-powered) speaker. Ensure a proper
audio source connection is made via each speaker's 'Input Radio Speakers' connectors.
