Pyle PLMRBT18 User guide

PLMRBT18

Amplified Wireless BT Audio Controller

Waterproof-Rated Marine Receiver

Remote Control for Car,Truck, Boat, 4x4,

PowerSport Vehicles (300 Watt)

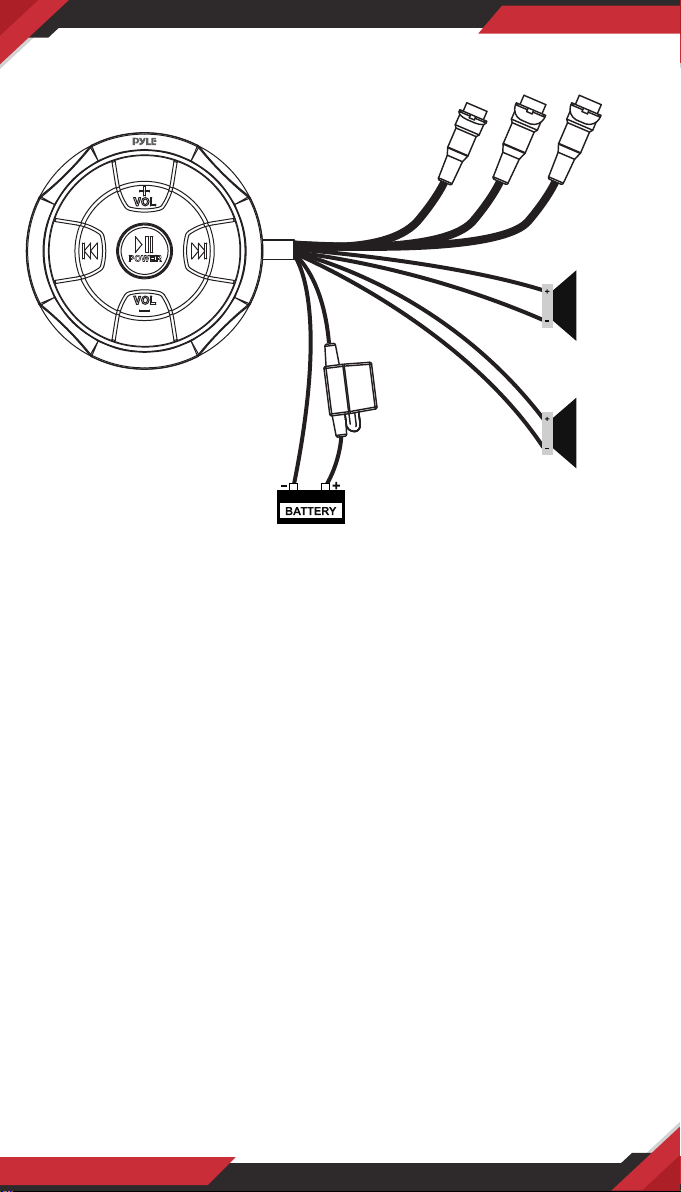

Wire Diagram

Line out-L Line out-R

AUX Input

WHITE

WHITE/BLACK

PURPLE

Fuse: 10A

BLACK

Wire Color

Red
Black
White
White/Black
Purple
Purple/Black

RED

PURPLE/BLACK

Description

Battery (+), 12dc
Battery (-), Ground
Output L (+)
Output L (-)
Output R (+)
Output R (-)

BT Pairing and Connection

Power:

1. Press and hold the power button to power ON/OFF.

Wireless BT Streaming Connection:

a. Ensure BT ability is activated, then search for the PLMRBT18 from
your BT-enabled device. The light will turn blue and blinks while
waiting for BT connection.
b. The PLMRBT18 BT Network Name will appear as “PyleUSA” (No
password is required for connecting).
c. When the BT is connected, the light will turn blue and stops
blinking.

www.PyleUSA.com

2

AUX-IN:

a. Double click power button to switch BT mode to Aux-in mode.

Standby:

a. Both BT and AUX-IN not connected, it will turn o automatically
after 30mins.
b. When BT is connected during this period, you need to process BT
connection again.

Auto Reconnection:

a. When the device is out of the BT range, BT will be disconnected
automatically, the light turns blue while blinking.
b. BT will automatically reconnect when detected in range again in
10 minutes.
c. Disconnected BT after 10 minutes, you need to process BT
connection steps (above) to reconnect BT again.
d. If the other device occupied the BT during this period (10mins),
you need to process BT connection steps (above).
e. If there is no connection during this period (10mins), it will turn to
standby mode.

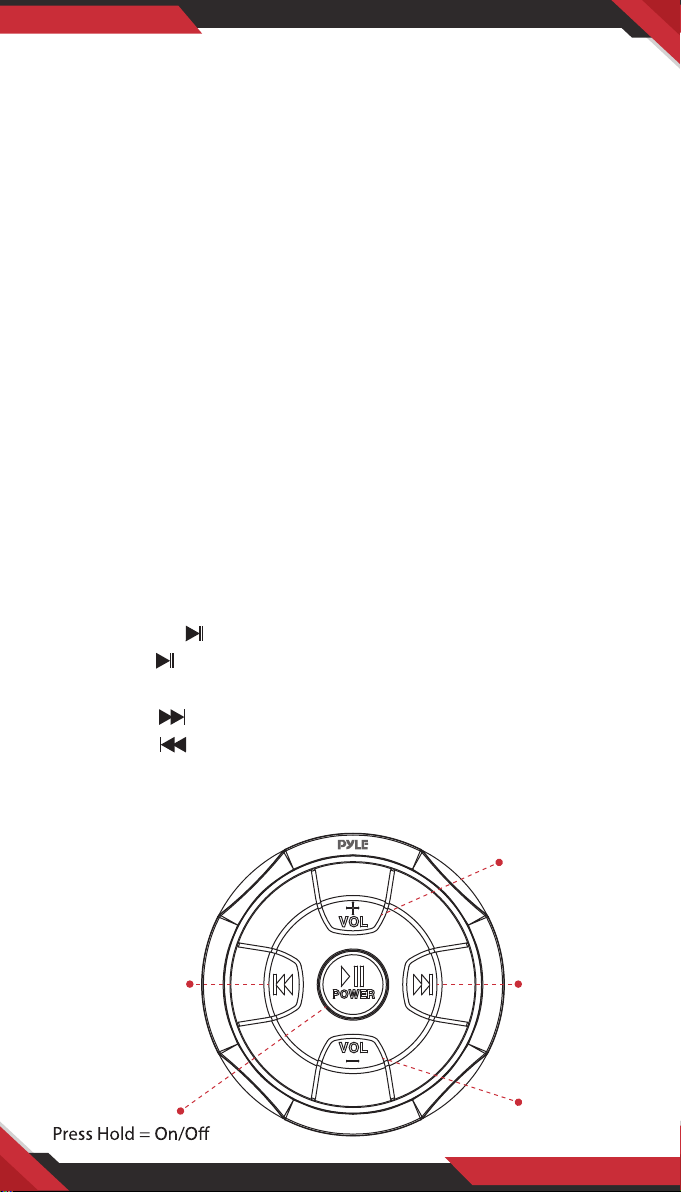

Playing Music

1. Press and hold 3 seconds for Power ON or OFF

2. Short press to play music or pause

3. Double click power button to switch BT mode to Aux-in mode

4. Short press for next track

5. Short press for previous track

6. Press and hold VOL+ for volume up

7. Press and hold VOL- for volume down

Previous Song

Play / Pause

Volume Up

Next Song

Volume Down

www.PyleUSA.com

3

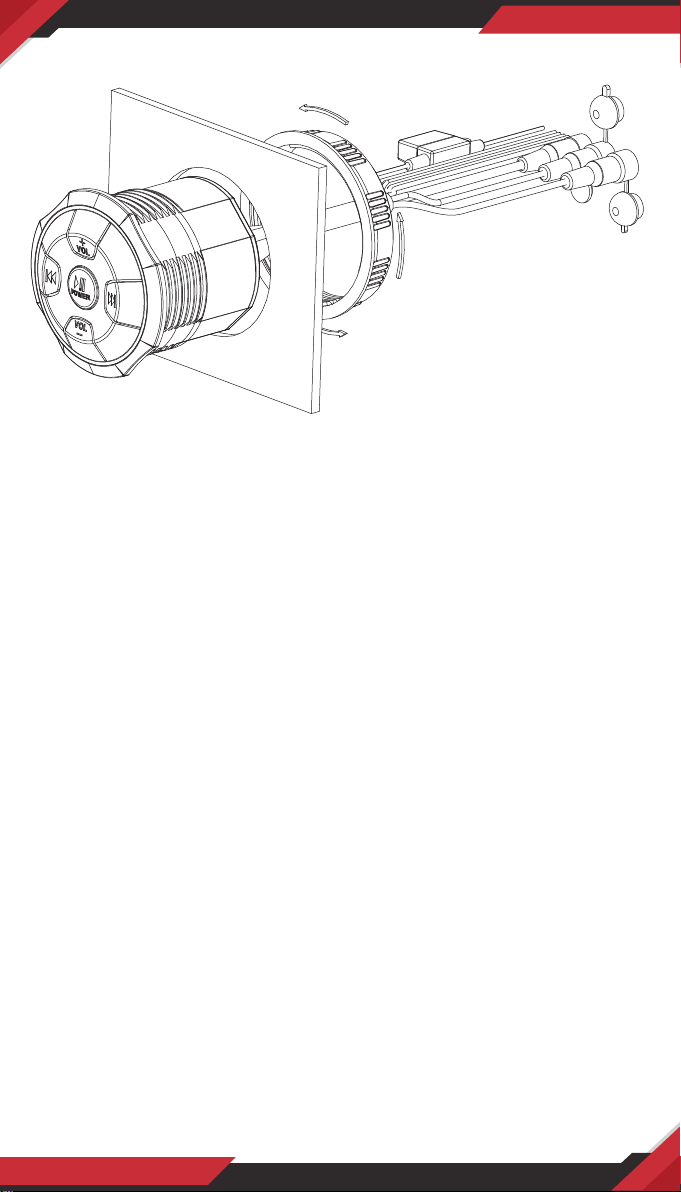

Installation (Seamless Flush Mount)

Size:

89mm / 3.5’’ (Out Diameter)
76mm / 3.0’’ (Cutout Diameter)
93mm / 3.7’’ (Depth)

PLMRBT18

Amplied Wireless BT Audio Controller

Waterproof-Rated Marine Receiver Remote Control for Car,

Truck, Boat, 4x4, PowerSport Vehicles (300 Watt)

Features:

• Universal Mount Wireless BT Streaming Control Unit

• Built-in Wireless BT Audio Receiver

• Waterproof-Rated Marine Grade Construction

• Water-Resistant & Weatherproof Design

• 2-Channel Amplier Style

• Connect & Stream Audio from Additional External Devices

• Aux (3.5mm) Input

• Full Range Stereo Sound Reproduction

• Integrated Power Wiring Harness

• Pre-Amp RCA Out to Any OEM/Factory Made Mono-Block/

Full-Range Amplier

• Surface/Flush Mount/Hand Bar Mounting Kits Included

• Universal Vehicle Mounting

• Can be In-Console Flush Mounted or Roll Bar/Roll Cage Mount

• Anti-Thump Turn-On

• Soft Turn On/O

• Overload & Power Protection Circuitry

• Used for Car, Truck, ATV, UTV, 4x4, Boat, Marine Watercraft,

PowerSport Vehicles

www.PyleUSA.com

4

Wireless BT Music Streaming:

• Simple & Hassle-Free Pairing

• Instant Wireless Audio Streaming Receiver

• Works with All of Today’s Latest Devices

Smartphones, Tablets, Laptops, Computers, etc.

• Wireless BT Version: 4.2

• Wireless BT Network Name: ‘PYLEUSA’

• Wireless Range: 30’+ ft.

What’s in the Box:

• Wireless BT Control Unit

• Audio Connection Cable, 3.5mm

• Owner’s Manual

• Warranty Card

Technical Specs:

• Power Output: 300 Watt MAX

• 2 x 75 Watts RMS @ 4 Ohm

• 2 x 150 Watts MAX @ 4 Ohm

• Marine Grade Waterproof Rating: IP-65

• Amplier Type: Class-D

• T.H.D: 0.1%

• S/N Ratio: >95dB

• Channel Separation: >65dB

• Frequency Response: 10Hz-40kHz

• Fuse: 10A

• Power Supply: DC 12V

• Handle-Bar Mount Size Support: Fits 1.5’’ ~ 2’’ -inch (Diameter)

• Cut-Out Diameter: 3’’ –inches

• Mounting Depth: 3.7’ –inches

• Total Unit Dimensions (L x W x H):

3.5’’ x 3.5’’ x 4.17’’ –inches (Flush Mount)

Questions? Issues?

We are here to help!
Phone: [phone]
Email: [e-mail]
