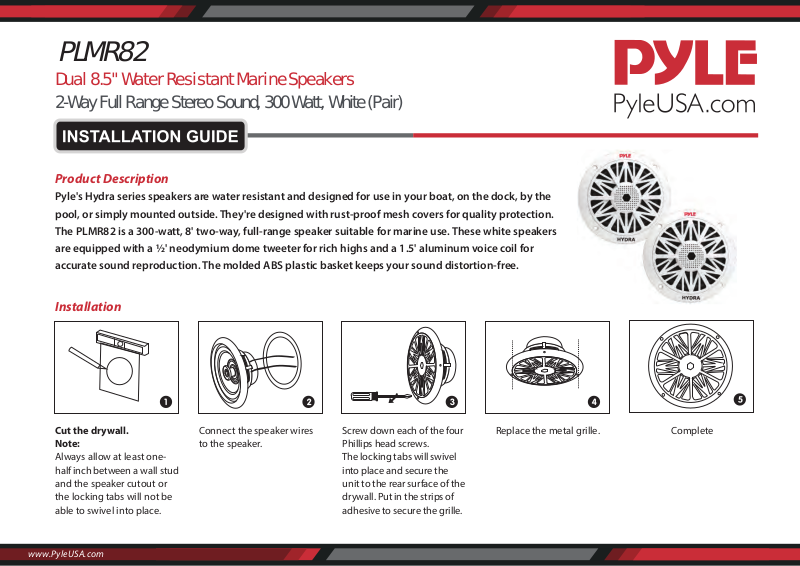

Pyle PLMR82 User guide

PLMR82

Dual 8.5'' Water Resistant Marine Speakers

2-Way Full Range Stereo Sound, 300 Watt, White (Pair)

Product Description

Pyle's Hydra series speakers are water resistant and designed for use in your boat, on the dock, by the

pool, or simply mounted outside. They're designed with rust-proof mesh covers for quality protection.

The PLMR82 is a 300-watt, 8' two-way, full-range speaker suitable for marine use. These white speakers

are equipped with a ½' neodymium dome tweeter for rich highs and a 1.5' aluminum voice coil for

accurate sound reproduction. The molded ABS plastic basket keeps your sound distortion-free.

Installation

Cut the drywall.
Note:

Always allow at least one­half inch between a wall stud
and the speaker cutout or
the locking tabs will not be
able to swivel into place.

www.PyleUSA.com

Connect the speaker wires
to the speaker.

Screw down each of the four
Phillips head screws.
The locking tabs will swivel
into place and secure the
unit to the rear surface of the
drywall. Put in the strips of
adhesive to secure the grille.

Replace the metal grille. Complete

Features:

• Includes (2) 8.5'' Component Speakers

• Marine Grade Weather Proof Construction

• Full Range Stereo Sound Reproduction

• 2-Way Dual Cone Speakers

• Poly Carbon Cone, Cloth Surround

• Molded ABS Machined Basket and Grill

• For Marine, Automobile & O-Road Vehicles

• Universal Standard OEM Replacement Size

• Includes Speaker Wire & Mounting Hardware

Technical Specs:

• MAX Power: 300 Watt

• RMS Power: 150 Watt

• 4 Ohm Impedance

• Sensitivity: 91dB

• 20 oz. Circuit Magnet

• Voice Coil: 1.5'', High Temp. Aluminum

• Tweeters: 0.5'', Neodymium Dome

• Frequency Response: 60Hz-20kHz

• Total Diameter: 9.65''

• Cut-Out Diameter: 7.36''

• Mounting Depth: 3.54''
