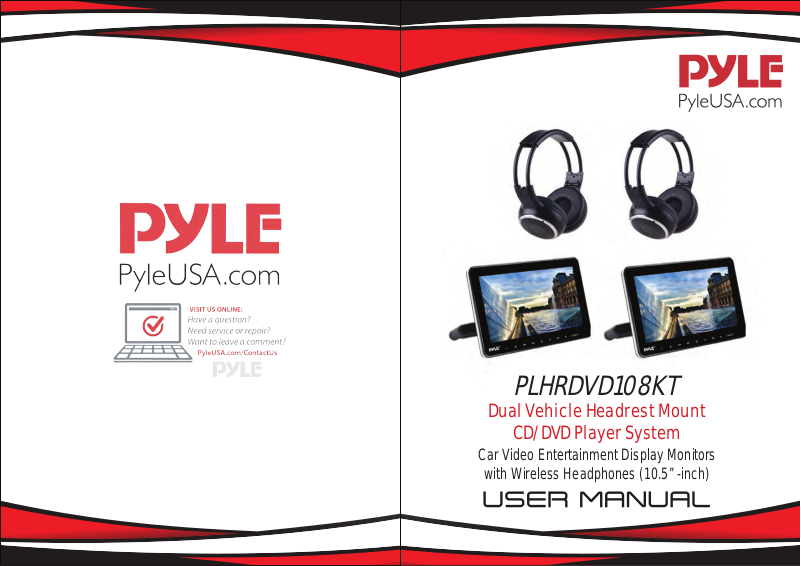

Pyle PLHRDVD108KT User guide

PLHRDVD108KT

Dual Vehicle Headrest Mount

CD/DVD Player System

Car Video Entertainment Display Monitors

with Wireless Headphones (10.5’’ -inch)

FRONT PANEL

MULTIMEDIA PLAYER

1. LCD Panel

2. Open

3. Pre/Rewind Forward

4. Next/Fast

5. Power

6. -

7. Menu

8. +

9. DC 12V

10. DC Jacket

11. HDMI Read Port

12. AV2 IN jack

13. Earphone jack

14. USB Read Port

15. SD Read Port

SIDE PANEL

1. Power

2. Earphone/AV2 jack

Only on selected unit models

-- Review product specs & features
for detailed info

2 3 4 5 6 7 8

14

15

11

12

13

9

1

REMOTE CONTROL

Game Control

PBC/MENU

Power

TFT/MENU

Display

Repeat

SETUP

Open

REV

PAUSE/PLAY

PREV (track)

STOP

Alpha-

numeric keys

Subtitle

DVD/AV

Title

Mute

Program
Enter

Navigation
Buttons
USB/SD

FF
Vol +
NEXT (track)
Vol -

Zoom
Audio

Slow

3. USB.SD

4. DC 12V Jacket

5. 2.5.HDMI PORT

2 3

www.PyleUSA.com www.PyleUSA.com

Game

Control

INSTALLATION

1. Remove the screws from bracket like below picture to install the bracket
on iron tube.

2. Put the plastic bracket parts in between two metal poles, at the same
time, push 2 screws to x up bracket.

3. Hold up unit, insert the metal plate at the back of the unit into plastic
bracket parts, then adjust it to the right angle and x it tightly, at last
lower the orignal car headrest to the appropriate position.

INSTALLATION COMPLETE

WIRING DIAGRAM

Mini Din Connector Attach power cable to connect

4 5

www.PyleUSA.com www.PyleUSA.com

WIRING DIAGRAM

4. Do not use diluents or other chemical cleaner when cleaning the

machine. Please clean the machine by soft cloth with special cleaner.

5. Please keep the machine in a good environment. The storage temperature

for this machine is from -4°F to 140°F.

6. This machine only supports DIVX/MPEG4/DVD/DVDR+/SVCD/VCD/

DVCD/CD/MP3/WMA/CD-R/RW/HDCD+-R/JPEG or CD-ROM7.

7. Please prevent the machine from the inuence of other equipment.

8. For your safety, please do not turn or operate this machine when driving

as it may be illegal in some countries and regions.

9. Safe power supply: DC12V (voltage range:10V-14V)

Attention

There may be some small and bright spots on the screen. This is a common

Audio
Video

Audio
Video

Red, Power, 12V DC

Black Ground

Outputs

Inputs

Attention

1. Do not put the machine in the rain or damp environment lest outbreak of

re or any damage to machine.

2. Do not repair the machine by youself. Please turn o the machine and

inform us if any problem found, the factory or the agent will arrange

specialized personnel to disassemble and repair the machine for you .

3. Please keep the machine away from dampness, dust, oil and straight

sunlight.

technical matter and does not indicate any quality problem of this machine.

TROUBLESHOOTING

Troubles Solution

No sound & image

No image

No sound

Black Screen
Blurring and

Unstable Image

Color cast

No power

No image after

loading the disc

Unstable sound

caused by vibration

Unstable sound even

with no vibration

Power is disconnected; the machine is not turned ON

Disc is scratched; signal wire is disconnected

Volume too low or the volume setup is not workable

Incorrect setup of image luminance and contrast; Undervoltage

Disc is scratched

Function menu setup is incorrect; weak signal

Voltage is not accurate: check inter connect circuit;

Fuse is disconnected: change fuse specication

Only audio frequency for the disc; disc is scratched;

disc for format is not supported

DVD is dirty or seriously damaged

Disc is dirty or scratched clean or replace the disc

6 7

www.PyleUSA.com www.PyleUSA.com

PLHRDVD108KT

Dual Vehicle Headrest Mount CD/DVD Player System

Car Video Entertainment Display Monitors

with Wireless Headphones (10.5’’ -inch)

What’s in the Box:

• (2)10.5’’ -inch CD/DVD Player

• (2) Wireless Headphones

Features:

• Universal Vehicle Headrest Mount Displays

• Top-Loading CD/DVD Player

• Includes Secondary Display Screen

• Audio & Video Entertainment System

• Hi-Res Digital LCD Wide-Screen Video

• Built-in Stereo Speakers

• Headphone Jack, 3.5mm

• USB Flash & SD Memory Card Readers

• Convenient Removable Leather Screen Cover

• Easily Attaches to Front-Seat & Back-Seat Headrests

• HDMI Input Port & AV Connector

• Connect Additional Device via RCA (Audio/Video) Wiring Harness

• Built-in IR Transmitter for Wireless IR Headphone Use

• Front Panel Button Controls

• Integrated FM Transmitter

• Includes All Necessary Hardware & Cables for Installation

• *Can be Hard-Wired or Powered via Included Plug-in

Cigarette Lighter Power Cable

• Headrest Mounting Brackets

• Remote Control

• Power Wiring Harness Cable

• Cigarette Lighter Power Cable

Technical Specications:

• Screen Size: 10.5inches (x2)

• Video System: PAL / NTSC Compatible Auto Switching

• Aspect Ratio: 16:9

• Screen Resolution: 1024 x 600 Pixels

• Contrast Ratio: 300:1

• Brightness: 350 cd/m2

• English OSD Menu

• Maximum USB/SD Card Size: 32GB

• CD/DVD Player Support: DVD/VCD/MP3/JPG/MP4/CD-R/CD-RW

• Digital File Compatibility: MP3, MP4, MP5, JPG, MPEG4, WMA, AVI

• Power Supply: DC 12V

• Dimensions (L x W x H): 10.2'' x 6.7'' x 2.0’’ -inches

• Weight: 7.40 lbs.
