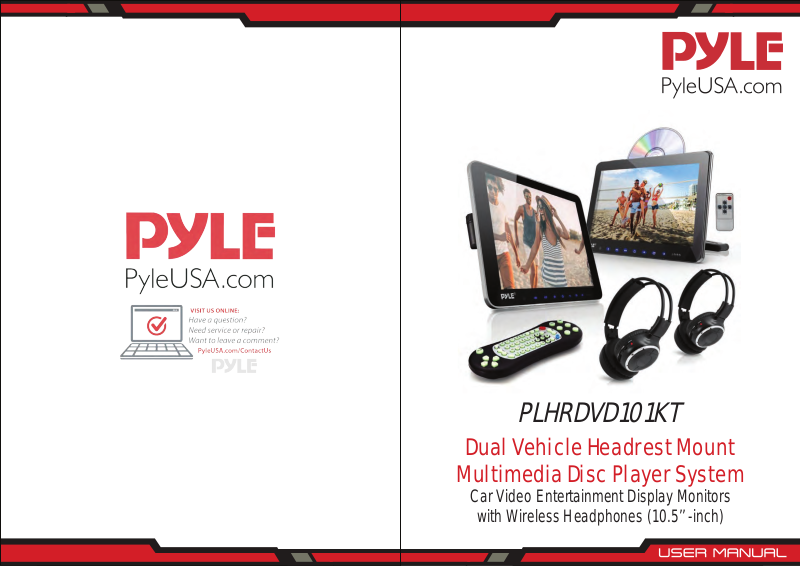

Page 1
PLHRDVD101KT
Dual Vehicle Headrest Mount
Multimedia Disc Player System
Car Video Entertainment Display Monitors
with Wireless Headphones (10.5’’ -inch)
Page 2
FRONT PANEL
MULTIMEDIA PLAYER
1. LCD Panel
2. Open
3. Pre/Rewind Forward
REMOTE CONTROL
Only on selected unit models
-- Review product specs & features
for detailed info
4. Next/Fast
5. Power
6. -
7. Menu
8. +
9. DC 12V
10. DC Jacket
11. HDMI Read Port
12. AV2 IN jack
13. Earphone jack
14. USB Read Port
15. SD Read Port
SIDE PANEL
1. Power
2. Earphone/AV2 jack
3. USB.SD
2 3 4 5 6 7 8
14
15
11
12
13
9
1
Game Control
PBC/MENU
Power
TFT/MENU
Display
Repeat
SETUP
Open
REV
PAUSE/PLAY
PREV (track)
STOP
Alpha-
numeric keys
Subtitle
DVD/AV
Title
Mute
Program
Enter
Navigation
Buttons
USB/SD
FF
Vol +
NEXT (track)
Vol -
Zoom
Audio
Slow
4. DC 12V Jacket
5. 2.5.HDMI PORT
Game
Control
2 3
www.PyleUSA.comwww.PyleUSA.com
Page 3
INSTALLATION
1. Remove the screws from bracket like below picture to install the bracket
on iron tube.
2. Put the plastic bracket parts in between two metal poles, at the same
time, push 2 screws to x up bracket.
3. Hold up unit, insert the metal plate at the back of the unit into plastic
bracket parts, then adjust it to the right angle and x it tightly, at last
lower the orignal car headrest to the appropriate position.
INSTALLATION COMPLETE
WIRING DIAGRAM
Mini Din Connector Attach power cable to connect
4 5
www.PyleUSA.comwww.PyleUSA.com
Page 4
WIRING DIAGRAM
Master Monitor
Audio
Video Outputs
Audio
Video Inputs
V 2
V 1
Black Ground
Slave Monitor
Red, Power, 12V DC
Attention
1. Do not put the machine in the rain or damp environment lest outbreak of
re or any damage to machine.
2. Do not repair the machine by youself. Please turn o the machine and
inform us if any problem found, the factory or the agent will arrange
specialized personnel to disassemble and repair the machine for you .
3. Please keep the machine away from dampness, dust, oil and straight
sunlight.
4. Do not use diluents or other chemical cleaner when cleaning the
machine. Please clean the machine by soft cloth with special cleaner.
5. Please keep the machine in a good environment. The storage temperature
for this machine is from -4°F to 140°F.
6. This machine only supports DIVX/MPEG4/DVD/DVDR+/SVCD/VCD/
DVCD/CD/MP3/WMA/CD-R/RW/HDCD+-R/JPEG or CD-ROM7.
7. Please prevent the machine from the inuence of other equipment.
8. For your safety, please do not turn or operate this machine when driving
as it may be illegal in some countries and regions.
9. Safe power supply: DC12V (voltage range:10V-14V)
Attention
There may be some small and bright spots on the screen. This is a common
technical matter and does not indicate any quality problem of this machine.
TROUBLESHOOTING
Troubles Solution
No sound & image
No image
No sound
Black Screen
Blurring and
Unstable Image
Color cast
No power
No image after
loading the disc
Unstable sound
caused by vibration
Unstable sound even
with no vibration
Power is disconnected; the machine is not turned ON
Disc is scratched; signal wire is disconnected
Volume too low or the volume setup is not workable
Incorrect setup of image luminance and contrast; Undervoltage
Disc is scratched
Function menu setup is incorrect; weak signal
Voltage is not accurate: check inter connect circuit;
Fuse is disconnected: change fuse specication
Only audio frequency for the disc; disc is scratched;
disc for format is not supported
DVD is dirty or seriously damaged
Disc is dirty or scratched clean or replace the disc
6 7
www.PyleUSA.comwww.PyleUSA.com
Page 5
PLHRDVD101KT
Dual Vehicle Headrest Mount Multimedia Disc Player System
Car Video Entertainment Display Monitors
with Wireless Headphones (10.5’’ -inch)
What’s in the Box:
• 10.5’’ -inch CD/DVD Player Display
• 10.5’’ -inch Secondary Monitor Display
• (2) Wireless Headphones
Features:
• Universal Vehicle Headrest Mount Displays
• Top-Loading CD/DVD Player
• Includes Secondary Display Screen
• Audio & Video Entertainment System
• Hi-Res Digital LCD Wide-Screen Video
• Built-in Stereo Speakers
• Headphone Jack, 3.5mm
• USB Flash & SD Memory Card Readers
• Convenient Removable Leather Screen Cover
• Easily Attaches to Front-Seat & Back-Seat Headrests
• HDMI Input Port & AV Connector
• Connect Additional Device via RCA (Audio/Video) Wiring Harness
• Built-in IR Transmitter for Wireless IR Headphone Use
• Front Panel Button Controls
• Integrated FM Transmitter
• Includes All Necessary Hardware & Cables for Installation
• *Can be Hard-Wired or Powered via Included Plug-in
Cigarette Lighter Power Cable
• Headrest Mounting Brackets
• Remote Control
• Power Wiring Harness Cable
• Cigarette Lighter Power Cable
Technical Specications:
• Screen Size: 10.5 inches (x2)
• Video System: PAL / NTSC Compatible Auto Switching
• Aspect Ratio: 16:9
• Screen Resolution: 1024 x 600 Pixels
• Contrast Ratio: 300:1
• Brightness: 350 cd/m2
• English OSD Menu
• Maximum USB/SD Card Size: 32GB
• CD/DVD Player Support: DVD/VCD/MP3/JPG/MP4/CD-R/CD-RW
• Digital File Compatibility: MP3, MP4, MP5, JPG, MPEG4, WMA, AVI
• *Secondary Display Features RCA Video Inputs, IR Transmitter,
Built-in Speaker
• Battery Operated Headphones, Requires (2) x 'AA' Batteries, Not Included
• Power Supply: DC 12V
• CD/DVD Player Dimensions (L x W x H): 10.2'' x 6.7'' x 2.0’’ -inches
• Secondary Display Dimensions (L x W x H): 10.2’’ x 6.7’’ x 1.4’’ -inches
8 9
www.PyleUSA.comwww.PyleUSA.com
