Page 1
PLG81
8'' Midbass Woofer Sound Speaker System
Pro Loud Range Audio 400 Watt Peak Power w/ 4 Ohm Impedance
and 50Hz-5KHz Frequency Response for Car Component Stereo

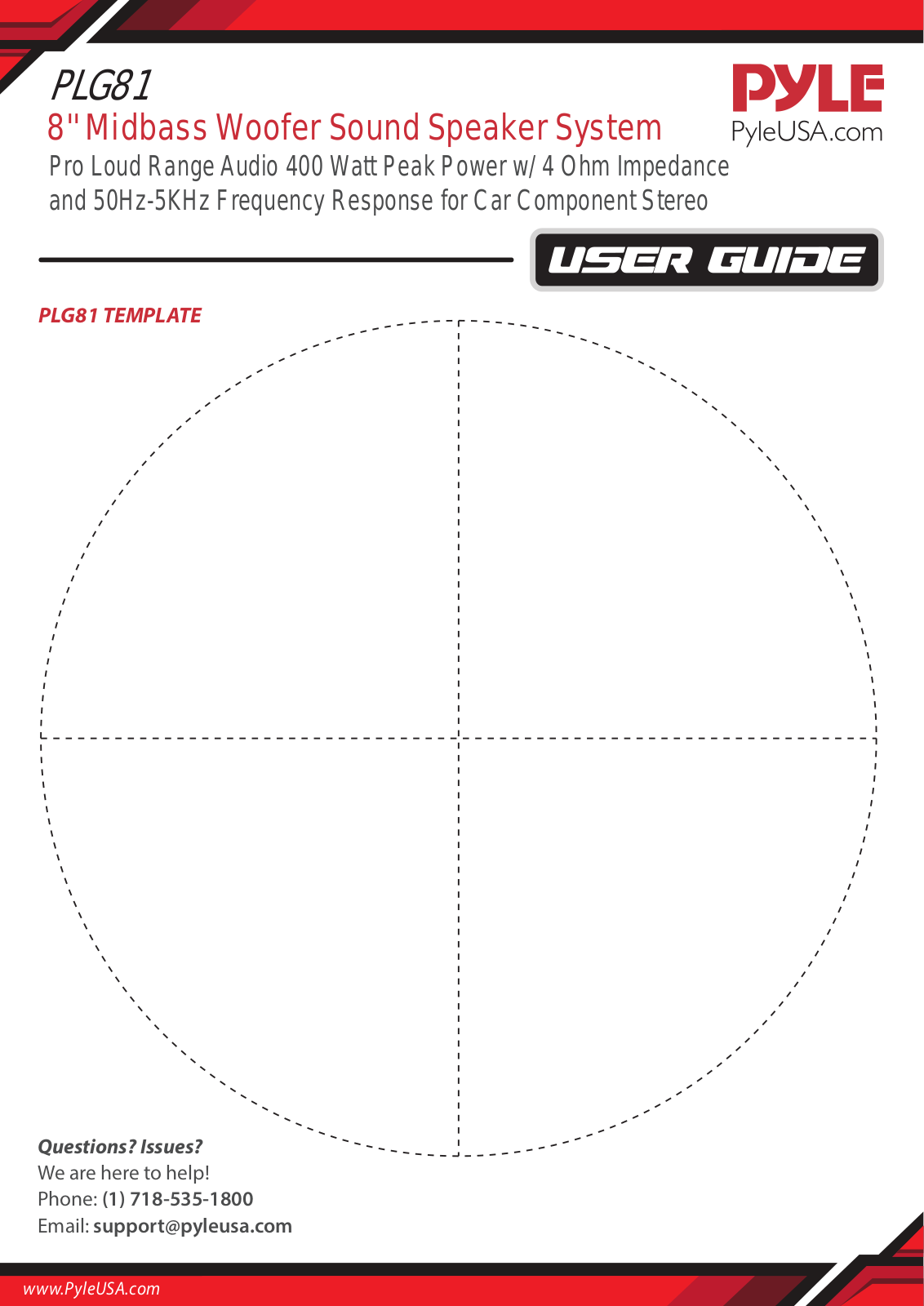

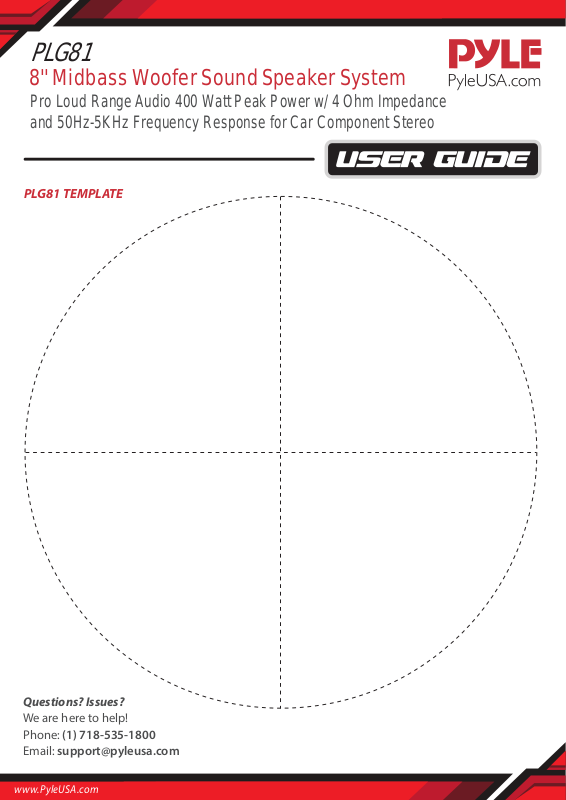

PLG81 TEMPLATE
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
www.PyleUSA.com
Page 2

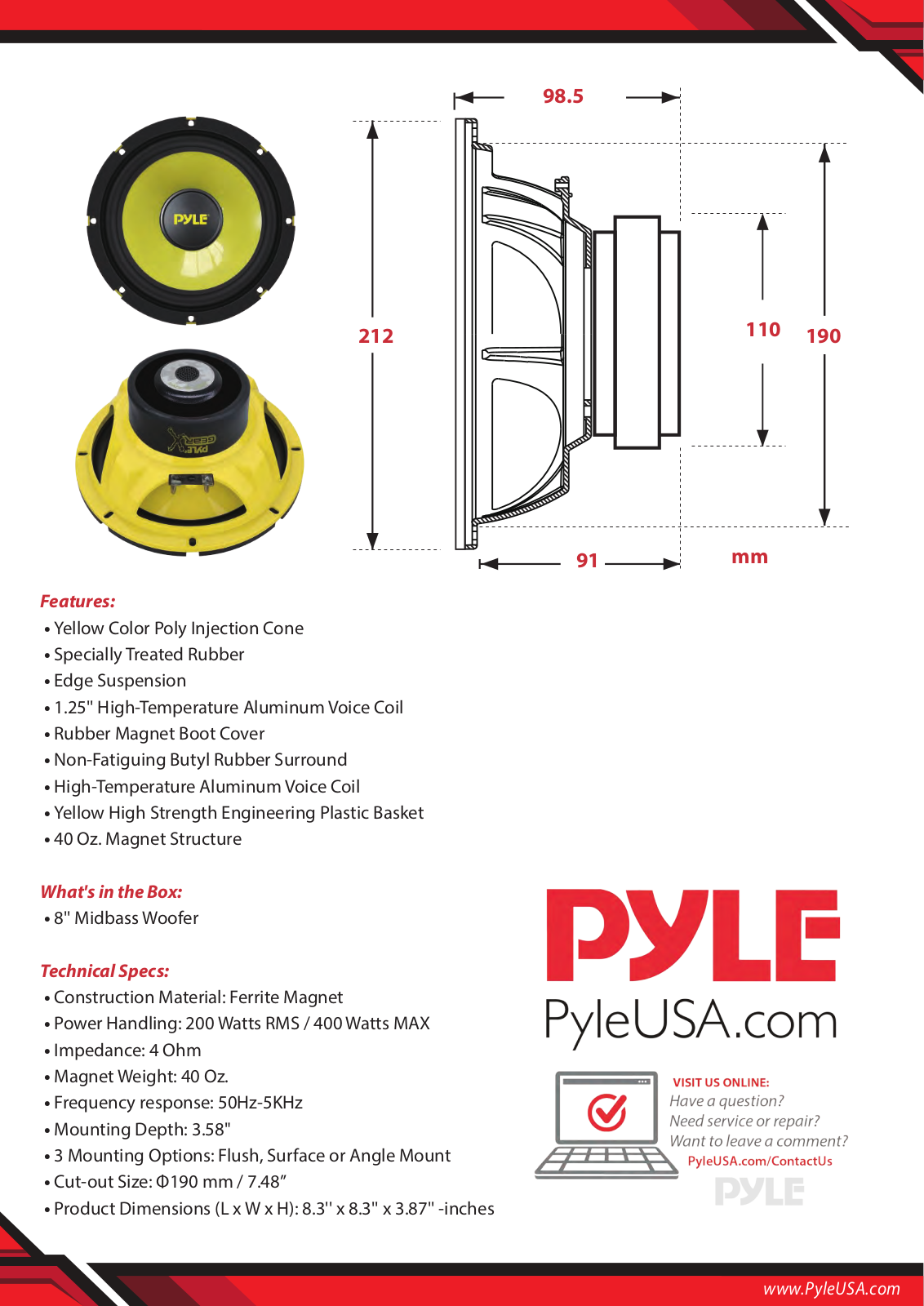

98.5
212 190
Features:
• Yellow Color Poly Injection Cone
• Specially Treated Rubber
• Edge Suspension
• 1.25'' High-Temperature Aluminum Voice Coil
• Rubber Magnet Boot Cover
• Non-Fatiguing Butyl Rubber Surround
91
110
mm
• High-Temperature Aluminum Voice Coil
• Yellow High Strength Engineering Plastic Basket
• 40 Oz. Magnet Structure
What's in the Box:
• 8'' Midbass Woofer
Technical Specs:
• Construction Material: Ferrite Magnet
• Power Handling: 200 Watts RMS / 400 Watts MAX
• Impedance: 4 Ohm
• Magnet Weight: 40 Oz.
• Frequency response: 50Hz-5KHz
• Mounting Depth: 3.58"
• 3 Mounting Options: Flush, Surface or Angle Mount
• Cut-out Size: Φ190 mm / 7.48”
• Product Dimensions (L x W x H): 8.3'' x 8.3'' x 3.87'' -inches
www.PyleUSA.com
