Pyle PLDMR27NBK User guide

PLDMR27NBK

Marine Stereo Receiver Power Amplifier

AM/FM/MP3/USB/BT/AUX/DVD/CD Marine Stereo Receiver , Double DIN,

30 Preset Memory Stations, LCD Display with Remote Control

To ensure correct operation and avoid damage,

please read this user manual carefully before using this product.

INSTALLATION

Installation Procedures

1. First complete the electrical connections and then check for correctness.

2. Disconnect the battery negative terminal of vehicle before beginning installation.

Installation Opening

This unit can be installed in any dashboard having an opening as shown below.

103 mm

182 mm

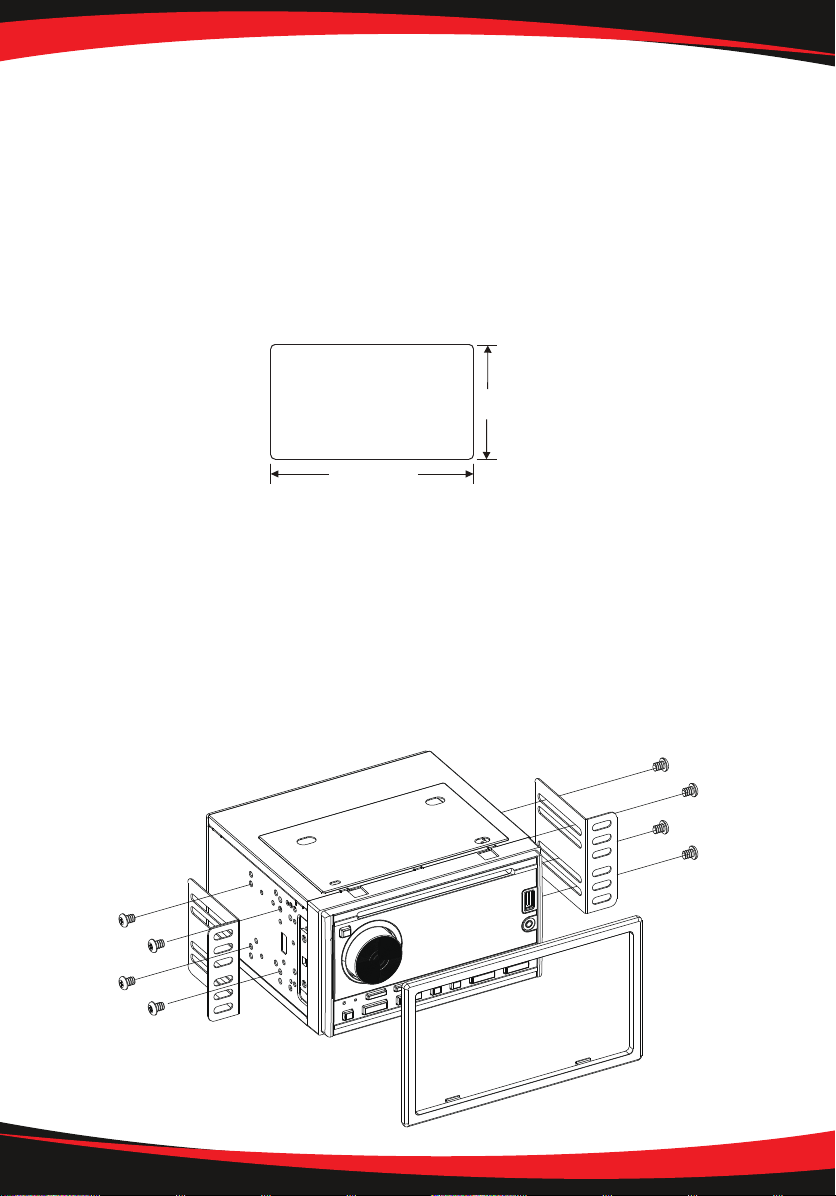

To Install the Car Radio

Be sure you test all connections rst, and then follow these steps to install this unit.

1. Make sure the ignition is turned o, and then disconnect the cable from the
vehicle battery’s negative (-) terminal.

2. Disconnect the wire harness and the antenna.

3. Attach the “L” brackets (2pcs) on the both sides of the car receiver with screws
(M5 x5) as shown as the below gure. The others xing screws that x the
other terminal of the “L” metal bracket, please buy from your dealer according
to the drilling of holes size.

www.PyleUSA.com

2

INSTALLATION

Connect all wiring harness and slide the head unit into the mounting collar

until it clicks into place.

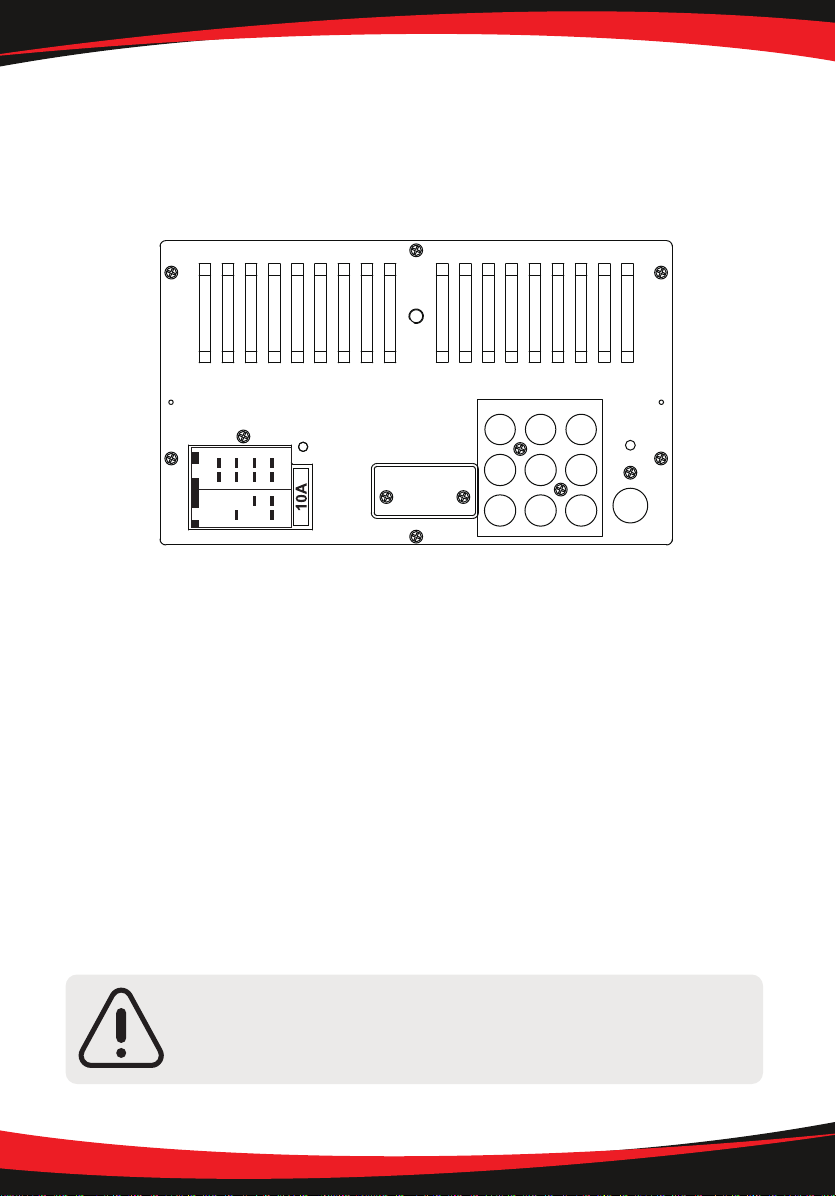

Wiring Connections

V-OUT2

V-OUT1

SUB

1. Speaker Connectors:

Violet: Right Rear (+)
Violet / Black:Right Rear (-)
Gray: Right Front (+)
Gray/Black: Right Front (-)
White: Left Front (+)
White/Black: Left Front (+)
Green:Left Rear (+)
Green/Black: Left Rear (-)

2. Power Connectors:

Blue: Antenna / Remote
Red: Ignition (+12V)
Yellow: Battery (+12V)
Black: Chassis Ground (-)

- +12V DC Negative Ground.

- Only use speakers with 4 ohms impedance.

- The maximum current of the Amp remote trigger is 200mA.

AUX-L

AUX-R

R-L

F-L

ANT

R-R

F-R

3. Fuse 10A

4. Audio / Video Inputs & Outputs

V-OUT1: Video Output 1 (Yellow)
AUX-L: Audio Input Left CH
AUX-R: Audio Input Right CH
V-OUT2: Video Output 1 (Yellow)
F-L: Front left PRE-AMP output (White)
F-R: Front right PRE-AMP output (Red)
SUB: Subwoofer Output (Green)
R-L: Rear left PRE-AMP output (White)
R-R; Rear right PRE-AMP output (Red)

5. Radio Antenna Socket

www.PyleUSA.com

3

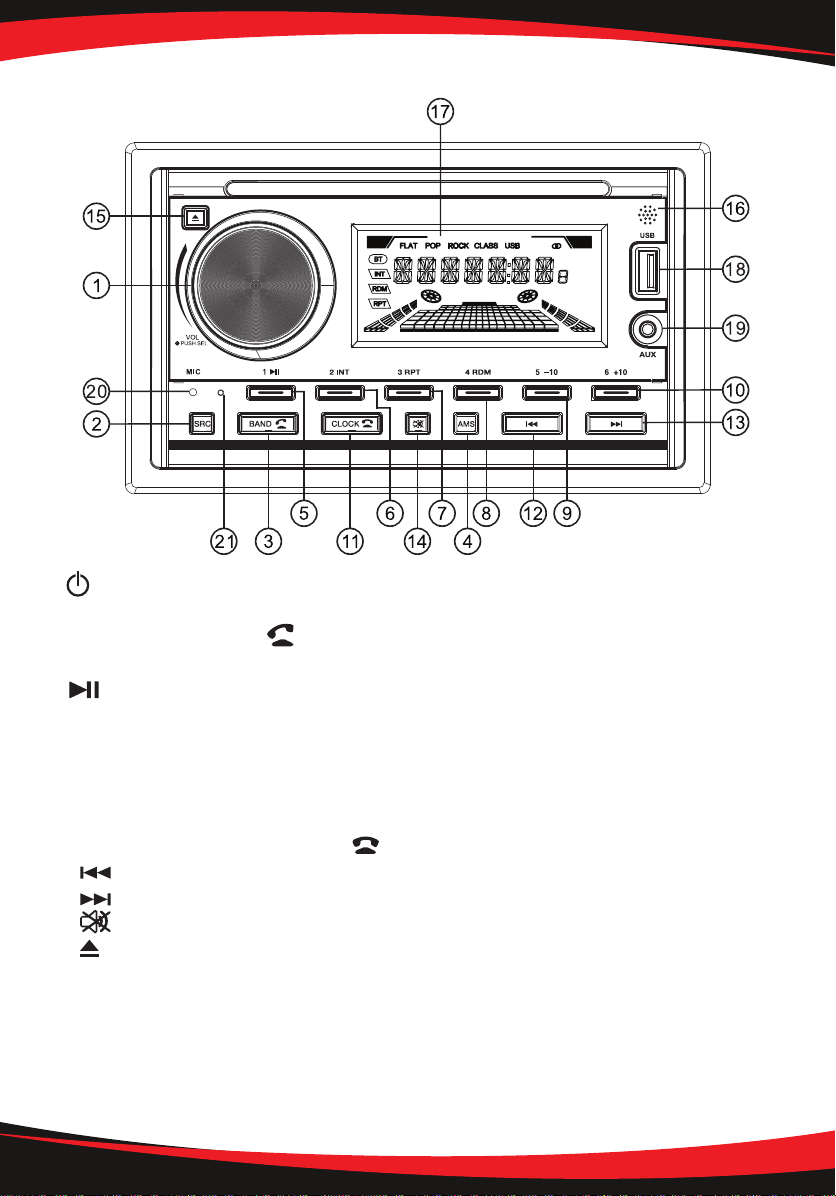

OVERVIEW OF THE CONTROLS

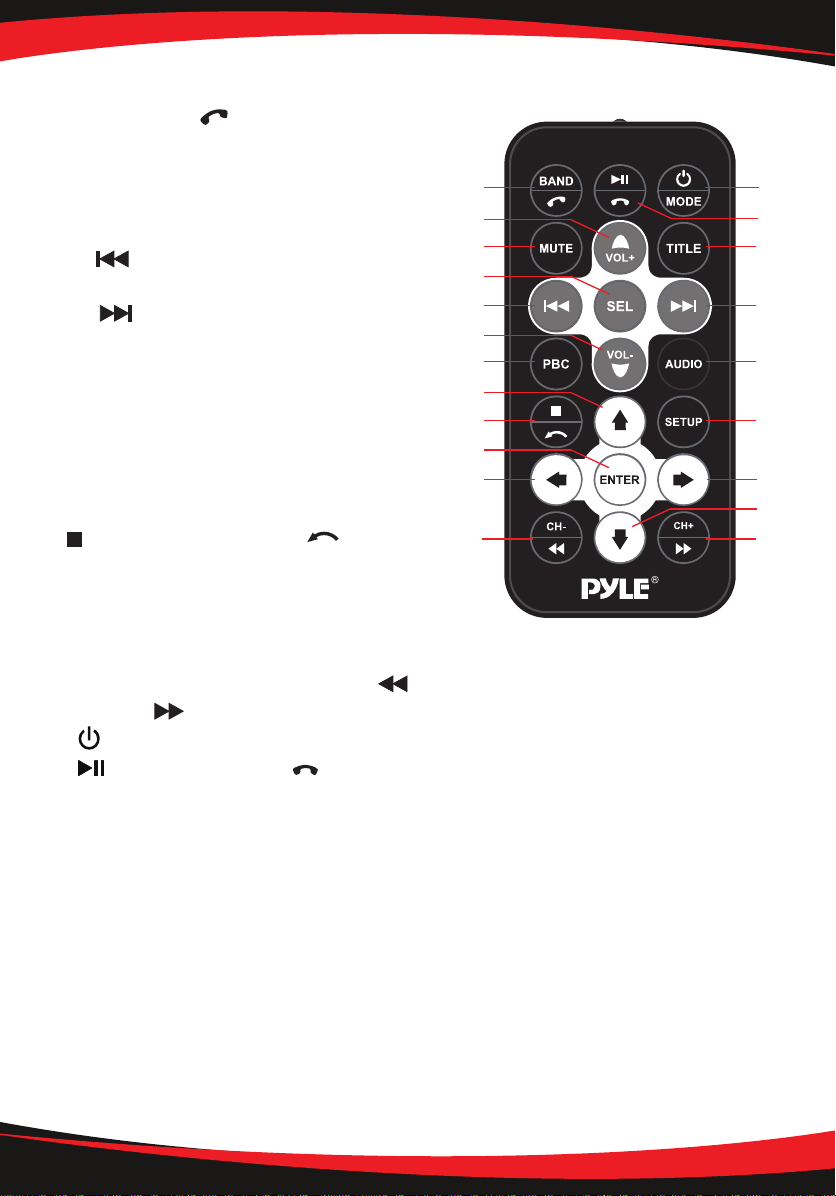

1. (power)/Volume knob and SEL (select/menu) button

2. SRC (source) button

3. BAND (band) button, (answer call) button

4. AMS (automatic store/preset station scan, automatic music search) button

5. (pause/play), Preset station1 button

6. INT (intro), Preset station 2 button

7. RPT (repeat), Preset station 3 button

8. RDM (random), Preset station 4 button

9. -10 (previous 10 tracks), Preset station 5 button

10. +10 (next 10 tracks), Preset station 6 button

11. CLOCK (clock setting) button, (end call) button

12. (tune down, seek down, previous, fast reverse) button

13. (tune up, seek up, next track, fast forward)button

14. (MUTE) button

15. (eject) button

16. IR remote sensor

17. LCD Display

18. USB Port

19. AUX IN (auxiliary input) jack

20. Hands-free Microphone

21. Reset button

www.PyleUSA.com

4

GENERAL OPERATION

Turn Unit on/o, Adjust the volume (VOL), Adjust Menu Options (SEL)

• Press the power (VOL knob) button button to turn on the unit.

• Press and hold the power (VOL knob) button to turn the unit o.

• Rotate the VOL knob on the front panel or press th VOL+ /VOL- button

on the remote control to increase or decrease the volume level.

• Press the SEL button (VOL knob) on the front panel or SEL button on the remote

control repeatedly to cycle through the following adjustable audio functions:

BASS, TREBLE, BALANCE, FADER, LOUD ON/OFF, EQ OFF, FLAT, CLASSIC, POP,

ROCK, JAZZ, DX/LOC, STEREO/MONO, VOL LAS/ADJ, CLK 12/24, AREA US/EU,

AUTO/BLUE/RED/CYAN/GREEN/PURPLE/YELLOW/WHITE, BEEP ON/OFF, VOL Level.

• Rotate the VOL knob on the front panel or press the VOL+ /VOL- button

on the remote control to adjust the selected item.

• BASS/TREBLE: -7, -6, ~, -1, 0, +1,~, +6,+7

• BALANCE: L7, L6, ~, L1, 0, R1,~,R6, R7

• FADER: R7, R6,~, R1, 0, F1,~,F6, F7

• EQ (Equalizer) Setting: OFF, CLASS, ROCK, POP, FLAT

• Loudness: LOUD ON/OFF

• DX/LOCAL: Enables or disables the local broadcast mode (LOCAL).

• Stereo/Mono: Switches between MONO and STEREO reception mode for

radio frequencies.

• CLOCK 12/24: Select between 12 hours and 24 hours display.

Note: If 12 hour display is selected , AM= Morning; PM= Afternoon

• AREA US/EU: This car radio is equipped the USA / Europe frequency.

Rotate the volume knob to switch between USA and Europe frequency.

The system will change the frequency setting in about 3 seconds.

• 7 color-changing illumination in buttons:

This car radio device is equipped 7 color-changing illumination in buttons.

The illumination color can be preset Auto (color automatically change one

by one), Blue, Red, Cyan, Green, Purple, Yellow, White.

• BEEP ON/OFF: Enables or disables the “BEEP” signal to conrm use.

• VOL level: 00, 01, ~ , 40

www.PyleUSA.com

5

Change the Source (MODE)

Press the SRC button to switch between RADIO, DISC (with a DVD/VCD/CD/MP3
disc inserded), USB (with USB device inserted), BT and AUX-IN (auxiliary input)
modes.

Setting the Clock (CLOCK)

1. To display clock time, press the CLOCK button.

2. To set clock time, press and hold the CLOCK button and the hour digits will
ash on the display.

3. Rotate the VOL knob to adjust the hour.

4. Press the CLOCK button again, the minute digits will ash on the display.

5. Rotate the VOL knob to adjust the minute.

Mute ON/OFF
In power on mode, briey press the MUTE button to toggle mute on or o.

USB Port

The USB port of this car radio is designed for media playback from ash memory
devices and charging for iPhone / android mobile phone. The USB port also
support USB charging, the charging ability is 5V/1A.

AUX IN (Auxiliary Input) Jack

Reset Button
Push the RESET button with a thin object with a pointed end to reset the unit.

RADIO OPERATION

Switch Between USA area and Europe area Frequency

In radio mode, press the SEL button to enter the switch state of the EU (europe)
and US(USA) frequency, then rotate it to switch between EU and US (USA)
frequency. The system will change the frequency setting in about 3 seconds.

Change Bands

In radio mode, shortly press the BAND button to switch between the FM1 (F1),
FM2 (F2), FM3 (F3), AM1(A1), AM2 (A2) bands.

www.PyleUSA.com

6

To Store/Recall Preset Stations

The radio can be stored 6 preset stations for each band (FM1, FM2, FM3, AM1
and AM2) for atotal of 30 preset stations.

• To memorize a station: Press and hold the desired preset buttons (1-6) to save

a radio station.

• To recall a preset station: Briey press the respective station button (1-6) to

recall the corresponding preset station.

DVD/CD/MP3/USB OPERATION

Insert Disc, Eject Disc

• With the label facing up, insert a standard size disc into the dsic slot.

Playback will begin automatically.

• Press the (Eject) button to eject the disc. The unit will change to previous

mode of operation.

Insert USB/Remove USB

• To playback video or audio les contained in a USB device, insert the USB

storage device into the USB port. Playback will begin automatically.

• To remove the USB, pulls out the USB device from the USB port.

Select Next Track or Previous Track

In the USB mode, briey press the or button to play the next or previou
track.

Fast Forward/Reverse

• To fast forward, press and hold the button, with each long pressing, the

speed changes as follow: x02, x04, x08, x16, Normal Playback.

• To fast backward, press and hold the button, with each long pressing,

the speed changes as follow: x02, x04, x08, x16, Normal Playback.

Play/Pause

Press the button to temporarily stop playback.
Press this button again to continue the playback.

Stop Playback

Press the button on the remote control once to pause playback.
Press the button to restore playback.
Press the button twice to stop playback, press the button, the unit will play
from the 1st song or video le.

www.PyleUSA.com

7

Introduction Scan

Press the INT button to play the rst 10 seconds of all track.
Press again to stop theintroduction scan, and play the current track.

Repeating the track

• During DVD playback, press the RPT button to toggle between RPT CHA

(repeat chapter), RPT TIT (repeat title), RPT ALL (repeat all), RPT OFF.

• During VCD playback, press the RPT button to toggle between RPT ONE

(Continuously repeats current track), RPT ALL (repeats all tracks), RPT OFF.

• During CD/MP3 playback, Press the RPT button to toggle between RPT ONE

(Continuously repeats current track), RPT DIR (Continuously repeats all tracks in
current folder), RPT ALL(Repeat all tracks) and RPT OFF.

Playing all tracks in random

Press the RDM button. A random playback of all tracks will start.
Press the button again to set the normal playback.

Track/Folder Navigation

• Press the -10/+10 buttons to jump 10 tracks backward or forward.

It is required that over 10 tracks be available on the storage medium.

• Press and hold the -10/+10 button to select the previous or the next folder.

Select the track or le for playback in MP3 format
a. Press the AMS button to enter track search mode.

The “TRK SCH“ and “TRK xxxx” will appear on the display.

b. Rotate the volume knob and select the number of your favorite track
c. When the desired track number appears, conrm your selection by pressing

the SEL button (VOL knob).

AUXILIARY OPERATION

Using this socket, it is possible to hear the sound of other playback devices
such as MP3 players, CD players etc. through the car loudspeaker.

1. Please connect the external device with a 3.5 mm stereo jack plug to the AUX
socket.

2. Press the SRC button repeatedly until “AUX IN” appears in the display.

3. You hear the playback from the external device via the loudspeakers.
You can adjust the volume of the external device to a comfortable level with
the volume control of this device.

www.PyleUSA.com

8

WIRELESS BT STREAMING OPERATION

Pair and Connect

Before using a Wireless BT device for the rst time, it must be paired and
connected.

1. This head unit broadcasts the pairing signal constantly when no devices are
connected. User can complete the pairing steps from your Wireless BT device.
Refer to owner’s manual for your device for more details.

2. When the phone nds the car audio system, the “Pyle” name will be displayed.
Choose the “Pyle” from the device list to pair and connect with the car audio
system. Upon conrming, the BT logo will stop ashing.

Answer a Call

When the mobile phone is called, the incoming telephone number displays on
the LCD display. Press the button on front panel or the button on the
remote control to answer the incoming phones.

Redial Last Dialed Number

Press and hold the button on the front panel or button on the remote
control to redial the last dialed phone number.

Reject or End a Call

Press the button on the front panel or button on the remote control to
reject or end the call.

Switch Audio Between Car Audio and mobile Phone

During a call, press the VOL knob/button to switch the audio source from the car
audio system back to your mobile phone.

Adjust Call Volume

During a talk, use VOL knob or VOL+ /VOL- button to adjust the call
volume level.

Audio Streaming (A2DP)

This head unit supports A2DP (advanced audio distribution prole) wireless
streaming audio from a Wireless BT mobile device directly to your head unit.

The following functions can be used to control the music playback.

• Skip to Next music

Press the button to play the next music in the mobile phone.

• Skip to Previous music

Press the button to previous music in the mobile phone.

• PLAY/PAUSE

Press the button to pause or restore the music playback.

www.PyleUSA.com

9

REMOTE CONTROL

1. Band button, (answer call) button
2/6. VOL+/volume increase button,
VOL- volume decrease button

3. MUTE button

4. SEL (selection) button
5/16. (Tune down, seek down; Chapter/

Title/Track down) button
(Tune up, seek up, Chapter/Title/
Track up) button

7. PBC (MENU Play, Playback Control) button
8/11/19/20. Cursor Keys

(UP, DOWN, LEFT, RIGHT) In DVD/VCD/
MP4/MP3 mode, press these buttons
to move the cursors in the menu to

1
2

3
4

5
6

7
8

9
10
11

choose the item in menu.

9. (Stop Playback) button, (Return)

12

button

10. ENTER button: In DVD/VCD/MP4/MP3
mode, press this button to conrm the
setting of the menu.

12/21. CH- (Previous preset station), (Fast Reverse) button, CH+ (Next preset
station), (Fast Forward) button

13. (Power on/o) button, MODE (Source) button

14. (Play/Pause) button, (End call) button

15. Title (Title Menu) button

17. AUDIO (Audio Language) button: In DVD playback, press this button
repeatedly to switch the language of audio if the DVD disc is recorded with
multilanguages. In VCD playback, press this button repeatedly to switch L/R
or stereo audio track.

18. Setup Button: In DVD/VCD playback, press this button to enter the setup page.

13
14

15

16

17

18

19
20

21

Note:

When using the remote control for the rst time, you must pull out the portective
plastic tab from the battery compartment found on the back of the remote
control.

www.PyleUSA.com

10

SETUP

In DVD/VCD playback, press the SETUP button on the remote control to enter
the system setup for this unit. The system setup page will be visible on the
connected monitor.

A. SYSTEM SETUP

1. TV SYSTEM: This DVD player is compatible
with playing discs recorded in either PAL or
NTSC format. Please choose PAL or NTSC
according to the connected monitor type:
PAL TV set or NTSC TV set. You can also choose
AUTO if you are unclear which one you have

TV SYSTEM

VIDEO
TV TYPE
PASSWORD
RATING
DEFAULT
EXIT SETUP

connected to.

2. VIDEO: Select the CVBS (Composite Video Broadcast Signal) format if you have
connected to a TV set with CVBS cable.

3. TV TYPE: This is to select the appropriate TV aspect (4:3 or 16:9) according to
the connected TV set.
a. 4:3 PS: Played back in the PAN & SCAN style. (If connected to wide-screen
TV, the left and right edges are cut o.)
b. 4:3 LB: Played back in LETTERBOX style. (If connected to wide-screen TV,
black bands appear at top and bottom of the screen)
c. 16:9: Select when a wide-screen TV set is connected.

4. PASSWORD: The password for this DVD player is initially set to factory default
“0000”. If you want to change your password, you need to enter the old pass
word rst and conrm it, then input a new password and conrm.

5. RATING (Parental Setup): For DVD discs which support the USA rating system,
by using this function, children will be barred from watching content that may
not be suitable for their age. You have to input the password when you want
to change the rating setting.

Rating 1: [KID SAFE] -- Select it if the programs are safe to all kids view.
Rating 2: [G] -- Select it to indicate that it allows admission to person of all ages.
Rating 3: [PG] -- Select it to indicate that it needs parents to guide their children.
Rating 4: [PG13] -- Select it to indicate that children under 13 are forbidden to

view.

Rating 5: [PG-R] -- Select it if “PG-R” was printed on the DVD disc.
Rating 6: [R] -- Select it to indicate that children under 17 must be guided to

view by their parents.
Rating 7: [NC-17] -- Select it to indicate that children under 17 are forbidden to
view.

NTSC

PAL

AUTO

www.PyleUSA.com

11

Rating 8: [ADULT] -- Select it to indicate that only adults are permitted to view.

6. DEFAULT: Set all values to the factory default values including radio preset
stations and other preset memories of this unit.

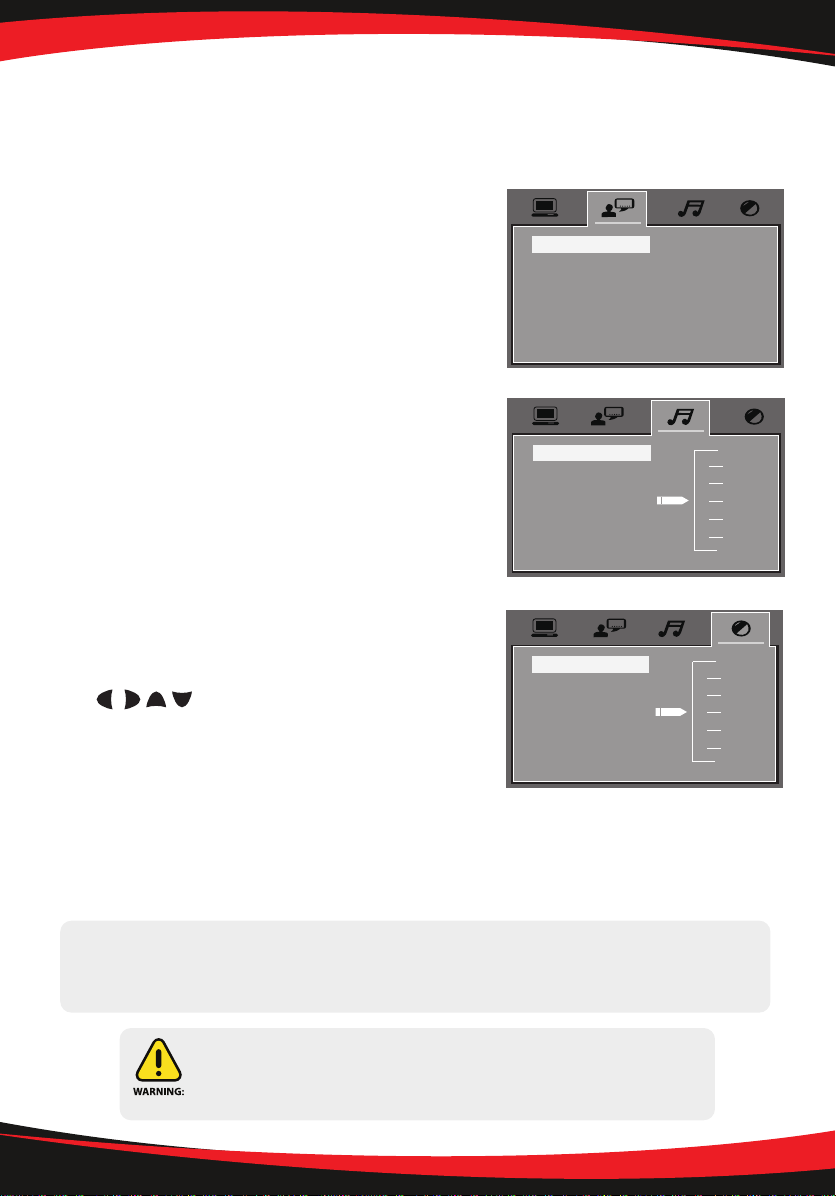

B. LANGUAGE SETUP:

User can select the preferred OSD Language,

Audio Language, Subtitle Language and Menu

Language. The default language is English.

OSD LANGUAGE

AUDIO LANG
SUBTITLE LANG
MENU LANG

ENGLISH

GERMAN
SPANISH
FRENCH
PORTUGUESE
RUSSIAN

C. AUDIO SETUP

KEY: This is to select key up and down according

to your needs.

KEY

#
+4
+2

0

-2

-4
b

D. VIDEO SETUP

This is to let the user set Brightness, Contrast,
Hue, Saturation and Sharpness using the cursor
keys ( , , , ) and ENTER button on the
remote control.

1. BRIGHTNESS: 0, 2, 4, 6, 8, 10, 12.

BRIGHTNESS

CONTRAST
HUE
SATURATION
SHARPNESS

12
10

8
6
4
2
0

2. CONTRAST: 0, 2, 4, 6, 8, 10, 12.

3. HUE: -6, -4, -2, 0, +2, +4, +6

4. SATURATION: 0, 2, 4, 6, 8, 10, 12

5. SHARPNESS: 0, 2, 4, 6, 8

What’s in the Box:

• Stereo Receiver

• ISO 4 Pin Power & 8 Pin Speaker Wiring Harness

This product can expose you to a chemical or group of chemicals, which may
include “Di (2-ethylhexyl) phthalate (DEHP)” which is known in the state of
California to cause cancer, birth defects, or other reproductive harm.
For more info, go to https://www.p65warnings.ca.gov/.

www.PyleUSA.com

12

• Outer Trim frame Cover

• Remote Control

Features:

• AM/FM/MP3/DVD/CD/USB/AUX Marine Stereo Receiver

• Double DIN

• Black Panel

• Rear AUX RCA Input

• Subwoofer Output

• 2 Pairs Of AV RCA Output

• LCD Display with Remote Control

• Marine Stereo Receiver System

• AM/FM Stereo Radio, 30 Station Memory

• Wireless BT Audio Ability

• Aux (3.5mm) Input Connector Jack

• Connect & Stream Audio from External Devices

• MP3 Digital Audio File Playback

• LCD Display Panel

• Front Aux-in, Front USB, No SD Card Reader

• Electronic Volume Control (Treble, Bass, Balance, Fader) Memory/Repeat/

Random/Intro Play

• EQ / Mute / Clock Control, English ID3

• ID3 Tag Song Readout for Artist Name/Song Title

• VA LCD/White Back-Light, Night Illumination: RGB

• 2 Pair RCA Output, ISO connector Line Out

• Equalizer (EQ) Electronic Audio Conguration

• Automatic Memory Preset Store/Scan Mode

• Repeat/Random Song Functions

WIRELESS BT Connectivity:

• Built-in BT for Wireless

Music Streaming

• Built-in Microphone for

Hands-Free Calling

• Conveniently Reject/Answer
Incoming Calls

• Compatible with All of Your

Favorite Wireless BT Devices
(iPhone, Androids, Smart­ phones, iPad, Tablets, etc.)

• Wireless BT Version: 4.2

Technical Specs:

• Remote Control Battery Operated, Requires (1) Coin-Type Battery

• Battery Type: 3V Lithium Bat. 240mAh Capacity

• Night illumination: RGB

• MAX. Power: 4 x 75W (300 Watts)

• PLL Electronic Tuning Radio Tuner

• ISO with 4 Pin/8 Pin Wire Connector

• Stereo/Mono Mode Selectable

• Audio Control: Treble, Bass, Balance, Fader

• Preset EQ: Flat/Pop/Rock/Classic/Jazz/Off

• Switchable USA/Europe Tuner Frequencies by Software

• Max. USB Support: 64GB

• Power: DC 12V

• Current Consumption: 10A

• Product Dimension: 6.3’’ x 7.1’’ x 3.9’’ - inches

www.PyleUSA.com

13

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]
