Pyle PLD41MUT, PLD41MU Owner's Manual

Download

Page 1

PLD41MUT

OWNER'S MANUAL

Mobile Video System

www.pyleaudio.com

Motorized Slide Down And Detachable Panel

4 Inch Wide Color Digital Screen TFT

Car DVD/VCD/CD/MP3 Player/TV Tuner

MPEG4 Player

USB Connect

AM/FM Digital Pll Tuning Radio

Remote Control

Page 2

CONTENTS

Safety Information......................................................................................

Disc Notes .................................................................................................

Installation .................................................................................................

Change Angle .............................................................................................

Electric Connection ....................................................................................

Remote Control ..........................................................................................

Basic Operation ........................................................................................

Setup .........................................................................................................

Specifications ...........................................................................................

Trouble Shooting ......................................................................................

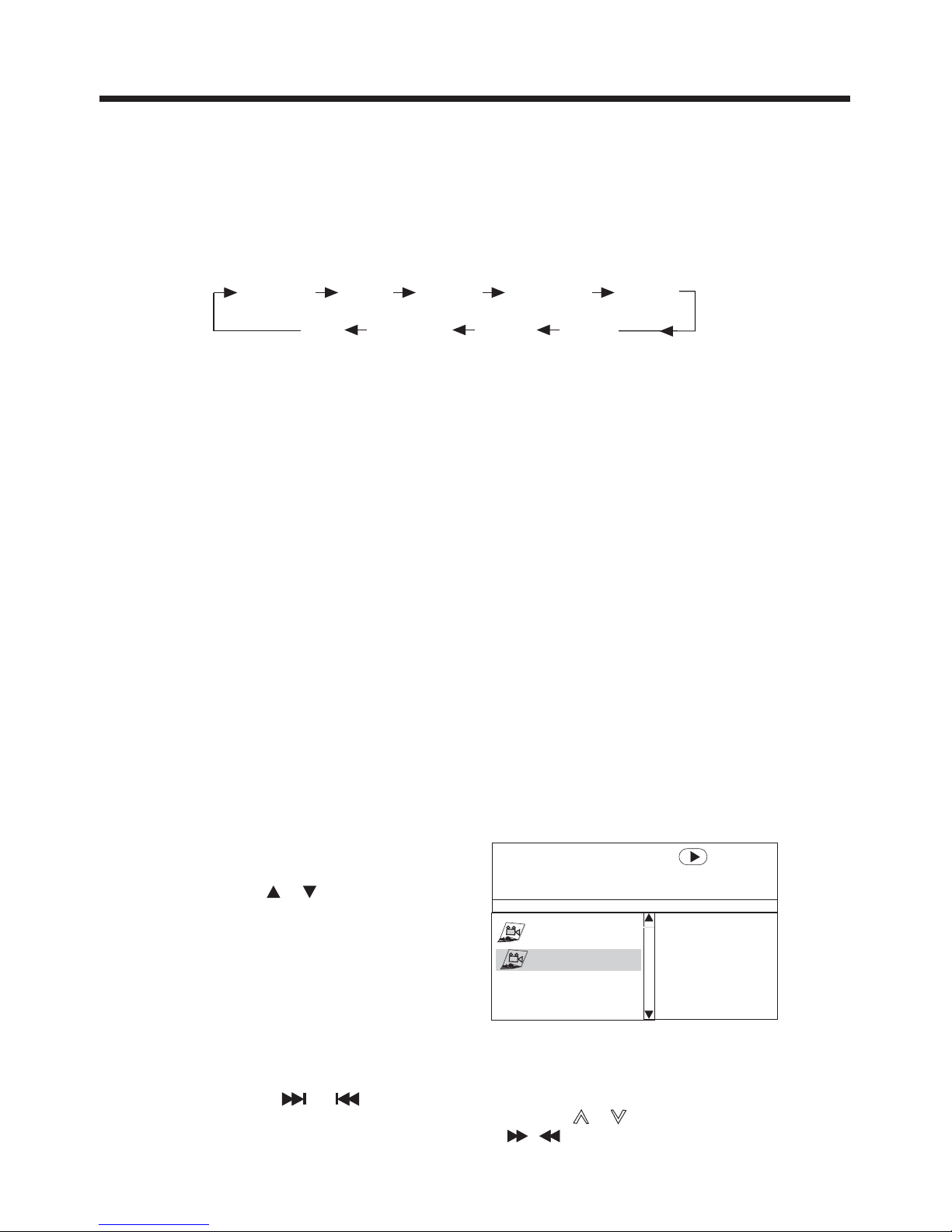

MP3/WMA/JPEG Disc Play .....................................................................

AUX Operation .......................................................................................

TFT Monitor Operation ...........................................................................

Rear View Camera .................................................................................

MPEG4 Player ........................................................................................

USB Operation .......................................................................................

On-Screen Display Function ...................................................................

Multi-Audio Language Function ..............................................................

Multi-Subtitle Language Function ...........................................................

Multi-Angle Function .............................................................................

Title Menu Function ...............................................................................

TV Operation ..........................................................................................

General Setup ........................................................................................

Speaker Setup .......................................................................................

Dolby Digital Setup ................................................................................

Preferences Setup .................................................................................

Defaults Table ........................................................................................

Alternate Auido/video Source ...................................................................

Page 3

SAFETY INFORMATION

CAUTION:

WARNING:

REGION MANAGEMENT INFORMATION:

THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE . HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD PLAYER CORRECTLY AS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.Use of this copyright protection technology must be authorized by Macro vision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD Player cannot play this disc.

Page 4

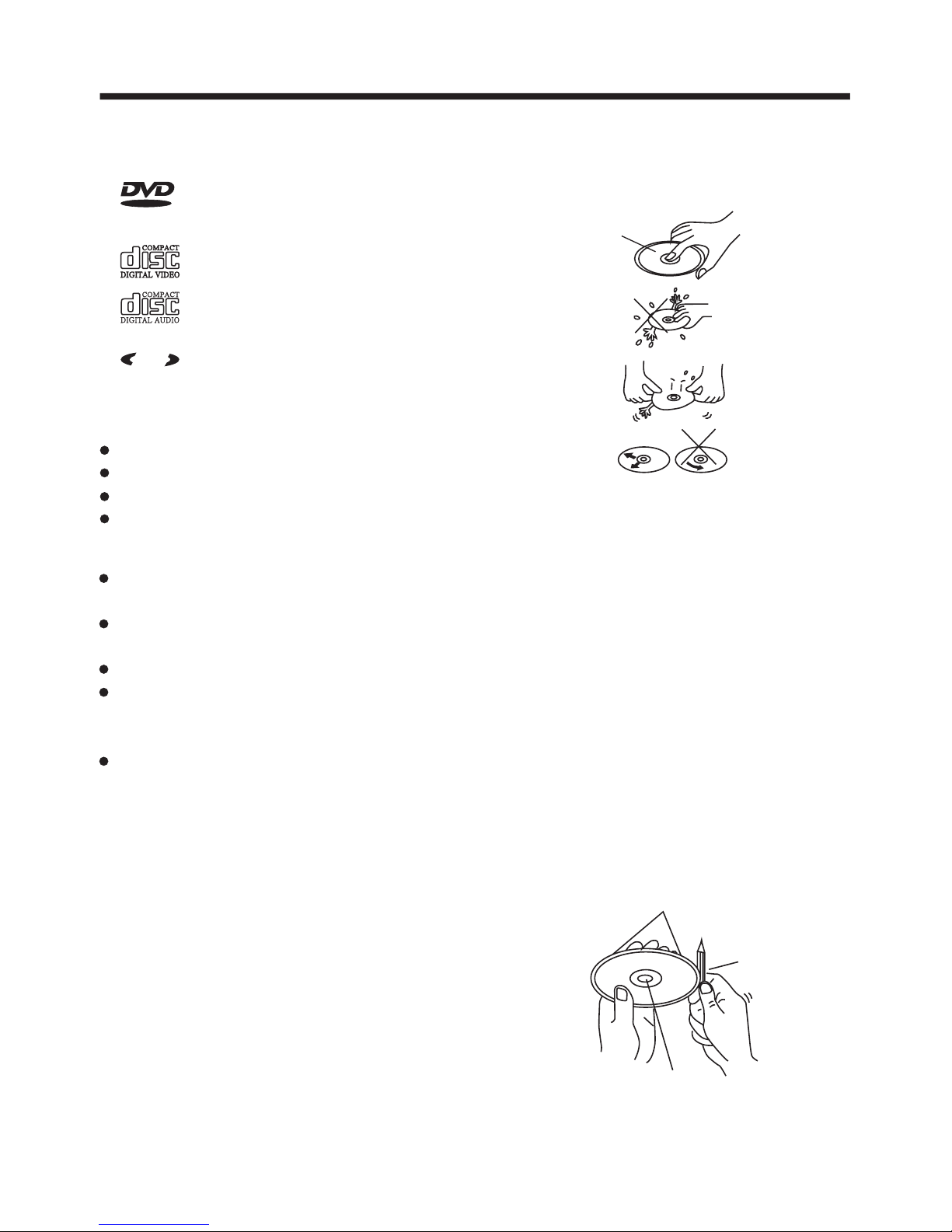

DISC NOTES

Preparing New Discs with Spots

Rough

A new disc may have rough edges on its inside and outside edges.If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc.Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right.To remove the rough edges, press the side of the pen or pencil against the inside and outside edges of the disc.

Disc formats supported by this player

DVD 12 cm disc (Single-sided disc only) Video CD 12 cm disc CD 12 cm disc MP3 12 cm disc

VIDEO

MPM

CD-RW

Rough spots on outside edge

Ball point pen or pencil

Rough spots on inside edge

Label side up

Do not touch the underside of the disc

Do not bend

Wipe the disc from center toward the outside edge

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Handling and Cleaning

Dirt, dust, scratches and warping disc

will cause misoperation. Do not place stickers or make scratches on discs. Do not warp discs.

A disc should always be kept in its case when not in use to prevent from damaging. Do not place discs in the following places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Discs which cannot be played with this player

DVD-ROM

DVD-R/DVD-RAM

CDV

CD-G

Note:

A disc may become somewhat scratched (although not enough to make it

unusable) depending on your handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

Page 5

Choose the mounting location where the unit will not interfere with the normal

driving function of the driver.

Before finally installing the unit, connect the wiring temporarily and make sure

all connected up properly and the unit and the system work properly.

Use only the parts included with the unit to ensure proper installation. The use

unauthorized parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or

modifications of the vehicle.

Install the unit where it does not get in the driver s way and cannot injure the

passenger if there is a sudden stop, like an emergency stop.

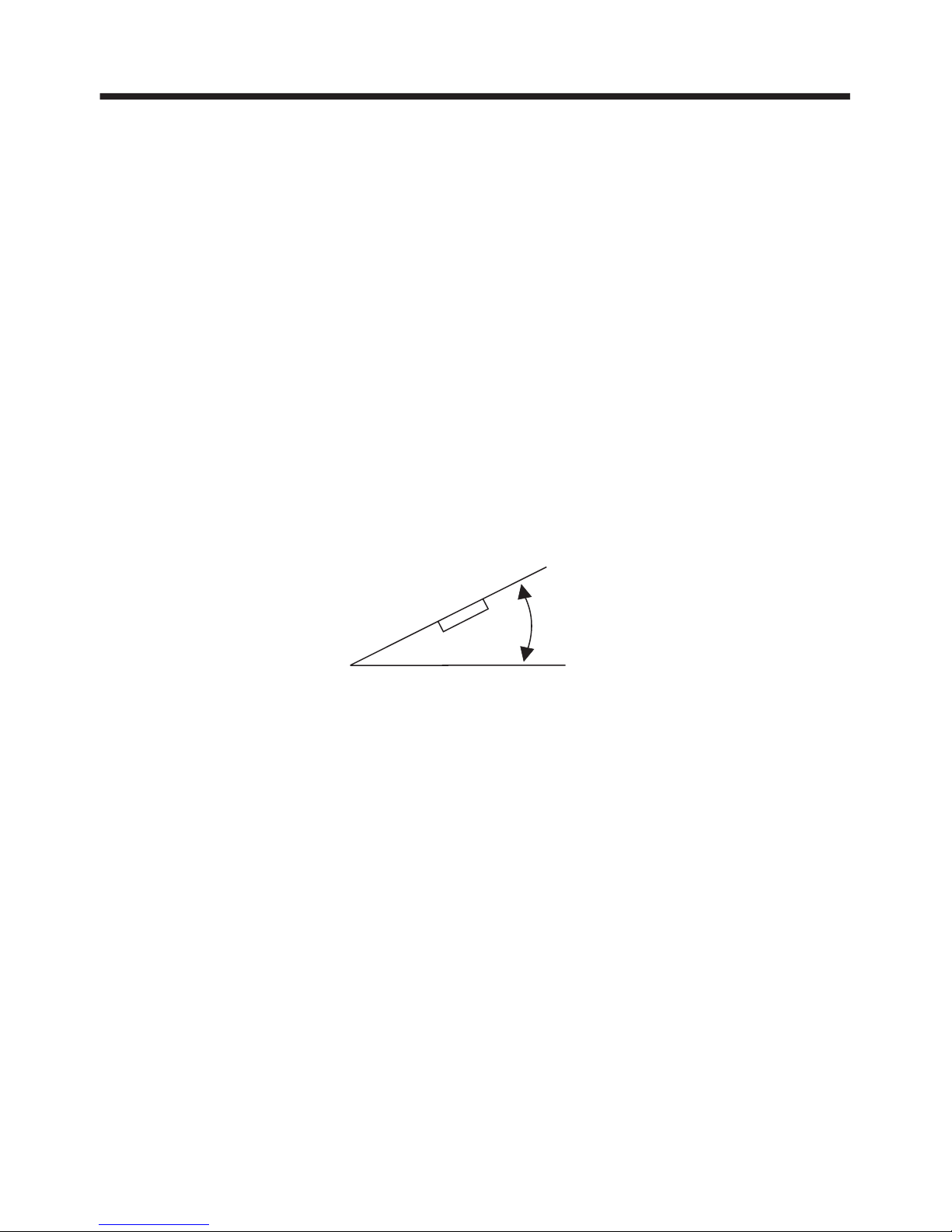

If installation angle exceeds 30 from horizontal, the unit might not give its

performance.

Avoid installing the unit where it would be subject to high temperature, such

direct sunlight, or from hot air, from the heater, or where it would be

dirt or excessive vibration.

This unit can be properly installed either from "Front"(conventional DIN

or "Rear"(DIN Rear-mount installation, utilizing threaded

the unit chassis). For details, refer to the following

illustrated installation methods.

NOTES:

DIN FRONT/REAR-MOUNT

it is

other

optimum

as from

subject to dust,

Front-mount)

screw holes at the sides of

INSTALLATION

Page 6

INSTALLATION

If you want to take CHASSIS out of the SLIDE BRACKET HOUSING, first remove the PLASTIC COVER of the both sides away, then insert

the two KEY PLATE into left and right side of chassis as above illustration.

DASH BOARD

METAL MOUNTING STRAP

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

CONSOLE

SLIDE BRACKET HOUSING

HEX BOLT

KEY PLATE

PLASTIC COVER

Page 7

INSTALLATION

Installing The Front Panel

FIG.4

FIG.3

PROTECTIVE CASE

FRONT PANEL

FIG.2

FRONT PANEL

FIG.1

FRONT PANEL

RELEASE BUTTON

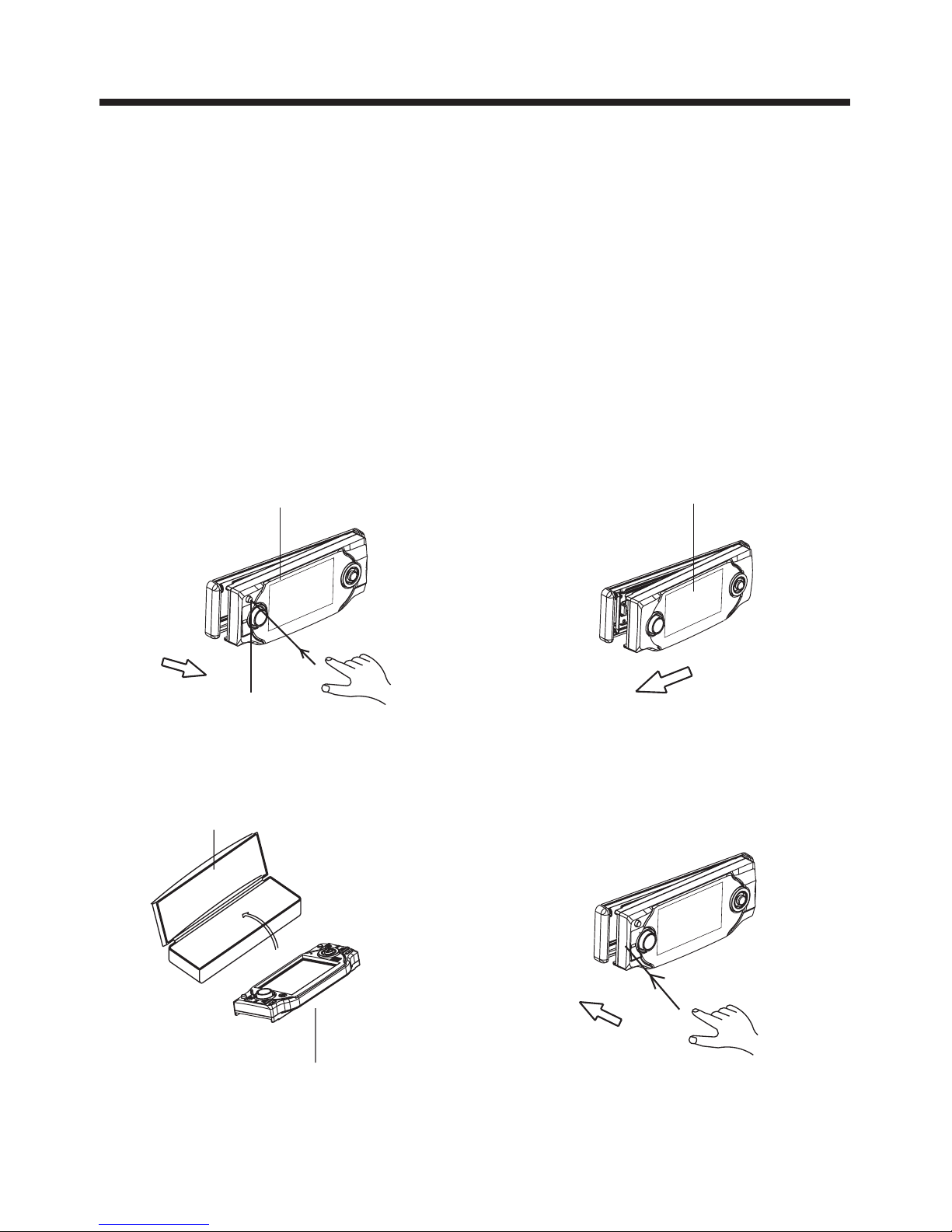

How To Remove And Install The Front Panel

When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching The Front Panel

Install The Front Panel

Before detaching the control panel, be sure to turn off the power.

1.Press the release button and the left hand side of the front panel will release. (FIG. 1)

2.Pull-off the front panel (FIG. 2) and keep the front panel into the case (FIG. 3)

First insert the right hand side of the front panel into the housing of the unit , then push the left hand side of the front panel and make sure the panel is properly installed(FIG.4),and then press the PWR button (2) briefly to switch the device ON.

Page 8

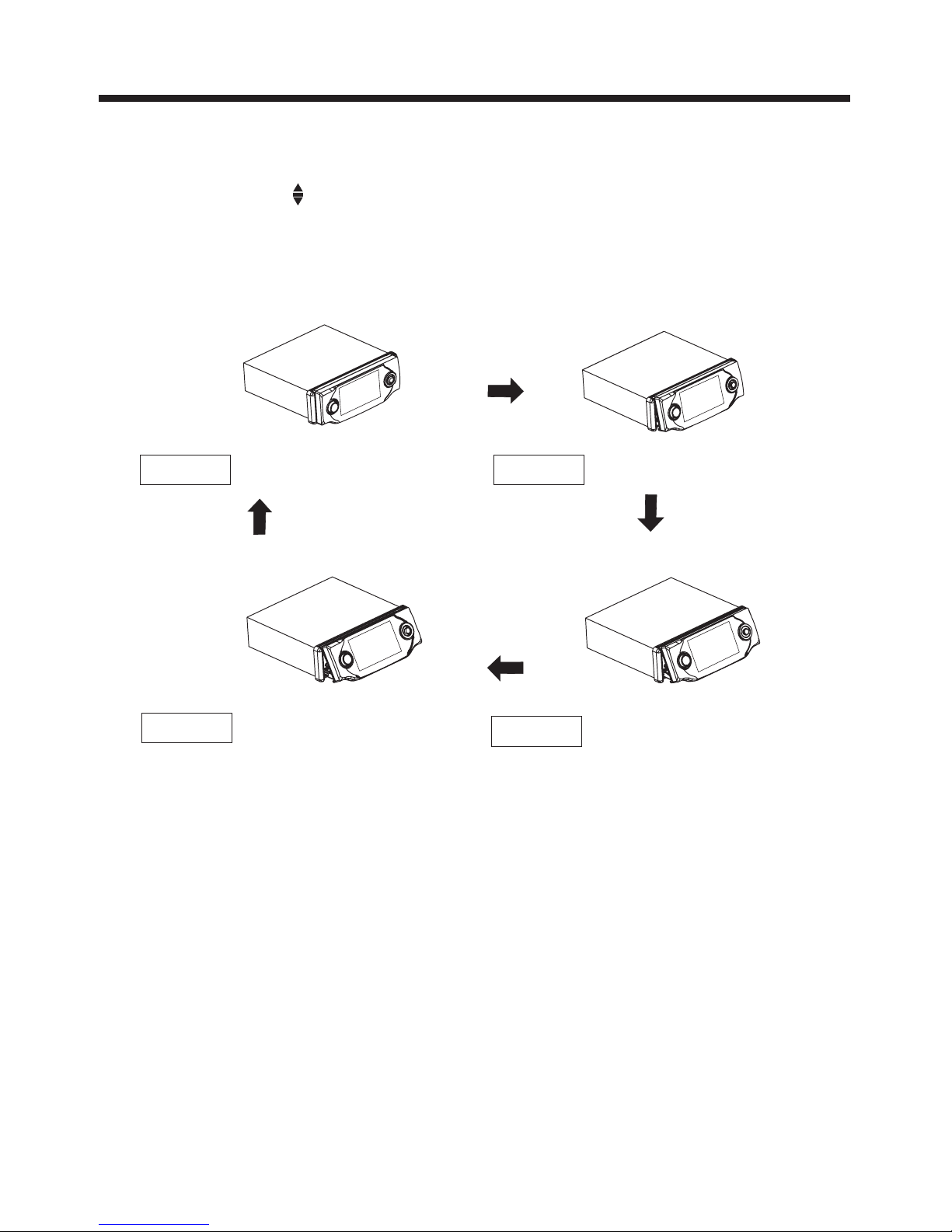

CHAGNE ANGLE

Caution:

Do not insert your finger behind the control panel.

When you want to change the viewing angle of the operating unit to play, you can press the (angle)button repeatedly to select the desired angle as follows:

CHANGING THE CONTROL PANEL ANGLE

Angle 3

Angle 4

Angle 1 Angle 2

Page 9

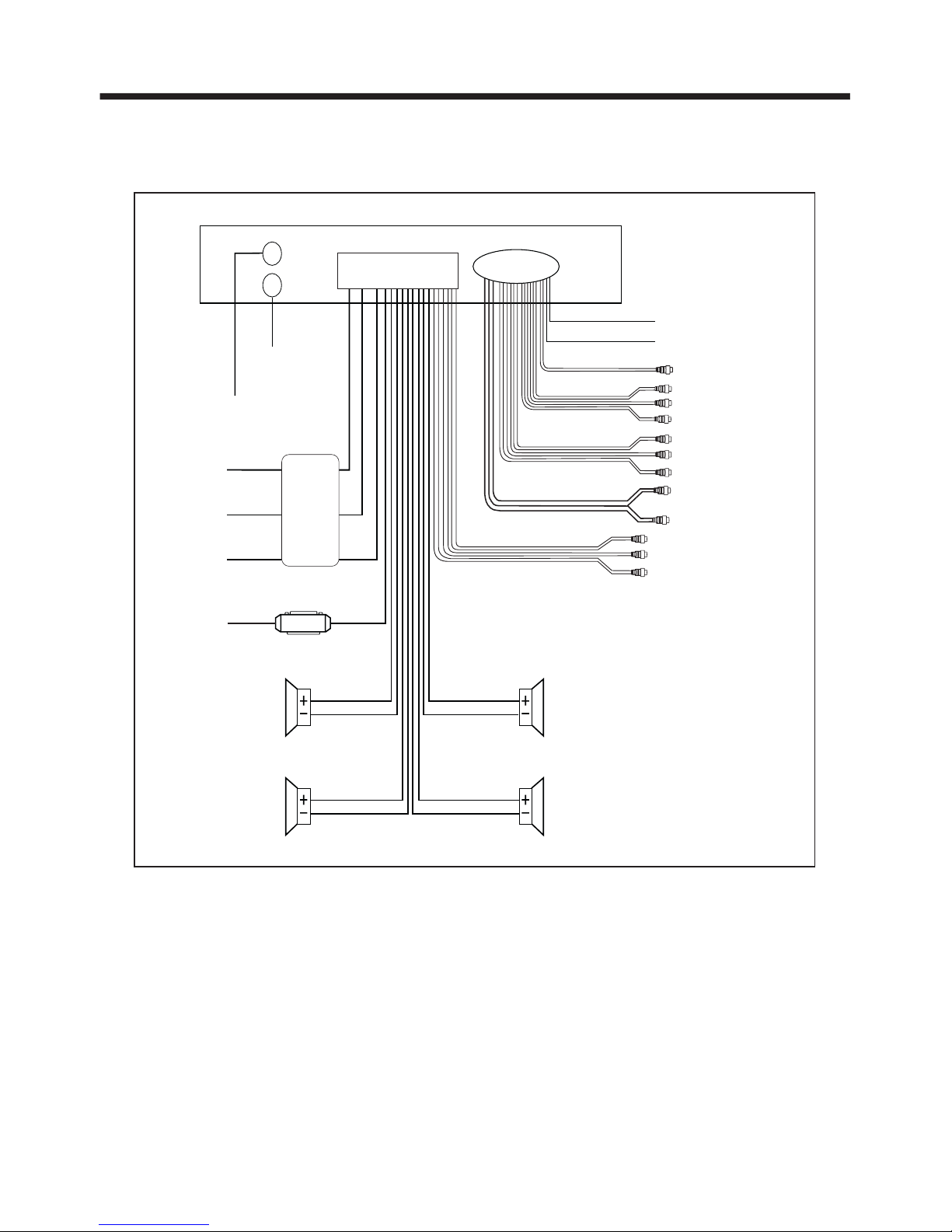

ELECTRIC CONNECTION

WIRING CONNECTION

Note: the earth connection cable (parking brake B-) must be connected in order for DVD pictures to be played back to the monitor. If the cable has not been correctly connected, the message “PARKING BRAKE” appears on the monitor.

VIDEO IN YELLOW RCH IN RED

LCHINWHITE

GREY SUBWOOFER VIDEO OUT 2 YELLOW

COAXIAL OUT BROWN

WHITE

(B+)12V REAR CAMERA SWITCH

GREEN

YELLOW

AUX(optional)

RCA CABLE

REAR CAMERA INPUT

(B-)PARKING BRAKE

FRONT RCA WHITE L

RCH RED

LCH WHITE

FRONT RCA RED R

VIDEO OUT 1 YELLOW

REAR RCA OUTPUT

CABLE (optional)

FRONT RCA OUTPUT

CABLE

(FOR RCA LINE OUT VERSION ONLY)

GREY

GREY/BLACK

FRONT

Rch SPK.

VIOLET

VIOLET/BLACK

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

REAR

Lch SPK.

AUTO

ANTENNA

BLUE

FUSE

GROUND(B-)

MEMORY

BACK-UP(B+)

IGNITION

SWITCH(B+)

ANTENNA CONNECTOR

RED

YELLOW

BLACK

MAIN UNIT

REAR

Rch SPK.

FRONT

Lch SPK.

CHOKE BOX

TV ANT IN

Page 10

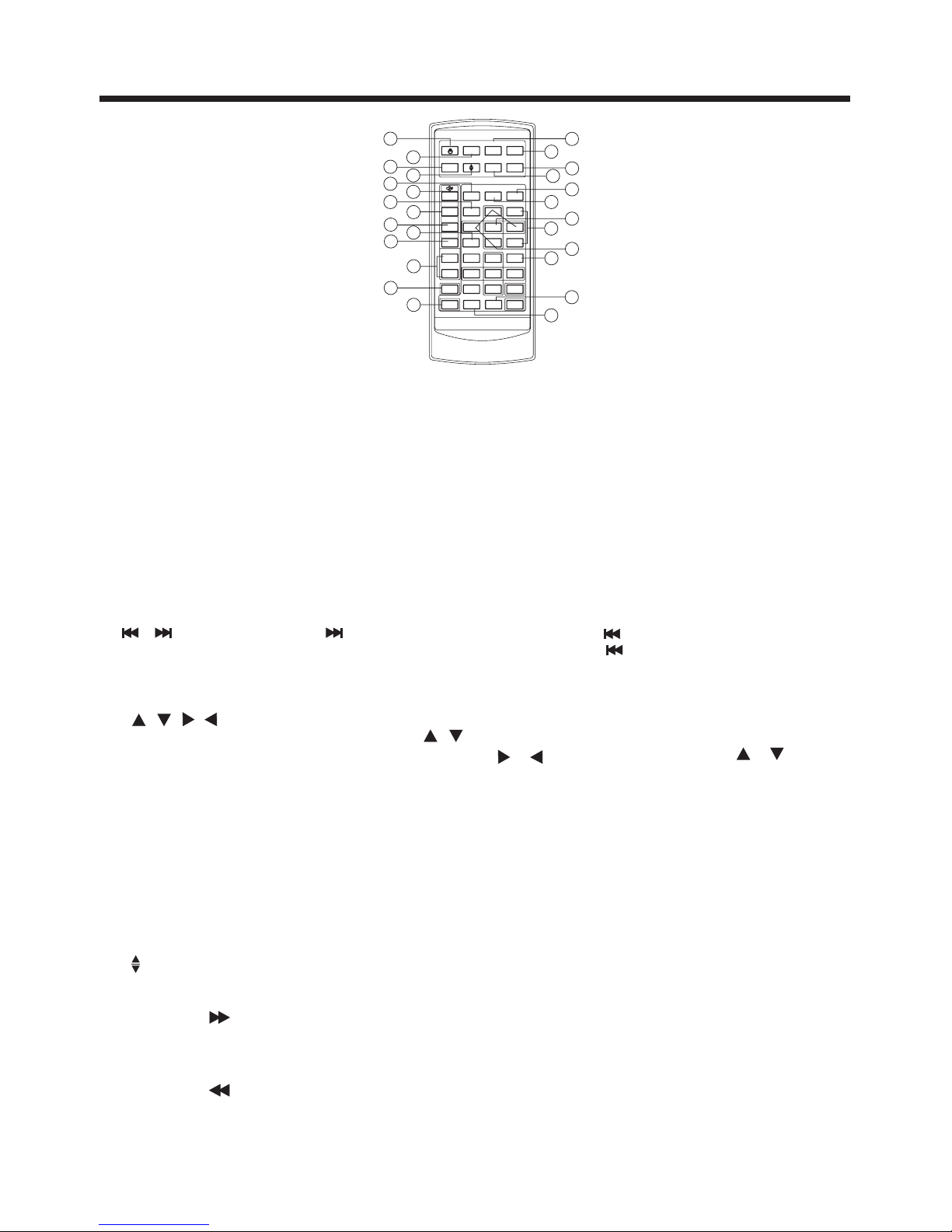

REMOTE CONTROL

1.CLK

2.MODE

3.STOP

4.SETUP

5.MO/ST(AUDIO)

6. SUBTITLE LO/DX

7.REPEAT

8.GOTO

9. /

10.SEL

11. VOL+/VOL-

12. / / /

13.MENU SUB WOOFER

14.BAND(OSD)

15.POWER

16.PLAY/PAUSE

17.MUTE

18.TITLE/PBC

(A/P)

19.

20.ANGLE

21.EQ

22.SEARCH

23.ENTER

24.SKIP

25. 0 - 9

26.+10

Press it to change the display to clock display. Press it to change between TV, RADIO ,DISC and AUX IN mode. Press it to stop playback. Display the SETUP menu. In radio mode, press it to select STEREO or MONO mode (In disc mode, press it to changing of the AUDIO soundtrack on multiaudio soundtrack DVD disc. Changing of the sound mode of the

VCD/CD disc) Changing of the SUBTITLE language on multi-subtitle language DVD disc. In radio mode,.Press this button for distance reception when you are located at weak signal location, depress it for stronger signal. Switch the Repeat mode of DVD/VCD/CD/MP3 disc.

Press to skip to the next track & press to skip back one track. (Note:In DVD mode, press continually the twice to skip back one track.) Press it repeatedly to change mode through volume , bass, treble, balance , fader, color, bright, contrast and tint modes. Press it to adjust volume level Cursor buttons in MENU mode. Note: For models without built-in FM Modulator, the / buttons can be used for volume up/down

control. In TV mode, press / to fine tune. Press the / to select channel upward and downward. Press it to display the root menu of the DVD disc. Press it long to switch the Subwoofer ON and OFF. Display statistical disc information during playback (To change the band in radio stations) Press it to turn on the unit ,press it again to turn off. Press once to pause a play, press again to resume playback. Press it to mute down sound. Display the TITLE menu that is stored in DVD disc changing between PBC ON and PBC OFF on the VCD disc.(Auto store and preset scan function in radio stations .) Press it to change the view angle. Changing of the view angle on multi-angle DVD disc. Press it to turn to equalization function. In TV mode, Press it to search TV channel automatically. In DISC mode, Press it to start forward rapidly. Confirm the Track/Chapter selected with the number key or selected with the cursor buttons on TV screen. In TV mode, press it to ADD and DELETE channel . In DISC mode, press it to reverse rapidly Numeric buttons. Tens digit select button, cooperatively used with numeric buttons.

Disc search button, cooperatively used with numeric buttons

Page 11

REMOTE CONTROL

Using the Remote Control

Face the remote control towards the player front face IR mark (remote control signal

receiver).

Operation angle: About 30 degree in each the direction of the front of the IR mark.

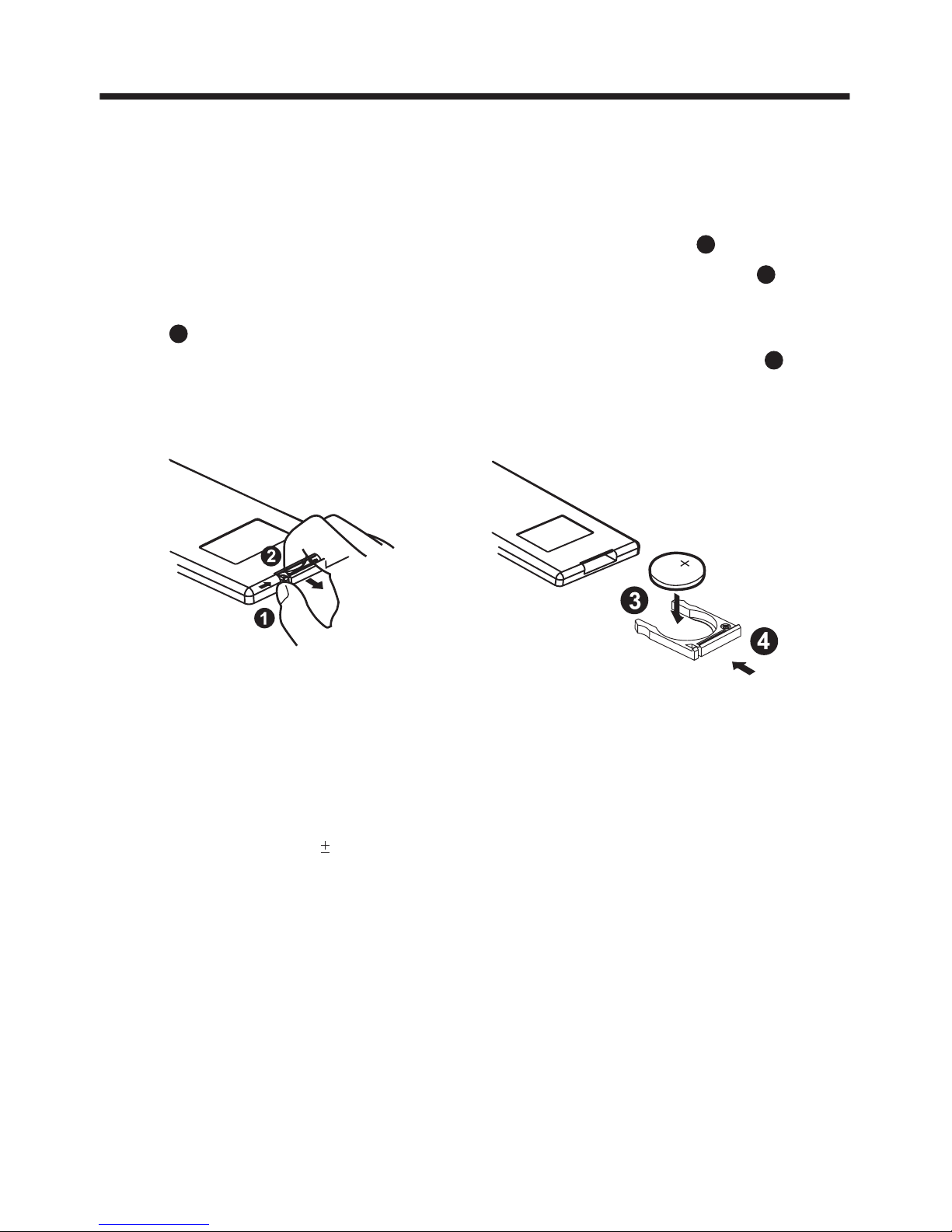

Preparing the Remote Control

1.First push to inside as the direction indicated by the arrow (See )And then

Remove the battery holder as the direction indicated by the arrow (See ).

2.Replace the battery Set a new battery property with (+)side up as illustrated

(See ).

3.Insert the battery holder. Push in the holder to the original position(See ).

Inserting the Batteries

Page 12

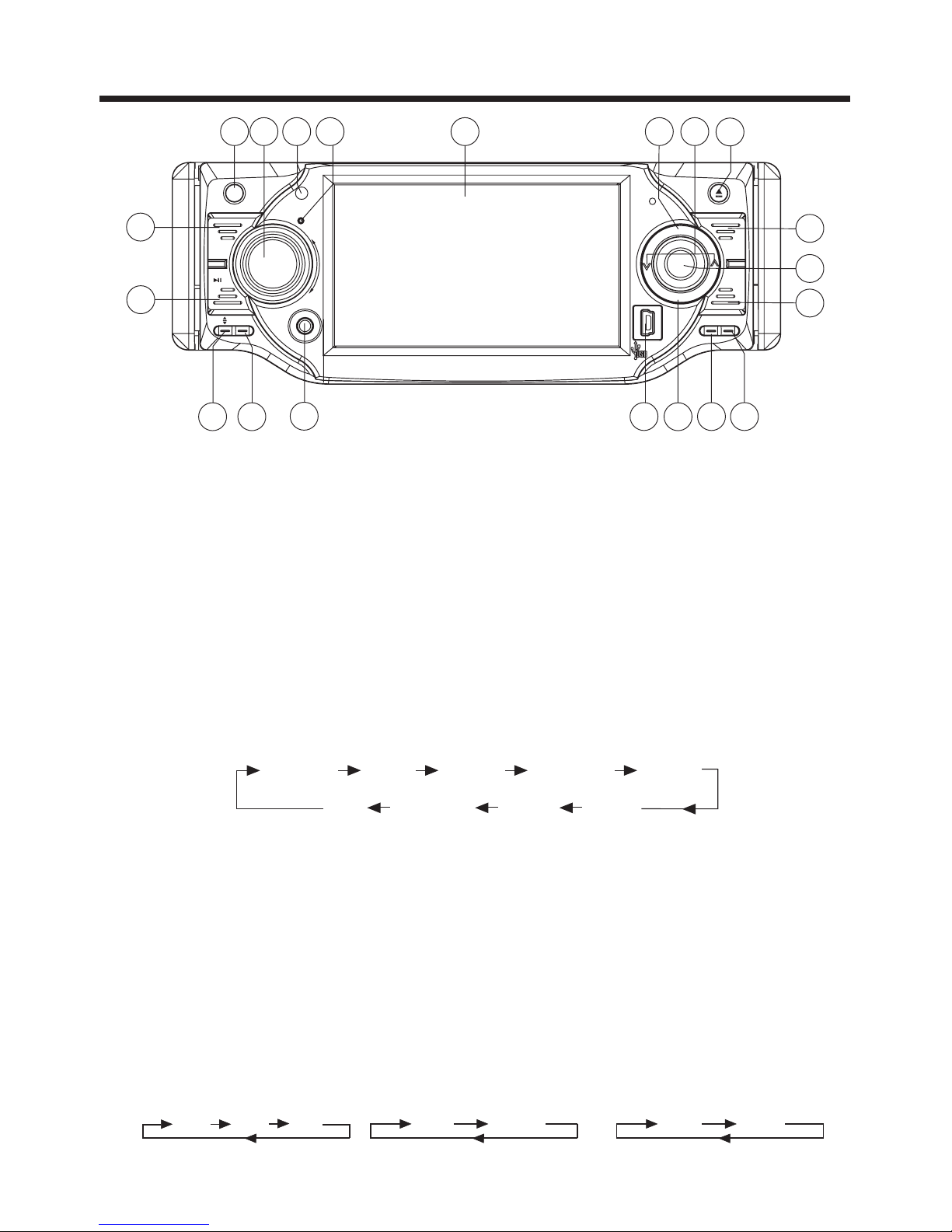

BASIC OPERATION

2.PWR On/Off BUTTON

Press this button to switch the device On, WELCOME appears in the display. Press it again to switch the device Off, SEE YOU appears in the display.

1.REL BUTTON

Press the REL button to detach the removable front panel.

3-4.VOL+/VOL- & SEL BUTTON

Press SEL 4 button briefly to across the sound/picture mode selection menu by repeatedly pressing the SEL button you can select the individual menu items such as volume, bass, treble, balance, fader, color, bright, contrast and tint . Then rotate the VOL + / - to adjust the selected mode. (The corresponding value will show on the display.) When mode has not been adjusted for several seconds, display returns to normal radio or CD display.

()

Tint Contrast Bright Color

Volume Bass Treble Balance Fader

Adjust volume level by using VOL + / - button.

Note: The unit is initially set to volume mode.

Press SEL button one time. Adjust bass level by using VOL +/-button.

Press SEL button two times. Adjust treble level by using VOL + / -button.

Press SEL button three times. Adjust sound balance between left

and right speakers by using VOL + / VOL - button.

Press SEL button four times. Adjust sound balance between front and

rear speakers by using VOL + / VOL - button.

A.Volume:

B.Bass: C.Treble: D.Balance:

E.Fader:

( : the function of the Color, Bright, Contrast and Tint. Please see 16 page.)NOTE

In RADIO mode, press the BAND button on the front panel or on the remote controller to select your desired radio band and word which band is selected will be displayed in the TFT . Press it to change the bands as below :

. BND BUTTON

FM MW LW

For 3 Bands (Europe)

FM MW

For 2 Bands (Europe)

FM AM

For 2 Bands (USA)

193

126

17 16

VOL+

VOL-

SEL

Page 13

BASIC OPERATION

8. MU BUTTON

Press it button to switch of the loudspeakers for a short period. The word MUTE flashes in the display. Press it again to cancel the mute function. This function can also be cancelled by rotating the VOL multifunction button.

9. (ANGLE)BUTTON

you can change the viewing angle of the operating unit . Press this button up to four times in order to select the desired position.

11. BUTTON

Press the button to interrupt playback of the CD (pause function). Press this button again to cancel this function.

7. APS/DISP BUTTON

a) Memory function: swing the SEL knob in the direction of APS/DISP for approximately 2 seconds to active automatic station storage. The radio searches within the current frequency band, e.g. FM1, for the strongest station are then allocated to the corresponding storage locations. Then the station of the first storage location is set. If you would like to search for more stations in the FM band, press the BND button(5) in order to change to the FM2 or FM3 band. Swing the SEL button (4) again in the APS/DISP direction for about 2 seconds to continue search. b) Scan Function: if the SEL knob is moved briefly in the direction of APS/DISP, the radio briefly plays all the preset stations of the frequency band. (The scan function ends automatically at the first storage location of frequency band FM1.)

swing the SEL knob briefly in the direction of the APS/DISP on the front panel , the playback picture (the monitor on the unit only) will not to be shown, only the audio will be heard. (Swing it again to resume the playback picture mode.) You can press SEL knob briefly to select the “BG COLOR” by repeatedly pressing the SEL knob, then rotate the VOL+/- to select the background color among of the

“AUTO, BG COLOR: 01........BG COLOR: 11”, in “ AUTO” mode, the monitor of

unit will change the background color automatically

you can press SEL knob briefly to select the TV system by repeatedly pressing the SEL knob, then rotate the vol+/- to select the TV type (only in EUR frequency mode) among of the “PAL-BG”, “PAL-DK”, “PAL-I”,“PAL-MN” ..

In Radio Mode:

In Disc Mode:

In TV Mode

10.CLK BUTTON

Press it to change the display to clock display. Press it again to return to previous display. In clock display, press and hold for about 2 seconds until the hour display flashes. Rotate the VOL+/- to adjust hours , press CLK button to flash minute then use VOL+ /VOL- to adjust minutes.

6. EQ BUTTON

Swing the SEL knob briefly in the EQ direction to turn to equalization function and to select desired audio mode. There are five kinds of mode as below:

JAZZ CLAS POP ROCK FLAT

Page 14

BASIC OPERATION

13. MOD BUTTON

Press it repeatedly to select TV, AUX IN , RADIO and DISC mode. During the USB playback, you can press STOP button and then press GOTO button to select the DISC mode.

14. (EJECT) BUTTON

Press this button to insert and eject the Disc . The operating unit swings downwards. Insert the Disc with the labelled side facing upwards gently into the CD slot until the device draws in the CD/DVD automatically. The operating unit will automatically swings back to the normal position.

16. RET(RESET) BUTTON

RESET button is placed on the housing and must be activated with either a ballpoint pen or thin metal object. The RESET button is to be activated for the following reasons:

A. Initial installation of the unit when all wiring is completed.

B. All the function buttons do not operate. C. Error symbol on the display.

15.MENU BUTTON

Press it to display the root menu of the DVD/VCD(Only when PBC not in use) disc.

DVD/VCD/CD/MP3:

Normal Playback 2x 4x 8x 16x

b) In Radio Mode:

Move the SEL button in the direction of or in order to set a radio station manually. Keep the SEL taste pressed down in the or direction in order to start the search for a radio station automatically.

12. / BUTTONS (TUNE, SEEK, TRACK, SKIP UP/DOWN)

a) In DISC, USB mode:

if you wish to jump forwards or backwards press the SEL button (4) briefly in the or direction. (Note: in DVD mode, press the SEL button continually twice in direction to skip back one track during playback.) Note:For some VCD 2.0 dics(PBC-playback control), and buttons may be unavailable.

To wind through the tracks keep the SEL button pressed in the or direction

for about 2 seconds. FF X2 appears in the display. Operating the SEL button again, the speed of rapid forward/reverse changes according to the disc as follow:

17. IR (infrared)

Sensor for the remote control.

18. AUX IN SOCKET

he operation of the AUX , please see page 15.

Page 15

BASIC OPERATION

TOP/RPT/INT/RDM FUNCTION (Only for the RC.)

a. Continuously repeat at the current chapter/track, when selected

REP-ONE mode.

b. Select REP-ALL mode to continuously repeat all chapter/track on the

current disc.

c. REPEAT feature does not support VCD2.0 (with PBC ON).

E.Long Press button to scan disc.

a. In the state of CD disc playing,press the 3/INT button to play the previous 6

seconds part of each track/chapter on disc. b. In the state of Mp3 disc playing, the 3/INT button is not available. c. In the state of VCD disc playing , long press the 3/INT button, the screen will

display as follow (long press it again will release this mode.):

3/INT

A.To memorize the current frequency, press any one of the six preset buttons[1-6]

on the remote controller hold for more than 2 seconds. B.To recall the preset memory, press one of the preset buttons [1-6]. C.Press button to select the first track/chapter to play.

a. In the state of VCD/CD/MP3 disc playing, press the button to select the

first track/chapter to play.(depend on the disc used for VCD)

b. In the state of DVD disc playing, the 1TOP button is not available. D.Press button briefly to select repeat mode as follow.

1/TOP

REPEAT

REPEATALL

CHAPTER REPEAT ON TITLE REPEAT ON

DVD:

REP-ONE REP-ALL

VCD/CD/MP3:

SELECT DIGEST TYPE: TRACK DIGEST DISC INTERVAL TRACK INTERVAL

1). you can use the buttons on the remote control to select the item, and then press the ENTER button to confirm .

2).

You can use the buttons to select the items ,and then press the ENTERtoconfirm. You can also select the items using the corresponding number buttons, and

then press the ENTER to confirm .

In Track Digest OR Disc/Track Interval MODE.

// /

d. In the state of DVD disc playing , long press the 3/INT button, the screen will

display as follow (long press it again will release this mode.):

SELECT DIGEST TYPE: TITLE DIGEST CHAPTER DIGEST TITLE INTERVAL CHAPTER INTERVAL

F. Long Press to play disc in random.

In the DVD/VCD/CD/MP3 disc playing, press the 4/RDM button on the front panel to play in random (depend on the disc used for VCD).

4/RDM

// /

1). you can use the buttons on the remote control to select the item,

and then press the ENTER button to confirm .

2).

You can use the buttons to select the items ,and then press the ENTERtoconfirm. You can also select the items using the corresponding number buttons, and then press the ENTER to confirm .

In Title/Chapter Digest OR Title/Chapter Interval MODE.

Page 16

BASIC OPERATION

To connect analogue replay devices. Use this jack to replay sound of other replay equipment such as DVD players, computers, etc. Via the loudspeakers.

1). Please connect the external device with stereo jack plug the AUX IN socket.

2). Press the MOD button(13) to select the AUX IN connection.

3). Rotate the VOL+/- button (3) you can change the volume level.

AUX IN Socket ( 18 )

3.REP ALL: Play all songs in the discover and over again. In the playback, use or to skip an item ahead or back. In the playback, face right or left swing the SEL knob / button on the front panel and keep more than 2 seconds or short press on the remote control to rapid forward/reverse.

2.REP-ONE: Play the same song over and over again.

In stop mode , use / on the remote control to select the item or folder, then press ENTER button to confirm. Pressing REPEAT button repeatedly can select two kinds of repeat play mode.

00:56 04:07

003/112

Repeat one

Mp3

..............

woman

new

ton

.Current track(file)(highlighted bar)

.Elapsed playing time of the current

track(

.total playing time.

.Selected playback mode .Operation mode icon. (Play),

(stop), (pause), (forward) (reverse).

.Current track (file) number/total

number of tracks(files) in the current folder.

not available for JPEG disc)

( not available for

JPEG disc)

1 2

5 6

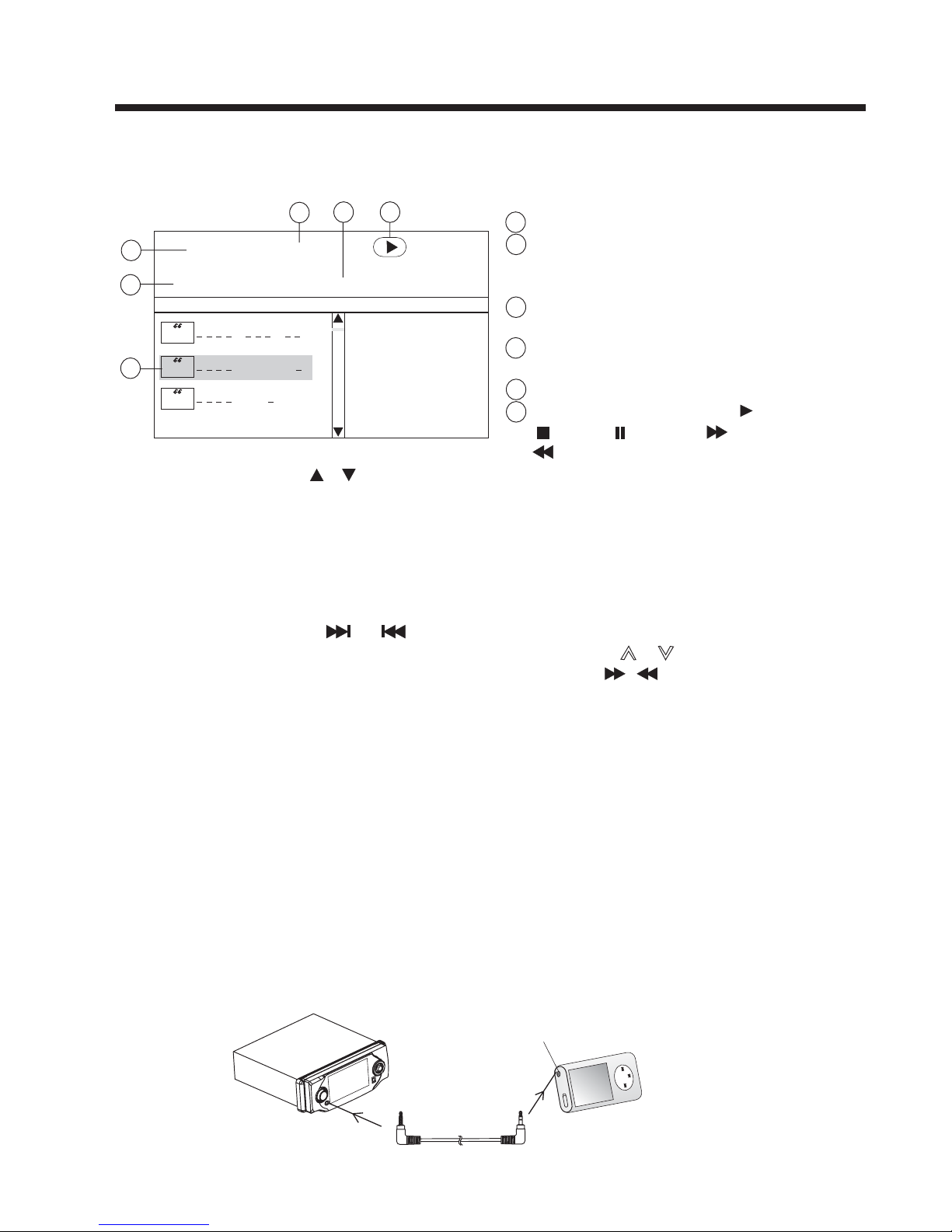

1.When inserting an MP3/WMA/JPEG disc. Ex: When Mp3 file is detected.

MP3/WMA/JPEG DISC PLAY

To connect analogue replay devices. Use this jack to replay sound of other replay equipment such as DVD players, computers, etc. Via the loudspeakers. (See fig.1)

1).Please connect the external device with stereo jack plug the Aux In socket(18).

2).Press the MOD button to select the AUX IN connection.

3).With the buttons on the external device to operate the item of the playing.

ALTERNATE AUDIO/VIDEO SOURCE

Headphones port

( connect cable)

( fig.1)

Page 17

BASIC OPERATION

REAR VIEW CAMERA

When connecting the rear view camera.the mirror image of the rear view through the rear view camera is automatically displayed on the monitor when you change

the gear to the back position.(The monitor on the unit only.)

if the parking brake is not engaged,“parking brake” flashes on the monitor, and no playback picture will be shown. Only the audio will be heard.

-This warning appears only when the parking brake wire is connected to the parking brake system built in the car. (See page .8)

NOTE(for the brake function)

MPEG4DISCPLAY

MPEG4 disc is playing as the format of FILE . For example:

In stop mode , use / on the remote control to select the item , then press ENTER button to confirm. Pressing REPEAT button repeatedly can select three kinds of repeat play mode. REP-ONE: Play the same song over and over again. REPEAT ALL: Play all songs in the current directory in sequence, over and over again. DISC REPEAT: Play all songs in the discover and over again. In the playback, use or to skip an item ahead or back. In the playback, face right or left swing the SEL knob / button on the front panel and keep more than 2 seconds or short press on the remote control to rapid forward/reverse.

00:56 04:07

001/001

Repeat one

..............

MAY-AUG

C14-Long-fright

COLOR: 0 to 32

Adjust the color fo the picture-lighter or darker.

BRIGHT:0to32

Adjust if the picture is too bright or too dark.

CONTRAST: 0 to 32

Adjust the contrast of the bright ans dark portion.

TINT:0to32

Adjust the tint if the human skin color is unnatural.

-Adjustable when “NTSC is selected for NTSC/PAL“““. (The function of the VOLUME, BASS, TREBLE, BALANCE and FADER, Please

see page 11.)

ADJUSTABLE ITEMS:

TFT MONITOR OPERATION

Tint Contrast Bright Color

Volume Bass Treble Balance Fader

Then rotate the VOL + / - to adjust the selected mode.

(The corresponding value will show on the display.) When mode has not been adjusted for several seconds, display returns to normal radio or CD display.

()

Page 18

BASIC OPERATION

Press the OSD button during playback to display the contents of the current disc on the screen. A.Example for DVD: a.Press OSD for the first time:

TITLE ELAPSED TT 01/01 CH 01/38 0:02:06

e.Press OSD for the fifth time: The message on the screen will be cleared.

d.Press OSD for the fourth time:

c.Press OSD for the third time:

b.Press OSD for the second time:

TITLE REMAIN TT 01/01 CH 01/38 3:24:36

CHAPTER ELAPSED TT 01/01 CH 01/38 0:02:56

CHAPTER REMAIN TT 01/01 CH 01/38 0:04:32

B.Example for VCD/SVCD/CD: a.Press OSD for the first time:

b.Press OSD for the second time:

c.Press OSD for the third time:

d.Press OSD for the fourth time:

SINGLE ELAPSED

TRACK 01/16 00:49

SINGLE REMAIN

TRACK 01/16 02:45

TOTAL ELAPSED

TRACK 01/16 00:60

TOTAL REMAIN

TRACK 01/16 78:46

Title Number, Total Title Number,

Chapter Number, Total Chapter Number of this Title of the disc currently being played will be shown on the screen,along with the elapsed time.

On-Screen Display Function

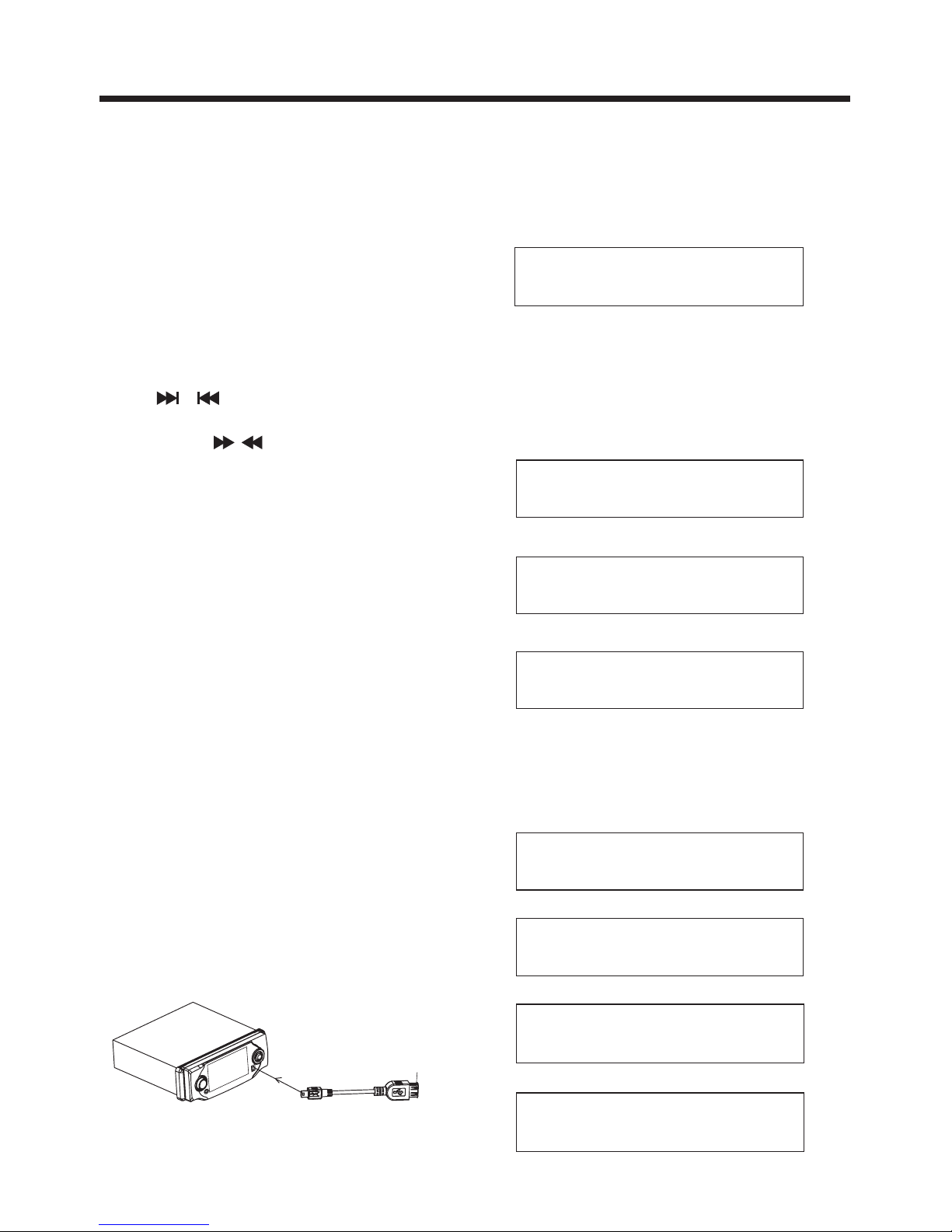

A.Plug the USB connect line to the USB

socket (see number 19) of the unit properly,(See fig.1) when the USB appliance connect to the USB port of the connect line, the system star playing track of the USB appliance automatically.

B. IN USB playing , you can press the

cursor button to select the item.Then press ENTER button to playing. also press numeric to play the corresponding track directly. Press the / buttontoskiptothenext track or skip to the back one track Press the / button to fast forward or fast reverse. Press the REPEAT button to select repeat play mode. You can press the EJECT button to eject the disc or insert the disc into the compartment. When insert the disc, the unit will play the disc automatically .

C.In USB mode(when the disc in the unit)

Press the STOP button once , and then press the GOTO button, the unit will change the DISC mode to play, In DVD/VCD/CD mode, Press the STOP button twice, and then press the GOTO button, the unit will change the USB mode to play In MP3 mode, press the STOP button once, and then press the GOTO button, the unit will change the USB mode to play.

Note:

a:To prevent damage to the USB ,

during the playback don`t pull out. b:In the state of the DISC playing , Best to pull out the USB.

USB Operation

(Fig.1)

(USB connect line)

USB port

Page 19

e.Press for the fifth time: The message on the screen will be cleared for SVCD and VCD. C.Example for MP3: Each time OSD is pressed, the message displayed on screen changes as follows:

OSD

SINGLE ELAPSED SINGLE REMAIN

BASIC OPERATION

Multi-audio Language Function

For DVD:

AUDIOPress during playback.

Each time the button is pressed, number of the audio soundtrack language changes on sequential order. NOTES:

- The language number is different according to the disc.

- Some disc only contain one language soundtrack

- When no different language soundtrack are recorded will be display at screen left top corner.

MONO LEFT MONO RIGHT

STEREO

MIX-MONO

For VCD/CD:

AUDIOPress during playback. It is

possible to switch the sound between monaural and stereo sound.

Title Menu Function

For DVD:

TITLE

If the DVD has multiple titles recorded on the disc. It can select preferred title from the title menu to start playback.

- Press during playback.The title menu is display.

- Press the cursor button shown in TV screen, select preferred title by the cursor button and confirmed by ENTER key.

For VCD:

TITLE/PBCPress button on the remote

control while the disc is playing, you can switch between "PBC on"and "PBC off" mode.

Press during playback. Each time the button is pressed, number of the subtitle language changes in sequential order.

Multi-subtitle Language

(for DVD Only)

Function

SUBTITLE

1.Connect the TV antenna to the TV.IN (from Ant) jack on the back of the unit.

2. Press the mode button on the remote control to select the TV mode.

Press the SEARCH button on the remote controller to star search channel automatically.

- Press the / button to choose the channel upward and downward.

- The numeric button (0-9) allow you to select the corresponding channel directly. Note: In TV mode, the +10 button is not available.

You can press / button on the remote controller to fine TV channel. It can be improve the picture quality .

In TV mode ,after search channel automatically, when you want delete the no sign channel, press the SKIP button (the screen display SKIP),the channel will be deleted. Also, you can press numeric button to select channel, then press SKIP to add channel(the screen display SAVE).

TV Operation

Switching to TV mode

Auto searching TV channels

Selecting channel

Fine TV channel

Channel ADD/DEL

Multi-angle Function (for DVD Only)

Press ANGLE during playback. Each time the button is pressed, number of the angle changes in sequential order. Notes:

- The angle number is different according to the disc.

- The function only work for disc having scenes recorded at different angles.

- When no different angle are recorded,

will be displayed at screen left top

corner.

Notes:

- The language number is different according to the disc.

- Some discs only contain one subtitle language.

- When no different subtitle language are recorded, will be displayed at screen left top corner.

Page 20

SETUP

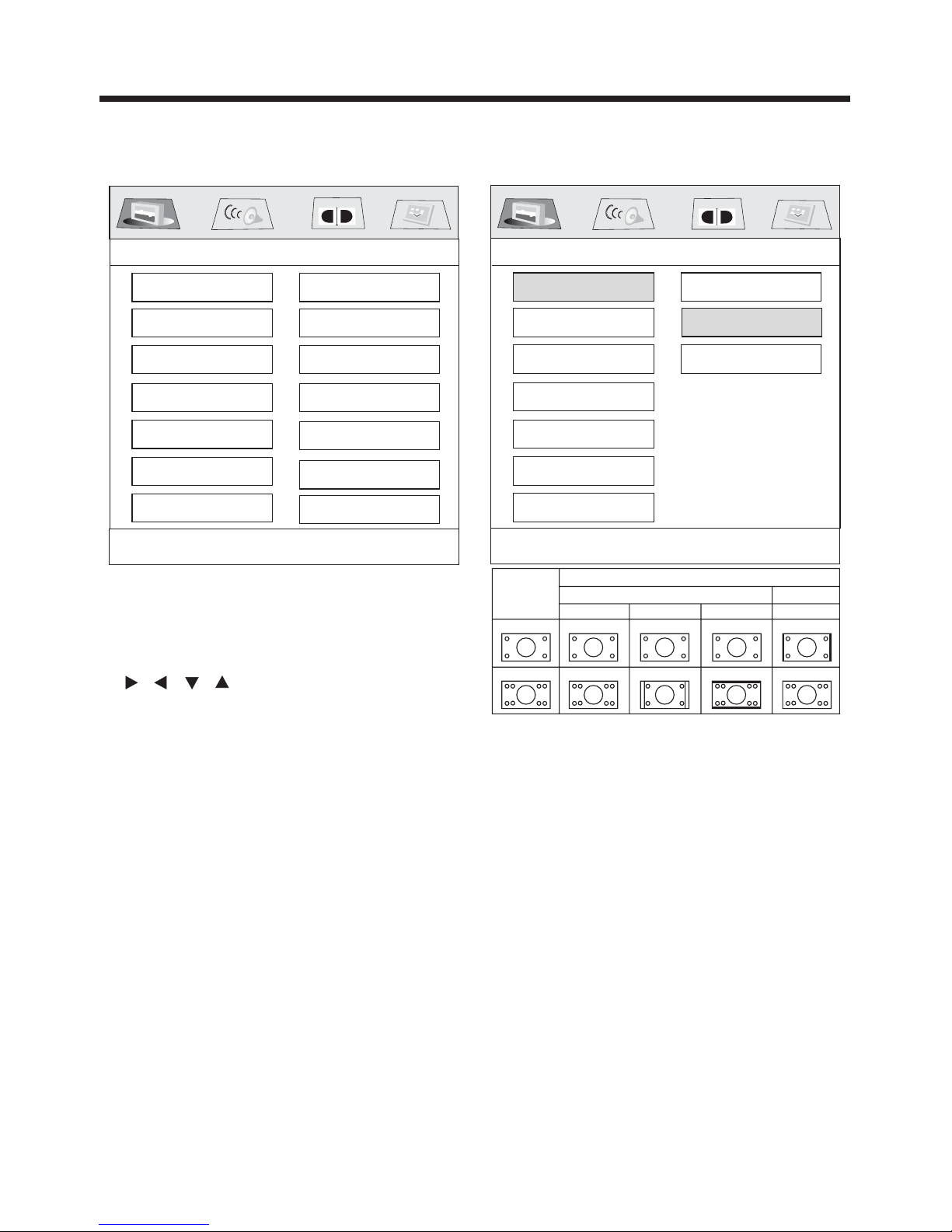

1.TV DISPLAY SETUP

This is to select the appropriate TV

aspect (4:3 or 16:9) according to the connected TV set.

Played back in the PAN & SCAN style. (If connected to wide-screen TV, the left and right edges are cut off.)

Played back in letterbox style. (If connected to wide-screen TV, black bands appear at top and bottom of the screen.)

Select when a wide-screen TV set is connected.

Normal/PS (For 4:3 TV)

Normal/LB (For 4:3 TV)

Wide (For 16:9 TV)

GENERAL SETUP

--- GENERAL PAGE ---

1. Press button on the remote control .

2.The SETUP menu is displayed.

3.Select the preferred item by using the

/ / / buttons

4.Press ENTER button.

a.GENERAL SETUP

This setup page includes the item of TV display & audio output feature. The detail please refer to

b.SPEAKER SETUP

This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode. Please refer to

c.DOLBY DIGITAL SETUP

Please refer to

d.PREFERENCE SETUP

This setup page includes all the configuration of support feature. The detail please refer to

SETUP

GENERAL SETUP MENU.

SPEAKER SETUP MENU.

DOLBY DIGITAL

SETUP.

PREFERENCES SETUP MENU.

Go To General Setup Page

-----General setup page----

Angle Mark

Last Memory

TV Display

Screen Saver

Spdif Output

OSD Lang

Captions

ENG

SPDIF/RAW

DOLBY

Video Material

Normal

Pan Scan

TV Screen

Letter-box

Wide(16:9)

4:3

Set TV Display Mode

-----General setup page----

Angle Mark

Last Memory

TV Display

Spdif Output

OSD Lang

Captions

Normal/PS

Normal/LB

Wide

Screen Saver

DOLBY

Page 21

3.OSD LANG TYPE SETUP

Select the preferred OSD language by using the / buttons.

5.CAPTIONS SETUP

Activate the CAPTIONS feature by

selecting ON. And release this feature by selecting OFF.

2.ANGLE MARK DISPLAY SETUP

If it is set to ON, when the multi-angle DVD disc is playing, (the angle mark) will appears on the screen; if is set to OFF, the mark will not appear.

4.SPDIF OUTPUT

This is to activate the audio output

from SPDIF OFF mode to SPDIF/RAW mode to SPDIF/PCM mode.

Set Angle Mark

-----General setup page----

Angle Mark

Last Memory

TV Display

Spdif Output

OSD Lang

Captions

OFF

-----General setup page----

Angle Mark

Last Memory

TV Display

Spdif Output

OSD Lang

Captions

Set OSD Language

Spanish

German

French

English

Portuguese

Italian

Closed Caption

-----General setup page----

Angle Mark

Last Memory

TV Display

Spdif Output

Captions

OFF

Screen Saver

Screen Saver Screen Saver

OSD Lang

DOLBY

Setup SPDIF

-----General setup page----

Angle Mark

Last Memory

TV Display

Spdif Output

Osd Lang

Captions

SPDIF OFF

SPDIF/RAW

SPDIF/PCM

Screen Saver

DOLBY

SETUP

Page 22

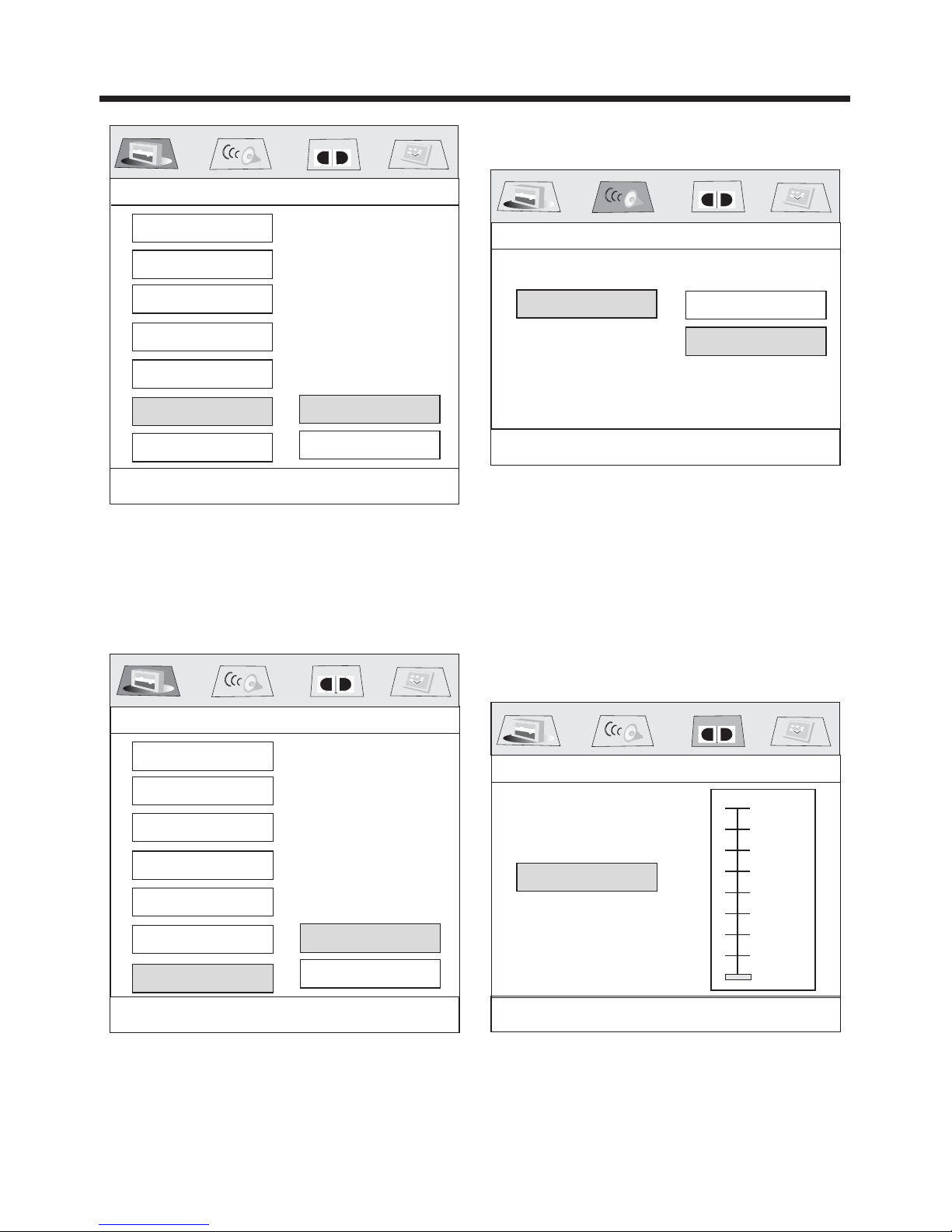

6.SCR SAVER SETUP

Select the SCR SAVER output ON/OFF.

7.LAST MEMORY SETUP

Select the LAST MEMORY output ON/OFF.

SPEAKER SETUP

--- SPEAKER SETUP PAGE ---

This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode. Select the preferred SPEAKER connection by using the cursor buttons. Select the LT/RT to activate the Dolby surround compatible output. Select the STEREO to activate simple stereo mode.

DOLBY DIGITAL SETUP

DYNAMIC RANGE CONTROL

Select DRC and adjust the dynamic range of a Doby Digital encoded program. There are 8 steps between full compression and off compression.

Screen Saver

-----General setup page----

Angle Mark

Last Memory

TV Display

Spdif Output

OSDLang

Captions

OFF

Set Last Memory State

-----General setup page----

Angle Mark

Last Memory

TV Display

Spdif Output

OSD Lang

Captions

OFF

DOWNMIX

LT/RT

STEREO

Set Downmix Mode

-----Speaker Setup Page----

Screen Saver

DOLBY

Set DRC OFF

FULL

6/8

4/8

OFF

2/8

-----Dolby Digital Setup----

DYNAMIC

DOLBY

SETUP

Page 23

--- PREFERENCES PAGE ---

PREFERENCES SETUP

1.TV TYPE SETUP

This player can play discs recorded in either PAL or NTSC format.Select NTSC format, when you connected to NTSC TV.Select PAL format, when you connected to PAL TV.Select AUTO format, the player TV output format will according to the DVD disc format..

2.AUDIO LANGUAGE SETUP

Select the preferred AUDIO soundtrack by using the cursor buttons.

3.SUBTITLE LANGUAGE SETUP

Select the preferred SUBTITLE language by using the cursor buttons.

4.DISC MENU LANGUAGE SETUP

Select the preferred DISC MENU language by using the cursor buttons.

Set TV standard

-----Preference Page----

Audio

Default

TV Type

Password

Disc Menu

Subtitle

Parental

AUTO

NTSC

PAL

DOLBY

Audio

Default

TV Type

Password

Disc Menu

Subtitle

Parental

-----Preference Page----

Spanish

German

French

English

Portuguese

Italian

Preferred Subtitle Language

OFF

DOLBY

Audio

Default

TV Type

Password

Disc Menu

Subtitle

Parental

-----Preference Page----

Spanish

German

French

English

Portuguese

Italian

Preferred Audio Language

DOLBY

Audio

Default

TV Type

Password

Disc Menu

Subtitle

Parental

-----Preference Page----

Spanish

German

French

English

Portuguese

Italian

Preferred Menu Language

DOLBY

SETUP

Page 24

5.PARENTAL

Select suitable parental guidance by the cursor buttons and conformed by pressing ENTER button.

6.PASSWORD

Select the change and press ENTER button. Type the old password (The initial factory code is ) and key in 4 characters password now you want to use, and retype again to confirm key in correctly.

1379

7.DEFAULTS

Select reset to become factory initial setting.

Audio

Default

TV Type

Password

Disc Menu

Subtitle

Parental

-----Preference Page----

Set Parental Control

1KID SAF

3PG

4PG13

5PGR

OFF

7NC 17

8 ADULT

DOLBY

Change Password

Audio

Default

TV Type

Password

Disc Menu

Subtitle

Parental

CHANGE

-----Preference Page----

DOLBY

Audio

Default

TV Type

Password

Disc Menu

Subtitle

Parental

-----Preference Page----

Load Fcatory Setting

RESET

DOLBY

DEFAULTS TABLE

GENERAL SETUP

SPEAKER SETUP

DOLBY DIGITAL

PREFERENCES

TV DISPLAY

ANGLE MARK

SPDIF OUPUT

OSD LANGUAGE

CAPTIONS

LAST MEMORY

DOWNMIX

DYNAMIC

TV TYPE

AUDIO

SUBTITLE

DISC MENU

PARENTAL

PASSWORD

NORMAL/LB

ENGLISH

STEREO

AUTO

ENGLISH

OFF

ENGLISH

8 ADULT

1379

OFF

SCR SAVER

SPDIF/RAM

SETUP

Page 25

SPECIFICATION

TV TUNER

TV System :NTSCorPAL TV Sensitivity :

NOTE:

Specifications and design are subject to modification, without notice, due to improvements in technology.

GENERAL

SIGNAL SYSTEM

Supply Voltage : 12v Dc (11v-15v) Current Consumption More Then 10 A

: Compositive Video 1.0vp-p 75

DISCS PLAYED

(1) Dvd-video Disc

5"(12 Cm) Single-sided, Single-layer 5"(12 Cm) Single-sided, Double-layer

(2) Compact Disc (cd-da, Video Cd)

5"(12cm) Disc

AUDIO SIGNAL OUTPUT : CHARACTERISTICS

2ch&4ch Line Out

(1) Frequency Response 20 Hz - 20 Khz

(2) S/n Ratio 90 Db (jis)

(3) Wow And Flutter

Below Measurable Limits

FM TUNER SECTION

AM TUNER SECTION

Tuning Range : 87.5-107.9MHz IF Range : 10.7MHz Usable sensitivity(30dB) : 15dB

Frequency Range : 530-1710KHz IF Range : 450KHz Usable sensitivity(30dB) : 45dB

RADIO

Color System : NTSC/PAL

Monitor Screen Size : 4 Inch Wide Number of Pixels : 480 x RGB x 272

TFT MONITOR

Page 26

888-J4000-07S

Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer.

TROUBLE SHOOTING

Inserting the disc in reverse direction

Press the RESET button. Front panel is not properly fixed into its place

The car ignition switch is not on

If the power supply is properly connected to the car accessory terminal,switch the ignition key to

"ACC"

The fuse is blown

Replace the fuse

Presence of disc inside the player.

Remove the disc in the player, then put a new one

Insert the compact disc with the label facing upward

The disc is extremely dirty or defective

Clean the disc or try to play a new one

Temperature inside the car is too high

Cool off or until the ambient temperature return to normal

The built-in microcomputer is not operating properly due to noise The antenna cable is not connected

Insert the antenna cable firmly

The signals are too weak

Select a station manually

SYMPTOM CAUSE SOLUTION

Television/video imageappears black-white

The color system is set incorrectly

Please switch to correct color system from menu

No television/video image appears

The unit is not connected to the parking brake detection switch

Make proper connection according to wire connection

“”

The parking brake is not engaged

For safety reasons no television /video images are displayed while the vehicle is moving. Engaging the parking brake will cause images to be displayed.

The operation keys do not work

The radio does not work

Disc can not be loaded or ejected

No power

No color in picture

Thediscformatisnot accordingto the TV-set used (PAL/NTSC)

Please the television mode of the choice accommodation

JPEG disc can not be played back

No JPEG files are recorded on the disc.

JPEG files are not recorded in a compliant formant

Change the disc Record JPEG files using a compliant application

Change the disc

Pyle PLD41MUT, PLD41MU Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
