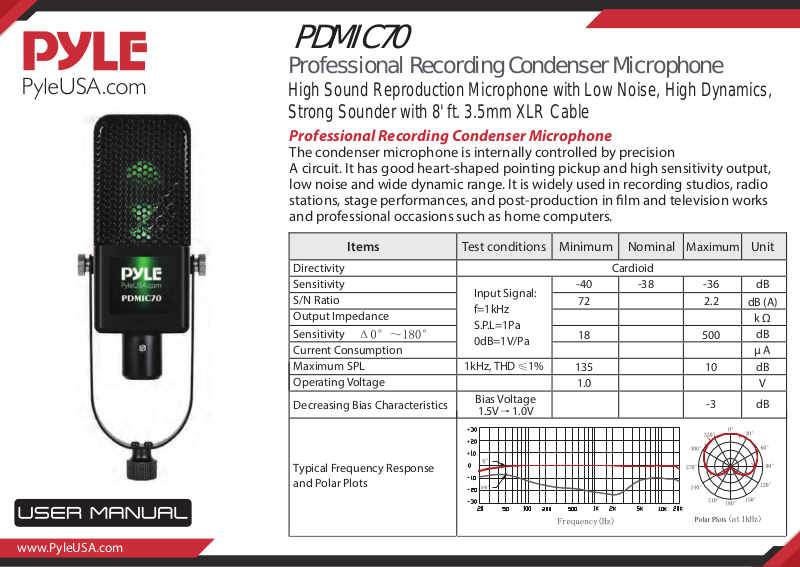

Pyle PDMIC70 User guide

PDMIC70

Professional Recording Condenser Microphone

High Sound Reproduction Microphone with Low Noise, High Dynamics,
Strong Sounder with 8' ft. 3.5mm XLR Cable

Professional Recording Condenser Microphone

The condenser microphone is internally controlled by precision
A circuit. It has good heart-shaped pointing pickup and high sensitivity output,
low noise and wide dynamic range. It is widely used in recording studios, radio
stations, stage performances, and post-production in lm and television works
and professional occasions such as home computers.

Items Test conditions Minimum Nominal Maximum Unit

-40

72

18

135

1.0

Cardioid

-38 -36

2.2

500

10

-3

dB

dB (A)

k Ω

dB

μ A

dB

V

dB

Directivity
Sensitivity
S/N Ratio
Output Impedance

Sensitivity
Current Consumption
Maximum SPL
Operating Voltage

Decreasing Bias Characteristics

Input Signal:
f=1kHz
S.P.L=1Pa
0dB=1V/Pa

1kHz, THD 1%

Bias Voltage

1.5V 1.0V

www.PyleUSA.com

Typical Frequency Response
and Polar Plots

PDMIC70

Professional Recording Condenser Microphone

High Sound Reproduction Microphone with Low Noise,
High Dynamics, Strong Sounder with 8' ft. 3.5mm XLR Cable

What's in the Box:

• Condenser Microphone

• Tripod Stand

• 2.5 meters XLR-3.5mm cable

Features:

• Multi-Purpose Condenser Microphone

• High Sound Reproduction Microphone

• Low Noise, High Dynamics, Strong Sounder

• Excellent for Vocals, Pianos, Stringed Instruments, and

Percussion

• Balanced Bass Response with High-End Clarity

• Internally Controlled By Precision Acircuit

• Heart-Shaped Pointing Pickup and High- Sensitivity Output

• Widely Used in Recording Studios, Radio Stations, Stage

Performances, Post-Production in Film and Television Works

• High-Quality Column Polar Audio Core

• Excellent Circuit Design and Transformer Output

• Ideal Choice for Vocal and Instrument Applications

• Custom-Engineered Low-Mass Diaphram

• Extended Frequency Range

• Superior Transient Response

• Cardioid Polar Pattern Reduces Pickup From Sides and Rear

• Capable of Handling High SPL Sounds without Overload

Technical Specs:

• Cartridge: 26mm gilded diaphragm

• Pickup/Polar Pattern: Cardioid

• Sensitivity: -38dB±2dB

• S/N Ratio: 72dB (A)

• Output impedance: 2.2KΩ

• Current Consumption: 500uA

• Max SPL: 135dB (1 kHz, THD<1%)

Working Voltage: 5V or 48V phantom

• Product Size: 2.16” x 7.67” (55x195 mm)

Questions? Issues?

We are here to help!
Phone: [phone]
Email: [e-mail]
