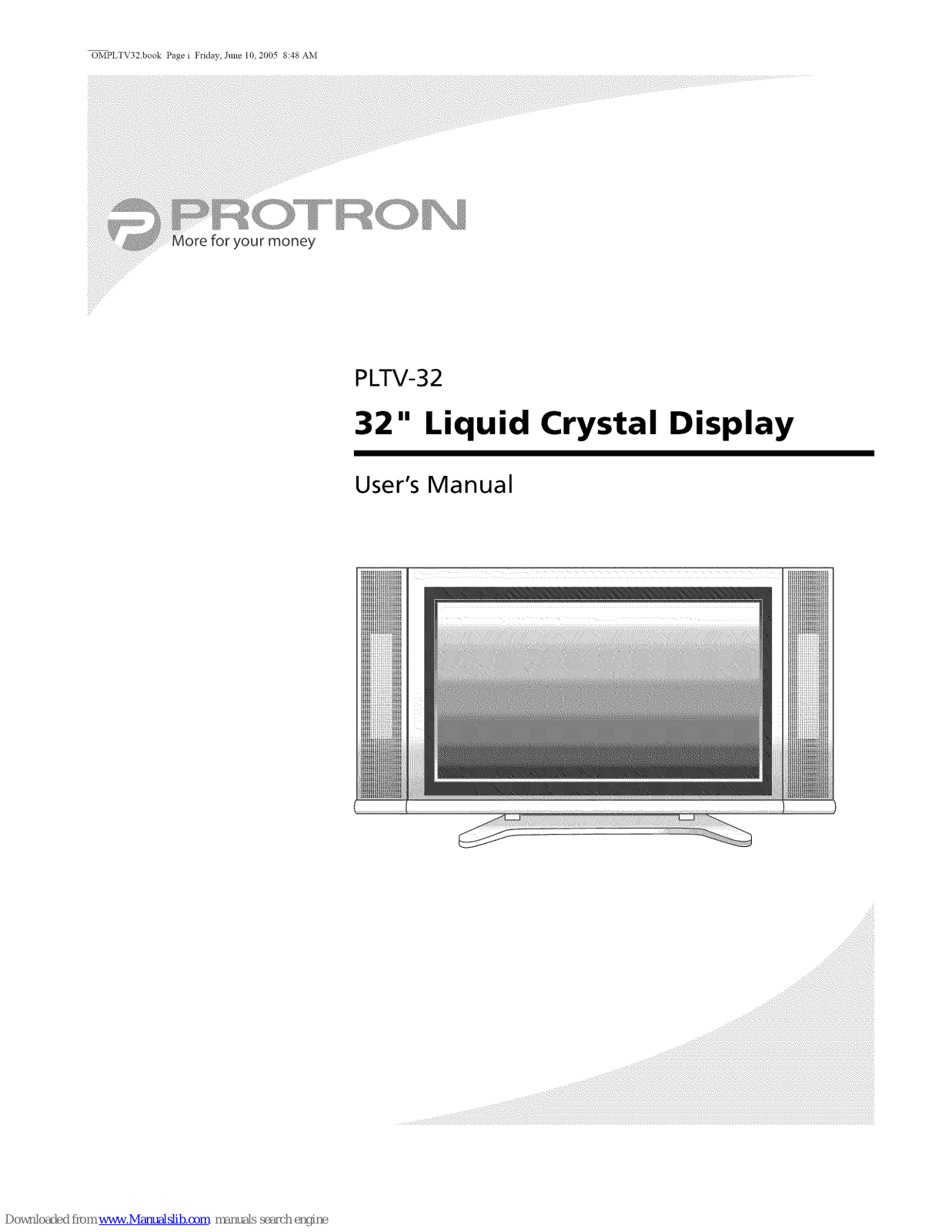

PROTRON PLTV-32 User Manual

OMPLTV32.book Page i Friday, Jmle 10, 2005 8:48 AM

for your money

PLTV-32

32" Liquid Crystal Display

User's Manual

OMPLTV32.book Page ii Friday, June t0, 2005 8:48 AM

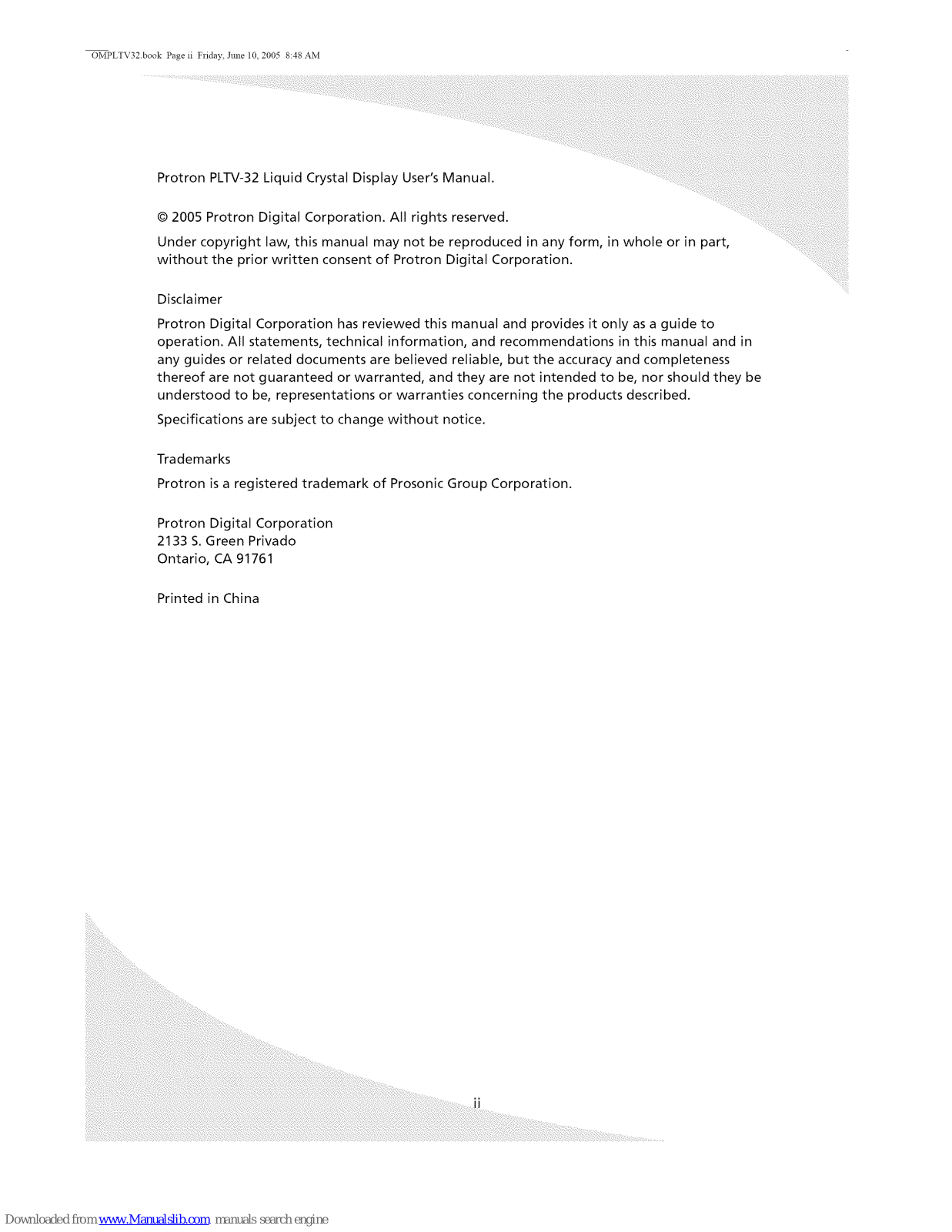

Protron PLTV-32 Liquid Crystal Display User's Manual.

© 2005 Protron Digital Corporation. All rights reserved.
Under copyright law, this manual may not be reproduced in any form, in whole or in part,

without the prior written consent of Protron Digital Corporation.

Disclaimer
Protron Digital Corporation has reviewed this manual and provides it only as a guide to

operation. All statements, technical information, and recommendations in this manual and in
any guides or related documents are believed reliable, but the accuracy and completeness

thereof are not guaranteed or warranted, and they are not intended to be, nor should they be

understood to be, representations or warranties concerning the products described.
Specifications are subject to change without notice.

Trademarks

Protron is a registered trademark of Prosonic Group Corporation.

Protron Digital Corporation
2133 S. Green Privado

Ontario, CA 91761

Printed in China

....iilii

OMPLTV32.book Page iii Friday, June 10_2005 8:48 AM

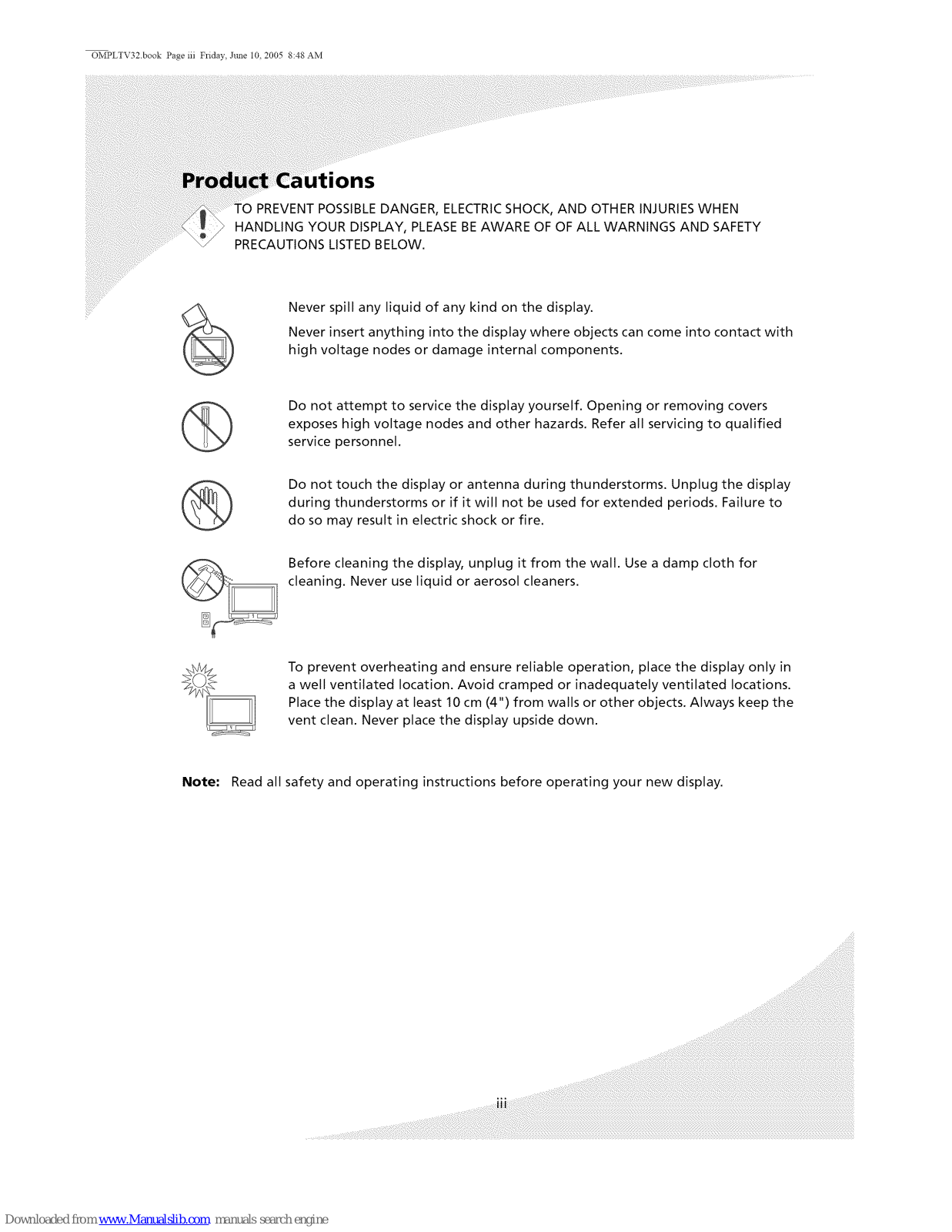

PREVENT POSSIBLEDANGER, ELECTRIC SHOCK, AND OTHER INJURIESWHEN

HANDLING YOUR DISPLAY, PLEASE BEAWARE OF OF ALL WARNINGS AND SAFETY
PRECAUTIONS LISTED BELOW.

Never spill any liquid of any kind on the display.
Never insert anything into the display where objects can come into contact with

high voltage nodes or damage internal components.

Do not attempt to service the display yourself. Opening or removing covers
exposes high voltage nodes and other hazards. Refer all servicing to qualified
service personnel.

®

Do not touch the display or antenna during thunderstorms. Unplug the display
during thunderstorms or if it will not be used for extended periods. Failure to

do so may result in electric shock or fire.

Before cleaning the display, unplug it from the wall. Use a damp cloth for
cleaning. Never use liquid or aerosol cleaners.

To prevent overheating and ensure reliable operation, place the display only in

a well ventilated location. Avoid cramped or inadequately ventilated locations.
Place the display at least 10 cm (4") from walls or other objects. Always keep the
vent clean. Never place the display upside down.

Note: Read all safety and operating instructions before operating your new display.

_ccccccccccccccccccccccccccccccccccc

OMPLTV32.book Page iv Friday, Jmle 10, 2005 8:48 AM

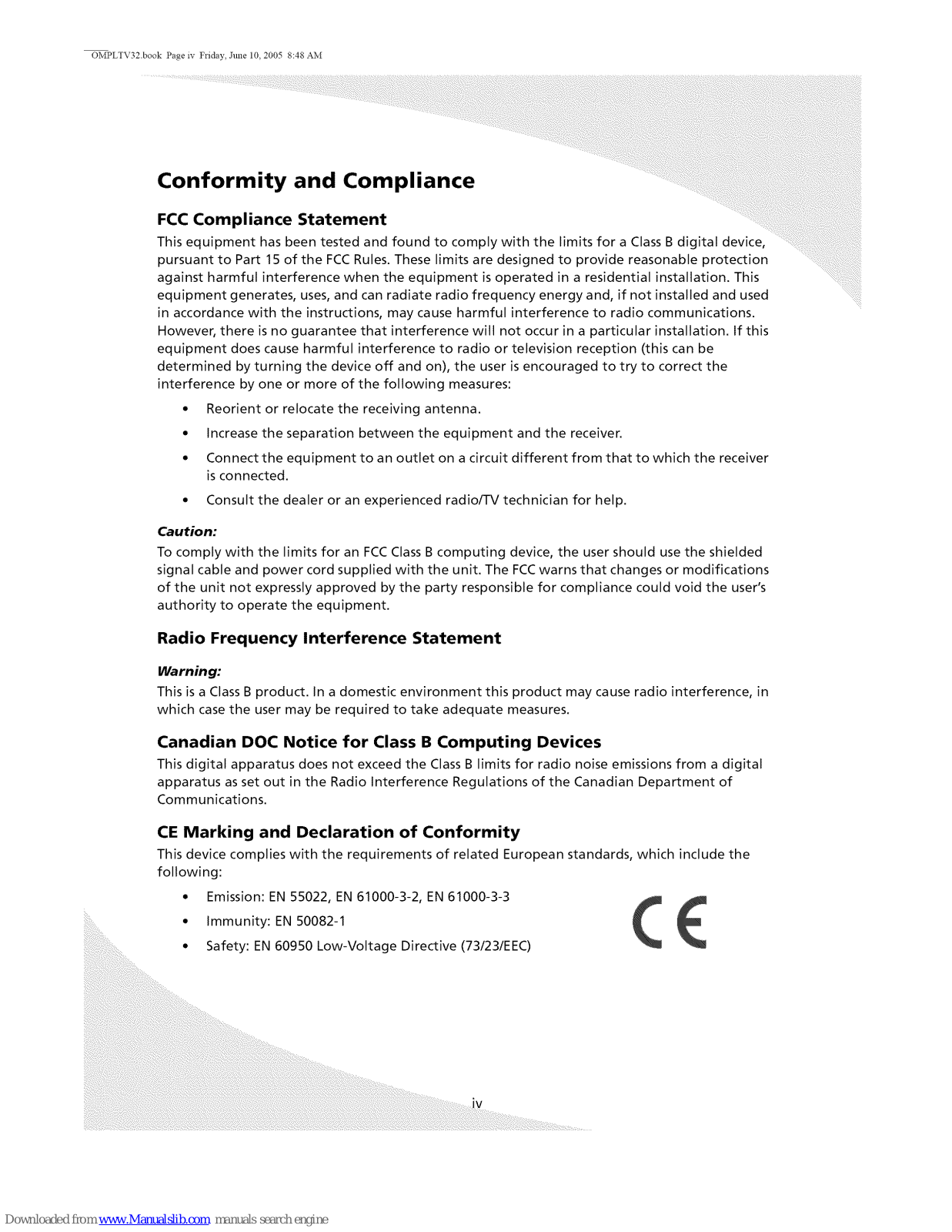

Conformity and Compliance

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCCRules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception (this can be
determined by turning the device off and on), the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution:

To comply with the limits for an FCC Class Bcomputing device, the user should use the shielded

signal cable and power cord supplied with the unit. The FCCwarns that changes or modifications
of the unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.

Radio Frequency Interference Statement

Warning:

This is a Class B product. In a domestic environment this product may cause radio interference, in

which case the user may be required to take adequate measures.

Canadian DOC Notice for Class B Computing Devices

This digital apparatus does not exceed the Class B limits for radio noise emissions from a digital

apparatus asset out in the Radio Interference Regulations of the Canadian Department of
Communications.

CE Marking and Declaration of Conformity

This device complies with the requirements of related European standards, which include the

following:

° Emission: EN 55022, EN 61000-3-2, EN 61000-3-3

• Immunity: EN 50082-1
Safety: EN 60950 Low-Voltage Directive (73/23/EEC)

} OMPLTV32.book Page v Friday, June 10, 2005 8:48 AM

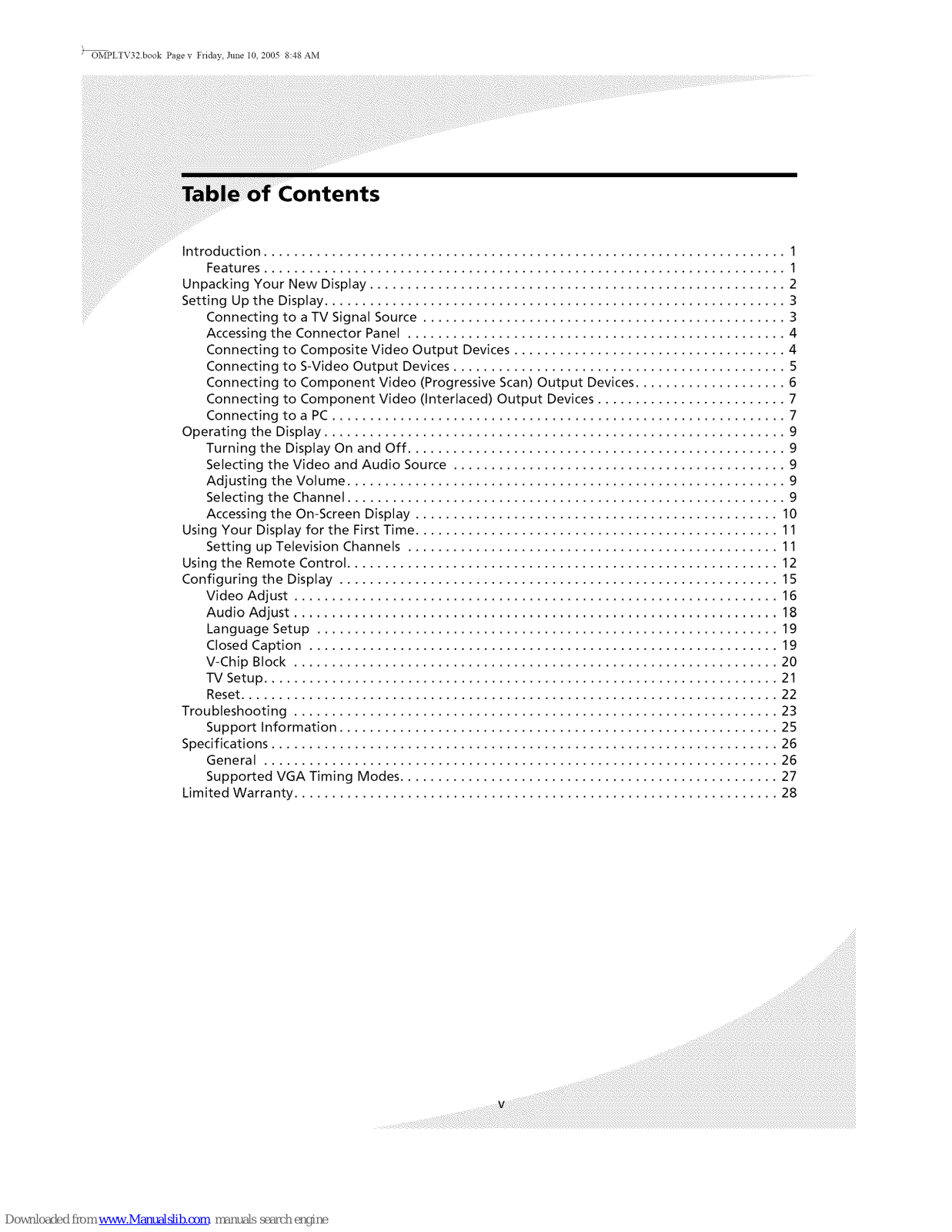

Introduction ..................................................................... 1

Features ..................................................................... 1

Unpacking Your New Display ....................................................... 2

Setting Up the Display ............................................................. 3

Connecting to a TV Signal Source ................................................ 3

Accessing the Connector Panel .................................................. 4

Connecting to Composite Video Output Devices .................................... 4

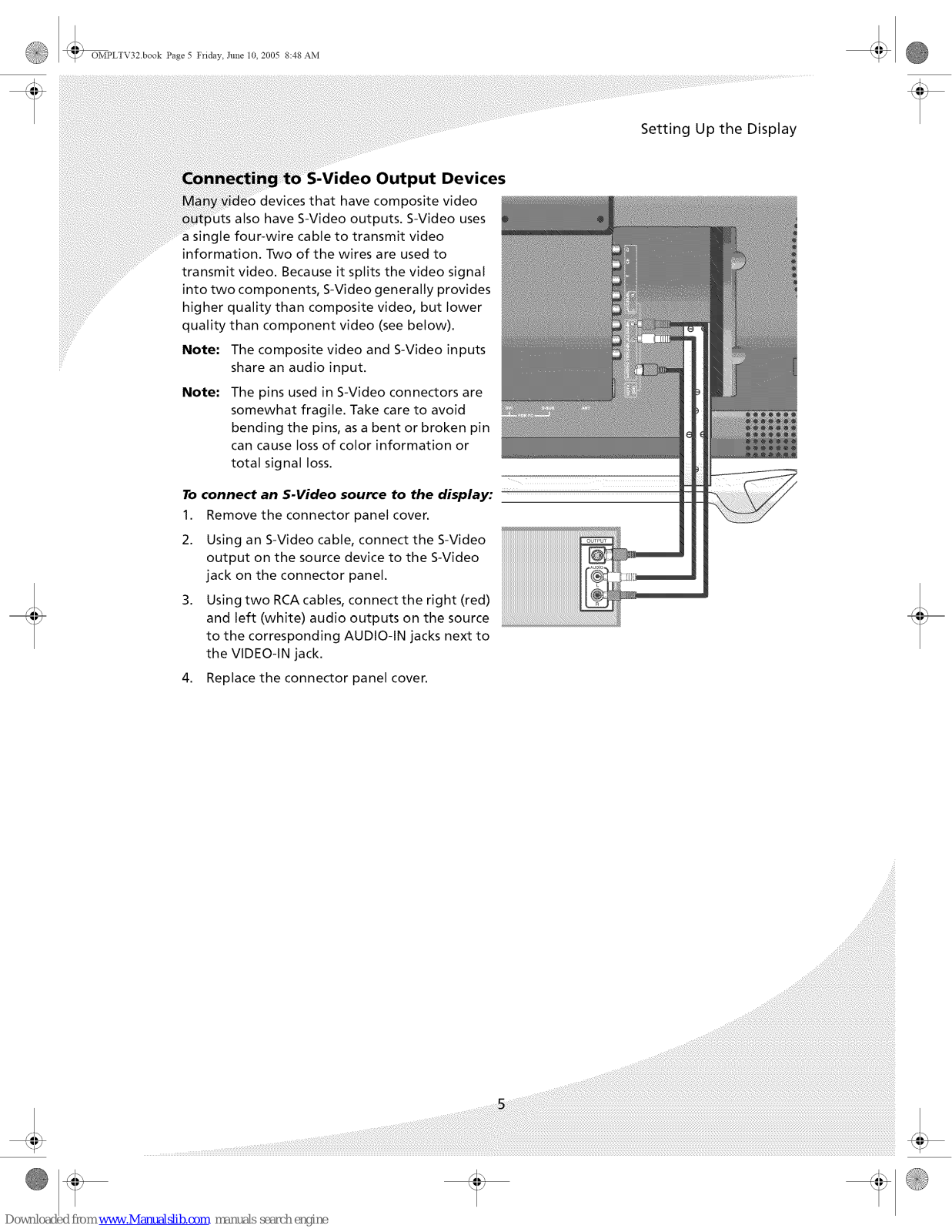

Connecting to S-Video Output Devices ............................................ 5

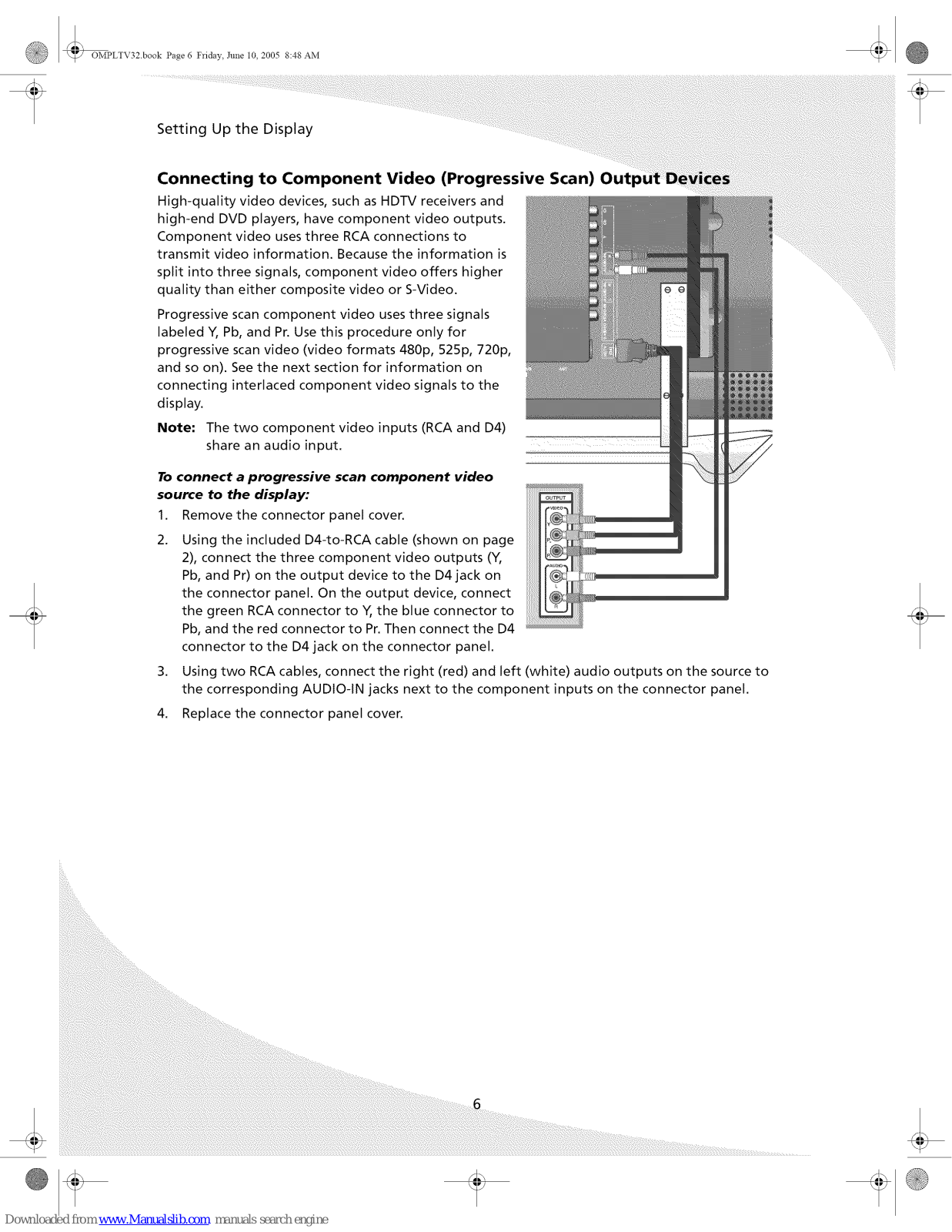

Connecting to Component Video (Progressive Scan) Output Devices .................... 6

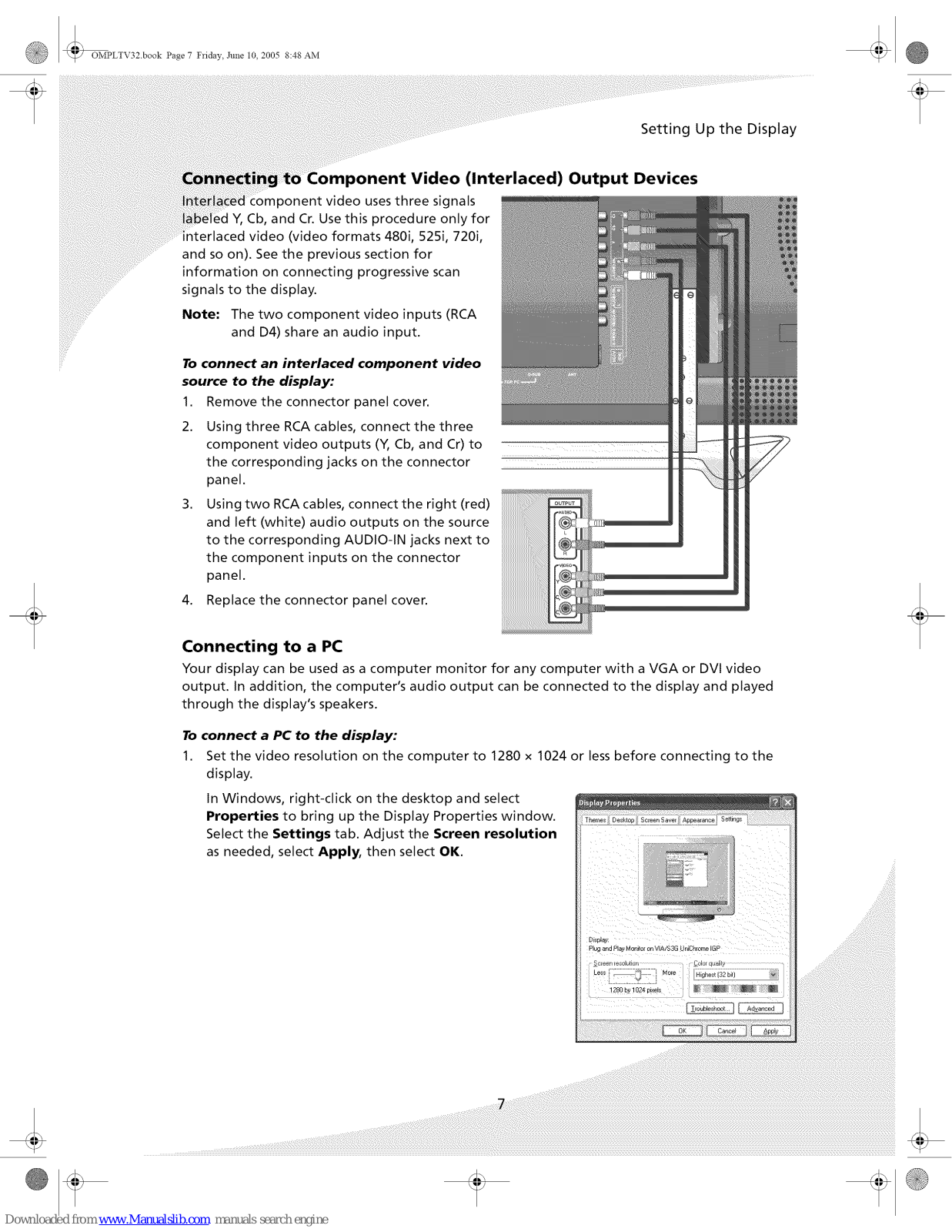

Connecting to Component Video (Interlaced) Output Devices ......................... 7

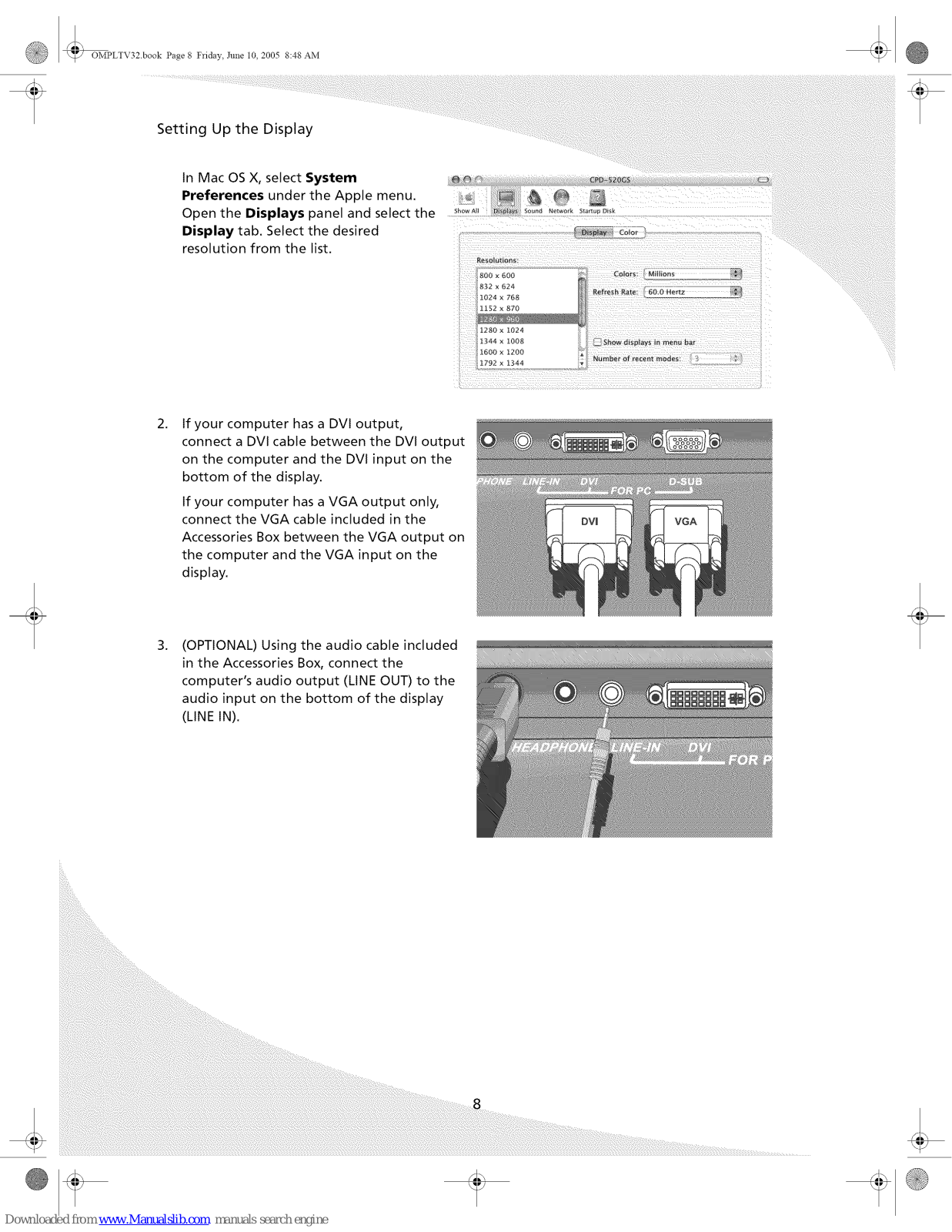

Connecting to a PC ............................................................ 7

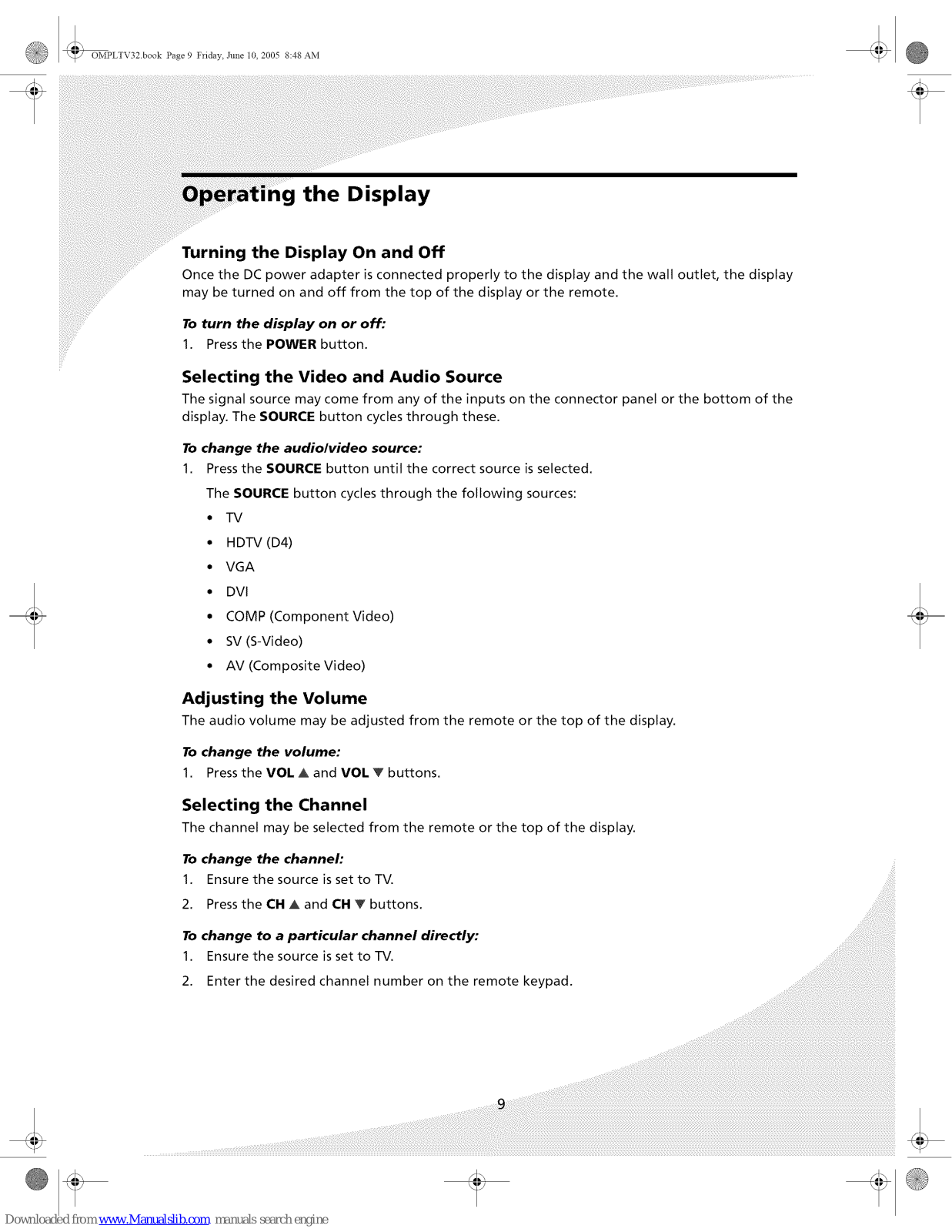

Operating the Display ............................................................. 9

Turning the Display On and Off .................................................. 9

Selecting the Video and Audio Source ............................................ 9

Adjusting the Volume .......................................................... 9

Selecting the Channel .......................................................... 9

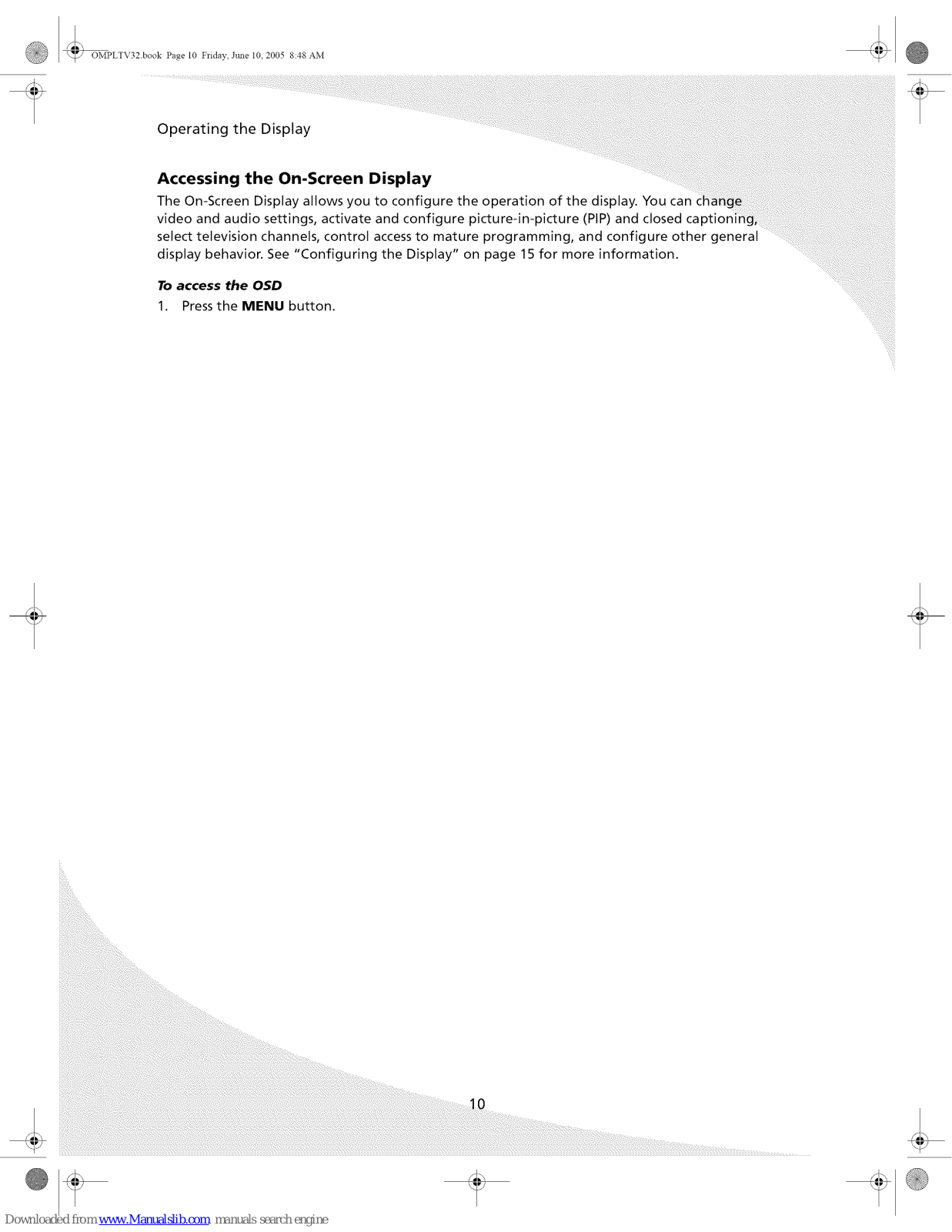

Accessing the On-Screen Display ................................................ 10

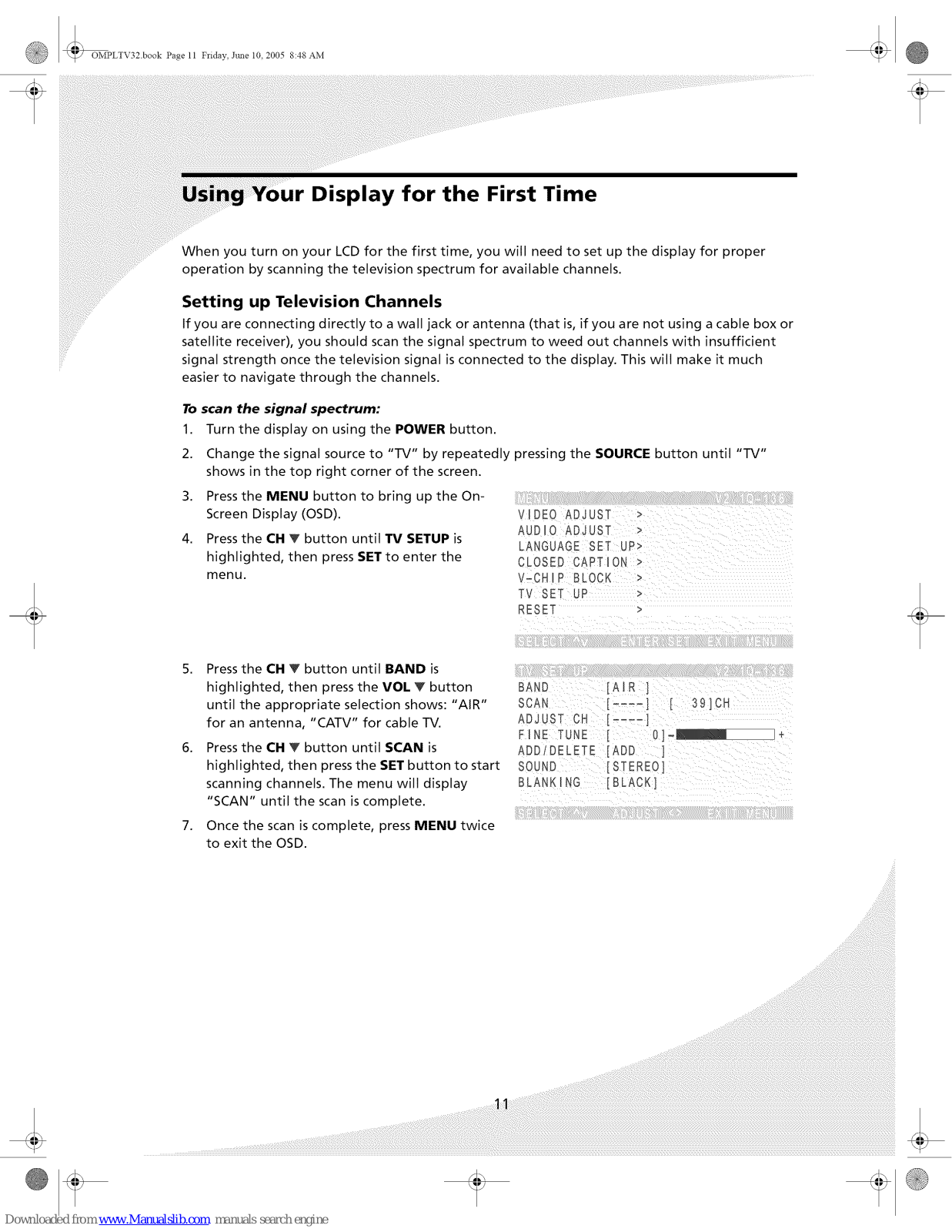

Using Your Display for the First Time ................................................ 11

Setting up Television Channels ................................................. 11

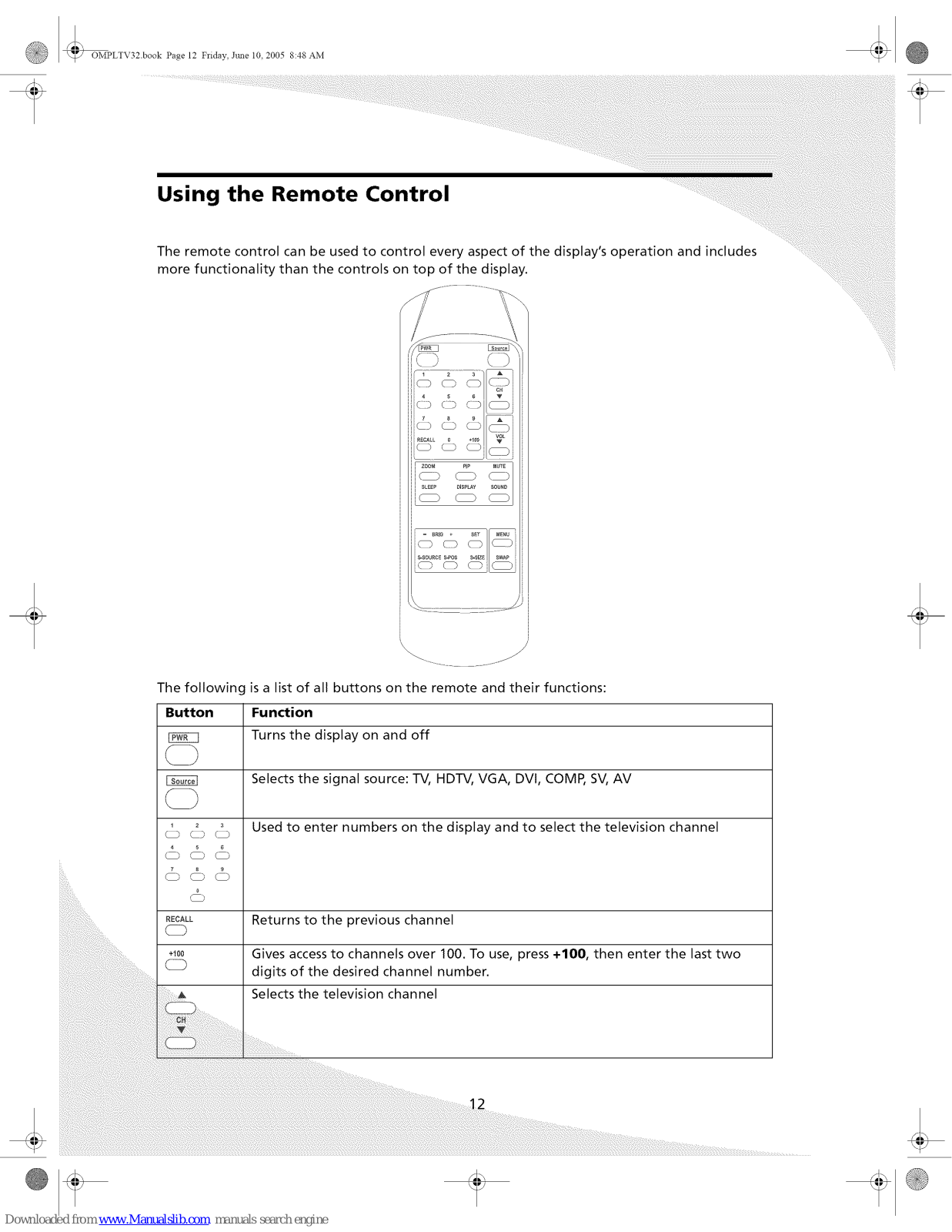

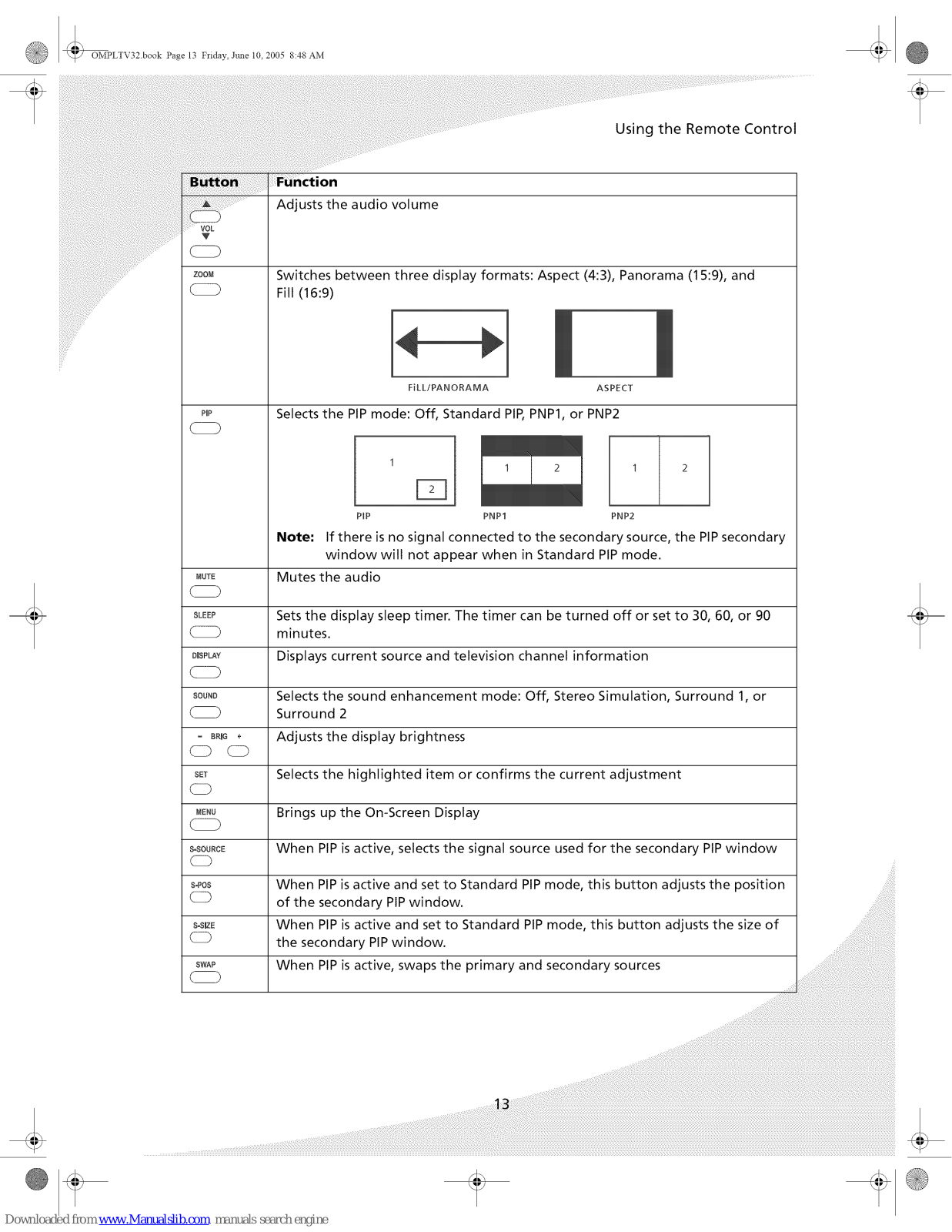

Using the Remote Control ......................................................... 12

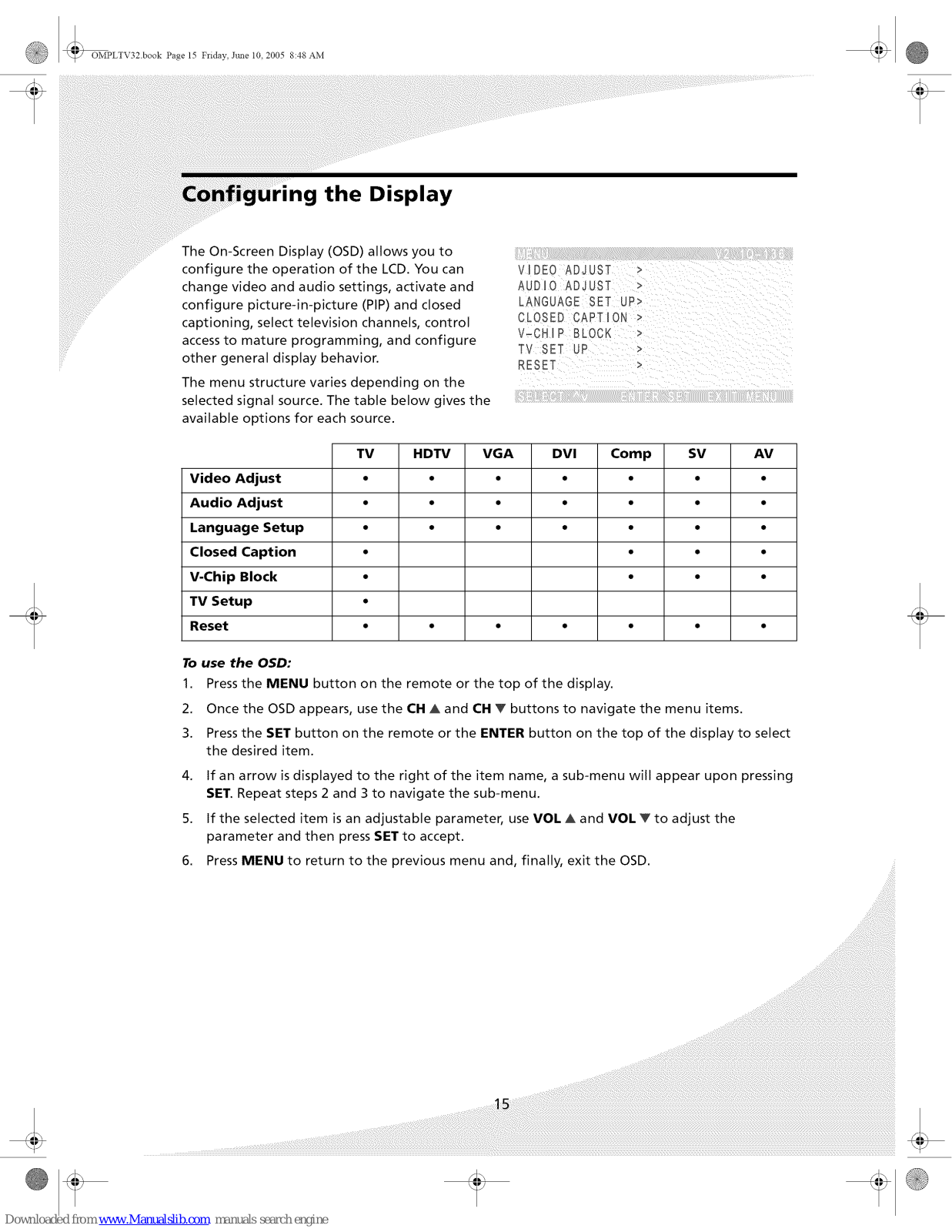

Configuring the Display .......................................................... 15

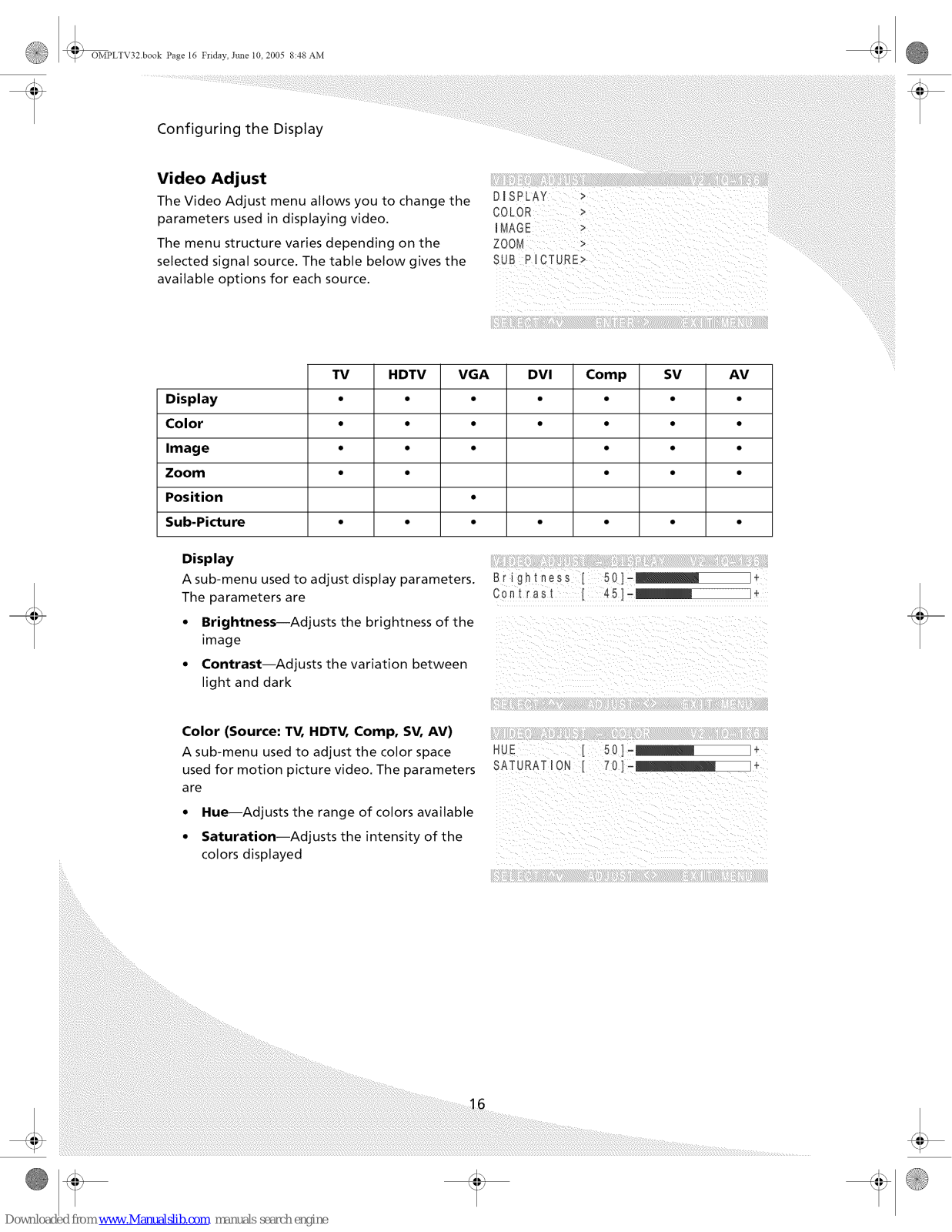

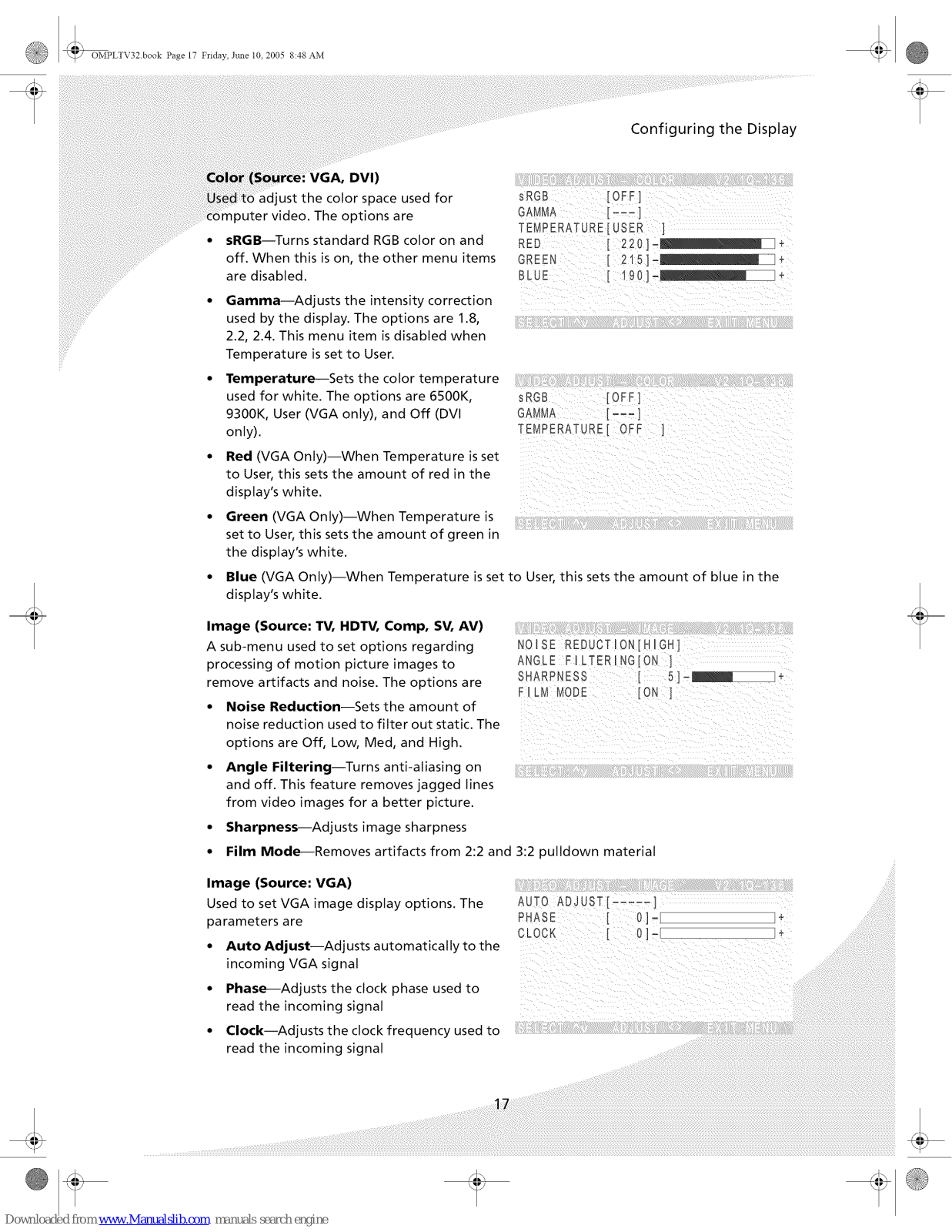

Video Adjust ................................................................ 16

Audio Adjust ................................................................ 18

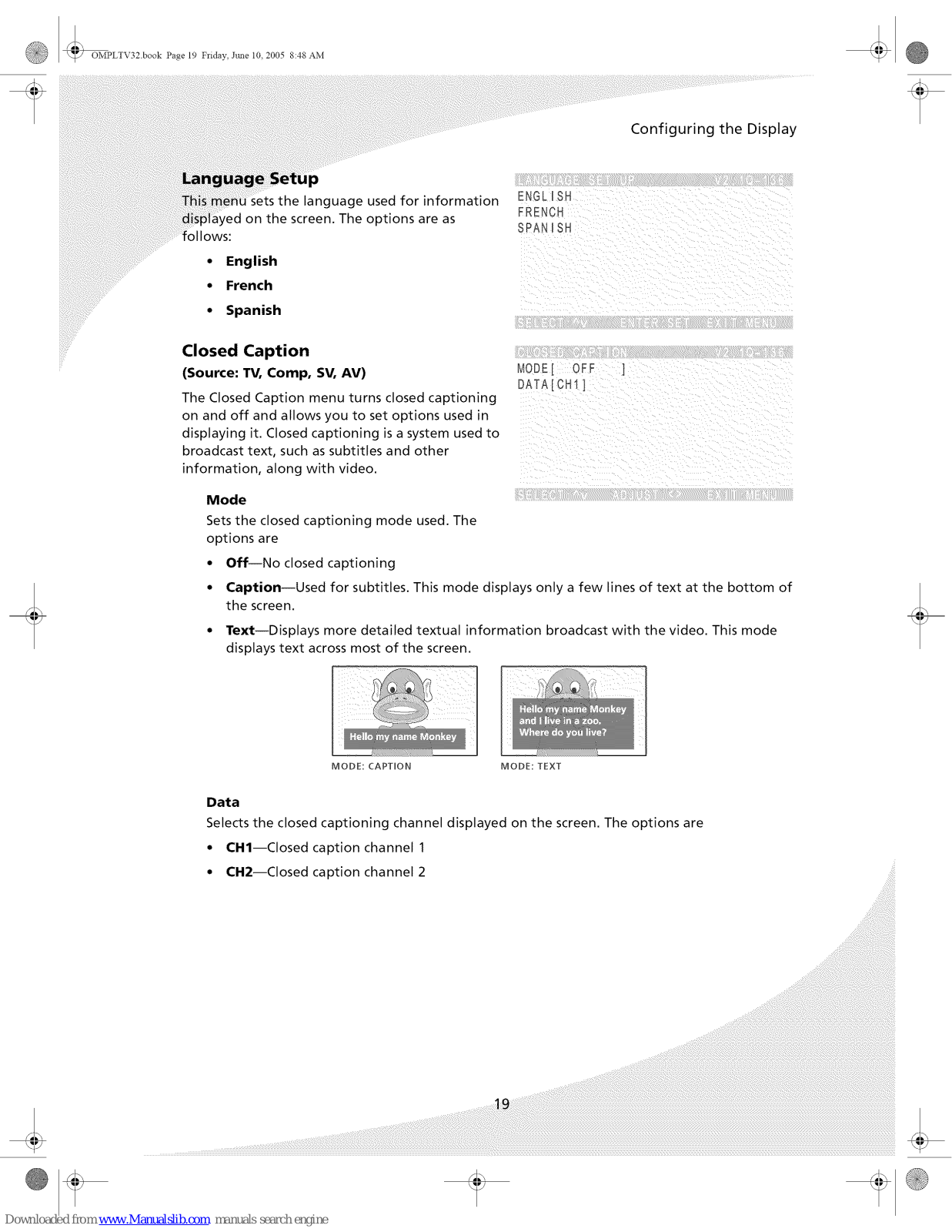

Language Setup ............................................................. 19

Closed Caption .............................................................. 19

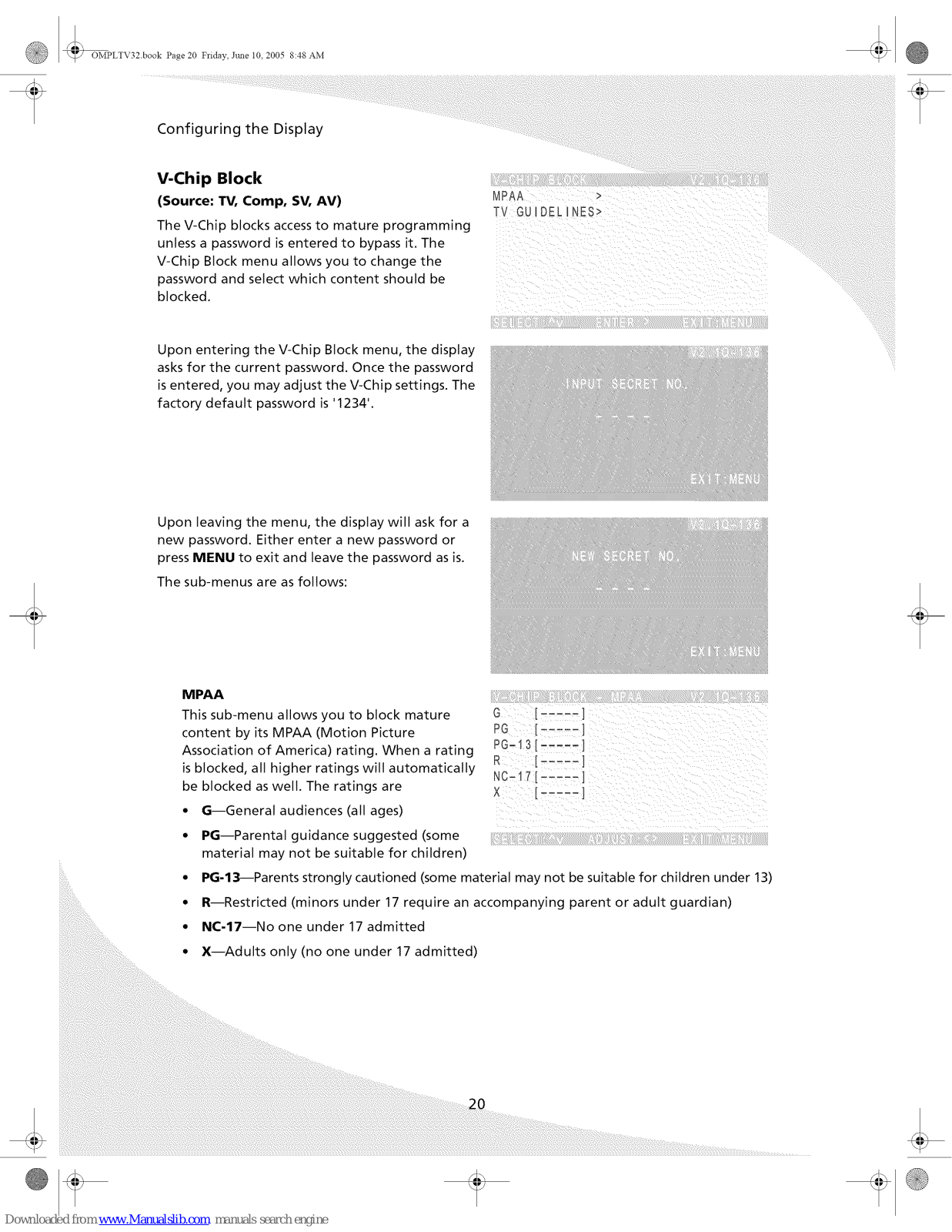

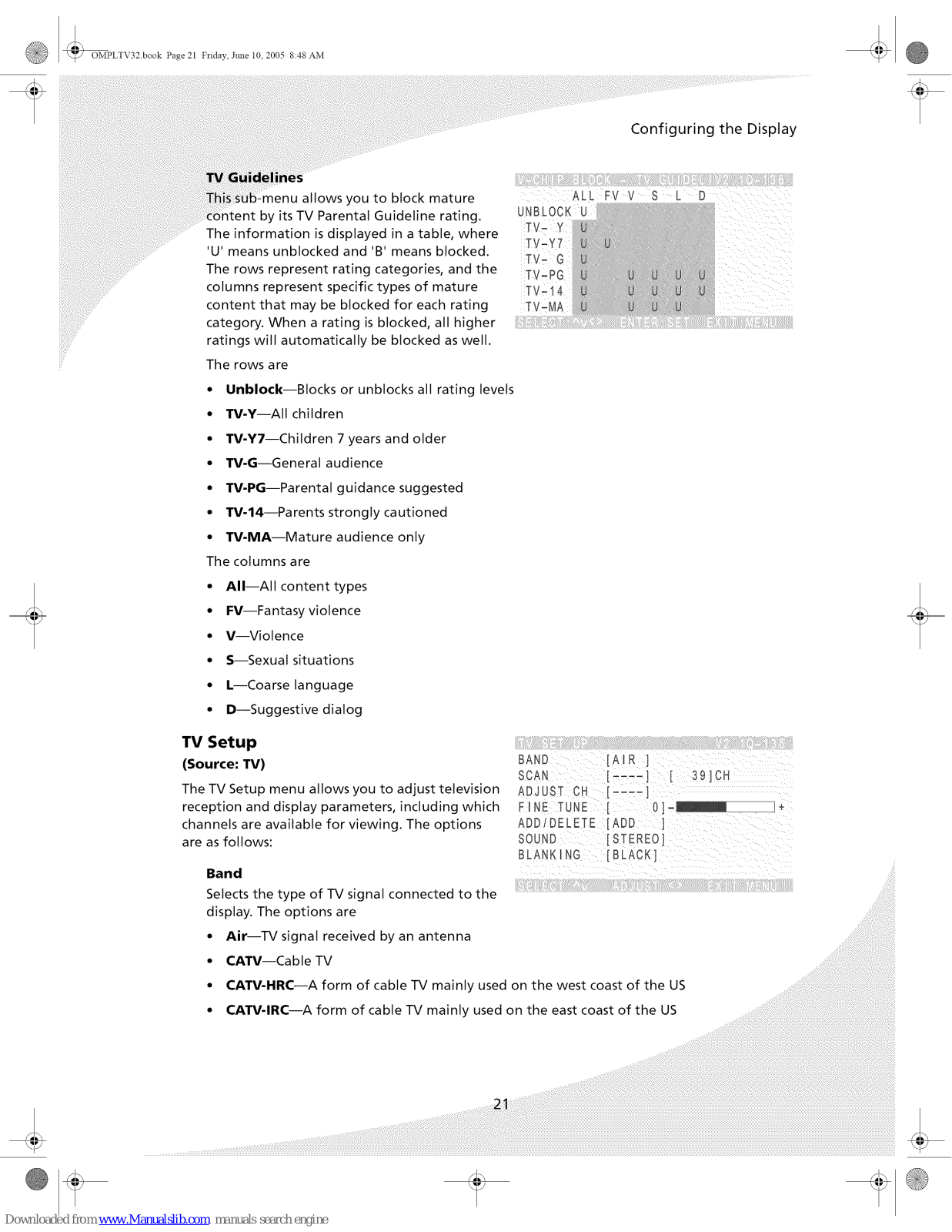

V-Chip Block ................................................................ 20

TV Setup .................................................................... 21

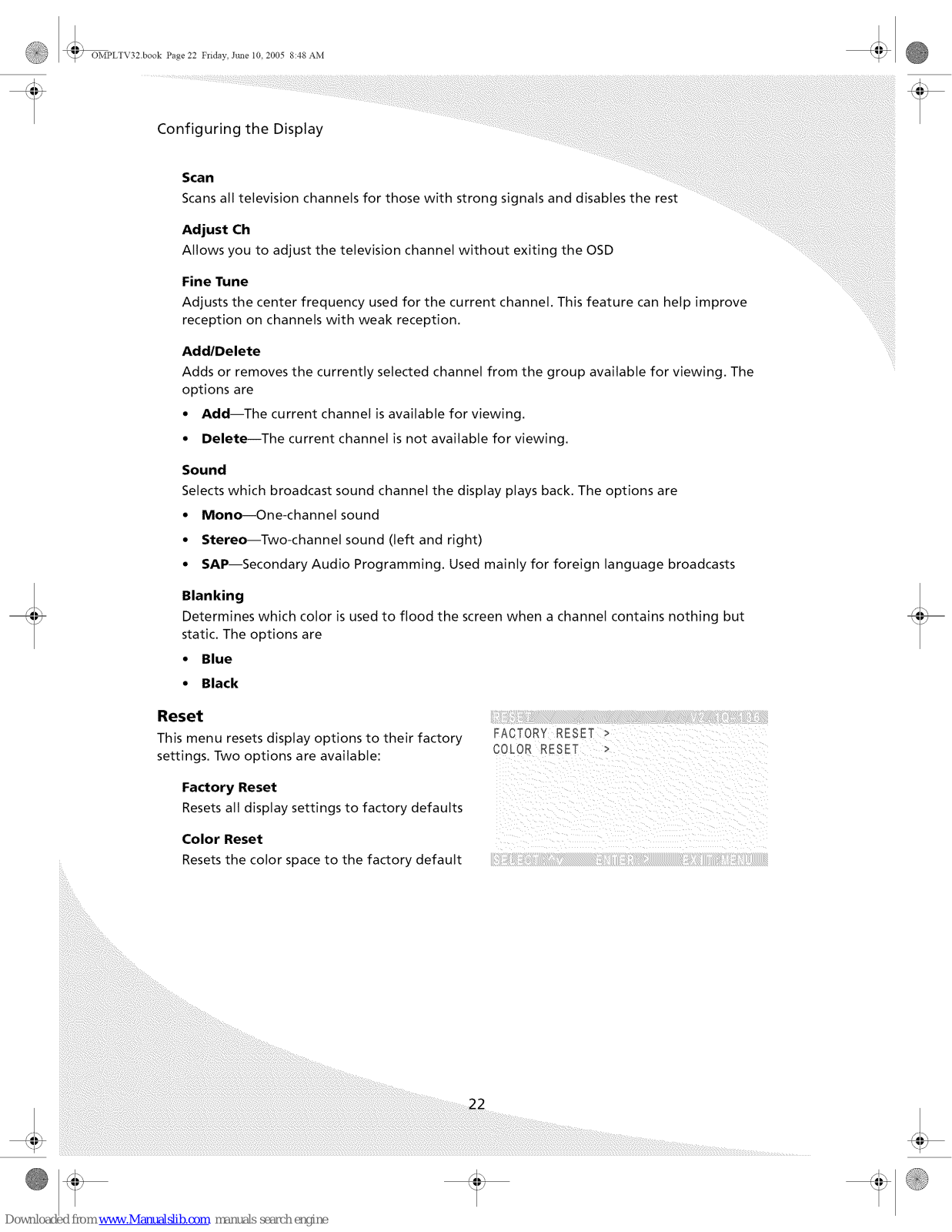

Reset ....................................................................... 22

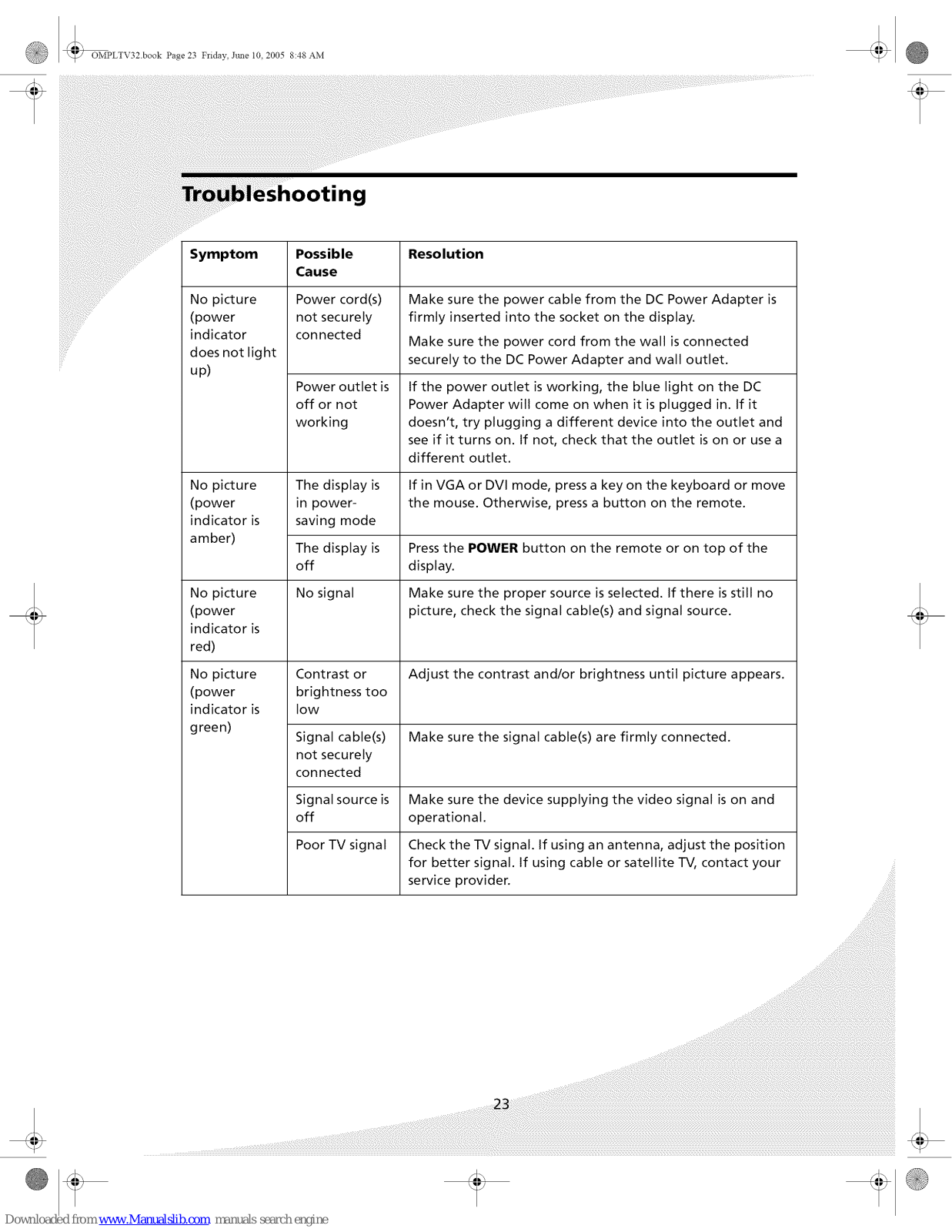

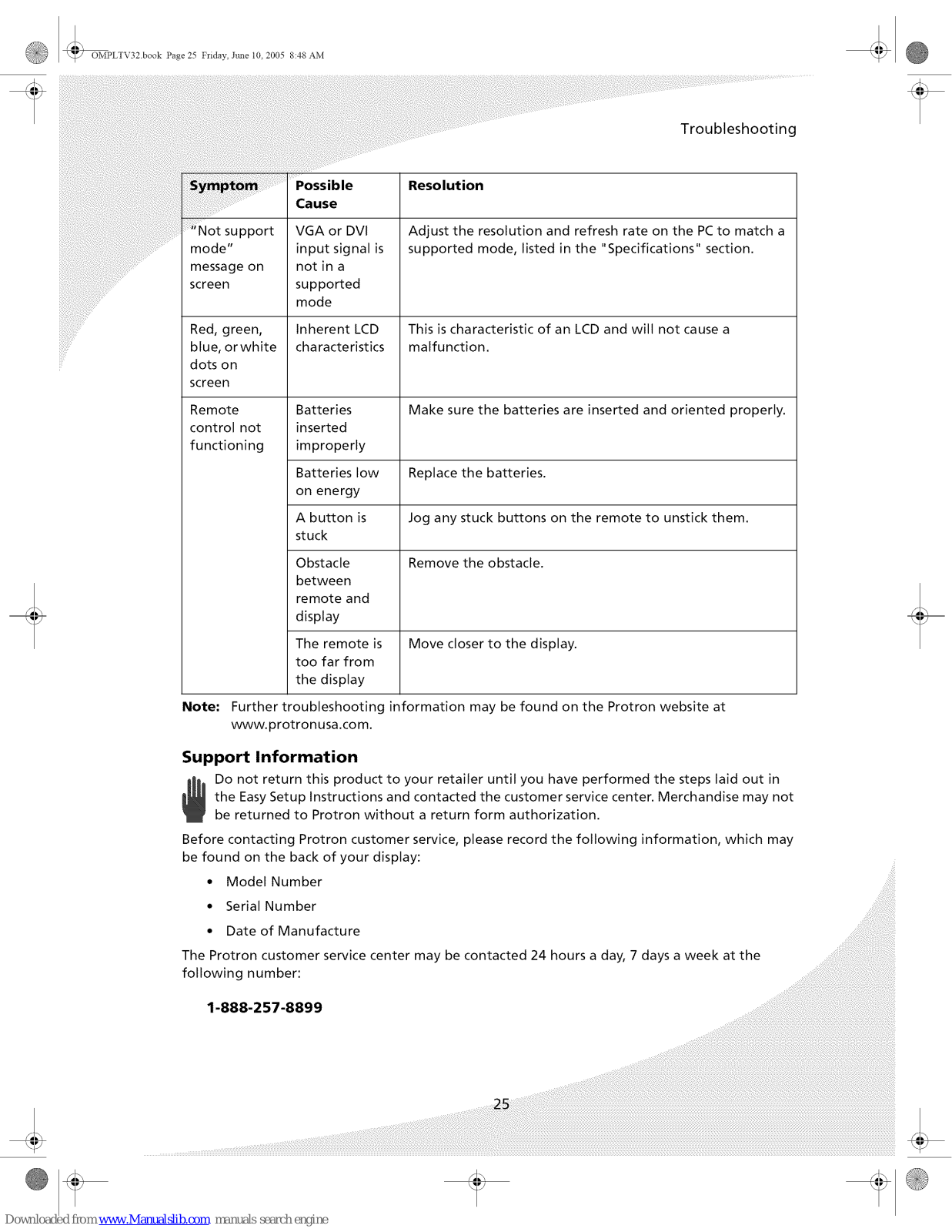

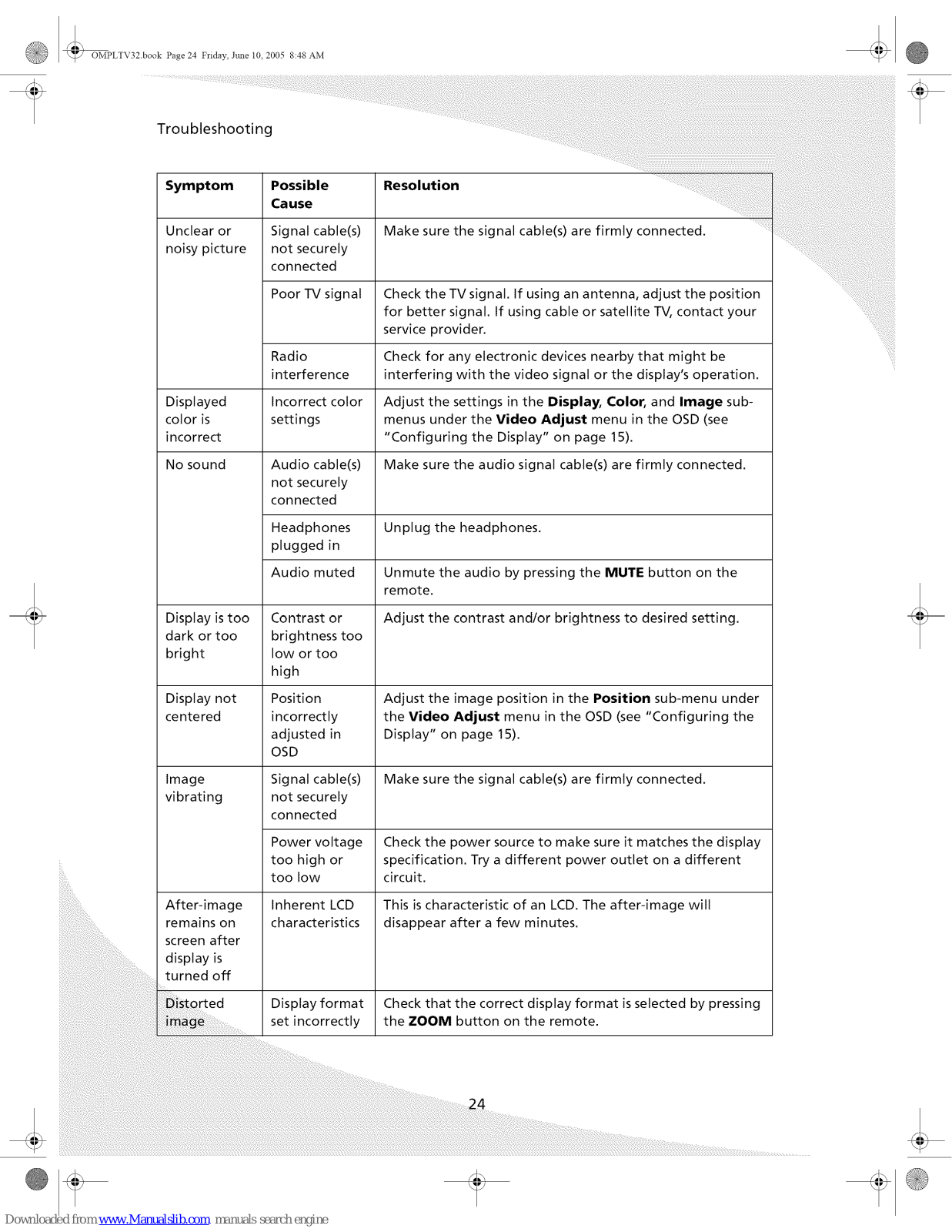

Troubleshooting ................................................................ 23

Support Information .......................................................... 25

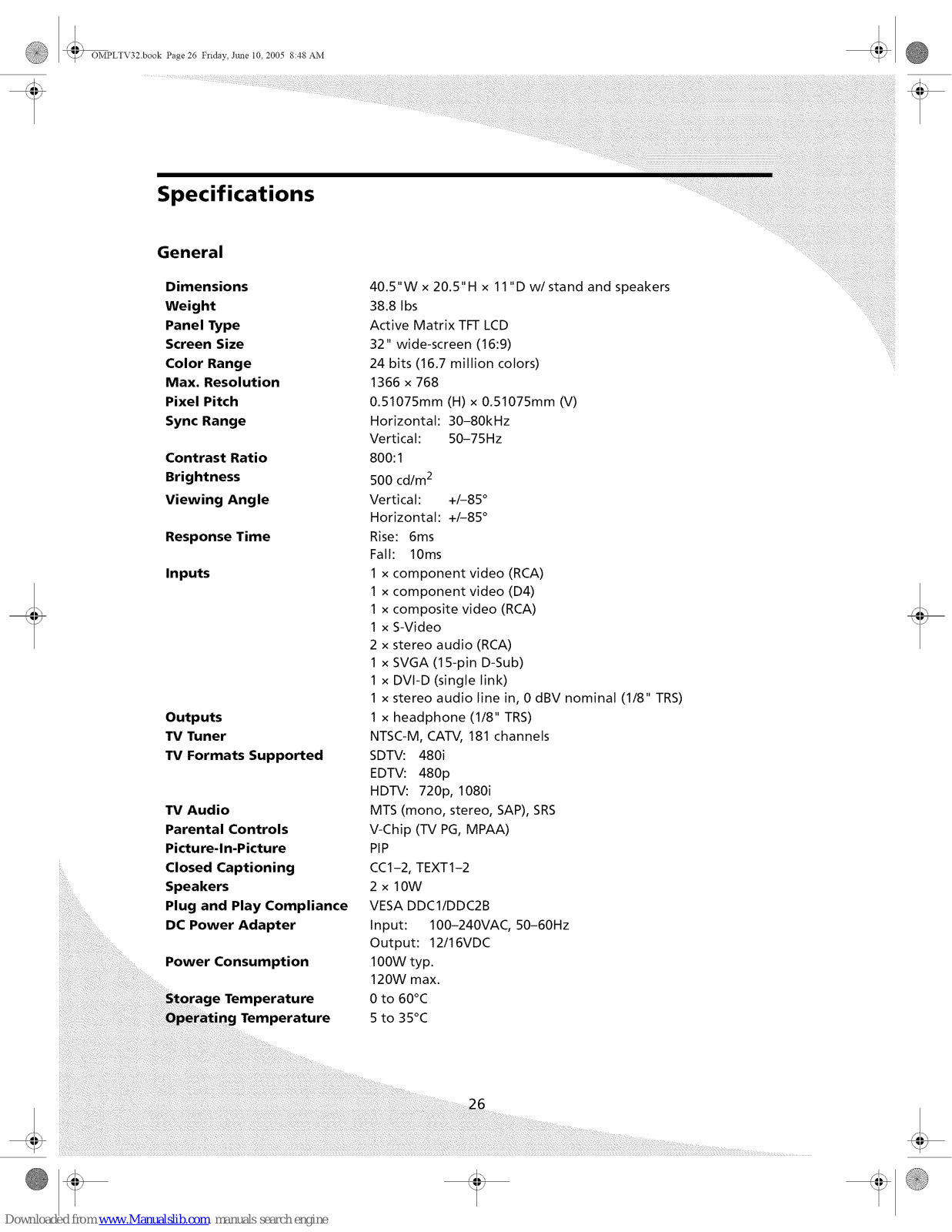

Specifications ................................................................... 26

General .................................................................... 26

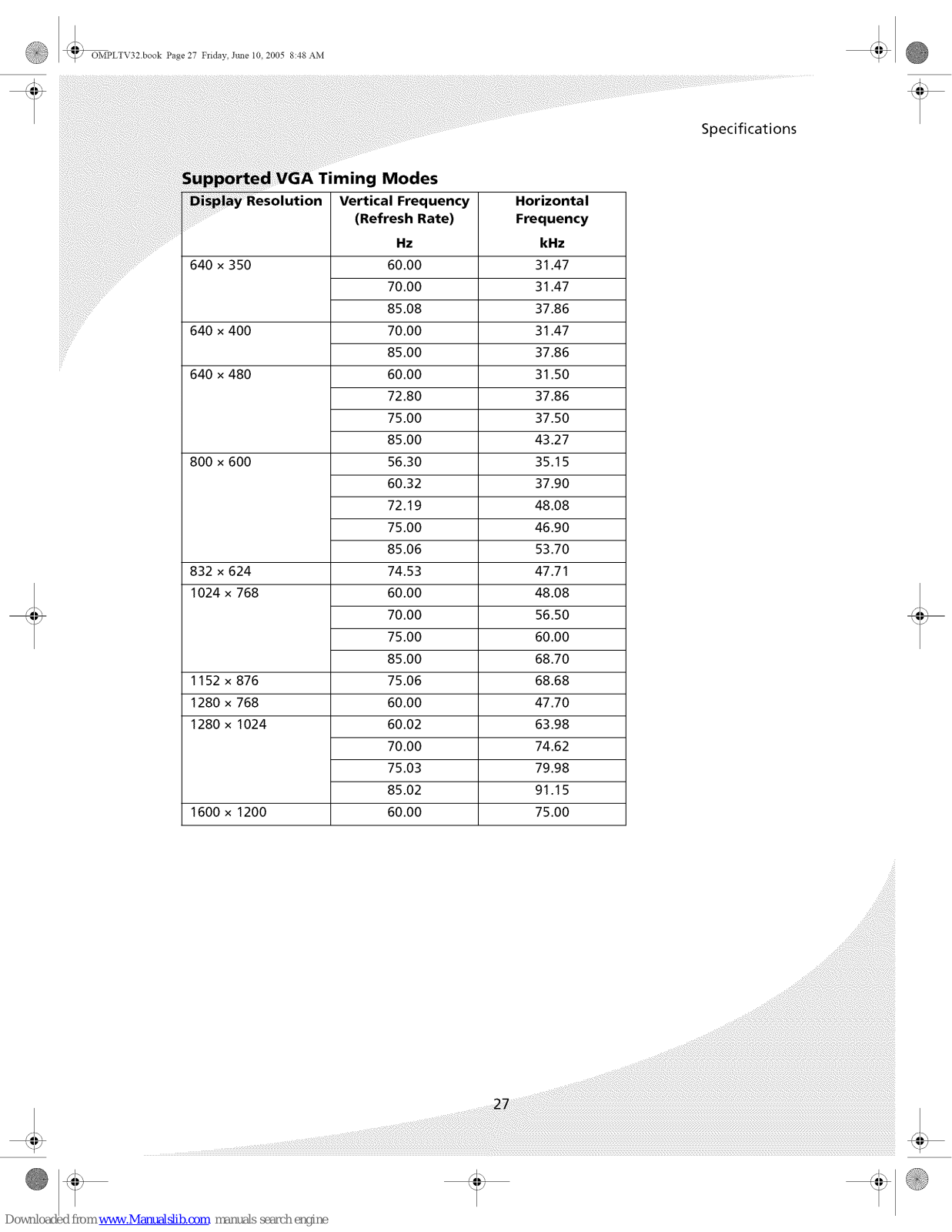

Supported VGA Timing Modes .................................................. 27

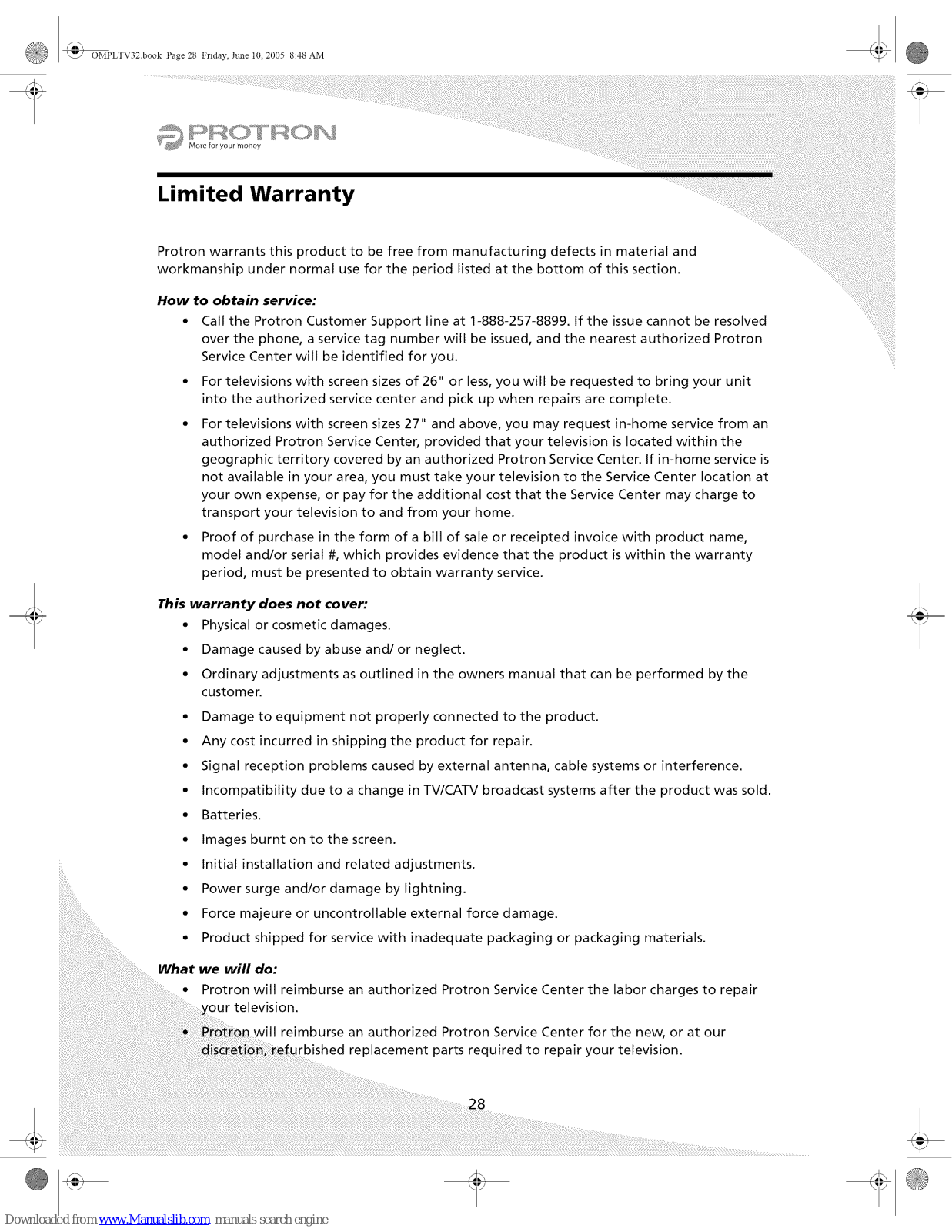

Limited Warranty ................................................................ 28

x

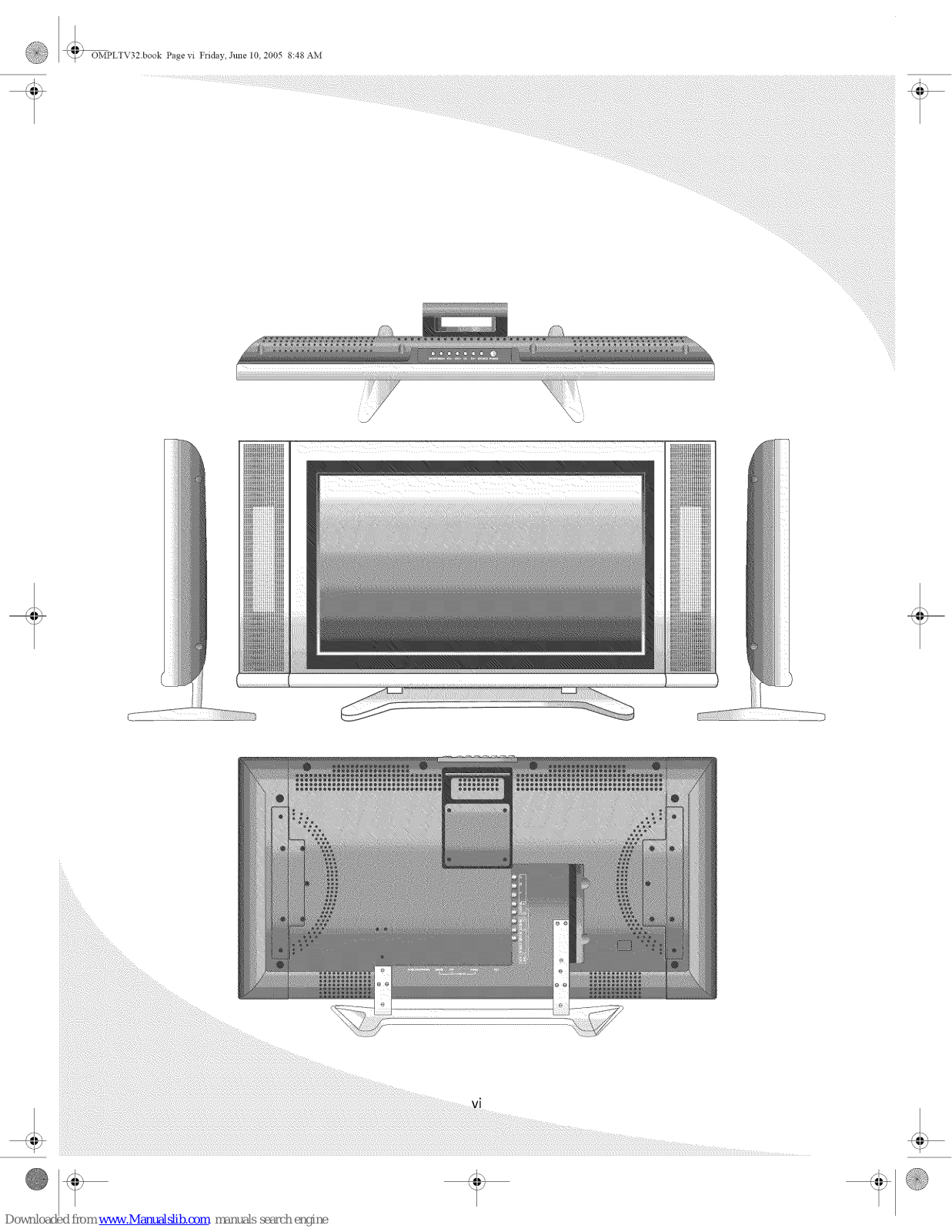

OMPLTV32.book Page vi Friday, Jmle 10, 2005 8:48 AM

iiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiii

iiiiii!iiiiiiiiiiiii

iiiiiiiii!iiii_iiiii
!!!!!!!!!iiiiii!!!!!

iiii!!!i!!i_iiiiiiii

iiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiii!iiiiiiii

iiiii!_iiiii!iiiiiiii

iiiii}iiiiiliiiiiiiii

!!!!!iiiii_iiiii!!!!!

i

OMPLTV32.book Page 1 Friday, June 10, 2005 8:48 AM

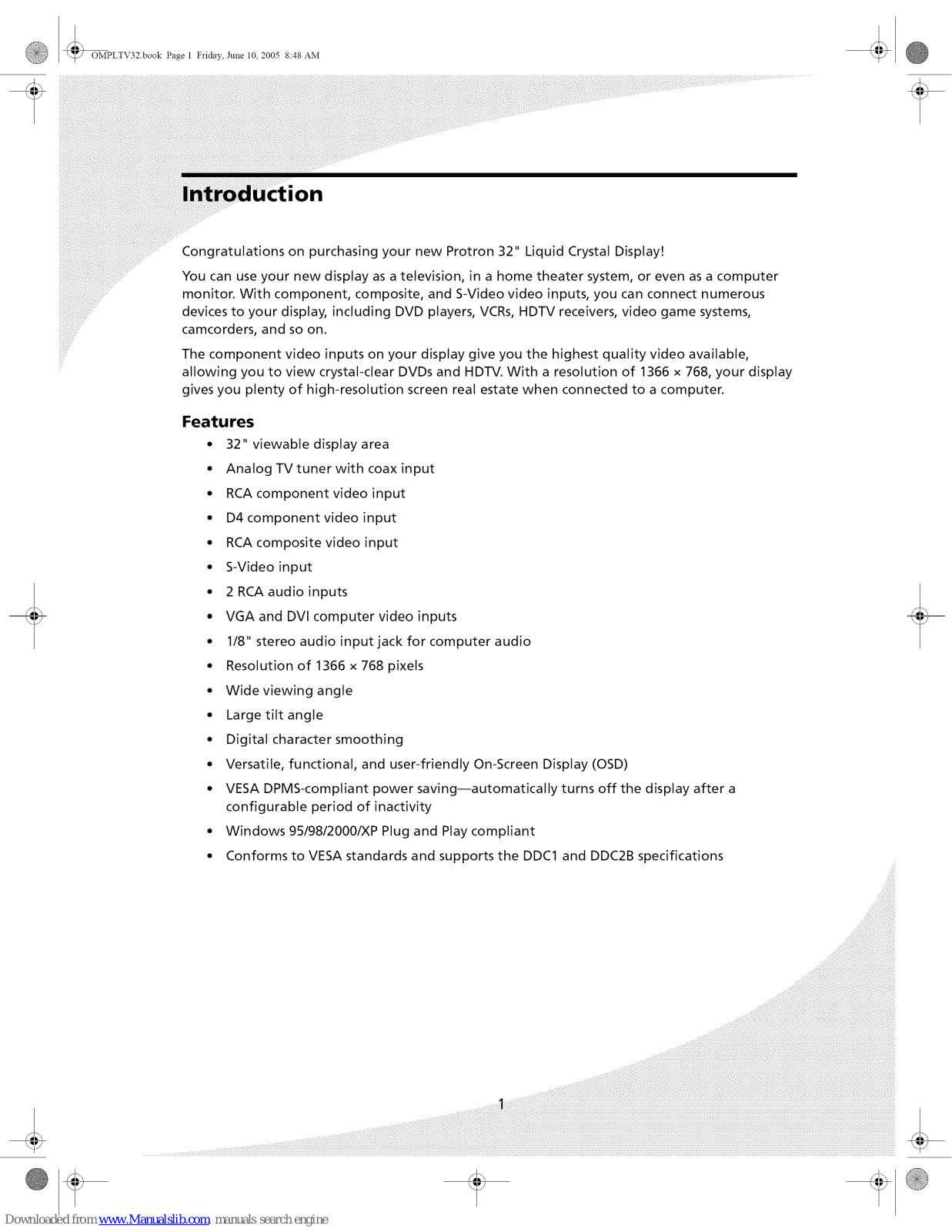

Congratulations on purchasing your new Protron 32" Liquid Crystal Display!
You can use your new display as a television, in a home theater system, or even as a computer

monitor. With component, composite, and S-Video video inputs, you can connect numerous
devices to your display, including DVD players, VCRs, HDTV receivers, video game systems,
camcorders, and so on.

The component video inputs on your display give you the highest quality video available,
allowing you to view crystal-clear DVDs and HDTV. With a resolution of 1366 x 768, your display
gives you plenty of high-resolution screen real estate when connected to a computer.

Features

• 32" viewable display area

• Analog TV tuner with coax input

• RCA component video input

• D4 component video input

• RCA composite video input
° S-Video input
° 2 RCA audio inputs

• VGA and DVl computer video inputs

• 1/8" stereo audio input jack for computer audio
° Resolution of 1366 x 768 pixels

• Wide viewing angle

• Large tilt angle

• Digital character smoothing

• Versatile, functional, and user-friendly On-Screen Display (OSD)

• VESA DPMS-compliant power saving--automatically turns off the display after a

configurable period of inactivity

• Windows 95/98/2000/XP Plug and Play compliant

• Conforms to VESA standards and supports the DDC1 and DDC2B specifications

¸¸¸¸¸¸¸¸2¸¸¸¸¸¸¸2¸¸¸¸¸¸¸2¸¸¸¸¸¸¸2¸¸¸¸¸¸¸2¸¸¸¸¸¸¸2¸¸¸¸¸¸¸2¸¸

OMPLTV32.book Page 2 ICriday, Jm_e |0, 2005 8:48 AM

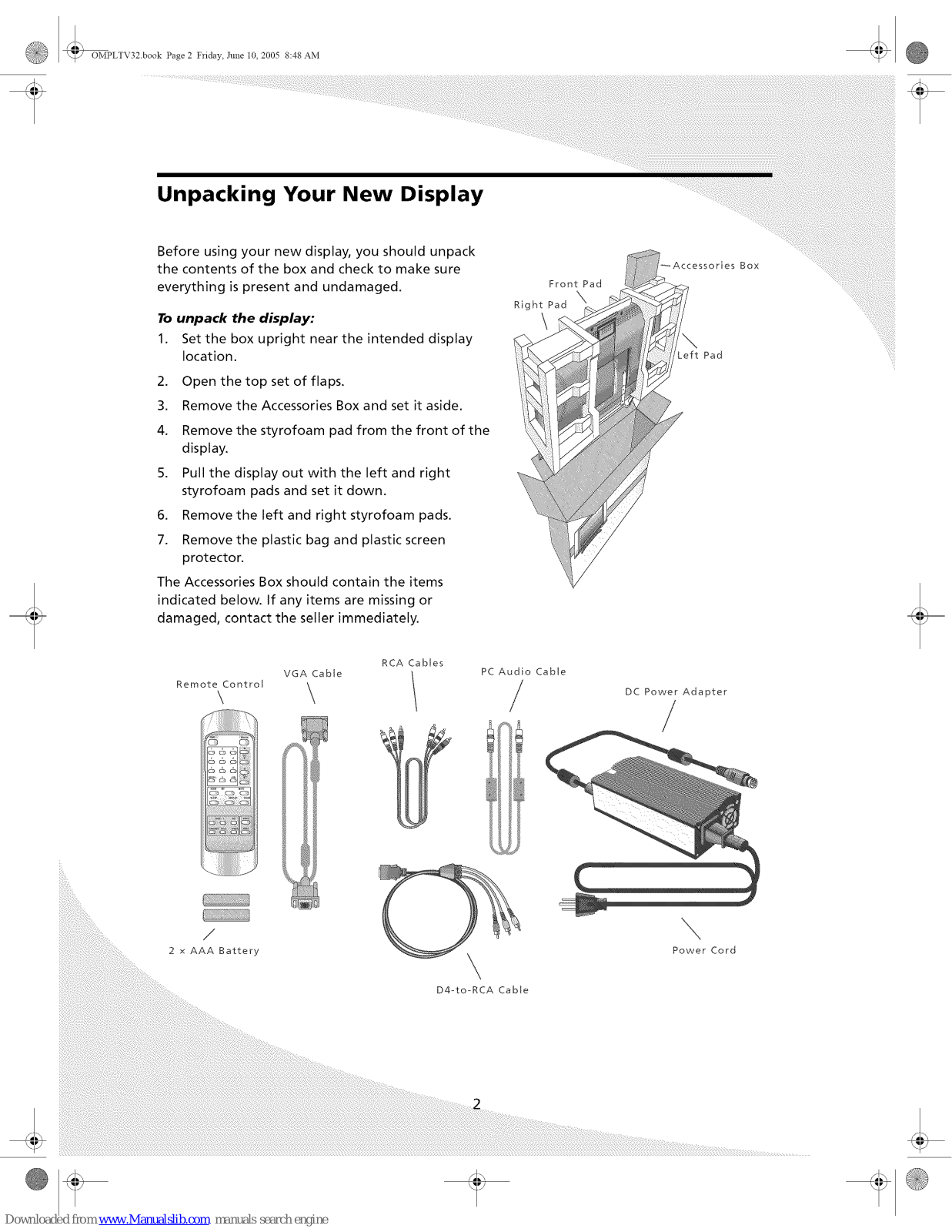

Unpacking Your New Display

Before using your new display, you should unpack

the contents of the box and check to make sure

everything is present and undamaged.

To unpack the display:

1. Set the box upright near the intended display
location.

2. Open the top set of flaps.

3. Remove the Accessories Box and set it aside.

4. Remove the styrofoam pad from the front of the
display.

5. Pull the display out with the left and right
styrofoam pads and set it down.

6. Remove the left and right styrofoam pads.

7. Remove the plastic bag and plastic screen
protector.

The Accessories Box should contain the items

indicated below. If any items are missing or
damaged, contact the seller immediately.

Remote Control

cD ol_i
cD o1_

VGA Cable

\

RCA Cables

Front Pad

Right Pad

\

PC Audio Cabte

/

•_ Accessories Box

\

Left Pad

DC Power Adapter

/,

/ \

2 x AAA Battery Power Cord

D4-to-RCA Cabte

OMPLTV32.book Page 3 Friday, June 10, 2005 8:48 AM

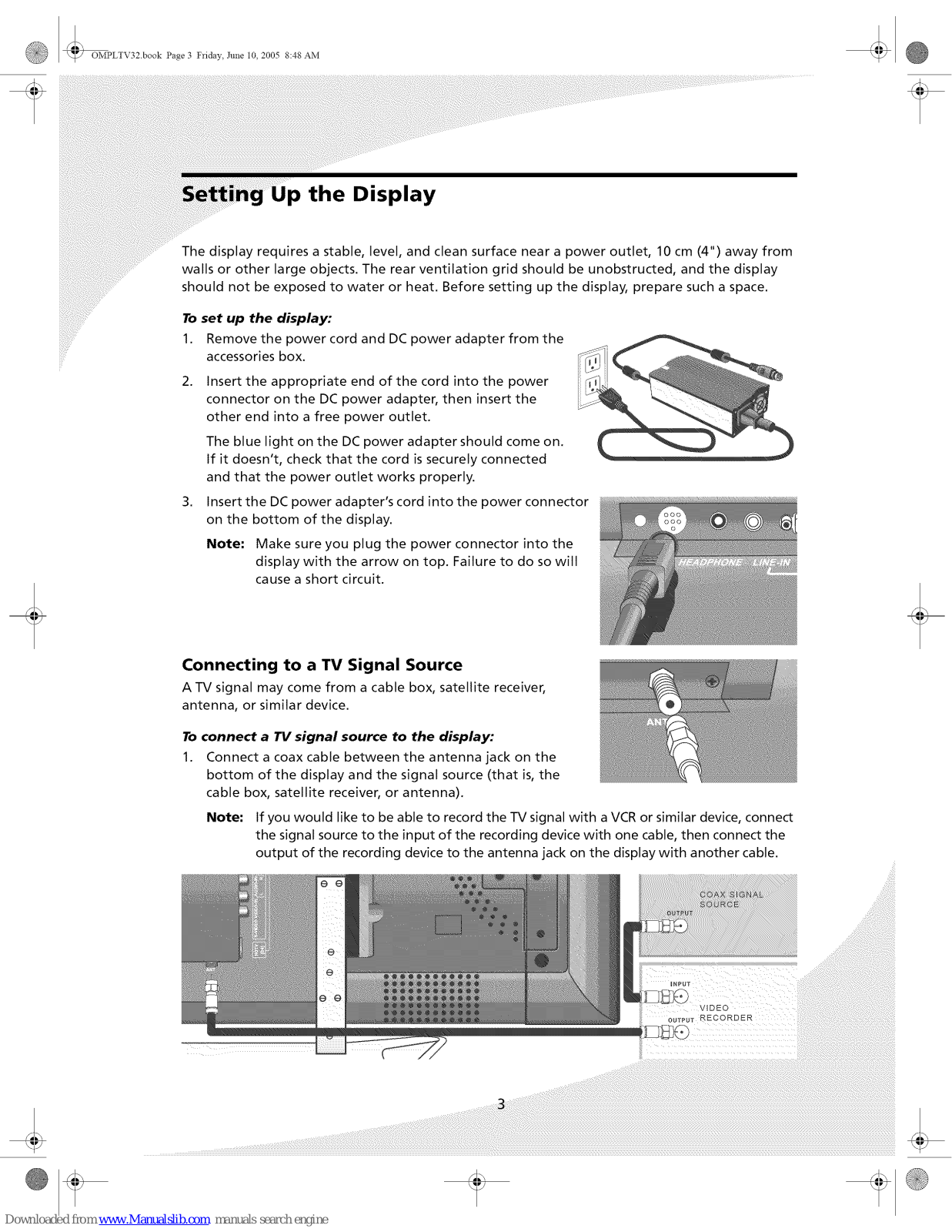

the Display

The display requires a stable, level, and clean surface near a power outlet, 10 cm (4") away from
walls or other large objects. The rear ventilation grid should be unobstructed, and the display
should not be exposed to water or heat. Before setting up the display, prepare such a space.

To set up the display:

1. Remove the power cord and DC power adapter from the
accessories box.

Insert the appropriate end of the cord into the power
connector on the DC power adapter, then insert the
other end into a free power outlet.

The blue light on the DC power adapter should come on.

If it doesn't, check that the cord is securely connected
and that the power outlet works properly.

Insert the DC power adapter's cord into the power connector
on the bottom of the display.

Note: Make sure you plug the power connector into the

display with the arrow on top. Failure to do so will
cause a short circuit.

Connecting to a TV Signal Source

A TV signal may come from a cable box, satellite receiver,

antenna, or similar device.

To connect a TV signal source to the display:

1. Connect a coax cable between the antenna jack on the
bottom of the display and the signal source (that is, the
cable box, satellite receiver, or antenna).

Note: If you would like to be able to record the TV signal with a VCR or similar device, connect

the signal source to the input of the recording device with one cable, then connect the

output of the recording device to the antenna jack on the display with another cable.

OMPLTV32.book Page 4 Friday, June 10, 2005 8:48 AM

Setting Up the Display

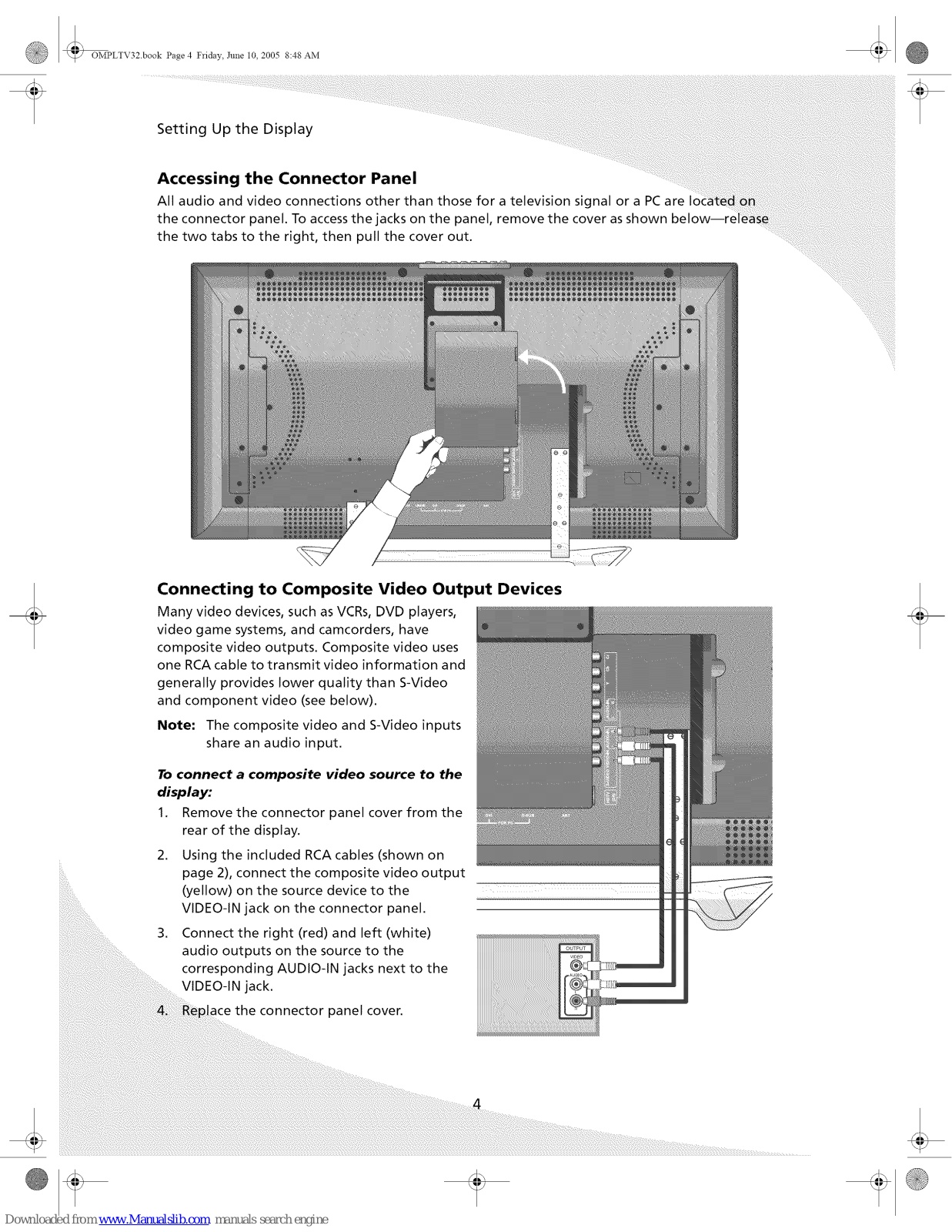

Accessing the Connector Panel

All audio and video connections other than those for a television signal or a PCare
the connector panel. To accessthe jacks on the panel, remove the cover as shown below--rel;
the two tabs to the right, then pull the cover out.

Connecting to Composite Video Output Devices

Many video devices, such as VCRs, DVD players,

video game systems, and camcorders, have

composite video outputs. Composite video uses

one RCA cable to transmit video information and

generally provides lower quality than S-Video

and component video (see below).

Note: The composite video and S-Video inputs

share an audio input.

To connect a composite video source to the

display:

1. Remove the connector panel cover from the
rear of the display.

2. Using the included RCA cables (shown on
page 2), connect the composite video output
(yellow) on the source device to the
VIDEO-IN jack on the connector panel.

3. Connect the right (red) and left (white)
audio outputs on the source to the
corresponding AUDIO-IN jacks next to the
VIDEO-IN jack.

ace the connector panel cover.

OMPLTV32.book Page 5 ICriday, June 10, 2005 8:48 AM

Output Devices

that have composite video

have S-Video outputs. S-Video uses

four-wire cable to transmit video

information. Two of the wires are used to

transmit video. Because it splits the video signal
into two components, S-Video generally provides
higher quality than composite video, but lower

quality than component video (see below).

Note: The composite video and S-Video inputs

share an audio input.

Note: The pins used in S-Video connectors are

somewhat fragile. Take care to avoid

bending the pins, as a bent or broken pin

can cause loss of color information or

total signal loss.

To connect an S-Video source to the display: ....

1. Remove the connector panel cover.

2. Using an S-Video cable, connect the S-Video

output on the source device to the S-Video

jack on the connector panel.

3. Using two RCA cables, connect the right (red)

and left (white) audio outputs on the source
to the corresponding AUDIO-IN jacks next to
the VIDEO-IN jack.

4. Replace the connector panel cover.

Setting Up the Display

1.>

OMPLTV32.book Page 6 ICriday, June 10, 2005 8:48 AM

Setting Up the Display

Connecting to Component Video (Progressive Scan)

High-quality video devices, such as HDTV receivers and
high-end DVD players, have component video outputs.
Component video uses three RCA connections to

transmit video information. Because the information is

split into three signals, component video offers higher
quality than either composite video or S-Video.

Progressive scan component video uses three signals
labeled Y, Pb, and Pr. Use this procedure only for
progressive scan video (video formats 480p, 525p, 720p,
and so on). See the next section for information on
connecting interlaced component video signals to the
display.

Note: The two component video inputs (RCA and D4)

share an audio input.

To connect a progressive scan component video

source to the display:

1. Remove the connector panel cover.

2. Using the included D4-to-RCA cable (shown on page

2), connect the three component video outputs (Y,
Pb, and Pr) on the output device to the D4 jack on
the connector panel. On the output device, connect
the green RCA connector to Y,the blue connector to
Pb, and the red connector to Pr.Then connect the D4
connector to the D4 jack on the connector panel.

3. Using two RCA cables, connect the right (red) and left (white) audio outputs on the source to
the corresponding AUDIO-IN jacks next to the component inputs on the connector panel.

4. Replace the connector panel cover.

OMPLTV32.book Page 7 ICriday, June 10, 2005 8:48 AM

Setting Up the Display

Video (Interlaced) Output Devices

component video uses three signals

Cb, and Cr. Use this procedure only for

video (video formats 480i, 525i, 720i,

and so on). See the previous section for

information on connecting progressive scan
signals to the display.

Note: The two component video inputs (RCA

and D4) share an audio input.

To connect an interlaced component video
source to the display:

1. Remove the connector panel cover.

2. Using three RCA cables, connect the three

component video outputs (Y, Cb, and Cr) to

the corresponding jacks on the connector

panel.

3. Using two RCA cables, connect the right (red)

and left (white) audio outputs on the source
to the corresponding AUDIO-IN jacks next to
the component inputs on the connector

panel.

4. Replace the connector panel coven

Connecting to a PC

Your display can be used as a computer monitor for any computer with a VGA or DVl video
output. In addition, the computer's audio output can be connected to the display and played
through the display's speakers.

To

1.

connect a PC to the display:

Set the video resolution on the computer to 1280 x 1024 or less before connecting to the

display.

In Windows, right-click on the desktop and select

Properties to bring up the Display Properties window.

Select the Settings tab. Adjust the Screen resolution

as needed, select Apply, then select OK.

OMPLTV32.book Page 8 ICriday, June 10, 2005 8:48 AM

Setting Up the Display

In Mac OS X, select System
Preferences under the Apple menu.
Open the Displays panel and select the
Display tab. Select the desired

resolution from the list.

,

If your computer has a DVI output,
connect a DVI cable between the DVl output
on the computer and the DVl input on the
bottom of the display.

If your computer has a VGA output only,
connect the VGA cable included in the

Accessories Box between the VGA output on
the computer and the VGA input on the
display.

,

(OPTIONAL) Using the audio cable included
in the Accessories Box, connect the
computer's audio output (LINE OUT) to the
audio input on the bottom of the display
(LINE IN).

OMPLTV32.book Page 9 ICriday, June 10, 2005 8:48 AM

g the Display

Turning the Display On and Off

Once the DC power adapter is connected properly to the display and the wall outlet, the display
may be turned on and off from the top of the display or the remote.

To turn the display on or off:

1. Press the POWER button.

Selecting the Video and Audio Source

The signal source may come from any of the inputs on the connector panel or the bottom of the

display. The SOURCE button cycles through these.

To change the audiolvideo source:

1. Press the SOURCE button until the correct source is selected.
The SOURCE button cycles through the following sources:

• TV

• HDTV (D4)
° VGA

• DVl

• COMP (Component Video)

• SV (S-Video)

° AV (Composite Video)

Adjusting the Volume

The audio volume may be adjusted from the remote or the top of the display.

To change the volume:

1. Press the VOL A and VOL V buttons.

Selecting the Channel

The channel may be selected from the remote or the top of the display.

To change the channel:

1. Ensure the source is set to TV.

2. Press the CH A and CH V buttons.

To change to a particular channel directly:

1. Ensure the source is set to TV.

2. Enter the desired channel number on the remote keypad.

OMPLTV32.book Page 10 Fridav June 10. 2005 8:48 AM

Operating the Display

Accessing the On-Screen Display

The On-Screen Display allows you to configure the operation of the display. You can

video and audio settings, activate and configure picture-in-picture (PIP) and closed ca
select television channels, control access to mature programming, and configure other general
display behavior. See "Configuring the Display" on page 15 for more information.

To access the OSD

1. Press the MENU button.

OMPLTV32.book Page 11 Fridav June 10. 2005 8:48 AM

Display for the First Time

When you turn on your LCD for the first time, you will need to set up the display for proper
operation by scanning the television spectrum for available channels.

Setting up Television Channels

If you are connecting directly to a wall jack or antenna (that is, if you are not using a cable box or
satellite receiver), you should scan the signal spectrum to weed out channels with insufficient
signal strength once the television signal is connected to the display. This will make it much
easier to navigate through the channels.

To scan the signal spectrum:

1. Turn the display on using the POWER button.

2. Change the signal source to "TV" by repeatedly pressing the SOURCE button until "TV"
shows in the top right corner of the screen.

3. Press the MENU button to bring up the On-
Screen Display (OSD).

4. Press the CH V button until TV SETUP is
highlighted, then press SET to enter the

menu.

LANGUAGESET UP>

TV SET UP >
RESET >

[

Press the CH _ button until BAND is
highlighted, then press the VOL Y button

until the appropriate selection shows: "AIR"
for an antenna, "CATV" for cable TV.

6. Press the CH V button until SCAN is
highlighted, then press the SET button to start
scanning channels. The menu will display

"SCAN" until the scan is complete.

7. Once the scan is complete, press MENU twice

to exit the OSD.

BAND lAIR ]

SCAN [.... ] [ 391CH

ADJUST Cb [ .... ]

FINE TUNE [ O]-_-
ADD/DELETE [ADD ]
SOUND [STEREO]
BLANKING [BLACK]

¸¸¸¸¸¸¸¸¸¸2¸¸¸¸¸¸¸¸2¸¸¸¸¸¸¸¸2¸¸¸¸¸¸¸¸2¸¸¸¸¸¸¸¸2¸¸¸¸¸¸¸¸2¸¸¸¸¸¸¸¸2¸

_;_;J_i_I_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iIillI_iII

OMPLTV32.book Page 12 Fridav June 10. 2005 8:48 AM

Using the Remote Control

The remote control can be used to control every aspect of the display's operation and includes

more functionality than the controls on top of the display.

i

The following is a list of all buttons on the remote and their functions:

Button Function

Turns the display on and off

Selects the signal source: TV, HDTV, VGA, DVI, COMP, SV, AV

Used to enter numbers on the display and to select the television channel

RECALL Returns to the previous channel

CD

+_00 Gives access to channels over 100. To use, press +100, then enter the last two

C_) digits of the desired channel number.

Selects the television channel

OMPLTV32.book Page 13 Fridav June 10. 2005 8:48 AM

Using the Remote Control

Adjusts the audio volume

Y

CZD

ZOON

PUP

CZD

Switches between three display formats: Aspect (4:3), Panorama (15:9), and

Fill (16:9)

FiLL/PANORAMA ASPECT

Selects the PIPmode: Off, Standard PIP,PNP1, or PNP2

1 t_

PIP PNPI PNP2

Note= If there is no signal connected to the secondary source, the PIP secondary

window wilt not appear when in Standard PiP mode.

Mutes the audio

MUTE

SLEEP Sets the display sleep timer. The timer can be turned off or set to 30, 60, or 90

minutes.

DISPLA_ Displays current source and television channel information

s0uN0 Selects the sound enhancement mode: Off, Stereo Simulation, Surround 1, or

Surround 2

= BRIG+ Adjusts the display brightness

SET Selects the highlighted item or confirms the current adjustment

C_

MENU Brings up the On-Screen Display

S°SOURCE When PiP is active, selects the signal source used for the secondary PiP window

s.Pos When PiPis active and set to Standard PiP mode, this button adjusts the position

_) of the secondary PIP window.

s°s_E When PiP is active and set to Standard PiP mode, this button adjusts the size of

CZ) the secondary PIPwindow.

swAP When PIP is active, swaps the primary and secondary sources

OMPLTV32.book Page 14 Fridav June 10. 2005 8:48 AM

Using the Remote Control

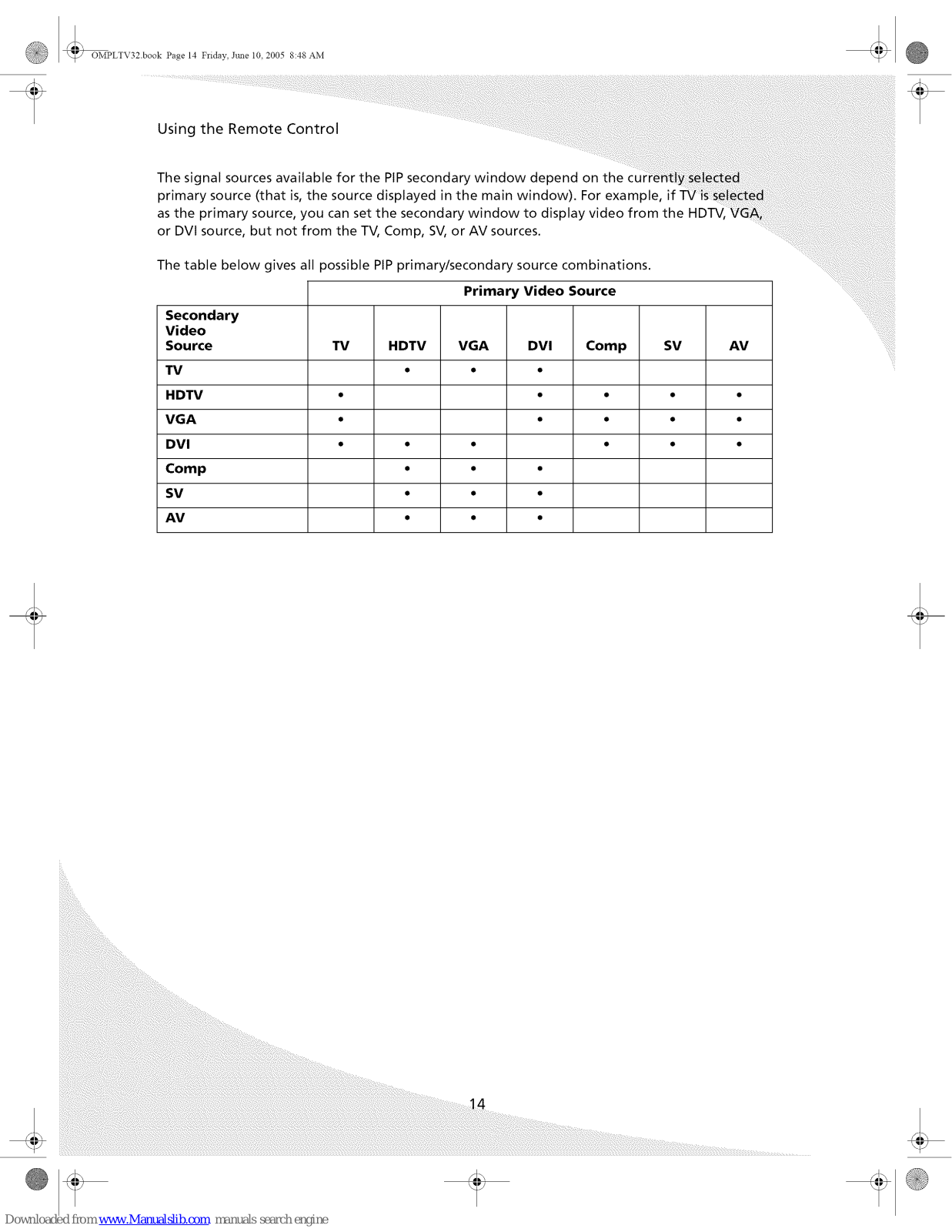

The signal sources available for the PiP secondary window depend on the

primary source (that is, the source displayed in the main window). For example,
as the primary source, you can set the secondary window to display video from the
or DVl source, but not from the TV, Comp, SV, or AV sources.

The table below gives all possible PIP primary/secondary source combinations.

Primary Video Source

Secondary
Video

Source TV HDTV VGA DVI Comp SV AV

TV ° ° °

HDTV " " " " "
VGA * * * * *
DVI * * * * * *

Comp * * *

SV ° ° °
AV ° ° °

OMPLTV32.book Page 15 Fridav June 10. 2005 8:48 AM

ng the Display

The On-Screen Display (OSD) allows you to
configure the operation of the LCD. You can
change video and audio settings, activate and
configure picture-in-picture (PIP) and closed
captioning, select television channels, control
access to mature programming, and configure
other general display behavior.

The menu structure varies depending on the
selected signal source. The table below gives the
available options for each source.

VIDEO ADJUST >
AUDIO ADJUST >

LA/GUAGE SET UP>
CLOSED CAPTION >
V-CHIP BLOCK >
TV SET UP >
RESET

>

TV HDTV VGA DVI Comp SV AV
Video Adjust " " " " " " "
Audio Adjust " " " " " " "
Language Setup • • • • • • •
Closed Caption • • • •
V-Chip Block • • • •

TV Setup •

Reset • • • • • • •

To

1.

2.

3.

4.

5.

6.

use the OSD:

Press the MENU button on the remote or the top of the display.
Once the OSD appears, use the CH A and CH V buttons to navigate the menu items.
Press the SET button on the remote or the ENTER button on the top of the display to select

the desired item.

If an arrow is displayed to the right of the item name, a sub-menu will appear upon pressing
SET. Repeat steps 2 and 3 to navigate the sub-menu.

If the selected item is an adjustable parameter use VOL A and VOL V to adjust the
parameter and then press SET to accept.

Press MENU to return to the previous menu and, finally, exit the OSD.

OMPLTV32.book Page 16 Fridav June 10. 2005 8:48 AM

Configuring the Display

Video Adjust

The Video Adjust menu allows you to change the

parameters used in displaying video.

The menu structure varies depending on the

selected signal source. The table below gives the
available options for each source.

DISPLAY >

TV HDTV VGA DVI Comp SV AV

Display • • • • • • •
Color • • • • • • •

Image • • • • • •
Zoom • • • • •

Position •
Sub-Picture " " " " " " "

Display

A sub-menu used to adjust display parameters.
The parameters are

° Brightness--Adjusts the brightness of the


° Contrast--Adjusts the variation between

light and dark

Color (Source: TV, HDTV, Comp, SV, AV)
A sub-menu used to adjust the color space

used for motion picture video. The parameters

are
° Hue--Adjusts the range of colors available

• Saturation--Adjusts the intensity of the
colors displayed

Brightness [ 501-_÷

Contrast [ 451-.__+

HUE [ 50].-_+
SATURATION [ 7giSt+

OMPLTV32.book Page 17 Fridav June 10. 2005 g:48 AM

Configuring the Display

VGA, DVI)

ust the color space used for

3uter video. The options are

sgGB--Turns standard RGB color on and
off. When this is on, the other menu items

are disabled.

• Gamma--Adjusts the intensity correction
used by the display. The options are 1.8,

2.2, 2.4. This menu item is disabled when
Temperature is set to User.

° Temperature--Sets the color temperature

used for white. The options are 6500K,

9300K, User (VGA only), and Off (DVI
only).

° Red (VGA Only)--When Temperature is set

to User, this sets the amount of red in the
display's white.

° Green (VGA Only)--When Temperature is

set to User, this sets the amount of green in
the display's white.

TEMPERATURE[USER ]
RED [ 220],_÷

GREEN [ 215]- +

i i i _ i

ii_!ii!_i_iii!ii_!!i!iiii!iIi!_i!_!!_!!i_!,_i_iiiiiiiiii_!i;_!i!ii!i!ii_ii!,i_i_!i!i_ii,!i_iiiiiiiiiiiiili!ii!ii!i!i_i;iii!iiiiiiii!ii!ii!i_!_i_!!_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_iiiiiii_i_!i!i:!_:!;_!_:!!!i!_;i!;:i!ii!iii_i_!!ii_iii_i'!i!iili:ilili!i!_ii_i!ii_i_i!i!ii!;ii_iiiii!iiii_!_!i_i_;ii_ii_ii_ii_ii_ii_!!_i!_iiii_iii_ii_;ilii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_iiii;i_i_!i_i_i_i:!::!_i!_i!ii_i,lil'}}}}iiii"ii'ii_ii_ii_ii_i!!i!!i!iiii_!_:!_iiiiiii_i_ii_i_!i_!i_!ii_ii'!!:i!ii!i!iii_!!;iiiii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ill

Blue (VGA Only)--When Temperature is set to User, this sets the amount of blue in the
display's white.

Image (Source: TV, HDTV, Comp, SV, AV)
A sub-menu used to set options regarding

processing of motion picture images to
remove artifacts and noise. The options are

° Noise Reduction--Sets the amount of

noise reduction used to filter out static. The

options are Off, Low, Med, and High.

• Angle Filtering--Turns anti-aliasing on

and off. This feature removes jagged lines
from video images for a better picture,

• Sharpness--Adjusts image sharpness

° Film Mode--Removes artifacts from 2:2 and

Image (Source: VGA)

Used to set VGA image display options. The
parameters are

i uto Adjust--Adjusts automatically to the

incoming VGA signal

Phase--Adjusts the clock phase used to

read the incoming signal

• Clock--Adjusts the clock frequency used to
read the incoming signal

!!_!i_!_i_!_!_![[[_!:_:!::!!_i_!i_i_ii;:::_i!i:_!_!_i!_i_!_!i!i_ii_i_:i:i:_ii!i!_i!i!_!!;!_!i!:_!_i!_!i_i_!!!_!i_:ii_ii:_!i_:_;i;!_i_i!i!i;ii_i!!_i_ii!_!;!;_:!_i_:_:i:_i::i:_i:i_i_)i;i[_!i_!_!::_:i_!_;i:__:_:!:!!i!!_!!i_i:_!i;_;!_:i_i_i_i_i!_!_!_i!_!!_!i_iiii_i!_!!_!!_!i_!iii!!i!!i!!_!!i!ii!i!_!ii_i_!iiii_ii!iiiii!iiii_ii:!_:_;_!!_i_!!i_!_!i:_ii_!!_!!_!!!i_i_:_i¸_ii_il_i_i_!_i:i:_i:_i:!!!i_!ii!i!i_i_i_i:_)i!_i_i_:_!_!_:_!_!i_i_i_i!!i_!!!

SHARPNESS [ 5]-_+

! i¸;:

i_ i iiiii i i i

ii!i!_!iii_!!__)_iii_i_i!!_i_!_i_i_ill_i_i_i_i_i_!_!!_!!:!!_!!_!!_!i_!_ii_i_i_i_:i_i_ii_ii_ii_J_i_;_;i_!_!_!_!_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_iii_i!_i:!_!!_!_ii_i_!_i_!_!_i!_i!i!_!_!i_!:_i_i_!:_!_!_!:ii_i!_i_!!_!_!_ii_i_!_i_!_!_!_i_iiiiiiiiiii_!_i_i_ii_!i_!i_:!_!i_i_i!i_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_iiii_ii_i!_!_i_ii!_!_!_;_i!_ii_!_!_!_!_!_!_!!_ii_i_i_i_i_i_!:i_i_!i_!_!i_!_i_i!_i!i_i!_!_!_!_i_i;_!_i_!!!!_!!_:_!)))))))))))_i!_ii

3:2 pulldown material

OMPLTV32.book Page 18 Fridav June 10. 2005 8:48 AM

Configuring the Display

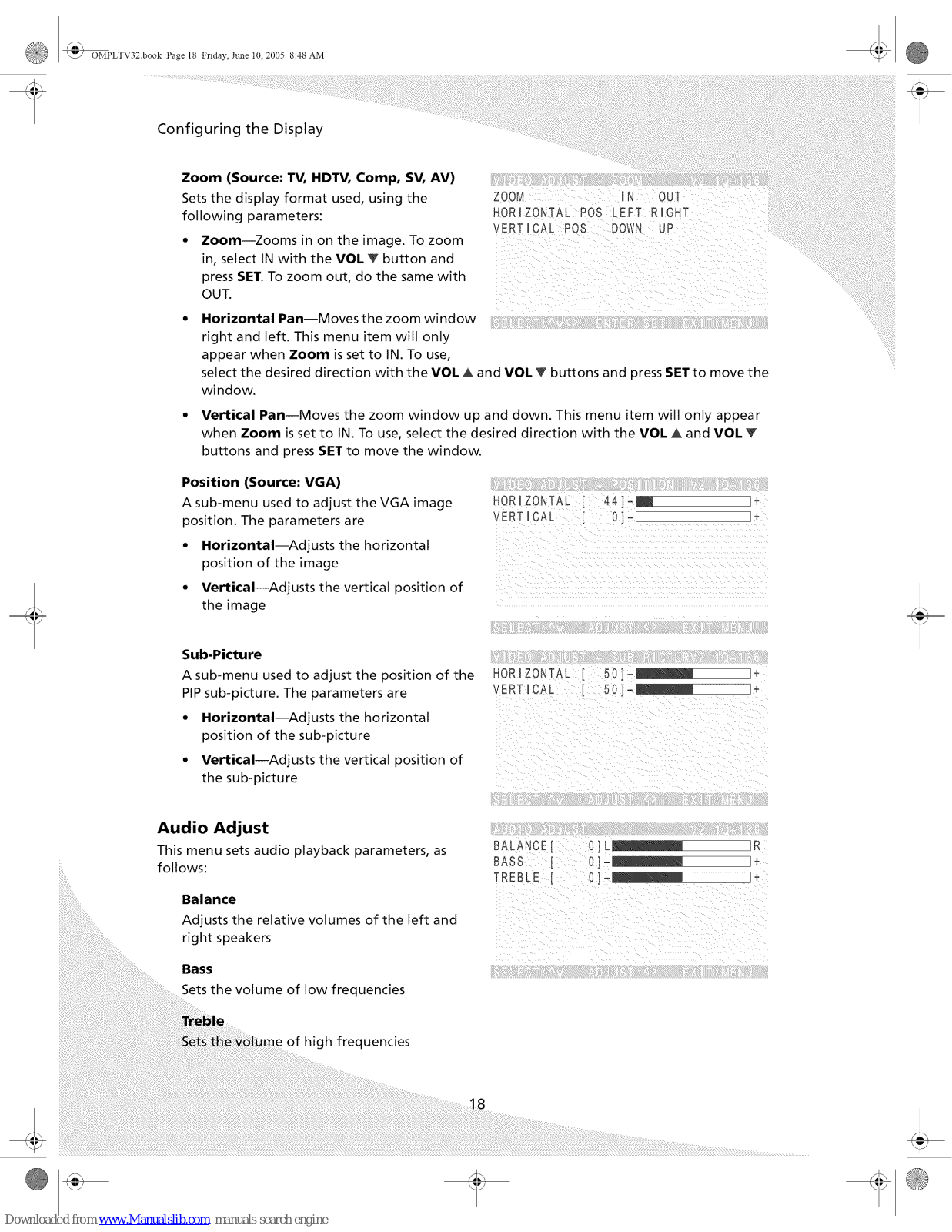

Zoom (Source: TV, HDTV, Comp, SV, AV)
Sets the display format used, using the

following parameters:

Zoom--Zooms in on the image. To zoom

in, select IN with the VOL V button and

press SET. To zoom out, do the same with
OUT.

Horizontal Pan--Moves the zoom window
right and left. This menu item will only
appear when Zoom is set to IN. To use,

ZOOM IN OUT
HORIZONTAL POSLEFT RIGHT

iii : F ii:i iil iii!ii ii! i}}i !I/:}III

select the desired direction with the VOL _ and VOL _' buttons and press SETto move the
window.

• Vertical Pan--Moves the zoom window up and down. This menu item will only appear
when Zoom is set to IN. To use, select the desired direction with the VOL _ and VOL V

buttons and press SET to move the window.

Position (Source: VGA)

A sub-menu used to adjust the VGA image HORIZONTAL [ 44],_ 1+
position. The parameters are VERTICA L [ 0]_1 ]÷

• Horizontal--Adjusts the horizontal

position of the image

• Vertical--Adjusts the vertical position of
the image

Sub-Picture
A sub-menu used to adjust the position of the

PIP sub-picture. The parameters are

• Horizontal--Adjusts the horizontal

position of the sub-picture

• Vertical--Adjusts the vertical position of
the sub-picture

Audio Adjust

This menu sets audio playback parameters, as

follows:

Balance
Adjusts the relative volumes of the left and

right speakers

Bass

Sets the volume of low frequencies

HORIZONTAL [ 50]- +

ii[_i}_[i!_[i[_i[ii_!!!_ii@i}i_i_!i_i_}_i[ii:_!!i_!_J_i!_ii_i;_!_!@_!!_!_!i!_i_i_i!_!_i!_i_!!_:_@i[!i[_i_!i!_i!!_!![!_!_!:!!;!_i[i![:!_i!i[i{ii_;!_i!_i_!_i!i_;@_i!i_i_i!_i_i!i:_ii_i@:![i¸i!_!_[_i_[[;!_!!_i!_!_i[i_!i_i[ii_i_!!_i!_:_!_[i_!![!_![i!_!iii!_i_!i_:_;}_!!!i!_!_!ii_i!i!iiii_!i!!i_ii_;_!_

of high frequencies

OMPLTV32.book Page 19 Fridav June 10. 2005 8:48 AM

Configuring the Display

Setsthe language used for information

on the screen. The options are as

English
French

Spanish

ENGLISH
FRENCH

sPAN SH

Closed Caption

(Source: TV, Comp, SV, AV)

The Closed Caption menu turns closed captioning
on and off and allows you to set options used in
displaying it. Closed captioning is a system used to

broadcast text, such as subtitles and other

information, along with video.

MODE[ OFF ]

DATA[CP1]

Mode

Sets the closed captioning mode used. The

options are

° Off--No closed captioning

o

Caption--Used for subtitles. This mode displays only a few lines of text at the bottom of
the screen.

° Text--Displays more detailed textual information broadcast with the video. This mode

displays text across most of the screen.

MODE: CAPTION MODE: TEXT

Data

Selects the closed captioning channel displayed on the screen. The options are
° CH1--Closed caption channel 1
° CH2--Closed caption channel 2

OMPLTV32.book Page 20 Fridav June 10. 2005 8:48 AM

Configuring the Display

V-Chip Block

(Source: TV, Comp, SV, AV)

The V-Chip blocks access to mature programming

unless a password is entered to bypass it. The

V-Chip Block menu allows you to change the

password and select which content should be
blocked.

MPAA >

TV GUIDELINES>

Upon entering the V-Chip Block menu, the display
asks for the current password. Once the password
is entered, you may adjust the V-Chip settings. The
factory default password is '1234'.

Upon leaving the menu, the display will ask for a
new password. Either enter a new password or
press MENU to exit and leave the password as is.

The sub-menus are as follows:

MPAA

This sub-menu allows you to block mature
content by its MPAA (Motion Picture
Association of America) rating. When a rating
is blocked, all higher ratings will automatically
be blocked as well. The ratings are

° GIGeneral audiences (all ages)

• PG--Parental guidance suggested (some

material may not be suitable for children)

o

PG [22_22]
PG.13 22-2-
R [;2__2]
NC_17 _222;

iiiii :; iiii :

PG-13--Parents strongly cautioned (some material may not be suitable for children under 13)
R--Restricted (minors under 17 require an accompanying parent or adult guardian)
NC-17--No one under 17 admitted

X--Adults only (no one under 17 admitted)

OMPLTV32 book Page 21 Fridav June l& 2005 g:48 AM

Configuring the Display

allows you to block mature

by its TV Parental Guideline rating.

The information is displayed in a table, where

'U' means unblocked and 'B' means blocked.

The rows represent rating categories, and the

columns represent specific types of mature
content that may be blocked for each rating
category. When a rating is blocked, all higher
ratings will automatically be blocked as well.

The rows are

• Unblock--Blocks or unblocks all rating levels

• TV-Y--AIt children

• TV-Y7--Children 7 years and older

• TV-G--General audience

• TV-PG--Parental guidance suggested

• TV-14--Parents strongly cautioned

• TV-MA--Mature audience only

The columns are

• All--All content types

• FV--Fantasy violence

• V--Violence

• S--Sexual situations

• L--Coarse language

• D--Suggestive dialog

ALLFVV S L0UNBLOCKU

TV Setup
(Source: TV)

The TV Setup menu allows you to adjust television
reception and display parameters, including which
channels are available for viewing. The options
are as follows:

BAND lAIR ]

SCAN [ .... ] [ 39]CH

ADJUST CH [ .... ]

FINE TUNE O]-_-
ADDIDELETE [ADD ]
SOLND [S_ERE0]
BLANKING [BLACK]

Band

Selects the type of TV signal connected to the ......................................................................................

display. The options are

• Air--TV signal received by an antenna

• CATV--Cable TV

CATV-HRC--A form of cable TV mainly used on the west coast of the US .......

CATV-iRC--A form of cable TV mainly used on the east coast of the US

i!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!

1>

OMPLTV32.book Page 22 Fridav June 10. 2005 8:48 AM

Configuring the Display

Scan

Scans all television channels for those with strong signals and disables the rest

Adjust Ch

Allows you to adjust the television channel without exiting the OSD

Fine Tune

Adjusts the center frequency used for the current channel. This feature can help improve
reception on channels with weak reception.

Add/Delete

Adds or removes the currently selected channel from the group available for viewing. The
options are

° Add--The current channel is available for viewing.
° Delete--The current channel is not available for viewing.

Sound

Selects which broadcast sound channel the display plays back. The options are

• Mono--0ne-channel sound
° Stereo--Two-channel sound (left and right)

• SAP--Secondary Audio Programming. Used mainly for foreign language broadcasts

Blanking

Determines which color is used to flood the screen when a channel contains nothing but
static. The options are

• Blue

• Black

Reset

This menu resets display options to their factory

settings. Two options are available:

Factory Reset

Resets all display settings to factory defaults

Color Reset

Resets the color space to the factory default

FACTORY RESET >
COLOR RESET >

OMPLTV32.book Page 23 Fridav June 10_2005 8:48 AM

g

Symptom

No picture
(power

indicator
does not light

up)

No picture
(power

indicator is
amber)

No picture
(power
indicator is
red)

Possible

Cause

Power cord(s)
not securely

connected

Power outlet is

off or not
working

The display is

in power-

saving mode
The display is

off

No signal

Resolution

Make sure the power cable from the DC Power Adapter is

firmly inserted into the socket on the display.

Make sure the power cord from the wall isconnected

securely to the DC Power Adapter and wall outlet.

If the power outlet is working, the blue light on the DC
Power Adapter will come on when it is plugged in. If it
doesn't, try plugging a different device into the outlet and

see if it turns on. If not, check that the outlet is on or use a

different outlet.
If in VGA or DVI mode, press a key on the keyboard or move

the mouse. Otherwise, press a button on the remote.

Press the POWER button on the remote or on top of the
display.

Make sure the proper source is selected. If there is still no
picture, check the signal cable(s) and signal source.

No picture Contrast or Adjust the contrast and/or brightness until picture appears.
(power brightness too
indicator is low
green)

Signal cable(s) Make sure the signal cable(s) are firmly connected.

not securely

connected
Signal source is Make sure the device supplying the video signal is on and

off operational.

Poor TV signal Check the TV signal. If using an antenna, adjust the position

for better signal. If using cable or satellite TV, contact your
service provider.

OMPLTV32.book Page 24 Friday, June 10, 2005 8:48 AM

Troubleshooting

Symptom

Unclear or
noisy picture

Displayed
color is

incorrect
No sound

Display is too
dark or too

bright

Display not
centered

vibrating

After-image
remains on
screen after

display is

turned off

_istorted

Possible

Cause

Signal cable(s)

not securely

connected

Poor TV signal

Radio
interference

Incorrect color

settings

Audio cable(s)

not securely

connected

Headphones
plugged in

Audio muted

Contrast or

brightness too
low or too

high
Position

incorrectly
adjusted in
OSD

Signal cable(s)

not securely
connected

Power voltage
too high or
too low

Inherent LCD
characteristics

.eso,ution ........

Make sure the signal cable(s) are firmly connected.

Check the TV signal. If using an antenna, adjust the position
for better signal. If using cable or satellite TV, contact your
service provider.

Check for any electronic devices nearby that might be

interfering with the video signal or the display's operation.
Adjust the settings in the Display, Color, and Image sub-

menus under the Video Adjust menu in the OSD (see

"Configuring the Display" on page I 5).

Make sure the audio signal cable(s) are firmly connected.

Unplug the headphones.

Unmute the audio by pressing the MUTE button on the

remote.
Adjust the contrast and/or brightness to desired setting.

Adjust the image position in the Position sub-menu under
the Video Adjust menu in the OSD (see "Configuring the

Display" on page 15).

Make sure the signal cable(s) are firmly connected.

Check the power source to make sure it matches the display
specification. Try a different power outlet on a different
circuit.

This is characteristic of an LCD. The after-image will

disappear after a few minutes.

Display format Check that the correct display format is selected by pressing

set incorrectly the ZOOM button on the remote.

OMPLTV32.book Page 25 Fridav June 10. 2005 8:48 AM

+

Troubleshooting

message on
screen

Red, green,
blue, or white
dots on

screen
Remote

control not
functioning

Inherent LCD

characteristics

Batteries
inserted

improperly
Batteries low

on energy
A button is

stuck

Resolution

Adjust the resolution and refresh rate on the PC to match a
supported mode, listed in the "Specifications" section.

This is characteristic of an LCD and will not cause a

malfunction.

Make sure the batteries are inserted and oriented properly.

Replace the batteries.

Jog any stuck buttons on the remote to unstick them.

Obstacle Remove the obstacle.

between
remote and

display
The remote is Move closer to the display.

too far from
the display

Note: Further troubleshooting information may be found on the Protron website at

www.protronusa.com.

Support Information

Do not return this product to your retailer until you have performed the steps laid out in

the Easy Setup Instructions and contacted the customer service center. Merchandise may not

be returned to Protron without a return form authorization.

Before contacting Protron customer service, please record the following information, which may
be found on the back of your display:

° Model Number
° Serial Number

° Date of Manufacture

The Protron customer service center may be contacted 24 hours a day, 7 days a week at the

following number:

1-888-257-8899

OMPLTV32.book Page 26 Friday, June 10, 2005 8:48 AM

Specifications

General

Dimensions

Weight

Panel Type
Screen Size

Color Range
Max. Resolution

Pixel Pitch
Sync Range

Contrast Ratio
Brightness

Viewing Angle

Response Time

Inputs

Outputs
TV Tuner

TV Formats Supported

TV Audio
Parental Controls
Picture-In-Picture

Closed Captioning
Speakers
Plug and Play Compliance
DC Power Adapter

Power Consumption

Temperature

Temperature

40.5"W x 20.5"H x 11"D w/stand and speakers

38.8 Ibs

Active Matrix TFT LCD

32" wide-screen (16:9)
24 bits (16.7 million colors)

1366 x 768

0.51075mm (H) x 0.51075mm (V)
Horizontal: 30-80kHz

Vertical: 50-75Hz
800:1

500 cd/m 2

Vertical: +/-85 °

Horizontal: +/-85 °
Rise: 6ms
Fall: 10ms
1 x component video (RCA)
1 x component video (D4)
1 x composite video (RCA)

1 x S-Video
2 x stereo audio (RCA)
1 x SVGA (15-pin D-Sub)
1 x DVI-D (single link)

1 x stereo audio line in, 0 dBV nominal (1/8" TRS)
1 x headphone (1/8" TRS)

NTSC-M, CATV, 181 channels
SDTV: 480i

EDTV: 480p
HDTV: 720p, 1080i
MTS (mono, stereo, SAP), SRS

V-Chip (TV PG, MPAA)

PIP
CCl-2, TEXT1-2

2x 10W

VESA DDCI/DDC2B

Input: 100-240VAC, 50-60Hz
Output: 12/16VDC
100W typ.

120W max.

0 to 60°C

5 to 35°C

OMPLTV32.book Page 27 Fridav June 10_2005 8:48 AM

640 x 350

640 x 400

640 x 480

800 x 600

832 x 624
1024 x 768

1152 x 876
1280 x 768
1280 x 1024

1600 x 1200

Timing Modes

Vertical Frequency

(Refresh Rate)

Hz

60.00

70.00

85.08

70.00

85.00

60.00

72.80

75.00

85.00

56.30

60.32

72.19

75.00

85.06

74.53

60.00

70.00

75.00

85.00

75.06

60.00

60.02

70.00

75.03

85.02

60.00

Horizontal
Frequency

kHz

31.47

31.47

37.86

31.47

37.86

31.50

37.86

37.50

43.27

35.15

37.90

48.08

46.90

53.70

47.71

48.08

56.50

60.00

68.70

68.68

47.70

63.98

74.62

79.98

91.15

75.00

Specifications

OMPLTV32.book Page 28 Fridav June 10. 2005 8:48 AM

More for your money

Limited Warranty

Protron warrants this product to be free from manufacturing defects in material and
workmanship under normal use for the period listed at the bottom of this section.

How to obtain service:

* Call the Protron Customer Support line at 1-888-257-8899. If the issue cannot be resolved

over the phone, a service tag number will be issued, and the nearest authorized Protron
Service Center will be identified for you.

, For televisions with screen sizes of 26" or less, you will be requested to bring your unit

into the authorized service center and pick up when repairs are complete.

, For televisions with screen sizes 27" and above, you may request in-home service from an

authorized Protron Service Center, provided that your television is located within the
geographic territory covered by an authorized Protron Service Center. If in-home service is

not available in your area, you must take your television to the Service Center location at
your own expense, or pay for the additional cost that the Service Center may charge to
transport your television to and from your home.

, Proof of purchase in the form of a bill of sale or receipted invoice with product name,

model and/or serial #, which provides evidence that the product is within the warranty

period, must be presented to obtain warranty service.

This warranty does not cover:

• Physical or cosmetic damages.

• Damage caused by abuse and/or neglect.

• Ordinary adjustments as outlined in the owners manual that can be performed by the
customer.

• Damage to equipment not properly connected to the product.

• Any cost incurred in shipping the product for repair.

• Signal reception problems caused by external antenna, cable systems or interference.

• Incompatibility due to a change in TV/CATV broadcast systems after the product was sold.

• Batteries.

• Images burnt on to the screen.

• Initial installation and related adjustments.

• Power surge and/or damage by lightning.

Force majeure or uncontrollable external force damage.
Product shipped for service with inadequate packaging or packaging materials.

What we will do:

Protron will reimburse an authorized Protron Service Center the labor charges to repair

television.

reimburse an authorized Protron Service Center for the new, or at our

rbished replacement parts required to repair your television.

OMPLTV32.book Page 29 Fridav June 10. 2005 8:48 AM

Limited Warranty

if:

Jct is used in a commercial application or rental.

Damaged through misuse, negligence or abuse.

• Modified or repaired by anyone other than authorized PROTRON service center.

• Damaged because it is improperly connected to any other equipment.
° If the original proof of purchase cannot be supplied.

• If the identifiable markings on the TV such as Serial # are defaced, unrecognizable, or
missing.

• The product is used outside the country in which it was originally sold.

This warranty is not transferable and only applies to the original purchase. Any implied
warranties, including the warranty of merchantability, are limited in duration to the period of
this expressed warranty and no warranty whether expressed or implied shall apply to the
product thereafter. Under no circumstance shall PROTRON be liable for any loss or consequential
damage arising out of the use of this product. This warranty gives specific legal right. However,
you may have other rights that may vary from state/province to state/province. Some states/
provinces do not allow limitations on implied warranties or exclusions of consequential damage.
Therefore these restrictions may not apply to you.

26" and below: 1 year parts/labor Depot Warranty
27" and above: 1 year parts/labor In-home Warranty

OMPLTV32.book Page 30 Fridav June 10_2005 8:48 AM

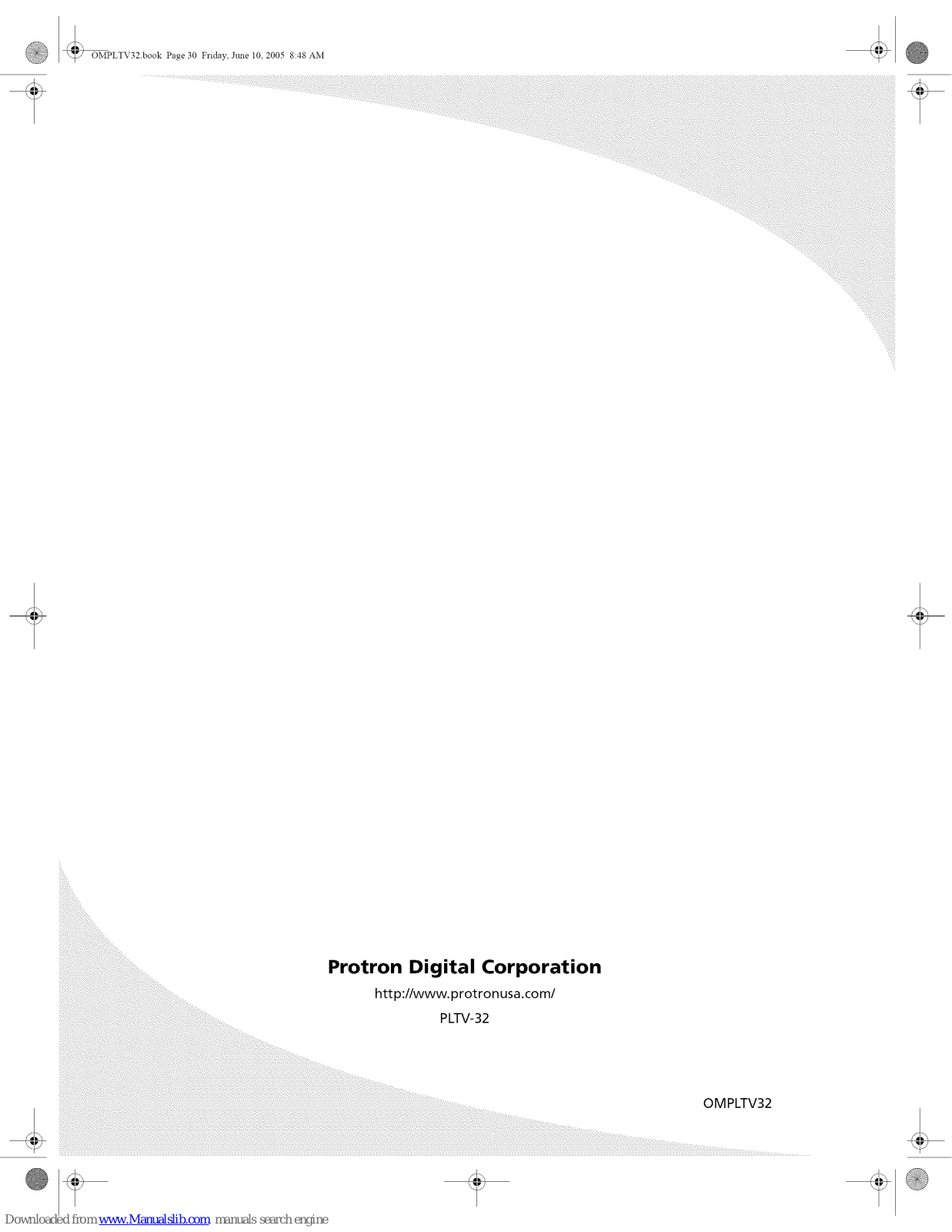

Protron Digital Corporation

htt p://www, prot ron usa.com/

PLTV-32

OMPLTV32
