Polycom VoiceStation 100 User Manual

4 (1)

Installation

Instructions

and User’s Guide

100 VoiceStation

GUIDE USER’S AND INSTRUCTIONS INSTALLATION

Table of Contents

Parts List

1

Polycom Limited Warranty

7

Thank You

1

Limitation of Liability

7

For Best Performance

1

Copyright

8

Installing VoiceStation 100

2

U.S. and Canada Regulatory and

8

Using VoiceStation 100

3

Compliance Information



Industry Canada (IC)

10

Maintenance

6





In Case of Difficulties

6





Table des matières

Liste des pièces

13

En cas de difficultés

18

Remerciements

13

Garantie limitée Polycom

19

Pour une performance optimale

13

Limitation des responsabilités

19

Installation de la console

14

Droits d’auteur

20

VoiceStation 100



Règlements du Canada et des

20





Utilisation de la console

15

É tats-Unis en matière de conformité



VoiceStation 100



Industrie Canada (IC)

22

Entretien

18





Índice

Lista de piezas

25

Agradecimiento

25

Para obtener el mejor funcionamiento

25

Instalació n del VoiceStation 100

26

Utilizació n del VoiceStation 100

27

Mantenimiento

30

En caso de dificultades

30

Garantía limitada de Polycom

31

Limitació n de responsabilidades

31

Derechos de propiedad intelectual

32

Informació n sobre reglamentos y

32

conformidad para Estados Unidos



y Canadá



Industry Canada (IC)

34

Parts List

Console Cord

VoiceStation™100

Phone Cord

User Documentation

Power Supply

Thank You

Thank you for choosing Polycom’s VoiceStation100. VoiceStation 100 uses Polycom’s unique Acoustic Clarity Technology to provide clear, full-duplex, two-way voice communication for your meetings. In addition, VoiceStation 100 adapts dynamically to the room environment to eliminate echoes and clipping. Three built-in microphones pick

up sound all around the room so you can speak naturally and be easily understood.

Please review this User Guide before using the phone and save it for future reference.

To help us serve you better, please take a moment now to complete and mail your VoiceStation 100 registration card, or register online at www.polycom.com.

For Best Performance

Place VoiceStation 100 unit in the center of a table or desk.

Locate VoiceStation 100 unit in a room with soft furnishings such as carpets, curtains, and sound-absorbing walls and ceilings.

Keep papers and other objects away from the unit.

Speak at normal volume.

Speak toward VoiceStation 100.

VoiceStation 100 Installation Instructions and User’s Guide

1

VoiceStation 100 Installation Instructions and User’s Guide

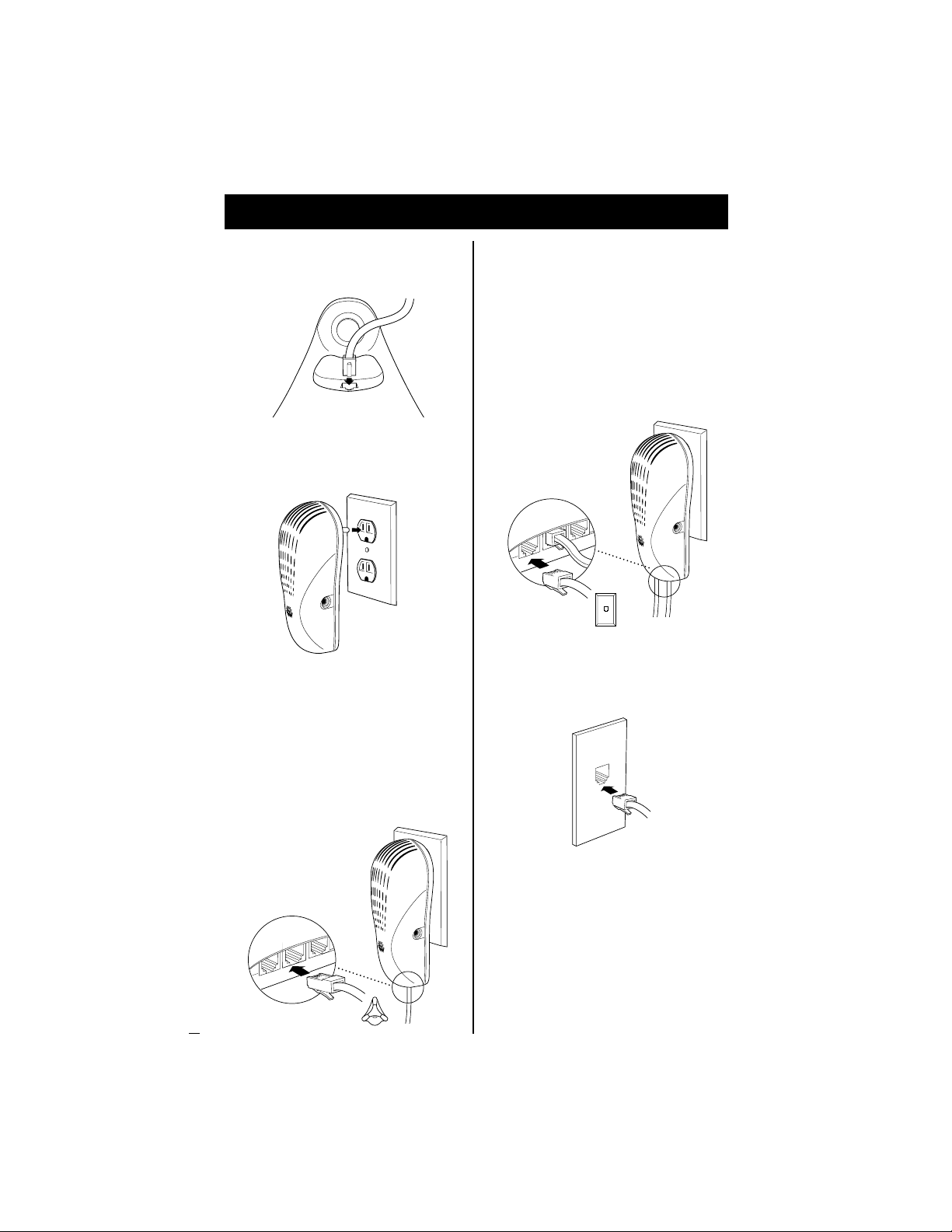

Installing VoiceStation 100

1Connect one end of the long console cable to the bottom of the phone.

2Insert the Power Supply plug into a nearby electrical outlet.

3Connect the other end of the long console cable to bottom of the Power Supply.

VoiceStation 100 will run a brief self-test, and then sound a tone.

If you don't hear the tone, verify that the outlet is working and the power is switched on.

4Connect the short telephone cable to the Power Supply.

Note:Your telephone system administrator or service technician can help identify a standard analog phone line. Standard analog phone lines are used for fax machines, answering machines, modems, and many single-line telephones.

5Connect the other end of the short telephone cable to a jack wired for a standard analog phone line.

2

Polycom VoiceStation 100 User Manual

6Place VoiceStation 100 in the center

of the room on a flat, stable surface and press the Volume Up and Volume Down buttons to adjust the Ringer.

The Ringer has three modes: High, Low, and Off. The Ringer sounds when you press the Volume buttons to indicate current status.

Note: when the On/Off indicator light is lit, the Volume buttons control the sound level of the speaker. When the On/Off indicator light is off, the Volume buttons control the ringer volume.

7Press the On/Off button to get a dial tone.

If you don’t hear a dial tone, you may not be connected to an analog telephone line. For assistance, contact your telephone system administrator or a service technician.

Using VoiceStation 100

redial

on/off

flash hold

To Place a Call

Press On/Off to get a dial tone, then dial the number.

volume up/down

mute

VoiceStation 100 Installation Instructions and User’s Guide

3

To Answer a Call

Press On/Off when you hear

VoiceStation 100's ringing tone.

To Adjust the Speaker Volume

When a call is in progress, press Volume Up or Volume Down to adjust the sound level.

To Mute the Microphone

Press the Mute button to turn off the microphones and prevent the other party from hearing your conversation. The red indicator lights near the microphones will be on. The speaker is still active and

you can hear the other party. Press the Mute button again to resume two-way communication. The red indicator lights will go out.

To Place a Call On Hold

VoiceStation 100 Installation Instructions and User’s Guide









Press the Hold button to place the call

Hold button again to resume two-way

on Hold. The red indicator lights near

communication. The red indicator lights

the microphones will blink. Press the

will go out.





To Access Special Features



Your telephone system may provide special

system administrator or service technician

features such as Call Waiting, Conference,

for more information on special features

or Transfer which can be accessed by

available with your phone system.

pressing the Flash key. Ask your telephone







To End a Call



Press the On/Off button to end



the current call.



4

To Redial the Last Number

Press the Redial Button to redial the last telephone number.

To Record a Conversation

Plug one end of a cable with RCA-type connectors into the Aux Out jack on the side of the Power Supply. Plug the opposite end of the cable into the Aux In jack of your tape recorder.



Audio cable



(RCA cable)

To Speak Privately



Plug a telephone into the data port on the

to the data port. You may also connect a fax

wall module. Press VoiceStation 100 Hold

machine or computer modem to the data

button to place the call on hold, then pick

port.

up the receiver of the telephone connected



Wall Module

Data port options



Telephone



Fax Machine

VoiceStation 100 Installation Instructions and User’s Guide

5

Maintenance

Clean equipment with a soft, dry cloth. Do not use alcohol or petroleum-based cleaners.

VoiceStation 100 Installation Instructions and User’s Guide

In Case of Difficulties

No Dial Tone

Check that all connections are correct and tight.

Make sure the short cable is connected to a standard analog phone line.

Try a different telephone line.

Telephone Does Not Ring

Adjust the Ringer with the Volume Up button.

Short Silences, Echoes, or Clipped Speech

Don’t move VoiceStation™ 100 while it’s in use.

Keep your hands away from the unit during calls.

Keep papers, cups, coffee pots,

and other objects away from the unit.

At the beginning of a call, allow each speaker present to speak in turn for a few moments to enable VoiceStation 100’s electronics

to adjust to the acoustic environment.

The other party may be using low quality equipment or a half-duplex conference bridge, in which case there is little that you can do.

Muffled or "In a Well" Reception

Speak closer to the unit so the microphones can pick up your speech.

Add more sound absorbing surfaces to the room, (carpets, curtains, etc.).

Excessive Noise

Noisy equipment such as a computer, or fan may make it difficult to hear

the other party. Both parties should turn off noisy equipment.

Try calling again to see if a different line provides a better connection.

Physical Damage

If physical damage causes internal parts to become accessible, disconnect VoiceStation 100 immediately.

Do not reconnect VoiceStation 100

to the network until it has been repaired by a Polycom authorized repair center.

6

Polycom Limited Warranty

Polycom warrants to the end user that the system will be in good working order on the date Polycom or its authorized reseller delivers or installs the system, whichever is later (Warranty Date). If you notify Polycom or its Authorized Dealer within one year of the Warranty Date that the system is not in good working order, Polycom will, without charge , repair

or replace, at its option, the system components that are not in good working order. Repair or replacement parts may be new or refurbished and will be provided on an exchange basis. If Polycom determines that your system cannot be repaired or replaced, Polycom will remove the system and, at your option, refund the purchase price of your system or apply the purchase price towards the purchase of another Polycom system. A summary of Polycom maintenance coverage may be obtained from Polycom by calling 1.800.451.0995 (in the continental U.S. only). If you purchased your system from a Polycom Authorized Dealer, contact your reseller for the details of the maintenance plan applicable to your system. This Polycom

limited warranty covers damage to the system caused by power surges. Polycom will not be responsible under this limited warranty for damages resulting from:

Failure to follow Polycom’s installation, operation, or maintenance instructions.

Unauthorized system modification, movement, or alteration.

Unauthorized use of common carrier communication services accessed through the system.

Abuse, misuse, negligent acts or omissions of the customer and persons under the customer’s control; or

Acts of third parties and acts of God.

Polycom’s obligation to repair, replace, or refund, as set forth above, is your exclusive remedy.

Except as specifically set forth above, Polycom, its affiliates, suppliers, and dealers make no warranties, express or implied, and specifically disclaim any warranties of merchantability or fitness for a particular purpose.

Limitations of Liability

The liability of Polycom and its affiliates and suppliers for any claims, losses, damages, or expenses from any cause whatsoever (including acts or omissions of third parties), regardless of the form of action, whether in contract, tort, or otherwise, shall not exceed the lesser of:

(1) the direct damages proven; or (2) the repair cost, replacement cost, license fee, annual rental charge, or purchase price, as the case may be, of the equipment that gives rise to the claim. In no event shall Polycom and its affiliates and suppliers be liable for any incidental, special, reliance,

consequential, or indirect loss or damage arising out of or in anyway in connection with the use of the equipment. As used in this paragraph, consequential damages include, but are not limited to, the following: lost profits, lost revenues, and losses arising out of unauthorized use (or charges for such use) of common carrier telecommunications services or facilities accessed through or connected to the equipment. For personal injury caused by

Polycom’s negligence, Polycom’s liability shall be limited to proven damages. No action or proceeding against Polycom

VoiceStation 100 Installation Instructions and User’s Guide

7

or its affiliates or suppliers may be commenced more than twenty-four (24) months after the cause of action accrues. THIS PARAGRAPH SETS FORTH THE EXCLUSIVE REMEDY FOR ANY

CLAIMS, LOSSES, DAMAGES OR EXPENSES ASSOCIATED WITH THE EQUIPMENT AND REGARDLESS OF A FAILURE OF ESSENTIAL PURPOSE.

VoiceStation 100 Installation Instructions and User’s Guide

Copyright

All rights reserved under International and Pan-American Copyright Conventions. No part of the contents of this manual may be copied, reproduced, or transmitted in any form or by any means, or translated into another language or format, in whole or part, without written consent of Polycom, Inc.

The software contained within this product is protected by United States copyright laws and international treaty provisions. Polycom, Inc., retains title and ownership of all property rights with respect to the software within this product.

You shall not (and shall not allow any third party to) decompile, disassemble, or otherwise reverse engineer or attempt to reconstruct or discover any source code or underlying ideas or algorithms of the software by any means whatsoever.

Do not remove (or allow any third party to remove) any product identification, copyright or other notices.

Polycom® and the logo design are registered trademarks and VoiceStation™ 100 and Acoustic Clarity Technology™ are trademark of Polycom, Inc. in the

United States, and various countries.

U.S. and Canada Regulatory

and Compliance Information

Part 15 Rules

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1This device may not cause harmful interference, and

2This device must accept any interference received, including interference that

may cause undesired operation.

Class B Digital Device Or Peripheral

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used

in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

8

correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Modifications

In accordance with part 15 of the FCC rules, the user is cautioned that any changes or modifications not expressly

approved by Polycom Inc. could void the user’s authority to operate the equipment.

Installation Instructions

Installation must be performed in accordance with all relevant national wiring rules

Plug acts as Disconnect Device

The socket outlet to which this apparatus is connected must be installed near the equipment and must always be readily accessible

Part 68 FCC Rules

This equipment complies with part 68 of the FCC Rules. Please refer to the labeling on equipment for the following information:

Registration Number

Ringer Equivalence

Grantee’s Name

Model Number

Serial Number and/or Date of Manufacture

Country of Origin

If requested this information must be provided to the Telephone Company

Notes:

This registered equipment may not be used with party lines or coin lines.

If trouble is experienced the customer shall disconnect the registered equipment from the telephone line to determine if the registered equipment is malfunctioning and that if the registered equipment is malfunctioning, the use of such equipment shall be discontinued until the problem has been corrected.

If the unlikely event that this equipment causes harm to the network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if

VoiceStation 100 Installation Instructions and User’s Guide

9
