Philips FR-963-DHT Service Manual

GENERAL INFORMATION

Manual 1962 Covering the FR963DHT (FR963/17), FR965DHT
(FR965/17), MX955DHT (MX955D/37), MX960DHT (MX960D/37),
and MX970DHT (MX970D/37) Digital A/V Surround Receivers

Display Product View

SYSTEM INFORMATION

Receiver Front sp eaker Center Box Surround Box Subwoofer

MX 960D/37 includes :

FR965/17 2 x Home Cinema

Speaker 60W

MX 955D/37 includes :

FR965/17 2 x Home Cinema

Speaker 60W

MX 970D/37 includes :

FR963/17 MX970FS/17

9965 000 11850

Home Cinema Center

Speaker 50W

Home Cinema Center

Speaker 50W

MX970CS/17

9965 000 11852

Location Of Printed Circuit Boards

Display Circuit Board Location Guide

Specifications

Display System Specifications

2 x Home Cinema

Speaker 60W

2 x Home Cinema

Speaker 60W

MX970RS/17

9965 000 11854

FB201V/17

SW090/17

3139 118 78670

FB201V/17

Service Tools

Audio Signals Test Disc 1....................4822 397 30184

AVAILABLE ESD PROTECTION EQUIPMENT :
Anti-static table mat large 1200x650x1. 25m m 4822 466 10953
Small 600x650x1.25mm 4822 466 10958
Anti-static wristband 4822 395 10223
Connection box ( 3 pr ess stud connections, 1M ) 4822 320 11307

Extendible cable (2m, 2M , t o c onnec t wri stband t o c onnec t ion box) 4822 320 11305
Connecting cabl e ( 3m, 2M , to connect tabl e mat to connec t ion box) 4822 320 11306
Earth cable ( 1M , t o c onnec t any pr oduc t to mat or t o c onnec t ion box) 4822 320 11308
KIT ESD3 ( combini ng all 6 prior products - small table mat) 4822 310 10671
W ristband tester 4822 344 13999

Measurement Setups

Display Tuner FM Setup
Display Tuner AM Setup

Safety/ESD Warni ng No ti ces:

Display Safety/ESD Warning Notices

Handling Chip Type (SMD) Components

Display Chip Handling Guide

Abbreviations

Display Abbreviation List

FR965DHT(1962) - WIRING DIAGRAM Page: 1 of 19

FR965DHT(1962) - FRONT DISPLAY PANEL & HEADPHONE SCHEMATIC Page: 2 of 19

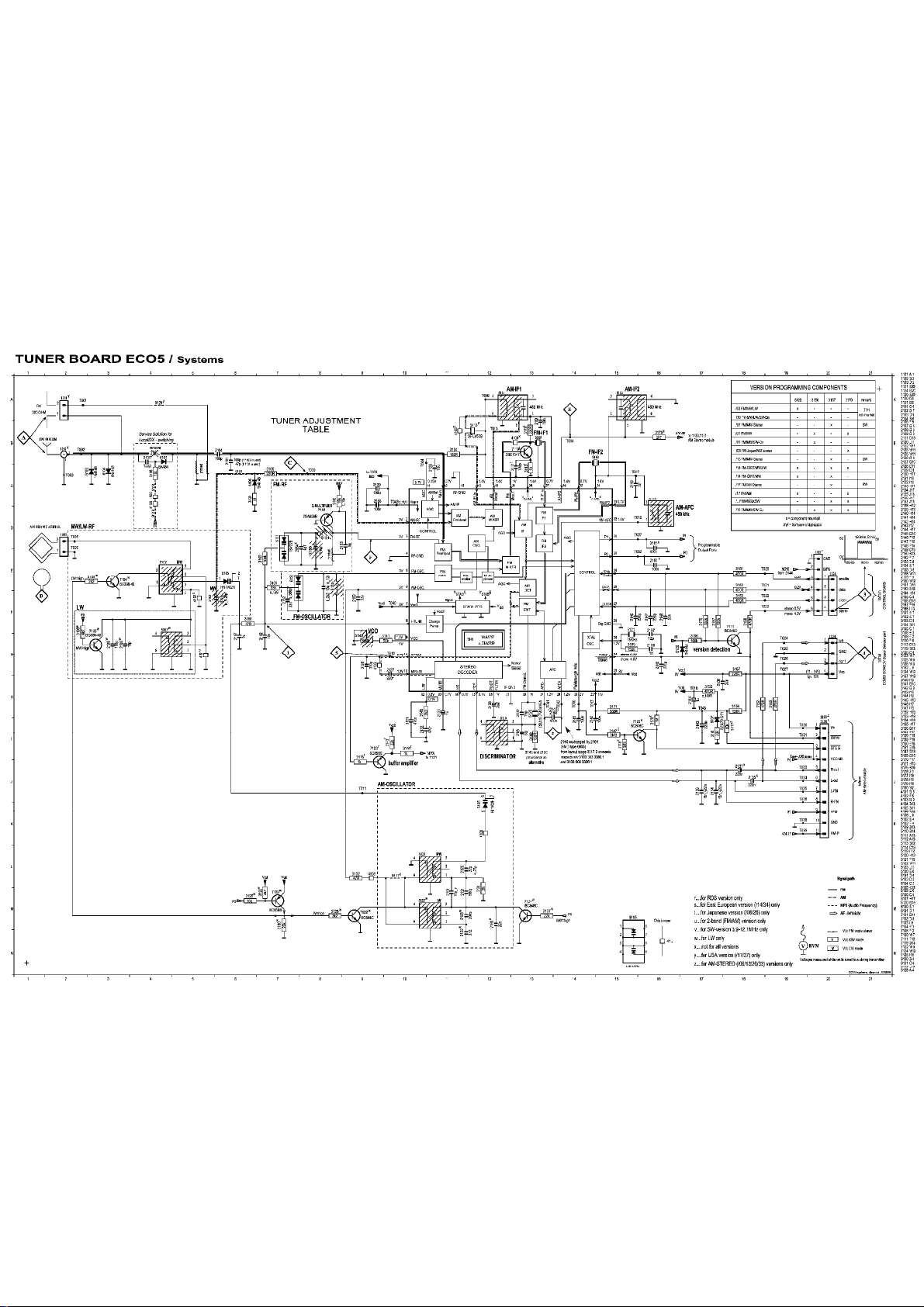

FR965DHT(1962) - TUNER BOARD SCHEMATIC - EC05 TUNER Page: 3 of 19

FR965DHT(1962) - MULTI-CHANNEL DECODER MODULE (MDM) Page: 4 of 19

FR965DHT(1962) - MAINS TRANSFORMER SCHEMATIC Page: 5 of 19

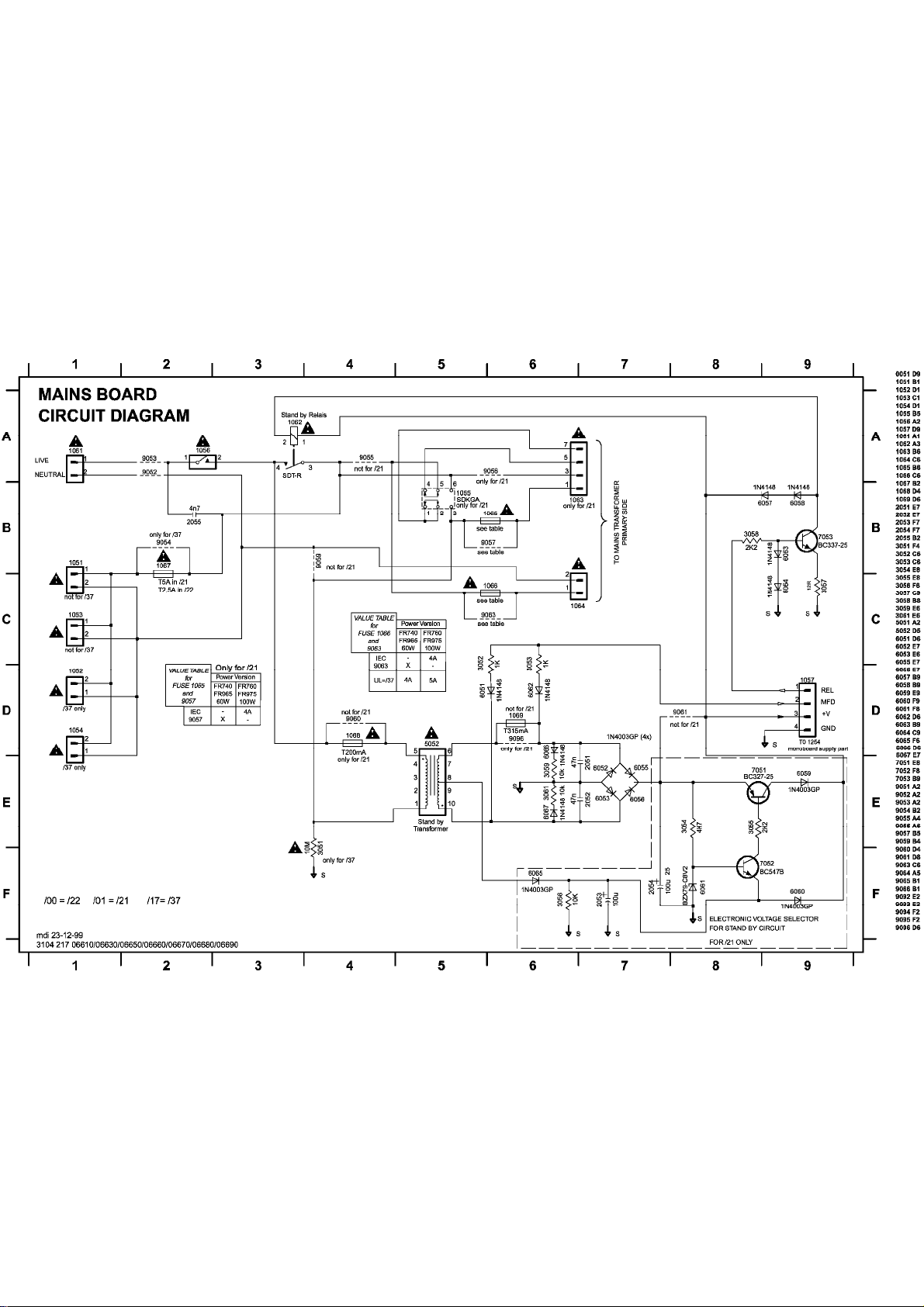

FR965DHT(1962) - MAINS SUPPLY BOARD SCHEMATIC Page: 6 of 19

FR965DHT(1962) - MONO BD. - SOURCE SELECTOR PART SCHEMATIC Page: 7 of 19

FR965DHT(1962) - MONO BD - VOLUME CONTROL PART SCHEMATIC Page: 8 of 19

FR965DHT(1962) - MONO BD. - SUPPLY PART SCHEMATIC Page: 9 of 19

FR965DHT(1962) - MONO BD. - L&R CENTER AMP PART SCHEMATIC Page: 10 of 19

FR965DHT(1962) - FRONT DISPLAY PANEL PCBs (BOTH VIEWS) Page: 11 of 19

FR965DHT(1962) - HEADPHONE/FRONT AV/LED PCBs (BOTH VIEWS) Page: 12 of 19

FR965DHT(1962) - MULTI-CHANNEL DECODER (MDM) PCB Page: 13 of 19

FR965DHT(1962) - MAINS SUPPLY PCBs (BOTH VIEWS) Page: 14 of 19

FR965DHT(1962) - MAINS TRANSFORMER PCBs (BOTH VIEWS) Page: 15 of 19

FR965DHT(1962) - MONO BOARD PCB (TOP VIEW) Page: 16 of 19

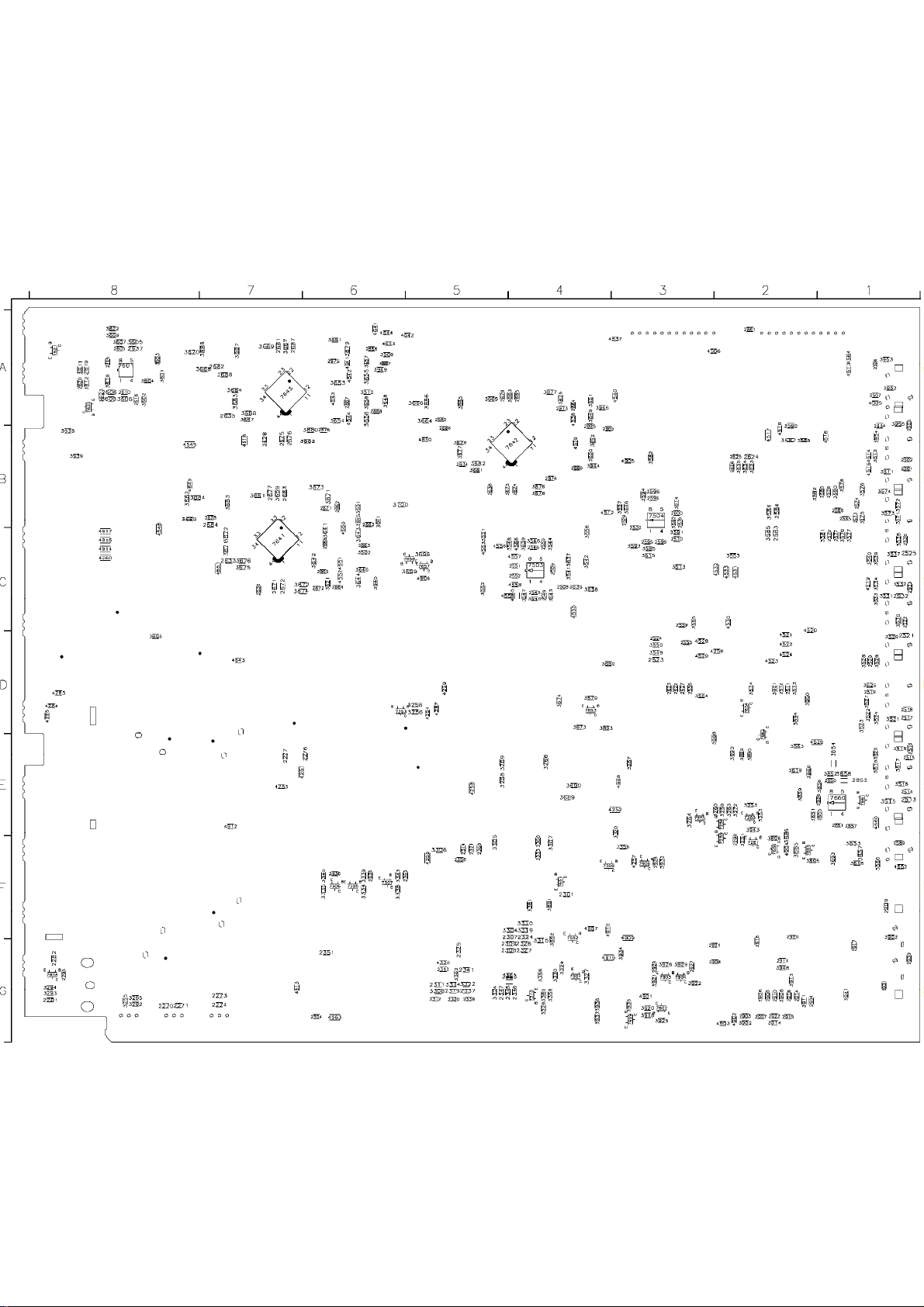

FR965DHT(1962) - MONO BOARD PCB (BOTTOM VIEW) Page: 17 of 19

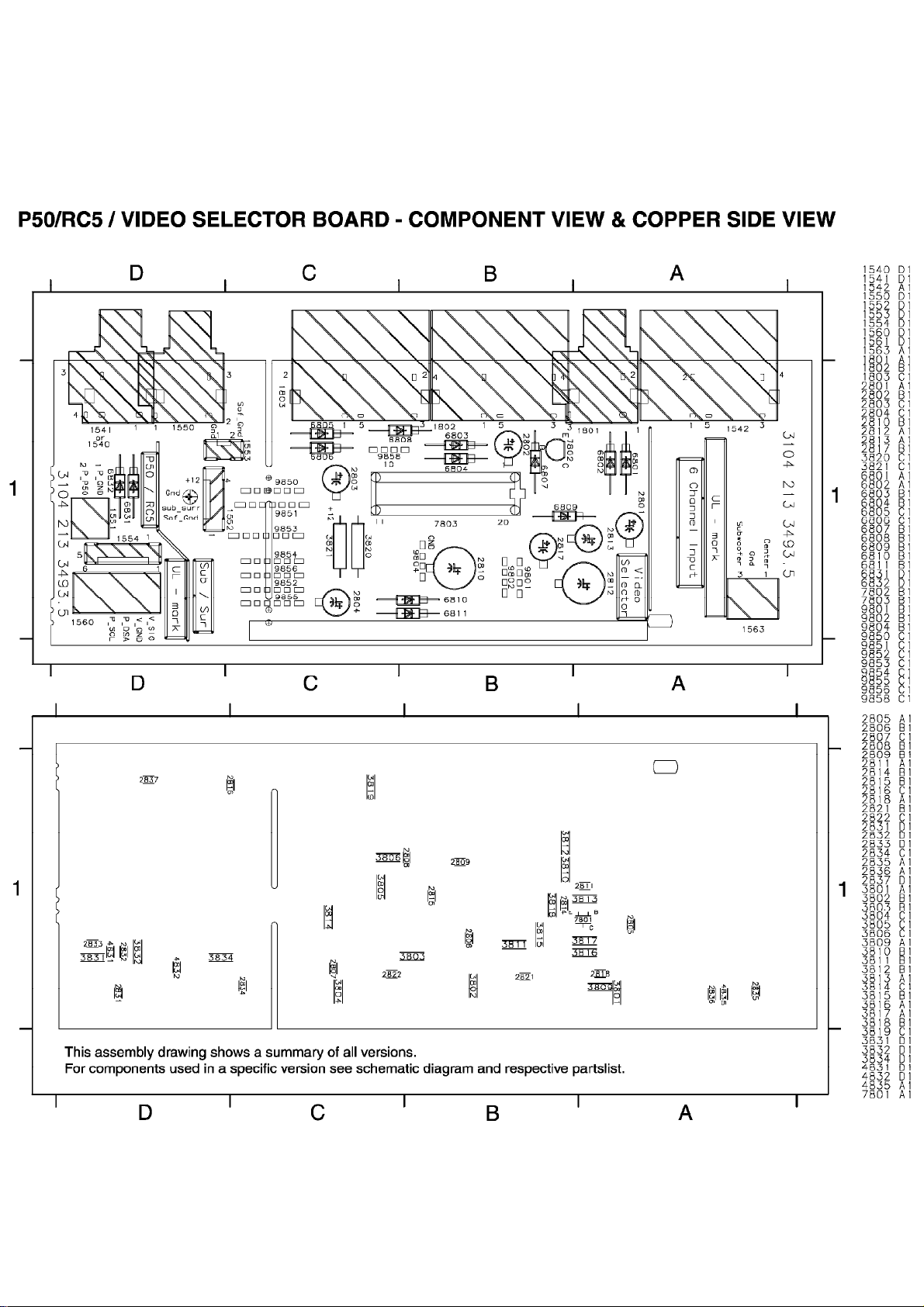

FR965DHT(1962) - P50/RC5/VIDEO SELECTOR PCBs (BOTH VIEWS) Page: 18 of 19

FR965DHT(1962) - SCREW TERMINAL PCB (BOTH VIEWS) Page: 19 of 19

Philips Consumer Electronics

Technical Service Data

Service and Quality
Service Publications Dept.
One Philips Drive
P.O. Box 14810
Knoxville, TN 37914

Manual 1962

Model no.: FR965DHT
First Publish: 02-01-2001
Rev. Date: 01-31-2002
Print Date: 30-05-2005

Parts List

REFER TO SAFETY GUIDELINES

SAFETY NOTICE: ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE
HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS
TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

© Philips Electronics North America Corporation Visit our World Wide Web Site at http://www.forceonline.com

FR965DHT - Manual no. 1962 Page: 1

FRONT DISPLAY BOARD PARTS LIST

FRONT DISPLAY BOARD PARTS LIST
MISCELLANEOUS

1403 Crystal, 8MHz. . . . . . . . . . . . 4822 242 72066

1404 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1405 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1406 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1407 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1408 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1409 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1410 Connector, 15FE-BT-VK-N. . . . . . . 4822 265 10981

1411 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1412 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1413 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1414 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1415 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1416 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1417 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1418 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1419 SWITCH,-PUSH BUTTON. . . . . . . . . 4822 276 13114

1421 SWITCH, ROTARY . . . . . . . . . . . 4822 273 10372

1422 SWITCH, ROTARY . . . . . . . . . . . 4822 273 10372

1423 ROTARY ENCODER 24P . . . . . . . . . 4822 273 10365

1424 1P YKB21-5209. . . . . . . . . . . . 4822 265 11584

CAPACITORS

2400 100uF., 20%, 10V . . . . . . . . . . 4822 124 41584

2404 1nF., 10%, X7R, 63V. . . . . . . . . 5322 122 31647

2405 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2411 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2412 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2413 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2414 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2415 22pF., 5%, 50V . . . . . . . . . . . 5322 122 32658

2416 22pF., 5%, 50V . . . . . . . . . . . 5322 122 32658

2417 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2419 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2420 100uF., 20%, 10V . . . . . . . . . . 4822 124 23432

2421 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2422 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2423 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2424 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2425 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2426 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2427 1nF., 10%, X7R, 63V. . . . . . . . . 5322 122 31647

2428 4.7uF., 20%, 100V. . . . . . . . . . 4822 124 40769

2429 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2431 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2432 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2433 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2434 220nF., +80/-20%, 25V. . . . . . . . 4822 126 14076

2435 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2436 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2437 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2438 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2439 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2440 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2441 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2444 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2445 4.7nF., 10%, X7R, 63V. . . . . . . . 5322 126 10223

2447 4.7nF., 10%, X7R, 63V. . . . . . . . 5322 126 10223

2454 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2455 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2456 47uF., 20%, 25V. . . . . . . . . . . 4822 124 40433

2457 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2458 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2459 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2460 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2461 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2462 1nF., 10%, X7R, 63V. . . . . . . . . 5322 122 31647

2463 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2464 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2465 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2466 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2467 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2468 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2469 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2470 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2471 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2472 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2473 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2474 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2475 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2476 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2477 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2478 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

RESISTORS

3391 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3392 22K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20223

3393 22K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20223

3394 22K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20223

3395 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

3400 47R, 5%, 0.1W. . . . . . . . . . . . 4822 051 20479

S = Safety Part Be sure to use exact replacement part.

3401 10K, 1%, 0.6W. . . . . . . . . . . . 4822 050 21003

3402 10K, 1%, 0.6W. . . . . . . . . . . . 4822 050 21003

3403 6K8, 1%, 0.1W. . . . . . . . . . . . 4822 117 11507

3404 330 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 52219

3405 22K, 5%, 0.5W. . . . . . . . . . . . 4822 116 52257

3406 10K, 1%, 0.6W. . . . . . . . . . . . 4822 050 21003

3407 10K, 1%, 0.6W. . . . . . . . . . . . 4822 050 21003

3408 10K, 1%, 0.6W. . . . . . . . . . . . 4822 050 21003

3409 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3414 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3415 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

3417 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3418 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3419 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3420 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3421 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3424 1K, 1%, 0.4W . . . . . . . . . . . . 4822 050 11002

3426 1K, 1%, 0.4W . . . . . . . . . . . . 4822 050 11002

3427 150 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 83868

3428 27K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20273

3429 22K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20223

3430 22K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20223

3431 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

S 3432 4.7 Ohm, 5%, 0.33W . . . . . . . . . 4822 052 10478

3433 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3434 22K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20223

3435 22K, 5%, 0.5W. . . . . . . . . . . . 4822 116 52257

3436 22K, 5%, 0.5W. . . . . . . . . . . . 4822 116 52257

3437 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3438 220K 1%, 0.1W, RC12H . . . . . . . . 4822 117 13579

3439 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3440 47 Ohm, 5%, 0.1W . . . . . . . . . . 4822 051 20479

3441 82K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11149

3442 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3443 330 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 52219

3444 330 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 52219

3445 330 Ohm, 1%, RC12H, 1.25W. . . . . . 4822 117 13577

3446 330 Ohm, 1%, RC12H, 1.25W. . . . . . 4822 117 13577

3447 330 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 52219

3448 330 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 52219

3449 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3451 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3452 330 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 52219

3453 330 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 52219

3455 22K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20223

3457 330 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 52219

3459 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3460 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3461 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3462 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3463 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3464 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3465 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

3466 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

3467 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

3468 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

3469 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

3470 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

3471 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3472 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3473 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

3474 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

3475 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3478 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3479 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3480 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3481 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3482 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3483 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3484 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3485 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

3491 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3493 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3494 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3495 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3496 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3497 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3498 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3499 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3500 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3501 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3502 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3751 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3752 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3753 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3754 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3755 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3756 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3757 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3758 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3759 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3760 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

FR965DHT (continued) Page: 2

3761 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3762 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3763 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3764 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3765 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3766 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3767 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3768 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3769 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3770 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3771 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3772 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3773 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3774 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3775 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3776 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3777 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3778 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3779 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3780 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3781 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

4401 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4402 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4403 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4404 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4406 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4407 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4408 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4410 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4411 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4413 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4416 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4417 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4418 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4420 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4421 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4422 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4423 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4424 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4425 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4426 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

4450 0 Ohm, Jumper, (0805). . . . . . . . 4822 051 20008

COILS & FILTERS

5401 Coil, 2.2uH., LAL02TB2R2J. . . . . . 4822 157 11477

5402 Coil, 2.2uH., LAL02TB2R2J. . . . . . 4822 157 11477

5403 Coil, 2.2uH., LAL02TB2R2J. . . . . . 4822 157 11477

SEMICONDUCTORS

6400 Diode, LTL1214A. . . . . . . . . . . 9322 100 14682

6401 Diode, LED, LTL-16KPE-P. . . . . . . 4822 130 82978

6402 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6403 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6404 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6405 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6406 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6407 Diode, LED, LTL-16KPE-P. . . . . . . 4822 130 82978

6408 Diode, LED, LTL-16KPE-P. . . . . . . 4822 130 82978

6409 Diode, LED, LTL-16KPE-P. . . . . . . 4822 130 82978

6410 Diode, LED, LTL-16KPE-P. . . . . . . 4822 130 82978

6412 Diode, LED, LTL-16KPE-P. . . . . . . 4822 130 82978

6413 Diode, LED, LTL-16KPE-P. . . . . . . 4822 130 82978

6414 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6415 Diode, LED, LTL-16KPE-P. . . . . . . 4822 130 82978

6416 Diode, LED, LTL-16KPE-P. . . . . . . 4822 130 82978

6417 Diode, LED, LTL-16KPE-P. . . . . . . 4822 130 82978

6418 Diode, LED, LTL-16KPE-P. . . . . . . 4822 130 82978

6419 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6421 Diode, LED, LTL-16KPE-P. . . . . . . 4822 130 82978

7402 Transistor, PDTA144ET. . . . . . . . 4822 130 11607

7403 IC, GP1U28XP . . . . . . . . . . . . 4822 130 10165

7405 IC, M24C08-MN6 . . . . . . . . . . . 4822 209 17445

7406 Transistor, BC847B . . . . . . . . . 4822 130 60511

7407 Transistor, BC847B . . . . . . . . . 4822 130 60511

7408 Transistor, BC847B . . . . . . . . . 4822 130 60511

7409 Transistor, BC847B . . . . . . . . . 4822 130 60511

7411 IC, HEF4094BT. . . . . . . . . . . . 5322 209 11306

7412 IC, HEF4094BT. . . . . . . . . . . . 5322 209 11306

7413 Display, VFD 16-MT-65GK. . . . . . . 2722 171 07168

7415 IC, Microprocessor, TMP87CS71F-FR970. 3103 308 84150

7416 Transistor, BC847B . . . . . . . . . 4822 130 60511

7417 Transistor, BC847B . . . . . . . . . 4822 130 60511

7418 Transistor, BC847B . . . . . . . . . 4822 130 60511

ECO5 TUNER BOARD PARTS LIST

ECO5 TUNER BOARD PARTS LIST
MISCELLANEOUS
1101 Antenna Socket 300 Ohm, only in /17. 4822 267 31505
1102 Antenna Socket 75 Ohm, only in /01 . 4822 267 10283
CAPACITORS
2101 100pF., 5%, NP0, 50V, only in /01. . 5322 122 32531
2101 47pF., 1%, NP0, 63V, only in /17 . . 4822 126 13692

2102 10nF., 20%, X7R, 50V . . . . . . . . 4822 122 33177

2103 1nF., 10%, X7R, 50V. . . . . . . . . 5322 122 34123

S = Safety Part Be sure to use exact replacement part.

2104 100pF., 10%, 50V . . . . . . . . . . 4822 122 33195

2106 3.0-11pF., N450, 100V. . . . . . . . 4822 125 60101

2107 1uF., 10%, 63V . . . . . . . . . . . 4822 121 51319

2120 22pF., 5%, 50V . . . . . . . . . . . 5322 122 32658

2125 560pF., 5%, 400V . . . . . . . . . . 4822 121 51381

2126 330pF., 5%, 63V. . . . . . . . . . . 5322 122 31863

2127 220nF., 80-20%, 50V. . . . . . . . . 4822 126 13473

2128 10uF., 20%, 50V. . . . . . . . . . . 4822 124 41579

2129 100uF., 20%, 10V . . . . . . . . . . 4822 124 41584

2130 22nF., +80-20%, Y5V 25V. . . . . . . 4822 126 11585

2131 470nF., 80/20%, 16V. . . . . . . . . 4822 126 13482

2132 470nF., 80/20%, 16V. . . . . . . . . 4822 126 13482

2133 1uF., 20%, 63V . . . . . . . . . . . 4822 124 40242

2134 15nF., 5%, X7R, 63V, only in /01 . . 4822 126 13188
2134 22nF., 10%, X7R, 63V, only in /17. . 5322 122 32654

2135 0.22uF., 20%, 63V. . . . . . . . . . 4822 124 40746

2136 15nF., 5%, X7R, 63V, only in /01 . . 4822 126 13188
2136 22nF., 10%, X7R, 63V, only in /17. . 5322 122 32654

2137 0.22uF., 20%, 63V. . . . . . . . . . 4822 124 40746

2138 2.2uF., 20%, 50V . . . . . . . . . . 4822 124 41576

2139 15pF., 5%, 50V . . . . . . . . . . . 4822 126 14236

2141 100nF., 20%, Y5V 25V . . . . . . . . 4822 126 10002

2142 100nF., 20%, Y5V 25V . . . . . . . . 4822 126 10002

2143 220nF., 80-20%, 50V. . . . . . . . . 4822 126 13473

2144 1uF., 20%, 63V . . . . . . . . . . . 4822 124 40242

2145 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2146 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2147 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2148 22nF., +80-20%, Y5V 25V. . . . . . . 4822 126 11585

2149 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2150 100nF., 20%, Y5V 63V . . . . . . . . 4822 122 31947

2152 33nF., 5%, 50V . . . . . . . . . . . 4822 126 12105

2153 15pF., 2%, NP0, 50V 1206 . . . . . . 4822 122 32504

2155 3.0-11pF., N450 100V . . . . . . . . 4822 125 60101

2159 33pF., 5%, 50V . . . . . . . . . . . 5322 122 32659

2160 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2164 470nF., 80/20%, 16V. . . . . . . . . 4822 126 13482

2165 100nF., 20%, Y5V 25V . . . . . . . . 4822 126 10002

2166 1nF., 10%, X7R, 50V. . . . . . . . . 5322 122 34123

2167 12pF., 2%, NP0, 63V. . . . . . . . . 4822 122 32139

2168 82pF., 1%, NP0, 63V. . . . . . . . . 4822 126 13695

RESISTORS

3101 33k, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3102 100K 5%, 0.1W. . . . . . . . . . . . 4822 051 20104

3103 18k, 1%, 0.1W. . . . . . . . . . . . 4822 117 10965

3104 180 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11448

3105 220 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 83872

3110 47 Ohm, 5%, 0.5W . . . . . . . . . . 4822 116 52195

3120 0 Ohm Jumper (0805). . . . . . . . . 4822 051 20008

3132 47 Ohm, 5%, 0.5W . . . . . . . . . . 4822 116 52195

3134 22k, 5%, 0.1W. . . . . . . . . . . . 4822 051 20223

3141 56k, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3142 100k, 30%, LIN 0.1W. . . . . . . . . 4822 100 11163

3145 2.2K, 1%, 0.1W . . . . . . . . . . . 4822 117 11449

3146 22 Ohm, 5%, 0.1W . . . . . . . . . . 4822 051 20229

3152 470 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 83883

3153 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3154 150 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 83868

3155 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3156 100k, 5%, 0.1W only in /01 . . . . . 4822 051 20104

3158 470 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 83883

3159 470 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 83883

3160 470 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 83883

3161 470 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 83883

3167 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

3169 150k, 5%, 0.1W . . . . . . . . . . . 4822 051 20154

3170 100k, 5%, 0.5W . . . . . . . . . . . 4822 116 52234

3171 330 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 52219

4101 0 Ohm Jumper (0805). . . . . . . . . 4822 051 20008

4102 0 Ohm Jumper (0805). . . . . . . . . 4822 051 20008

4103 0 Ohm Jumper (0805). . . . . . . . . 4822 051 20008

4104 0 Ohm Jumper (0805). . . . . . . . . 4822 051 20008

4105 0 Ohm Jumper (0805). . . . . . . . . 4822 051 20008

4106 0 Ohm Jumper (0805). . . . . . . . . 4822 051 20008

4108 0 Ohm Jumper (0805). . . . . . . . . 4822 051 20008

4111 0 Ohm Jumper (0805). . . . . . . . . 4822 051 20008

4120 0 Ohm Jumper (0805). . . . . . . . . 4822 051 20008

4150 0 Ohm, 5%, 0.25W . . . . . . . . . . 4822 051 10008

4152 0 Ohm, 5%, 0.25W . . . . . . . . . . 4822 051 10008

4153 0 Ohm, 5%, 0.25W . . . . . . . . . . 4822 051 10008

4154 0 Ohm, 5%, 0.25W . . . . . . . . . . 4822 051 10008

4157 0 Ohm, 5%, 0.25W . . . . . . . . . . 4822 051 10008

4158 0 Ohm, 5%, 0.25W . . . . . . . . . . 4822 051 10008

4159 0 Ohm, 5%, 0.25W . . . . . . . . . . 4822 051 10008

COILS & FILTERS

5102 MW RF COIL . . . . . . . . . . . . . 4822 157 71634

5109 SFE, 10.7MHz . . . . . . . . . . . . 4822 242 70665

5110 SFE, 10.7MHz . . . . . . . . . . . . 4822 242 70665

5111 AM-IF, Filter 10.7MHz. . . . . . . . 4822 158 60511

5112 AM-IF, Filter 10.7MHz. . . . . . . . 4822 157 70302

5114 AM-IF, Filter 10.7MHz. . . . . . . . 4822 157 70302

5119 Discriminator, 10.7MHz . . . . . . . 4822 157 11443

FR965DHT (continued) Page: 3

5121 Quartz 75kHz . . . . . . . . . . . . 4822 242 10261

5123 Osc Coil MW. . . . . . . . . . . . . 4822 157 60517

5130 RF-Coil 1.5T . . . . . . . . . . . . 4822 156 30947

5131 RF-Coil 1.5T . . . . . . . . . . . . 4822 156 30947

SEMICONDUCTORS

6103 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6104 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6105 Diode, HN1V02H-B . . . . . . . . . . 4822 130 83075

6106 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6107 Diode, BZX79-B11 . . . . . . . . . . 4822 130 34488

6120 Diode, 1N4148, only in /17 . . . . . 4822 130 30621

6130 Diode, 1SV228. . . . . . . . . . . . 4822 130 82833

6131 Diode, 1SV228. . . . . . . . . . . . 4822 130 82833

7101 IC, TEA5757H/V1. . . . . . . . . . . 4822 209 90924

7102 Transistor, 2SA838B. . . . . . . . . 4822 130 60093

7111 Transistor, BC848C . . . . . . . . . 5322 130 42136

MDM MODULE PARTS

MDM MODULE PARTS

1003 MDM Module (Complete). . . . . . . . 3104 217 05750

1800 Connector. . . . . . . . . . . . . . 4822 267 31729

1801 Connector. . . . . . . . . . . . . . 4822 267 31448

6800 GP1F32R. . . . . . . . . . . . . . . 4822 218 11487

6801 LF33CV Stabilizer. . . . . . . . . . 4822 209 16978

MAINS BOARD PARTS LIST

MAINS BOARD PARTS LIST
MISCELLANEOUS

S 1052 MAINS OUTLET . . . . . . . . . . . . 2422 030 00301

S 1054 MAINS OUTLET . . . . . . . . . . . . 2422 030 00301

S 1056 MAINS SWITCH . . . . . . . . . . . . 4822 276 13224

S 1061 MAINS INLET. . . . . . . . . . . . . 4822 265 20723

S 1062 RELAY. . . . . . . . . . . . . . . . 4822 280 10391

1064 B2P3-VH. . . . . . . . . . . . . . . 4822 265 20723

S 1066 FUSE, 4A . . . . . . . . . . . . . . 4822 253 10126

S 1069 FUSE, 315MA. . . . . . . . . . . . . 4822 071 53151

S 1078 FUSE, 1.6A . . . . . . . . . . . . . 4822 071 51602

S 1079 FUSE, 2A . . . . . . . . . . . . . . 4822 071 52002

S 5052 Transformer, Standby /17 . . . . . . 4822 146 11142

CAPACITORS

2051 47nF., 5%, 250V. . . . . . . . . . . 4822 121 43526

2052 47nF., 5%, 250V. . . . . . . . . . . 4822 121 43526

2055 4.7nF., 20% 250V . . . . . . . . . . 4822 126 14084

RESISTORS

S 3051 10 Meg, 5%, 0.5W . . . . . . . . . . 4822 053 21106

3052 1K, 1%, 0.4W . . . . . . . . . . . . 4822 050 11002

3053 1K, 1%, 0.4W . . . . . . . . . . . . 4822 050 11002

3057 12 Ohm, 5%, 0.33W. . . . . . . . . . 4822 052 10129

3058 2.2K, 5%, 0.5W . . . . . . . . . . . 4822 116 52256

3059 10K, 1%, 0.6W. . . . . . . . . . . . 4822 050 21003

3061 10K, 1%, 0.6W. . . . . . . . . . . . 4822 050 21003

SEMICONDUCTORS

6051 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6052 Diode, 1N4003G . . . . . . . . . . . 4822 130 31878

6053 Diode, 1N4003G . . . . . . . . . . . 4822 130 31878

6055 Diode, 1N4003G . . . . . . . . . . . 4822 130 31878

6056 Diode, 1N4003G . . . . . . . . . . . 4822 130 31878

6057 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6058 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6062 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6063 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6064 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6066 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6067 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

7053 Transistor, BC337-25 . . . . . . . . 4822 130 40981

MONO BOARD PARTS LIST

MONO BOARD PARTS LIST
MISCELLANEOUS

S 1258 FUSE, 1.6A . . . . . . . . . . . . . 4822 071 51602

S 1260 FUSE, 6.3A . . . . . . . . . . . . . 4822 252 51123

S 1261 FUSE, 6.3A . . . . . . . . . . . . . 4822 252 51123

S 1262 FUSE, 1A . . . . . . . . . . . . . . 4822 252 51173

1301 CONN LS. . . . . . . . . . . . . . . 2422 015 19088

1502 CINCH 4P . . . . . . . . . . . . . . 4822 267 31823

1512 CINCH 4P . . . . . . . . . . . . . . 4822 267 31823

1513 CINCH 4P . . . . . . . . . . . . . . 4822 267 31823

1514 CINCH 4P . . . . . . . . . . . . . . 4822 267 31823

1516 CINCH 4P . . . . . . . . . . . . . . 4822 267 31823

1520 CINCH 1P . . . . . . . . . . . . . . 4822 265 10981

1521 CON BM V 12P . . . . . . . . . . . . 2422 025 11067

1523 CON BM V 12P . . . . . . . . . . . . 2422 025 11067

1525 CINCH 2P . . . . . . . . . . . . . . 4822 265 11608

S 1530 FUSE 315mA . . . . . . . . . . . . . 4822 071 53151

1540 CINCH 2P . . . . . . . . . . . . . . 4822 265 20542

1542 CINCH 2P . . . . . . . . . . . . . . 2422 026 05134

1550 CINCH 1P . . . . . . . . . . . . . . 4822 267 31729

1801 CONN, 1P . . . . . . . . . . . . . . 4822 267 31996

1802 CINCH 2P . . . . . . . . . . . . . . 4822 265 11619

1803 CINCH 2P . . . . . . . . . . . . . . 4822 265 11619

1901 CONN, CLICK 4P . . . . . . . . . . . 4822 265 11609

5302 Filter Coil. . . . . . . . . . . . . 4822 157 62255

S = Safety Part Be sure to use exact replacement part.

5304 Filter Coil. . . . . . . . . . . . . 4822 157 62255

5306 Filter Coil. . . . . . . . . . . . . 4822 157 62255

5901 Filter Coil. . . . . . . . . . . . . 4822 157 62255

5902 Filter Coil. . . . . . . . . . . . . 4822 157 62255

CAPACITORS

2251 100nF., 5%, 250V . . . . . . . . . . 5322 121 42578

2254 100nF., 5%, 250V . . . . . . . . . . 5322 121 42578

2259 4700uF., 20%, 50V. . . . . . . . . . 4822 124 80415

2260 4700uF., 20%, 50V. . . . . . . . . . 4822 124 80415

2266 100nF., 5%, 63V. . . . . . . . . . . 5322 121 42386

2268 100nF., 5%, 63V. . . . . . . . . . . 5322 121 42386

2269 2200uF., 20%, 35V. . . . . . . . . . 4822 124 11583

2270 100nF., Y5V 0805 50V . . . . . . . . 4822 126 13838

2271 470nF., 10%, 16V . . . . . . . . . . 4822 126 14583

2272 6800uF., 16V . . . . . . . . . . . . 4822 124 12328

2273 100nF., 10%, X7R, 50V. . . . . . . . 4822 126 14585

2274 470nF., 10%, 16V XTR 0805. . . . . . 4822 126 14583

2275 1000uF., 16V . . . . . . . . . . . . 4822 124 81144

2276 100nF., 10%, X7R, 50V. . . . . . . . 4822 126 14585

2277 470nF., 10%, 16V . . . . . . . . . . 4822 126 14583

2278 2.2uF., 20%, 50V . . . . . . . . . . 4822 124 22652

2280 100uF., 20%, 10V . . . . . . . . . . 4822 124 41584

2281 100nF., Y5V, 50V . . . . . . . . . . 4822 126 13838

2282 470nF., 10%, 16V . . . . . . . . . . 4822 126 14583

2283 220uF., 20%, 50V . . . . . . . . . . 4822 124 11769

2290 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2295 10nF., 20%, X7R, 50V . . . . . . . . 4822 122 33177

2297 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2298 47nF., 10%, X7R, 63V . . . . . . . . 4822 126 13751

2301 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2302 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2306 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2307 4.7pF., 5%, NP0, 50V . . . . . . . . 5322 122 32287

2310 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2311 470pF., 10%, 50V . . . . . . . . . . 5322 122 32268

2313 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2314 220nF., 80-20%, 50V. . . . . . . . . 4822 126 13473

2315 100uF., 20%, 10V . . . . . . . . . . 4822 124 41584

2316 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2319 470pF., 10%, 50V . . . . . . . . . . 5322 122 32268

2321 220nF., 80-20%, 50V. . . . . . . . . 4822 126 13473

2324 4.7pF., 5%, NP0, 50V . . . . . . . . 5322 122 32287

2325 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2330 100uF., 20%, 10V . . . . . . . . . . 4822 124 41584

2333 220nF., 80-20%, 50V. . . . . . . . . 4822 126 13473

2334 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2337 470pF., 10%, 50V . . . . . . . . . . 5322 122 32268

2341 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2346 100uF., 20%, 10V . . . . . . . . . . 4822 124 41584

2347 4.7pF., 5%, NP0, 50V . . . . . . . . 5322 122 32287

2349 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2350 220uF., 20%, 10V . . . . . . . . . . 4822 124 40181

2351 47nF., 10%, X7R, 63V . . . . . . . . 4822 126 13751

2352 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2357 100nF., +80-20%, 50V . . . . . . . . 4822 126 12882

2358 220nF., 80-20%, 50V. . . . . . . . . 4822 126 13473

2359 220nF., 80-20%, 50V. . . . . . . . . 4822 126 13473

2360 220nF., 80-20%, 50V. . . . . . . . . 4822 126 13473

2365 10nF., 5%, 250V. . . . . . . . . . . 4822 121 41857

2371 4.7nF., 10%, X7R, 63V. . . . . . . . 5322 126 10223

2372 4.7nF., 10%, X7R, 63V. . . . . . . . 5322 126 10223

2373 4.7nF., 10%, X7R, 63V. . . . . . . . 5322 126 10223

2374 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2375 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2376 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2501 1nF., 5%, NP0, 50V . . . . . . . . . 5322 126 10511

2502 1nF., 5%, NP0, 50V . . . . . . . . . 5322 126 10511

2505 1nF., 5%, NP0, 50V . . . . . . . . . 5322 126 10511

2506 1nF., 5%, NP0, 50V . . . . . . . . . 5322 126 10511

2507 1nF., 5%, NP0, 50V . . . . . . . . . 5322 126 10511

2508 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2509 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2510 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2511 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2512 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2513 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2514 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2515 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2516 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2517 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2518 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2519 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2520 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2521 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2522 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2525 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2526 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2527 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2528 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2529 100nF., Y5V 50V, +80-20% . . . . . . 4822 126 13838

2530 100nF., Y5V 50V, +80-20% . . . . . . 4822 126 13838

2531 220nF., 5%, 63V. . . . . . . . . . . 4822 121 42408

FR965DHT (continued) Page: 4

2532 220nF., 5%, 63V. . . . . . . . . . . 4822 121 42408

2533 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2534 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2535 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2536 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2537 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2538 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2539 100uF., 20%, 25V . . . . . . . . . . 4822 124 40207

2540 47uF., 20%, 25V. . . . . . . . . . . 4822 124 40433

2541 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2542 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2543 220uF., 20%, 6.3V. . . . . . . . . . 4822 124 11912

2544 220uF., 20%, 6.3V. . . . . . . . . . 4822 124 11912

2545 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2546 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2549 22pF., 5%, 50V . . . . . . . . . . . 5322 122 32658

2550 22pF., 5%, 50V . . . . . . . . . . . 5322 122 32658

2551 100nF., Y5V 50V, +80-20% . . . . . . 4822 126 13838

2552 100nF., Y5V 50V, +80-20% . . . . . . 4822 126 13838

2553 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2554 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2555 100nF., Y5V 50V, +80-20% . . . . . . 4822 126 13838

2556 100nF., Y5V 50V, +80-20% . . . . . . 4822 126 13838

2557 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2558 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2559 33nF., 5%, 50V, X7R. . . . . . . . . 4822 126 12105

2561 22uF., 100V. . . . . . . . . . . . . 4822 124 40764

2562 22uF., 100V. . . . . . . . . . . . . 4822 124 40764

2563 2200uF., 16V, 20%. . . . . . . . . . 4822 123 14025

2564 2.2uF., 20%, 50V . . . . . . . . . . 4822 124 22652

2565 2.2uF., 20%, 50V . . . . . . . . . . 4822 124 22652

2566 2.2uF., 20%, 50V . . . . . . . . . . 4822 124 22652

2567 4.7uF., 20%, 100V. . . . . . . . . . 4822 124 40769

2568 4.7uF., 20%, 100V. . . . . . . . . . 4822 124 40769

2569 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2570 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2571 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2572 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2573 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2574 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2575 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2576 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2577 10nF., 20%, X7R, 50V . . . . . . . . 4822 122 33177

2578 10nF., 20%, X7R, 50V . . . . . . . . 4822 122 33177

2579 2.2nF., 10%, X7R, 63V. . . . . . . . 4822 122 33127

2580 2.2nF., 10%, X7R, 63V. . . . . . . . 4822 122 33127

2581 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2582 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2583 3.3nF., 10%, X7R, 63V. . . . . . . . 4822 122 33891

2584 3.3nF., 10%, X7R, 63V. . . . . . . . 4822 122 33891

2585 82pF., 1%, NP0, 63V. . . . . . . . . 4822 126 13695

2586 82pF., 1%, NP0, 63V. . . . . . . . . 4822 126 13695

2593 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2594 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2595 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2596 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2599 22pF., 5%, 50V . . . . . . . . . . . 5322 122 32658

2600 22pF., 5%, 50V . . . . . . . . . . . 5322 122 32658

2603 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2604 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2605 47pF., 1%, NP0, 63V. . . . . . . . . 4822 126 13692

2606 47pF., 1%, NP0, 63V. . . . . . . . . 4822 126 13692

2607 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2608 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2610 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2611 100uF., 20%, 25V . . . . . . . . . . 4822 124 40207

2612 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2613 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2614 100uF., 20%, 25V . . . . . . . . . . 4822 124 40207

2615 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2616 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2617 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2618 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2619 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2620 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2622 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2623 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2624 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2625 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2626 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2627 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2628 100nF., 10%, X7R, 50V. . . . . . . . 4822 126 14585

2629 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2630 100nF., 5%, 63V. . . . . . . . . . . 5322 121 42386

2631 100nF., 5%, 63V. . . . . . . . . . . 5322 121 42386

2632 100nF., 5%, 63V. . . . . . . . . . . 5322 121 42386

2633 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2634 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2635 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2636 100nF., 10%, X7R, 50V. . . . . . . . 4822 126 14585

2637 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2638 100nF., 10%, X7R, 50V. . . . . . . . 4822 126 14585

S = Safety Part Be sure to use exact replacement part.

2639 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2641 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2642 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2643 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2644 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2645 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2646 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2647 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2648 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2649 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2650 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2651 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2652 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2655 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2656 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2657 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2658 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2659 2.2uF., 20%, 50V . . . . . . . . . . 4822 124 22652

2660 2.2uF., 20%, 50V . . . . . . . . . . 4822 124 22652

2661 2.2uF., 20%, 50V . . . . . . . . . . 4822 124 22652

2662 2.2uF., 20%, 50V . . . . . . . . . . 4822 124 22652

2663 2.2uF., 20%, 50V . . . . . . . . . . 4822 124 22652

2664 2.2uF., 20%, 50V . . . . . . . . . . 4822 124 22652

2665 47nF., 5%, 250V. . . . . . . . . . . 4822 121 43526

2666 47nF., 5%, 250V. . . . . . . . . . . 4822 121 43526

2667 47nF., 5%, 250V. . . . . . . . . . . 4822 121 43526

2668 47nF., 5%, 250V. . . . . . . . . . . 4822 121 43526

2669 47nF., 5%, 250V. . . . . . . . . . . 4822 121 43526

2670 47nF., 5%, 250V. . . . . . . . . . . 4822 121 43526

2671 6.8nF., 10%, X7R, 63V. . . . . . . . 5322 122 31866

2672 6.8nF., 10%, X7R, 63V. . . . . . . . 5322 122 31866

2673 6.8nF., 10%, X7R, 63V. . . . . . . . 5322 122 31866

2674 6.8nF., 10%, X7R, 63V. . . . . . . . 5322 122 31866

2675 6.8nF., 10%, X7R, 63V. . . . . . . . 5322 122 31866

2676 6.8nF., 10%, X7R, 63V. . . . . . . . 5322 122 31866

2677 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2678 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2679 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2680 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2681 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2682 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2683 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2684 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2685 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2686 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2687 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2688 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2689 68nF., 5%, 63V . . . . . . . . . . . 5322 121 42465

2690 68nF., 5%, 63V . . . . . . . . . . . 5322 121 42465

2691 68nF., 5%, 63V . . . . . . . . . . . 5322 121 42465

2692 68nF., 5%, 63V . . . . . . . . . . . 5322 121 42465

2693 68nF., 5%, 63V . . . . . . . . . . . 5322 121 42465

2694 68nF., 5%, 63V . . . . . . . . . . . 5322 121 42465

2695 68nF., 5%, 63V . . . . . . . . . . . 5322 121 42465

2696 68nF., 5%, 63V . . . . . . . . . . . 5322 121 42465

2697 68nF., 5%, 63V . . . . . . . . . . . 5322 121 42465

2698 68nF., 5%, 63V . . . . . . . . . . . 5322 121 42465

2699 68nF., 5%, 63V . . . . . . . . . . . 5322 121 42465

2700 68nF., 5%, 63V . . . . . . . . . . . 5322 121 42465

2801 10uF., 50V . . . . . . . . . . . . . 4822 124 22833

2802 10uF., 50V . . . . . . . . . . . . . 4822 124 22833

2803 10uF., 50V . . . . . . . . . . . . . 4822 124 22833

2804 10uF., 50V . . . . . . . . . . . . . 4822 124 22833

2805 100nF., 10%, X7R, 50V. . . . . . . . 4822 126 14585

2806 100nF., 10%, X7R, 50V. . . . . . . . 4822 126 14585

2807 100nF., 10%, X7R, 50V. . . . . . . . 4822 126 14585

2809 10nF., 10%, X7R, 63V . . . . . . . . 5322 122 34098

2810 220uF., 10V. . . . . . . . . . . . . 4822 124 12245

2811 10nF., 10%, X7R, 63V . . . . . . . . 5322 122 34098

2812 220uF., 20%, 25V . . . . . . . . . . 4822 124 80144

2813 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2814 47pF., 1%, NP0, 63V. . . . . . . . . 4822 126 13692

2815 100nF., 10%, X7R, 50V. . . . . . . . 4822 126 14585

2816 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2817 1uF., 20%, 63V . . . . . . . . . . . 4822 124 21913

2818 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2821 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2822 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2831 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2832 100nF., 10%, X7R, 50V. . . . . . . . 4822 126 14585

2833 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2834 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2835 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2836 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2837 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2851 22pF., 5%, 50V . . . . . . . . . . . 5322 122 32658

2852 22pF., 5%, 50V . . . . . . . . . . . 5322 122 32658

2853 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2854 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2855 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2856 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2857 100nF., 10%, X7R, 50V. . . . . . . . 4822 126 14585

FR965DHT (continued) Page: 5

2858 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2860 47uF., 20%, 50V. . . . . . . . . . . 4822 124 41751

2861 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2862 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2863 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2864 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2865 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2866 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2867 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2868 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2869 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2871 10nF., 20%, X7R, 50V . . . . . . . . 4822 122 33177

2872 10nF., 20%, X7R, 50V . . . . . . . . 4822 122 33177

2873 10nF., 20%, X7R, 50V . . . . . . . . 4822 122 33177

2875 10nF., 20%, X7R, 50V . . . . . . . . 4822 122 33177

2876 10nF., 20%, X7R, 50V . . . . . . . . 4822 122 33177

2877 100nF., 5%, 63V. . . . . . . . . . . 5322 121 42386

2878 100nF., 5%, 63V. . . . . . . . . . . 5322 121 42386

2879 100nF., 5%, 63V. . . . . . . . . . . 5322 121 42386

2880 100nF., 5%, 63V. . . . . . . . . . . 5322 121 42386

2881 100nF., 5%, 63V. . . . . . . . . . . 5322 121 42386

2882 100nF., 5%, 63V. . . . . . . . . . . 5322 121 42386

2883 1nF., 5%, NP0, 50V . . . . . . . . . 5322 126 10511

2884 1nF., 5%, NP0, 50V . . . . . . . . . 5322 126 10511

2885 1nF., 5%, NP0, 50V . . . . . . . . . 5322 126 10511

2886 1nF., 5%, NP0, 50V . . . . . . . . . 5322 126 10511

2887 2.2nF., 10%, X7R, 63V. . . . . . . . 4822 122 33127

2888 2.2nF., 10%, X7R, 63V. . . . . . . . 4822 122 33127

2901 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2902 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2903 4.7pF., 5%, NP0, 50V . . . . . . . . 5322 122 32287

2904 47nF., 10%, X7R, 63V . . . . . . . . 4822 126 13751

2905 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2906 470pF., 10%, 50V . . . . . . . . . . 5322 122 32268

2908 220nF., 80-20%, 50V. . . . . . . . . 4822 126 13473

2909 4.7nF., 10%, X7R, 63V. . . . . . . . 5322 126 10223

2910 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2911 22nF., 10%, X7R, 63V . . . . . . . . 5322 122 32654

2912 100uF., 20%, 10V . . . . . . . . . . 4822 124 41584

2913 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2914 470pF., 10%, 50V . . . . . . . . . . 5322 122 32268

2916 220nF., 80-20%, 50V. . . . . . . . . 4822 126 13473

2917 4.7nF., 10%, X7R, 63V. . . . . . . . 5322 126 10223

2918 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

2919 100uF., 20%, 10V . . . . . . . . . . 4822 124 41584

2920 220nF., 80-20%, 50V. . . . . . . . . 4822 126 13473

2921 220nF., 80-20%, 50V. . . . . . . . . 4822 126 13473

2922 4.7pF., 5%, NP0, 50V . . . . . . . . 5322 122 32287

2923 22uF., 50V . . . . . . . . . . . . . 4822 124 81151

2924 10uF., 20%, 63V. . . . . . . . . . . 4822 124 40248

2925 220uF., 20%, 10V . . . . . . . . . . 4822 124 40181

2926 100nF., 10%, X7R, 50V. . . . . . . . 4822 126 14585

2930 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2931 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2932 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2933 100pF., 5%, NP0, 50V . . . . . . . . 5322 122 32531

2934 1nF., 5%, NP0, 50V . . . . . . . . . 5322 126 10511

2937 220pF., 5%, NP0, 63V . . . . . . . . 4822 122 33575

RESISTORS

3251 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3252 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3253 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

S 3254 0.33 Ohm, 5%, 2W . . . . . . . . . . 4822 117 11342

3256 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

S 3257 0.33 Ohm, 5%, 2W . . . . . . . . . . 4822 117 11342

3258 82K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11149

3259 680 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 10361

3260 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3263 680 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 10361

3264 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3266 22K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20223

3267 3.9K, 5%, 0.1W . . . . . . . . . . . 4822 051 20392

3268 3.3K, 5%, 0.1W . . . . . . . . . . . 4822 051 20332

3269 3.3K, 5%, 0.1W . . . . . . . . . . . 4822 051 20332

S 3270 47 Ohm, 5%, 0.33W. . . . . . . . . . 4822 052 10479

S 3271 47 Ohm, 5%, 0.33W. . . . . . . . . . 4822 052 10479

3272 39K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20393

S 3291 10 Ohm, 5%, 0.33W. . . . . . . . . . 4822 052 10109

3292 15K, 1%, 0.1W. . . . . . . . . . . . 4822 116 83933

3293 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3294 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3295 15K, 1%, 0.1W. . . . . . . . . . . . 4822 116 83933

S 3301 47 Ohm, 5%, 0.33W. . . . . . . . . . 4822 052 10479

3304 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3305 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3306 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3307 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3308 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3309 4.7 Ohm, 1%, 0.6W. . . . . . . . . . 4822 050 24708

3310 1.8K, 5%, 0.1W . . . . . . . . . . . 4822 051 20182

3311 4.7 Ohm, 1%, 0.6W. . . . . . . . . . 4822 050 24708

3314 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

S = Safety Part Be sure to use exact replacement part.

3315 1.8K, 5%, 0.1W . . . . . . . . . . . 4822 051 20182

3316 4.7 Ohm, 1%, 0.6W. . . . . . . . . . 4822 050 24708

3319 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3322 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

S 3323 1.8K, 5%, 0.1W . . . . . . . . . . . 4822 051 20182

3324 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3326 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3327 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

S 3328 47 Ohm, 5%, 0.33W. . . . . . . . . . 4822 052 10479

3329 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3330 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3334 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3335 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3336 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

S 3337 0.22 Ohm, 5%, 1W . . . . . . . . . . 4822 117 11744

S 3338 0.22 Ohm, 5%, 1W . . . . . . . . . . 4822 117 11744

3339 1.5K, 1%, 0.1W . . . . . . . . . . . 4822 117 11139

3340 1.5K, 1%, 0.1W . . . . . . . . . . . 4822 117 11139

S 3341 0.22 Ohm, 5%, 1W . . . . . . . . . . 4822 117 11744

S 3342 0.22 Ohm, 5%, 1W . . . . . . . . . . 4822 117 11744

3343 1.5K, 1%, 0.1W . . . . . . . . . . . 4822 117 11139

S 3344 0.22 Ohm, 5%, 1W . . . . . . . . . . 4822 117 11744

S 3345 0.22 Ohm, 5%, 1W . . . . . . . . . . 4822 117 11744

S 3352 4.7 Ohm, 5%, 1W. . . . . . . . . . . 4822 053 10478

S 3353 4.7 Ohm, 5%, 1W. . . . . . . . . . . 4822 053 10478

S 3354 4.7 Ohm, 5%, 1W. . . . . . . . . . . 4822 053 10478

3356 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3357 10K, 1%, 0.6W. . . . . . . . . . . . 4822 050 21003

3358 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3359 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3360 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3361 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3362 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3363 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3501 15K, 1%, 0.1W. . . . . . . . . . . . 4822 116 83933

3502 15K, 1%, 0.1W. . . . . . . . . . . . 4822 116 83933

3505 15K, 5%, 0.5W. . . . . . . . . . . . 4822 116 52244

3506 15K, 5%, 0.5W. . . . . . . . . . . . 4822 116 52244

3509 15K, 1%, 0.1W. . . . . . . . . . . . 4822 116 83933

3510 15K, 1%, 0.1W. . . . . . . . . . . . 4822 116 83933

3511 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3512 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3513 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3514 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3515 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3516 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3517 39K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20393

3518 39K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20393

3519 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

3520 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

3521 39K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20393

3522 39K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20393

3523 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

3524 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

3525 39K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20393

3526 39K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20393

3527 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

3528 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

3529 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3530 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3531 39K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20393

3532 39K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20393

3533 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

3534 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

3537 39K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20393

3538 39K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20393

3539 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

3540 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

3541 39K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20393

3542 39K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20393

3543 2.7K, 1%, 0.1W, 0805 . . . . . . . . 4822 117 12955

3544 2.7K, 1%, 0.1W, 0805 . . . . . . . . 4822 117 12955

3545 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3546 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3551 270 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11504

3552 270 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11504

3553 270 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11504

3554 270 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11504

3555 3.3K, 5%, 0.1W . . . . . . . . . . . 4822 051 20332

3556 270 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11504

3557 270 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11504

3560 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3561 4.7 Ohm, 5%, 0.33W . . . . . . . . . 4822 052 10478

3562 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3563 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3566 270 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 83876

3567 270 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 83876

3571 330K, 5%, 0.1W . . . . . . . . . . . 4822 051 20334

3572 330K, 5%, 0.1W . . . . . . . . . . . 4822 051 20334

3573 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3574 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3575 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

FR965DHT (continued) Page: 6

3576 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3577 560 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20561

3578 560 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20561

3579 390K, 5%, 0.1W . . . . . . . . . . . 4822 051 20394

3580 390K, 5%, 0.1W . . . . . . . . . . . 4822 051 20394

3581 27K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20273

3582 27K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20273

3583 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3584 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3585 1.5K, 1%, 0.1W . . . . . . . . . . . 4822 117 11139

3586 1.5K, 1%, 0.1W . . . . . . . . . . . 4822 117 11139

3587 3.9K, 5%, 0.1W . . . . . . . . . . . 4822 051 20392

3588 3.9K, 5%, 0.5W . . . . . . . . . . . 4822 116 52276

3589 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3590 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3591 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3592 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3593 4.7k, 5%, 0.1W . . . . . . . . . . . 4822 051 20472

3594 4.7K, 5%, 0.1W . . . . . . . . . . . 4822 051 20472

3595 4.7K, 5%, 0.1W . . . . . . . . . . . 4822 051 20472

3596 4.7K, 5%, 0.1W . . . . . . . . . . . 4822 051 20472

3597 5.6K, 5%, 0.5W . . . . . . . . . . . 4822 116 52289

3598 5.6K, 5%, 0.5W . . . . . . . . . . . 4822 116 52289

3601 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3602 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3603 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3604 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3605 12K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11383

3606 12K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11383

3607 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3608 33K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20333

3609 120 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20121

3610 120 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20121

3611 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3612 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3613 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3614 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3615 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3616 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3618 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3619 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3620 100 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 52175

3621 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3622 120 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20121

3623 120 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20121

S 3627 10 Ohm, 5%, 0.33W. . . . . . . . . . 4822 052 10109

S 3629 10 Ohm, 5%, 0.33W. . . . . . . . . . 4822 052 10109

3630 1K, 1%, 0.4W . . . . . . . . . . . . 4822 050 11002

3631 1K, 1%, 0.4W . . . . . . . . . . . . 4822 050 11002

3632 1K, 1%, 0.4W . . . . . . . . . . . . 4822 050 11002

3633 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3634 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3635 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3636 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3637 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3641 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3642 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3643 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3644 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3645 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3646 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3649 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3650 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3651 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3652 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3655 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3656 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3657 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3658 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3659 2.7K, 1%, 0.1W, 0805 . . . . . . . . 4822 117 12955

3660 2.7K, 1%, 0.1W, 0805 . . . . . . . . 4822 117 12955

3661 5.6K, 5%, 0.1W, 0805 . . . . . . . . 4822 051 20562

3662 5.6K, 5%, 0.1W, 0805 . . . . . . . . 4822 051 20562

3663 2.7K, 1%, 0.1W, 0805 . . . . . . . . 4822 117 12955

3664 2.7K, 1%, 0.1W, 0805 . . . . . . . . 4822 117 12955

3665 5.6K, 5%, 0.1W, 0805 . . . . . . . . 4822 051 20562

3666 5.6K, 5%, 0.1W, 0805 . . . . . . . . 4822 051 20562

3667 2.7K, 1%, 0.1W, 0805 . . . . . . . . 4822 117 12955

3668 2.7K, 1%, 0.1W, 0805 . . . . . . . . 4822 117 12955

3669 5.6K, 5%, 0.1W, 0805 . . . . . . . . 4822 051 20562

3670 5.6K, 5%, 0.1W, 0805 . . . . . . . . 4822 051 20562

3671 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3672 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3673 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3674 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3675 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3676 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3677 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3678 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3679 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3680 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3681 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

S = Safety Part Be sure to use exact replacement part.

3682 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3683 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3684 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3685 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3686 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3687 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3688 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3689 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3690 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3691 2.2K, 5%, 0.5W. . . . . . . . . . . 4822 116 52256

3692 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3693 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3694 2.2K, 5%, 0.5W. . . . . . . . . . . 4822 116 52256

3695 220K 1%, 0.1W, RC12H . . . . . . . . 4822 117 13579

3696 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3697 22K, 5%, 0.5W. . . . . . . . . . . . 4822 116 52257

3698 220K 1%, 0.1W, RC12H . . . . . . . . 4822 117 13579

3699 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3700 22K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20223

3801 68 Ohm, 1%, 0.1W . . . . . . . . . . 4822 117 12521

3802 68 Ohm, 1%, 0.1W . . . . . . . . . . 4822 117 12521

3803 68 Ohm, 1%, 0.1W . . . . . . . . . . 4822 117 12521

3804 68 Ohm, 1%, 0.1W . . . . . . . . . . 4822 117 12521

3805 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3806 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3809 10 Ohm, 5%, 0.1W . . . . . . . . . . 4822 051 20109

3810 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3811 10 Ohm, 5%, 0.1W . . . . . . . . . . 4822 051 20109

3812 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3813 120 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20121

3814 10 Ohm, 5%, 0.1W . . . . . . . . . . 4822 051 20109

3815 68 Ohm, 1%, 0.1W . . . . . . . . . . 4822 117 12521

3816 68 Ohm, 1%, 0.1W . . . . . . . . . . 4822 117 12521

3817 270 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11504

3818 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

3819 10 Ohm, 5%, 0.1W . . . . . . . . . . 4822 051 20109

3820 100 Ohm, 5%, 1W. . . . . . . . . . . 4822 053 10101

3821 100 Ohm, 5%, 1W. . . . . . . . . . . 4822 053 10101

3831 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3832 47 Ohm, 5%, 0.1W . . . . . . . . . . 4822 051 20479

3834 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3851 3.3K, 5%, 0.1W . . . . . . . . . . . 4822 051 20332

3852 22K, 5%, 0.1W. . . . . . . . . . . . 4822 051 20223

3853 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3854 4.7K, 5%, 0.1W . . . . . . . . . . . 4822 051 20472

3855 270 Ohm, 5%, 0.5W. . . . . . . . . . 4822 116 83876

3856 270 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11504

3857 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3858 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3859 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3860 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3871 3.3K, 5%, 0.1W . . . . . . . . . . . 4822 051 20332

3872 3.3K, 5%, 0.1W . . . . . . . . . . . 4822 051 20332

3873 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3874 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3875 3.3K, 5%, 0.1W . . . . . . . . . . . 4822 051 20332

3877 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3878 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3879 3.3K, 5%, 0.1W . . . . . . . . . . . 4822 051 20332

3880 3.3K, 5%, 0.1W . . . . . . . . . . . 4822 051 20332

3881 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3882 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3883 12K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11383

3884 12K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11383

3885 12K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11383

3886 12K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11383

3887 12K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11383

3888 12K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11383

3889 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3890 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3891 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

3892 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

3893 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

3895 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

3896 8.2K, 5%, 0.1W . . . . . . . . . . . 4822 051 20822

S 3901 47 Ohm, 5%, 0.33W. . . . . . . . . . 4822 052 10479

3902 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3903 47K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10834

3904 47K, 5%, 0.5W. . . . . . . . . . . . 4822 116 83884

3905 4.7 Ohm, 1%, 0.6W. . . . . . . . . . 4822 050 24708

3906 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3908 1.8K, 5%, 0.1W . . . . . . . . . . . 4822 051 20182

3910 4.7 Ohm, 1%, 0.6W. . . . . . . . . . 4822 050 24708

3911 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

3913 1.8K, 5%, 0.1W . . . . . . . . . . . 4822 051 20182

3914 56K, 1%, 0.1W. . . . . . . . . . . . 4822 117 11148

S 3915 47 Ohm, 5%, 0.33W. . . . . . . . . . 4822 052 10479

S 3916 4.7 Ohm, 5%, 1W. . . . . . . . . . . 4822 053 10478

3917 33K, 1%, 0.6W. . . . . . . . . . . . 4822 050 23303

3918 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

S 3919 4.7 Ohm, 5%, 1W. . . . . . . . . . . 4822 053 10478

3920 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

FR965DHT (continued) Page: 7

3921 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3922 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3925 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

S 3926 0.22 Ohm, 5%, 1W . . . . . . . . . . 4822 117 11744

S 3927 0.22 Ohm, 5%, 1W . . . . . . . . . . 4822 117 11744

3928 1.5K, 1%, 0.1W . . . . . . . . . . . 4822 117 11139

3929 1.5K, 1%, 0.1W . . . . . . . . . . . 4822 117 11139

S 3930 0.22 Ohm, 5%, 1W . . . . . . . . . . 4822 117 11744

S 3931 0.22 Ohm, 5%, 1W . . . . . . . . . . 4822 117 11744

3935 1K, 2%, 0.25W. . . . . . . . . . . . 4822 051 10102

3936 100K, 1%, 0.1W . . . . . . . . . . . 4822 117 10837

3937 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3938 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3939 2.2K, 1%, 0.1W. . . . . . . . . . . 4822 117 11449

3940 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

3941 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

3943 10K, 1%, 0.1W. . . . . . . . . . . . 4822 117 10833

3944 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

3945 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

3946 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3947 470 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20471

3948 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

3949 220 Ohm, 1%, 0.1W. . . . . . . . . . 4822 117 11503

3950 1.8K, 5%, 0.1W . . . . . . . . . . . 4822 051 20182

3951 1.8K, 5%, 0.1W . . . . . . . . . . . 4822 051 20182

3952 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3953 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3954 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3955 100 Ohm, 5%, 0.1W. . . . . . . . . . 4822 051 20101

3956 100K, 5%, 0.5W . . . . . . . . . . . 4822 116 52234

4251 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4252 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4254 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4255 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4256 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4257 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4258 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4260 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4283 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4284 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4285 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4287 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4320 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4506 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4513 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4514 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4515 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4516 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4517 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4518 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4519 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4520 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4521 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4522 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4523 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4524 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4526 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4528 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4529 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4530 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4531 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4532 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4533 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4537 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4538 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4539 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4540 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4541 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4542 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4543 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4544 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4545 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4548 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4550 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4551 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4552 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4553 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4555 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4556 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4557 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4558 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4559 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4560 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

S 4563 1 Ohm, 5%, . . . . . . . . . . . . . 4822 117 11151

4564 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4565 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4566 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4642 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4644 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4651 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4652 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4653 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

S = Safety Part Be sure to use exact replacement part.

4832 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4835 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4902 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4903 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4904 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4905 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4907 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4908 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4909 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4910 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4914 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4915 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4916 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4917 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

4918 0 Ohm Jumper, (0805) . . . . . . . . 4822 051 20008

SEMICONDUCTORS

6251 Diode, D5SBA20 . . . . . . . . . . . 4822 130 82078

6257 Diode, 1N4003G . . . . . . . . . . . 4822 130 31878

6258 Diode, 1N4003G . . . . . . . . . . . 4822 130 31878

6259 Diode, 1N4003G . . . . . . . . . . . 4822 130 31878

6260 IC, Regulator, L7812CP . . . . . . . 4822 209 33575

6261 Diode, 1N4003G . . . . . . . . . . . 4822 130 31878

6262 Diode, 1N4003G . . . . . . . . . . . 4822 130 31878

6263 Diode, 1N4003G . . . . . . . . . . . 4822 130 31878

6265 IC, Regulator, L7805CP . . . . . . . 4822 209 31841

6267 IC, Regulator, L7805CP . . . . . . . 4822 209 31841

6268 Diode, 1N4003G . . . . . . . . . . . 4822 130 31878

6270 Diode, BZX79-B6V8. . . . . . . . . . 4822 130 34278

6271 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6274 Diode, 1N4003G . . . . . . . . . . . 4822 130 31878

6275 Diode, 1N4003G . . . . . . . . . . . 4822 130 31878

6276 Diode, BZX79-B5V6. . . . . . . . . . 4822 130 34173

6279 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6280 Diode, BZX79-B10 . . . . . . . . . . 4822 130 61219

6281 Diode, BZX79-B22 . . . . . . . . . . 4822 130 34441

6289 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6290 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6304 Diode, BZX79-B3V3. . . . . . . . . . 5322 130 31504

6305 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6501 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6601 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6602 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6641 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6642 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6643 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6644 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6645 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6646 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6647 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6648 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6649 Diode, 1N4003G . . . . . . . . . . . 4822 130 31878

S 6650 Diode, BZX79-B10 . . . . . . . . . . 4822 130 61219

6801 Diode, BZX79-B6V8. . . . . . . . . . 4822 130 34278

6802 Diode, BZX79-B6V8. . . . . . . . . . 4822 130 34278

6803 Diode, BZX79-B6V8. . . . . . . . . . 4822 130 34278

6804 Diode, BZX79-B6V8. . . . . . . . . . 4822 130 34278

6805 Diode, BZX79-B6V8. . . . . . . . . . 4822 130 34278

6806 Diode, BZX79-B6V8. . . . . . . . . . 4822 130 34278

6807 Diode, BZX79-B6V8. . . . . . . . . . 4822 130 34278

6808 Diode, BZX79-B6V8. . . . . . . . . . 4822 130 34278

6809 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6810 Diode, BZX79-B5V1. . . . . . . . . . 4822 130 34233

6811 Diode, BZX79-B8V2. . . . . . . . . . 4822 130 34382

6831 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6832 Diode, 1N4148. . . . . . . . . . . . 4822 130 30621

6905 Diode, BZX79-B15 . . . . . . . . . . 4822 130 34281

7253 Transistor, BC847B . . . . . . . . . 4822 130 60511

7255 Transistor, BC856B . . . . . . . . . 4822 130 60373

7256 Transistor, BC847B . . . . . . . . . 4822 130 60511

7257 Transistor, BC327-25 . . . . . . . . 4822 130 41246

7258 Transistor, BC327-25 . . . . . . . . 4822 130 41246

7259 Transistor, BC847B . . . . . . . . . 4822 130 60511

7260 Transistor, BC847B . . . . . . . . . 4822 130 60511

7261 Transistor, BC856B . . . . . . . . . 4822 130 60373

7301 IC, STK496-270 . . . . . . . . . . . 4822 209 17447

7304 Transistor, BC847B . . . . . . . . . 4822 130 60511

7305 Transistor, BC847B . . . . . . . . . 4822 130 60511

7306 Transistor, BC847B . . . . . . . . . 4822 130 60511

7307 Transistor, BC847B . . . . . . . . . 4822 130 60511

7309 Transistor, BC856B . . . . . . . . . 4822 130 60373

7310 Transistor, BC847B . . . . . . . . . 4822 130 60511

7501 IC, LC7821 . . . . . . . . . . . . . 4822 209 72748

7503 IC, NJM4560M . . . . . . . . . . . . 4822 209 83357

7504 IC, NJM4560M . . . . . . . . . . . . 4822 209 83357

7571 IC, NJM4560DD. . . . . . . . . . . . 4822 209 70157

7572 IC, LC7821 . . . . . . . . . . . . . 4822 209 72748

7601 IC, NJM4556MB. . . . . . . . . . . . 4822 209 31378

7621 Transistor, BC817-40 . . . . . . . . 4822 130 42615

7622 Transistor, BC817-40 . . . . . . . . 4822 130 42615

7641 IC, TDA7437T . . . . . . . . . . . . 4822 209 17386

7642 IC, TDA7437T . . . . . . . . . . . . 4822 209 17386

7643 IC, TDA7437T . . . . . . . . . . . . 4822 209 17386

FR965DHT (continued) Page: 8

7644 Transistor, BC337. . . . . . . . . . 4822 130 40855

7651 Transistor, BC817-40 . . . . . . . . 4822 130 42615

7652 Transistor, BC817-40 . . . . . . . . 4822 130 42615

7653 Transistor, BC817-40 . . . . . . . . 4822 130 42615

7654 Transistor, BC817-40 . . . . . . . . 4822 130 42615

7655 Transistor, BC817-40 . . . . . . . . 4822 130 42615

7656 Transistor, BC817-40 . . . . . . . . 4822 130 42615

7657 Transistor, BC856B . . . . . . . . . 4822 130 60373

7658 Transistor, BC856B . . . . . . . . . 4822 130 60373

7660 IC, NJM4560M . . . . . . . . . . . . 4822 209 83357

7661 Transistor, BC817-40 . . . . . . . . 4822 130 42615

7662 Transistor, BC817-40 . . . . . . . . 4822 130 42615

7801 Transistor, BC847B . . . . . . . . . 4822 130 60511

S 7802 Transistor, BC557B . . . . . . . . . 4822 130 44568

7803 IC, STV6401. . . . . . . . . . . . . 4822 209 16886

7901 IC, STK496-070 . . . . . . . . . . . 4822 209 17385

7902 Transistor, BC847B . . . . . . . . . 4822 130 60511

7903 Transistor, BC847B . . . . . . . . . 4822 130 60511

7904 Transistor, BC847B . . . . . . . . . 4822 130 60511

7908 Transistor, BC856B . . . . . . . . . 4822 130 60373

7909 Transistor, BC847B . . . . . . . . . 4822 130 60511

7910 Transistor, BD242BFP . . . . . . . . 9322 139 22687

EXPLODED VIEW PARTS

EXPLODED VIEW PARTS

1 FRONT CABINET ASM. FR965/17. . . . . 3104 217 52930

2 BUTTON HINGE ASM. SURROUND . . . . . 4822 410 12442

3 BUTTONS HINGE TUNER. . . . . . . . . 4822 410 12435

4 BUTTON HINGE ASM. MENU . . . . . . . 4822 410 12443

5 BUTTONS HINGE BASS TREBLE. . . . . . 4822 410 12436

6 BUTTONS EASY LINK. . . . . . . . . . 4822 410 12437

8 LIGHT GUIDE SURROUND . . . . . . . . 4822 380 10274

9 LIGHT GUIDE VIRTUAL/HALL . . . . . . 3104 214 38460

10 LIGHT GUIDE SELECTOR . . . . . . . . 4822 380 10277

11 ORN. PLATE ASM. FR960/01/17. . . . . 3104 217 52450

12 RING KNOB, VOLUME. . . . . . . . . . 3104 217 52130

13 RING KNOB, SOURCE SELECTOR . . . . . 3104 217 52140

14 WINDOW DISPLAY ASM. FR960/01/17. . . 3104 217 52260

25 KNOB, VOLUME (BL). . . . . . . . . . 4822 410 12438

26 KNOB, SOURCE SELECTOR. . . . . . . . 4822 410 12439

27 KNOB, MENU NAV (BL). . . . . . . . . 4822 410 12441

28 BADGE, PHILIPS . . . . . . . . . . . 4822 459 10887

36 LEG, SILVER. . . . . . . . . . . . . 4822 691 10773

38 LEG, SILVER. . . . . . . . . . . . . 4822 691 10773

115 POWER ROD. . . . . . . . . . . . . . 4822 535 10638

116 POWER CAP. . . . . . . . . . . . . . 4822 462 11176

117 BUSH . . . . . . . . . . . . . . . . 4822 532 60948

125 COVERPLATE . . . . . . . . . . . . . 4822 442 01817

1001 FRONT DISPLAY PANEL. . . . . . . . . 0000 0-_ -_-_-

1002 MONO BOARD ASSEMBLY. . . . . . . . . 0000 0-_ -_-_-

1003 MULTI CHANNEL DECODING . . . . . . . 3104 217 05750

1004 MAINS BOARD ASSEMBLY . . . . . . . . 0000 0-_ -_-_-

1005 EC05 TUNER PANEL . . . . . . . . . . 0000 0-_ -_-_-

S 5001 TRANSFORMER, FR965/17 5 X 50W. . . . 3104 218 31000

8002 FLEXIBLE FOIL, 15P 220MM . . . . . . 4822 320 12706

S 8020 MAINSCORD UL . . . . . . . . . . . . 3139 118 77230

AC01 HOME CINEMA SPEAKER 60W. . . . . . . 3104 219 04220

AC02 HOME CINEMA CENTER SPEAKER 60W . . . 3104 219 04200

AC03 SUBWOOFER FB201V/17. . . . . . . . . 3104 219 03730

AC04 CORD SET, L/R BOX. . . . . . . . . . 4822 320 12719

AC05 CORD SET, CENTER SPEAKER . . . . . . 4822 320 12721

AC06 CORD SET, SURROUND SPEAKER . . . . . 4822 320 12722

AC07 FM AERIAL, 300 Ohm . . . . . . . . . 4822 320 11094

AC08 P50 ADAPTOR. . . . . . . . . . . . . 4822 263 21206

AC09 AM ANTENNA FRAME . . . . . . . . . . 4822 303 50082

AC10 REMOTE CONTROL . . . . . . . . . . . 3104 219 03770

AC11 ASSEMBLY CINCH/CINCH 1M. . . . . . . 4822 321 61452

AC12 IFU MX960/37 (OWNER'S MANUAL). . . . 3104 215 36260

S = Safety Part Be sure to use exact replacement part.
