Peterbilt 210-220 Operator's Manual

Download

Table of contents

Warnings and safety regulations

Warning symbols..................................................................................................14

Warnings and safety regulations........................................................................16

Technical items of special importance...............................................................21

Airbag safety instructions ...................................................................................26

Alarm system

The system............................................................................................................32

Use of the hand-held transmitter.........................................................................32

Self-diagnosis .......................................................................................................33

Use when staying in the cab................................................................................34

Deactivation loadspace detection superstructure/trailer..................................35

The system LED....................................................................................................36

Loss of hand-held transmitter.............................................................................3 7

System does not respond to hand-held transmitte r..........................................37

Battery, hand-held transmitters...........................................................................38

Maintenance..........................................................................................................38

Disconnecting the vehicle battery.......................................................................38

Cab, instruments and controls

Cab.........................................................................................................................40

Cab................................................................................................................40

Table of contents

Entering and leaving the vehicle ...................................................................40

Doors.............................................................................................................41

Electrically operated windows .......................................................................43

Mirrors...........................................................................................................44

Electrical mirror adjustment...........................................................................45

Windscreen wiper blades ............................................ ... ...............................45

Bunks ............................................................................................................46

Roof console - oddments shelves.................................................................46

Tool boxes/storage compartments................................................................47

Roof hatch.....................................................................................................48

Adjusting roof spoiler.....................................................................................48

Sun visors......................................................................................................50

Stepwell lighting ............................................................................................50

Interior lighting...............................................................................................51

Bunk lamp .....................................................................................................52

Instruments and controls ....................................................................................53

Dashboard.....................................................................................................53

Instrument panel................................................. ... ..................................... ...56

Warning indicators................................................................................ ... ......60

Control panel............................................................................. ....................66

Control panel of heating/ventilation system...................................................70

Air conditioning switch...................................................................................71

Fan speed selector switch.............................................................................73

Temperature adjustment...............................................................................74

Air distribution selector switch.......................................................................76

Centre console..............................................................................................77

Table of contents

Roof console............. ... .................................... ..................................... .........83

Left-hand steering column switch..................................................................85

Right-hand steering column switch............. .. ... ........................................ .. ... .87

Steering column switch, engine brake........................................................... 8 8

Adjustable steering column............................................................................89

Auxiliary cab heater (air heating)...................................................................89

Seats

Important points ...................................................................................................96

Seat settings .........................................................................................................97

Seat belts...............................................................................................................99

Master display

General ................................................................................................................104

Layout of master display ...................................................................................105

Start-up phase.....................................................................................................106

Menu selector switch .........................................................................................108

Menu overview....................................................................................................110

Faults ...................................................................................................................112

Warning symbols................................................................................................113

Table of contents

Inspections and maintenance

Inspections..........................................................................................................120

Overview of daily checks.............................................................................120

Opening the front panel...............................................................................121

Engine oil level............................................................................................121

Topping up coolant......................................................................................122

Screen washer reservoir fluid level .............................................................124

Air filter indicator..........................................................................................125

Wheels and tires..........................................................................................126

Lighting and instruments .............................................................................126

Driver's seat and mirrors .................................................. ... ... .....................127

Trailer vehicle..............................................................................................127

Overview of weekly checks.........................................................................128

Clutch fluid level..........................................................................................128

Power steering fluid level ............................................................................129

Brake system air drier .................................................................................130

Draining the water separator.......................................................................131

Batteries......................................................................................................132

Maintenance........................................................................................................134

General maintenance..................................................................................134

Lubricating fifth wheel/trailer coupling .........................................................135

Cab maintenance ........................................................................................136

Cleaning......................................................................................................136

Preventative maintenance before the winter season ..................................139

Diesel fuel....................................................................................................139

Cab heater..................................................... ... .. ..................................... ... .140

Windscreen washer reservoir......................................................................140

Maintenance after the winter season ..........................................................141

Cooling system............................................................................................141

Table of contents

Coupling and uncoupling

Trailer coupling...................................................................................................144

Fifth wheel...........................................................................................................149

Connecting up the brake lines of a trailer ........................................................156

Connecting up the brake lines of a trailer with ABS or EBS ..........................157

Connecting up the trailer vehicle lights (24V electrical system)....................161

Driving

General ................................................................................................................164

Steering lock/contact/starter switch .................................................................165

Glow system........................................................................................................165

Starting procedure..............................................................................................166

Immobiliser fault................................................................................................. 167

Engine speed control .........................................................................................168

Cruise control .....................................................................................................171

Vehicle speed limitation for special applications............................................174

Driving style ........................................................................................................174

Differential lock...................................................................................................175

Steering ...............................................................................................................176

RAS-EC system...................................................................................................176

ASR (Anti Slip Control).......................................................................................177

Table of contents

ABS brakes .........................................................................................................178

Parking brake and service brake......................................................................179

Engine brake.......................................................................................................180

Stopping..............................................................................................................181

Manual gearbox

ZF gearbox ..........................................................................................................184

Eaton gearbox.....................................................................................................186

Automatic gearbox

Allison 1000 & 2000 series.................................................................................190

Allison MD3060...................................................................................................192

Air suspension

General ................................................................................................................200

Remote control...................................................................................................201

Engaging air suspension...................................................................................203

Setting memory keys (M-keys)..........................................................................203

Stop button .........................................................................................................204

Table of contents

Emergency repairs

Vehicle tool kit .................................................................................................... 206

Tilting the cab ..................................................................................................... 206

Replacing the poly-V belt...................................................................................209

Replacing the fuel fine filter...............................................................................211

Bleeding the fuel system ...................................................................................212

Draining the water separator .............................................................................213

Releasing the parking brake..............................................................................214

Wheel winch........................................................................................................214

Jacking up the front axle ...................................................................................215

Jacking up the rear axle.....................................................................................216

Changing the wheel............................................................................................217

Tire inflating connection....................................................................................221

Towing .................................................................................................................222

Replacing bulbs ..................................................................................................224

Fuses and relays.................................................................................................230

Table of contents

Technical data and identification

Technical data.....................................................................................................236

Engine.........................................................................................................236

Electrical system .........................................................................................238

Wheels ........................................................................................................239

Tire pressure table ......................................................................................240

Lubricant-, engine coolant- and fuel specifications .....................................242

Engine oil.....................................................................................................244

Coolants......................................................................................................245

Diesel fuel....................................................................................................247

Steering gear..................... ......................................................................... .248

Cab tilting mechanism................................................................................. 248

Clutch..........................................................................................................248

Identification.......................................................................................................249

Chassis number ..........................................................................................249

Engine number............................................................................................249

Engine identification plate ...........................................................................250

Paint identification plate ..............................................................................250

Vehicle identification plate...........................................................................251

ALR type plate.............................................................................................251

Table of contents

Consumer Information

Federal Safety Standard Certification Label....................................................254

How To Order Parts.................................................................................254

NHTSA Consumer Information...............................................................254

Canadian Consumer Information...........................................................255

State of California.....................................................................................255

California Proposition 65 Warning...............................................................256

Alphabetical index

Alphabetical index..............................................................................................258

Table of contents

WHY THIS HANDBOOK IS SO IMPORTANT!

This handbook contains the information which you, the driver, will need for optimum efficiency, safety and comfort when operating this vehicle. Besides giving instructions about operation and use, it also pays attention to maintenance and minor repairs which you may be able to carry out yourself.

Note:

This handbook is based on the chassis with its fittings as it originally left the factory. Depending upon the required body and equipment, the bodybuilder may have made

fundamental changes to various parts or systems, such as the instrument panel, the lighting or the electric wiring. The vehicles covered by this handbook consist of various types and models. Individual vehicles are furthermore constructed in accordance with the legal regulations in the country concerned and in accordance with the expected operating conditions. Certain descriptions or illustrations in this handbook may therefore not correspond entirely to the situation on your own vehicle. However, this has practically no influence on its operation or maintenance.

Important

Make sure this handbook is in the vehicle at all times. Read it carefully before making your first journey, especially the "Warnings and

safety precautions", "Cab, instruments and controls", "Inspections and maintenance" and "Driving" sections.

Warnings and Safety Regulations

D000500

WARNING SYMBOLS

To ensure the highest level of safety in the operation of your vehicle, various warnings are included in this handbook. Each warning is indicated by a special warning symbol.

When text is accompanied by the adjacent warning symbol, this indicates that the information in question is very important for the health and/or safety of those concerned.

Disregarding this information may result in serious damage, injury or even death.

Warnings and Safety Regulations

When text is accompanied by the adjacent warning symbol, this indicates that the

D000501

information in question is very important for the operating safety of the vehicle. Disregarding this information may result in the loss of directional stability, steering

problems or the vehicle otherwise getting out of control, causing serious damage, injury and other life-threatening situations.

Warnings and Safety Regulations

WARNINGS AND SAFETY REGULATIONS

To prevent damage to the vehicle and in order not to jeopardise your health and/or safety, or that of other people, the following

}

First read the instructions and warnings on the labels and stickers on the various components and comply with them! They have been put there for your health and safety, so do not ignore them!

Modifications to the vehicle

Modifications to the vehicle or the vehicle configuration may require the reprogramming of electronic units by an approved an authorized dealer.

Engine

Do not run the engine in an enclosed or unventilated area. Make sure exhaust gases are properly extracted.

Components

Remain at a safe distance from rotating and/or moving components.

Cooling system filler cap

Do not remove the filler cap of the cooling system when the engine is at operating temperature. Do not loosen the filler cap of the cooling system when the cab is tilted.

warning and safety regulations must be strictly observed.

Warnings and Safety Regulations

Warning triangle

Ensure that you are always in possession of a hazard warning triangle (obligatory in certain countries), possibly in combination with other marking equipment.

In the event of a breakdown en route, wear reflective clothing when outside the vehicle.

Fire extinguisher

Ensure that you are always in possession of a fire extinguisher (obligatory in certain countries). It should be well secured under the seat, within the driver's reach and easily accessible, also for rescue workers and others providing assistance. Have the fire extinguisher checked for operational readiness each year. If it has been used, have it refilled at the earliest opportunity.

In the event of fire:

In the event of a fire, certain plastic seals can produce gases which together with water form a corrosive acid. Therefore do not touch any fire extinguisher fluid on the vehicle without protective gloves.

Cab

Make sure there are no loose objects on the floor on the driver's side. Bottles, cans etc. may get stuck under the brake pedal while driving, giving rise to extremely dangerous situations.

While driving, do not use the clutch pedal as a footrest since this may cause excessive wear of the clutch.

First aid kit

Ensure that you are always in possession of a first aid kit (obligatory in certain countries). Replace first aid items as soon as possible after use to make the kit complete again.

Warnings and Safety Regulations

Winter conditions

When winter driving conditions are expected (especially if the vehicle is operated in mountainous areas), make sure that your vehicle is fitted with winter tires or that you have snow chains with you. Also refer to "Maintenance operations before the winter season" in "Inspections and maintenance".

Load

The load should always be properly secured so that it cannot move, not even during an emergency stop. Remember that sidewalls, partitions, etc. are often not designed to withstand high forces. Loads must not project more than is permitted by local regulations. Bear in mind that the stability of the vehicle may be impaired by the load and that you may also need a larger turning circle. Make sure when loading that the following values are not exceeded:

- maximum permissible gross combination weight (GCW)

- maximum permissible gross vehicle weight (GVW)

- maximum permissible axle load

Oils and lubricants

Various kinds of oil and other lubricants used on the vehicle may constitute a health hazard if they come into contact with the skin. This also applies to engine coolant, windscreen washer fluid, refrigerant in air conditioning systems, battery acid and diesel fuel. So avoid direct contact as much as possible.

The engine and the surrounding area must be free of inflammable materials to avoid the risk of fire.

Exercise caution when changing hot oil; it can cause serious bodily injury.

Warnings and Safety Regulations

Maintenance activities

When carrying out maintenance work under the cab, make sure the cab is fully tilted and locked to prevent it from falling back accidentally.

If a cooler box/refrigerator has been fitted, it should be switched off and if necessary unplugged before tilting (depending on the type). The cooler box/refrigerator should remain switched off at least 30 minutes after the cab has been tilted back.

Following a collision, only tilt the cab in an emergency situation. The tilting mechanism may be damaged. (The end stop may no longer be on the lifting cylinder.)

Always use stands to support the chassis when carrying out work under a vehicle which is resting on a jack.

Warnings and Safety Regulations

Maintenance of air conditioning system

The air conditioning system contains coolant under high pressure. Removal of any parts of the air conditioning system is not permitted. Work on the air conditioning system may only be carried out by qualified personnel.

If the air conditioning fails to work, it must be repaired by a dealer as soon as possible, to avoid further damage to the system.

Environment

Pollution constitutes a serious threat to the environment. To keep pollution to a minimum, the following rules should be observed:

- Do not dump used oil, fuel, lubricants, hydraulic fluid or coolants in drains, sewers, in landfills or on the ground. This is illegal. These fluids should be returned to the designated authority or appropriate chemical waste collection company for recycling or destruction. All used fluids should be stored separately.

- Make sure that the vehicle is serviced regularly according to the instructions and recommendations. A properly serviced vehicle helps to optimise fuel economy and reduce the level of harmful constituents in the exhaust gases.

Warnings and Safety Regulations

TECHNICAL ITEMS OF SPECIAL IMPORTANCE

To prevent damage to the vehicle, the following instructions must be strictly observed.

Running-in

During the running-in period it is best not to subject the new vehicle to excessive loads. This also applies when an overhauled engine, gearbox or differential has been installed. Therefore, for the first 1,500 km (932 miles): drive carefully and avoid accelerating sharply.

The following technical items of special importance apply to both the runningin period and to the period thereafter.

After a cold start continue to drive in a low gear and at a moderate engine speed

until the engine coolant temperature is out of the blue zone. While driving, check the instrument panel regularly and take appropriate action if

you notice anything unusual, such as strange engine and transmission noises, smoke, or poor performance. Do not let the engine idle for longer than necessary.. This is harmful to the engine and also causes unnecessary pollution of the environment.

Be aware that engine stalling while driving will lead to power steering failure. Consequently, the vehicle will be more difficult to steer.

Before switching off the engine after a long trip or when the engine has been subjected to high loading, let it idle for at least 5 minutes. It is important to let the engine run for a while in order to prevent the coolant temperature becoming too high and to allow the turbocharger to cool down.

The engine cooling system is thermostatically controlled.

Warnings and Safety Regulations

Removing the thermostat when the coolant temperature is (too) high serves no useful purpose and is strongly advised against, since this will only cause the engine temperature to rise to an even higher level.

The turbocharger is a precision component. You should therefore immediately report any abnormal noise that seems to be coming from this component.

Air leakage

If the pressure in the ai r reser voirs drops rapidly with the engine switched off, this indicates a leak. Since this affects the safety of the brake system, the leak must be traced and repaired as quickly as possible.

System voltage

The vehicle is equipped with a 24-Volt electrical system. When replacing or fitting electrical or electronic components, always verify that they are suitable for this system voltage.

Batteries

Never disconnect the battery leads while the engine is running!

}

Always charge batteries in a properly ventilated area and avoid sparking and naked flames due to the danger of explosion.

}

Always disconnect the battery earth lead before carrying out repairs or service on the electrical system. Never place tools on a battery. This may cause a short circuit and may even cause the battery to explode.

Warnings and Safety Regulations

Charging

Thaw out frozen batteries before charging them. Remove all the filler caps before charging.

}

Connect the positive lead (+) of the battery charger to the positive terminal (+) of the battery first and then the negative lead (–) to the negative terminal (–). After charging, switch off the battery charger and then disconnect the negative terminal (–) and subsequently the positive terminal (+). For normal charging, the battery leads may remain in place. Fast charging should only be used in an emergency. For "fast charging" both battery leads must be disconnected, otherwise the electronics may become defective.

Battery capacity

Using electrical components, such as the cab heater or refrigerator when the engine is not running, power will be drawn from the batteries. Approximately half the battery capacity is required to start the engine.

If this is the case over a protracted period, particularly during low temperatures, the result may be that the electrics have used so much power that there is not enough to start the engine.

If the larger consumers, such as the cab heater, refrigerator, coffee percolator, microwave oven or tail-lift are used, it is recommended that you obtain batteries of a higher capacity in consultation with your dealer.

Warnings and Safety Regulations

Welding

For welding on the vehicle and/or superstructure, see the "Workshop manual" and "Bodybuilders Guidelines". Not following the welding instructions can cause damage to the electronic components.

Starting with auxiliary batteries

The engine may be started with the aid of jump leads using the power from separate auxiliary batteries (approx. 24 V) or from another vehicle with the engine running (approx. 28 V). When this starting procedure is followed, the battery leads must not be disconnected. Connect the jump leads first to the positive terminal (+) and then to the negative terminal (–). To disconnect, first release the negative terminal (–) and then the positive terminal (+). In the event that the batteries are fully discharged and the engine is running, it is important that the jump leads are not immediately disconnected. The engine must be allowed to run for at least 2 to 3 minutes before the jump leads are disconnected to prevent damage to the electrical system (peak voltage!).

Proceed as follows as soon as the engine starts running:

- switch on as many power consumers as possible (for example: headlights, fog lamps, heater fan, etc.);

- remove the jump leads after the engine has run for 2 to 3 minutes;

- switch off the consumers again.

Never start the engine using a fast charger!

Warnings and Safety Regulations

Mobile telephones and transmitters

If mobile telephones and transmitting equipment are used, the following points must be taken into account:

- Mobile telephones or transmitters must not be used in the vehicle without a

separate outside aerial!

The use of mobile telephones or transmitters without a separate outside aerial may cause excessively high electromagnetic fields in

}

- Moreover, an outside aerial is necessary in order to achieve the maximum range

Note:

It is important to observe the instructions for use of mobile telephones and transmitters!

Original components

In order to meet the warranty conditions and guarantee the service life, safety and reliability, the use of non original components, sensors and engine management units/software is not permitted. The application of engine management software that has not been approved will adversely affect critical systems in terms of the safety of the vehicle, the braking system for instance.

the cab interior (resonance effect). In this case, there may be interference to the operation of the vehicle electronics.

of the equipment.

Warnings and Safety Regulations

AIRBAG SAFETY INSTRUCTIONS

Vehicles equipped with an airbag and seat belt tensioner system can be identified by a sticker with the airbag symbol on the windscreen and the word "AIRBAG" on the airbag unit on the steering wheel. A vehicle equipped with an airbag also has an automatic seat belt tensioner.

Equipment or objects using strong electromagnetic radiation in the vicinity of the airbag or seat belt tensioner system may cause this

}

Work

- The safety precautions laid down must be observed when repairing, removing or

- Do not make any modifications to the airbag and seat belt tensioner system or

- Safety precautions regarding the airbag and seat belt tensioner system must be

- Retrofitting of accessories is only permitted if the accessories have been

system to fail or, in extreme cases, may cause the system to be activated. The use of such equipment or objects in the vicinity of airbag/seat belt tensioner systems is therefore not recommended.

replacing the airbag or seat belt tensioner system or parts thereof. For this reason, have this work carried out by an approved Service dealer or workshop only.

parts thereof. This would cause an injury hazard and correct activation can then no longer be guaranteed.

observed when the vehicle is scrapped or dismantled. approved for vehicles with an airbag and seat bel t tensioner. Installation must

take place at the position indicated and according to the procedure specified by.

Warnings and Safety Regulations

- When replacing the windscreen, observe a longer drying time for the

windscreen sealant. This longer drying time is usually stated on the win dscreen sealant packing/tube. If in doubt, contact an authorized dealer or the windscreen sealant supplier.

- If any welding is required, observe safety precautions for welding jobs.

Operation

- The airbag and seat belt tensioners are activated in the event of a (nearly) head-

on collision when a specific vehicle deceleration is exceeded. The airbag and seat belt tensioners will not be activated when:

- the ignition is switched off.

- the vehicle is involved in a minor head-on collision.

- the vehicle is involved in a lateral collision.

- the vehicle is involved in a tail collision.

- the vehicle overturns.

- The system only provides optimal protection when the seat belt is correctly worn

and the seat, seat belt and steering wheel are well adjusted to the driver.

Do not keep any parts of the body (trunk, hand, head, foot) unnecessarily close to the airbag cover.

}

The space between the driver and airbag must be free. Do not place any animals, objects or persons between the driver and

}

the airbag.

Hold the steering wheel by the outer rim as much as possible to allow unimpeded deployment of the airbag.

}

Warnings and Safety Regulations

Activation

- If the airbag is activated in a collision, a white powder/gas will be released. This is in no way an indication of fire. The powder itself is not health-damaging.

- The airbag and seat belt tensioners can be activated only once. After activation of the system the parts must be replaced by an authorized Service dealer to provide the same protection.

- In the event of a minor collision not causing the airbag and seat belt tensioner system to be activated, it is recommended to have the system checked as yet by an authorized Service dealer.

The airbag fabric could cause slight injur y because of the rapid movement of the airbag during activation. People wearing

}

spectacles and persons smoking when driving run an increased risk of facial injury in a collision involving deployment of the airbag. Usually the injuries are by no means as serious as the injuries that may occur in a collision without airbag and seat belt tensioners.

Avoid touching parts of the airbag shortly after deplo yment of the airbag unit because they may be hot.

}

Warnings and Safety Regulations

Inspections

- The system is only functioning correctly if:

- after turning the ignition on, an airbag message appears on the master display which disappears after approx. 5 to 10 seconds.

- The system is not functioning correctly if:

- after turning the ignition on, no airbag message appears on the master display.

- the airbag message on the master display has still not disappeared after approx. 10 seconds after turning on the ignition.

- the airbag message appears on the master display when driving.

- If the system signals a fault, it will be unable to activate the airbag and/or seat belt tensioners and will therefore not provide extra protection in the event of a collision. Have the fault remedied by an approved Service dealer as soon as possible.

Warnings and Safety Regulations

Maintenance

- Clean the airbag cover only with a dry or damp cloth. If it is heavily fouled, ask an authorized Service dealer for an approved cleaning agent.

Do not stick anything to the airbag cover. Do not treat the cover with a cleaning agent, solvent, grease, paint, lacquer or other

}

substance.

Check that the cover of the airbag unit is not damaged. Do not damage the tear seams or the cover of the airbag unit.

}

- After a maximum of 15 years the main components of the airbag and seat belt tensioner system must be replaced by an authorized Service dealer. This does not apply to the electronic unit, which must be replaced after 10 years.

Sales

- If ownership of the vehicle is transferred, the previous owner must make the new owner aware of the above instructions.

Alarm System

THE SYSTEM

The theft protection system consists of several forms of protection, which each protect the vehicle in a different way:

- The immobiliser (electronic drive-off lock) prevents the engine from being started without the correct key.

Note:

If a vehicle does not have an alarm system but it does have an immobiliser, there will always be a system LED. This LED will flash at a low frequency when the ignition is switched off.

- The acoustic and visual alarms ensure that, as soon as unauthorised persons gain access to the vehicle, this can be seen and heard from outside.

USE OF THE HAND-HELD TRANSMITTER

The alarm system is activated by pressing the button (1) on the hand-held transmitter. The warning lights will come on for 3 seconds.

Do not press the hand-held transmitter buttons unnecessarily hard. Check whether the system is working with the warning lights.

The doors, cab tilting mechanism, interior and loadspace (if th is has an alarm system) are now protected. In addition, the starting option is now locked.

The system LED will flash at a slow rate after approx. 50 seconds.

Alarm System

The system is now fully operational. Ensure that there is nothing in the interior that can cause a false alarm, e.g. moving

objects in the cab. Pressing the button (2) on the hand-held transmitter results in the system

deactivating itself. This is indicated visually by the warning lights lighting up 3 times.

SELF-DIAGNOSIS

The electronic anti-theft system has an extensive self-diagnostic function. Following activation, all detection circuits (for the interior, grille, cab tilting mechanism and doors) are automatically tested.

If a fault is found in one or more of these detection circuits, the affected circuit(s) is (are) switched off. This is made noticeable by a short signal from the siren immediately after activation of the alarm system.

If this signal is heard, first of all check whether the windows and/or doors are closed properly. Turn the alarm system off, close everything carefully and switch on the alarm system again. If the short signal is heard once again, this means that the system is (partially) defective. You should then have the system looked at by your authorized Service dealer.

Alarm System

USE WHEN STAYING IN THE CAB

If people remain in the vehicle, the system may only be activated if the interior protection is switched off. This avoids unnecessary sounding of the alarm. The interior protection is deactivated as follows:

1. Deactivate the alarm system.

2. Press the "Switch off interior detection" switch. See "Cab, instruments and controls". The system LED will come on for approx. 2 seconds.

3. Then activate the alarm system with button (1) on the hand-held transmitter. The interior protection has now been switched off. It is then possible to stay in the cab while retaining the other detection options.

If you want to leave the cabin from time to time, you must turn off the entire system using button (2) on the hand-held transmitter.

Outside the vehicle, you can now make the choice between:

- not activating the alarm system, or

- Activating the alarm system.

On returning to the cabin, you must carry out the procedure once again, to deactivate the interior protection.

Note:

If the interior protection is not activated, the alarm still works on the doors and the cab lock. The start lock is also activated.

Alarm System

DEACTIVATION LOADSPACE DETECTION SUPERSTRUCTURE/TRAILER

If you need to access the loadspace of the superstructure/trailer while retaining the remaining detection options, the system can only be activated if the loadspace detection is switched off. This avoids unnecessary sounding of the alarm. The loadspace detection is deactivated as follows:

1. Deactivate the alarm system.

2. Press the "Switch off loadspace detection superstructure/trailer" switch. See

"CAB, INSTRUMENTS AND CONTROLS". The system LED will come on for approx. 2 seconds.

3. Then activate the alarm system with button (1) on the hand-held transmitter. The

loadspace detection has now been switched off. It is then possible to stay in the loadspace while retaining the other detection options.

To protect the loadspace again, the alarm system should first be switched off and then back on again.

Alarm System

THE SYSTEM LED

If the LED is off (A), the vehicle may be started. If the LED flashes slowly (B), the alarm system has been activated. If the LED flashes quickly (C), a self-test will be carried out or an error message is given by means of a flashing code.

D000483

If the system raised an alarm, the cause can be determined via the system LED by reading the flashing code (C). This indication is displayed for 30 seconds after the system has been deactivated with button (2) of the hand-held transmitter.

Flashing code Circuit

2 Ultrasonic, interior detection 3 Detection, driver's door 4 Cab detection approximation switch 5 Power supply after contact 6 Superstructure/trailer loadspace detection 8 Superstructure/trailer loadspace detection

9 Interrupted wire 10 Detection, co-driver's door 11 Radar sensor, interior detection

Alarm System

LOSS OF HAND-HELD TRANSMITTER

If you lose a hand-held transmitter, you must replace it as soon as possible. When replacing it, the lost transmitter can be rendere d un us a ble by eras ing the code from the central door locking memory. Without hand-held transmitters, the alarm system can only be switched off by turning on the ignition.

SYSTEM DOES NOT RESPOND TO HAND-HELD TRANSMITTER

If the system does not respond to the hand-held transmitter, the following tips may provide a solution:

1. Check whether the battery of the hand-held transmitter is still working. This is indicated by whether or not the LED on the hand-held transmitter lights up.

2. If there is a strong radio transmitter in the area, the range of the hand-held transmitter can be considerably less. Operate the hand-held transmitter as close as possible to the electronic unit. It is located at the front of the vehicle, on the driver's side.

3. If the system does not respond to the transmitter at all, you can switch off the alarm system by opening the vehicle with the ignition key and then starting it. The alarm system cannot be activated with the ignition key.

Alarm System

BATTERY, HAND-HELD TRANSMITTERS

Recommendation: Ensure that two spare batteries (type CR 1620, 3V) are

available at all times. Depending on the use, the battery life is be tween 3 and 12 months.

MAINTENANCE

Have the alarm system checked at least once per year by your authorized Service dealer. This guarantees optimum protection.

Watch the ultrasound sensors on both sides of the roof box. Make sure that they do not come loose or are pointed in a different direction. Ensure that the sensors have an "unrestricted view"; they must not be blocked by objects that might interfere with their operation. Prevent the sensors from coming into contact with moisture or dirt.

DISCONNECTING THE VEHICLE BATTERY

If the battery has to be disconnected without activating the signal horn, the alarm system should first be switched off using button 2 on the hand-held transmitter.

Cab, Instruments and Controls

CAB

The LF series has two cab versions:

D cab. Day cab S-cab. Sleeper Cab

D0 00 632

ENTERING AND LEAVING THE VEHICLE

To get into and out of the cab, use the grab handles on the left and right-hand door pillars and not the steering wheel. Also use all the steps and always face the cab when getting in or out.

Cab, Instruments and Controls

DOORS

Do not drive the vehicle if the doors are not properly closed and locked!

}

Opening the door

D0 00 604

Pull the handle to open the door from the inside.

D0 00 611

Cab, Instruments and Controls

Locking the door from the inside

Press the door handle downwards.

Standard version

Both doors can be locked and unlocked from the outside using the key.

Central door locking

Unlocking

To open the doors of a vehicle with central door locking, use the same procedure as described above.

The door on the co-driver's side can be locked/unlocked using the switch on the centre console.

Locking

- Both doors are locked when one of the doors is closed with the key.

- To lock the doors from the inside, press button (B).

- If an alarm system has been installed, it will be activated if the doors are locked using the hand-held transmitter.

- Avoid locking yourself out!

Cab, Instruments and Controls

D0 00 585

ELECTRICALLY OPERATED WINDOWS

The switches only work when the ignition is switched on. The driver's and co-driver's windows can be opened and closed with the switches in the driver's door. The switch in the co-driver's door can only open and close the codriver's window.

Cab, Instruments and Controls

D0 00 586

MIRRORS

To adjust the mirrors, the cover must first be removed.

The clamping bolts must then be slackened.

D0 00 577

The mirror bracket can be folded back against the cab and will return to its original position once the bracket is swung out again.

Cab, Instruments and Controls

On some models there is an extra wide angle mirror on the co-driver's side, in addition to the kerb view mirror, which gives the driver a better view of the drawn vehicle.

D0 00 612

ELECTRICAL MIRROR ADJUSTMENT

The electric mirrors can be adjusted by means of the switch in the driver's door. Select the right or left mirror by turning the button either to the right or left position. Move the switch forwards, backwards, left or right, to adjust the mirror.

WINDSCREEN WIPER BLADES

To prevent damage to the wiper blades during operation in winter conditions, always check that the blades are not frozen to the windscreen. This can be prevented by placing something between wiper blades and windscreen. Switch off the windscreen wipers before turning off the ignition.

Cab, Instruments and Controls

Clean the wiper blades regularly with water and dry them with a soft cloth.

BUNKS

Depending on the cab type, there is a bunk behind the seats. This bunk can fold down or can be stored with the belts provided on the sides of the cab. There are three lockable storage compartments under the bunk.

D000565

ROOF CONSOLE - ODDMENTS SHELVES

In the roof console there are three pigeon holes, which are protected by a half-h i gh safety net. Do not place any heavy objects in these pigeon holes and ensure that any objects are constrained and unable to move freely.

Cab, Instruments and Controls

D0 00 603

TOOL BOXES/STORAGE COMPARTMENTS

Under the bunk or behind and between the seats (depending on the cab type), there are storage compartments that can be closed with a covering flap.

D0 00 582

Cab, Instruments and Controls

ROOF HATCH Manual control

The manually operated roof hatch can be opened on both sides by countering the resistance met.

Electrical operation (optional)

The electrically operated roof hatch is opened and closed using a switch on the roof console.

ADJUSTING ROOF SPOILER

Note:

Correct adjustment of the roof spoiler is essential to minimise fuel consumption.

1. Place the vehicle on a level and horizontal surface. Make sure that in the case of

D001033

a tractor/semi-trailer combination the tractor is straight in front of the semi-trailer.

2. Determine the centreline of the vehicle and put a slat on the superstructure roof protruding into the cab direction.

Cab, Instruments and Controls

3. Both slats should cross at half the distance (∂ X) between the roof spoiler edge

D001032

and the start of the superstructure. The roof spoiler height can be adjusted using adjusting mechanism (B).

P B

D001031

4. Put another slat (as a tangent) onto the outer roof spoiler edge (P) pointing into

the direction of the superstructure.

Cab, Instruments and Controls

SUN VISORS

As a protection against sun glare, the sun visors can be folded down. The sun visor on the driver's side can also serve as a side window shade.

STEPWELL LIGHTING

In both doors, a lamp is fitted at the bottom to light the stepwell. This will light up as soon as the door is opened.

Cab, Instruments and Controls

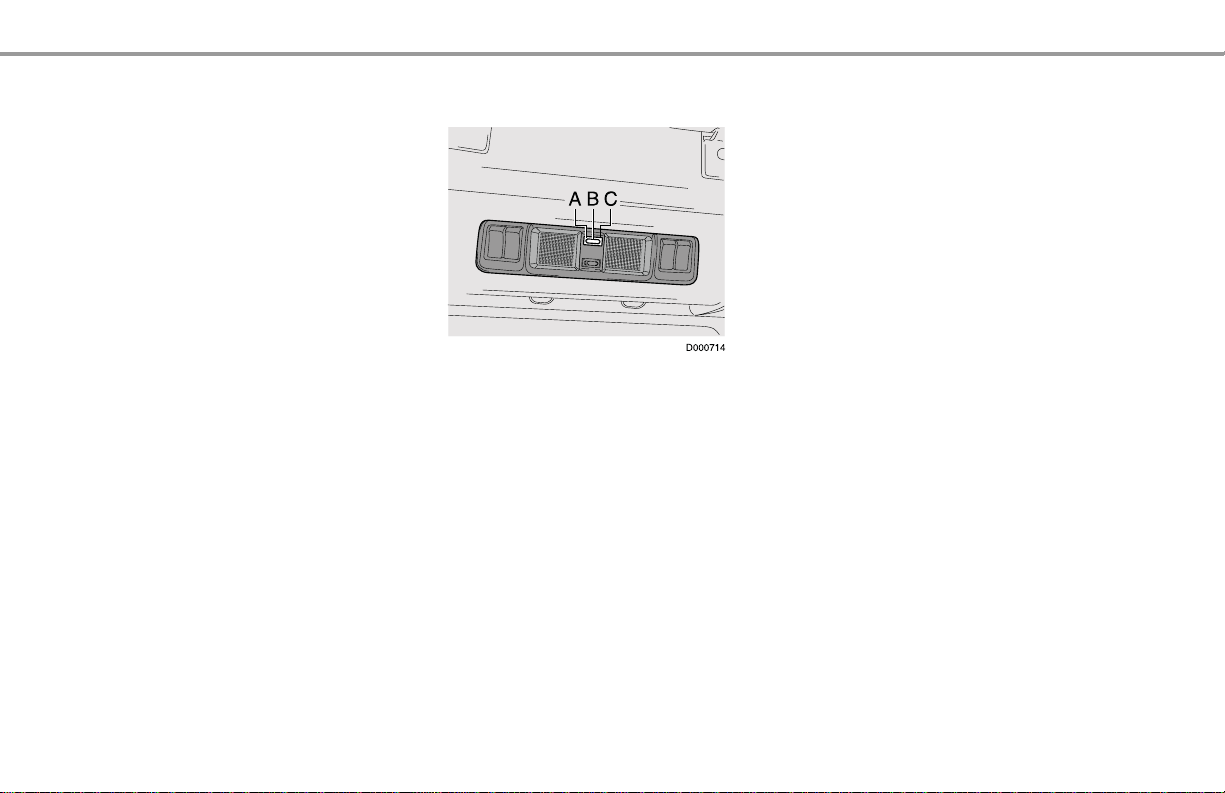

INTERIOR LIGHTING

A The lights come on when a door is opened. B Lights switched off. C Lights on all the time.

The interior lighting operates independently of the position of the ignition key. The cab lighting also includes a map reading lamp. It can be switched on by

operating the bottom on/off switch.

Cab, Instruments and Controls

D0 00 573

BUNK LAMP

If the vehicle is equipped with a sleeper cab, there is a bunk lamp over each seat, each with its own on/off switch.

Cab, Instruments and Controls

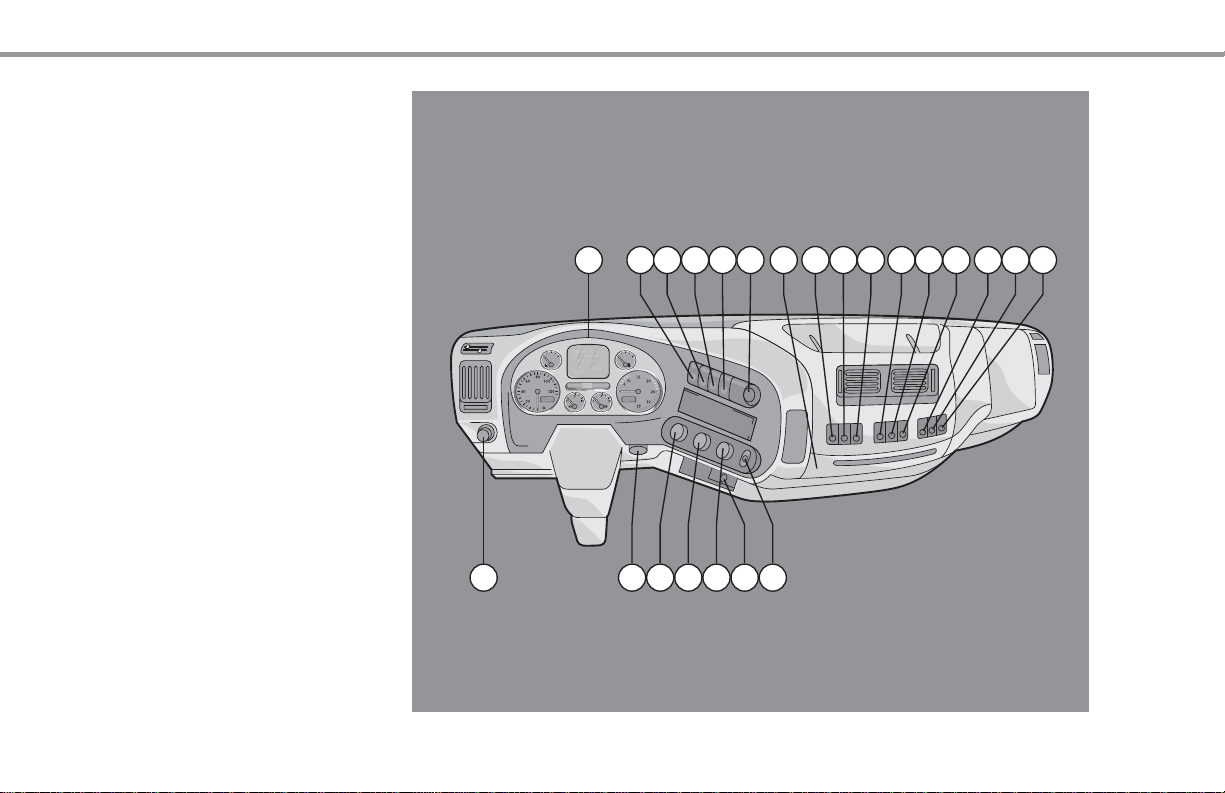

DASHBOARD

Cab, Instruments and Controls

1 2 7 98

! !

3 4 5 6

2021

1819

10 11 12 13 14 15 16

D0 00 708

Cab, Instruments and Controls

1 Instrument panel 2 Dimmer, dashboard lighting 3 Differential lock 4 Vehicle speed limiter 5 Front/rear fog lights 6 Menu selection switch 7 Ashtray with 24V lighter 8 Hazard warning lights 9 Work lamp/loadspace lighting 10 Mirror/windscreen heating 11 Suppression switch, reversing alarm 12 Electrical master switch, transport of hazardous materials 13 Door lock, co-driver's side 14 Not in use 15 PTO operation 16 Switching off loadspace detection, superstructure/trailer 17 Air conditioning 18 12-V connection 19 Heater, fan speed selector switch in fresh air position or re-circulation

position 20 Heater, temperature control 21 Heater, air distribution selector switch 22 Headlamp height adjuster 23 Lighting switch

Cab, Instruments and Controls

INSTRUMENT PANEL

C B

! !

F G I H J K E

D0 00 634

Cab, Instruments and Controls

A Speedometer B Fuel gauge C Master display D Coolant temperature gauge E Rev counter F Reset button, trip odometer G Odometer and trip meter H Warning indicators I Air pressure gauge, circuit 1 J Air pressure gauge, circuit 2 K Outside temperature and clock

Cab, Instruments and Controls

A. SPEEDOMETER

Depending on the vehicle model, the speedometer has a single scale division in km/ h or a double scale division in km/h and mph.

B. FUEL GAUGE

The fuel gauge only operates when the contact is on. Factor in the delay on the gauge when the contact is turned on.

C. MASTER DISPLAY

See "MASTER DISPLAY".

D. COOLANT TEMPERATURE GAUGE

The engine should not be operated under full load if the temperature is in the blue field. The engine is at operating temperature when the temperature gauge is vertical, or slightly further. If the coolant temperature suddenly rises and/or the pointer is in the red field, the following points should be checked:

- the coolant level (caution – danger of scalding; see "Topping up coolant" in "INSPECTIONS AND MAINTENANCE");

- the poly V-belt and water hoses;

- the fan clutch.

E. REV COUNTER

Green area: economical White: less economical Blue area: only permitted when driving downhill and for optimal use of the engine brake Red area: not permitted

Cab, Instruments and Controls

F. TRIP METER RESET BUTTON

The trip meter is set to zero with the reset button.

G. ODOMETER AND TRIP METER

The total distance is displayed in "km" or "mls" in the top section of the display.

H. WARNING INDICATORS

See section concerned.

I. and J. AIR PRESSURE GAUGE, CIRCUITS 1 AND 2

Each gauge indicates the air pressure in the reservoirs of one of the service brake circuits. If the pressure in one of the circuits drops below approx. 5 bar, an acoustic signal is generated and the warning symbol "Air system pressure too low" will illuminate in the master display. When the pressure is higher than 7 bar, the brakes can be released with the parking brake le ve r. Th e acoustic signal and warning symbol are only generated when the contact is on. The gauges also operate when the contact is off. The vehicle must not be driven when the acoustic signal sounds or when the pressure in one of the circuits is lower than approx. 5 bar.

K. OUTSIDE TEMPERATURE AND CLOCK

The display is activated when the contact is on. The clock is shown in the top section of the display. The outside temperature is displayed in the bottom section in C or F.

Cab, Instruments and Controls

WARNING INDICATORS

5 1

4 3 2 1 6 1 2 3 4 5 6 4 3

D0 00 786

Cab, Instruments and Controls

A1 Tachograph fault A2 Front fog light A3 Rear fog light A4 Parking brake A5 Chassis not at normal driving level A6 Work lamp/loadspace lighting B1 Fuel level low E1 Glow system E2 Differential lock E3 PTO E4 ASR H1 Left direction indicator, prime mover H2 Left direction indicator, trailer H3 Main beam H4 Central "STOP" warning indicator H5 Right direction indicator, trailer H6 Right direction indicator, prime mover

Cab, Instruments and Controls

A1. Tachograph fault

See "Messages" in "Tachograph" operating manual.

A2. Front fog light

This warning indicator lights up if the front fog lights are switched on.

A3. Rear fog light

This warning indicator lights up if the rear fog lights are switched on.

A4. Parking brake

This warning indicator lights up if the parking brake is applied, or when the pressure in the air system is too low to enable the parking brake to be released.

A5. Chassis not at normal driving level

This warning indicator stays on continuously if the chassis is not at normal driving height or when traction control is in operation.

A6. Work lamp/loadspace lighting

The warning indicator lights up when the work lamp/loadspace lighting is switched on.

Cab, Instruments and Controls

B1. Fuel level low

This warning indicator lights up when the reserve fuel level is reached. The fuel reserve then is about 10% of the tank capacity. Refuel as soon as possible.

E1. Glow system operating

If the contact is on, the electronic unit automatically determines the necessary preglowing and afterglowing times. The necessary preglowing and afterglowing times depend on the temperature that is measured by the electronic unit of the engine management system. If the preglowing or afterglowing function is activated by the electronic unit, this warning indicator lights up.

E2. Differential lock switched on

This warning indicator lights up when the differential lock is switched on.

E3. PTO engaged

This warning indicator lights up when the PTO is switched on.

E4. ASR

This warning indicator lights up if the ASR is active.

Cab, Instruments and Controls

H1. Left direction indicator, prime mover

This warning indicator flashes together with the direction indicators on the prime mover.

H2. Left direction indicator, trailer

On a truck/trailer or truck/semi-trailer combination, this warning indicator starts flashing as soon as the direction indicators are switched on.

H3. Main beam

This warning indicator lights up if the main beam is switched on or the headlight flash is operated.

H4. Central "STOP" warning indicator

The central "STOP" warning light lights up when there is a serious fault in one of the vehicle functions. The master display shows which vehicle function has triggered the warning.

If the "STOP" warning indicator lights up and/or the buzzer is audible while driving, the vehicle must be stopped as soon as

}

possible, parked in a safe place and the engine switched off. Have an authorized Service dealer correct the problem as soon as possible.

Cab, Instruments and Controls

H5. Right direction indicator, trailer

On a truck/trailer or truck/semi-trailer combination, this warning indicator starts flashing as soon as the direction indicators are switched on.

H6. Right direction indicator, prime mover

This warning indicator flashes together with the direction indicators on the prime mover.

Cab, Instruments and Controls

CONTROL PANEL

! !

2 3 4 5 6

21 20

19 18 17

D0 00 705

Cab, Instruments and Controls

2 Dimmer, dashboard lighting 3 Differential lock 4 Not in use 5 Depending on the version:

- rear fog light

- front and rear fog lights 6 Master display menu selection switch 17 Air conditioning 18 12-V connection 19 Heater, fan speed selector switch in fresh air position or re-circulation

position 20 Heater, temperature control 21 Heater, air distribution selector switch 22 Headlamp height adjuster 23 Lighting switch

Cab, Instruments and Controls

2. DIMMER, DASHBOARD LIGHTING

When the lighting is switched on, the dashboard lighting will also illuminate. The setting wheel enables dimming of the lighting.

3. SWITCH FOR CROSS-AXLE DIFFERENTIAL LOCK

The cross-axle differential lock can be activated with this switch.

Note:

This switch has a lock. The differential lock should be engaged:

- with the vehicle stationary or moving very slowly;

- with the clutch pedal depressed.

Note:

For vehicles with automatic gearbox, the vehicle must be stationary and the gearbox in Neutral (N).

CONTROL PANEL OF HEATING/VENTILATION SYSTEM

21 20 19 17

17 Air conditioning 19 Fan speed selector switch in fresh air or re-circulation position 20 Temperature adjustment 21 Air distribution

D0 00 672

Cab, Instruments and Controls

17. AIR CONDITIONING

See "AIR CONDITIONING SWITCH"

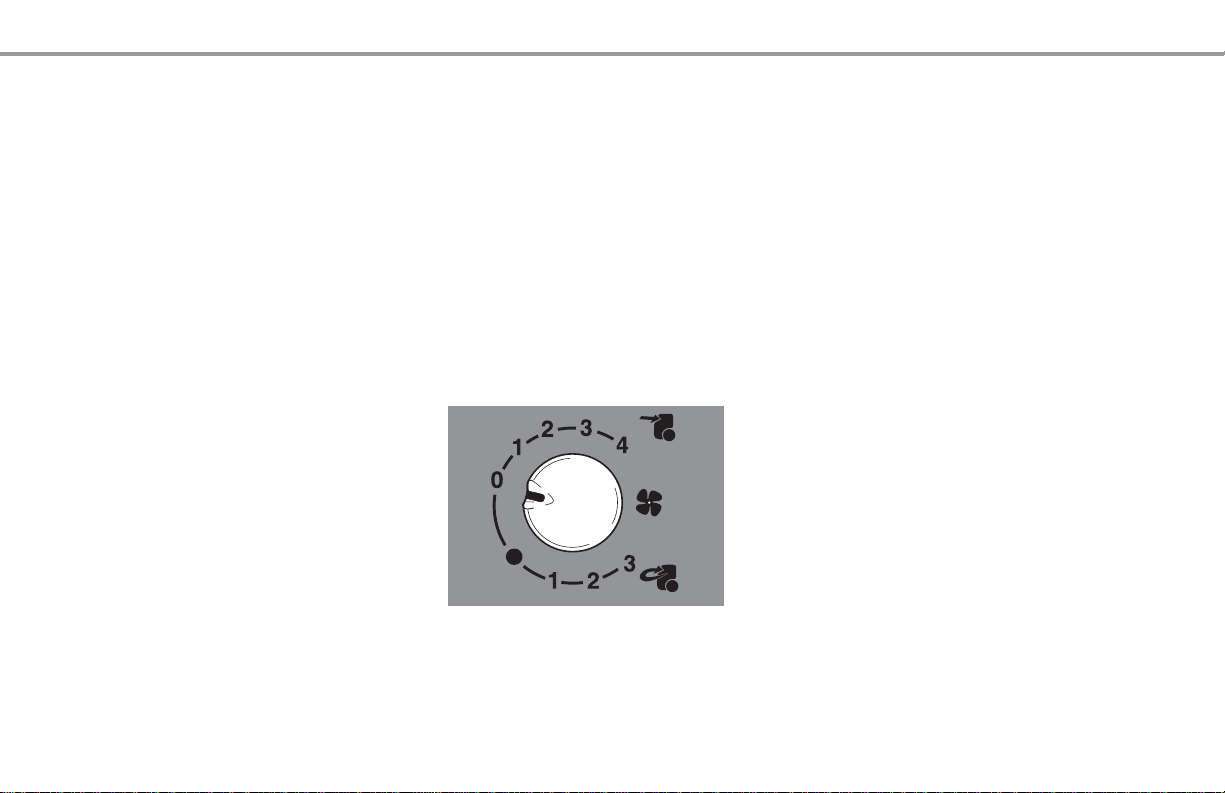

19. FAN SPEED

See "FAN SPEED SELECTOR SWITCH"

20. TEMPERATURE CONTROL

See "TEMPERATURE CONTROL"

21. AIR DISTRIBUTION

SEE "AIR DISTRIBUTION SELECTOR SWITCH"

D0 00 566D0 00 566

AIR CONDITIONING SWITCH

The cab air can be heated, cooled or dehumidified using the air conditioning unit. The air conditioning unit only functions if:

- the engine is running 71

Cab, Instruments and Controls

- the fan is running.

Use of the air conditioning

1. When the air conditioning is in use, the windows must remain closed.

2. To reduce the temperature quickly, first use maximum air speed. Later, the air speed can be reduced.

3. Avoid direct cold or draught on your body. Do not aim the air vents directly at your body.

4. Make sure that the temperature difference between the inside and outside of the cab does not exceed 5 C when you leave the cab. You are therefore advised to switch off the air conditioning towards the end of your journey.

5. Air conditioning consumes extra power and increases the fuel consumption.

6. On extreme angles (slopes, ruts and difficult terrain) switch off the air conditioning, to protect the compressor pump against unlubricated operation.

7. Regularly (once a month) switch on the air conditioning briefly, even if cooling is not required (e.g. in winter). This will prevent serious damage being caused to the system (including compressor blockage).

Cooling

1. Switch the air conditioning on.

2. Switch the recirculation to position 1, 2 or 3.

3. Turn the temperature control switch to the desired position. For maximum cooling set the knob to the far left position in the blue area.

4. Open the side and centre vents.

While heating, it is possible to use the air conditioning to remove moisture from the air in the cab. This has the advantage that demisting of the window glass will be quicker.

Dehumidification

1. Switch the air conditioning on.

2. Switch off the recirculation.

3. Open the vents on the centre console and at the side windows and set them as desired.

Cab, Instruments and Controls

4. Control the temperature as desired.

5. Adjust the volume of air using the fan speed selector switch.

Note:

The air conditioning system is switched off when the engine coolant temperature becomes too high. This will protect the engine.

The air conditioning system contains coolant under high pressure. Removal of any parts of the air conditioning system is not

}

Note:

If the air conditioning system fails to work properly, it must be repaired by qualified personnel as soon as possible, to avoid further damage to the system.

permitted. Work on the air conditioning system may only be carried out by qualified personnel.

D0 00 644

FAN SPEED SELECTOR SWITCH

FRESH AIR POSITION OR RE-CIRCULATION POSITION

Cab, Instruments and Controls

The fan has two speeds: one applies to re-circulation the other to fresh air. The recirculation position is suited to quickly de-mist or cool the cab with the air conditioning, quickly heat the cab, de-frost the windows with the heater and keep out undesirable odours.

Note:

You are advised to switch on the re-circulation without air conditioning fo r short periods only to prevent the air quality inside the cab degrading and moisture increasing.

Fan speeds with fresh outside air ventilation valve open

Fan speeds with re-circulation valve closed, hardly any supply of fresh outside air

D0 00 614

TEMPERATURE ADJUSTMENT

The supply of heat can be smoothly set from 0% (blue) to 100% (red).

Cab, Instruments and Controls

To achieve faster heating when the temperature outside is low, switch on the recirculation. In damp weather conditions it is recommended to reopen the recirculation flap after heating to prevent the windows from misting.

Cab, Instruments and Controls

AIR DISTRIBUTION SELECTOR SWITCH

D0 00 643

Dashboard

Dashboard vents and footwell

Footwell vent

Footwell and windscreen vents

Windscreen

Cab, Instruments and Controls

CENTRE CONSOLE

Cab, Instruments and Controls

7 8 9

10 11 12 13 14 15 16

D000706-2

Cab, Instruments and Controls

7 Ashtray with 24V lighter 8 Hazard warning lights 9 Work lamp/loadspace lighting 10 Mirror/windscreen heating 11 Suppression switch, reversing alarm 12 Electrical master switch, transport of hazardous materials 13 Door locking, co-driver's side. 14 Auxiliary heater indicator 15 PTO operation 16 Deactivating the superstructure/drawn vehicle loadspace detection

Cab, Instruments and Controls

7. ASHTRAY

In the centre console is an ashtray with lighter for the driver and co-driver. The lighter plug can also be used as a 24V power supply for a 24V inspection lamp, for example. Do not connect any consumer above 180 Watt. To remove the ashtray, there are two springs on the top of the tray which should be pressed in, after which the tray can be removed.

8. HAZARD WARNING LIGHTS

When this switch is pressed, all the direction indicator lights flash simultaneously. The hazard warning lights are switched off by depressing the switch again. The warning light in the switch indicates that the hazard warning is switched on.

9. WORK LAMP/LOADSPACE LIGHTING

This switch operates the lighting at the rear of the cab or in the loadspace.

10. MIRROR/WINDSCREEN HEATING

With the switch for mirror/windscreen heating in the centre console, the exterior mirrors (excluding the kerb mirror) and the windscreen heating, if fitted, can be heated. When you press the switch again, the mirror heating is switched off while the windscreen heating remains active for about 12 minutes. If you press the switch again within 12 minutes, the windscreen heating is switched off and the mirror heating is switched on again. Operate the switch once more to switch everything off.

Cab, Instruments and Controls

11. SUPPRESSION SWITCH, REVERSING ALARM

With this switch, the reversing alarm can be switched off when reversing. The following time you engage reverse, the alarm will sound again.

12. ELECTRICAL MASTER SWITCH, TRANSPORT OF HAZARDOUS MATERIALS Depending on the (country) version, this switch - in combination with the maste r switch outside the cab (usually in the area of the battery pack) - can deactivate the

vehicle's electrical system (with the exception of the tachograph).

Take care not to deactivate the vehicle's electrical system with this switch during NORMAL DRIVING!

{

Note:

The master switch can be switched on and off with this switch. The engine must be switched off when the main switch is operated. Avoid inappropriate use. The master switch outside the cab can always be operated manually to deactivate the vehicle's electrical system. Read the instructions on or near the master switch. Always deactivate the vehicle's electrical system when the vehicle is parked.

13. DOOR LOCKING AT CO-DRIVER'S SIDE

See "DOORS".

Cab, Instruments and Controls

14. AUXILIARY HEATER INDICATOR

See "AUXILIARY CAB HEATER (AIR HEATING)"

15. PTO OPERATION

With this switch, the Power Take Off can be engaged, if necessary in combination with the variable speed engine control. Engage the PTO only when the programmed engaging conditions are met.

16. SWITCHING OFF LOADSPACE DETECTION SUPERSTRUCTURE/TRAILER

See "ALARM SYSTEM".

Cab, Instruments and Controls

ROOF CONSOLE

1 2 3 4

1 Electric roof hatch 2 Rotating beacon 3 Switch "switch off cab interior detection" 4 Alarm system LED

D0 00 589

Cab, Instruments and Controls

1. ELECTRIC ROOF HATCH

This switch opens and closes the optional roof hatch (partially).

2. ROTATING BEACON

If fitted, the rotary beacons on the roof of the cab can be operated with this switch.

3. SWITCH "SWITCHING OFF THE CAB INTERIOR DETECTION"

For operation of this switch, see "ALARM SYSTEM".

4. ALARM SYSTEM LED

This is where, on a vehicle with built-in vehicle alarm, there is a system LED that shows whether the alarm system is active; see "ALARM SYSTEM".

Cab, Instruments and Controls

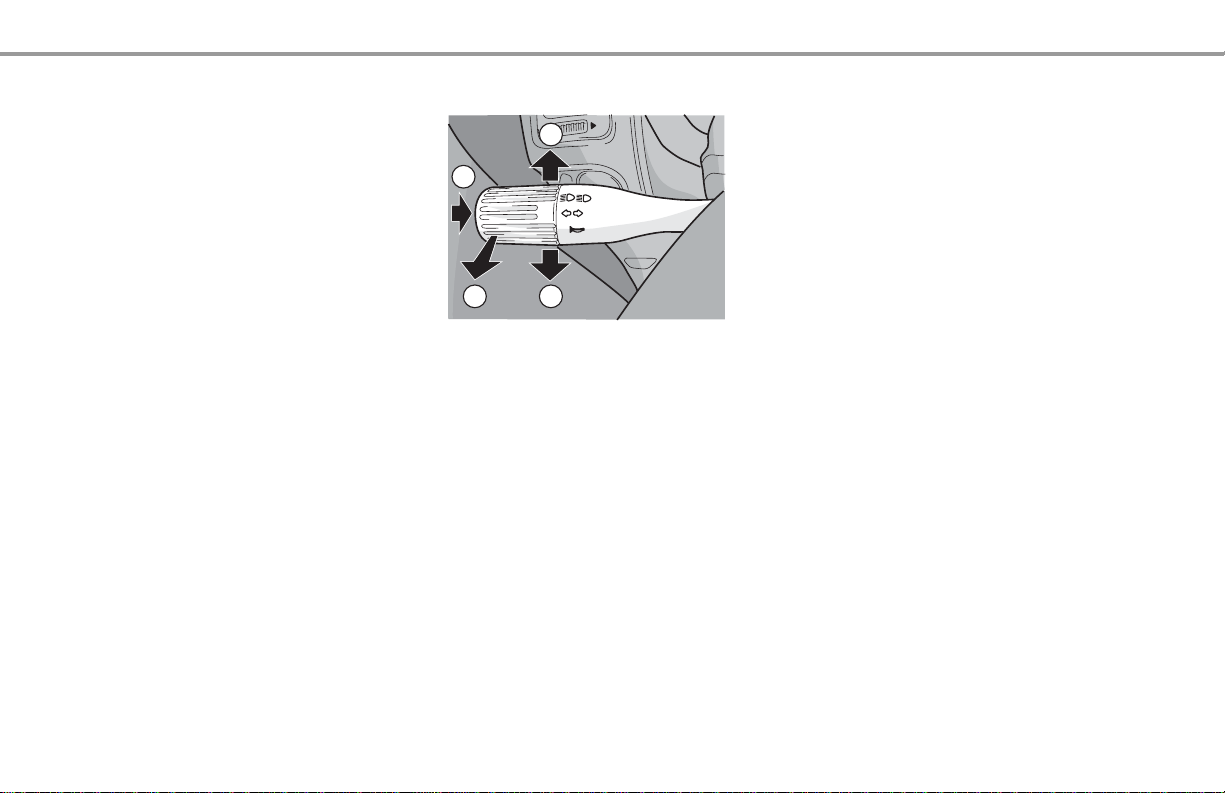

LEFT-HAND STEERING COLUMN SWITCH

B D

AHorn B Main beam C Direction indicator, right D Direction indicator, left

A. HORN

The horn is operated with button A.

B. MAIN BEAM

Position B: The main beam is activated when the lights are on. The main beam indicator on the instrument panel will also light up. To switch off the main beam, the switch must be turned back through the "click" position towards the steering wheel. If the lights are off, or if the switch has not been pushed through the "click" position, it can be used to give signals.

D0 00 600

C. DIRECTION INDICATOR, RIGHT

Position C: Right turn signal: on the instrument panel, the right direction indicator will flash and there will also be an audible signal. To briefly operate the direction

Cab, Instruments and Controls

indicators (changing lanes, etc.), the switch can be pushed slightly against the spring pressure. It will spring back when released.

D. DIRECTION INDICATOR, LEFT

Position D: Left turn signal: on the instrument panel, the left direction indicator will flash and there will also be an audible signal. To briefly operate the direction indicators (changing lanes, etc.), the switch can be pushed slightly against the spring pressure. It will spring back when released.

Cab, Instruments and Controls

RIGHT-HAND STEERING COLUMN SWITCH

OFF

RES

SET

1 2

D0 00 601

The right-hand steering column switch has the following functions:

1 Position 1: Intermittent wipe. 2 Position 2: Wipe speed (low). 3 Position 3: Wipe speed (high). 4 Position A: Wipe/wash. 5 Switch B: On/off switch, engine speed control and cruise control. 6 Switch C: Set, Resume, increase/decrease the pre-set value of the vehicle

controls.

7 Switch D: Extra Resume function of the engine speed control and cruise

control.

For operation of the engine speed control and cruise control, see "DRIVING".

Cab, Instruments and Controls

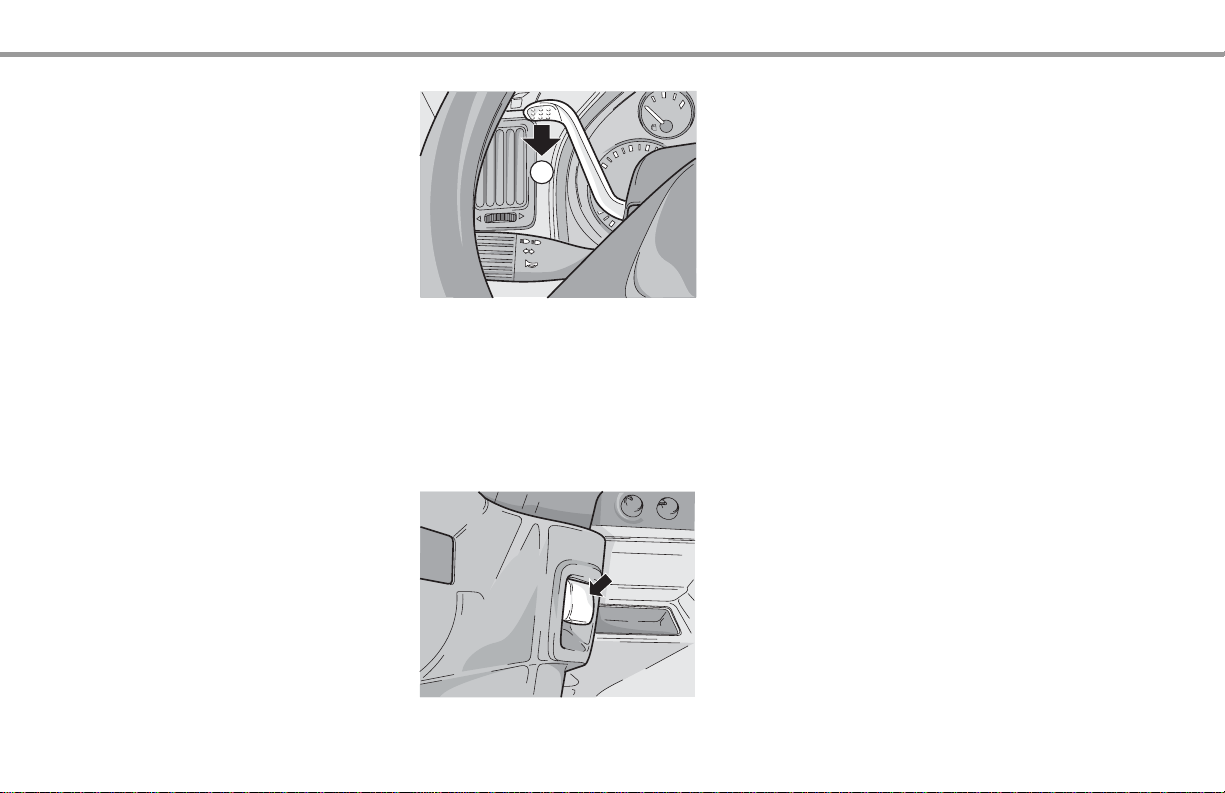

D0 00 720

STEERING COLUMN SWITCH, ENGINE BRAKE

The engine brake control is activated by placing the stalk in position A. To apply the engine brake, see "DRIVING".

D0 00 616

Cab, Instruments and Controls

ADJUSTABLE STEERING COLUMN

The position of the steering column is adjustable. For adjustment, pull the handle towards you and simultaneously move the steering column to the desired position. The steering column is locked by releasing the handle. A pneumatically adjustable steering column is available as an option. This is operated by a foot/heel switch to the left underneath the driver's seat.

The steering column may only be adjusted while the vehicle is stationary.

}

AUXILIARY CAB HEATER (AIR HEATING)

The auxiliary heater must be switched off when filling the tanks with fuel. Switch off the auxiliary heater when leaving the cab for a

}

The auxiliary heater warms the air in the cab and works independently of the vehicle heating system and contact. The temperature in the cab is thermostatically controlled. This thermostat also controls the speed of the built-in fan. The auxiliary heater has a memory into which three different switch-on times can be programmed. Pre-programming the switch-on time up to seven days in advance is possible.

longer period of time. Do not switch on the auxiliary heater if the vehicle is in an enclosed space. Make sure that the preprogrammed switch-on time does not coincide wi th a period in which the vehicle is in an enclosed space.

Cab, Instruments and Controls

Webasto

A B C D E F G

The operating panel of the auxiliary cab heater is in the rear wall of the cab. A Display

B Time setting C Program selection D On/off E Decrease setting F Increase setting G. Adjustab le thermostat

Activation with vehicle contact off

1. Briefly press button (D). The display (A) and the buttons will light up. The burner symbol and the standard set burning time are shown in display A. The heating is activated; the auxiliary heater indicator in the centre console will light up.

2. The set burning time can be shortened with button (E) to a minimum of 1 minute and increased with button (F) up to a maximum of 120 minutes.

3. The desired temperature can be set using rotary switch (G). The setting range lies between 10 C and 30 C.

D0 00 572

Switching off

1. Press button (D). The display and button illumination will be switched off.

Cab, Instruments and Controls

2. The heater fan remains in operation for approximately 3 minutes to cool the

heater.

Adjusting the standard set burner time

1. The heater must not be running.

2. Press and hold button (E) until the set operating time flashes.

3. Release button (E).

4. Set the desired standard operating time using the buttons (E) and (F) (from 10 -

120 minutes). When the set operating time disappears, it has been stored.

Activation with vehicle contact on

1. Briefly press button (D). The display (A) will show the burner symbol with the

time and day. The heating is activated; the auxiliary heater indicator in the centre console will light up.

2. The desired temperature can be set using rotary switch (G). The setting range

lies between 10 C and 30 C.

3. The heating remains in operation as long as the vehicle contact is on.

4. After turning off the vehicle contact, the heating remains operational for 15

minutes. This time can be reduced with button (E) to a minimum of 1 minute and increased with button (F) to a maximum of 120 minutes.

5. The heater fan remains in operation for approximately 3 minutes to cool the

heater.

Deactivation with vehicle contact on

1. Press button (D). The display and button illumination will be switched off.

2. The heater fan remains in operation for approximately 3 minutes to cool the

heater.

Setting the time/date

1. Press and hold button (B) until the display starts flashing (after approx. 3 sec.).

2. Set the time with the buttons (E) and (F). Once the time has stopped flashing, it

has been stored.

3. The day will start flashing.

Cab, Instruments and Controls

4. Set the day with the buttons (E) and (F). Once the day has stopped flashing, it has been stored.

5. Press button (B). The setting procedure is complete.

Note:

If the day does not need to be set, press button (B) twice after setting the time.

Programming the switch-on time

It is possible to program three switch-on times in the coming 24-hour period or one switch-on time in the coming 7 days.

Selecting the memory position

1. Press button (C) once for the first memory position. Digit 1 and the default time setting (12.00) will appear in the display.

2. Press button (C) twice for the second memory position. Digit 2 and the default time setting (12.00) will appear in the display.

3. Press button (C) three times for the third memory position. Digit 3 and the default time setting (12.00) will appear in the display.

4. Press button (C) until the memory display disappears.

Programming the switch-on time for the coming 24 hours

1. Select a memory store.

2. Briefly press button (E) or (F). The time will start flashing.

3. Set the desired switch-on time with the buttons (E) and (F). Setting is only possible when the time is flashing. The switch-on time has been stored in the memory when the time is no longer flashing.

4. Press button (C) to select another place in the memory, or wait until the display shows the current time. This completes the programming.

5. The activated memory store is visible in the display. The burner symbol is also flashing as a sign that the switch on-time has been programmed.

Cab, Instruments and Controls

Programming the switch-on time for the coming 7 days

1. Select a memory store.

2. Briefly press button (E) or (F). The time will start flashing.

3. Set the desired switch-on time with the buttons (E) and (F). Setting is only

possible when the time is flashing. The switch-on time has been stored in the memory when the time is no longer flashing.

4. After approx. 5 seconds, the day begins to flash. Set the desired day with the

buttons (E) and (F). Programming is completed when the display shows the current time.

5. The activated memory store is visible in the display. The burner symbol is also

flashing as a sign that the switch on-time has been programmed.

Deleting the programmed switch-on time

1. Select the memory store with button (C).

2. Press and hold button (C) until the time has been deleted.

Faults

If there is a fault, the burner symbol will flash and a fault code will be shown. In some cases a fault can be reset by switching the heating off with button (D) and then quickly on again. If the fault is not reset, turn the auxiliary heater off and have the heating inspected by your authorized Service dealer.

Note:

To prevent faults during cold weather, turn the auxiliary heater on for 10 to 15 minutes once a month during the summer. If necessary, install a separate fuel tank for the auxiliary heater.

Note:

On vehicles certified for transportation of hazardous materials, you can only switch on and off the auxiliary heater manually. It is not possible to program the switch-on time.

Cab, Instruments and Controls

Seats

IMPORTANT POINTS

The driver's seat must only be adjusted when the vehicle is stationary. All adjustments may only be carried out when the seat is

{

- You must read this section thoroughly and acquaint yourself with the seat

- The vehicle air pressure must be a minimum of 7 bar.

- Never operate several controls at once.

- The armrest should be folded away before entering/leaving the vehicle.

- The co-driver's seat is not suitable for a child's seat.

- The seat fixings and component parts must be checked for wear from time to

- The seat may only be repaired and fitted by trained personnel.

occupied. The seat belt must audibly click shut.

controls.

time.

Seats

SEAT SETTINGS

Note:

In case of an air-spring seat, ensure that the seat does not rub against the rear cab wall when it has been set.

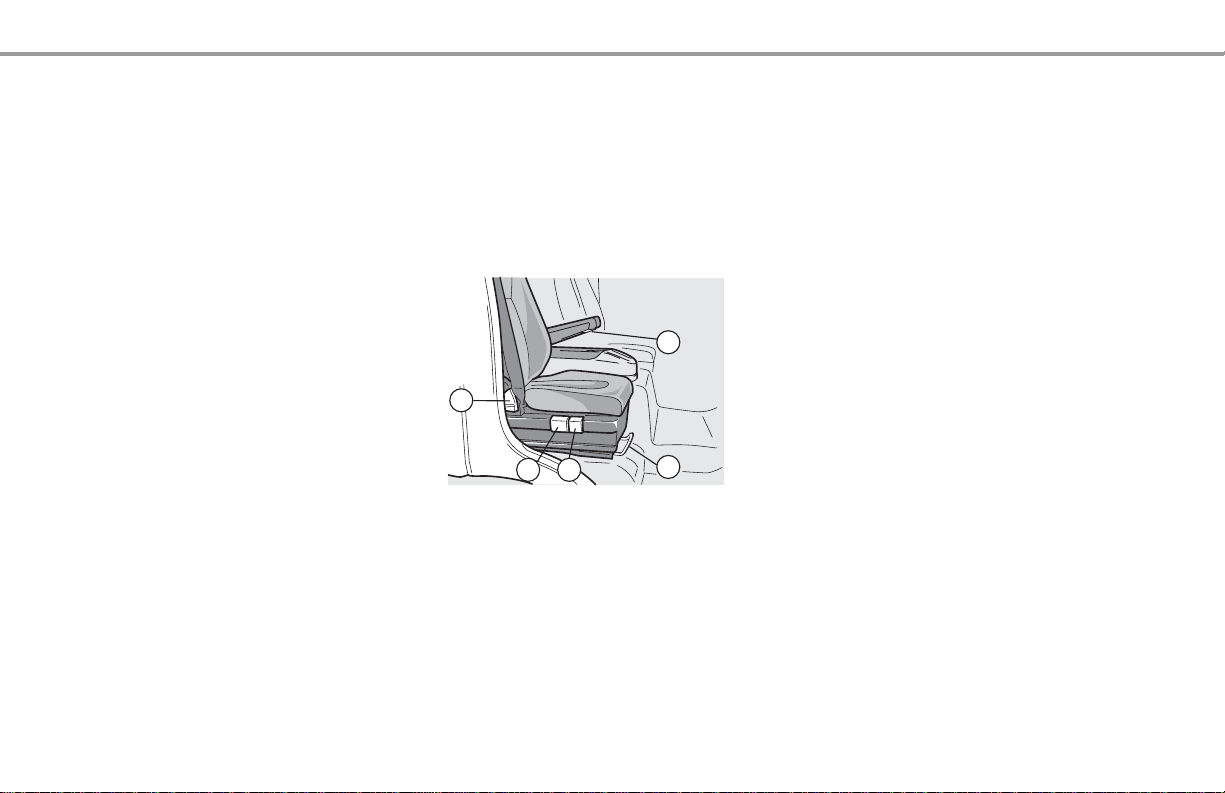

Co-driver's seat

Operation:

2 3

1 Backrest angle adjustment 2 Seat height adjustment 3 Seat squab adjustment 4 Seat fore/aft adjustment 5 Armrest adjustment (rotary knob at front, at bottom of armrest).

D0 00 693

Seats

Driver's seat

Operation:

3 4 5 6

1 Seat squab adjustment 2 Seat fore/aft adjustment 3 Shock absorber setting: The suspension characteristics of the seat

(in terms of comfort) can be optimised by means of the infinitely adjustable shock absorber (from "hard" to "soft") for each driving situation.

- Position switch up: minimum damping ("soft" comfort)

- Position switch down: maximum damping ("hard" comfort)

Note:

The shock absorber must always be set tight enough to withstand

conditions on a poor road surface. 4 Seat squab angle adjustment 5 Seat height adjustment

D0 00 694

Seats

6 Entry/exit aid

- Knob down (seat in driving position): seat drops to its lowest position (= entry/exit aid)

- Knob up (with lowered seat): seat returns to the last set height

7 Backrest lumbar setting low (+/-) 8 Backrest lumbar setting high (+/-) 9 Seat heating 10 Backrest angle adjustment

D000534

SEAT BELTS

}

The seats are equipped with seat belts; use them. (Mandatory in some countries.) More persons using a single seat belt is not permitted.

Seats

Seat belts only work properly when correctly tens ioned. For this reason, never use a clip or other device to reduce the seat belt

}

tension.

Always keep seat belts clean and dry. Clean the belts with an allpurpose cleaner, not with caustic substances.

}

If the seat belts have been subjected to high loading during a collision, the complete assembly must be renewed, even if there is

}

Wearing seat belts

- The belt must be tight against the body and not be distorted.

- With a three-point type belt, the shoulder section must be across centre of the

- Do not put any hard, sharp or fragile objects such as pens, glasses or phones

no visible evidence of damage. Have repairs to the seat belts carried out by qualified personnel only. Never modify seat belts yourself.

shoulder, not against the neck. The pelvis section should be as low as possible across the pelvis, not across the abdomen.

between your body and the seat belt.

100

Peterbilt 210-220 Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

WHY THIS HANDBOOK IS SO IMPORTANT!

Warnings and Safety Regulations
