PenMount TOUCHSCREEN 6000, TOUCHSCREEN 6200D, TOUCHSCREEN 6202B, TOUCHSCREEN 6500A, TOUCHSCREEN 6300A Installation Manuals
PENMOUNT TOUCHSCREEN 6000
CONTROL BOARD
INSTALLATION GUIDE
Revision 1.8
20/November/’12
i
Preface
Disclaimer
The information in this document is subject to change without notice. The
manufacturer makes no representations or warranties regarding the contents of
this manual and specifically disclaims any implied warranties of merchantability
or fitness for any particular purpose. Furthermore, the manufacturer reserves
the right to revise this publication or make changes in the specifications of the
product described within it at any time without notice and without obligation to
notify any person of such revision.
Trademarks
PenMount, Microsoft, Windows and other trademarks and product names used
in this manual are the properties of their respective owners and are
acknowledged.
Copyright
This publication, including all photographs, illustrations and software, is
protected under international copyright laws, with all rights reserved. Neither
this manual, nor any of the material contained herein, may be reproduced
without the express written consent of the manufacturer.
©Copyright 2012
Revision Table
Date
Revision
Changes
29/Dec/’08
1.0
Initial
21/Jul/’09
1.1
Chapter 5. PenMount Gesture AP is added.
04/Sep/’09
1.2
Sections updated are:
3.2.1. Install PenMount Windows Universal Driver (for
2000/XP/2003/VISTA/7)
3.2.2. > 3.2.2.1. > Setting: Pen Input Emulation & Click on
Release are added to Operation Mode.
06/Oct/’09
1.3
Refinement of Installation Diagrams in section 2.2.
21/Oct/’09
1.4
Chapter 2 > 2.3 > 2.3.1. Install PenMount 6200D Control Board:
The picture of PenMount 6200x Control Board Upside is updated.
Chapter 2 > 2.3 > 2.3.2. Install A PenMount 6202B Control
Board: The picture of PenMount 6202x Control Boards Upside are
updated.
PenMount 6202 is changed to “6202x” in this manual.
To each PenMount 6200x, 6202x, 6300 and 6500 Control Boards,

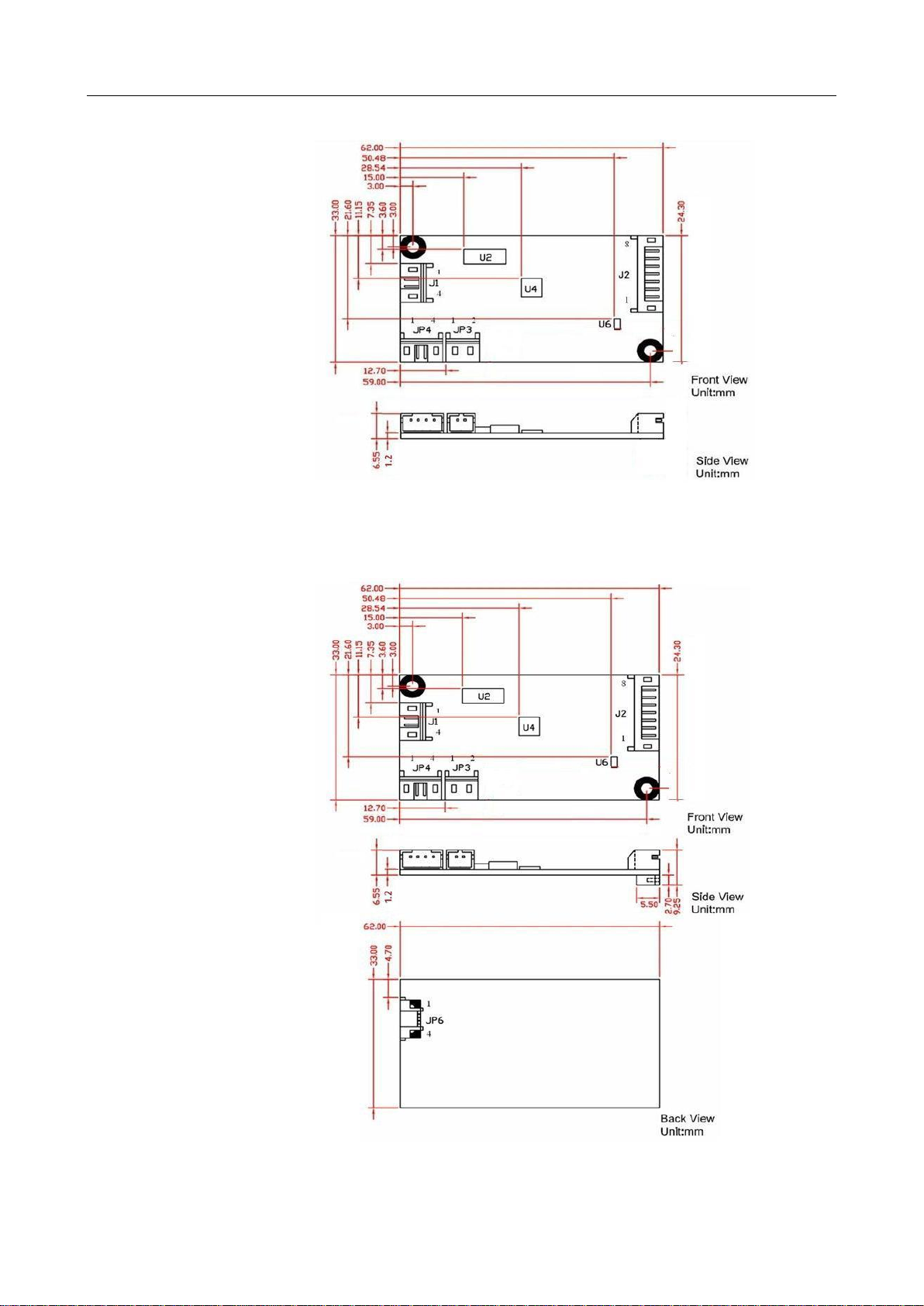

mechanical diagrams are added. See sections 2.3.1, 2.3.2, 2.3.3,
and 2.3.4.
09/Dec/’09
1.5
Chapter 2 > 2.2 Installation Diagrams: The installation diagrams
are revised for 6200x, 6202x, 6300, and 6500 boards.
01/Mar/’10
1.6
PM6202X is changed to PM6202B on page Error! Bookmark not
defined. and 3.
PM6200X is changed to PM6200A on page 4 and to PM6200C on
page Error! Bookmark not defined..
PM6200X is changed to PM6200A or PM6200C and the pictures
and mechanical diagrams are updated for PM6200A and 6200C on
page 9, Error! Bookmark not defined., and 10.
PM6202X is changed to PM6202B and graphics are rearranged on
page 11, 11, and 12.
PM6300 graphics are changed on page Error! Bookmark not
defined..
PM6500 graphics are changed on page Error! Bookmark not
defined..
PM6202X is changed to PM6202B on page Error! Bookmark not
defined..
Refinement of section 3.2 starting from page 20.
Graphic of Windows XP 64bit tools is changed on page 39.
The original 3.2.5. PenMount Rotating Function is advanced
Error! Reference source not found. Error! Reference source not
found. on page Error! Bookmark not defined.. And “Vista 32/64bit”
is deleted from the description.
PM6202X is changed to PM6202B.
PenMount Linux X Window RS-232 and USB Drivers support
table is updated on page 28.
To the software function table in Chapter 4 Driver Software
Functions on page 30, VISTA/7 column and an additional remark
are added. In the same table, Stream/Point Mode is changed to
Operation Mode.
iii

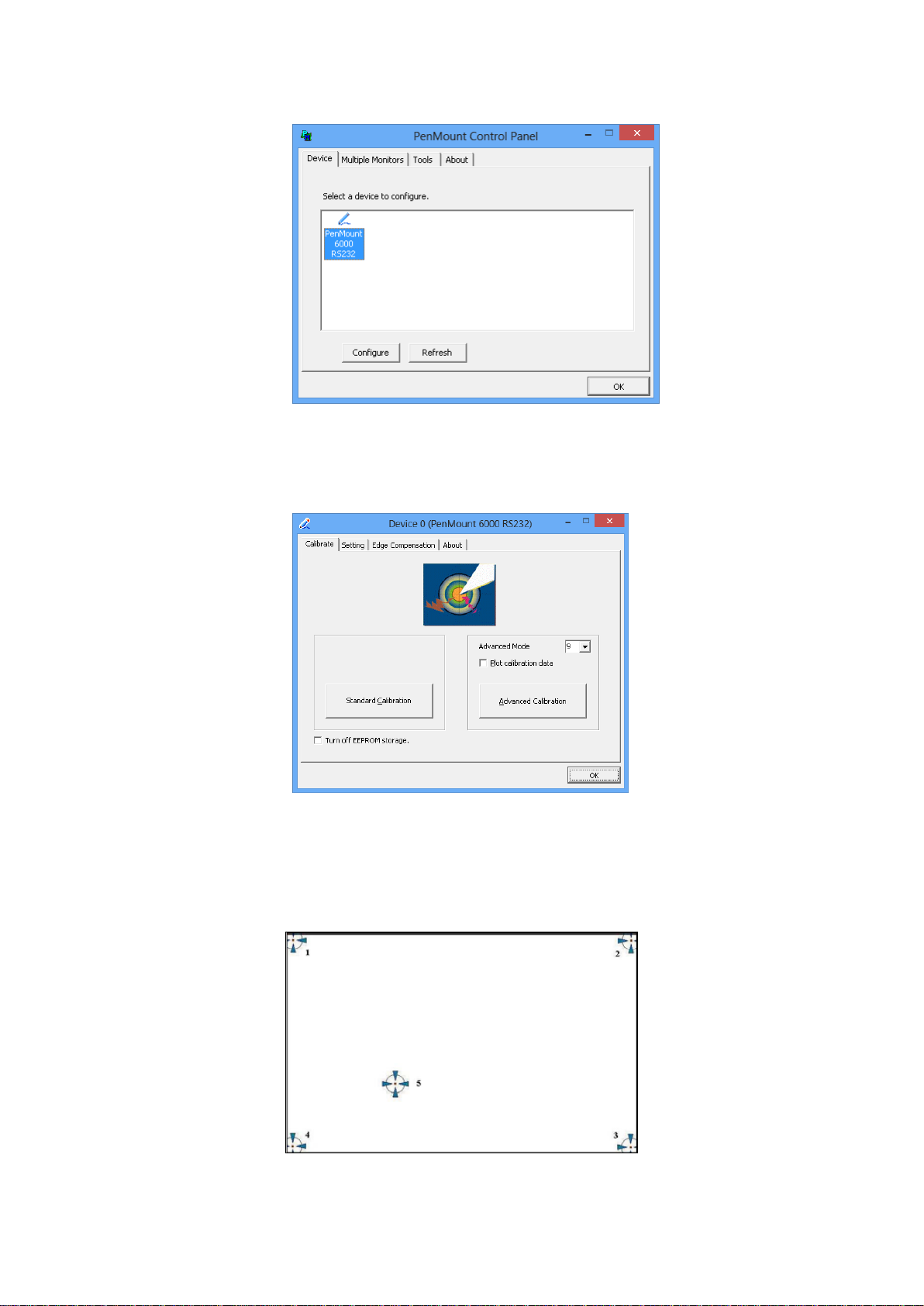

The screenshots of PenMount Control Panel are updated on
page Error! Bookmark not defined..
Error! Reference source not found. is added to PenMount Control
Panel functions on page Error! Bookmark not defined..
4 points calibration is deleted from Advanced Calibration on page
Error! Bookmark not defined..
“Vista 32/64bit” and “Windows 7 32/64bit” are deleted from the
description of 4.2 Multiple Monitors on page 33.
All screenshots in section 4.2 Multiple Monitors are updated
starting from page 33.

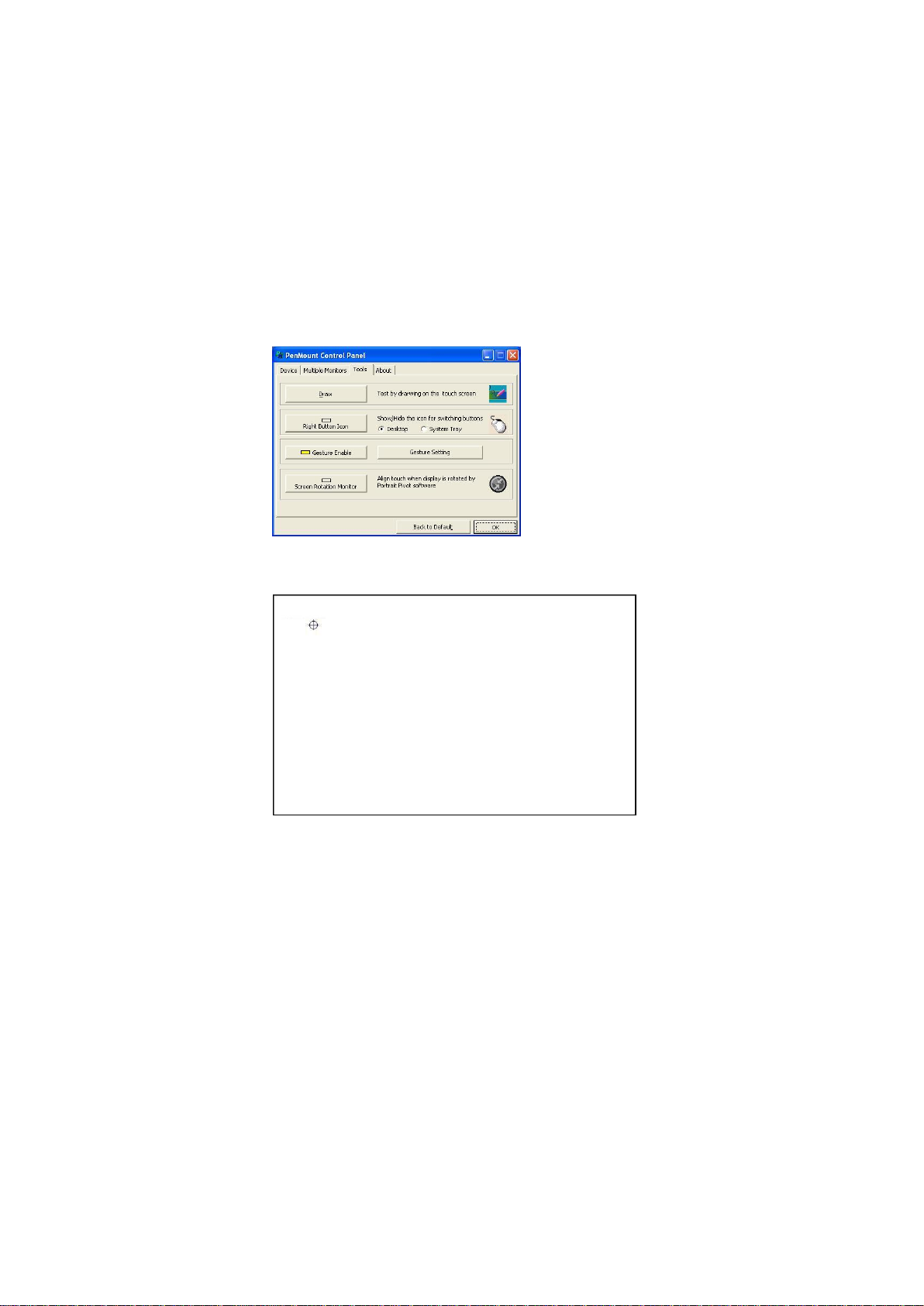

Screenshot of PenMount Control Panel’s Tools tab is updated on
page Error! Bookmark not defined..
Section 4.5 is replaced by The Settings Tab
The Settings Tab is available for mouse devices, which user
can adjust operation modes, enable beep sound, and change
press and hold settings.
Operation Mode on page 39.
The screenshots of AP are updated on page 44.

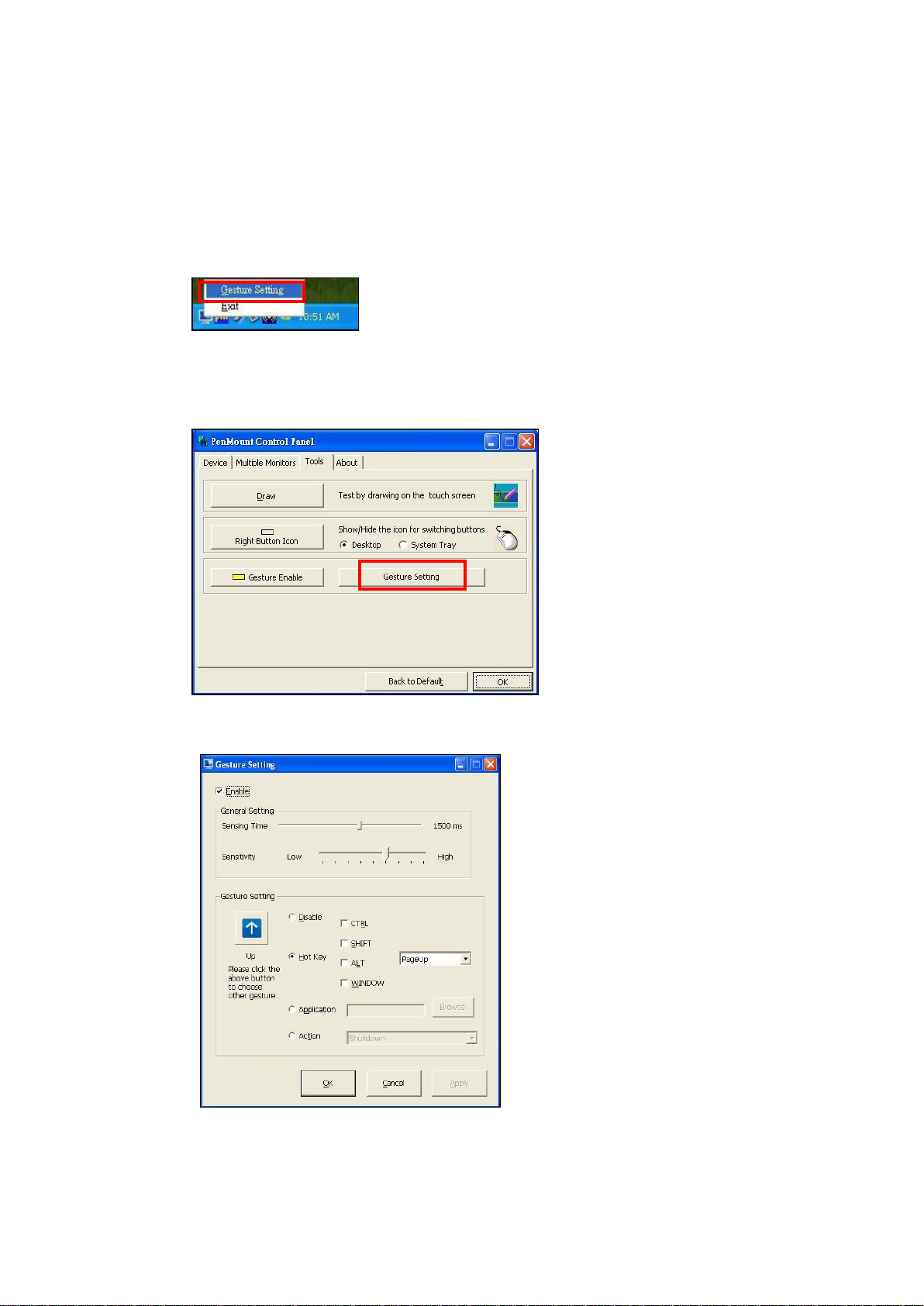

The screenshots of PenMount Control Panel and Gestture
Setting are updated on page 46.
The screenshots of PenMount Gestures under Windows
XP/Vista/7 are updated on page 47.
Screenshots of Gesture Setting and the description of General
Setting Box are updated on page 48.

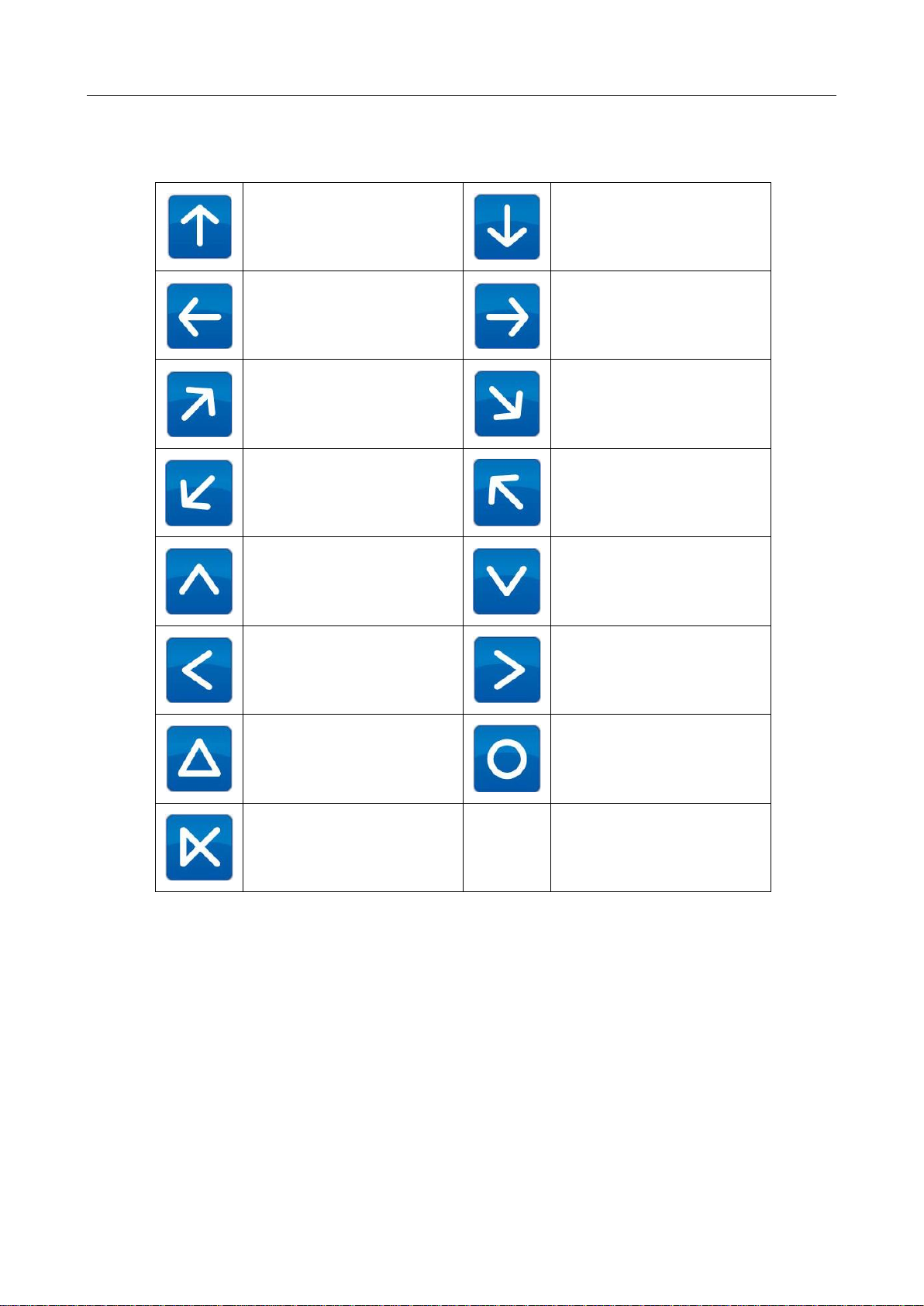

Icons of PenMount gestures are updated on page 49.
10/Sep/’12
1.7
PM6200A and PM6200C are changed into PM6200D.
PM6300 is changed to PM6300A.
PM6500 is changed to PM6500A.
The correspondent pictures and mechanical diagrams are updated
on chapter 2.2 and 2.3.
The updated drivers on chapter 1.3 and 3.3 support Windows 8,
WinCE 7.0 and new Linux system.
The updated installation guide of PenMount Windows universal
driver is on chapter Error! Reference source not found..
20/Sep/’12
1.8
Change screenshots to Windows 8
Add descriptions on Setup.ini and Install.ini in 3.2.2
Content of PenMount Universal Driver in Chapter 3 and Chapter 4
is re-organized.
Table of Contents
Preface ii
Disclaimer .................................................................................................................................................. ii
Trademarks ................................................................................................................................................ ii
Copyright ................................................................................................................................................... ii
Revision Table ............................................................................................................................. iii
Chapter 1. Introduction .............................................................................................................. 1
1.1. About this Manual ...................................................................................................................... 1
1.2. PenMount 6000 Control Boards ................................................................................................ 1
1.3. Drivers & Utilities ....................................................................................................................... 2
1.4. After Sales Service .................................................................................................................... 2
Chapter 2. Install PenMount 6000 Control Boards ................................................................... 3
2.1. Installation Requirements .......................................................................................................... 3
2.1.1. Computer .................................................................................................................................. 3
2.1.2. Touchscreen .............................................................................................................................. 3
2.1.3. Control Board ............................................................................................................................ 3
2.2. Installation Diagrams ................................................................................................................. 4

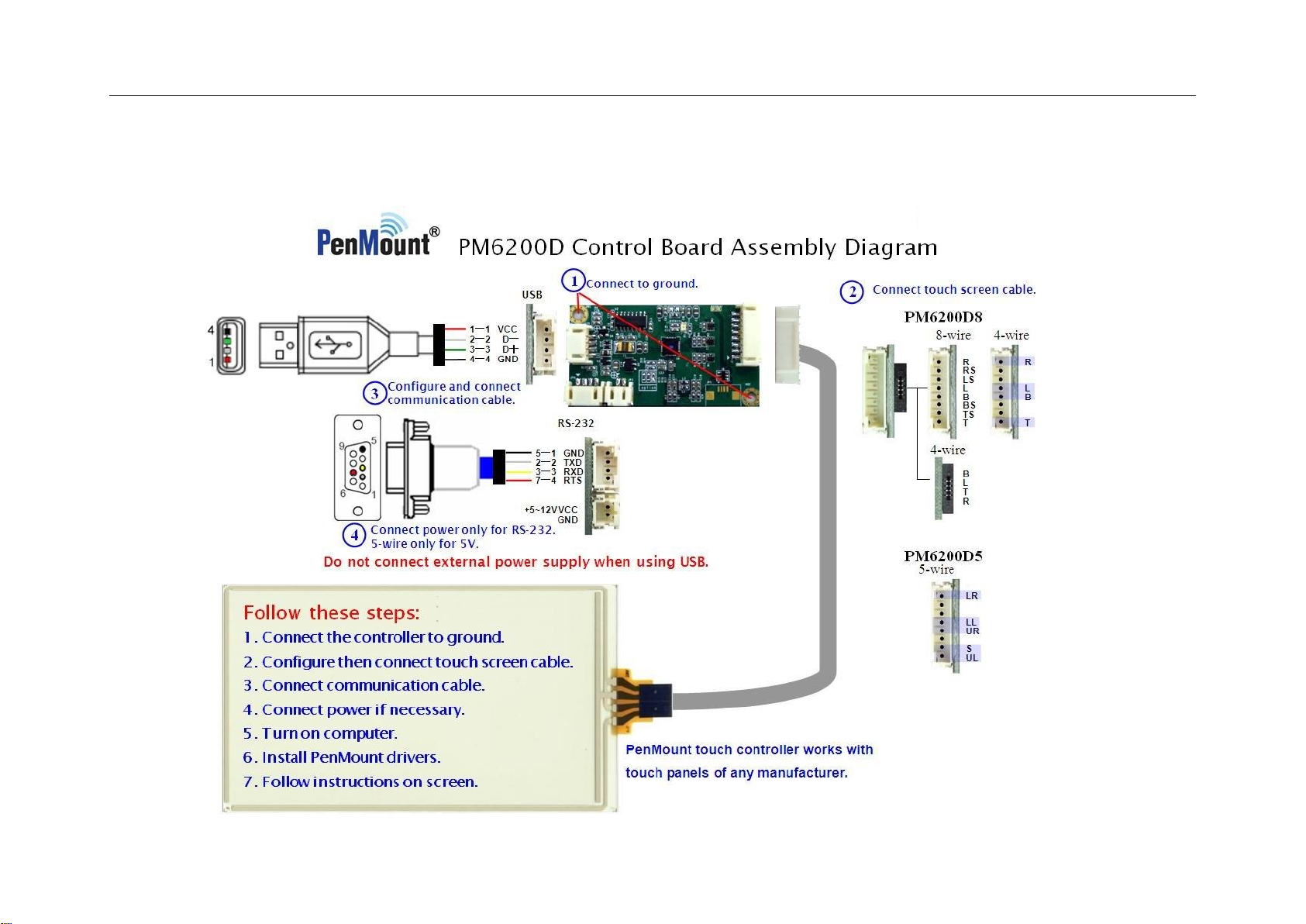

2.2.1. The connection of 6200D Control Board (for both RS-232 & USB Interfaces) ......................... 4

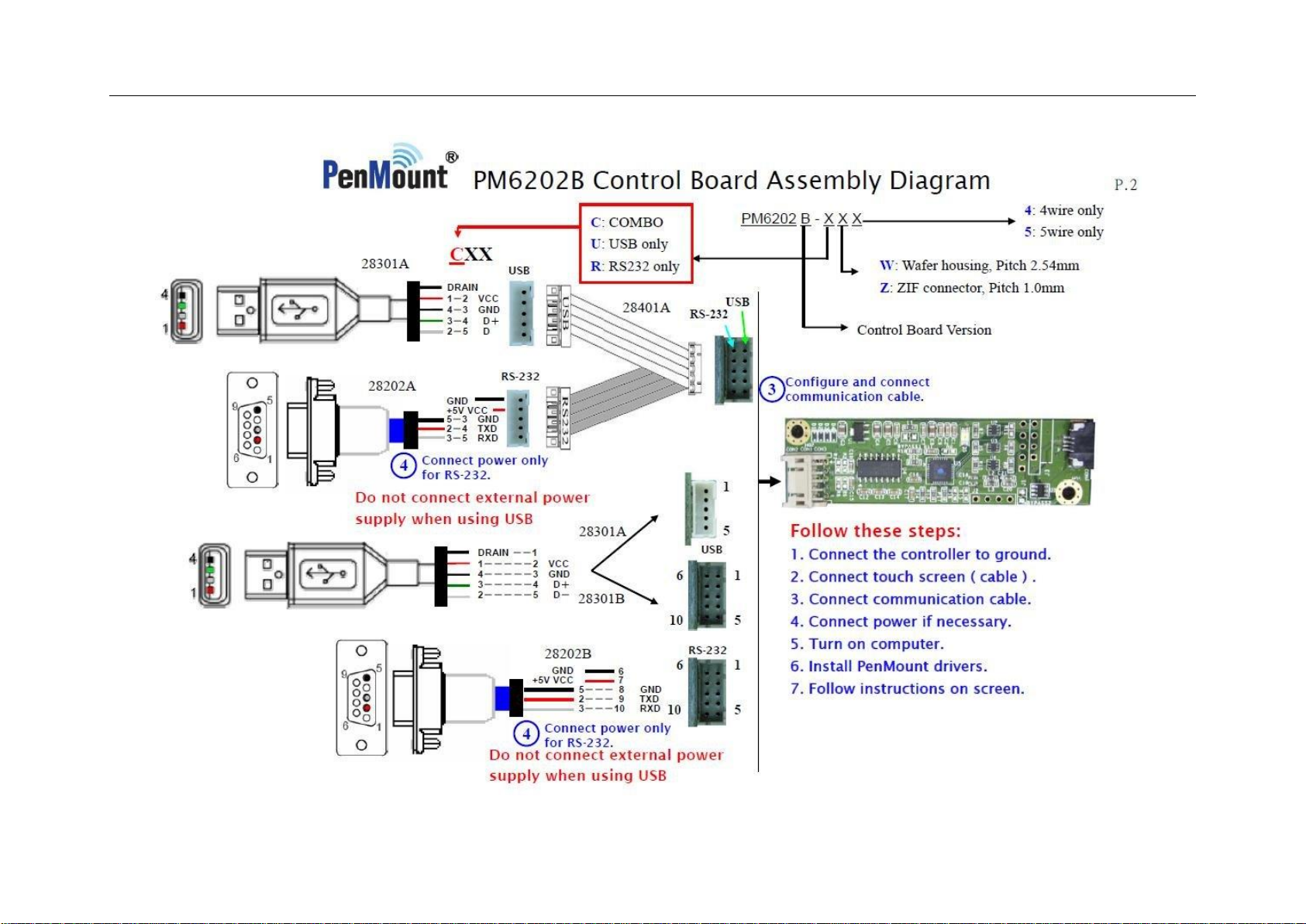

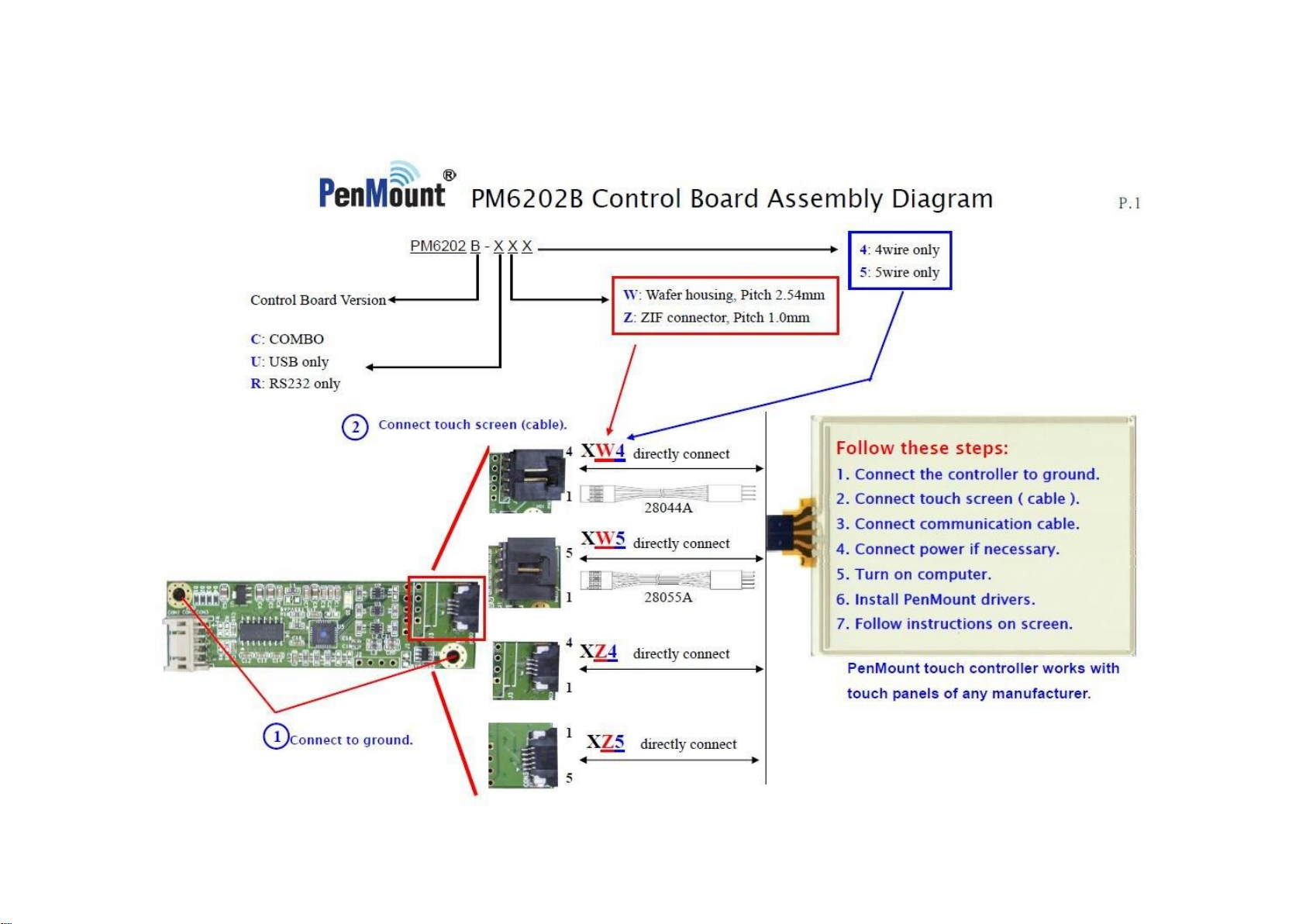

2.2.2. The connection of 6202B Control Board (for both RS-232 & USB Interfaces) ......................... 5

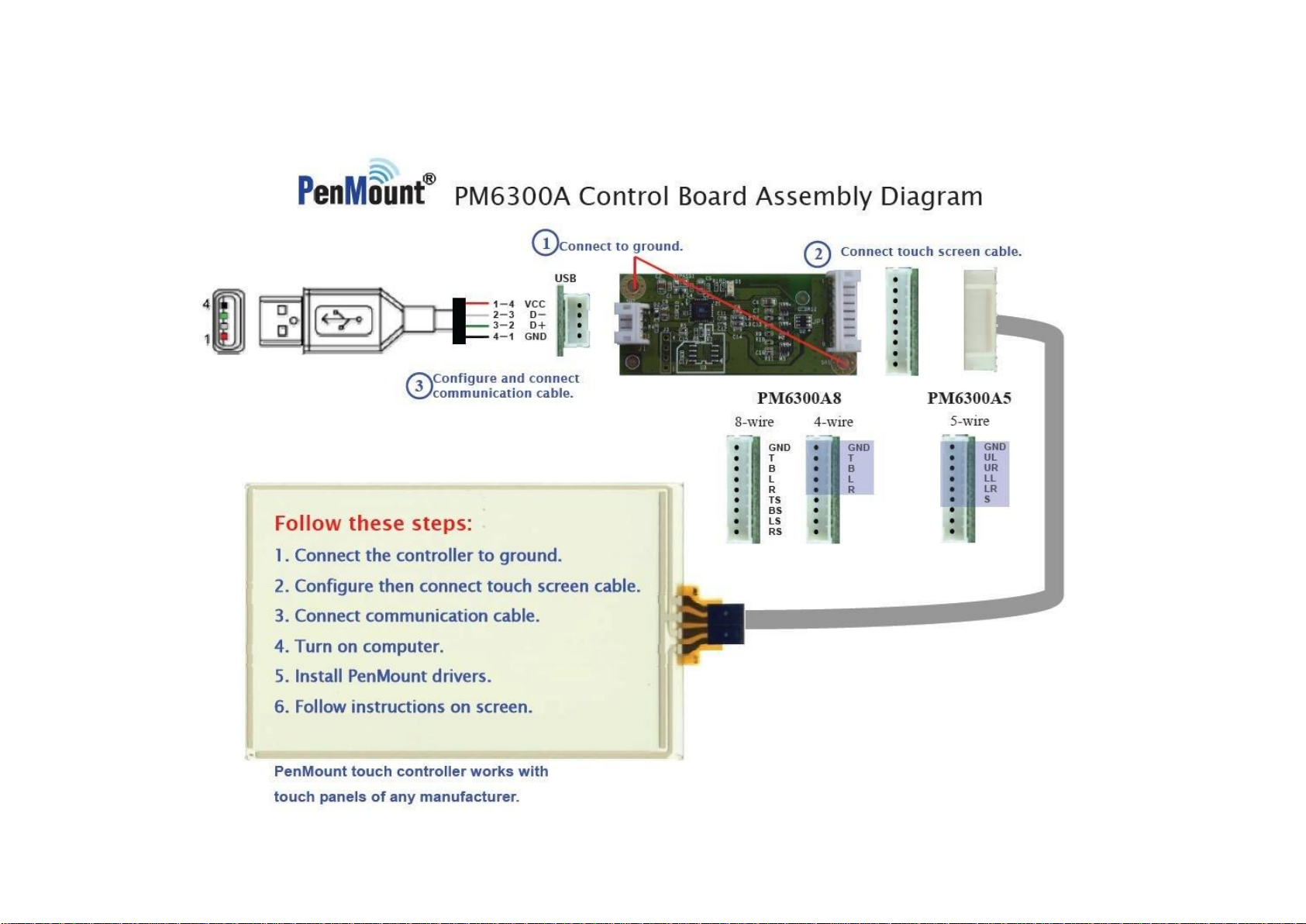

2.2.3. The connection of 6300A Control Board (for USB Interface Only) ........................................... 7

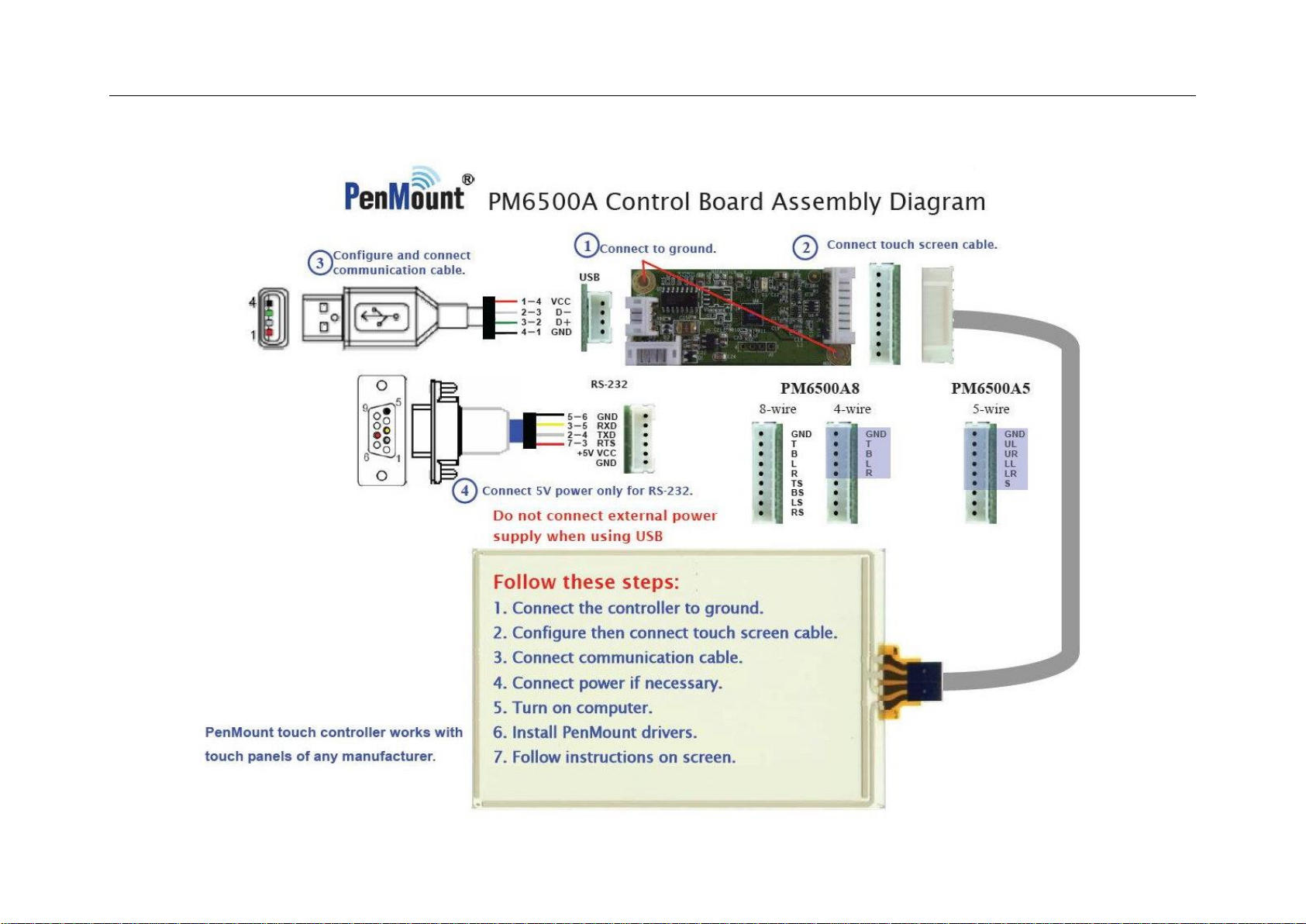

2.2.4. The connection of 6500A Control Board (for both RS-232 & USB Interfaces) ......................... 8
2.3. RS-232 & USB Boards (6000 Series) ....................................................................................... 9

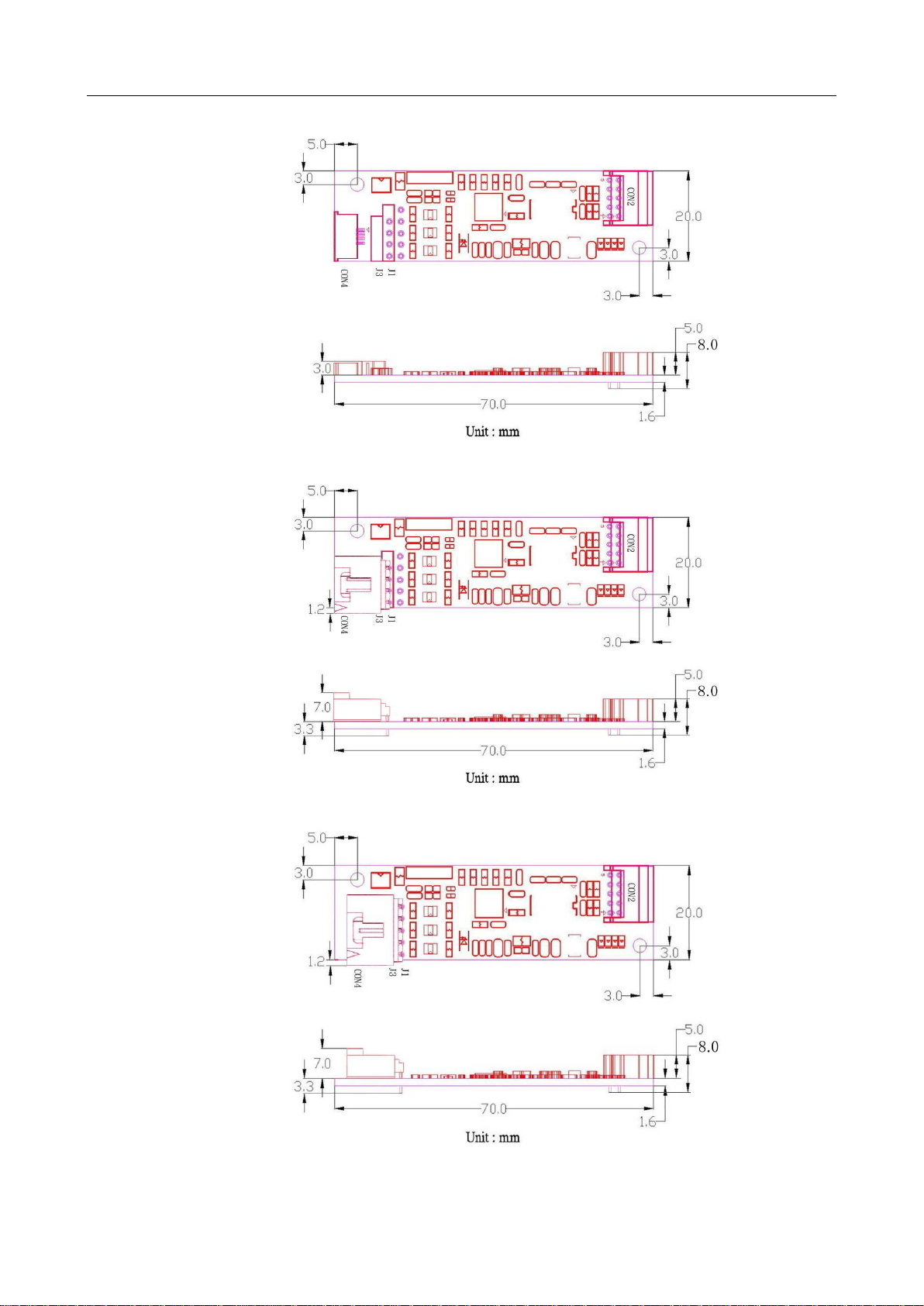

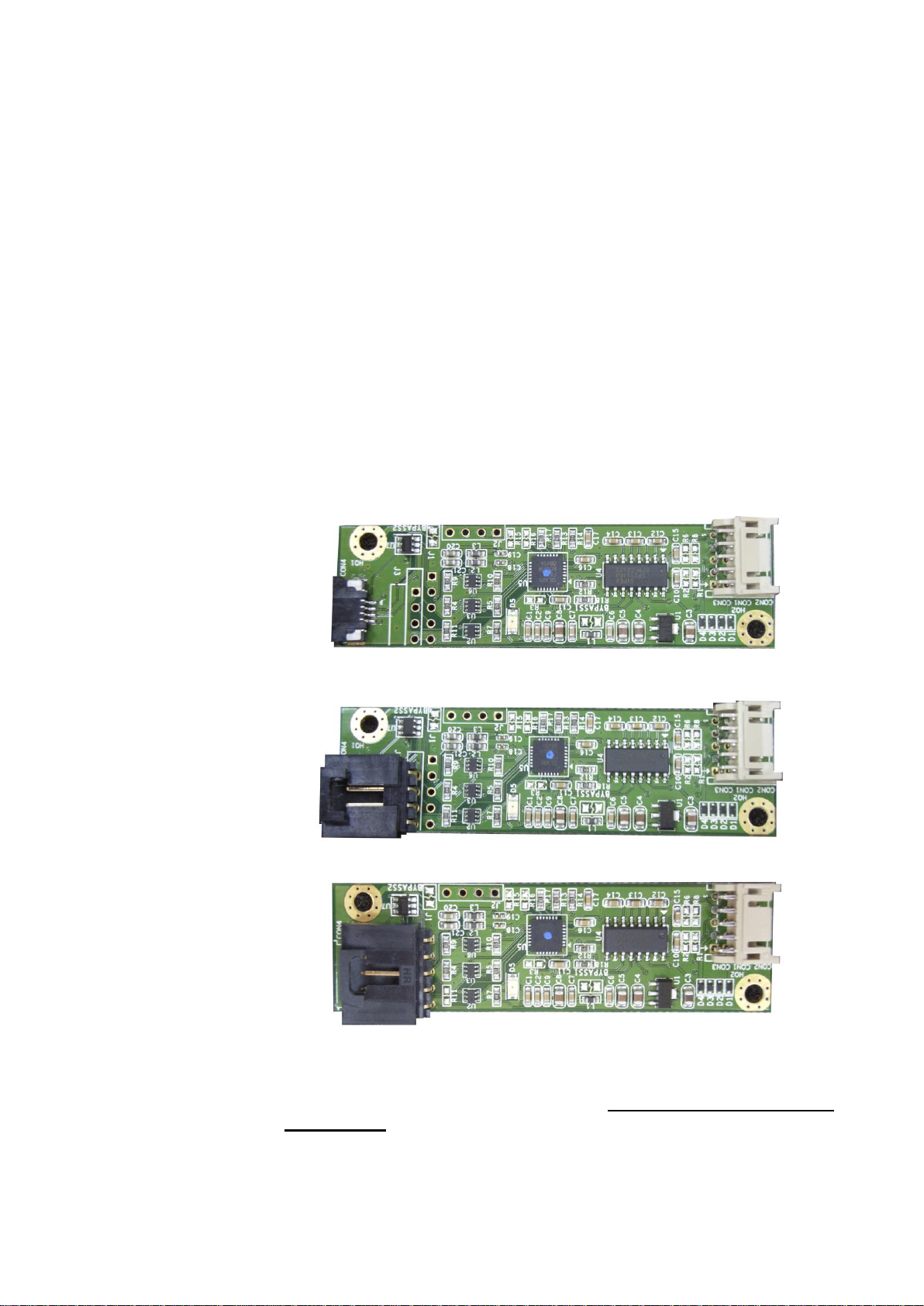

2.3.1. Install PenMount 6200D Control Board .................................................................................... 9
2.3.2. Install A PenMount 6202B Control Board................................................................................ 11

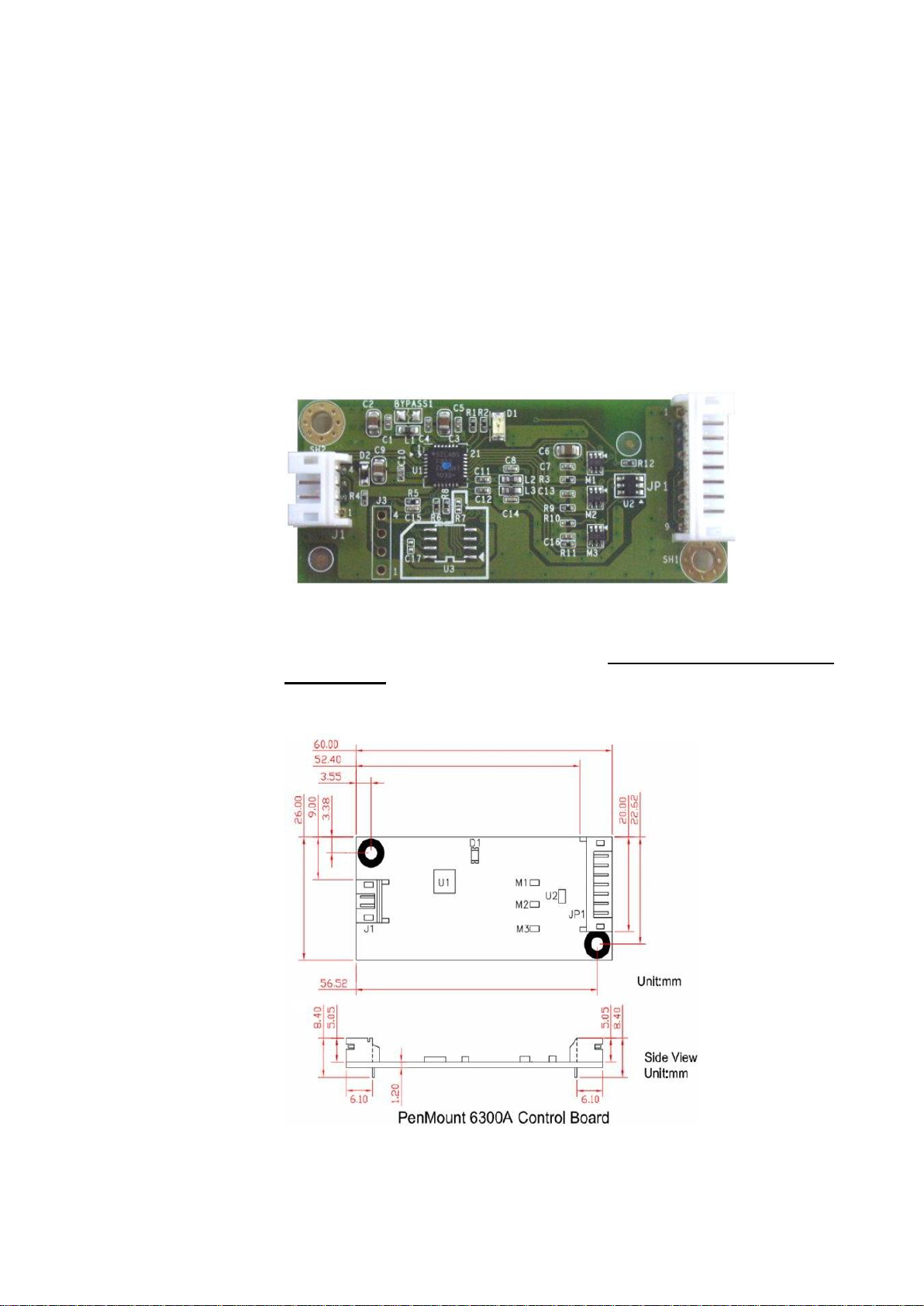

2.3.3. Install A PenMount 6300A Control Board ................................................................................ 13

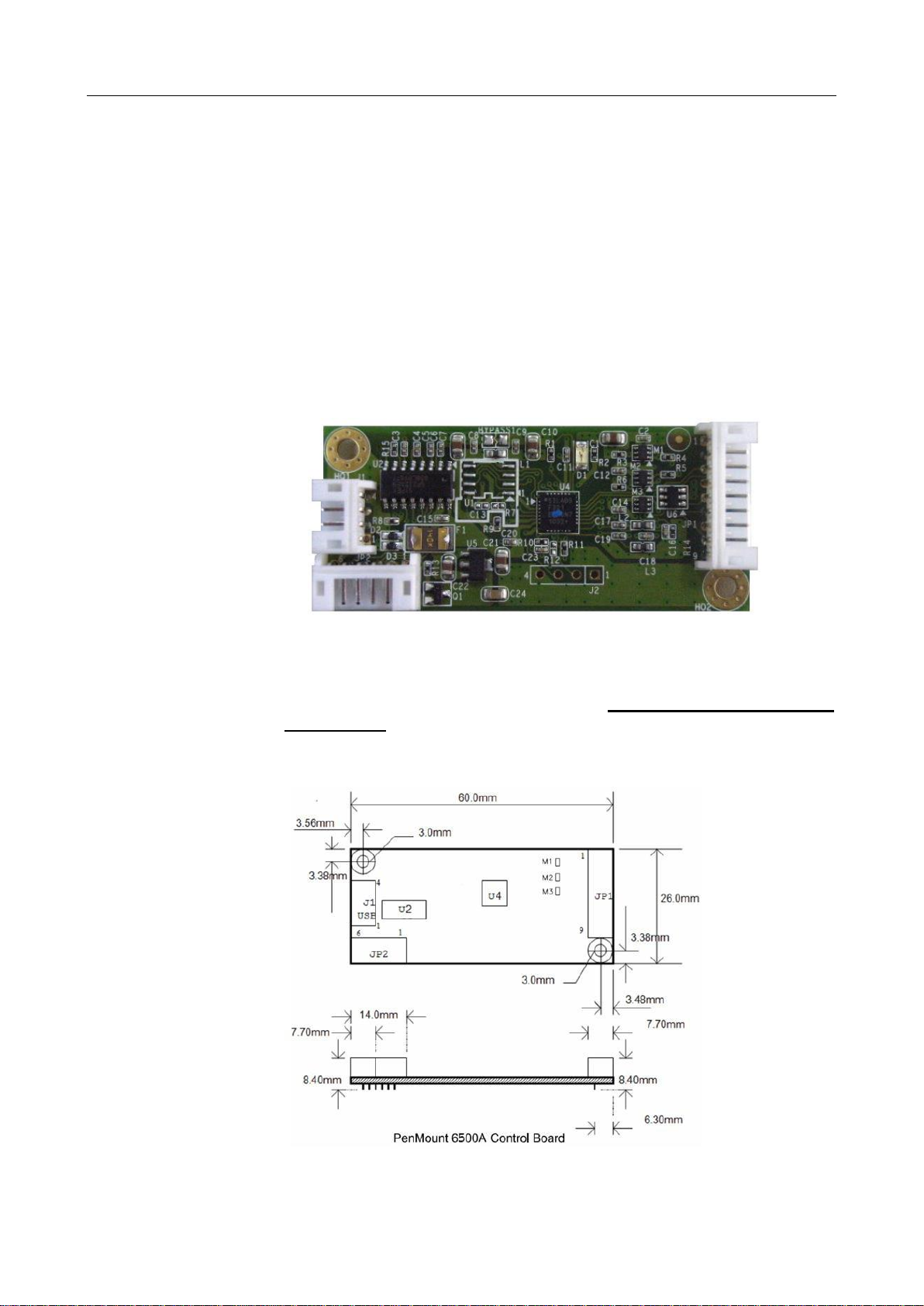

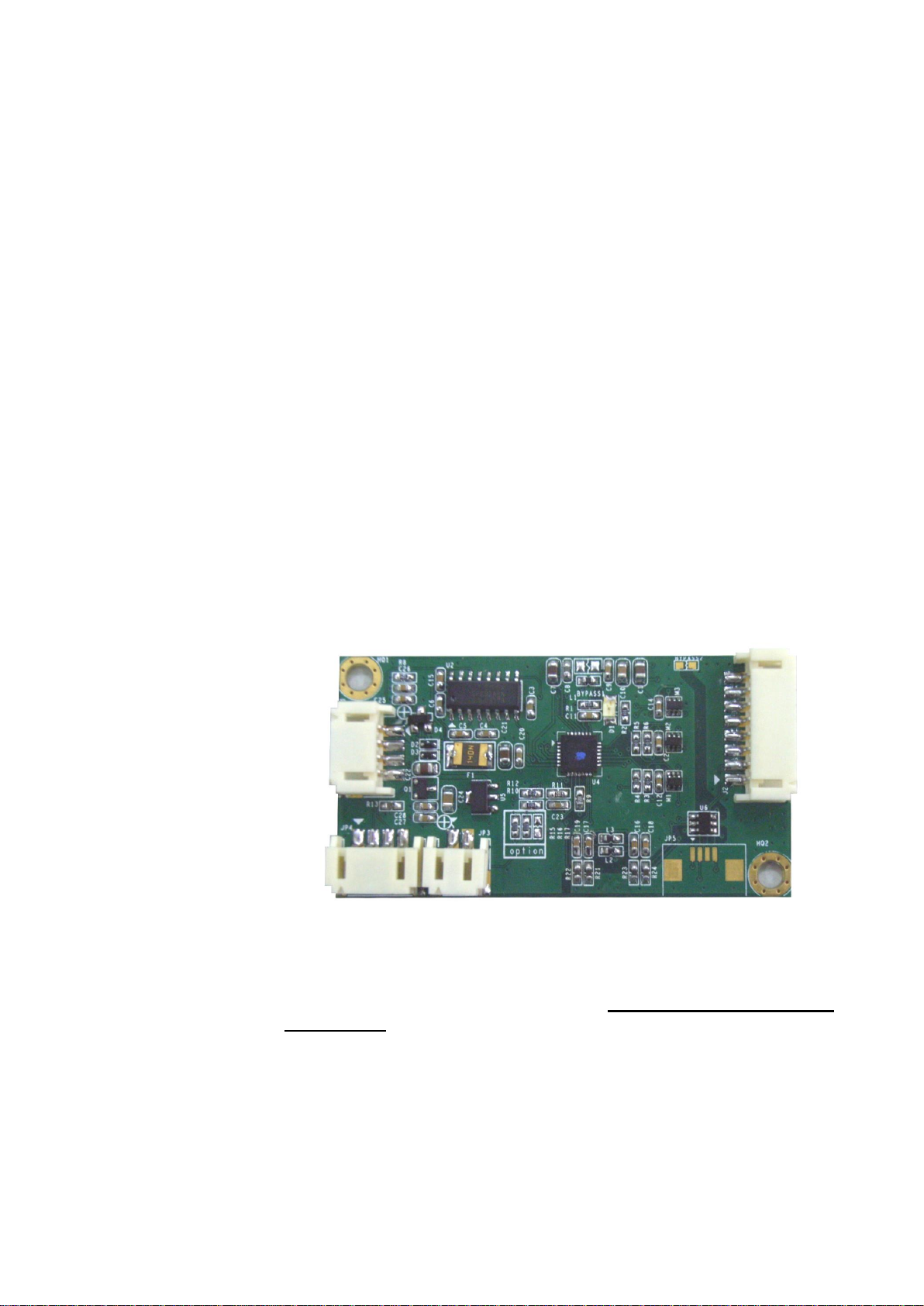

2.3.4. Install A PenMount 6500A Control Board ................................................................................ 14
Chapter 3. Install Drivers for 6000 Boards .............................................................................. 15
3.1. Install for DOS Systems .......................................................................................................... 15
3.1.1. PenMount DOS Driver Installation .......................................................................................... 15
3.1.2. PenMount DOS Driver Functions............................................................................................ 16
3.2. Install for Windows 2000/XP/7/8 Systems .............................................................................. 21
3.2.1. Supported Systems ................................................................................................................. 21
3.2.2. Installation Options.................................................................................................................. 21

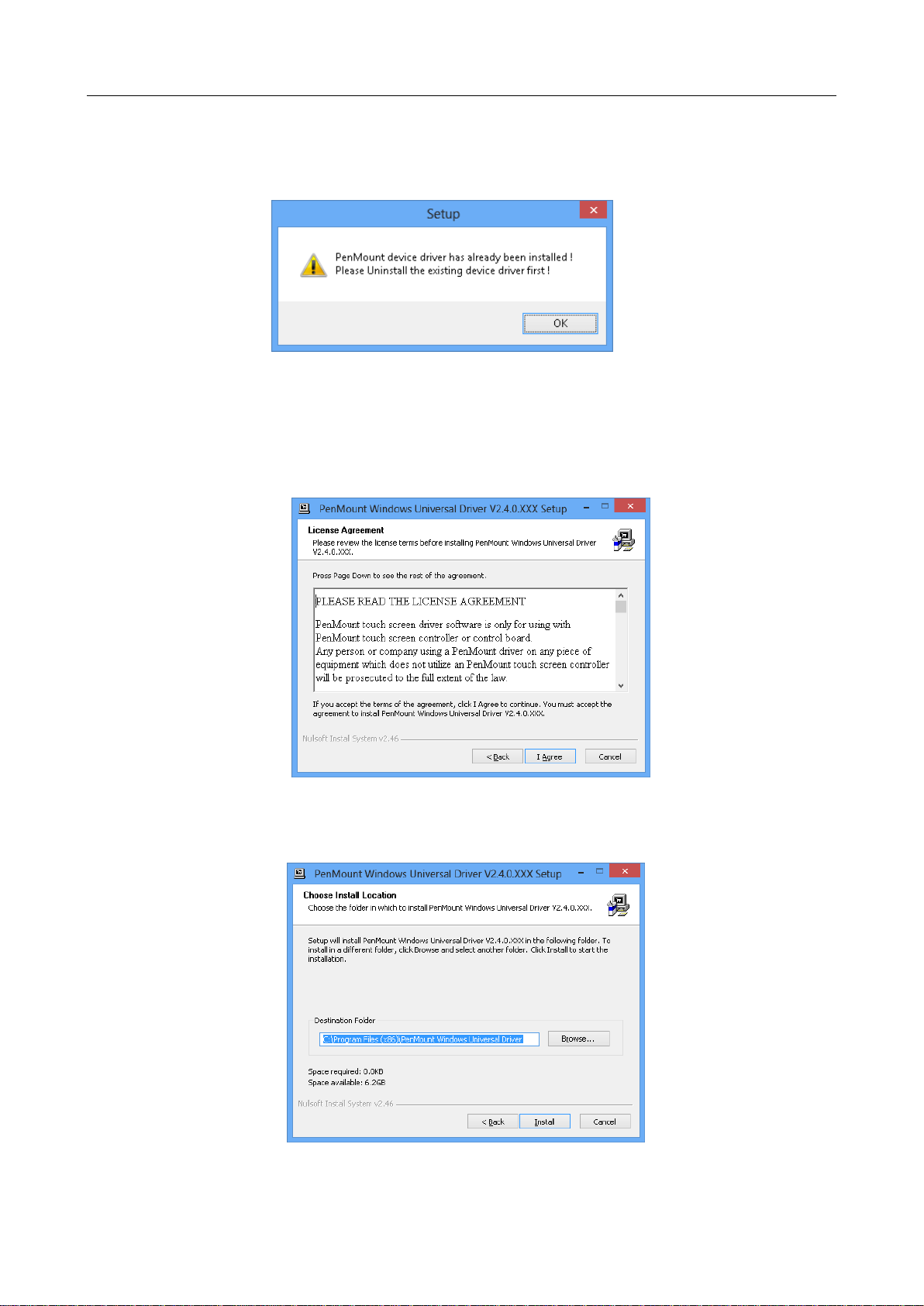

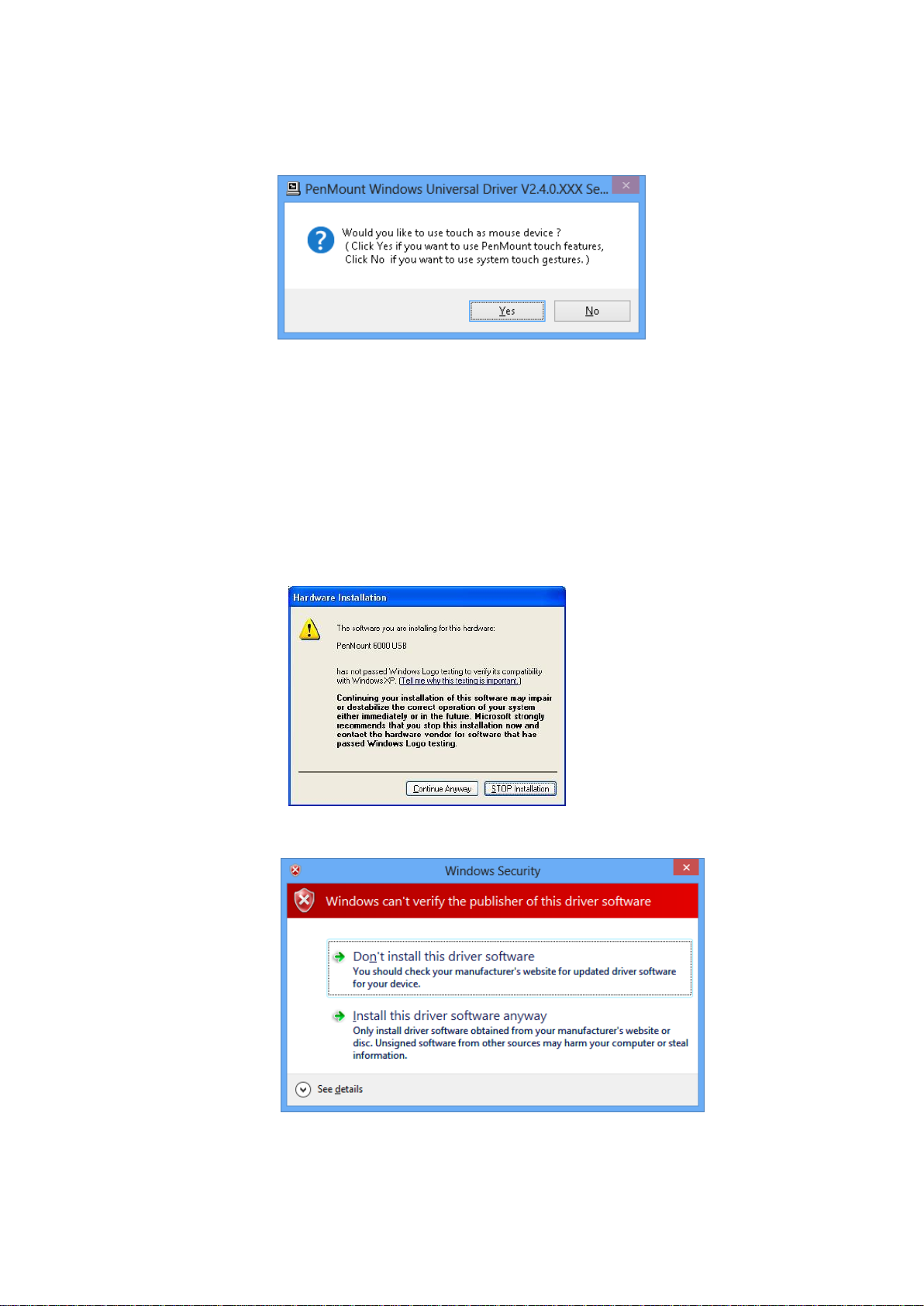

3.2.3. Device Driver Installation ........................................................................................................ 22
3.2.4. PenMount Device Types ......................................................................................................... 25
3.2.4.1. Summary ................................................................................................................................. 25
3.2.4.2. PenMount Monitor ................................................................................................................... 25

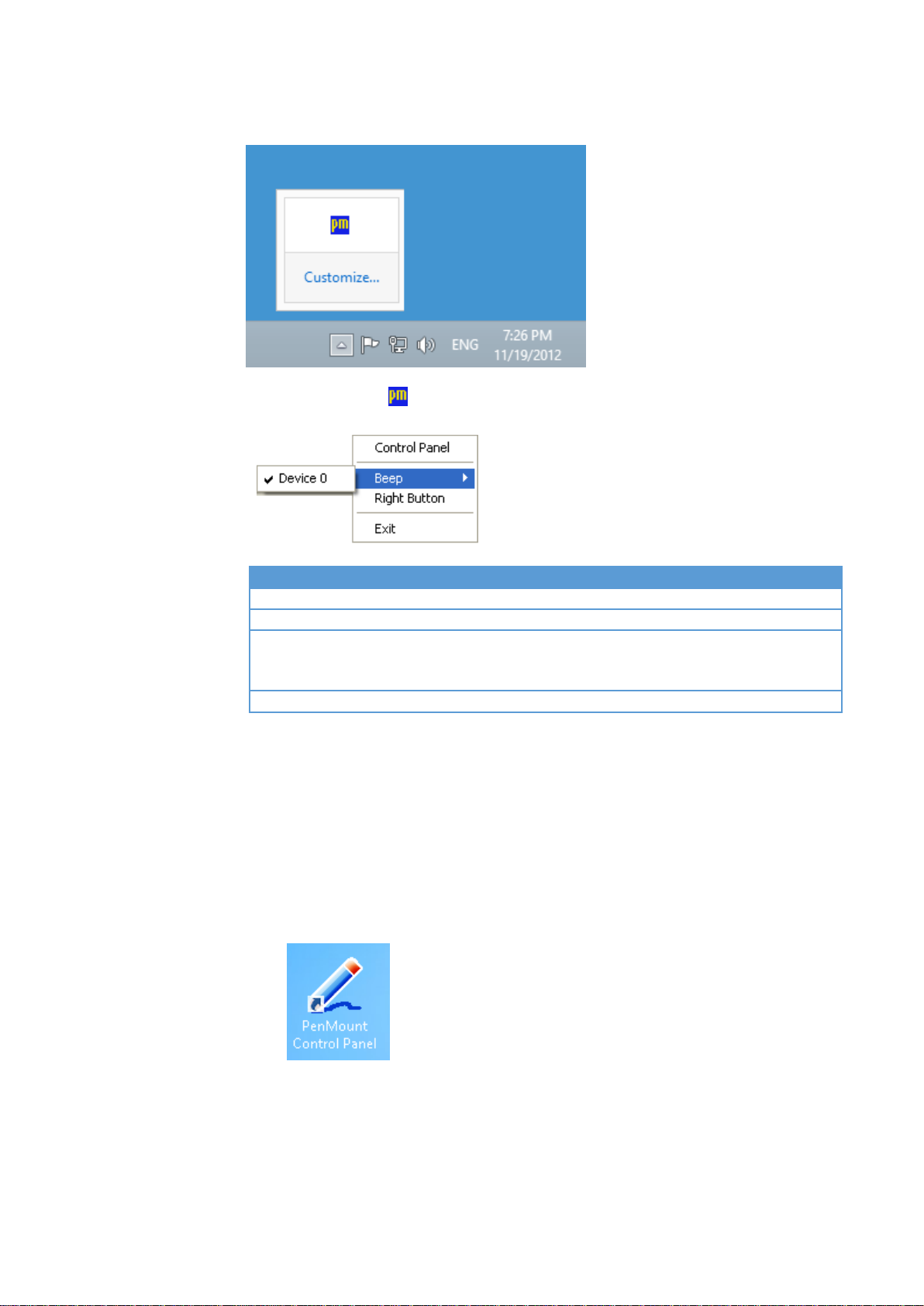

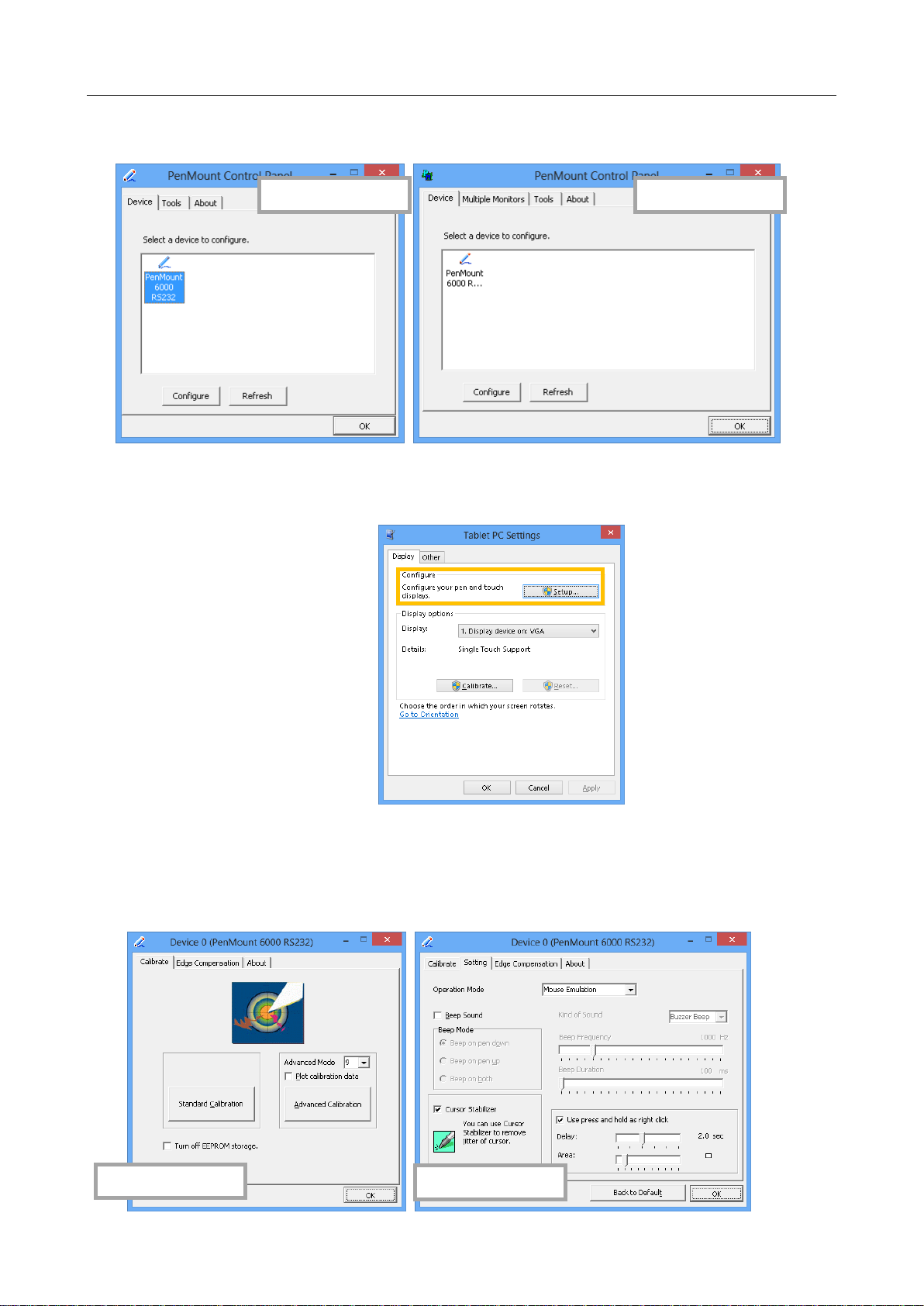

3.2.4.3. PenMount Control Panel ......................................................................................................... 26

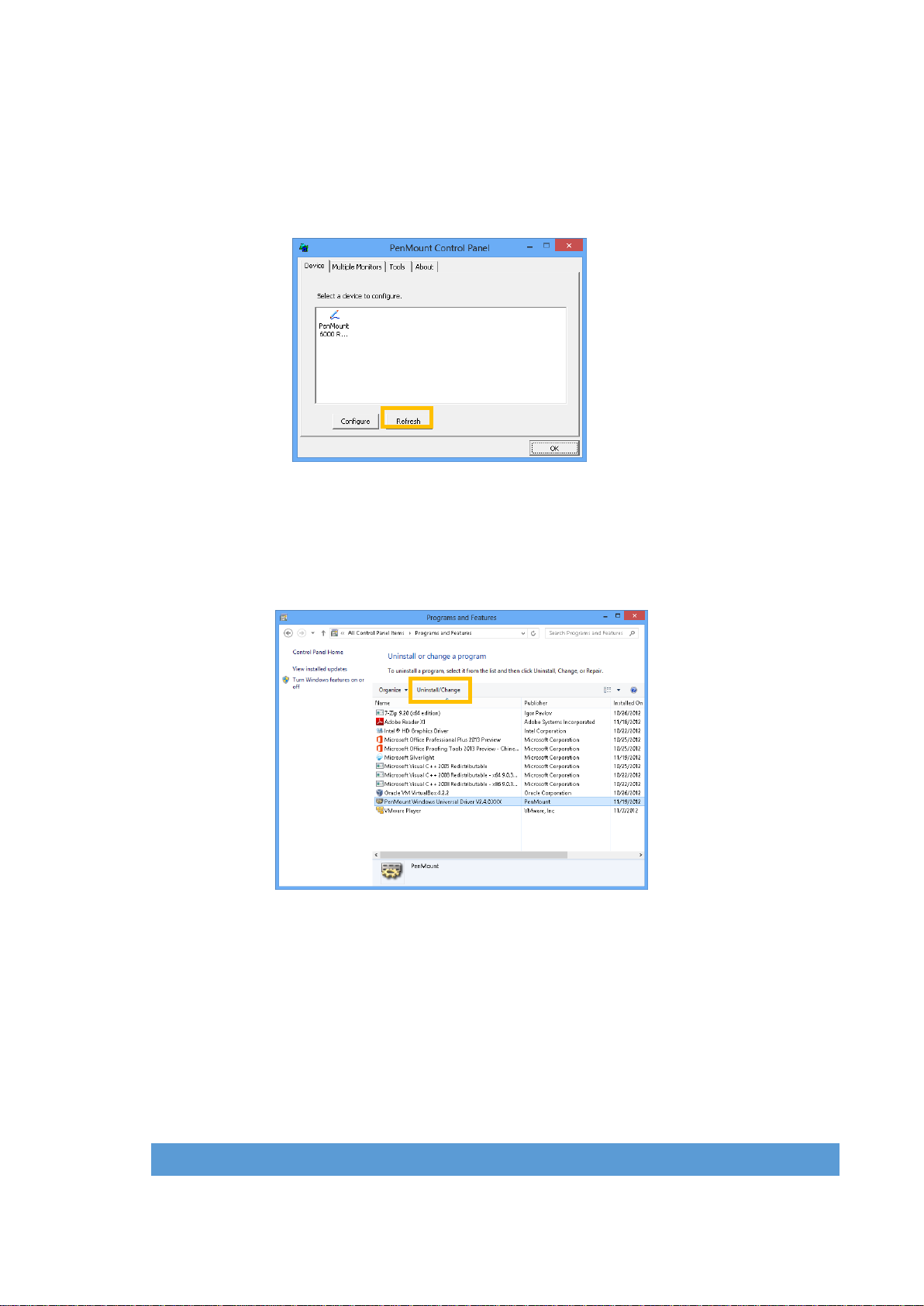

3.2.5. Refresh Device........................................................................................................................ 28
3.2.6. Uninstall PenMount Windows Universal Driver ...................................................................... 28
3.3. Install PenMount X Window Driver on Linux ........................................................................... 28
3.3.1. Install PenMount Linux X Window RS-232 Driver and USB Driver ........................................ 29
3.3.2. Calibration Utilities .................................................................................................................. 29
3.4. Install PenMount Windows CE Driver ..................................................................................... 29
3.4.1. Install PenMount Windows CE Driver ..................................................................................... 29
Chapter 4. Driver Software Functions ..................................................................................... 30
4.1. Calibration ............................................................................................................................... 30

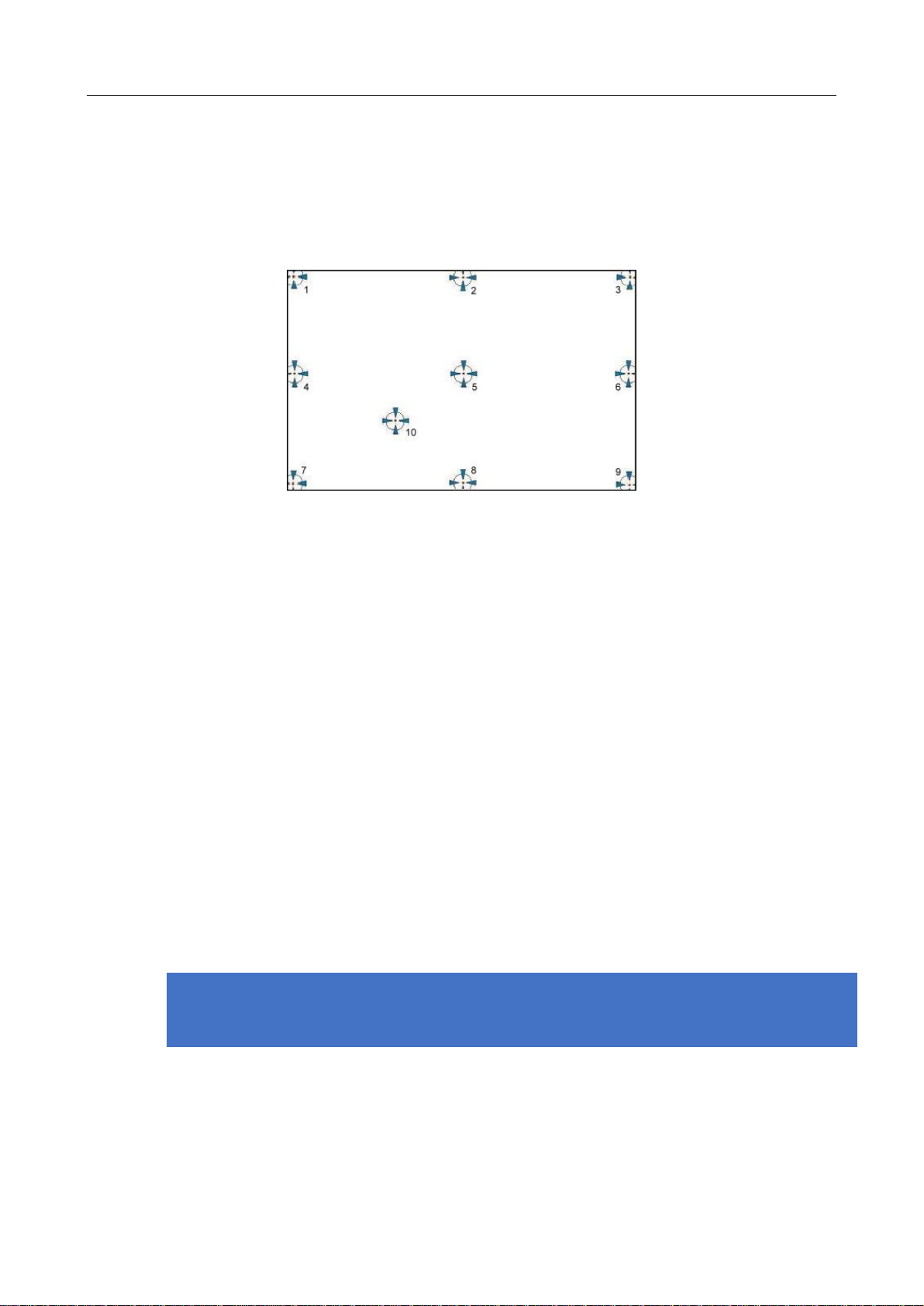

4.1.1. Standard Calibration ................................................................................................................ 31
4.1.2. Advanced Calibration .............................................................................................................. 32
4.1.3. Plot Calibration Data ............................................................................................................... 32
4.1.4. Turn off EEPROM storage ...................................................................................................... 32
4.1.5. Calibration in Command Line .................................................................................................. 32

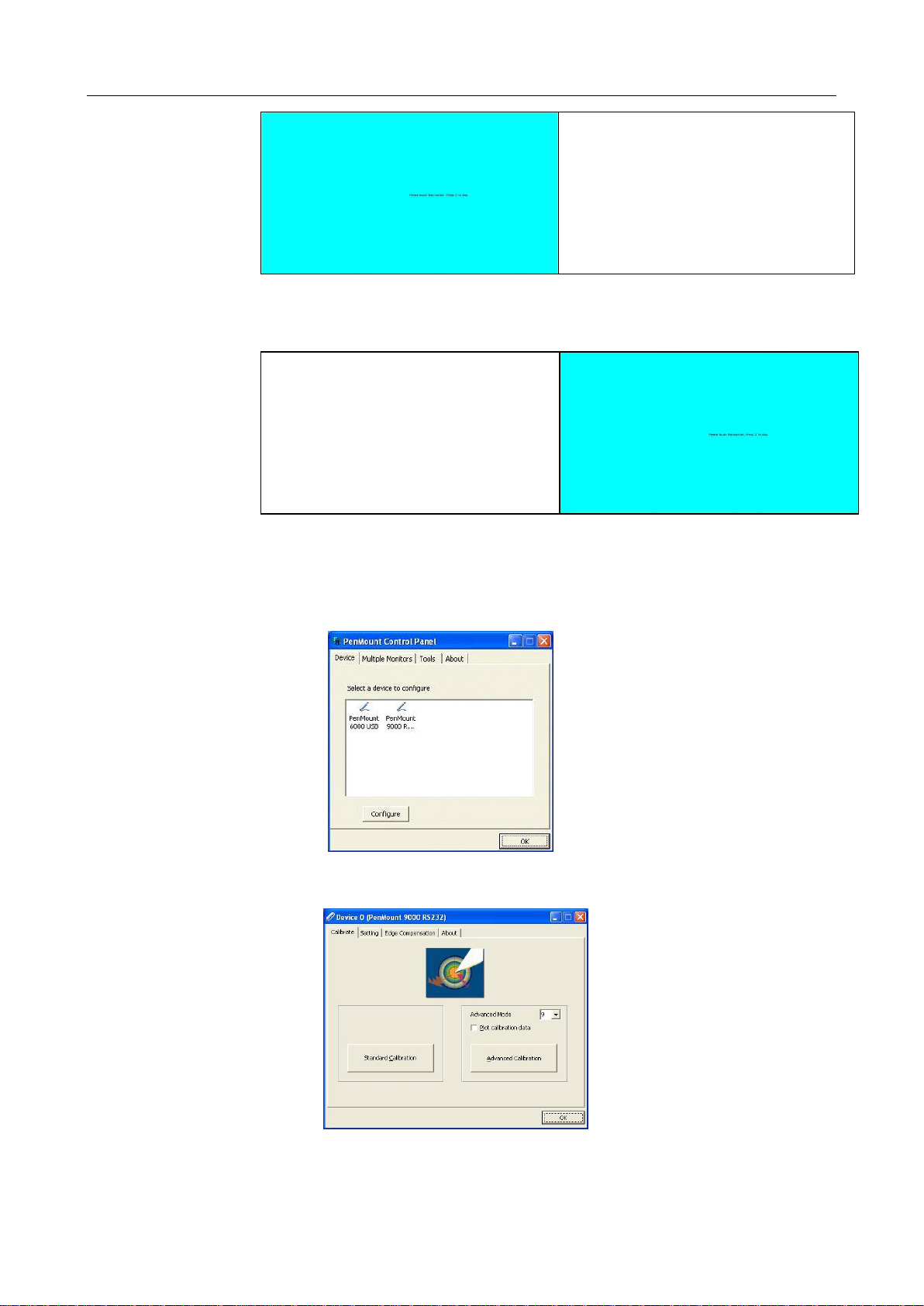

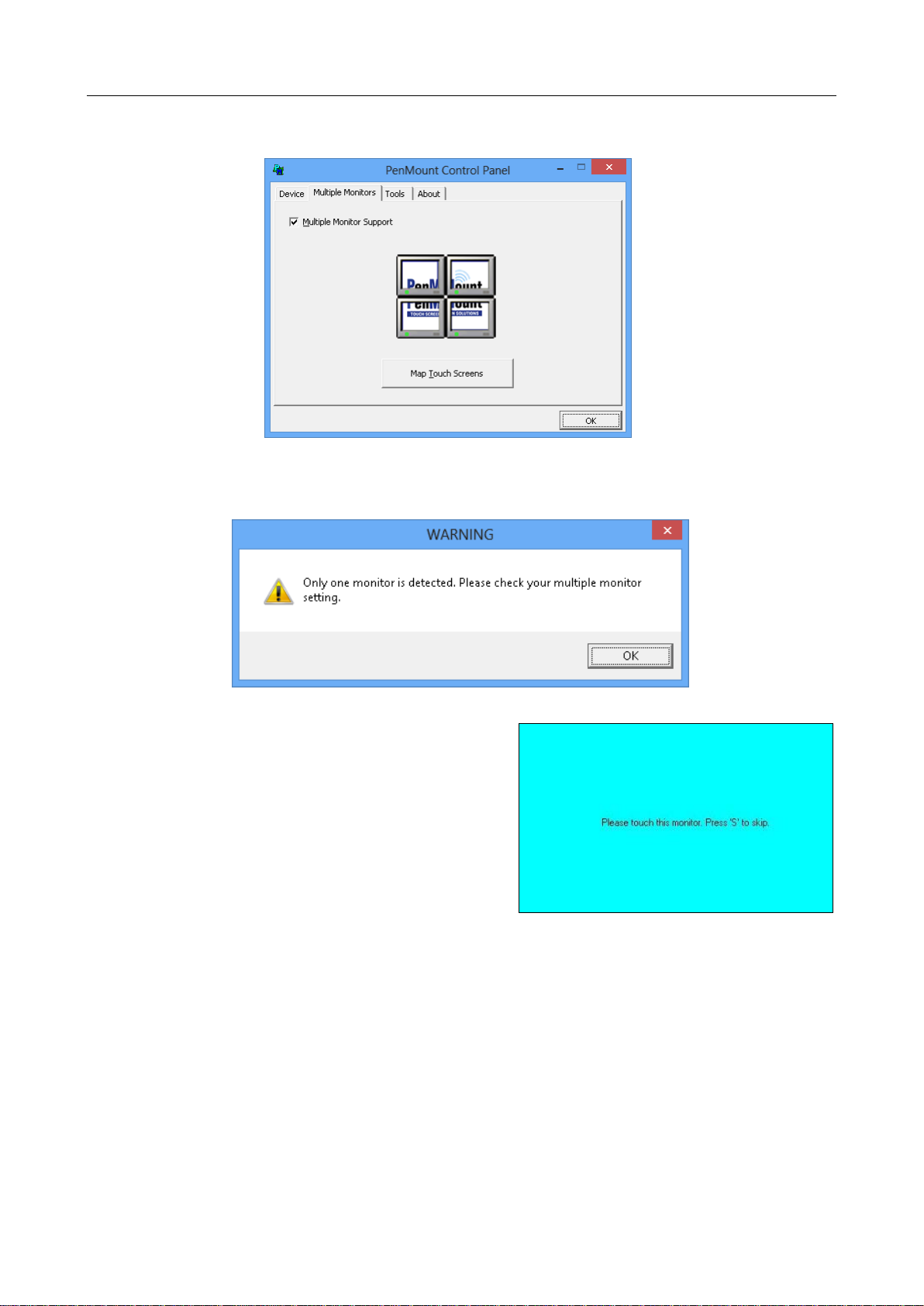

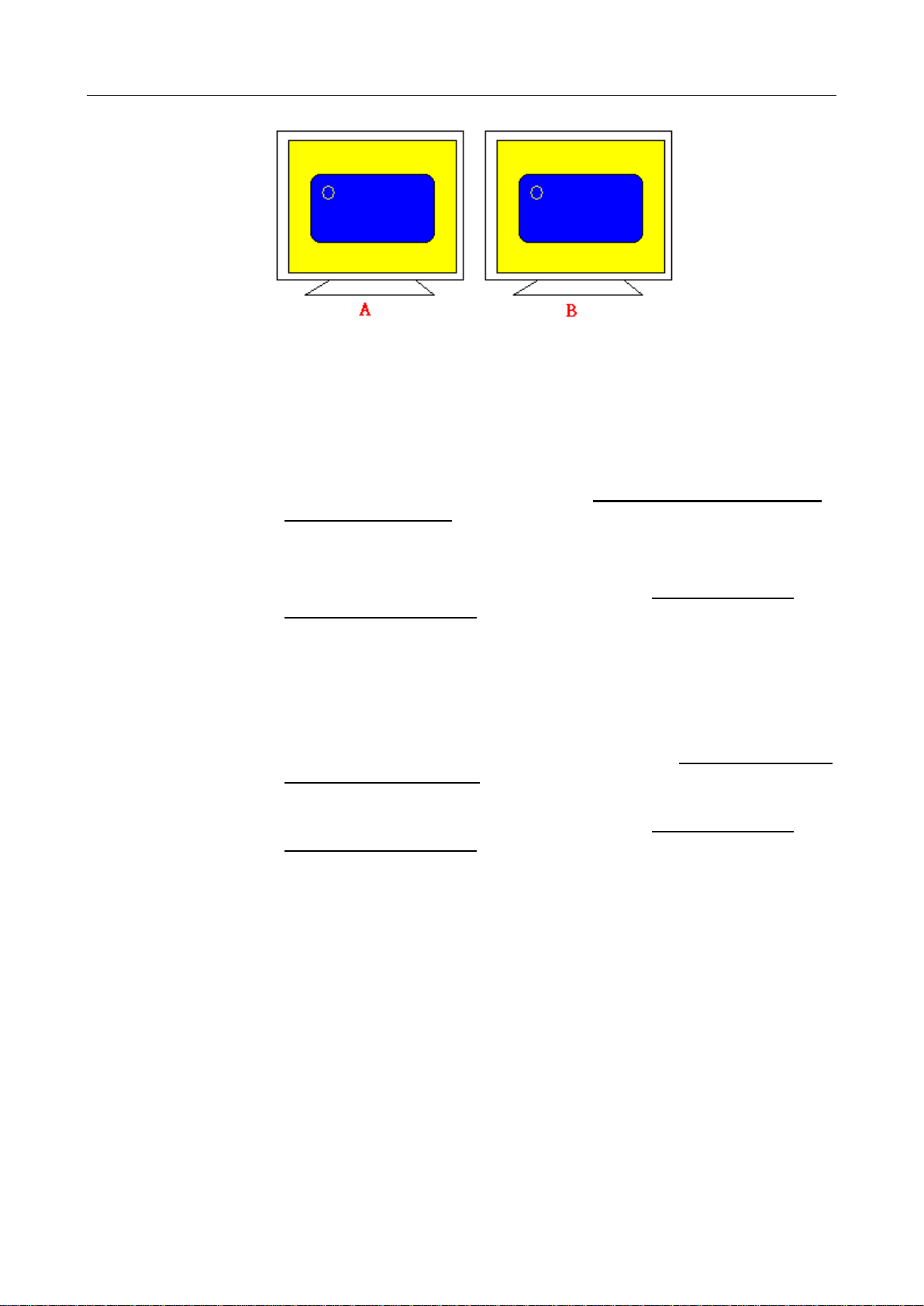

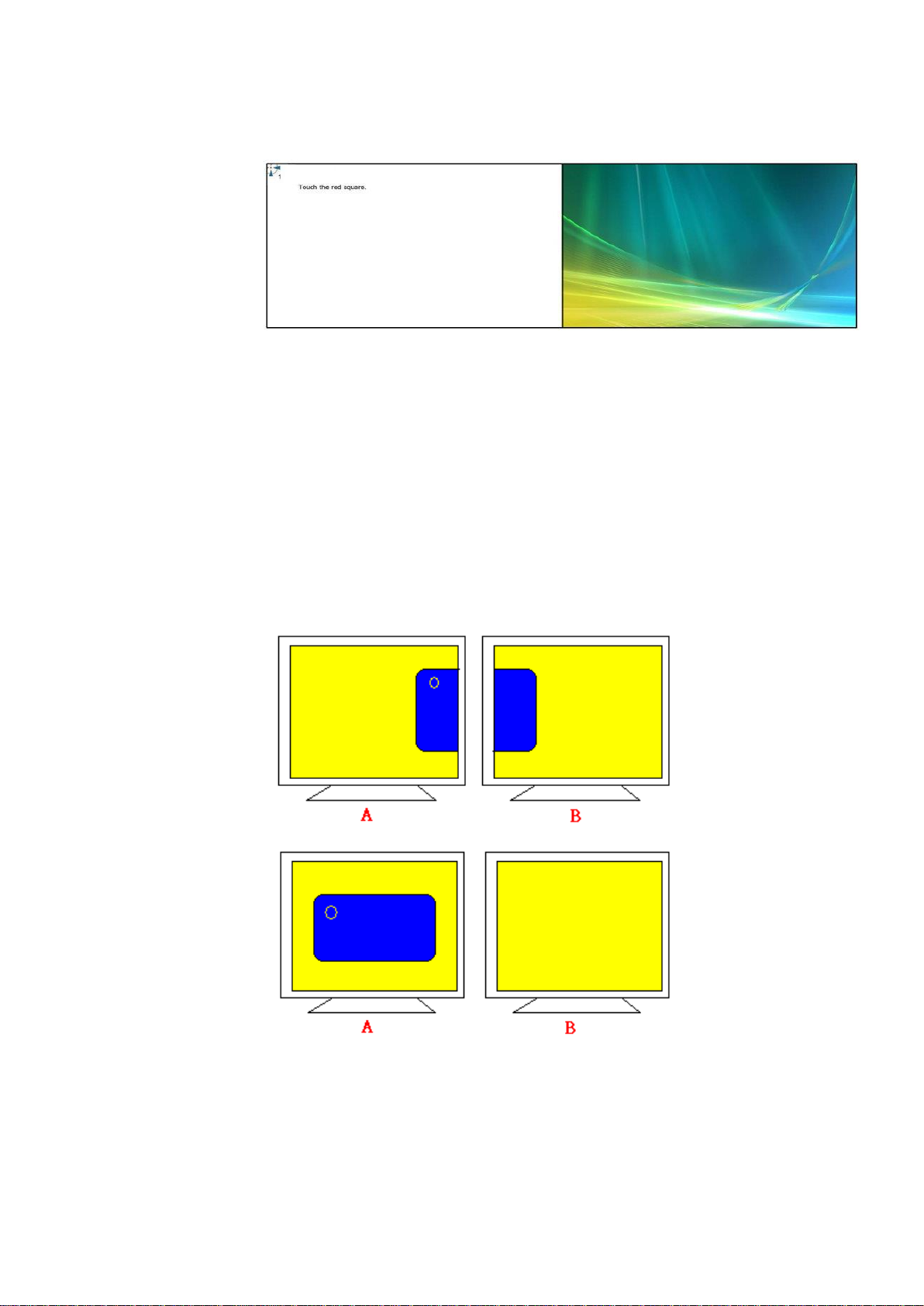

4.2. Multiple Monitors ..................................................................................................................... 33
4.2.1. Requirements .......................................................................................................................... 33
v
Table of Contents

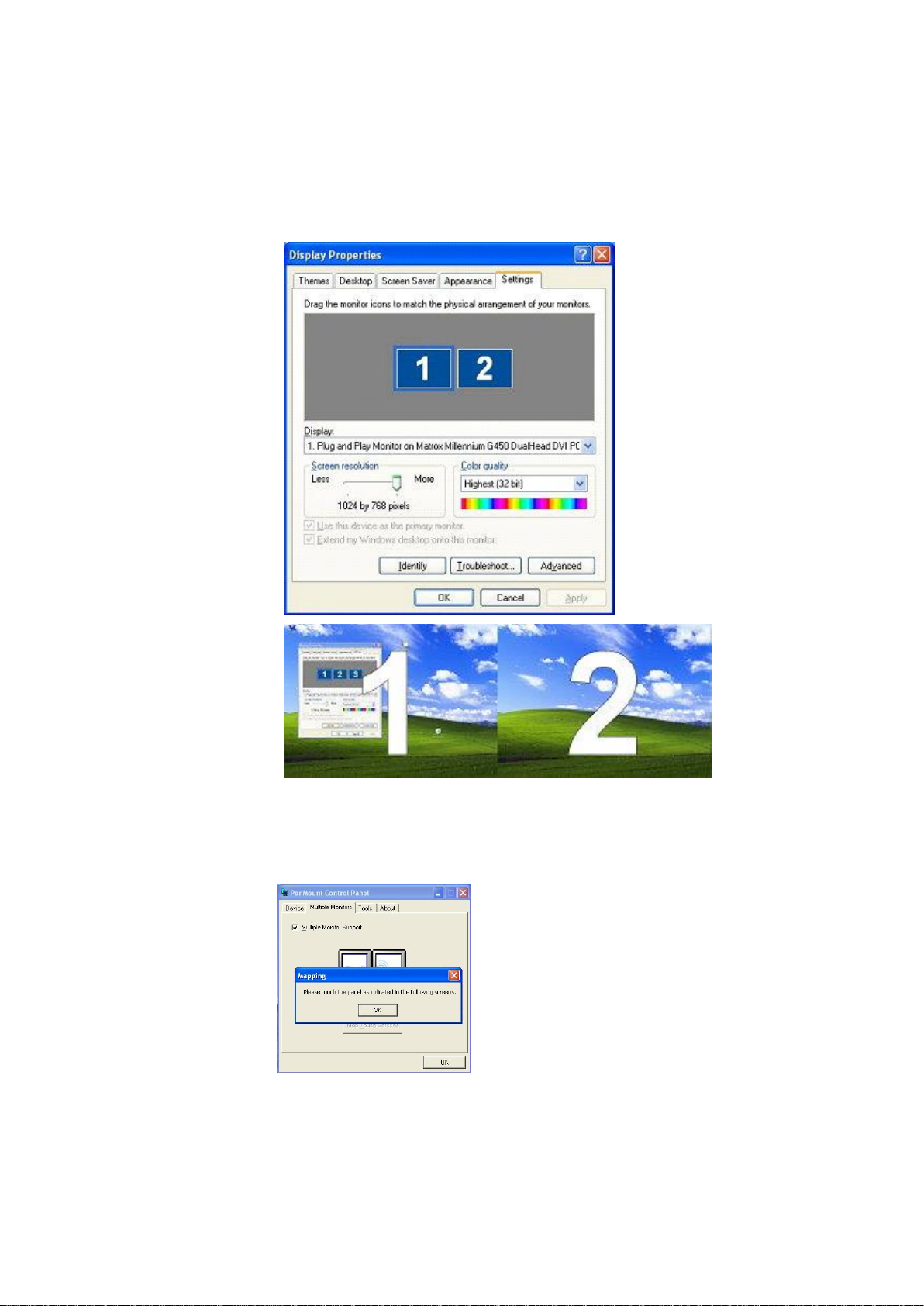

4.2.2. Example: Mapping Two Touch Monitor in Windows XP .......................................................... 35
4.3. Multiple Devices ...................................................................................................................... 37
4.3.1. Compare Functions ................................................................................................................. 37
4.3.2. Requirements .......................................................................................................................... 38
4.4. Screen Rotation ....................................................................................................................... 38

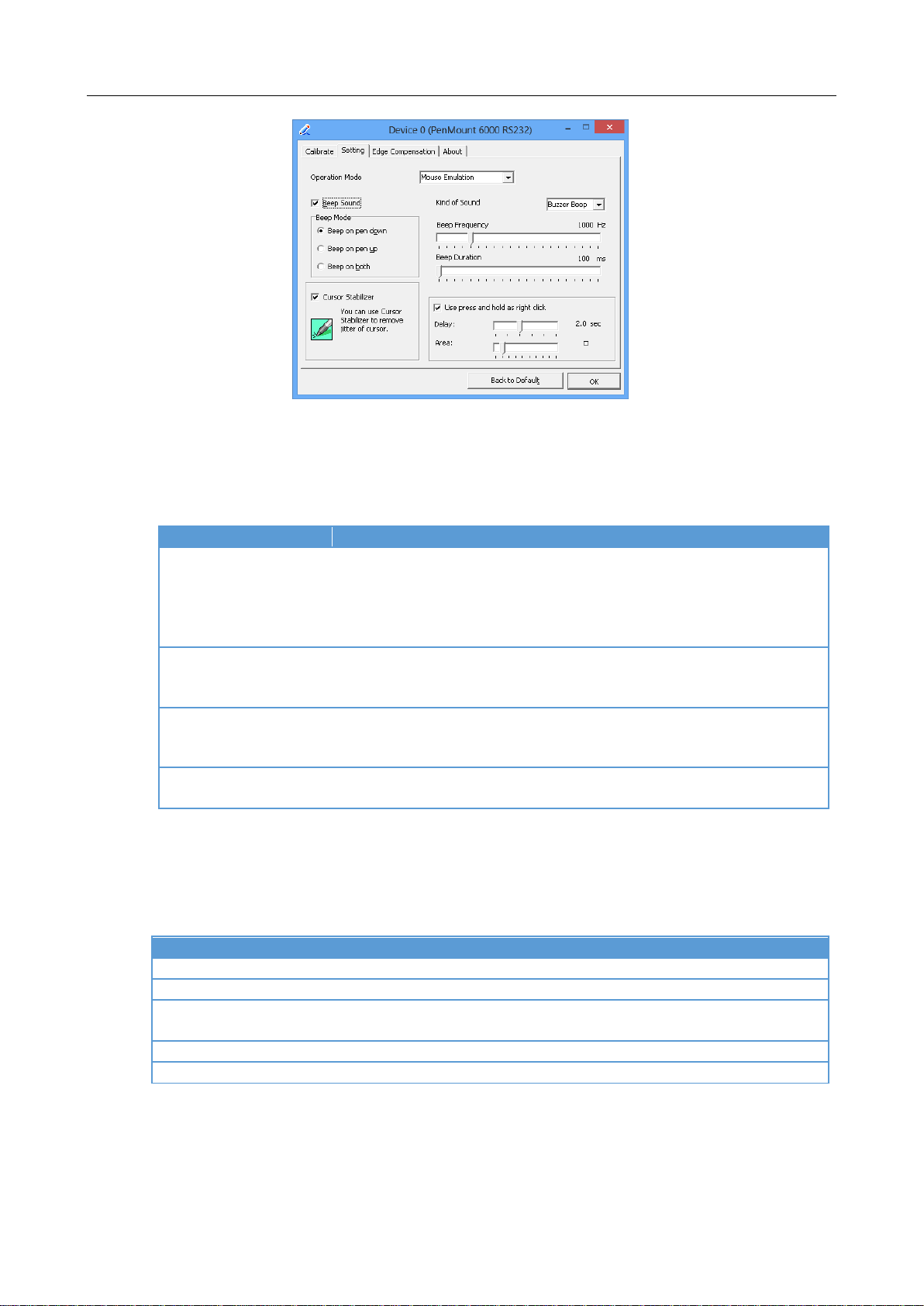

4.5. The Settings Tab ..................................................................................................................... 39
4.5.1. Operation Mode ....................................................................................................................... 40
4.5.2. Beep Sound ............................................................................................................................. 40

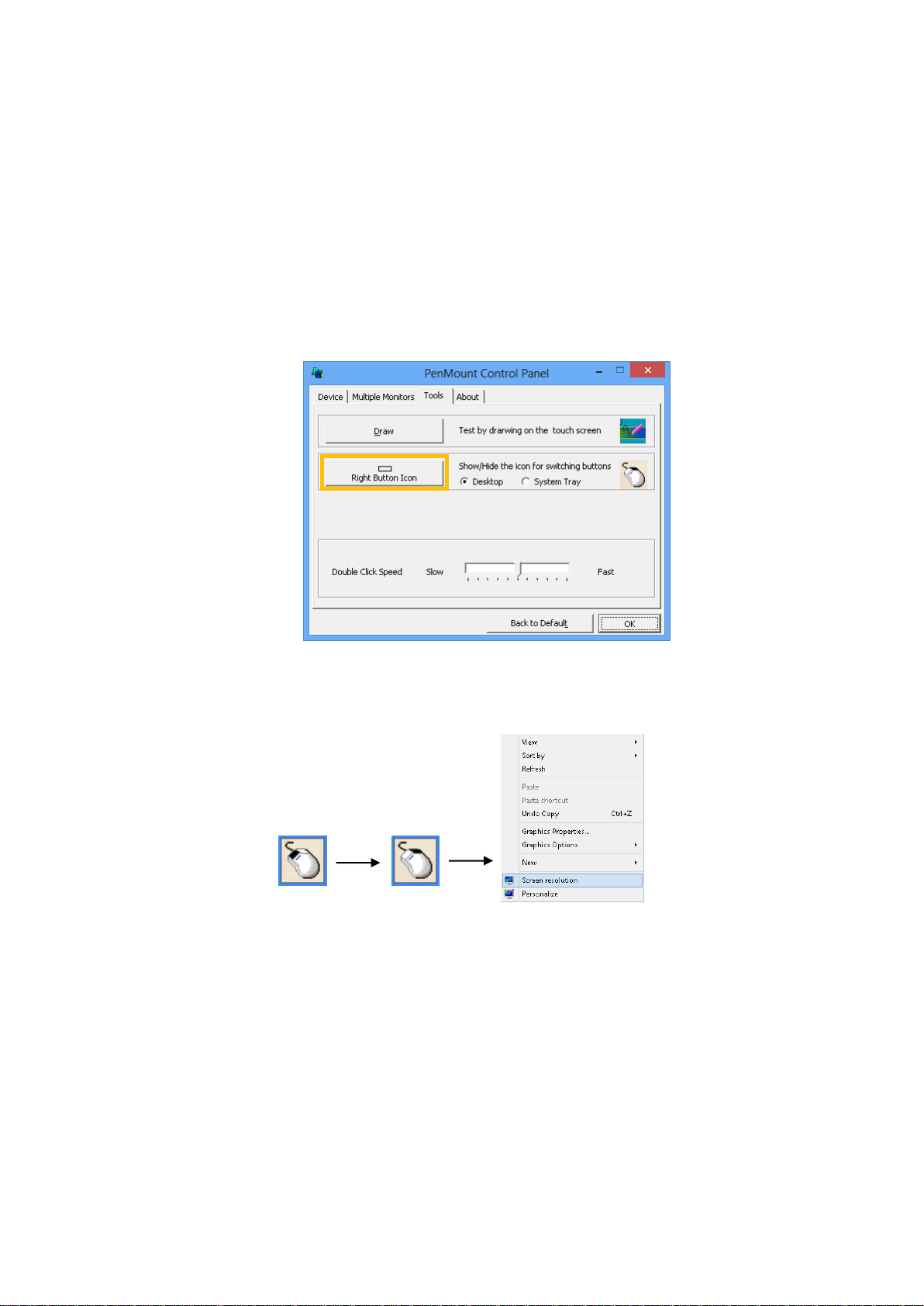

4.5.3. Right Button ............................................................................................................................. 40

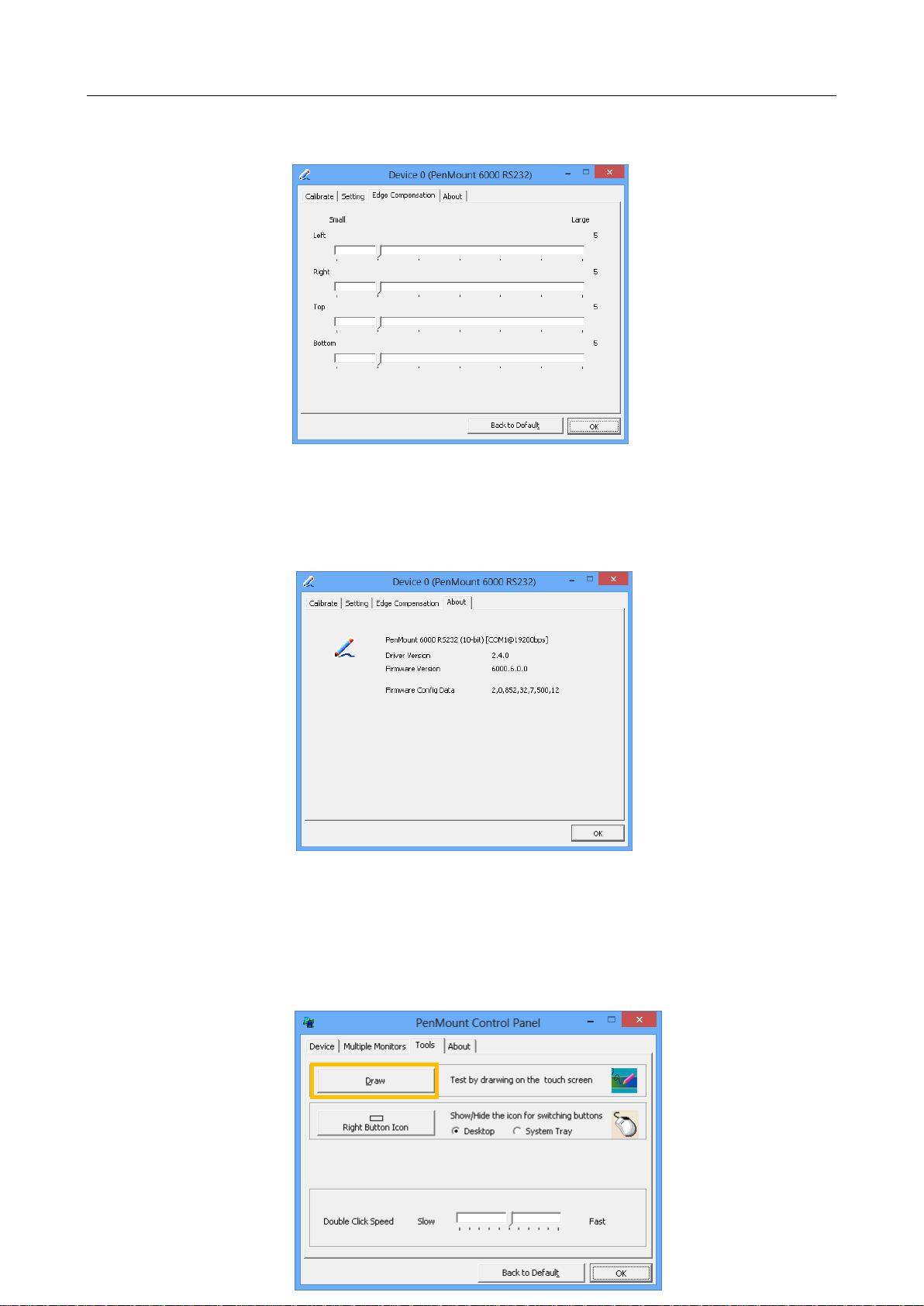

4.6. Edge Compensation ................................................................................................................ 41
4.7. The Device Information ........................................................................................................... 42

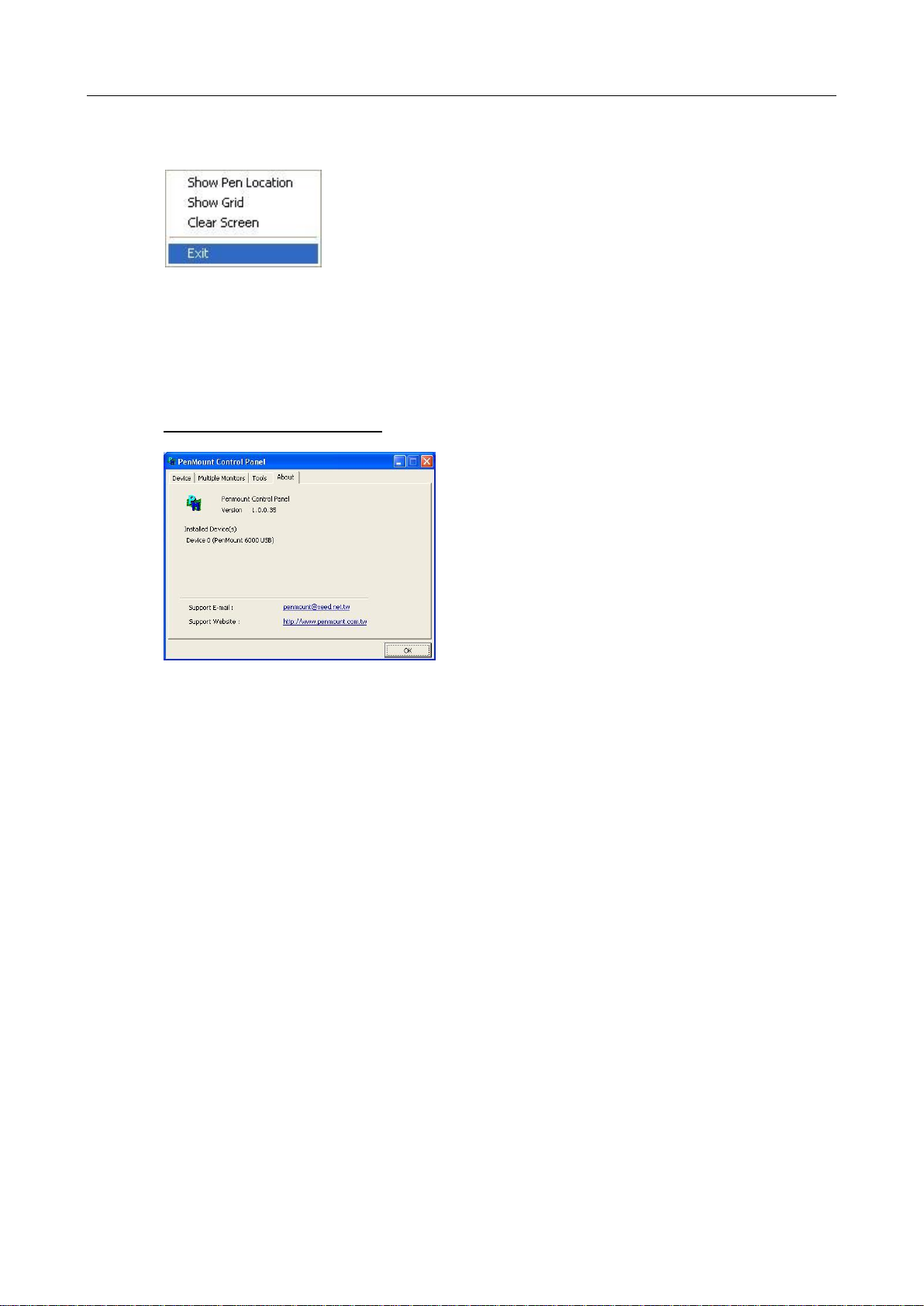

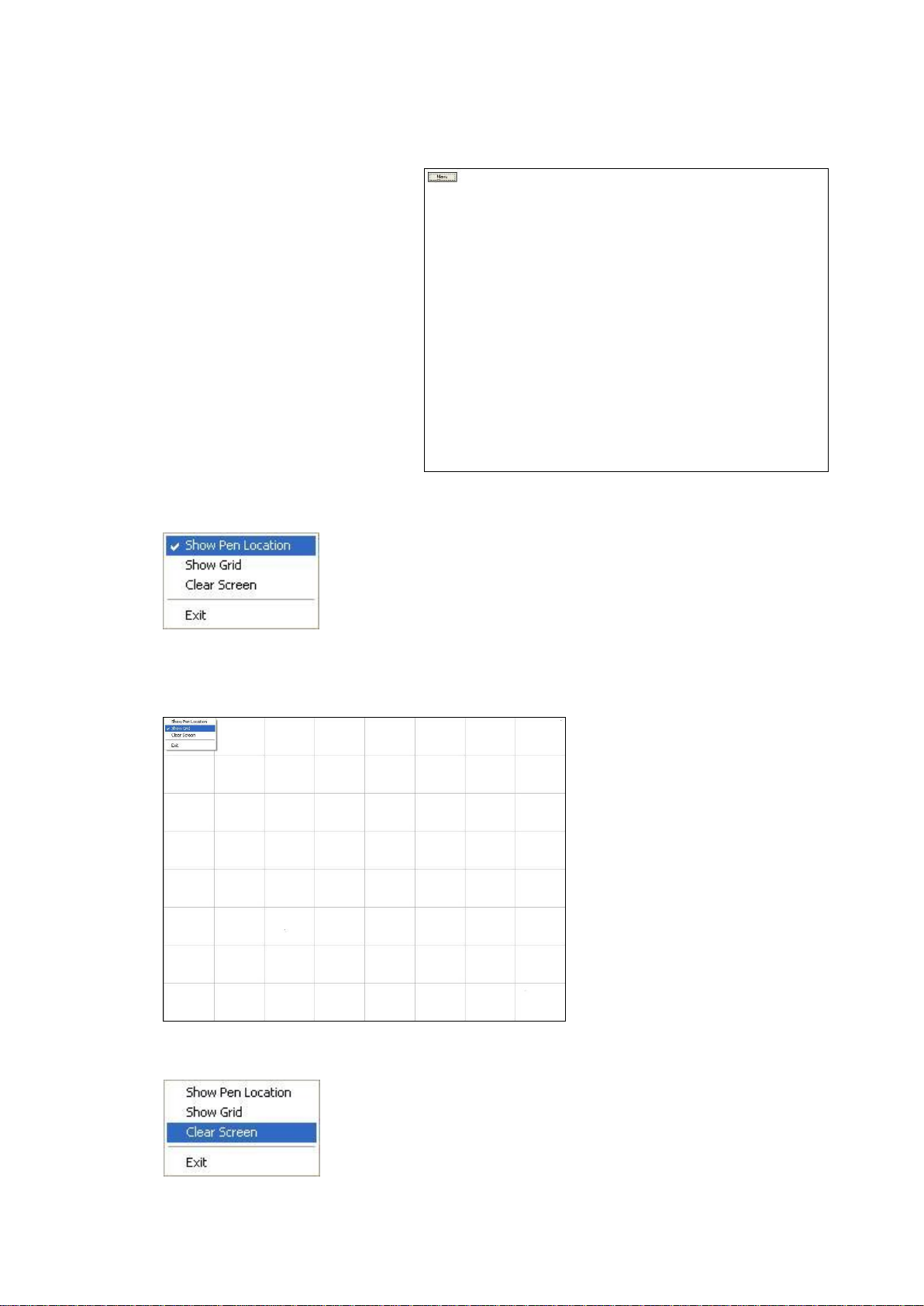

4.8. Draw Utility .............................................................................................................................. 42
4.9. The Contact Information .......................................................................................................... 44
Chapter 5. PenMount Gesture AP for Windows 2000/XP/VISTA/7/8 ...................................... 45
5.1. Invoke PenMount Gesture AP ................................................................................................. 45
5.2. Configure PenMount Gesture AP ............................................................................................ 46
5.3. PenMount Gestures’ Default Values in Windows XP .............................................................. 49
Model
Interface
Touchscreen Wire Support
PenMount 6200D
RS-232 & USB
4, 5, 8
PenMount 6202B
RS-232 & USB
4, 5
PenMount 6300A
USB
4, 5, 8
PenMount 6500A
RS-232 & USB
4, 5, 8
Chapter 1. Introduction
PenMount Touchscreen Control Board is the most popular touchscreen control board on the market.
PenMount control boards, chipsets, and software support a wide range of configurations,
applications, and operating systems. Designed for easy configuration and superior touchscreen
performance, the PenMount 6000 control board offers both RS-232 and USB interfaces except
6300, which only supports USB interface.
PenMount Touchscreen Control Board is a circuit board that you install between a touchscreen and
a host computer. The control board converts touch input into digital data, and the device driver
converts the data into mouse events used by the operating systems.
The control boards are comprised of an interface board for mounting on a host computer, a
controller chip, other supporting components, and software drivers. The bundled software drivers
offer unique functions and support the most popular hardware platforms and operating systems.
The PenMount control boards are designed not only to be user-friendly, but also to support
engineers. All PenMount control boards provide a diagnostic LED that allows both users and
engineers to check the touchscreen and the control board functions.
1.1. About this Manual
This manual describes the features of the PenMount Touchscreen Control Board series,
how to connect a control board, and how to install and use the software drivers and
utilities with your operating system.
This manual is for users who are using the PenMount Touchscreen Control Board and
software, as well as for engineers who are integrating and customizing the control board
for use with other products.
1.2. PenMount 6000 Control Boards
PenMount 6000 control boards are configured for the use with both RS-232 and USB
interfaces (except 6300 only supporting USB interface). Depending on design or product
requirements, PenMount also provides controller ICs. A 6000 control board connects to a
touchscreen, a power supply (when using RS-232 interface) and a computer system’s
RS-232 or USB port. PenMount 6000 offers four control boards:
1
Chapter 1 Introduction
Operating Systems
6200D
6202B
6300A
6500A
USB
RS-232
USB
RS-232
USB
RS-232
USB
DOS
Windows
2000/XP/2003/VISTA/7/8
Linux ( Kernel 2.6 &
X-Window )
Windows CE
4.2/5.0/6.0/7.0
1.3. Drivers & Utilities
All of the 6000 control boards come bundled with software drivers and utilities that
support the most popular hardware platforms and operating systems. Once you install the
drivers and utilities, you can use this software to configure and calibrate your touchscreen.
Drivers for PenMount 6000 boards support the following operating systems:
List of Supported Operating Systems
1.4. After Sales Service
PenMount 6000 control boards and software are modified and updated on a regular basis.
For more latest updated information, downloads, and technical support, please refer to
our website at: http://www.penmount.com/
Chapter 2. Install PenMount 6000 Control Boards
The procedures that follow describe how to install and configure the hardware for each of the
PenMount 6000 Control Boards.
2.1. Installation Requirements
You need the following to install a touchscreen using a PenMount 6000 Touchscreen
Control Board:
2.1.1. Computer
1. An IBM-compatible host computer
2. A communications port, either RS-232 or USB (For 6300, only USB)
3. A Compact Disc drive
4. Operating systems required: See table “Error! Reference source not
found.” on page Error! Bookmark not defined. for details.
2.1.2. Touchscreen
1. A 4-wire tail analog resistive touchscreen (for all 6000 boards)
2. A 5-wire tail analog resistive touchscreen (for all 6000 boards)
3. A 8-wire tail analog resistive touchscreen (for all 6000 boards except
6202B)
2.1.3. Control Board
1. A PenMount 6000 Touchscreen Control Board
2. Cables to connect the control board to the touchscreen and the
computer’s communications port.
3. The PenMount Drivers & Utilities disk.
4. A cable to connect the power supply. (This is only required when
connecting with RS-232 port).
3
Chapter 2 Installing PenMount 6000 Control Boards
2.2. Installation Diagrams
2.2.1. The connection of 6200D Control Board (for both RS-232 & USB Interfaces)
Installing PenMount 6000 Control Boards
2.2.2. The connection of 6202B Control Board (for both RS-232 & USB Interfaces)
5
Chapter 2 Installing PenMount 6000 Control Boards
Installing PenMount 6000 Control Boards
2.2.3. The connection of 6300A Control Board (for USB Interface Only)
7
Chapter 2 Installing PenMount 6000 Control Boards
2.2.4. The connection of 6500A Control Board (for both RS-232 & USB Interfaces)
Installing PenMount 6000 Control Boards
2.3. RS-232 & USB Boards (6000 Series)
All PenMount 6000 control boards use both RS-232 serial interface and USB interface
except 6300 which only supports USB connection. There are currently four models in the
6000 Series. The general procedure for board installation is similar, though hardware
connection and configuration varies for each board.
2.3.1. Install PenMount 6200D Control Board
PenMount 6200D control boards are touchscreen control boards that use both
RS-232 and USB interfaces and supports 4-wire, 5-wire, and 8-wire
touchscreens. The size of the board is 62.0 x 33.0 mm and it has five
connectors and four dipswitches on-board. Follow the steps below to install
the 6200D control board.
1. Cut off the power of your computer and display, then open the case of the
display or the system. Find space on your system and attach the control
board to your system with screws. The control board has industry
standard 3φ screw holes.
2. For the other installation details, see 2.2.1 on page 4: The connection of
6200D Control Board (for both RS-232 & USB Interfaces).
PenMount 6200D Touchscreen Control Board Upside
3. Turn on the computer and the display. Install the software drivers and
utilities and calibrate the touchscreen. See Chapter 3. Install Drivers for
6000 Boards for details.
9
Chapter 2 Installing PenMount 6000 Control Boards
4. The mechanical diagrams of PenMount 6200D Control Boards:
PenMount 6200D5 Touchscreen Control Board Mechanical Diagram
PenMount 6200D8 Touchscreen Control Board Mechanical Diagram
Installing PenMount 6000 Control Boards
2.3.2. Install A PenMount 6202B Control Board
PenMount 6202B control boards are touchscreen control boards that use
both RS-232 and USB interfaces and supports 4-wire and 5-wire
touchscreens. The size of the board is 70.0 x 20.0 mm and it was designed-in
with two kinds of connector. One is connected with touchscreen directly for
4-wire or 5-wire selective while the other is supported by both of RS-232 and
USB interfaces.
Follow the steps below to install PM6202B control boards.
1. Cut off the power of your computer and display, then open the case of the
display or the system. Find space on your system and attach the control
board to your system with screws. The control board has industry
standard 3φ screw holes.
2. For other installation details, see 2.2.2 on page 5: The connection of
6202B Control Board (for both RS-232 & USB Interfaces).
PenMount 6202B CZ4 Touchscreen Control Boards Upside
PenMount 6202B CW4 Touchscreen Control Boards Upside
PenMount 6202B CW5 Touchscreen Control Boards Upside
3. Power on the computer and the display. Install the software drivers and
utilities and calibrate the touchscreen. See Chapter 3. Install Drivers for
6000 Boards for details.
11
Chapter 2 Installing PenMount 6000 Control Boards
4. The mechanical diagrams of PenMount 6202B Control Boards
PenMount 6202B CZ4 Control Board Mechanical Diagram
PenMount 6202B CW4 Control Board Mechanical Diagram
PenMount 6202B CW5 Control Board Mechanical Diagram
Installing PenMount 6000 Control Boards
2.3.3. Install A PenMount 6300A Control Board
The PenMount 6300A control board is a touchscreen control board that uses
USB interface only. It supports 4-wire, 5-wire and 8-wire touchscreens. The
size of the board is 26 x 60mm and it has two connectors and two dipswitches
on-board. Follow the steps below to install the 6300A control board.
1. Cut off the power of your computer and display, then open the case of the
display or the system. Find space on your system and attach the control
board to your system with screws. The control board has industry
standard 3φ screw holes.
2. For other installation details, see 2.2.3 on page 7: The connection of
6300A Control Board (for USB Interface Only).
PenMount 6300A Touchscreen Control Board Upside
3. Power on the computer and the display. Install the software drivers and
utilities and calibrate the touchscreen. See Chapter 3. Install Drivers for
6000 Boards for details.
4. The mechanical diagram of PenMount 6300A Control Board:
PenMount 6300A Touchscreen Control Board Mechanical Diagram
13
Chapter 2 Installing PenMount 6000 Control Boards
2.3.4. Install A PenMount 6500A Control Board
The PenMount 6500A control board is a touchscreen control board that uses
both RS-232 and USB interfaces and supports 4-wire, 5-wire, and 8-wire
touchscreens. The size of the board is 26 x 60 mm and it has two connectors
and four dipswitches on-board. Follow the steps below to install the 6500A
control board.
1. Cut off the power of your computer and display, then open the case of the
display or the system. Find space on your system and attach the control
board to your system with screws. The control board has industry
standard 3φ screw holes.
2. For other installation details, see 2.2.4 on page 8: The connection of
6500A Control Board (for both RS-232 & USB Interfaces).
PenMount 6500A Touchscreen Control Board Upside
3. Power on the computer and the display. Install the software drivers and
utilities and calibrate the touchscreen. See Chapter 3. Install Drivers for
6000 Boards for details.
4. The mechanical diagram of PenMount 6500A Control Board:
PenMount 6500A Control Board Mechanical Diagram
6200D
6202B
6300A
6500A
RS-232
USB
DOS
Windows XP
Linux
(Kernel 2.6 &
X-Window)
Windows CE
(4.2/5.0/6.0/7.0)
RS-232 Driver
USB Driver
INSTALL.EXE
--
PenMount installation program
PM2.EXE
--
PenMount Utility, to configure or test the PenMount
touchscreen
PMOUSE.EXE
--
Driver loader, to load or unload driver.
PMTSR.COM
--
PenMount DOS Driver
PMOUSE.CFG
--
The configuration file for PenMount DOS driver
README.TXT
--
The file you're reading now.
PMINIT.BAT
--
Reload DOS driver batch file
PMUNLOAD.BAT
--
Unload DOS driver batch file
PMTEST.EXE
--
PenMount driver test utility to verify PenMount driver
working.
MOUSETST.COM
--
Mouse Test utility
Chapter 3. Install Drivers for 6000 Boards
This chapter describes how to install drivers and other software that enables your PenMount 6000
control boards to work with various operating systems.
PenMount 6000 boards support the following connections:
RS-232 driver and USB driver for PenMount 6000 boards support the following operating systems:
3.1. Install for DOS Systems
Before installing DOS driver, you must have DOS system installed and running on your
computer. You must also have PenMount Serial Interface either 6200x, 6202x or 6500
control boards installed.
3.1.1. PenMount DOS Driver Installation
PenMount DOS Driver version 2.10 diskette contains the following files:
If you have an older version of PenMount DOS Driver installed in your system,
remove it first. PenMount 6000 control board has an optional cable for 9-pin
D-sub connector. And whenever RS-232 port is used, be sure to plug the
control board into the COM port of PC (e.g. COM1, COM2, COM3 or COM4)
before installing driver.
Follow the steps below to install PenMount DOS Driver.
Step 1: Decompress the driver package. (e.g. C:\TEMP)
15
Installing Drivers for 6000 Boards
Step 2: Go to the working directory. (e.g. cd \TEMP)
Step 3: Run the installation program 'install.exe" at DOS prompt.
Step 4: The install.exe will lead you to complete the installation.
Step 5: Restart computer (Recommanded)
or
press 'ESC' key and issue 'SET
PENMOUNT=<penmount_installation_path>' at DOS prompt.
Step 6: Driver will be loaded after restarting computer.
Note:
1. Environment Variable – PENMOUNT
The environment variable, PENMOUNT, is needed for PenMount driver
v2.10.
The installation program will put the command line 'SET
PENMOUNT=<penmount_install_path>' into the AUTOEXEC.BAT, like:
SET PENMOUNT=C:\PM2 (e.g. PenMount installation path is
C:\PM2)
The driver can't be loaded, if the enviroment variable is not configured
properly and the utility can't be run. Issue the command 'set' at DOS
prompt to check the environment variable.
Environment Variable - PATH
The installation program will put the installation path into the environment
PATH. You can run program in any working directory at DOS prompt
regardless of where the working directory is.
3.1.2. PenMount DOS Driver Functions
PenMount DOS driver offers several functions. You can change the settings
with the following utilities:
1. PM2 Panel
Run the batch file 'PM2.EXE'. Type the command at DOS prompt:
PM2
Before running PM2, you must remove PenMount driver or another
mouse driver, if you have installed one.
There are several functions to select, and the launch key is in brackets.
(e.g. press '2' key to do calibration)
Chapter 3 Installing Drivers for 6000 Boards
mode
width
height
colors
0Dh
320
200
16
13h
320
200
256
10Dh
320
200
32K
10Eh
320
200
64K
10Fh
320
200
16M
0Eh
640
200
16
10h
640
350
16
100h
640
400
256
12h
640
480
16
101h
640
480
256
110h
640
480
32K
111h
640
480
64K
112h
640
480
16M
103h
800
600
256
113h
800
600
32K
114h
800
600
64K
115h
800
600
16M
105h
800
768
256
116h
1024
768
32K
117h
1024
768
64K
118h
1024
768
16M
107h
1280
1024
256
119h
1280
1024
32K
11Ah
1280
1024
64K
11Bh
1280
1024
16M
Use <arrow key> (up/down) to select, and <Enter> to launch the
following functions:
(1) Draw
(2) Calibrate
(3) Detect
(4) Configure
(5) Packet
(6) Help
(7) Exit
2. Draw
Run the 'Draw' in PM2 Panel, and use the arrow keys or hot keys (A~Y)
to choose one of 25 video modes.
Supported Video modes
There are several function keys in the drawing screen:
[ESC] - exit
[Space] - clear screen and information
[F1] - help, list the function keys
[F2] - style, toggle line or dot.
Line mode is default.
Dot mode is not to draw line between dot and next dot.
17
Installing Drivers for 6000 Boards
[F3] - frame, show / hide the frame
[F4] - dock, show / dock the status bar at bottom of screen
[F5] - pen color
There are 16 colors of pen color:
rainbow, blue, green, cyan, red, magenta, brown, lightgray,
darkgray, lightblue, lightgreen, lightcyan, lightred, lightmagenta,
yellow and white.
[F6] - highlight, highlight the dot in the line mode.
[F9] - camera, you can get the snapshot, and store it in bitmap file.
The filename is 'PM<HHMMSS>.BMP', <HHMMSS> is hour, minute and
second. The resolution of bitmap file is the same as video mode, and the
color depth is 4 bits. (16colors)
Status bar:
640x480 - screen resolution (320x200, 640x480....etc)
S: - number of dots were received per second.
Pen - pen color
P: - the counter of received dots
D: - the counter of pen down
U: - the counter of pen up
(x,y) - current coordinate of dot
x:y: - minimum value of coordinate
X:Y: - maximum value of coordinate
3. Calibrate
Run the 'Calibrate' in PM2 Panel, and choose one of the 25 video modes.
The purpose of calibration is to adjust the touchscreen mapping to
properly meet the display screen.
You will be asked to select a video mode number. Select your display
mode by using keyboard to start calibration.
Touch the upper point, then touch the right point, bottom point and left
point, and press <Enter> key to pass the point. After calibration, the
calibrated data will be showed in the screen.
After calibration, we recommend you to do drawing test to verify the
touchscreen and monitor mapped properly.
Function Keys:
[Enter] - pass current point
[F9] - camera, see above.
4. Detect
Detect PenMount automatically. You can press any key to interrupt the
detection.
Chapter 3 Installing Drivers for 6000 Boards
Use the following list to detect PenMount:
COM1 (Base 03F8) (Baud 19200): IRQ 3, 4
COM2 (Base 03F8) (Baud 19200): IRQ 3, 4
COM3 (Base 03F8) (Baud 19200): IRQ 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13,
COM4 (Base 03F8) (Baud 19200): IRQ 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13,
COM1 (Base 03F8) (Baud 9600): IRQ 3, 4
COM2 (Base 03F8) (Baud 9600): IRQ 3, 4
COM3 (Base 03F8) (Baud 9600): IRQ 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13,
COM4 (Base 03F8) (Baud 9600): IRQ 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13,
If you cannot find the PenMount, come 'configure' to set your COM port.
5. Configure
COM Port: COM5~COM9 is for setting customization.
IRQ no.: IRQ3~IRQ15
I/O base: COM1~COM4 are fixed while COM5~COM9 are for
customization.
Baud: 19200 / 9600
Calibrate: left, right, top, and bottom point.
POMODE: the relationship between touch panel and monitor.
Beep Duration: beep duration time (0ms~5500ms), 0ms = turn off the
beep
Beep Freq: beep frequency (20Hz ~10000 Hz)
Other configurations for customization in PenMount 6000:
. jitter threshold
. SSD threshold
. Z threshold
. pen-up threshold
. digital filter
Function Key:
[ESC] - exit
[Tab] - toggle the fields
[up] - increase value
[down] - decrease value
[right] - increase value by 100 (Beep Freq)
[left] - decrease value by 100 (Beep Freq)
[Enter] - save configuration and exit
6. Packet
By using this function, you can get the touch data. Simply touch the
screen and you will see the data gotten.
The output format is as follows:
14, 15
14, 15
14, 15
14, 15
19
Installing Drivers for 6000 Boards
<counter> : counter of raw data
* : current dot
<raw data> : the raw data of touch
<coordinate>: the X, Y of A/D
<offset> : the offset between last dot
Function Key:
[ESC] - exit
7. Help
See 'README.TXT' file
8. Test
Before test, make sure the driver is loaded.
<1> The test program is named 'MOUSETST.EXE'. You can run it with
parameter:
MOUSETST 18
The parameter is video mode number:
mode 18 (12h) : 640x480x16color
mode 19 (13h) : 320x240x256color
....
or run:
MOUSETST
to see what the parameters are
<2> run pmtest.exe
<3> edit
You can also run 'EDIT', the editor bundle in MS-DOS.
Chapter 3 Installing Drivers for 6000 Boards
Operating System
Windows Workstation
Windows 2000
Windows XP
Windows XP Tablet PC Edition
Windows Vista
Windows 7
Windows 8
Windows Server
Windows Server 2003
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Embedded
Windows XP Embedded
Windows Embedded Standard 2009
Windows Embedded Standard 7
Windows Embedded Standard 8
Section
Option
Value
Description
Setup
Name
---
Reserved, please do not change the value
Driver
1
Install the device driver files
0
Do not install the device driver files
Utility
1
Install the utility files
0
Do not install the utility files
Gesture
1
Install the gesture recognizer files
0
Do not install the gesture recognizer files
Option
ShowInfo
1
Show the PenMount contact information in the
“PenMount Control Panel”
0
Do not show the PenMount contact information
in the “PenMount Control Panel”
Version
Major
---
Reserved, please do not change the value
Minor
---
Reserved, please do not change the value
Build
---
Reserved, please do not change the value
QFE
---
Reserved, please do not change the value
3.2. Install for Windows 2000/XP/7/8 Systems
3.2.1. Supported Systems
The PenMount Windows Universal Driver supports the following Windows operating
systems.
3.2.2. Installation Options
Setup.ini
The options in the setup.ini file
Driver\Install.ini
The options in the install.ini file affects the behavior of the PenMount device driver
installer. The following table lists the supported options in install.ini, and the values in blue
color are the default settings.
.
21
Installing Drivers for 6000 Boards
Section
Option
Value
Description
Install
USB
1
Install the PenMount USB driver.
0
Skip the PenMount USB driver installation.
COM
1
Install PenMount RS232 driver.
0
Skip the PenMount RS232 driver installation
MMonitor
1
Install PenMount for multiple monitor mapping
0
Disable the PenMount multiple monitor support
ENUM
1
Install PenMount non-PnP RS-232 device
detection
0
Disable PenMount non-PnP RS-232 device
detection
Option
TouchReport*
1
Install device as mouse device.
2
If system supports Tablet PC Input, install
device as digitizer device; if not, install as
mouse device
EdgeOffset
0
The value used by edge compensation
5
10
15
20
25
30
Smoothing
1
Enables line smoothing, might affect
performance
0
Disables line smoothing
Operation**
0
Touch operates in “Pen Input Emulation” mode
1
Touch operates in “Click on Touch” mode
2
Touch operates in “Mouse Emulation” mode
3
Touch operates in “Click on Release” mode
CalibOffset
---
Reserved, please do not change the value
RBtnPressNHold**
1
Enables press and hold for right button
0
Disables press and hold for right button
Serial
ScanAllPorts
1
Scans all available COM ports for detecting
PenMount RS-232 devices.
The detection on some systems might take a
few time to finish.
0
Do not scan ports
COMx
<mode>
,<baud>
Manually set up a PenMount non-PnP RS-232
on a specific COM port, operates in the baud
rate specified.
For example, “COM1=6000,19200” means
installing PenMount 6000 with 19200 bps on
COM1.
* The Windows XP Tablet PC Edition / Windows Vista / Windows 7 / Windows 8 supports
digitizer devices.
** These options will only work when installed as mouse device.
3.2.3. Device Driver Installation
Chapter 3 Installing Drivers for 6000 Boards
If these is an older PenMount device driver installed on the system, a waning
message box will appear when trying to install a new device driver. Please
click the OK button and perform device driver uninstallation before
proceeding.
Please follow the steps below to install PenMount Windows Universal Driver:
1. Connect the PenMount 6000 control board.
2. Open File Explorer, change to the PenMount Universal Driver and double
click on the ”Setup.exe” file.
3. In the License Agreement window, click on the “I Agree” button
proceed.
4. The setup program will install the device driver files to the Program Files
directory by default. Please click on the “Install” button to confirm
installation.
5. Starting from PenMount Universal Driver V2.4, the setup program will
23
Installing Drivers for 6000 Boards
allow user to choose to install the device as “Mouse Device” or “Digitizer
Device” on systems that supports Digitizer. A message box will show up.
Please select “Yes” for installing PenMount as mouse mode; select “no”
for digitizer mode. The later section describes more detail on these two
modes.
6. The device driver installation will take some time.
When installing PenMount device driver without WHQL, a warning
message box might appear. Please click the “Continue Anyway” button
to proceed.
Warning messages in Windows 2000 / XP
Warning messages in Windows Vista / Windows 7 / Windows 8
7. A window notifying of installation completion appears. Please click on the
“Finish” button.
Chapter 3 Installing Drivers for 6000 Boards
Device Type
Mouse Device
Digitizer Device
Supported Operating System
Windows 2000/XP/Vista/7/8
Windows XPT/ Vista/7/8
PenMount Monitor
Installed
Not Installed
PenMount Control Panel
Launch in PenMount Monitor
Menu
Launch with desktop icon
Calibration
Supported
PenMount 4/9/16/25 calibration
Supported
PenMount 4/9/16/25 calibration
Multiple Monitor
Supported
( Use PenMount monitor
mapping )
Supported
( Configured in Tablet PC
Settings )
Flicks ( Windows Vista / 7 )
Not supported
Supported
Right Button
Supported
( Use PenMount Press and
Hold / Right Click utility )
Supported
( Use system Press and Hold
gesture )
Edge Compensation
Supported
Supported
Touch Beep Sound
Supported
Not Supported
Operating Modes
Supported
Not Supported
8. Please restart the operating system.
3.2.4. PenMount Device Types
The PenMount device driver supports two types of device type configurations:
mouse and digitizer. The moues device type is compatible to all Windows
operating systems, while the digitizer device only works on systems that
supports Tablet PC Input.
In general, installing the PenMount controller as mouse device is
recommended. If you wish to use the Tablet PC Input features on Windows 7 /
8, you may also choose the digitizer type.
For more information on Windows 7 / 8 Tablet PC features, please check the
following web page.
http://windows.microsoft.com/en-US/windows7/help/videos/using-windows-to
uch
This section compares several differences between installing the PenMount
6000 as mouse and digitizer devices.
3.2.4.1. Summary

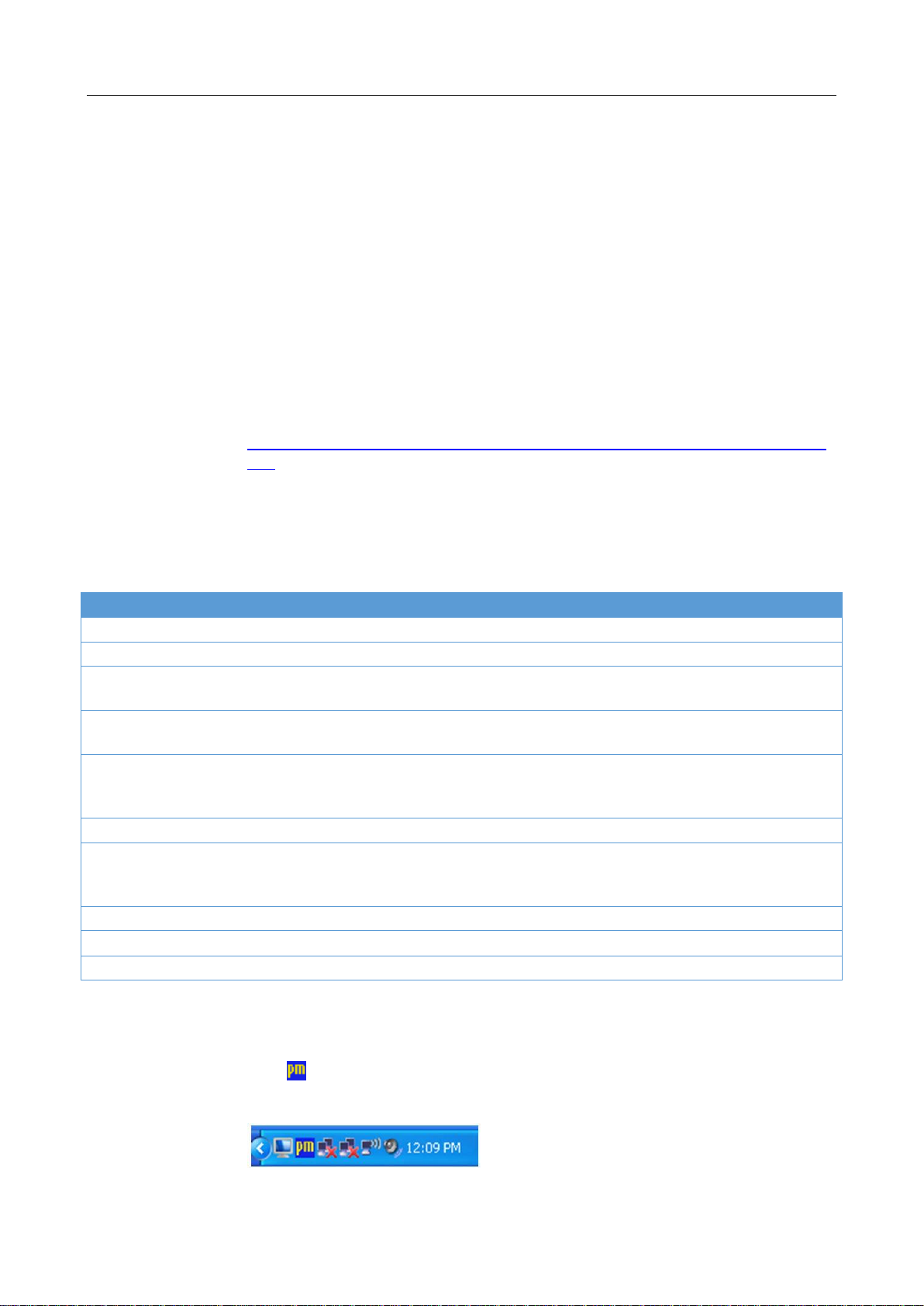

3.2.4.2. PenMount Monitor
The PenMount Monitor is a utility designed for mouse modes. It will
automatically be launched when system starts, and the PenMount Monitor
icon will appear in the notification area.
PenMount Monitor in Windows 2000/XP
25
Installing Drivers for 6000 Boards
Item
Description
Control Panel
Open PenMount Control Panel.
Beep
Setting Beep function for each device.
Right Button
When you select this function, a mouse icon appears in
the right-bottom of the screen. Click this icon to switch
between Right and Left Button functions.
Exit
Exits the PenMount Monitor function.
PenMount Monitor in Windows 7 and Windows 8
By clicking on the icon, a shortcut menu will appear as below:
3.2.4.3. PenMount Control Panel
The PenMount Control Panel is the utility for configuring touch settings.
Please refer to Chapter 4 for more detailed information on configuring
PenMount.
There are several difference between the mouse version and the digitizer
version PenMount Control Panel.
1. When installed as digitizer, a shortcut icon will be created on the
Windows Desktop.
Chapter 3 Installing Drivers for 6000 Boards
Digitizer Version
Mouse Version
Digitizer Version
Mouse Version
2. There is a “Multiple Monitor” tab in the mouse version for configuring
monitor mapping.
For digitizer devices, please check the “Tablet PC Settings” in the
system Control Panel for mapping monitors.
3. A device configuration window will appear by clicking on the
“PenMount 6000 USB” or “PenMount 6000 RS232” icon in the
PenMount Control Panel.
Only the mouse version has the “Setting” Tab.
27
Installing Drivers for 6000 Boards
Linux Distributions
RS232
USB
3.2.5. Refresh Device
If a PenMount device is not attached during device driver installation, user can still install
by using the Refresh feature in the PenMount Control Panel.
3.2.6. Uninstall PenMount Windows Universal Driver
1. Go to Control Panel. Click “Add/Remove program”. Select ”PenMount
Windows Universal Driver”, and click on the “Change/Remove” ( Windows
XP ) or “Uninstall/Change” ( Windows 7 / 8 ) button.
3.3. Install PenMount X Window Driver on Linux
2. Select ‘Uninstall’ to remove PenMount Windows Universal Driver.
Before installing PenMount Linux X Window RS-232/USB Driver for PenMount 6000
boards, you must have had Linux X Window installed and running on your computer. You
must also have installed one of PenMount 6200D, 6202B, 6300A or 6500A control
boards.
PenMount Linux X Window RS-232 and USB Drivers for 6000 boards support the
following operating systems:
Chapter 3 Installing Drivers for 6000 Boards
Ubuntu
6.06 / 6.10 / 7.04 / 7.10 / 8.04 / 8.10 / 9.04 / 9.10 / 10.04 / 10.10 /
11.04 / 11.10 / 12.04 / 12.10
●
●
Debian 4.0 / 5.0 / 6.0
●
●
Debian 3.1
Fedora
4/5/6/7/89/10/11/12/13/14/15/16/17 32_64bit
●
●
Fedora Core3
●
Fedora Core2
●
Slackware12.0/12.1
●
●
Slackware10.0
Red Hat 9.0
●
Red Hat 7.3 / 8.0
●
●
OpenSuse
10.1/ 10.2/ 10.3/ 11/ 11.1/ 11.2/ 11.3/ 11.4/ 12.1 / 12.2
●
●
Suse 10.0 ●
Suse 9.2/9.3
Suse 8.0/9.0/9.1
Cent OS 5.2/ 5.3/ 5.4/ 5.5/ 6.0/ 6.2 32_64bit
●
●
Linux XFree86 4.x.x
Linux XFree86 3.3.6
Linux For GPM
●
●
QNX 6.4.1/ 6.5
●
●
QNX 6.3.2
QNX 6.2 ●
Android ● ●
3.3.1. Install PenMount Linux X Window RS-232 Driver and USB
Driver
See the readme file included in the driver folder.
3.3.2. Calibration Utilities
See the readme file included in the driver folder.
3.4. Install PenMount Windows CE Driver
Before installing PenMount WinCE Driver, you must have WinCE system installed and
running in your device. You must also have had either PenMount USB control boards
6200D, 6202B, 6300A or 6500A installed.
NOTE: Make sure you can move the WinCE cursor with a serial mouse attached to the
target COM port (e.g. COM2) before connecting the 6000 control board by
RS-232 port.
3.4.1. Install PenMount Windows CE Driver
Please see the readme file included in the driver folder.
29
Software Function
DOS
Windows
2000/XP
Windows
VISTA/7/8
Windows
CE
Linux
Standard Calibration
● ● ● ● ●
Advanced Calibration
● ● ● ●
Multiple Monitors
● ●
Multi Device
● ●
Rotation
● ●
Operation Mode
● ●
Drawing mode
● ● ● ●
Beep Sound
● ● ● ●
Beep sound adjustable
● ●
Wake up function
● ●
Showing linearity
● ●
Right button
● ● ● ●
Hide cursor
●
Double click area and
speed adjustable
● ●
About ● ●
Edge Compensation
● ●
Refresh ● ●
Remark:
With PenMount Windows Universal V2.2.0.283 and later versions, since the touchscreen is automatically
installed as a digitizer device in Windows Vista/7/8, the functions which are built within Windows Vista/ 7/
8 such as rotation, multi-monitors, flicks, and context menu function (which launches a context menu by
user’s long-pressing on touchscreen rather than clicking the right-mouse button or pressing the
application key on the keyboard) will be supported.
Chapter 4. Driver Software Functions
This chapter will guide you to the special software functions that configure and adjust the PenMount
control boards and touchscreen hardware. Please note that not all of the functions are available for
every driver. See the following table for drivers’ software functions and their availability for specific
interface and systems:
The following content in this chapter deals mainly with PenMount Windows Universal Driver (for
2000/XP/2003/VISTA/7/8). The PenMount Control Panel, which can be launched either in the start
menu, or by double click on the desktop icon, is the major configuration utility.
4.1. Calibration
The most important feature that PenMount Control Panel provides is calibration. Please
click on the “PenMount 6000 USB” or “PenMount 6000 RS232” icon to open the device
specific configuration window.
30
Driver Software Functions
The first tab is the calibration tab, which consists of four features: “Standard Calibration”,
“Advanced Calibration”, “Plot calibration data” and “Turn off EEPROM storage”.
4.1.1. Standard Calibration
The Standard calibration function uses four points for calibration and one point for
confirmation. Under normal circumstances, the standard calibration is all you need to
perform an accurate calibration.
31
Chapter 4 Driver Software Functions
%PROGRAMFILES%\PenMount Universal Driver\DMCCtrl.exe -calibration <mode>
4.1.2. Advanced Calibration
The Advanced Calibration function improves the accuracy of calibration by using more
involved engineering calculations. Use this function only if you have tried the Standard
Calibration and there is still a discrepancy in the way the touchscreen maps to the display.
You can choose 9, 16 or 25 points to calibrate, though we suggest that you first try 9
points, if it is still not tracking well then try 16 or 25 points.
The more points you use for calibration, the greater the accuracy. Errors in calibration
may occur due to viewing angle, or individual skill, and there may be little difference in
using 16 or 25 points. Note that a stylus is recommended for the most accurate results.
4.1.3. Plot Calibration Data
Check this function to have touch panel linearity comparison graph appear when you
finish Advanced Calibration. The black lines reflect the ideal linearity assumed by
PenMount’s application program while the blue lines show the approximate linearity
calculated by PenMount’s application program as the result of user’s execution of
Advance Calibration.
4.1.4. Turn off EEPROM storage
This function disables the write-in of calibration data in the PenMount controller. This
function is enabled by default.
4.1.5. Calibration in Command Line
In some cases, users might want to launch calibration directly in command line. Please
use the following command:
Supported Modes:
4= Standard Calibration 4
9= Advanced Calibration 9
16= Advanced Calibration 16
25= Advanced Calibration 25
4.2. Multiple Monitors
PenMount supports two or more touchscreen displays for one system. Each monitor
requires its own PenMount touchscreen control board, either installed inside the display
or in a central unit. Multiple Monitors supports the following modes:
Windows Extend Monitor Function
Matrox DualHead Multi-Screen Function
nVidia nView Function
NOTE: The Multiple Monitors function is for the use with multiple displays only. Do
not use this function if you have only one touchscreen display. Please note
once you turn on this function the Rotating function is disabled.
4.2.1. Requirements
Before using the Multiple Monitors function you need the following:
A display card that supports multiple monitors such as the Matrox, nVidia,
ATI, etc.
(Two or more display cards supported by Windows are also ok.)
Two or more touchscreens
Two or more Serial Ports or USB ports.
Two or more PenMount 6000 control boards such as 6200D, 6202B,
6300A or 6500A.
The PenMount Windows Universal Driver (for 2000/XP/2003/VISTA/7/8).
Before using Multiple Monitors you must have two or more monitors that are
in extension mode. For display cards that support multiple monitors, we
suggest you consider Matrox, nVidia, or ATI cards and inquire about operation
and usability issues.
Note: Before you can use multiple monitors you need to map each monitor.
Enable the Multiple Monitors
Enable the multiple display function as follows:
1. In PenMount Control Panel, under Multiple Monitors tag, check the
“Multiple Monitor Support” box. Then click on the “Map
Touchscreens” button to start assigning touch controllers to displays.
Driver Software Functions
33
Chapter 4 Driver Software Functions
2. If there is only one monitor attached, a warning message box will show
up.
3. Touch each screen as it
displays “Please touch this
monitor. Press ‘S’ to skip”, or
wait for 10 second to skip
automatically.
4. Follow this sequence and
touch each screen to map
the touchscreens.
5. After the setting procedure is finished, maybe you need to calibrate for
each panel and controller.
NOTES:
1. If you use a single VGA output for multiple monitors, please do not
use the Multiple Monitors function. Just follow the regular
procedure for calibration on each of your desktop monitors.
2. The Rotating function is disabled if you use the Multiple Monitors
function.
3. If you change the resolution of display or screen address, you have
to redo Map Touchscreens so the system understands where the
displays are.
Driver Software Functions
4. If you have multiple monitors but only one touchscreen, press ‘S’ to
skip mapping step.
4.2.2. Example: Mapping Two Touch Monitor in Windows XP
1. Please make sure the touch monitor had plugged in and detected.
2. In PenMount Control Panel, under Multiple Monitors tag, click “Map
Touchscreens” then click “OK”.
3. Please follow the message show the display to match the controller and
touchscreen.
3-1. Please click “S” to skip if the monitor without use touchscreen.
35
Chapter 4 Driver Software Functions
3-2. When screen jump to Screen 2, please touch it. If screen 2 has
no touch function, press “S” to skip it.
4. Before proceeding to calibrate, you have to finish the procedure of “Map
touchscreens”.
4-1. Please do the calibration for each device in sequence.
4-2. Press each device & start to do Standard Calibration, for instance,
device 0.
4-3. After you press device 0, one of screens will show calibration map.
Please follow the points to calibrate it. When you completed one
device, please do others with the same way.
4.3. Multiple Devices
Multiple Devices function is designed to let you use two or more monitors to display the
same image. Software that supports this function includes the PenMount Windows
Universal Driver (for 2000/XP/2003/VISTA/7/8) only. This driver for PenMount 6000 can
support up to sixteen control boards.
4.3.1. Compare Functions
The difference between the Multiple Monitors function and the Multiple
Devices function are illustrated below.
Driver Software Functions
or
Multiple Monitors function shown above extends the screen into 2 or more
monitors.
37
Chapter 4 Driver Software Functions
Multiple Devices function displays the same image on two or more monitors.
4.3.2. Requirements
To use Multiple Devices with 6000 Control Boards, you need to do the
following:
To connect with RS-232 ports:
1. Configure your computer hardware. See Chapter 2. Install PenMount
6000 Control Boards.
2. Attach each 6000 board to a different computer’s serial port.
3. Install the PenMount Windows Universal Driver (for
2000/XP/2003/VISTA/7) in each computer – see Chapter 3. Install
Drivers for 6000 Boards for details.
4. Use driver’s Calibration function to calibrate each computer’s
touchscreen. You must calibrate each touchscreen before configuration
is complete.
To connect with USB ports:
1. Configure your computer hardware and the Control Board ID Dipswitch –
refer to your control board’s hardware description in Chapter 2. Install
PenMount 6000 Control Boards.
2. Install the PenMount Windows Universal Driver (for
2000/XP/2003/VISTA/7) in each computer – see Chapter 3. Install
Drivers for 6000 Boards for details.
3. Use driver’s Calibration function to calibrate each computer’s
touchscreen. You must calibrate each touchscreen before configuration
is complete.
Note: Be sure to set the Control Board ID Dipswitches. Do not use the same
setting on different control boards; otherwise the hardware will not
operate correctly.
4.4. Screen Rotation
There are currently a number of software packages on the market that support rotating
monitors 0°, 90°, 180°, and 270°. However you will not be able to use a touchscreen
unless it is matched to the appropriate rotation. Our rotation configuration function allows
you to easily match the touchscreen when you rotate your monitor.
If you use a rotating monitor you will need a display card such as from nVidia, Intel, SMI
Driver Software Functions
or ATI and software such as Portrait Pivot Pro. For software operation and features,
please refer to your software manual.
PenMount supports rotation detection of 90, 180 and 270 degrees, and automatically
adjust the touch position. On Windows XP 64 bit systems, however, users still need to
manually turn on the rotation detection support with the instructions described below.
Configure Rotate Function in Windows XP 64bit
1. There is a “Screen Rotation Monitor” button that appears only in the
PenMount driver utilities for Windows XP 64bit system.
2. On enabling “Screen Rotation Monitor”, you will see a screen like below:
3. Choose rotate function (0°, 90°, 180°, 270°) in the 3rd party software. The
calibration screen will appear automatically. Touch this point and rotation
is mapped.
NOTE: Rotate function is disabled if you use Monitor Mapping.
4.5. The Settings Tab
The Settings Tab is available for mouse devices, which user can adjust operation modes,
enable beep sound, and change press and hold settings.
39
Chapter 4 Driver Software Functions
Operation Mode
Description
Pen Input Emulation
Select this mode and mouse will emulate Windows Vista pen
input device operation, by which no mouse event will be sent
until the touch is dragged out of range or released from the
screen.
Mouse Emulation
Select this mode and mouse functions as normal and allows
dragging of icons.
Click on Touch
Select this mode and mouse only provides a click function, and
dragging is disabled.
Click on Release
Select this mode and mouse only provides a click function
when the touch is released.
Beep Settings
Description
Enable Beep Sound
Turns beep function on and off
Beep Mode
Change the beep timing on pen down, pen up, or both.
Kind of Sound
Choose beep from Buzzer or Audio.
Choose Audio beep requires PC Speaker.
Beep Frequency
Choose the desired beep frequency.
Beep Duration
Choose the desired beep duration.
4.5.1. Operation Mode
By specifying different operation modes, users can changes the input mode for different
application usages.
4.5.2. Beep Sound
All of PenMount’s drivers support the beep sound function; however, some PC systems
may only offer a fixed buzzer sound.
4.5.3. Right Button
In Windows, user frequently uses the right button for showing the popup menu. For
digitizer devices, the system already supports the press and hold gesture for simulating
Driver Software Functions
right button. For mouse devices, the PenMount supports two ways for simulating right
mouse button.
1. Press and Hold as Right Click
The press and hold delay and allowed area is adjustable in the “Settings” tab of
the PenMount Control Panel.
2. Use Right Button Utility
The right button utility can be launched in PenMount Monitor, PenMount Control
Panel, or by the shortcuts in the start menu.
A mouse icon as below will show up on the Windows desktop or in the system
tray. Touching on the icon will trigger the right click mode in device driver, and
next touch will become a right mouse click.
4.6. Edge Compensation
The edge compensation settings can be found in the “Edge Compensation” Tab in the
PenMount Control Panel.
41
Chapter 4 Driver Software Functions
You can adjust the settings from 0 to 30 for accommodating the difference of each touch
panel. The larger the value, the easier that the touch point reaches the edge of screen.
4.7. The Device Information
The “About” Tab in the device configuration table shows information about the PenMount
device, such as baud rate used, firmware version, and firmware configuration data.
4.8. Draw Utility
Tests or demonstrates the PenMount touchscreen operation. The display shows touch
location. Click Draw to start. Touch the screen with your finger or a stylus and the
drawing screen registers touch activity such left, right, up, down, pen up, and pen
down.
Driver Software Functions
Touch the screen with your
finger or a stylus and the
drawing screen registers touch
activity such left, right, up,
down, pen up, and pen down.
Click Menu button for more functions.
Show Pen Location is to show the locations where pen comes down and lifted up on the
monitor.
Show Grid is to show grid on the entire monitor. This is for linearity test.
43
Chapter 4 Driver Software Functions
Select Clear Screen to clear drawing.
Select Exit to quit draw function
4.9. The Contact Information
This option shows the exact version of the drivers and controller firmware. Updated
drivers are available for downloading on the PenMount website at
http://www.penmount.com/ .
PenMount Gesture AP
Enabled Disabled
Chapter 5. PenMount Gesture AP for Windows
2000/XP/VISTA/7/8
This chapter will guide you to the PenMount Gesture AP that is applicable in Windows
2000/XP/Vista/7.
5.1. Invoke PenMount Gesture AP
1. Make sure you have installed PenMount touchscreen control boards (either 6000 or
9000 series).
2. Make sure you have installed PenMount Universal Driver V2.1.0.263 or later versions
on your system.

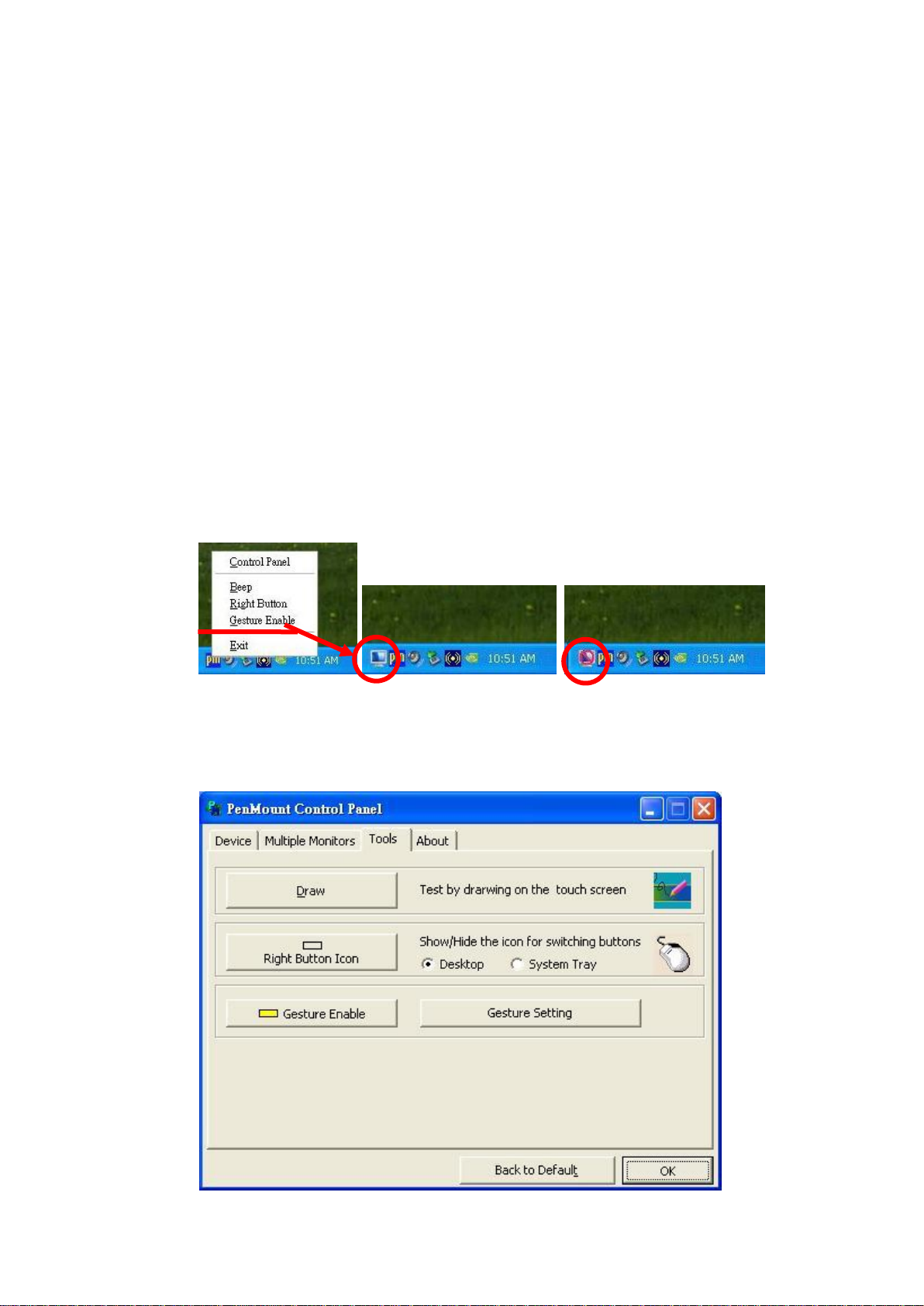

3. To run PenMount Gesture AP.
In the notification, right-click on the PenMount icon and select Gesture Enable from
the menu. A PenMount Gesture AP icon will show up in the notification area. See the
illustration below. PenMount Gesture AP is running.
or
In PenMount Control Panel, select Tools tab and press Gesture Enable button.
PenMount Gesture AP icon shows up in the notification area. PenMount Gesture
AP is running.
45
5.2. Configure PenMount Gesture AP
To configure PenMount Gesture AP.
1. Right-click on the PenMount Gesture AP icon in the notification area, select Gesture
Setting from the menu that appears. See the illustration below.
or
Select Tools tab and click Gesture Setting button in PenMount Control Panel.
PenMount Gesture AP
2. [Gesture Setting] window displays.
Chapter 5 PenMount Gesture AP

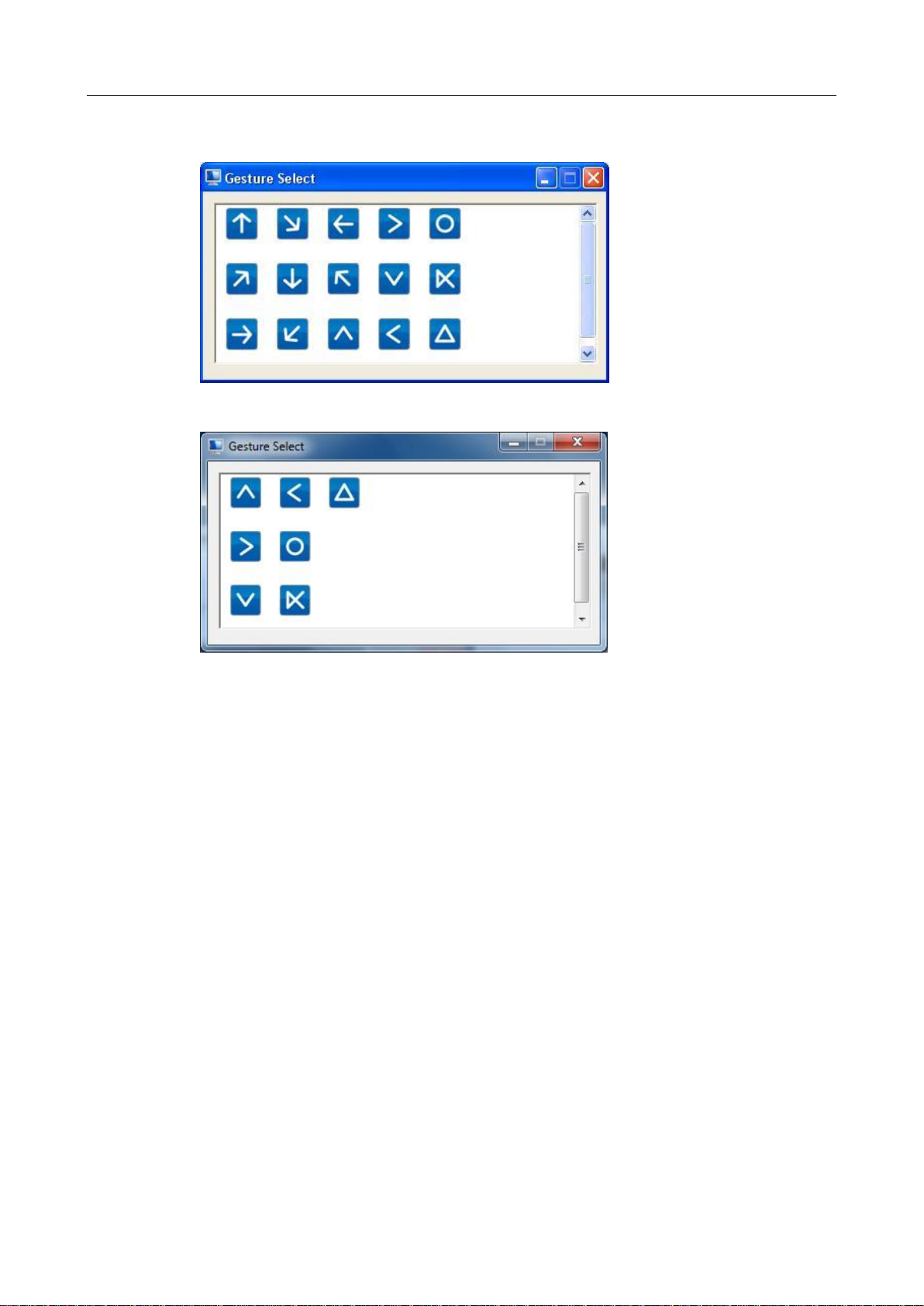

3. 15 PenMount Gestures are provided in total.
PenMount Gestures for Windows XP
PenMount Gestures for Windows Vista / 7/ 8
4. In the [Gesture Setting] window, you can proceed to configure PenMount Gesture
AP:

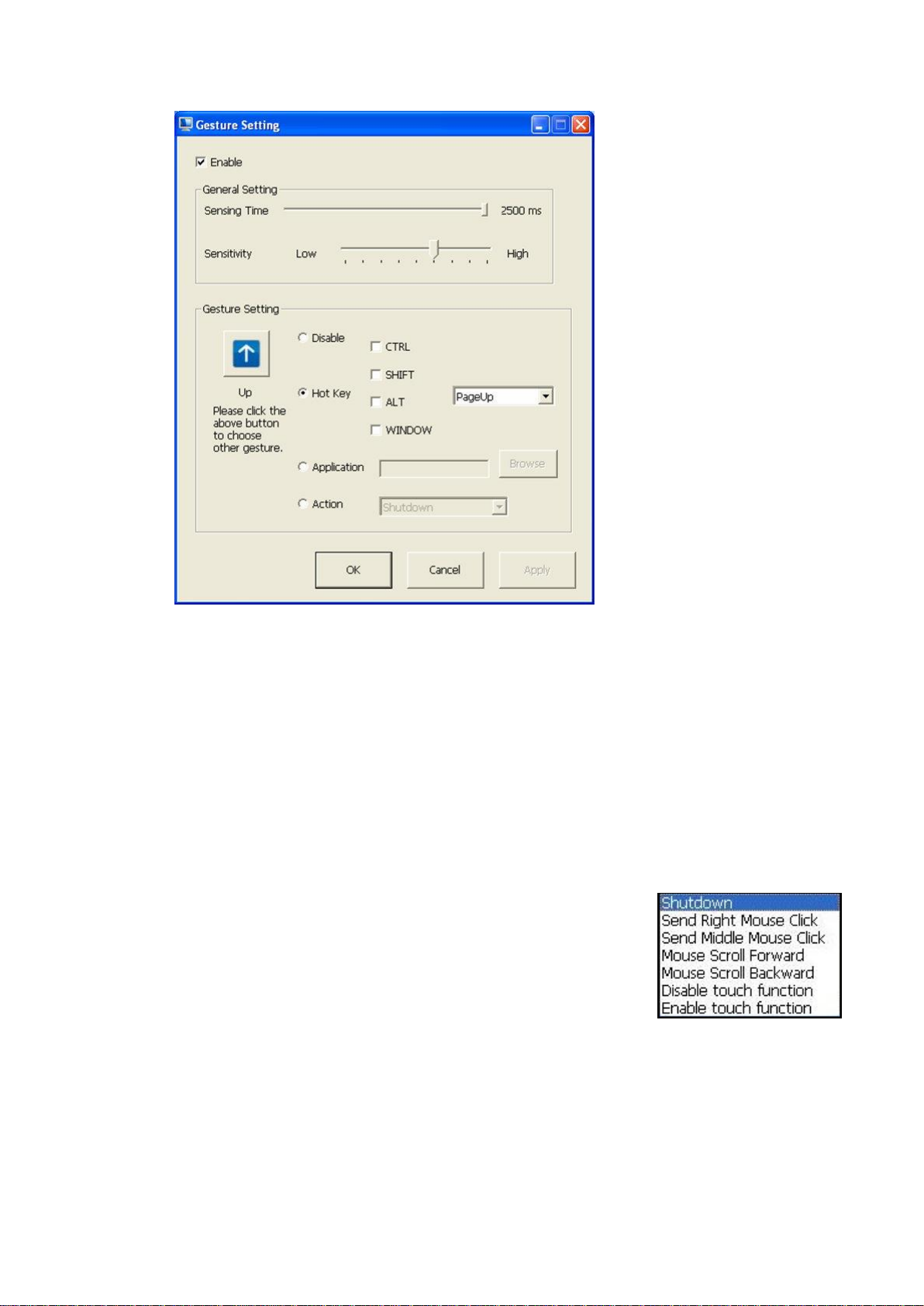

See picture below.
47
PenMount Gesture AP
a. Enable/disable Check
Box. Select/deselect the
box to enable/disable
PenMount Gestures.
b. General Setting Box
b-1. Sensing Time - Move
the slider to adjust
PenMount Gestures
Sensing Time between
200 ms (0.2 sec) and
2500 (2.5 sec). The
shorter the sensing time
is configured, the faster
the gesture has to be
done.
b-2. Sensitivity – Move the
slider to adjust how
sensitive you want your
finger stroke on the
touchsceen to be
sensed.
c. Gesture Settings
Group Box. This group
box allows you to
individually configure
each gesture.
d. Gesture Select Button. Press this button to select the specific gesture you are
going to configure. When the gesture icon turns to blue, it is enabled. When it is
gray, it is disabled. See the following for details.
d-1. Disable Button. When this button is selected, the gesture is disabled.
d-2. Hot-key Configure Button. Configure the hot-keystrokes for specific gesture.
The hot-key can include up to 5 keystrokes. When that gesture is sensed, the
configured keystrokes will be reported.
d-3. Application Invoke Button. Configure to invoke a specific application with
particular gesture. So that when the gesture is sensed, the specific application will
run.
d-4. Action Configure Button. Configure to make use of
PenMount Gesture AP’s built-in shortcuts. So that
when a particular gesture is sensed, a specific action will
be taken. PenMount Gesture AP have the following
shortcuts built in:
Note:
For Disable touch function, after touch function is disabled, the
mouse-pointer won’t move following your finger sliding on the touchscreen
and your finger tapping won’t trigger any action, however, gestures will still be
sensed.
(Note: If you select Disable touch function, the curser will not react to
finger movement on the touch screen and the tapping will not trigger
any program action. However, the gesture recognition is still
functioning.)
b
d-4
d-3
d-2
d-1
c d a b-1
b-2
Chapter 5 PenMount Gesture AP
Page Up
Page Down
Backward
(Left Arrow)
Forward
(Right Arrow)
Copy
(Ctrl + C)
Paste
(Ctrl + V)
Undo
(Ctrl + Z)
Delete
Zoom in
([Pad] +)
Zoom out
([Pad] -)
Rotate Counter Clockwise
(Ctrl + L)
Rotate Clockwise
(Ctrl + K)
Open On-Screen
Keyboard
(Execute OSK.EXE)
Save Document
(Ctrl + S)
Close Program
(Alt + F4)
5.3. PenMount Gestures’ Default Values in Windows XP
49
Loading...
