Outback Rebel Quick Start Manual

www.outbackguidance.com

Quick Start Guide

PN 875-0412-01 Rev E1

HELP AND SUPPORT

GETTING STARTED

28 1

OUTBACKGUIDANCE.COM

OUTBACKGUIDANCE.COM

Obtaining Help for REBEL

The following sections provide instructions on using terminal onscreen Help and list support contact information.

Visit our support page at: outbackguidance.zendesk.com, to find a PDF Rebel User Guide and other support
topics from Outback.

Using Onscreen Help

REBEL includes onscreen Help available from the
terminal. Press Menu > Help to display the Help
window (at right).

•

The first column of topics provides such
information as understanding the
touchscreen (Getting Started), adding a
vehicle (Working with Vehicles), and adding
an implement (Working with Implements.

•

The second column describes how to
perform work, such as starting a job (Jobs),
creating a boundary (Boundaries), and
setting a straight-line path to autosteer along
(Path Planning).

•

The third column provides information on
registering REBEL (if you skipped
registration at startup), viewing status data
(Status/Diagnostics), and using the Index to
find a specific topic (Index).

Customer Support

North America Australia

Install autosteer kit

Schedule an appointment with your dealer to complete the installation of your
vehicle's REBEL autosteer kit.

Check package contents

Refer to the Kit Contents pages starting on page 2 and, if applicable, the
Optional Upgrades pages starting on page 8 to confirm you have received all
parts of your REBEL system. The bottoms of the Kit Contents pages are
color-coded to indicate the kit type (Broad-Acre, Row Crop, or Sub-Inch).

We recommend recording your dealer and product information below for quick
reference should you require help during installation or while using REBEL.

Dealer Name:
Dealer Phone:
Dealer Email:
REBEL Terminal Serial Number:

Outback Guidance
2207 Iowa Street
Hiawatha, KS 66434
Phone: [phone]
Fax: [phone]

[e-mail]

Outback Canada

3-20 South Landing Drive

Oak Bluff, MB R4G 0B1
Phone: [phone]
Fax: [phone]

Outback Australia
3/14 French Avenue
Brendale, QLD 4500
Phone: [phone]

[e-mail]

Connect terminal

Use the connection diagrams starting on page 14 and the instructions starting
on page 17 to install and connect your REBEL terminal and other components
that came with your system.

Power on

Turn on your REBEL terminal and other components then register REBEL
(starting on page 25).

Get help when needed

Learn how to access the Help built into your REBEL terminal and how to
contact us if you have any questions (page 28).

1

KIT CONTENTS

POWER UP AND REGISTRATION

2 27

BROAD-ACRE

OUTBACKGUIDANCE.COM

OUTBACKGUIDANCE.COM

Broad-Acre Kit Contents

Unpack your REBEL Broad-Acre kit and identify the parts as shown.

752-0005-01 1 7" terminal

804-0155-0 1 A222 Smart Antenna

9

10-1063-000 1 eDriveXD autosteering controller

604-0015-000# 1 Terminal mounting hardware

•

Round base (attach to terminal)

•

Double socket arm mount

•

Bar mount base with U-bolts/nuts

050-0020-01 1 LAN/USB cable

Connects LAN/USB port on terminal to
eDriveXD cable

050-0022-01 1 Power cable

Connects power port on terminal to power
adapter cable

050-0043-01 1 COM1 cable

Connects COM1 port on terminal to
switchbox, lightbar/AC110 cable, and
antenna cable

d.

Enter your personal information. The fields
circled at right are required (upon first
displaying this screen the field labels are
red)-for each field press Edit to display a
keypad, enter a value, then press Done.
After completing all fields, the field labels turn
from red to blue.

e.

Press Register. When registration is
complete ('Registration Successful' appears
on the screen) press Complete to display
the Start Up Menu.

6.

The Start Up Menu includes read-only fields for the current
vehicle, current implement, and last job number. When you
start REBEL for the first time only those buttons shown at
right appear; you will not see any 'job' buttons. You must
define a vehicle and an implement before any job
functionality is enabled.

If your system has a Task Controller subscription, the Start
Up Menu displays similar vehicle and implements fields/
buttons, but Task-related field/buttons replace the Job field/
buttons.

7.

You can press Vehicle Profiles to start adding a vehicle or press Implement Profiles to start adding an
implement; however, to learn more about adding vehicles and implements, press Skip to close the Start
Up Menu then refer to REBEL Help on your terminal-see "Using Onscreen Help" on page 28.

REBEL must have a GPS position to begin a job and provide guidance. REBEL starts acquiring a DGPS
signal (as long as the antenna has a clear view of the sky)-this may take several minutes, during which
time the vehicle can be moving and you can perform certain functions.

•

Upon achieving a GPS position, the satellite icon on the
real-time status tab (upper right of map) turns orange and '3d'
appears on the tab indicating a 3-dimensional solution.

•

Upon acquiring a DGPS position, the satellite icon turns green
and the real-time status tab displays '3D' indicating a
differentially corrected 3-dimensional solution.

•

Upon acquiring an RTK position (with optional RTK
equipment) the tab displays 'RTK'.

Powering Down

Depending on the components of your system you may have to power down more than one component. For
example, if your REBEL system includes eDriveXC you must power down both the REBEL terminal and the
eDriveXC ECU. See "Powering Up and Registering Your Product" on page 25 for power button/switch photos of the
REBEL terminal and eDriveXC/XD ECU.

1.

Power down the REBEL terminal by pressing (and releasing) the terminal power button. REBEL will go
through its power down sequence.

2.

Power down any additional components:

•

eDriveXC/XD - turn the eDriveXC/XD ECU power switch to the off position

•

AC110 - turn the AC110 power switch to the OFF position

•

eDriveESi - this will power down when you power down eDriveXC/XD

Part Number Qty Description Photograph

NOTE:

POWER UP AND REGISTRATION

KIT CONTENTS

26 3

OUTBACKGUIDANCE.COM

OUTBACKGUIDANCE.COM

BROAD-ACRE

3.

Upon power up, REBEL completes a self-test
and the screen at right appears.

4.

Acknowledge the warning and accept the End
User License Agreement (EULA):

a.

Press the underlined 'here' to display the
End User License Agreement (EULA).

b.

Read the EULA then press Back to return to
the Warning screen at right.

c.

(Optional) Adjust the brightness slider (along
right of Warning screen) to adjust the screen
brightness. Otherwise, refer to REBEL Help
to use the System Preferences panel to
adjust the screen brightness.

d.

Press I Accept to display the first Product
Registration screen, then press Next to
begin the registration process.

5.

Connect to a Wi-Fi network and register your
product:

a.

Use the up/down arrows to scroll through the
list of available Wi-Fi networks (if necessary)
then press the network you want to connect
to (the selected network button is green).

b.

Press Connect.

•

If the network requires no login
information (unlocked lock to far right of
button), a spinning progress circle
appears to the right of the button you
pressed and when connected, the lock
changes to a green check (at right).

•

If the network requires a password, enter
the password in the window that appears
then press Done. A green check mark
replaces the lock.

c.

Upon a successful Wi-Fi connection, press
Next to display the product registration
screen with the product information pre-filled.

050-0041-01 1 COM2 cable

Connects COM2 port on terminal to foot
switch

050-0045-01 1 Antenna extension cable

Connects COM1 cable to antenna

050-0046-01 1 Power adapter cable

Connects power cable to power source

720-0033-00A 1 Antenna mount

051-0397-10 1 A222 Adapter Cable

676-0024-000# 1 Antenna mount adapter

607-0023-01

1 Switch bracket

Use to mount eDriveXD power switch

520-0022-01

1 USB drive, 8 GB

484-0002-01 1 Screen protector, 2 pk, with

applicator/cleaner

Part Number

Qty

Description

Photograph

KIT CONTENTS

POWER UP AND REGISTRATION

4 25

ROW-CROP

OUTBACKGUIDANCE.COM

OUTBACKGUIDANCE.COM

Row-Crop Kit Contents

Unpack your REBEL Row-Crop kit and identify the parts as shown.

752-0005-01 1 7" terminal

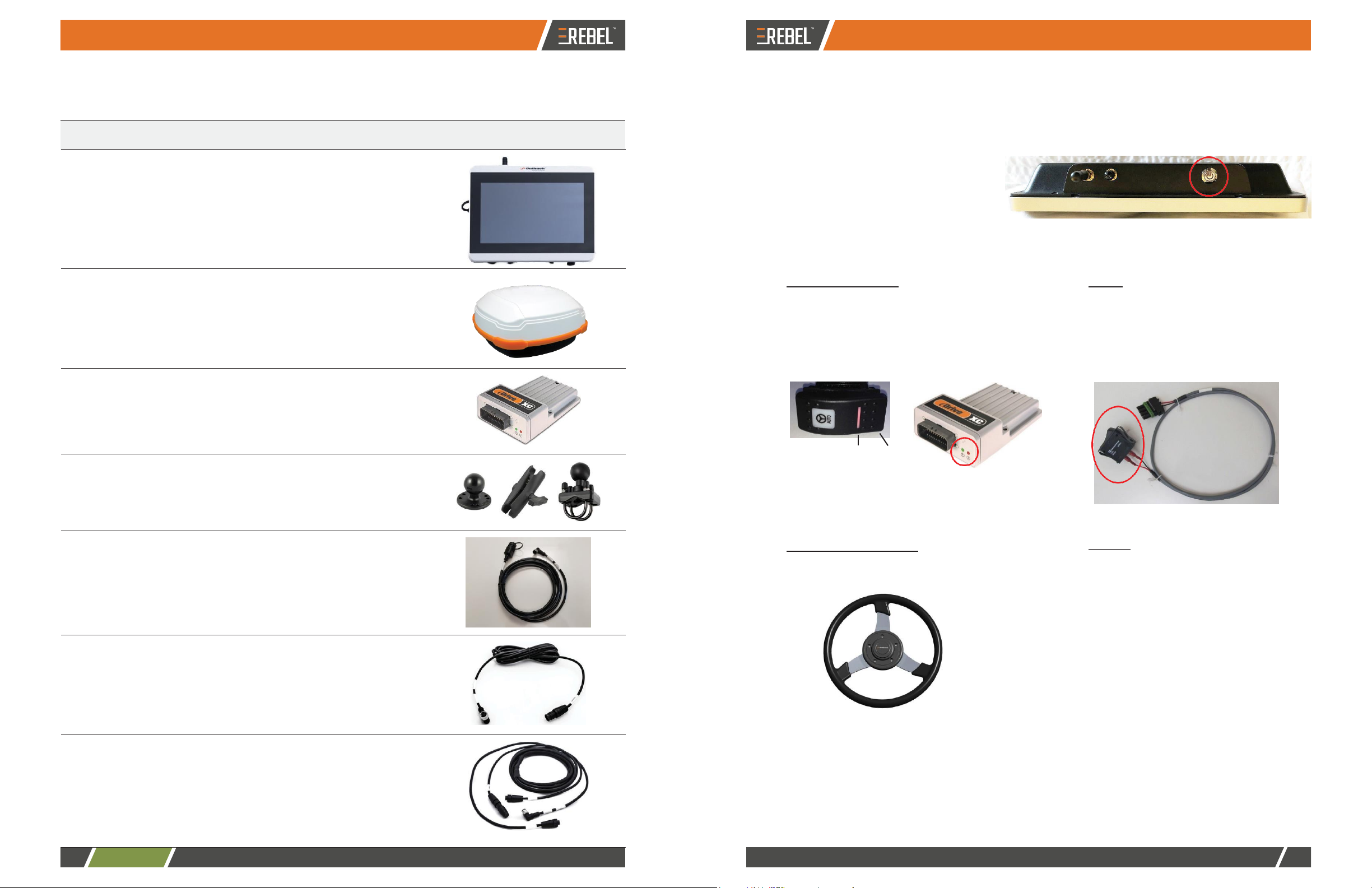

Powering REBEL

Powering Up and Registering Your Product

Depending on the components of your system you may have to power up more than one component. For example,
if your REBEL system includes eDriveXC you must power up both the REBEL terminal and the eDriveXC ECU.

1.

Power up the REBEL terminal and any other components.
The REBEL terminal power button is

located on the top right behind the
touchscreen (circled at right). Press and
hold the power button for approximately
three seconds until the screen illuminates
and the Outback logo appears.

2.

Power up any optional components. Refer to your installation documentation for detailed instructions on
installing optional components.

804-0155-0 1 A222 Smart Antenna

9

10-1064-000 1 eDriveXC autosteering controller

604-0015-000# 1 Terminal mounting hardware

•

Round base (attach to terminal)

•

Double socket arm mount

•

Bar mount base with U-bolts/nuts

050-0020-01 1 LAN/USB cable

Connects LAN/USB port on terminal to
eDriveXC cable

050-0022-01 1 Power cable

Connects power port on terminal to power
adapter cable

050-0043-01 1 COM1 cable

Connects COM1 port on terminal to
switchbox, lightbar/AC110 cable, and
antenna cable

eDriveXC or eDriveXD
Turn the eDriveXC/XD power switch to the on (middle)

position-the long thin LED on the switch illuminates
red when on. eDriveXC/XD will establish
communication with the REBEL terminal and wait for
the DGPS signal to be acquired.

On Off

(depressed)

ESi electric steering wheel
Power is supplied to eDriveESi by eDriveXC/XD.

AC110
Turn the AC110 power switch (at right) to

the ON position.

ISOBUS
The implement's ISOBUS ECU receives

power via the vehicle's IBBC connector or
the ISOBUS retrofit kit. See "Connecting to
Your ISOBUS ECU" on page 20 for more
information.

Note: For information on configuring your
ISOBUS implement refer to REBEL Help
installed on your terminal.

Part Number Qty Description Photograph

CONNECTIONS AND INSTALLATION

KIT CONTENTS

24 5

OUTBACKGUIDANCE.COM

OUTBACKGUIDANCE.COM

ROW-CROP

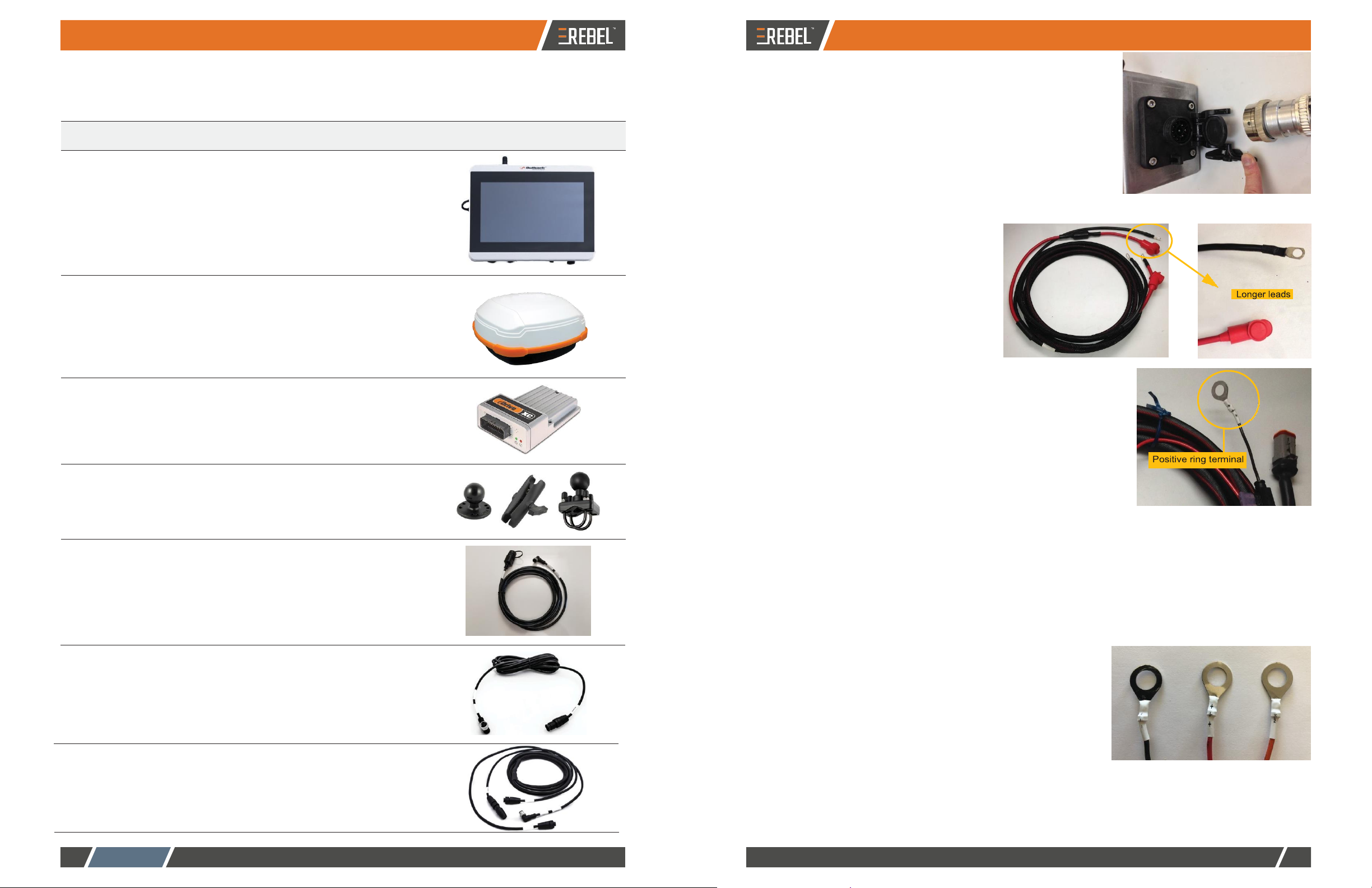

Connecting the Cables to the Terminal

Using "REBEL Terminal Overview" on page 13,
"REBEL Connection Diagrams" starting on
page 14, and the photo at right as guides,
connect the appropriate cables to the REBEL
terminal.

Mounting the Terminal

Before you mount the terminal determine an appropriate mounting location. Locate the terminal within easy reach
and visibility of the driver; typically, this is in the front, right corner of the cab. Additionally, allow enough room for
any optional equipment, such as the lightbar and/or switchbox.

Part Number

Qty

Description Photograph

050-0041-01

1 COM2 cable

Connects COM2 port on terminal to foot
switch

050-0045-01 1 Antenna extension cable

Connects COM1 cable to antenna

050-0046-01 1 Power adapter cable

Connects power cable to power source

720-0033-00A 1 Antenna mount

! WARNING:

Do not mount the terminal in a location where it interferes with seeing other information, controls,
or the field. Looking at the screen for too long while operating the vehicle can cause a crash.

1.

Use the terminal mounting hardware to mount the
terminal. Review the terminal mounting hardware (top

photo at right).

2.

If necessary, loosen the knob on the arm mount and remove
the ball mounts from the mounting assembly.

Using the bottom photo at right as a guide, complete the following
steps:

3.

Attach the round base to the back of the terminal using the
screws provided.

4.

Attach the bar mount base to your preferred location using the
included U-bolt hardware.

5.

Place one end of the arm mount over the ball of the bar mount
base then tighten the knob enough so the arm mount stays
attached.

6.

Position the terminal so the round base fits in the open end of
the arm mount then tighten the knob securely.

7.

Adjust the terminal to your preferred viewing angle.

676-0024-000# 1 Antenna mount adapter

607-0023-01 1 Switch bracket

Use to mount eDriveXC power switch

520-0022-01 1 USB drive, 8 GB

484-0002-01 1 Screen protector, 2 pk, with

applicator/cleaner

COM1

COM2

051-0397-10 1 Adapter Cable

KIT CONTENTS

CONNECTIONS AND INSTALLATION

6 23

SUB-INCH

OUTBACKGUIDANCE.COM

OUTBACKGUIDANCE.COM

Sub-Inch Kit Contents

Unpack your REBEL Sub-Inch kit and identify the parts as shown.

752-0005-01 1 7" terminal

804-0155-0 1 A222 Smart Antenna

9

10-1064-000 1 eDriveXC autosteering controller

604-0015-000# 1 Terminal mounting hardware

•

Round base (attach to terminal)

•

Double socket arm mount

•

Bar mount base with U-bolts/nuts

050-0020-01 1 LAN/USB cable

Connects LAN/USB port on terminal to
eDriveXC cable

6.

Connect the implement's IBBC connector to the retrofit kit's
IBBC connector.

7.

Attach the longer leads (at right) of the
power cable to the vehicle's battery.

8.

Connect the positive ring terminal of the data/relay cable to "KEY
ON" of the vehicle's ignition switch so power is applied as you turn
on the switch.

Connecting to a Power Source

Using "REBEL Terminal Overview" on page 13 and "REBEL Connection Diagrams" starting on page 14 as guides,
connect the power adapter cable to your preferred power source.

Option 1: Connect to ignition switch

Negative Positive Signal Wire

Connects COM1 port on terminal to
switchbox, lightbar/AC110 cable, and
antenna cable

the power port on the REBEL terminal.

4. Coil excess cable in a protected location then secure the
installation with tie straps.

Negative Positive Negative

Option 2: Connect to battery

Part Number

Qty

Description

Photograph

1. Connect the red (+), black (-), and orange (IGN) leads of
terminal power adapter cable to a reliable 12 VDC power
source as follows:

050-0022-01

1 Power cable

Connects power port on terminal to power
adapter cable

Option 1: Connect to the ignition switch—connect red to
positive, black to negative, and orange to signal wire.

Option 2: Connect to the battery—connect red to positive, black
and orange to negative.

2. Connect the other end of the terminal power adapter cable to
the terminal power cable.

050-0043-01

1 COM1 cable

3. Route the terminal power cable into the cab for connection to

CONNECTIONS AND INSTALLATION

KIT CONTENTS

22 7

OUTBACKGUIDANCE.COM

OUTBACKGUIDANCE.COM

SUB-INCH

3.

Attach the shorter leads of the
power cable to the power posts
on the IBBC bracket. Replace
the washers and nuts then
tighten.

4.

Mount the bracket (that holds the IBBC) near the rear of the vehicle
where the implement's ISOBUS cable can reach it.

5.

Connect the 4-pin Deutsch connector on the retrofit kit to
the 4-pin Deutsch connector on the COM2 cable.

Part Number

Qty

Description Photograph

050-0041-01

1 COM2 cable

Connects COM2 port on terminal to foot
switch

050-0045-01 1 Antenna extension cable

Connects COM1 cable to antenna

050-0046-01 1 Power adapter cable

Connects power cable to power source

720-0033-00A 1 Antenna mount

051-0397-10 1 Adapter Cable

676-0024-000# 1 Antenna mount adapter

607-0023-01 1 Switch bracket

Use to mount eDriveXC power switch

520-0022-01 1 USB drive, 8 GB

484-0002-01 1 Screen protector, 2 pk, with

applicator/cleaner

OPTIONAL UPGRADES

CONNECTIONS AND INSTALLATION

8 21

OUTBACKGUIDANCE.COM

OUTBACKGUIDANCE.COM

Optional Upgrades

10” Terminal Kit Contents (optional)

Unpack your 10" terminal kit and identify the parts as shown.

752-0006-01 1 10" terminal

484-0003-01 1 Screen protector kit, 2 pk (10" terminal)

Lightbar Kit Contents (optional)

Unpack your lightbar kit and identify the parts as shown. See "Installing the Lightbar" on page 1 for instructions on
installing the lightbar in your preferred location.

806-1036-000# 1 Lightbar

604-0008-000# 1 Mounting ball

604-0019-000# 1 Suction cup mounting kit

Note: Use mounting ball 604-0008-000#
(above) in place of the mounting ball
included with this part (X at right)

a.

Insert the 2-pin weather
pack closest to the
negative ring terminal into
the relay next to the power
posts on the IBBC bracket.
Apply enough pressure to
snap the plug into the
relay.

b.

Insert the 2-pin weather
pack farther from the
negative ring terminal into
the relay near the IBBC
connector on the IBBC
bracket. Apply enough
pressure to snap the plug
into the relay.

c.

Insert the large 4-pin
Deutsch connector into the
connector on the rear of
the IBBC connector. Apply
enough pressure to snap
the plug into the connector.

2.

On the IBBC bracket remove
the nuts and washers from the
power posts then attach the
ring terminator from the data/
relay cable to the negative
power post.

Part Number Qty Description Photograph

Part Number

Qty

Description

Photograph

CONNECTIONS AND INSTALLATION

OPTIONAL UPGRADES

20 9

OUTBACKGUIDANCE.COM

OUTBACKGUIDANCE.COM

Connecting to Your ISOBUS ECU

If your vehicle is ISOBUS-ready see "ISOBUS-Ready Vehicle Connections" immediately following. If your vehicle is
not ISOBUS-ready see "Non ISOBUS-Ready Vehicle Connections" starting further below.

ISOBUS-Ready Vehicle Connections

1.

Locate the ISOBUS connector in the tractor cab. Typically, the connector is a 4-pin female Deutsch
connector and is found behind the access panel on the right side of the cab.

2.

Using "Connection Diagram #2 - With
ISOBUS" on page 15 as a guide, connect the
4-pin male Deutsch (ISOBUS) connector on
the COM2 cable to the tractor ISOBUS
connector.

Switchbox Kit Contents (optional)

Unpack your switchbox kit and identify the part as shown. See "Installing the Switchbox" on page 1 for instructions
on installing the switchbox in your preferred location.

Part Number

Qty

Description Photograph

806-1035-000#

1 Switchbox

604-0019-000#

1 Suction cup mounting kit

If an ISOBUS extension cable is needed
(COM2 cable does not reach the tractor
ISOBUS connector) or the ISOBUS
connector is something other than a 4-pin
Deutsch female connector, use the ISOBUS
extension cable.

4-pin male Deutsch connector

(part of COM2 cable)

4-

pin female Deutsch connector

(in tractor cab)

Foot Switch Kit Contents (optional)

Unpack your foot switch kit and identify the parts as shown. See "Installing the Foot Switch" on page 18 for
instructions on installing the foot switch in your preferred location.

Non ISOBUS-Ready Vehicle Connections
Non ISOBUS-ready vehicles (that do not have an IBBC connector on the back of the vehicle) require a retrofit kit.

There are two kits available-each with a bracket and two cables (power cable and data/relay cable). The bracket
is the same in each kit; however, the 'Short' kit cables are shorter than the 'Long' kit cables. The power cable
connects to the battery and the data/relay cable connects to the 4-pin male Deutsch connector on the COM2 cable
or on the ISOBUS extension cable.

Note: Tie straps are included in each retrofit kit—use the straps to secure cables where appropriate.

1.

Using "Connection Diagram #2 ­With ISOBUS" on page 15 and
"Connection Diagram #3 - ISOBUS
Retrofit Kit" on page 16 as guides,
connect the data/relay cable (there
are two different data/relay cables;
only the appropriate cable is included
in your kit) to the IBBC bracket. You
will make three connections, one
each in steps a-c below. Use the
diagram at right for reference when
completing steps a-c.

Part Number

Qty

Description Photograph

720-0035

1 Run/hold foot switch

This kit does not include mounting
hardware (such as fasteners)

OPTIONAL UPGRADES

CONNECTIONS AND INSTALLATION

10

19

OUTBACKGUIDANCE.COM

OUTBACKGUIDANCE.COM

RTK Rover Kit Contents (optional)

Unpack your RTK rover kit and identify the parts as shown. See "Installing the Rover Radio" on page 18 for
instructions on installing the rover radio.

Installing the Lightbar

The lightbar kit includes suction cup mounting hardware (with mounting ball), a separate mounting ball, and an
extension cable. Use the separate mounting ball in place of the mounting ball included with the suction cup
mounting hardware.

! WARNING:

Do not mount the lightbar in a location where it interferes with seeing other information, controls,
or the field.

150-0008-000
150-0010-000

1 Antenna (for 400 MHz rover radio)*
1 Antenna (for 900 MHz rover radio)*

Using the photos at right install the
suction cup mounting hardware on
the lightbar then install the lightbar in
your preferred location.

Before installation, thoroughly clean
the mounting location (such as the
inside cab window surface).

1.

Attach the mounting ball to
the back of the lightbar.

2.

Using the two screws
included with the suction cup
hardware, assemble the
suction cup mount.

3.

Attach the suction cup
mount to the mounting ball
on the lightbar then tighten.

4.

Press the vacuum mount to
the window.

5.

Turn the vacuum cup's twist
lock counterclockwise to
create the seal.

6.

Adjust the lightbar to a

Step 1: Attach mounting ball to lightbar Step 2: Assemble suction cup mount

*Your RTK kit will include the antenna that
matches your rover radio (400 MHz radio
or 900 MHz radio)

suitable viewing angle.

Step 3: Attach suction cup mount to

mounting ball and tighten

Steps 4/5: Attach suction cup mount to

mounting location and tighten

Installing the Switchbox

The switchbox kit includes suction cup mounting
hardware similar to the lightbar. Using the photo at right
and the lightbar installation photos above as reference,
install the switchbox in your preferred location.

802-106 -000#

1 Rover radio (400 MHz)*

802-1075-000#

1 Rover radio (900 MHz)*

*Your RTK kit will include one of the rover
radios listed above

601-1136

1 Rover radio mounting plate

Part Number

Qty

Description Photograph

050-0044-01

1 RTK cable

Connects COM1 cable to antenna and
rover radio

CONNECTIONS AND INSTALLATION

OPTIONAL UPGRADES

18

11

OUTBACKGUIDANCE.COM

OUTBACKGUIDANCE.COM

Routing the Antenna Cable

Adhere to the following when routing the antenna cable:

•

Make sure the REBEL terminal is powered off before attaching the cables.

•

Do not bend the cable to a radius of less than 6 inches.

•

Do not route the cable within 12 inches of radio wires, power generator wires, a heat source, or moving
parts.

•

Coil excess cable in a protected location and secure the installation with tie straps.

To route the antenna cable:

1.

Securely attach one end of the antenna cable to the antenna.

2.

Route the cable through a cab opening where rubber protection exists that
will protect the cable (see photo at right).

3.

Attach the other end of the antenna cable to the terminal (see "REBEL
Terminal Overview" on page 13 and "REBEL Connection Diagrams"
starting on page 14).

Installing Optional Parts

A camera is not included in your REBEL kit; you must purchase that separately (not sold by Outback Guidance).
Follow the camera manufacturer's instructions for installing your cameras.

To install the foot switch, rover radio, lightbar, switchbox, or connect to the ISOBUS ECU see the sections that
follow.

Installing the Foot Switch

Use the foot switch as a remote to pause or restart REBEL's mapping/data logging function (similar to pressing
Apply on the touchscreen-refer to the Help on the REBEL terminal for more information on the Apply button).

Using "REBEL Terminal Overview" on page 13 and "REBEL Connection Diagrams" starting on page 14 as guides,
install the foot switch:

1.

Connect the foot switch cable of the COM2 cable to the foot switch.

2.

Install the foot switch in an easily accessible position.

Installing the Rover Radio

Mount the rover radio on top of the vehicle cab to ensure line-of-sight to the RTK base station. The bottom of the
rover radio includes a built-in magnet for easy placement on the included mounting plate.

1.

Clean and dry the vehicle surface where you will attach the rover radio
mounting plate.

2.

Remove the paper backing from the adhesive strips on the back of the
mounting plate (see photo at right).

3.

Position the mounting plate and press down hard for proper adhesion.

4.

Place the rover radio on the plate.

5.

Attach the rover radio antenna to the rover radio, tightening until snug.

Camera Kit Contents (optional)

Unpack your camera kit and identify the parts as shown. Contact your dealer for supported camera models.

Part Number

Qty

Description Photograph

050-0021-01

1 LAN/USB cable

Connects LAN/USB port on terminal to
eDriveXC/XD cable and camera

ISOBUS Cable Kit Contents (optional)

Unpack your ISOBUS cable kit and identify the parts as shown. See "Connecting to Your ISOBUS ECU" on
page 20 for instructions on connecting this cable.

050-0042-01 1 COM2 cable

Connects COM2 port on terminal to
ISOBUS extension cable and foot switch

ISOBUS Extension Cable Kit Contents (optional)

Unpack your ISOBUS extension cable kit and identify the parts as shown. See "Connecting to Your ISOBUS ECU"
on page 20 for instructions on connecting this cable.

Part Number

Qty

Description

Photograph

Part Number

Qty

Description Photograph

054-0197-000#

1 ISOBUS extension cable

Connects the ISOBUS connector on
ISOBUS cable to the ISOBUS connector
on your vehicle

OPTIONAL UPGRADES

CONNECTIONS AND INSTALLATION

12

17

OUTBACKGUIDANCE.COM

OUTBACKGUIDANCE.COM

ISOBUS Retrofit Kit Contents for Non-ISO-Ready Vehicles (optional)

Unpack your ISOBUS retrofit kit and identify the parts as shown. There are two kits available-each with the same
bracket but different cables (the 'Short' kit cables are shorter than the 'Long' kit cables). See "Connecting to Your
ISOBUS ECU" on page 20 for instructions on installing the ISOBUS retrofit kit.

750-0161-000 1 IBBC bracket

Included in both 'Short' and 'Long' kits

Installing REBEL

Note: Proper installation is critical for safe and optimal REBEL operation.

The following steps represent typical installation order; however, install components in your preferred order.

1.

Install your autosteering controller (eDriveXC or eDriveXD). See the installation instructions included with
your autosteering controller kit.

2.

Install the optional rate/section control controller (AC110). See the installation instructions included with
your rate/section controller kit.

3.

Install other optional parts (foot switch, lightbar, switchbox) then route the appropriate cables into the cab
for connection to the terminal.

4.

Mount the antenna.

5.

Install the terminal mounting hardware both in the cab and on the terminal.

6.

Connect the appropriate cables to the terminal.

054-0192-000# 1
054-0193-000# 1

054-0194-000# 1
054-0195-000# 1

Power cable, 12 ft ('Short' kit)*
Power cable, 21 ft ('Long' kit)*
*Your kit includes one of the above cables

Data/relay cable, 10 ft ('Short kit)*
Data/relay cable, 20 ft ('Long' kit)*
*Your kit includes one of the above cables

7.

Connect the terminal to the mounting hardware.

Mounting the Antenna

You should install the antenna on the vehicle's left/right centerline and front/back pivot point. If you cannot install
the antenna at the exact centerline and/or pivot point, refer to REBEL Help installed on your terminal for
instructions on entering offsets for these values.

Do not place the antenna within two feet of a transmitting radio antenna (such as for a 2-way or business band
radio).

1.

Clean and dry the vehicle surface where you will attach the antenna
mounting plate.

2.

Remove the paper backing from the adhesive on the back of the
mounting plate (see photo at right).

3.

Position the mounting plate and press down hard for proper adhesion.

4.

Attach the antenna to the antenna mounting base (see photo at right).

Note: The photo at right shows the plastic wrapping still on the
magnetic mount. Before placing the antenna and mount on the vehicle
in the next step, remove the plastic wrapping from the mount.

5.

Place the magnetic mounted antenna on the plate and on the vehicle's
centerline and pivot point.

Part Number Qty Description Photograph

13

CONNECTIONS AND INSTALLATION

CONNECTIONS AND INSTALLATION

16

OUTBACKGUIDANCE.COM

OUTBACKGUIDANCE.COM

Connection Diagram #3 - ISOBUS Retrofit Kit

REBEL Terminal Overview

The following table shows the front and rear views of the REBEL terminal and describes each numbered feature.

1

Touchscreen

2

USB port

3

Power button

4

Wi-Fi antenna

5

Mounting ball area

6

COM1 port

1

7

COM2 port

8

LAN/USB port

Power port

3

4

6 7 8

9

3

4

Item Description Views

COM1

COM2

LAN/USB

POWER

Terminal

752-0005-01

(front view,

ports in rear)

RS232

COM2 cable

050-0042-01

ISOBUS ISOBUS

ISOBUS extension cable

054-0197-000

RUN/HOLD ISOBUS

(to ISOBUS

-ready implement

if COM2 cable does not reach)

Power cable

054-0192-000

(Short kit)

or

054-0193-000

(Long kit)

+ +

IBBC bracket

750-0161-000 To

vehicle’

s battery

_ _

Relay ISOBUS ISOBUS

Connect to

implement’

s

To ‘ KEY

ON’

of vehicle’ s

ignition switch

IBBC connector

Data/relay cable

054-0194-000

(Short kit)

or

054-0195-000

(Long kit)

Relay

+

5

2

CONNECTIONS AND INSTALLATION

CONNECTIONS AND INSTALLATION

14

15

OUTBACKGUIDANCE.COM

OUTBACKGUIDANCE.COM

REBEL Connection Diagrams Connection Diagram #2 - With ISOBUS

Connection Diagram #1 - Without ISOBUS
