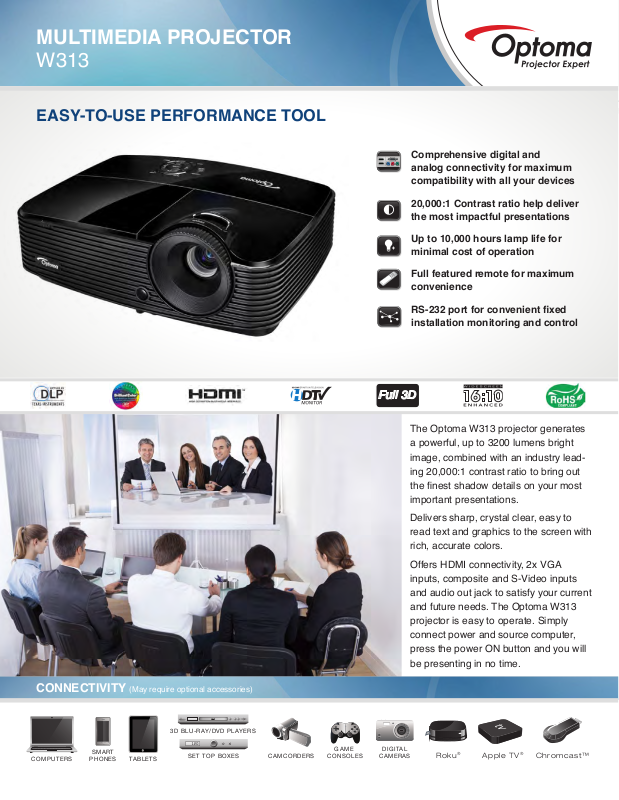

Optoma W313 Product Sheet

MULTIMEDIA PROJECTOR

W313

EASY-TO-USE PERFORMANCE TOOL

Comprehensive digital and analog connectivity for maximum compatibility with all your devices

20,000:1 Contrast ratio help deliver the most impactful presentations

Up to 10,000 hours lamp life for minimal cost of operation

Full featured remote for maximum convenience

RS-232 port for convenient xed

installation monitoring and control

CONNECTIVITY (May require optional accessories)

The Optoma W313 projector generates a powerful, up to 3200 lumens bright image, combined with an industry leading 20,000:1 contrast ratio to bring out

the nest shadow details on your most

important presentations.

Delivers sharp, crystal clear, easy to read text and graphics to the screen with rich, accurate colors.

Offers HDMI connectivity, 2x VGA inputs, composite and S-Video inputs and audio out jack to satisfy your current and future needs. The Optoma W313 projector is easy to operate. Simply connect power and source computer, press the power ON button and you will be presenting in no time.

COMPUTERS

SMART

PHONES

TABLETS

3D BLU-RAY/DVD PLAYERS

SET TOP BOXES

CAMCORDERS

GAME

CONSOLES

DIGITAL

CAMERAS

Roku

Apple TV®Chromcast™

MULTIMEDIA PROJECTOR — W313

OPTICAL/TECHNICAL SPECIFICATIONS

Display Technology Single 0.65" DC3 DMD DLP® Technology by Texas Instruments™

Native Resolution

WXGA (1280 x 800)

Maximum Resolution VGA port: UXGA (1600 x 1200)

HDMI port: WUXGA (1920 x 1200)

Brightness

3200 lumens

Contrast Ratio 20,000:1 (full on/full off)

Displayable Colors 1.07 Billion

Lamp Life and Type* 10,000/6500/6000/4500 Hours

(Education cycle/ECO+/Dynamic/Bright) 190W

Projection Method Front, rear, ceiling mount, table top

Keystone Correction ± 40° Vertical

Uniformity >80%

Offset

112%

Aspect Ratio 16:10 Native, 16:9 and 4:3 compatible

Throw Ratio (distance/Width)

1.47–1.83

Projection Distance 3.9'–32.8' (1.2–10 m)

Image Size (Diagonal) 30"–300" (0.7– 7.62 m)

Projection Lens F=2.57–2.84, f=21–25.6 mm,

1.2x manual zoom and focus

Digital Zoom

0.8 ~ 2.0

Audio 2-Watt speaker

Noise Level 26dB

Remote Control IR remote mouse control

Operating Conditions

41–113°F (5–45°C), 85% max humidity

Power Supply AC Input 100–240V, 50–60Hz, auto-switching

Power Consumption

Max 240W (Normal), Min 194W (Eco+),

<0.5W (standby-ECO)

COMPATIBILITY SPECIFICATIONS

Computer Compatibility WUXGA, HD, UXGA, WXGA, SXGA+, SXGA, XGA,

Video Input Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV

(480p), HDTV (720p, 1080i/p)

3D Compatibility† Supports all HDMI 1.4a mandatory 3D formats (Frame

Vertical Scan Rate 24– 85Hz, 120Hz

Horizontal Scan Rate 15.375–91.146KHz

User Controls

I/O Connection Ports

Complete on-screen menu, adjustments in 27

HDMI v1.4a, two VGA-in, VGA-out, S-video, composite video, two audio-in, audio-out, RS-232C, USB-A

Loop Through (Audio, VGA) Monitor: D-Sub 15 pin VGA output (functional in

SVGA, VGA resized, VESA, PC and Mac compatible

pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e 60 or 72 frames per eye). 3D glasses are needed and is sold separately. Refer to user manual for details.

languages

both normal and standby modes), Audio: VAO audio out, HDMI VAO audio out supported, (VAO in normal mode, xed during Standby)

PHYSICAL SPECIFICATIONS

Security Kensington® Lock Port, security bar and keypad lock

Weight

4.9 lb (2.21 kg)

Dimensions (W x H x D) 12.4" x 4.6" x 8.8" (315 x 117 x 223 mm)

1. Audio-in

2. S-video

3. VGA 1-in

4. VGA-out

4.6ʺ

3 4 5

1211

5. HDMI

6. RS-232C

7. USB-B mouse

8. USB-A

8.8ʺ

9. Audio 2-in

10. Audio-out

11. Composite video

7 8

12. VGA 2-in

13. Kensington lock

14. Power

12.4 ʺ

Warranty

1-Year Limited Parts and Labor, 90-Days on Lamp

In the Box (Standard Accessories)

W313 projector, AC power cord, VGA to VGA cable, remote control, batteries for remote, carrying case, multilingual CD-ROM user’s manual, quick start card, and warranty card

Optional Accessories

Universal ceiling mount, Optoma screens, DLP® Link™ 3D glasses, wireless HDMI system and Single-Cat6 HDBaseT

Accessory Part Numbers:

Lamp: PQ684-2400 Remote: J8947-0383-00

Link™ 3D glasses: ZD302 Carrying case: BK-4032

DLP Single-Cat6 HDBaseT kit: EVBMN-M110 Wireless HDMI system: WHD200 Universal ceiling mount: OCM818B-RU Universal ceiling mount: BM-5001U Universal ceiling mount (with extension pole): OCM815B

UPC 796435 41 910 3

www.OptomaUSA.com

*Lamp life is dependent on many factors, including lamp mode, display mode,

usage, environmental conditions and more. Lamp brightness can decrease over time.

†3D content can be viewed with either RF or DLP Link active shutter glasses when projector is

used with a compatible 3D player. RF 3D glasses require the use of an RF 3D emitter and a projector with a 3D VESA Sync port. Please visit www.OptomaUSA.com for more information.

Copyright © 2014 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks of Texas Instruments™. All other trademarks are the property of their respective owners. All specications subject to change at any time. 14917
