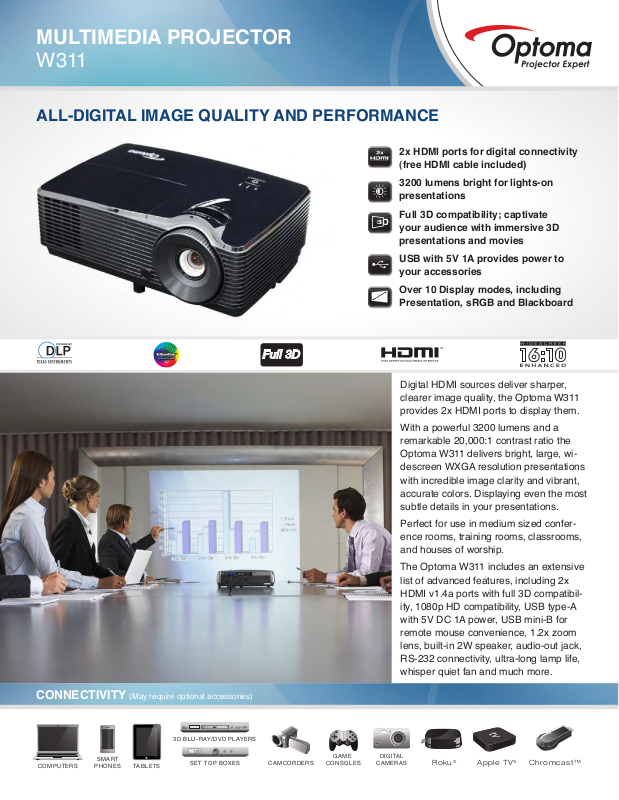

Optoma W311 Product Sheet

DIGITAL

CAMERAS

CAMCORDERS

GAME

CONSOLES

TABLETS

SMART

PHONES

COMPUTERS

SET TOP BOXES

3D BLU-RAY/DVD PLAYERS

Roku

Apple TV®Chromcast™

MULTIMEDIA PROJECTOR

W311

ALL-DIGITAL IMAGE QUALITY AND PERFORMANCE

2x HDMI ports for digital connectivity (free HDMI cable included)

3200 lumens bright for lights-on presentations

Full 3D compatibility; captivate your audience with immersive 3D presentations and movies

USB with 5V 1A provides power to your accessories

Over 10 Display modes, including Presentation, sRGB and Blackboard

Digital HDMI sources deliver sharper, clearer image quality, the Optoma W311 provides 2x HDMI ports to display them.

With a powerful 3200 lumens and a remarkable 20,000:1 contrast ratio the Optoma W311 delivers bright, large, widescreen WXGA resolution presentations with incredible image clarity and vibrant, accurate colors. Displaying even the most subtle details in your presentations.

Perfect for use in medium sized conference rooms, training rooms, classrooms, and houses of worship.

The Optoma W311 includes an extensive list of advanced features, including 2x HDMI v1.4a ports with full 3D compatibility, 1080p HD compatibility, USB type-A with 5V DC 1A power, USB mini-B for remote mouse convenience, 1.2x zoom lens, built-in 2W speaker, audio-out jack, RS-232 connectivity, ultra-long lamp life, whisper quiet fan and much more.

CONNECTIVITY (May require optional accessories)

MULTIMEDIA PROJECTOR— W311

OPTICAL/TECHNICAL SPECIFICATIONS

Display Technology Single 0.65ʺ DC3 DMD

Resolution WXGA (1280 x 800)

Maximum Resolution HD 1080p (1920 x 1080)

Brightness 3200 lumens

Contrast Ratio 20,000:1 (full on/full off)

Displayable Colors 1.07 Billion

Lamp Life and Type* 10,000/7000/6500/6000/5000 Hours

Projection Method Front, rear, ceiling mount, table top

Keystone Correction ±40° Vertical

Uniformity >80%

Aspect Ratio

Throw Ratio (Distance/Width) 1.49–1.79

Projection Distance 3.9'– 32.8' (1.2–10 m)

Image Size (Diagonal) 30"– 300" (0.69– 7.6 m)

Projection Lens F=2.59– 2.86, f=20.99–25.61 mm,

Digital Zoom

Offset 112%

Audio 2-Watt speaker

Noise Level 28dB

Remote Control IR remote mouse control

Operating Conditions 41–113°F (5–45°C), 85% max humidity

Power Supply AC input 100–240V, 50–60Hz,

auto-switching

Power Consumption Max 250 (Normal), Min 202 (Eco+),

16:10 Native, 16:9, 4:3 compatible

0.8~2.0

Technology by Texas Instruments

DLP

(Edu/Dynamic/ECO+/ECO/Normal), P-VIP 190W lamp

1.2x manual zoom and focus

<0.5W (standby-ECO)

™

COMPATIBILITY SPECIFICATIONS

Computer Compatibility HD, UXGA, UXGA, SXGA+, WXGA+, WXGA,

Video Input Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV

†

3D Compatibility

Vertical Scan Rate

Horizontal Scan Rate 15.375–91.4KHz

User Controls Complete on-screen menu, adjustments in 27

I/O Connection Ports

Loop Through (Audio)

Supports all HDMI 1.4a mandatory 3D formats

24– 85Hz, 120Hz

Two HDMI v1.4a, Audio-out, RS-232C, USB-A,

Audio: HDMI VAO audio out supported,(VAO in

SXGA, XGA, SVGA, VGA

(480p), HDTV (720p, 1080i/p)

(Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e 60 or 72 frames per eye). 3D glasses are needed and are sold separately. Refer to user manual for details.

languages

USB-B

normal mode, xed during Standby)

PHYSICAL SPECIFICATIONS

Security Kensington® Lock Port and keypad lock

Weight 4.8 (2.1 kg)

Dimensions (W x H x D) 11.3" x 4.4" x 7.5" (287 x 111 x 190 mm)

1 2 3 4

6 5

1. HDMI 1

2. HDMI 2

7.5 "

Warranty

1-Year Limited Parts and Labor, 90-Days on Lamp

In the Box (Standard Accessories)

W311 projector, AC power cord, remote control, batteries for remote, multilingual CD-ROM user’s manual, quick start card, warranty card and carrying case

Optional Accessories

Universal ceiling mount, Optoma screens, DLP® Link™ 3D glasses, wireless HDMI system and single-Cat6 HDBaseT

Accessory Part Numbers

Lamp: PBA84-2400 Remote: J8947-0384-00 Carrying case: BK-4032 DLP® Link™ 3D glasses: ZD302 Single-Cat6 HDBaseT kit: EVBMN-M110 Wireless HDMI system: WHD200 Universal ceiling mount: OCM818B-RU Universal ceiling mount: BM-5001U Universal ceiling mount (with extension pole): OCM815B

UPC 796435 41 929 5

3. RS-232C

4. USB mini-B

5. Audio-out

6. USB -A

11.3"

7. P ow e r

4.4"

*Lamp life is dependent on many factors, including lamp mode, display mode, usage, environmental

conditions and more. Lamp brightness can decrease over time.

†3D content can be viewed with either RF or DLP Link active shutter glasses when projector is used

with a compatible 3D player. RF 3D glasses require the use of an RF 3D emitter and a projector with a 3D VESA Sync port. Please visit www.OptomaUSA.com for more information.

www.OptomaUSA.com

All specications subject to change at any time.
