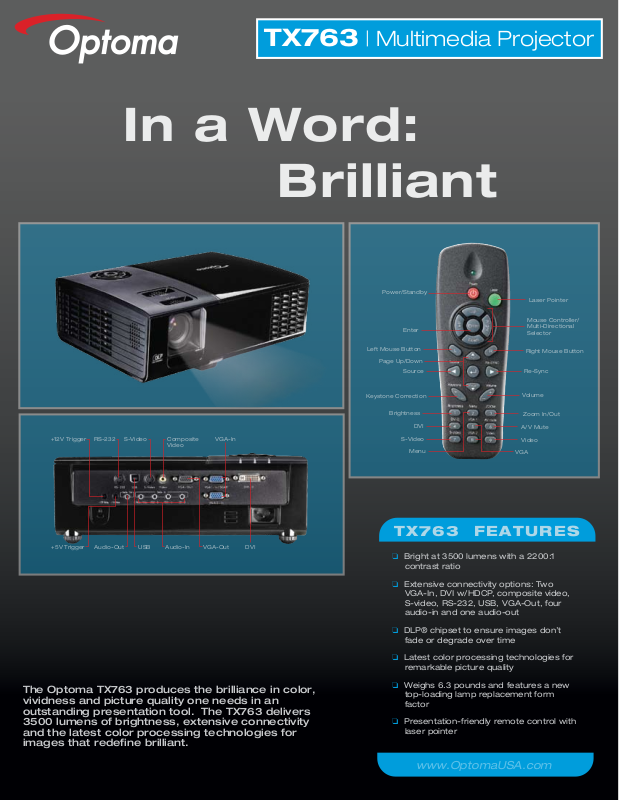

TX763 | Multimedia Projector

DVI

VGA

Volume

Right Mouse Button

Mouse Controller/ Multi-Directional Selector

Zoom In/Out

Keystone Correction

Re-Sync

Power/Standby

Laser Pointer

S-Video

A/V Mute

Source

Page Up/Down

Left Mouse Button

Enter

Video

Brightness

VGA-Out

S-Video VGA-In

USBAudio-Out Audio-In DVI

RS-232 Composite

Video

+5V Trigger

+12V Trigger

In a Word:

Brilliant

The Optoma TX763 produces the brilliance in color, vividness and picture quality one needs in an outstanding presentation tool. The TX763 delivers 3500 lumens of brightness, extensive connectivity and the latest color processing technologies for images that redefine brilliant.

TX763 FEATURES

❏ Bright at 3500 lumens with a 2200:1

contrast ratio

❏ Extensive connectivity options: Two

VGA-In, DVI w/HDCP, composite video, S-video, RS-232, USB, VGA-Out, four audio-in and one audio-out

❏ DLP® chipset to ensure images don’t

fade or degrade over time

❏ Latest color processing technologies for

remarkable picture quality

❏ Weighs 6.3 pounds and features a new

top-loading lamp replacement form factor

❏ Presentation-friendly remote control with

laser pointer

TX763 | Multimedia Projector

www.OptomaUSA.com

Projection DIstance/Image Size

Projection Distance

(Feet)

Maximum Diagonal

(Inches)

46.4

61.9

77.3

92.8

108.2

123.7

139.2

Control Panel

Keystone + & Up

Direction Key

Source & Left

Direction Key

Enter

Lamp LED Temp LED

Power LED

Optional Accessories

Lamp:

Mount:

Remote:

VGA Cable (1.8m):

VGA to Component Cable (5m):

Power Cord (1m):

Power Cord (11m):

S-Video Cable (5m):

Composite Cable (5m):

VGA to Component Adapter:

DVI Cable (5m):

DVI to HDMI Adapter:

Carrying Case:

100" 4:3 Manual Pull-Down Screen:

Minimum Diagonal

(Inches)

41.9

55.8

69.8

83.7

97.7

111.6

125.6

Power/Standby

Re-Sync & Right Direction Key

Keystone - & Down Direction Key

BL-FU260A

BM-1015N

BR-3036L

BC-VGVGXX02

BC-VGCRXX05

BC-PUPIXY01

BC-PUPIXY11

BC-SVSVXX05

BC-COCOXX05

BC-VGCRXY00

BC-DIDIXX05

BC-DIHMXY00

BK-4018

DS-3100PM

Specifications

Display Technology:

Resolution:

Maximum Resolution:

Brightness (Typical):

Contrast Ratio:

Lamp Type:

Lamp Life (Bright/STD):

Throw Ratio:

Image Size (Diagonal):

Projection Distance:

Noise Level (Bright/STD):

Remote Control:

Monitor Loop Through:

Computer Compatibility:

Video Compatibility:

Aspect Ratio:

Projection Lens:

Offset:

User Controls:

Audio:

Keystone Correction:

Vertical Refresh Rate:

Horizontal Scan Rate:

Power Supply:

Power Consumption:

Weight:

Dimensions (W x H x D):

Operating Temperature:

Displayable Colors:

Projection Method:

Uniformity:

Security:

I/O Connectors:

Standard Accessories:

Optional Accessories:

Warranty:

UPC:

Single 0.55” DDR DLP

Technology by Texas Instruments

Native XGA (1024 x 768)

SXGA+ (1400 x 1050)

3500 Lumens

2200:1 (Full On/Full Off)

230W

Estimated at 3000/4000 Hours

1.95-2.15:1 (Distance/Width)

27.49” to 304” (0.88 to 7.72m)

3.9’ to 32.8’ (1.2 to 10 m)

35dB/30dB

Fully Featured Remote Control w/Mouse and Laser pointer

D-Sub 15 VGA Output (Functional in Both Normal and Standby Modes)

VGA, SVGA, XGA, SXGA+ Resized, VESA, PC and Macintosh Compatible

NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i)

4:3 Native, 16:9 Compatible

F = 2.41~2.55, f = 21.79~23.99 mm, 1.10x Manual Zoom and Focus

115%

Complete On Screen Menu Adjustments in 21 Languages

One 2-Watt Speaker

± 16º Vertical

56 to 85 Hz

15 to 100 kHz

AC Input 100 - 240V, Auto-Switching

360 Watts (Maximum), < 10 Watts (Standby)

6.3 lbs (2.9 kg)

11.51” x 3.73” x 8.66” (295 x 95.7 x 222 mm)

41-95º F (5-35º C) (80% Humidity), Adjustable Fan Speed for High Altitude Application

16.7 Million

Front, Rear, Table Top and Ceiling Mount

85%

One Kensington® Lock Port

DVI-D w/HDCP, Two VGA-In, S-Video, VGA-Out, Composite Video, Four Audio-In, Audio-Out, USB, +12V Trigger, RS-232, +5V Trigger

AC Power Cord, VGA to VGA Cable, USB Cable, Remote Control, Batteries for Remote, Carrying Case, Quick Start Guide, Warranty Card and User’s Manual

Ceiling Mount, VGA to Component Cable, S-Video Cable, Composite Video Cable, DVI to DVI Cable, DVI to HDMI Cable, Audio-Out Adapter and Panoview™ Series Screens

3 Years Optoma Express Replacement Service, 1 Year on Lamp

796435 11 144 1

Data-TX763-001-020409

NO FILTER REQUIRED
